USER MANUAL GS70GB XMas RC Laserworld

GS-70RG move, GS-100RGB move

GS-50RG Xmas, GS-60RG Xmas RC,

GS-70GB Xmas RC

Please spend a few minutes to read this manual fully before operating this laser!

English - Legal notice:

Thank you for purchasing this Laserworld product.

Due to continual product developments and technical improvements, Laserworld (Switzerland) AG reserves the right to make modifications to its products.

This manual and its content have been made with due care but Laserworld (Switzerland) AG cannot, however, take any responsibility for any errors, omissions or any resulting damages forthwith. The brands and product names mentioned in this manual are trade marks or registered trademarks of their respective owners.

Operating instructions and usage policy without localised Laser Health and Safety guidance and professional installation:

The laser systems of the Laserworld Garden Series:

are intended for private use only (must not be operated by minors / children)

For public installations, please contact your local Laserworld representative for guidance upon installation with support from a Local HSE (Health and Safety Executive). With clear professional advice and qualified installation by a recognised HSE or LSO (Laser Safety Officer), the Garden lasers are suitable for installation in public areas if installed to the local legal requirements for safe use.

François - Information juridique:

• Legal notice, operating instructions and usage policy

• Product and package contents

• Preliminary warning notices
• Initial operations, safety instructions
• Do not open the device
  5.Warnings and other notices on the device
• Installation and operation
• Remote controller operation
• Service notes
  Final statement
  Technical data sheet & specifications

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser light effect 1 x manual 1 x stake

1 x power supply unit 1 x remote control unit

GS-60G move, GS-60RG RC Xmas, GS-70GB Xmas RC

GS-70RG move, GS-100RGB move)

(only available for

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.
2. Do not use the device if there are any visible damages on housing, power adapter or power cords.
3. Never look directly into the light source of a laser projector.
4. This device is manufactured according to protection class IP67. It is dust-proof and protected against temporary submergence. Do not operate the device under water.

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see information in this manual.
2. Make sure that the device is not connected to mains during installation.
3. Installation has to be done according to safety regulations of the respective country.
4. Always ensure that maximum permissible exposure (MPE) is not exceeded in areas accessible to the public or members of staff. A minimum distance of minimum 1.5 meters at direct exposure onto persons or animals has to be observed!

5. If the device has been exposed to great temperature changes, do not switch it on immediately. Condensation may damage device.

6. Never use dimmer, RC or other electronically switched sockets. Whenever possible, do not use the laser projector together with large appliances (especially fog machines) on the same mains!

7. Ensure sufficient ventilation and do not place the device on any warm or heat radiating surface. Ensure that the device does not get overheated.
8. Do not operate this device below -5 degrees Centigrade.
9. The operation of the laser below 8^ may result in reduced output power. This is not a deficiency, but derives from general physical principles.
10. This unit is intended for indoor and outdoor use.

4. Do not open the device

This product has no user serviceable parts inside. Do not open the device - dangerous laser radiation!

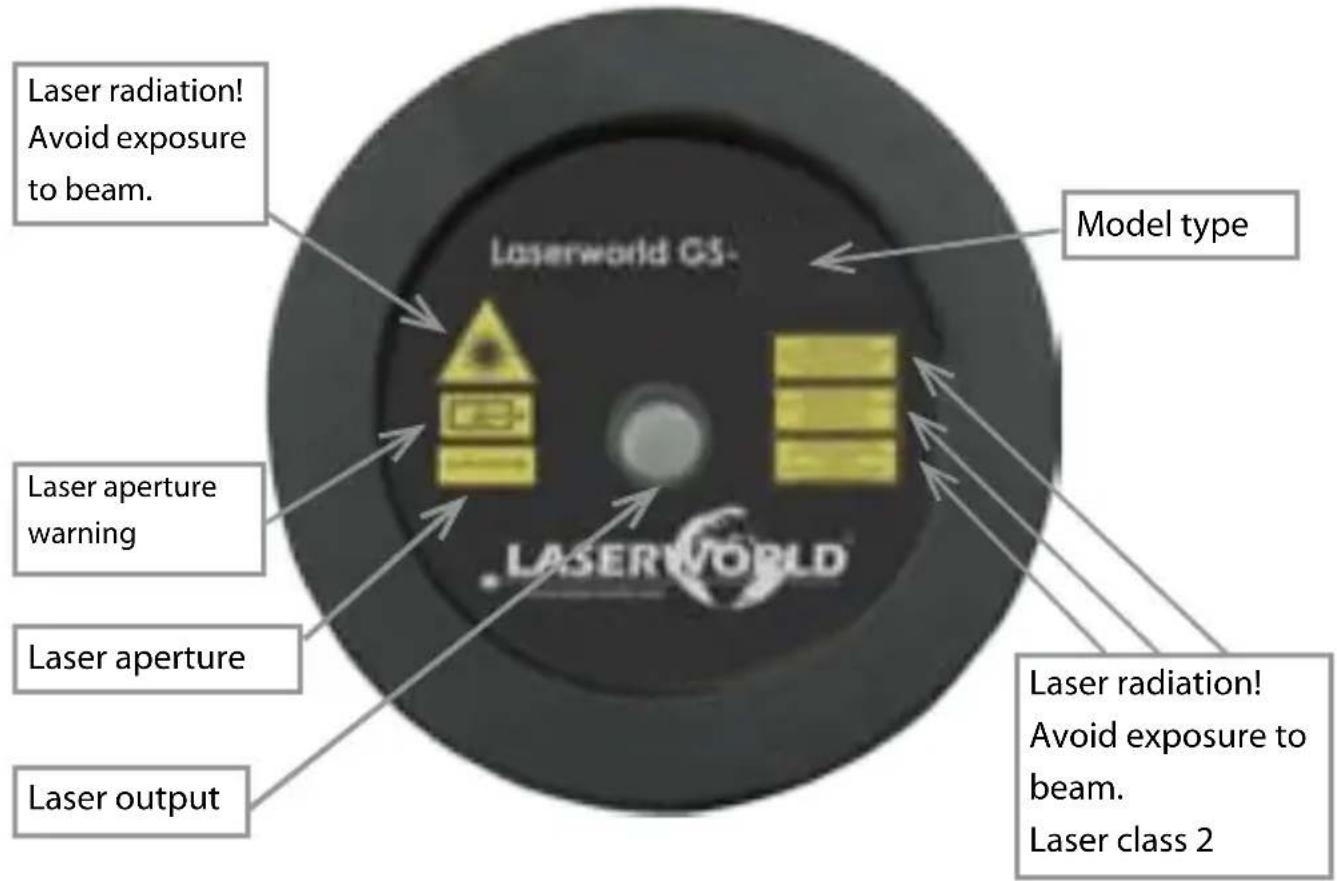

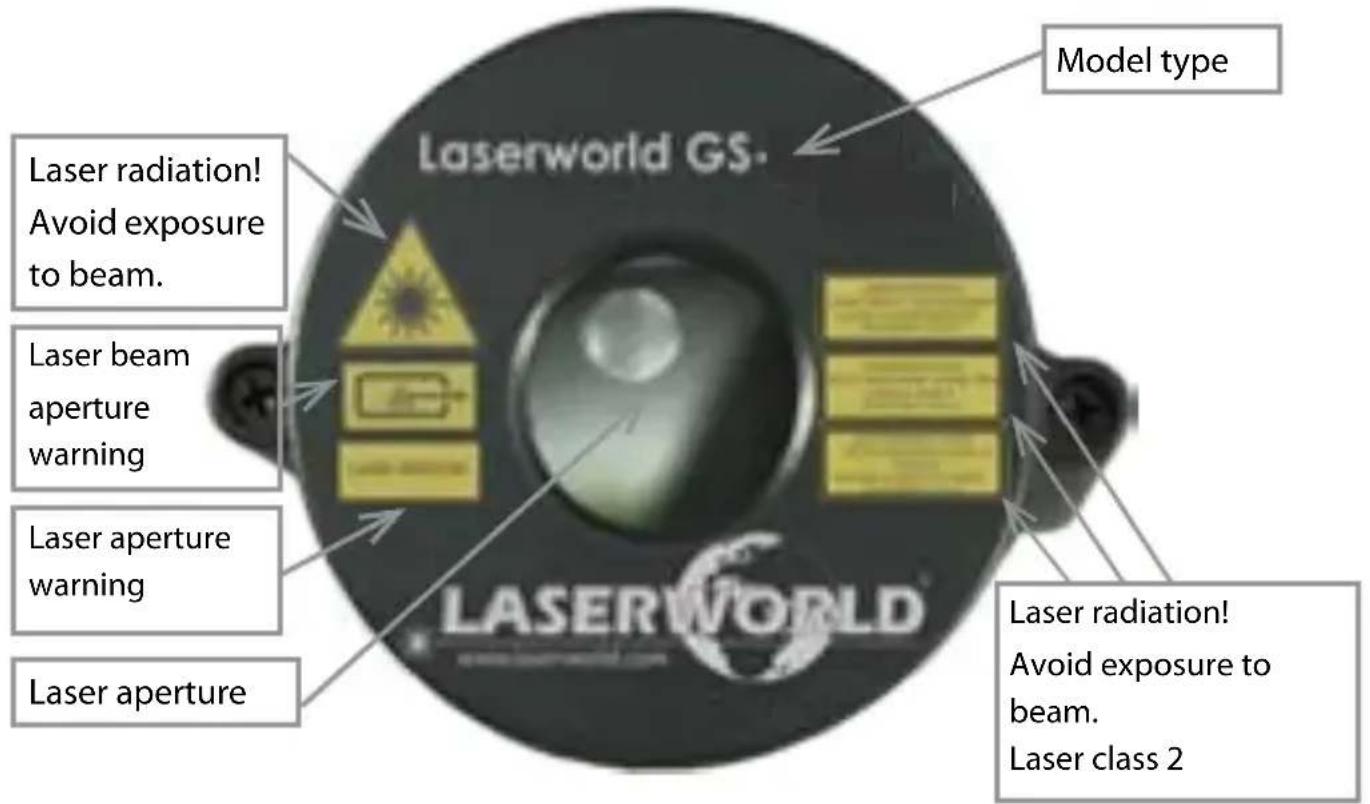

5.Warnings and other notices on the device Never open the device - hazardous radiation!

The device contains no components which can be replaced by the user.

GS-60G, GS-60G move, GS-50RG Xmas
GS-60RG Xmas RC, GS-70GB Xmas RC, GS-70RG move, GS-100RG move

6. Installation and operation

1. Choose a suitable indoor or outdoor location for your laser light effect.

2. Installation:

3. To attach the laser to the stake, place the rubber washer in between the angle brackets of the laser and the stake and bolt them together with the thumb screw that is included in delivery.

1. Connect the psu adapter to the power cable of the device. Connect the power adapter to mains.
2. Your laser device starts to project immediately.
3. Disconnect the device from mains to switch off the laser light effect.

7. Remote controller operation

Only available for GS-60RG Xmas RC, GS-70GB Xmas RC, GS-70RG move, GS-100RGB move.

Only available for GS-100RGB move: For activating all three colors - red, green and blue - to display at the same time, first select one single color via the remote control. Then switch off the laser using the red button on the remote controller and switch it on again. All three colors display at the same time now.

8. Service notes

• Quick on/off switching of this device can dramatically reduce lifetime of the laser diode.
• Avoid sharp knocks and shocks to this device and ensure sufficient protection during transportation. Look after your Laserworld product.
• Disconnect the device from mains when it is not needed.

The devices of the Garden Series are not meant for professional applications.
- Damages on the device caused by improper handling, neglect of the safety instructions and service notes will void warranty.

Final statement

Laserworld products are tested and product packaging is inspected before leaving our warehouse.

Users must to follow their local safety regulations and warnings within this manual and adhere to any regulations within its place of use. Damages through inappropriate use will void any liability or warranty of our products.

Due to continual product developments, please check for the latest update of this product manual at www.laserworld.com. If you do have any further questions, then please contact your dealer/place of purchase or use our contact section on our website.

For service issues, please contact your dealer/place of purchase and ensure only genuine Laserworld spare parts are used in any service repairs.

Errors and omissions excepted and products are subject to change.
