Product type	Cooker hood
Brand	Dominox
Model	DA 9014 XS
Power supply	220-240 V~ 50 Hz
Total power	180 W
Motor power	140 W
Lighting power	2 x 20 W max
Number of motor speeds	3 (V1, V2, V3)
Lighting type	Incandescent lamps 40 W max
Grease filter	Self-supporting metal, dishwasher safe
Odor filter	Activated carbon, non-washable, replace every 4 months
Minimum safety distance	650 mm above cooking surface
Air outlet diameter	120 or 150 mm (reducer supplied)
Extraction mode	Extracting or recirculating
Installation	Telescopic chimney, wall mounting
Material	Stainless steel
Electrical class	Class I (earth connection required)
Exterior maintenance	Damp cloth and neutral detergent

Frequently Asked Questions - DA 9014 XS Dominox

What is the minimum distance to be maintained between the hood and the hob?

The minimum safety distance is 650 mm above the cooking surface. This distance is mandatory to ensure safe operation.

How to clean the metal grease filters?

The metal grease filters are washable in the dishwasher. It is recommended to clean them every 2 months, or more frequently with intensive use. Remove them by pushing back and pulling down, then let them dry before reinstalling.

When should I replace the activated charcoal filter?

The activated charcoal filter is neither washable nor reusable. It must be replaced at least every 4 months, or more often if usage is intense.

How to replace the hood bulbs?

The bulbs are incandescent lamps of 40 W max. To replace them, first remove the grease filters, unscrew the old bulbs and install new ones of the same specifications. Then refit the filters.

Can I use the hood in recirculation mode (without external extraction duct)?

Yes, the hood can operate in filter mode. In this case, ensure that the activated charcoal filters are installed and that the air outlets are connected according to the instructions in the manual.

What to do if the hood does not turn on or does not work?

First check the power supply and that the plug is connected. Ensure that the power cable connector is properly inserted into the diffuser socket. If the problem persists, contact after-sales service.

How to adjust the different motor speeds?

The hood has three speeds: V1 (minimum speed, quiet for light steam), V2 (medium speed for normal use) and V3 (maximum speed for heavy emissions). Use the motor switch to select the desired speed.

Is the hood suitable for a gas stove?

Yes, but it is essential to respect the minimum distance of 650 mm and ensure sufficient room ventilation if you use non-electric appliances (gas). Avoid open flames under the hood.

What are the items supplied for installation?

The hood is supplied with: a hood body, a telescopic chimney (upper and lower), a reduction flange ø 150-120 mm, an air outlet connection extension, an air outlet connection, fixing brackets, wall plugs and screws.

How to maintain the exterior surfaces of the hood?

To clean the surfaces, use a damp cloth with a neutral liquid detergent. Avoid abrasive products or solvents that could damage the coating.

USER MANUAL DA 9014 XS Dominox

GB Instructions for use and installation Cooker Hood

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS....14

CHARACTERISTICS....15

INSTALLATION 16

USE....19

MAINTENANCE....20

Manuel d'Instructions SOMMAIRE

CONSEILS ET SUGGESTIONS ....21

CARACTERISTIQUES 22

INSTALLATION 23

UTILISATION....26

ENTRETIEN....27

Illustration of a cooking setup with a pot and a stove, crossed by a green X (no text or symbols)

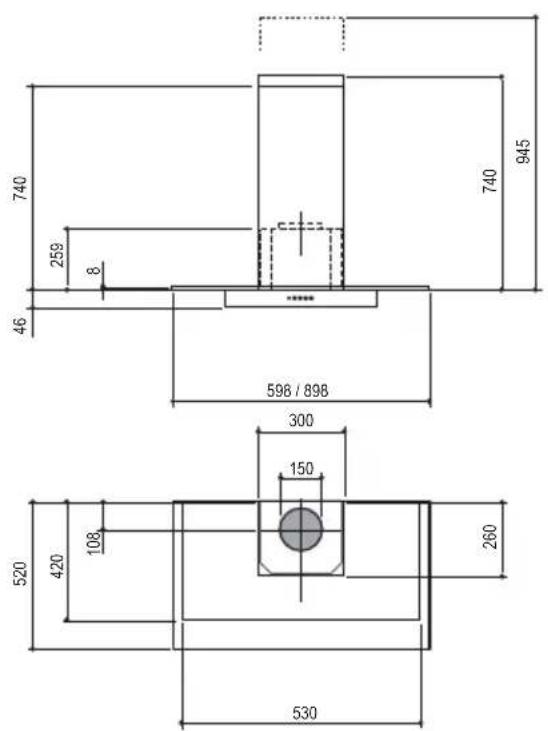

Ingombro

740 259 8 46 740 945 596 / 898 300 150 520 420 108 260 530

135 90 433 650 min.

Componenti

Mechanical component diagram showing a bracket with a green arrow indicating direction (no text or symbols present)

Montaggio Camino

Camino superiore

S V1V2V3 L

Illustration of a hand pressing a green arrow on a smartphone screen (no text or symbols)

Filtro antiodore (Versione Filtrante)

SOSTITUZIONE FILTRO ANTIODORE AL CARBONE ATTIVO

Illustration of a hand using a finger to clean or repair a green surface, with no visible text or symbols.

Illuminazione

Line drawing of a hand using a tool to measure a mechanical component (no text or symbols present)

RECOMMENDATIONS AND SUGGESTIONS

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

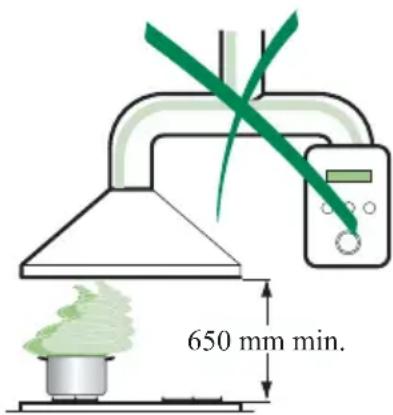

• The minimum safety distance between the cooker top and the extractor hood is 650 mm.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
  Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• The hood should not be used by children or persons not instructed in its correct use.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

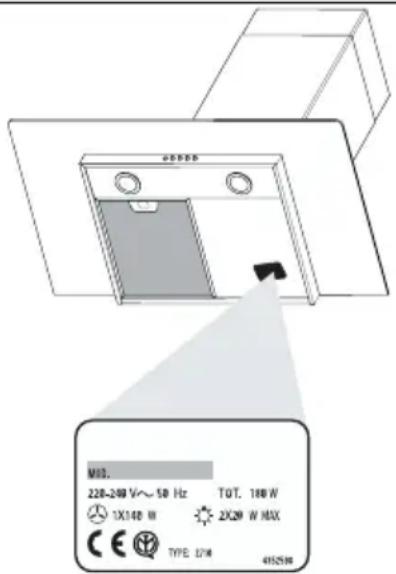

M10 228-240 V~ 50 Hz TOT. 180 W 1X140 W 2X20 W MAX TYPE 12W 4152500

650 mm min.

Illustration of a stove with a green stove inside and a crossed-out green smoke or flame, against a light green background (no text or symbols)

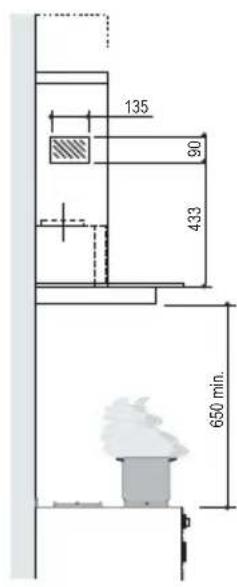

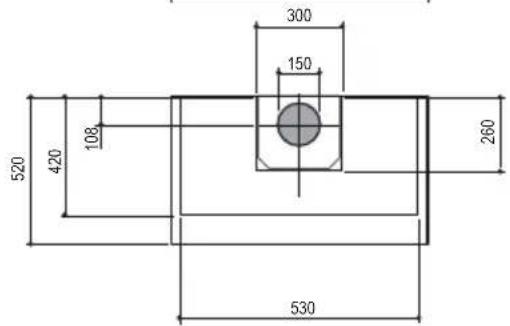

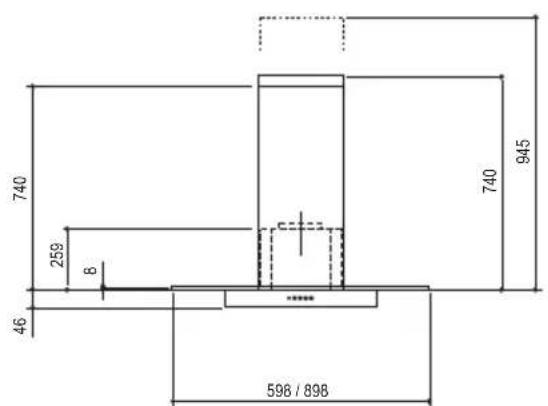

Dimensions

740 259 8 46 596 / 898 740 945

135 90 433 650 min.

300 150 520 420 108 260 530

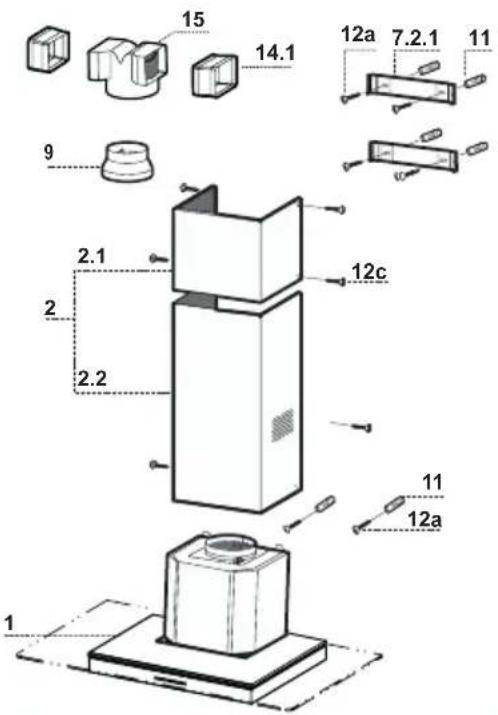

Components

Ref.	Q.ty	Product	Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper	Section
2.2	1	Lower	Section
9	1	Reducer Flange ø 150-120 mm
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection

Ref.	Q.ty	Installation	Components
7.2.1	2	Upper Chimney Section Fixing Brackets
11	6	Wall	Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5

Q.ty	Documentation
1	Instruction Manual

15 14.1 12a 7.2.1 11 9 2.1 2 2.2 12c 11 12a 1

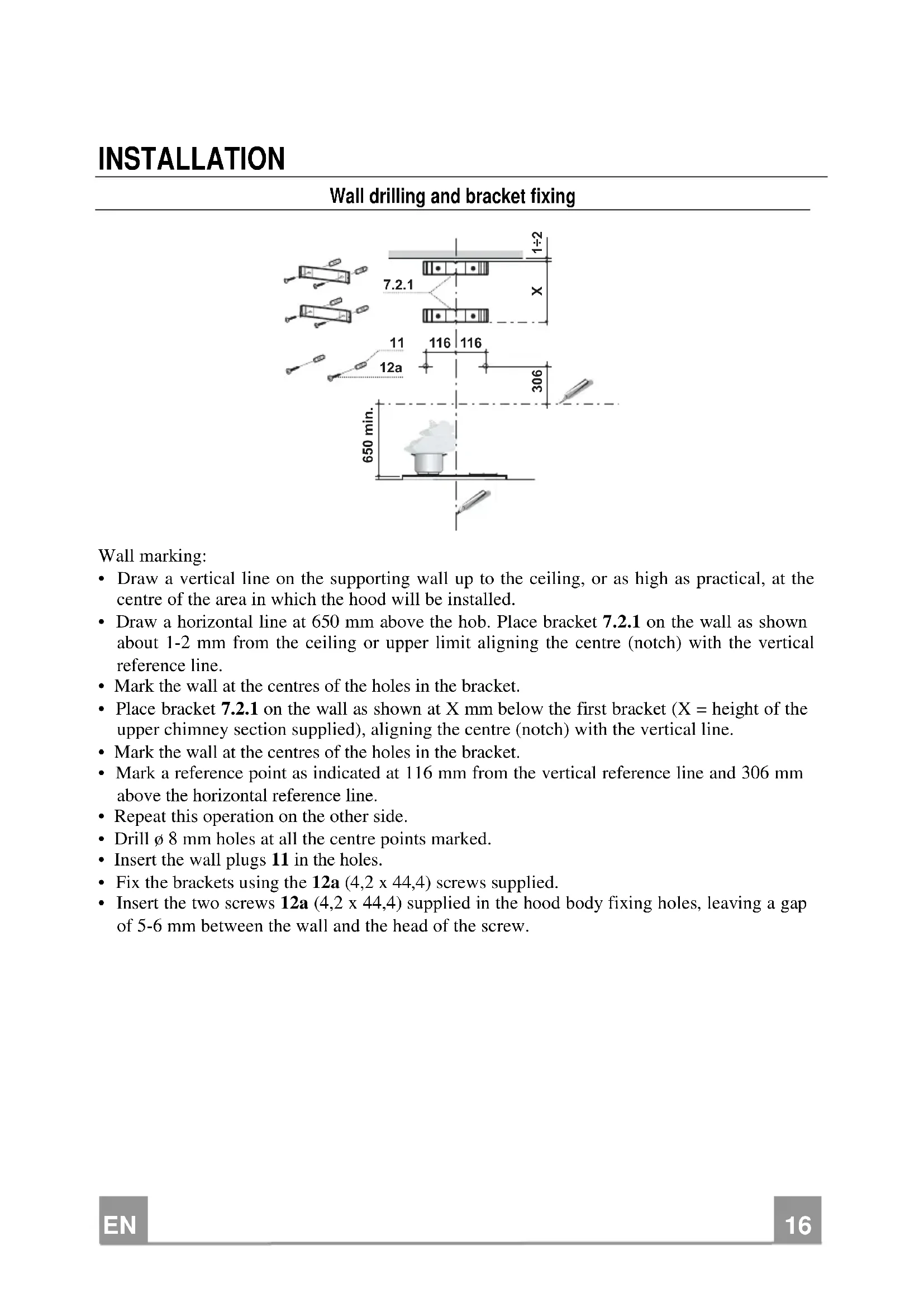

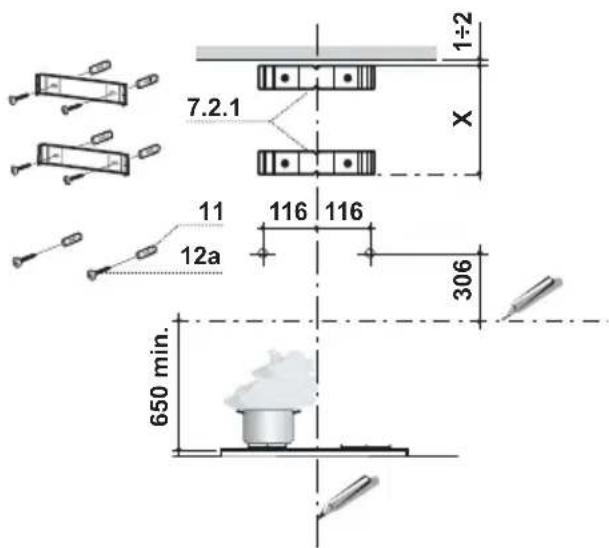

Wall drilling and bracket fixing

7.2.1 1÷2 X 11 116 116 12a 306 650 min.

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
• Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper chimney section supplied), aligning the centre (notch) with the vertical line.
• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 306 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the brackets using the 12a (4,2 x 44,4) screws supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

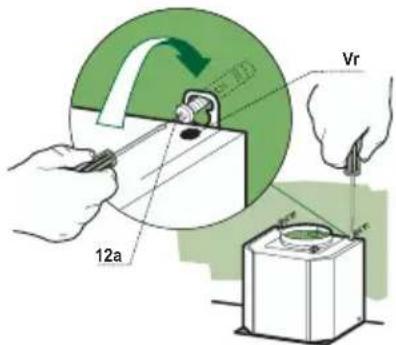

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
  • Fully tighten support screws 12a.
• Adjust screws Vr to level the hood body.

12a Vr

Connections

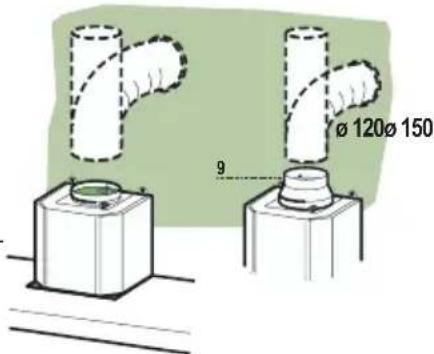

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 9 on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

Ø 120Ø 150 9

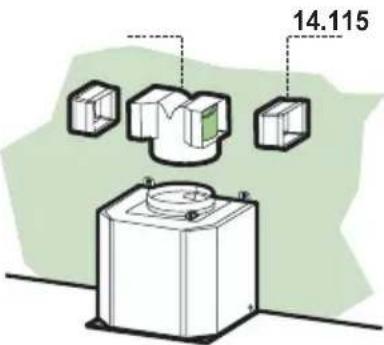

RECIRCULATION VERSION AIR OUTLET

• Push fit connection 15 onto the hood body outlet.
• Insert the connection extension pieces laterally 14.1 in connection 15.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets. If this is not the case, adjust the position by either reversing the connection extension pieces 14.1 and then reassemble as described previously.
• Ensure that the activated charcoal filters have been inserted.

14.115

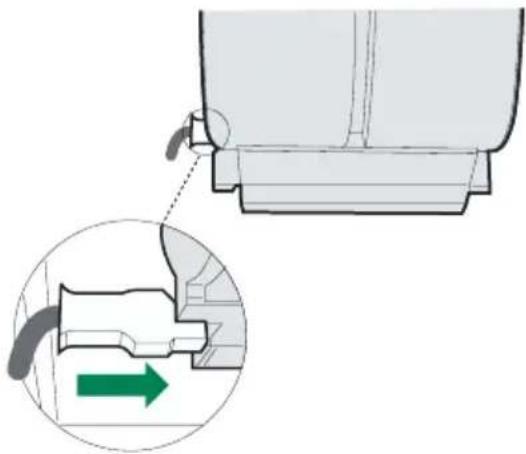

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.
• Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Mechanical component diagram showing a bracket with a green arrow indicating direction (no text or symbols present)

Flue assembly

Upper exhaust flue

• Slightly widen the two sides of the upper flue and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

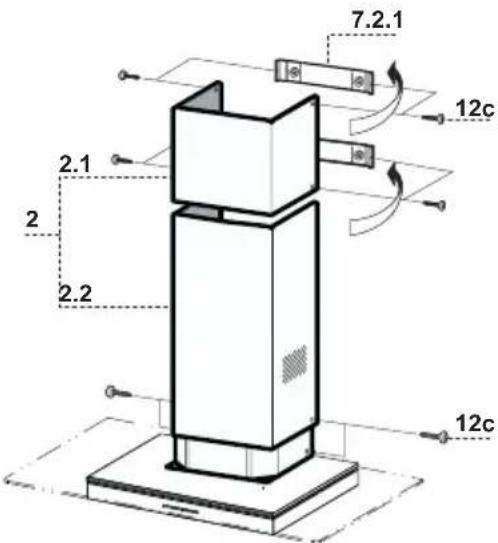

Lower exhaust flue

• Slightly widen the two sides of the flue and hook them between the upper flue and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.
  • Make sure that the air outlet connection is aligned with the chimney outlets.

7.2.1 12c 2.1 2 2.2 12c

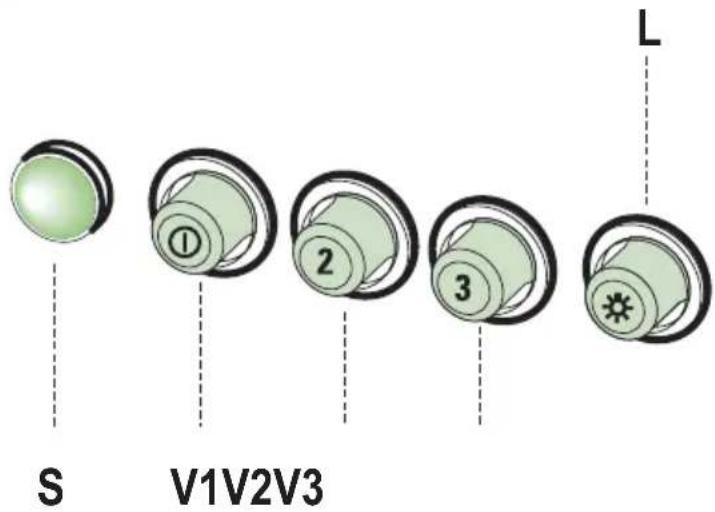

S V1V2V3 L

L Light Switches the lighting system on and off.

S Led Motor running led.

V1 Motor Switches the extractor motor on and off at low speed. Used to provide a contin-uos and silent air change in the presence of light cooking vapours.

V2 Speed Medium speed, suitable for most operating conditions given the optimum treated air flox/noise level ratio.

V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Grease filters

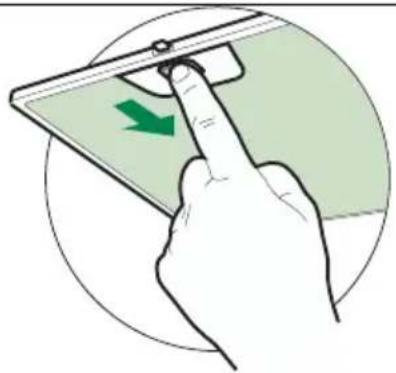

CLEANING METAL SELF- SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Illustration of a hand pressing a green directional arrow on a smartphone screen (no text or symbols)

Activated charcoal filter (Recirculation version)

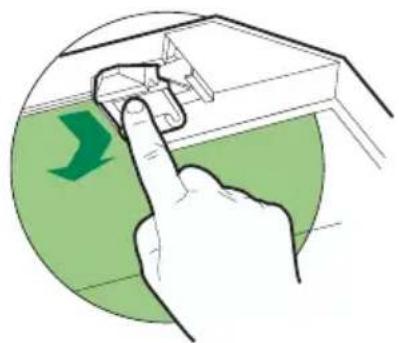

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters
• Remove the saturated activated carbon filter by releasing the fixing hooks
  • Fit the new filter by hooking it into its seating
• Replace the metal grease filters.

Illustration of a hand pressing down on a window with a green arrow symbol (no text or labels)

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

INSTALLATION

Illustration of a cooking setup with a pot and a stove, crossed by a green X (no text or symbols)

Encombrement

740 259 8 46 596 / 898 740 945

135 90 433 650 min.

300 150 520 420 108 260 530

Composants

Mechanical component diagram showing a bracket with a green arrow indicating direction (no text or symbols present)

Montage Cheminée

Cheminée supérieure

S V1V2V3 L

Illustration of a hand pressing a green arrow on a smartphone screen (no text or symbols)

Filtre anti-odeur (Version filtrante)

REMLACEMENT FILTRE AU CHARBON ACTIF

Illustration of a hand pressing down on a window with a green arrow symbol (no text or labels)

Eclairage

REMLACEMENT LAMPES

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

MONTAGE

Illustration of a stove with steam rising and a crossed-out green smoke next to it, no text or symbols present.

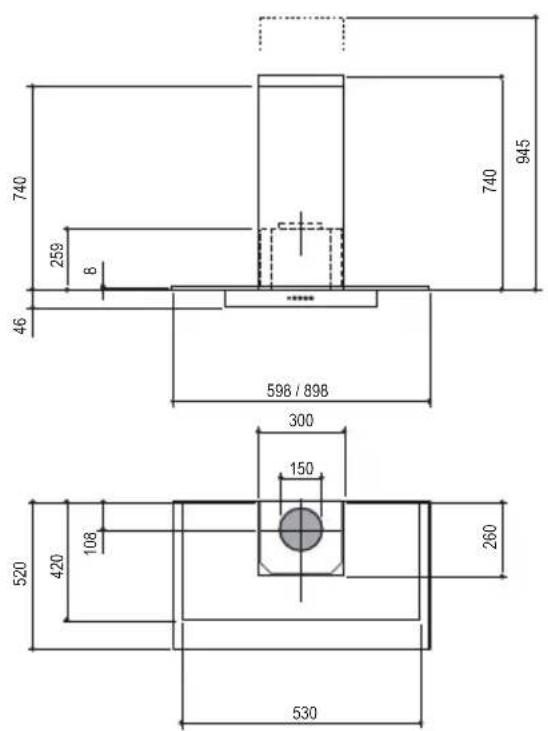

Platzbedarf

740 259 8 46 740 945 596 / 898 300 150 520 420 108 260 530

135 90 433 650 min.

Komponenten

Anschlüss in abluftversion

Mechanical component diagram showing a piston and lever assembly with a magnified inset highlighting a green directional arrow (no text or symbols)

Kaminmontage

Oberer Kaminteil

S V1V2V3 L

Hand inserting a green arrow on a smartphone screen, enclosed in a circular frame (no text or symbols)

Geruchsfilter (Umluftversion)

Illustration of a hand pressing down on a green surface with a green arrow symbol (no text or labels)

Beleuchtung

AUSWECHSELN DER LAMPEN

Glühlampen 40W

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Illustration of a stove with a green stove inside and a crossed-out green smoke or flame, against a light green background (no text or symbols)

Boyutlar

740 259 8 46 598 / 898 740 945

135 90 433 650 min.

300 150 520 420 108 260 530

Parçalar

Mechanical component diagram showing a bracket with a green arrow indicating direction (no text or symbols present)

Bacanın Montajı

Üst baca

S V1V2V3 L

Hand inserting a green arrow on a device screen, enclosed in a circular frame (no text or symbols)

Koku Filtresi (Filtreli Model)

AKTİF KARBONLU KOKU FİLTRESİNİN DEĞİŞTİRİLMESİ

Illustration of a hand using a tool to clean or repair a green surface, with no visible text or symbols.

Aydınlatma

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
