USER MANUAL E9 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your egg boiler will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the egg boiler (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning • Operation • Troubleshooting and/or • Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.24 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for cooking and boiling of eggs. This device is intended for use in the household and for similar applications such as:

• in kitchens for employees in shops, offices, and other commercial areas; in B&Bs,

• in agricultural estates;

• by customers in hotels, motels and other residential establishments. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use. Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.25 Please note ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. ► Children are not allowed to play with the device. ► The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Care should be taken when using the appliance due to the emission of hot water vapour from the lid. ► The egg piercer at the bottom of the measuring cup can cause injury. ► Do not store pierced eggs, boil immediately. ► Do not immerse the unit in water and do not give it in the dishwasher. ► Please ensure that the cable does not come into contact with hot surfaces of the device. ► Do not use the device without water. ► Fill in only cold water. ► Use only original accessory. ► Device is not intended to be operated by means of an external timer or separate remote-control system.26

12.3 Sources of danger

12.3.1 Danger of burning!

Danger of burning! ► During operation the device heats up, on top of lid hot water and hot steam escape, risk of burns! ► The device will be very hot. Let it cool down before moving it. ► The housing and the lid will be very hot. Risk of burns. ► Hold the lid and the egg tray at the handle. ► Hot steam can escape from the steam vent and when you open the lid. Risk of burns! ► Attention the heating element / device may still be hot after use.

12.3.2 Dangers due to electrical power

Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Do not touch the device with wet hands. ► Take care that water will not run in/onto the plug.27

12.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual

• Uses for non-intended purposes

• Technical alterations, modifications of the device

• Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

12.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 13 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

Warning ► Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

As a rule, the Egg Boiler is delivered with the following components:

• Heating plate with water tank • Lid • Egg tray

• Measuring cup with egg piercer and silicon cover for protection

• 2 small bowls • Operating Instructions28 Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

• Remove the device out of the carton, remove the packaging material, shovel and measuring container.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal and water-resistant surface with sufficient load-bearing capacity for the egg cooker with content.

• Do not place the device on a heat-sensitive surface and keep a least 15 cm distance to flammable materials.

• Choose the setup location in such a way that children cannot reach the device.

• The device is not intended to be installed in a wall or a built-in cupboard.

• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• Keep the device away from sources of heat, direct sunlight, humidity and sharp edges.

• Do not cover up any openings on the device and do not block these off.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.29

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.

• The electrical outlet must be protected by a 16A safety cut-out switch.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.

• Make sure that the power cable is undamaged and has not been installed under the ice maker or over hot or sharp surfaces.

• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

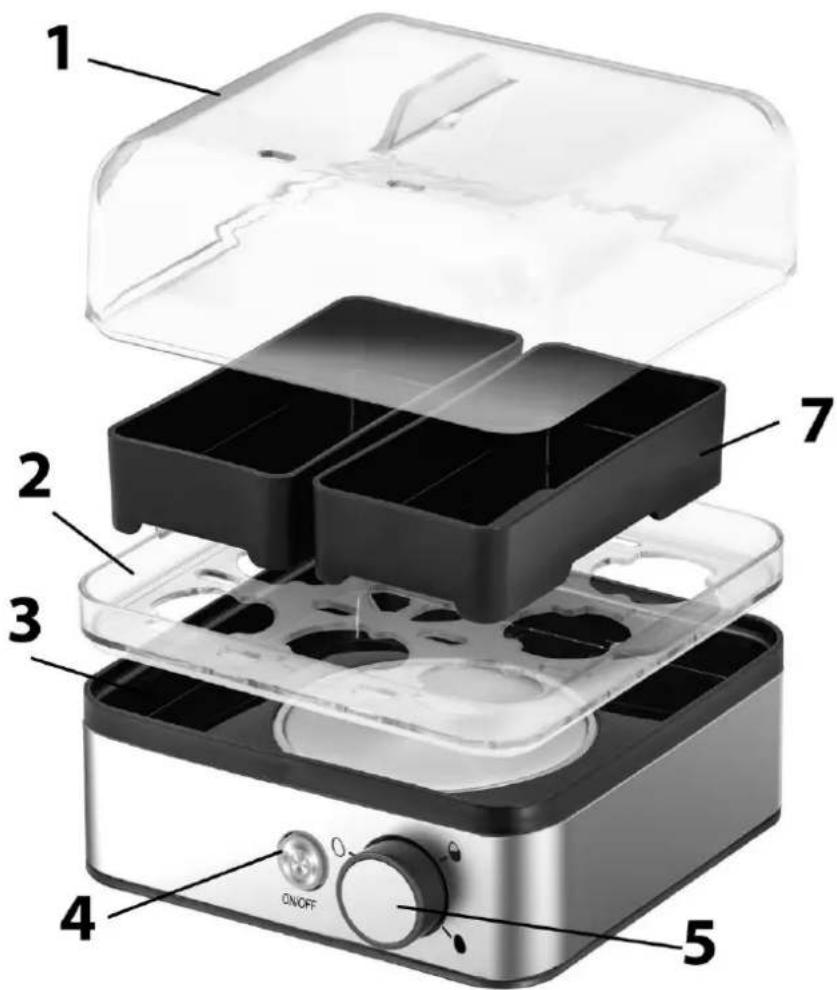

14 Design and Function This chapter provides you with important safety notices on the design and function of the device.30

3. Heating plate with

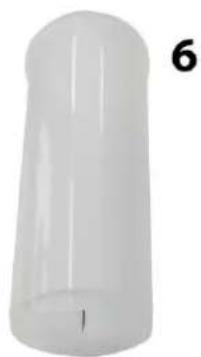

6. Measuring cup with

egg piercer at the bottom

The rating plate with the connection and performance data can be founded beneath the device. 15 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages: Warning With the commissioning of the equipment may occur to persons and property! Observe the following precautions to avoid the dangers: ► Do not leave the unit during the operation unattended. ► Be careful, the unit heats up, hot water and steam come up out of the lid, it can cause burns ! Please note ► Depending on the hardness of the water, but however at least once a month the device must be descaled, otherwise the device may be damaged and its function can be affected. With the device you can cook up to 8 eggs, poach up to 4 eggs, and also can cook savory egg custard or 2 small omelettes.31 Explanation of symbols. soft medium hard

Rinse the bowls and the lid unter runnig water and wipe the heating plate with water tank with a damp cloth. Please note ► Make sure that the device is still disconnected from power supply.

15.1 Cooking of eggs

Fill the quantity of water of one measuring cup into the water tank. Pierce the eggs on their blunt side with the egg piercer at the bottom of measuring cup . Place the eggs with blunt side up into the egg tray. Place the egg tray with the eggs into watertank. Lid should be placed with steam vent facing the back. Plug in the mains plug and select the desired hardness for the eggs. The setting refers to eggs of size M. For smaller eggs turn the setting closer to soft. For bigger eggs turn the setting closer to hard. Start the cooking with ON/OFF button. Any turn of knob will reset the timer and cooking will restart from the beginning. The eggs are ready when acoustic signal sounds. If you leave the eggs in the device after this they will be harder. Switch the device off with OFF button. Attention ► Pay attention to the hot steam when taking off the lid. Always grasp the handle of the lid and let condensed water drip off turning the lid over the appliance. Please note ► The hardness selection is actually a very personal judgement. Your experience of using the appliance is valuable to let you know what setting is fitting your personal taste.

15.1 Preparing poached eggs

Fill the quantity of water of one measuring cup into the water tank. Place the egg tray. Grease the small bowls with a bit of butter and fill in the mass for the poachd eggs. Alternatively you can also fill in prepared mass for egg custard or for one omelet for each bowl. Do not fill in more than two eggs into one bowl. Place the lid with steam vent facing the back. Plug in the mains plug and select hardness hard. Start the cooking with ON/OFF button.32 An acoustic signal sounds when the egg mass is ready. Switch the device off with OFF button. Let the egg mass cool down, before cutting it into cubes for example for egg custard. 16 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

16.1 Security advices

Attention ► Repairs of electrical appliances must be carried out by qualified personnel who are trained by the manufacturer. ► Repairs performed by untrained persons may result in considerable hazards for the user and damage the machine.

16.2 Overheating protection

The device is equipped with an overheating protection. If the device is unintended operated without water, then the device will cut off automatically. In such ca case, switch off the device with OFF and disconnect the mains plug from the wall socket. After cooling of the device you can use it again. Attention ► If above mentioned steps don't solve the problem, please contact your customer service. 17 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

17.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► Switch the device off prior to cleaning it and unplug the plug from the wall power outlet. Remove the accessories. Let device and accessories cool down before cleaning. ► If you do not follow the cleaning instructions, proper hygiene is not guaranteed. ► Before and after longer storage, in which the device is not used, it must be cleaned according to the cleaning instructions. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items.33 Attention ► Do not immerse the unit into water, do not put it in a dishwasher.

Heating plate: Wipe the cooled heating plat with a damp cloth. Egg tray, egg piercer, bowls and lid: Egg tray, egg piercer, bowls and lid can be cleaned under running water with dishwashing detergent. Dry this accessory thoroughly after this. Descaling: Take of the lid and pur some water in with a shot of vinegar. Let this water boil briefly. Wait 10 minutes and then clean the device thoroughly. 18 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 19 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.34 Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase). 20 Technical Data Device E9 Egg boiler Item No.:
