Product Type	Wireless Ergonomic Mouse
Model	Ergonomic EM550GPS
Brand	3M
Power Source	2 AAA batteries (included)
Sensor Technology	Optical (red light)
Buttons	Left click, right click (thumb), third button (scroll), connect button, power button
Connectivity	RF wireless via USB receiver
Compatible Operating Systems	Windows XP and later, Mac OS X 10.4.x and later, Linux
Operating Temperature	0°C to 40°C (32°F to 104°F)
Warranty	2 years limited
Care and Cleaning	Blow or wipe the optical aperture with a soft cloth; do not insert objects
Safety	Keep batteries and connector out of reach of children; do not heat, disassemble, or expose batteries to fire; use only AAA alkaline batteries
General Information	Ergonomic design to reduce hand/wrist/arm pain; clinically approved

Frequently Asked Questions - Ergonomic EM550GPS 3M

How to install batteries in the EM550GPS mouse?

Lift the mouse and open the battery compartment cover by pushing the latch inward. Insert 2 AAA batteries following the + and - symbols. Then turn on the mouse using the power button; the optical lens should light up red.

How to connect the mouse to my computer?

Turn off the computer and mouse. Plug the USB receiver into a USB port. Turn on the computer, then the mouse. Press the CONNECT button on the receiver (a green light flashes), then the CONNECT button on the mouse. The green light flashes quickly then stops. Your mouse is ready.

What to do if the mouse is not detected or does not work?

Check that the mouse is turned on and batteries are new and correctly installed. Ensure the USB port is functional. Reconnect the mouse following the connection procedure. Avoid conflicts with other peripherals and check operating system compatibility.

Why does the cursor jump or freeze?

This may be due to using new muscles required for this ergonomic mouse. You can adjust the cursor speed in your operating system settings. Also ensure you are using the mouse on a suitable surface (not glass, mirror, rough surface, or complex pattern).

How to clean the EM550GPS mouse?

To clean the optical sensor, simply blow on the aperture to remove dust or crumbs, or wipe it with a soft cloth. Never insert any object into the opening.

What batteries to use with the mouse?

Use only AAA alkaline batteries. Follow the polarity (+ and -) indicated in the compartment. Do not mix new and used batteries.

Is the mouse compatible with Mac and Linux?

Yes, the 3M EM550GPS ergonomic mouse is compatible with Windows XP and later, Mac OS X 10.4.x and later, and Linux distributions.

What to do if the mouse causes radio interference?

Move the mouse away from other radio devices (radio, TV, cordless phone). Change location or plug the computer into a different circuit. If necessary, contact your dealer or technician.

How to get a refund if I am not satisfied?

You can return the mouse to 3M within 30 days of purchase for a refund of the purchase price. Call customer service at 1-800-332-7483 for return instructions. Do not return the product to the place of purchase.

What is the warranty period?

The mouse has a limited 2-year warranty from the date of purchase, covering defects in materials and workmanship. Damages due to misuse are not covered.

USER MANUAL Ergonomic EM550GPS 3M

2-3 Overview 4-5 Specifications

6 Safety Information

7-11 Instructions

12 Troubleshooting

13-14 Regulatory/Warranty Information

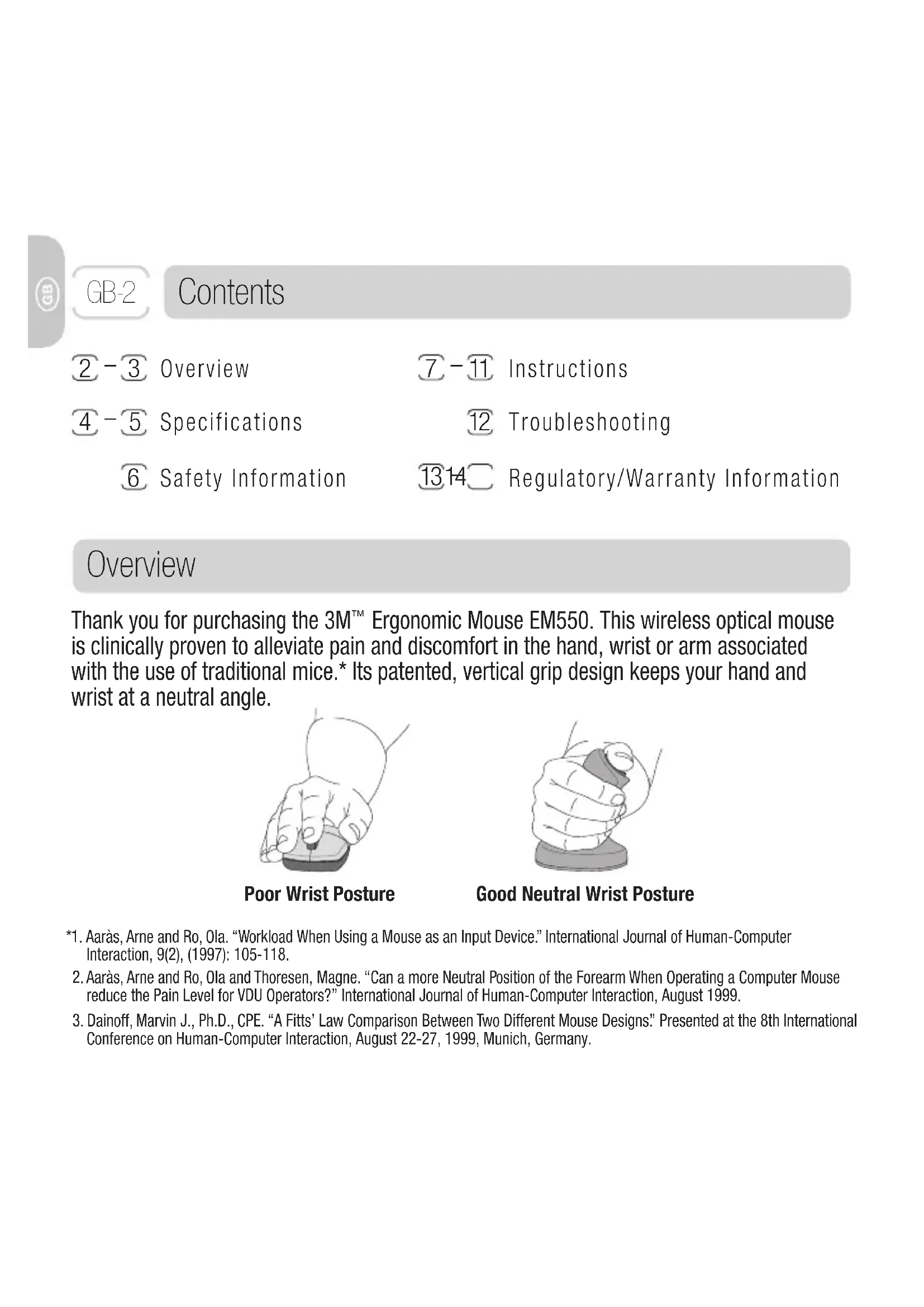

Overview

Thank you for purchasing the 3M™ Ergonomic Mouse EM550. This wireless optical mouse is clinically proven to alleviate pain and discomfort in the hand, wrist or arm associated with the use of traditional mice.* Its patented, vertical grip design keeps your hand and wrist at a neutral angle.

Poor Wrist Posture

Good Neutral Wrist Posture

*1. Aaras, Arne and Ro, Ola. "Workload When Using a Mouse as an Input Device." International Journal of Human-Computer Interaction, 9(2), (1997): 105-118. 2. Aaras, Arne and Ro, Ola and Thoresen, Magne. "Can a more Neutral Position of the Forearm When Operating a Computer Mouse reduce the Pain Level for VDU Operators?" International Journal of Human-Computer Interaction, August 1999. 3. Dainoff, Marvin J., Ph.D., CPE. "A Fitts' Law Comparison Between Two Different Mouse Designs." Presented at the 8th International Conference on Human-Computer Interaction, August 22-27, 1999, Munich, Germany.

Overview

GB-3

When you use a traditional mouse, you pronate your forearm and wrist and typically press your wrist and carpal tunnel area against the desk. This behavior can lead to repetitive stress injuries, which can result in pain or discomfort in the hand, wrist or arm.

The 3M™ Ergonomic Mouse works as a regular optical mouse—except that your hand grips the handle and rests on the base, and you use your thumb to left and right click. You can scroll in many programs by clicking the 3rd button. It may take up to a week to adjust to using the 3M Ergonomic Mouse.

Your satisfaction is guaranteed. If you are not satisfied for any reason, you may return the mouse to 3M for a full refund within 30 days of the purchase date. Refer to the warranty section for instructions.

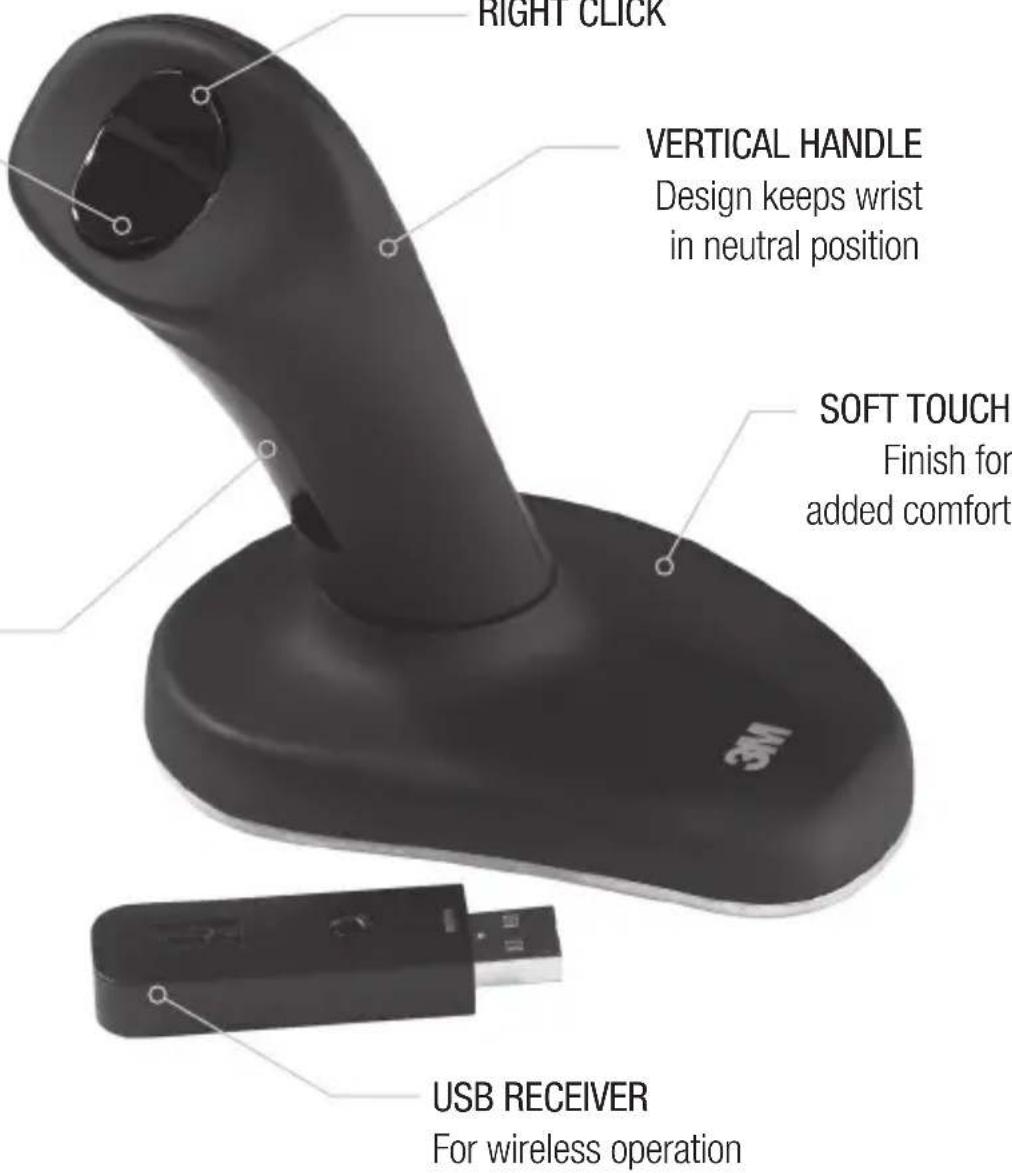

LEFT Click

THIRD BUTTON

Enables scrolling in

some applications

RIGHT Click

VERTICAL HANDLE

Design keeps wrist in neutral position

SOFT TOUCH

Finish for

added comfort

Specifications

GB-5

CONNECT BUTTON

Located on

mouse underside

POWER SWITCH

LED/OPTICAL

SENSOR

Illuminates in red

when power is on

BATTERY COVER

Push latch

inward to open

Requires two (2)

AAA batteries

(included)

The 3M™ Ergonomic Mouse EM550 is compatible with the following operating systems:

Microsoft — Windows XP, Vista and later

Apple - MAC OS 10 X v10.4.X, v10.5.X and later

Linux distributions

Please retain this manual for future reference.

The following WARNING statement indicates a hazardous situation, which, if not avoided, could result in death or serious injury.

WARNING

To reduce the risks associated with choking:

-keep USB receiver, batteries and battery cover out of reach of children and pets.

The following CAUTION statements indicate hazardous situations, which, if not avoided, could result in minor or moderate injury.

CAUTION

To reduce the risks associated with explosion and chemicals from a leaking battery:

—do not heat, disassemble, short, recharge, or expose the batteries to fire or high temperature.

do not mix used and new batteries.

To reduce the risks associated with chemicals from a leaking battery:

-avoid eye and skin contact in the event that the battery leaks.

To reduce the risks associated with high intensity light beam:

do not allow children to stare at the LED light beam located on the bottom of the mouse.

To reduce the risks associated with environmental contamination:

—dispose of alkaline batteries in accordance with applicable local government regulations.

Important Safety Considerations

• Use only batteries of the correct size and type (AAA - alkaline).
• Orient the battery's plus (+) and minus (-) terminals according to the markings found on the battery cover.
• Do not carry batteries loose in your pocket or purse.
• Do not leave batteries in the mouse for extended periods of time.

1

Installing the Batteries.

1A

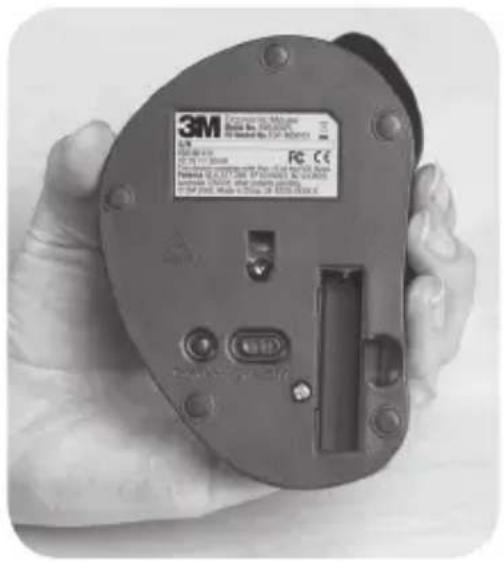

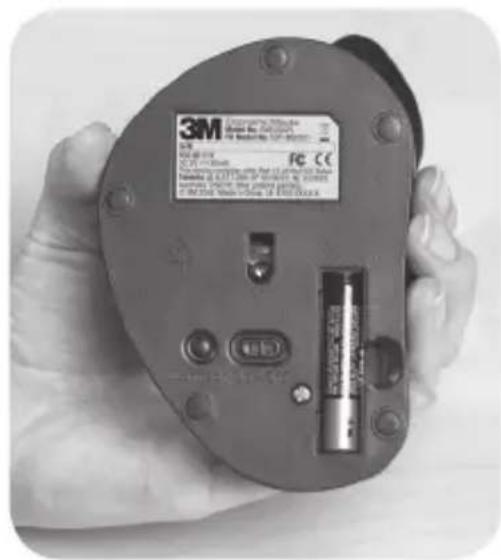

Turn the mouse over and remove the battery cover.

GB-8

Instructions

1B

Slide the batteries into the battery compartment as shown in the illustration on the battery cover and replace cover.

1C

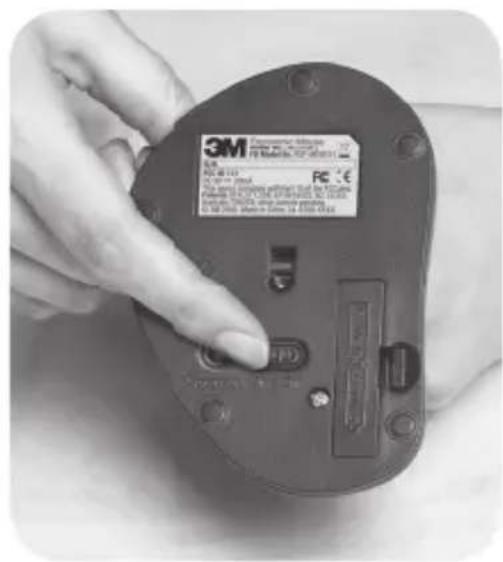

To check if batteries are installed properly, turn the power switch to ON.

The optical lens will illuminate in red. Turn the power switch to OFF.

2

Connecting the Mouse to Your Computer.

2A

Turn off your computer.

Turn off your mouse.

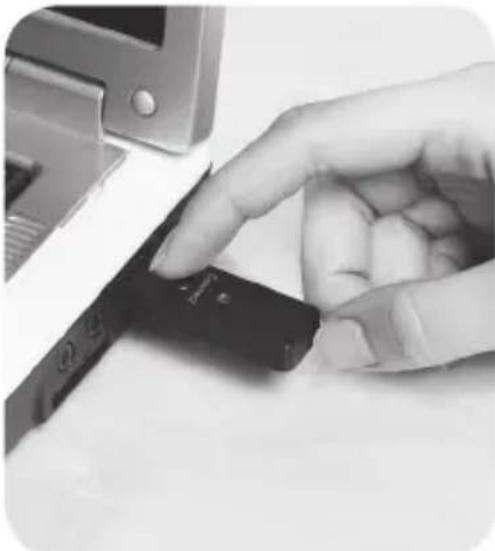

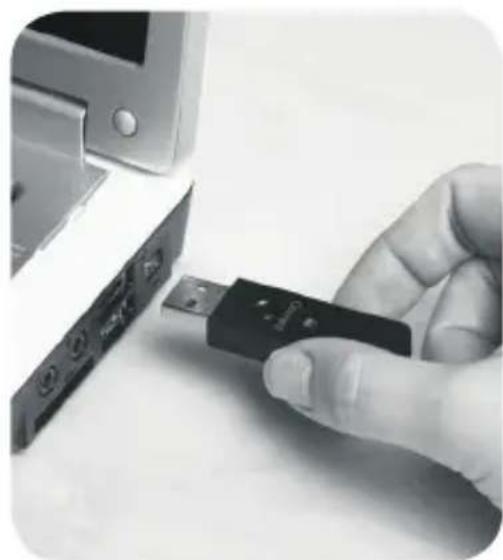

Plug USB receiver into an open USB port on your computer.

Turn on your computer.

Turn on your

mouse. The

optical lens will

illuminate in red.

Press CONNECT

button on USB

receiver. Green light

will slowly blink.

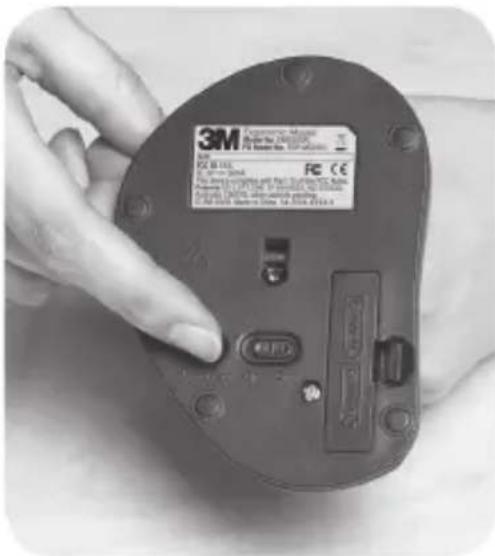

Press CONNECT button on mouse

Green light on

USB receiver will

quickly blink for

a short time,

then stop.

2D

Move your mouse.

Basic mouse functionality will activate. While moving the mouse, the green light on USB receiver will quickly blink. While the mouse is idle, the green light will not blink.

Your mouse is now ready for use. You can customize your mouse settings through your mouse settings utility included with your operating system (Windows, Mac, Linux).

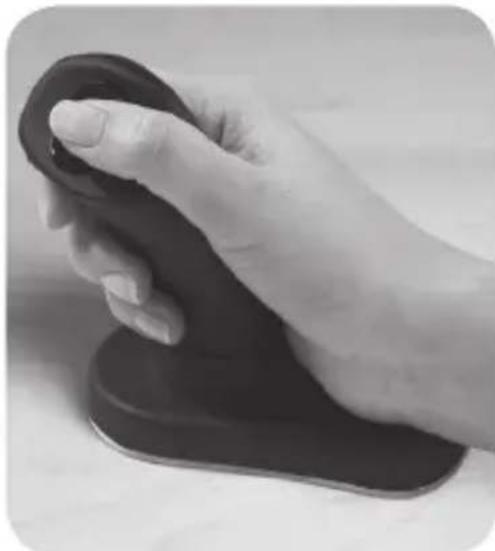

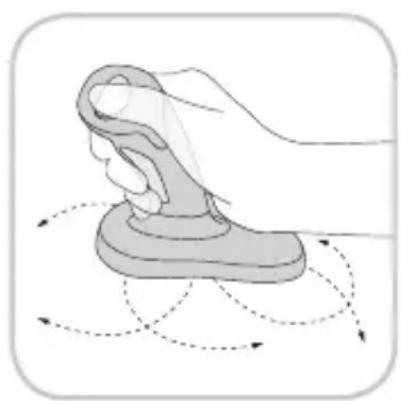

Operate by moving entire mouse around on mousing surface.

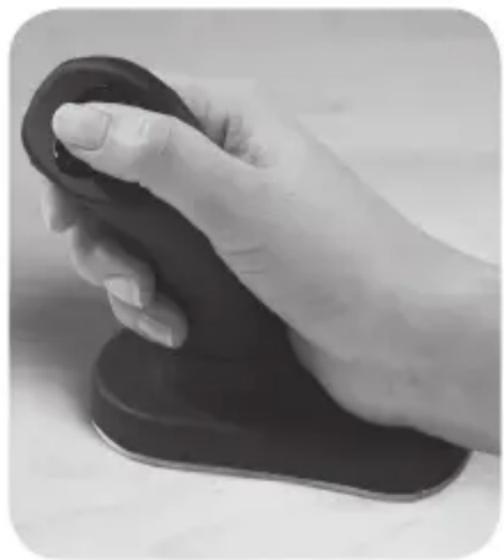

Use the thumb button for left and right clicking.

GB-12 Troubleshooting

Symptom Probable	Cause Solution
Mouse Not Detected	Computer ports are improperly set up (for example, are disabled).	Check with your computer system dealer or manufacturer if you need help.
	Confli icts among other devices connected.	Resolve any conflict icts among devices connected to your computer.
	Installed on an incompatible operating system.	Compatible operating systems for the 3M Ergonomic Mouse EM550 are listed on page 2.
If lens is not illuminated red:	No power.	Make sure the power switch is ON.
		Use fresh batteries and install them properly.
If green light on receiver does not blink:	USB receiver not recognized.	Make sure USB receiver is attached properly to your computer.
		Reconnect mouse to your computer by following steps in Part 2 above.
Cursor Does Not Move At All	Mouse not detected.	See "Mouse Not Detected" above.
	Optical sensor may be blocked by dust, dirt or crumbs.	Blow or brush the obstruction away with a soft cloth. However, do not insert hard objects through the opening.
	Mouse is on an incompatible surface.	DO NOT use your mouse on a transparent surface like glass or a refi ective surface like a mirror; on a rough or porous surface that is not smooth; or on a surface with complex graphic and color patterns.
Diffi cult To Control Fine Cursor Motion	You are using larger muscle groups to move the mouse.	It can take up to a week to train new muscle groups to mouse and gain fi ne cursor control. Slow down the pointer speed or acceleration in your operating system's mouse utility software.

Regulatory Information

GB-13

FCC ID: F4Z44K3FDP-MS9101

Modifications to this device shall not be made without the written consent of 3M Company. Unauthorized modifications may void the authority granted under Federal Communication Rules permitting the operation of this device.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. To determine if your mouse is causing interference to other radio-communication devices, disconnect the device from your computer or remove the device batteries. If the interference stops, it was probably caused by the mouse. If the interference continues after you disconnect the mouse, or remove the batteries, turn the computer off and then on again. If the interference stopped when the computer was off, check to see if one of the input/output (I/O) devices or one of the computer's internal accessory boards is causing the problem. Disconnect the I/O devices one at a time to see if the interference stops.

If this hardware device does cause interference, try to correct the interference by one or more of the following measures:

• Relocate the antenna of the other radio-communications device (for example AM/FM radios, televisions, baby monitors, cordless phones, etc.) until the interference stops.
• Move the hardware device farther away from the radio or TV, or move it to one side or the other of the radio or TV.
• Plug the computer into a different power outlet so that the hardware device and radio or TV are on different circuits controlled by different circuit breakers or fuses.
• If necessary, ask your computer dealer or an experienced radio-TV technician for more suggestions.

For Customers in Europe

The "CE" mark indicates that this product complies with the European requirements for safety, health, environment and customer protection.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

This product is rated as a commercial product for operation at 32°F (0°C) to 104°F (40°C).

GB- 14 Warranty Information

Limited Two-Year Warranty for 3M™ Ergonomic Mouse EM550

3M warrants to the owner of this new product that it is free from defects in material and workmanship under normal use and service for two years from the original date of purchase. The warranty does not include normal wear and tear or failure due to operator misuse, carelessness or any accidental cause. 3M MAKES NO OTHER WARRANTY CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. If within two years from the date of purchase, the product proves to be defective or requires service, your exclusive remedy and 3M's and seller's sole obligation shall be, at 3M's option, to repair or replace the product. If you have a problem with the product, please call our Customer Service toll-free number, 1-800-332-7483. If requested by 3M, you must send the product to 3M at your sole cost. This warranty does not cover damage resulting from accidents, misuse, abuse, and lack of reasonable care. Limitation of Liability Except where prohibited by law, 3M and seller will not be liable for any loss or damage arising from this 3M product, whether direct, indirect, special, incidental or consequential, regardless of the legal theory asserted, including warranty, contract, negligence or strict liability. This warranty gives you specific legal rights, and may vary from state to state. The foregoing Limited Two-Year Warranty and Limitation of Liability language may be changed only by a written agreement signed by authorized officers of 3M and seller. Return Privilege This product is sold subject to the foregoing Limited Two-Year Warranty and Limitation of Liability. If you do not wish to purchase the product subject to these conditions, then you may return the product to 3M for a full refund of your purchase price within thirty (30) days after the purchase date. Call 1-800-332-7483 for return instructions.

Satisfaction Guaranteed If you are not satisfied with this product within thirty (30) days after the purchase date, return it to 3M for a full refund of the purchase price. Do not return it to the location of purchase. Call 1-800-332-7483 for return instructions.

This clause is not applicable to UK customers!

Office Supplies Division

3M Center

St. Paul, MN 55144-1000

3M United Kingdom Plc

Office Supplies Division

3M Centre

Cain Road, Bracknell

Berkshire, RG12 8HT

Tel. [phone]

http://www.3M.com/ergo

We're easy to reach:

1-800-332-7483

01234 268 868

© 3M 2008

All Rights Reserved.

3M is a trademark of 3M.

Used under license in Canada.

34-8701-7099-9

3M

Ergonomic Mouse

USER MANUAL

EM 550GPL EM 550GPS

FR-2 Table of Contents

2-3 Overview 4-5 Description

*1. Aaras, Arne and Ro, Ola. "Workload When Using a Mouse as an Input Device." International Journal of Human-Computer Interaction, 9(2), (1997): 105-118. 2. Aaras, Arne and Ro, Ola and Thoresen, Magne. "Can a more Neutral Position of the Forearm When Operating a Computer Mouse reduce the Pain Level for VDU Operators?" International Journal of Human-Computer Interaction, August 1999. 3. Dainoff, Marvin J., Ph.D., CPE. "A Fitts' Law Comparison Between Two Different Mouse Designs." Presented at the 8th International Conference on Human-Computer Interaction, August 22-27, 1999, Munich, Germany.

General view

FR-3

FCC ID: F4Z44K3FDP-MS9101

*1. Aaras, Arne and Ro, Ola. "Workload When Using a Mouse as an Input Device." International Journal of Human-Computer Interaction, 9(2), (1997): 105-118. 2. Aaras, Arne and Ro, Ola and Thoresen, Magne. "Can a more Neutral Position of the Forearm When Operating a Computer Mouse reduce the Pain Level for VDU Operators?" International Journal of Human-Computer Interaction, August 1999. 3. Dainoff, Marvin J., Ph.D., CPE. "A Fitts' Law Comparison Between Two Different Mouse Designs." Presented at the 8th International Conference on Human-Computer Interaction, August 22-27, 1999, Munich, Germany.

FCC ID: F4Z44K3FDP-MS9101

*1. Aaras, Arne and Ro, Ola. "Workload When Using a Mouse as an Input Device." International Journal of Human-Computer Interaction, 9(2), (1997): 105-118. 2. Aaras, Arne and Ro, Ola and Thoresen, Magne. "Can a more Neutral Position of the Forearm When Operating a Computer Mouse reduce the Pain Level for VDU Operators?" International Journal of Human-Computer Interaction, August 1999. 3. Dainoff, Marvin J., Ph.D., CPE. "A Fitts' Law Comparison Between Two Different Mouse Designs." Presented at the 8th International Conference on Human-Computer Interaction, August 22-27, 1999, Munich, Germany.

Overview

NL-3

FCC ID: F4Z44K3FDP-MS9101

*1. Aaras, Arne and Ro, Ola. "Workload When Using a Mouse as an Input Device." International Journal of Human-Computer Interaction, 9(2), (1997): 105-118. 2. Aaras, Arne and Ro, Ola and Thoresen, Magne. "Can a more Neutral Position of the Forearm When Operating a Computer Mouse reduce the Pain Level for VDU Operators?" International Journal of Human-Computer Interaction, August 1999. 3. Dainoff, Marvin J., Ph.D., CPE. "A Fitts' Law Comparison Between Two Different Mouse Designs." Presented at the 8th International Conference on Human-Computer Interaction, August 22-27, 1999, Munich, Germany.

Summary

FCC ID: F4Z44K3FDP-MS9101

*1. Aaras, Arne and Ro, Ola. "Workload When Using a Mouse as an Input Device." International Journal of Human-Computer Interaction, 9(2), (1997): 105-118. 2. Aaras, Arne and Ro, Ola and Thoresen, Magne. "Can a more Neutral Position of the Forearm When Operating a Computer Mouse reduce the Pain Level for VDU Operators?" International Journal of Human-Computer Interaction, August 1999. 3. Dainoff, Marvin J., Ph.D., CPE. "A Fitts' Law Comparison Between Two Different Mouse Designs." Presented at the 8th International Conference on Human-Computer Interaction, August 22-27, 1999, Munich, Germany.

Introduction

ES-3

FCC ID: F4Z44K3FDP-MS9101

*1. Aaras, Arne and Ro, Ola. "Workload When Using a Mouse as an Input Device." International Journal of Human-Computer Interaction, 9(2), (1997): 105-118. 2. Aaras, Arne and Ro, Ola and Thoresen, Magne. "Can a more Neutral Position of the Forearm When Operating a Computer Mouse reduce the Pain Level for VDU Operators?" International Journal of Human-Computer Interaction, August 1999. 3. Dainoff, Marvin J., Ph.D., CPE. "A Fitts' Law Comparison Between Two Different Mouse Designs." Presented at the 8th International Conference on Human-Computer Interaction, August 22-27, 1999, Munich, Germany.

General Information

PT-3

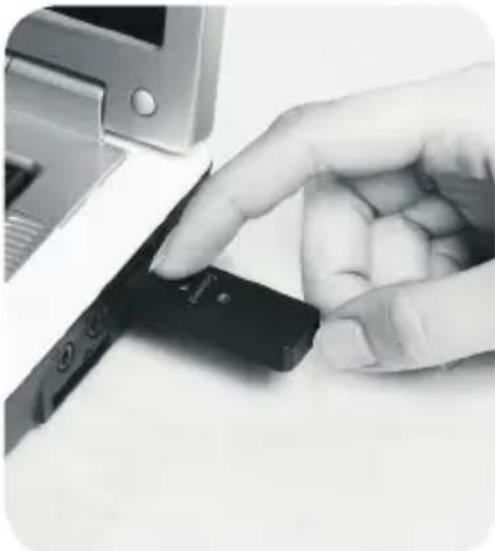

on the USB receiver. A

green light will blink

softly and slowly.

2C

Click on

"connect/pair"

on the mouse.

The green light on the

USB receiver will blink

rapidly for a

short period

of tempo.

2D

Move the mouse.

The American mouse buttons will be activated. When moving the mouse, the green light on the USB receiver will blink rapidly. When the mouse is inactive, the green light will stop blinking.

FCC ID: F4Z44K3FDP-MS9101
