USER MANUAL Cool Mist V3800 Vicks

Vicks® Cool Moisture Humidifier

Use and Care Manual

IMPORTANT!

READ AND

SAVE THESE

INSTRUCTIONS

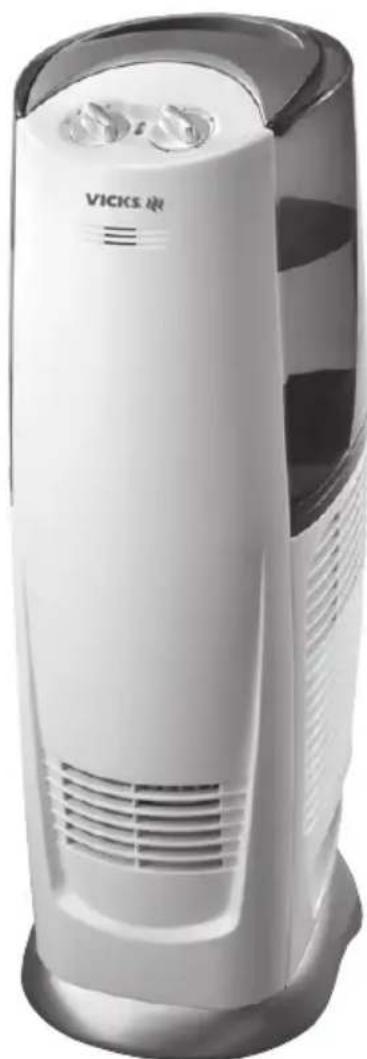

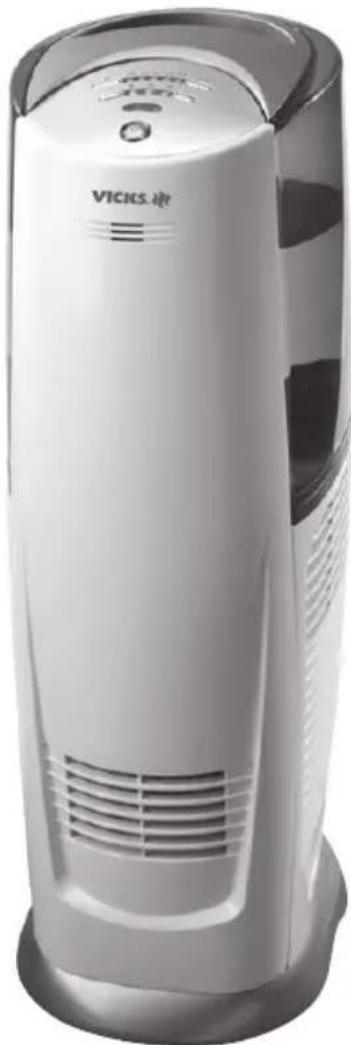

V3800 Series

If you have any questions about the operation of your Vicks Cool Mist Humidifier, call our toll-free Consumer Relations line at 800 VAPOR-12 or e-mail us at [e-mail].

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE SAFETY INSTRUCTIONS BEFORE USING THIS HUMIDIFIER

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Always place this humidifier on a firm, flat and level surface. This humidifier may not work properly on an uneven surface.
2. Place this humidifier in an area where it is not accessible to children.
3. Do not place the humidifier near any heat sources such as stoves, radiators, and heaters.
4. Do not use the humidifier outdoors.
5. Before using the humidifier, check the power cord for any signs of damage. If the cord is found to be damaged, DO NOT USE and return the humidifier to the manufacturer under the warranty agreement for repair.
6. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit securely in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
7. To disconnect the humidifier, first turn controls to the OFF position, then grip the plug and pull it from the wall outlet. Never pull by the cord.
8. A loose fit between the AC outlet (receptacle) and plug may cause overheating and a distortion of the

plug. Contact a qualified electrician to replace loose or worn outlet.

1. The humidifier should always be unplugged and emptied when not in operation or while being serviced or cleaned.
2. Never tilt or attempt to move the humidifier while it is operating or filled with water. UNPLUG the humidifier before moving.
3. This humidifier requires regular cleaning. Refer to the CLEANING instructions provided. Never clean the humidifier in any manner other than as instructed in this manual.
4. Do not direct moisture flow directly at individuals, walls or furniture.
5. When a humidifier is used in a closed room or small rooms, check periodically for proper ventilation, as excessive humidity can cause condensation stains on walls.
6. Turn the humidifier OFF if you notice moisture on the inside of your windows. For proper humidity reading use a hygrometer, which is available in many hardware and department stores, or by ordering one from the manufacturer.

The sealed UV bulbs contain a small amount of mercury. Dispose of these items at household hazardous waste collection sites only. If the UV bulb breaks, do not vacuum or handle with your bare hands.

Placement	Step 1 Select a firm, level location at least 6" (15cm) from any walls for proper airflow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Kaz will not accept responsibility for property damage caused by water spillage.
Soak Filter	Step 1 Remove tank. Remove the filter from the holding basket. Soak the filter in cool water. DO NOT squeeze filter.	Step 3Step Place wet filter back in the filter holding basket and place back in unit.
Fill Tank	Step 1 S Turn tank upside-down. Remove tank cap by turning counter-clockwise	Fill tank with cool tap water. Replace tank cap. Tighten by turning clockwise. Place tank back on humidifier.	Once the filled water tank has been placed on the unit do not move humidifier. Doing so could cause leakage and spills.
Power	Power Step 1 With the power switch in the OFF position, plug the filled humidifier into a polarized 120V outlet. DO NOT FORCE THE POLARIZED PLUG INTO THE OUTLET; it will only fit one way. DO NOT plug in humidifier with wet hands to avoid electric shock.

Model #	Output/Fan Speed Control	Set Humidity
V3800	Step 1 Set fan speed to desired output: High (♣) Fast Humidifying Medium (♣) Everyday moisture control Low (♣) Nighttime or maintenance use	Step 1 Step 2 Turn the humidistat knob clockwise → to the highest setting (♣♣♣) Run on high for at least 1 hour or until room has reached a comfortable humidity level.	Then slowly turn the humidistat knob counterclockwise until the humidifier shuts off. The desired humidity light will illuminate. Once set, the humidifier will automatically cycle on and off based on your setting.
V3850	Step 1 Step 1 Press power to start unit in high speed. Step 2 Push (+) Up button or (-) Down button to select the output level.	Max: 55% Min: 35% Use the (+) up or (-) down button to set desired humidity. The unit will operate until the selected humidity is reached or the unit is turned off. When desired humidity is reached, the fan will shut off but LED will remain lit. The fan will turn back on when the room humidity drops below the set level. NOTE: To go back to continuous run mode, turn your unit off and on again. NOTE: The UV bulb can be turned off and on using the UV button.

NOTE: It is recommended that all maintenance be done in the kitchen or bathroom on a water resistant surface. Remove water tank from unit before moving.

CHANGING YOUR FILTER

The filter should be changed every 1-3 months depending on your water quality. Keep in mind, depending on your water quality, mineral deposits can still clog or discolor the filter, affecting its life and that of the humidifier.

It is recommended you change your filter in the bathroom or kitchen. Keep in mind your filter may be damp depending on your last usage.

To change the filter:

Uses replacement filter WF2.

Turn off and unplug your humidifier.

Remove the water tank. Remove filter holding basket and discard old filter.

Soak new filter in cool water.
Do not squeeze out.

Insert new filter into holding basket and place filter holding basket back in unit.

Replace the water tank.

CHANGING THE UV BULB

The UV bulb will operate for an average output of 10,000 hours. To replace UV bulb contact 1-800-477-0457 or [e-mail].

Turn off and unplug your humidifier.

Remove the water tank and carefully set aside.

Press on the button located on the side of the UV bulb. Carefully use your other hand to pull the UV cartridge away from the unit.

CHANGING THE UV BULB (CONT'D.)

Place your replacement UV bulb in the unit by pressing the UV bulb firmly into the opening. Be certain the prongs locate on the back of the bulb are lined up with the receptacle in the UV holder.

Place filter basket and replace the water tank in the humidifier.

NOTE: Discard the old UV bulb cartridge at a household hazardous waste collection site. Bulb and bulb housing are not intended for use with any other product or purpose.

Lamp contains mercury. Manage in accordance with disposal laws. See www.lamprecycle.org or call 1-800-895-8842.

CLEANING

Cleaning involves two steps, SCALE REMOVAL and DISINFECTING. Be sure to perform these in the proper order to avoid harmful chemical interactions.

NOTE: REMOVE FILTER BEFORE CLEANING. Failure to remove filter during cleaning will destroy the filter.

SCALE REMOVAL

Turn off and unplug your humidifier.

Remove water tank. Remove filter basket. Remove filter from basket. Failure to do so will destroy the filter.

Place basket in sink or tub and fill the bottom of the basket with undiluted vinegar.

Let stand for 20 minutes.

With vinegar in the basket, wipe surface with a soft cloth or brush.

Rinse the filter basket thoroughly with water to remove scale using cleaning solution.

DISINFECTING

Step 1

Step 2 S

Remove water tank. Remove filter holding basket.

Remove filter and set aside. Failure to do so will destroy the filter.

Step 4

Fill water tank with 1 tsp. of household bleach and 1 gallon of cool water

Step 5

Pour some solution into the filter basket.

Step 6 S

Let stand for 20 minutes.

Rinse with water until the smell of bleach is gone.

NOTES: The use of other water treatment products and chemicals may cause deterioration of the filter or damage the humidifier, thereby hindering the humidifier's effectiveness.

END-OF-SEASON CARE AND STORAGE

• Follow the CLEANING instructions when the humidifier will not be used for at least one week or more, or at the end of the season.
• At the end of the season, remove and throw away the filter; do not store with a used filter.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.
• Before next use, remember to clean your humidifier and install a new filter.

CONSUMER RELATIONS

Mail questions or comments to: Kaz, Incorporated

Consumer Relations Dept.

250 Turnpike Road, Southborough, MA 01772

Please be sure to specify model number.

Call us toll-free at: 1-800-477-0457; E-mail: [e-mail]

Or visit our website at: www.kaz.com

Purchase replacement filter part number WF2 and UV bulb part number XXXXX.

ELECTRICAL RATINGS

The Vicks® models are rated at 120V, 60 Hz.

NOTE: IF YOU EXPERIENCE A PROBLEM, PLEASE RETURN THE HUMIDIFIER TO THE ORIGINAL PLACE OF PURCHASE OR SEE YOUR WARRANTY. DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLESHOOTING

Q: I hear the fan turning, but I don't see any mist. Is my humidifier operating properly?
A: Dry air is pulled through the system and a fan disperses invisible, moisture balanced air. There is no "mist" emitted. When operating normally you will feel only cool air coming from the unit. Monitor the water level in your Tank/ Base. If you notice a decrease in the Water Tank over 24 hours then the unit is operating normally.
Q: My unit has been running for several hours. I hear the fan spinning, but I do not notice the water level in the tank decreasing.
A: First, check the filter to ensure it is wet. If the pad appears dry, remove it from the Base and gently rinse under cool water. Reposition wet filter in the Base. You may also want to note the current moisture level in your home. If the humidity level is over 60% the unit will not put out much moisture as your air is already saturated.
Q: The humidifier is not running (the fan is not even spinning), but all (or some) of the lights are on. (Model V3800)
A: If the Desired Humidity light is ON: The Advanced Mist ^ Humidistat knob may be set too low. Moving the knob clockwise to the end should restart the unit.
Q: The Advanced 'Mistimidistat knob was set according to the manual, but the humidifier never seems to turn back on. Is something wrong? (Model V3800)
A: The Humidistat knob may be set too low. Moving the Humidistat knob to the end clockwise should restart the unit.
Q: The Advanced Mikimidistat knob was set according to the manual, but the humidifier never seems to turn off. Is something wrong? (Model V3800)
A: The Humidistat knob may be set too high. Reset the Advanced Mist ^* * Humidistat knob following the instructions under FEATURES.
Q: My filter has turned light brown and rust colored. Do I need a new filter?
A: Probably not. Since your filter has been made with ProtecTM antimicrobial the change in color indicates only a mineral deposit. Soak filter in a sink full of cool water to help break up deposits. The discoloration may remain but will not affect the humidifier's performance.
Q: My humidifier doesn't appear to be as clean as when I first purchased and/or I'm smelling an unpleasant odor. What should I do?
A: If you have been using your humidifier regularly for over 30 days, follow the cleaning instructions.

You should first read all instructions before attempting to use this product.

A. This 3 year limited warranty applies to repair or replacement of product found to be defective in material or workmanship. This warranty does not apply to damage resulting from commercial, abusive, unreasonable use or supplemental damage. It also does not apply to the filter or Protec™ Cleaning Cartridge. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

KAZ IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights which vary from jurisdiction to jurisdiction. This warranty applies only to the original purchaser of this product from the original date of purchase.

B. At its option, Kaz will repair or replace this product if it is found to be defective in material or workmanship. Defective product should be returned to the place of purchase in accordance with store policy. Thereafter, while within the warranty period defective product may be returned to Kaz.

C. This warranty does not cover damage resulting from any unauthorized attempts to repair or from any use not in accordance with the instruction manual.
D. Return defective product to Kaz, Incorporated with a brief description of the problem. Include proof of purchase and a 10 US/ 15.50 CAN check or money order for handling, return packing and shipping charges. Please include your name, address and a daytime phone number. You must prepay shipping charges. Send to

In U.S.A.:

Kaz, Incorporated

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

In Canada:

Kaz, Incorporated

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Adresser questions et commentaires à: Kaz, Incorporated
Consumer Relations Dept.
250 Turnpike Road
Southborough, MA 01772 USA

Priere de specifier le numero de modele.

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

Au Canada:

Kaz, Incorporated

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

Consumer Relations Dept.

250 Turnpike Road

Southborough, MA 01772 USA

Por favor especifiedel numero delmodelo.

Attn: Returns Department

4755 Southpoint Drive

Memphis, TN 38118

USA

En Canada:

Kaz, Incorporated

Attn: Returns Department

510 Bronte Street South

Milton, ON L9T 2X6

Canada

kaz

©2006, Kaz, Incorporated

The Vicks® FilterFree Humidifier is distributed by Kaz, Inc. under license from The Procter & Gamble Company, Cincinnati, OH 45202. Vicks is a registered trademark of The Procter & Gamble Company.
