USER MANUAL Cool Mist V3500N Vicks

Vicks® Cool Mist Humidifier

Use and Care Manual

IMPORTANT! READ AND SAVE THESE INSTRUCTIONS

Model V3500N

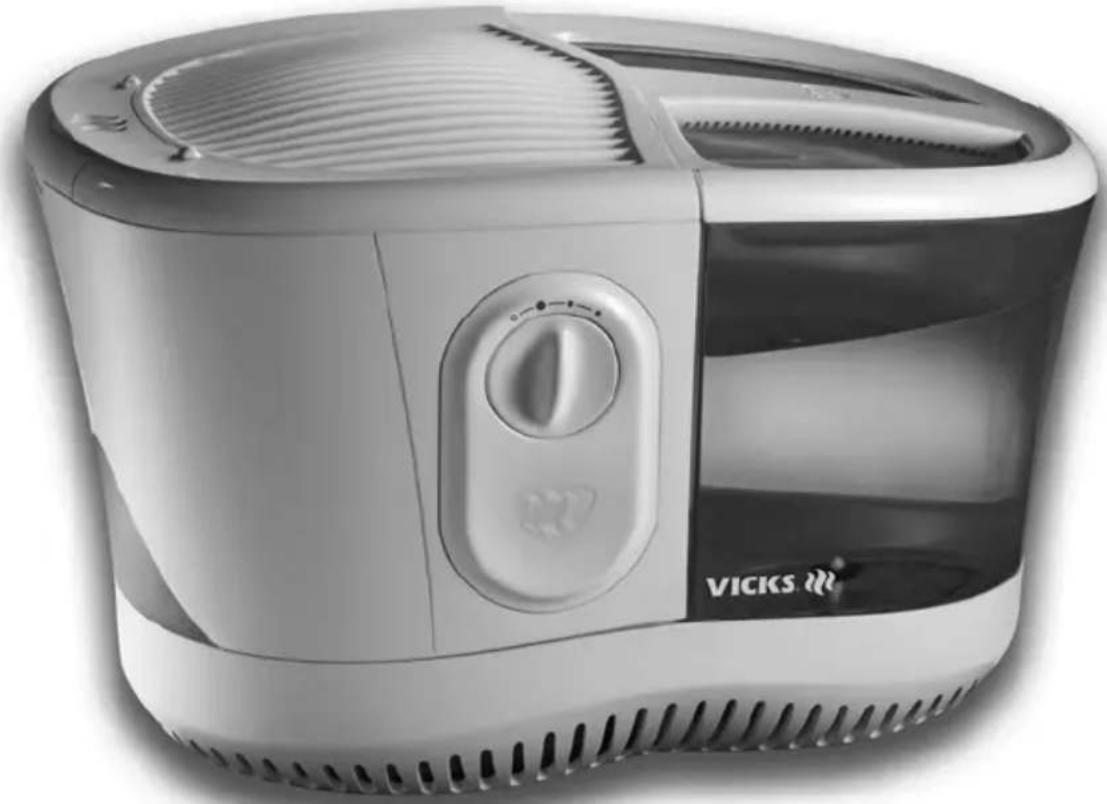

Exterior view of a VICKS air purifier with control panel and ventilation slots (no visible text or symbols)

If you have any questions about the operation of your Vicks Cool Mist Humidifier, call our toll-free Consumer Service line at 800 VAPOR-12 or e-mail us at [e-mail].

Important Safety Instructions

READ ALL INSTRUCTIONS BEFORE USING HUMIDIFIER, ESPECIALLY THESE BASIC SAFETY PRECAUTIONS:

1. Always place Humidifier on a firm, flat, level surface, at least FIVE inches away from walls and heat sources such as stoves, radiators or heaters. Humidifier may not work properly on a non-level surface.
2. When moving, or lifting the Humidifier make sure you have a secure grip under the Base of unit. When removing the Tank, use one hand on the Tank Handle and the other on the bottom of the Tank on the Fill Cap. This will help prevent leakage of water or breakage of the unit itself.
3. Place Humidifier in an area that is out of the reach of children.
4. Before using the Humidifier, extend the cord and inspect for any signs of damage. Do not use the product if cord has been damaged.
5. This product has a polarized plug (one blade is wider than the other) as a safety feature. This plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
6. Humidifier should always be unplugged and emptied when not in operation or while being cleaned.
7. Never tilt or move the Humidifier while it is in operation. Shut off and unplug before moving.
8. Humidifier requires regular cleaning. Refer to and follow cleaning instructions in this manual.

SAVE THESE INSTRUCTIONS

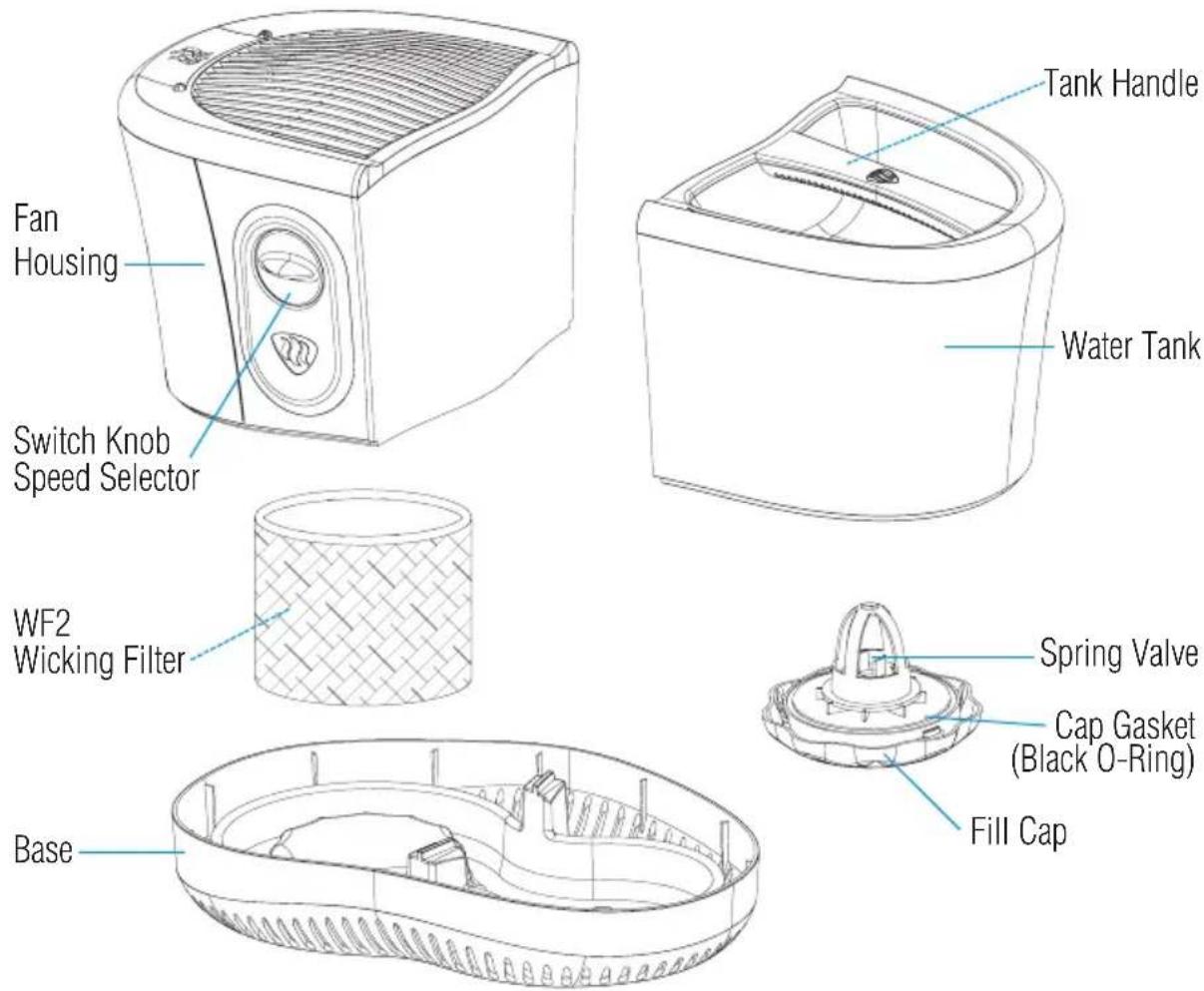

Vicks® Cool Mist Humidifier (Model V3500N)

Fan Housing Switch Knob Speed Selector WF2 Wicking Filter Base Tank Handle Water Tank Spring Valve Cap Gasket (Black O-Ring) Fill Cap

Using Your Vicks® Cool Mist Humidifier

Your Vicks Humidifier comes fully assembled and ready to use.

First Time Use

Read all instructions before using this appliance.

Filling the Humidifier

1. Unpack Humidifier. Remove Fan Housing and check that the Wicking Filter is in place in Base. Remove wicking filter and soak in cool water. Then replace in base of unit.
2. Replace Fan Housing, being careful to seat it properly onto the Base.
3. Place Humidifier at least FIVE inches away from walls and heat sources, on a FIRM, FLAT, LEVEL surface. Place on a water-resistant, non-conducting surface for protection from inadvertent spillage. Do not place any object over the Humidifier; it could block air openings.
4. Completely unravel power cord. Inspect power cord for signs of damage before use. If cord is damaged, DO NOT use product, please call 1-800-VAPOR-12.
5. Keep cord away from heated surfaces and out of the way, where it cannot be stepped on or tripped over.
6. Remove Tank using Tank Handle. Turn Tank over and carefully remove Fill Cap by turning Fill Cap counterclockwise. Fill the Tank with cool tap water. WARNING: Never use hot water - may cause damage to Wicking Filter.
7. Make sure the circular rubber Cap Gasket (O-Ring) is in place before replacing Fill Cap on Tank (this prevents water leakage). To tighten, turn Fill Cap clockwise.
8. When carrying Tank always use two hands (one on Handle, one on the Fill Cap). Insert Tank back into Base.

Operating Instructions

1. Make sure that switch is in OFF (O) position, place the unit on a flat, stable surface and plug cord into a 120 VAC wall outlet.

CAUTION: DO NOT PLUG IN THE CORD WITH WET HANDS; ELECTRIC SHOCK COULD RESULT.

1. Fill the Water Tank and replace Tank on Base.
2. Turn switch to desired speed. Fan will start turning.

Scent Pad Heater Instructions

1. Your Vicks Cool Mist humidifier includes a scent pad heater so that you can enjoy Vicks Soothing Menthol vapors to increase your comfort.

a. Open the lid of the Scent Pad heater tray.
b. Place one scent pad in the tray, being careful not to touch scent pad with your hands. If your hands do come in contact with the pad, please wash them thoroughly as the menthol vapors can be an irritant.
c. Replace lid and turn the unit on.

WARNING: As long as your humidifier is on, the scent pad heater will also be activated. This area can be warm to the touch.

NOTE: One complementary scent pad is included with your unit, replace with Vicks Scent Pads, model VSP-19, available at most retailers or through Kaz Consumer Relations or www.kaz.com.

Care and Cleaning

CAUTION: ALWAYS TURN OFF THE POWER SWITCH AND DISCONNECT THE POWER CORD FROM THE ELECTRICAL OUTLET BEFORE CLEANING.

Humidifiers provide comfort by adding moisture to dry indoor air. For maximized benefit from your Vicks Humidifier, follow instructions carefully. Please note that this is an electric appliance and requires careful attention when in use.

Water may contain pollutants and minerals (scale) that can deposit on the inner surfaces of the Humidifier and clog the Wicking Filter. Such scale can accelerate the growth of microorganisms and can impair the performance of the Filter.

Daily Maintenance

1. Turn switch to off (O) position and unplug the cord from wall outlet.
2. Remove Tank & Fan Housing and empty Base. Rinse Base and Tank, wipe clean, and dry with a clean cloth or paper towel. Be careful that you do not damage the delicate Wicking Filter. DO NOT immerse the Fan Housing or clean with water.
3. Replace Fan Housing, then the Tank. Humidifier is now ready for use.

Weekly Maintenance—Removing Scale

1. Empty any remaining water from the Base and Tank. Reassemble Humidifier.
2. Turn switch on and operate the Humidifier without water until the Wicking Filter is thoroughly dry.
3. Turn switch to the OFF (O) position and unplug the cord from wall outlet.
4. Remove Tank & Fan Housing and place on a flat surface. Remove the Wicking Filter from the Base by carefully lifting straight up, without bending, breaking or tearing the Wicking Filter.
5. Fill Base with undiluted white vinegar. Let solution stand for 20 minutes.
6. Dampen soft, clean cloth or sponge with undiluted white vinegar and wipe out Base to remove scale. DO NOT use soap, detergents or abrasive cleaners.
7. Rinse thoroughly in clean warm water to remove scale and vinegar before disinfecting the Base.

Disinfecting Base

1. Fill Base with water and add 1/4 teaspoon of bleach. Let solution remain for 20 minutes, stirring every few minutes to ensure that all surfaces are coated.
2. Empty Base after 20 minutes. Rinse with water until bleach smell is gone. Dry with clean cloth or paper towel.
3. Wipe all exterior surfaces of the Fan Housing with a soft, dry cloth.

DO NOT USE WATER TO CLEAN THE FAN HOUSING. AN ELECTRIC SHOCK MAY RESULT OR THE HUMIDIFIER MAY BE DAMAGED. DO NOT IMMERSE OR SPRAY ANY PART OF THE HUMIDIFIER WITH WATER.

1. Replace the Wicking Filter into the Base, being careful not to damage the Filter.

NOTE: Do not wash the Wicking Filter, since this will damage the Wicking Filter.

Wicking Filter Maintenance

Wicking Filter performance will diminish depending on the mineral content of the water and the amount of airborne dust in the environment.

IMPORTANT: CHECK WICKING FILTER REGULARLY. Any of the following conditions indicate that it is time to replace the Wicking Filter.

• A buildup of impurities and minerals on the Wicking Filter (evidenced by discoloration of the Wicking Filter)
• An appreciable decrease in Humidifier output
• The top of the Wicking Filter is not moist to the touch
  • The Wicking Filter has large holes or tears

The Wicking Filter should be replaced at least one or two times during the season, depending on usage, mineral content of the water and the environment. We encourage you to only use a Kaz Model WF2 Replacement Wicking Filter. The use of other Wicking Filters may lead to substandard performance.

Replacement Filters and Scent Pads

WF2 wicking filters and VSP-19 Vicks Scent Pads are generally available when you purchase your humidifier. If you are unable to locate replacement filters at your retailer, they may be ordered directly from Kaz.

WF2 Wicking Filter cost \10 for 2 filters or \7 for 1 filter plus \$4 for handling and postage.

VSP-19 Vicks Scent Pads cost \xx for a package of 6 or \XX for a package of 12 plus \$XX for handling and postage.

NOTE: Prices are subject to change without notice.

To Order:

By Phone: Call toll-free by dialing 1-800-477-0457. Please have your credit card handy for payment. We accept Visa and Master Card. Minimum credit card order is \$10.00.

By Fax: Fax your order to Kaz Consumer Relations Orders at 1-508-481-0509. Please clearly print your name, mailing address and products ordered. Be sure to specify Visa or Master Card, card number and expiration date, and sign your order. Minimum credit card order is \$10.00.

By Mail: Mail your order to Kaz Consumer Relations Orders, 250 Turnpike Road, Southborough, MA 01772. Please clearly print your name, mailing address, and products ordered. Enclose check or money order (no cash, please).

Via The Internet: E-mail us at [e-mail]. Be sure to include your name, mailing address and product ordered. Please specify Visa or Master Card, card number and expiration date. Minimum credit card order is \$10.00.

End of Season Maintenance or When Humidifier Will Not Be In Use For At Least One Week

1. Clean and dry the Humidifier thoroughly per the Weekly Maintenance instructions above.
2. Let Humidifier dry completely before storing. Do not store with water inside the Base.
3. Remove Fill Cap. Do not store Humidifier with Fill Cap on.
4. At end of season, remove and throw away the Wicking Filter. Never leave a used Wicking Filter in the Humidifier during storage.
5. Store in a cool dry location.
6. Order your new Kaz Replacement Wicking Filter now so that it will be available for use next season.

Troubleshooting

If the unit does not operate:

• Check that polarized plug is fully inserted into wall outlet.
• Check airflow. Are there any obstructions preventing airflow?
• The motor contains a temperature-limiting fuse. If the motor overheats, the fuse will trip and shut off the motor. Unplug the unit and contact our Consumer Relations Department. Do not attempt to repair the motor yourself. Doing so will void your warranty.

If you do not obtain enough humidity:

• The moisture output from an evaporative Humidifier is invisible. It is operating properly if water level goes down during usage, even when you cannot see the vapor.
• Check the Wicking Filter. Replace the Filter if it is clogged, torn or discolored.
• Check the water level. Refilling may be required.

If you are obtaining too much humidity:

- If room air is excessively humid (greater than 50% relative humidity), do not use the Humidifier. Excessive humidity is indicated by condensation on cold surfaces or walls in the room. For proper humidity readings, use a hygrometer available in most hardware and department stores.

If water leakage occurs:

• Make sure unit is unplugged from wall outlet.
- Remove Tank from Base and check Fill Cap. Make sure the Cap Gasket (O-Ring) is properly positioned in the cap and the Spring Valve operates freely. If leakage still occurs contact our Consumer Relations Department.

If Fill Cap is too tight:

- Lightly lubricate the Cap Gasket (O-Ring) with petroleum jelly.

Limited Warranty

This Vicks Cool Mist Humidifier (Model V3500N) is warranted against defective material or workmanship for a period of three years from purchase date. Any defective part will be repaired or replaced at no charge if it has not been tampered with and appliance has been used according to these printed directions. Warranty does not cover return shipping charges or the Wicking Filter after it has been used; performance of the Wicking Filter depends on the mineral content of the water. This warranty gives you specific legal rights as well as other rights which vary from state to state. Manufacturer shall not be liable for any special or consequential damages for breach of any written or implied warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.

If you experience unsatisfactory operation, first check Troubleshooting section to determine if the problem is due to care or cleaning. Follow Care and Cleaning instructions.

If Humidifier needs repair or if you have any questions or comments, call the Kaz Consumer Relations Department at 800-VAPOR-12 or write to Kaz, Consumer Relations Department, 250 Turnpike Road, Southborough, MA 01772 USA, explaining just how the product is operating. Specify model number. You can also e-mail us at [e-mail]. Our Consumer Relations Representative will advise you how to correct the problem yourself, or will ask you to return the product for repair or replacement.

Exterior view of a VICKS air purifier with control panel and ventilation slots (no visible text or symbols beyond brand name)

Exterior view of a VICKS air purifier with control panel and ventilation slots (no visible text or symbols)

©2006, Kaz, Incorporated

The Vicks® FilterFree Humidifier is distributed by Kaz, Inc. under license from The Procter & Gamble Company, Cincinnati, OH 45202. Vicks is a registered trademark of The Procter & Gamble Company.
