USER MANUAL Milordino S TERMOZETA

4. Steam control dial / super-steam button

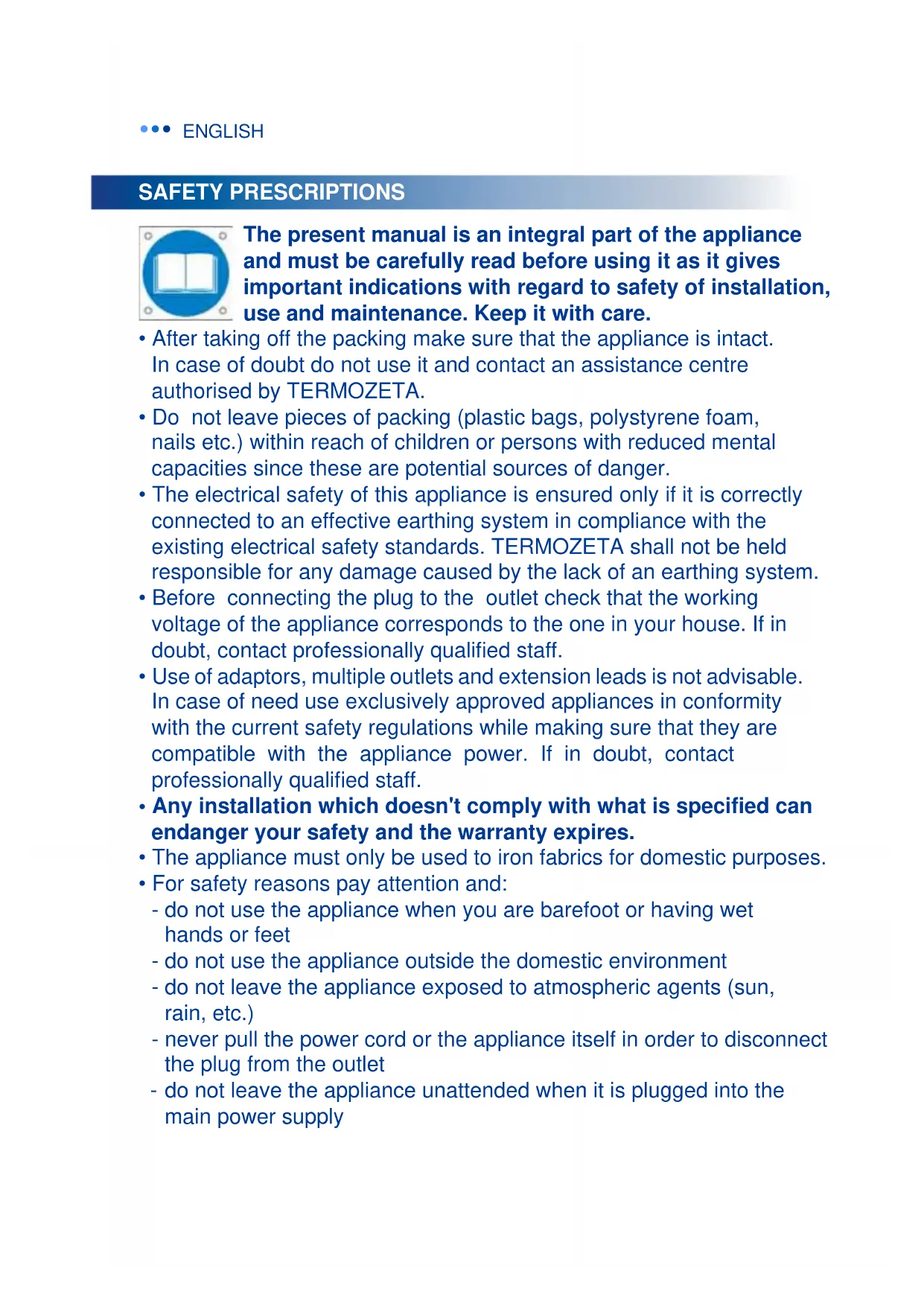

• After taking off the packing make sure that the appliance is intact. In case of doubt do not use it and contact an assistance centre authorised by TERMOZETA.

• Do not leave pieces of packing (plastic bags, polystyrene foam, nails etc.) within reach of children or persons with reduced mental capacities since these are potential sources of danger.

• The electrical safety of this appliance is ensured only if it is correctly connected to an effective earthing system in compliance with the existing electrical safety standards. TERMOZETA shall not be held responsible for any damage caused by the lack of an earthing system.

• Before connecting the plug to the outlet check that the working voltage of the appliance corresponds to the one in your house. If in doubt, contact professionally qualified staff.

• Use of adaptors, multiple outlets and extension leads is not advisable. In case of need use exclusively approved appliances in conformity with the current safety regulations while making sure that they are compatible with the appliance power. If in doubt, contact professionally qualified staff.

• Any installation which doesn't comply with what is specified can endanger your safety and the warranty expires.

• The appliance must only be used to iron fabrics for domestic purposes.

• For safety reasons pay attention and: - do not use the appliance when you are barefoot or having wet hands or feet - do not use the appliance outside the domestic environment - do not leave the appliance exposed to atmospheric agents (sun, rain, etc.) - never pull the power cord or the appliance itself in order to disconnect the plug from the outlet - do not leave the appliance unattended when it is plugged into the main power supply ENGLISH ENGLISH - never immerse the appliance in water or other liquids

• The appliance is not intended for being used by people (including children) whose physical, sensorial or mental capacities are reduced, or who are lacking in experience or knowledge, unless they can benefit from the presence of someone who is responsible for their safety and who is provided with the instructions for use.

• Children should be supervised to ensure that they do not play with the appliance.

• The power cord of the appliance should never be replaced by the user himself. In case of necessity contact an assistance centre authorised by TERMOZETA or professionally qualified staff.

• In case of failure and/or malfunctioning of the appliance, turn it off and do not tamper with it. For any repairs contact an assistance centre authorised by TERMOZETA and ask for the use of original spare parts.

• At the end of the life cycle of the appliance, put it out of service by cutting the power cord after disconnecting the plug from the outlet. For the disposal of the appliance follow the regulations which are valid in your place of residence.

• TERMOZETA cannot be considered responsible for any damage to persons, animals or things caused by the incorrect installation or as a result of an illegitimate, mistaken or unreasonable use. ENGLISH TANK FILLING

• Always proceed with this operation with the plug disconnected from the power outlet.

• Make sure the steam control dial (4) is in the “0” position (dry ironing).

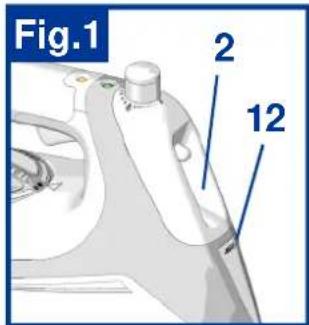

• Fill the tank through the proper hole (2) without exceeding the MAX level (12) indicated. Do not put any perfumed substances into the tank.

• While ironing, check the water level inside the tank through the proper windows (11). After connecting the appliance to the power supply, windows (11) will be lighted. Fig.1

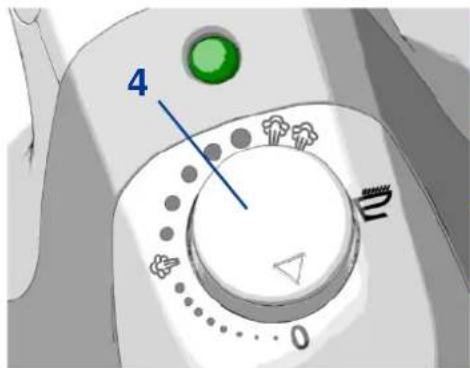

DESCRIPTION OF THE STEAM CONTROL DIAL (4) Dial (4) has two functions: it controls the amount of steam produced when turned; it discharges super-steam when pressed.

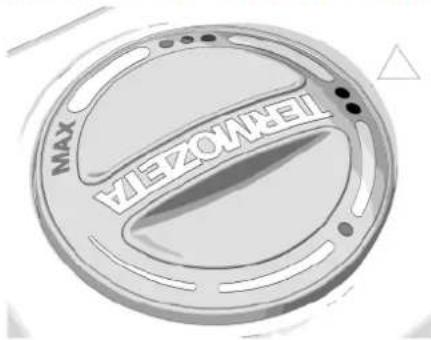

CHOICE OF THE IRON TEMPERATURE

Ironing using steam at high temperature (cotton, linen) Ironing at medium temperature (wool, silk) Ironing at low temperature (synthetic fibres) FUNCTION SYMBOL DESCRIPTION No steam 0 Dry ironing Steam ironing Steam ironing Steam level: minimum Steam level: maximum

Self-cleaning Do not use for ironing

• Make sure the steam control dial (4) is in the “0” position (dry ironing).

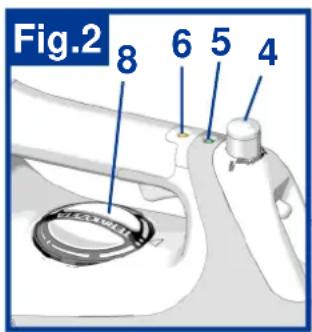

• Completely unroll the power cord (7), put the iron in a vertical position and connect the plug to the power outlet.

• The power indicator (5) turns on and will turn off when the appliance is disconnected from the power supply.

• With the temperature control knob (8) select the temperature which is most suitable for the type of fabric to be ironed.

• The thermostat indicator (6) turns on and will then turn off when the soleplate reaches the selected temperature. The iron is now ready for use. IMPORTANT

• Before and during use make sure the work surface is stable and heat resistant.

• Never leave the iron unattended when it is connected to the power outlet.

• Do not use the iron if it has been dropped, if there are signs of damage or if water leaks from the soleplate. RECOMMENDATIONS

• First iron more delicate fabrics which require low temperature and then the more resistant ones which require higher temperatures.

• Before ironing pass the iron over a small hidden area of your item of linen to make sure the temperature selected is suitable for that type of fabric. Fig.2

• Fill the tank with water.

• Choose the desired steam output by turning the steam control dial (4). RECOMMENDATION If water in your area is particularly calcareous, it is advisable to use distilled water.

• This function allows moistening the linen during both steam and dry ironing.

• To enable it press the spray button (10) several times and direct the water jet onto the most resistant creases. SPRAY FUNCTION

• Set the steam control dial (4) to the “0” position (dry ironing). SUPER-STEAM FUNCTION

• Press the super-steam button (4) several times: the iron will supply an instantaneous high power steam jet. NOTE

• Do not press button (4) too many times consecutively, as this may cause non-steamed water drops to be discharged.

• Use this function only with the temperature control knob (8) set to symbols , MAX.

• When the super-steam function is used for the first time some limestone pieces could come out. We therefore advise you not to discharge the first steam jets directly onto the linen. NOTE

• Steam is discharged only if knob (8) was set to symbols , MAX.

• When the iron is placed vertically during ironing pauses, the steam supply is automatically cut off.

• Some water drops can come out together with the steam on first use. This is to be considered normal. Before ironing your linen carry out some tests on an old cloth. ANTI-DRIP SYSTEM This system prevents the iron from dripping onto the linen. The device is automatically enabled if, for whatever reason, the temperature of the soleplate lowers.

To “liven up” the clothes hung on cloth hangers, curtains, etc. you can use the iron vertically:

• Set the temperature control knob (8) to the MAX position.

• Hold the iron in a vertical position at a distance of about 15-20 cm from the fabric.

• Press the super-steam button (4) several times. NOTE

• Do not press the super-steam button too many times consecutively. Observe pauses of some seconds between one operation and the following one. IMPORTANT

• Do not use this function on fabrics made up of synthetic fibres.

• Keep an adequate distance between the fabric and the iron soleplate in order to avoid burns.

• Use this function only on clothes hung on clothes hangers. Do not try to iron clothes if they are worn by a person: the steam is very hot, you could cause serious burn injuries. VERTICAL IRONING The iron is supplied with a self-cleaning system which allows limestone deposits to be reduced. To obtain full benefit from this system, carry out this operation regularly at least once a month:

• Set the dry ironing function.

• Fill the tank up to the MAX level (12).

• Let the iron run and bring the soleplate to the maximum temperature.

• When the iron is ready, disconnect the plug from the power outlet.

• Set the steam control dial (4) to the symbol of the self-cleaning function, shake the iron in a horizontal position over a sink or a basin until the tank is empty. The water and steam mixture will eliminate a part of the limestone residues that are present in the soleplate.

• Then set dial (4) again to the “0” position.

• Disconnect the plug from the power outlet.

• Always set the steam control dial (4) to the “0” position.

• Let the iron cool down.

• Wind the cord around the rear part of the appliance.

• Place the iron vertically.

CLEANING AND MAINTENANCE

WARNING! Before carrying out any cleaning operation disconnect the plug from the power outlet and wait until the iron has completely cooled down.

• Clean the iron body only with a soft and dry cloth.

• Clean the soleplate using a non-abrasive sponge in order not to damage the surface.

• Do not use chemical or abrasive substances.

• Do not immerse the appliance in water or other liquid substances.

In accordance with European Directives 2002/95/CE, 2002/96/CE and 2003/108/CE on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal.

• The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.

• Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.

• The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.

• Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.
