USER MANUAL EP7970 ROWENTA

Line drawing of a handheld device with internal components and a central oval shape (no text or symbols)

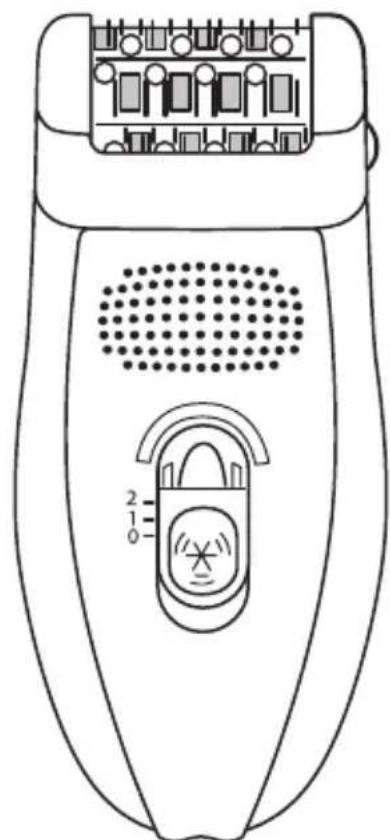

EP7910 - EP7970

Line drawing of a handheld electronic device with a lock and ventilation grille (no text or symbols)

EP8975

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating a connection or operation.

6-GOMMAGE (EP8975)

Diagram showing hand holding a smartwatch with upward arrows indicating motion or movement, labeled '速度传感器' (Speed Sensor)

Simple line drawing of a computer monitor with a downward arrow indicating compression or download (no text or symbols)

Illustration of a person's lower leg and foot with two arrows indicating movement or pressure direction (no text or symbols)

Diagram of a robot with a screen and directional arrows indicating movement or force (no text or symbols)

Diagram showing mechanical assembly with labeled component 'B' and directional arrows indicating motion or force

Illustration of hands holding a battery with an arrow indicating direction (no text or symbols)

CLIC

Simple line drawing of a rope with an arrow indicating upward motion (no text or symbols)

7-EPILATION DES JAMBES

Medical diagram showing a device with an arrow indicating leftward movement and a close-up of the device's internal structure.

Line drawing of a human leg with a bandage and an arrow indicating a specific point (no text or symbols present)

Simple line drawing of a mouse with an upward arrow and motion lines, no text or symbols present

8-EPILATION DES ZONES SENSIBLES

Line drawing of a person performing a shoulder massage or stretching exercise (no text or symbols)

Illustration of a person receiving a swab or bandage, with an arrow indicating direction (no text or symbols present)

Illustration of two hands performing a physical maneuver with directional arrows indicating motion (no text or symbols)

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating a physical or electrical connection.

Diagram showing hand pressing a device with upward arrows indicating motion or movement, labeled in Chinese.

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

Illustration of hands performing a mechanical press or press operation with arrows indicating upward motion (no text or symbols present)

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating directional movement or connection.

Illustration of hands holding a device with upward arrows indicating motion or movement (no text or symbols)

Diagram showing a hand spraying water onto a device with a curved pipe and spray bottle (no text or symbols)

Hand holding a tool with directional arrows indicating motion or movement (no text or symbols)

Illustration of hands using a tool to interact with a device, showing a black arrow indicating direction (no text or symbols present)

Illustration of a hand using a spray gun to clean or spray liquid from a faucet (no text or symbols)

Illustration of a hand spraying water from a faucet onto a surface (no text or symbols)

Illustration of a hand spraying water from a curved pipe against a diagonal line (no text or symbols)

Simple line drawing of a handheld device with a cable and a screen, no text or symbols present.

Illustration of stacked coins and a jar with round fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull and warning sign over a shipping container, indicating hazardous material or safety hazard

Illustration of hands performing a mechanical press or press operation with arrows indicating motion (no text or symbols present)

Illustration of a hand using a tool to lift a submerged object with a curved pipe, no text or symbols present

Please read carefully before use

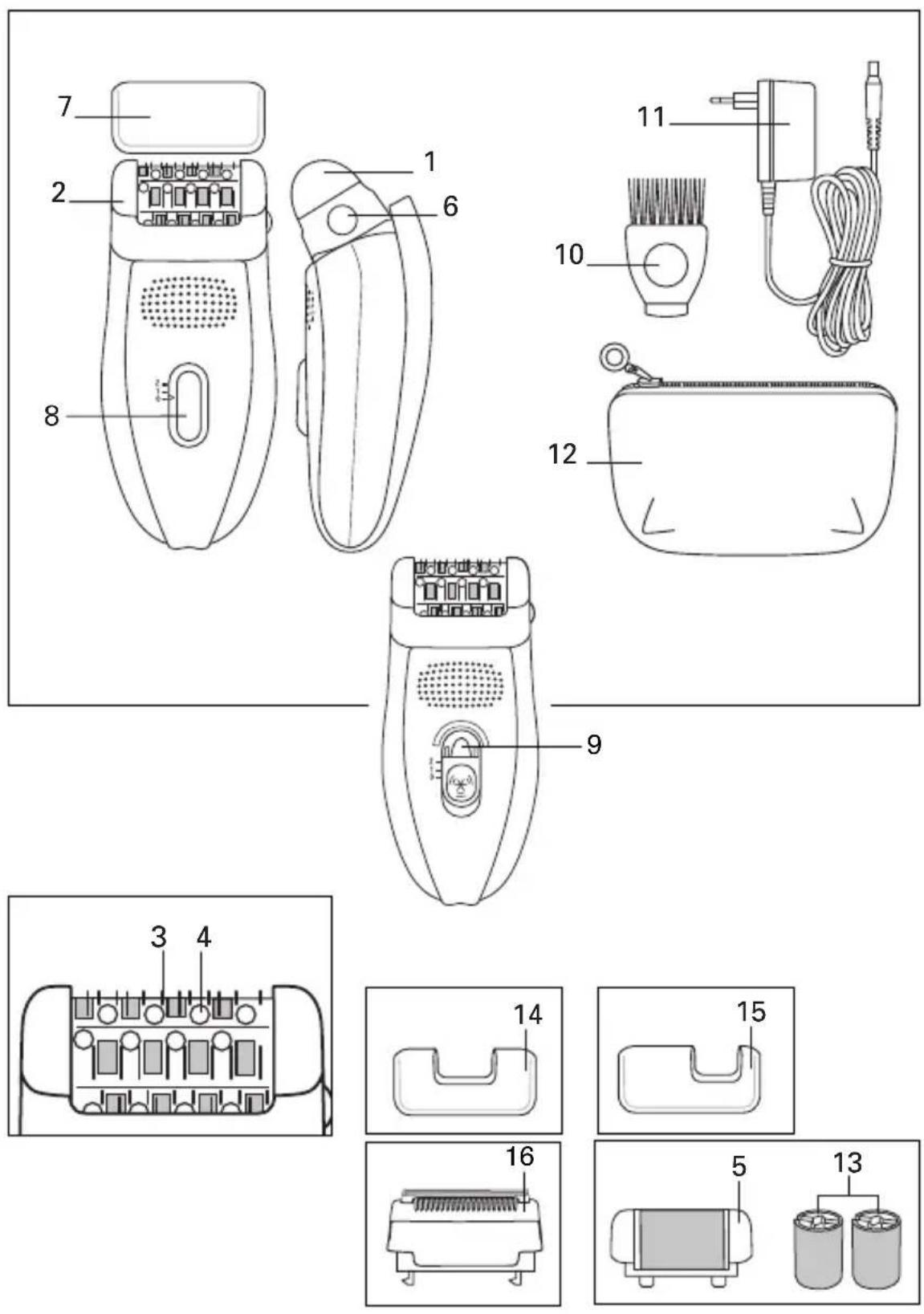

1-DESCRIPTION OF YOUR APPLIANCE

1- Pivoting head

2- Depilator head

3- Tweezers

4- Massaging beads

5- Exfoliator head

6- Release button for removable head

7- Cap

8-2-speed and stop switch

9- "Vision" (EP8975)

10- Cleaning brush

11- Adaptor EM2.A2

12- Travel pouch

13-2 exfoliating bands

14- Armpit accessory (EP7910-8975)

15- Bikini line accessory (EP7910-8975)

16- Additional shaver head (EP7970-8975)

• Vision function (EP8650) :

The Vision system installed in your device gives perfect epilation results first time. By diffusing an ultraluminous halo on the skin, this system makes all your hair – even the finest, shortest and fairest hairs – easier to see.

- Pivoting head function:

For comfort of use, your appliance is fitted with a pivoting head that adapts to every contour of the areas to be shaved (legs, armpits, bikini line) for a smooth, efficient result.

- Pain-relieving function:

Access Fresh Air is equipped with a high-speed turbine which blows air onto the skin and cools it. This helps to reduce the pain caused by epilation.

2-SAFETY

- This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, Environnement).

- Voltage: Ensure that this voltage corresponds to that of your mains supply. Incorrect connection may cause irreparable damage which is not covered by the guarantee.

- This appliance is intended for personal domestic use only. It must only be used with the enclosed adaptor EM2A2.

- Never use if the appliance (depilator or adaptor) is damaged or in the event of any damage caused by dropping the appliance (invisible damage may be dangerous).

- This appliance can only be repaired using special tools. In the event of any after sales problem, please consult an approved service agent (see enclosed leaflet).

- We decline any responsibility for damage arising from incorrect use of the appliance or use of the appliance in any way other than that specified in these instructions.

- When the depilator is in use, it must not come into contact with eyelashes, hair, clothes or any other objects, in order to avoid any danger of injury or blockage.

- Keep a careful eye on the appliance if used on, or in the presence of children or invalids.

- Do not use the depilator:

- on your face

- on broken, burnt or sore skin

- on sensitive areas (varicose veins, moles, birthmarks, warts...)

- if you suffer from skin complaints, (eczema, inflam-mations, acne...).

For hygiene reasons, it is advised that you do not allow anyone else to use your appliance.

- When in use, the wall socket must be readily accessible.

- Remove adapter from the wall outlet to disconnect from the supply.

• For use indoor only.
• Close supervision is necessary when the appliance is used on or in the presence of children or severely disabled people.
• Never leave the appliance within the reach of unsupervised children.
• Do not use an extension lead.
• Never use the appliance with damp hands.
• Do not leave the appliance in direct sunlight.
• Do not use the appliance at cold temperatures.
• Do not immerse or put under running water.
• Do not use aggressive products or solvents for cleaning.

GUARANTEE

Your appliance is designed for use in the home only. It should not be used for professional purposes. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. The guarantee becomes null and void in the case of improper usage.

3-PREPARATION OF THE SKIN

Your skin must be clean and dry.

• Do not apply either cream or hydrating milk before depilation.
  • If you previously used a razor for depilation:
• the first few times you use the depilator, your skin may feel more sensitive, as shaving has made your hair thicker and stronger. This sensation will lessen the more you use your depilator: the hair will grow back less quickly and become thinner.
• Your depilator will be much more effective and easier to use if you use it regularly. We advise you to use your depilator as soon as your hair starts to grow back.

4-CONNECTION 5-STOPPING THE APPLIANCE

1 2

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating electrical or diagnostic components.

6-PEELING (EP 8975)

Peeling will enable you to limits growth of subcutaneous hair if practised regularly.

We strongly recommend that you use the Exfoliator Head 2 days before using your epilator to avoid irritating your skin.

• And not to use a peeling gel or cream at the same time.
• Never carry out peeling on sensitive areas (armpits / bikini line / face).
  • After peeling, we advise you to wipe over the area with a moist flannel to remove any dead skin. Dry the skin thoroughly afterwards.

- Method :

• Press the release button to remove the epilator head.
• Clip the Exfoliator Head to the epilator.

• Set the switch to "1".
• Start exfoliating with a slow, gentle up and down movement.

Diagram showing hand pressing a device with upward arrows indicating motion or movement, labeled with Chinese characters.

Simple line drawing of a computer monitor with a downward arrow indicating compression or download (no text or symbols)

Diagram showing a device with an arrow labeled '↑' pointing to a circular component, possibly indicating a directional or process flow.

Illustration of a human leg with two arrows indicating movement or pressure direction (no text or symbols)

When using the Micro-Peeling function for the first time or if your skin is very delicate, we recommend:

1. skin is wet before peeling, use cotton wool or a flannel to do this
2. making slow and gentle rotating movements when using the appliance3. not to use the appliance more than twice on the same area.

- Replacing the exfoliating band

• Press the release button to remove the Exfoliator Head from the epilator.

• Using the plastic end of the cleaning brush unclip the band as follows:

• Turn the Exfoliator Head over and hold it in place by gripping the edges between your thumb and forefinger.

• Turn the band so that its groove comes round to the central position.
• Insert the end of the cleaning brush in the groove and push to eject the band.
• Insert the new band by slotting the fins (b) of the exfoliator unit in the groove of the band and pushing until it clicks!

Diagram of a robot with a screen and directional arrows indicating movement or force (no text or symbols)

Illustration of hands using a mechanical switch to adjust a component (no text or symbols visible)

Illustration of hands holding a battery with a hand pointing to it (no text or symbols present)

CLIC

Simple line drawing of a rope with a hanging object and an arrow indicating direction (no text or symbols)

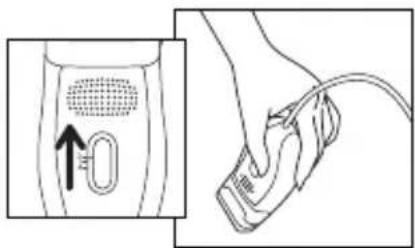

7-LEG HAIR REMOVAL

For optimum epilation, we recommend that you tilt the epilator slightly towards your skin in the direction of epilation, as shown in the diagram.

• Move the switch to the on position "2".
• The switch must always remain visible during use.

Medical diagram showing a device with a pressure relief and a catheter inserted, alongside its side view.

Illustration of a human leg with a bandage and arrow indicating movement (no text or symbols)

- Shave against the lie of the hair, slowly and without pressing, with the shaver perpendicular to your skin.

Simple line drawing of a pen tip with an upward arrow and motion lines, no text or symbols present.

8-HAIR REMOVAL FROM SENSITIVE AREAS

For optimum epilation, we recommend that you tilt the epilator slightly towards your skin in the direction of epilation, as shown in the diagram.

• Preparing the area where you want to remove hair:

• If the hairs are long trim to approximately 1cm.
• Dry the area thoroughly to ensure any trace of deodorant or perspiration are removed.

A- With the epilator

1) Armpit epilation:

• Fit the armpit accessory (14) onto the epilator head and push in until you hear a click.
• Set the switch to position 1.

CLIC!

2) Bikini line epilation:

• Fit the bikini line accessory (15) onto the epilator head and push in until you hear a click.
• Set the switch to position 1.

Shave against the lie of the hair, slowly and without pressing, with the shaver perpendicular to your skin.

Illustration of a person performing a neck massage or stretching exercise (no text or symbols)

Illustration of a person receiving a medical or cosmetic procedure with an arrow indicating direction (no text or symbols present)

For the armpits: First from bottom to top ... Then from top to bottom.

Important :

a) Keep your arm raised and stretched throughout the hair removal process.
b) Stretch the skin to make it easier.

For the bikini line:

Important:

Make sure the skin is stretched properly.

Illustration of two hands performing a physical maneuver with directional arrows indicating motion (no text or symbols)

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating a physical or electrical connection.

B-With the shaver head (mod. EP7970/EP8975):

• Operating instructions:
• Remove the epilator head by pressing the ejection button.

速度传感器

Diagram showing a mechanical component with an arrow indicating downward motion (no text or symbols present)

Illustration of hands performing a medical or surgical procedure on a device (no text or symbols visible)

• Fit the shaver head (16) onto the appliance (fig..)
• Set the switch to position 2.
• After use, stop the appliance.
• Remove the shaver head by pressing the ejection button.

9-CLEANING THE APPLIANCE

- Cleaning the epilator head:

1. Unplug the epilator.
2. Press the release button on the head and remove the epilator head.
3. Rinse the epilator head under cold running water by turning it for 5 to 10 seconds.

Diagram showing a hairdryer with labeled parts and directional arrows indicating movement or force

Illustration of hands holding a connector with three buttons and upward arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to spray or spray onto a surface with a curved pipe and spray bottle (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands holding a device with an arrow indicating direction (no text or symbols)

4. Shake the epilator head vigorously and dry it with a towel before fitting it to the epilator again.

You can also use the small cleaning brush supplied.

- Cleaning sensitive area accessories (mod. EP7910 – EP9875)

ALCOOL 70° ALCOOL 90°

Illustration of a hand using a spray gun to lift a showerhead (no text or symbols)

Illustration of a hand spraying water from a pipe onto a surface, with no text or symbols present.

Illustration of a hand holding a tool spraying water from a faucet onto a surface, with no text or symbols present.

- Cleaning the Exfoliator Head.

We recommend that you change the exfoliating band after three sessions of exfoliation or when it is worn out.

Do not clean the band under running water.

ALCOOL 90° ALCOOL 90°

Line drawing of a handheld electronic device with a cable and indicator lights (no text or symbols)

Illustration of stacked coins and a jar with scattered round fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull and battery icons, indicating hazardous material or safety hazard

Line drawing of hands using a handheld device to press or install a component (no text or symbols visible)

Illustration of a hand using a tool to interact with a surface-mounted device (no text or symbols present)

- Cleaning the shaver head

• Remove the shaver head by pressing the ejection button.
• Run the shaver head under a cold tap and dry it with a towel.

- Do not apply alcohol to the body of the appliance to avoid its colours changing.

10-SKIN CARE

Small red spots may appear. They will disappear quickly. For this reason it is preferable to use your depilator in the evening. If necessary, apply calming cream after depilation.

11-ENVIRONNEMENT PROTECTION FIRST

Your appliance contains valuable materials which can be recovered or recycled. Leave it at a collection point.

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating a connection or operation.

6-PEELING (EP8975)

Simple line drawing of a computer monitor with a downward arrow indicating compression or reduction (no text or symbols)

Illustration of a person's lower leg and foot with two arrows indicating movement or pressure points (no text or symbols present)

Diagram of a robotic device with directional arrows indicating movement or force (no text or symbols)

Diagram showing hands operating a mechanical switch with directional arrows indicating motion or force

Illustration of hands assembling a cylindrical battery with a hand holding a spring-loaded component (no text or symbols)

CLIC

Simple line drawing of a rope with an arrow indicating upward motion (no text or symbols)

7-EPILATION DER BEINE

Medical diagram showing a device with a sensor and an attached device, alongside its magnified view.

Line drawing of a human leg with a bandage and arrow indicating a specific point (no text or symbols present)

Simple line drawing of a fish being pulled by a rod, with an upward arrow indicating motion (no text or symbols)

8-EPILATION EMPFINDLICHER ZONEN

Illustration of two hands performing a physical maneuver with directional arrows indicating motion (no text or symbols)

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating a physical or electrical connection.

Illustration of a hand holding a device with arrows indicating upward movement (no text or symbols)

Diagram showing a mechanical component with an arrow indicating downward motion, likely illustrating a process or assembly.

Illustration of hands performing a mechanical or electrical setup with no visible text or symbols

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating a physical or electrical connection.

Illustration of hands holding a device with upward arrows indicating motion (no text or symbols)

Diagram showing a hand holding a device with a hose spraying through it, no text or symbols present

Hand holding a tool with directional arrows indicating motion or force (no text or symbols)

Illustration of hands holding a device with arrows indicating direction (no text or symbols)

Illustration of a hand washing a faucet with water spray (no text or symbols)

Illustration of a hand using a spray gun to spray liquid onto a surface with a pipe (no text or symbols)

Illustration of a hand holding a tool near a faucet with liquid, against a diagonal line (no text or symbols)

Simple line drawing of a screwdriver inserted into a component, no text or symbols present

Illustration of stacked coins and a jar filled with round fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull, warning triangle, and safety icons including batteries and containers

Illustration of hands using a handheld device to press or install a component (no text or symbols visible)

Illustration of a hand using a tool to lift a pipe with a curved pipe, no text or symbols present

11-DENKEN SIE AN DEN SCHUTZ DER UMWELT!

Diagram showing a handheld device connected to a plug, with labeled parts 1 and 2 indicating directional movement.

6. PEELING (EP8975)

Diagram showing hand holding a digital timer with upward arrows indicating measurement or status change

Simple line drawing of a computer monitor with a downward arrow indicating compression or download (no text or symbols)

Illustration of a person's lower leg and foot with two arrows indicating movement or pressure points (no text or symbols present)

Diagram of a robotic device with a screen and directional arrows indicating movement or force (no text or symbols)

Diagram showing hands operating a mechanical device with directional arrows indicating motion or force, labeled with number 6.

Illustration of hands holding a battery with a hand pointing to it, no text or symbols present

CLIC

Simple line drawing of a rope hanging from a diagonal surface with an arrow indicating upward motion (no text or symbols)

Medical diagram showing a device with a valve and a catheter, alongside its magnified view of the device's internal structure.

Line drawing of a human leg with a bandage and arrow indicating a specific point (no text or symbols present)

Simple line drawing of a hand holding a pen or tool with an upward arrow and motion lines (no text or symbols)

Line drawing of a person bending forward with one arm raised (no text or symbols)

Illustration of a person receiving a medical or cosmetic procedure with an arrow indicating direction (no text or symbols present)

- Per le ascelle :

Illustration of hands performing a physical maneuver with directional arrows indicating motion (no text or symbols)

Diagram showing a handheld device connected to a plug, labeled with parts 1 and 2, indicating a connection or operation.

B- Con la testina di rasatura (mod. EP7970/EP8975):

Diagram showing a mechanical component with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of hands using a handheld device to press or install a textured surface (no text or symbols visible)

Diagram showing a handheld device connected to a plug with labeled parts 1 and 2, indicating a physical or electrical component.

Illustration of hands holding a device with upward arrows indicating motion (no text or symbols)

Illustration of a hand pouring liquid from a pipe onto a device with a rotating arrow (no text or symbols)

Hand holding a mechanical component with directional arrows indicating motion (no text or symbols)

Illustration of hands using a tool to adjust a textured object, with an arrow indicating direction (no text or symbols present)

Illustration of a hand using a spray gun to spray liquid from a faucet (no text or symbols)

Illustration of a hand spraying water from a faucet onto a surface (no text or symbols)

Illustration of a hand holding a tool near a faucet with liquid, against a diagonal line (no text or symbols)

Simple line drawing of a handheld device with a cable and a screen, no text or symbols present.

Illustration of stacked coins and a jar with scattered fruits, separated by a diagonal line (no text or symbols)

Warning symbol with skull and warning triangle over stacked containers, indicating hazardous material or safety hazard

Illustration of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a valve with a curved pipe, no text or symbols present
