USER MANUAL 66331 KMN AEG-ELECTROLUX

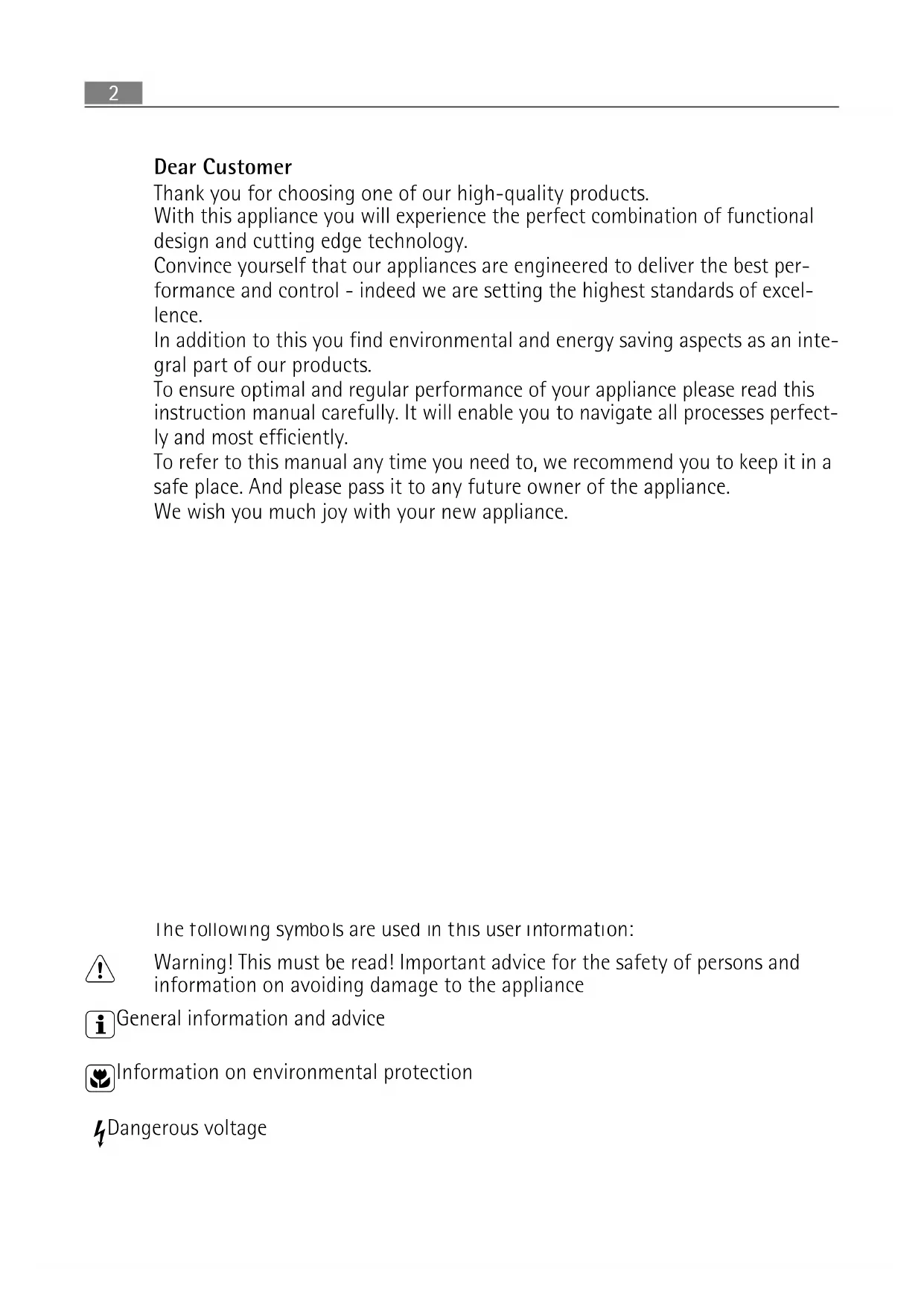

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best performance and control - indeed we are setting the highest standards of excellence.

In addition to this you find environmental and energy saving aspects as an integral part of our products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user information:

Warning! This must be read! Important advice for the safety of persons and information on avoiding damage to the appliance

eral information and advice

rmation on environmental protection

erous voltage

Contents

Safety instructions 4

Description of the Appliance 6

Cooking surface layout 6

Control panel layout 6

Touch Control sensor fields 7

Residual heat indicator 8

Operating the appliance 9

Switching the appliance on and off 9

Setting the heat setting 9

Switching the outside ring on and off 10

Locking/unlocking the control panel 10

Switching the STOP+GO function on and off 11

Using the automatic warm-up function 12

Using the child safety device 13

Using the timer 14

Automatic switch off 17

Tips on Cooking and Frying

Cookware 18

Energy saving 18

Examples of cooking applications 19

Cleaning and Care

What to do if ...

Disposal

Installation Instructions

Safety instructions 24

Guarantee/Customer Service

Service

Assembly

Rating Plate

Operating Instructions

Safety instructions

Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

Correct use

• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children's safety

• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
• To avoid small children and pets unintentionally switching the appliance on, we recommend activation of the child safety device.

General safety

• The appliance may only be installed and connected by trained, registered service engineers.
• Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.
• Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
- There is the risk of burns from the appliance if used carelessly.
- Remove stickers and film from the glass ceramic.
- Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.
- Switch the cooking zones off after each use.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance

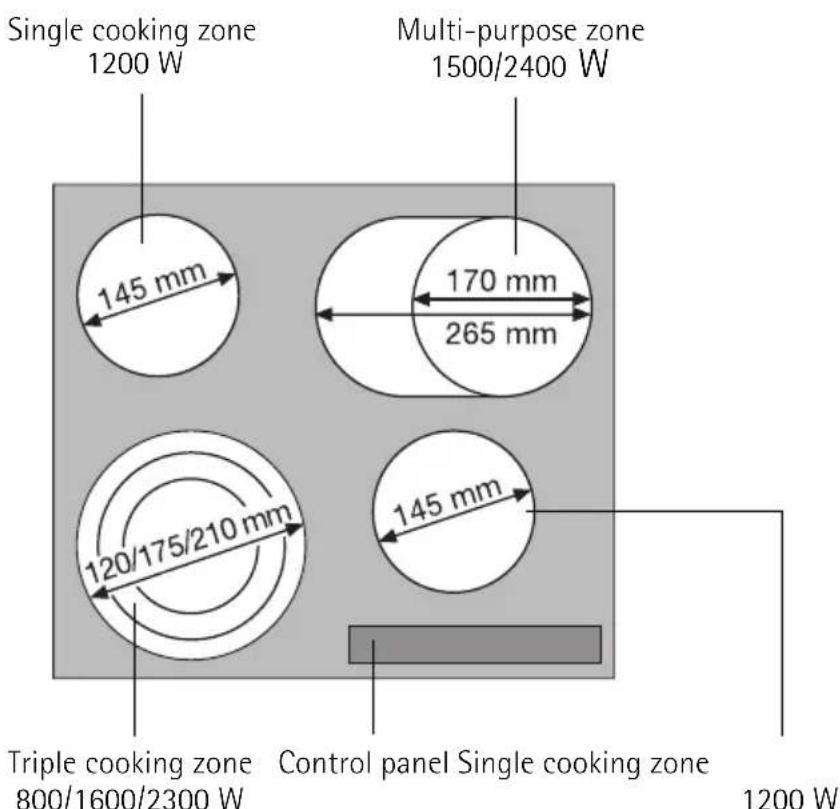

Cooking surface layout

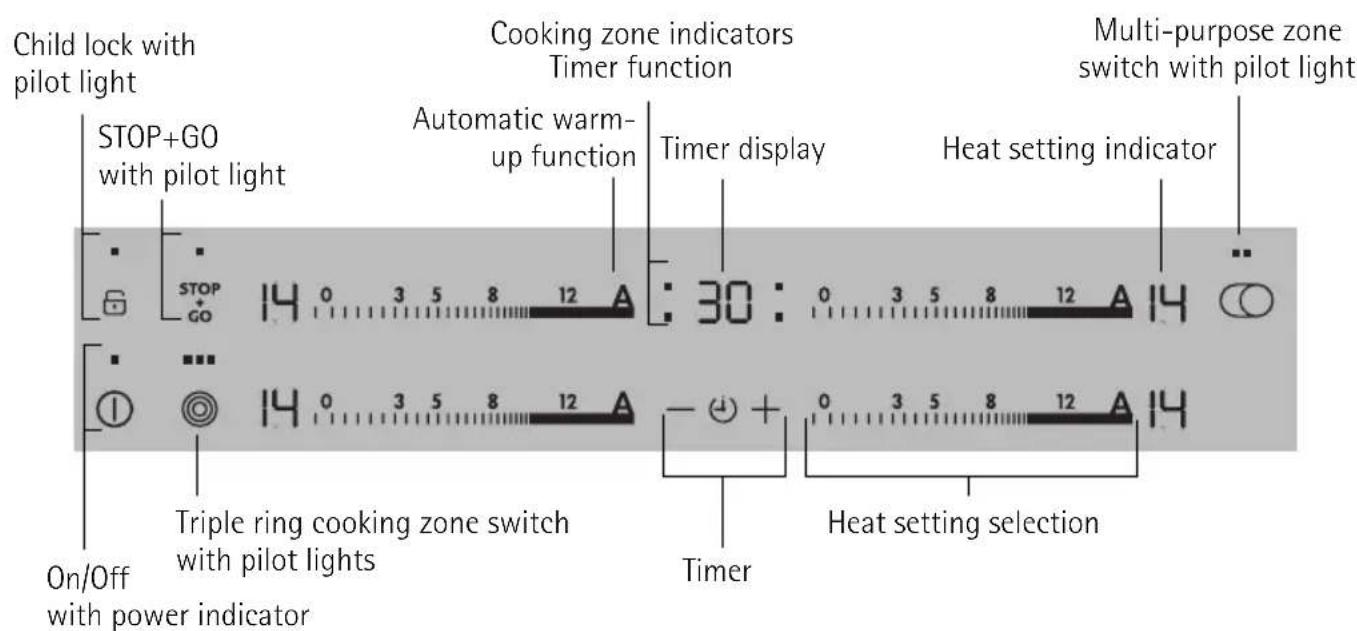

Control panel layout

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields.

Sensor field Function
① On / Off To switch the appliance on		and off
② Child lock Locking control panel for		children
STOP GO Stop+Go To switch the Keep Warm		setting on/ off
③	Triple ring switch To switch outer rings on and off
TIMER④	Timer	Timer selection
+	Increase settings	To increase Timer time
-	Reduce settings To reduce Timer time
○	Multi-purpose zone switch	To switch the outside ring on and off
A Automatic warm-up func- tion		To switch automatic warm-up func- tion on/off

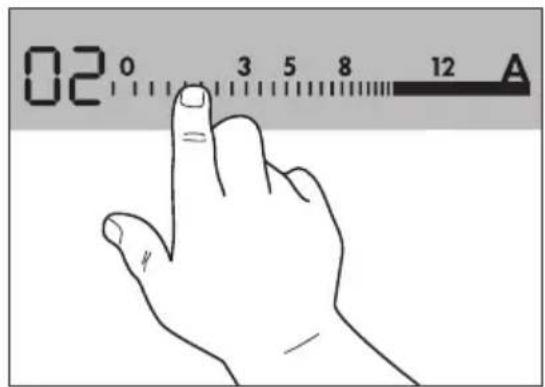

Control bar

The control bar is a special Touch Control field.

The control bar is touched where the desired heat setting is positioned. The heat setting is shown in the display. Correct to the left or the right, if necessary. Do not release before the desired heat setting is reached.

i If the control bar is touched for longer than 6 seconds, a signal sounds and the appliance switches itself off.

Displays

Display Description
Cooking zone is switched off
/ Keep Warm setting		STOP+GO function / Keep Warm setting is set
- Heat settings Heat setting is set
Automatic warm up func-tion		Automatic warm-up function is acti-vated
Fault Malfunction has occurred
Residual heat Cooking zone is still hot
Child safety device Child safety device is engaged
Automatic switch off		Switch off is active.

Residual heat indicator

Warning! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator H

Residual heat can be used for melting and keeping food warm.

Operating the appliance

Switching the appliance on and off

	Control panel Display Pilot light
Switch on	Touch ① for 1 second	○/○	lights up
Switch off	Touch ① for 1 second	○/ none	goes out

After switching on, within approx. 10 seconds a heat setting or a function must be set, otherwise the appliance automatically switches itself off.

Setting the heat setting

	Control bar Display
To set the heat setting	Touch the desired heat setting, if necessary, correct to the left or the right	1 to 14 8
To switch off Touch 0		0

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware.

Before an outside ring can be switched on, the inside ring must be switched on.

Triple ring cooking zone	Sensor field	Pilot light
To switch on the central ring	Touch 1-2 seconds	Second pilot light lights up
To switch on the outer ring	Touch for 1-2 seconds Third pilot light lights up
To switch off the outer ring	Touch for 1-2 seconds Third pilot light goes out
To switch off the central ring	Touch for 1-2 seconds Second pilot light goes out

Multi-purpose zone	Sensor field	Pilot light
To switch on the outer ring	Touch 1-2 seconds	Second pilot light lights up
To switch off the outer ring	Touch for 1-2 seconds	Second pilot light goes out

Locking/unlocking the control panel

The control panel, with the exception of the "On/Off" sensor field, can be locked at any time in order to prevent the settings being changed e.g. by wiping over the panel with a cloth.

	Control panel Display
Switch on	Touch	(for 4 seconds)
Switch off	Touch	previously set heat setting

When you switch the appliance off, the locking function is automatically switched off.

Switching the STOP+GO function on and off

The STOP+GO function simultaneously switches all cooking zones that are switched on to the keep warm setting and then back to the heat setting that was previously set.

	Control panel Display
To switch on Touch	STOP +GO	U
To switch off	Touch STOP +GO	heat setting that was previously set (not automatic warm up func- tion)

i Timer functions are not stopped by STOP+GO.
i STOP+GO locks the whole control panel except the sensor field . ①

Using the automatic warm-up function

All cooking zones are equipped with an automatic warm-up function. When setting a heat setting using the automatic warm-up function, the cooking zone switches to full power for a certain amount of time and then automatically switches back to the heat setting set.

Step Control panel Display
1. Touch	A	B
2.	Move your finger down from A to se- lect the desired heat setting between 1 and 13	13 / 1 after 5 seconds 8 As long as 9 is displayed, the appliance works at full power. After the automatic warm up is completed, the heat setting 13 is displayed again.

The length of time that the automatic warm up function operates depends on the heat setting selected.

Heat setting Length of the automatic warm up [min:sec]
1 1:00
2 1:40
3 2:40
4 4:50
5 5:30
6 6:30
7 8:10
8 10:10
9 12:20
10	2:30
11	2:30
12	3:30
13	4:30
14	---

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Switching on the child safety device

Step	Control panel	Display/Signal
1. Switch on appliance. (Do not set a heat setting.)
2. Touch for 4 seconds		L
The child safety device is switched on.

Overriding the child safety device

The child safety device can be switched off in this way for a single cooking session; it remains activated afterwards.

Step	Control panel	Display/Signal
1. Switch	appliance on	L
2.	Touch for 4 seconds	lights up
Until the appliance is next switched off, it can used as normal.

After overriding the child safety device, a heat setting or a function must be set within approx. 10 seconds, otherwise the appliance automatically switches itself off.

Switching off the child safety device

Step	Control panel	Display/Signal
1. Switch appliance on		L
2.	Touch for 4 seconds	lights up
3. Switch appliance off.
The child safety device is switched off.

Using the timer

Function Condition	Outcome after the	time has elapsed
Automatic cut-out a heat setting is set acoustic signal		00 flashes Cooking zone switches off
Countdown timer	cooking zones not in use	acoustic signal 00 flashes

If a heat setting is set on this cooking zone in addition to a countdown timer, the cooking zone is switched off after the time set has elapsed.
iIf a cooking zone is switched off, the timer function set is also switched off.

Selecting a cooking zone

Step Control panel Display
1. Touch	TIMER once Pilot light of the first cooking zone flashes	.00
2. Touch	TIMER once Pilot light of the second cooking zone flashes	.00
3. Touch	TIMER once Pilot light of the third cooking zone flashes	.00
4. Touch	TIMER once Pilot light of the fourth cooking zone flashes	.00

If the pilot light is flashing more slowly, the heat setting can be set or modified. If other timer functions are set, after a few seconds the shortest remaining time of all the timer functions is displayed and the corresponding pilot light flashes.

Setting the time

Step	Control panel	Indicator
1. Select	TIMER cooking zone	Pilot light for the cooking zone selected flashes
2.	Touch + or -	00 to 99 minutes
After a few seconds the pilot light flashes more slowly. The time is set. The time counts down.

Switching off the timer function

Step	Control panel	Indicator
1. Select	TIMER cooking zone	Pilot light of cooking zone selected flash- es faster Time remaining is displayed
2. Touch	The time remaining counts	backwards to 00.
The pilot light goes out. The Timer function for the selected cooking zone is switched off.

Changing the time

Step Control panel Indicator
1. Select	TIMER cooking zone	Pilot light of the selected cooking zone flashes faster Time remaining is displayed
2.	Touch + or -	0 to 99 minutes
After a few seconds, the pilot light flashes more slowly. The time is set. The time counts down.

Displaying the time remaining for a cooking zone

Step Control panel field Display
1. TIMER Select cooking zone	Pilot light of the cooking zone selected flashes faster The time remaining is displayed
After a few seconds the pilot light flashes more slowly.

Switching off the acoustic signal

Step Control panel field Acoustic signal
1.	Touch TIMER	Acoustic signal to acknowledge.
Acoustic signal stops.

Automatic switch off

Cooking surface

• If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface automatically switches itself off.
• If one or more sensor fields are covered by objects (a pan, cloths, etc.) for longer than approx. 10 seconds, a signal sounds and the cooking surface switches off automatically.
• If all cooking zones are switched off, the cooking surface automatically switches itself off after approx. 10 seconds.

Control panel

• When the appliance is switched off, if one or more of the sensor fields on the control panel are covered for more than 10 seconds, an acoustic signal sounds. The acoustic signal switches itself off automatically when the sensor fields are no longer covered.

Cooking zones

• If one of the cooking zones is not switched off after a certain time, or if the heat setting is not modified, the relevant cooking zone switches off automatically. - is displayed. Before being used again, the cooking zone must be set to 0

Heat setting Switches off after
1 - 3 6 hours
4 - 6 5 hours
7 - 8 4 hours
9 - 14 1.5 hours

Tips on Cooking and Frying

Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much.

Cookware

• You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

Energy saving

Always place cookware on the cooking zone before it is switched on.

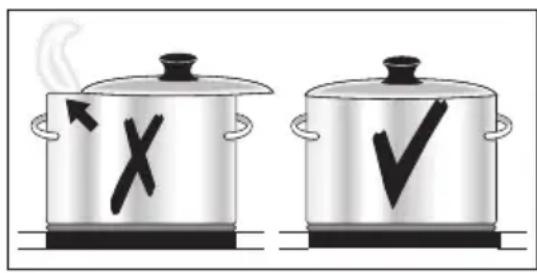

If possible, always place lids on the pans.

Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.

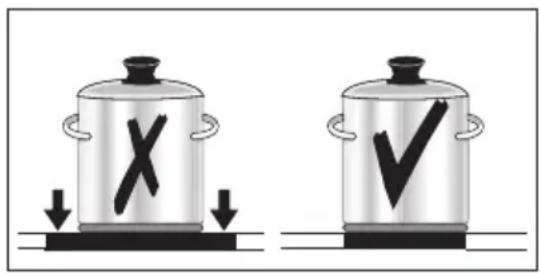

Bottom of pans and cooking zones should be the same size.

Examples of cooking applications

The information given in the following table is for guidance only.

Heat setting	Cooking-process	suitable for	Cooking time	Tips/Hints
0 Residual heat, Off position
u 1	Keeping food warm	Keeping cooked foods warm as required Cover
1-3	Melting	Hollandaise sauce, melting butter, chocolate, gelatine	5-25 mins. Stir occasionally
	Solidifying	Fluffy omelettes, baked eggs	10-40 mins.	Cook with lid on
3-5	Simmer-ing on low heat	Simmering rice and milk-based dishes Heating up ready-cooked meals	25-50 mins.	Add at least twice as much liquid as rice, stir milk dishes part way through cooking
5-7	Steaming Braising	Steaming vegetables, fish braising meat	20-45 mins.	With vegetables add only a little liquid (a few table-spoons)
7-9 Boiling		Steaming potatoes 20-60 mins.		Use only a little liquid, e.g.: max. 1/4 l water for 750 g potatoes
		Cooking larger quantities of food, stews and soups	60-150 mins.	Up to 3 l liquid plus ingredients
9-12	Gentle Frying	Frying escalopes, veal cor-don bleu, cutlets, rissoles, sausages, liver, roux, eggs, pancakes, doughnuts	Steady frying	Turn halfway through cooking
12-13	Heavy Frying	Hash browns, loin steaks, steaks, Flädle (pancakes for garnishing soup)	5-15 mins. per pan	Turn halfway through cooking
14	Boiling Searing Deep frying	Boiling large quantities of water, cooking pasta, searing meat (goulash, pot roast), deep frying chips

Cleaning and Care

Take care! Risk of burns from residual heat.

Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid.

Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid.

Cleaning the appliance after each use

1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.

Removing deposits

1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.

Type of dirt	Remove
	immediately	when the appliance has cooled down	using
sugar, food containing sugar yes ---			a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes			cleaner for glass ceramic or stainless steel*
fat splashes --- yes
shiny metallic discolouration --- yes

*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialized shops

Remove stubborn residues with a cleaner for glass ceramic or stainless steel.

Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance.

What to do if ...

Problem Possible cause	Use Remedy
The cooking zones will not switch on or are not functioning	More than 10 seconds have passed since the appliance was switched on	Switch the appliance on again.
	The child safety device is switched on	Deactivate the child safety device (See the section "Child safety device")
	Several sensor fields were touched at the same time	Only touch one sensor field
	Automatic switch off has been triggered	Remove any objects (pan,cloths,etc.) that are lying on the control panel.Switch the appliance on again
	There is water on the control panel or the control panel is covered with fat splashes	Wipe the control panel
	STOP+GO is activated Switching off STOP+GO
Acoustic signal sounds when appliance is switched off	The control panel is wholly or partly covered by objects.	Remove objects.
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is there-fore not hot	If the cooking zone is sup-posed to be hot, call the Cus-tomer Service Department.
Acoustic signal sounds and appliance switches itself on and then off again; after 5 seconds another acoustic sig-nal sounds	The On/Off sensor field has been covered up,e.g.by a cloth	Do not place any objects on the control panel
lights up Automatic switch-off has been triggered		Switch appliance off.Switch appliance on again
and number are displayed	Electronics fault	Disconnect the appliance from the electrical supply for a few minutes (Take the fuse out of the house's wiring system)If after switching on again,Eis displayed again,call the cus-tomer service department

If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.

Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

If the appliance has been wrongly operated, the visit from the customer service technician or dealer may not take place free of charge, even during the warranty period.

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE< , >PS< , etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Installation Instructions

Safety instructions

Warning! This must be read!

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)

Installation may only be carried out by a qualified electrician.

The minimum distances to other appliances and units are to be observed.

Anti-shock protection must be provided by the installation, for example drawers may only be installed with a protective floor directly underneath the appliance.

The cut surfaces of the worktop are to be protected against moisture using a suitable sealant.

The sealant seals the appliance to the work top with no gap.

Do not use silicon sealant between the appliance and the work top.

Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

Risk of injury from electrical current.

The electrical mains terminal is live.
- Make electrical mains terminal free of voltage.
- Follow connection schematic.
- Observe electrical safety rules.
- Ensure anti-shock protection by installing correctly.
- The appliance must be connected to the electrical supply by a qualified electrician.

Risk of injury from electrical current.

• Loose and inappropriate plug and socket connections can make the terminal overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-phase connection, the appropriate mains cable of type H05BB-F Tmax 90^ (or higher) must be used.
• If this appliance's mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90^ ; or higher). The latter is available from the Customer Care Department.

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3mm .

Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

Guarantee/Customer Service

European Guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:

• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

Service

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section "What to do if...").

If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.

In order to be able to assist you quickly, we require the following information:

-Model description

-Product number (PNC)

-Serial number (S No.)

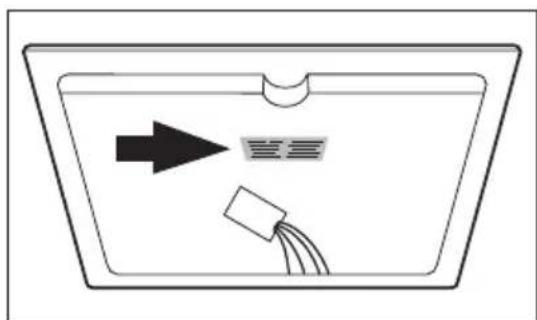

(for numbers see rating plate)

-Type of fault

-Any error messages displayed by the appliance

-three digit letter-number combination for glass ceramic

So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:

Model description:

PNC:

S No:

Chere cliente, cher client

Touche sensitive "Touch Control" 33

Voyants 34

Touch sensitive "Touch Control"

Touch-control-sensorvelden 59

Indicaties 60

Restwarmte-indicatie 60

Touch-control-sensorvelden
