40.809 - Scale Beper - Free user manual and instructions

Frequently Asked Questions - 40.809 Beper

USER MANUAL 40.809 Beper

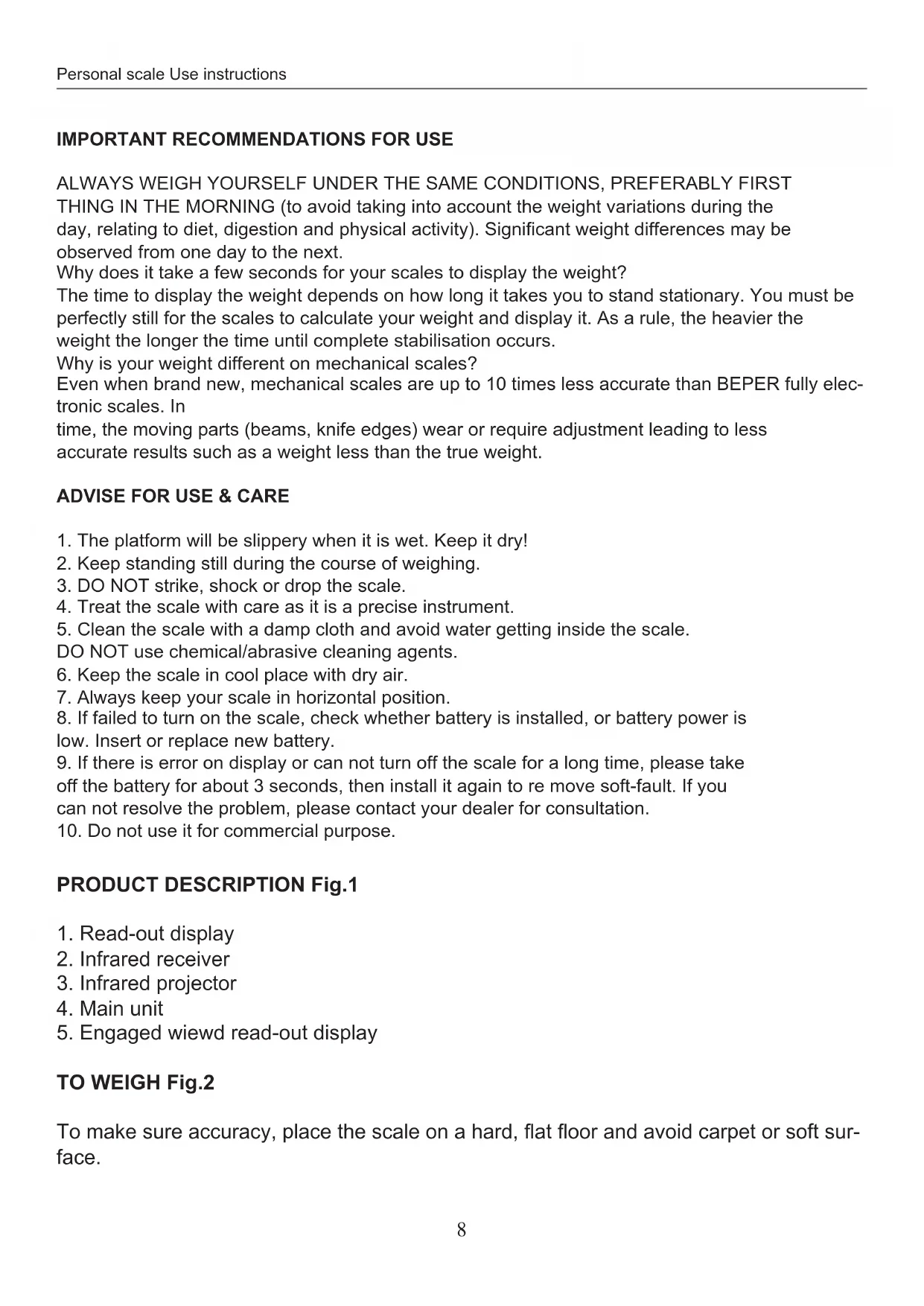

ALWAYS WEIGH YOURSELF UNDER THE SAME CONDITIONS, PREFERABLY FIRST THING IN THE MORNING (to avoid taking into account the weight variations during the day, relating to diet, digestion and physical activity). Significant weight differences may be observed from one day to the next.

Why does it take a few seconds for your scales to display the weight?

The time to display the weight depends on how long it takes you to stand stationary. You must be perfectly still for the scales to calculate your weight and display it. As a rule, the heavier the weight the longer the time until complete stabilisation occurs.

Why is your weight different on mechanical scales?

Even when brand new, mechanical scales are up to 10 times less accurate than BEPER fully electronic scales. In

time, the moving parts (beams, knife edges) wear or require adjustment leading to less accurate results such as a weight less than the true weight.

ADVISE FOR USE & CARE

1. The platform will be slippery when it is wet. Keep it dry!
2. Keep standing still during the course of weighing.
3. DO NOT strike, shock or drop the scale.
4. Treat the scale with care as it is a precise instrument.
5. Clean the scale with a damp cloth and avoid water getting inside the scale.
   DO NOT use chemical/abrasive cleaning agents.
6. Keep the scale in cool place with dry air.
7. Always keep your scale in horizontal position.
8. If failed to turn on the scale, check whether battery is installed, or battery power is low. Insert or replace new battery.
9. If there is error on display or can not turn off the scale for a long time, please take off the battery for about 3 seconds, then install it again to re move soft-fault. If you can not resolve the problem, please contact your dealer for consultation.
10. Do not use it for commercial purpose.

PRODUCT DESCRIPTION Fig.1

1. Read-out display
2. Infrared receiver
3. Infrared projector
4. Main unit
5. Engaged wiewd read-out display

TO WEIGH Fig.2

To make sure accuracy, place the scale on a hard, flat floor and avoid carpet or soft surface.

Wired Transmission Mode Fig.2

Step onto the scale platform directly Weight reading stabilized and shines for 3 times

WIRELESS TRANSMISSION MODE Fig.3

Step onto the scale platform directly (do not cover the infrared receiver) Weight reading stabilized and shines for 3 times

TO SET WEIGHT UNIT Fig.6

If the scale is with both measuring system of Metric (kg) and Imperial (lb), you can press "UNIT" button to convert between two systems before weighing. The "UNIT" button is inside the battery case of read-out display as shown in picture.

TO INSTALL OR REPLACE BATTERY Fig.4

2x3V lithium batteries (CR2032) included. One for main unit, the other for read-out display.

A. Take out the used battery with the aid of a sharp object, as shown in picture.
B. Install new battery by putting one side of the battery beneath the battery baffle and then pressing down the other side. Please take note to the polarity.

LOW BATTERY/OVERLOAD INDICATION Fig.5

Low battery power for read-out display. Please replace battery.

Low battery power for main unit. Please replace battery.

Scale overloaded. Please step off to avoid damage.

TECHNICAL DATA

Capacity: 150kg / 330lb

Graduation: 0.1Kg / 0.2lb

Use 2 batteries CR2032 (included)

For any improvement reasons, Beper reserves the right to modify or improve the product without any notice.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2011/65/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation,

that when you dispose of the appliance, it must be separately collected.

GUARANTEE CERTIFICATE

This appliance has been checked in the factory. From the date of original purchase a 24 month guarantee applies to material and production defects. The purchase receipt and the guarantee certificate must be submitted together in case of claim to guarantee.

For any technical assistance, please contact directly the seller or our head office in order to preserve the appliance's efficiency and NOT TO void the guarantee. Any intervention on this appliance by non-authorized persons will automatically void the guarantee.

Guarantee conditions

If the appliance shows defects as a result of faulty material and/or production during the period of guarantee, we guarantee repair free of charge on condition that:

• The appliance has been used properly and for the purpose for which it has been intended.
• Repairs are professionally carried out by qualified persons who are appointed by the supplier.
• The purchase receipt shall be presented.
• The appliance showing a fair wear and tear shall not be covered by this guarantee.

Therefore, any part that could be accidentally broken or having visible signs of use in consumable products (such as lamps, batteries, heating elements...) is excluded from the guarantee, and any defect whatsoever resulting from non-respect of the rules for use, negligence in usage and/or maintenance of the appliance, damage during transport and any other damage not attributable the supplier.

For every defect that could not be repaired within the guarantee period, the appliance will be replaced free of charge.

Technical assistance

Even after the guarantee period we will always pay attention to repairs for defected appliances. For technical assistance and/or repairs after the guarantee period you can directly contact the below address:

CONTACT YOUR DISTRIBUTOR IN YOUR COUNTRY OR AFTER SALES DEPARTMENT BEPER. E-MAIL [e-mail]

WHICH WILL FORWARD YOUR ENQUIRIES TO YOUR DISTRIBUTOR.

PRECAUTIONS GENERALES

LIRE ATTENTIVEMENT LES INSTRUCTIONS SUIVANTES AVANT LA PREMIÈRE UTILISATION DE L'APPAREIL.

Assistance technique
