| Product Type | Impedance Scale |
| Brand | SilverCrest |
| Model | SPWD 180 A1 |
| Device Weight | Approx. 1600 g (including battery) |
| Power Supply | 1 lithium battery CR2032 (3 V) |
| Maximum Capacity | 180 kg / 396 lb / 28 st |
| Graduation | 0.1 kg / 0.2 lb |
| Accuracy | ± (1% + 0.1 kg) from 30 to 180 kg |
| Weight Units | kg, st, lb (switchable) |
| User Memories | 10 profiles (P0 to P9) |
| Main Functions | Weighing, measurement of body fat, water, muscle, bone mass and daily energy requirements |
| Age Range | 10 to 80 years |
| Activity Levels | 5 (none, low, normal, moderate, intense) |
| Auto Off | After approximately 15 seconds |
| Operating Temperature | +10 °C to +40 °C |
| Maintenance and Cleaning | Clean with a dry cloth, do not use corrosive liquids |
| Safety | Do not use by pacemaker wearers, pregnant women, or with wet feet |
| Package Contents | Scale, CR2032 battery, instruction manual |
| Warranty | 3 years (excluding batteries) |
Frequently Asked Questions - SPWD 180 A1 SILVERCREST
User questions about SPWD 180 A1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Scale in PDF format for free! Find your manual SPWD 180 A1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SPWD 180 A1 by SILVERCREST.
USER MANUAL SPWD 180 A1 SILVERCREST
Network based information storage and data management
02/2014-Iden-No:SPWD150A1022014-1
EE AB G
User manual and service information
（）
Auto-Power-off: ca. 15 Sekunden
Safety instructions 49
Copyright 51
Prior to use. 51
Inserting / removing the battery 51
Entering or changing personal data 52
First use 52
Switching on the scales / measuring weight 52
Switching on scales / measuring weight, required calorie intake and body fat, water, bone and muscle percentages 53
Auto Power Off 53
Troubleshooting 54
Nothing is indicated on the LCD display 54
"Lo" is indicated on the LCD display and the scales switch off 54
"USEL" is indicated on the LCD display and the scales switch off 54
"Err" is indicated on the LCD display 54
"Err2" is indicated on the LCD display 54
Cleaning / maintenance 54
Environmental and disposal information. 55
Disposal of batteries 55
Conformity information 55
Warranty and servicing advice 56
Introduction
Thank you for purchasing a SilverCrest product. The SilverCrest diagnostic scales SPWD 180 A1, hereinafter referred to as diagnostic scales, are used for the convenient and precise determination of your body weight. Furthermore, the diagnostic scales can be used to measure body fat, water, muscle and bone percentages. You can also determine your required daily calorie intake. The diagnostic scales are impressive with their sleek design and ease of use.
Intended use
These diagnostic scales are used to determine a person's weight. Furthermore, it is possible to measure body fat, water, muscle and bone percentages and to determine your required daily calorie intake. These diagnostic scales should not be used outdoors or in tropical climates. These diagnostic scales are not designed for commercial use or operation in a company. Use the diagnostic scales only for private purposes in living areas as any other use is not as intended. These diagnostic scales meet all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the diagnostic scales that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases. Only use accessories specified by the manufacturer.
Please observe the regulations and laws in the country of use.
Supplied items
SilverCrest diagnostic scales SPWD 180 A1
- 1 lithium battery CR2032
These operating instructions
Overview
These operating instructions have a fold-out cover. The diagnostic scales are illustrated with numbers on the inside cover. The numbers indicate the following:
1 LCD display
2 1 button
3 SET button
4 button
5 Tread
6 Electrodes
7 Button for setting the unit of weight
8 Battery compartment

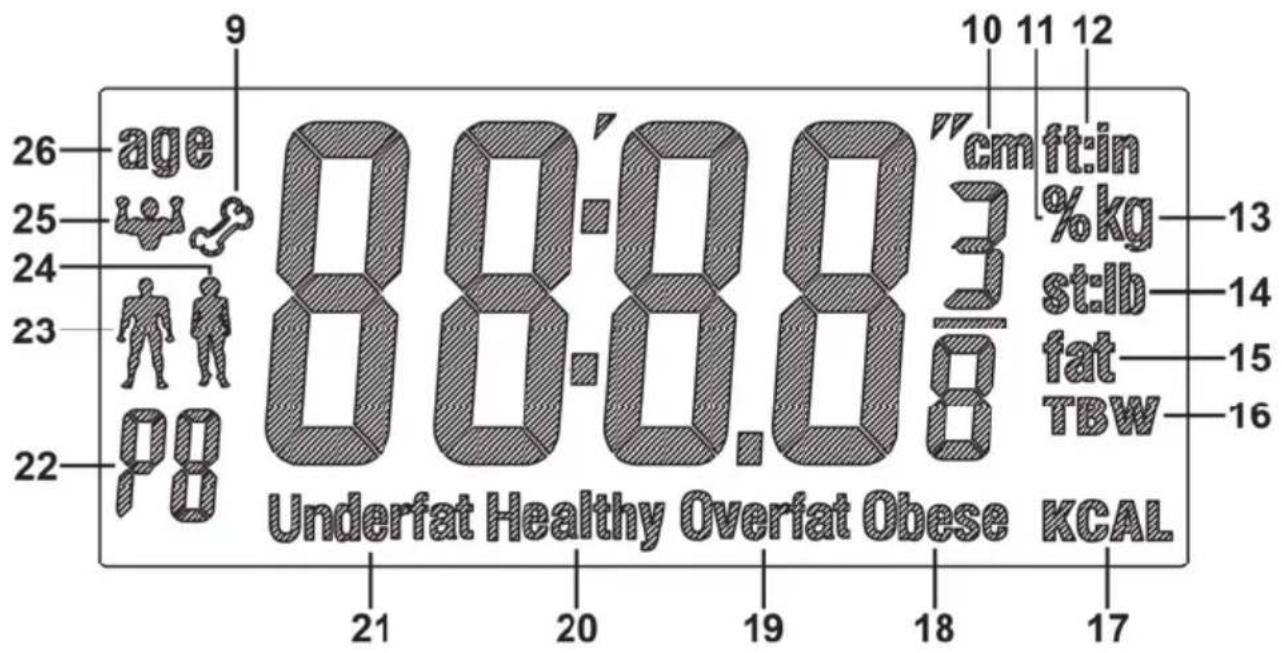

LCD display
9 Bone percentage
10 Body height in cm
11 Percentage (of body fat, water, muscle)
12 Body height in feet:inches
13 Unit of weight in kilograms
14 st:lb Unit of weight in stones:pounds
1b Unit of weight in pounds
15 Body fat percentage
16 Water percentage
17 Recommended calorie intake per day
18 Obese
19 Overweight
20 Normal weight
21 Underweight
22 User profile memory
23 Male
24 Female
25 Muscle percentage
26 Age
Technical data
Operating voltage: 3V
Battery: 1 × 3V lithium battery CR2032
Units of weight: kg / st / lb (adjustable)
Weighing range: 5kg to max. 180kg / 396lb / 28st
Graduation: 0.1 kg/0.2lb
Measuring tolerance: + / - (1% +0.1kg / 0.2lb) for 30kg to 180kg
Auto Power Off function: approx. 15 seconds
User profile memories: 10
Gender: male/female
Age range: 10-80 years of age
Levels of activity: 5 (none, little, normal, moderate, intense)
Body height range: 100 to 220cm
Dimensions (W× D× H) .. 300× 300× 21mm
Weight: approx. 1600g including battery
Operating temperature: +10^ to +40^
The technical data and design may be changed without notification.
Safety instructions
Before using the diagnostic scales for the first time, please read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell the diagnostic scales or pass them on, always include these instructions.
WARNING! This symbol indicates important information for safe operation of the diagnostic scales and the safety of the user.
This symbol indicates that one must not step on the diagnostic scales with wet or damp feet. The same applies if the tread is wet or damp. You could slip and injure yourself.
This symbol indicates other important information on the topic.
These diagnostic scales can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the diagnostic scales and understand the resulting risks. Children must not play with the diagnostic scales. Cleaning and user maintenance must not be carried out by children without supervision. Always keep plastic packaging away from children. It poses a suffocation risk.
Do not use the diagnostic scales under any circumstances if you wear a pacemaker. Never use the diagnostic scales in the vicinity of anyone who wears a pacemaker or other medical devices.
The diagnostic scales are not suitable for pregnant women.
Do not step on the diagnostic scales with wet or damp feet or when the tread is damp. You could slip and injure yourself.
Do not overload the diagnostic scales with more than 180kg . Otherwise, the diagnostic scales could be damaged and there is a risk of injury.
Do not jump on the tread of the diagnostic scales. It could be damaged otherwise and there is a risk of injury.
If smoke is produced, or there are any unusual sounds or smells, remove the battery immediately from the diagnostic scales. In such cases, the diagnostic scales should not be used until they have been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.
The diagnostic scales must not become damaged in order to prevent hazards.
Ensure that no fire sources (e.g. burning candles) are placed on or near the diagnostic scales. It poses a fire hazard!
The diagnostic scales must never be exposed to any direct heat sources (for example, heaters) or direct sunlight or artificial light. Also avoid contact with dripping water and splashes and corrosive liquids. Do not use the diagnostic scales near water. In particular, the diagnostic scales should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks, on the diagnostic scales). Also ensure that the diagnostic scales are never subjected to excessive shocks and vibrations. Furthermore, no foreign objects may penetrate the device. Otherwise, the diagnostic scales could be damaged.
If the battery has leaked, remove it to prevent damage to the diagnostic scales. You can remove leaked battery fluid with a dry, absorbent cloth. Wear suitable gloves for this purpose! Contact with the skin must be avoided. In the event of skin or eye contact with chemicals, they must be immediately rinsed with generous amounts of water and a doctor must be consulted.
Copyright
All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change.
Prior to use

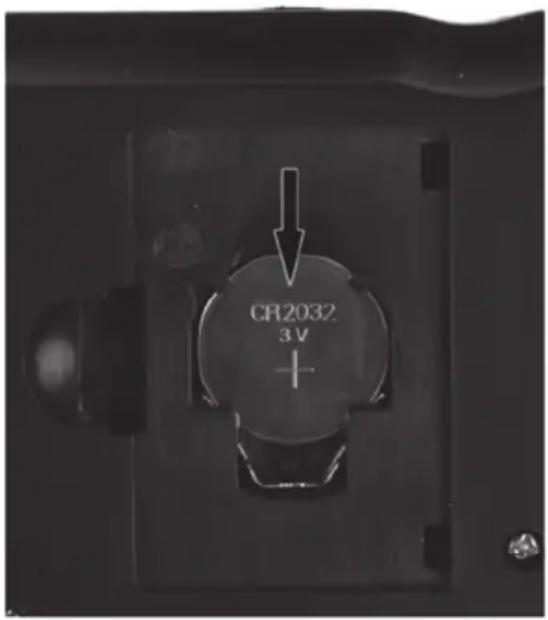

Inserting / removing the battery
To insert the lithium battery CR2032, open the cover of the battery compartment at the rear of the diagnostic scales by slipping your finger into the slot on the side of the battery compartment (8). Now remove the cover of the battery compartment (8) and insert the enclosed lithium battery CR2032. Pay attention to the polarity when inserting the battery. This is indicated in the battery compartment (8), and the + symbol on the lithium battery CR2032 must be visible, as shown in the illustration.
To remove the battery, push it down a bit (see the direction of the arrow in the illustration). You can then remove the battery from the holder.
Then replace the cover on the battery compartment (8). The diagnostic scales are now ready to use.
Entering or changing personal data
You must enter your personal data when you first measure your body weight, required calorie intake and body fat, water, bone and muscle percentages. To do so, proceed as follows:
- Press the SET button (3) to switch on the scales.
- Press the SET button (3) again to enter or change your personal data.
- The user profile memory (22) then flashes on the LCD display (1). Use the button (2) or button (4) to select the desired user profile memory (22) [P0 to P9]. Confirm your selection using the SET button (3).
- You can then successively enter gender [male (23)/female (24)], age (26), height and level of activity via the button (2) and button (4). Confirm each entry using the SET button (3).
You can use the level of activity to specify your sporting activity. 5 levels of activity are available: AC-1 = none, AC-2 = little, AC-3 = normal, AC-4 = moderate and AC-5 = intense.
First use
Solid ground is required to measure weight correctly. Thus always place the diagnostic scales on a solid, horizontal floor covering and never on carpet. This can distort the measurement result.
To obtain comparable measurement results, you should always weigh yourself if possible at the same time of day (preferably in the morning). Always weigh yourself if possible under the same conditions: on an empty stomach, after having gone to the toilet and naked.
Please note that values for the stone unit of weight are not represented as decimal values. The display is divided into two segments by a colon. Only whole numbers are displayed in the "st" unit of weight to the left of the colon. The remaining weight is displayed in the "lb" unit of weight to the right of the colon.
Example: "6:6 1/2 st:lb" is shown on the display. This corresponds to 6st and 6.5lb.
Switching on the scales / measuring weight
Due to the step on power function, the diagnostic scales are switched on automatically when you step on the tread (5) and they start to measure your weight immediately.
In their original state, the diagnostic scales are set to the "kg" (13) unit of weight. To change the unit of weight, press the "Button for setting the unit of weight" (7) when the scales are switched on. The selected unit of weight is then indicated on the LCD display (1).
Stand on the tread (5) of the diagnostic scales so that your weight is evenly distributed. Remain as still as possible during the weighing process as the measurement result may be distorted otherwise. The measurement result is indicated on the LCD display (1) during the weighing process. The measurement is complete when the display flashes twice.
Switching on scales / measuring weight, required calorie intake and body fat, water, bone and muscle percentages
You must first enter your personal data before performing these measurements. Please pay particular attention to the section "Entering or changing personal data". Proceed as follows to perform the measurement:
- Press the SET button (3) to switch on the scales.
- Press the button (2) or button (4) to select the desired user profile memory (22).
- Stand barefoot on the tread (5) and make sure that you are standing on both electrodes (6).
- The measurement then starts. Remain standing on both electrodes (6) until the measurement is complete. Remain as still as possible during the weighing process as the measurement result may be distorted otherwise.
After measuring successfully, the following values are displayed three times in succession:
Body weight
Body fat percentage (15) and obese (18), overweight (19), normal weight (20) or underweight (21)
Water percentage (16)
O Muscle percentage (25)
Bone percentage (9)
o Recommended calorie intake per day (17)
Auto Power Off
The diagnostic scales have an automatic switch-off function (Auto Power Off function). After displaying the measurement result, the diagnostic scales switch off automatically.
Troubleshooting
Nothing is indicated on the LCD display
- The lithium battery CR2032 is empty. Replace the lithium battery CR2032 with another of the same type. In this case, please observe the instructions for inserting the battery on page 51.
- The lithium battery CR2032 is inserted incorrectly. In this case, please observe the instructions for inserting the battery on page 51.
"Lo" is indicated on the LCD display and the scales switch off
- The lithium battery CR2032 is almost empty. Replace the lithium battery CR2032 with another of the same type. In this case, please observe the instructions for inserting the battery on page 51.
"USEL" is indicated on the LCD display and the scales switch off
- An error has occurred and the diagnostic scales cannot perform the measurement. In this case, step off the tread (5) of the diagnostic scales and start the measurement again.
"Err" is indicated on the LCD display
- Your weight exceeds the maximum load capacity of 180kg / 396lb / 28st . You should step off the tread (5) of the diagnostic scales immediately to avoid damaging the scales.
"Err2" is indicated on the LCD display
- An incorrect measurement has occurred. In this case, step off the tread (5) of the diagnostic scales and start the measurement again. Make sure that you are standing on both electrodes (6).
Cleaning / maintenance
It is necessary to service the diagnostic scales if they have been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the scales or if they have been exposed to rain or moisture. Servicing is also required if the scales are not working properly or have been dropped. If smoke is produced, or there are any unusual sounds or smells, remove the battery immediately from the diagnostic scales. In such cases, the diagnostic scales should not be used until they have been inspected by authorised service personnel. Only have qualified personnel
carry out the maintenance work on the device. Never open the housing of the diagnostic scales. Only use a clean, dry cloth for cleaning and never use any corrosive liquids.
Environmental and disposal information
When the crossed out wheelie bin symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The correct disposal of old devices in this manner will prevent environmental pollution and human health hazards. The battery must be removed from the device before it is scrapped.
For further information about proper disposal, contact your local authorities, waste disposal office or the shop where you bought the device.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.
Disposal of batteries
Remember to protect the environment. Used batteries should not be disposed of in household waste. They must be taken to a collection point for old batteries. Please note that only discharged batteries may be deposited in collection bins for portable batteries. Care must be taken to ensure that batteries that are not fully discharged do not short circuit.
Conformity information
This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC as well as the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of this manual.
Warranty and servicing advice
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.
Service
Phone: 0207-3650744
E-Mail: service.GB@targa-online.com
Phone: 01-2421583
E-Mail: service.IE@targa-online.com
Phone: 800-62175
E-Mail: service.MT@targa-online.com
Phone: 800-92496
E-Mail: service.CY@targa-online.com
IAN:41592
Manufacturer
TARGA
GmbH
Coesterweg 45
59494 SOEST
GERMANY
CE
EU Declaration of Conformity
Address:
Targa GmbH
Coesterweg 45
59494 Soest, Germany
Product:
Body Analyser Scale
Model:
Silvercrest SPWD 180 A1
Identification number:
IAN 41592
The product complies with the requirements of the following European directives:
2004/108/EC
Electromagnetic Compatibility
This declaration of conformity is issued under the sole responsibility of the manufacturer
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Compliance was proved by the application of the following standards:
EMC:
EN 61000-6-3:2007 +A1:2011
EN 61000-6-1:2007
Rohs:
EN 62321: 2009
Year of CE marking:
2014
Soest, 4^th May 2014
Matthias Klauke, Managing Director
