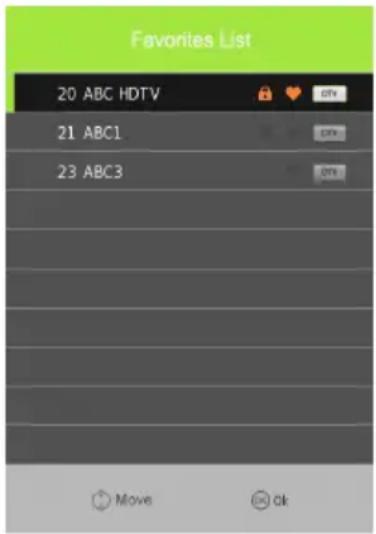

Favorites List 20 ABC HDTV 21 ABC1 23 ABC3 Move ok

TÉLÉTEXTE

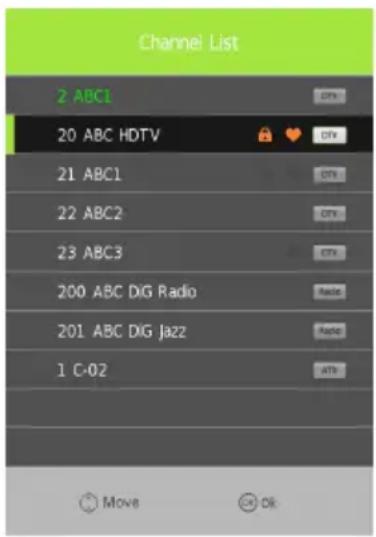

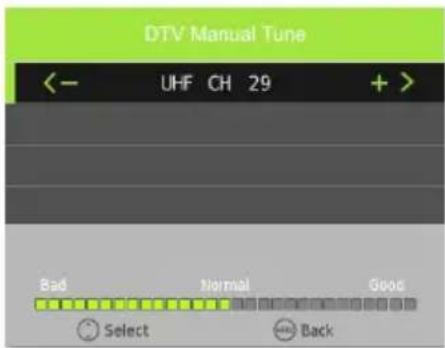

Channel List 2 ABC1 20 ABC HDTV 21 ABC1 22 ABC2 23 ABC3 200 ABC DIG Radio 201 ABC DIG Jazz 1 C-02 Move Ok

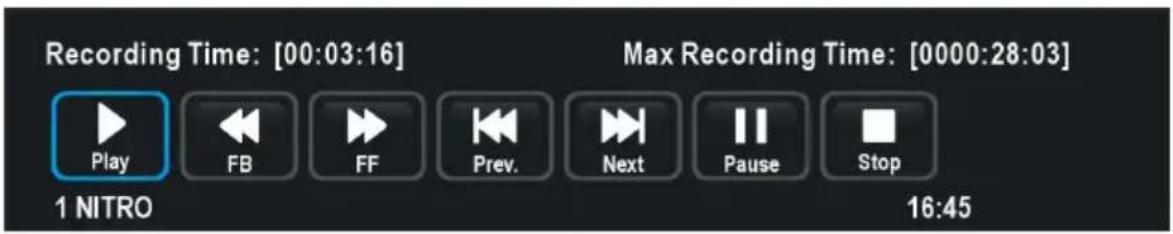

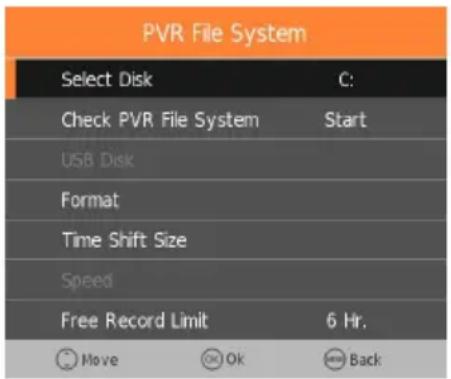

Recording Time: [00:03:16] Max Recording Time: [0000:28:03] Play FB FF Prev. Next Pause Stop 1 NITRO 16:45

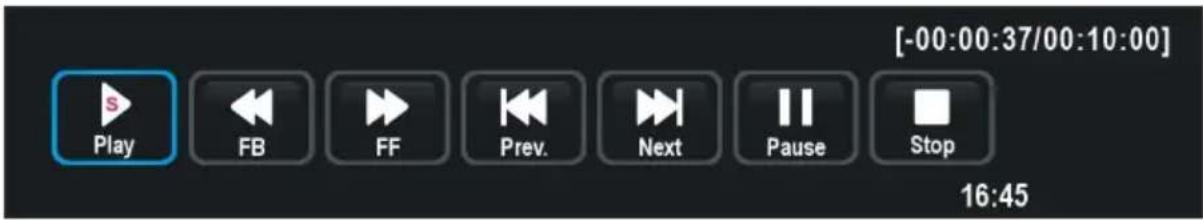

Play FB FF Prev. Next Pause Stop [-00:00:37/00:10:00] 16:45

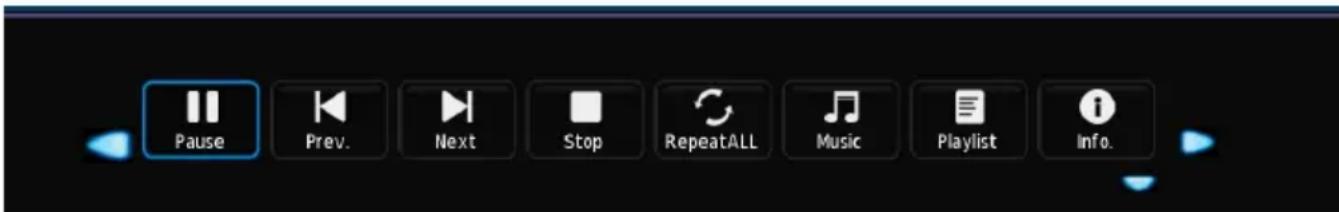

Pause Prev. Next Stop RepeatALL Music Playlist Info.

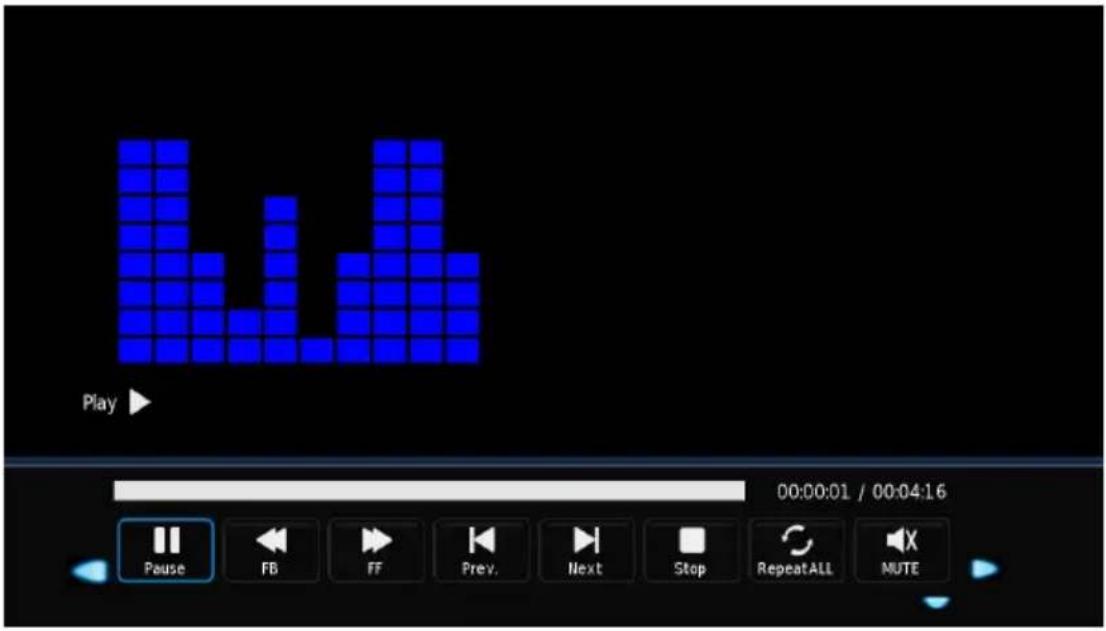

Play 00:00:01 / 00:04:16 Pause FB FF Prev. Next Stop RepeatALL MUTE

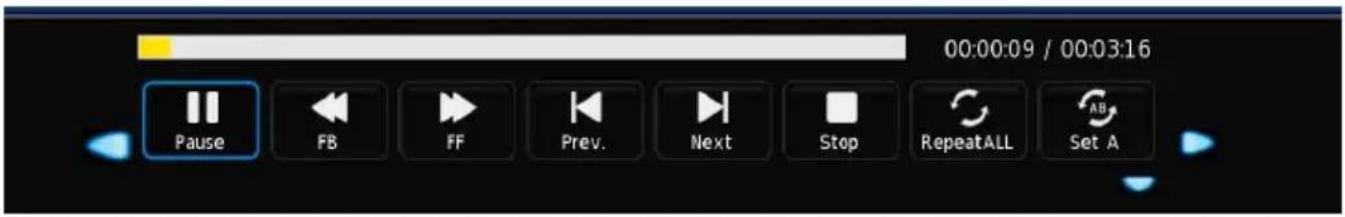

00:00:09 / 00:03:16 Pause FB FF Prev. Next Stop RepeatALL Set A

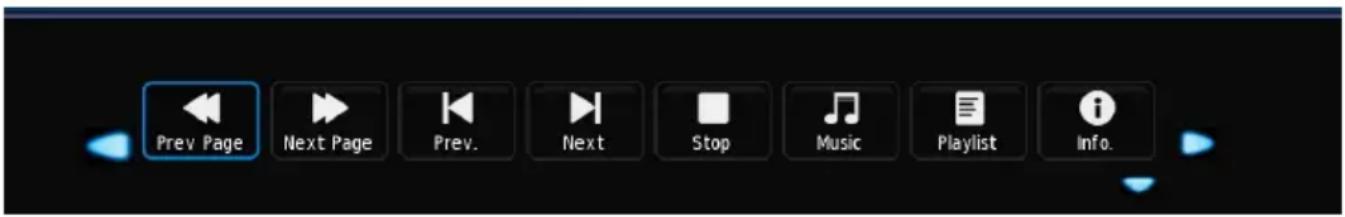

Prev Page Next Page Prev. Next Stop Music Playlist Info.

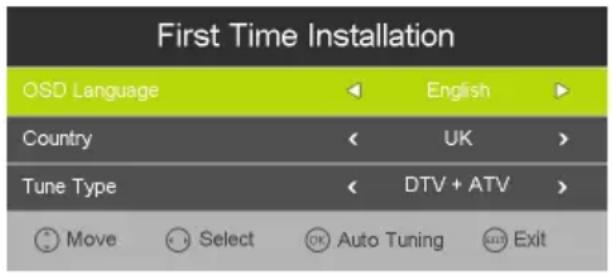

First Time Installation OSD Language English Country UK Tune Type DTV + ATV Move Select Auto Tuning Exit

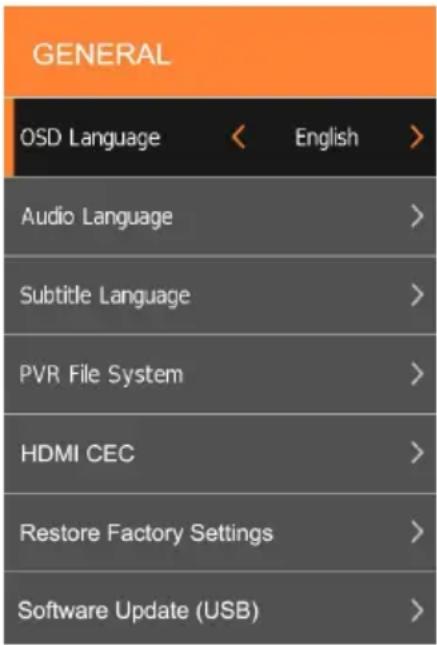

Langue de l'OSD

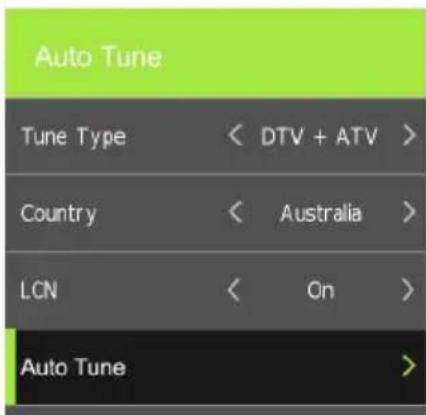

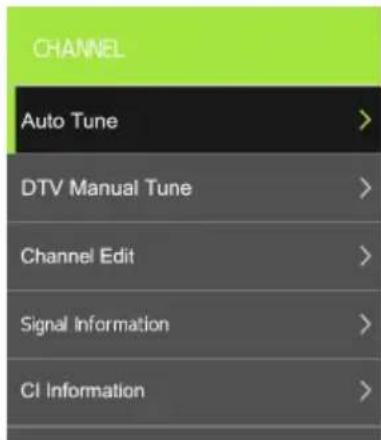

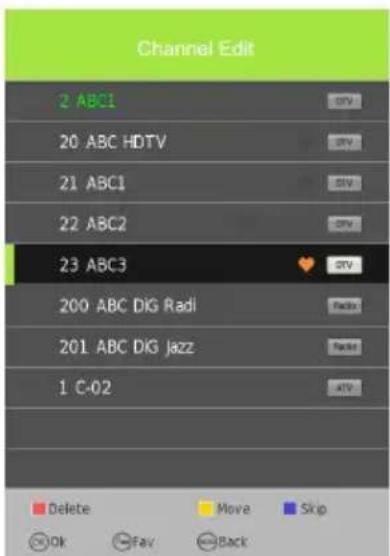

Channel Edit 2 ABC1 20 ABC HDTV 21 ABC1 22 ABC2 23 ABC3 200 ABC DIG Radi 201 ABC DIG jazz 1 C-02 Delete Move Skip Ok Fav Back

1.4. INFORMATIONS DE SIGNAL

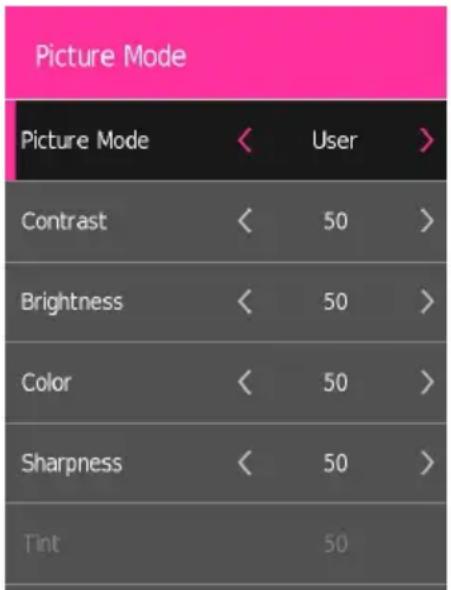

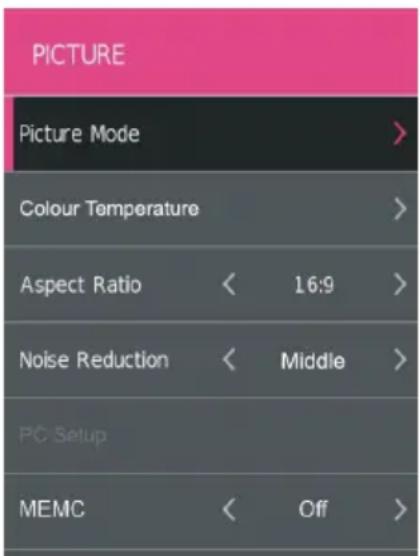

PICTURE Picture Mode > Color Temperature > Aspect Ratio < 16:9 > Noise Reduction < Medium > Screen MEMC < Off >

2.1 Mode Image

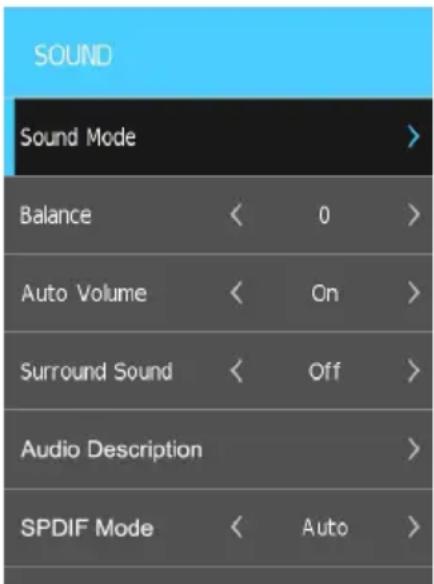

3.5 Description audio

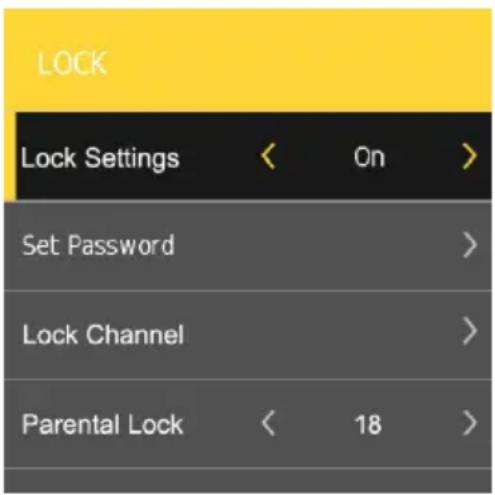

LOCK Lock Settings < On > Set Password > Lock Channel > Parental Lock < 18 >

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons.

To avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

SAFETY INSTRUCTIONS

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY:

● This product shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

- Situate this product away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

- Clean the product only as recommended by the manufacturer (see "Maintenance" section for details). Unplug the power plug from the wall outlet before cleaning,

● Unplug the power plug from the wall outlet when left unused for an extended period.

● Prevent objects/liquids from falling or spilled on the product.

- Operate the product only with the supplied power cord. Route power cords so they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to plugs, convenience receptacles, and the point where they exit from the product.

- Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

- Do not operate this product under the following conditions.

- When the power-supply cord or plug is damaged.

- If liquid has been spilled into or objects have fallen into the product.

- If the product has been exposed to rain or water.

- If the product does not operate when used according to the operating instructions.

- If the product has been dropped or damaged in any way.

- Do not attempt to service the product; take it to the electronics repair shop of your choice for any servicing or repair.

- Do not overload wall outlets, extension cords, or integral convenience receptacles.

- Connect this product to the power outlet which has protective earth connection.

CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR PRODUCT/PROPERTY DAMAGE:

● This product is intended solely for non-commercial, non-industrial, personal use as a television. Do not use this product for any other purpose.
- Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of direct sunlight.
- Keep the product away from magnetic objects, motors, and transformers.
- Do not use outdoors in inclement weather.
- Do not use the TV while driving; this is dangerous and is illegal in some areas.

CAUTION ON HEADPHONE USE:

At full volume, prolonged listening to the portable audio device may damage the user's hearing.

BATTERY HANDLING AND USAGE:

• Keep batteries away from children and pets. Only adults should handle batteries.
  ● Never throw batteries into a fire or expose them to fire or other heat sources.
  ● Follow the battery safety and usage instructions.

TABLE OF CONTENTS

GETTING STARTED

WARNING / IMPORTANT INSTRUCTIONS.... 43-45

ACCESSORIES 47

STAND INSTALLATION....48

GENERAL PARTS 49-50

REMOTE CONTROL....51-53

REMOTE CONTROL PREPARATION 54-55

BASIC CONNECTIONS 55-61

OPERATIONS

BASIC OPERATIONS 62-68

MAIN MENU....69-77

FIRST TIME INSTALLATION 69

DTV MODE....70-76

ATV AND OTHER MODES 76

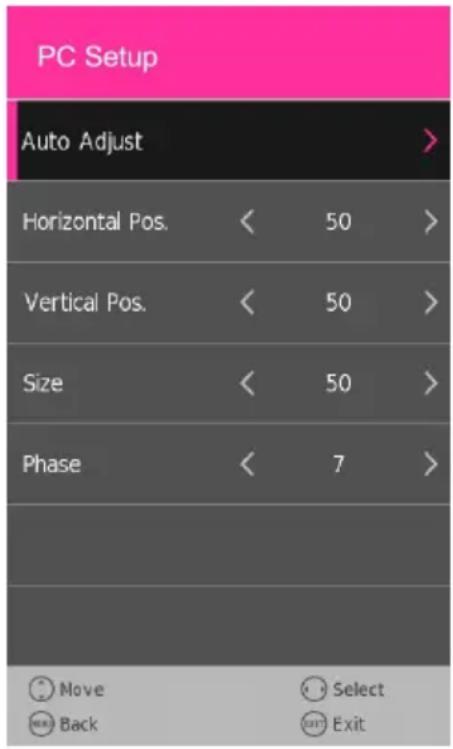

PC/VGA MODE....77

TELETEXT 78

FOR REFERENCE

MAINTENANCE 79

WALL MOUNTING 79

SPECIFICATIONS 80

TROUBLESHOOTING 81

DISPOSAL OF OLD ELECTRICAL APPLIANCES....82

IMPORTER 83

ACCESSORIES

User Manual Remote Control

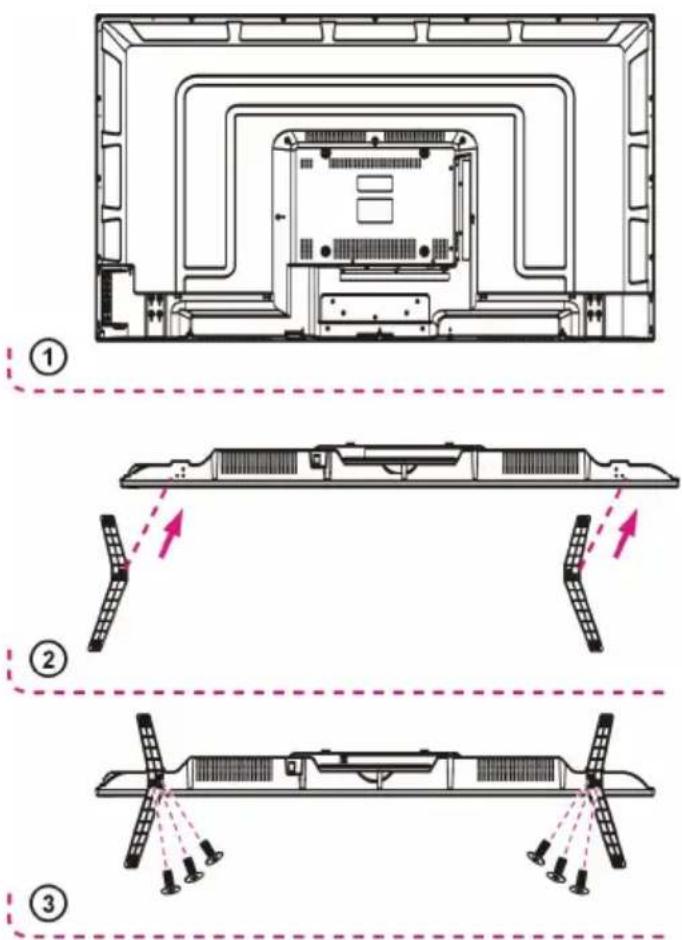

STAND INSTALLATION

Your TV is packaged with the Stand and the Cabinet separated. Before enjoying this TV, please carry out the Stand Installation according to the instructions below.

Step 1

Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.

Step 2

Align the Stand with TV bottom and then force the end of stand until the TV is fully seated on the stand.

Step 3

Tighten the included screws with a screw driver.

NOTES:

• Unplug the power plug first when installing or removing the TV Stand.
• To avoid any damage to this TV, contact one or more partner for assistance when installing or removing the TV stand.

Technical diagram showing three views of a device with labeled components and directional arrows indicating assembly or positioning.

GENERAL PARTS

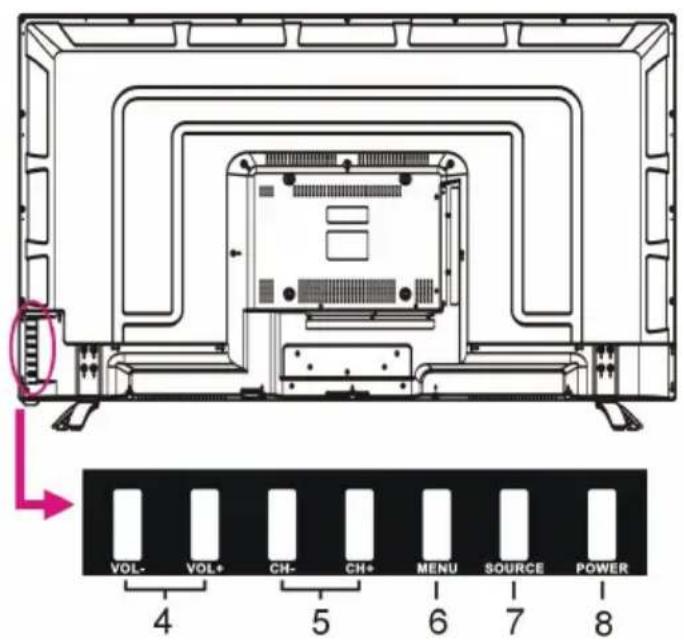

MAIN UNIT

Front View Back View

1 2 3

VOL- VOL+ CH- CH+ MENU SOURCE POWER 4 5 6 7 8

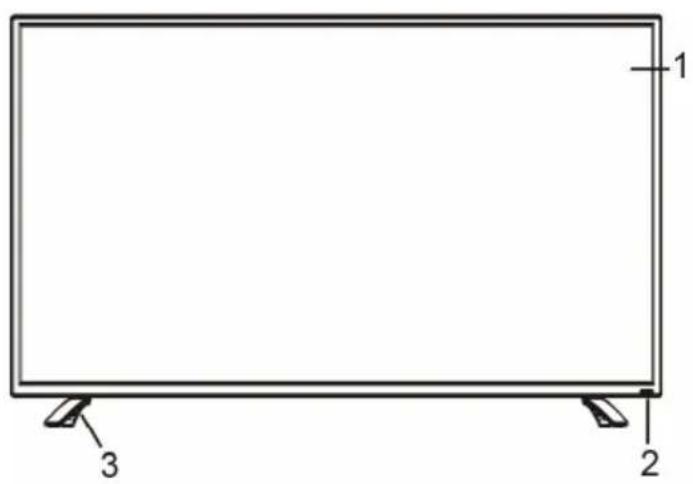

1. LED display screen
2. Remote control sensor \ Power indicator- In standby mode the indicator light is red; when switching on the unit the indicator light is blue color.
3. Stand holder
4. VOL +/- button- To increase/decrease the volume level or move left/right.
5. CH +/- button- To select next/previous channel or move up/down.
6. MENU button- To enter menu setting page.
7. SOURCE button- To select the input source.
8. POWER button- To turn the TV ON/OFF.

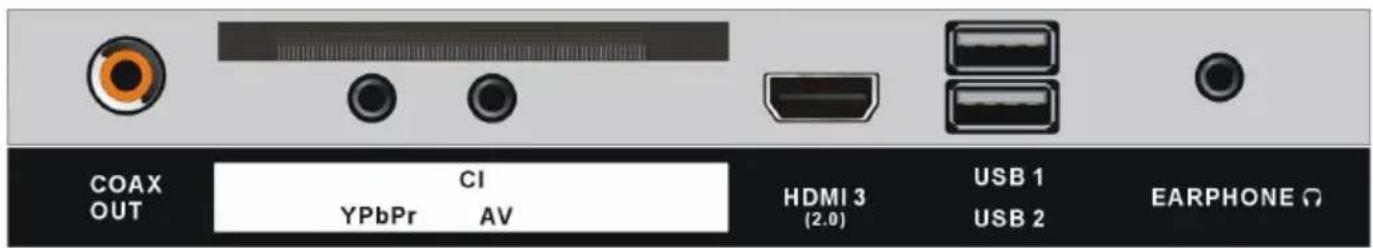

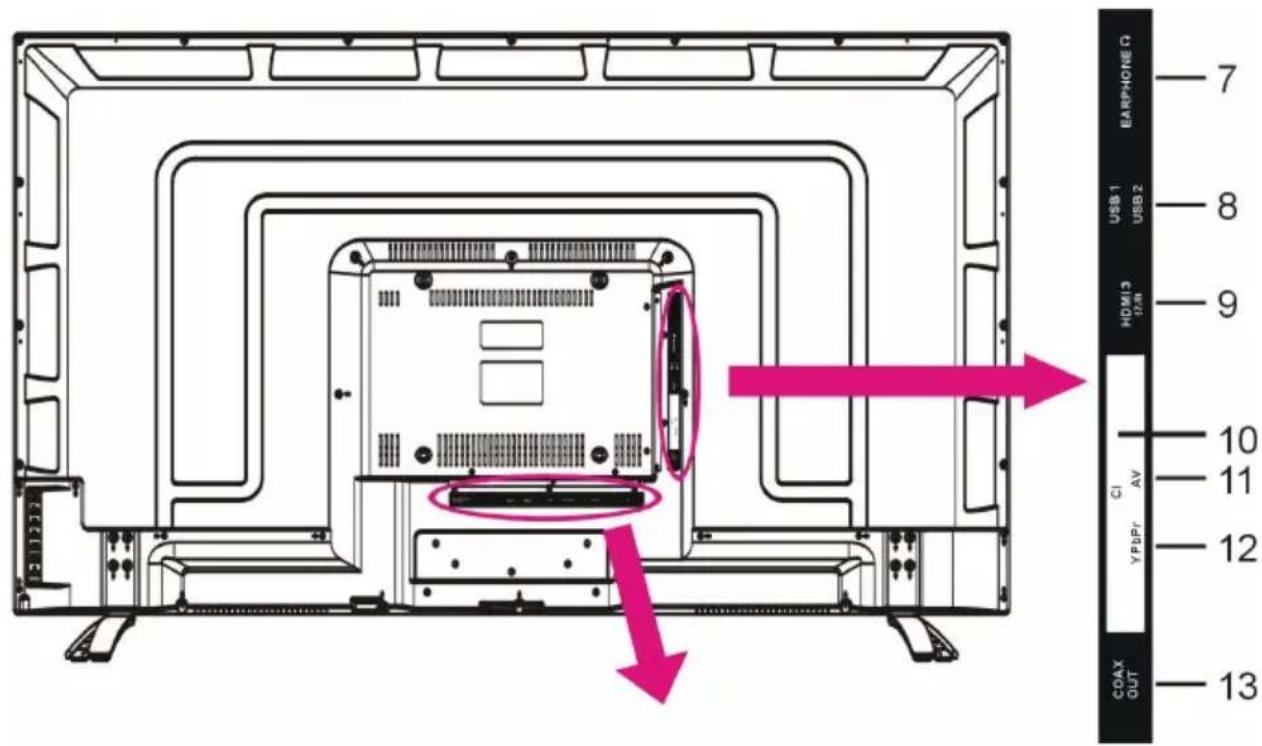

Back View (Connections)

COAX OUT 13 12 11 10 AV YPRP CI HDMI IUR HDMI 3 IUR USB 1 USB 2 EARPHONE G 7 8 9 10 11 12 7 8 13

AC 100-240V-50/60Hz	HDMI 1(ARC)	HDMI 2(MHL)	VGA	PC AUDIO	SCART	RF
1	2		3	4	5	6

1. AC Power cord
2. HDMI1 (ARC) / HDMI2 (MHL) input terminal

Note:

ARC ("Audio Return Channel") function: in HDMI 1.4 enables the TV via HDMI cable (not included) to send audio data from the TV to an A/V receiver or surround audio controller.

MHL (“Mobile High Definition Link”) function allows to mirror HD contents of your Smartphone or Tablet to this TV, when connected via a MHL cable (not included).

1. VGA input terminal
2. PC AUDIO input terminal
3. SCART input terminal
4. RF input terminal- To connect the external antenna.

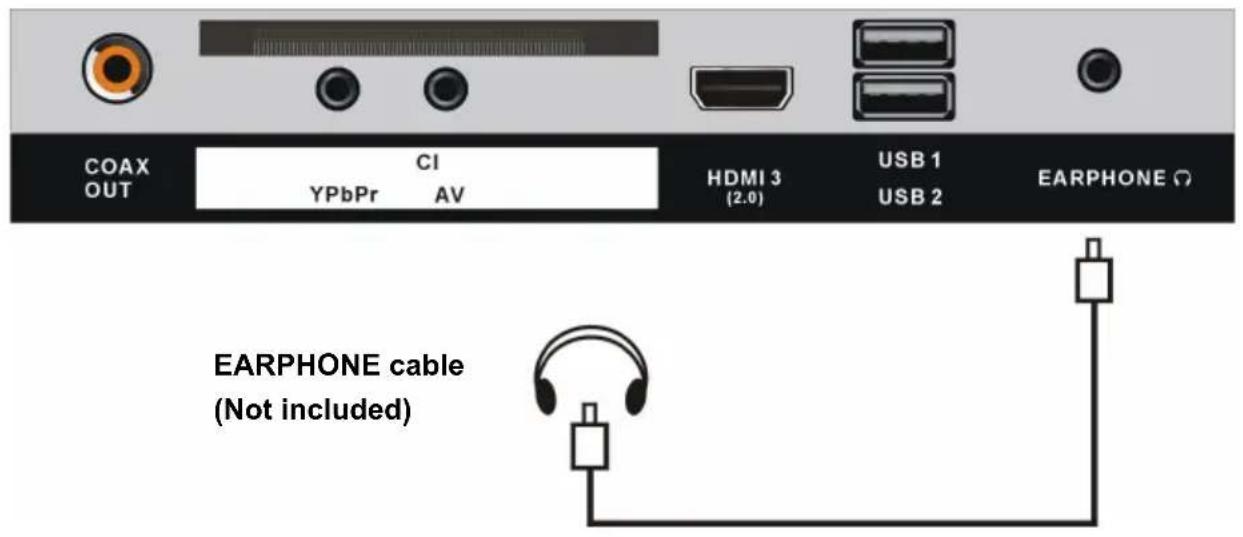

5. EARPHONE output terminal
6. USB 1/2 input terminal
7. HDMI 3 (HDMI 2.0) input terminal
8. CI input terminal
9. Mini AV input terminal
10. Mini YPbPr input terminal
11. COAXIAL output terminal

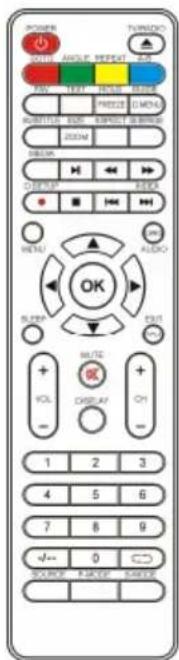

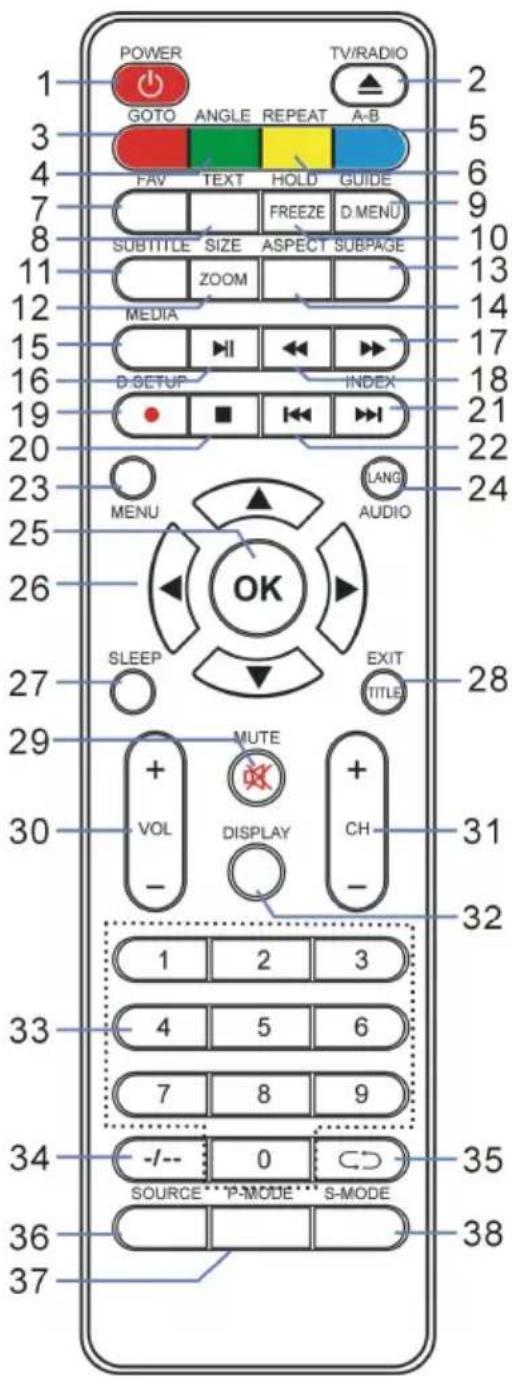

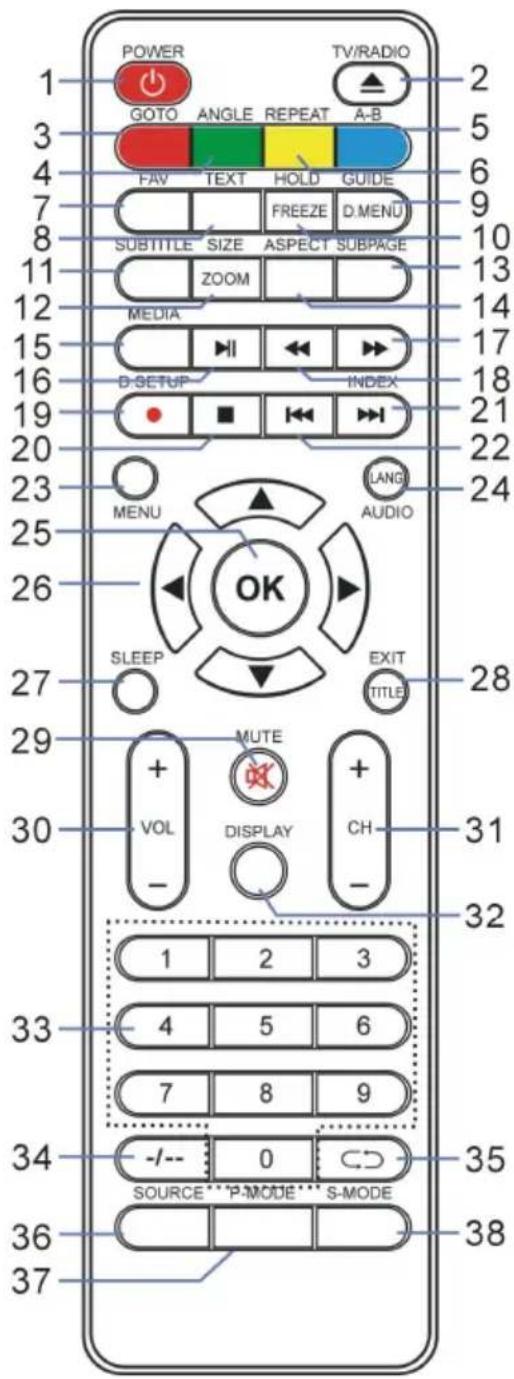

REMOTE CONTROL

The buttons on the remote control and similarly marked ones on the main unit perform similar functions.

1 POWER

Set the unit in standby mode; press it again to switch it on.

2 TV/RADIO (DTV)

Switch the unit between TV and Radio.

3 RED button (TV)

GOTO (DVD)

4 GREEN button (TV)

ANGLE (DVD)

5 BLUE button (TV)

A-B (DVD)

6 YELLOW button (TV)

REPEAT (DVD)

7 FAV

Display the favorite channels list.

8 TEXT\*

Display the available Teletext.

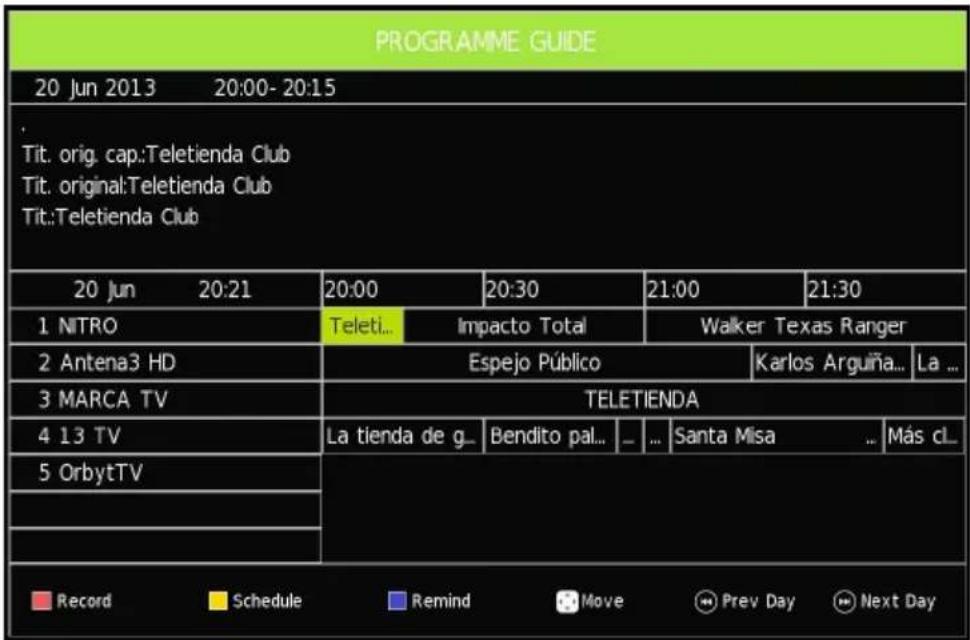

9 GUIDE (DTV)

Display electronic program guide.

D.MENU (DVD)

10 HOLD\*

Hold the Teletext.

FREEZE

Hold the picture.

11 SUBTITLE

Enable/disable subtitles.

12 SIZE (TV)\*

Switch Teletext size.

ZOOM (DVD)

POWER GOTO ANGLE REPEAT TV/RADIO A-B 2 3 5 4 FAV TEXT HOLD GUIDE 6 7 FREEZE D.MENU 9 8 SUBTITLE SIZE ASPECT SUBPAGE 10 11 ZOOM 13 12 MEDIA 14 15 17 16 D-SETUP INDEX 18 19 21 20 22 23 MENU 24 25 26 27 SLEEP 28 MUTE AUDIO 30 31 - DISPLAY CH - 32 1 2 3 33 4 5 6 7 8 9 34 -/-- 0 35 SOURCE 'P-MODE' S-MODE 36 37

13 SUBPAGE\*

Enter Teletext sub-page.

14 ASPECT

Press it repeatedly to select desired screen size.

15 MEDIA

Enter Media (USB) mode directly.

16

Start/pause playing.

17

Move fast forward.

18

Move fast backward.

19 • (DTV)

Start RECORDING when watching available digital programs.

D.SETUP (DVD)

20

Stop playing.

21

Play the next file.

INDEX* (DTV)

Display the record list or Teletext index.

22

Play the previous file.

23 MENU

Call out the main menu or return to previous menu.

24 AUDIO (TV)

Switch the available sound-track.

LANG (DVD)

25 OK

Confirm selection.

26 ▲/▼/◄/►

Navigation buttons

27 SLEEP

Set desired sleep time.

POWER GOTO ANGLE REPEAT A-B TV/RADIO 2 3 5 4 6 7 9 8 SUBTITLE SIZE ASPECT SUBPAGE 10 11 13 12 14 15 17 16 D-SETUP INDEX 18 21 20 22 23 MENU LANG AUDIO 24 25 26 OK SLEEP EXIT TITLE 27 28 29 MUTE + VOL DISPLAY CH 30 31 32 1 2 3 4 5 6 7 8 9 33 34 -/-- 0 CDD SOURCE "P-MODE" S-MODE 35 36 37

28 EXIT (TV)

Exit the menu page.

TITLE (DVD)

29 MUTE

Mute the sound.

30 VOL +/-

Increase/decrease the volume level.

31 CH +/-

Play the next/previous program.

32 DISPLAY

Display the available program information.

33 Number buttons (0-9)

Input the number information, such as channel number and so on.

34 -/--

Switch the digit when watching TV programs.

35

Return to previous channel.

36 SOURCE

Select desired input source.

37 P-MODE

Switch the picture mode.

38 S-MODE

Switch the sound mode.

NOTE: The functions of those buttons, which marked with "DVD", are available only when your TV has fitted a DVD player. (Not available for your model ATE-55D1044K).

The * marked on some keys means that these buttons are used for teletext.

POWER GOTO ANGLE REPEAT A-B TV/RADIO 2 3 5 4 6 7 9 8 SUBTITLE SIZE ASPECT SUBPAGE 10 11 13 12 14 MEDIA 15 17 16 D-SETUP INDEX 18 19 21 20 22 23 24 MENU LANG AUDIO 25 26 OK SLEEP EXIT TITLE 27 28 29 MUTE + VOL DISPLAY CH 30 - - - 31 32 1 2 3 33 4 5 6 7 8 9 34 -/-- 0 CD SOURCE "P-MODE" S-MODE 35 36 37

REMOTE CONTROL PREPARATION

BATTERY INSTALLATION

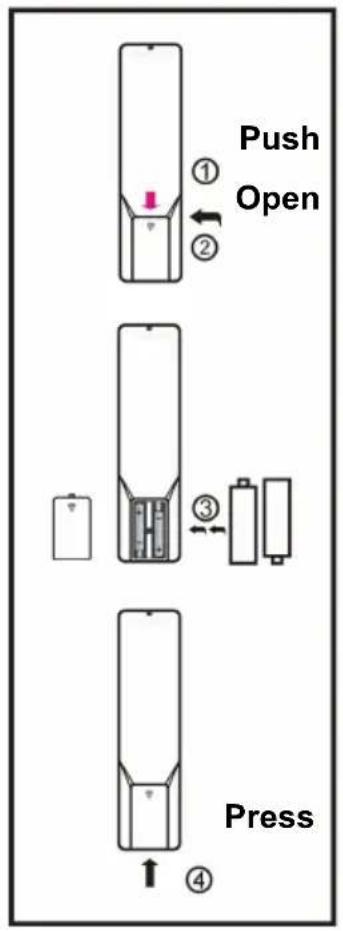

Install the batteries as the following pictures. Be sure + and – terminals are positioned as indicated in the battery compartment (Fig1).

SERVICE LIFE OF BATTERIES

• The batteries normally last for one year although this depends on how often the remote control is used.
• If the remote control fails to work even when it is operated near the player, replace the batteries.
• Use two size AAA dry batteries.

NOTE:

• Do not drop, step on or otherwise impact the remote control. This may damage the parts or lead to malfunction.
• If the remote control is not going to be used for a long time, remove the batteries.

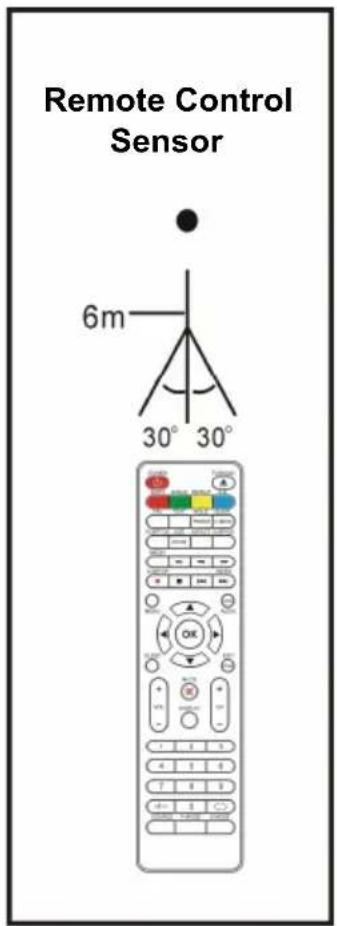

Point the remote control from no more than about 6m from the remote control sensor and within about 60^ of the front of the player (Fig2).

NOTES:

• The operating distance may vary according to the brightness of the room.
• Do not point bright light at remote control sensor.
• Do not place objects between the remote control and the remote control sensor.
• Do not use this remote control while simultaneously operating the remote control of any other equipments.

Fig1

Fig

Remote Control Sensor 6m 30° 30°

Precaution on battery use

Improper use of batteries can result in leakage of chemicals and/or explosion. Be sure to follow the instructions below :

Place batteries with their terminals corresponding to the (+) and (-) indications.

Different types of batteries have different characteristics. Do not mix batteries of different types.

Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak chemicals.

Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash.

If chemical leakage is found, wipe with a cloth.

The batteries (battery pack of batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

IMPORTANT NOTE ON BATTERIES :

Please help to protect the environment. It is recommended to dispose of old batteries in collection centers specially designed for that.

BASIC CONNECTIONS

- Ensure all the cables are disconnected from the main unit before connecting to AC power source.

- Read through the instructions before connecting other equipments.

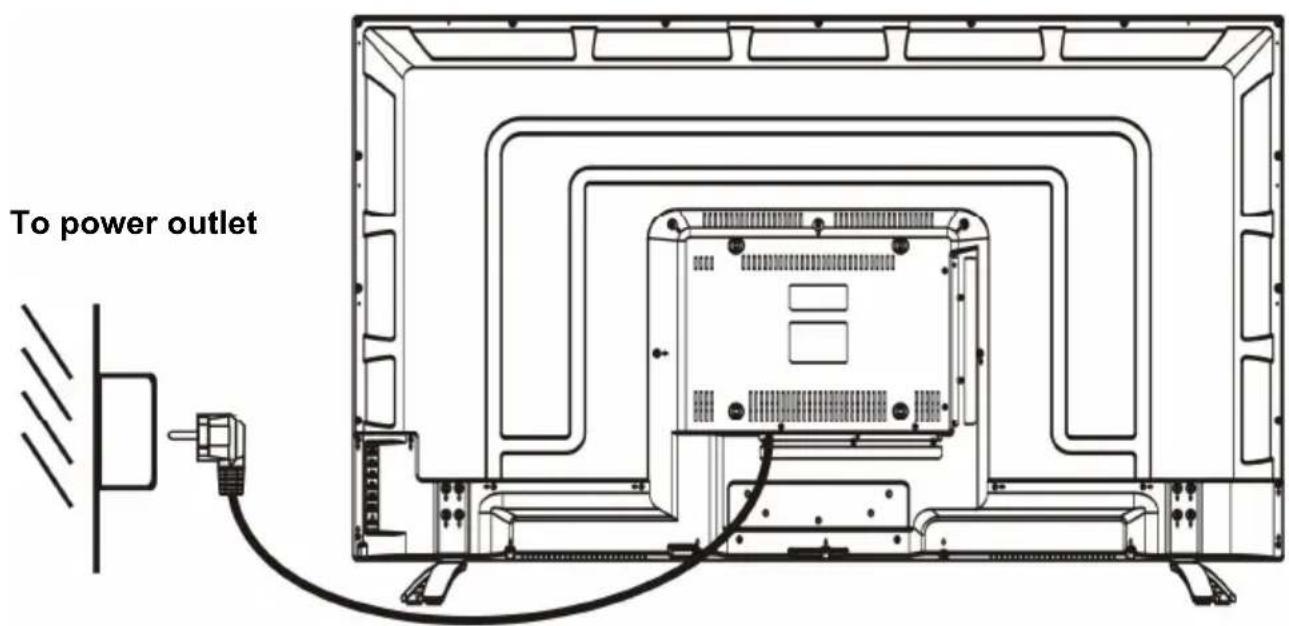

CONNECTING TO AC POWER SOURCE

To power outlet

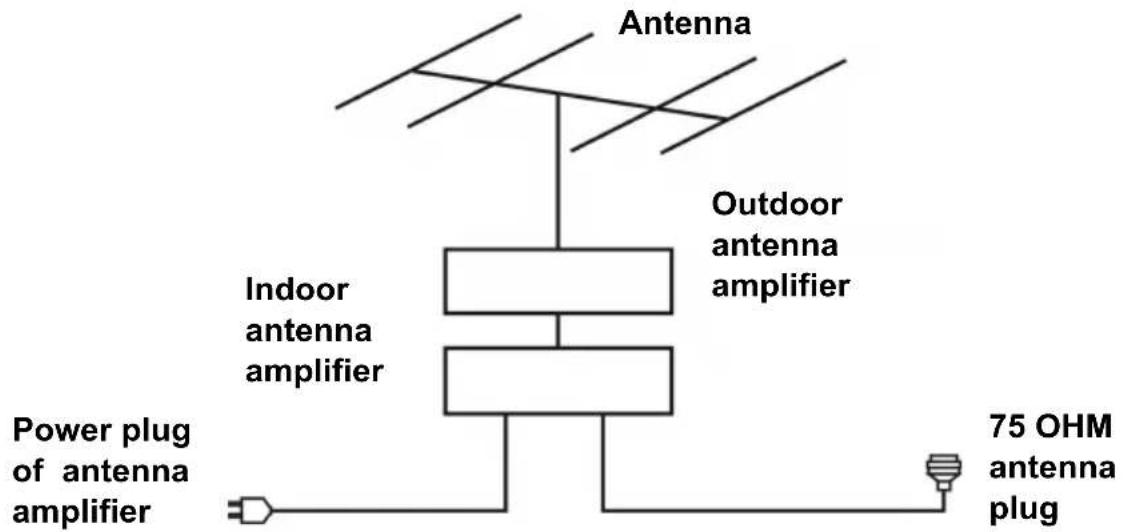

CONNECT EXTERNAL ANTENNA TO UNIT

Install external antenna into antenna jack for best picture.

Connect the TV signal cable (the antenna cable, for example) to the RF Input Jack on the back of the unit.

Antenna Outdoor antenna amplifier Indoor antenna amplifier Power plug of antenna amplifier 75 OHM antenna plug

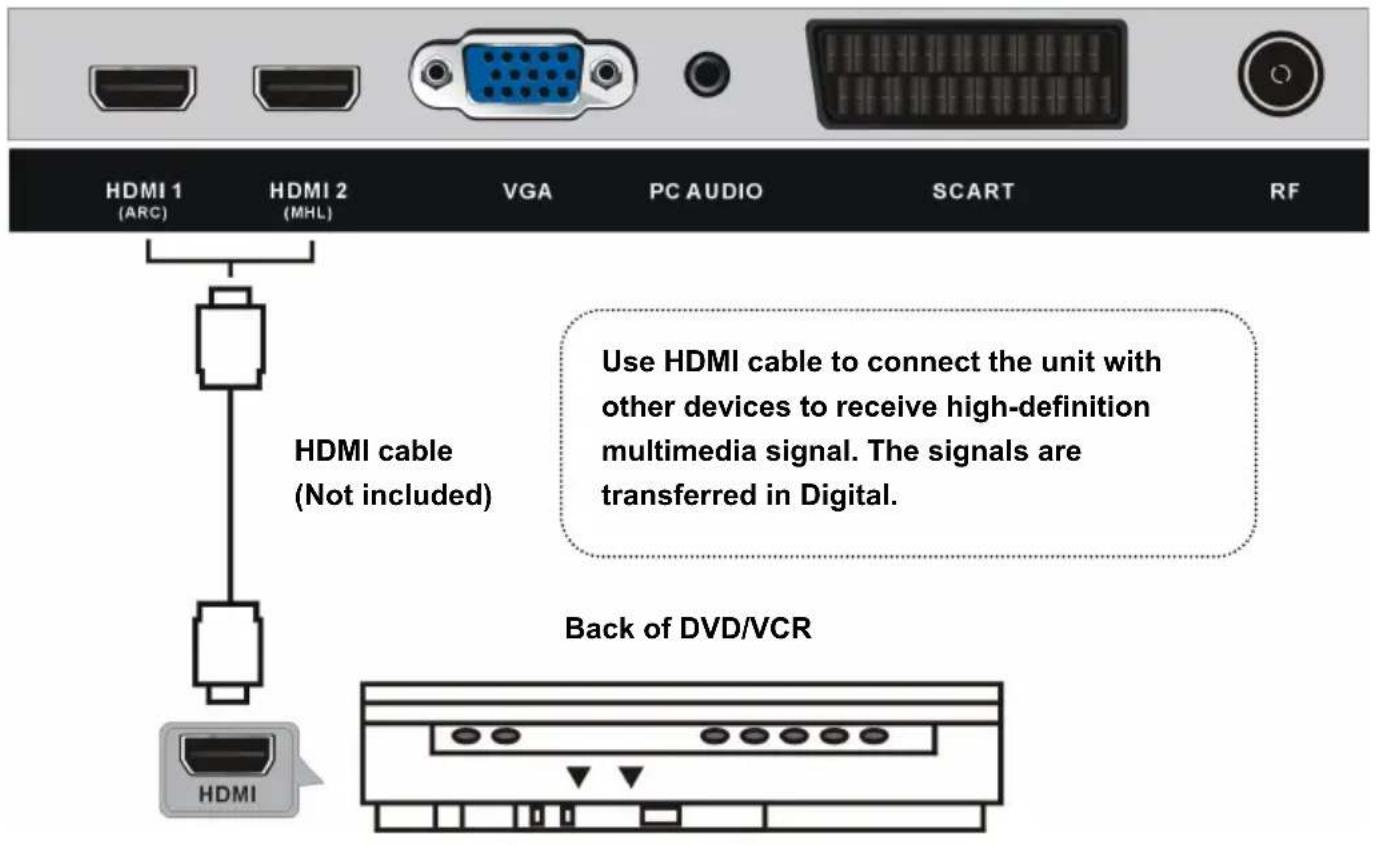

HDMI CONNECTIONS

HDMI 1 (ARC) HDMI 2 (MHL) VGA PC AUDIO SCART RF HDMI cable (Not included) Use HDMI cable to connect the unit with other devices to receive high-definition multimedia signal. The signals are transferred in Digital. Back of DVD/VCR HDMI

HDMI 1 ARC (Audio Return Channel)

Connect with an HDMI (ARC) cable (not supplied).

With the ARC function, you will be able to send any audio from your TV back to an ARC enabled AV receiver and listen to your TV's audio through the AV receiver without having to connect an optical cable.

Connect an HDMI cable to the HDMI (ARC) input connector of the TV and the HDMI output connector of the device.

√ In order to enable ARC (Audio Return Channel) function, refer to page 76 – HDMI CEC paragraph.

HDMI 2 MHL (Mobile High Definition Link)

Connect with an MHL-to-HDMI Cable (not supplied).

You can use the Mobile High-definition Link (MHL) function to display a mobile device's screen (such as a smartphone or tablet) on the TV. However, MHL is only available through the TV's HDMI (MHL) port and only when used in conjunction with an MHL-enabled mobile device. For information on configuring MHL on your mobile device, refer to the device's User Manual.

If you connect a mobile device to the TV with an MHL-to-HDMI cable, the TV automatically switches the picture size of each content saved on the mobile device to the original picture size of that content. Connect the MHL-to-HDMI cable to the HDMI (MHL) input connector of the TV and the mobile device's USB port.

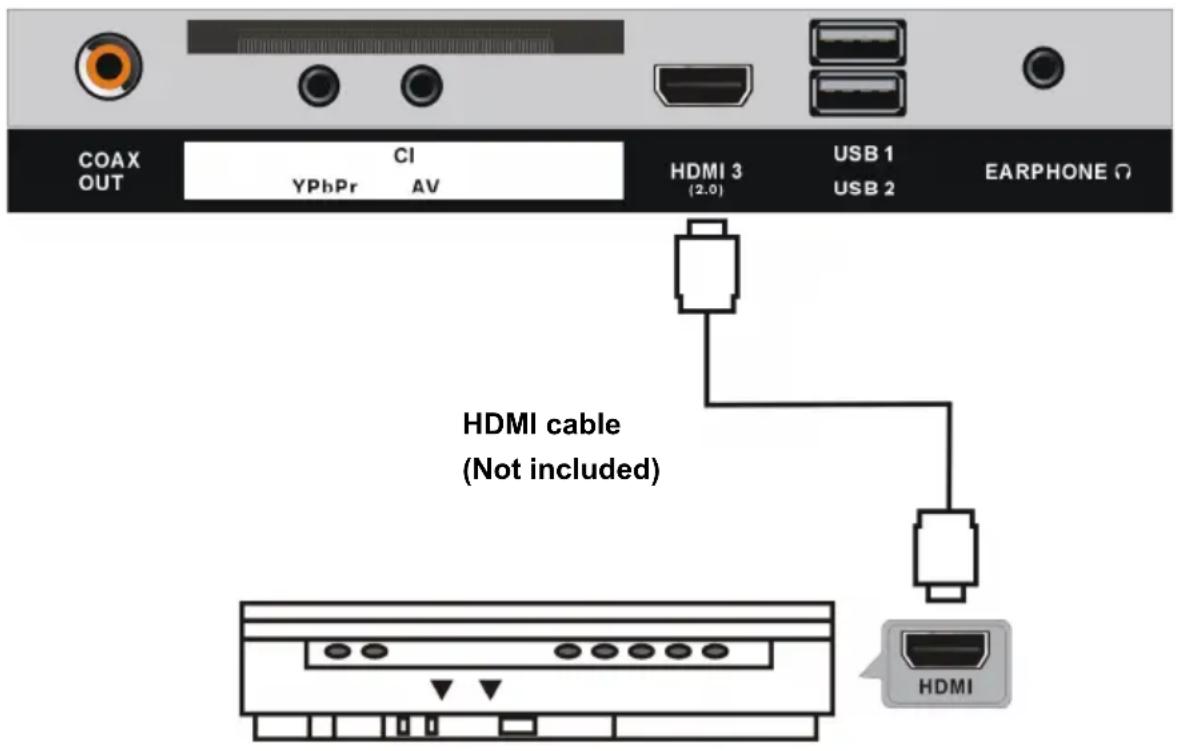

HDMI 3 (2.0)

Connect with an HDMI cable (not supplied).

Connect the HDMI cable to the HDMI input connector of the TV and the HDMI output connector of the device.

COAX OUT CI YPbPr AV HDMI 3 (2.0) USB 1 USB 2 EARPHONE Ω HDMI cable (Not included) HDMI

PC/VGA CONNECTION

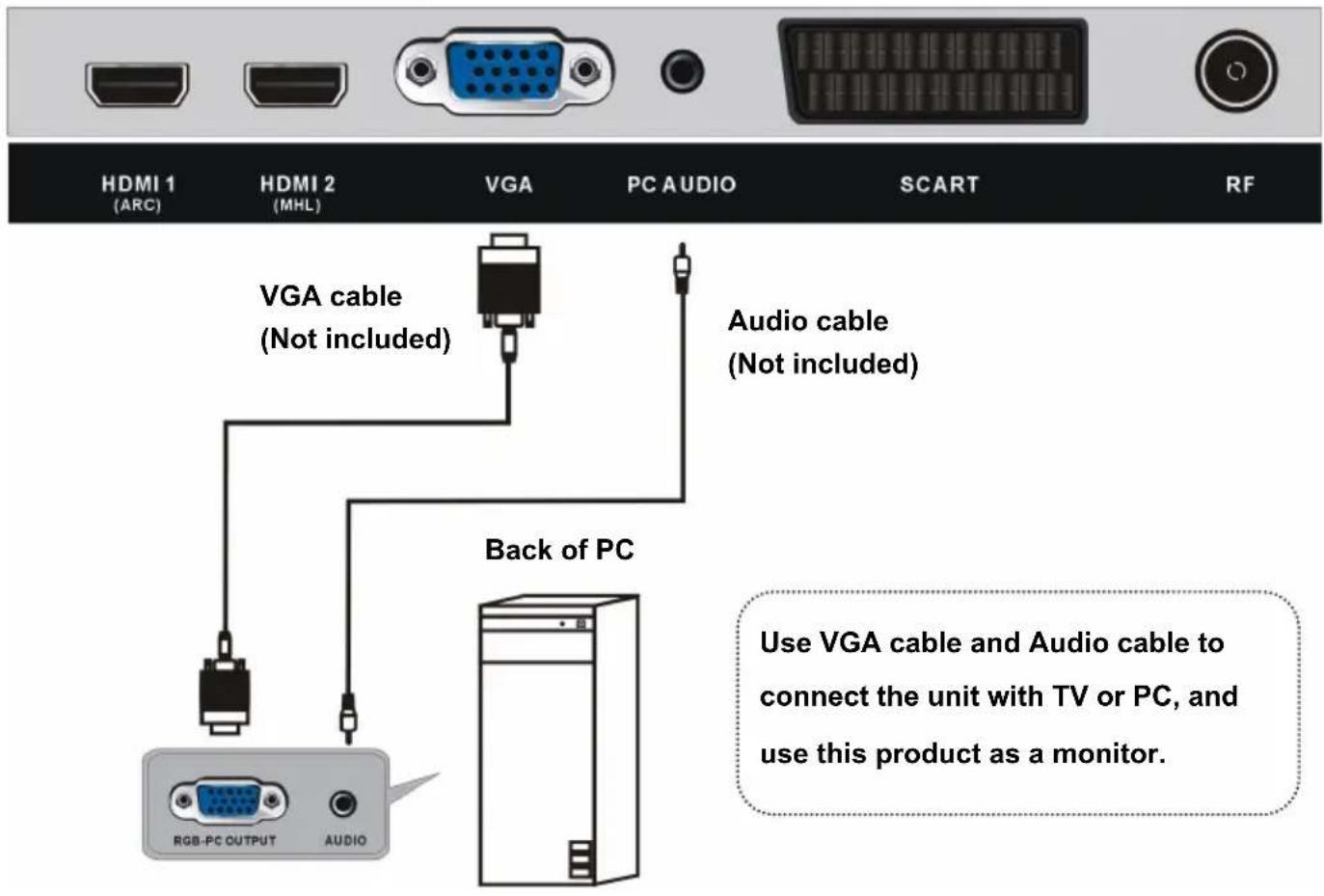

HDMI 1 (ARC) HDMI 2 (MHL) VGA PC AUDIO SCART RF VGA cable (Not included) Audio cable (Not included) Back of PC RGB-PC OUTPUT AUDIO Use VGA cable and Audio cable to connect the unit with TV or PC, and use this product as a monitor.

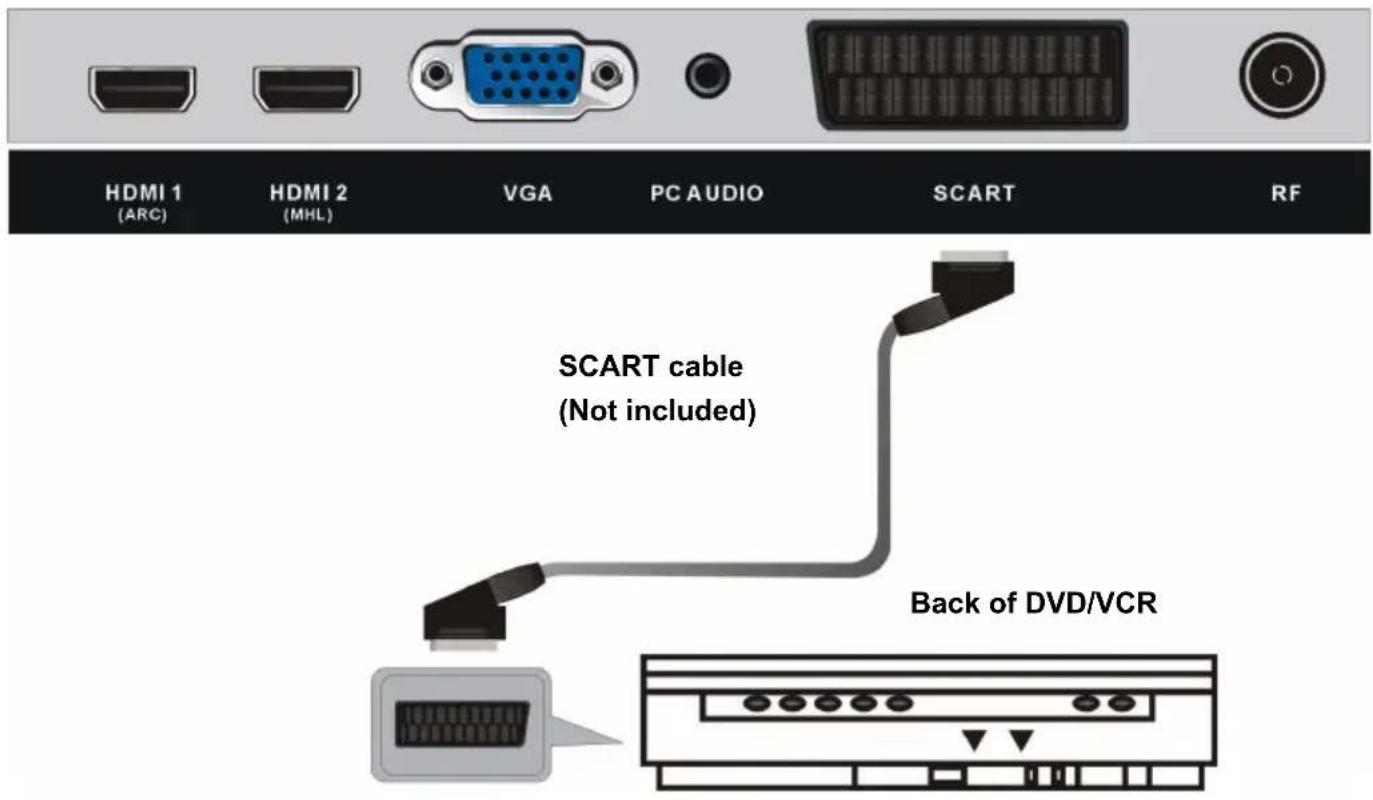

SCART CONNECTION

HDMI 1 (ARC) HDMI 2 (MHL) VGA PC AUDIO SCART RF SCART cable (Not included) Back of DVD/VCR

COAXIAL CONNECTION

COAX OUT CI YPDPT AV HDMI 3 (2.0) USB 1 USB 2 EARPHONE

Use coaxial cable to connect the unit with amplifier or other audio decoding devices for coaxial audio signal output. (Coaxial cable is not included.)

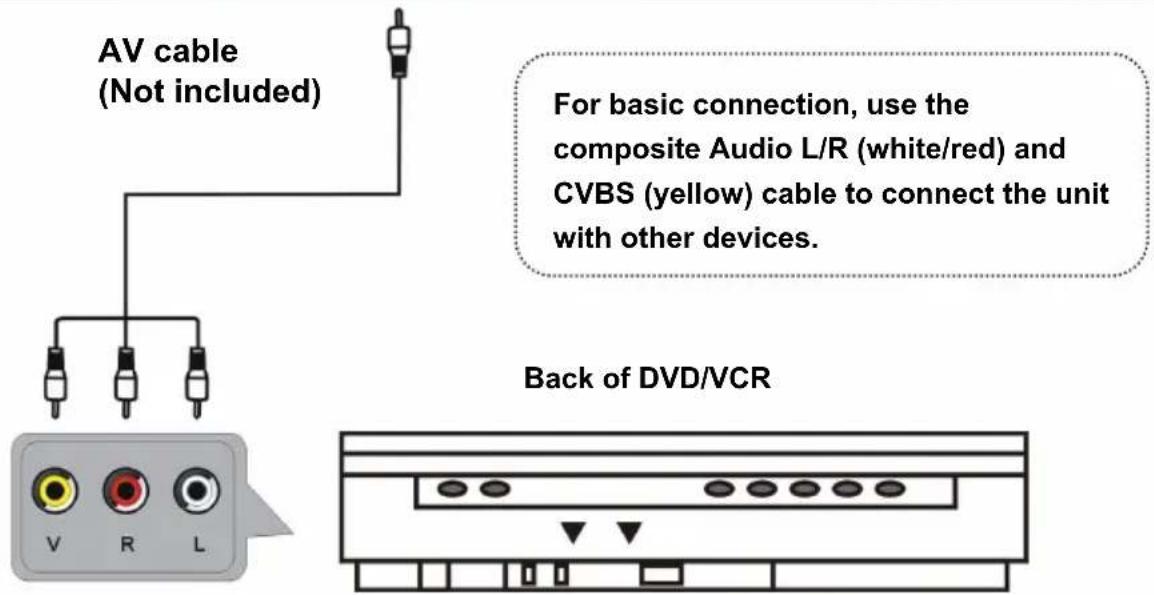

AV (COMPOSITE VIDEO) CONNECTION

COAX OUT CI YPbPr AV HDMI 3 (2.0) USB 1 USB 2 EARPHONE Ω

AV cable (Not included) For basic connection, use the composite Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices. Back of DVD/VCR

YPBPR CONNECTION

COAX OUT CI YPbPr AV HDMI 3 (2.0) USB 1 USB 2 EARPHONE Ω AUDIO cable (Not included) YPbPr cable (Not included) Back of DVD/VCR Y Pb Pr R L

USB CONNECTION

COAX OUT CI YPbPr AV HDMI 3 (2.0) USB 1 USB 2 EARPHONE G (Not included) USB

Both USB 1 & USB 2 compatible ports are available for Multimedia Playback & PVR Record.

INSERT A CI CARD

COAX OUT YPbPr CI AV HDMI 3 (2.0) USB 1 USB 2 EARPHONE Ω CI slot (CI card is not included)

Pay per view services requires a smartcard to be inserted into the TV. If you subscribe to a pay per view service the provider will issue with a CAM card "Smartcard". The CAM can then be inserted into the COMMON INTERFACE port.

EARPHONE CONNECTION

COAX OUT CI YPbPr AV HDMI 3 (2.0) USB 1 USB 2 EARPHONE Ω EARPHONE cable (Not included)

Use the HEADPHONES output of your TV set to listen the audio of the unit through your own stereo headphones. When you connect headphones to the unit, the main speakers will be silenced.

Notes: the headphone is not supplied with the TV set.

When connecting a headphone, please first reduce the volume to the minimum level and then progressively increase it to a comfortable volume level.

Hearing experts advise against exposure to continuous extended play at loud volume levels while using headphone (earphone), possible hearing loss may result.

MAKE SURE ALL THE EQUIPMENTS AND POWER CORD ARE CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE BEFORE KINDS OF OPERATIONS.

BASIC OPERATIONS

• Press POWER button on the unit or remote control to power ON the unit (indicator will glow blue); press it again to power OFF (standby mode) the unit (indicator will glow red).
• Press SOURCE button on the unit or remote control to switch the unit to DTV or ATV mode.

SELECT DESIRED PROGRAM

1. Press CH+ button to play next channel.
2. Press CH- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.

NOTE: Press -/-- button repeatedly to switch the digit.

VOLUME CONTROL

- Press VOL+ or VOL- to adjust the level of current volume.

Available range: 0-100.

MUTE CONTROL

- Press MUTE button to mute the sound, press it again to turn on the sound.

SOURCE SETTING

• Press SOURCE button on the unit or remote control to display the sources list.
• Press UP or DOWN navigation button to select desired input source, and then press OK button to confirm selection.

Available options: DTV, ATV, AV, SCART, YPBPR, HDMI1/2/3, PC-RGB, USB (Media).

PICTURE MODE

- Press P-MODE button on remote control repeatedly to select desired PICTURE mode directly.

Available options: Standard, Mild, User, Dynamic.

SOUND MODE

- Press S-MODE button on remote control repeatedly to select SOUND mode directly. Available options: Standard, Music, Movie, User, Sports.

SLEEP TIME SETTING

- Press SLEEP button on remote control repeatedly to select SLEEP TIME directly. Available options: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min.

VIDEO SIZE SETTING

- Press ASPECT button on remote control repeatedly to select VIDEO SIZE directly. Available options: Auto, 4:3, 16:9, Zoom1, Zoom2.

NOTE: The available video size may be different for different input source.

MULTIAUDIO SETTING

- Press AUDIO button on remote control repeatedly to select desired audio language. NOTE: To enable this function, make sure that the channel you are viewing supports multi-audio languages.

INFORMATION DISPLAY

- Press DISPLAY button on remote control to display information of current program.

TV GUIDE (FOR DTV MODE ONLY)

- Press GUIDE button on remote control to display programme guide.

PROGRAMME GUIDE 20 Jun 2013 20:00- 20:15 Tit. orig. cap.:Teletienda Club Tit. original:Teletienda Club Tit.:Teletienda Club 20 Jun 20:21 20:00 20:30 21:00 21:30 1 NITRO Teleti... Impacto Total Walker Texas Ranger 2 Antena3 HD Espejo Público Karlos Arguña... La ... 3 MARCA TV TELETIENDA 4 13 TV La tienda de g... Bendito pal... - ... Santa Misa .. Más cl... 5 OrbytTV Record Schedule Remind Move Prev Day Next Day

• Press UP/DOWN navigation button to select preferred program
• Press LEFT/RIGHT navigation button to switch between left column and right column.

When a program is highlighted (cursor moved to Right column):

• Press RED button to enter recorder setting page.
• Press YELLOW button to enter schedule list page.
• Press BLUE button to enter reminder setting page.

FAVORITE LIST

When viewing an available channel, press FAV button on remote control to enter Favorite List menu page.

• Press UP or DOWN navigation button to select preferred channel.
• Press OK button to confirm selection.

QUICK SELECT

When viewing an available channel, press OK button on remote control to enter Channel List menu page.

• Press UP or DOWN navigation button to select preferred channel.
• Press OK button to confirm selection.

TELETEXT

- Press TEXT button on remote control to display the available teletext information and press it repeatedly to stop playing the teletext.

TV/RADIO (FOR DTV MODE ONLY)

- Press TV/RADIO button on remote control to switch the unit between TV and radio mode.

Favorites List 20 ABC HDTV 21 ABC1 23 ABC3 Move Ok

Channel List 2 ABC1 20 ABC HDTV 21 ABC1 22 ABC2 23 ABC3 200 ABC DIG Radio 201 ABC DIG Jazz 1 C-02 Move Ok

SUBTITLE

- Press SUBTITLE button on remote control repeatedly to select desired subtitle.

NOTE: To enable this function, make sure that the channel you are viewing supports multi-subtitle.

RECORDER (FOR DTV MODE ONLY)

• Insert your USB memory device into USB slot first.
• When watching digital programs, press ● button on remote control and below tool bar will appear on the screen:

Recording Time: [00:03:16] Max Recording Time: [0000:28:03] Play FB FF Prev. Next Pause Stop 1 NITRO 16:45

• Press LEFT or RIGHT navigation button to select desired option. Press OK button to confirm selection.
• If the tool bar disappeared, press EXIT button on remote control to display it again.
• Press ■ button to call out a reminding message. Use LEFT/RIGHT navigation button to exit or continue recording.

TIMESHIFT (FOR DTV MODE ONLY)

• Insert your USB memory device into USB slot first.
• When watching digital programs, press ▶button to enable TIMESHIFT function.

Play FB FF Prev. Next Pause Stop [-00:00:37/00:10:00] 16:45

• Press LEFT or RIGHT navigation button to select desired option. Press OK button to confirm selection.
• If the tool bar disappeared, press EXIT button on remote control to display it again.
• Press ■ button to call out a reminding message. Use LEFT/RIGHT navigation button to exit or continue time-shifting.

MEDIA PLAYBACK

• Press SOURCE button on the unit or remote control to switch the unit to USB mode.
• Insert a USB memory device into USB slot before following operations.
• Press UP/DOWN/LEFT/RIGHT navigation button to move the cursor.
• Press EXIT button to return to previous menu page.

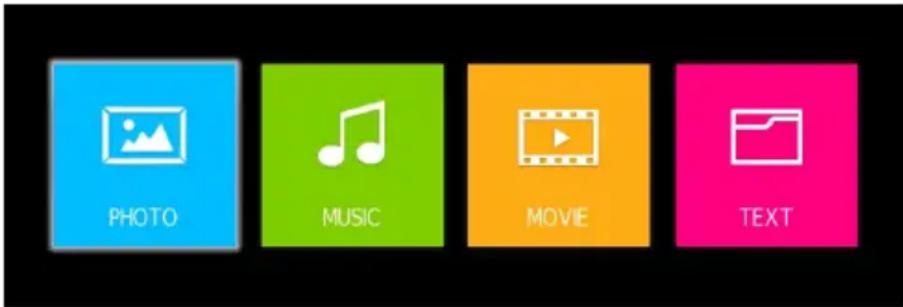

PHOTO MUSIC MOVIE TEXT

1. PHOTO

• Press LEFT/RIGHT navigation button to select Photo in the main menu and press OK button to enter it.
• Use navigation buttons to select desired folder or file.
• Press RED button to enter submenu and press OK button to delete highlighted file.
• Use navigation buttons to select them and press OK button to add to play list.
• Press ▶ button to start playback.
• Press DISPLAY button to call out the tool bar. Use navigation buttons to select desired option and press OK to confirm it.

Pause Prev. Next Stop RepeatALL Music Playlist Info.

- Press EXIT button to dismiss the tool bar.

2. MUSIC

• Press LEFT/RIGHT navigation button to select Music in the main menu and press OK button to enter it.
• Use navigation buttons to select desired folder or file.
• Press RED button to enter submenu and press OK button to delete highlighted file.
• Use navigation buttons to select them and press OK button to add to play list.
• Press ▶ button to start playback.

Play 00:00:01 / 00:04:16 Pause FB FF Prev. Next Stop RepeatALL MUTE

• Use navigation buttons to select desired option and press OK to confirm it.
• Press EXIT button to return.

3. MOVIE

• Press LEFT/RIGHT navigation button to select Movie in the main menu and press OK button to enter it.
• Use navigation buttons to select desired folder or file.

- Press RED button to enter submenu and press OK button to delete highlighted file.

- Use navigation buttons to select them and press OK button to add to play list.

- Press ▶ button to start playback.

- Press DISPLAY button to call out the tool bar. Use navigation buttons to select desired option and press OK to confirm it.

00:00:09 / 00:03:16 Pause FB FF Prev. Next Stop RepeatALL Set A

- Press EXIT button to return.

4. TEXT

• Press LEFT/RIGHT navigation button to select Text in the main menu and press OK button to enter it.
• Use navigation buttons to select desired folder or file.
• Press RED button to enter submenu and press OK button to delete highlighted file.
• Use navigation buttons to select them and press OK button to add to play list.
• Press ▶ button to start playback.
• Press DISPLAY button to call out the tool bar. Use navigation buttons to select desired option and press OK to confirm it.

Prev Page Next Page Prev. Next Stop Music Playlist Info.

- Press EXIT button to return.

Remote operations when playing multimedia files:

• Press ▶ button on remote control to play or pause playing.
• Press ■ button on remote control to stop playing.
• Press ◀ button on remote control to move fast backward.
• Press ▶ button on remote control to move fast forward.
• Press I button on remote control to play previous file.
• Press ▶ button on remote control to play next file.

NOTE: To play your multimedia files, make sure you have selected correct icon in the main menu of MEDIA PLAYBACK. That is to say, you can only play Photo files in PHOTO item, Music files in MUSIC item and so on.

MAIN MENU

● The unit contains different setting menus. Once the initial programming is entered, it will be remained in the memory until changed, and the unit can always be operated under the same conditions.
● This settings will be remained in the memory until the settings are changed even after setting the player to standby mode.

Common procedure for initial settings

• Press MENU button on the unit or remote control to display the main menu.
• Press LEFT or RIGHT navigation button to select different menus.
• Press UP or DOWN navigation button to select the item that want to adjust.
• Press OK button to enter adjusting menu page.
• Press MENU button to save current setting and return to previous menu page.
• Press EXIT button to exit menu page.

First Time Installation

- Connect to power source and turn on this TV, then below setup page will display on the screen:

First Time Installation OSD Language English Country UK Tune Type DTV + ATV Move Select Auto Tuning Exit

OSD Language

- Press LEFT/RIGHT navigation button to select desired on-screen display language.

Country

- Press LEFT/RIGHT navigation button to select the country you're living in.

Tune Type

- Press LEFT/RIGHT navigation button to select desired scanning type.

Once above settings are finished, press OK button to scanning available programs automatically when external antenna is connected.

DTV MODE

- Press SOURCE button on the unit or remote control to select DTV input source.

1. CHANNEL

CHANNEL Auto Tune > DTV Manual Tune > Channel Edit > Signal Information > CI Information >

1.1 Auto Tune

• Press OK or RIGHT navigation button to enter it.
• Use navigation buttons to set the Tune Type, Country and LCN.
• Then highlight "Auto Tuning" and press OK to start program tuning.

1.2 DTV Manual Tune

• Press OK or RIGHT navigation button to enter it.
• Use LEFT/RIGHT navigation button to select the channel. Then press OK button to start searching.

1.3 Channel Edit

• Press OK or RIGHT navigation button to enter it.
• Press UP/DOWN navigation button to highlight desired channel.
• Press RED button on remote control to delete highlighted channel.
• Press YELLOW button on remote control to enter MOVE mode. Then use UP/DOWN navigation button to select preferred position and press YELLOW button again to move it.
• Press BLUE button on remote control to skip highlighted channel.
• Press FAV button to set current channel as a favorite channel, and press FAV button again to set it as a normal channel.

Auto Tune Tune Type < DTV + ATV > Country < Australia > LCN < On > Auto Tune >

DTV Manual Tune <- UHF CH 29 + > Bad Normal Good Select Back

Channel Edit 2 ABC1 20 ABC HDTV 21 ABC1 22 ABC2 23 ABC3 200 ABC DIG Radi 201 ABC DIG Jazz 1 C-02 Delete Move Skip Ok Fav Back

1.4 Signal information

This item is used to display signal details, for example: channel number and strength.

1.5 CI information

When an available CAM (Conditional Access Module) card is connected to the CI slot, the users can view related information or manage your CAM card.

2. PICTURE

PICTURE Picture Mode > Colour Temperature > Aspect Ratio < 16:9 > Noise Reduction < Middle > PC Setup MEMC < Off >

2.1 Picture Mode

- Press OK or RIGHT navigation button to enter it.

Picture Mode: available options: Standard, Mild, User, Dynamic.

Contrast / Brightness / Color / Sharpness: adjustable value: 0-100.

NOTE: Contrast, Brightness, Color and Sharpness are adjustable only when Picture Mode is "User".

Tint: adjustable only for NTSC system.

Picture Mode Picture Mode < User > Contrast < 50 > Brightness < 50 > Color < 50 > Sharpness < 50 > Tint 50

2.2 Colour Temperature

This item is used to adjust the optimum color temperature for suitable viewing.

Available options: Cold, Medium, Warm, User.

Red / Green / Blue: adjust the color balance only when Color Temperature is "User".

2.3 Aspect Ratio

This item is used to adjust the video size.

Available options: Auto, 4:3, 16:9, Zoom1, Zoom2

NOTE: The available video size may be different for different input source.

2.4 Noise Reduction

Available options: Off, Low, Middle, High, Default.

2.5 PC Setup (for PC/VGA mode only)

2.6 MEMC (Motion Estimate and Motion Compensation)

MEMC is a form of video processing in which intermediate animation frames are generated between existing ones by means of interpolation, in an attempt to make animation more fluid and to compensate for display motion blur.

Available options: Off, Low, Medium, High.

3. SOUND

SOUND Sound Mode > Balance < 0 > Auto Volume < On > Surround Sound < Off > Audio Description > SPDIF Mode < Auto >

3.1 Sound Mode

- Press OK or RIGHT navigation button to enter it.

Sound Mode: available options: Standard, Music, Movie, User, Sports.

Treble / Bass: adjustable value: 0-100.

NOTE: Treble and Bass are adjustable only when Sound Mode is "User".

3.2 Balance

This item is used to adjust the audio output between left and right speaker from -50 to 50.

3.3 Auto Volume

This item is used to set Auto Volume ON or OFF.

3.4 Surround Sound

This item is used to turn on/off Surround Sound function.

3.5 Audio Description

• Press OK or RIGHT navigation button to enter it.
• Use navigation buttons to turn on/off Audio Description. Also you can adjust the volume level when Audio Description is on.

NOTE: For Visually Impaired users, this function can assist them to know a certain scene or action through the narration, instead of see it. Audio Description function works only when you are viewing programs that contain related narration information.

3.6 SPDIF Mode

Available options: Auto, PCM, Off.

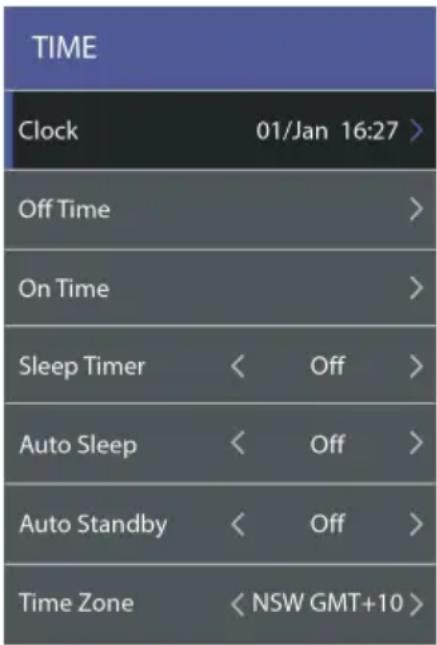

4. TIME

TIME Clock 01/Jan 16:27 > Off Time > On Time > Sleep Timer < Off > Auto Sleep < Off > Auto Standby < Off > Time Zone < NSW GMT+10 >

4.1 Clock

It displays current system time when an available channel was saved.

4.2 Off Time

Off Time: available options: Off / Once / Every Day / Mon.\~Fri. / Mon.\~Sat. / Sat.\~Sun. / Sunday.

Hour / Minute: use navigation buttons to adjust the Hour / Minute when Off Time is not "Off".

4.3 On Time

On Time: available options: Off / Once / Every Day / Mon.\~Fri. / Mon.\~Sat. / Sat.\~Sun. / Sunday.

Hour / Minute / Source / Channel / Volume: use navigation buttons to adjust these items when Off Time is not "Off".

4.4 Sleep Timer

This item is used to set the automatic sleep time when no signals.

This item is used to turn on/off Auto Sleep function.

4.6 Auto Standby

This item is used to select desired Auto Sleep (standby) duration when no operations were done through the remote control.

Available options: Off, 1, 2, 3...6 hours.

4.7 Time Zone

This item is used to select desired time zone.

4.8 Daylight Saving

This item is used to turn on/off Daylight Saving function.

5. LOCK

• Press OK or RIGHT navigation button to enter it.
• Input the factory default password "0000" using number buttons on remote control.
• Press UP/DOWN navigation button to select preferred item.

NOTE: If you forget the password, please use the universal password "8899".

LOCK Lock Settings < On > Set Password > Lock Channel > Parental Lock < 18 >

5.1 Lock Settings

This item is used to turn on/off Lock Settings.

5.2 Set Password

- Input the old password using number buttons on remote control and then input your private password twice to finish it.

5.3 Lock Channel

• Press OK or RIGHT navigation button to enter it.
• Press UP/DOWN navigation button to select the channel which you want to lock.
• Press GREEN button repeatedly to lock/unlock the highlighted channel.

5.4 Parental Lock

This item is used to select desired program rating.

Available options: Off, 4-18.

6. GENERAL

GENERAL OSD Language < English > Audio Language > Subtitle Language > PVR File System > HDMI CEC > Restore Factory Settings > Software Update (USB) >

6.1 OSD Language

This item is used to select desired on-screen display language.

6.2 Audio Language

• Press OK or RIGHT navigation button to enter it.
• Then you can select desired primary audio language and secondary audio Language.

6.3 Subtitle Language

• Press OK or RIGHT navigation button to enter it.
• Then you can select desired primary subtitle language and secondary subtitle Language.

6.4 PVR File System

• Press OK or RIGHT navigation button to enter it.
• Press UP/DOWN navigation button to select desired option and press LEFT/RIGHT navigation button to adjust it.
• Press OK button to enter submenu or confirm setting.

In this part, you can select desired disk, check PVR File System, format your USB memory device and set desired Free Record Limit time.

PVR File System Select Disk C: Check PVR File System Start USB Disk Format Time Shift Size Speed Free Record Limit 6 Hr. Move Ok Back

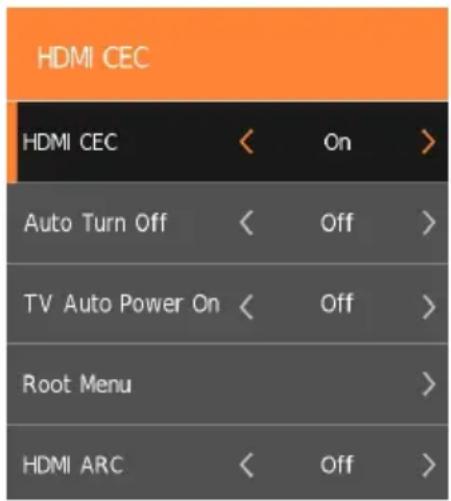

6.5 HDMI CEC

CEC (Consumer Electronics Control) allows for control of devices over the HDMI port. HDMI-CEC is a technology that allows CEC-enabled devices to talk with each other over the HDMI cable (not supplied) by using only one of their remote controls (for example by controlling a television set, set-top box, and DVD player using only the remote control of the TV).

To use HDMI CEC function:

• Make sure the HDMI device (Amplifier, etc.) is connected correctly.
• Press SOURCE button on the unit or remote control to select HDMI input source.

HDMI CEC: turn on/off HDMI CEC.

Auto Turn Off: turn on/off Auto Turn Off.

TV Auto Power On: turn on/off TV Auto Power On.

Root Menu: enter the root menu.

HDMI ARC: turn on/off ARC function (for HDMI 1 input source only)

HDMI CEC HDMI CEC < On > Auto Turn Off < Off > TV Auto Power On < Off > Root Menu > HDMI ARC < Off >

6.6 Restore Factory Settings

This item is used to recall factory default settings.

6.7 Software Update (USB)

This item is used to update software through USB memory device.

ATV AND OTHER MODES

• Press SOURCE button on the unit or remote control to select desired input source.
• For these modes, please refer to the menu operations of DTV mode.

PC/VGA MODE

• Connect a personal computer to this unit.
• Power on your computer and this unit.
• Press SOURCE button on the unit or remote control to select PC-RGB (VGA) input source.
• Press MENU button to display the main menu and select Picture using LEFT/RIGHT navigation button.
• Use UP/DOWN navigation button to highlight "PC Setup" and press OK or RIGHT navigation button to enter it.
• Press UP/DOWN navigation button to select preferred item.
• Press OK or RIGHT navigation button to enter submenu. Press LEFT/RIGHT navigation button to adjust the value.

1. Auto Adjust

This item is used to adjust the PC screen automatically.

2. Horizontal Pos.

This item is used to adjust the value of horizontal position.

3. Vertical Pos.

This item is used to adjust the value of vertical position.

4. Size

This item is used to adjust the signals transfer speed.

5. Phase

This item is used to adjust the picture apply to the TV.

PC Setup Auto Adjust > Horizontal Pos. < 50 > Vertical Pos. < 50 > Size < 50 > Phase < 7 > Move Select Back Exit

NOTE: For other menu operations in PC-RGB (VGA) mode, please refer to the menu operations of DTV mode.

TELETEXT

HOW TO USE THE TELETEXT

To bring up Teletext on the screen:

1. Select an analogue TV channel with a teletext signal.
2. Press the TEXT button to go on the teletext pages.
3. Press the TEXT button twice to go back to TV mode.

Choosing a teletext page

Enter the page number you want by using the numeric buttons. Page numbers are always 3 numbers. If you press a wrong number, you must complete the three digit number and then re-enter the correct page number.

Hold

You can press HOLD button to freeze the pages and press it again to unfreeze the page.

INDEX

Press the INDEX button to go to the main index page of your teletext.

Making the text bigger

You can double the size of the text on the teletext pages to make it easier to read.

1. Press the SIZE button to make the text on the top half of the page bigger.
2. Press the SIZE button again to make the text on the bottom half of the page bigger.
3. Press the SIZE button again if you want the text reduced to normal size.

Subpages

Some teletext pages may contain several subpages. To read the subpage, do the following. You can go to a subpage by pressing the SUBPAGE button. You can then select the page number you want using the numeric buttons on your remote control.

For example, if you want the third subpage, you would enter 003.

Press the SUBPAGE button again to exit the subpage menu.

Press TEXT twice to exit TELETEXT.

Colour buttons

Press these buttons to go straight to the teletext highlighted in the same color.

MAINTENANCE

• Be sure to press POWER button to set the player to the standby mode and disconnect the power plug before maintaining the player.
  ● Wipe the player with a dry, soft cloth.
• If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
  ● Never use alcohol, benzene, thinner, cleaning fluid or other chemicals. And do not use compressed air to remove dust.

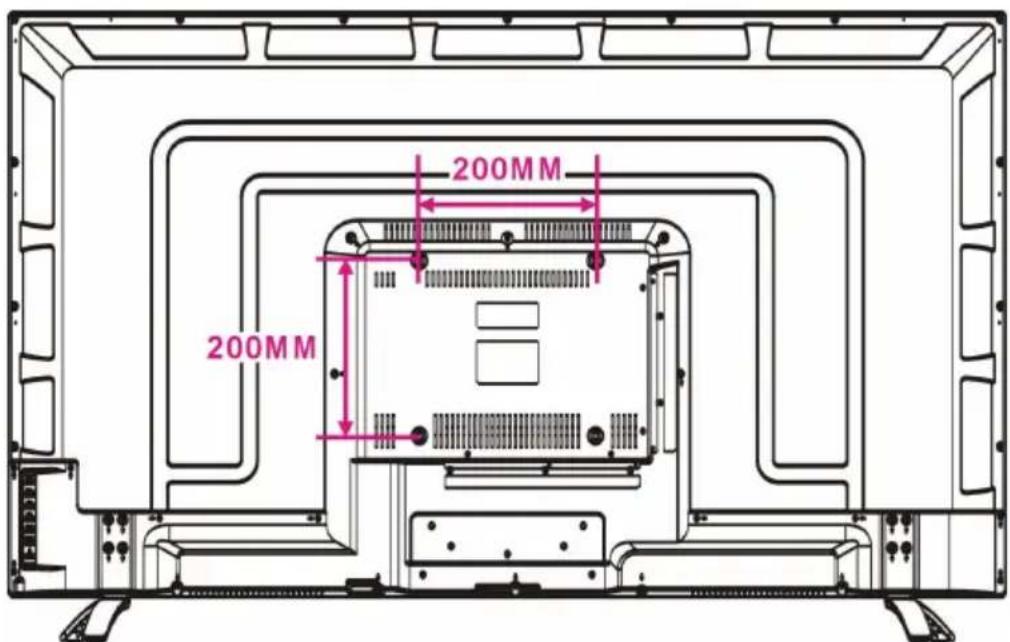

WALL MOUNTING

• Contact a professional for assistance when wall mounting your TV. We are not responsible for any damage to the product or injury to yourself, if you mount the TV on your own.
• Do not wall mount the TV while TV is turned on. It may cause personal injury due to electric shock.
  ● Use standard M6*10mm screws (4 pieces) to mount this TV.

Back of your TV

200MM 200MM

SPECIFICATIONS

Display Device	55 inch LED TV
Resolution 3840×2160
Pixel Pitch 0.21(H)×0.63(V) mm
Luminance 250 cd/m2
Contrast Ratio 3500:1
Aspect Ratio 16:9
Response Time 8 ms
Viewing Angle 178(H)/178(V)
Visible Range	1209.6(H)×680.4(V) mm
Life Time	30,000 Hrs
Connections	RF, HDMI 1/2/3, VGA, PC AUDIO, SCART, USB 1/2, CI, AV, YPbPr, EARPHONE, COAX OUT
USB Multimedia Playback Format	Movie: AVI, MPEG, MKV, RMVB
	Music: MP3, WAV
	Photo: JPG / JPEG
	Text: TXT
Power Source AC 100-240V, 50/60Hz
Power Consumption in working mode <145W / in standby mode 0.5 W
Operation Temperature	-5°C to 45°C
Measurement	With stand: 1251(W)×309(D)×782(H) mm; Without stand: 1251(W)×92(D)×730(H) mm;
Weight	With stand: 14.1 kg Without stand: 13.8 kg

Specifications are subject to change without notice.

GENERAL TROUBLESHOOTING

Check the following points before assuming malfunctions of this unit:

Symptom[COMMON] Remedy
No power. Insert the power plug securely into the power outlet.
No picture. Ensure that the equipment is connected properly.
No sound.Distorted sound.	Ensure that the equipment is connected properly.Ensure that the input setting for the TV and stereo system are correct.Adjust the master volume to a suitable volume by pressing VOL+/VOL- button.
No operations can be performed with the remote control unit.	Check the batteries are installed with the correct polarities.The batteries are exhausted: replace them with new ones.Point remote control at the remote control sensor and operate it again.Operate the remote control unit at a distance of no more than 6m from the remote control sensor.Remove the obstacles between the remote control and remote control sensor.
No key operation (by the main unit and/or the remote control unit) is effective.	Disconnect the power plug and then reconnect it. (The player may not be operating properly due to lightning, static electricity or some other factors.)
Symptom[TV] Remedy
No or poor picture.	Adjust antenna or use an external antenna.Relocate the unit near a window (if inside a building).Move units away from this product that causes interference.Do Auto Tuning again.Try another channel.
No sound or poor sound.	Check the audio settings.Press MUTE button on remote control to cancel mute function.Unplug the headphone.
Noise or other interface.	Electronic equipment near the unit is causing interface. Relocate the unit or move the equipment.

End of Life Disposal

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Warning! This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96/CE of January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE).

This symbol means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

If you want to dispose of this equipment, please do not use the ordinary dust bin!

• The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.
• Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.
• Local authorities and resellers have set special procedures for the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.
• If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.
• By disposing.of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

IMPORTER

This product was imported by the Company : DEMSA S.A.S.

For any questions concerning the conformity of the product, thank you to send your request to :

DEMSA S.A.S.

28, Boulevard Zéphirin Camélinat 92230 GENNEVILLIERS FRANCE

CE

This unit complies with European Council Directive 2006 / 95 CE (Electromagnetic Compatibility & Low Voltage Directives)

AKAI

www.akai-france.com

Modern flat-screen TV displaying a chameleon perched on a banana peel against a black background (no text or symbols visible)

ATE-55D1044K
