Thank you for having chosen our ceramic hob.

In order to make the best use of your appliance, we would advise you to read carefully the following notes and to keep them for later consulting.

SUMMARY

SAFETY 12

PRECAUTIONS BEFORE USING 12
USING THE APPLIANCE 12
PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 13
PRECAUTIONS IN CASE OF APPLIANCE FAILURE 13
OTHER PROTECTIONS 13

DESCRIPTION OF THE APPLIANCE 14

TECHNICAL DATA 14
CONTROL PANEL 14

USE 14

SENSITIVE TOUCHES 14
DISPLAY 14

STARTING UP THE APPLIANCE 15

BEFORE USING YOUR NEW HOB. 15
STARTING-UP 15
RESIDUAL HEAT INDICATION 15
AUTOMATIC COOKING(DEPENDING ON MODEL) 15
CONTROL PANEL LOCKING 16

COOKING ADVICES 16

EXAMPLES OF POWER SETTING: 16

MAINTENANCE AND CLEANING 16

WHAT TO DO IN CASE OF A PROBLEM 17

ENVIRONMENT PROTECTION 17

INSTALLATION INSTRUCTIONS 18

ELECTRICAL CONNECTION 19

Precautions before using

• Unpack all the materials.
• The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by installation or connecting errors.
• To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.
• This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.
• Remove all labels and self-adhesives from the ceramic glass.
• Do not change or alter the appliance.
• The cooking plate cannot be used as freestanding or as working surface.
• The appliance must be grounded and connected conforming to local standards.
• Do not use any extension cable to connect it.
• The appliance cannot be used above a dishwasher or a tumble-dryer: as steam may cause damage.

Using the appliance

• Switch the heating zones off after using.
• Keep an eye on the hob whilst cooking using grease or oils that may quickly ignite.
• Be careful not to burn yourself while or after using the appliance.
• Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.
• Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.
• Do not place any metallic object on the hob except for pans or cooking utensils. In case of untimely engaging or residual heat, this one may heat, melt or even burn.
• Never cover the appliance with a cloth or a protection sheet. This could become very hot and catch fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
  Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

Precautions not to damage the appliance

• Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.
• Sand or other abrasive materials may damage ceramic glass.
• Avoid dropping objects, even little ones, on the vitroceramic.
• Do not hit the edges of the glass with saucepans.
• Make sure that the ventilation of the appliance works according to the manufacturer's instructions.
• Do not put or leave empty saucepans on the vitroceramic hobs.
• Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).
• Never place any hot container over the control panel.
• If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the underside of the appliance is large enough (2cm). This is essential to guarantee correct ventilation.
• Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. All cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off at the main electrical supply.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
  Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information from the retailer or from the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.

Technical data

Type	Total power	Heating zone location	Power	Diameter
CECP104RP	6000 W	Front left	1800 W	190 mm
		Rear left	1200 W	155 mm
		Rear right	1800 W	190 mm
		Front right	1200 W	155 mm

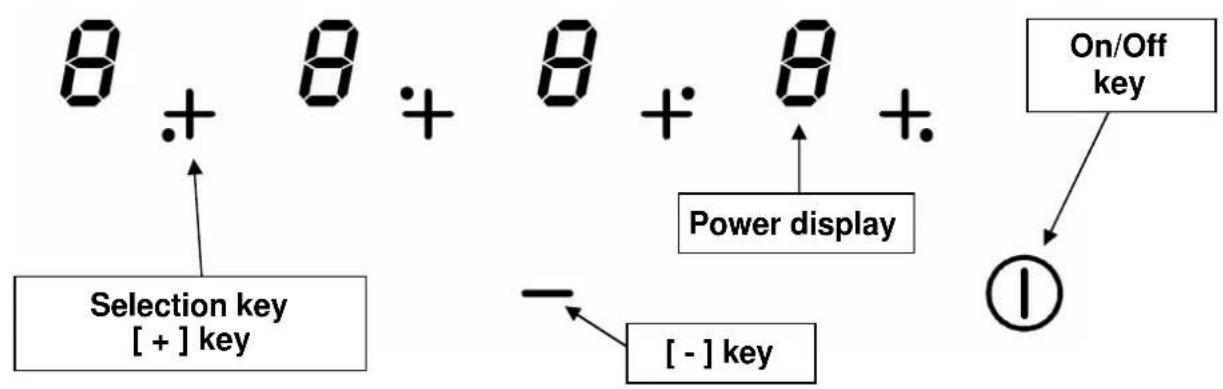

Control panel

USE

Sensitive touches

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a "beep" sound.

Touch only one key on the same time.

Display

Display	Designation	Function
0		Zero	The heating zone is activated
1...9		Power level	Selection of the cooking level
A		Heat accelerator	Automatic cooking
E		Error message	Electronic failure
H		Residual heat	The heating zone is hot
L		Locking	The control panel is locked

Before using your new hob

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Starting-up

• Start-up/ switch off the hob

Action

Control panel Display

To start

press key [①]

To stop

press key [ ①]

• Start-up/ switch off a heating zone

Action

Control panel

Increase power

press key [+ ]

Decrease power

press key [-]

Stop

press simultaneous [+ ] and [-]

or press key [-]

4×[0]

nothing or [H]

Display

[1]to[9]
[9] to [1]
[0] or [H]
[0] or [H]

Residual heat indication

After the switch-off of the hob, the heating zone is still hot and indicates [H] on the display. The symbol [H] disappears when the heating zone may be touched safely.

When the residual heat indicator light is on, don't touch the heating zone and don't put any heat sensitive object on them. There are risks of burn and fire.

Automatic cooking (depending on model)

All the cooking zones are equipped with an automatic "go and stop" cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the preselected level.

• Start-up :

Action Control panel

Zone selection

Full power setting

Automatic cooking

Power level selection

(for example 7

Display

press key [ + ] from the zone

repress key [+ ]

repress key [ + ]

press key [-]

[0]
[1]to[9]
[9] is blinking with [A]
[9] wents to [8][7]
[7] is blinking with [A]

• Switching off the automatic cooking :

Action Control panel

Zone selection

(for example 7

Power level selection

Display

press key [ + ] from the zone

press key [-] or [+]

[7] is blinking with [A]

Level selected

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [ ① ]).

- Locking

Action Control panel

Start

Hob locking

Display

Press key [①]

[0] or [H] on 4 displays

Press simultaneously [ - ]

and [+] at left No modification

Press key [ + ] [ L ] on 4 displays

- Unlocking

Action Control panel

Start

Display

Press key [ ①]

[L] on 4 displays

In the 5 seconds after start:

Unlocking the hob

Press simultaneously [-]

and [ + ] at left

Press key [-]

[0] or [H] on 4 displays

No light on the displays

COOKING ADVICES

Examples of power setting:

(The values below are indicative)

1 to 2	Melting, Reheating	Sauces, butter, chocolate, gelatine Dishes prepared beforehand
2 to 3	Simmering, Defrosting	Rice, pudding, sugar syrup Dried vegetables, fish, frozen products
3 to 4	Steam	Vegetables, fish, meat
4 to 5	Water	Steamed potatoes, soups, pasta, fresh vegetables
6 to 7	Medium cooking, Simmering	Meat, liver, eggs, sausages,
7 to 8	Cooking	Potatoes, fritters, waffles
9	Frying, roasting, Boiling water	Steaks, omelettes, fried dishes, water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-driven or pressure appliance.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

The hob or the cooking zone doesn't start-up:

The hob is badly connected to the electrical system.
The protection fuse has blown.
- The locking function is activated
The sensitive keys are covered by grease or water.
- An object is covering the control panel.

The symbol [E] displays :

• Call the After-sales Service.

One or all cooking zones cut-off:

The safety system has engaged
- You forgot to cut-off the cooking zone for a long time.
One or more sensitive keys are covered.

ENVIRONMENT PROTECTION

• The packaging material is ecological and can be recycled.
• The worn appliances contain certain noble metals. Apply to the local government about

the possibilities of recycling.

• Don't dispose of your appliance with general household waste
• Get in touch with the waste collection centre of your local council that control the recycling of household appliances.

The installation comes under the exclusive responsibility of specialists.

The installer is held to respect the legislation and the standards enforce in his home country.

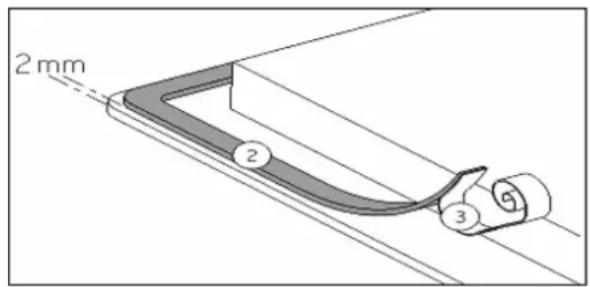

How to stick the gasket:

The gasket supplied with the hob avoids all infiltration of liquids in the cabinet.

His installation has to be done carefully, in conformity of the following drawing.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection sheet (3).

Fitting - installing:

The cut out sizes are:

Reference Cut-size
CECP104RP 560 x 490 mm

• Ensure that there is a distance of 50 ~mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.
• The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 100^ .
  The mural rods of edge must be heat-resisting.
  Not to install the hob to the top of a not ventilated oven or a dishwasher.
• To guarantee under the bottom of the hob casing a space of 20mm to ensure a good air circulation of the electronic device.
• If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.
• Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.
• The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760~mm .

• The connection cord should be subjected, after building, with no mechanical constraint, such for example of the fact of the drawer.

• The installation of this appliance and the connection to the electrical system should be entrusted only to a qualified electrician.
  Protection against the parts under tension must be ensured after installation

• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the mains must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3mm .
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.

Caution!

This appliance has only to be connected to a network 230V 50 / 60Hz

Always connect the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover, use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz	1 Phase + N	3 x 2,5 mm²	H 05 VV - F H 05 RR - F	25 A*
400V~ 50/60Hz	2 Phases + N	4 x 1.5 mm²	H 05 VV - F H 05 RR - F	16 A*

(^*) calculated with the simultaneous factor following standard EN 60 335-2-6/1990

Connection of the hob

The ceramic hob can be connected in different ways (230V~ 1P+N or 400V~ 2P+N), use the brass links which are in the box next to the terminal block.

Monophase 230V 1P + N

Put the link bar between terminal 1 and 2

Attach the earth to the terminal "earth", the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.

Biphas 400V\~2P+N

Attach the earth to the terminal "earth", the neutral N to terminal 4, the Phase L1 to the terminals 1 and the Phase L2 to the terminal 2.

Caution! Be careful that the cables are correctly engaged and tightened

We cannot be held responsible for any accident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection
