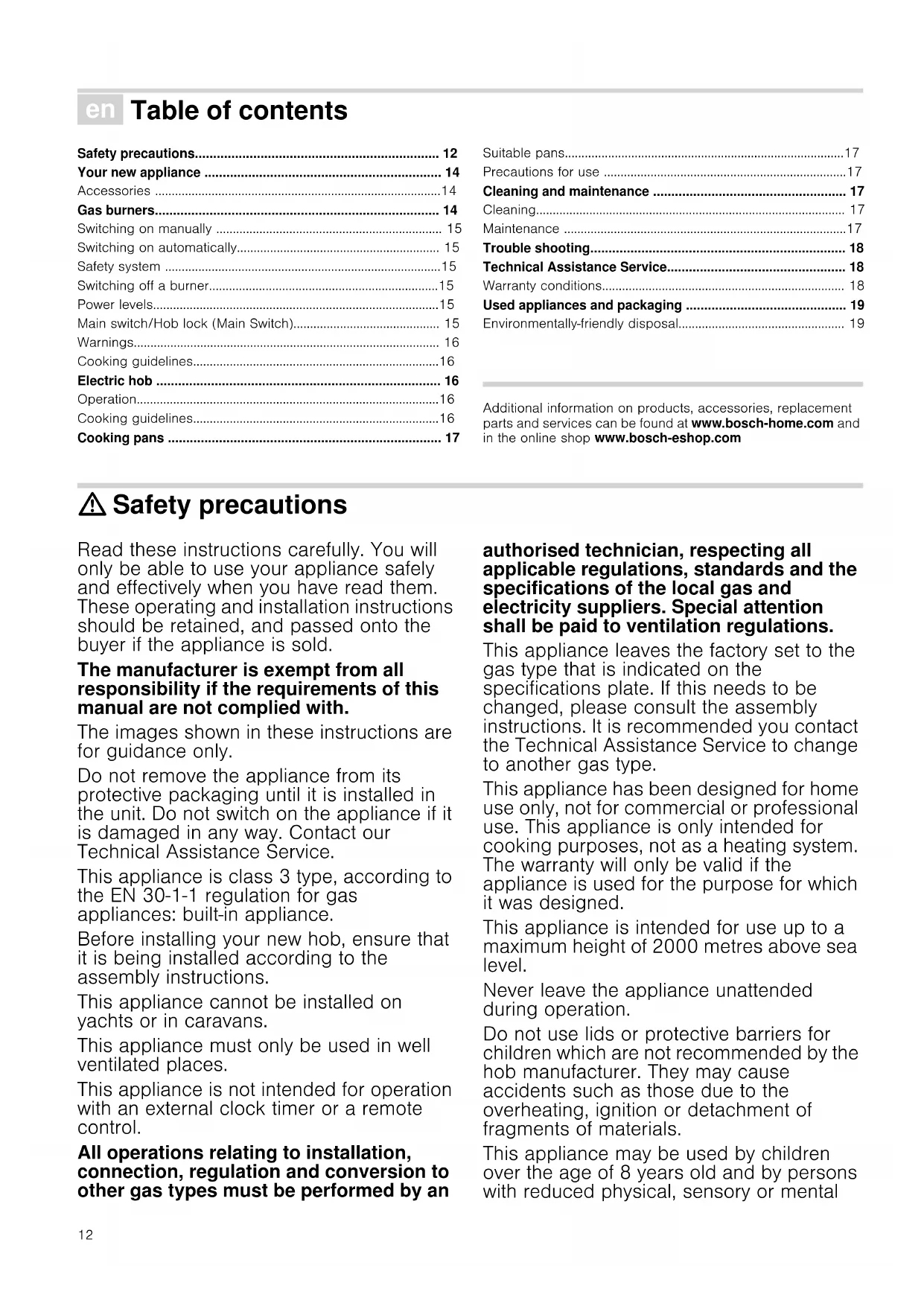

USER MANUAL PRY626B70E BOSCH

The hotplates and their immediate vicinity get very hot. Never touch the hot surfaces. Keep children under 8 years old well away from this appliance. Risk of burns!

If the liquefied gas bottle is not upright, liquefied propane/butane can enter the appliance. Intense darting flames may therefore escape from the burners. Components may become damaged and start to leak over time so that gas escapes uncontrollably. Both can cause burns. Always use liquefied gas bottles in an upright position. Risk of burns!

If the residual heat indicator is not working, disconnect the hotplate and notify the Technical Assistance Service. Risk of fire!

The hotplates get very hot. Do not rest inflammable objects on the hob. Do not store objects on the hob. Risk of fire!

Do not store or use corrosive chemicals, products which produce fumes, inflammable materials or non-food products below or near this domestic appliance. Risk of fire!

Fat or oil which is overheated can catch fire easily. Never leave fat or oil to heat up unattended. If oil or fats do catch fire, never use water to put the fire out. Put the fire out by covering the pan with a lid and switch off the hotplate. Risk of injuries!

Pans which are damaged, are not the right size, hang over the edge of the hob or are not positioned correctly can cause serious injuries. Follow the advice and warnings provided relating to the cooking pans. Risk of injuries!

The pan may suddenly jump due to the presence of liquid between the base of the pan and the hotplate. Always ensure that the hotplate and the bottom of the pan are kept dry. Risk of injuries!

In the event of a malfunction, turn off the appliance’s gas and electricity supply. For repairs, call our Technical Assistance Service. Risk of injuries!

Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service. Risk of injuries!

If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately so that they can repair or replace them. Risk of electric shock!

Do not clean the appliance using steam cleaners. Risk of electric shock!

Cracks or breaks in the glass may carry an electrocution risk. Disconnect the fuse from the fuse box. Notify the Technical Assistance Service.14 Your new appliance Page 2 shows an overall view of your new appliance as well as the burner power. Accessories Depending on the model, the hob may include the following accessories. These can also be acquired from the Technical Assistance Service.

Code The manufacturer accepts no liability if these accessories are not used or are used incorrectly. Gas burners There are indications to show which burner each control knob operates. It is essential to ensure that all the burner parts and pan supports are correctly installed for the appliance to work correctly. Do not swap the burner caps around. Additional wok pan support Only for use on double and triple-flame wok burners with pans which are more than 26 cm in diameter, grill pans, earthenware casserole dishes, large pans with a round base, etc. The additional wok pan sup- port should be used to pro- long the appliance's useful life. Additional coffee maker support Only for use on the auxiliary burner with pans which are no more than 12 cm in diameter. Simmer Plate This accessory has been designed to reduce the level of heat at the lowest power setting. Place the accessory directly on the pan support with the cones facing upwards, never directly over the burner. Cen- tre the pan over the acces- sory. HEZ298114 Additional coffee maker support HEZ298105 Simmer Plate15 Switching on manually

1. Press the chosen burner control knob and turn it

anticlockwise to the required setting.

2. Use any type of lighter or flame (cigarette lighter, matches,

etc.) and bring it close to the burner. Switching on automatically If your hob can be switched on automatically (ignition sparkers):

1. Press the chosen burner control knob and turn it

anticlockwise to the maximum power setting. While the control knob is still pressed down, sparks are produced on all burners. The flame ignites.

2. Release the control knob.3. Turn the control knob to the required setting.

If it does not come on, turn the control knob to the off setting and repeat the steps above. This time, press and hold the control knob for longer (up to 10 seconds). : Risk of deflagration! If after 15 seconds the flame does not ignite, switch off the burner and open a nearby window or door. Wait at least one minute before trying to switch the burner back on. Safety system Depending on the model, your hob may have a safety system (thermocouple) that prevents the flow of gas if the burners accidentally switch off. To ensure that this device is active:

1. Switch on the burner as usual.2. Without releasing the control knob, press and hold it down

firmly for 4 seconds after lighting the flame. Switching off a burner Turn the corresponding control knob clockwise to the 0 setting. Power levels The progressive control knobs can be used to control the power needed, from minimum to maximum power. For dual double-flame burners, the inner and outer flames can be controlled separately. The available power levels are as follows: Main switch/Hob lock (Main Switch) The hob may have a main switch to cut off the mains gas supply and switch off all the burners at the same time. This switch is very practical if there are children in the house or, if for any reason, all the burners must be switched off quickly. To lock the hob: Press the main switch. This switches off all the burners which are on. The hob is locked. To unlock the hob:

1. Turn all the control knobs to the "off" position.2. Press the main switch and turn it fully clockwise.

The mains gas supply is turned on. You can now use your hob normally. 1 ignition sparker 2 thermocouple Setting

Maximum capacity or aperture and electricity on Low flame

Inner and outer flame on full power. Outer flame on low power, inner flame on full power. Inner flame on full power. Inner flame on low power.

%16 Warnings It is normal to hear a soft whistling noise while the burner is operating. When first used, it is normal for the burner to give off odours. This does not pose any risk and does not indicate a malfunction. They will disappear in time. An orange-coloured flame is normal. This is caused by the presence of dust in the atmosphere, spilt liquids, etc. If the burner flames are accidentally blown out, switch off the burner operating control knob and do not try to relight it for at least 1 minute. A few seconds after the burner is switched off, a sound (thud) will be produced. This is not a fault - this means that the safety device is no longer operating. Keep the burner as clean as possible. If the ignition sparkers are dirty they will not light properly. Clean them periodically using a small non-wire brush. Bear in mind that the ignition sparkers must not suffer any serious impacts. Cooking guidelines Electric hob Models with a twin-circuit glass ceramic hotplate provide two different hotplate configurations: a small hotplate of 700 W and an extended hotplate of 1800 W, if your appliance works at 230 V. Operation Switching on Connect the small hotplate: Turn the control knob clockwise to the required setting. The operation indicator will light up. Setting 0: Off setting Setting 1: low power Setting 9: full power Connect the extended hotplate: Turn the control knob clockwise beyond setting 9 and then turn it the opposite direction to the required setting. To use the small hotplate again, turn the control knob anticlockwise to setting 0 and switch on again. Note: It is recommended to start cooking on full power and then to use intermediate power levels after a few minutes. Switching off Turn the knob anticlockwise to the Off setting. The residual heat warning light will switch off once the hob surface has cooled down. Residual heat The electric hob can be switched off slightly before the end of the cooking time. The residual heat will enable you to continue cooking for several minutes, thus saving energy. Warnings Do not allow liquids to be spilt on the surface of the electric hob. Do not cook with wet pans. Cooking guidelines The following suggestions are intended as a guide only. Increase the power for: ■ large quantities of liquid,■ preparation of large dishes,■ uncovered pans. Burner Very high - High Medium Low Wok burner Boiling, steam- ing, griddling, toasting, paellas, Asian food (wok). Reheating and keeping things hot: cooked and pre- cooked dishes Rapid burner Escalopes, steaks, ome- lettes, frying Rice, white sauce, ragout Steaming: fish, vegeta- bles Semi-rapid burner Steamed pota- toes, fresh vege- tables, vegetable stews, pasta Reheating, keeping things hot and making tasty casse- roles Auxiliary burner Cooking: casse- roles, rice pud- ding, caramel Defrosting and slow cooking: veg- etables, fruit and frozen products Melting: but- ter, choco- late, jelly
