Brand	Focal
Model	Universal ISN 100
Product type	Car speaker kit (separate component)
Kit composition	Woofer + Tweeter + cables + mounting accessories
Woofer diameter	130 mm (5.25 inches)
Tweeter diameter	20 mm (0.75 inch)
Woofer mounting depth	Approximately 55 mm (without motor cover)
Tweeter mounting depth	Adjustable thanks to swivel mounts
RMS power handling	60 W
Peak power handling	150 W
Impedance	4 ohms
Frequency response	60 Hz – 20 kHz
Sensitivity	90 dB / 2.83 V / 1 m
Woofer cone material	Polyglass
Tweeter dome material	Aluminum (inverted dome)
Magnet type	Ferrite
Included accessories	Tweeter grilles, adjustable mounts, mounting clips, cable with ISO connector, Focal badge
Mounting options	Front or rear mounting with clips, flush or adjustable for tweeter
Vehicle compatibility	Original locations (with adapters) or custom flush mounting
Manufacturer warranty (France)	2 years (non-transferable)
Operating temperature	-20 °C to +70 °C
Kit weight	Approximately 1.2 kg

Frequently Asked Questions - Universal ISN 100 FOCAL

What is the nominal power of the Universal ISN 100?

The RMS power is 60 W, with a peak power of 150 W. This allows excellent power handling for high-quality listening.

What is the diameter of the woofer and tweeter?

The woofer has a diameter of 130 mm (5.25 inches) and the tweeter a diameter of 20 mm (0.75 inches). These dimensions are designed to fit many original locations.

Can I install this kit in my car if there is no predefined location?

Yes, the kit is designed for mounting in original locations or by flush mounting. Use the provided cutting templates and respect the indicated mounting depths.

How to connect the tweeter: 'display' or 'car' wire?

For installation in a vehicle, connect the wire marked 'car'. The 'display' wire is reserved for use on a demonstration display. The unmarked wire is common ground.

Can I remove the rubber motor cover of the woofer?

Yes, in very compact spaces, it is possible to remove the rubber motor cover to gain depth. Make sure the woofer is well protected from dust.

How to fix the woofer in the original location?

The woofer comes with mounting clips. You can position them at 180° for Renault vehicles for example, or choose front or rear mounting depending on available space.

What is the warranty of the Focal Universal ISN 100?

In France, the warranty is 2 years from the date of purchase, non-transferable in case of resale. Outside France, conditions are set by the local official Focal distributor.

How to maintain the speakers?

Avoid exposure to moisture and metal shavings during mounting. Gently clean the cones with a soft, dry cloth. Do not use chemical products.

Can I use the kit without a passive crossover?

The Universal ISN 100 kit includes a passive crossover in the wiring, usually located near the tweeter. It is essential for frequency separation; do not remove it.

Where can I find the full manual in PDF?

The full manual is available for free download on the website notice-facile.com. It includes detailed mounting instructions with diagrams.

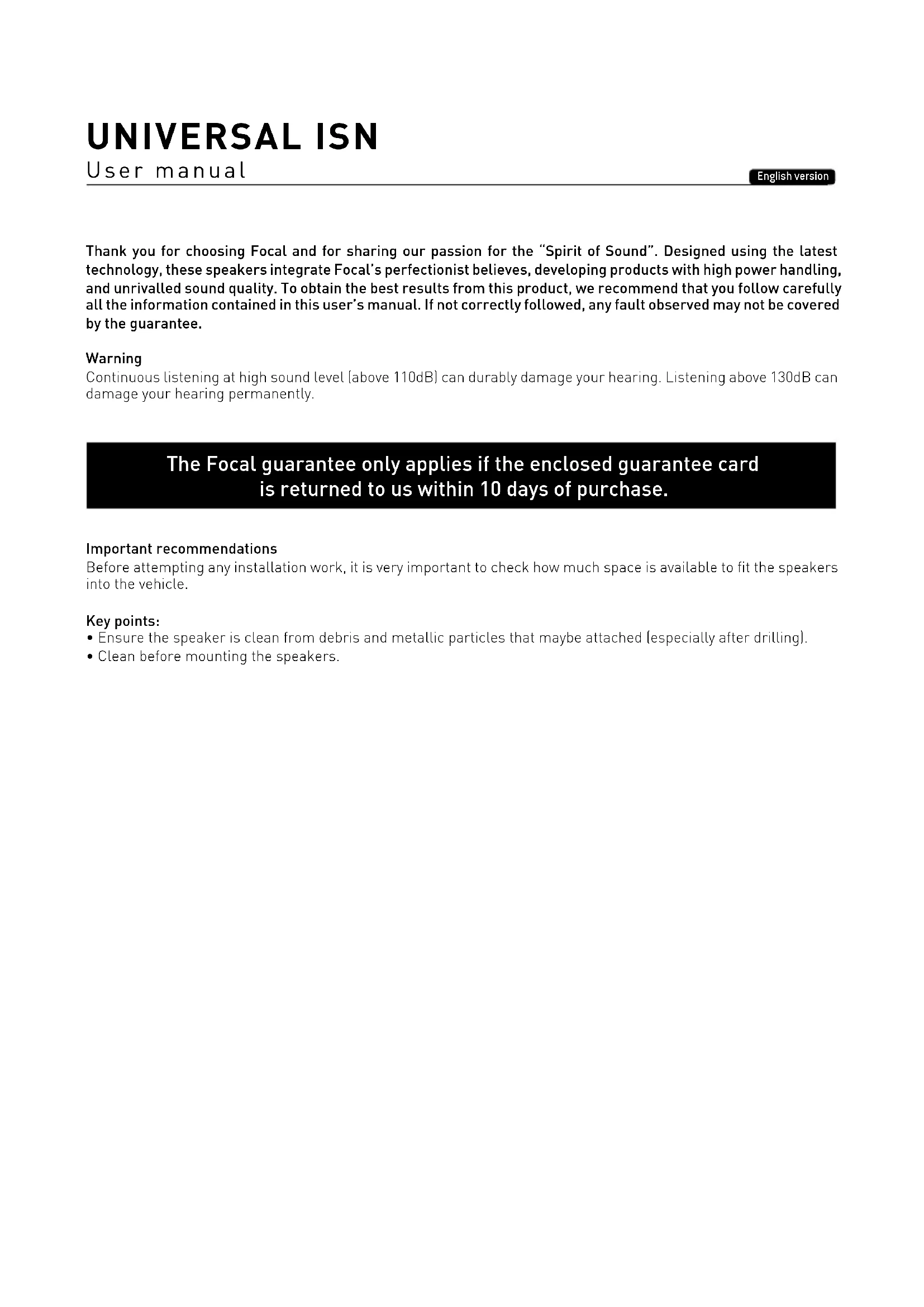

USER MANUAL Universal ISN 100 FOCAL

Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

Tweeter

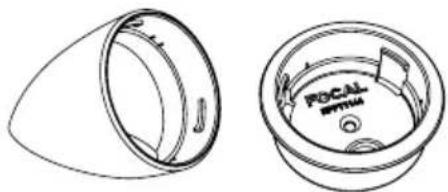

1/ Tweeter accessories (tilted and flush mounting)

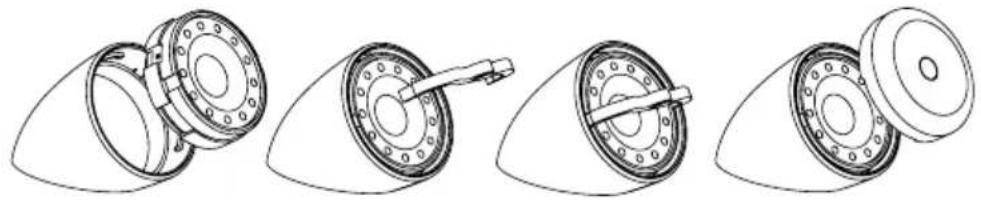

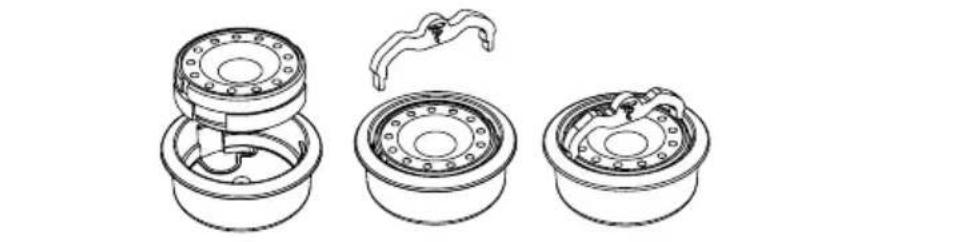

2/Assembling the tweeters to the mounts

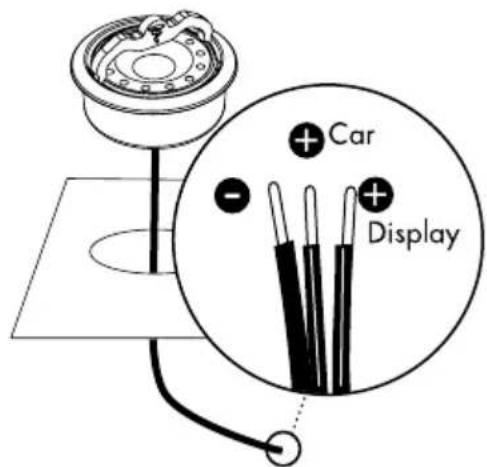

3/ Connecting the tweeters

When installing on a demonstration display, connect the "display" wire.

When installing in a vehicle: connect the "car" wire.

The unmarked wire is the earth wire with both connection options.

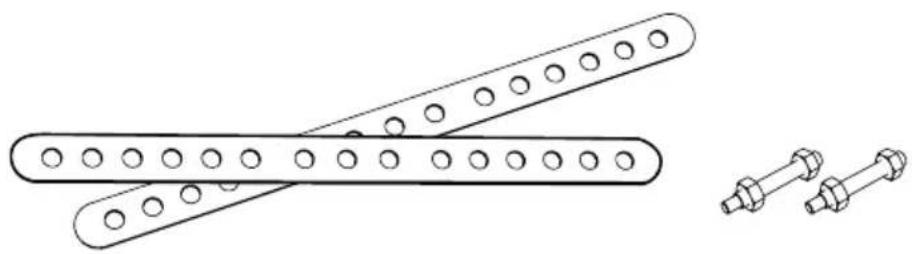

4/ Accessories to facilitate installation of the tweeters in their original location

Woofer ISN 100/130/165

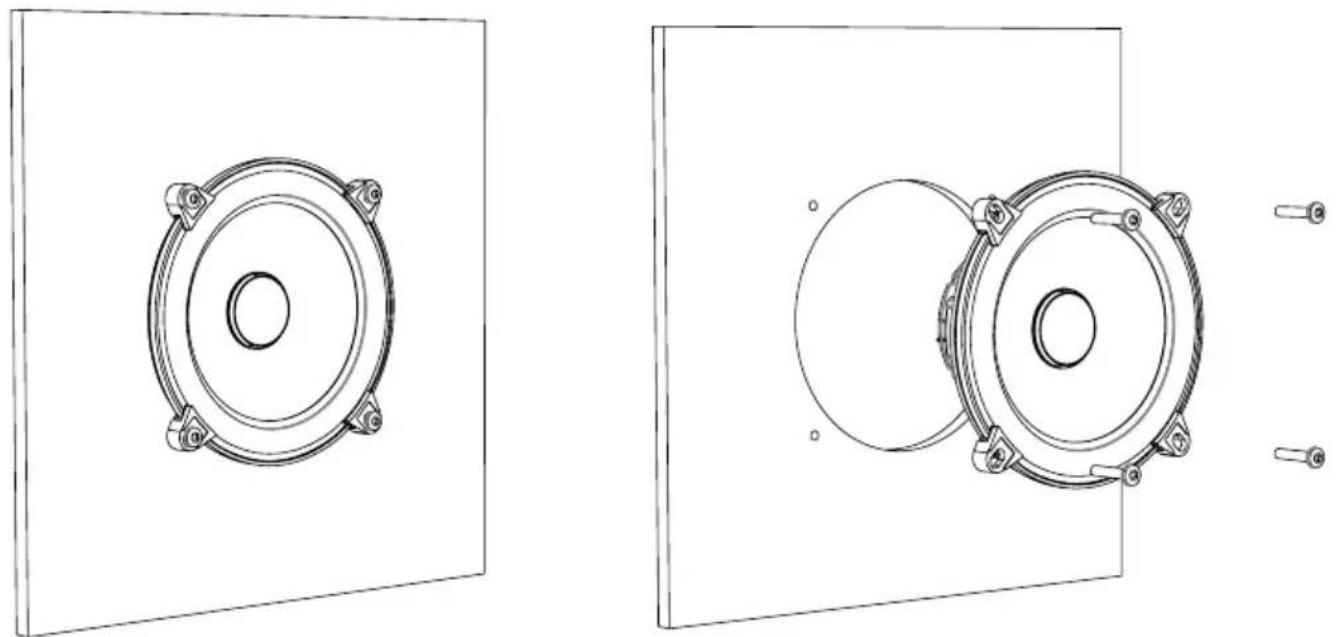

1/ Mounting the woofer into place (without grill)

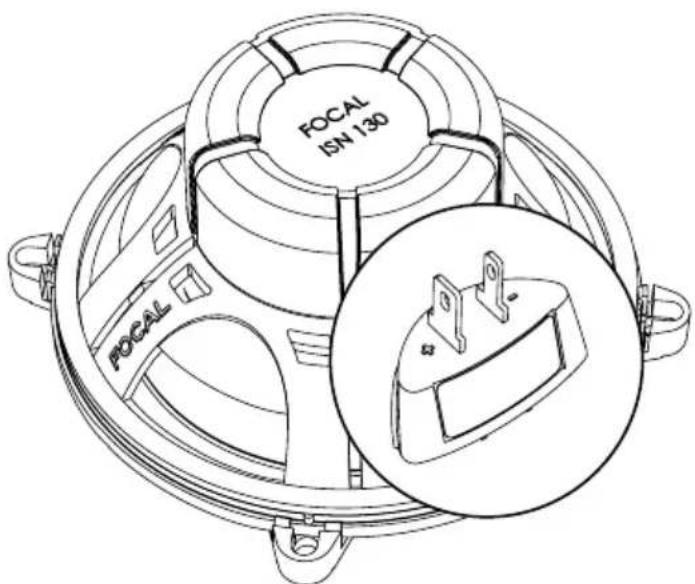

2/Rear view of the terminal block [marked "+" and "-"]

3/ Mounting the woofer + wire / crossover: 2 mounting options

Option 1 (woofer + cable).

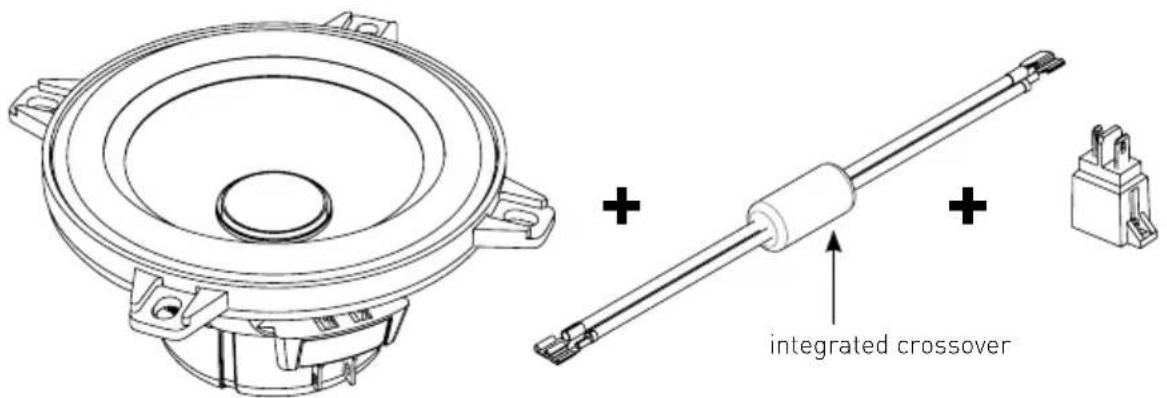

Option 2 (woofer + cable + ISO connector to ensure compatibility with certain brands of vehicles)

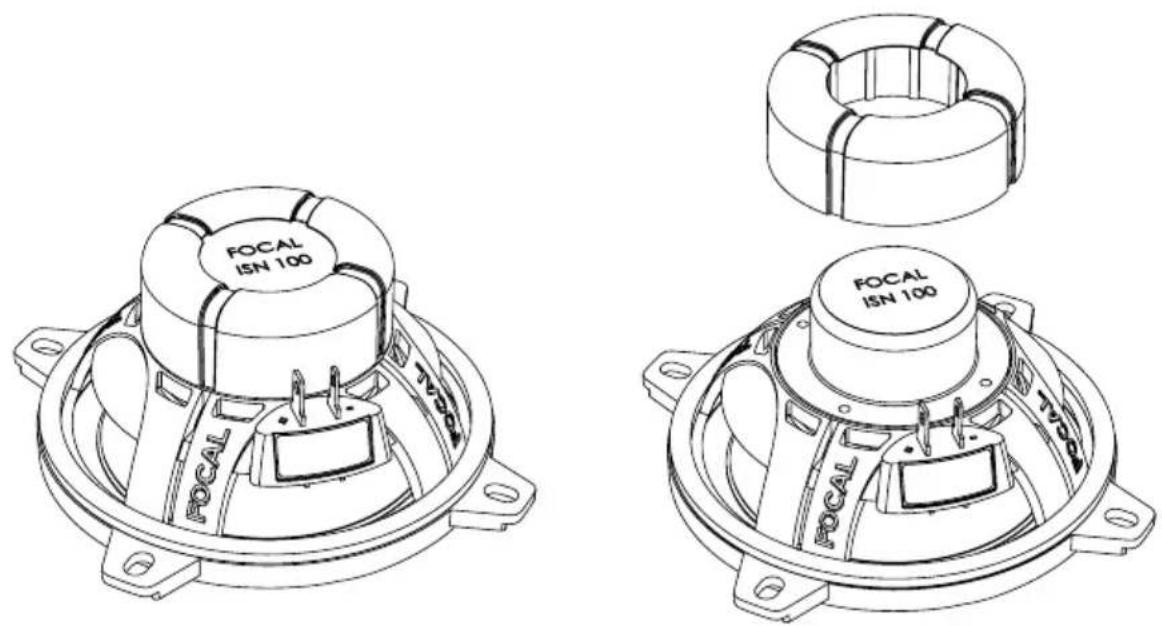

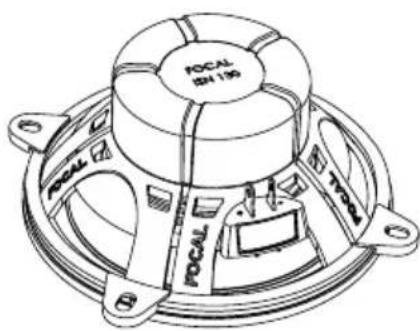

4/ Rear view of the driver with and without rubber cover

If mounting in very confined spaces, you can remove the molded rubber surround suspension in order to obtain the best fit for the woofer in the original place.

UNIVERSAL ISN

User manual

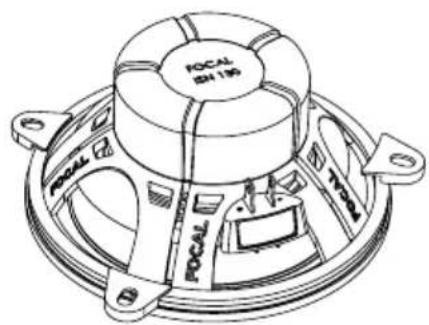

5/View of the full installation in the vehicle

Installing the ISN 130

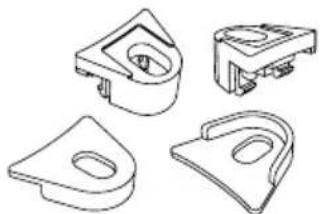

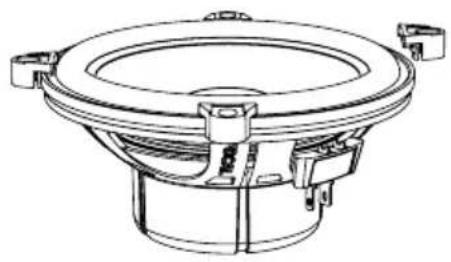

1/ Fixing clips

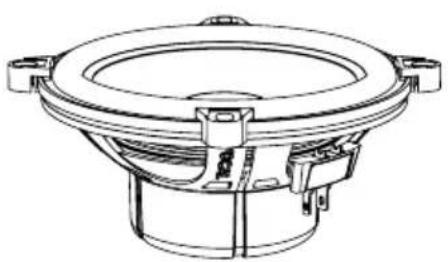

2/ Mounting fixing clips

The ISN 130 woofer comes with clips for front or rear mounting. It some cases 2/3 fixing clips can be used (for example 2 clips at 180^ on Renault® vehicles).

3/ Accessories

These kits are made to fit into the original locations more easily and are sold without grills (mounting n the door).

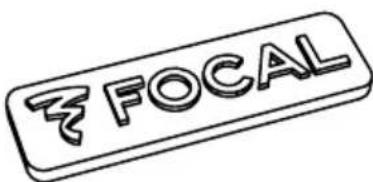

A Focal signature is included in each kit (diamond-cut aluminum support + adhesive). This signature can be fixed inside the door of your vehicle for example.

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Woofer ISN 100/130/165

Installation ISN 130

1/ Clips de fixation
