USER MANUAL Universal ISS 130 FOCAL

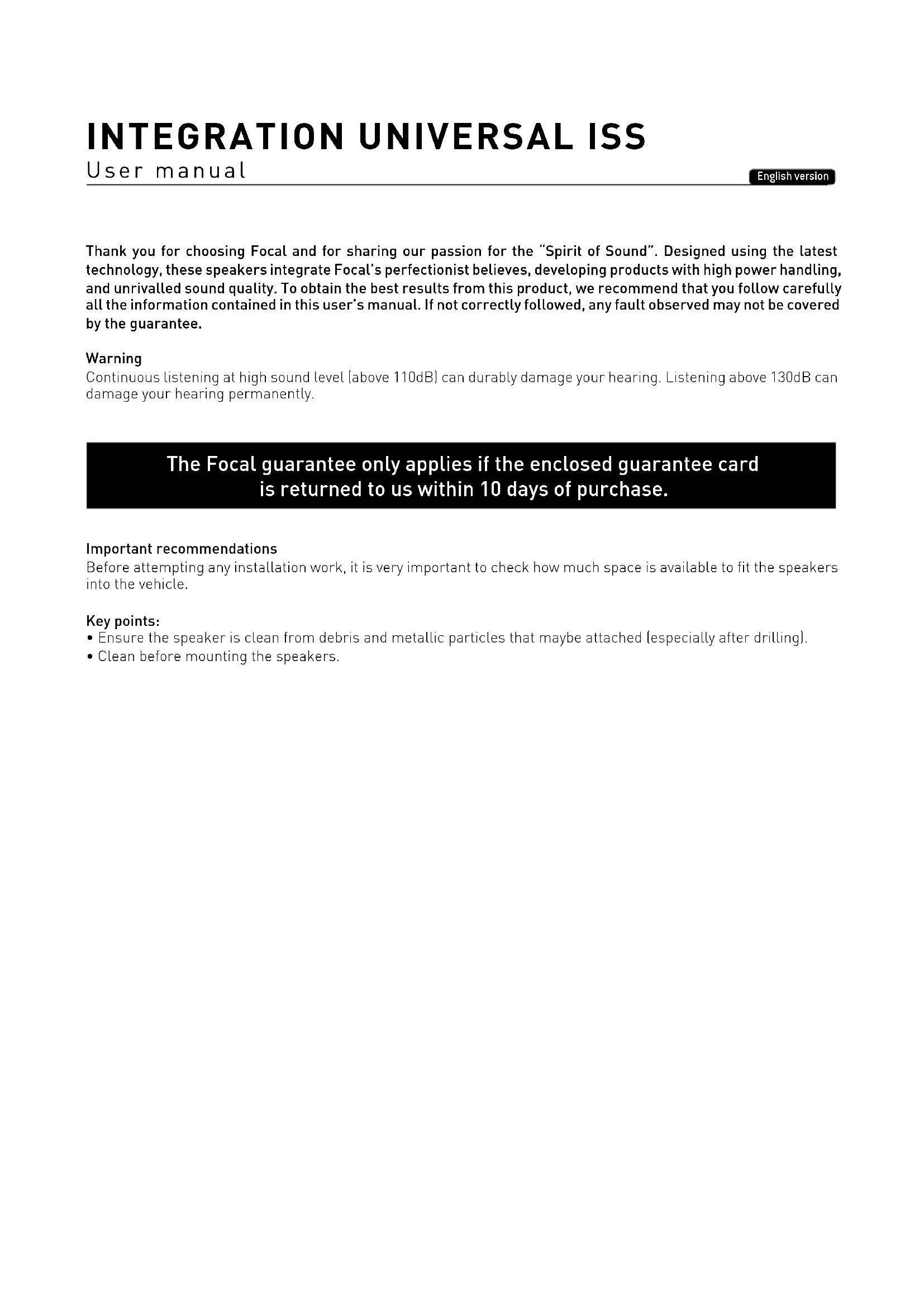

Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

INTEGRATION UNIVERSAL ISS

User manual

Tweeter

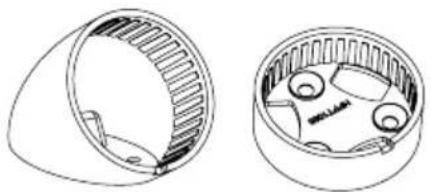

1/Tweeter accessories.

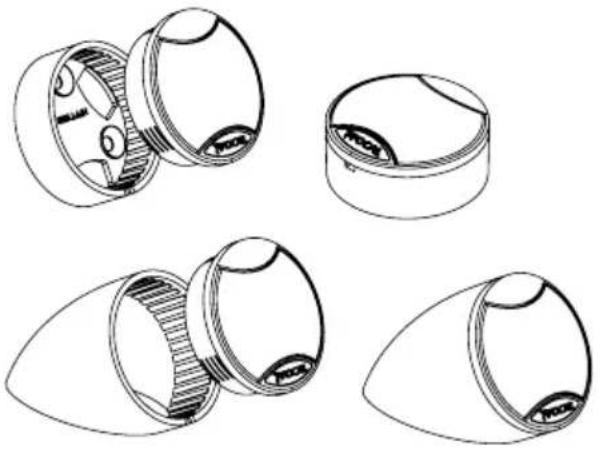

2/Assembling the tweeters to the mounts.

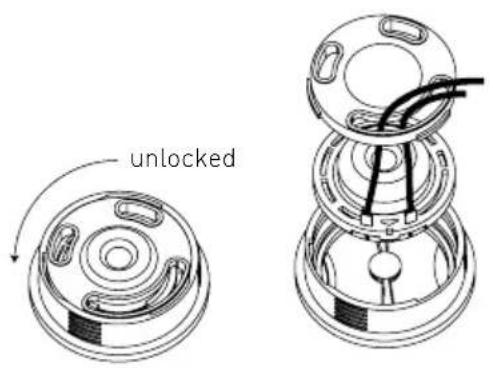

3/ Tweeter assembly in original space.

NB: "+" is the wire with red line

Remove the tweeteter to adapt it to the original space.

Handle with care: do not touch the aluminum dome and not to let it come into contact with the rear of the car's original grill.

INTEGRATION UNIVERSAL ISS

User manual

4/ Connecting the tweeters.

When installing on a demonstration display, connect the "display" wire.

When installing in a vehicle: connect the "car" wire.

The unmarked wire is " - " wire with both connection options.

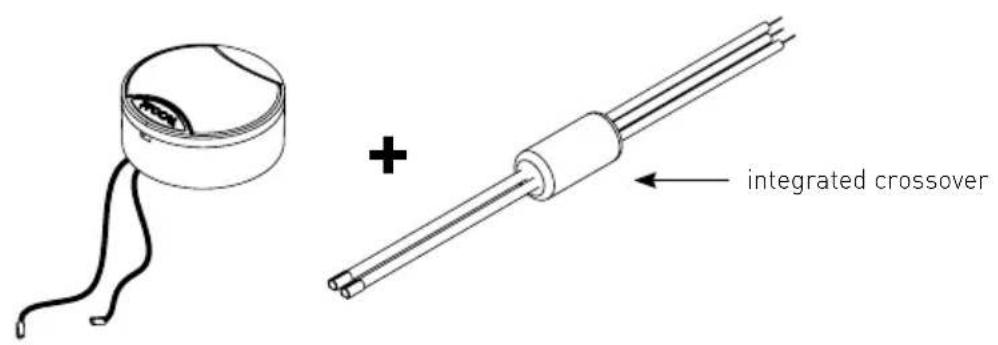

5/ Connecting the tweeters with crossover connector.

NB: "+" is the wire with red line

Warning: the tweeteter crossover is integrated into the connector. Ensure correct wiring thanks to the cable plugs (tweeter/crossover connector) in order to ensure optimal performance of this Integration kit.

INTEGRATION UNIVERSAL ISS

User manual

Woofer ISS

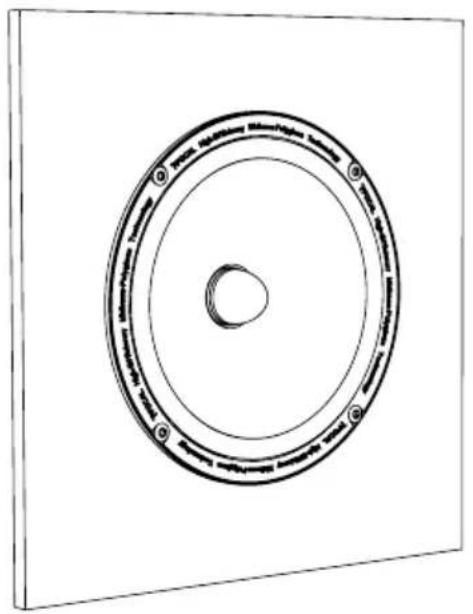

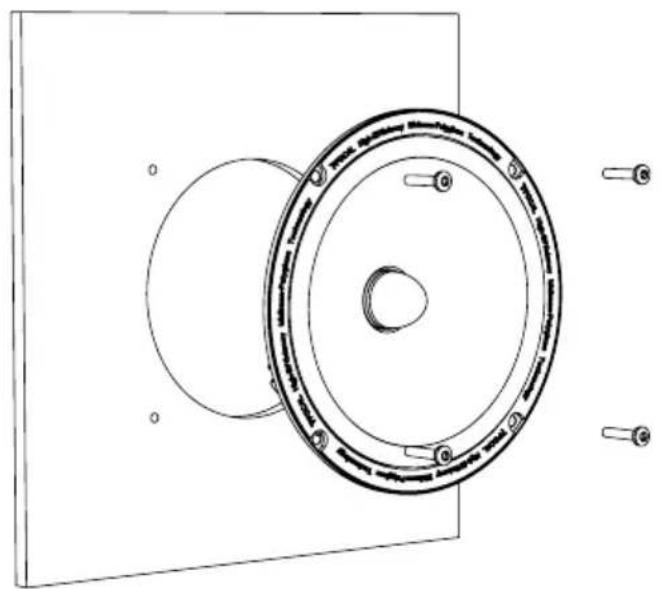

1/ Mounting the ISS 130 / 165 / 170 / 200 woofer in original space.

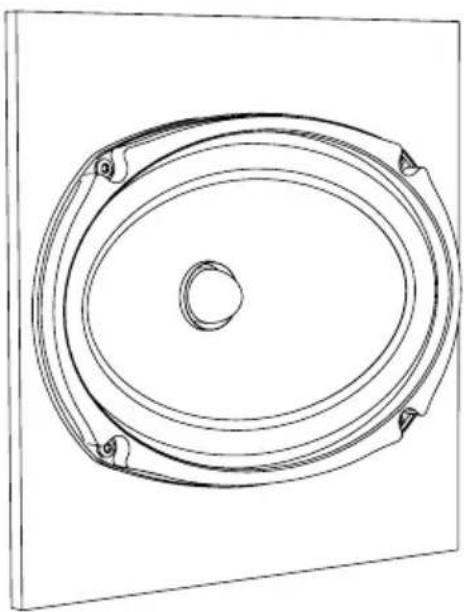

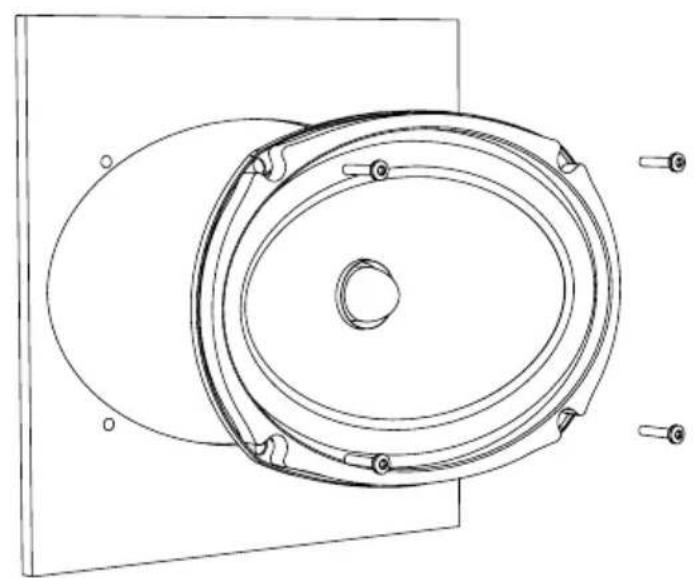

2/ Mounting the ISS 570 / 690 woofer in original space.

These separate 2-way "elliptic" kits can be fitted into the following car models Toyota, Jeep, Dodge, Ford.

Warning: in some of cases, you will need to use dedicated spacers to the vehicle.

INTEGRATION UNIVERSAL ISS

User manual

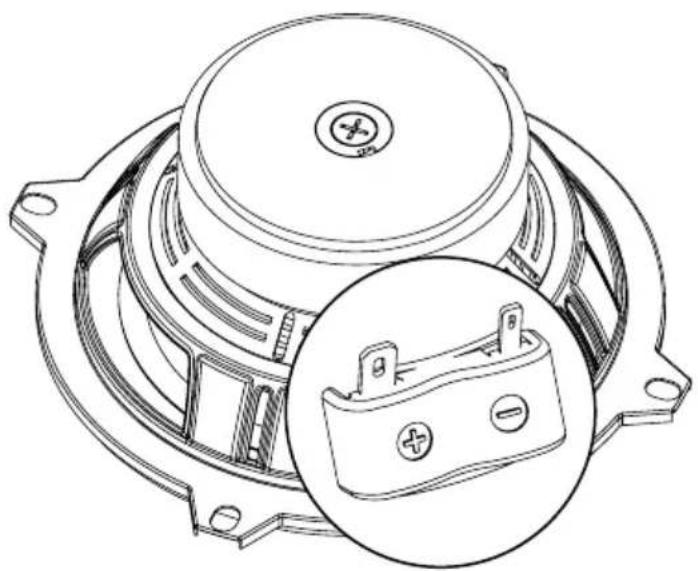

3/ Rear view of the terminal block [marked "+" and "-".]

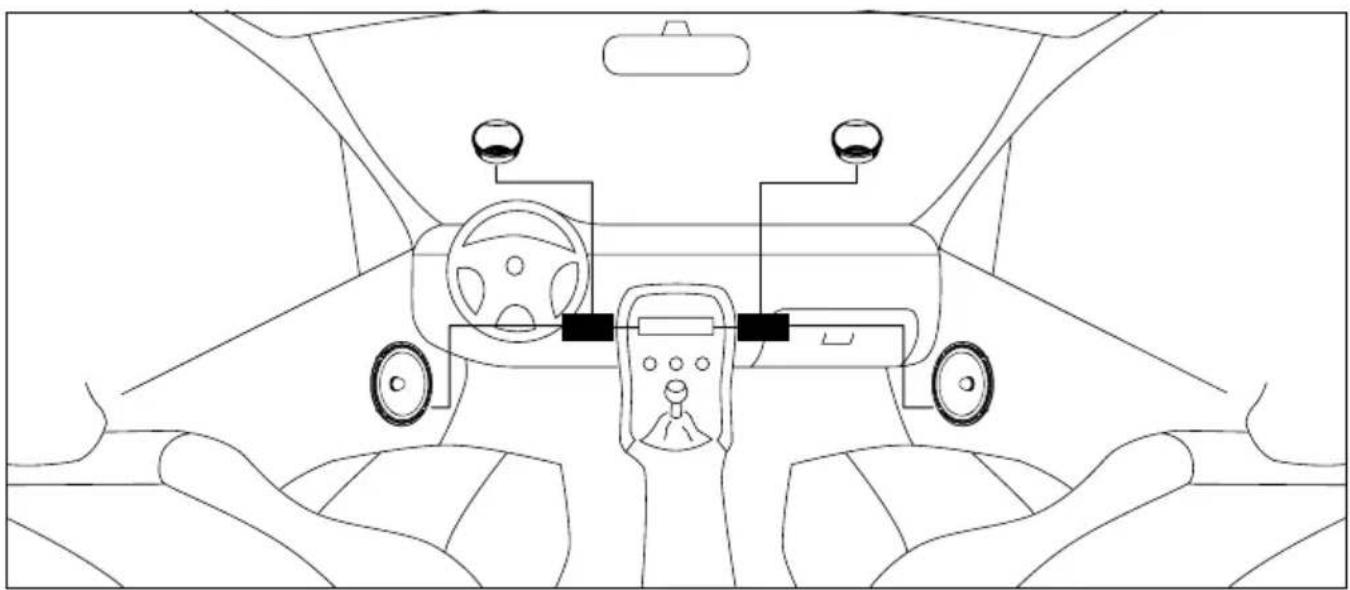

4/View of the full installation in the vehicle.

INTEGRATION UNIVERSAL ISS

User manual

ISS 165 / 200 / 570 / 690 installation

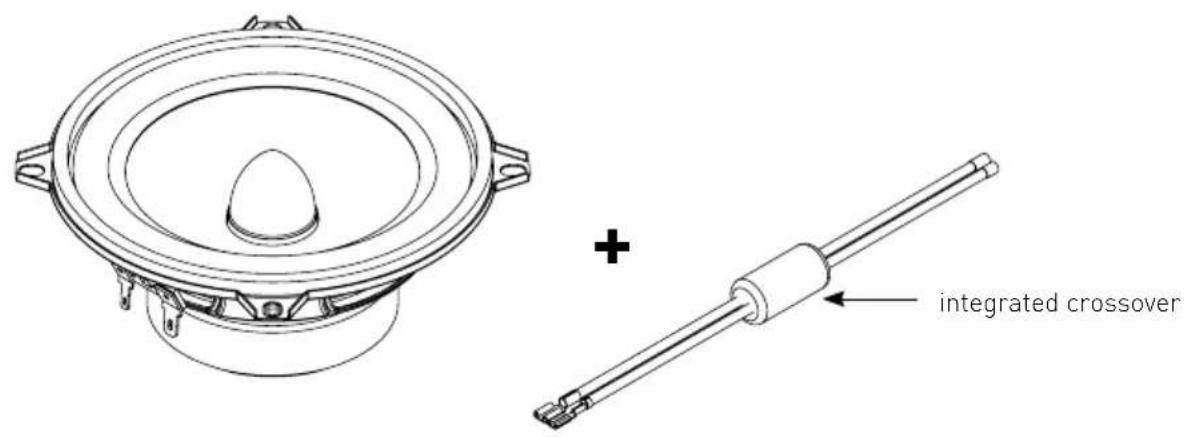

Mounting the woofer + connector (supplied with the kit)

NB: "+" is the wire with red line

The woofers in the ISS 165, ISS 200, ISS 570 and ISS 690 kits are equipped with a crossover integrated into the connector (for a more compact basket and one which is easy to install in original locations).

Make sure ONLY these connectors [supplied with the kit] are used.

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

INTEGRATION UNIVERSAL ISS

MexaHnueckne IOBpeKJeHn H3JeHn I IOBpeKJeHn BbI3BaHHbIe IIOHaJHem BHyTp b H3JeJIHn IOCTOpOHnX IIpeIMeTOB, BeIeCTB, JNkOcTeH n T.I. IOBpeKJeHn BbI3BaHHbIe IpHpoIHbIMn ABJIeHNMa, CTHXHbIMn 6eIcTBnMn, IIOJapOM n T.I.

H3JIeJIHe IIOIbepraIocb BMeIIaTeJIbCTBy HJIN peMOHTy He yIIOJIHOMOeHHbIMn Ha To JINiAmN HJIN ccpBHCbIMN IcHTpaMn.

ГAPАNTЯ FOCAL

B cIyae ycTaHOBKn I IOKJIIOUeHn H3JeJIIn He ceTpHnHnPOBaHHbIMn ycTaHOBOuHBIMn CEHTpaMn.

IpoaBeu (Ha3BaHHe KOMIIaHHN, TeJeΦ

OH)

Iata IpoJaaKn ToBapa “ 20 r.

CepnHbI HOMep H3JeJIHa

IIOINcB yIOJHOMOeHHOro JInua npOdaBua

CTexHHueckHMxapaKTepeTHKaMn IIpHO6peTeHHbIX H3JeJH, IpaBHLaMn H yCIOBHN

rapaHTnHOro 06cJyKnBaHHa

O3HaKOMJIeH H COJIaCeH, KOMIIJIeKTHOCTb H COCTOAHn H3JIeJIH IIPOBepHeIbI:

IokyIaTeJIb /Φ.I

.O.

Garantie France

International guarantee

For the validation of the Focal guarantee, send back this sheet within 10 days to the following address

Focal-JMlab - BP 374 - 108, rue de l'Avenir - 42353 La Talaudiere cedex - FRANCE

Now it's possible to register on line: www.focal.com/warranty

About yourself:

Your name: Your age: Your job:

Your full address:

Your e-mail address:

Your hobbies:

At home, do you own Hi-Fi loudspeakers? -Yes-No

If yes, specify the brand:

Do you read the press? -Yes-No

If yes, which magazine(s)?

Your audio/video equipment (brands and models) before the acquisition of Focal products:

CD player/tuner:Multimedia player:

Navigation system:Amplifier:

Speakers: Enclosure/subwoofer:

Other elements:

Your choice for the purchase of this Focal model was made according to:

-Dealer's advice-Friend's or family's advice
- Visiting an exhibition/a show - Quality-price ratio
Sound quality/listening room -Already own Focal products
- Reliability/manufacturing quality - Catalogues
- Design/Finish - French product
□ - Article in the press (if yes, specify the title of the magazine)

Your Focal product:

Model:Serial number:

Dealer's name:City:

Date of your purchase:Price of your purchase:

Did you leave the product installation to your dealer's care? -Yes-No

If not, why?
