Product type	Separated kit (woofer + tweeter) for car
Brand	Focal
Model	Universal ISN 165
Woofer diameter	165 mm (6.5 inches)
Tweeter type	Inverted dome (TN42 or similar)
Impedance	4 ohms
RMS power handling	80 W
Peak power	160 W
Sensitivity	91 dB (2.83 V/1 m)
Frequency response	55 Hz – 25 kHz
Membrane material	Polyglass (woofer) / Polyethylene (tweeter)
Included accessories	Tweeter brackets, mounting clips, cables, ISO connector, adhesive Focal signature
Intended use	Installation in original or custom locations
Care and cleaning	Clean with a dry cloth; avoid moisture and abrasive products
Safety	Do not listen continuously above 110 dB; risk of hearing damage above 130 dB
Warranty	2 years (France); conditions vary by country
Country of manufacture	France

Frequently Asked Questions - Universal ISN 165 FOCAL

How to install the tweeter?

Use the supplied brackets (angled or flush). Connect the 'display' wire for demonstration or 'car' for vehicle. The unmarked wire is ground.

Can I remove the woofer motor cover?

Yes, in tight spaces you can remove the rubber cover to ease recessing.

What type of wiring to use?

Two options: woofer + cable directly, or woofer + cable + ISO connector for compatibility with certain brands.

How to mount the woofer without grille?

Kits are sold without grille; you reinstall the door panel. Use the supplied mounting clips (front or rear).

What is the recommended amplifier power?

An amplifier delivering 40 to 100 W RMS per channel is ideal. Respect the 4 ohm impedance.

How to validate the warranty?

Return the warranty page within 10 days to the indicated address or register your product online at www.focal.com/warranty.

What to do in case of problem?

Contact your Focal dealer. If the product is under warranty, shipping to them is at your expense but return is free.

Can I use these speakers with an original car radio?

Yes, thanks to the optional ISO connector. Check compatibility of the location and mounting space.

What are the risks of listening at high volume?

Prolonged listening above 110 dB can damage hearing. Peaks at 130 dB can cause irreversible damage.

How to clean the speakers?

Use a soft dry cloth. Avoid water, solvents, and harsh cleaning products.

USER MANUAL Universal ISN 165 FOCAL

Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

Tweeter

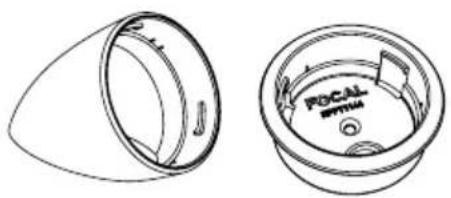

1/ Tweeter accessories (tilted and flush mounting)

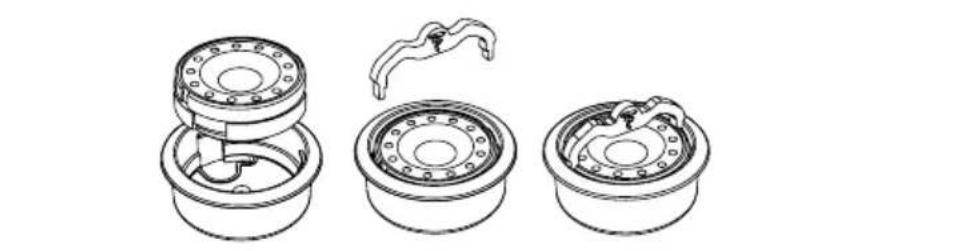

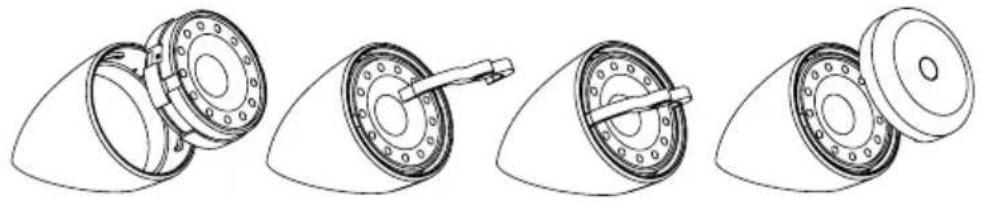

2/Assembling the tweeters to the mounts

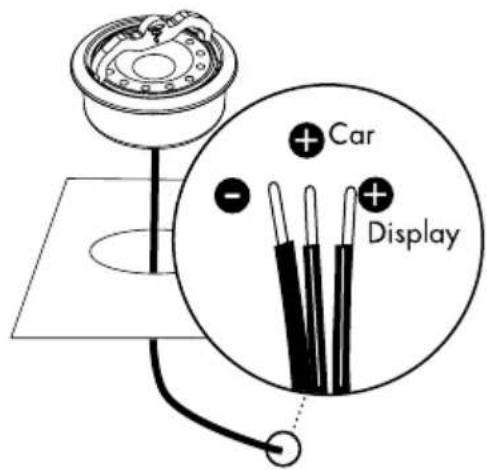

3/ Connecting the tweeters

When installing on a demonstration display, connect the "display" wire.

When installing in a vehicle: connect the "car" wire.

The unmarked wire is the earth wire with both connection options.

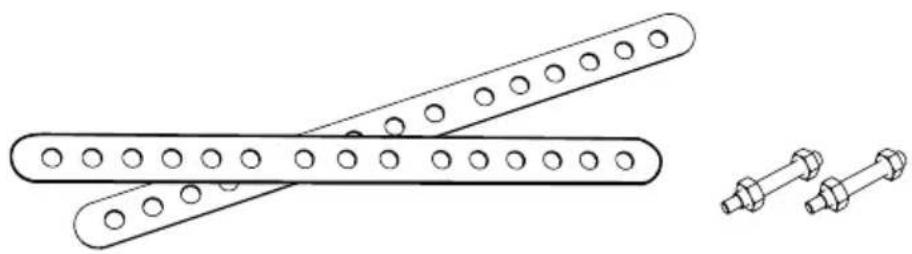

4/ Accessories to facilitate installation of the tweeters in their original location

Woofer ISN 100/130/165

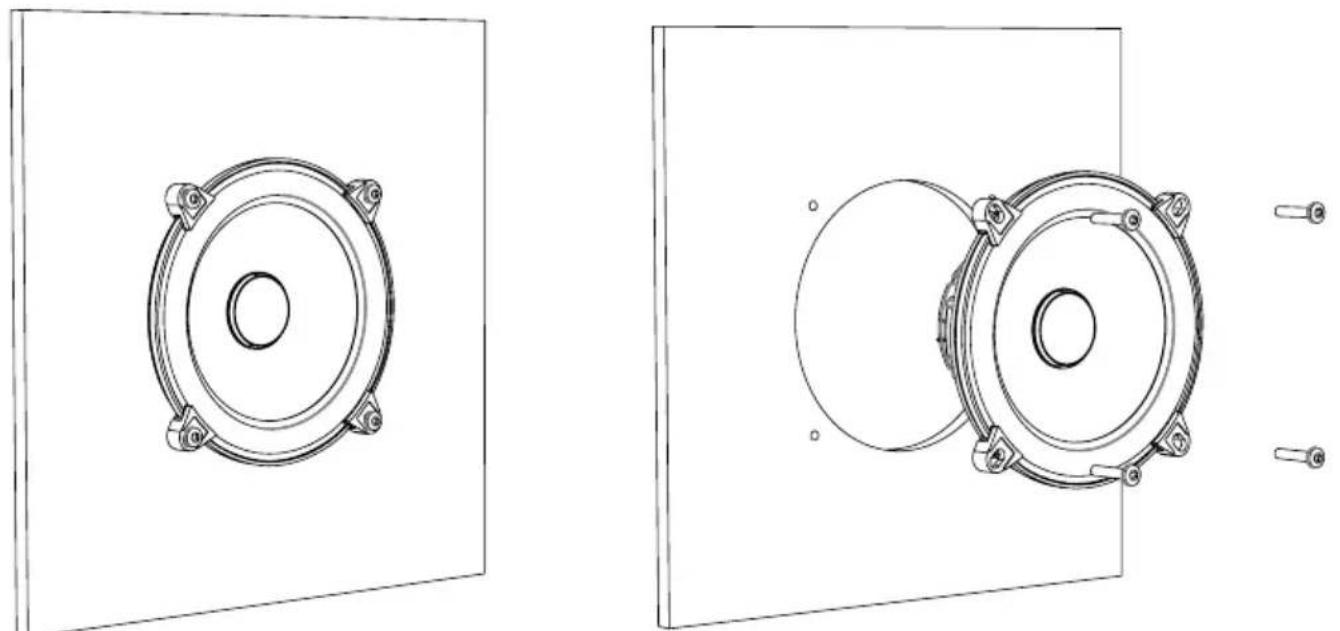

1/ Mounting the woofer into place (without grill)

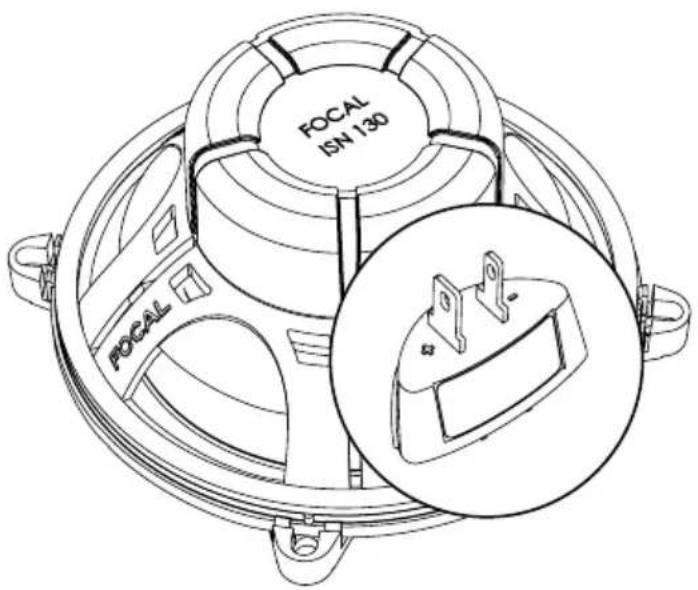

2/ Rear view of the terminal block [marked "+" and "-"]

3/ Mounting the woofer + wire / crossover: 2 mounting options

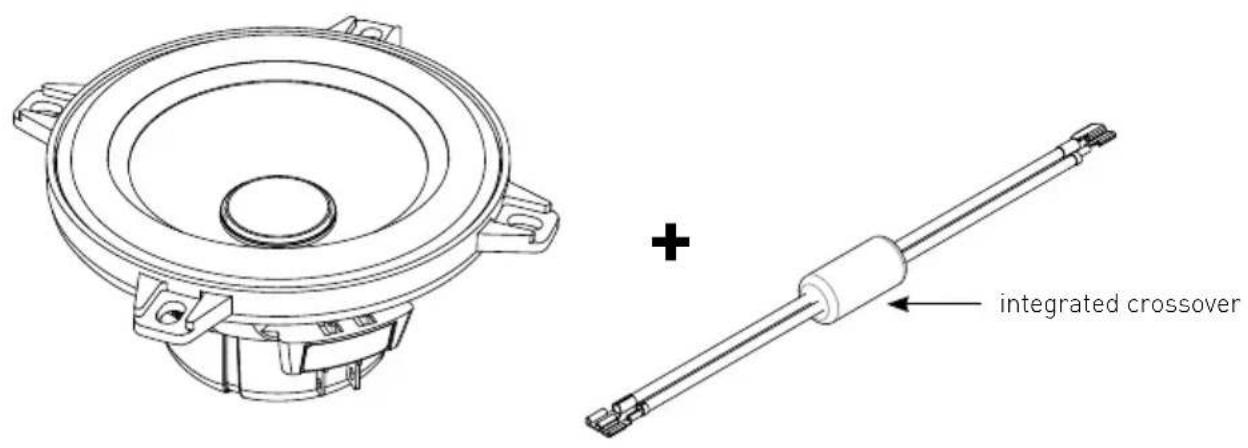

Option 1 (woofer + cable).

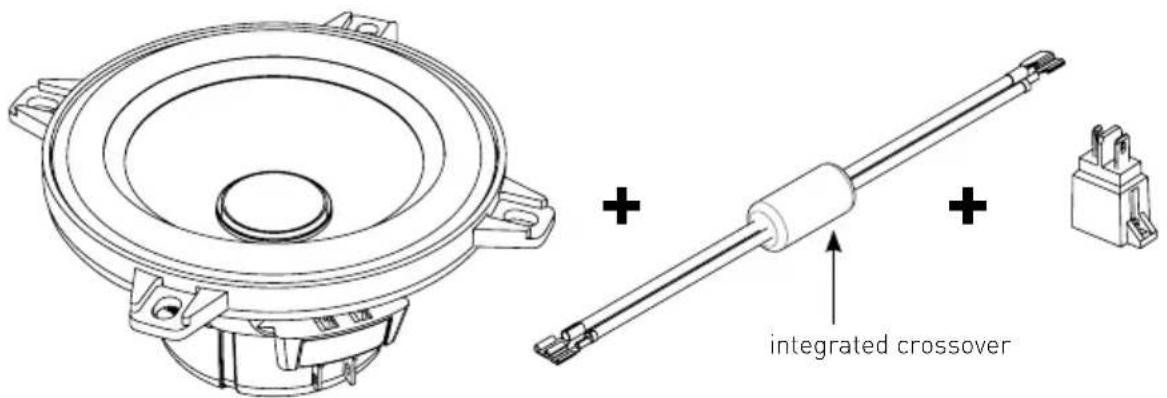

Option 2 (woofer + cable + ISO connector to ensure compatibility with certain brands of vehicles)

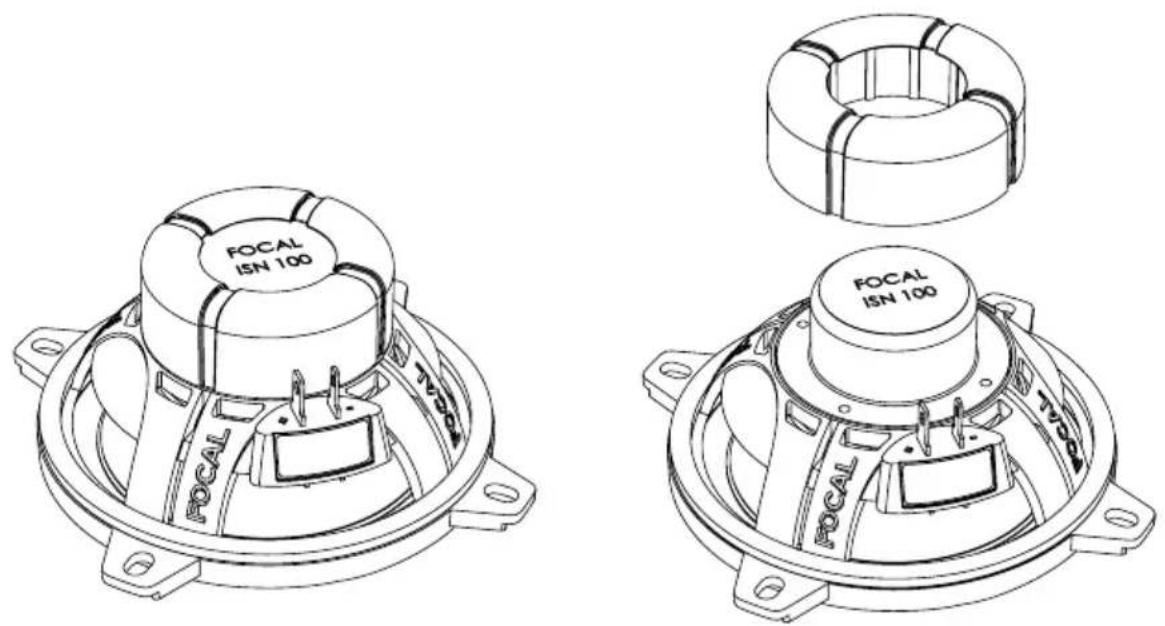

4/ Rear view of the driver with and without rubber cover

If mounting in very confined spaces, you can remove the molded rubber surround suspension in order to obtain the best fit for the woofer in the original place.

UNIVERSAL ISN

User manual

5/View of the full installation in the vehicle

Installing the ISN 130

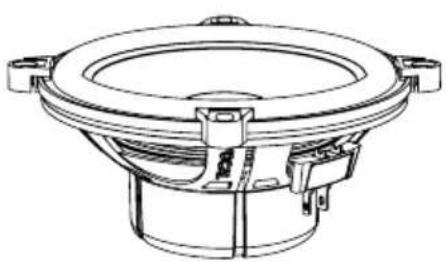

1/ Fixing clips

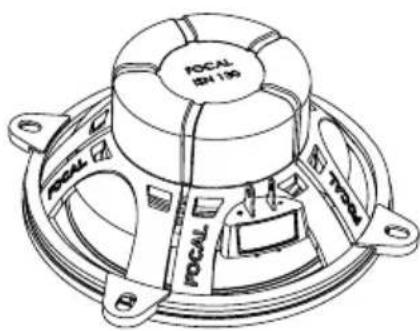

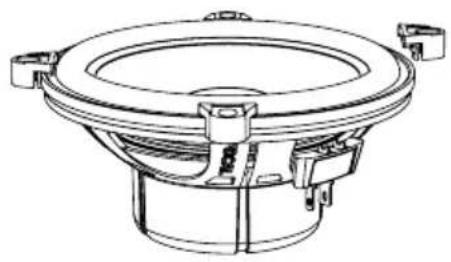

2/ Mounting fixing clips

The ISN 130 woofer comes with clips for front or rear mounting. It some cases 2/3 fixing clips can be used (for example 2 clips at 180^ on Renault® vehicles).

3/ Accessories

These kits are made to fit into the original locations more easily and are sold without grills (mounting n the door).

A Focal signature is included in each kit (diamond-cut aluminum support + adhesive). This signature can be fixed inside the door of your vehicle for example.

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Woofer ISN 100/130/165

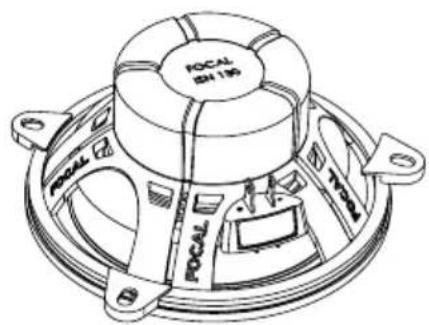

Installation ISN 130

1/ Clips de fixation
