Product type	Car speaker 2-way coaxial elliptical
Brand	Focal
Model	Universal ISC 570
Shape	Elliptical (5x7 inches)
Power handling (RMS)	60 W
Maximum power	120 W
Impedance	4 ohms
Frequency response	60 Hz - 20 kHz
Sensitivity	91 dB SPL (2.83 V/1 m)
Woofer diameter	5 x 7 inches (127 x 178 mm)
Tweeter diameter	1 inch (25 mm)
Mounting depth	45 mm
Required cutout	120 x 170 mm (approx.)
Cone material	Polypropylene (woofer) and textile (tweeter)
Power supply	12 V (vehicle electrical system)
Usage	Mounting in original location or custom
Vehicle compatibility	Toyota, Jeep, Dodge, Ford (adaptation possible)
Warranty	2 years (France), according to distributor conditions outside France
Maintenance and cleaning	Clean before mounting, avoid chips and dust
Safety	Do not listen above 110 dB for long periods; risk of hearing damage
Kit contents	2 coaxial speakers, grilles, screws, manual
Unit weight	Approximately 1.2 kg

Frequently Asked Questions - Universal ISC 570 FOCAL

What is the recommended amplifier power?

The amplifier must deliver an RMS power between 30 and 60 W per channel to fully exploit the Focal Universal ISC 570 without risk of damage.

Can I install this speaker in a Toyota Corolla?

Yes, the ISC 570 is designed to fit many vehicles, including Toyota, Jeep, Dodge, and Ford. Check the available space in your Corolla and use the supplied adapters if necessary.

What is the minimum mounting depth?

The mounting depth is approximately 45 mm. Ensure there is enough space behind the door or panel so as not to obstruct the window or other components.

How do I maintain my Focal speakers?

Before installation, carefully clean the mounting area and avoid metal chips or dust. After installation, wipe the grilles with a soft dry cloth. Do not use chemicals.

What is the warranty for the Focal Universal ISC 570?

The warranty is 2 years from the date of purchase in France. Outside France, conditions are set by the local distributor. Keep your invoice and the duly completed warranty coupon.

Does the kit come with protective grilles?

Yes, each speaker comes with a protective grille. Ensure there is enough space between the speaker and the grille to avoid any contact.

Can I use this speaker without an amplifier?

Yes, you can connect it directly to the car radio, but for optimal performance, an external amplifier is recommended. Ensure the car radio delivers at least 20 W RMS per channel.

How to connect the speakers correctly?

Respect polarity: positive wire (+) to the positive terminal of the speaker and negative (-) to the negative. Reversed connection will phase shift the sound and reduce performance.

What are the risks of listening at high volume?

Prolonged listening above 110 dB can permanently damage your hearing. Levels above 130 dB, even brief, can cause irreversible damage. Set the volume moderately.

Is the speaker suitable for outdoor or marine use?

No, the Universal ISC 570 is designed for indoor use in a vehicle. It is not waterproof and does not resist humidity or water splashes. Avoid any exposure to water.

USER MANUAL Universal ISC 570 FOCAL

Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
• Clean before mounting the speakers.

INTEGRATION UNIVERSAL ISC

User manual

Woofer ISC

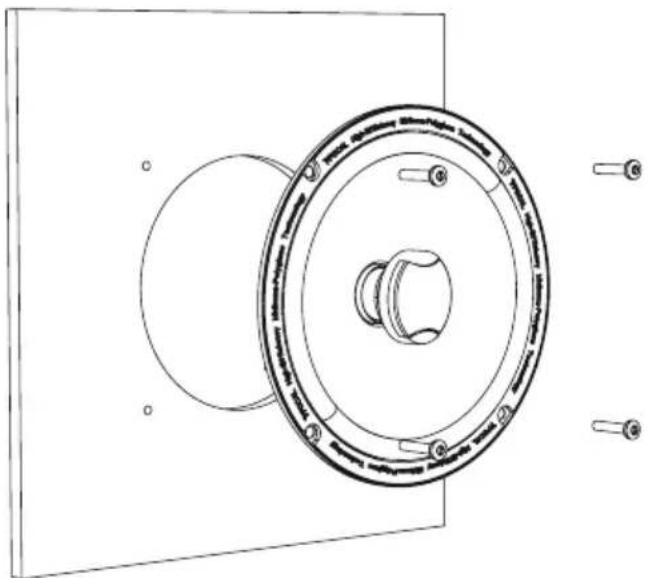

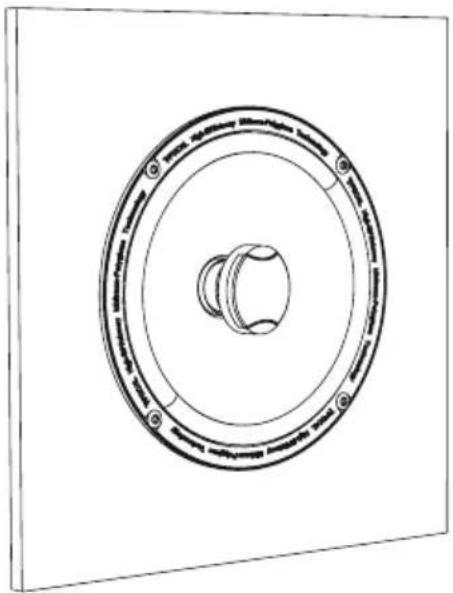

1/ Mounting the ISC 100 / 130 / 165 woofer in original space.

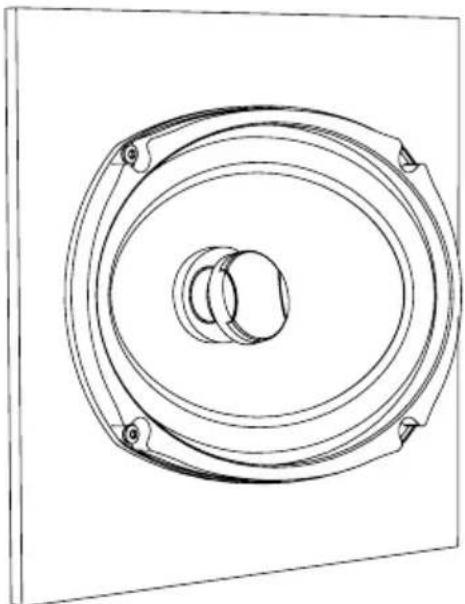

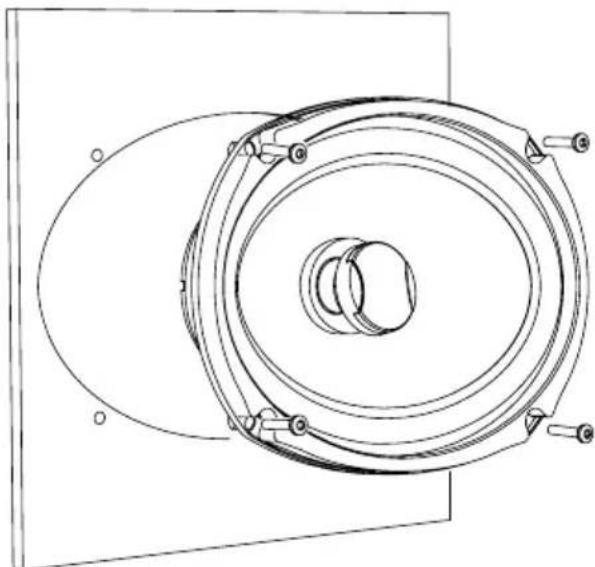

2/ Mounting the ISC 570 / 690 woofer in original space.

These "elliptic" kits can be fitted into the following car models Toyota, Jeep, Dodge, Ford.

INTEGRATION UNIVERSAL ISC

User manual

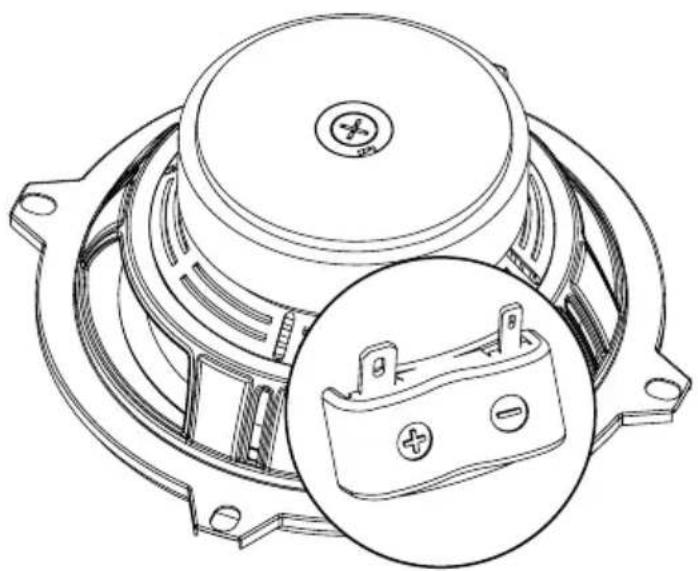

3/ Rear view of the terminal block [marked "+" and "-)].

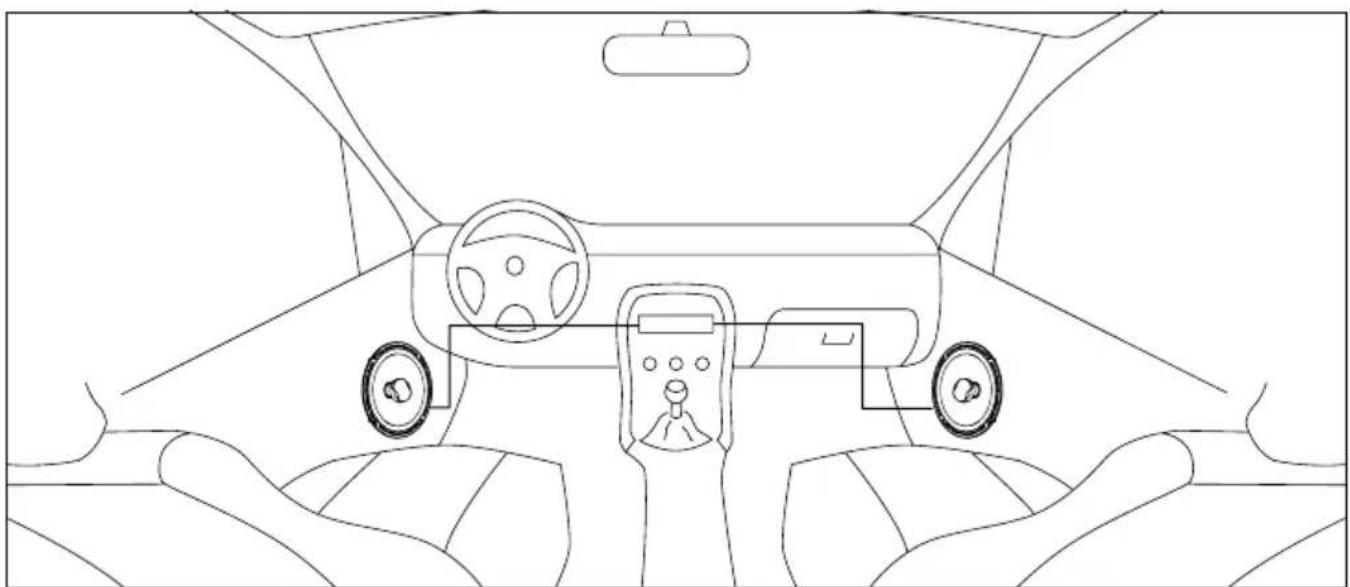

4/View of the full installation in the vehicle.

INTEGRATION UNIVERSAL ISC

User manual

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

INTEGRATION UNIVERSAL ISC
