USER MANUAL Utopia Be Ultima FOCAL

Focal-JMlab,incorporated company with a capital of 1062082 euros, which registered office is situated in 108, rue de l'Avenir, BP 374 42353 La Talaudiere, registered at the RCS of St Etienne under the number 309 645 521 000 76.

The speakers use a pure Beryllium inverted dome tweeter that extends the bandwidth at 40kHz . Because of the Beryllium potential dangerousness, the material that constitutes the tweeter, some safety instructions described below must be followed by the user of the loudspeakers in order to avoid any risk of this material absorption. However, the risks are extremely limited in its solid form, as the product dangerousness is linked to the inhalation, absorption or contact of vapours or micro-particles.

1. Safety instructions

The Beryllium dome must never be in contact with abrasive material.

You must avoid any contact with the skin or the eyes, any inhalation or ingestion of the whole or a part of the Beryllium dome. The manufacturer underlines that the Beryllium absorption by respiratory, digestive tracts or skin can lead to serious physical troubles, because of its high toxicity for man. We then recommend to the speakers users to carefully keep the tweeter protection grille in place. If the protection grille is removed, the user will have to carefully replace this grille after use.

Generally speaking, children must be kept away from speakers and especially from the Beryllium dome.

2. In case of dome damaging

If the Beryllium dome is damaged in any possible way, you must cover it as soon as possible on all its surface with the supplied protection adhesive tape. We recommend that you contact the retailer so that a competent department will take off and replace the tweeter.

If the dome is broken, the possible Beryllium particles must be carefully collected with the supplied protection adhesive tape and then be placed in a hermetically sealed plastic bag. It will be sent with the speakers to the retailer.

In case of absorption by skin, eye projection or in case of inhalation or ingestion of Beryllium, see a doctor.

3. End of life for speakers - Information

At the end of the speakers life, you must not throw this product in the environment, but you must take it to an adapted recycling center.

For more information, please contact us directly to the following address: [e-mail]

D Warning

En特殊情况, no one can guarantee that the product will be as good as it is intended to be.

Thank you for choosing Focal Ultima Kit and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

Running-in period

Utopia Be speakers incorporate the very latest components. To ensure such complex mechanical elements work in harmony with the rest of your system, they must be allowed to function correctly in this environment. Such changes in temperature and humidity are regarded as very hostile. For Utopia Be subwoofoers to benefit, a running-in period must be used to ensure they are prepared for this. We recommend that once the system is ready for listening the subwoofoers should be run-in at medium volume setting. The use of audio material that contains good low frequencies is ideal to gain their full potential. We recommend this running period be used for at least one week. After which the excellent performance of your Utopia Be speakers can be fully appreciated.

The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase: www.focal.com/warranty

Conditions of guarantee

All Focal products are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Your Focal-JMlab product was developed and manufactured with high-quality materials and components which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal garbage at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

ELITE - UTOPIA BE ULTIMA

User manual

8

The Grande Utopia EM is one of the best domestic loudspeakers in the world which impresses even the most demanding audiophiles. It is a flagship of French craftsmanship and a showcase of Focal technology with exceptional musicality. Now, Grande Utopia EM technology is making its debut in the car audio world with the Ultima kit.

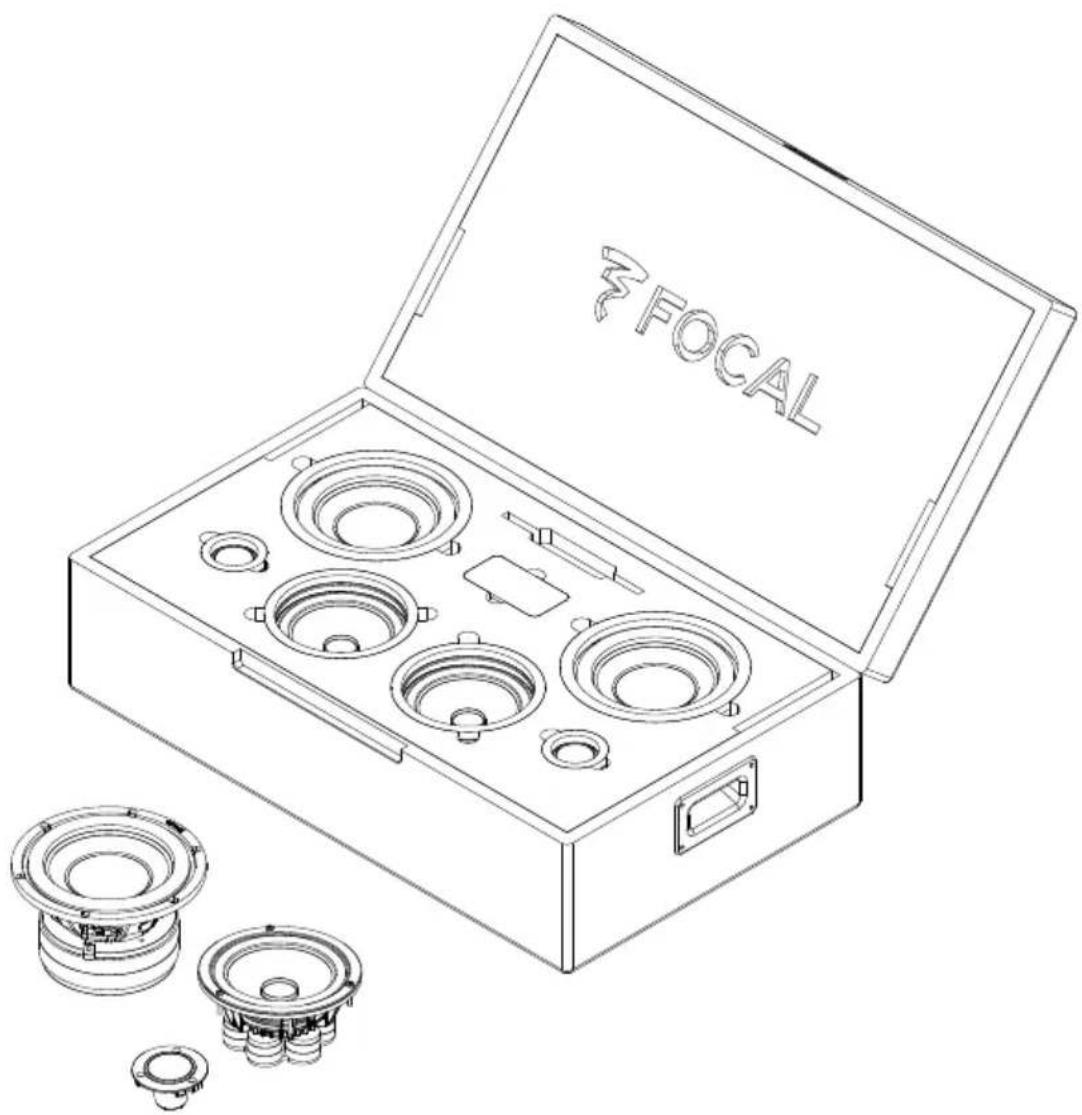

Top of the Elite range, Ultima is a full active two-way hi-fi system composed of two 61/2" (16.5cm) woofers and two 8" (20cm) subwoofoers.

What makes this kit so exclusive are the components coming from the best loudspeakers in Focal's Hi-Fi and Professional lines. Only an authorised Focal installer will ensure you get the best results when it comes to the precision of the installation, the respect of enclosure volumes and the frequency and processor settings. To ensure easy on-board integration into your vehicle, these exclusive speaker drivers were redesigned by making some technical improvements (size of the tweeter mount, a double layer on the "W" cone of the midrange/woofer...).

In terms of sensations, Ultima provides precise and incredibly natural sound with exceptional dynamics. Refined sound, music full of relief, a precise soundstage... never has a hi-fi car audio kit provided such definition and listening pleasure. This exclusive and extraordinary product has been passionately designed for a very small circle of enthusiasts.

ELITE - UTOPIA BE ULTIMA

User manual

9

Installing the tweeters

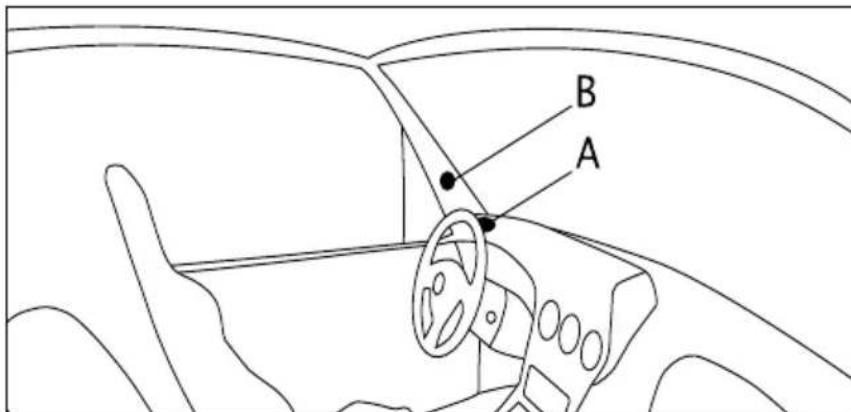

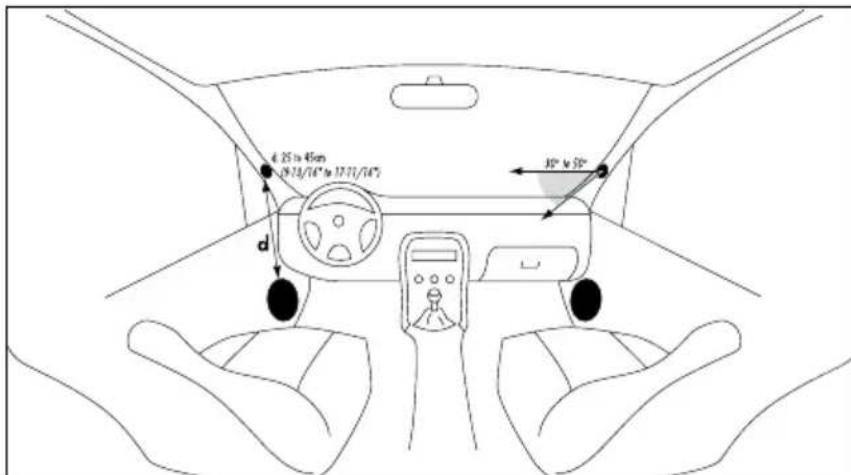

Choosing the right location

Ultima tweeters have been designed for surface-mounting or flush-mounting (recommended). Choosing the best location, mounting method and orientation of the tweeters is extremely important as this will considerably influence the rendering of the treble, the stability of the stereo image and the staging. Ideally, you should find the best position so that the left and right tweeters are approximately the same distance away from the listener, oriented towards the ears of the listener and without any obstacles between the two. You will need to compare the results in various positions before deciding on the final position. The tweeters must be situated in front of the listening position, preferably on either extremity of the dashboard (fig. 1, A), or even better, on the A pillar (fig. 1, B).

Flush mount (recommended)

For the best results (for a more linear response and better control of the directivity), a flush mount is recommended for the tweeters. Route the tweeter wires through the mount, and screw the tweeter into place using the three screws provided. Check there's enough depth for the tweeter mount before screwing into place.

When manipulating and installing the Ultima tweeters, keep the grilles on to prevent damage in case your tools are attracted towards the dome due to force of the magnet.

Sealed volume: 0.3L (0.01 cu.ft)

Fig.1

ELITE - UTOPIA BE ULTIMA

User manual

10

Tweeters

Technical specifications

Nominal power 50W (with filtering)
Maximum power	200W (with filtering)
Sensitivity (2,83V/1m)	93dB
Cone	Be
Surround	Poron
Nom. impedance	6Ω
DC resistance	5.8Ω
VC diameter	20 mm	013/16"
VC height	1.4 mm	01/16"
Former	Aluminium
Layers	2
Wire Copper
Inductance	-
Xmax ± 0.1mm
Magnet d x h	38 mm x 35 mm	11/2" x 13/8"
Magnet weight	190 g	0.42lbs
Flux density	-
Gap height	1.5 mm	01/16"
Net weight	300 g	0.66lbs

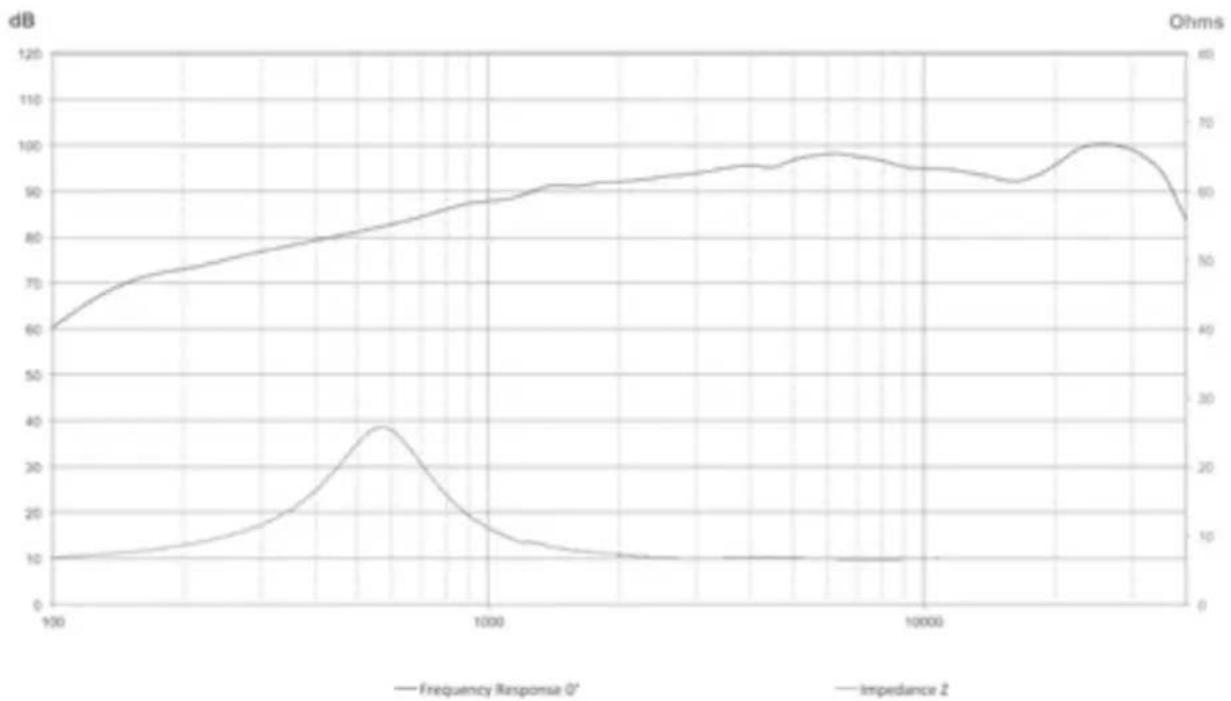

Parameters

Fs 535Hz
Vas 0.03 liters
Qts 0.37
Qes 0.5
Qms 1.4
Re 5.8Ω
Sd 8 cm	2
Cas 2.38E-08m	5/N
Mas 84.1kg/m	4
Ras 892582Ω.ac
Cms 367μm/N
Mms 0.24 g
Rms 0.57 kg/s
Ces 25.6mF
Les 3.44mH
Res 16.24Ω
BI 3.06N/A
SPL 92dB/W/m

ELITE - UTOPIA BE ULTIMA

User manual

11

Installing the woofers

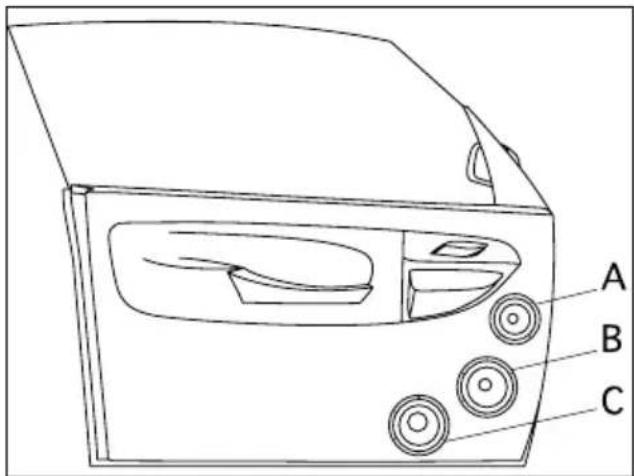

Choosing the right location

Mounting the woofers to the upper door will provide the best results in the midrange frequencies (fig. 1, A). Mounting the woofers to the lower door (fig. 1, C), will provide the best bass but you may lose some midrange. Mounting the woofers to the middle of the door is an interesting compromise for obtaining good tonal balance (fig. 1, B).

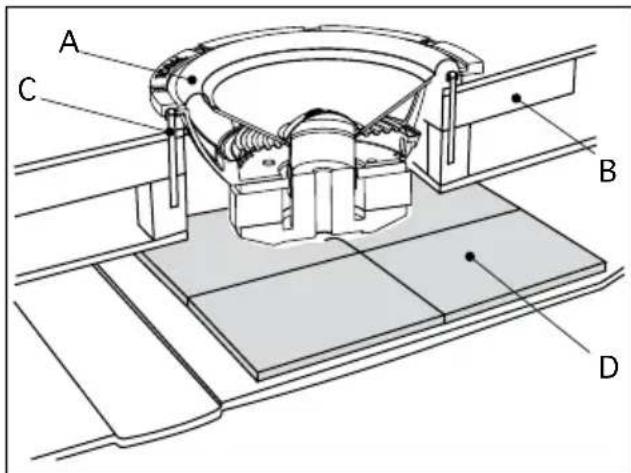

Mounting advice

An optimum installation is required due to the considerable amounts of energy released by these speaker drivers. We recommend flush-mounting the speaker drivers to a sturdy MDF support, possibly reinforced using resin, then screwing them directly onto a metallic part of the vehicle to avoid any unwanted vibrations. The seal with the support must be perfect to avoid any air leaks from the front or rear of the woofer as this may considerably reduce performance.

For the best results, we advise applying an insulating material such as "BAM" (fig. 2, D) directly onto the inside of the door frame, just behind the speaker driver in order to absorb any vibrations. Also ensure that the woofer magnets do not interfere with any of the vehicle's mechanical parts. If you're using grilles (not supplied), check that the space between the speaker driver and the grille is big enough so that the cone can't come into contact with the grille.

Sealed volume: 30/35L (1/1.29 cu.ft)
Fig.1

Fig. 2

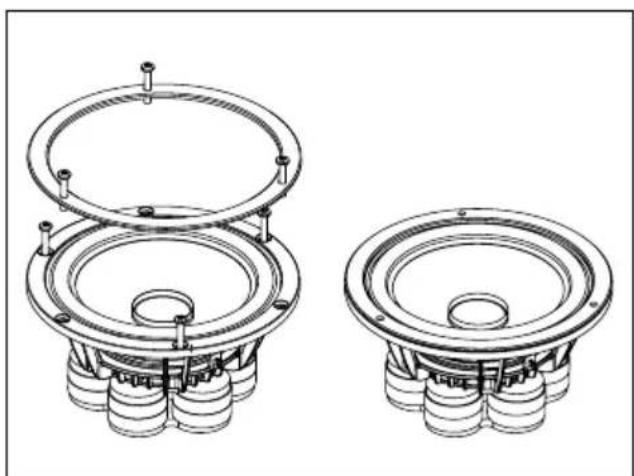

Fig.3 - Ring assembly

ELITE - UTOPIA BE ULTIMA

User manual

12

Woofers

Technical specifications

Nominal power	120W
Maximum power	240W
Sensitivity (2,83V/1m)	90.5dB
Cone	W
Surround	Butyl
Nom. impedance	4Ω
DC resistance	3Ω
VC diameter	40mm	19/16"
VC height	17mm	02/3"
Former Kapton
Layers	2
Wire Alu
Inductance	-
Xmax ± 5.5mm [0	3/16"]
Magnet d x h	122mm x 32mm	413/16" x 11/4"
Magnet weight	1.56kg	3.44lbs
Flux density	-
Gap height	6mm 0	1/4"
Net weight	2.05g	4.52lbs

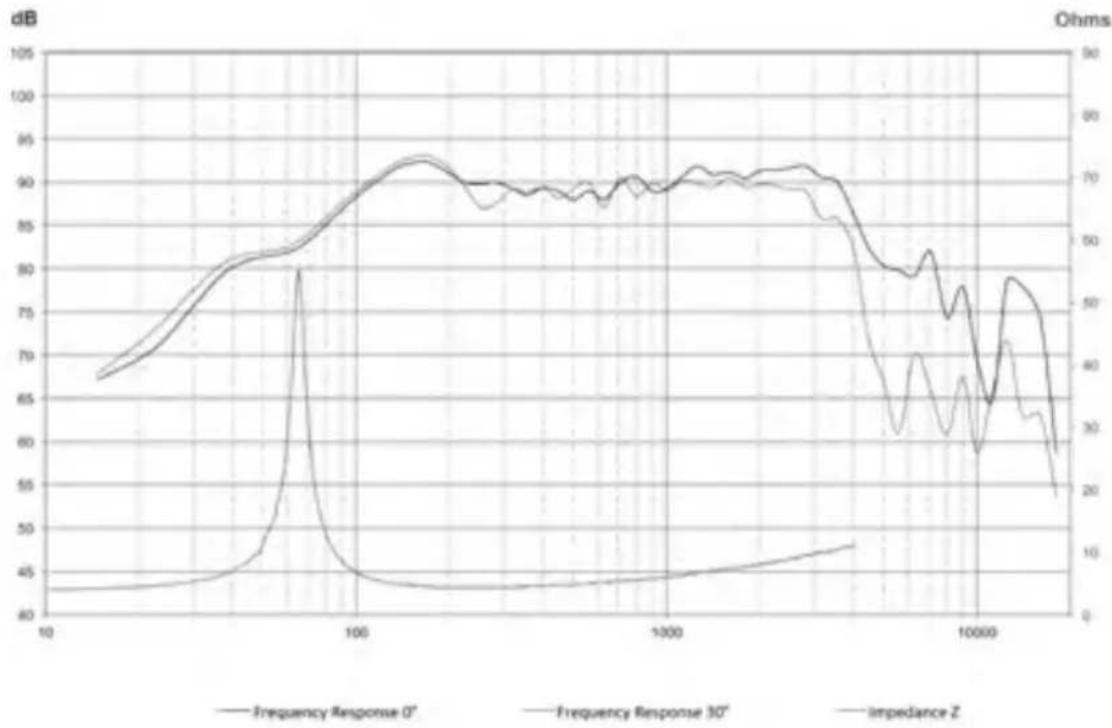

Parameters

Fs 62Hz

Vas 13.5 liters

Qts 0.71

Qes 0.76

Qms 9.8

Re 3.9Ω

Sd 120cm

Cas 7.22E-08m 5 / N

Mas 82.28kg/m

Ras 3376Ω.ac

Cms 515 m / N

Mms 12.7g

Rms 0.49kg / s

Ces 481.7mF

Les 12.3mH

Res 50.60

BI 5N/A

SPL 88.1dB/W/m

ELITE - UTOPIA BE ULTIMA

User manual

13

Installing the subwooers

Choosing the right location

Ultima subwoofoers have been designed for very compact enclosures to facilitate integration. Bringing the bass towards the front of the vehicle with the other speaker drivers improves timbre and staging. This also enables the critical frequency range of between 20Hz and 100Hz to be allocated to speaker drivers set up to provide the best results in terms of performance, neutrality and dynamics in this frequency range.

Mounting advice

The enclosure is dissociable from the subwoofer: it is what determines how the speaker driver sounds and performs. Each subwoofer has specific characteristics which require a particular type of loading (closed or bass-reflex for example) and an optimum internal volume. This principle must be respected to take advantage of the extremely high performances the Ultima subwooers are capable of.

Bass-reflex loading

The bass-reflex enclosure is ideal for Ultima's 8W subwoofer under certain conditions. It significantly increases energy, providing very dynamic bass, and it is characterised by very high efficiency of the bass and sub-bass. It is proscribed to alter the enclosure volume or the dimensions of the vent: bass-reflex enclosure volume: 22.5L (0.79 cu.ft) per subwoofer with a vent measuring 23/8'' (7cm) wide and 611/16" (16cm) long (refer to frequency response curve and impedance curve page 14).

ELITE - UTOPIA BE ULTIMA

User manual

14

Subwoofoers

Technical specifications

Nominal power	300W
Maximum power	600W
Sensitivity (2,83V/1m)	90.2dB
Cone	W
Surround	Butyl
Nom. impedance	6Ω
DC resistance	5.5Ω
VC diameter	50mm	115/16"
VC height	28mm	11/8"
Former	Kapton
Layers	1
Wire Alu
Inductance	-
Xmax ± 10mm (0	3/8")
Magnet d x h	155mm x 58mm	61/8" x 25/16"
Magnet weight	5.5kg	12.1lbs
Flux density	-
Gap height	8mm 0	5/16"
Net weight	6.05g	13.34lbs

Parameters

Fs 59Hz

Vas 12.2 liters

Qts 0.49

Qes 0.51

Qms 13.15

Re 5.5Ω

Sd 201cm

Cas 8.71E-08m 5 / N

Mas 84.1kg/m

Ras 2362.9Ω.ac

Cms 215 m / N

Mms 34g

Rms 0.95kg / s

Ces 251mF

Les 29.2mH

Res 141.80

BI 11.6N/A

SPL 88.7dB/W/m

ELITE - UTOPIA BE ULTIMA

User manual

15

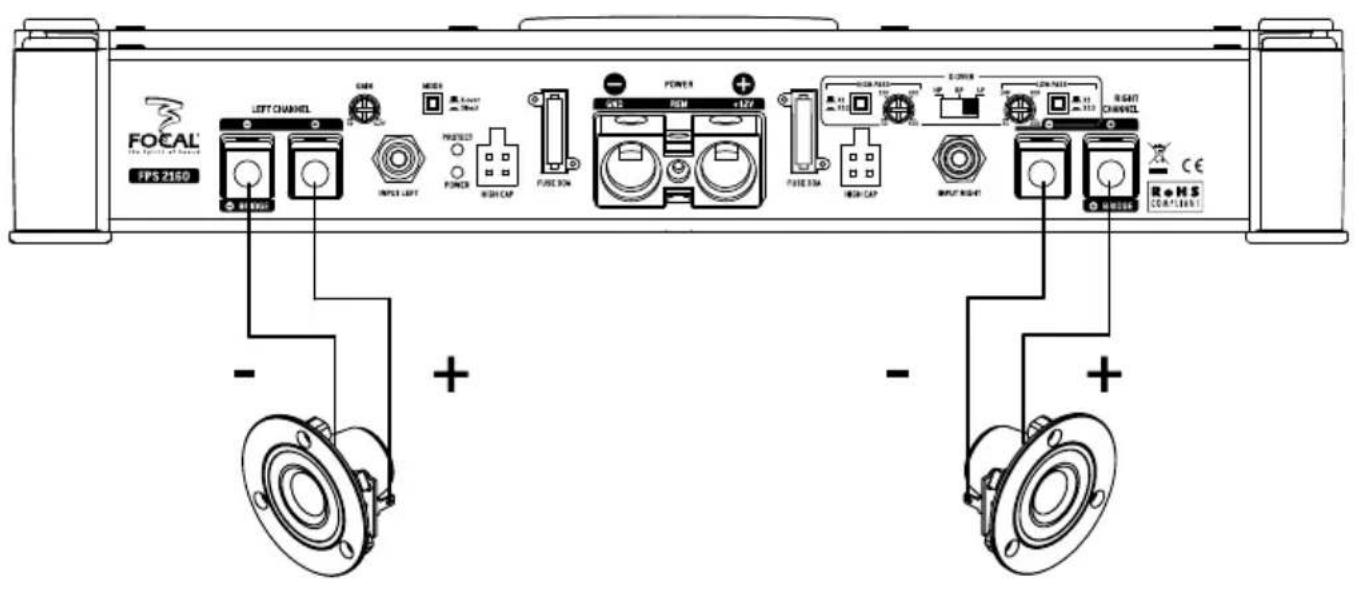

FPS2160 - Tweeter

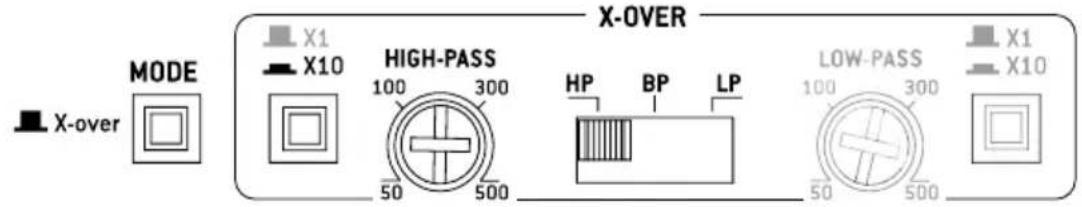

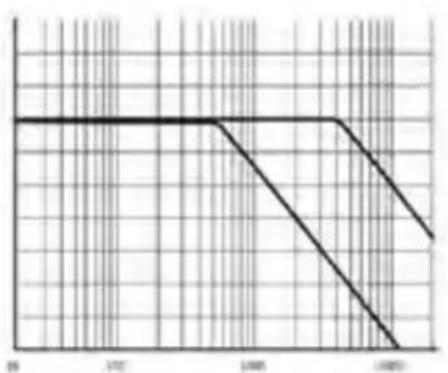

Suggested crossover settings

High-pass tweeter 1.8kHz-3.5kHz

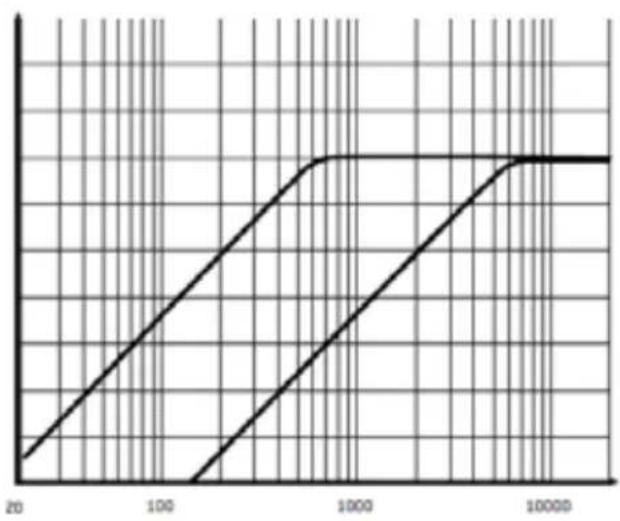

High pass control between 500Hz and 5000Hz

ELITE - UTOPIA BE ULTIMA

User manual

FPS2300RX - Medium woofer

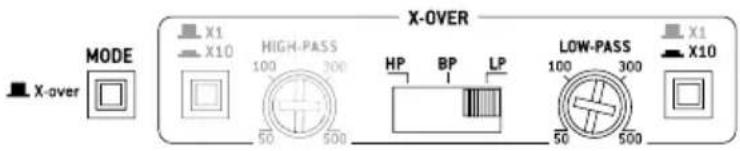

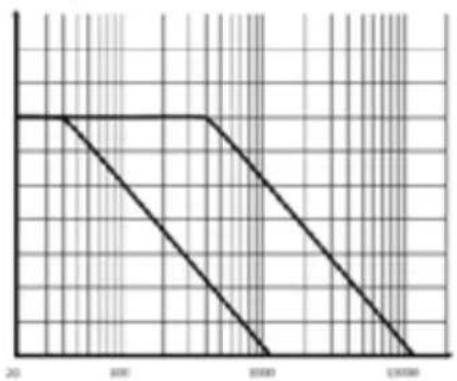

Suggested crossover settings

Low-pass woofer 1.8kHz - 3.5kHz

Low pass control between 500Hz and 5000Hz

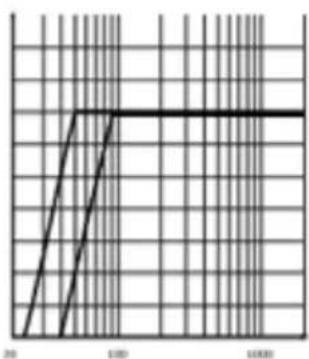

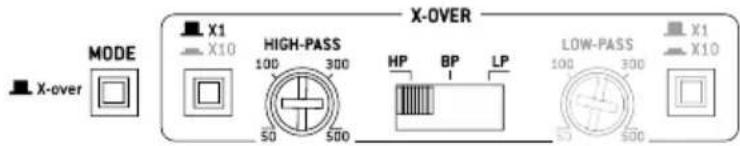

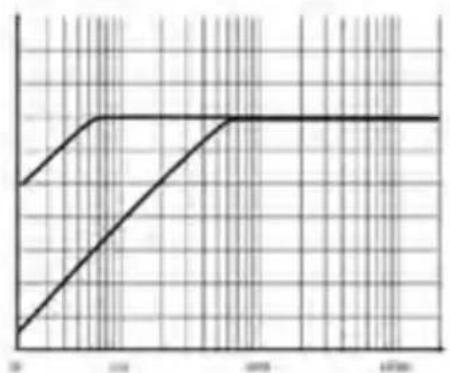

High-pass woofer 70Hz-90Hz

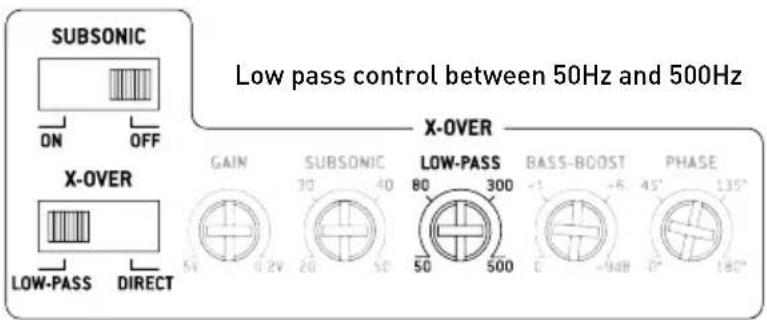

High pass control between 50Hz and 500Hz

ELITE - UTOPIA BE ULTIMA

User manual

17

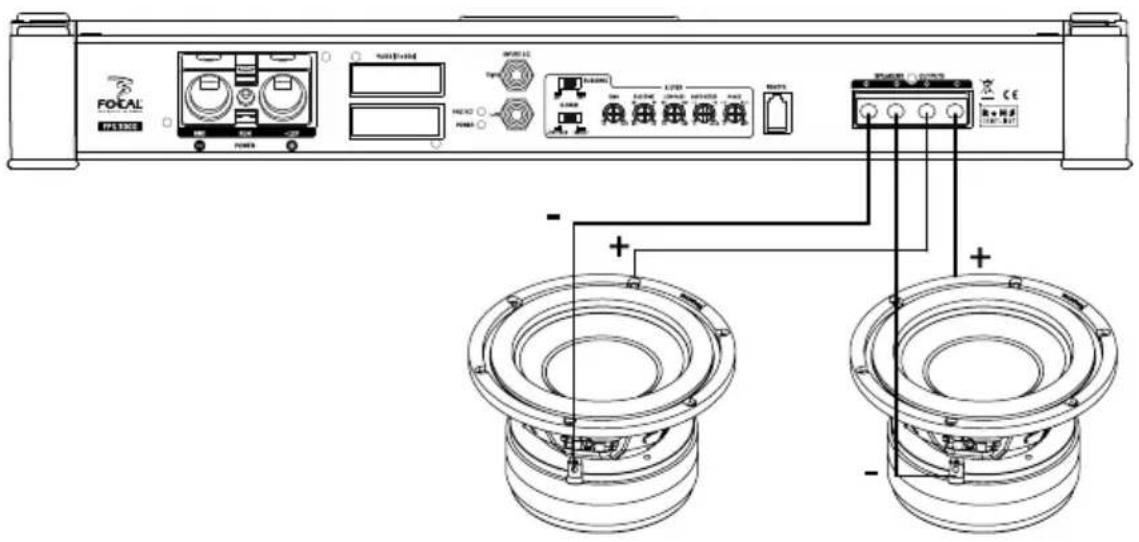

FPS3000 - Subwoofer

Suggested crossover settings

Low-pass subwoofer 70Hz-90Hz

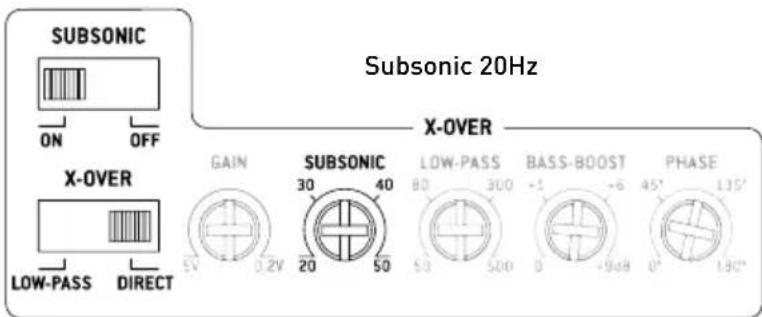

Subsonic high-pass subwoofer 20Hz

Specifications techniques

Nominal power	50W (with filtering)
Maximum power	200W (with filtering)
Sensitivity (2,83V/1m)	93dB
Cone	Be
Surround	Poron
Nom. impedance	6Ω
DC resistance	5.8Ω
VC diameter	20 mm	013/16"
VC height	1.4 mm	01/16"
Former	Aluminium
Layers	2
Wire Copper
Inductance	-
Xmax ± 0.1mm
Magnet d x h	38 mm x 35 mm	11/2" x 13/8"
Magnet weight	190 g	0.42lbs
Flux density	-
Gap height	1.5 mm	01/16"
Net weight	300 g	0.66lbs

Paramètres

Fs 535Hz
Vas 0.03 liters
Qts 0.37
Qes 0.5
Qms 1.4
Re 5.8Ω
Sd 8 cm	2
Cas 2.38E-08m	5/N
Mas 84.1kg/m	4
Ras 892582Ω.ac
Cms 367μm/N
Mms 0.24 g
Rms 0.57 kg/s
Ces 25.6mF
Les 3.44mH
Res 16.24Ω
BI 3.06N/A
SPL 92dB/W/m

Installation des woofers

Nominal power	120W
Maximum power	240W
Sensitivity (2,83V/1m)	90.5dB
Cone	W
Surround	Butyl
Nom. impedance	4Ω
DC resistance	3Ω
VC diameter	40mm	19/16"
VC height	17mm	02/3"
Former Kapton
Layers	2
Wire Alu
Inductance	-
Xmax ± 5.5mm [0	3/16"]
Magnet d x h	122mm x 32mm	413/16" x 11/4"
Magnet weight	1.56kg	3.44lbs
Flux density	-
Gap height	6mm 0	1/4"
Net weight	2.05g	4.52lbs

Paramètres

Fs 62Hz
Vas 13.5 liters
Qts 0.71
Qes 0.76
Qms 9.8
Re 3.9Ω
Sd 120cm	2
Cas 7.22E-08m	5/N
Mas 82.28kg/m	4
Ras 3376Ω.ac
Cms 515μm/N
Mms 12.7g
Rms 0.49kg/s
Ces 481.7mF
Les	12.3mH
Res	50.6Ω
BI	5N/A
SPL	88.1dB/W/m

Installation des subwoofoers

Spécifications techniques
Nominal power	300W
Maximum power	600W
Sensitivity [2,83V/1m]	90.2dB
Cone	W
Surround	Butyl
Nom. impedance	6Ω
DC resistance	5.5Ω
VC diameter	50mm	115/16"
VC height	28mm	11/8"
Former	Kapton
Layers	1
Wire Alu
Inductance	-
Xmax ± 10mm (0	3/8")
Magnet d x h	155mm x 58mm	61/8" x 25/16"
Magnet weight	5.5kg	12.1lbs
Flux density	-
Gap height	8mm 0	5/16"
Net weight	6.05g	13.34lbs

Paramètres

Fs 59Hz
Vas 12.2 liters
Qts 0.49
Qes 0.51
Qms 13.15
Re 5.5Ω
Sd 201cm	?
Cas 8.71E-08m	5/N
Mas 84.1kg/m	4
Ras 2362.9Ω.ac
Cms 215μm/N
Mms 34g
Rms 0.95kg/s
Ces 251mF
Les 29.2mH
Res 141.8Ω
BI 11.6N/A
SPL	88.7dB/W/m

FPS2160 - Tweeter

TapaHTnH He DeIeCTbYerB CJIcDyIOUHX cIyuaX:

He co6IIOeHHe HOpM 3KcIIyataaHH H3dJIHn, IIpeBbIeHHe 3KcIIyataaHOHHbIX IapametPOB, He6pcxHOC o6paIeHHc, He IIpaBnIbHoc IOIKJIOueHHe N T.I.

MexaHHecknIOBpeKHeHHn HIOBpeKHeHHn BbI3BaHHbc IOnaHaHHem BHyTp bHcJIHN IOCTOpOHHHx IIpeIMeTOB, BeIECTB, KHNKOCTe n T.d.IIOBpeKHeHHn BbI3BaHHbc IpHpOJHbIMN ABJIeHHm, CTXHINHBIMN 6cIcTBHHM, IIOXapOM H.T.I.

H3JeJIHeIOBcprAIOCB MECIIATcJIbCTBy HIN peMOHTy HE yIOJIHOMOeHHbIMn HA TO JINIaMn HIN cepBCHbIMn IeHTpaMH. B cIyueae ycTaHOBKn HIOKJIIOUeHn H3JeJIIn He cepTHΦHINpOBaHHbIMn ycTaHOBOuHbIMn IeHTpaMH.
