USER MANUAL Universal ISS 200 FOCAL
Thank you for choosing Focal and for sharing our passion for the "Spirit of Sound". Designed using the latest technology, these speakers integrate Focal's perfectionist believes, developing products with high power handling, and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully all the information contained in this user's manual. If not correctly followed, any fault observed may not be covered by the guarantee.
Warning
Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.
The Focal guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.
Important recommendations
Before attempting any installation work, it is very important to check how much space is available to fit the speakers into the vehicle.
Key points:
- Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).
- Clean before mounting the speakers.
INTEGRATION UNIVERSAL ISS
User manual
Tweeter

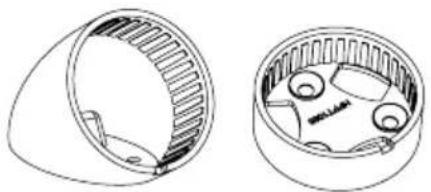

1/Tweeter accessories.

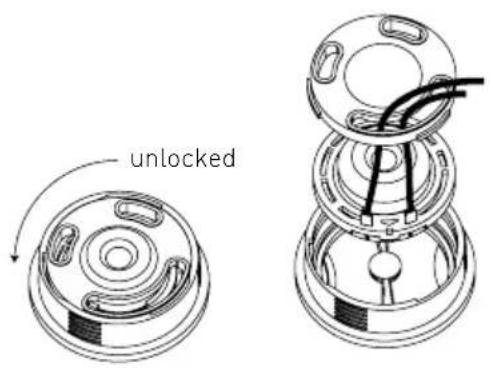

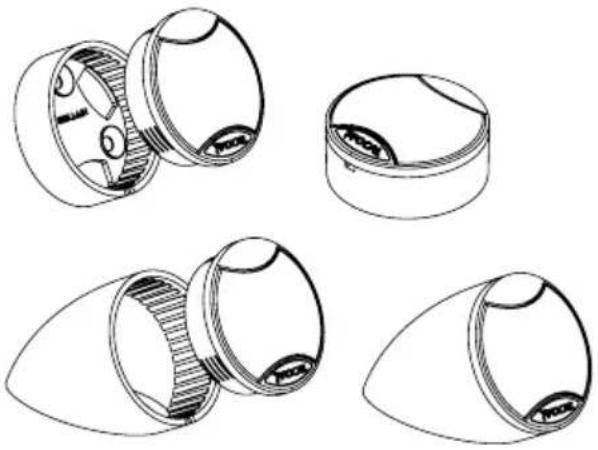

2/Assembling the tweeters to the mounts.
3/ Tweeter assembly in original space.
NB: "+" is the wire with red line
Remove the tweeteter to adapt it to the original space.
Handle with care: do not touch the aluminum dome and not to let it come into contact with the rear of the car's original grill.
INTEGRATION UNIVERSAL ISS
User manual

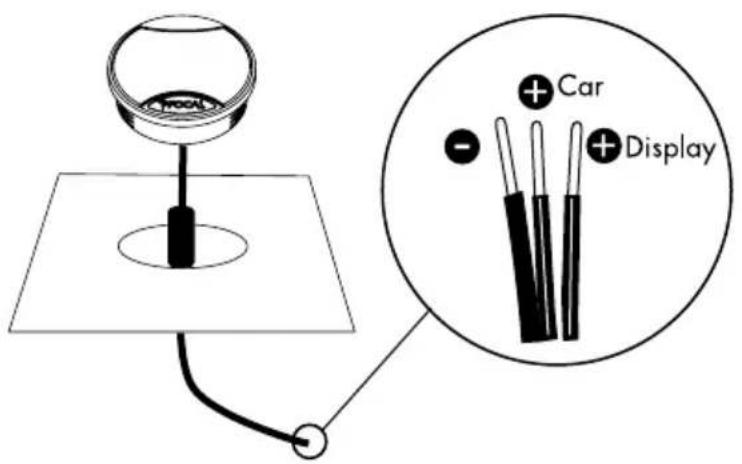

4/ Connecting the tweeters.
When installing on a demonstration display, connect the "display" wire.
When installing in a vehicle: connect the "car" wire.
The unmarked wire is " - " wire with both connection options.

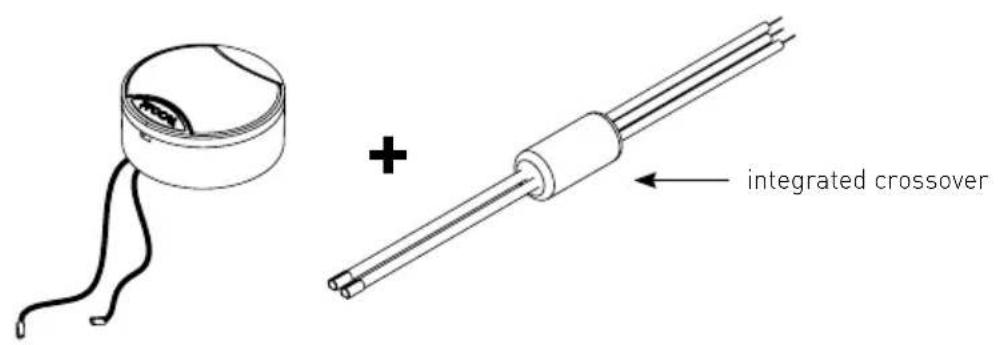

5/ Connecting the tweeters with crossover connector.
NB: "+" is the wire with red line
Warning: the tweeteter crossover is integrated into the connector. Ensure correct wiring thanks to the cable plugs (tweeter/crossover connector) in order to ensure optimal performance of this Integration kit.
INTEGRATION UNIVERSAL ISS
User manual
Woofer ISS

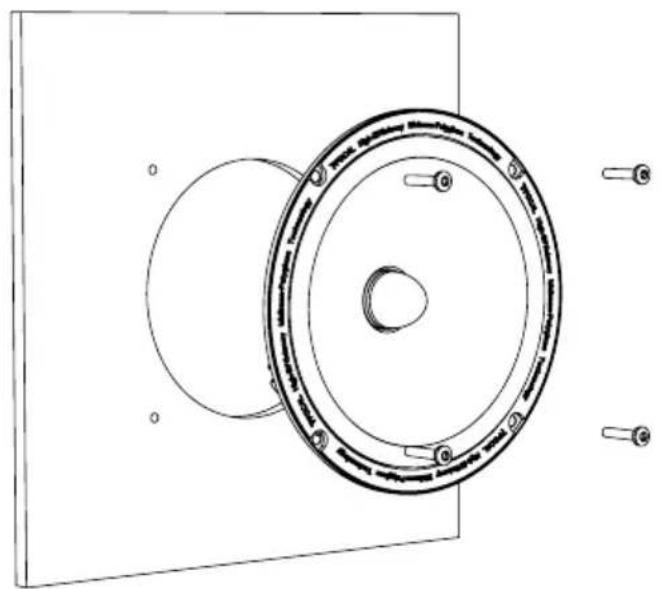

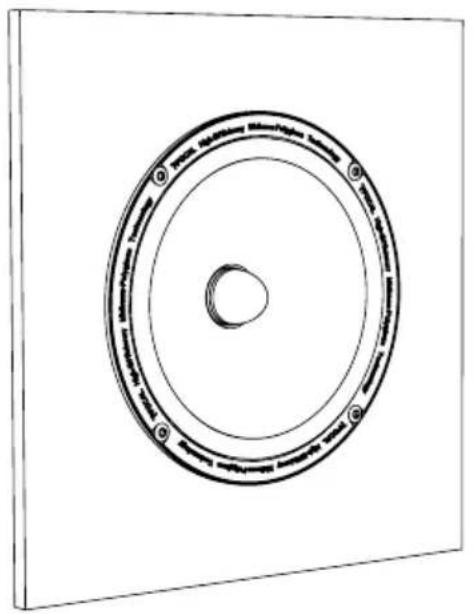

1/ Mounting the ISS 130 / 165 / 170 / 200 woofer in original space.

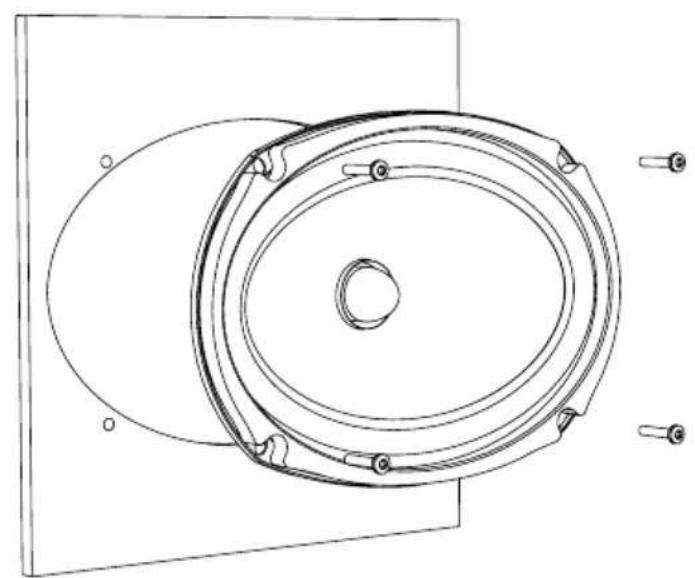

2/ Mounting the ISS 570 / 690 woofer in original space.
These separate 2-way "elliptic" kits can be fitted into the following car models Toyota, Jeep, Dodge, Ford.
Warning: in some of cases, you will need to use dedicated spacers to the vehicle.
INTEGRATION UNIVERSAL ISS
User manual

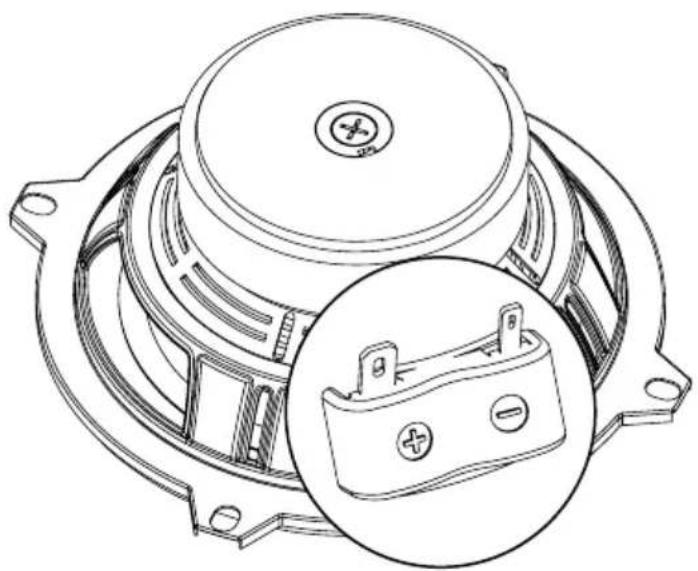

3/ Rear view of the terminal block [marked "+" and "-".]

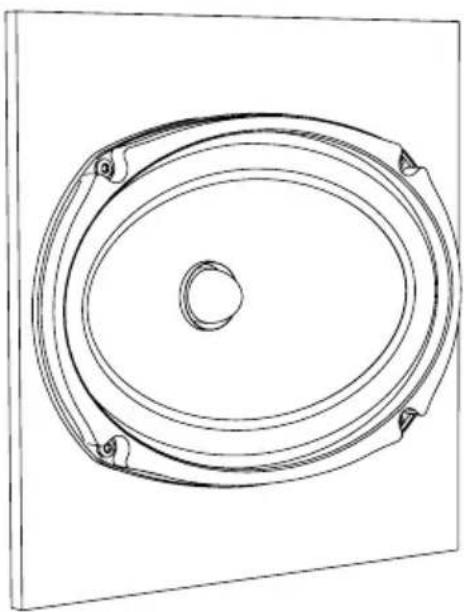

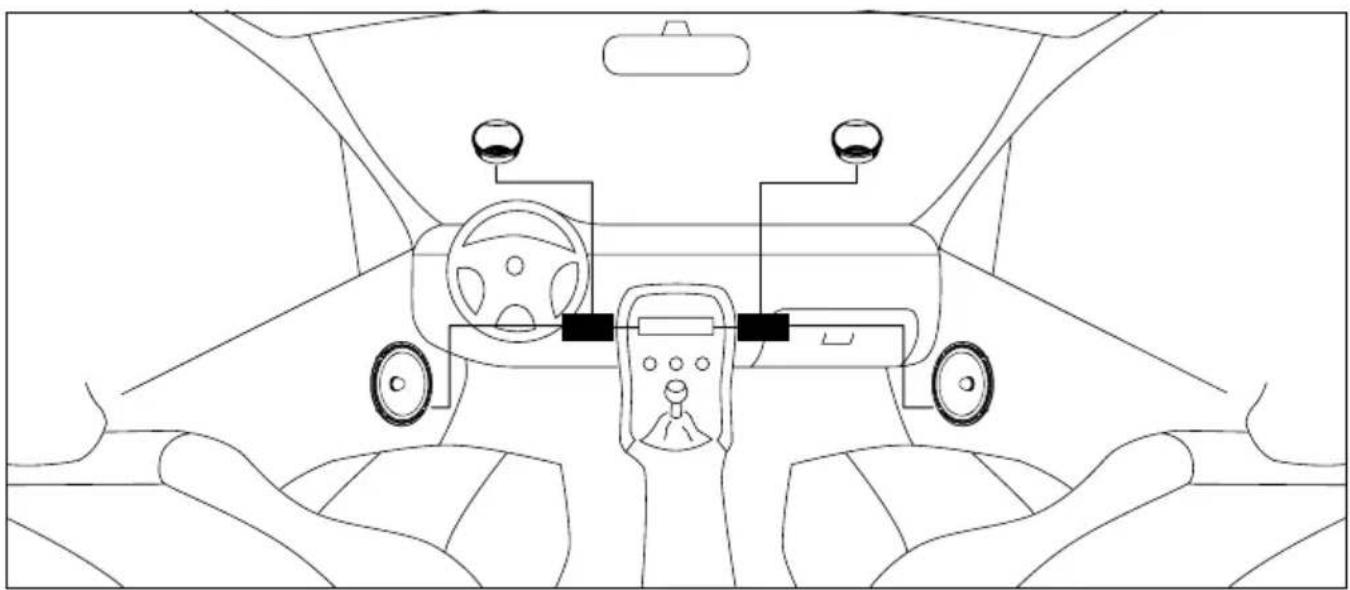

4/View of the full installation in the vehicle.
INTEGRATION UNIVERSAL ISS
User manual
ISS 165 / 200 / 570 / 690 installation

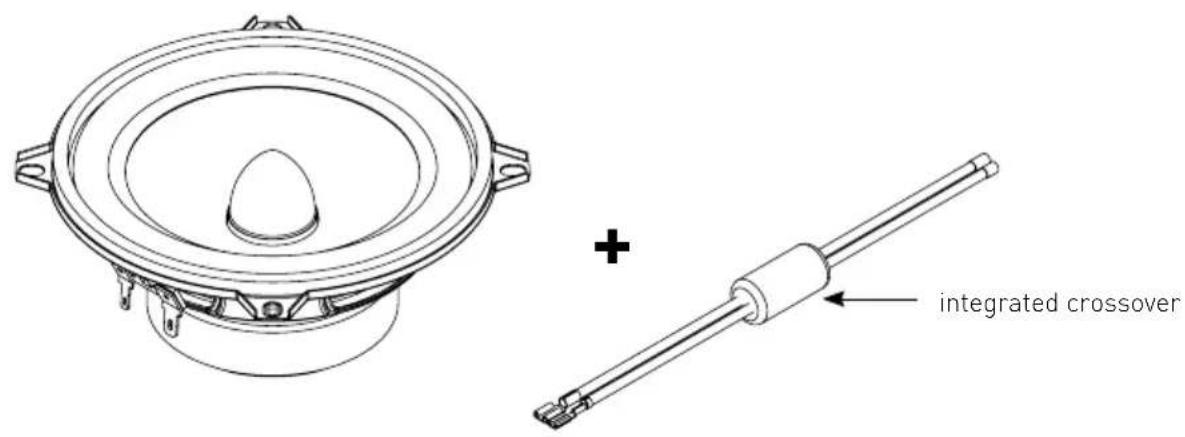

Mounting the woofer + connector (supplied with the kit)
NB: "+" is the wire with red line
The woofers in the ISS 165, ISS 200, ISS 570 and ISS 690 kits are equipped with a crossover integrated into the connector (for a more compact basket and one which is easy to install in original locations).
Make sure ONLY these connectors [supplied with the kit] are used.
