USER MANUAL KDDB67E JVC

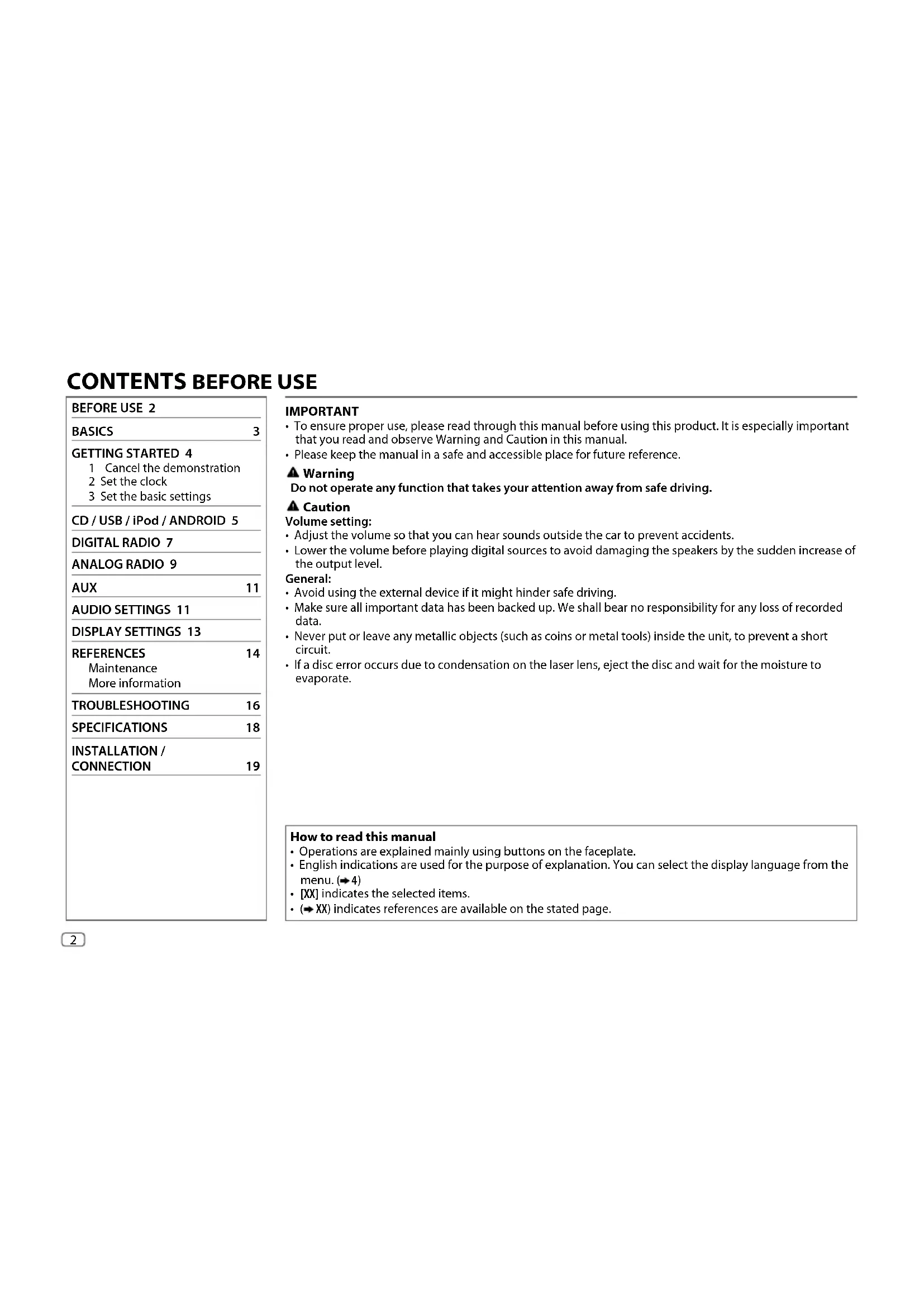

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

• Please keep the manual in a safe and accessible place for future reference. Warning Do not operate any function that takes your attention away from safe driving. Caution Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit, to prevent a short circuit.

• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate. BEFORE USE 2 BASICS 3 GETTING STARTED 4

• Operations are explained mainly using buttons on the faceplate.

• English indications are used for the purpose of explanation. You can select the display language from the menu. (

[XX] indicates the selected items.

ENGLISH BASICS To On the faceplate Turn on the power Press

• Press and hold to turn off the power. Adjust the volume Turn the volume knob. Press the volume knob to mute the sound or pause playback.

• Press again to cancel. Select a source

“PRESS” “VOLUME KNOB”

YES ] is selected for the initial setup. 2 Press the volume knob again. “DEMO OFF” appears. Set the clock

Set the basic settings

Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press . Default:

BT ADAPTER :Selects when the KS-BTA100 Bluetooth adapter is connected to the AUX jack. (

:Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>. CLOCK CLOCK SYNC AUTO :The clock time is automatically set using the Clock Time (CT) data in DAB signal.; OFF :Cancels.

:The clock time is shown on the display even when the unit is turned off.; OFF :Cancels. ENGLISH Select the display language for menu and music information if applicable. By default, ENGLISH is selected. ESPANOL

• Not displayed when the corresponding source is selected.

Press repeatedly. TRACK RPT

Press repeatedly. ALL RND

Do not leave the cable inside the car when not using.

When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting.

For ANDROID: Applicable only when [ AUTO MODE ] is selected.

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID.

AUTO MODE ] is selected.

Start playback The source changes automatically and playback starts.

(commercially available) (Accessory of the iPod/iPhone)*

JS_JVC_KD_DB67_E_EN_1.indd 5JS_JVC_KD_DB67_E_EN_1.indd 5 2/12/2015 11:49:42 AM2/12/2015 11:49:42 AM6 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Select control mode While in USB-IPOD source, press repeatedly. HEAD MODE : Control iPod from this unit. IPHONE MODE : Control iPod using the iPod itself. However, you can still play/ pause or file skip from this unit. While in ANDROID source, press repeatedly. AUTO MODE : Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device. AUDIO MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit. Select music drive Press repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device. Change the playback speed of the Audiobook While listening to the iPod and [ HEAD MODE ] is selected.... 1 Press and hold . 2 Turn the volume knob to select [ IPOD ], then press the knob. 3 Press the volume knob to select [ AUDIOBOOKS

2× SPEED : Select the desired playback speed of the Audiobooks sound file in your iPod/iPhone. (Default: Depends on your iPod/iPhone setting.) 5 Press to exit. To return to the previous setting item, press . Select a file from a folder/list

Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick Search If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. – Not applicable for iPod. Alphabet search (applicable only for iPod): You can search for a file according to the first character. Press or turn the volume knob quickly to select the desired character (A to Z/ 0to9/ OTHERS). – Select “OTHERS” if the first character is other than Ato Z, 0 to 9.

• For iPod, applicable only when [ HEAD MODE ] is selected.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) DIGITAL RADIO About DAB (Digital Audio Broadcasting) DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information. Preparation: 1 Connect a DAB antenna to the DAB antenna jack. ( 21) 2 Press DAB to select DAB directly. 3 Press and hold DAB to start the Service List update. “DAB SORTING” appears and update starts. Updates take up to 3 minutes. No interruption (such as traffic information) is possible during updates.

• To cancel the Service List update: Press and hold DAB again. Search for an ensemble

Press DAB to select DAB directly. 2 Press to search for an ensemble automatically. (or) Press and hold until “M” flashes, then press repeatedly to search for an ensemble manually. 3 Press to select a service (either primary or secondary) to listen to. Settings in memory You can store up to 18 services. Store a service While listening to a service.... Press and hold one of the number buttons (1to6). (or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears. Select a stored service Press one of the number buttons (1to6). (or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to confirm. Select a service

Press DAB to enter Service Search mode. 2 Press to select the character to be searched for. 3 Turn the volume knob to select a service, then press the knob. Other settings

see the following table

then press the knob. 4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press

RADIO TIMER Turns on the radio at a specific time regardless of the current source.

OFF :Select how often the timer will be turned on.

DAB :Select the source.

(for DAB):Select the preset station.

Set the activation day * and time.

” lights up when complete. Radio Timer will not activate for the following cases.

• The unit is turned off.

OFF ] is selected for [

after Radio Timer for AM is selected. ( 4)

• Selectable only when [ ONCE ] or [ WEEKLY ] is selected in step

While listening to DAB... Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM... Automatically switch to DAB source broadcasting the same program (if available).; OFF :Cancels.

:Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up).; OFF :Cancels. PTY SEARCH Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. PTY code: NEWS

POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS

OTHER M (music), WEATHER

NATION M (music), OLDIES

FOLK M (music), DOCUMENT DAB ANNCMNT TRAVEL

” appears in front of the activated announcement type. Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.

• Multiple announcement can be activated simultaneously.

:Automatically update the DAB Service List when the power is turned on.; OFF :Updates the DAB Service List by pressing and holding DAB

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) ANALOG RADIO “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength. Search for a station

Press repeatedly to select FM or AM. 2 Press to search for a station automatically. (or) Press and hold until “M” flashes, then press repeatedly to search for a station manually. Settings in memory You can store up to 18 stations for FM and 6 stations for AM. Store a station While listening to a station.... Press and hold one of the number buttons (1 to 6). (or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears. Select a stored station Press one of the number buttons (1to6). (or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to confirm. PTY-STBY The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program. Program Type: NEWS

(music), DOCUMENT OFF :Cancels.

Receives L-BAND ensemble during digital audio reception.

Supplies power to the DAB antenna.

Does not supply power. Selects when using passive antenna without booster.

:Enable Soft-Link function to switch to an alternative service which is different audio program from the current audio program.; OFF :Disable. DIGITAL RADIO JS_JVC_KD_DB67_E_EN_1.indd 9JS_JVC_KD_DB67_E_EN_1.indd 9 2/12/2015 11:49:43 AM2/12/2015 11:49:43 AM10 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Other settings

see the following table

then press the knob. 4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press . Default:

SSM 13 – 18 : Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07 – 12

SSM 13 – 18 to store the following 12 stations.

:Searches only FM stations with good reception.; OFF :Cancels.

• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.

:Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.); WIDE :Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain. MONO ON :Improves the FM reception, but the stereo effect will be lost.; OFF :Cancels. NEWS-STBY

: Switches to another station only in the specific region using the “AF” control.; OFF :Cancels. AF SET

: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.; OFF : Cancels. TI SET

TI SET ] in AM band is for enabling traffic interruption to DAB source only. PTY SEARCH

Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. PTY code

POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS

OTHER M (music), WEATHER

NATION M (music), OLDIES

FOLK M (music), DOCUMENT

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Use a portable audio player

Connect a portable audio player (commercially available). 2 Select [

] for [ AUX ] in [ SRC SELECT

3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback. Use a 3-core plug head stereo mini plug for optimum audio output. Use a Bluetooth® device

Connect the Bluetooth adapter, KS-BTA100 (separately purchased). 2 Register (pair) the Bluetooth device with KS-BTA100. 3 Select [ BT ADAPTER ] for [ AUX ] in [ SRC SELECT

4 Press repeatedly to select BT AUDIO. 5 Start using the Bluetooth device. For details, refer to the instruction manual of KS-BTA100. 3.5mm stereo mini plug with “L” shaped connector (commercially available) Portable audio player Auxiliary input jack AUX Auxiliary input jack Blue/white Blue/white: Remote Black Black: Ground Brown Brown: Tel muting Wiring harness of the unit

AUDIO SETTINGS Select a preset equalizer Press repeatedly. (or) Press , then turn the volume knob within 5seconds. Preset equalizer

Press and hold to enter EASY EQ setting. 2 Turn the volume knob to select an item, then press the knob. Refer to [ EASY EQ

) for setting and the result is stored to [ USER

EQ SETTING EQ PRESET Select a preset equalizer suitable to the music genre. (Select [ USER ] to use the settings made in [ EASY EQ

DANCE EASY EQ Adjust your own sound settings. The settings are stored to [ USER

TREBLE :Select a sound tone.

Adjust the sound elements of the selected sound tone. BASS Frequency:

+01 ): Selects your preferred bass boost level.; OFF :Cancels. LOUD 01

:Boosts low or high frequencies to produce a well-balanced sound at low volume.; OFF :Cancels.

+03 ):Adjusts the output level of the subwoofer connected via speaker lead. (

):Adjusts the output level of the subwoofer connected to the lineout terminals (REAR/ SW) through an external amplifier. (

THROUGH :All signals are sent to the subwoofer. ; LOW

HIGH 120HZ :Audio signals with frequencies lower than 55Hz/ 85Hz/ 120Hz are sent to the subwoofer.

REVERSE (180°)/ NORMAL (0°):Selects the phase of the subwoofer output to be in line with the speaker output for optimum performance. (Selectable only if a setting other than [ THROUGH ] is selected for

):Adjusts the front and rear speaker output balance. BALANCE

):Adjusts the left and right speaker output balance. VOL ADJUST –15

):Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. (“VOLADJFIX” appears if FM is selected.) AMP GAIN LOW

POWER :Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50W to prevent damaging the speakers.); HIGH POWER :The maximum volume level is 35.

:Creates realistic sound by compensating the high-frequency components and restoring the rise-time of the waveform that are lost in audio data compression.; OFF :Cancels.

Displayed only when [ SUB.W ] is set to [

Displayed only when [ SPK/PRE

Displayed only when [ SPK/PRE

:Mutes the sounds while using the cellular phone (not connected through KS-BTA100).; OFF :Cancels. SPK/PRE

OUT Depending on the speaker connection method, select the appropriate setting to get the desired output. (

ADAPTER ] is selected for [ AUX ] in [ SRC

Speaker output settings Select the output setting for the speakers [ SPK/PRE OUT], base on the speaker connection method. Connection via lineout terminals For connections through an external amplifier. (

Audio signal through lineout terminal

Front speakers output Subwoofer output Connection via speaker leads For connections without using an external amplifier. However, with this setting you can also enjoy the subwoofer output.

Audio signal through rear speaker lead L (left) R (right) REAR/REAR Rear speakers output Rear speakers output

HIGH 120HZ ] is selected in [ SUB.W

LPF ] and [ THROUGH ] is not available.

R01 ] is selected in [ FADER ] and selectable range is [ R06 ]to [

1 Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press . Default:

DISPLAY DIMMER Dim the display and buttons illumination. OFF :Dimmer is turned off.

:Dimmer is turned on. Brightness changes to [ NIGHT ] setting.

DIMMER TIME :Set the dimmer on and off time.

Turn the volume knob to adjust the [

OFF ]: 6:00 or 6:00 AM) AUTO :Dimmer turns on and off automatically when you turn off or on the car headlights. *

NIGHT :Select day or night.

Set the brightness level (

Some characters or symbols will not be shown correctly (or will be blanked). Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Handling discs:

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing discs from this unit, pull them out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc. More information Visit also the following website <http://www.jvc.net/cs/car/> for: – Latest firmware updates and latest compatible item list – Android™ application JVC MUSIC PLAY – Any other latest information About discs and audio files

• This unit can only play the following CDs:

• This unit can play back multi-session discs; however, unclosed sessions will be skipped during playback. REFERENCES Connector (on the reverse side of the faceplate) DISPLAY SETTINGS JS_JVC_KD_DB67_E_EN_1.indd 14JS_JVC_KD_DB67_E_EN_1.indd 14 2/12/2015 11:49:45 AM2/12/2015 11:49:45 AMENGLISH

Unplayable discs: - Discs that are not round. - Discs with coloring on the recording surface or discs that are dirty. - Recordable/ReWritable discs that have not been finalized. - 8 cm CD. Attempting to insert using an adapter may cause malfunction.

DualDisc playback: The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.

Maximum number of characters for file/folder name: It depends on the disc format used (includes 4 extension characters—<.mp3>, <.wma> or <.m4a>). - ISO 9660 Level 1 and 2: 32 characters - Romeo: 32 characters - Joliet: 32 characters - Windows long file name: 32 characters About USB devices

• This unit can play MP3/WMA/AAC/WAV/FLAC files stored on a USB mass storage class device.

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5m may result in abnormal playback.

• The maximum number of characters for: - Folder names: 64 characters - File names: 64 characters - MP3 Tag: 64 characters - WMA Tag: 64 characters - AAC Tag: 64 characters - WAV Tag: 64 characters - FLAC Tag: 64 characters

• This unit can recognize a total of 15 000 files, 500 folders (999 files per folder including folder without unsupported files), and of 8 hierarchies.

• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1A. About iPod/iPhone Made for - iPod touch (2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus

• It is not possible to browse video files on the “Videos” menu in [HEAD MODE]

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone. About Android device

• This unit supports Android OS 4.1 and above.

• Some Android devices (with OS4.1 and above) may not fully support Android Open Accessory (AOA)2.0.

• If the Android device supports both mass storage class device and AOA2.0, this unit always playback via AOA2.0 as priority. REFERENCES JS_JVC_KD_DB67_E_EN_1.indd 15JS_JVC_KD_DB67_E_EN_1.indd 15 2/12/2015 11:49:45 AM2/12/2015 11:49:45 AM16 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Change the display information Each time you press , the display information changes.

• If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, “NO SIGNAL”, or other information (eg. station name) appears. DAB Service name Title/Artist Dynamic Label Segment (DLS) Ensemble name Day/Clock (back to the beginning)

Frequency Day/Clock (For FM Radio Data System stations only) Station name (PS) Frequency Program type (PTY) Radiotext+ Day/Clock (back to the beginning)

ANDROID Playing time Day/Clock Album title/Artist Track title (backtothebeginning) AUX AUX Day/Clock BT AUDIO BT AUDIO Day/Clock REFERENCES TROUBLESHOOTING Symptom Remedy General Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections. “MISWIRING CHECK

appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again. “PROTECTING SEND SERVICE” appears. Send the unit to the nearest service center. Source cannot be selected. Check the [ SRC SELECT ] setting. ( 4) Digital Radio DAB reception is poor. Make sure [

“CHK ANTENNA” Check the DAB antenna. If a passive antenna (without a booster) is used, set [

“RELATED SRV FOUND” • Press the volume knob to activate Soft-Link. (

• Press to cancel. Analog Radio

• Radio reception is poor.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy CD / USB / iPod Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not to drop the disc when it is ejected. “IN DISC” appears. Make sure nothing is blocking the loading slot when you eject the disc. “PLEASE” and “EJECT” appear alternately. Press , then insert the disc correctly. Playback order is not as intended. The playback order is determined by the file name (USB) or the order in which files were recorded (disc). Elapsed playing time is not correct. This depends on the recording process earlier. “NOT SUPPORT” appears and track skips. Check whether the track is a playable format. ( 14

15) “READING” keeps flashing. • Do not use too many hierarchical levels and folders.

• Reload the disc or reattach the USB device. “CANNOT PLAY” flashes and/or connected device cannot be detected.

• Check whether the connected device is compatible with this unit and ensure the files are in supported formats.

• Reattach the device. The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone.

• Detach and reset the iPod/iPhone using hard reset. Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

• Depending on the display language you have selected

• Sound cannot be heard during playback.

• Sound output only from the Android device.

• Reconnect the Android device.

• If in [ AUDIO MODE ], launch any media player application on the Android device and start playback.

• If in [ AUDIO MODE ], relaunch the current media player application or use another media player application.

• Restart the Android device.

• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (

Cannot playback at [ AUTO MODE

• Make sure JVC MUSIC PLAY APP is installed on the Android device. (

• Reconnect the Android device and select the appropriate control mode. (

• If this does not solve the problem, the connected Android device does not support [ AUTO MODE

“NO DEVICE” or “READING” keeps flashing.

• Switch off the developer options on the Android device.

• Reconnect the Android device.

• If this does not solve the problem, the connected Android device does not support [ AUTO MODE

Playback is intermittent or sound skips. Turn off the power saving mode on the Android device. “CANNOT PLAY” • Make sure Android device contains playable audio files.

• Reconnect the Android device.

Frequency Range 153kHz — 279kHz (9kHz step) Usable Sensitivity (S/N=20dB) 50μV CD player Laser Diode GaAIAs Digital Filter (D/A) 8 times over sampling Spindle Speed 500 rpm — 200 rpm (CLV) Wow & Flutter Below measurable limit Frequency Response (±1dB) 20 Hz — 20 kHz Total Harmonic Distortion (1 kHz) 0.01 % Signal-to-Noise Ratio (1 kHz) 105 dB Dynamic Range 90 dB Channel Separation 85 dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.m4a” files USB USB Standard USB1.1, USB2.0 (Full speed) Compatible Devices Mass storage class File System FAT12/16/32 Maximum Supply Current DC5V

Subject to change without notice.

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• Insulate unconnected wires with vinyl tape to prevent a short circuit.

• Be sure to ground this unit to the car’s chassis again after installation. Caution

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

• Connect speakers with a maximum power of more than 50W. If the maximum power of the speakers is lower than 50W, change the [AMP GAIN] setting to avoid damaging the speakers.

• Mount the unit at an angle of less than 30º.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure

Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Connect the wires properly. See Wiring connection.

21) 3 Install the unit to your car. See Installing the unit (in-dash mounting).

20) 4 Connect the terminal of the car battery. 5 Reset the unit.

Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit. Installing the unit (in-dash mounting) Do the required wiring.

21) Bend the appropriate tabs to hold the sleeve firmly in place. Hook on the top side Orientate the trim plate as illustrated before fitting. Dashboard of your car Part list for installation (A) Faceplate (C) Mounting sleeve (B) Trim plate (D) Wiring harness (E) Extraction key INSTALLATION / CONNECTION JS_JVC_KD_DB67_E_EN_1.indd 20JS_JVC_KD_DB67_E_EN_1.indd 20 2/12/2015 11:49:47 AM2/12/2015 11:49:47 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) STEERINGWHEELREMOTE When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. Wiring connection Fuse (10A) Light blue/yellow (Steering remote control wire) To the steering wheel remote control adapter Yellow (A4) Red (Ignition wire) Red (A7) Yellow (Battery wire) Pin Color and function A2 Brown : Mobile phone system A4 Yellow : Battery A5 Blue/White : Power control A6 Orange/white : Car light control switch A7 Red : Ignition (ACC) A8 Black : Earth (ground) connection

: Rear speaker (right)

: Front speaker (right)

: Front speaker (left)

: Rear speaker (left)

Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below. Unit Vehicle A7 (Red) Ignition wire (Red) A4 (Yellow) Default wiring Battery wire (Yellow) If no connections are made, do not let the wire come out from the tab.

• You can also connect a subwoofer speaker directly without an external subwoofer amplifier. For setting,

ISO connectors If your car does not have an ISO terminal We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. DAB antenna jack (SMB connector) Antenna input terminal (for FM/AM) Front, Rear/subwoofer output INSTALLATION / CONNECTION JS_JVC_KD_DB67_E_EN_1.indd 21JS_JVC_KD_DB67_E_EN_1.indd 21 2/12/2015 12:20:33 PM2/12/2015 12:20:33 PMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

“PRESS” “VOLUME KNOB”

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.
