USER MANUAL KDDB97BTE JVC

• Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

• iPhone, iPod, iPod classic, iPod nano, iPod touch and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

• Lightning is a trademark of Apple Inc.

• Android is trademark of Google Inc.

• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners. libFLAC Copyright (C) 2000,2001,2002,2003,2004,2005,2006,2007,2008,2009 Josh Coalson Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer. - Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. - Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission. THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND ONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. JS_JVC_KD_DB97BT_E_C_00.indd iiJS_JVC_KD_DB97BT_E_C_00.indd ii 12/11/2015 9:56:31 AM12/11/2015 9:56:31 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

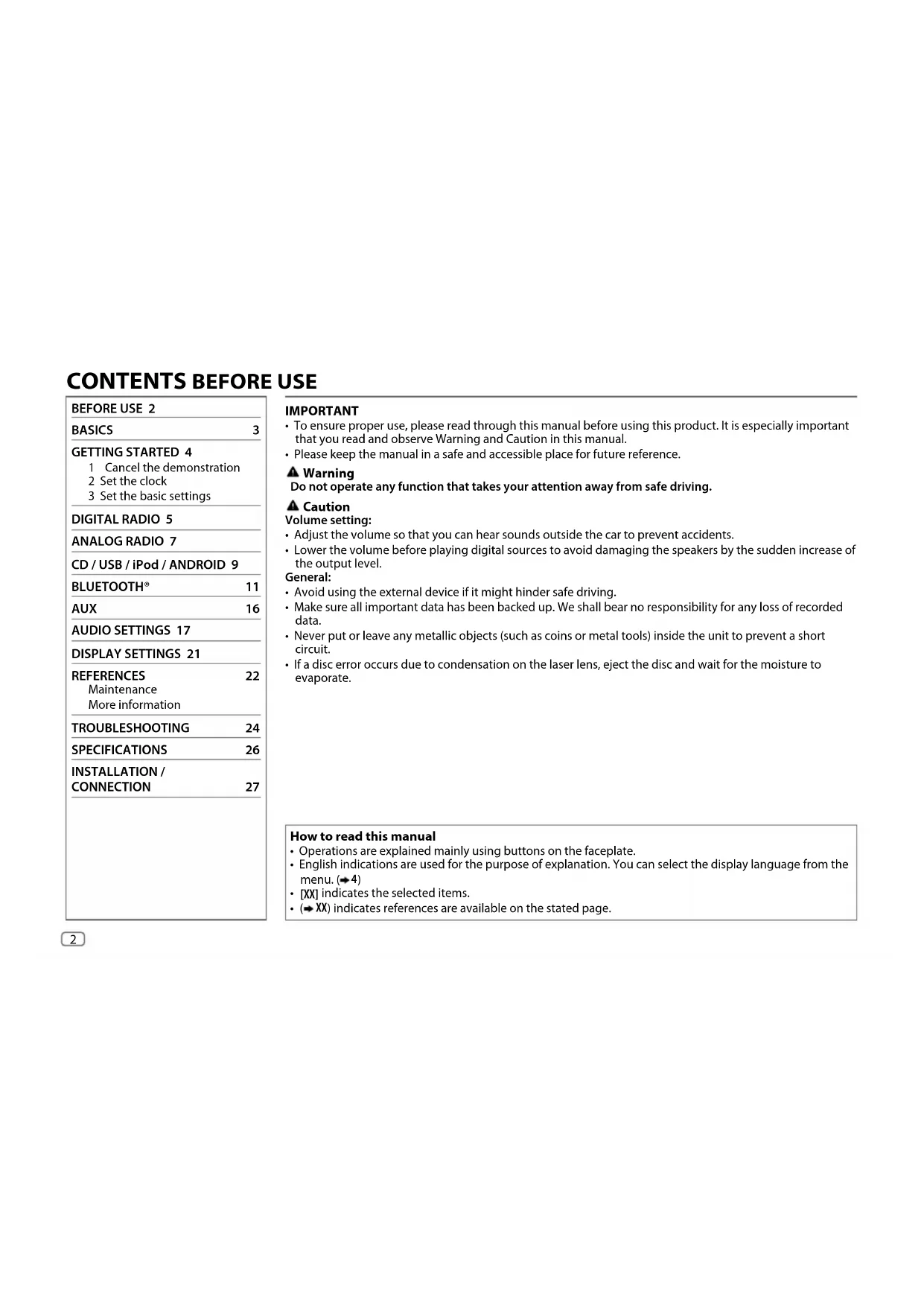

• To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warning and Caution in this manual.

• Please keep the manual in a safe and accessible place for future reference. Warning Do not operate any function that takes your attention away from safe driving. Caution Volume setting:

• Adjust the volume so that you can hear sounds outside the car to prevent accidents.

• Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level. General:

• Avoid using the external device if it might hinder safe driving.

• Make sure all important data has been backed up. We shall bear no responsibility for any loss of recorded data.

• Never put or leave any metallic objects (such as coins or metal tools) inside the unit to prevent a short circuit.

• If a disc error occurs due to condensation on the laser lens, eject the disc and wait for the moisture to evaporate. BEFORE USE 2 BASICS 3 GETTING STARTED 4

• Operations are explained mainly using buttons on the faceplate.

• English indications are used for the purpose of explanation. You can select the display language from the menu. (

[XX] indicates the selected items.

ENGLISH BASICS To On the faceplate Turn on the power Press

• Press and hold to turn off the power. Adjust the volume Turn the volume knob. Press the volume knob to mute the sound or pause playback.

• Press again to cancel. Select a source

• Press , then turn the volume knob within 2 seconds. Change the display information Press repeatedly. ( 23) Attach How to reset Detach DIGITAL ST T I Volume knob Loading slot Detach button Display window Faceplate Press the switch twice within 5 seconds after detaching the faceplate. JS_JVC_KD_DB97BT_E_EN_1.indd 3JS_JVC_KD_DB97BT_E_EN_1.indd 3 12/11/2015 11:23:57 AM12/11/2015 11:23:57 AM4 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) GETTING STARTED Cancel the demonstration When you turn on the power for the first time (or [ FACTORY RST ] is set to [ YES ]), the display shows: “CANCEL DEMO” “PRESS” “VOLUME KNOB” 1 Press the volume knob.

YES ] is selected for the initial setup. 2 Press the volume knob again. “DEMO OFF” appears. Set the clock

Set the basic settings

Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press . Default:

SETTINGS BEEP (Not applicable when 3-way crossover is selected.)

:Cancels (upgrading is not activated). For details on how to update the firmware, see: <http://www.jvc.net/cs/car/>.

:Resets the settings to default (except the stored station).;

:Cancels. CLOCK CLOCK SYNC AUTO :The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal or DAB signal.; OFF :Cancels.

:The clock time is shown on the display even when the unit is turned off.; OFF :Cancels. ENGLISH Select the display language for menu and music information if applicable. By default, ENGLISH is selected. ESPANOL

• Not displayed when the corresponding source is selected.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) DIGITAL RADIO About DAB (Digital Audio Broadcasting) DAB is one of the digital radio broadcasting systems available today. It can deliver digital quality sound without any annoying interference or signal distortion. Furthermore, it can carry text, pictures and data. In contrast to FM broadcast, where each program is transmitted on its own frequency, DAB combines several programs (called “services”) to form one “ensemble.” The “primary component” (main radio station) is sometimes accompanied by a “secondary component” which can contain extra programs or other information. Preparation: 1 Connect a DAB antenna to the DAB antenna jack. ( 29) 2 Press DAB to select DAB directly. 3 Press and hold DAB to start the Service List update. “DAB SORTING” appears and update starts. Updates take up to 3 minutes. No interruption (such as traffic information) is possible during updates.

• To cancel the Service List update: Press and hold DAB again. Search for an ensemble

Press DAB to select DAB directly. 2 Press to search for an ensemble automatically. (or) Press and hold until “M” flashes, then press repeatedly to search for an ensemble manually. 3 Press to select a service (either primary or secondary) to listen to. Settings in memory You can store up to 18 services. Store a service While listening to a service.... Press and hold one of the number buttons (1to5). (or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears. Select a stored service Press one of the number buttons (1to5). (or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to confirm. Select a service

Press DAB to enter Service Search mode. 2 Press to select the character to be searched for. 3 Turn the volume knob to select a service, then press the knob. Other settings

see the following table

then press the knob. 4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press

RADIO TIMER Turns on the radio at a specific time regardless of the current source.

OFF :Select how often the timer will be turned on.

DAB :Select the source.

(for DAB):Select the preset station.

Set the activation day * and time.

” lights up when complete. Radio Timer will not activate for the following cases.

• The unit is turned off.

OFF ] is selected for [

after Radio Timer for AM is selected. ( 4)

• Selectable only when [ ONCE ] or [ WEEKLY ] is selected in step

While listening to DAB... Automatically switch to FM broadcasting the same program if the DAB signal becomes weak. It will switch back to DAB sound when the signal becomes strong again. While listening to FM... Automatically switch to DAB source broadcasting the same program (if available).; OFF :Cancels.

:Allows the unit to temporarily switch to Traffic Information if available (“TI” lights up).; OFF :Cancels. PTY SEARCH Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. PTY code: NEWS

POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS

OTHER M (music), WEATHER

NATION M (music), OLDIES

FOLK M (music), DOCUMENT DAB ANNCMNT TRAVEL

” appears in front of the activated announcement type. Automatically switch from any source to Digital radio ensembles broadcasting an activated announcement type.

• Multiple announcement can be activated simultaneously.

:Automatically update the DAB Service List when the power is turned on.; OFF :Updates the DAB Service List by pressing and holding DAB

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) PTY-STBY The unit automatically switch from any source to Digital Radio ensembles broadcasting the selected type of program. Program Type: NEWS

(music), DOCUMENT OFF :Cancels.

Receives L-BAND ensemble during digital audio reception.

Supplies power to the DAB antenna.

Does not supply power. Selects when using passive antenna without booster.

:Enable Soft-Link function to switch to an alternative service which is different audio program from the current audio program.; OFF :Disable. ANALOG RADIO “ST” lights up when receiving an FM stereo broadcast with sufficient signal strength. Search for a station

Press repeatedly to select FM or AM. 2 Press to search for a station automatically. (or) Press and hold until “M” flashes, then press repeatedly to search for a station manually. Settings in memory You can store up to 18 stations for FM and 6 stations for AM. Store a station While listening to a station.... Press and hold one of the number buttons (1 to 5). (or) 1 Press and hold the volume knob until “PRESETMODE” flashes. 2 Turn the volume knob to select a preset number, then press the knob. The preset number flashes and “MEMORY” appears. Select a stored station Press one of the number buttons (1to5). (or) 1 Press . 2 Turn the volume knob to select a preset number, then press the knob to confirm. DIGITAL RADIO JS_JVC_KD_DB97BT_E_EN_2.indd 7JS_JVC_KD_DB97BT_E_EN_2.indd 7 19/11/2015 11:10:35 AM19/11/2015 11:10:35 AM8 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Other settings

see the following table

then press the knob. 4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press . Default:

SSM 13 – 18 : Automatically presets up to 18 stations for FM. “SSM” stops flashing when the first 6 stations are stored. Select SSM 07 – 12

SSM 13 – 18 to store the following 12 stations.

:Searches only FM stations with good reception.; OFF :Cancels.

• Settings made are applicable only to the selected source/station. Once you change the source/station, you need to make the settings again.

:Increases the tuner selectivity to reduce interference noises from adjacent FM stations. (Stereo effect may be lost.); WIDE :Subjects to interference noises from adjacent FM stations, but sound quality will not be degraded and the stereo effect will remain. MONO ON :Improves the FM reception, but the stereo effect will be lost.; OFF :Cancels. NEWS-STBY

: Switches to another station only in the specific region using the “AF” control.; OFF :Cancels. AF SET

: Automatically searches for another station broadcasting the same program in the same Radio Data System network with better reception when the current reception is poor.; OFF : Cancels. TI SET

TI SET ] in AM band is for enabling traffic interruption to DAB source only. PTY SEARCH

Select a PTY code (see below). If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. PTY code

POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS

OTHER M (music), WEATHER

NATION M (music), OLDIES

FOLK M (music), DOCUMENT

Press repeatedly. TRACK RPT

Press repeatedly. ALL RND

Do not leave the cable inside the car when not using.

When connecting an Android device, “Press [VIEW] to install JVC MUSIC PLAY APP” is shown. Follow the instructions to install the application. You can also install the latest version of JVC MUSIC PLAY application on your Android device before connecting.

For ANDROID: Applicable only when [ AUTO MODE ] is selected.

For CD: Only for MP3/WMA/AAC files. This does not work for iPod/ ANDROID.

AUTO MODE ] is selected.

Start playback The source changes automatically and playback starts.

(commercially available) (Accessory of the iPod/iPhone)*

JS_JVC_KD_DB97BT_E_EN_1.indd 9JS_JVC_KD_DB97BT_E_EN_1.indd 9 12/11/2015 11:23:59 AM12/11/2015 11:23:59 AM10 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Select control mode While in USB-IPOD source, press repeatedly. HEAD MODE : Control iPod from this unit. IPHONE MODE : Control iPod using the iPod itself. However, you can still play/pause or file skip from this unit. While in ANDROID source, press repeatedly. AUTO MODE : Control Android device from this unit via JVC MUSIC PLAY application installed in the Android device. AUDIO MODE : Control Android device using the Android device itself via other media player applications installed in the Android device. However, you can still play/pause or file skip from this unit. Select music drive Press repeatedly. Stored songs in the following drive will be played back.

• Selected internal or external memory of a smartphone (Mass Storage Class).

• Selected drive of a multiple drives device. Select a file from a folder/list

Press . 2 Turn the volume knob to select a folder/list, then press the knob. 3 Turn the volume knob to select a file, then press the knob. Quick Search If you have many files, you can search through them quickly. Turn the volume knob quickly to browse through the list quickly. – Not applicable for iPod. Alphabet search (applicable only for iPod): You can search for a file according to the first character. Press or turn the volume knob quickly to select the desired character (A to Z/ 0to9/ OTHERS). – Select “OTHERS” if the first character is other than Ato Z, 0 to 9.

• For iPod, applicable only when [ HEAD MODE ] is selected.

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Pair and connect a Bluetooth device for the first time

Press to turn on the unit. 2 Search and select “JVC UNIT” on the Bluetooth device. “BTPAIRING” flashes on the display.

• For some Bluetooth devices, you may need to enter the Personal Identification Number (PIN) code immediately after searching. 3 Perform (A) or (B) depending on what scrolls on the display. For some Bluetooth devices, pairing sequence may vary from the steps described below. (A) “[Device Name]” “XXXXXX” “VOL–YES” “BACK–NO” “XXXXXX” is a 6-digit passkey randomly generated during each pairing. Ensure that the passkey which appears on the unit and Bluetooth device is the same. Press the volume knob to confirm the passkey. Operate the Bluetooth device to confirm the passkey. (B) “[Device Name]” “VOL–YES” “BACK–NO” Press the volume knob to start pairing.

• If “PAIRING” “PIN 0000” scrolls on the display, enter the PIN code “0000” into the Bluetooth device. You can change to a desired PIN code before pairing. (

• If only “PAIRING” appears, operate the Bluetooth device to confirm pairing. “PAIRING COMPLETED” appears when pairing is completed and “ ” will light up when the Bluetooth connection is established.

• This unit supports Secure Simple Pairing (SSP).

• Up to 10 devices can be registered (paired) in total.

• Once the pairing is completed, the Bluetooth device will remain registered in the unit even if you reset the unit. To delete the paired device,

• A maximum of two Bluetooth phones and one Bluetooth audio device can be connected at any time.

• Some Bluetooth devices may not automatically connect to the unit after pairing. Connect the device to the unit manually.

• Refer to the instruction manual of the Bluetooth device for more information. BLUETOOTH® BLUETOOTH — Connection Supported Bluetooth profiles – Hands-Free Profile (HFP) – Advanced Audio Distribution Profile (A2DP) – Audio/Video Remote Control Profile (AVRCP) – Serial Port Profile (SPP) – Phonebook Access Profile (PBAP) Supported Bluetooth codecs – Sub Band Codec (SBC) – Advanced Audio Coding (AAC) Connect the microphone Adjust the microphone angle Secure using cord clamps (not supplied) if necessary. Microphone input jack Microphone (supplied) Rear panel Lights up to show the battery strength and signal strength.

• Functionality depends on the type of the phone used. JS_JVC_KD_DB97BT_E_EN_1.indd 11JS_JVC_KD_DB97BT_E_EN_1.indd 11 12/11/2015 11:24:00 AM12/11/2015 11:24:00 AM12 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Auto Pairing When you connect iPhone/ iPod touch/ Android device to the USB input terminal, pairing request (via Bluetooth) is automatically activated. Press the volume knob to pair once you have confirmed the device name. Automatic pairing request is activated only if: – Bluetooth function of the connected devcie is turned on.

AUTO CNNT ] is set to [

– JVC MUSIC PLAY application is installed on the Android device (

) and [ AUTO MODE ] is selected (

BLUETOOTH — Mobile phone Receive a call When there is an incoming call:

• The buttons will blink in the color you have selected in [ RING COLOR

• The unit answers the call automatically if [ AUTO ANSWER ] is set to a selected time. (

• The buttons stop blinking and illuminate in the color you have selected in [ RING COLOR

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) To On the faceplate While having two active calls... End current call and activate held call Press and hold or the volume knob. Swap between the current call and held call Press

Adjust the phone volume [00]

Turn the volume knob during a call.

• This adjustment will not affect the volume of the other sources. Switch between hands-free and private talk modes Press during a call.

• Operations may vary according to the connected Bluetooth device. Improve the voice quality While talking on the phone.... 1 Press and hold . 2 Turn the volume knob to select an item

see the following table

, then press the knob. 3 Repeat step 2 until the desired item is selected or activated. 4 Press to exit. To return to the previous setting item, press . Default:

):The sensitivity of the microphone increases as the number increased. NOISE RDCT –5

):Adjust the noise reduction level until the least noise is being heard during a phone conversation. ECHO CANCEL –5

):Adjust the echo cancellation delay time until the least echo is being heard during a phone conversation. Make the settings for receiving a call

Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected or activated. To return to the previous setting item, press

30 SEC :The unit answers incoming call automatically in the selected time (in seconds).; OFF :Cancels.

COLOR 08 ): Selects the notification light color for the buttons when there is an incoming call and during a call.; OFF :Cancels. BLUETOOTH® JS_JVC_KD_DB97BT_E_EN_1.indd 13JS_JVC_KD_DB97BT_E_EN_1.indd 13 12/11/2015 11:24:01 AM12/11/2015 11:24:01 AM14 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Make a call You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. To return to the previous setting item, press

RECENT CALL (Applicable only if the phone supports PBAP)

• “<” indicates call received, “>“ indicates call made, “M” indicates call missed.

• “NO HISTORY” appears if there is no recorded call history or call number.

Press the volume knob to call. PHONEBOOK (Applicable only if the phone supports PBAP)

Press to select the desired letter (A to Z, 0to9, and OTHERS).

• “OTHERS” appears if the first character is other than Ato Z, 0 to 9.

• The phonebook of the connected phone is automatically transferred to the unit when pairing.

• This unit can display only non-accent letters. (Accent letters such as “Ú” is showns as “U”.) DIAL NUMBER

Turn the volume knob to select a number (0 to 9) or character ( , #, +).

Press to move the entry position. Repeat steps

until you finish entering the phone number.

Press the volume knob to call. VOICE Speak the name of the contact you want to call or the voice command to control the phone functions.

Make a call using voice recognition

BLUETOOTH® Make a call using voice recognition

Press and hold to activate the connected phone. 2 Speak the name of the contact you want to call or the voice command to control the phone functions.

• Supported Voice Recognition features vary for each phone. Refer to the instruction manual of the connected phone for details.

• This unit also supports the intelligent personal assistant function of iPhone. Settings in memory Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 5). 1 Press to enter Bluetooth mode. 2 Turn the volume knob to select [ RECENT CALL

DIAL NUMBER ], then press the knob. 3 Turn the volume knob to select a contact or enter a phone number. If a contact is selected, press the volume knob to show the phone number. 4 Press and hold one of the number buttons (1 to 5). “MEMORY P(selected preset number)” appears when the contact is stored. To erase a contact from the preset memory, select [ DIAL NUMBER ] in step 2 and store a blank number. Make a call from memory

see the following table

, then press the knob. 4 Repeat step 3 until the desired item is selected/activated or follow the instructions stated on the selected item. 5 Press to exit. To return to the previous setting item, press . Default:

Selects the phone or audio device to connect or disconnect.

” appears in front of the device name when connected. AUDIO

Shows the connected phone name using the JVC Smart Music Control

” appears in front of the device name when connected. DELETE PAIR

Turn the volume knob to select a device to delete, then press the knob.

Turn the volume knob to select [ YES ] or [

Press to move the entry position. Repeat steps

until you finish entering the PIN code.

Press the volume knob to confirm.

:The unit automatically reconnect when the last connected Bluetooth device is within range.; OFF :Cancels.

:The unit automatically pair supported Bluetooth device (iPhone/ iPod touch/ Android device) when it is connected through USB input terminal.Depending on the operating system of the connected device, this function may not work. ; OFF :Cancels. INITIALIZE YES :Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.).;

:Cancels. INFORMATION

ADDRESS : Shows address of this unit.

You can only connect a maximum of two Bluetooth phones and one Bluetooth audio device at any time.

JVC Smart Music Control is designed to view JVC car receiver status and perform simple control operations on Android smart phones. For JVC Smart Music Control operations, visit JVC website: <http://www.jvc.net/cs/car/>. Bluetooth compatibility check mode You can check the connectivity of the supported profile between the Bluetooth device and the unit.

• Make sure there is no Bluetooth device paired. 1 Press and hold . “BLUETOOTH” “CHECK MODE” appears. “SEARCH NOW USING PHONE” “PIN IS 0000” scrolls on the display. 2 Search and select “JVC UNIT” on the Bluetooth device within 3minutes. 3 Perform (A), (B) or (C) depending on what appears on the display. (A) “PAIRING” “XXXXXX” (6-digit passkey): Ensure that the same passkey appears on the unit and Bluetooth device, then operate the Bluetooth device to confirm the passkey. (B) “PAIRING” “PIN IS 0000”: Enter “0000” on the Bluetooth device. (C) “PAIRING”: Operate the Bluetooth device to confirm pairing. After pairing is successful, “PAIRING OK” “[Device Name]” appears and Bluetooth compatibility check starts. If “CONNECT NOW USING PHONE” appears, operate the Bluetooth device to allow phonebook access to continue. “TESTING” flashes on the display. The connectivity result flashes on the display. “PAIRING OK” and/or “H.FREE OK”*

and/or “A.STREAM OK”*

Compatible with Hands-Free Profile (HFP)

Compatible with Phonebook Access profile (PBAP) After 30 seconds, “PAIRING DELETED” appears to indicate that pairing has been deleted, and the unit exits check mode.

Press repeatedly to select BTAUDIO. 2 Operate the Bluetooth audio player to start playback. To On the faceplate Playback / pause Press the volume knob. Select group or folder Press

Reverse / Fast-forward Press and hold

Repeat play Press repeatedly. TRACK RPT

RPT OFF Random play Press repeatedly. GROUP RND

RND OFF Select a file from a folder/list Refer to “Select a file from a folder/list” on page 10. Operations and display indications may differ according to their availability on the connected device. Use a portable audio player

Connect a portable audio player (commercially available). 2 Select [

] for [ AUX ] in [ SRC SELECT

3 Press repeatedly to select AUX. 4 Turn on the portable audio player and start playback. Use a 3-core plug head stereo mini plug for optimum audio output. 3.5mm stereo mini plug with “L” shaped connector (commercially available) Portable audio player Auxiliary input jack AUX JS_JVC_KD_DB97BT_E_EN_1.indd 16JS_JVC_KD_DB97BT_E_EN_1.indd 16 12/11/2015 11:24:02 AM12/11/2015 11:24:02 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS Select a preset equalizer Press repeatedly. (or) Press , then turn the volume knob within 5seconds. Preset equalizer

USER Store your own sound settings

Press and hold to enter EASY EQ setting. 2 Turn the volume knob to adjust the level, then press the knob. Refer to [ EASY EQ ] for setting and the result is stored to [ USER

Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press . Default:

EQ SETTING EQ PRESET Select a preset equalizer suitable to the music genre. (Select [ USER ] to use the settings made in [ EASY EQ ] or [ PRO EQ

USER EASY EQ Adjust your own sound settings. The settings are stored to [ USER

• The settings made may affect the current settings of [ PRO EQ

PRO EQ Adjust your own sound settings. The settings are stored to [ USER

• The settings made may affect the current settings of [ EASY EQ

Adjusts the level to memorize for each source. (Before making an adjustment, select the source you want to adjust.)

Q 2.00 :Adjust the quality factor. AUDIO BASS BOOST +01

+05 : Selects your preferred bass boost level.; OFF :Cancels. LOUD 01

(Not applicable when 3-way crossover is selected.)

+03 ):Adjusts the output level of the subwoofer connected via speaker lead. (

):Adjusts the output level of the subwoofer connected to the lineout terminals (SW) through an external amplifier. (

OFF : Turns on or off the subwoofer output. FADER (Not applicable when 3-way crossover is selected.) R15

):Adjusts the front and rear speaker output balance. BALANCE

):Adjusts the left and right speaker output balance. VOL

):Preset the initial volume level of each source (compared to the FM volume level). Before adjustment, select the source you want to adjust. AMP

POWER :Limits the maximum volume level to 25. (Select if the maximum power of each speaker is less than 50W to prevent damaging the speakers.); HIGH POWER :The maximum volume level is 35. SPK/PRE

OUT (Not applicable when 3-way crossover is selected.) Depending on the speaker connection method, select the appropriate setting to get the desired output. (

19, Speaker output settings

SPK SIZE Depending on the crossover type you have selected (see [

below), 2-way crossover or 3-way crossover setting items will be shown.

19, Crossover settings) By default, 2-way crossover type is selected.

avoid the sudden increase or decrease of the output level.

(Displayed only when [

] is selected) YES :Selects two way crossover type.;

(Displayed only when [

] is selected) YES :Selects three way crossover type.;

:Cancels. AUDIO SETTINGS SND EFFECT ENHANCE (Not applicable for FM/AM source and DAB source.)

LV3 : Virtually makes the sound more realistic.; OFF :Cancels.

LV3 : Virtually adjust the sound position heard from the speakers.; OFF :Cancels.

:Boosts the frequency to reduce the noise heard from outside the car or running noise of the tyres.; OFF :Cancels.

(Not applicable for FM/AM source, DAB source and AUX source.)

:Improve the sound quality of compressed music.; OFF :Cancels.

Displayed only when [ SUB.W ] is set to [

For 2-way crossover: Displayed only when [ SPK/PRE

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) AUDIO SETTINGS Speaker output settings (Only for

Select the output setting for the speakers [

], base on the speaker connection method. Connection via lineout terminals For connections through an external amplifier. (

Audio signal through lineout terminal

Front speakers output L (left): Subwoofer output R (right): (Mute) Subwoofer output Connection via speaker leads For connections without using an external amplifier. However, with this setting you can also enjoy the subwoofer output. (

Audio signal through rear speaker lead L (left) R (right) REAR/REAR Rear speakers output Rear speakers output

HIGH 120HZ ] is selected in [ SUB.W

LPF ] and [ THROUGH ] is not available.

R02 ] is selected in [ FADER ] and selectable range is [ R15 ]to [

Crossover settings Below are the available setting items for 2-way crossover and 3-way crossover. Caution Select a crossover type according to how the speakers are connected.

• The speakers may damage.

• The output sound level may be extremely high or low. SPK SIZE (speaker size) Selects according to the connected speaker size for optimum performance.

The frequency and slope settings are automatically set for the crossover of the selected speaker.

If [ NONE ] is selected for [ TWEETER ] of [ FRONT

REAR ] and [ SUBWOOFER ] for

SPK SIZE ], the [ X ‘ OVER ] setting of the selected speaker is not available. X ‘ OVER (crossover)

Adjusts the crossover frequency for the selected speakers (high pass filter or low pass filter).

If [ THROUGH ] is selected, all signals are sent to the selected speakers.

Adjusts the crossover slope.

Selectable only if a setting other than [ THROUGH ] is selected for the crossover frequency. [PHASE]: Selects the phase of the speaker output to be in line with the other speaker output.

NONE (not connected) REAR

NONE (not connected) SUBWOOFER

NONE (not connected)

NONE (not connected)

THROUGH HPF SLOPE –06DB

Displayed only when [ SPK/PRE

OUT ] is set to [ REAR/REAR

Displayed only when [ SUB.W ] is set to [

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) 1 Press and hold . 2 Turn the volume knob to select an item (see the following table), then press the knob. 3 Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. 4 Press to exit. To return to the previous setting item, press . Default:

DISPLAY DIMMER Dim the display and buttons illumination. OFF :Dimmer is turned off.

:Dimmer is turned on. Brightness changes to [ NIGHT ] setting.

DIMMER TIME :Set the dimmer on and off time.

Turn the volume knob to adjust the [

OFF ]: 6:00 or 6:00 AM) AUTO :Dimmer turns on and off automatically when you turn off or on the car headlights. *

DISPLAY SETTINGS BRIGHTNESS Set the button and display brightness for day and night separately.

NIGHT :Select day or night.

Set the brightness level (

USER : The color you have created for [ DAY COLOR ] or [ NIGHT COLOR

COLOR FLOW03 : Color changes at different speeds. DAY COLOR Make your own day and night colors for the buttons illumination.

BLUE :Select a primary color.

:Select the level. Repeat steps

for all primary colors.

• Your setting is stored to [USER]

:Changes the button illumination in menu mode or when selecting a music file from a folder/list.; OFF :Cancels.

NIGHT COLOR ] or [ DAY COLOR ] is changed by turning on or off your car’s headlight.

The illumination control wire connection is required. ( 29)

Some characters or symbols will not be shown correctly (or will be blanked). JS_JVC_KD_DB97BT_E_EN_1.indd 21JS_JVC_KD_DB97BT_E_EN_1.indd 21 12/11/2015 11:24:03 AM12/11/2015 11:24:03 AM22 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab, being careful not to damage the connector. Handling discs:

• Do not touch the recording surface of the disc.

• Do not stick tape etc. on the disc, or use a disc with tape stuck on it.

• Do not use any accessories for the disc.

• Clean from the center of the disc and move outward.

• Clean the disc with a dry silicone or soft cloth. Do not use any solvents.

• When removing discs from this unit, pull them out horizontally.

• Remove burrs from the center hole and disc edge before inserting a disc. More information Visit also the following website <http://www.jvc.net/cs/car/> for: – Latest firmware updates and latest compatible item list – Android™ application JVC MUSIC PLAY – Any other latest information General

• This unit can only play the following CDs:

DualDisc playback: The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product cannot be recommended.

• Detailed information and notes about the playable audio files are stated in an online manual on the following website <http://www.jvc.net/cs/car/>. REFERENCES Connector (on the reverse side of the faceplate) Playable files

• Playable USB device file system: FAT12, FAT16, FAT32 Even when audio files comply with the standards listed above, playback may be impossible depending on the types or conditions of media or device. The AAC (.m4a) file in a USB device or a CD encoded by iTunes cannot be played on this unit. Unplayable discs

• Discs that are not round.

• Discs with coloring on the recording surface or discs that are dirty.

• Recordable/ReWritable discs that have not been finalized.

• 8cm CD. Attempting to insert using an adapter may cause malfunction. About USB devices

• This unit can play the following files stored on a USB mass storage class device:

MP3/ WMA/ AAC/ WAV/ FLAC

• You cannot connect a USB device via a USB hub.

• Connecting a cable whose total length is longer than 5m may result in abnormal playback.

• This unit cannot recognize a USB device whose rating is other than 5V and exceeds 1.5A. JS_JVC_KD_DB97BT_E_EN_1.indd 22JS_JVC_KD_DB97BT_E_EN_1.indd 22 12/11/2015 11:24:03 AM12/11/2015 11:24:03 AMENGLISH

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) About iPod/iPhone Made for - iPod touch (2nd, 3rd, 4th, and 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th, and 7th generation) - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus

• It is not possible to browse video files on the “Videos” menu in [HEAD MODE]

• The song order displayed on the selection menu of this unit may differ from that of the iPod/ iPhone.

• Depending on the version of the operating system of the iPod/iPhone, some functions may not operate on this unit. About Android device

• This unit supports Android OS 4.1 and above.

• Some Android devices (with OS4.1 and above) may not fully support Android Open Accessory (AOA)2.0.

• If the Android device supports both mass storage class device and AOA2.0, this unit always playback via AOA2.0 as priority. About Bluetooth

• Depending on the Bluetooth version of the device, some Bluetooth devices may not be able to connect to this unit.

• This unit may not work with some Bluetooth devices.

• Signal conditions vary, depending on the surroundings. REFERENCES Change the display information Each time you press , the display information changes.

• If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, “NO SIGNAL”, or other information (eg. station name) appears. DAB Service name Title/Artist Dynamic Label Segment (DLS) Ensemble name Day/Clock Level meter Level meter with color synchronisation

(back to the beginning)

(back to the beginning) (For FM Radio Data System stations only) Station name (PS) Frequency Program type (PTY) Radiotext+ Day/Clock Level meter Level meter with color synchronisation

(back to the beginning)

(back to the beginning) AUX AUX Day/Clock Level meter Level meter with color synchronisation

(back to the beginning) BT AUDIO Playing time Day/Clock Album title/Artist Track title Level meter Level meter with color synchronisation

(back to the beginning)

• The color of the button illumination changes and synchronises with the sound level. JS_JVC_KD_DB97BT_E_EN_2.indd 23JS_JVC_KD_DB97BT_E_EN_2.indd 23 19/11/2015 10:51:46 AM19/11/2015 10:51:46 AM24 Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Symptom Remedy General Sound cannot be heard. • Adjust the volume to the optimum level.

• Check the cords and connections. “MISWIRING CHECK

appears. Turn the power off, then check to be sure the terminals of the speaker wires are insulated properly. Turn the power on again. “PROTECTING SEND SERVICE” appears. Send the unit to the nearest service center. Source cannot be selected. Check the [ SRC SELECT ] setting. ( 4) Digital Radio DAB reception is poor. Make sure [

“CHK ANTENNA” Check the DAB antenna. If a passive antenna (without a booster) is used, set [

“RELATED SRV FOUND” • Press the volume knob to activate Soft-Link. (

• Press to cancel. Analog Radio

• Radio reception is poor.

• Static noise while listening to the radio. Connect the antenna firmly. CD / USB / iPod Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not to drop the disc when it is ejected. “IN DISC” appears. Make sure nothing is blocking the loading slot when you eject the disc. “PLEASE” and “EJECT” appear alternately. Press , then insert the disc correctly. Playback order is not as intended. The playback order is determined by the file name (USB) or the order in which files were recorded (disc). TROUBLESHOOTING Symptom Remedy CD / USB / iPod Elapsed playing time is not correct. This depends on the recording process earlier. “NOT SUPPORT” appears and track skips. Check whether the track is a playable format. ( 22) “READING” keeps flashing. • Do not use too many hierarchical levels and folders.

• Reload the disc or reattach the USB device. “CANNOT PLAY” flashes and/or connected device cannot be detected.

• Check whether the connected device is compatible with this unit and ensure the files are in supported formats.

• Reattach the device. The iPod/iPhone does not turn on or does not work.

• Check the connection between this unit and iPod/iPhone.

• Detach and reset the iPod/iPhone using hard reset. “LOADING” appears when you enter search mode by pressing

This unit is still preparing the iPod/iPhone music list. It may take some time to load, try again later. Correct characters are not displayed.

• This unit can only display uppercase letters, numbers, and a limited number of symbols.

• Depending on the display language you have selected

• Sound cannot be heard during playback.

• Sound output only from the Android device.

• Reconnect the Android device.

• If in [ AUDIO MODE ], launch any media player application on the Android device and start playback.

• If in [ AUDIO MODE ], relaunch the current media player application or use another media player application.

• Restart the Android device.

• If this does not solve the problem, the connected Android device is unable to route the audio signal to unit. (

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) TROUBLESHOOTING Symptom Remedy Bluetooth® Sound is being interrupted or skipped during playback of a Bluetooth audio player.

• Reduce the distance between the unit and the Bluetooth audio player.

• Turn off, then turn on the unit and try to connect again.

• Other Bluetooth devices might be trying to connect to the unit. The connected Bluetooth audio player cannot be controlled.

• Check whether the connected Bluetooth audio player supports Audio/Video Remote Control Profile (AVRCP). (Refer to the instructions of your audio player.)

• Disconnect and connect the Bluetooth player again. “PAIRING FULL” The number of registered devices has reached its limit. Retry after deleting an unnecessary device. ( 15, DELETE PAIR) “PLEASE WAIT” The unit is preparing to use the Bluetooth function. If the message does not disappear, turn off and turn on the unit, then connect the device again. “NOT SUPPORT” The connected phone does not support Voice Recognition feature. “ERROR” Try the operation again. If “ERROR” appears again, check if the device supports the function you have tried. “H/W ERROR” Reset the unit and try the operation again. If “H/W ERROR” appears again, consult your nearest service center. If you still have troubles, reset the unit. ( 3) Symptom Remedy ANDROID Cannot playback at

• Make sure JVC MUSIC PLAY APP is installed on the Android device. (

• Reconnect the Android device and select the appropriate control mode. (

• If this does not solve the problem, the connected Android device does not support [ AUTO MODE

“NO DEVICE” or “READING” keeps flashing.

• Switch off the developer options on the Android device.

• Reconnect the Android device.

• If this does not solve the problem, the connected Android device does not support [ AUTO MODE

Playback is intermittent or sound skips. Turn off the power saving mode on the Android device. “CANNOT PLAY” • Make sure Android device contains playable audio files.

• Reconnect the Android device.

• Restart the Android device. Bluetooth® No Bluetooth device is detected.

• Search from the Bluetooth device again.

• Reset the unit. ( 3) Pairing cannot be made. • Make sure you have entered the same PIN code to both the unit and Bluetooth device.

• Delete pairing information from both the unit and the Bluetooth device, then perform pairing again. ( 11) Echo or noise occurs. • Adjust the microphone unit’s position. ( 11)

• Check the [ECHO CANCEL] setting. ( 13) Phone sound quality is poor.

• Reduce the distance between the unit and the Bluetooth device.

Frequency Range 153kHz — 279kHz (9kHz step) Usable Sensitivity (S/N=20dB) 50μV CD player Laser Diode GaAIAs Digital Filter (D/A) 8 times over sampling Spindle Speed 500 rpm — 200 rpm (CLV) Wow & Flutter Below measurable limit Frequency Response (±1dB) 20 Hz — 20 kHz CD player Total Harmonic Distortion (1 kHz) 0.01 % Signal-to-Noise Ratio (1 kHz) 105 dB Dynamic Range 90 dB Channel Separation 85 dB MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac” files USB USB Standard USB1.1, USB2.0 (Full speed) Compatible Devices Mass storage class File System FAT12/16/32 Maximum Supply Current DC5V 1.5A Digital Filter (D/A) Converter 24 Bit MP3 Decode Compliant with MPEG-1/2 Audio Layer-3 WMA Decode Compliant with Windows Media Audio AAC Decode AAC-LC “.aac” files WAV Decode Linear-PCM FLAC Decode FLAC files Auxiliary

Subject to change without notice. SPECIFICATIONS Warning

• The unit can only be used with a 12V DC power supply, negative ground.

• Disconnect the battery’s negative terminal before wiring and mounting.

• Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit.

• Insulate unconnected wires with vinyl tape to prevent a short circuit.

• Be sure to ground this unit to the car’s chassis again after installation. Caution

• For safety’s sake, leave wiring and mounting to professionals. Consult the car audio dealer.

• Install this unit in the console of your vehicle. Do not touch the metal parts of this unit during and shortly after use of the unit. Metal parts such as the heat sink and enclosure become hot.

• Do not connect the wires of speakers to the car chassis or Ground wire (black), or connect them in parallel.

• Connect speakers with a maximum power of more than 50W. If the maximum power of the speakers is lower than 50W, change the [AMP GAIN] setting to avoid damaging the speakers.

• Mount the unit at an angle of less than 30º.

• If your vehicle wiring harness does not have the ignition terminal, connect Ignition wire (red) to the terminal on the vehicle’s fuse box which provides 12 V DC power supply and is turned on and off by the ignition key.

• Keep all cables away from heat dissipate metal parts.

• After the unit is installed, check whether the brake lamps, blinkers, wipers, etc. on the car are working properly.

• If the fuse blows, first make sure the wires are not touching car’s chassis, then replace the old fuse with one that has the same rating. Basic procedure

Remove the key from the ignition switch, then disconnect the terminal of the car battery. 2 Connect the wires properly. See Wiring connection.

29) 3 Install the unit to your car. See Installing the unit (in-dash mounting).

28) 4 Connect the terminal of the car battery. 5 Press to turn on the power. 6 Detach the faceplate and reset the unit within 5 seconds.

Remove the mounting sleeve and trim plate from the unit. 2 Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Use only the specified screws. Using wrong screws might damage the unit. Installing the unit (in-dash mounting) Do the required wiring.

29) Bend the appropriate tabs to hold the sleeve firmly in place. Hook on the top side Orientate the trim plate as illustrated before fitting. Dashboard of your car Part list for installation (A) Faceplate (C) Mounting sleeve (B) Trim plate (D) Wiring harness (E) Extraction key JS_JVC_KD_DB97BT_E_EN_1.indd 28JS_JVC_KD_DB97BT_E_EN_1.indd 28 12/11/2015 11:24:07 AM12/11/2015 11:24:07 AMENGLISH

STEERING WHEEL REMOTE When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. Wiring connection Fuse (10A) Light blue/yellow (Steering remote control wire) To the steering wheel remote control adapter Yellow (A4) Red (Ignition wire) Red (A7) Yellow (Battery wire) Pin Color and function A4 Yellow : Battery A5 Blue/White : Power control A6 Orange/white : Car light control switch A7 Red : Ignition (ACC) A8 Black : Earth (ground) connection

: Rear speaker (right) For 3-way crossover: Tweeter (right)

: Front speaker (right) For 3-way crossover: Mid range speaker (right)

: Front speaker (left) For 3-way crossover: Mid range speaker (left)

: Rear speaker (left)

For 3-way crossover: Tweeter (left)

Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall) automobiles You may need to modify the wiring of the supplied wiring harness as illustrated below. Unit Vehicle A7 (Red) Ignition wire (Red) A4 (Yellow) Default wiring Battery wire (Yellow) If no connections are made, do not let the wire come out from the tab.

• You can also connect a subwoofer speaker directly without an external subwoofer amplifier. For setting,

ISO connectors If your car does not have an ISO terminal We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Microphone input jack ( 11) DAB antenna jack (SMB connector) Antenna input terminal (for FM/AM) Rear/ Front/ Subwoofer output For 3-way crossover: Tweeter/ Mid Range/ Woofer output JS_JVC_KD_DB97BT_E_EN_1.indd 29JS_JVC_KD_DB97BT_E_EN_1.indd 29 12/11/2015 11:24:07 AM12/11/2015 11:24:07 AMData Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)

:Annulation. INFORMATION

THROUGH HPF SLOPE –06DB

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) À propos de l’iPod/iPhone Made for - iPod touch (2nd, 3rd, 4th et 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th et 7th generation) - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus

“PRESS” “VOLUME KNOB”

und/oder “A.STREAM OK”*

THROUGH HPF SLOPE –06DB

Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm) Wissenswertes über iPod/iPhone Made for - iPod touch (2nd, 3rd, 4th und 5th generation) - iPod classic - iPod nano (3rd, 4th, 5th, 6th und 7th generation) - iPhone 3G, 3GS, 4, 4S, 5, 5S, 5C, 6, 6 Plus
