Brand	Sony
Model	CDXG1200U
Product type	Car stereo with CD player, FM/MW/LW tuner, USB port, AUX input
Dimensions (W × H × D)	Approx. 178 × 50 × 177 mm
Weight	Approx. 1.2 kg
Power supply	Vehicle battery 12 V DC (negative ground), nominal current consumption 10 A
Maximum output power	55 W × 4 (at 4 Ω)
Speaker impedance	4 Ω – 8 Ω
FM tuning range	87.5 – 108.0 MHz (Europe) / FM1/FM2: 87.5 – 108.0 MHz, FM3: 65 – 74 MHz (Russia)
MW/LW tuning range	MW: 531 – 1602 kHz, LW: 153 – 279 kHz
Compatible audio formats (USB)	MP3, WMA, FLAC (depending on specifications)
Compatible audio formats (CD)	CD-DA, MP3, WMA
Main functions	RDS radio, CD player, USB (AOA 2.0/MSC/MTP), AUX input, 10-band equalizer, Extra Bass, Quick-BrowZer, steering wheel remote control
Maintenance and cleaning	Clean the faceplate connectors with a cotton swab; clean discs from the center outward
Safety	Detachable front panel with anti-theft alarm; AUTO OFF function to prevent battery drain
Spare parts and repairability	Replaceable fuse (amp rating indicated on the old fuse); removable chassis sleeve and trim ring
General information	Made in Thailand; EU declaration of conformity available at www.compliance.sony.de

Frequently Asked Questions - CDXG1200U SONY

How to disable demonstration mode (DEMO)?

Press MENU, turn the dial to select GENERAL, then SET DEMO. Choose SET DEMO-OFF and confirm. Press (Back) twice to return to normal display.

What to do if the car stereo does not turn on?

Check the fuse and replace if necessary. Make sure the power cable (yellow for permanent, red for switched) is properly connected. If the problem persists, consult a Sony dealer.

How to set the clock?

Press MENU, select GENERAL, then SET CLOCK-ADJ. Turn the dial to adjust hours and minutes. Use SEEK +/- to switch fields. Press MENU to confirm.

Why is there no sound?

Make sure the volume is not at minimum, and that balance (BALANCE) and fader (FADER) are set correctly. If using an external amplifier, ensure the REM OUT cable is connected and the amplifier is powered on.

How to connect an Android smartphone in USB mode?

Connect the smartphone to the USB port. If necessary, set USB MODE in the GENERAL menu to ANDROID (for AOA 2.0) or MSC/MTP. Playback starts automatically if the mode is compatible.

What does the message 'OVERLOAD' mean?

The USB device is overloaded. Disconnect it, then press SRC to select another source. Make sure the device is not defective and is compatible.

How to store radio stations?

Tune to the desired station, then press and hold a number button (1 to 6) until MEM appears. For automatic memorization (BTM), go to MENU > GENERAL > SET BTM.

The disc does not eject, what to do?

Press DSPL and (Back)/MODE simultaneously for more than 2 seconds to reset the unit. Note: This erases stored settings. If the problem persists, contact technical support.

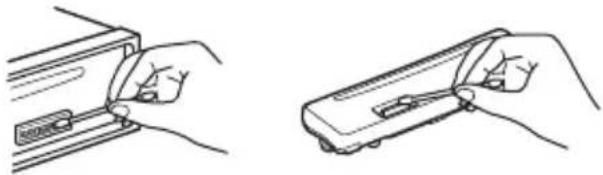

How to clean the front panel connectors?

Remove the front panel, then use a cotton swab to gently clean the connectors. Do not touch the connectors with fingers or a metal object. Turn off the ignition before cleaning.

Where to find the firmware version and how to update it?

In the GENERAL menu, select FIRMWARE then FW VERSION to see the current version. To update, connect a USB drive containing the update program (downloaded from the Sony support website), then select FW UPDATE. Do not turn off the ignition during the update.

USER MANUAL CDXG1200U SONY

FM/MW/LW Compact Disc Player

CD Player with Built-in FM/MW/LW Tuner

FM/MW/LW Programmable Compact Disc Player

To cancel the demonstration (DEMO) display, see page 10.

For the connection/installation, see page 20.

Operating Instructions GB

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see "Connection/Installation" (page 20).

Made in Thailand

Laser Diode Properties

• Emission Duration: Continuous
• Laser Output: Less than 53.3 μW

(This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.)

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

CE

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

This equipment is intended to be used with the approved version(s) of software that are indicated in the EU Declaration of Conformity.

The software loaded on this equipment is verified to comply with the essential requirements of Directive 2014/53/EU. Software version: 1_

The software version can be checked in the firmware setup item of the general setup menu.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives.

Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium.

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries with separate collection systems).

with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

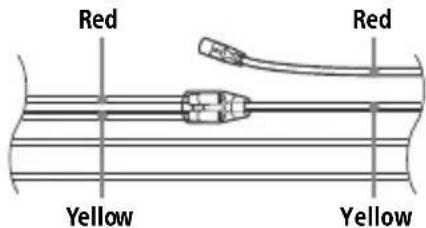

Warning if your car's ignition has no ACC position

Be sure to set the AUTO OFF function (page 10). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Table of Contents

Guide to Parts and Controls 4

Getting Started

Detaching the Front Panel. 5

Resetting the Unit 5

Setting the Clock 6

Connecting a USB Device 6

Connecting Other Portable Audio Device 6

Listening to the Radio

Listening to the Radio 7

Using Radio Data System (RDS) 7

Playback

Playing a Disc 8

Playing a USB Device 8

1. Searching and Playing Tracks 9

Settings

Canceling the DEMO Mode 10

Basic Setting Operation. 10

General Setup (GENERAL) 10

Sound Setup (SOUND) 11

Display Setup (DISPLAY) 12

Additional Information

Updating the Firmware 13

Precautions. 13

Maintenance. 14

Specifications 14

Troubleshooting 16

Messages 18

Connection/Installation

Cautions 20

Parts List for Installation 20

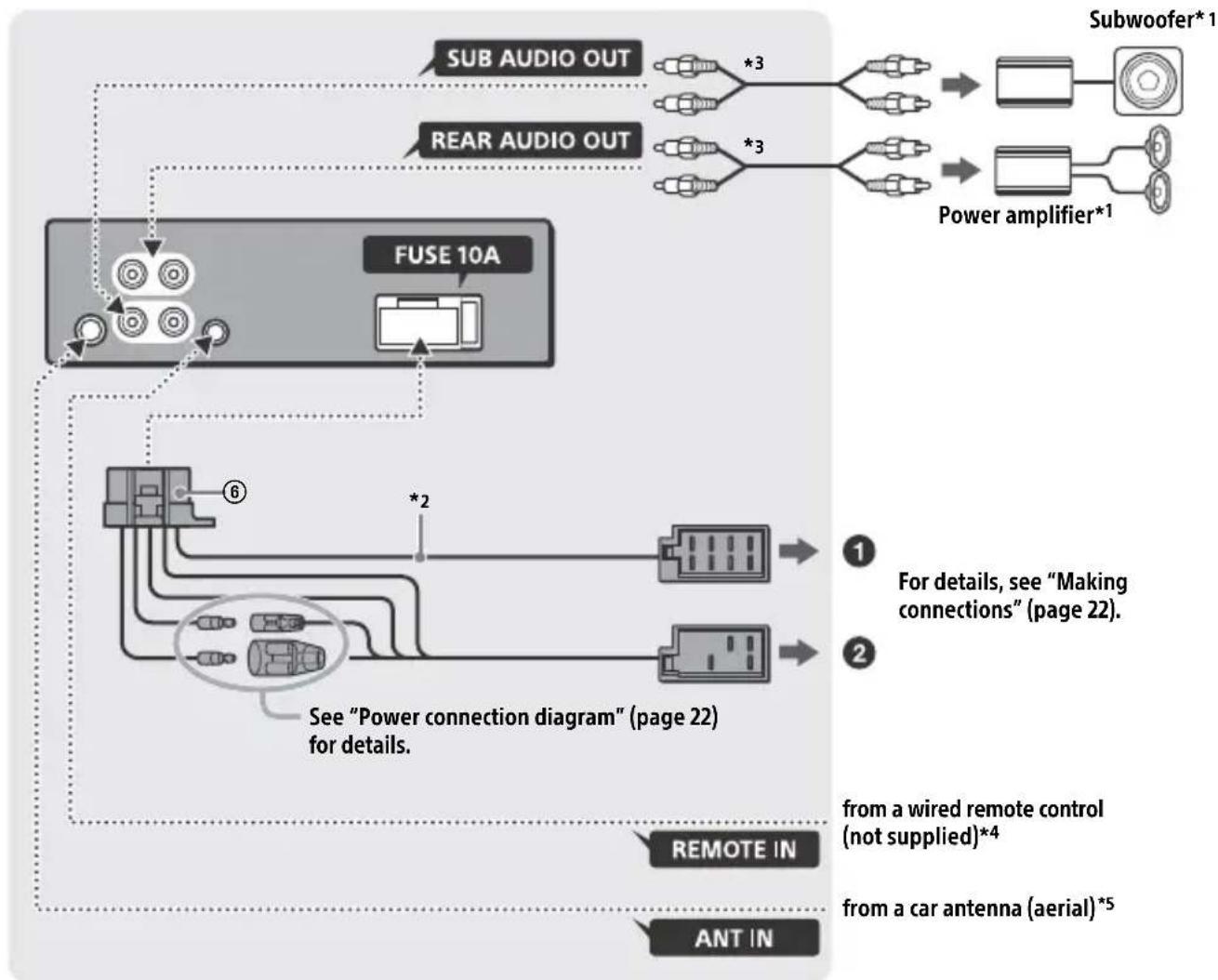

Connection 21

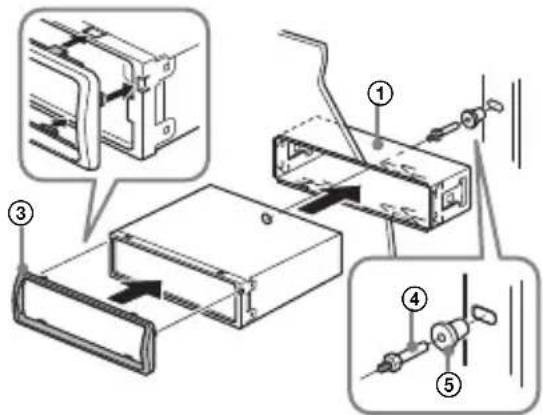

Installation 23

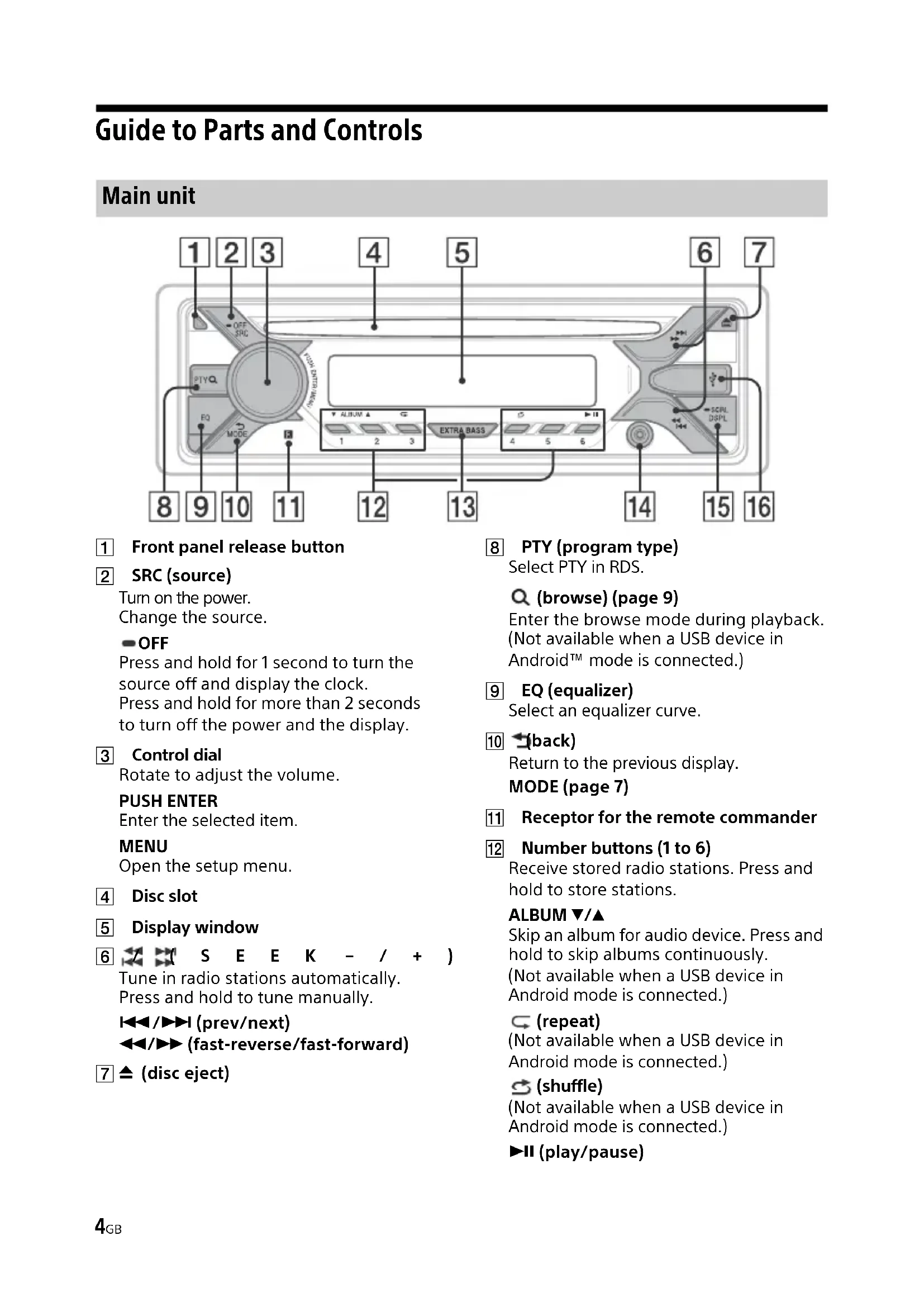

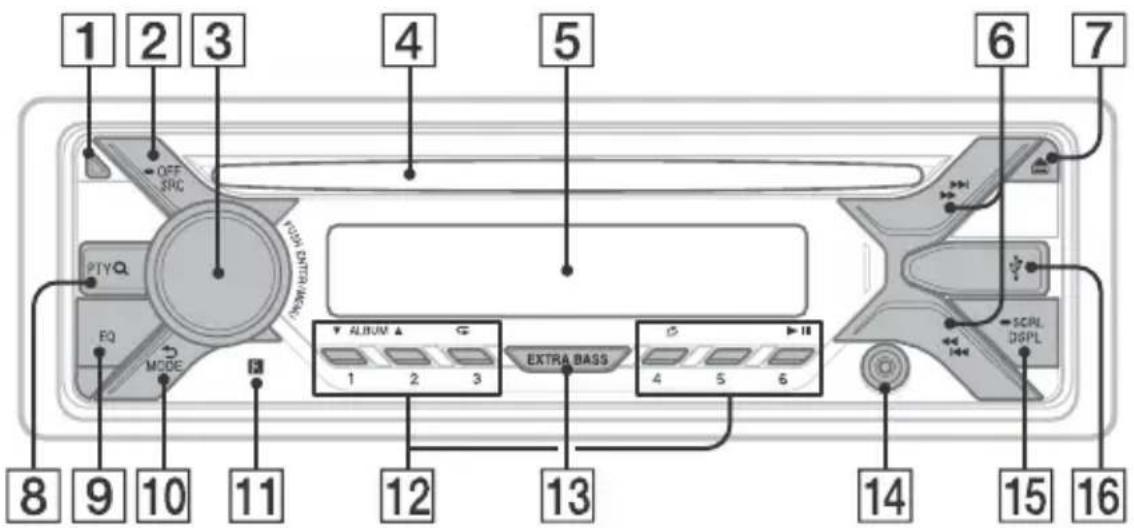

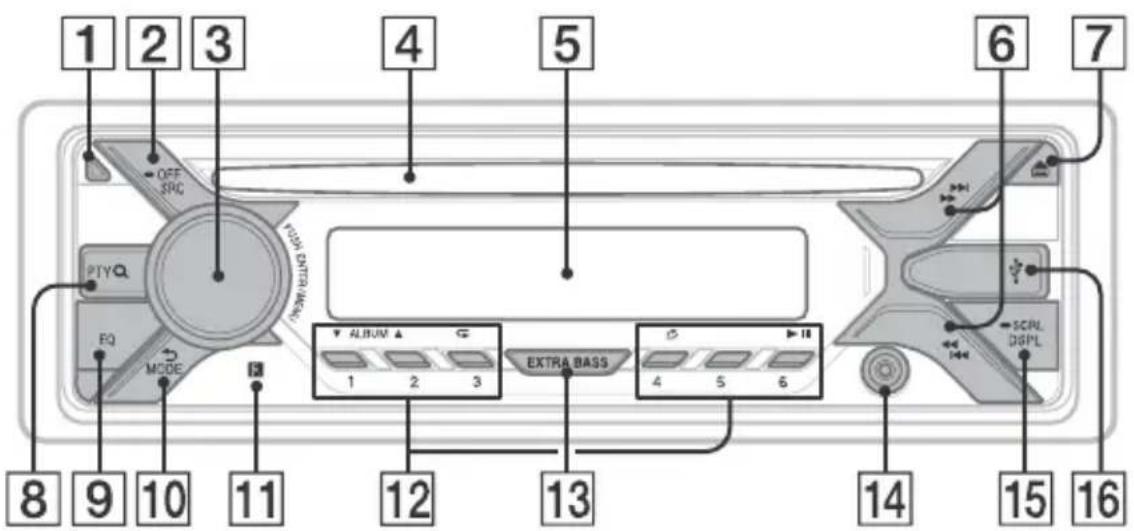

Guide to Parts and Controls

Main unit

1 Front panel release button 2 SRC (source)

Turn on the power.

Change the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

3 Control dial

Rotate to adjust the volume.

PUSH ENTER

Enter the selected item.

MENU

Open the setup menu.

4 Disc slot 5 Display window 6 SEEK -/+

Tune in radio stations automatically.

Press and hold to tune manually.

I/prev/next)

(fast-reverse/fast-forward)

7 (disc eject)

8 PTY (program type)

Select PTY in RDS.

Q (browse) (page 9)

Enter the browse mode during playback.

Not available when a USB device in

Android mode is connected.)

EQ (equalizer)

Select an equalizer curve.

10 (back)

Return to the previous display.

MODE (page 7)

11 Receptor for the remote commander

12 Number buttons (1 to 6)

Receive stored radio stations. Press and hold to store stations.

ALBUM ∇/△

Skip an album for audio device. Press and hold to skip albums continuously.

(Not available when a USB device in

Android mode is connected.)

(repeat)

(Not available when a USB device in

Android mode is connected.)

(shuffle)

(Not available when a USB device in

Android mode is connected.)

II (play/pause)

13 EXTRA BASS

Reinforces bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF].

14 AUX input jack

15 DSPL(display)

Change display items.

SCRL (scroll)

Press and hold to scroll a display item.

16 USB port

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

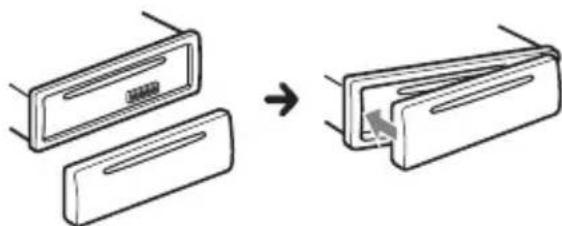

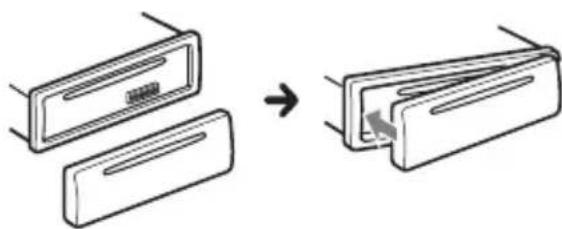

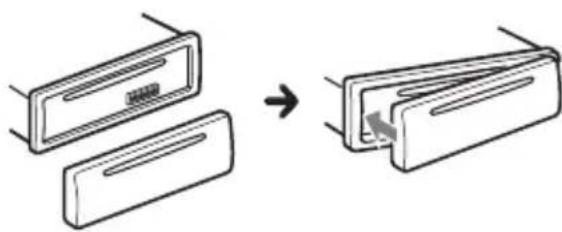

Attaching the front panel

Resetting the Unit

Before operating the unit for the first time, or after replacing the car battery or changing connections, you must reset the unit.

1 Press DSPL and (back)/MODE for more than 2 seconds.

Note

Resetting the unit will erase the clock setting and some stored contents.

Setting the area/region

After resetting the unit, the area/region setting display appears.

1 Press ENTER while [SET AREA] is displayed.

The area/region currently set appears.

2 Rotate the control dial to select [EUROPE] or [RUSSIA], then press it. 3 Rotate the control dial to select [YES] or [NO], then press it. If the setting area/region is changed, the unit is reset, then the clock is displayed.

This setting can be configured in the general setup menu (page 10).

Setting the Clock

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET CLOCK-ADJ], then press it. The hour indication flashes. 3 Rotate the control dial to set the hour and minute. To move the digital indication, press SEEK + / - 4 After setting the minute, press MENU. The setup is complete and the clock starts.

To display the clock Press DSPL.

Connecting a USB Device

1 Turn down the volume on the unit. 2 Connect the USB device to the unit.

Connecting Other Portable Audio Device

1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.

• Be sure to use a straight type plug.

4 Press SRC to select [AUX].

To match the volume level of the connected device to other sources

Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit. Press MENU, then select [SOUND] → SET AUX VOL .

Listening to the Radio

Listening to the Radio

To listen to the radio, press SRC to select [TUNER].

Storing automatically (BTM)

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Press MENU, rotate the control dial to select [GENERAL], then press it. 3 Rotate the control dial to select [SET BTM], then press it.

The unit stores stations in order of frequency on the number buttons.

Tuning

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Perform tuning.

To tune manually

Press and hold SEEK + / - to locate the approximate frequency, then press SEEK + / - repeatedly to fine adjust to the desired frequency.

To tune automatically

Press SEEK + / -

Scanning stops when the unit receives a station.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1 Select the band, then press a number button (1 to 6).

Using Radio Data System (RDS)

Setting alternative frequencies (AF) and traffic announcement (TA)

AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET AF/TA], then press it. 3 Rotate the control dial to select [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press it.

To store RDS stations with the AF and TA setting

You can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations.

To receive emergency announcements

With AF or TA on, emergency announcements will automatically interrupt the currently selected source.

To adjust the volume level during a traffic announcement

Level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

To stay with one regional program (REGIONAL)

When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program's reception area, set [SET REG-OFF] in [GENERAL] during FM reception (page 11).

This function does not work in the UK and some other areas.

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons. During FM reception, press a number button (1 to 6) on which a local station is stored. Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received.

Selecting program types (PTY)

1 Press PTY during FM reception. 2 Rotate the control dial until the desired program type appears, then press it. The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Setting clock time (CT)

The CT data from the RDS transmission sets the clock.

1 Set [SET CT-ON] in [GENERAL] (page 11).

Playback

Playing a Disc

1 Insert the disc (label side up).

Playback starts automatically.

Playing a USB Device

AOA (Android Open Accessory) 2.0, MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices* compliant with the USB standard can be used. Depending on the USB device, the Android mode or MSC/MTP mode can be selected on the unit. Some digital media players or Android smartphones may require setting to MTP mode.

• e.g., a USB flash drive, digital media player, Android smartphone

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Smartphones with Android OS 4.1 or higher installed support Android Open Accessory 2.0 (AOA 2.0). However, some smartphones may not fully support AOA 2.0 even if Android OS 4.1 or higher is installed. For details on the compatibility of your Android smartphone, visit the support site on the back cover.
• Playback of the following files is not supported. MP3/WMA/FLAC: copyright-protected files
• DRM (Digital Rights Management) files
• Multi-channel audio files MP3/WMA:
• lossless compression files

Before making a connection, select the USB mode (Android mode or MSC/MTP mode) depending on the USB device (page 11).

1 Connect a USB device to the USB port (page 6).

Playback starts.

If a device is already connected, to start playback, press SRC to select [USB].

2 Adjust the volume on this unit.

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

Searching and Playing Tracks

Repeat play and shuffle play

Not available when a USB device in Android mode is connected.

1 During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode.

Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name (QuickBrowZerTM)

Not available when a USB device in Android mode is connected.

1 During CD or USB playback, press (browse)* to display the list of search categories.

When the track list appears, press (back) repeatedly to display the desired search category.

• During USB playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list.

2 Rotate the control dial to select the desired search category, then press it to confirm. 3 Repeat step 2 to search the desired track.

Playback starts.

To exit the Quick-BrowZer mode

Press (browse).

Searching by skipping items (Jump mode)

Not available when a USB device in Android mode is connected.

1 Press Q (browse). 2 Press SEEK+. 3 Rotate the control dial to select the item.

The list is jumped in steps of 10% of the total number of items.

4 Press ENTER to return to the QuickBrowZer mode.

The selected item appears.

5 Rotate the control dial to select the desired item, then press it.

Playback starts.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET DEMO], then press it. 3 Rotate the control dial to select [SET DEMO-OFF], then press it. The setting is complete. 4 Press → (back) twice.

The display returns to normal reception/play mode.

Basic Setting Operation

You can set items in the following setup categories: General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY)

1 Press MENU. 2 Rotate the control dial to select the setup category, then press it. The items that can be set differ depending on the source and settings. 3 Rotate the control dial to select the options, then press it.

To return to the previous display

Press (back).

General Setup (GENERAL)

AREA

Specifies the area/region to use this unit: [EUROPE], [RUSSIA].

If the area/region currently set is changed, this unit is reset, then the clock is displayed.

(Available only while the source is off and the clock is displayed.)

DEMO (demonstration)

Activates the demonstration: [ON], [OFF].

CLOCK-ADJ (clock adjust) (page 6)

CAUT ALM (caution alarm)

Activates the caution alarm: [ON], [OFF] (page 5).

(Available only while the source is off and the clock is displayed.)

BEEP

Activates the beep sound: [ON], [OFF].

AUTO OFF

Shuts off automatically after a desired time when the unit is turned off: [ON] (30 minutes), [OFF].

STEERING

Registers/resets the setting of the steering wheel remote control.

(Available when connected with the connection cable (not supplied).)

(Available only while the source is off and the clock is displayed.)

STR CONTROL (steering control)

Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use.

CUSTOM

Input mode for the steering wheel remote control

PRESET

Input mode for the wired remote control excluding the steering wheel remote control (automatically selected when [RESET CUSTOM] is performed.)

EDIT CUSTOM

Registers the functions (SOURCE, ATT, VOL +/-, SEEK +/-) to the steering wheel remote control:

1 Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it. 2 While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed. 3 To register other functions, repeat steps 1 and 2.

(Available only when [STR CONTROL] is set to [CUSTOM].)

RESET CUSTOM

Resets the setting of the steering wheel remote control: [YES], [NO].

(Available only when [STR CONTROL] is set to [CUSTOM].)

Notes

• While making settings, only button operation on the unit is available. For safety, park your car before making this setting. If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred.
• This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover.

USB MODE

Changes the USB mode: [ANDROID], [MSC/MTP].

(Available only when the USB source is selected.)

CT (clock time)

Activates the CT function: [ON], [OFF].

AF/TA (alternative frequencies/traffic announcement)

Selects the alternative frequencies (AF) and traffic announcement (TA) setting: [AF-ON], [TA-ON], [AF/TA-ON], [AF/TA-OFF].

REGIONAL

Restricts reception to a specific region: [ON], [OFF].

(Available only when FM is received.)

BTM (best tuning memory) (page 7) (Available only when the tuner is selected.)

FIRMWARE

(Available only while the source is off and the clock is displayed.)

Checks/updates the firmware version. For details, visit the support site on the back cover.

FW VERSION (firmware version)

Displays current firmware version.

FW UPDATE (firmware update)

Enters firmware update process: [YES], [NO].

Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Sound Setup (SOUND)

EQ10 PRESET

Selects an equalizer curve from 10 equalizer curves or off:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL],

[COUNTRY], [KARAOKE]*, [CUSTOM].

The equalizer curve setting can be memorized for each source.

• [KARAOKE] reduces the vocal sound but cannot be fully removed during playback. Also, using a microphone is not supported.

EQ10 CUSTOM

Sets [CUSTOM] of EQ10.

Setting the equalizer curve: [BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz,

[BAND4] 250 Hz, [BAND5] 500 Hz,

[BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4

kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

The volume level is adjustable in 1 dB

steps, from -6 dB to +6 dB.

BALANCE

Adjusts the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjusts the relative level: [FRONT-15] - [CENTER] - [REAR-15].

([ATT] is displayed at the lowest setting.)

Selects the subwoofer phase: [NORM], [REV].

LPF FREQ (low pass filter frequency)

Selects the subwoofer cut-off frequency:

[80Hz], [100Hz], [120Hz].

HPF FREQ (high pass filter frequency)

Selects the front/rear speaker cut-off

frequency: [OFF], [80Hz], [100Hz], [120Hz].

AUX VOL (AUX volume level)

Adjusts the volume level for each

connected auxiliary device: [+18 dB]

[0 dB] - [-8 dB].

This setting negates the need to adjust

the volume level between sources.

(Available only when the AUX is selected.)

Display Setup (DISPLAY)

DIMMER

Changes the display brightness: [ON], [OFF], [CLK].

To set this function to be active only during a fixed period, select [CLK], then set the start and end times.

• To set the brightness when the dimmer function is activated:

Set [DIMMER] to [ON], then adjust [BRIGHTNESS].

• To set the brightness when the dimmer function is deactivated:

Set [DIMMER] to [OFF], then adjust [BRIGHTNESS].

The brightness setting is stored and applied when the dimmer function is activated or deactivated.

BRIGHTNESS

Adjusts the display brightness. The brightness level is adjustable: [1] - [10].

SND SYNC (sound synchronization)

Activates the synchronization of the illumination with the sound: [ON], [OFF].

AUTO SCR (auto scroll)

Automatically scrolls long items: [ON], [OFF].

Not available when the AUX or tuner is selected.

Additional Information

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Notes

• Using a USB device (not supplied) is required for updating the firmware. Store the updater in the USB device, and connect the device to the USB port, then perform the update operation.
• Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Precautions

Cool off the unit beforehand if your car has been parked in direct sunlight. - Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight. - Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.

• This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.
• Discs that this unit CANNOT play
• Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
• Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.
• 8 cm (1/4 in) discs.

Notes on CD-R/CD-RW discs

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played.
• Discs that this unit CANNOT play
• CD-R/CD-RW of poor recording quality.
• CD-R/CD-RW recorded with an incompatible recording device.
• CD-R/CD-RW which is finalized incorrectly.
• CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

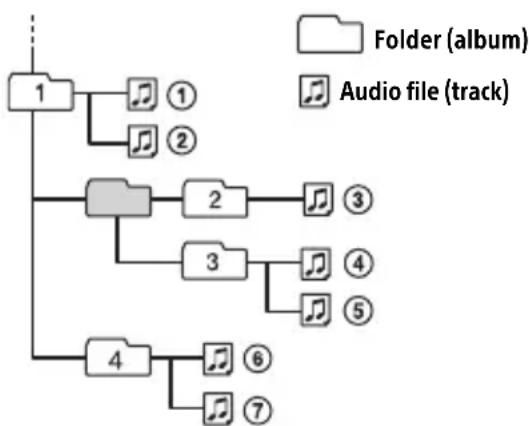

Playback order of audio files

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Specifications

Tuner section

FM

Tuning range: When [AREA] is set to [EUROPE]: 87.5 MHz - 108.0 MHz When [AREA] is set to [RUSSIA]: FM1/FM2: 87.5 MHz - 108.0 MHz (at 50 kHz step) FM3: 65 MHz - 74 MHz (at 30 kHz step) Antenna (aerial) terminal: External antenna (aerial) connector Intermediate frequency: When [AREA] is set to [EUROPE]: FM CCIR: -1,956.5 kHz to -487.3 kHz and +500.0 kHz to +2,095.4 kHz When [AREA] is set to [RUSSIA]: FM CCIR: -1,956.5 kHz to -487.3 kHz and +500.0 kHz to +2,095.4 kHz FM OIRT: -1,815.6 kHz to -943.7 kHz and +996.6 kHz to +1,776.6 kHz Usable sensitivity: 7 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 73 dB Separation: 50 dB at 1 kHz Frequency response: 20 Hz - 15,000 Hz MW/LW Tuning range: MW: 531 kHz - 1,602 kHz LW: 153 kHz - 279 kHz Antenna (aerial) terminal: External antenna (aerial) connector Sensitivity: MW: 26 μV, LW: 50 μV

CD Player section

Signal-to-noise ratio: 95 dB

Frequency response: 10 Hz - 20,000 Hz

Wow and flutter: Below measurable limit

The maximum number of: (CD-R/CD-RW only)

• folders (albums): 150 (including root folder)
• files (tracks) and folders: 300 (may be less than 300 if folder/file names contain many characters) displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo) Corresponding codec: MP3 (.mp3) and WMA (.wma)

USB Player section

Interface: USB (Full-speed) Maximum current: 500 mA The maximum number of recognizable tracks: - folders (albums): 256 - files (tracks) per folder: 256 Compatible Android Open Accessory protocol (AOA): 2.0 Corresponding codec: MP3 (.mp3)

Bit rate: 8 kbps - 320 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 16 kHz - 48 kHz

WMA (.wma)

Bit rate: 32 kbps - 192 kbps (Supports VBR (Variable Bit Rate))

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling rate: 44.1 kHz, 48 kHz

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4Ω - 8Ω

Maximum power output: 55W × 4 (at 4Ω)

General

Outputs:

Audio outputs terminal (REAR, SUB)

Power antenna (aerial)/Power amplifier control terminal (REM OUT)

Inputs:

Remote controller input terminal

Antenna (aerial) input terminal

Power requirements: 12 V DC car battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178mm × 50mm × 177mm

(7 1/8 in × 2 in × 7 in) (w/h/d)

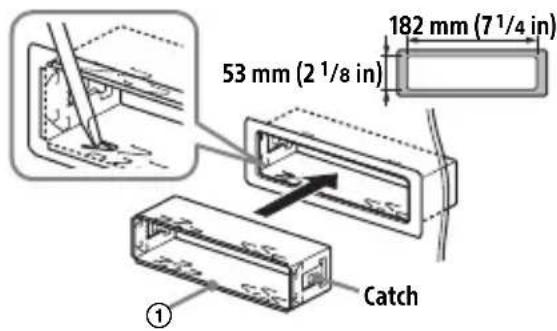

Mounting dimensions:

Approx. 182 mm × 53 mm × 160 mm

(7 1/4 in × 2 1/8 in × 6 5/16 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Package contents:

Main unit (1)

Parts for installation and connections (1 set)

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Android is a trademark of Google Inc.

libFLAC

Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation" (page 20). If the problem is not solved, visit the support site on the back cover.

General

No sound or the sound is very low.

The position of the fader control [FADER] is not set for a 2-speaker system. The volume of the unit and/or connected device is very low. - Increase the volume of the unit and connected device.

No beep sound.

An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

The power supply lead or battery has been disconnected or not connected properly.

Stored stations and correct time are erased.

The fuse has blown. Makes a noise when the position of the ignition is switched.

The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts.

• Set [DEMO-OFF] (page 10).

The display disappears from/does not appear in the display window.

The dimmer is set to [DIM-ON] (page 12). The display disappears if you press and hold OFF.

• Press OFF on the unit until the display appears.

The connectors are dirty (page 14).

The display/illumination flashes.

The power supply is not sufficient.

• Check that the car battery supplies enough power to the unit. (The power requirement is 12 VDC.)

The operation buttons do not function. The disc will not eject.

Press DSPL and (back)/MODE for more than 2 seconds to reset the unit.

The contents stored in memory are erased.

For your safety, do not reset the unit while you are driving.

Radio reception

Stations cannot be received. The sound is hampered by noises.

The connection is not correct.

• Check the connection of the car antenna (aerial).
• If the auto antenna (aerial) will not extend, check the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

The broadcast signal is too weak.

65 MHz to 74 MHz in FM3 cannot be tuned in.

Set [AREA] to [EUROPE].

• Set [AREA] to [RUSSIA] (page 10).

RDS

RDS services cannot be received (when [AREA] is set to [RUSSIA]).

→ FM3 is selected. - Select FM1 or FM2. → RDS services are unavailable in the current region.

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal. - Deactivate TA (page 7).

No traffic announcements.

Activate TA (page 7). The station does not broadcast any traffic announcements despite being TP.

• Tune in another station.

PTY displays [-----]

The current station is not an RDS station. → RDS data has not been received. The station does not specify the program type.

Program service name flashes.

There is no alternative frequency for the current station.

• Press SEEK +/- while the program service name is flashing. [PI SEEK] appears and the unit starts searching for another frequency with the same PI (program identification) data.

CD playback

The disc does not play.

Defective or dirty disc. The CD-R/CD-RW is not for audio use (page 13).

MP3/WMA files cannot be played.

The disc is incompatible with the MP3/WMA format and version. For details on playable discs and formats, visit the support site on the back cover.

MP3/WMA files take longer to play than others.

The following discs take a longer time to start playback.

• A disc recorded with a complicated tree structure.
• A disc recorded in Multi Session. -A disc to which data can be added.

The sound skips.

Defective or dirty disc.

USB device playback

You cannot play items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

A USB device takes longer to play.

The USB device contains files with a complicated tree structure.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate. DRM (Digital Rights Management) files may not be playable in some cases.

Audio file cannot be played.

USB devices formatted with file systems other than FAT16 or FAT32 are unsupported. This unit supports FAT16 and FAT32, but some USB devices may not support all of these FAT formats. For details, refer to the operating instructions of each USB device or contact the manufacturer.

Operations for skipping an album, skipping items (Jump mode), and searching a track by name (QuickBrowZer) cannot be performed.

These operations cannot be performed when a USB device in Android mode is connected. - Set [USB MODE] to [MSC/MTP] (page 11). The USB mode of the device is not set to the appropriate mode. - Make sure that the USB mode of the device is set to MSC/MTP mode.

The sound cannot be output during playback in Android mode.

While the unit is in Android mode, the sound outputs only from the Android smartphone.

• Check the status of the audio playback application on the Android smartphone.
• Playback may not perform properly depending on the Android smartphone.

Messages

The following messages may appear or flash during operation.

CD ERROR: The disc cannot be played. The disc will be ejected automatically. Clean or insert the disc correctly, or make sure the disc is not blank or defective.

CD NO MUSIC: There is no playable file. The disc will be ejected automatically.

Insert a disc containing playable files (page 15).

CD PUSH EJT: The disc could not be ejected properly. Press the eject button.

HUB NO SUPRT: USB hubs are not supported.

INVALID

The selected operation could be invalid. NO AF: No alternative frequencies. Press SEEK + / - while the program service name is flashing. The unit starts searching for another frequency with the same PI (program identification) data ([PI SEEK] appears).

NO TP: No traffic programs. The unit will continue searching for available TP stations.

NOT SUPPORT - ANDROID MODE

A USB device not supporting AOA (Android Open Accessory) 2.0 is connected to the unit while [USB MODE] is set to [ANDROID]. Set [USB MODE] to [MSC/MTP] (page 11).

OVERLOAD: The USB device is overloaded.

Disconnect the USB device, then press SRC to select another source. The USB device has a fault, or an unsupported device is connected.

READ: Now reading information.

Wait until reading is complete and playback starts automatically. This may take some time depending on the file organization.

USB ERROR: The USB device cannot be played.

Connect the USB device again.

USB NO DEV: A USB device is not connected or recognized.

Make sure the USB device or USB cable is securely connected.

USB NO MUSIC: There is no playable file.

Connect a USB device containing playable files (page 15).

USB NO SUPRT: The USB device is not supported.

For details on the compatibility of your USB device, visit the support site on the back cover.

L L L or : The beginning or the end of the disc has been reached.

(underscore): The character cannot be displayed.

For steering wheel remote control operation:

ERROR: An error occurred during the function registration.

Register again from the function where the error occurred (page 11).

TIMEOUT: The function registration failed due to a timeout.

Try completing the registration while [REGISTER] is blinking (about 6 seconds) (page 11).

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the power supply lead ⑥ to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 45 degrees.

Parts List for Installation

① 2

(3) (4)

(5)

6

• This parts list does not include all the package contents.
• The bracket ① and the protection collar ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the bracket ① from the unit. For details, see "Removing the protection collar and the bracket" (page 23).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

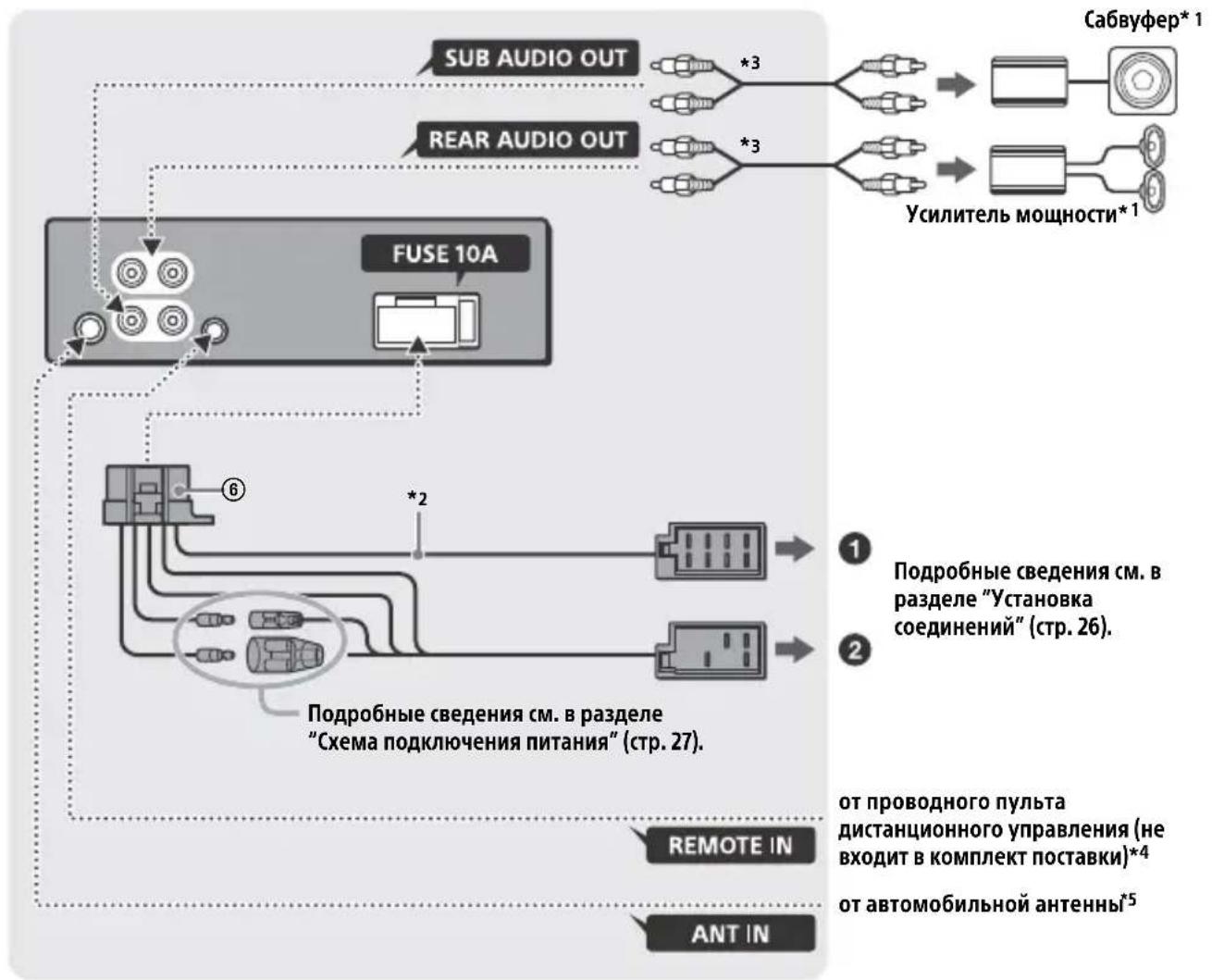

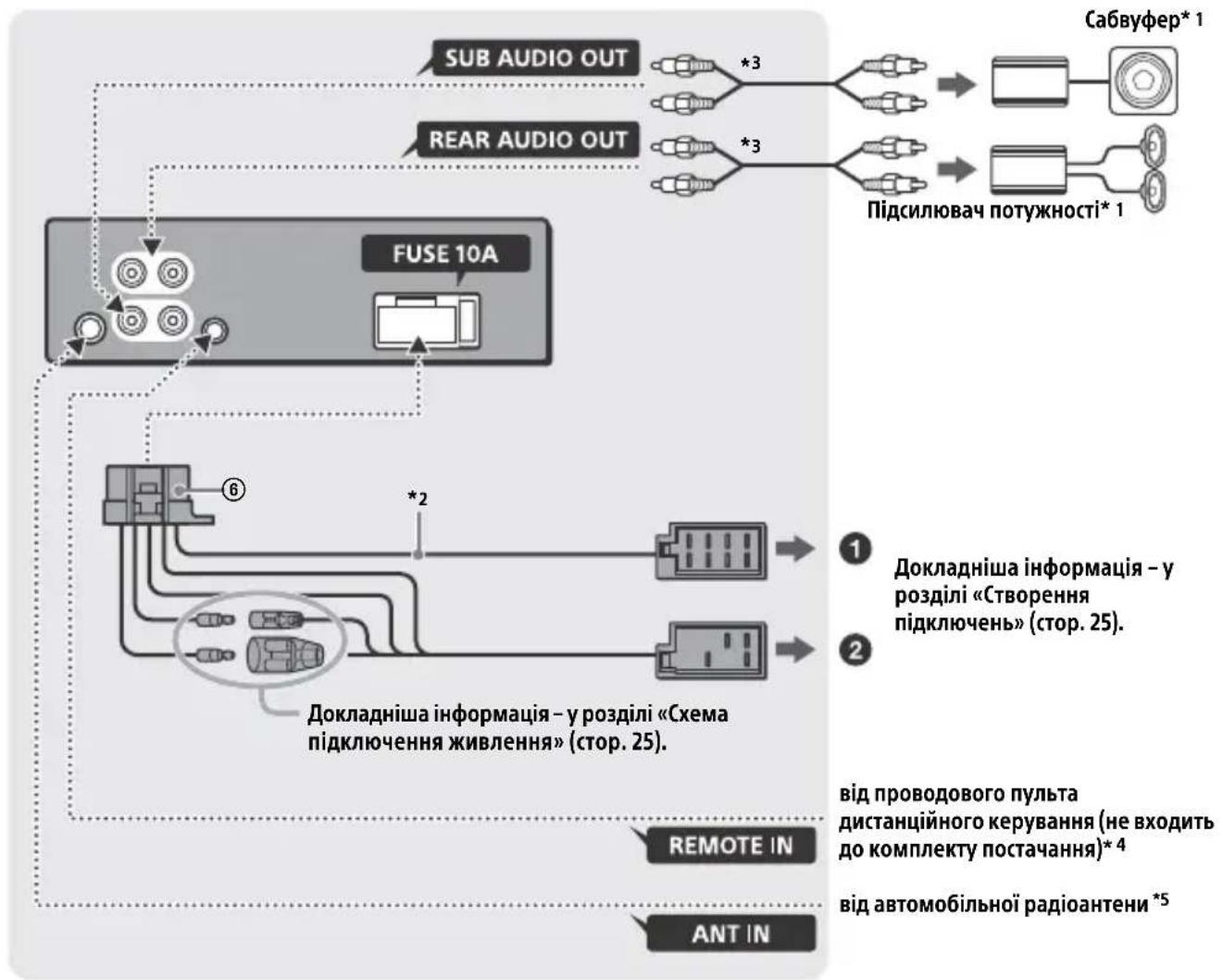

Connection

1 Not supplied 2 Speaker impedance: 4Ω - 8Ω × 4 3 RCA pin cord (not supplied) 4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control" (page 23). *5 Depending on the type of car, use an adaptor (not supplied) if the antenna connector does not fit.

Making connections

If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead ⑥ may damage the antenna (aerial).

To the car's speaker connector

1	Rear speaker (right)	⊕	Purple
2			Purple/black striped
3	Front speaker (right)	⊕	Gray
4			Gray/black striped
5	Front speaker (left)	⊕	White
6			White/black striped
7	Rear speaker (left)	⊕	Green
8			Green/black striped

To the car's power connector

12	continuous power supply	Yellow
13	power antenna (aerial) /power amplifier control (REM OUT)	Blue/white striped
15	switched power supply	Red
16	ground (earth) Black

Subwoofer Easy Connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker cord.

Notes

• Preparation of the rear speaker cords is required.
• Use a subwoofer with an impedance of 4Ω to 8Ω, and with adequate power handling capacities to avoid damage.

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

Before connecting the speakers, turn the unit off. Use speakers with an impedance of 4Ω to 8Ω, and with adequate power handling capacities to avoid damage.

Power connection diagram

Make sure your car's auxiliary power connector, and match the connections of cords correctly depending on the car.

Auxiliary power connector

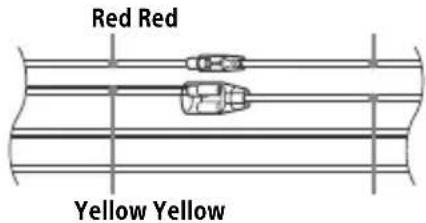

Common connection

12	continuous power supply	Yellow
15	switched power supply Red

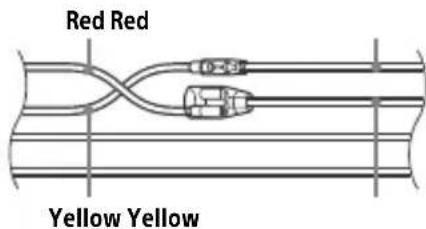

When the positions of the red and yellow leads are inverted

12	switched power supply	Yellow
15	continuous power supply	Red

When the car without ACC position

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

Using the wired remote control

1 To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (page 10).

Installation

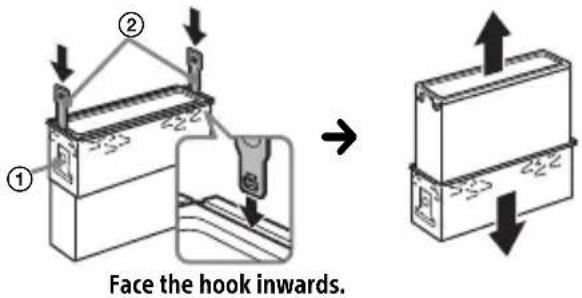

Removing the protection collar and the bracket

Before installing the unit, remove the protection collar ③ and the bracket ① from the unit.

1 Pinch both edges of the protection collar ③ then pull it out.

2 Insert both release keys ② until they click, and pull down the bracket ①, then pull up the unit to separate.

Mounting the unit in the dashboard

Before installing, make sure the catches on both sides of the bracket ① are bent inwards 2 mm (3/32 in).

1 Position the bracket ① inside the dashboard, then bend the claws outward for a tight fit.

2 Mount the unit onto the bracket ①, then attach the protection collar ③.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out. Make sure the 4 catches on the protection collar are properly engaged in the slots of the unit.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 5).

Resetting the unit

For details, see "Resetting the Unit" (page 5).

Fuse replacement

When replacing the fuse, be sure to use one

matching the amperage rating stated on the

original fuse. If the fuse blows, check the power

connection and replace the

fuse. If the fuse blows again after

replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Fuse (10 A)

FW VERSION (Firmware version)

[BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8]

4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

87.5 MHz - 108.0 MHz

Sampling rate: 16 kHz - 48 kHz

WMA (.wma)

Bitrate: 32 Kbps - 192 Kbps

Sampling rate: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Connection/Installation

Attention. 24

Reading starts.

Reading starts.

DEMO (demonstration)

Allows activating the demonstration: [ON], [OFF].

Android Open Accessory (AOA) compatible protocol: 2.0

Corresponding codec: MP3 (.mp3)

Bit rate: 8 kbits/s - 320 kbits/s (VBR (Variable Bit Rate) supported)

Main unit (1)

Connection/Installation

Caution

250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

Interface: USB (Full speed)

Folders (albums): 256

Files (tracks) per folder: 256

Android Open Accessory (AOA) compatible protocol: 2.0

Corresponding codec: MP3 (.mp3)

Produced in Thailand

Laser diode characteristics

Manufacturer: Sony Corporation, 1-7-1 Konan

Minato-ku Tokyo, 108-0075 Japan

Select PTY in RDS. Q (browse) (page 10)

250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz,

[BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9]

8 kHz, [BAND10] 16 kHz.

Interface: USB (Full-speed)

Maximum current: 500 mA

• Mappings (albums): 256

Files (tracks) per folder: 256

Supports Android Open Accessory Protocol (AOA): 2.0

Corresponding codec: MP3 (.mp3)

Bitrate: 8 kbps - 320 kbps (Supports VBR (Variable Bit Rate))

Sampling frequency: 16 kHz - 48 kHz

WMA (.wma)

Bitrate: 32 kbps - 192 kbps

(Supports VBR (Variable Bit Rate))

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling frequency: 44.1 kHz - 48 kHz

Power amplifier

• Laser output power: less than 53.3 mW

(Value obtained at a distance of 200 mm from the lens surface of the optical reading unit with an aperture of 7 mm.)

The plate with the indication of the operating parameters of other characteristics is located on the lower panel of the housing.

The date of manufacture is indicated on the product, as well as on the accompanying form:

MM.YYYY, where MM is the month and YYYY is the year of manufacture.

Information for customers in Ukraine

Authorized representative in Ukraine on issues of compliance with the requirements of technical regulations: LLC "Sony Ukraine", st. Ilyinskaya, 8, Kyiv, 04070, Ukraine.

The equipment complies with the requirements of the technical regulation on restricting the use of certain hazardous substances in electrical and electronic equipment (Resolution of the CMU dated 03.12.2008 No. 1057).

Storage conditions

The product must be stored in its original packaging in dark, dry, clean, well-ventilated rooms, isolated from places where acids and alkalis are stored.

Storage temperature: from -20 to +60 °C. Relative storage humidity: 80%. Operating temperature: from 0 to 40 °C. Operating relative humidity: 40-60%.

Disposal of used power supply elements and

electronic equipment (the directive applies in EU countries and other European countries where separate waste collection systems are in effect)

Warning for users when the lock is activated without the ACC position

Make sure that the AUTO OFF function is set (page 12). After turning off the device, its power will be automatically disconnected after a set time, which prevents battery discharge. If the AUTO OFF function is not set, then with each shutdown of the lock, press and hold the OFF button until the display goes out.

Sony bears no responsibility for services provided by third-party suppliers.

Services provided by third-party suppliers may be changed, suspended, or terminated without prior notice. Sony is not responsible for situations of this kind.

Table of Contents

Parts and Controls Guide 4

Getting Started

Power Supply 5

Resetting the Device 6

Setting the Clock 6

Connecting a USB Device 6

Connecting Another Portable Audio Device 7

Listening to the Radio

Listening to the Radio 7

Radio Data System (RDS) 8

Playback

Playing a Disc 9

Connecting the USB device. 9

Searching and playing tracks 10

Parameters

Exiting DEMO mode 11

Basic operations for setting parameters 11

Setting general parameters (GENERAL) 12

Setting the sound (SOUND) 13

Setting the display (DISPLAY) 14

Additional information

Updating the microcontroller program 15

Safety precautions 15

Caring for the device 16

Technical specifications 17

Troubleshooting 19

Messages. 22

Installation/Connection

Attention! 24

List of parts for installation 24

Connection 25

Installation. 27

Reference guide to parts and controls

Main unit

1 Front panel button 2 SRC (source)

Turning on.

Changing the signal source.

OFF

Press and hold for 1 second to turn on the source and display the time.

Press and hold for more than 2 seconds to turn off the unit and display.

3 Rotary encoder

Q (overview) (pp. 10, 11)

Time of playback.

(Not available if the USB device is disabled in Android mode.)

EQ (Equalizer) Selects the equalizer curve. 10 (Back) Returns to the previous screen. MODE (p. 7) 11 Signal receiver for the remote control

12 Number buttons (1-6)

Receives stations saved in memory. Press and hold to save a station.

ALBUM ▼/▲

Skips albums on the audio device. Press and hold for continuous album skip.

(Not available if the USB device is disabled in Android mode.)

(repeat)

(Not available if the USB device is disabled in Android mode.)

(shuffle)

(Not available if the USB device is disabled in Android mode.)

II (Play/Pause)

13 EXTRA BASS

Enhances bass sound in sync with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF].

14 Aux socket

15 DSPL (display)

Changing the indication.

SCRL (scroll)

Press and hold to scroll the indication.

16 USB port

Getting started

Removing the front panel

To avoid damaging the device, you can remove its front panel.

1 Press and hold the OFF button ① until the device turns off. Press the front panel release button ②, then pull the panel towards you and remove it.

Warning beep

If the front panel is not removed before turning the ignition switch to OFF, a warning beep will sound for a few seconds. The beep will sound only if the built-in amplifier is used.

Installing the front panel

Resetting the device

Before using the device for the first time, after replacing the car battery, or when reconnecting the cables, it is necessary to reset the device.

Press the DSPL button (or MODE) for more than 2 seconds.

Application

Restarting the device will lead to the deletion of settings for the clock and some saved content elements.

Setting the country/region

After restarting the device, the country/region settings menu will open.

1 When [SET AREA] is displayed, press the ENTER button. The current country or region will be displayed. 2 Turn the rotary dial to select [EUROPE] or [RUSSIA], then press the rotary dial. 3 Turn the rotary dial to select [YES] or [NO], then press the rotary dial.

When you change the region or country, the device will restart, and after that the clock will be displayed on the screen.

This parameter can be set in the parameter menu (page 12).

Setting the clock

1 Press the MENU button, turn the rotary dial to select [GENERAL], then press the rotary dial. 2 Turn the rotary dial to select [SET CLOCK-ADJ], then press the rotary dial. The hour indicator will start blinking. 3 Turn the rotary dial to set the hour and minute values.

To change the indicator, press the SEEK +/- button.

4 After setting the minutes, press the MENU button.

The setting is complete, and after that the clock will start counting time.

Displaying the clock

Press the DSPL button.

Connecting a USB device

1 Lower the volume on the device. 2 Connect the USB device to the device.

Setting the clock (CT)

To stop playback

Press and hold the OFF button for 1 second.

Stop playback, then remove the device.

Playback in the selected mode may not start immediately.

Available playback modes depend on the selected audio source.

Searching for tracks by name (Quick-BrowZer™)

Not available if a USB device is connected in Android mode.

1 During CD or USB playback, press (browse)* to display the list of search categories.

When the track list appears, press the BACK button until the desired search category is displayed.

*During USB device playback, press and hold the Q (browse) button for more than 2 seconds to return directly to the beginning of the category list.

2 Turn the rotary dial to select the desired search category, then press the rotary dial to confirm. 3 Repeat step 2 to find the desired track.

Playback starts.

CLOCK-ADJ (clock setting) (p. 6)

CAUT ALM (caution alarm)

Turning on the caution alarm: [ON], [OFF] (p.5).

(Available only when the power is off and the clock is displayed.)

BEEP

Activation of the sound signal: [ON], [OFF].

AUTO OFF

Automatic shutdown after a set time if the device is turned on: [ON] (30 minutes), [OFF].

STEERING

Registration/change of settings of the remote control steering wheel.

(Available when the connecting cable is connected (not included in the delivery set).) (Available only when the power is off and the clock is displayed.)

STR CONTROL (remote control steering wheel)

Selection of the input mode of the connected remote control. To avoid malfunctions, select the appropriate input mode before using.

Appropriate input mode of the connected remote control

of the remote control.

CUSTOM

Mode of direct control on the steering wheel.

PRESET

Mode for entering the direct control preset, except for the direct control preset on the steering wheel (selected automatically when [RESET CUSTOM] is performed).

EDIT CUSTOM

Registration of functions (SOURCE, ATT, VOL + / - , SEEK + / - ) for direct control on the steering wheel.

1 Turn the rotary knob, select the function to be assigned to the direct control on the steering wheel, then press the rotary knob. 2 While the [REGISTER] message is displayed, press and hold the button on the steering wheel to which the function is to be assigned. 10 When registration is complete, [REGISTERED] is displayed. 3 To register other functions, repeat steps 1 and 2.

(Available only if the [STR CONTROL] parameter is set to [CUSTOM].)

RESET CUSTOM

Change the settings of the direct control on the steering wheel: [YES], [NO].

(Available only if the [STR CONTROL] parameter is set to [CUSTOM].)

Notes

• While changing the settings, only button control is available on this device. For safety, stop the vehicle before changing these settings.
• If an error occurs during registration, previously registered information is retained. Perform the registration procedure again, starting from the function where the error occurred. -This function may not be available on some vehicles. For detailed information on compatibility with your vehicle, visit the website indicated on the back cover.

USB MODE

USB mode change: [ANDROID], [MSC/MTP].

Display of current firmware version.

FW UPDATE (Firmware update)

Start firmware update: [YES], [NO].

Firmware update takes several minutes. During the update, do not turn the power switch to the OFF position and do not disconnect the USB device being used.

Sound settings (SOUND)

EQ10 PRESET

Select an equalizer curve from 10 equalizer curves or disable the equalizer:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

The selected equalizer curve for each source can be saved to memory.

*When [KARAOKE] is selected, the voice sound during playback is attenuated, but not completely eliminated. Microphone use is not recommended.

EQ10 CUSTOM

Select the [CUSTOM] option for EQ10. Adjust the equalizer curve: [BAND1]32Hz, [BAND2]63Hz, [BAND3]125Hz, [BAND4]250Hz, [BAND5]500Hz, [BAND6]1kHz, [BAND7]2kHz, [BAND8]4kHz, [BAND9]8kHz, [BAND10]16kHz. The volume level is adjustable in the range from -6dB to +6dB in 1dB steps.

BALANCE

Adjust the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Level adjustment relative to the level: [FRONT-15] - [CENTER] - [REAR-15].

S.WOOFER (subwoofer)

SW LEVEL (subwoofer level)

Adjustment of the subwoofer volume level: [+6dB] -[0 dB]-[-6 dB].

([ATT] is displayed when the minimum value is set.)

SW PHASE (subwoofer phase)

Selection of subwoofer phase: [NORM], [REV].

LPF FREQ (low-pass filter frequency)

Selection of the subwoofer cutoff frequency:

[80Hz], [100Hz], [120Hz].

HPF FREQ (high-pass filter frequency)

Selection of the cutoff frequency value for front/rear speakers: [OFF], [80Hz], [100Hz], [120Hz].

AUX VOL (AUX volume level)

Adjustment of the volume level of each connected auxiliary device: [+18dB] -[0 dB]-[-8 dB].

This setting eliminates the need to adjust the volume for different sources.

AUTO SCR (automatic scrolling)

Automatic scrolling of long items: [ON], [OFF].

(Unavailable if the AUX or TUNER source is selected.)

Precautions

• If the car has been parked in a sunny place, do not turn on the device until it has cooled down. Do not leave the front panel or portable audio devices inside the car, as high temperatures resulting from direct sunlight may cause damage.
• When the device is in operation, the antenna extends automatically with an electric motor.

Condensation

If condensation forms inside the device, remove the disc and wait for about an hour until the moisture evaporates. Otherwise, malfunctions may occur during operation.

To maintain high sound quality

Do not spill liquids on the device or discs.

Notes on discs

-Do not expose discs to direct sunlight or heat sources, such as hot air vents. Do not leave discs in a car parked in a sunny place.

-Wipe discs with a soft cloth from the center to the edge. Do not use solvents such as benzine, thinner, or record cleaners.

-This device is designed for playback of discs that meet the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard and therefore may not play on this device. -Discs that this device cannot play:

- Discs with labels, stickers, and also with adhesive tape attached. Using such discs may cause malfunctions or damage to the disc. - Discs of non-standard shape (for example, heart, square, star shaped). Otherwise, this may lead to damage to the device. - Discs with a diameter of 8 cm.

Resolution: 166 dpi, 246 dpi

Sampling frequency: 44.1 kHz, 48 kHz

Power amplifier

Output: speaker outputs

Load impedance

Speakers: 4 Ω - 8 Ω

Maximum output power: 55 W

x4 (at 4 Ω load)

Other information

Outputs:

Audio output terminals (REAR, SUB)

Antenna / terminal

Controlled via remote control (REMOTE)

Inputs:

Input terminal block

Remote control

Antenna input

AUX input jack (stereo)

Stereo jack

USB port

Power supply requirements:

12 V DC automotive battery (negative ground)

Direct current (negative ground)

Grounding

Nominal current: 10 A

Dimensions:

Mounting dimensions:

Presence of some of the accessories listed above.

Obligatory

Microsoft Corporation. Historical History of Microsoft Corporation.

Distribution of power technology

Except as stated in this product, without

No sound signal is heard.

→ An additional power amplifier is connected, and the built-in one is not used.

Data has been deleted from memory.

→ The power cord is not properly connected, or the battery has been removed.

The programmed radio station and time setting have been deleted from memory.

The fuse has blown. It blew when the ignition key was turned.

→ The speakers are not properly connected to the electrical connector of the auxiliary equipment of the vehicle.

The demonstration starts when the power is turned on.

→ If, with the demonstration mode [DEMO-ON] turned on, no operations are performed for 5 minutes, the demonstration starts. - Set the value [DEMO-OFF] (p.12).

The display disappears from the screen.

→ The value [DIM-ON] is set (p.14). → The display turns off if you press and hold the OFF button. - Press the OFF button on the device and hold it pressed until the display turns on. → The contacts are dirty (p.16).

The display/backlight is dim.

• Make sure the device receives enough power from the car battery. (Power supply requirement: 12 V DC.)

The control buttons do not work. The device does not turn on.

Press and hold the DSPL (Back)/MODE button for more than 2 seconds to restart the device. The content of the playlist will be deleted. For safety reasons, do not restart the device while driving.

Radio reception

Cannot receive radio stations. Sound is accompanied by interference.

→ Incorrect connection.

Check the connection of the car antenna. If the automatic antenna does not extend, check the connection of the antenna control wire to the electric drive.

Cannot perform the initial setup.

→ The radio signal is too weak.

In the FM3 band, it is not possible to tune to frequencies 65 MHz - 74 MHz.

→ For [AREA], [EUROPE] is selected. - Set the [AREA] value to [RUSSIA] (page 12).

RDS

Cannot receive RDS services (when the [AREA] parameter is set to [RUSSIA]).

→ Select the FM3 band. - Select FM1 or FM2. → RDS services are not available in this region.

A few seconds of listening includes the SEEK function.

→ The station does not transmit TP data or transmits too weak a signal. -Turn off TA (p.8).

Traffic announcements are not transmitted.

→ Turn on TA (p.8). → The station does not transmit traffic announcements, although it is of the TP type. -Tune to another station.

When the PTY function is enabled, the indication [---] is displayed.

→ The received station does not transmit RDS data. → RDS data is not received. → The station does not indicate the program type.

The program service name is displayed.

→ For the selected data, the station does not use the alternative frequency.

• Press the SEEK +/- button until the program service name is displayed. [PI SEEK] appears, and the device starts searching for another frequency with the same PI data (program identification).

Playing CD discs

The compact disc is not played.

→ The disc is scratched or damaged. → CD-R/CD-RW discs are not intended for audio playback (p.16).

MP3/WMA files cannot be played.

→ The disc is not compatible with the MP3/WMA format version. To obtain detailed information about playable discs and formats, visit the website whose address is indicated on the rear cover.

An audio file cannot be played.

USB devices formatted with file systems other than FAT16 or FAT32 are not supported.

* This device supports FAT16 and FAT32 file system formats; however, some USB devices may not support all of these FAT file system formats. For details on the supported file systems, refer to the instruction manual of the specific USB device or contact the manufacturer.

It is not possible to perform album skip, track skip (jump mode), or search by track name (QuickBrowZer).

→ These operations are unavailable when a USB device is connected in Android mode. - For the [USB MODE] parameter, set the value to [MSC/MTP] (p.13). → The USB mode on the device is set incorrectly. - Make sure that the USB mode on the device is set to MSC/MTP.

In Android mode, audio from the unit is not output.

When the unit is in Android mode, audio is output only from the smartphone with Android OS.

- Check the connection for audio playback from the smartphone with Android OS. - Depending on the smartphone with Android OS, playback issues may occur.

Messages

While the unit is operating, messages may be displayed.

CD ERROR: The disc cannot be played. The disc will be ejected automatically.

→ Insert the disc correctly, or make sure the disc is not empty or damaged. CD NO MUSIC: No playable files. The disc will be ejected automatically. → Insert a disc with playable files (p.17).

CD PUSH EJT: The disc could not be ejected properly.

→ Press the (eject) button.

HUB NO SUPRT: USB hubs are not supported.

INVALID

The selected operation may not be supported. NO AF: No alternative frequencies. → Press the SEEK + / - button until the name of the program service appears. The device starts searching for other frequencies using the PI (program identification) data (PI SEEK indicator appears).

NO TP: No traffic announcements on the roads. → The device continues searching for stations that broadcast the TP program.

→ A USB device that does not support the Android Open Accessory (AOA) 2.0 protocol is connected when the [USB MODE] parameter is set to [ANDROID]. - For the [USB MODE] parameter, set the value to [MSC/MTP] (p.13).

OVERLOAD: The USB device is full.

→ Disconnect the USB device, then press the SRC button to select another source. → The USB device is damaged, or an unsupported device is connected.

READ: Reading. → Wait for reading to finish. Playback starts automatically. This may take some time depending on the file structure.

USB ERROR: Cannot play the USB device.

Reconnect the USB device.

USB NO DEV: The USB device is not connected or not recognized.

→ Make sure the USB device or USB cable is securely connected.

USB NO MUSIC: No playable files.

→ Connect a USB device with playable files (p. 17).

USB NO SUPRT: The USB device is not supported.

→ For more information about USB device compatibility, visit the support website listed on the back cover.

LLL nnn 1Ha aNo nn KOHeu, DNCKa DOCTnHyTbI.

(3нak почеркваня): He ydaetcra OTO6pa3ntb cIMBOJ.

Precautions

Carefully select the installation location of the device so that it does not interfere with vehicle control. - Do not install the device where it will be exposed to dust, dirt, excessive vibration, or high temperatures, for example in places where direct sunlight falls, or near ventilation grilles of heaters. To ensure reliable and safe installation, use the mounting parts included in the kit.

Note regarding the power cord (yellow)

When connecting this device together with other audio components, the nominal current value in the power circuit of the car must exceed the total current value indicated on the fuses of all components.

Adjusting the installation angle

Adjust the installation angle so that it is less than 45°

List of parts for installation

①

②

(3)

(4)

⑤

(6)

Not all contents of the delivery package are shown in the figure. - The bracket ① is attached to the mounting device for delivery. Before installing the device, use the keys for dismantling ② to disconnect the bracket ① from the device. For details, see the section "Disconnecting the protective cover from the bracket" (p. 27). - Keep the keys for dismantling ② for future use, as they will also be needed when removing the device from the vehicle.

Connection

1 Not included in the delivery package. 2 Full connection of speakers: 4Ω-8Ω×4 3 Cable with RCA connectors (not included in the delivery package). *4 Depending on the vehicle type, it may be necessary to use a wired remote control adapter (not included in the delivery package). For details on using the wired remote control, see the section "Using the wired remote control" (p. 27). 5 Depending on the vehicle type, use an adapter (not included in the delivery package) if the antenna connector does not fit.

Installation and connection

If an antenna with a built-in amplifier is used, connecting this device with the supplied power cord ⑥ may damage the antenna.

To the vehicle's speaker connector

If the red and yellow wires are swapped, the yellow and yellow

For details, see the section "Resetting the device" (p. 6).

Replacing the fuse

When replacing the fuse, be sure to use only those that match the current rating indicated on the

original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, this may indicate a malfunction of the device. In this case, contact your nearest Sony dealer.

For safety reasons, be sure to install the device in the dashboard of the vehicle, as the rear side of the device gets hot during use. For details, see "Installation/Removal" (p. 23).

Laser output power

Output power of the laser: less than 53.3 µW

(This output power value is measured at a distance of 200 mm from the surface of the objective lens on the optical pickup block with a 7 mm aperture diameter.)

Table 3 provides information on the operating load, which is located on the lower part of the housing.

The date of manufacture is indicated on the product and on its packaging in the format: MM.YYYY, where MM is the month and YYYY is the year of manufacture.

Manufactured by Sony

Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan

Authorized representative in Ukraine for issues of responsibility for compliance with technical regulations: LLC "Sony Ukraine", vul. Degtyarivska, 8, m. Kyiv, 04070, Ukraine.

The equipment complies with the technical regulations on restrictions on the use of certain hazardous substances in electrical and electronic equipment (Resolution of the Cabinet of Ministers of Ukraine dated 03.12.2008 No. 1057).

Storage conditions

The product should be stored in a packaged form in a dry, clean, ventilated room, protected from direct sunlight.

Storage temperature: from -20 to +60 °C. Relative humidity during storage: 80%.

Operating temperature: from 0 to 40 °C. Operating relative humidity: 40-60%.

Disposal of used batteries, old electrical and electronic equipment (applies in

the European Union and other European countries with separate waste collection systems)

Battery disposal: if the vehicle does not have a battery compartment

Be sure to set the AUTO OFF function (page 12). The device will turn off completely automatically after a certain time after turning on, to save battery power. If the AUTO OFF function is not activated, immediately after turning on, press and hold the OFF button until the display turns off.

Response to liability for services provided by third parties

The contents, filled on three sides, may change, shrink, or take effect without prior notice. The manufacturer is not liable in such situations.

Contents

Device and control elements 4

Getting started

Presetting the device 6

Installing the device 6

Connecting the USB device 6

Connecting a portable audio device 7

Listening to the radio

Listening to the radio 7

Using the radio data system (RDS) 8

Playback

Playing a disc 9

Playing a USB device 9

Iouyk i BiTbOpEHNa KOMno3nui. 10

Hanaштуваимя

CkacyBaHHpeKmMy DEMO 11

Ochobhi onepauii HanauTyBaHHra 11

3araIbHI HanaTByBaHnra (GENERAL) 12

HaataTyBaHHa 3Byky (SOUND) 13

HaiaWtYBaHHaDcNpei (DISPLAY) 14

Доаткови BiIDOMOCTI

OHOBLeHHB6yDoBaHOro I3 15

3acTepeKHi 3axoNi 15

Texhne o6cJyroByBaHHra 16

TexhiyixapakTepeuCTnKU 17

Nozyk i ycyenne HecnpaBHOCTe 19

PobidomJIeHHra 21

3MiHeHHIiHnKauiHa nCnJIe.

SCRL (scroll)

Press and hold to scroll through the display.

16 USB ports

Front panel

Removing the front panel

The front panel of the device can be removed to replace the batteries.

Press and hold the OFF button ① until the device turns off. Press the front panel release button ②, then remove the panel by pulling it towards you.

Warning signal

If the key lock is set to OFF, and the front panel is not removed, a warning signal will sound after a few seconds. The signal will sound only if the built-in speaker is used.

Connecting the front panel

Recharging the device

Before using the device, after replacing elements or reconnecting the device, it must be recharged.

Press and hold the DSPL (Back)/MODE button for more than 2 seconds.

Reset

Recharging the device will lead to the loss of settings and possibly saved content.

HanaatyBaHHKpaIHn/perioHy

Iicna nepe3aBaHTaxKeHH npntpoB iDkPnEbCra ekpaH HaJaTuBaHH KpaIHn/ perioHy.

1 Koln BiO6paXaTImeTbc8 [SET AREA], HATncHtB KhoNky ENTER. BiO6pa3ntbC npToUHa KpaIHa a6o perioH. 2 NobeptaOuN dNcK KepyBaHHn, Bn6epiTb [EUROPE] a6o [RUSSIA], a NOTIM HaTnCHiTb dNcK KepyBaHHn. 3 NobeptaOnuN dNcK kepyBaHHn, Bn6epitb [YES] a6o [NO], a notim HATnCHiB dNcK kepyBaHHn. Y pa3i 3mHeHH KpaIHn a6o perioHy npnstpi nepe3aBaHTaXtbcra, nicra QTO BIObOpaKaTImeTBc rOINHHNK.

LeynapaMeTpMOxHaHaIaTuBaTINB MeHIO 3aRaJIbHNx HaIaNtYBaHb (CTop.12).

YCTaHOBJIeHHra roINHHnKa

1HaTnCHiTb KhoNky MENU, NOBepTaOuN dNcK KepyBaHHa, Bn6epiTb [GENERAL], a notim HaTnCHiTb dNcK KepyBaHHa. 2 NobeptaOuN dNcK kepyBaHHa, Bn6epitb [SET CLOCK-ADJ], a notim HaTncHiB dNcK kepyBaHHa. 3NaueHnY yacy noUHe 6JIImaTn. 3 NobeptaIte dNcK KepyBaHHa, 06 yCTaHOBHTI rOuHn Ta XBNiHn. 1o6 nepemictNTn uΦpoBy iHnkaio, HATnCKaTe KNONky SEEK +/- 4 Nicra BCTaHOBJIeHHXBVJINH HATnCHiTB KhoNkY MENU. HactpoOBaHH6yJe 3aBepSeHo, i roDInHHK NOUHe npaIobAtn.

Iio6 BiO6pa3nTn rOuHHNK, HATNCiTB KhoNky DSPL.

1HaTnchItb KhoNky MODE, 06 3miHtNi diaNa3oH (FM1, FM2, FM3, MW a6o LW). 2 HactpoTe yactoty.

HanaHTyBaHHaJIbTepeHaTnBnHex YactOT (AF)i NobiOmJeHb npo cHTyaCiIO Ha doporax (TA)

Функця AF noctiHNo haIaNawTOBvETbCЯHaCTaHcIIO 3 HaicNJIbHIiM CnIHaJOM yMepeXi, aФунKczIy TA hAdae HauHOBIwY iHOpMaIIO npo cHTyaIIO Ha doporax abOdoPoxkHi nporpaMn (TP), kIoo BOHN npinMaIOTbcra.

1HaTnchItb KhoNky MENU, NOBepTaOuN DnCK KepyBaHHa, Bn6epiTb [GENERAL], a notim HaTnchItb DnCK KepyBaHHa. 2 NobeptaOuN dNcK KepyBaHH, Bu6epiTb [SET AF/TA], notim HaTnCHiTb dNcK KepyBaHH. 3 NOBePtaOuN dIscK KepyBaHHa, Bn6epiTb [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] a6o [SET AF/TA-OFF], a NOTIM HaTnCHiTb dIscK KepyBaHHa.

36epexeHHaTauRDSi3 BnKOpNCTAHHMaHaTaYBaHb AFiTA Moxha 3anporpamyBatn cTauRDSpa3om i3 HalaHTyBaHmN AF/TA.YcTahOBiTb AF/ TA,a notim 36epeXitb cTau3a DonomoroTO BTM a6o BpyHy. Kaio nporpaMyBaHHa cTau3diinCHIOETbcra BpyHy,MOxHa TaKoX 3anporpamyBatn ctau36RDS.

IpnMaHnE ekCTpeHx OOrIoWeHb JkUo BBiIMKHeHO AF i TA, ekCTpeHi OroLoWeHHa ABTomaTuHNo IpepeNBaTmMyTb NToOuHe Bn6paHe dxKepeNo.

PerylIOBaHnryrUHoCTi nID yac oroIooHenn npO cnTyauciIO Ha doporax

Pibehruyhocti 6yde 36epexeHOBnam'rti DnHaCTynHx OOrOoWeHb npo CNTyaucio Ha doporax, i BIn He 6yde 3aJexKaTu BiD 3Bnuahoro pIBHrauyhocti.

Receiving regional programs (REGIONAL)

When AF and REGIONAL are turned on, the device will not switch to another regional station with a weak signal. If you want to receive a regional broadcast zone, set [SET REG-OFF] in the [GENERAL] menu during FM radio reception (p. 13). This function does not work in the UK and some other countries.

Local radio function (UK only)

This function allows you to select other local stations in a specific locality, even if they are not assigned to digital keys. During FM reception, press the digital key (1 to 6) on which the local station is stored. Within 5 seconds, press the digital key of the local station again. Repeat the procedure until you find the desired local station.

Selecting program types (PTY)

1 Press PTY during FM radio reception. 2 Turn the control dial until the desired program type is displayed, then press the control dial. The device will start searching for a station that broadcasts the selected program type.

Program types

NEWS (News), AFFAIRS (Current affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Popular music), ROCK M (Rock music), EASY M (Easy listening music), LIGHT M (Light classical music), CLASSICS (Classical music), OTHER M (Other music genres), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's programs), SOCIAL A (Social affairs), RELIGION (Religion), PHONE IN (Phone-in programs), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz), COUNTRY (Country music), NATION M (National music), OLDIES (Oldies), FOLK M (Folk music), DOCUMENT (Documentary programs)

Setting the clock (CT)

1 In the [GENERAL] menu, set [SET CT-ON] (p. 13).

Playback

Playback discs

1 Insert the disc (with the labeled side facing up).

Playback starts automatically.

Playback of files with copyright protection is not supported.

MP3/WMA/FLAC:

- Files protected by copyright; - DRM files (digital rights management); - multi-channel audio files. MP3/WMA: - files compressed without loss of data.

Before connecting, select the USB mode (Android or MSC/MTP mode) depending on the type of USB device (page 13).

1 Connect the USB device to the USB port (page 6). The device will turn on. If the USB device is already connected, turn on the device by pressing the RC button until the [USB] indicator appears. 2 Adjust the volume on your device.

Turning off the device

Press and hold the OFF button for 1 second.

Removing the device

Turn off the device and remove the device.

FW UPDATE (firmware update)

Start firmware update: [YES], [NO].

Firmware update takes a few minutes. During the update, do not turn off the device or disconnect the USB device.

Sound adjustment (SOUND)

EQ10 PRESET

Select an equalizer curve from 10 equalizer curves or disable the equalizer:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL],

[COUNTRY], [KARAOKE]*, [CUSTOM].

The equalizer curve can be adjusted to protect the kitchen source.

*When [KARAOKE] is selected, the voice sound during playback is muted, but not removed from the audio. Microphone use is not supported.

EQ10 CUSTOM

Set [CUSTOM] to EQ10.

Equalizer curve adjustment: [BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz, [BAND4] 250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz. The level of loudness is adjusted in the range from -6 dB to +6 dB in steps of 1 dB.

BALANCE

Adjust the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjust the front/rear level: [FRONT-15] - [CENTER] - [REAR-15].

S.WOOFER (subwoofer)

SW LEVEL (subwoofer level)

Adjust the subwoofer volume: [+6dB] -[0 dB]-[-6 dB].

([ATT] is selected from the lowest value.)

SW PHASE (subwoofer phase)

Subwoofer phase selection: [NORM], [REV].

LPF FREQ (low-pass filter frequency)

Subwoofer cutoff frequency selection: [80Hz], [100Hz], [120Hz].

Maintenance

Cleaning the contacts

The device may operate intermittently or fail if the contacts become dirty, which can affect the device and the front panel. To prevent this, remove the front panel (page 5) and clean the contacts with a soft cloth. Do not use abrasive materials. In this case, the contacts may be damaged.

Precautions

Safety measures: Turn off the power switch and remove the key from the power lock before touching the contacts. Never touch the contacts directly with your hands or with any metal object.

Technical specifications

Tuner

FM

Tuning range:

For parameter [Area] set to [EUROPE]:

87.5 MHz - 108.0 MHz

For parameter [Area] set to [RUSSIA]:

FM1/FM2: 87.5 MHz - 108.0 MHz (in 50 kHz steps)

Used sensitivity: 7 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

Frequency response: 20 Hz - 15000 Hz

MW/LW

Tuning range:

MW: 531 kHz - 1602 kHz

LW: 153 kHz - 279 kHz

Antenna input:

External antenna connector

Sensitivity: MW: 26 mV, LW: 50 mV

CD player

Signal-to-noise ratio: 95 dB

Frequency characteristics: 10 Hz - 20000 Hz

Distortion coefficient: no more than 0.1%

Maximum number (for CD-R/CD-RW only):

• Folders (albums): 150 (including the root folder);

Files (compositions) and folders: 300

(preferably less than 300, since a large number of folders or files may cause slow operation);

• Selected characters for names

of folders or files: 32 (Joliet)/64 (Romeo).

Codec: MP3 (.mp3) and WMA (.wma)

USB programming

Interface: USB (full speed)

Maximum current: 500 mA

Maximum number of compositions that can be played:

• Folders (albums): 256

Android Open Accessory (AOA) protocol version: 2.0

Codec:

MP3 (.mp3)

Data transfer rate:

8 kbit/s - 320 kbit/s

VBR (variable bitrate) supported

Sampling frequency: 16 kHz - 48 kHz

WMA (.wma)

Data transfer rate:

Sampling frequency: 32 kHz,

44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling frequency: 44.1 kHz,

48 kHz

Output power

Output: Speaker outputs

Speaker impedance: 4 ohms - 8 ohms

Maximum output power:

55 W x 4 channels

General information

Output:

Terminal for subwoofer (REAR, SUB)

Antenna with electric drive / Remote control terminal for output power (REM OUT)

Input:

Input terminal for remote control

Remote control

Antenna input

BxiIHe rHi3Do AUX (stereo mini-jack)

USB port

Power input: automotive

battery direct current

12 V (with grounding of

negative contact)

Nominal current consumption: 10 A

Dimensions:

Part for installation and

no audible signal.

→ Connect additional equipment, and the built-in amplifier is not used.

Memory content: stereo.

→ The power switch element is turned on or off by the lever.

Saved radio stations and correct time indicator. Reset button.

The device beeps when the lock position changes.

→ Check the correct connection of the additional power supply to the car battery.

→ The power supply is insufficient.

- Make sure that the power supply provides sufficient power to the car battery. (Recommended power: 12V DC.)

The device does not turn on. The display does not light up.

→ Press and hold the DSPL and

(Back)/MODE buttons for more than 2 seconds to restart the device. The content stored in memory will be erased.

For safety reasons, do not perform a reset while driving the car.

Radio

Radio stations are not received. Sound is accompanied by noise.

→ Incorrect settings.

• Check the connection of the car antenna. - If the automatic antenna with electric drive does not extend, check the connection of the antenna control wire with electric drive.

It is not possible to find programmed stations.

The transmitted signal is too weak.

In the FM range, it is impossible to tune to 74 MHz.

→ The station is not an RDS station. No RDS data received. → The station does not indicate the station name.

The name of the program service flashes.

→There is no alternative frequency for this station.

• Press SEEK + / - when the name of the program service flashes. The help message [SEEK] appears, and the device starts searching for another frequency with the same data (program identification).

Playback

Cannot play back.

→Disc is scratched or dirty. →CD-R/CD-RW discs are not intended for audio playback (page 16).

Cannot play MP3/WMA files.

→Disc is incompatible with the MP3/WMA format and version. Detailed information about playable discs and formats is provided on the support website listed on the last page of the manual.

MP3/WMA files require more time to start playback than others.

→The discs listed below require more time to start playback: -Discs recorded with a complex tree structure of files; -Discs recorded in Multi Session mode; -Discs to which data can be added.

Sound is interrupted.

→Disc is scratched or dirty.

Playback via USB device

Elements are not played back via a USB hub.

→The device cannot recognize the USB device via a USB hub.

To start playback from a USB device, more time is needed.

→ The file tree structure on the USB device is complex.

Sound interruptions.

Sound may be interrupted due to high data transfer speed. → In some cases, playback of files with DRM (digital rights management) is impossible.

It does not play back audio files.

→ USB devices formatted with file systems other than FAT16 or FAT32 are not supported.* *This device supports FAT16 and FAT32, but some USB devices may be incompatible with all file systems. For detailed information, refer to the USB device's instruction manual or contact the manufacturer.

Unable to perform album skip, element skip (high-speed mode), and composition search by name (Quick-BrowZer).

→ These operations are unavailable when the USB device is in Android mode. - Set [USB MODE] to [MSC/MTP] (page 13). → The USB device is set to an incorrect USB mode. - Check that the USB device is set to MSC/MTP mode.

In Android mode, sound from the device is not played back.

→ When the device is in Android mode, sound is played back only from a smartphone with Android OS.

• Check the playback program status on the smartphone with Android OS.
• Depending on the smartphone with Android OS, playback problems may occur.

Messages

During device operation, the following messages may appear.

CD ERROR: The disc cannot be played. The disc will be ejected automatically.

→ Clean the disc or insert it correctly. Make sure the disc is not dirty or damaged.

CD NO MUSIC: No music files on the disc. The disc will be ejected automatically.

Insert a disc with music files (page 17).

CD PUSH EJT: The disc cannot be ejected.

→ Press (eject).

HUB NO SUPRT: This device does not support USB hubs.

→ The selected operation may not be supported.

NO AF: No alternative frequencies available.

→ Press SEEK + / - when the station name is displayed. The device will search for another frequency with the same program (PI) (see [PI SEEK]).

NO TP: No traffic program available.

→ The device will continue searching for available TP stations.

NOT SUPPORT -ANDROID MODE

→ The device supports USB devices that support the AOA (Android Open Accessory) 2.0 protocol when the [USB MODE] parameter is set to [ANDROID].

→ Set [USB MODE] to MSC/MTP.

OVERLOAD: USB device overloaded.

→ Disconnect the USB device, then change the source by pressing the SRC button.

→ USB device is faulty or disconnected, the device is not supported.

READ: Reading information.

→ Wait for reading to complete. The device will be recognized automatically. Depending on the structure, this process may take a few seconds.

USB ERROR: USB device cannot be played.

Reconnect the USB device.

USB NO DEV: USB device not connected or not recognized.

→ Check that the USB device or cable is connected properly.

USB NO MUSIC: No playable files.

→ Connect a USB device with playable files (p.17).

USB NO SUPRT: USB device not supported.

→ For detailed information about supported USB devices, see the website listed on the last page of the manual.

LLL or THTyTo NOaTKy or KINuCKa.

-(Sign of exclamation): Impossible to display symbol.

Iooo p060n npylta dNCTaHcHOrO KepyBaHHa Ha kepMObOMy Koneci:

ERROR: nID yac peectpauii fynkuii ctaJnacN NOMuka.

→ Bukohai Te npoceDpy peecTpaui 3HOBy, nouHaoun 3 Tiie fynKci, De ctaJacra nOMnIka (CTop.12).

TIMEOUT: npoceynpy peectpauii fyHKuii He BnKoHaHO y 3B'ra3ky 3 nepeBnueHHm Liimity uacy.

→ Cnpo6yIe 3aBepuNTn npOceDpy peecTpaui, nok 6mMaE [REGISTER] (6n3bKO 6 ckyHd) (CTOp.12).

JaKuO HaBeHei nopAaH He DonomaraIOTb BnpiUnTI npo6IeMy, npokOHcyJbTyItec3 NaB6JInxKUIM dIJIepOM Sony.

Kkuo npncpti 3daeTbcB peMOHT uepe3 npo6lemy 3 BiITbOpEHnM dNcKa CD, 3axoniTb i3 cOboIO DnCK, NiD yac BiITbOpEHnRAKORO BUNHKna npo6Iema.

Cnncok yactinДЯ BCTaHOBJIeHЯ

①

②

(3)

(4)

⑤

(6)

-Lei CnncOK qactH He OXONJIIOBHN KOMNJIeKT NOCTaHaHH. KpoHHTeH 1 i 3axncha MaHKeTa ③ npNKpINIOHObCdo npNCPOI nepei KOMNJIeKTAciIc. NpeJ yCTaHOBJIeHNrmpNCPOI CKOpNCaTaeTEcA DEMOHTaXHMKnIOUAM ②, 0o6 BiD'EDHaTN KPOHHTeH ① BiN pNCPOI. DOKNaHIIwa iHΦopMaIaI -y po3diI «BiD'EDHaHHa 3axnCHOI MaHXeTIa KPOHHTeHa» (CTOP.26). -36epexiHa MaibyTHcI DeMOHTaXHi KIOuci ② OCKIN BOHn NOTpi6Hi dna 3HIMAHNpNCPTPO3 aBTOMo6iJia.

Connection

1 Not included in the package. 2 Speaker impedance: 4 Ω - 8 Ω × 4. 3 RCA pin jack (not included in the package). 4 Depending on the car, it may be necessary to use an adapter for the wired remote control input (not included in the package). For more information on connecting the wired remote control input, see the section “Using the wired remote control input” (page 26). *5 Depending on the car, it may be necessary to use an adapter (not included in the package) that does not fit the connector for the external antenna.

Creating a phone call

If the antenna with an electric cord does not have a built-in amplifier, connecting it to the power supply using the cable from the package ⑥ may damage the antenna.

1 To the car's speaker connector

Target Target Button Button

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/

Estonian

If you have any questions or for the latest support information on this product, please visit the web site below:

Support site
