Product type	Car stereo
Brand	Sony
Model	CDXG3200UV
Dimensions	178 mm × 50 mm × 177 mm (W × H × D)
Weight	1.2 kg
Power supply	12 V DC, negative ground
Rated current consumption	10 A
Max output power	55 W × 4 (at 4 Ω)
Radio frequency ranges	FM 87.5‑108 MHz (Europe) / MW 531‑1602 kHz / LW 153‑279 kHz
Audio sources	CD, USB, AUX (stereo mini jack), radio tuner
Playable audio formats	MP3, WMA, FLAC (CD/USB)
Equalizer	10 presets + customizable (32 Hz‑500 Hz, −6 dB to +6 dB)
RDS functions	AF, TA, PTY, CT, Regional
Extra Bass	3 modes: 1, 2, OFF
Display	Customizable backlight (15 colors + 1 custom), brightness adjustment
Connectivity	USB port (1 A max), AUX input 3.5 mm, wired steering wheel control
Security	Detachable front panel, warning alarm, auto-off (30 min)
Maintenance	Clean connectors with cotton swab
Repairability	Replaceable fuse (10 A), firmware update via USB
Compatibility	iPod/iPhone, Android smartphones (AOA 2.0), USB MSC/MTP devices

Frequently Asked Questions - CDXG3200UV SONY

How to disable DEMO mode?

Press MENU, turn the dial to select GENERAL then SET DEMO. Choose SET DEMO-OFF and confirm.

How to set the clock?

Press MENU, go to GENERAL > SET CLOCK-ADJ. Turn the dial to set the hour and minutes, then press MENU to confirm.

How to store radio stations?

Tune to the desired station, then press and hold a number button (1 to 6) until MEM appears. You can also use the BTM function for automatic storage.

What to do if there is no sound or it is very low?

Check the FADER setting (it should be centered for a 2-speaker system). Increase the volume of the unit and the connected device.

How to connect an iPod/iPhone?

Use a USB cable for iPod (not supplied). Plug the iPod into the USB port, then press SRC to select USB (IPD appears once identified).

How to adjust the equalizer?

Press MENU, select SOUND then EQ10 PRESET to choose a preset (R&B, Rock, etc.) or EQ10 CUSTOM for manual adjustment per frequency band.

What does the message 'CD ERROR' mean?

The disc is unreadable. Clean it or insert it correctly. If it is blank or defective, it will be ejected automatically.

How to update the firmware?

Download the update to a USB device from the Sony support website. Connect it to the USB port, then in the menu GENERAL > FIRMWARE > FW UPDATE, select YES. Do not turn off the ignition during the operation.

How to remove the front panel?

Hold OFF until it turns off, press the front panel release button, then pull toward you.

How to set the AUTO OFF function?

In the GENERAL menu, select AUTO OFF and choose ON (30 minutes) so that the unit turns off automatically after being turned off.

USER MANUAL CDXG3200UV SONY

FM/MW/LW Compact Disc Player

CD player with built-in FM/MW/LW tuner

FM/MW/LW programmable compact disc player

To cancel the demonstration (DEMO) display, see page 10.

For the connection/installation, see page 21.

Operating Instructions GB

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use. For details, see "Connection/Installation" (page 21).

Made in Thailand

Laser Diode Properties

• Emission Duration: Continuous
• Laser Output: Less than 53.3 μW

(This output is the value measurement at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture.)

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

CE

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

http://www.compliance.sony.de/

This equipment is intended to be used with the approved version(s) of software that are indicated in the EU Declaration of Conformity.

The software loaded on this equipment is verified to comply with the essential requirements of the Directive 2014/53/EU. Software version: 1_

The software version can be checked in the firmware setup item of the general setup menu.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium

Disposal of waste batteries and electrical and electronic equipment (applicable in the European Union and other European countries

with separate collection systems)

This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.

By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.

In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.

To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.

For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.

For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.

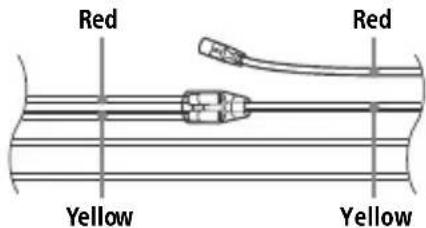

Warning if your car's ignition has no ACC position

Be sure to set the AUTO OFF function (page 10). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Table of Contents

Guide to Parts and Controls 4

Getting Started

Detaching the Front Panel. 5

Resetting the Unit 5

Setting the Clock 6

Connecting a USB Device 6

Connecting Other Portable Audio Device 6

Listening to the Radio

Listening to the Radio 7

Using Radio Data System (RDS) 7

Playback

Playing a Disc 8

Playing a USB Device 8

1. Searching and Playing Tracks 9

Settings

Canceling the DEMO Mode 10

Basic Setting Operation. 10

General Setup (GENERAL) 10

Sound Setup (SOUND) 11

Display Setup (DISPLAY) 12

Additional Information

Updating the Firmware 13

Precautions. 13

Maintenance. 14

Specifications 15

Troubleshooting 17

Messages 19

Connection/Installation

Cautions 21

Parts List for Installation 21

Connection 22

Installation 24

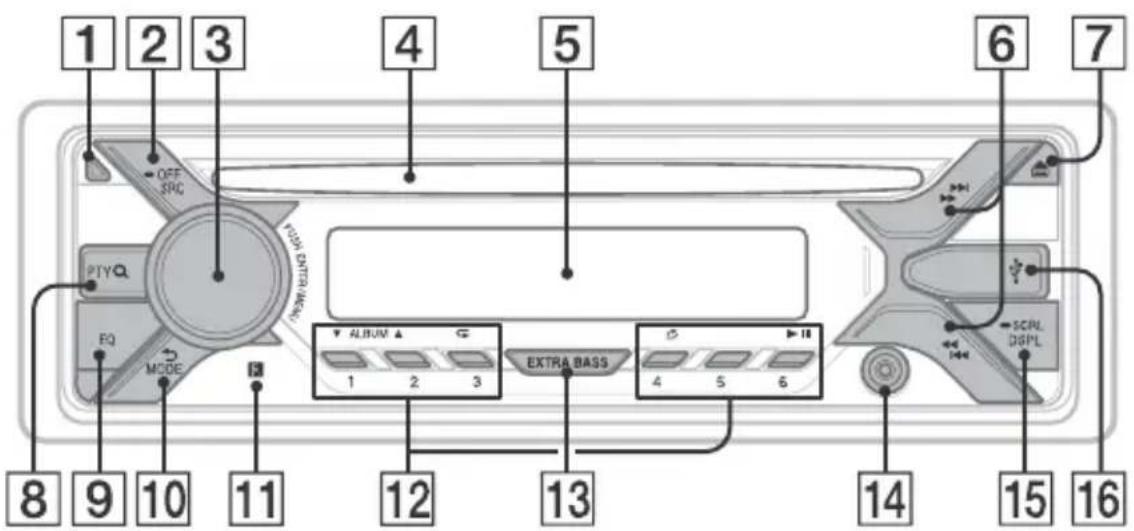

Guide to Parts and Controls

Main unit

1 Front panel release button 2 SRC (source)

Turn on the power.

Change the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

3 Control dial

Rotate to adjust the volume.

PUSH ENTER

Enter the selected item.

MENU

Open the setup menu.

4 Disc slot 5 Display window 6 S E E K - / + )

Tune in radio stations automatically.

Press and hold to tune manually.

I/prev/next)

/ (fast-reverse/fast-forward)

7 (disc eject)

8 PTY (program type)

Select PTY in RDS.

Q (browse) (page 9)

Enter the browse mode during playback. (Not available when a USB device in Android™ mode or iPod is connected.)

EQ (equalizer)

Select an equalizer curve.

back)

Return to the previous display.

MODE (page 7)

11 Receptor for the remote commander 12 Number buttons (1 to 6) Receive stored radio stations. Press and hold to store stations.

ALBUM ∇/△

Skip an album for audio device. Press and hold to skip albums continuously.

Not available when a USB device in

Android mode or iPod is connected.)

(repeat)

Not available when a USB device in

Android mode is connected.

(shuffle)

Not available when a USB device in

Android mode is connected.

II (play/pause)

13 EXTRA BASS

Reinforces bass sound in synchronization with the volume level. Press to change the EXTRA BASS setting: [1], [2], [OFF].

14 AUX input jack

15 DSPL (display)

Change display items.

SCRL (scroll)

Press and hold to scroll a display item.

16 USB port

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

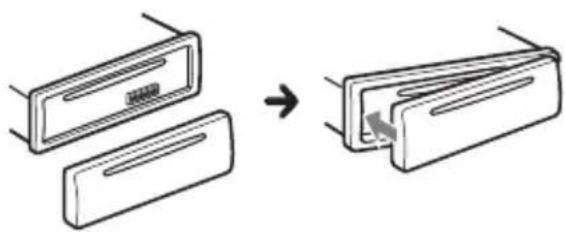

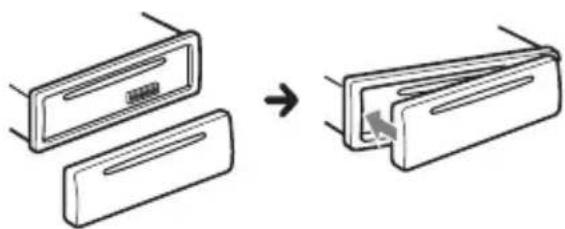

Attaching the front panel

Resetting the Unit

Before operating the unit for the first time, or after replacing the car battery or changing connections, you must reset the unit.

1 Press DSPL and (back)/MODE for more than 2 seconds.

Note

Resetting the unit will erase the clock setting and some stored contents.

Setting the area/region

After resetting the unit, the area/region setting display appears.

1 Press ENTER while [SET AREA] is displayed.

The area/region currently set appears.

2 Rotate the control dial to select [EUROPE] or [RUSSIA], then press it. 3 Rotate the control dial to select [YES] or [NO], then press it. If the setting area/region is changed, the unit is reset, then the clock is displayed.

This setting can be configured in the general setup menu (page 10).

Setting the Clock

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET CLOCK-ADJ], then press it. The hour indication flashes. 3 Rotate the control dial to set the hour and minute. To move the digital indication, press SEEK +/ -. 4 After setting the minute, press MENU. The setup is complete and the clock starts.

To display the clock, press DSPL.

Connecting a USB Device

1 Turn down the volume on the unit. 2 Connect the USB device to the unit. To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).

Connecting Other Portable Audio Device

1 Turn off the portable audio device. 2 Turn down the volume on the unit. 3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.

• Be sure to use a straight type plug.

4 Press SRC to select [AUX].

To match the volume level of the connected device to other sources

Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit.

Press MENU, then select [SOUND] -> SET AUX VOL.

Listening to the Radio

Listening to the Radio

To listen to the radio, press SRC to select [TUNER].

Storing automatically (BTM)

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Press MENU, rotate the control dial to select [GENERAL], then press it. 3 Rotate the control dial to select [SET BTM], then press it.

The unit stores stations in order of frequency on the number buttons.

Tuning

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW). 2 Perform tuning.

To tune manually

Press and hold SEEK + / - to locate the approximate frequency, then press SEEK + / - repeatedly to fine adjust to the desired frequency.

To tune automatically

Press SEEK + / -

Scanning stops when the unit receives a station.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1 Select the band, then press a number button (1 to 6).

Using Radio Data System (RDS)

Setting alternative frequencies (AF) and traffic announcement (TA)

AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET AF/TA], then press it. 3 Rotate the control dial to select [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press it.

To store RDS stations with the AF and TA setting

You can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations.

To receive emergency announcements

With AF or TA on, emergency announcements will automatically interrupt the currently selected source.

To adjust the volume level during a traffic announcement

Level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

To stay with one regional program (REGIONAL)

When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program's reception area, set [SET REG-OFF] in [GENERAL] during FM reception (page 11).

This function does not work in the UK and some other areas.

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons. During FM reception, press a number button (1 to 6) on which a local station is stored. Within 5 seconds, press again a number button of the local station. Repeat this procedure until the local station is received.

Selecting program types (PTY)

1 Press PTY during FM reception. 2 Rotate the control dial until the desired program type appears, then press it. The unit starts to search for a station broadcasting the selected program type.

Type of programs

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATION M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Setting clock time (CT)

The CT data from the RDS transmission sets the clock.

1 Set [SET CT-ON] in [GENERAL] (page 11).

Playback

Playing a Disc

1 Insert the disc (label side up).

Playback starts automatically.

Playing a USB Device

In these Operating Instructions, "iPod" is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations.

For details on the compatibility of your iPod, see "About iPod" (page 14) or visit the support site on the back cover.

AOA (Android Open Accessory) 2.0, MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices* compliant with the USB standard can be used. Depending on the USB device, the Android mode or MSC/MTP mode can be selected on the unit.

Some digital media players or Android smartphones may require setting to MTP mode.

• e.g., a USB flash drive, digital media player, Android smartphone

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Smartphones with Android OS 4.1 or higher installed support Android Open Accessory 2.0 (AOA 2.0). However, some smartphones may not fully support AOA 2.0 even if Android OS 4.1 or higher is installed. For details on the compatibility of your Android smartphone, visit the support site on the back cover.
• Playback of the following files is not supported. MP3/WMA/FLAC:

-copyright-protected files - DRM (Digital Rights Management) files - Multi-channel audio files MP3/WMA: - lossless compression files

Before making a connection, select the USB mode (Android mode or MSC/MTP mode) depending on the USB device (page 11).

1 Connect a USB device to the USB port (page 6).

Playback starts.

If a device is already connected, to start playback, press SRC to select [USB] ([IPD] appears in the display when the iPod is recognized).

2 Adjust the volume on this unit.

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

Caution for iPhone

When you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as a sudden loud sound may result when the call ends.

Searching and Playing Tracks

Repeat play and shuffle play

Not available when a USB device in Android mode is connected.

1 During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode.

Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name (QuickBrowZerTM)

Not available when a USB device in Android mode or iPod is connected.

1 During CD or USB playback, press (browse) to display the list of search categories.

When the track list appears, press (back) repeatedly to display the desired search category.

• During USB playback, press (browse) for more than 2 seconds to directly return to the beginning of the category list.

2 Rotate the control dial to select the desired search category, then press it to confirm. 3 Repeat step 2 to search the desired track.

Playback starts.

To exit the Quick-BrowZer mode

Press Q (browse).

Searching by skipping items (Jump mode)

Not available when a USB device in Android mode or iPod is connected.

1 Press Q (browse). 2 Press SEEK+. 3 Rotate the control dial to select the item.

The list is jumped in steps of 10% of the total number of items.

4 Press ENTER to return to the Quick-BrowZer mode.

The selected item appears.

5 Rotate the control dial to select the desired item, then press it.

Playback starts.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [GENERAL], then press it. 2 Rotate the control dial to select [SET DEMO], then press it. 3 Rotate the control dial to select [SET DEMO-OFF], then press it. The setting is complete. 4 Press the back button twice.

The display returns to normal reception/play mode.

Basic Setting Operation

You can set items in the following setup categories: General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY)

1 Press MENU. 2 Rotate the control dial to select the setup category, then press it. The items that can be set differ depending on the source and settings. 3 Rotate the control dial to select the options, then press it.

To return to the previous display

Press (back).

General Setup (GENERAL)

AREA

Specifies the area/region to use this unit: [EUROPE], [RUSSIA].

If the area/region currently set is changed, this unit is reset, then the clock is displayed.

(Available only while the source is off and the clock is displayed.)

DEMO (demonstration)

Activates the demonstration: [ON], [OFF].

CLOCK-ADJ (clock adjust) (page 6)

CAUT ALM (caution alarm)

Activates the caution alarm: [ON], [OFF] (page 5).

(Available only while the source is off and the clock is displayed.)

BEEP

Activates the beep sound: [ON], [OFF].

AUTO OFF

Shuts off automatically after a desired time when the unit is turned off: [ON] (30 minutes), [OFF].

STEERING

Registers/resets the setting of the steering wheel remote control.

(Available when connected with the connection cable (not supplied).)

(Available only while the source is off and the clock is displayed.)

STR CONTROL (steering control)

Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use.

CUSTOM

Input mode for the steering wheel remote control

PRESET

Input mode for the wired remote control excluding the steering wheel remote control (automatically selected when [RESET CUSTOM] is performed.)

EDIT CUSTOM

Registers the functions (SOURCE, ATT, VOL +/-, SEEK +/-) to the steering wheel remote control:

1 Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it. 2 While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed. To register other functions, repeat steps 1 and 2.

(Available only when [STR CONTROL] is set to [CUSTOM].)

RESET CUSTOM

Resets the setting of the steering wheel remote control: [YES], [NO].

(Available only when [STR CONTROL] is set to [CUSTOM].)

Notes

• While making settings, only button operation on the unit is available. For safety, park your car before making this setting.
• If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred.
• This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover.

USB MODE

Changes the USB mode: [ANDROID], [MSC/MTP].

(Available only when the USB source is selected.)

CT (clock time)

Activates the CT function: [ON], [OFF].

AF/TA (alternative frequencies/traffic announcement)

Selects the alternative frequencies (AF) and traffic announcement (TA) setting: [AF-ON], [TA-ON], [AF/TA-ON], [AF/TA-OFF].

REGIONAL

Restricts reception to a specific region: [ON], [OFF].

(Available only when FM is received.)

BTM (best tuning memory) (page 7) (Available only when the tuner is selected.)

FIRMWARE

(Available only while the source is off and the clock is displayed.)

Checks/updates the firmware version. For details, visit the support site on the back cover.

FW VERSION (firmware version)

Displays current firmware version.

FW UPDATE (firmware update)

Enters firmware update process: [YES], [NO].

Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Sound Setup (SOUND)

EQ10 PRESET

Selects an equalizer curve from 10 equalizer curves or off:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL],

[COUNTRY], [KARAOKE]*, [CUSTOM].

The equalizer curve setting can be memorized for each source.

• [KARAOKE] reduces the vocal sound but cannot be fully removed during playback. Also, using a microphone is not supported.

EQ10 CUSTOM

Sets [CUSTOM] of EQ10.

Setting the equalizer curve: [BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz,

[BAND4] 250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4

kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

The volume level is adjustable in 1 dB steps, from -6 dB to +6 dB.

BALANCE

Adjusts the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjusts the relative level: [FRONT-15] - [CENTER] - [REAR-15].

([ATT] is displayed at the lowest setting.)

Selects the subwoofer phase: [NORM], [REV].

LPF FREQ (low pass filter frequency)

Selects the subwoofer cut-off frequency:

[80Hz], [100Hz], [120Hz].

HPF FREQ (high pass filter frequency)

Selects the front/rear speaker cut-off frequency: [OFF], [80Hz], [100Hz], [120Hz]

AUX VOL (AUX volume level)

Adjusts the volume level for each

connected auxiliary device: [+18 dB]

[0 dB] - [-8 dB].

This setting negates the need to adjust

the volume level between sources.

(Available only when the AUX is selected.)

Display Setup (DISPLAY)

DIMMER

Changes the display brightness: [ON], [OFF], [CLK].

To set this function to be active only during a fixed period, select [CLK], then set the start and end times.

• To set the brightness when the dimmer function is activated:

Set [DIMMER] to [ON], then adjust [BRIGHTNESS].

• To set the brightness when the dimmer function is deactivated:

Set [DIMMER] to [OFF], then adjust [BRIGHTNESS].

The brightness setting is stored and applied when the dimmer function is activated or deactivated.

BRIGHTNESS

Adjusts the display brightness. The brightness level is adjustable: [1] - [10].

BUTTON-C (button color)

Sets a preset color or customized color for the buttons.

COLOR

Selects from 15 preset colors, 1 customized color.

customized color.

CUSTOM-C (custom color)

Registers a customized color for the buttons.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] - [32] ([0] cannot be set for all color ranges).

cannot be set for all color ranges).

DSPL-C (display color)

Sets a preset color or customized color for the display.

COLOR

Selects from 15 preset colors, 1 customized color.

customized color.

CUSTOM-C (custom color)

Registers a customized color for the display.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] - [32] ([0]

cannot be set for all color ranges).

SND SYNC (sound synchronization)

Activates the synchronization of the

illumination with the sound: [ON], [OFF].

AUTO SCR (auto scroll)

Scrolls long items automatically: [ON], [OFF].

(Not available when the AUX or tuner is selected.)

Additional Information

Updating the Firmware

To update the firmware, visit the support site on the back cover, then follow the online instructions.

Notes

• Using a USB device (not supplied) is required for updating the firmware. Store the updater in the USB device, and connect the device to the USB port, then perform the update operation.
• Updating the firmware takes a few minutes to complete. During the update, do not turn the ignition to the OFF position, nor remove the USB device.

Precautions

Cool off the unit beforehand if your car has been parked in direct sunlight. - Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight. - Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.

• This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.
• Discs that this unit CANNOT play
• Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
• Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.
• 8 cm (1/4 in) discs.

Notes on CD-R/CD-RW discs

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played.
• Discs that this unit CANNOT play
• CD-R/CD-RW of poor recording quality.
• CD-R/CD-RW recorded with an incompatible recording device.
• CD-R/CD-RW which is finalized incorrectly.
• CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

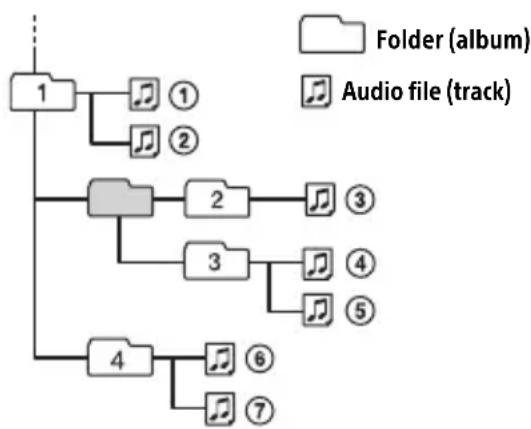

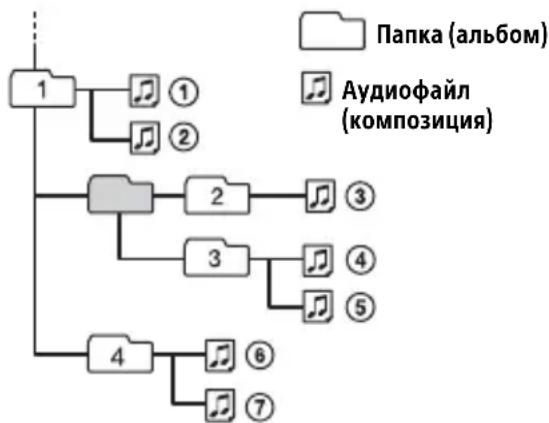

Playback order of audio files

About iPod

• You can connect to the following iPod models. Update your iPod devices to the latest software before use.

Compatible iPhone/iPod models

Compatible Model USB
iPhone 6s Plus	✓
iPhone 6s	✓
iPhone 6 Plus	✓
iPhone 6	✓
iPhone 5s	✓
iPhone 5c	✓
iPhone 5	✓
iPhone 4s	✓
iPod touch (6th generation)	✓
iPod touch (5th generation)	✓
iPod nano (7th generation)	✓

• "Made for iPod," and "Made for iPhone," mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 5) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Specifications

Tuner section

FM

Tuning range: When [AREA] is set to [EUROPE]: 87.5 MHz - 108.0 MHz When [AREA] is set to [RUSSIA]: FM1/FM2: 87.5 MHz - 108.0 MHz (at 50 kHz step) FM3: 65 MHz - 74 MHz (at 30 kHz step) Antenna (aerial) terminal: External antenna (aerial) connector Intermediate frequency: When [AREA] is set to [EUROPE]: FM CCIR: -1,956.5 kHz to -487.3 kHz and +500.0 kHz to +2,095.4 kHz When [AREA] is set to [RUSSIA]: FM CCIR: -1,956.5 kHz to -487.3 kHz and +500.0 kHz to +2,095.4 kHz FM OIRT: -1,815.6 kHz to -943.7 kHz and +996.6 kHz to +1,776.6 kHz Usable sensitivity: 7 dBf Selectivity: 75 dB at 400 kHz Signal-to-noise ratio: 73 dB Separation: 50 dB at 1 kHz Frequency response: 20 Hz - 15,000 Hz MW/LW Tuning range: MW: 531 kHz - 1,602 kHz LW: 153 kHz - 279 kHz Antenna (aerial) terminal: External antenna (aerial) connector Sensitivity: MW: 26 μV, LW: 50 μV

CD Player section

Signal-to-noise ratio: 95 dB Frequency response: 10 Hz - 20,000 Hz Wow and flutter: Below measurable limit The maximum number of: (CD-R/CD-RW only) - folders (albums): 150 (including root folder) - files (tracks) and folders: 300 (may be less than 300 if folder/file names contain many characters) - displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo) Corresponding codec: MP3 (.mp3) and WMA (.wma)

USB Player section

Interface: USB (Full-speed) Maximum current: 1 A The maximum number of recognizable tracks: - folders (albums): 256 - files (tracks) per folder: 256 Compatible Android Open Accessory protocol (AOA): 2.0 Corresponding codec: MP3 (.mp3) Bit rate: 8 kbps - 320 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 16 kHz - 48 kHz WMA (.wma) Bit rate: 32 kbps - 192 kbps (Supports VBR (Variable Bit Rate)) Sampling rate: 32 kHz, 44.1 kHz, 48 kHz FLAC (.flac) Bit depth: 16 bit, 24 bit Sampling rate: 44.1 kHz, 48 kHz

Power amplifier section

Output: Speaker outputs Speaker impedance: 4 Ω - 8 Ω Maximum power output: 55 W × 4 (at 4 Ω)

General

Outputs: Audio outputs terminal (REAR, SUB), Power antenna (aerial)/Power amplifier control terminal (REM OUT)

Inputs:

Remote controller input terminal

Antenna (aerial) input terminal

Power requirements: 12 V DC car battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178 mm × 50 mm × 177 mm

(7 1/8 in × 2 in × 7 in) (w/h/d)

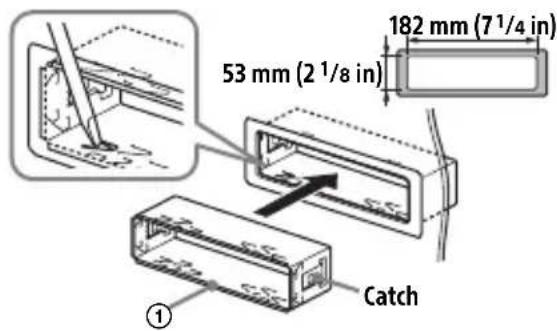

Mounting dimensions:

Approx. 182 mm × 53 mm × 160 mm

(7 1/4 in × 2 1/8 in × 6 5/16 in) (w/h/d)

Mass: Approx. 1.2 kg (2 lb 11 oz)

Package contents:

Main unit (1)

Parts for installation and connections (1 set)

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Android is a trademark of Google Inc.

libFLAC

Copyright (C) 2000-2009 Josh Coalson Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation" (page 21). If the problem is not solved, visit the support site on the back cover.

General

No sound or the sound is very low.

The position of the fader control [FADER] is not set for a 2-speaker system. The volume of the unit and/or connected device is very low. - Increase the volume of the unit and connected device.

No beep sound.

An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

The power supply lead or battery has been disconnected or not connected properly.

Stored stations and correct time are erased.

The fuse has blown. Makes a noise when the position of the ignition is switched.

The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts.

• Set [DEMO-OFF] (page 10).

The display disappears from/does not appear in the display window.

The dimmer is set to [DIM-ON] (page 12). The display disappears if you press and hold OFF.

• Press OFF on the unit until the display appears.

The connectors are dirty (page 14).

The display/illumination flashes.

The power supply is not sufficient.

• Check that the car battery supplies enough power to the unit. (The power requirement is 12 VDC.)

The operation buttons do not function. The disc will not eject.

→ Press DSPL and (back)/MODE for more than 2 seconds to reset the unit.

The contents stored in memory are erased.

For your safety, do not reset the unit while you are driving.

Radio reception

Stations cannot be received.

The sound is hampered by noises.

The connection is not correct.

• Check the connection of the car antenna (aerial).
• If the auto antenna (aerial) will not extend, check the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

The broadcast signal is too weak.

65 MHz to 74 MHz in FM3 cannot be tuned in.

-> [AREA] is set to [EUROPE].

• Set [AREA] to [RUSSIA] (page 10).

RDS

RDS services cannot be received (when [AREA] is set to [RUSSIA]).

-> FM3 is selected. - Select FM1 or FM2. -> RDS services are unavailable in the current region.

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal. - Deactivate TA (page 7).

No traffic announcements.

Activate TA (page 7). The station does not broadcast any traffic announcements despite being TP. Tune in another station.

PTY displays [- - - - - - - - ].

The current station is not an RDS station. RDS data has not been received. The station does not specify the program type.

Program service name flashes.

There is no alternative frequency for the current station.

• Press SEEK +/- while the program service name is flashing. [PI SEEK] appears and the unit starts searching for another frequency with the same PI (program identification) data.

CD playback

The disc does not play.

Defective or dirty disc. The CD-R/CD-RW is not for audio use (page 13).

MP3/WMA files cannot be played.

The disc is incompatible with the MP3/WMA format and version. For details on playable discs and formats, visit the support site on the back cover.

MP3/WMA files take longer to play than others.

The following discs take a longer time to start playback.

• A disc recorded with a complicated tree structure.
• A disc recorded in Multi Session.
• A disc to which data can be added.

The sound skips.

Defective or dirty disc.

USB device playback

You cannot play items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

A USB device takes longer to play.

The USB device contains files with a complicated tree structure.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate. → DRM (Digital Rights Management) files may not be playable in some cases.

Audio file cannot be played.

→ USB device formatted with file systems other than FAT16 or FAT32 are unsupported.* * This unit supports FAT16 and FAT32, but some USB device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer.

Operations for skipping an album, skipping items (Jump mode), and searching a track by name (QuickBrowZer) cannot be performed.

These operations cannot be performed when a USB device in Android mode or iPod is connected.

• Set [USB MODE] to [MSC/MTP] (page 11).
• Remove the iPod.

The USB mode of the device is not set to the appropriate mode.

• Make sure that the USB mode of the device is set to MSC/MTP mode.

The sound cannot be output during playback in Android mode.

→ While the unit is in Android mode, the sound outputs only from the Android smartphone.

• Check the status of the audio playback application on the Android smartphone.
• Playback may not perform properly depending on the Android smartphone.

Messages

The following messages may appear or flash during operation.

CD ERROR: The disc cannot be played. The disc will be ejected automatically.

→ Clean or insert the disc correctly, or make sure the disc is not blank or defective.

CD NO MUSIC: There is no playable file. The disc will be ejected automatically.

→ Insert a disc containing playable files (page 15).

CD PUSH EJT: The disc could not be ejected properly.

Press △ (eject).

HUB NO SUPRT: USB hubs are not supported.

INVALID

The selected operation could be invalid. → [USB MODE] cannot be changed during iPod playback.

IPD STOP: iPod playback has finished.

Operate your iPod/iPhone to start playback.

NO AF: No alternative frequencies. → Press SEEK + / - while the program service name is flashing. The unit starts searching for another frequency with the same PI (program identification) data ([PI SEEK] appears). NO TP: No traffic programs. The unit will continue searching for available TP stations.

NOT SUPPORT - Android MODE

A USB device not supporting AOA (Android Open Accessory) 2.0 is connected to the unit while [USB MODE] is set to [ANDROID]. - Set [USB MODE] to [MSC/MTP] (page 11).

OVERLOAD: The USB device is overloaded.

Disconnect the USB device, then press SRC to select another source. The USB device has a fault, or an unsupported device is connected.

READ: Now reading information. Wait until reading is complete and playback starts automatically. This may take some time depending on the file organization.

USB ERROR: The USB device cannot be played. → Connect the USB device again.

USB NO DEV: A USB device is not connected or recognized. → Make sure the USB device or USB cable is securely connected.

USB NO MUSIC: There is no playable file. → Connect a USB device containing playable files (page 15).

USB NOT SUPPORT: The USB device is not supported.

For details on the compatibility of your USB device, visit the support site on the back cover.

LLL or The beginning or the end of the disc has been reached.

• (underscore): The character cannot be displayed.

For steering wheel remote control operation:

ERROR: An error occurred during the function registration.

Register again from the function where the error occurred (page 11).

TIMEOUT: The function registration failed due to a timeout.

Try completing the registration while [REGISTER] is blinking (about 6 seconds) (page 11).

If these solutions do not help improve the situation, consult your nearest Sony dealer. If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the power supply lead ⑥ to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 45 degrees.

Parts List for Installation

① (2)

(3) (4)

(5)

(6)

• This parts list does not include all the package contents.
• The bracket ① and the protection collar ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the bracket ① from the unit. For details, see "Removing the protection collar and the bracket" (page 24).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

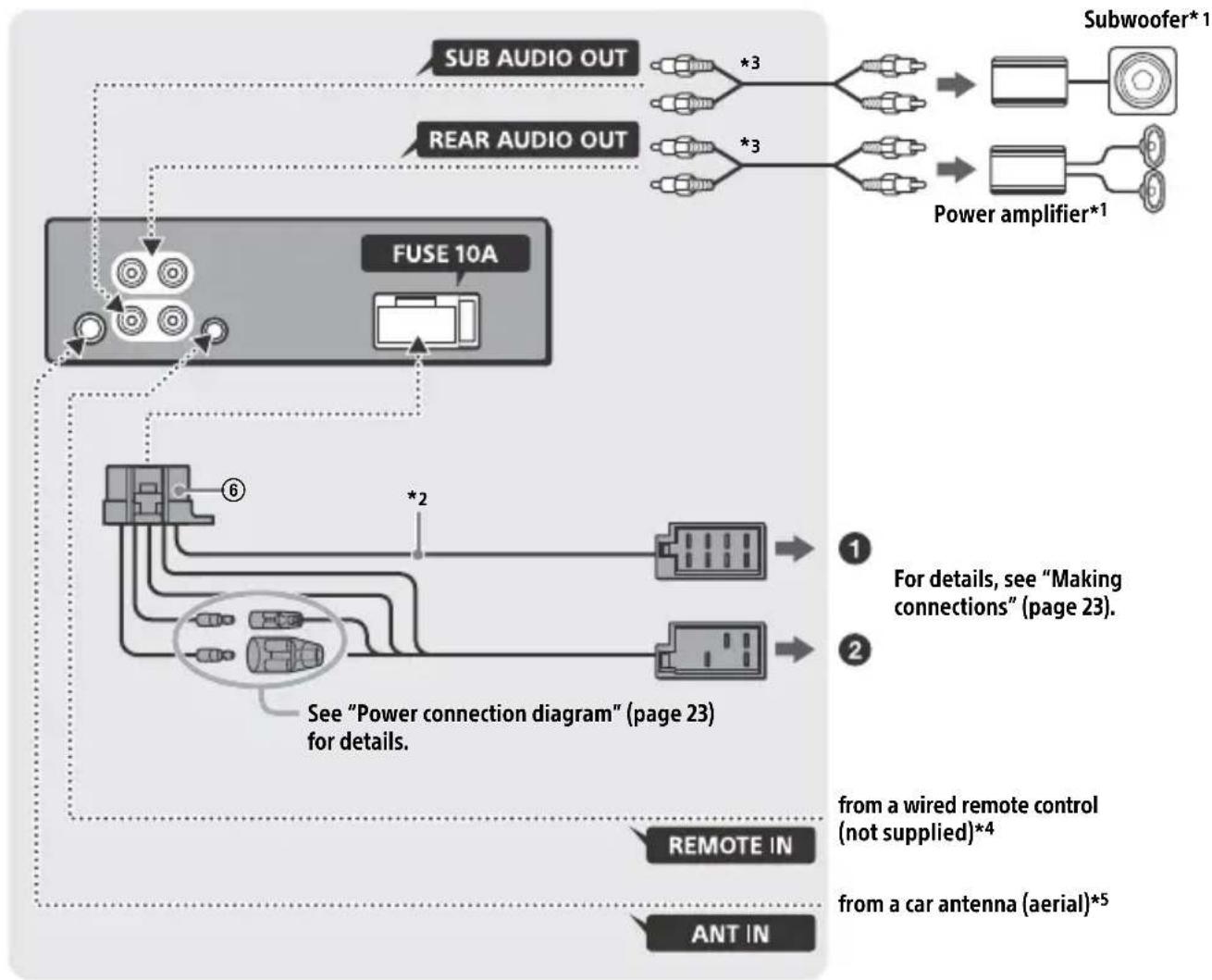

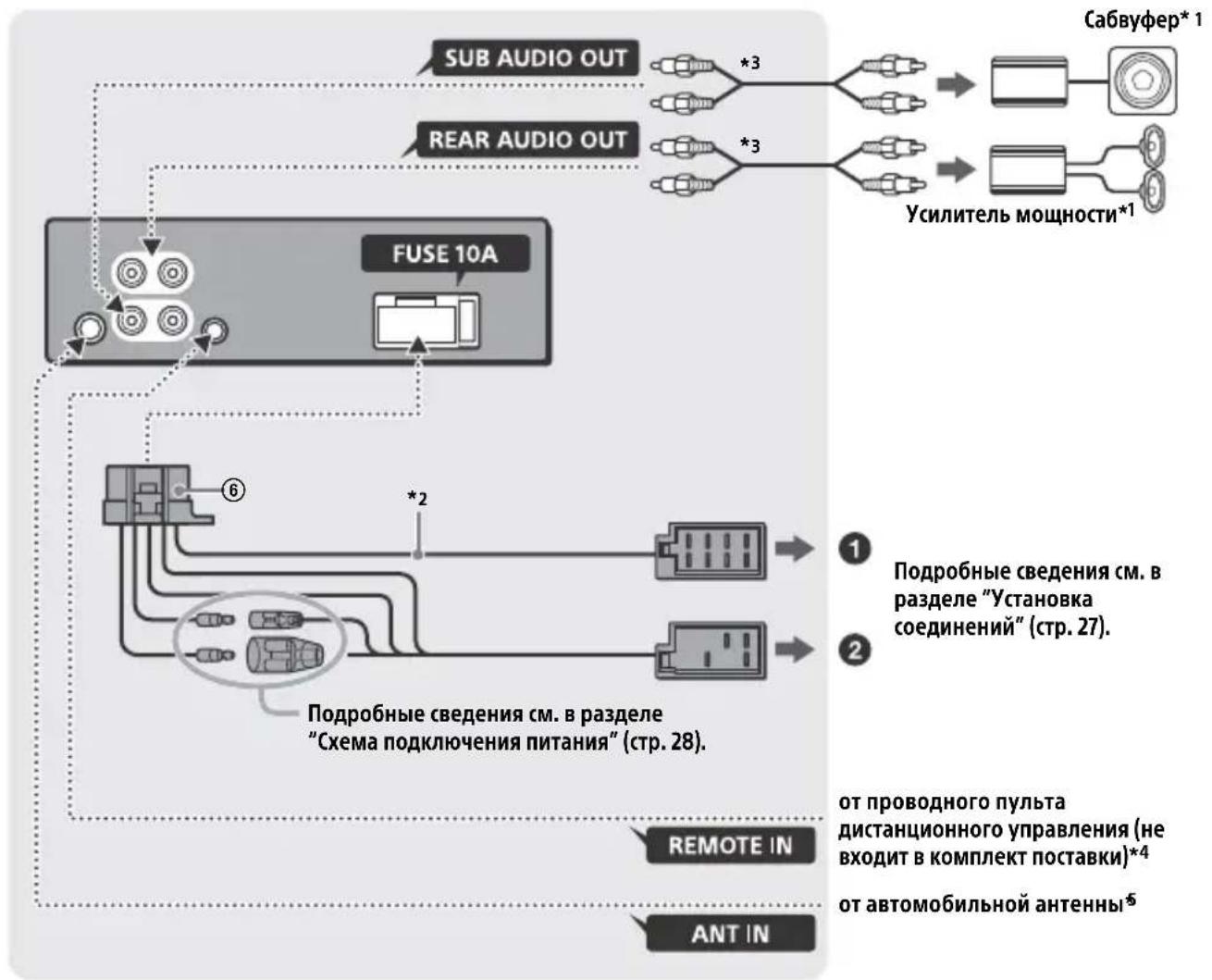

Connection

1 Not supplied 2 Speaker impedance: 4Ω - 8Ω × 4 3 RCA pin cord (not supplied) 4 Depending on the type of car, use an adaptor for a wired remote control (not supplied). For details on using the wired remote control, see "Using the wired remote control" (page 24). *5 Depending on the type of car, use an adaptor (not supplied) if the antenna connector does not fit.

Making connections

If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead ⑥ may damage the antenna (aerial).

To the car's speaker connector

1	Rear speaker (right)	⊕	Purple
2			Purple/black striped
3	Front speaker (right)	⊕	Gray
4			Gray/black striped
5	Front speaker (left)	⊕	White
6			White/black striped
7	Rear speaker (left)	⊕	Green
8			Green/black striped

To the car's power connector

12	continuous power supply	Yellow
13	power antenna (aerial) /power amplifier control (REM OUT)	Blue/white striped
15	switched power supply	Red
16	ground (earth) Black

Subwoofer Easy Connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker cord.

Notes

• Preparation of the rear speaker cords is required.
• Use a subwoofer with an impedance of 4Ω to 8Ω, and with adequate power handling capacities to avoid damage.

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

Before connecting the speakers, turn the unit off. Use speakers with an impedance of 4Ω to 8Ω, and with adequate power handling capacities to avoid damage.

Power connection diagram

Make sure your car's auxiliary power connector, and match the connections of cords correctly depending on the car.

Auxiliary power connector

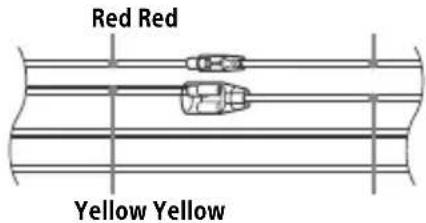

Common connection

12	continuous power supply	Yellow
15	switched power supply Red

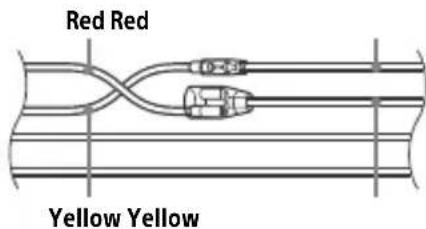

When the positions of the red and yellow leads are inverted

12	switched power supply Yellow
15	continuous power supply	Red

When the car without ACC position

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

Using the wired remote control

1 To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (page 10).

Installation

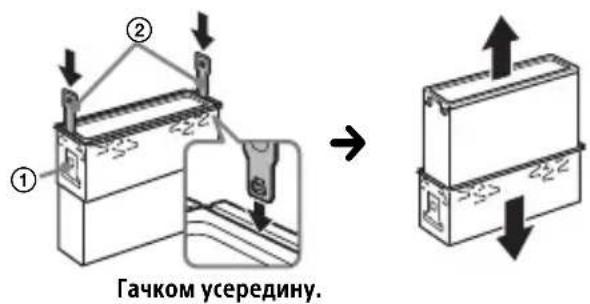

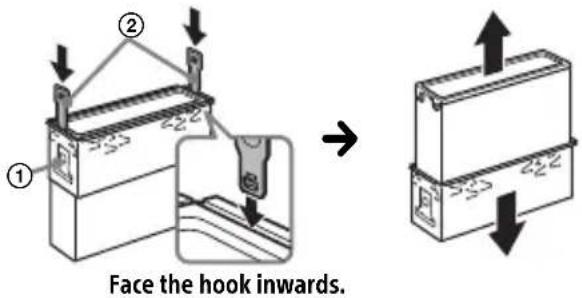

Removing the protection collar and the bracket

Before installing the unit, remove the protection collar ③ and the bracket ① from the unit.

1 Pinch both edges of the protection collar ③ then pull it out.

2 Insert both release keys ② until they click, and pull down the bracket ①, then pull up the unit to separate.

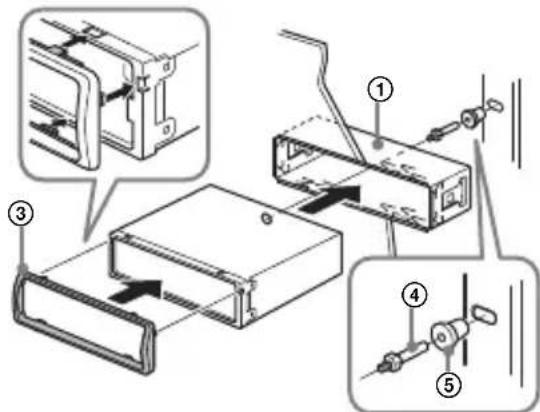

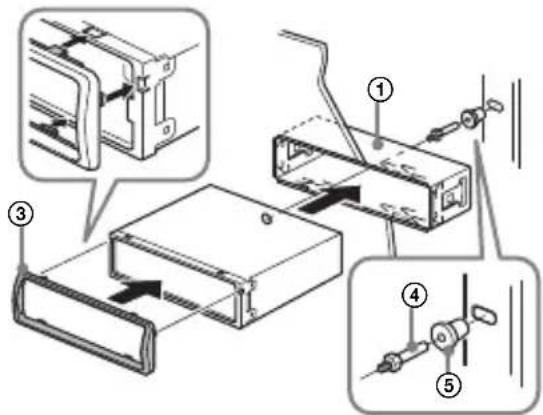

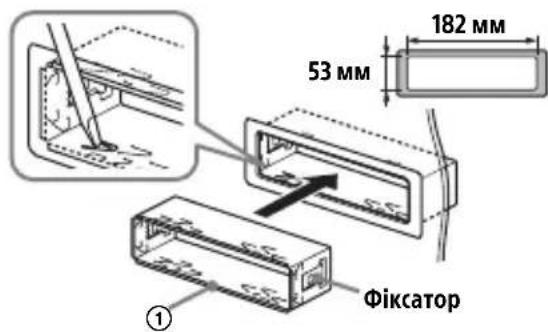

Mounting the unit in the dashboard

Before installing, make sure the catches on both sides of the bracket ① are bent inwards 2 mm (3/32 in).

1 Position the bracket ① inside the dashboard, then bend the claws outward for a tight fit.

2 Mount the unit onto the bracket ①, then attach the protection collar ③.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out. Make sure the 4 catches on the protection collar ③ are properly engaged in the slots of the unit.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 5).

Resetting the unit

For details, see "Resetting the Unit" (page 5).

Fuse replacement

When replacing the fuse, be sure to use one

matching the amperage rating stated on the

is original fuse. If the fuel

blows, check the power connection and replace the

fuse. If the fuse blows again after

Fuse (10 A)

replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

FW VERSION (Firmware version)

[BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8]

4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

Sample rate: 16 kHz - 48 kHz

WMA (.wma)

Bitrate: 32 Kbps - 192 Kbps (supports VBR (variable bitrate))

Sample rate: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Connection/Installation

Caution. 25

Reading begins.

DEMO (demonstration)

Allows activating the demonstration: [ON], [OFF].

[BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8]

4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

AOA (Android Open Accessory) compatible protocol: 2.0

Corresponding codec: MP3 (.mp3)

Bit rate: 8 kbits/s - 320 kbits/s (supports VBR (Variable Bit Rate))

Main unit (1)

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Connection/Installation

Caution

Interface: USB (Full speed)

folders (albums): 256

-files (tracks) per folder: 256

Protocol compatible with Android Open Accessory (AOA): 2.0

Corresponding codecs: MP3 (.mp3)

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Geproduced in Thailand

Laser diode properties

Manufacturer: Sony Corporation, 1-7-1 Konan

Minato-ku Tokyo, 108-0075 Japan

Select PTY in RDS.

250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9]

8 kHz, [BAND10] 16 kHz.

When [AREA] is set to

[EUROPE]:

87.5 MHz - 108.0 MHz

The [AREA] is set to [RUSSIA]:

FM1/FM2: 87.5 MHz - 108.0 MHz (in 50 kHz steps)

FM3: 65 MHz - 74 MHz (in 30 kHz steps)

Antenna connection:

Interface: USB (Full-speed)

Maximum current: 1 A

• Mappings (albums): 256

Files (tracks) per folder: 256

Supports Android Open Accessory Protocol (AOA): 2.0

Supported codec: MP3 (.mp3)

Bitrate: 8 kbps - 320 kbps (Supports VBR (Variable Bit Rate))

Sampling frequency: 16 kHz - 48 kHz

WMA (.wma)

Bitrate: 32 kbps - 192 kbps (Supports VBR (Variable Bit Rate))

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling frequency: 44.1 kHz - 48 kHz

Power amplifier

For safety, be sure to install this device on the dashboard of the car, as its rear part heats up during operation.

For installation, see "Installation/Connection" (p. 25).

Laser diode properties

• Laser emission duration: continuous
• Laser output power: less than 53.3 μW

(Value obtained at a distance of 200 mm from the lens surface of the optical pickup block with an aperture of 7 mm.)

The label indicating the operating voltage and other characteristics is located on the bottom panel of the unit.

The manufacturer's name and address are also indicated on the packaging in the following format:

MM.YYYY, rnde MM - mecau n YYYYY - roi n3rotobleny.

HOpMaunIyNokynateneB YkpanHe

YnoHOMOeHHbI npedCTaBntlb YKpaHHe NO BONpocam COOTBeTCTBn Tpe6oBaHm TexHnuecknx peIJaMeHTOB: OOO "CoHn YKpaHa", yI. NJIbHcKa, 8, r. KneB, 04070, YKpaHa.

ObopydOBaHne OTBeuaeT Tpe6OBAHnM TexHnueckoro perIamEnTa OpranuHcHn IcNoJIb3OBAHn HeKOTOpbIX ONaChbIX BeueCTB 3JIeKTPnueCKOM N 3JIeKTpOnHHom obopydOBaHn (noCTaHOBLeHne KMY ot 03.12.2008 N° 1057).

YcIOBxpaHeHn

TobapbcoxpaHOT ByyNAKOBAHHOM BnDe B TeMHbIX, cyNX, YnCTbIX, XopoO BoHTUNIPyeMbIX NOMEuEHNrX, N3OJInpoBaHHbIX OT MeCt XpaHeHnKNCJOT nIeIoueY.

TemnepaTypa xpaHEny: ot -20 do +60 ° C OTHOCuTeNbHa BlaXHoCTb XpaHEny: 80%. Pa6oay TempePaTypa: ot 0 do 40°C. Pa6oay OTHOCuTeNbHa BlaXHoCTb: 40-60%.

YTNIN3aunna NcnoJb3OBaHHbIX 3JeMeHTOB NITAHnI NOTCLyXKBWeRo 3JeKTpNUeCKOrO n

3JIeKTPoHOrO 6OpUdoBaHnA (DInpeKTHBa npImMeHReTcB CtpaHax Ebpocoi03a n Dpynx EBponecknx CtpaHax, rIe JeICTByOT cNCTembl pa3dJIbHOrO c6opa OTXoDoB)

PpeDynpexKdHne dIaClyuaeB, KOrda B 3aMKe 3aXnraHna Het noLoXkeHnA CC

Y6eINTEcB, YTO HaCTpoEHa FyHKUa AUTO OFF (ctp. 12).IocNe BbIKIOueHnra yCTPOiCTBa erO nITaHne 6yJeT aBTOMATnueCKN OTKIOUeHO uepe3 yCTaHOBJIeHHOE BPEM, YTO IpeDToBpaAaeT pa3PRAky aKKymJIATopa. EcIn FyHKUa AUTO OFF He 3aJaHa, To Pn KaXdOM BbIKIOueHn 3axnraHn HaXmMaTe n yDepxNBaIte KhoNkOFF Do Tex nop, NOKa DnCnIeH He NoracHeT.

OTka3 OT OTBETCTBEHHOCTN B OTHoWeHn ycIyr, npeDoCTaBJaEmbIX CTOpOHHMn NOCTaBzIKamN

Cnyk6bl, npedocTabIeMbIe CTOpOHHIMIOCTaBUNKaMn,MOyT 6bITb N3MeHeHbI, pnoctaHOBJIeHbI NN OTMeHeHbI 6e3 npedBaPntbHoro yBeOMJeHn. KompanaHn Sony He Hecet OTBeTCTBeHHOCTn 3a CNTyaun Noo6HOro poJa.

Copepkanhe

CnpaBoUHnK nO deTajm N opraHaM ynpaBJIeHnJ 4

Chapter 5

Device reboot 6

Setting the clock 6

Connecting a USB device 6

Connecting another portable audio device . 7

Listening to the radio

Listening to the radio 7

Radio Data System (RDS) 8

Playback

Playing a disc 9

Playing a USB device. 9

Setting the clock (CT)

To stop playback

Press and hold the OFF button for 1 second.

Stop playback, then remove the device.

Precaution regarding iPhone

When connecting iPhone via USB, the call volume is adjusted using the iPhone, not the device. Do not increase the device volume during a phone call, as a loud sound may occur when the call ends.

Search and Playback of Tracks

Repeat Playback and Shuffle Playback

Unavailable if the device is disconnected or Android is connected.

To select a playback mode, press the (REPEAT) or (SHUFFLE) button several times during playback.

Playback in the selected mode may not start immediately.

The playback modes available depend on the selected audio source.

Searching for Tracks by Name (Quick-BrowZer™)

Unavailable if the device is disconnected, Android is connected, or the device is an iPod.

During CD or USB playback, press (BROWSE)* to display the list of search categories.

When the track list appears, press the (BACK) button until the desired search category is displayed.

*During USB device playback, press and hold (BROWSE) for more than 2 seconds to return directly to the beginning of the category list. 2 Turn the rotary dial to select the desired search category, then press the rotary dial to confirm. 3 Repeat step 2 to find the desired track. Playback will begin.

CLOCK-ADJ (clock setting) (p. 6)

CAUT ALM (preliminary audible alarm)

Turning on the preliminary audible alarm: [ON], [OFF] (p.5).

(Available only when the power is off and the clock is displayed.)

BEEP

Activation of the audible alarm: [ON], [OFF].

AUTO OFF

Automatic shutdown after a preset time if the device is turned on: [ON] (30 minutes), [OFF].

STEERING

Registration/change of settings of the remote control steering wheel.

(Available when the connection cable is connected (not included in the delivery set).) (Available only when the power is off and the clock is displayed.)

STR CONTROL (remote control steering wheel)

Selection of the input mode of the connected remote control. To avoid malfunctions, select

the appropriate input mode for the connected remote control

before using it.

CUSTOM

Mode for direct control via the steering wheel remote control.

PRESET

Input mode for a preset direct control button, except for the direct control button on the steering wheel (selected automatically when [RESET CUSTOM] is performed).

EDIT CUSTOM

Registering functions (SOURCE, ATT, VOL +/-, SEEK +/-) for the direct control button on the steering wheel.

1. Turn the dial to select the function to assign to the steering wheel remote control button, then press the dial. 2. While [REGISTER] is displayed, press and hold the button on the steering wheel remote control to which you want to assign the function. When registration is complete, [REGISTERED] appears. 3. To register other functions, repeat steps 1 and 2.

(Available only if the [STR CONTROL] parameter is set to [CUSTOM].)

RESET CUSTOM

Reset the settings of the direct control button on the steering wheel: [YES], [NO].

(Available only if the [STR CONTROL] parameter is set to [CUSTOM].)

Notes

• While changing settings, only button control is available on this device. For safety, stop the vehicle before changing these settings.
• If an error occurs during registration, previously registered information is retained. Perform the registration procedure again, starting from the function where the error occurred. -This function may not be available in some vehicles. For details on compatibility with your vehicle, visit the website indicated on the back cover.

USB MODE

USB source change: [ANDROID], [MSC/MTP].

(Available only when a USB source is selected.)

Time setting (in hours)

Display of the current firmware version.

FW UPDATE (Firmware update)

Start firmware update: [YES], [NO].

Firmware update takes a few minutes. During the update, do not turn the ignition switch to the OFF position and do not disconnect the USB device being used.

Sound settings (SOUND)

EQ10 PRESET

Select an equalizer curve from 10 equalizer curves or disable the equalizer:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL], [COUNTRY], [KARAOKE]*, [CUSTOM].

The selected equalizer curve for each source can be saved to memory.

*When [KARAOKE] is selected, the voice sound during playback is attenuated, but not completely removed. Microphone use is not supported.

EQ10 CUSTOM

Select the [CUSTOM] option for EQ10. Adjust the equalizer curve: [BAND1]32Hz, [BAND2]63Hz, [BAND3]125Hz, [BAND4]250Hz, [BAND5]500Hz, [BAND6]1kHz, [BAND7]2kHz, [BAND8]4kHz, [BAND9]8kHz, [BAND10]16kHz. The volume level is adjustable in the range from -6dB to +6dB in 1dB steps.

BALANCE

Balance adjustment: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjustment relative to level: [FRONT-15] - [CENTER] - [REAR-15].

S.WOOFER (subwoofer)

SW LEVEL (subwoofer level)

Adjustment of subwoofer volume level: [+6 dB] - [0 dB] - [-6 dB].

([ATT] is displayed when the minimum value is set.)

SW PHASE (subwoofer phase)

Selection of subwoofer phase: [NORM], [REV].

LPF FREQ (low-pass filter frequency)

Selection of subwoofer cutoff frequency:

[80Hz], [100Hz], [120Hz].

HPF FREQ (high-pass filter frequency)

Selection of cutoff frequency value for front/rear speakers: [OFF], [80Hz], [100Hz], [120Hz].

AUX VOL (AUX volume level)

Adjust the volume level of the connected auxiliary device: [+18dB] -[0 dB]-[-8 dB].

This adjustment eliminates the need to adjust the volume for different sources.

AUTO SCR (automatic scrolling)

Automatic scrolling of long items: [ON], [OFF].

(Not available if the AUX source is selected.)

Do not spill liquid on the device or discs.

Precautions for discs

-Do not expose discs to direct sunlight or heat sources such as hot air ducts. Do not leave discs in a car parked in a sunny place.

-When printing disc labels, use a felt-tip pen. Do not use solvents such as benzene, thinner, or alcohol.

-This device is designed for playback of discs that conform to the Compact Disc (CD) standard. DualDiscs and some music discs encoded with copyright protection technologies do not conform to the CD standard and therefore may not play on this device. -Discs that this device cannot play:

-Discs with labels, stickers, or adhesive tape attached. Using such discs may cause malfunctions or damage the disc. -Discs of non-standard shape (for example, heart, square, star shapes). Otherwise, this may cause damage to the device. -8 cm discs.

Playback order of audio files

About iPod

• The following iPod models can be connected. Before using the iPod device, update its software.

Components for iPhone/iPod

Сов mintимая м odeль USB
iPhone 6s Plus	✓
iPhone 6s	✓
iPhone 6 Plus	✓
iPhone 6	✓
o m a t e, iPhone 5s	✓
iPhone 5c	✓
iPhone 5	✓
iPhone 4s	✓
iPod touch (6- ro nokolenia)	✓
iPod touch (5- ro nokolenia)	✓
iPod nano (7- ro nokolenia)	✓

The markings "Made for iPod" (made for iPod) and "Made for iPhone" (made for iPhone) indicate that the electronic component has been designed for connection to iPod or iPhone respectively and has been certified by the developer to meet Apple's performance standards. Apple is not responsible for the operation of such devices or their compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

If you have any questions or problems regarding this device that are not described in this manual, please contact your nearest Sony dealer.

Device care

Cleaning the contacts

The device may not operate reliably if the contacts that connect the front panel to the device are dirty. To avoid this, disconnect the front panel (page 5) and wipe the contacts with a cotton swab. Do not apply excessive force. Otherwise, you may damage the contacts.

Notes

For safety, be sure to turn off the ignition and remove the key from the ignition switch before cleaning the connectors. Never touch the connectors with your fingers or metal objects.

Specifications

TUNER

FM

Tuning range:

For the parameter [AREA] set

Value [EUROPE]:

87.5 MHz - 108.0 MHz

Zone [RUSSIA]:

FM1/FM2: 87.5 MHz - 108.0 MHz (with 50 kHz step)

Sampling frequency: 32 kHz, 44.1 kHz, 48 kHz

FLAC (.flac)

Resolution: 16 bit, 24 bit

Sampling frequency: 44.1 kHz, 48 kHz

Power amplifier

Output: speaker outputs

Total speaker impedance: 4 Ω - 8 Ω

Maximum output power: 55 W × 4 (at 4 Ω)

Other information

Outputs: audio output terminals (REAR, SUB), antenna terminal, remote control terminal (REM OUT)

Inputs: input terminal for remote control, antenna input connector, AUX input jack (mini stereo), USB port

Power supply requirements: car battery 12 V DC (with negative ground)

Rated current: 10 A

Dimensions: approx. 178 mm × 50 mm × 177 mm (W/H/D)

Mounting dimensions: approx. 182 mm × 53 mm × 160 mm (W/H/D)

Weight: approx. 1.2 kg

Scope of delivery: Main unit (1), mounting and connection parts (1 set)

The dealer may not have all the accessories listed above. Contact the dealer for detailed information.

Design and specifications are subject to change without prior notice.

Copyright

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product without a license from Microsoft or an authorized Microsoft subsidiary is prohibited.

No sound signal.

Connect an external power amplifier; the built-in one is not used.

Data has been deleted from memory.

The power cord is disconnected or incorrectly connected, or the battery has been removed.

The programmed radio stations and time setting have been deleted from memory. The fuse has blown. Check the fuse when switching the key position.

Incorrect installation of the power supply for the auxiliary equipment of the vehicle.

During playback or reception, a demonstration starts.

If, with the demonstration mode [DEMO-ON] turned on, no operations are performed within 5 minutes, a demonstration starts. Set the value [DEMO-OFF] (p.12).

The display appears only in the display window.

If the value [DIM-ON] is set (p.14), the display turns off when the OFF button is pressed and held.

• Press the OFF button on the device and hold it pressed until the display turns on. The contacts are dirty (p.17).

The control buttons do not work. The disc is not ejected.

Press and hold the DSPL button and (BACK)/MODE for more than 2 seconds to reset the device. The memory contents will be deleted. For safety reasons, do not reset while driving.

Radio reception

Cannot receive radio stations. The sound is accompanied by interference.

Incorrect connection.

Check the connection of the vehicle antenna. If the automatic antenna does not extend, check the connection of the antenna control wire to the electric drive.

Cannot perform the initial setup.

The radio signals are weak.

In the FM band, it is not possible to tune to 65 MHz-74 MHz.

→ For [AREA], [EUROPE] is selected.

• Set the [AREA] value to [RUSSIA] (p.12).

RDS

RDS services cannot be received (when the [AREA] parameter is set to [RUSSIA]).

→ The FM3 band is selected. -Select FM1 or FM2. → RDS services are not available in this region.

After a few seconds of listening, the SEEK function is activated.

→ The station does not transmit TP data or transmits it too weakly.

• Turn off (p. 8).

Traffic announcements are not transmitted.

→ Turn on (p.8). → The station does not transmit traffic announcements, even though it is a TP type. -Tune to another station.

When the PTY function is enabled, the [---] indicator is displayed.

→ The received station does not transmit RDS data. → RDS data is not received. → The station does not indicate the program type.

The program service name is blinking.

→ For the selected station at the moment, the alternative frequency is not used.

-Press the SEEK +/- button while the program service name is blinking.

If the disc is dirty, the unit will start searching for another frequency with the same data as PI (program information).

Playback of CD discs

The compact disc does not play.

→The disc is dirty or damaged. →CD-R/CD-RW discs are not intended for audio playback (p.16).

MP3/WMA files cannot be played.

→The disc is not compatible with the MP3/WMA format. For detailed information on playable discs and formats, visit the website whose address is indicated on the rear cover.

USB NO MUSIC: No playable files.

→ Connect a USB device with playable files (p.18).

USB NO SUPRT: The USB device is not supported.

→For detailed information on USB device compatibility, visit the support website indicated on the rear cover. L L L Nn Tnno Nn KOHeu DNCKa DOCTNHyTbI. (Underlined): Cannot display symbol.

During operation, the remote control is not working properly.

ERROR: An error occurred during function registration.

→Perform the registration again, with the function where the error occurred (p.12). TIMEOUT: The registration procedure was not completed due to time limit exceeded. →The registration must be completed while [REGISTER] is flashing (about 6 seconds) (p.12).

If the suggested actions do not resolve the problem, contact your nearest Sony dealer. If the unit is to be repaired due to any malfunction that occurred during CD playback, you must have the compact disc that was playing when the malfunction occurred.

Installation/Connections

• Route all grounding wires to a common grounding point.
• Do not allow wires to come into contact with screws or between sharp parts (for example, between guide rails). To avoid a short circuit, turn off the ignition before installation.
• First connect the power wires ⑥ to the device and the speaker, then to the contacts of the external power source. For safety, be sure to insulate all free unconnected wires with electrical tape.

Precautions

Carefully choose the installation location for the device so that it does not interfere with vehicle operation. Do not install the device where it will be exposed to dust, dirt, excessive vibration, or high temperatures, for example in places where direct sunlight hits or near heater vents. To ensure reliable and safe installation, use the mounting parts included in the kit.

Note regarding the power wire (fuse)

When connecting this device together with other audio components, the nominal current value in the vehicle's power circuit must not exceed the total current value indicated on the fuses of all components.

Adjusting the installation angle

Adjust the installation angle so that it is less than 45°

List of parts for installation

①

(2)

(3)

(4)

(5)

6

B 3TOT cINcOK BXOJNT He BCE coJIepXUMoe KOMNJIeKTA NOCTaBKN. KpoHwTeH ① n 3aunTHa MaHKeTa ③ npKpeIeHb K yCTpoiCTBy Do NOCTaBKn. IpeE yCTaHOBkoYCTPOINCTBa BOCIOJIb3yITecb KJIIOUaMn DnIa DEMOHTaKa ②, YTO6bl OTcoeHNNTb KPOHwTeH ① OT yCTpoiCTBa. IOpIO6hble CBeJeHnCm. B pa3dene "OTcoeHNHeHne 3aunTHoH MaHXeTb n KpoHwTeHa" (ctp. 28). -CoxpaHnte KJIouN dIa DeMOHTaJa ② IJNA NCPOJb3OBaHN B 6yDyUcEM, NOCOJIbky OHI TaKKe NOTpe6yIOTc npu DeMOHTaKe aannapata n3 aBToMoBnJI.

Поклоченье

1 He BXOДNT B KOMПЛЕКТ NOCTaBKN. 2 Полhoe copotubneHne rpoMkorOBopnteJen: 4 OM-8 OM×4 3 Ka6eNb c pa3bemAmu RCA (He BXoIIT B KOMNJIeK T NOCTaBkU). *4B3aBnCmOCTnOT Tuna ABTomO6nI, BO3MOxHNO,NOTpe6yETcNcNoJb3OBaTb aAnTeP dIra npoBOdHoro NylbTa INCTaHcUHOHoro ynpabJeHnR (He BXoDIT B KOMJIeKT NoCTaBKn).PiOpO6HbIe CBeJeHnO 6 INcNoJb3OBaHNpOBoHDoro NylbTa INCTaHcUHOHoro ynpabJeHnR CM.B pa3DeIe "IncNoJb3OBaHne npoBOdHoro NylbTa INCTaHcUHOHoro ynpabJeHnR" (CTp.28). 5 B 3aBncmocTn OT Tuna aBTOMO6nla NcNoJIb3yIte aIaNTep (He BXoJNT B KOMnJIeKT NocTaBKn), ecnn pa3beM aHTeHHbl He NOxOJNT.

YcTaHOBka CoeHHeHn

EcnncnoB3yETc aHTeHnac 3NeKtpoPnPBODOM6e3peJeHOrO6Ioka, POnCoeHNHeHne 3TOrO yCTpoiCTBa C NOMOuIO npNlaRaEMO rPOBOda NITaHnA ⑥ MOKeT nPbBeCTN K NOBpeXdEHnO aHTeHHbl.

Kpa3bemyrpoMkoROBOpHTeIaBTOMO6nJIa

EcnKpaChbI N XeJIbI npoBoda nepeCTaBHeHbI MeCTaMn XeNTbI XeNTbI

YCTaHOBHeHHraOuHHnKa 6

PiKIOUeHH npcTpoU USB 6

Пдключеня iHwoTo nopTaTHBHorO aydionpncTropo 7

PpoclyxOByBaHHpaio

PpocnyxOByBaHHpaio 7

BukopucTahnncntemnpaioanux (RDS) 8

BiodbopeHn

BiTbOpEnHnIa 9

BiTbOpHnI npncTroIO USB. 9

IoiykiBbTbOpenHnKOMno3nui. 10

Hanaштуваимя

CkacyBaHHpeKmMy DEMO 11

Ochobhi onepauii HanauTyBaHHra 11

3araIbHI hanaTbyBaHnra (GENERAL) 12

HaataTyBaHHa 3Byky (SOUND) 13

HanaWtYBaHHn Dncnne (DISPLAY) 14

Доаткови BiIDOMOCTI

OHOBLeHHB6yDoBaHOro I3 15

3acTepeKHi 3axoNi 15

Texhne 06cIyroByBaHHra 17

TexhiyixapakTepeuCTnKu 17

Nouky i ycyHnHa HecnpaBHOCTe 20

PoiDomJIeHHra 22

Cnncok qactnH dIy BCTaHOBJIeHH .24

PiKIOueHH 25

YCTaHOBJIeHHra 27

Q (orJIA) (CTop. 10, 11)

IpepexiD opekmy orJy niJ yac BiIDTBOpEHn. (FyHKiJe HeIOCTynHa, kUo NiKJIIOyeHo npicptpi USB B pexmi AndroidTM a6o iPod.)

EQ (ekBanaJ3ep) Bn6ip kpuBoi ekBanaJ3epa. 10 (Ha3aI) NobepHeHHa do nonepedHbOro ekpaHa. MODE (ctop.7) 11ПриимачсгнавиВiДпьтадистанцийного кервання

12 LnΦpOBI KhoNKn (1-6)

PpHOM 36epexeHNx y naM'rti paioctaun. HataNCHiB i yTpmyTe, 36epertn ctaunii.

ALBUM▼/▲

PpOnyckaHH aIb6oMy dIaayIOnpnCTpoI. HatncHITb i yTpmyTeIJI 6e3pepePBHO r npOyncaHH aIb6oMIB.

(Функця Нedoctунha, якшо пдкюецнопст pi USB b peхимi Android a6o iPod.)

（NOBTOPUTn）

Функця HeNoCTynHa,Якso NiДКЛюЧeHOr npictpi USB b pekuni Android.

(Power on/off order)

The function is unavailable if the USB device is disconnected in Android mode.

II (play/pause)

13 EXTRA BASS

Enhances the bass sound in synchronization with the volume level. Press to change the EXTRA BASS parameter: [1], [2], [OFF].

14 AUX input jack

15 DSPL (display)

Changes the display indication.

SCRL (scroll)

Press and hold to scroll the display.

16 USB port

Removing the front panel

Removing the front panel

The front panel of this device can be removed for security.

Press and hold the OFF button ① until the device turns off. Press the release button of the front panel ②, then remove the panel by pulling it toward you.

The alarm will sound after the set time has elapsed. To set the alarm, press the button and hold it for a few seconds. The alarm will sound only if the device is turned on.

Front panel

Resetting the device

Before using the device, after replacing the battery or changing the settings, reset the device.

Press and hold the DSPL (BACK)/MODE button for more than 2 seconds.

Reset

Resetting the device will erase all settings, including the clock and any stored content.

Country/region setting

After resetting the device, the country/region setting screen appears.

1 When [SET AREA] appears, press the ENTER button. Select the desired country or region. 2 Turn the control dial to select [EUROPE] or [RUSSIA], then press the control dial. 3 Turn the control dial to select [YES] or [NO], then press the control dial. If you change the country or region, the device will reset automatically after the clock is set.

The parameters can also be set in the general settings menu (page 12).

Setting the clock

1 Press the MENU button, turn the control dial to select [GENERAL], then press the control dial. 2 Turn the control dial to select [SET CLOCK-ADJ], then press the control dial. The clock display will blink. 3 Turn the control dial to set the hour and minute. To move the digit, press the SEEK +/- button. 4 After setting the time, press the MENU button. The setting is complete, and the clock will start running.

To display the clock, press the DSPL button.

Press the MODE button to select the desired band (FM1, FM2, FM3, MW or LW). 2 Tune the frequency.

Alternative Frequencies (AF) and Traffic Announcement (TA)

The AF function continuously retunes to the station with the strongest signal in the network, and the TA function provides traffic information or traffic programs (TP) if they are received.

1 Press the MENU button, turn the control dial, select [GENERAL], then press the control dial. 2 Turn the control dial, select [SET AF/TA], then press the control dial. 3 Turn the control dial, select [SET AF-ON], [SET TA-ON], [SET AF/TA-ON] or [SET AF/TA-OFF], then press the control dial.

Storing RDS stations with AF and TA settings: You can program stations with AF/TA settings. Set AF/TA, then store the station manually. If the station is programmed manually, you can also program RDS stations.

Emergency broadcasts: If AF and TA are turned on, emergency broadcasts will automatically interrupt the selected source.

Adjusting the volume during traffic announcements

The volume level will be stored for traffic announcements, and it will not depend on the normal volume level.

Receiving regional programs (REGIONAL)

With AF and REGIONAL turned on, the tuner will not switch to another regional station with a stronger signal. If you want to receive a regional broadcast, set [SET REG-OFF] in the [GENERAL] menu while receiving an FM station (page 13). This function does not work in the UK and some other countries.

Local radio function (UK only)

This function allows you to select other local stations in a certain locality, even if they are not assigned to the preset buttons. During FM reception, press the preset button (1 to 6) on which the local station is stored. Within 5 seconds, press the preset button of the local station again. Repeat this procedure until you find the desired local station.

Selecting program types (PTY)

1 Press PTY during FM reception. 2 Turn the control dial until the desired program type appears, then press the control dial. The tuner will start searching for stations that broadcast the selected program type.

NEWS (News), AFFAIRS (Current affairs), INFO (Information), SPORT (Sport), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop music), ROCK M (Rock music), EASY M (Easy listening music), LIGHT M (Light classical music), CLASSICS (Classical music), OTHER M (Other music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's programs), SOCIAL A (Social affairs), RELIGION (Religion), PHONE IN (Phone-in programs), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz), COUNTRY (Country music), NATION M (National music), OLDIES (Oldies), FOLKM (Folk music), DOCUMENT (Documentary programs)

Setting the clock (CT)

1 Press the [GENERAL] button to set [SET CT-ON] (page 13).

Discs

Discs that can be played

1 Insert the disc (with the labeled side facing up).

Playback starts automatically.

USB devices

In the iPod operating instructions, the term "iPod" is used as a general reference to the iPod and iPhone functions, unless otherwise specified in the text or in the illustrations.

For detailed information about iPod compatibility, see "About iPod" (page 16) or visit the support website listed on the last page of this manual.

You can use USB devices* such as AOA (Android Open Accessory) 2.0, MSC (mass storage class), and MTP (Media Transfer Protocol) that are compatible with the USB standard. Depending on the type of USB device, you can select Android or MSC/MTP mode on the unit. For some digital audio players or Android smartphones, the MTP mode may be selected automatically.

• For example, USB flash drives, digital audio players, Android smartphones

Notes

- For detailed information about USB device compatibility, see the support website listed on the last page of this manual. Smartphones with Android OS 4.1 or later support the Android Open Accessory 2.0 (AOA 2.0) protocol. However, some smartphones may not fully support AOA 2.0 even if they have Android OS 4.1 or later. For detailed information about the compatibility of your Android smartphone, see the support website listed on the last page of this manual. The following files are not supported: MP3/WMA/FLAC:

• - Files protected by copyright; - Files with DRM (Digital Rights Management);
• - Multichannel audio files. MP3/WMA: - Files compressed without loss of data.

The USB device connection procedure depends on the type of USB device (Android mode or MSC/MTP) (p.13).

1 Connect the USB device to the USB port (p.6). The connection is established. If the USB device is already connected, press the SRC button repeatedly until the [USB] indicator appears (if iPod is recognized, the [IPD] indicator appears). 2 Adjust the volume on this device.

Disconnecting the device

Press and hold the OFF button for about 1 second.

Removing the device

Disconnect the device after turning it off.

iPhone restrictions

When an iPhone is connected via USB, the phone call volume is adjusted using the iPhone, not the device. During a phone call, avoid adjusting the volume on the device, as this may cause a sudden change in volume after the call ends.

FW UPDATE (FIRMWARE UPDATE)

Start firmware update: [YES], [NO].

The firmware update takes several minutes. During the update, do not set the ignition key to OFF and do not disconnect the USB device.

Sound adjustment (SOUND)

EQ10 PRESET

Select an equalizer curve from 10 equalizer curves or disable the equalizer:

[OFF], [R&B], [ROCK], [POP], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL],

[COUNTRY], [KARAOKE]*, [CUSTOM].

Setting the equalizer can save the settings for each source.

*If [KARAOKE] is selected, the voice sound during playback is muted, but not completely removed. Using the microphone is not recommended.

EQ10 CUSTOM

Set to [CUSTOM] EQ10.

Adjust the equalizer curve: [BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz, [BAND4] 250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz. The level is adjusted in the range from -6 dB to +6 dB in 1 dB steps.

BALANCE

Adjust the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjust the front/rear volume balance: [FRONT-15] - [CENTER] - [REAR-15].

S.WOOFER (subwoofer)

SW LEVEL (subwoofer level)

Adjust the subwoofer level: [+6 dB] - [0 dB] - [-6 dB].

([ATT] is selected at the lowest value.)

SW PHASE (subwoofer phase)

Select subwoofer phase: [NORM], [REV].

LPF FREQ (low-pass filter frequency)

Select subwoofer cutoff frequency: [80Hz], [100Hz], [120Hz].

Select one of 15 preset colors, 1 custom color.

CUSTOM-C (custom color)

Adjust the custom color in the display.

RGB RED, RGB GRN, RGB BLUE

Adjust color range: [0] - [32] (value [0] cannot be

set for all color ranges simultaneously).

DSPL-C (display color)

Adjust the preset

or custom color for the display.

COLOR

Select one of 15 preset

colors, 1 custom color.

CUSTOM-C (custom color)

Adjusting the custom color palette.

RGB RED, RGB GRN, RGB BLUE

Adjust the color range: [0] -

[32] (value [0] cannot

be set for all ranges

of colors simultaneously).

SND SYNC (sound synchronization)

Enable synchronization of subtitles with sound: [ON], [OFF].

AUTO SCR (automatic scrolling)

Automatically scroll the elements: [ON], [OFF].

Technical maintenance

Cleaning the contacts

The device may operate unreliably in case of dirty contacts that are in the device and on the front panel. To avoid this, remove the front panel (page 5) and clean the contacts with a cotton swab. Do not apply excessive force. Otherwise, the contacts may be damaged.

Cleaning

3. To avoid danger, turn off the ignition and remove the key from the ignition lock before touching the contacts. Never touch the contacts directly with your fingers or any metal object.

Technical specifications

Tuner

FM

Tuning range:

For parameter [AREA] set to [EUROPE]:

87.5 MHz - 108.0 MHz

For parameter [AREA] set to [RUSSIA]:

FM1/FM2: 87.5 MHz - 108.0 MHz (with 50 kHz step)

FM3: 65 MHz - 74 MHz (with 30 kHz step)

Antenna input:

External antenna connector

Intermediate frequency:

For parameter [AREA] set to [EUROPE]:

Used frequency: 7 DΦ

Bandwidth: 75 dB at 400K

Signal-to-noise ratio: 73 dB

Division: 50 per 1 kg

Frequency response: 20 Hz - 15000 Hz

MW/LW

Tuning range:

MW: 531 kHz - 1602 kHz

LW: 153 kHz - 279 kHz

Antenna input:

External antenna connector

Sensitivity: MW: 26 mV, LW: 50 mV

CD programs

Signal-to-noise ratio: 95 dB

Frequency response: 10 Hz - 20000 Hz

Distortion coefficient: no more than 0.5%

Maximum number (for CD-R/CD-RW):

• Folders (albums): 150 (including the root folder);

Supports VBR (variable

bit rate) for audio data

Sampling frequency: 16 kHz to 48 kHz

WMA (.wma)

Audio data bit rate:

Supports VBR (variable

Terminal for subwoofer (REAR, SUB)

Antenna with electric drive / Remote control terminal (REM OUT)

Input:

Input terminal for steering wheel remote control

DC power supply

To other 12 V (with negative ground)

Nominal current consumption: 10 A

Dimensions:

approx. 178 mm × 50 mm × 177 mm (W/H/D)

Mounting dimensions:

approx. 182 mm × 53 mm × 160 mm (W/H/D)

Weight: approx. 1.2 kg

Package contents:

Main unit (1)

Installation parts

No audible signal.

→ An external power amplifier is connected, and the built-in amplifier is not used.

The operation buttons do not function. The disc is not ejected.

→ Press and hold the DSPL (Back)/MODE button for more than 2 seconds to restart the device. The content saved in memory will be erased. For safety reasons, do not perform the restart operation while driving.

Radio reception

Radio stations cannot be received. The sound is accompanied by noise.

→ Incorrect connection.

• Check the connection of the car antenna. - If the motorized car antenna does not extend, check the connection of the antenna control wire with the electric drive.

It is not possible to find programmed stations.

The transmitted signal is too weak.

In the FM3 band, it is impossible to tune to 74 MHz.

→ For [AREA], [EUROPE] is selected.

- Set the [AREA] value to [RUSSIA] (page 12).

RDS

RDS services are not received (if the [AREA] parameter is set to [RUSSIA]).

→ FM3 is selected. - Select FM1 or FM2. → RDS services are not available in your region.

After a few seconds of listening, the SEEK function starts.

→ The station is a TP station or transmits a weak signal.

- Turn on TA (page 8).

There are no traffic announcements.

→ Turn on TA (page 8). → The station does not transmit traffic announcements, even though it is a TP station.

• Press another station.

PTY Biio6paKaε[-- - - - - - -].

→ It is not an RDS station. No RDS data received. → The station does not indicate the program type.

The program service name is displayed.

→ There is no alternative frequency for this station.

• Press SEEK + / - , the program service name is displayed. The [PI SEEK] indicator appears, and the device will search for another frequency with the same PI data (program identification).

Repeat

It does not repeat.

→ The disc is scratched or dirty. → CD-R/CD-RW discs are not intended for audio playback (page 16).

MP3/WMA playback is not possible.

→ The disc is not compatible with the MP3/WMA format and version. Detailed information about playable discs and formats is provided on the manufacturer's website, indicated on the last page of the cover.

MP3/WMA files require more time for playback start than others.

→ The following discs require more time to start playback:

- Discs recorded with a complex file tree; - Discs recorded in multi-session; - Discs to which data files can be added.

Sound is interrupted.

→ The disc is scratched or dirty.

USB hub connection

Do not connect elements through a USB hub.

→ It may not be possible to connect the USB device through a USB hub.

HUB NO SUPRT: The device does not support USB hubs.

INVALID

→ The selected operation may not be supported. → During iPod playback, [USB MODE] is not possible.

IPD STOP: iPod playback has ended. → Start playback again using iPod/iPhone.

NO AF: No alternative frequencies. → Press SEEK + / - when the program service name is displayed. The device will search for another frequency with the same program identification (PI) data (the program service name will be updated [PI SEEK]).

NO TP: No traffic program.

Using the wired remote control

To activate the wired remote control, set [STR CONTROL] in [SET STEERING] to [PRESET] (page 12).

Installation

Explanation of the bracket's mounting hook

The preset device releases the hook ③ and the bracket ① from the device.

Press both sides of the mounting hook ③ and pull it out.

2. Remove the two brackets together by pressing them. Press the bracket ① downwards, then press the device to release it.

Installing the device into the panel

Before installing the device, bend the brackets ① on both sides inward by 2 mm.

1. Install the bracket ① into the panel, then press the protruding part to ensure proper fixation.

2. Press the bracket ①, then insert the locking tab ③.

Note

• If the brackets are bent or deformed, the device will not be installed securely and may fall out.
• Check that the tab on the locking mechanism ③ is securely inserted into the holes, then press the device.

Removing and reinstalling the front panel

Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.de/

If you have any questions or for the latest support information on this product, please visit the web site below:

Support site

Register your product online now at:
