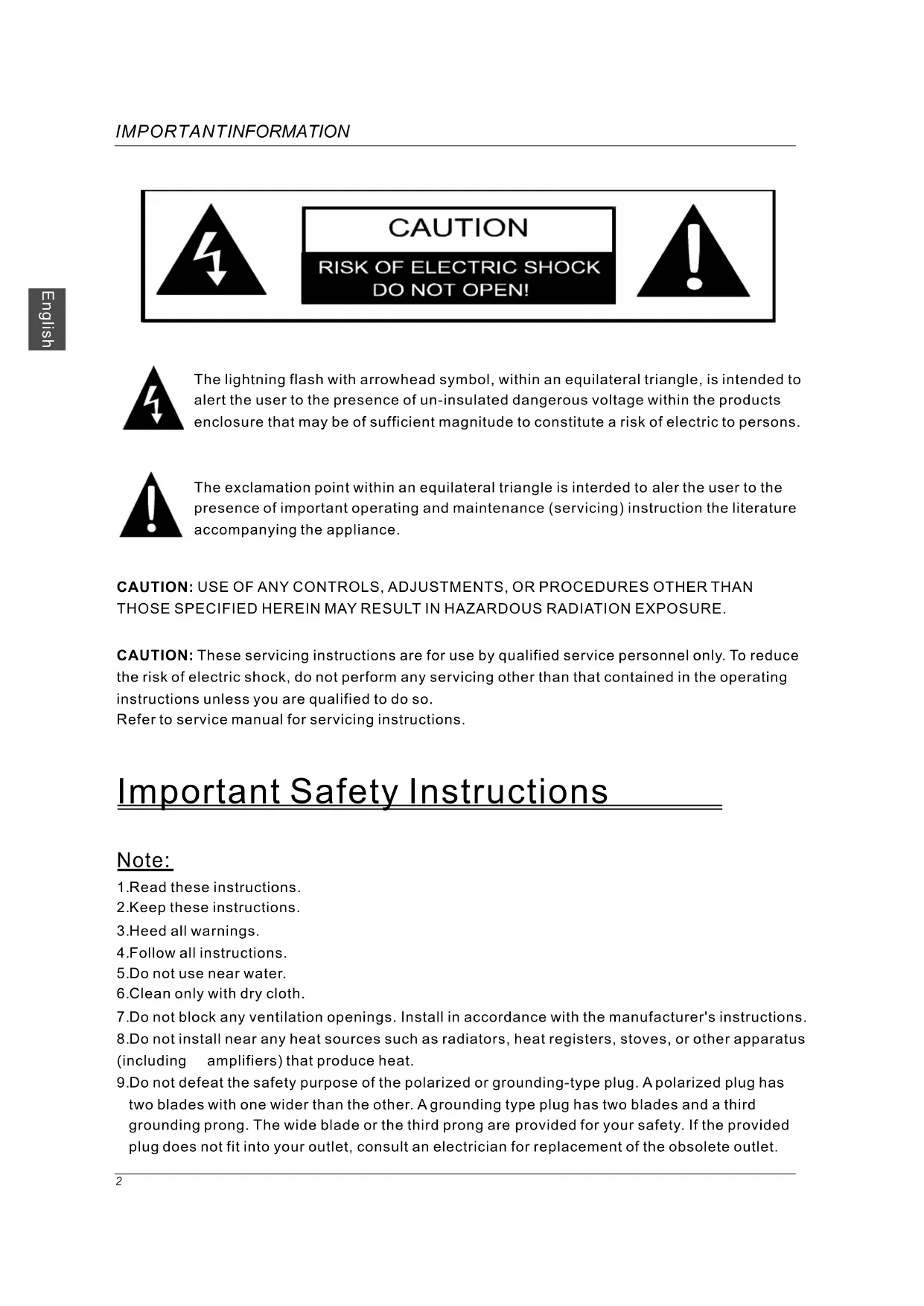

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is interded to alert the user to the presence of important operating and maintenance (servicing) instruction the literature accompanying the appliance.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

Important Safety Instructions

Note:

1. Read these instructions.
2. Keep these instructions.
   3.Heed all warnings.
3. Follow all instructions.
4. Do not use near water.
5. Clean only with dry cloth.
6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

8. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10. Only use attachments / accessories specified by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
4. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
5. Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.
6. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.

2.PREFACE

Thank you for buying this TV! Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV be damaged, do not install it and contact your dealer. Check that you have all the accessories according to the model.

3.SAFETYPRECAUTIONS

Put the TV on a stable surface.

Simple line drawing of a monitor with a cross symbol above it (no text or labels)

Do not place any material on the TV.

Minimumdistances 10cm 10cm5cm 20cm

Do not use the TV with fixtures other than those provided or suggested by the manufacturer.

Do not block or cover the ventilation openings on the TV. If you have a wall mount, check that it is steady.

Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall.

Cartoon illustration of a computer monitor with broken-out fragments and lightning bolts (no text or symbols)

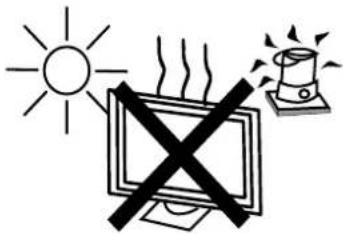

Keep the TV dry and away from humidity.

Warning symbol with sun, computer monitor, and warning sign crossed out

Keep the TV away from heat sources.

Diagram showing a computer monitor with arrows indicating light and a hand holding a device, accompanied by a crossed-out 'No' symbol.

Unplug the TV before cleaning it. Do not use solvent or liquid to clean the TV.

Only clean the TV with a soft and dry cloth.

Diagram showing a computer monitor with a lightning bolt symbol crossed out by a 'X' and a warning sign with Chinese characters.

In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits, fire or other incidents.

Warning symbol with crossed-out 'S' and exclamation mark, next to a person wearing a mask

Unplug the TV during lightning storms or when unused for long periods of time.

4. IN THE CARTON

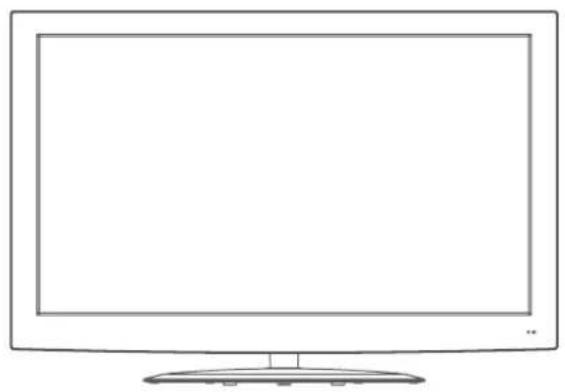

Line drawing of a flat-screen computer monitor with a blank screen and base (no text or symbols)

LED TV SET

SEIKI

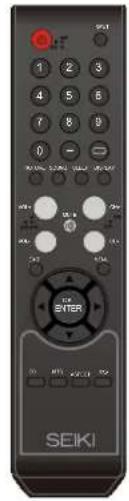

Remote Control

AAA Batteries

Warranty Card

Warranty Card

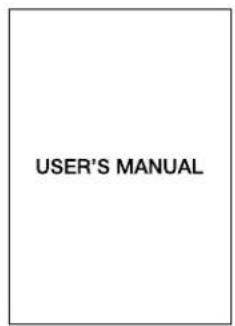

USER'S MANUAL

USER'S MANUAL

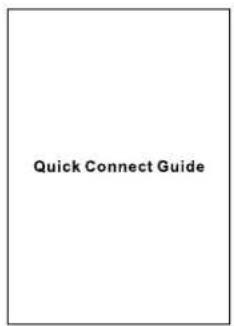

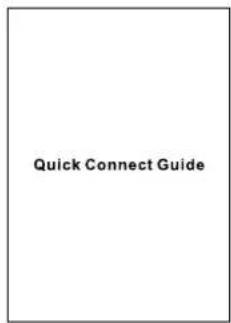

Quick Connect Guide

Quick Connect Guide

Coiled black cable with two connectors, no visible text or symbols

HDMI cable

5. FRONT/BACK CONNECTIONS OF LED TV

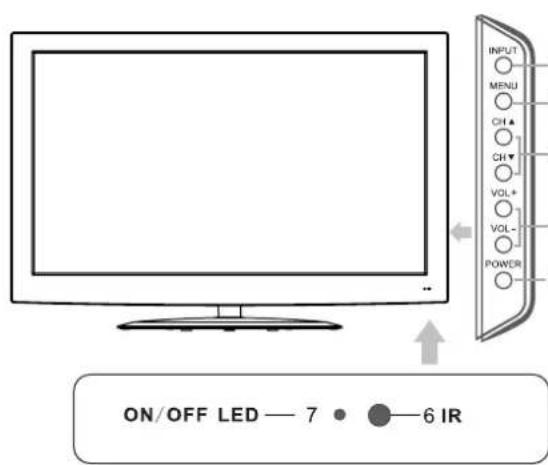

Front View

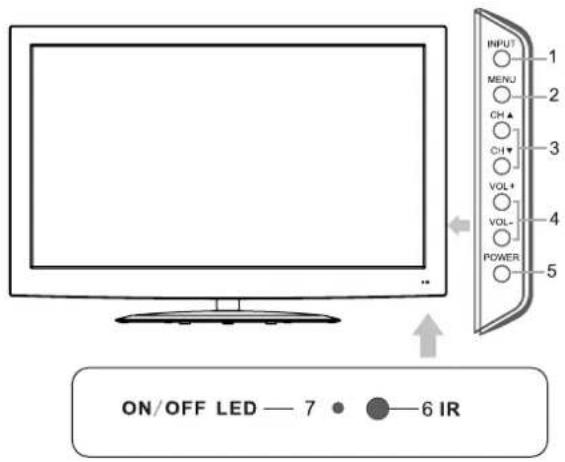

INPUT 1 MENU 2 CH▲ 3 CH▼ VOL+ 4 VOL- POWER 5 ON/OFF LED — 7 • —6 IR

1. Press "INPUT" to select the input source.
2. Press "MENU" to bring up the main menu on the screen.
3. Press "CH▲" or "CH▼" to scan through channels.
4. Press "VOL+" or "VOL-" to increase or decrease the volume.
5. Press "POWER" button to turn the TV on or off.
6. REMOTE SENSOR: infrared sensor for the remote control.
7. POWER INDICATOR: Blue when TV is powered on. Red when TV is powered off. No color when power switch is turned off.

Back View and Control Connections

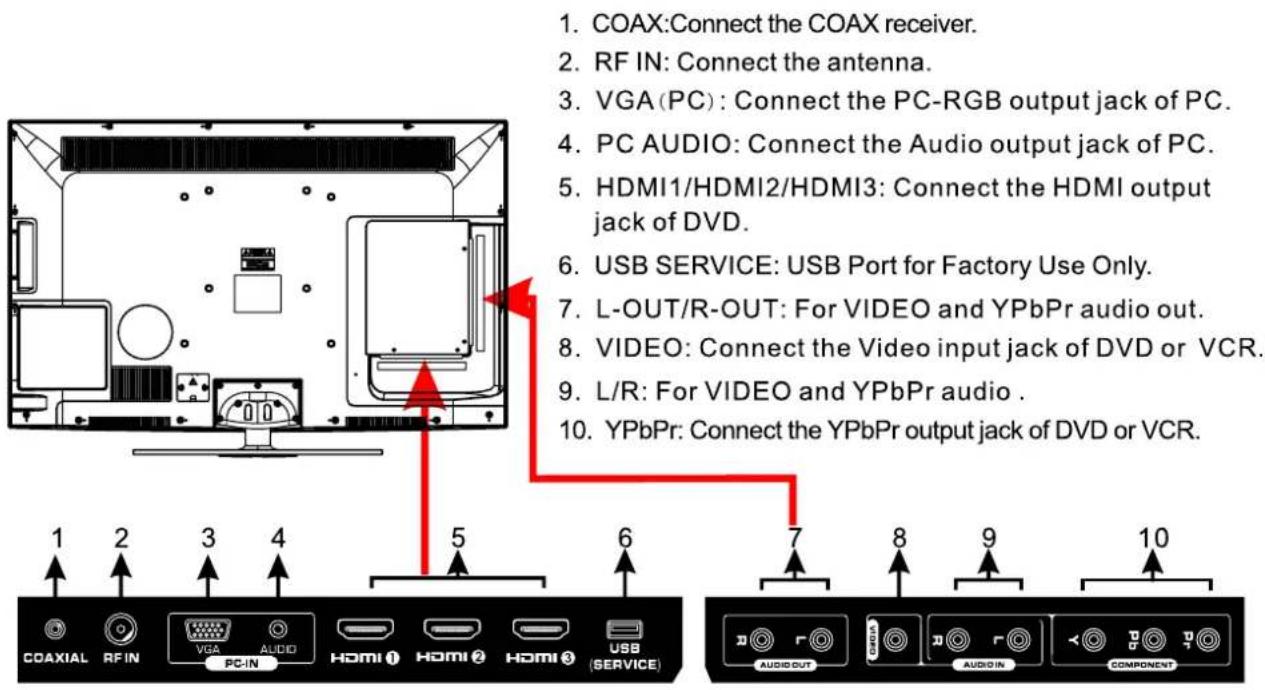

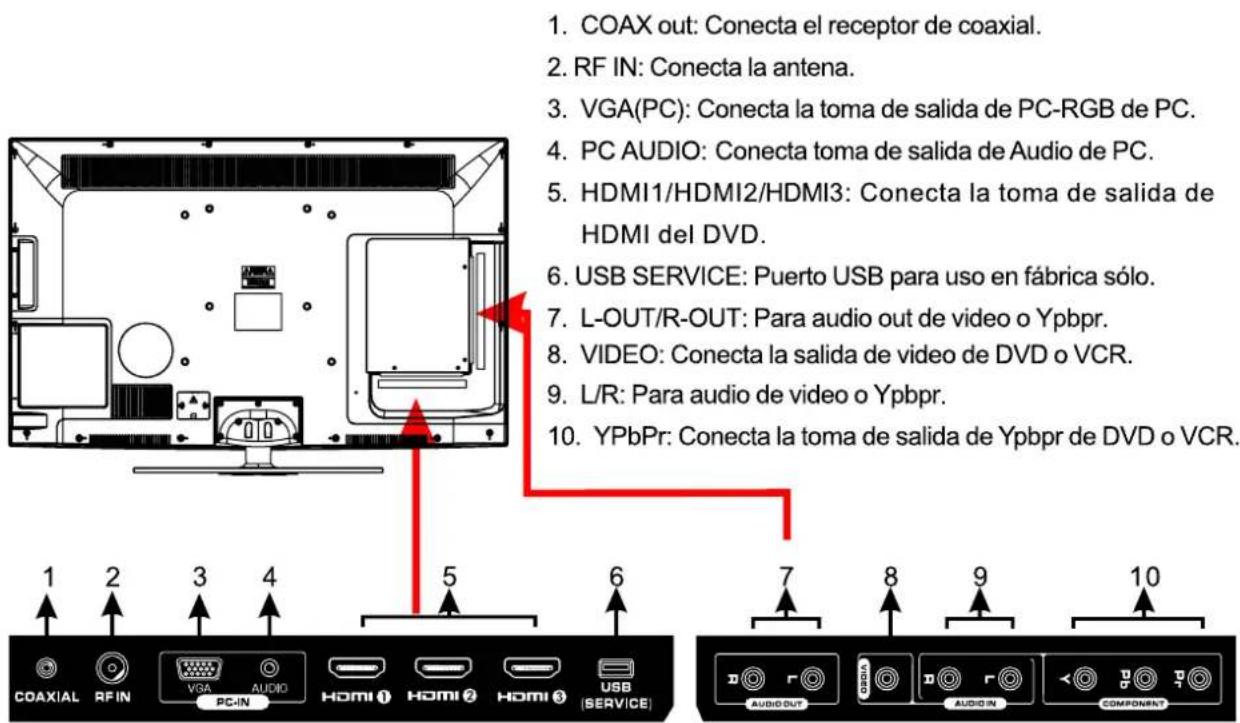

1. COAX:Connect the COAX receiver. 2. RF IN: Connect the antenna. 3. VGA (PC): Connect the PC-RGB output jack of PC. 4. PC AUDIO: Connect the Audio output jack of PC. 5. HDMI1/HDMI2/HDMI3: Connect the HDMI output jack of DVD. 6. USB SERVICE: USB Port for Factory Use Only. 7. L-OUT/R-OUT: For VIDEO and YPbPr audio out. 8. VIDEO: Connect the Video input jack of DVD or VCR. 9. L/R: For VIDEO and YPbPr audio . 10. YPbPr: Connect the YPbPr output jack of DVD or VCR.

6. TV INSTALLATION DRAWINGS

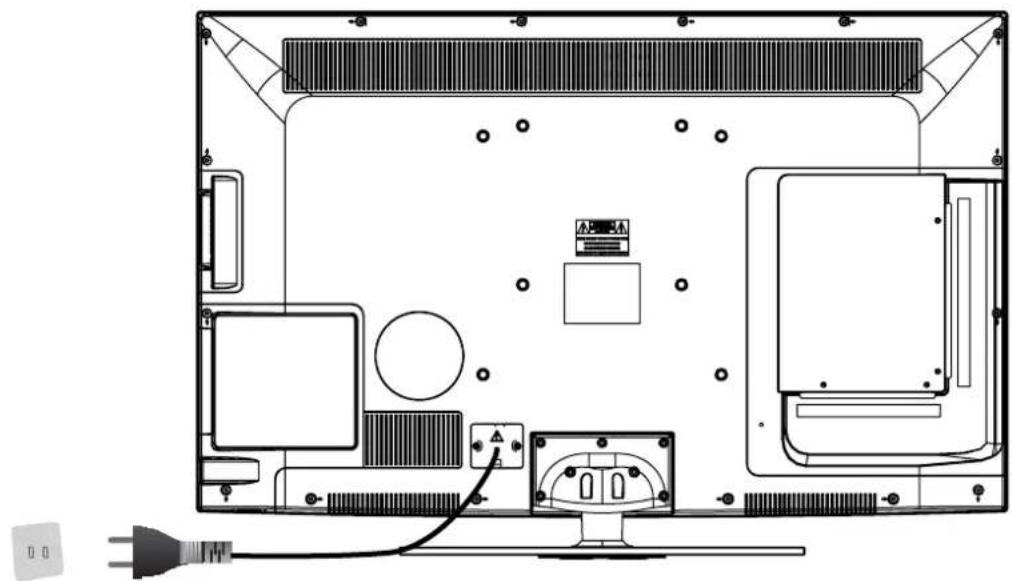

Power Cord Connection

• Connect the power cord correctly as shown.
• Press the POWER switch of your LED TV to switch on the LED TV. The power indicator on the front panel lights up in green.

Top-down schematic of an electronic device showing internal components and wiring (no text or labels)

Antenna Connection

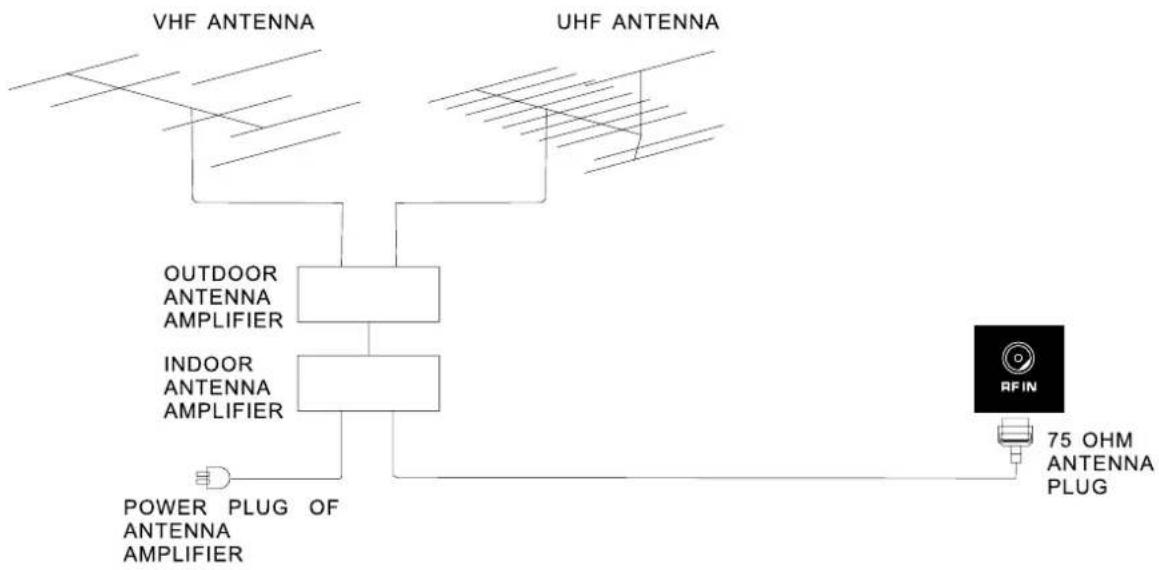

To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as shown can be sourced from TV equipment shops, which will provide service for correct installation and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.

AVConnection

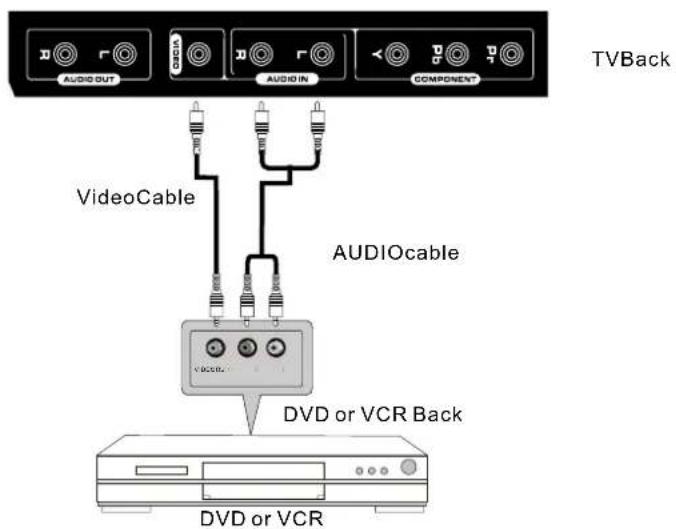

Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Select the AV input source using the SOURCE button on the remote control.

TVBack AUDIO OUT AUDIO IN COMPONENT VideoCable AUDIOcable DVD or VCR Back DVD or VCR

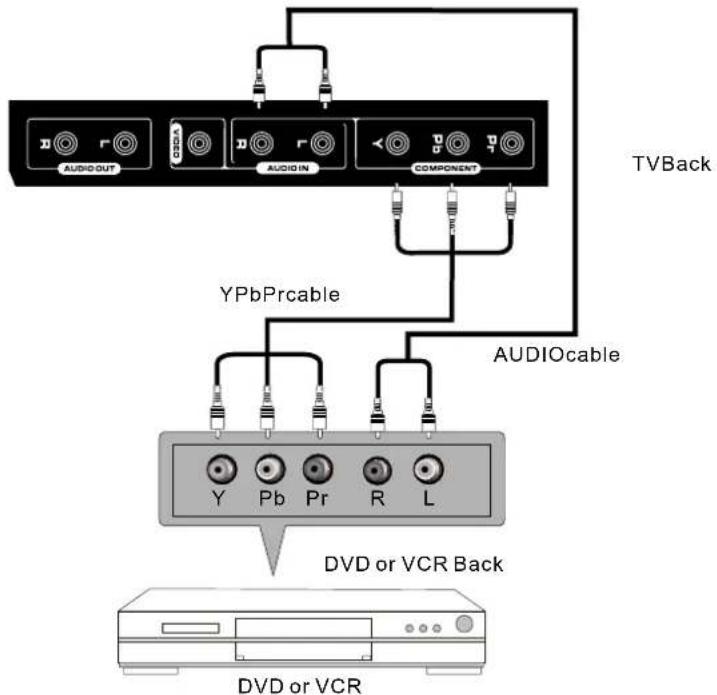

YPbPr(Component) Connection

Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture quality is improved; compared to connecting a regular VCR to the video input. Connect the Audio output of the DVD or VCR to the Audio input jacks on the set using the RCAcable.

Match the jacks colors :Y is green,Pb is blue,Pr is red,Audio left is white and Audio right in red. Select component input source using the SOURCE button on the remote control.

VGA(PC) Connection

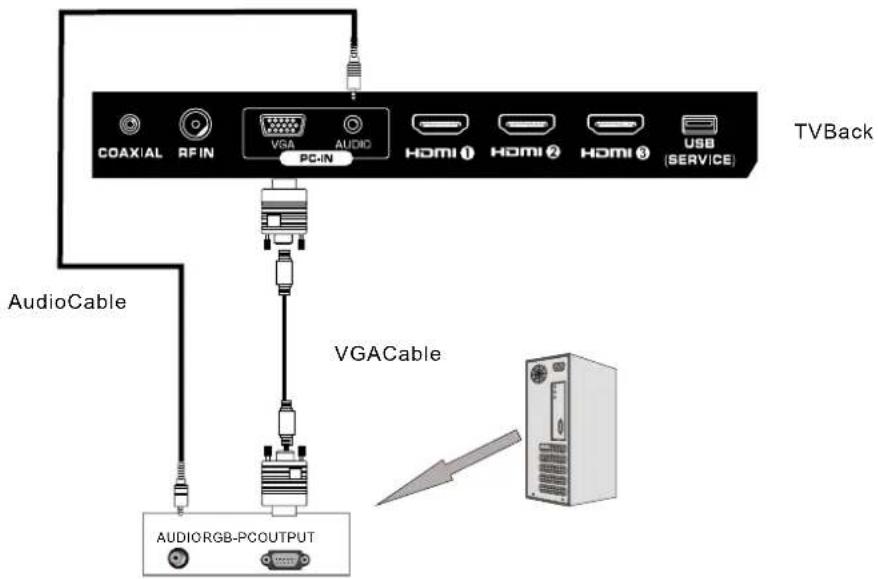

Connect the RGB output of the PC to the VGA(PC) jack on the set. Connect the AUDIO output of The PC to the PCAUDIO jack on the set. Select the RGB input source with using SOURCE button on the remote control.

TVBack COAXIAL RF IN VGA AUDIO HDMI ① HDMI ② HDMI ③ USB PC-IN AudioCable VGACable AUDIORGB-PCOUTPUT

COAXConnection

Connect to Audio Amplifier device to the COAX output jack on the TV.

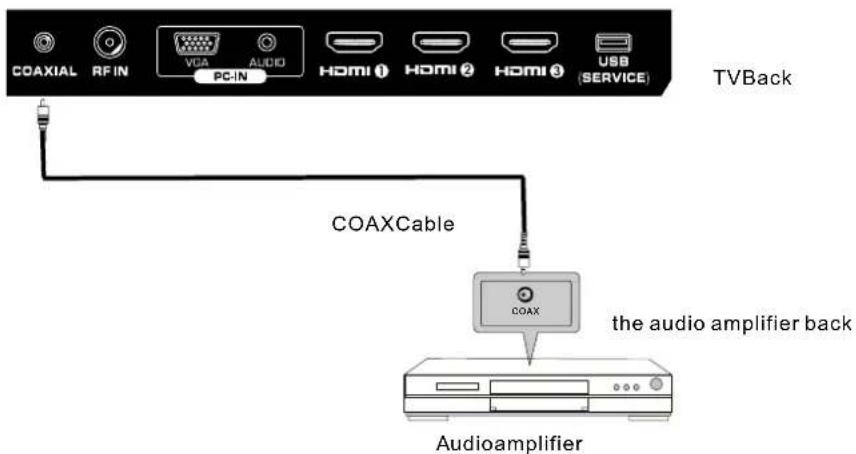

COAXIAL RF IN VGA AUDIO HDMI ① HDMI ② HDMI ③ USB (SERVICE) TVBack COAXCable the audio amplifier back Audioamplifier

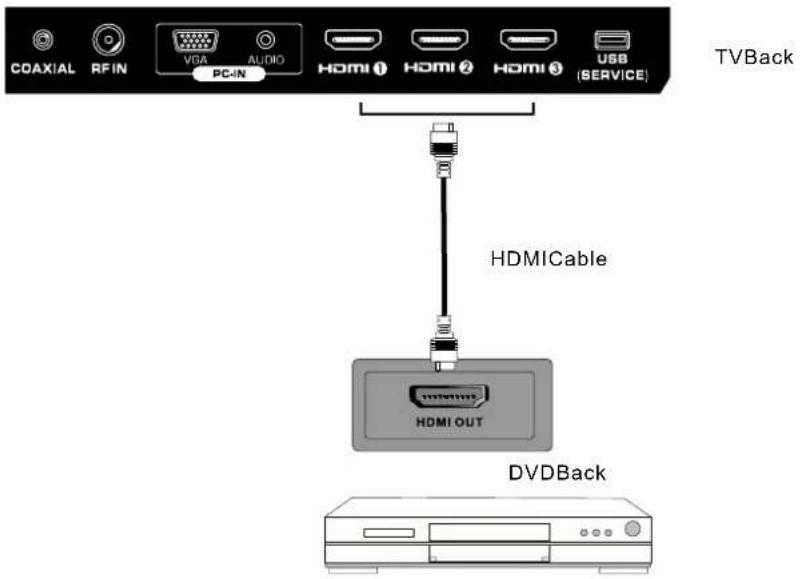

HDMIConnection

HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control signals through one cable only. These signals are transferred in digital.

COAXIAL RF IN VGA AUDIO PC-IN HDMI ① HDMI ② HDMI ③ USB (SERVICE) TVBack HDMICable HDMI OUT DVDBack

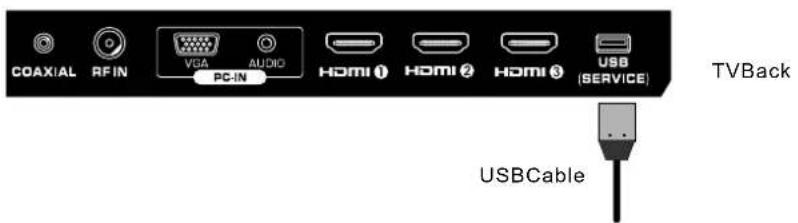

Service Port Function

Service port: (For factory uses only.)

COAXIAL RF IN VGA AUDIO HDMI 1 HDMI 2 HDMI 3 USB PC-IN (SERVICE) TVBack USBCable

7. REMOTE CONTROL

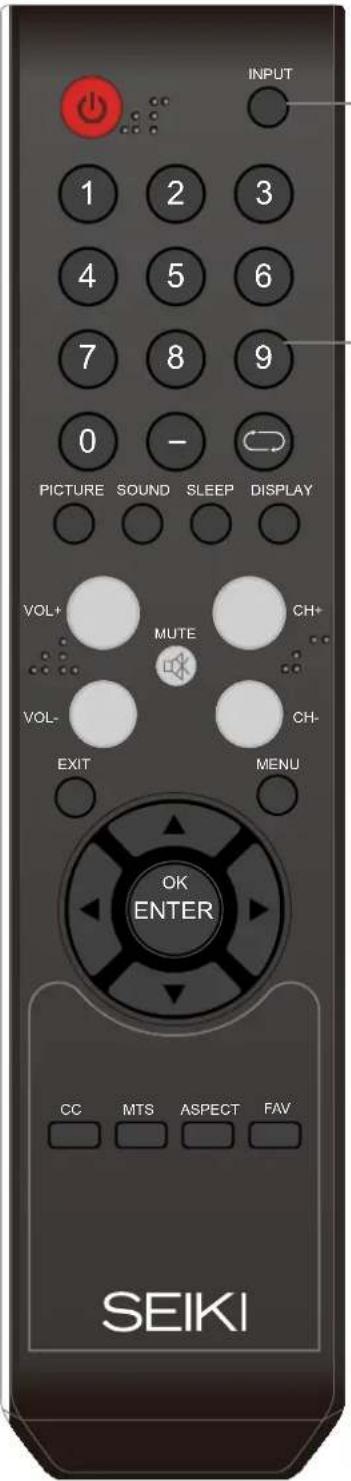

Remote control instructions in TV mode

INPUT 1 2 3 4 5 6 7 8 9 0 - PICTURE SOUND SLEEP DISPLAY VOL+ MUTE CH+ VOL- CH- EXIT MENU OK ENTER CC MTS ASPECT FAV SEIKI

POWER

Turn the LCD TV ON or OFF.

INPUT

Press INPUT to display the OSD input source, press ▲▼ to select an input source, and then press OK to confirm.

NUMBER BUTTONS

Press 0-9 to directly change the TV channel.

Press this button to enter a program number for multiple program channel such as 2-1, etc.

Return to the previous channel viewed.


Select the picture mode

SOUND

Select the sound mode

SLEEP

Set the Sleep Timer.

DISPLAY

Displays the source and channel information.

MENU

Displays the main TV menu

EXIT

Exit the main TV menu

MUTE

Press to mute the sound. Press again or press VOL+ to un-mute the TV.

VOL+/VOL-

Press to increase / decrease the sound level.

CH+/CH-

Press to scan through channels.

THUMBSTICK(▲/▼/◄/►/OK)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

cc

Press to set the closed caption.

MTS

Press to adjust between available audio channel.

ASPECT

Press to select Aspect Ratio.

FAV

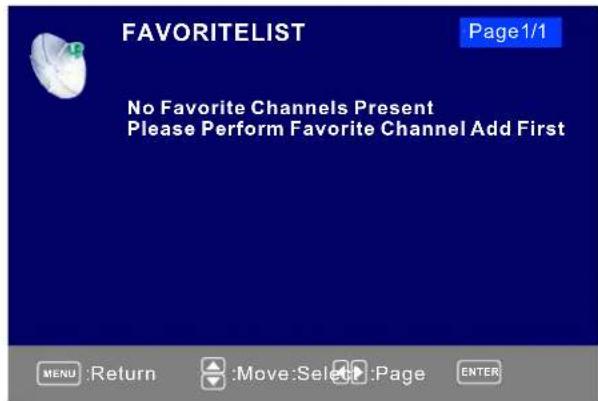

Press to display the TV favourite program list.

Remote control setup

1. Open the cover.
2. Uses three A size batteries. When inserting the batteries, make sure correct polarities "+" and "-" marks on the batteries line up correctly with compartment markings.
3. Replace the battery cover.

To prevent battery leakage which may result in bodily injury or damage to the remote:

1. Install all batteries correctly, and as marked on the remote control.
2. Do not mix batteries:(OLD and NEW or CARBON and ALKALINE, etc) Remove batteries when the remote is not used for a long period of time.

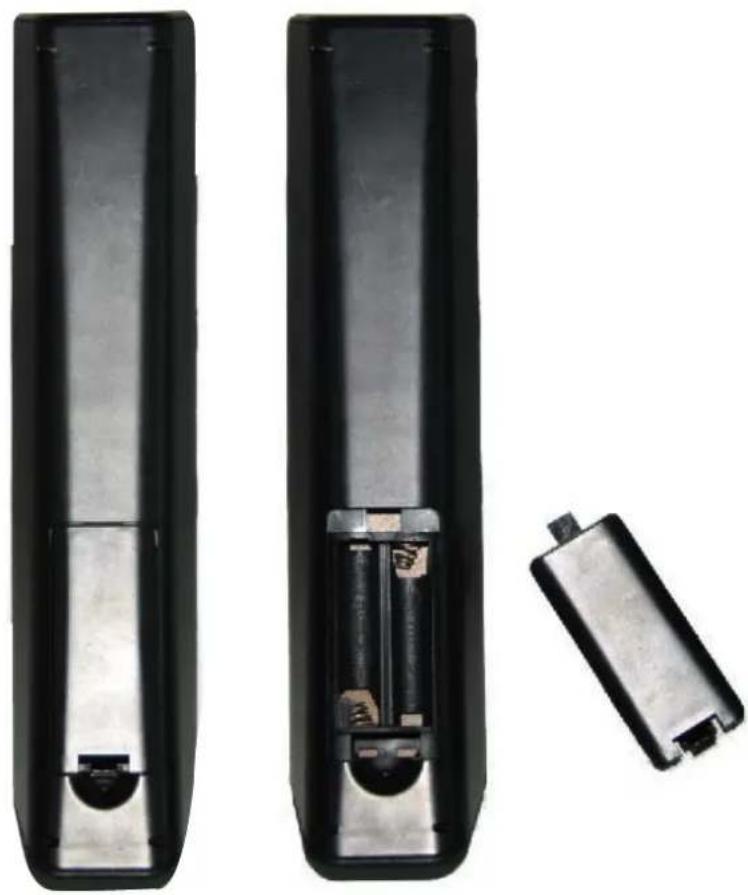

Two black rectangular devices with internal components, one showing a battery and the other a separate external housing (no text or symbols visible)

8. Menu Operation

SETUPWIZARD

SelectLanguage

Select the language you want.

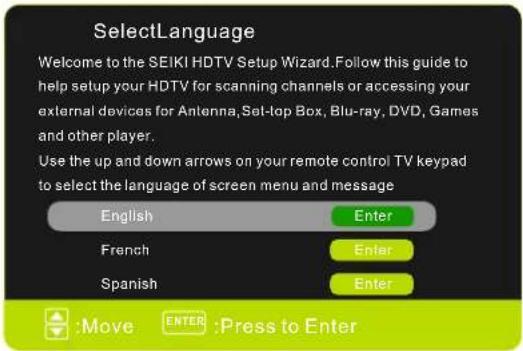

SelectLanguage Welcome to the SEIKI HDTV Setup Wizard. Follow this guide to help setup your HDTV for scanning channels or accessing your external devices for Antenna, Sel-top Box, Blu-ray, DVD, Games and other player. Use the up and down arrows on your remote control TV keypad to select the language of screen menu and message English Enter French Enter Spanish Enter :Move ENTER :Press to Enter

Select Time Zone

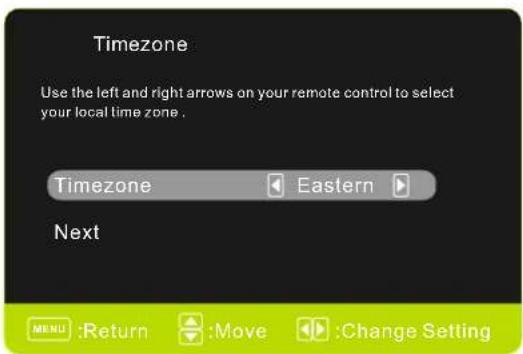

Timezone Use the left and right arrows on your remote control to select your local time zone . Timezone Eastern Next MENU :Return :Move :Change Setting

Power On Mode

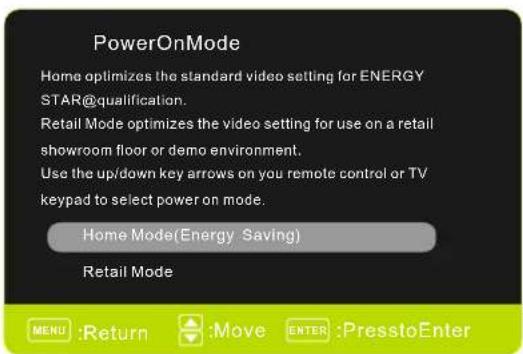

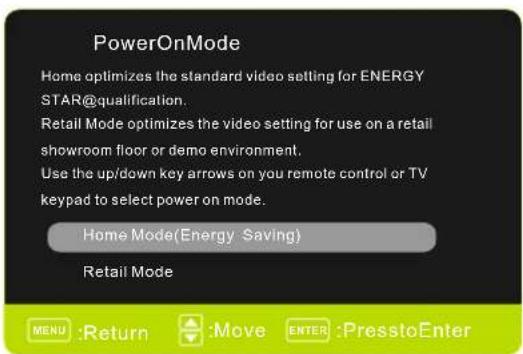

PowerOnMode Home optimizes the standard video setting for ENERGY STAR@qualification. Retail Mode optimizes the video setting for use on a retail showroom floor or demo environment. Use the up/down key arrows on you remote control or TV keypad to select power on mode. Home Mode(Energy Saving) Retail Mode MENU :Return :Move ENTER :PresstoEnter

Select Input Source

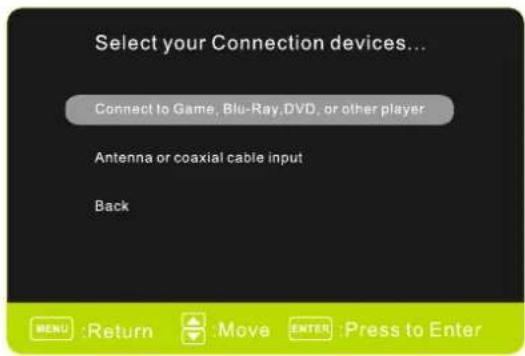

Select your Connection devices... Connect to Game, Blu-Ray, DVD, or other player Antenna or coaxial cable input Back MENU :Return :Move ENTER :Press to Enter

Select the Game, Blu-Ray, DVD, or other player.

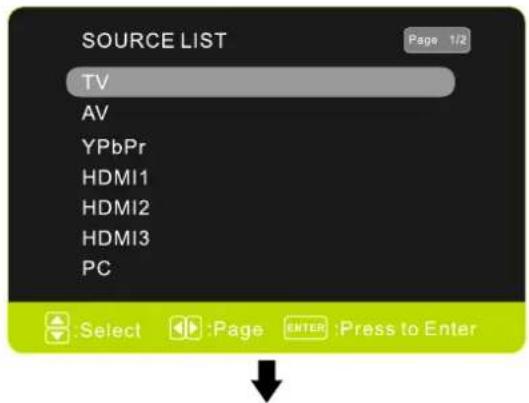

SOURCE LIST TV AV YPbPr HDMI1 HDMI2 HDMI3 PC Page 1/2 :Select :Page ENTER :Press to Enter

Select the TV (or the Antenna or coaxial cable input).

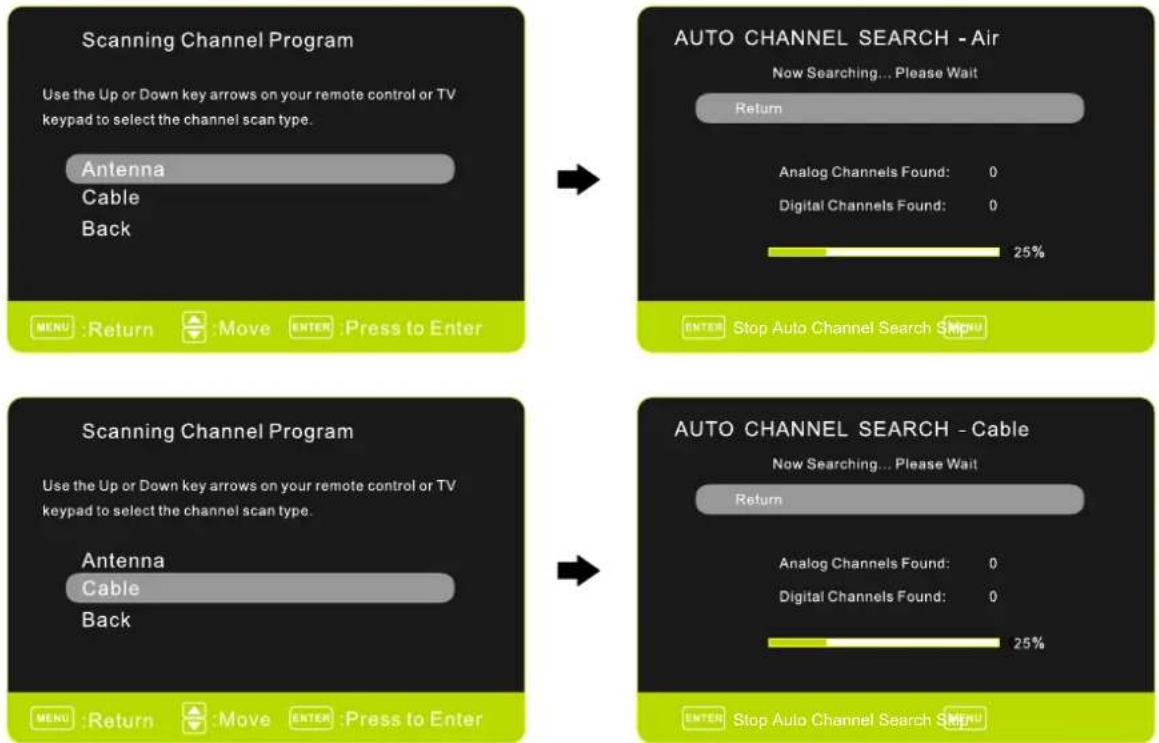

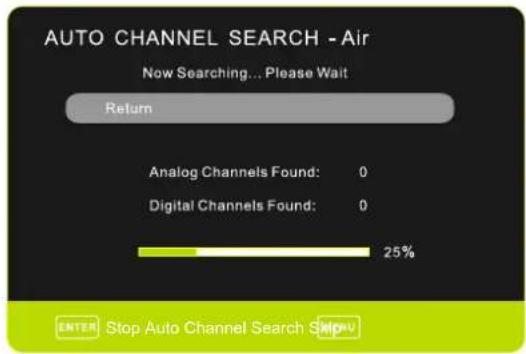

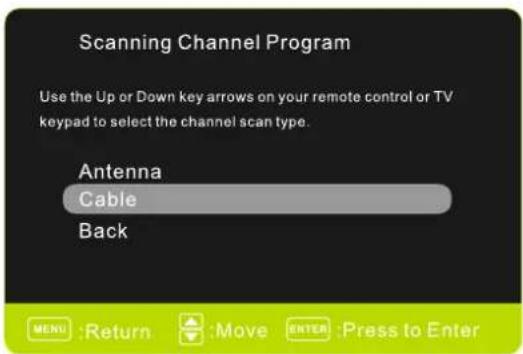

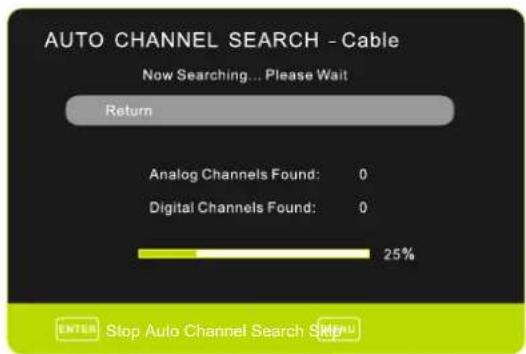

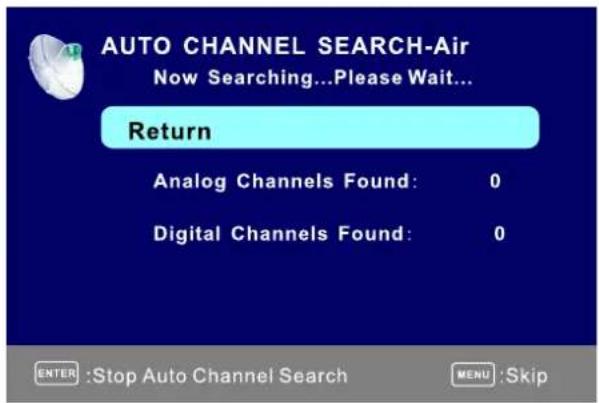

    A["Scanning Channel Program\nUse the Up or Down key arrows on your remote control or TV keypad to select the channel scan type.\nAntenna\nCable\nBack"] --> B["AUTO CHANNEL SEARCH - Air\nNow Searching... Please Wait\nReturn\nAnalog Channels Found: 0\nDigital Channels Found: 0\n25%"]
    B --> C["Scanning Channel Program\nUse the Up or Down key arrows on your remote control or TV keypad to select the channel scan type.\nAntenna\nCable\nBack"] --> D["AUTO CHANNEL SEARCH - Cable\nNow Searching... Please Wait\nReturn\nAnalog Channels Found: 0\nDigital Channels Found: 0\n25%"]

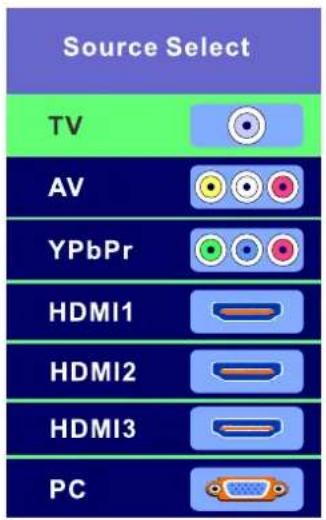

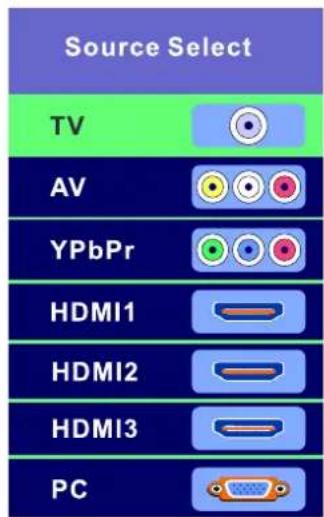

SELECT INPUT SOURCE

Source Select TV AV YPbPr HDMI1 HDMI2 HDMI3 PC

• Press INPUT button to display the input source list.
• Press ▼/▲ button to select the input source you want to watch.
• Press OK button to enter the selected source.

BASIC OPERATION

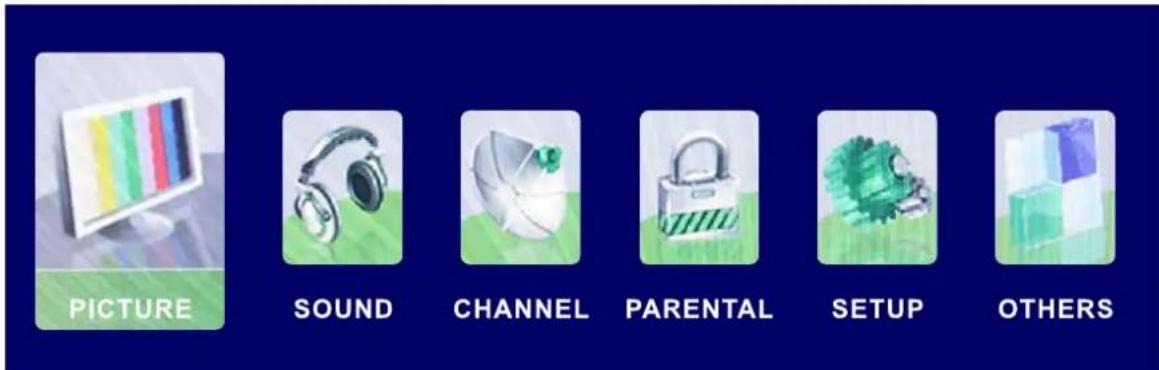

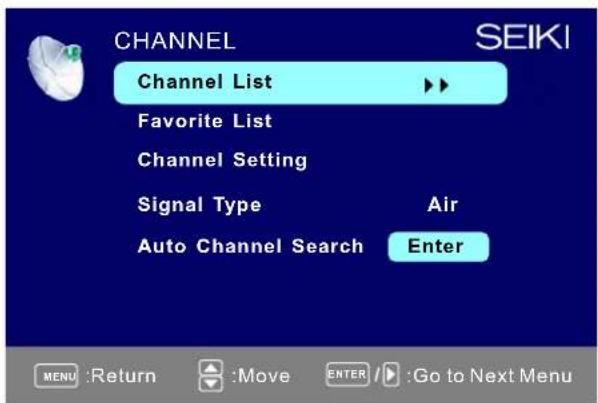

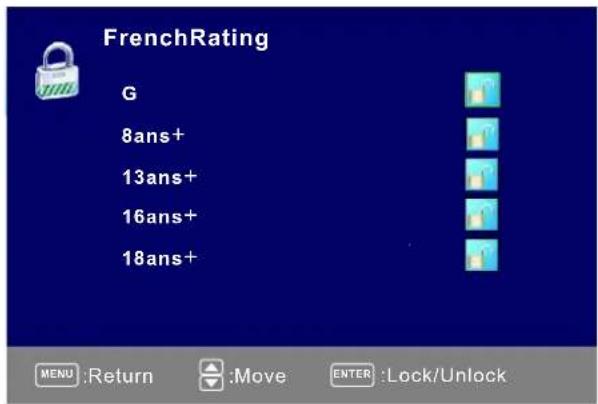

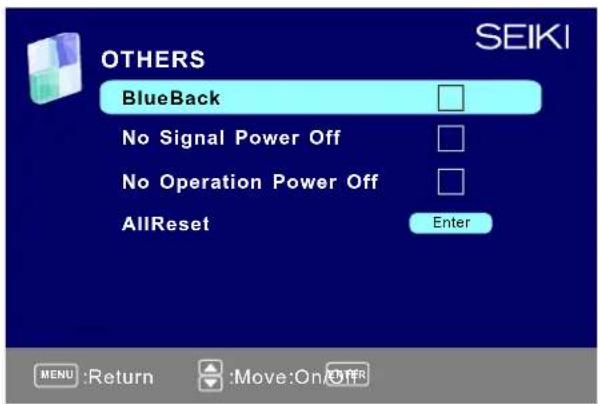

PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS

• Press MENU button to display the MAIN OSD MENU.
• Press ◀/▶ button to select the MENU you want.
• Press OK button to enter the sub menu.
• Press ▼/▲ button to select the option and then press ◀/▶ to adjust the value in the sub menu.
• You can press MENU button to go back to the upper menu or EXIT button to close the OSD.

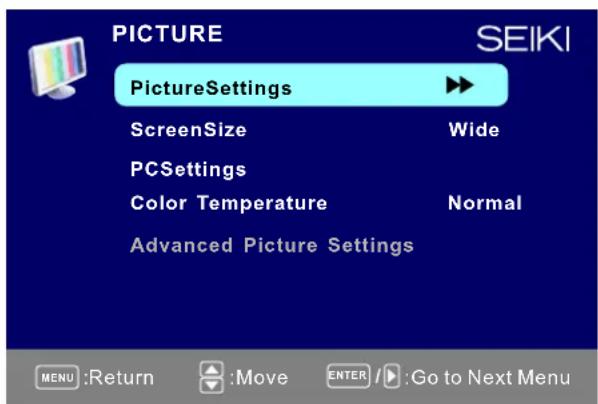

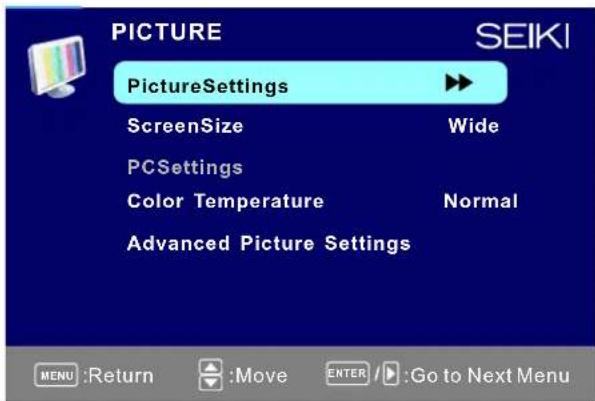

PICTUREMENU

PICTURE SEIKI PictureSettings ScreenSize Wide PCSettings Color Temperature Normal Advanced Picture Settings MENU :Return :Move ENTER / Go to Next Menu

PictureSettings

1. Press ENTER when the Picture Settings item is highlighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

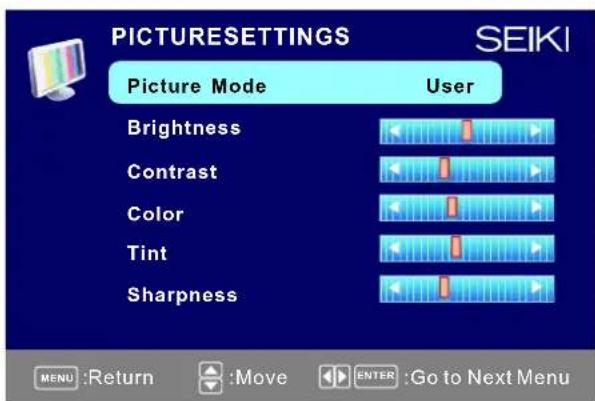

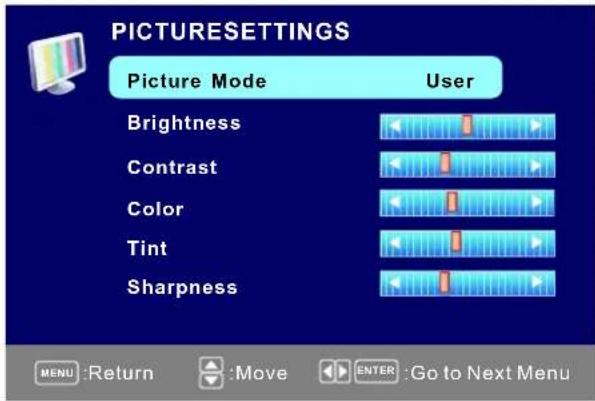

PICTURESETTINGS SEIKI Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

PictureMode

Press ▼/▲ button to select Picture Mode, then press ◀/▶ button to adjust. Only in the User mode, the detail options as following can be adjusted. Available picture mode: Dynamic, Standard, Movie User.

Brightness

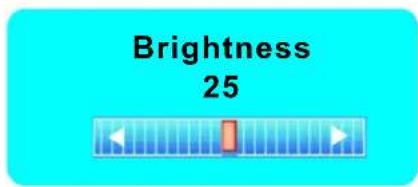

Press ▼/▲ button to select Brightness, then press ◀/▶ button to adjust.

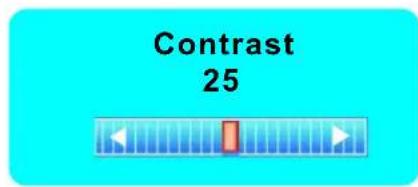

Contrast

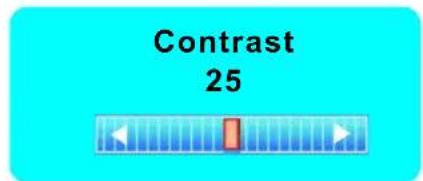

Press ▼/▲ button to select Contrast, then press ◀/▶ button to adjust.

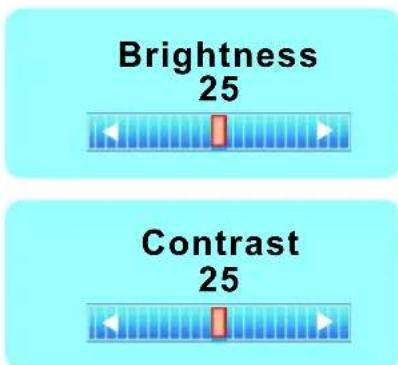

Brightness 25 Contrast 25

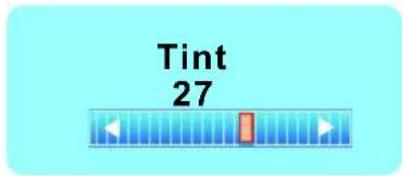

Color

Press ▼/▲ button to select Color, then press ◀/▶ button to adjust.

Sharpness

Press ▼/▲ button to select Sharpness, then press ◀/▶ button to adjust.

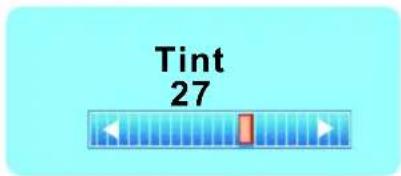

Tint

Press ▼/▲ button to select Tint, then press ◀/▶ button to adjust.

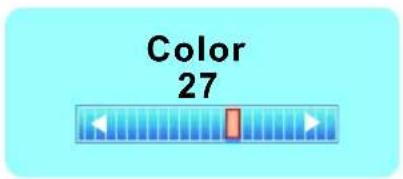

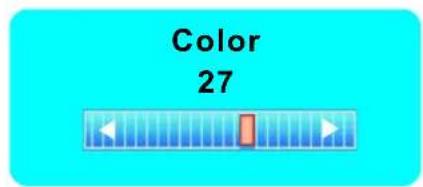

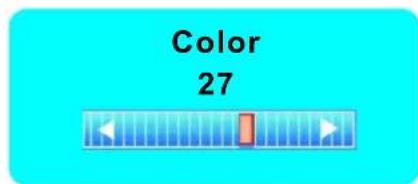

Color 27

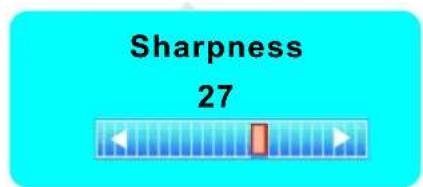

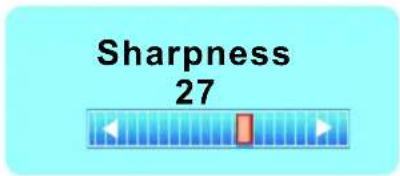

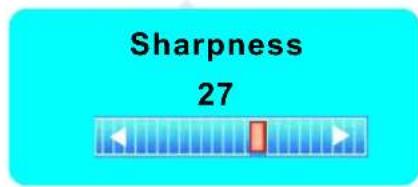

Sharpness 27

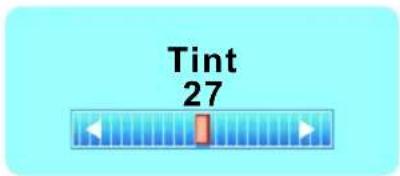

Tint 27

ScreenSettings

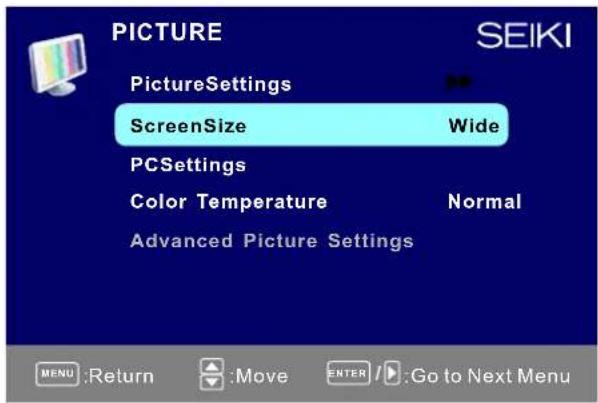

ScreenSize

Press ▼/▲ button to select Screen Size, then press ◀/▶ button to adjust. Available Screen Size: Standard, Wide, Wide Zoom, Zoom.

ColorTemperature

Press ENTER when the Color Temperature item is highlighted. Then press ◀/▶ button to adjust. Available color temperature: Normal, Warm, Cool.

ColorTemperature Warm

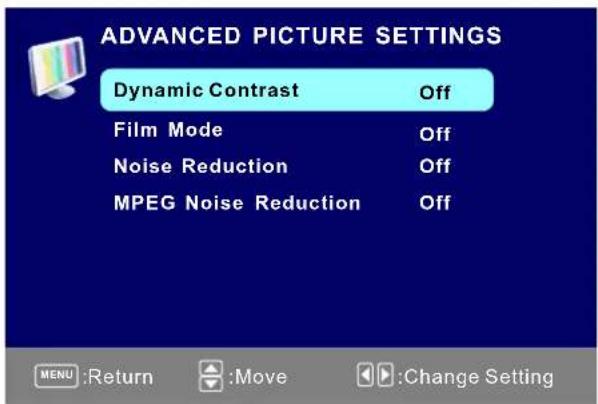

Advanced Picture Settings

ADVANCED PICTURE SETTINGS Dynamic Contrast Off Film Mode Off Noise Reduction Off MPEG Noise Reduction Off

DynamicContrast

Press▼/▲button to select the ◀/► button to adjust. It can adjust the contrast corresponding to the input signal in order to improve the picture quality displayed. Available Mode: On/Off.

FilmMode

Press ▼/▲ button to select the item Film Mode, then press ◀/▶ button to adjust. It handles 3:2 pull down and 2:2 pull down. Available Film Mode: On/Off.

NoiseReduction

Press ▼/▲ button to select the item Noise Reduction, then press ◀/▶ button to adjust. Available Noise Reduction: Off, Low, Medium, High.

MPEG Noise Reduction

Press ▼/▲ button to select the item MPEG Noise Reduction, then press ◀/▶ button to adjust. It can improve the quality of the pictures by reducing the block noise. Available MPEG Noise Reduction: Off, Low, Medium, High.

DynamicContrast Off

FilmMode Off

NoiseReduction Off

MPEGNoiseReduction Off

SOUND MENU

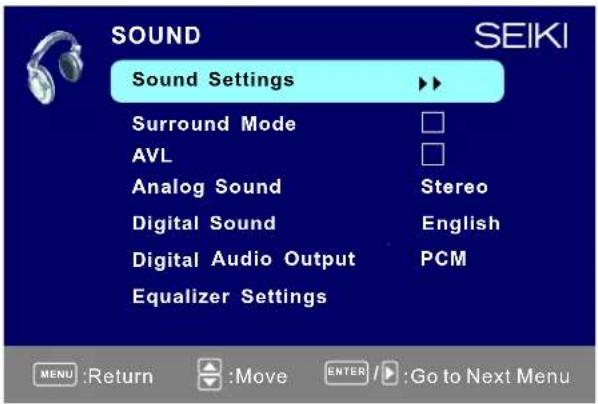

SOUND SEIKI Sound Settings ▶▶ Surround Mode AVL Analog Sound Digital Sound Digital Audio Output Equalizer Settings Stereo English PCM MENU :Return :Move ENTER / ▶ :Go to Next Menu

Sound Settings

1. Press ENTER when the Sound Settings item is high lighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

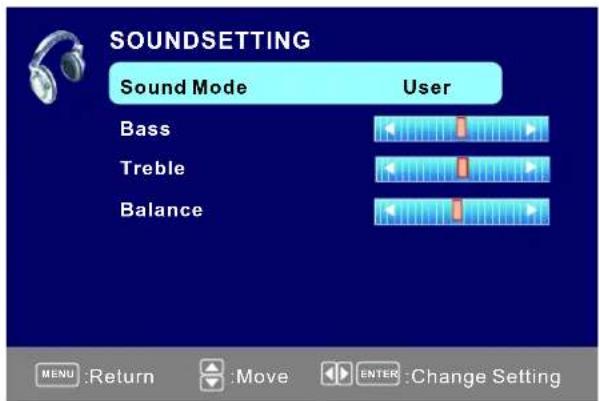

SOUNDSETTING Sound Mode User Bass Treble Balance MENU:Return Move ENTER:Change Setting

SoundMode

Press ▼/▲button to select the item Sound Mode, then press ◀/▶ button to adjust. Only in the User mode, the detail optionsas following can be adjusted. Available Sound Mode: User, Dynamic, Standard, Soft.

Bass

Press ▼/▲ button to select the item Bass, then press ◀/▶ button to adjust.

Treble

Press ▼/▲ button to select the item Treble, then press ◀/▶ button to adjust.

Balance

Press ▼/▲ button to select the item Balance, then press ◀/▶ button to adjust.

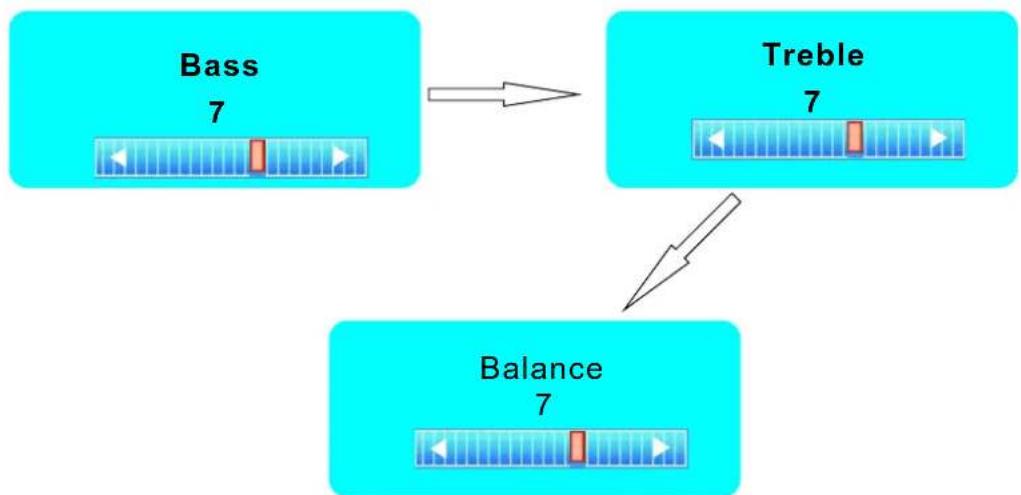


SurroundMode

Press ▼/▲ button to select the item Surround Mode, then press OK button to adjust. It can set the picture to fit the screen automatically. When the Auto Wide is selected, the symbol will show as following:

SurroundMode

AVL

Press ▼/▲ button to select the item AVL, then press ◀/▶ button to select ON or OFF. Auto Volume Level can set the volume automatically adjust corresponding to the input audio.

AnalogSound

Press ▼/▲ button to select the item Preferred Analog Sound, then press ◀/▶ button to select the prefer audio when switching to an analog channel. Available Analog Sound: Stereo, Mono,SAP.

DigitalSound

Press ▼/▲ button to select the item Preferred Digital Sound, then press ◀/▶ button to select the prefer audio when switching to a digital channel. Available Digital Sound: English, French, Spanish.

Digital Audio Output

Press ▼/▲ button to select the item Digital Audio Output, then press ◀/▶ button to select the desired digital audio output. Available digital audio output: PCM, Raw, Off.

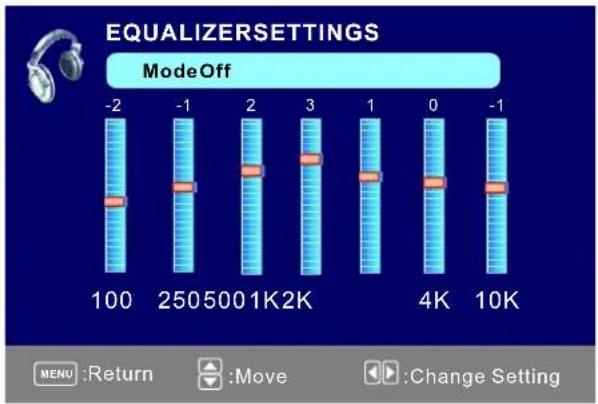

Equalizer Settings

EQUALIZER SETTINGS Mode Off -2 -1 2 3 1 0 -1 100 250 500 1K2K 4K 10K MENU :Return :Move :Change Setting

EqualizerMode

Press ▼/▲ button to select the item Equalizer Mode, then press ◀/▶ button to select the desired mode. Available Equalizer Mode: Off, Rock, Pop, Jazz, User.

CHANNEL MENU

Note: This menu is only shown when the input source is TV.

CHANNEL SEIKI Channel List Favorite List Channel Setting Signal Type Air Auto Channel Search Enter MENU :Return :Move ENTER / Go to Next Menu

ChannelList

Press ▼/▲ button to select Channel List, then press OK button to scan the Channel List. If you select the option "In Channel List" On, the channel label will display in the list.

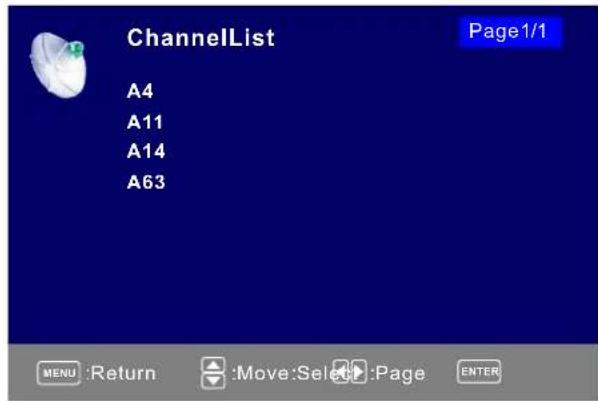

ChannelList Page1/1 A4 A11 A14 A63 MENU:Return :Move:Select:Page ENTER

FavoriteList

Press ▼/▲ button to select Favorite List, then press OK button to scan the Favorite Channel List.

FAVORITELIST Page1/1 No Favorite Channels Present Please Perform Favorite Channel Add First MENU:Return Move:Select:Page ENTER

ChannelSetting

Press ▼/▲ button to select Manual Channel Setting, then press OK button to set the value in the submenu.

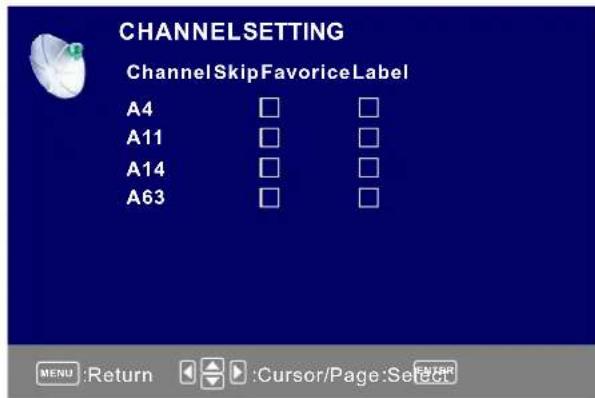

CHANNELSETTING ChannelSkipFavoriteLabel A4 □ □ A11 □ □ A14 □ □ A63 □ □ MENU:Return Cursor/Page:Select

Signal Type

Press ▼/▲ button to select Signal Type, then press ◀/▶ button to select the type you want to set. There are two selections: Air and Cable.

Auto Channel Search

Press ▼/▲ button to select Auto Channel Search, then press OK button to search channel. A Channel Search Menu will appear as below.

AUTO CHANNEL SEARCH-Air Now Searching...Please Wait... Return Analog Channels Found: 0 Digital Channels Found: 0 ENTER :Stop Auto Channel Search MENU :Skip

PARENTAL CONTROL

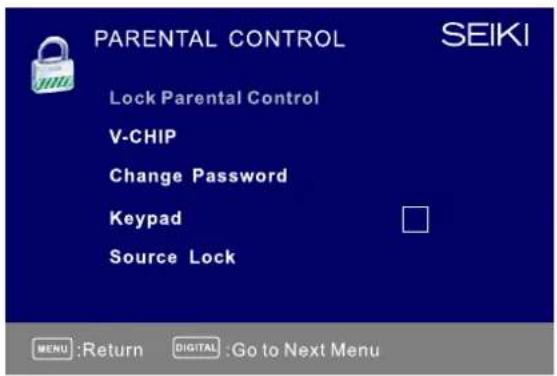

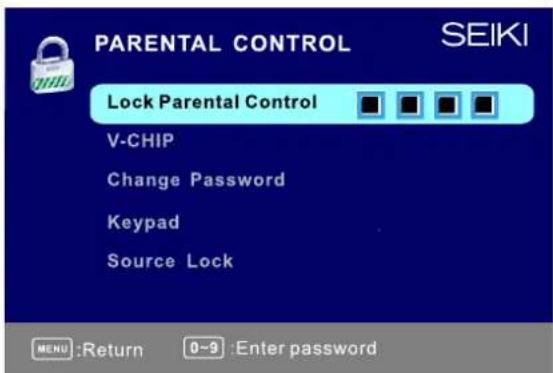

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU :Return 0~9 :Enter password

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU :Return DIGITAL :Go to Next Menu

Input password to enter, default password is "0000".

V-CHIP

Press ▼/▲ button to select V-CHIP, then press OK button to adjust. A sub menu will appear as below.

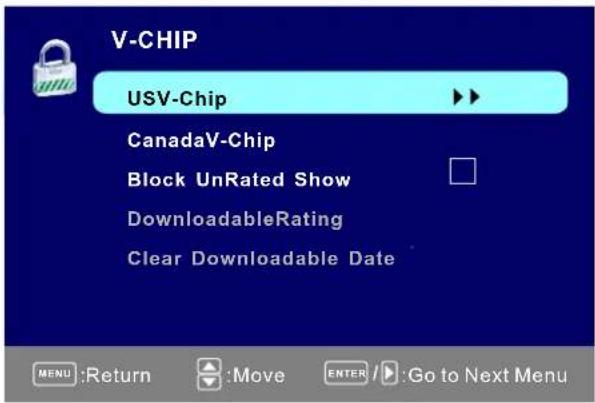

V-CHIP USV-Chip CanadaV-Chip Block UnRated Show DownloadableRating Clear Downloadable Date MENU :Return Move ENTER / Go to Next Menu

USV-CHIP

Press ▼/▲ button to select US V-CHIP, then press OK button to adjust. A sub menu will appear as below.

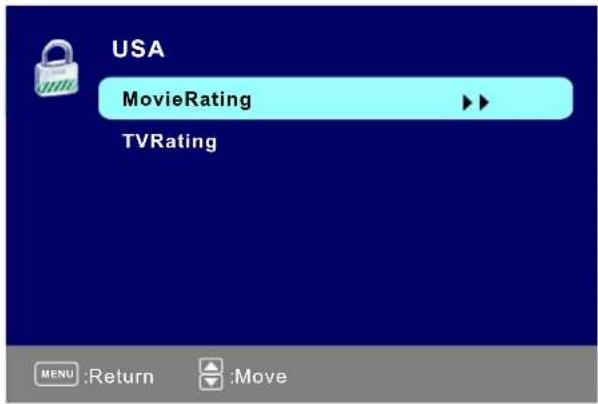

USA MovieRating TVRating MENU :Return Move :Move

MovieRating

Press ▼/▲ button to select Movie Rating, then press OK button to adjust. A sub menu will appear as below.

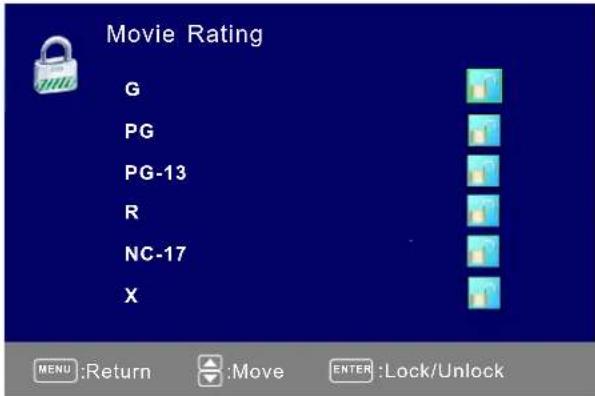

Movie Rating G PG PG-13 R NC-17 X

Press ▼/▲ button to select Rating, then press OK button to lock.

TVRating

Press ▼/▲ button to select TV Rating, then press OK button to adjust. A sub menu will appear as below.

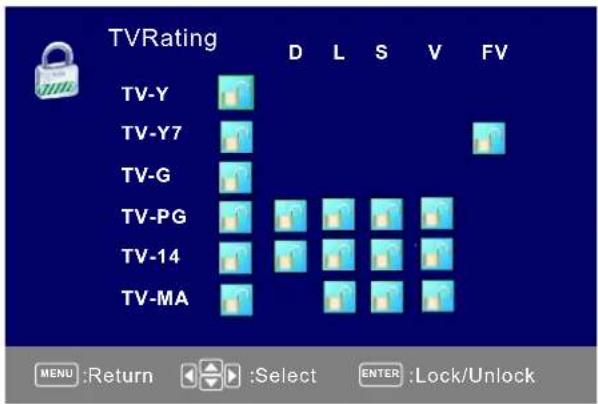

TVRating D L S V FV TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA

Press ▼/▲/◄/► button to select Rating, then press OK button to lock.

CANADAV-CHIP

Press ▼/▲ button to select US V-CHIP, then press OK button to adjust. A sub menu will appear as below.

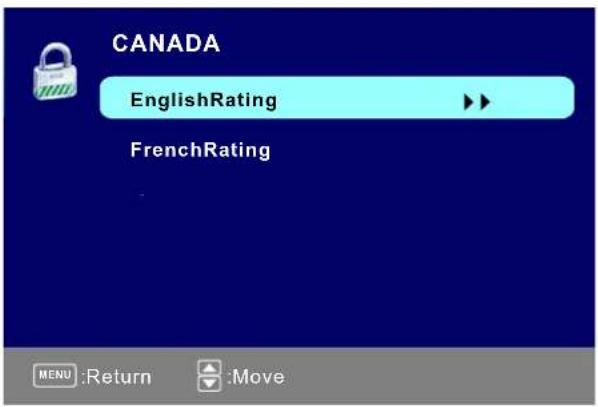

CANADA EnglishRating FrenchRating MENU :Return Move

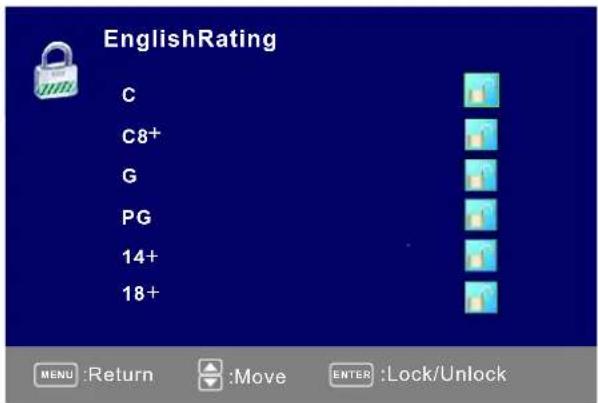

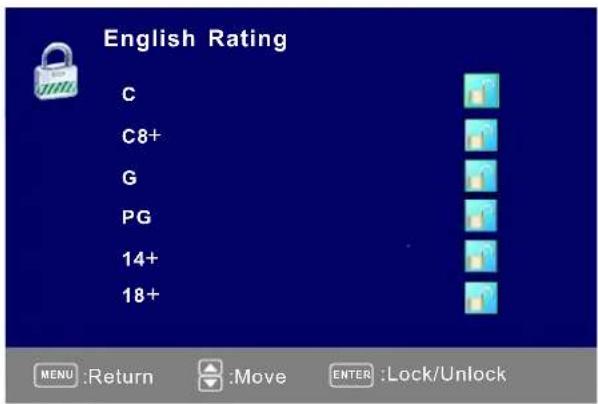

English Rating C C8+ G PG 14+ 18+ MENU :Return :Move ENTER :Lock/Unlock

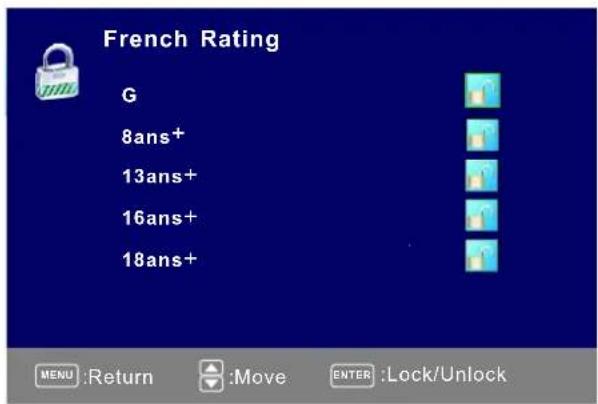

French Rating G 8ans+ 13ans+ 16ans+ 18ans+ MENU:Return :Move ENTER:Lock/Unlock

The operation of CANADA V-CHIP is the same as the operation of US V-CHIP.

Information

Motion Picture Association of America (MPAA) Rating System

Grade		Meaning
G	General Audiences	Content not offensive to most viewers
PG	Parental Guidance Suggested	Content is such that parents may not want their children to view the program
PG-13	Parental Guidance Cautioned	Program is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program
R	Restricted viewing	Not for children under 17, Strong element of sex and/or violence
NC-17	No Children Under age 17	Not for children under 17 under any circumstances. Strong sexual content
X	Hard Core Films	Same as NC-17 rating
No Rating	No Rating	MPAA Not Rated

TV Parental Guideline Rating System

Grade		Meaning
TV-Y	Young Children	Content not offensive to most viewers
TV-Y7	Children 7 and over	Considered suitable for children over 7, may contain Fantasy Violence Scenes
TV-G	Parental Audience	Considered suitable for all audiences; children may watch unattended
TV-PG	Parental Guidance	Suggested Unsuitable for younger children, may contain; Suggestive Dialogue, Bad Language, Sex, and Violence Scenes
TV-14	Parents Strongly Cautioned	Unsuitable for children under 14, may contain: Strong Dialogue, Bad Language, Sex, and Violence Scenes
TV-MA	Mature Audience Only	Adults only, may contain Strong Dialogue, Bad Language, Sex, and Violent Scenes

Canadian Rating: Canadian English is used throughout all English-speaking Canada (C, C8+, G, PG, 14+, 18+).

Canadian French is used in Quebec (G, 8 ans+, 13 ans+, 16 ans+, 18 ans+)

Note: The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14, and TV-MA).

Block UnRated Show

Press ◀/▶ button to select Block UnRated Show, then press OK button to set the rating locked.

DownloadableRating

Press ▼ / ▲ button to select Downloadable Rating, then press OK button to set the rating. If the DTV program doesn't have this rating information, this option will be in gray.

Clear Downloadable Date

Press ▼ / ▲ button to select Clear Downloadable Data, then press OK button to set the rating. Note: The above two operation only valid when playing the downloadable data stream. The operations are the same as US V-CHIP.

CHANGEPASSWORD

Press ▼ / ▲ button to select Change Password, then press OK button to adjust the value.

A Sub Menu Will appear as below. If the password is changed, all of the passwords in the menu will be changed at the same time.

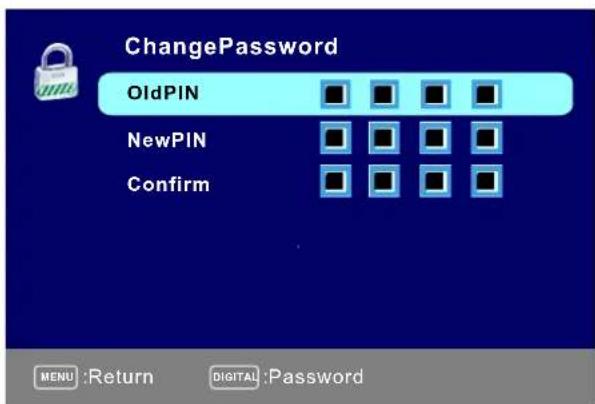

ChangePassword OldPIN NewPIN Confirm MENU :Return DIGITAL :Password

SourceLock

Press ▼/▲ button to select Source Lock, then press OK button to enter the sub menu. Press ▼/▲ button to select Source, then press OK button to set the Source Lock. You can't enter the locked source if you set the Source lock.

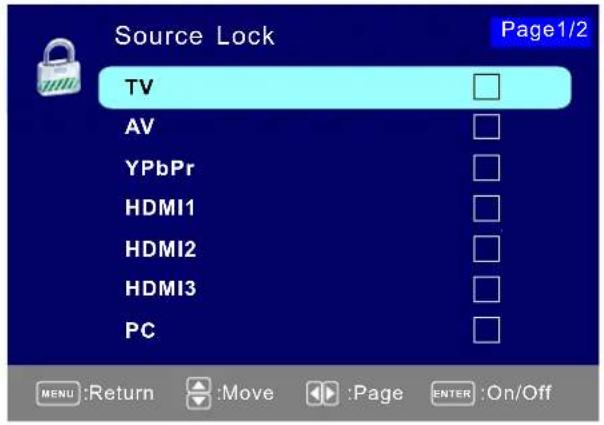

Source Lock TV AV YPbPr HDMI1 HDMI2 HDMI3 PC Page1/2 MENU: Return :Move :Page ENTER: On/Off

SetupMenu

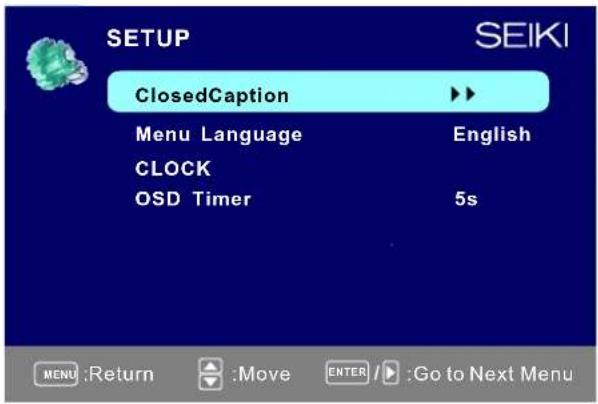

SETUP ClosedCaption Menu Language CLOCK OSD Timer SEIKI English 5s MENU :Return :Move ENTER / > :Go to Next Menu

ClosedCaption

Press ▼/▲ button to select the item Closed Caption, then press ◀/▶ button to adjust.

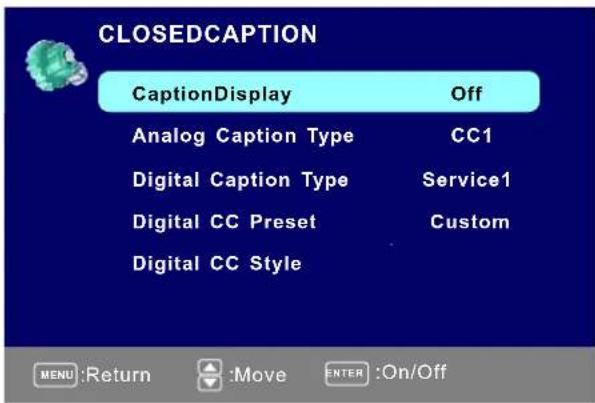

CLOSEDCAPTION CaptionDisplay Off Analog Caption Type CC1 Digital Caption Type Service1 Digital CC Preset Custom Digital CC Style MENU:Return Move ENTER:On/Off

CaptionDisplay

Press ▼/▲ button to select Caption Display, then press ◀/▶ button to select ON or OFF.

Analog Caption Type

Press ▼/▲ button to select Analog Caption Type, then press ◀/▶ button to select the type.

Available type: CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3, TEXT4.

Digital Caption Type

Press ▼/▲ button to select Digital Caption Type, then press ◀/▶ button to select the type.

Available type: Service1\~6.

Digital CC Preset

Press ▼/▲ button to select Digital CC Preset, then press ◀/▶ button to select Default or Custom.

Digital CC Style

This menu is only shown when the Digital CC Preset is selected Custom.

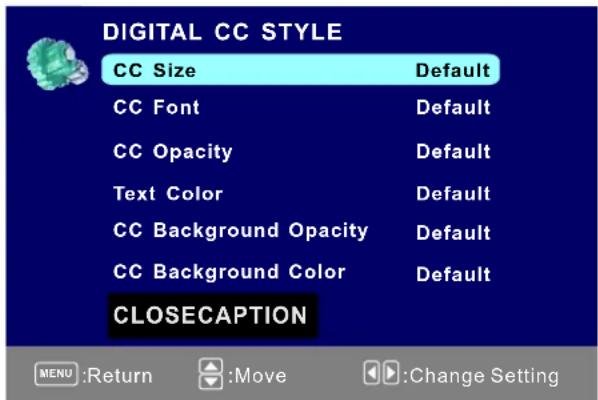

DIGITAL CC STYLE CC Size Default CC Font Default CC Opacity Default Text Color Default CC Background Opacity Default CC Background Color Default CLOSECAPTION MENU :Return :Move :Change Setting

CCSize

Press ▼/▲ button to select CC Size, then press ◀/▶ button to set. Available Size: Default, Small, Standard, Large.

CCFont

Press ▼/▲ button to select, then press ◀/▶ button to select the Font. Available type: Default, Style0\~7.

CCOpacity

Press ▼/▲ button to select CC Opacity, then press ◀/▶ button to select the Opacity.

Available Opacity: Default, Solid, Flashing, Translucent, Transparent.

TextColor

Press ▼/▲ button to select Text Color, then press ◀/▶ button to select the color.

Available Color: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.

CC Background Opacity

Press ▼/▲ button to select CC Background Opacity, then press ◀/▶ button to select the Opacity.

Available Opacity: Default, Solid, Flashing, Translucent, Transparent.

CC Background Color

Press ▼/▲ button to select CC Background Color, then press ◀/▶ button to select the Color.

Available Color: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.

MenuLanguage

Press ▼/▲ button to select the item Menu Language, then press ◀/▶ button to adjust.

Available Language: English, French, Spanish.

Clock

Press ▼/▲ button to select the Clock, then press OK to edit.

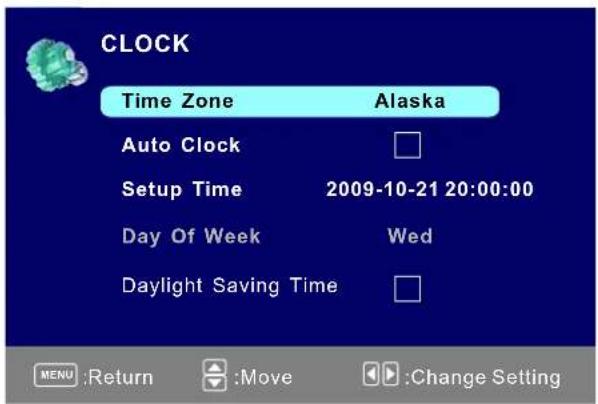

CLOCK Time Zone Alaska Auto Clock Setup Time 2009-10-21 20:00:00 Day Of Week Wed Daylight Saving Time

TimeZone

Press ▼/▲ button to select Timer Zone, then press ◀/▶ button to set. Available Size: Central, Mountain, Pacific, Alaska, Hawaii, Samoa, Newfoundland, Atlantic, Eastern.

AutoClock

Press ▼/▲ button to select Auto Clock, then press ENTER button to set it Enable/Disable. If you set it Enable, it will adjust the time corresponding the DTV time automatically.

SetupTime

Press ▼/▲ button to select Setup Time, then press ◀/▶ button to adjust the time and use the ENTER button to go to the next option.

Day Of Week

This option displays the Day Of Week corresponding to the setup time.

Daylight Saving Time

Press ▼/▲ button to select Daylight Saving Time, then press ◀/▶ button to set. Time Size: 5s, 10s,,20s 30s 40s 50s 60s

OTHERSMENU

OTHERS BlueBack No Signal Power Off No Operation Power Off AllReset Enter MENU :Return :Move:On/Off SEIKI

BlueBack

Press ▼/▲ button to select Blue Background, then press OK button to select when there is no signal, whether set the background in blue or not.

No Signal Power Off

Press▼/▲ button to select No Signal Power Off, then press OK button to select it On or Off. When set it On and there is no signal input by 10 minutes, it will turn off the panel and the LED light turnsamber.

No Operation Power Off

Press ▼/▲ button to select No Operation Power Off, then press OK button to select it On or Off. When set it On and there is no operation input by 3 hours, it will turns off the panel and the LED light turns red.

AllReset

Press ▼/▲ button to select All Reset, then press OK button to execute reset. When you select All Reset item, a dialogue box will appear as following:

Attention! If [All Reset] was executed TV system is reset.

AV/YPbPr/HDMI1/HDMI2/HDMI3/PC

1. PICTURE menu and description are the same as that for TV source.
2. SOUND menu and description are the same as that for TV.
   But the settings for Analog Sound and Digital Sound are invalid in these sources.
3. PARENTAL menu and description are the same as that for TV V source.
4. SETUP menu and description are the same as that for TV source.
   But the setting for Closed Caption is invalid in source HDMI.
5. OTHER menu and description are the same as that for TV source.
   6.CHANNEL menu and description are invalid in these sources.

PICTUREMENU

PICTURE PictureSettings ScreenSize PCSettings Color Temperature Advanced Picture Settings SEIKI Wide Normal MENU :Return :Move ENTER / Go to Next Menu

PictureSettings

1. Press ENTER when the Picture Settings item is highlighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to adjust the item to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

PICTURESETTINGS Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

PictureMode

Press ▼/▲ button to select Picture Mode, then press ◀/▶ button to adjust. Available picture mode: Dynamic, Standard, Movie, User.

Brightness

Press ▼/▲ button to select Brightness, then press ◀/▶ button to adjust.

Brightness 25

Contrast

Press ▼/▲ button to select Contrast, then press ◀/▶ button to adjust.

Contrast 25

Color

Press ▼/▲ button to select Color, then press ◀/▶ button to adjust.

Color 27

Sharpness

Press ▼/▲ button to select Sharpness, then press ◀/▶ button to adjust.

Sharpness 27

ScreenSize

1. Press ENTER when the Screen Size item is highlighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to adjust the item to the desired level.
4. When you have changed the size, you can exit from the menu by pressing MENU.

PICTURE PictureSettings ScreenSize Wide PCSettings Color Temperature Normal Advanced Picture Settings SEIKI MENU:Return :Move ENTER / Go to Next Menu

ScreenSize

Press ▼/▲ button to select Screen Size, then press ◀/▶ button to adjust. Available Screen Size: Standard, Dot By Dot, Wide.

PCSetting

1. Press ENTER when the PC Settings item is highlighted. Then you will go the sub-menu as following.
2. Press ▼/▲to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to adjust the item to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

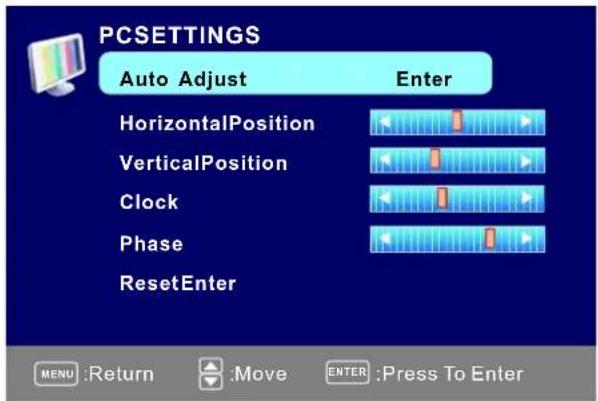

PCSETTINGS Auto Adjust Enter HorizontalPosition VerticalPosition Clock Phase ResetEnter MENU :Return Move ENTER :Press To Enter

AutoAdjust

Press ▼/▲ button to select Auto Adjust, then press OK button to start auto adjusting.

HorizontalPosition

Press ▼/▲ button to select Horizontal Position, then press ◀/▶ button to adjust.

HorizontalPosition

VerticalPosition

Press ▼/▲ button to select Vertical Position, then press ◀/▶ button toadjust.

VerticalPosition

Clock

Press ▼/▲ button to select Clock, then press ◀/▶ button toadjust.

Phase

Press ▼/▲ button to select Phase, then press ◀/▶ button to adjust.

Reset

Press ▼/▲ button to select Reset, then press OK button to reset the options above.

1. SOUND menu and description are the same as that for TV. but the settings for Analog Sound and Digital Sound are invalid in PC source.
2. PARENTAL menu and descriptions are the same as that for TV source.
3. SETUP menu and description are the same as that for TV source. But the setting for Closed Caption is invalid in PC source.
4. OTHER menu and description are the same as that for TV source.
   5.CHANNEL menu and description are invalid in PC source.

Note: The operation and description of the hot key is programmable on your remotecontrol.

9. Troubleshooting

Please check if you can solve problems by troubleshooting yourself.

Troubleshooting	Control
Nosignal	Please check that all cables are correctly plugged in.
Nocolorshades	Adjust the contrast, the color and the brightness.
Stain on the screen	May be the result from a lighting signal from car, motor, neon light and other electrical devices or appliances.
Double or multiple displayimage	May be the result of an electrical wave disturb from other TV, Computer and Game machine or Radio.
Snow on the screen	The cables of the antenna are not correctly plugged in.
Theremotecontrol doesnotwork	Please check the batteries order and alignment. Check that the IR of the remote control is not hidden by something.
"Zip" made noise on TVcover	Even if the display image is correct, the noise may come from an unsteady fixation of the panel.
Nosound	Make sure that you have not press the MUTE button of the panel or of the remote control.

10. SPECIFICATIONS

This manual is only for your reference, any change to the design and specification will not be advised.

Screen Size		42 Inch
Display Type		TFT LED
Resolution(Pixel)		1920 X 1080
Aspect Ratio		16:9
Power Supply		AC100-240V,50/60Hz
Power Consumption		120W
TV System		ATSC/NTSC
Video Input Format		PAL/NTSC
Audio Output Power		L/R 2X8W
SUPPORT	ANTENNA	YES
	AV-IN	YES
	YPbPr - IN	YES
	HDMI - IN	YES
	VGA(PC) - IN	YES
	VGA(PC) AUDIO - IN	YES
	SCART - IN	--
	SCART - OUT	--
	EARPHONE - OUT	--
	S-VIDEO - IN	--
	COAXIAL - OUT	YES
	COMMON INTERFACE	--
	USB	Service Port Only
	IPOD	--
DVD	Disc Physical Format	--
	DVD Video Output Format	--
Dimensions	W/Stand(LxWxH-mm)	1022*56*631 mm
	W/O Stand(LxWxH-mm)	1302*325*855 mm
	Wall-mount	200*200 VESA(mm)
	Wall-mount Screw size	M6*15
Weight	Net (Kgs)	15.5
	Gross (Kgs)	17.8

www.seikiworld.com

À écran plat

Téléviseur LED

SE421TT

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

Simple line drawing of a computer monitor with a cross symbol above it (no text or labels)

Cartoon illustration of a computer monitor with lightning bolts and a stack of books (no text or symbols)

Warning symbol with sun, computer monitor, and warning sign crossed out

Illustration of a computer monitor with arrows indicating light and a hand holding a device, no text or symbols present.

Diagram showing a computer monitor with a 'X' symbol crossed out, indicating a prohibition or prohibition in the monitor's screen.

Warning symbol with crossed-out 'S' and a computer monitor, indicating no protection or suppression.

Line drawing of a flat-screen computer monitor with no text or symbols on the screen or side

Warranty Card

Carte de garantie

USER'S MANUAL

MANUEL D'UTILISATION

Quick Connect Guide

Guide de connexion rapide

Coiled black cable with two connectors (no text or symbols visible)

HDMI CÂBLE

5.CONNEXIONS FRONT /ARRIERE DU TELEVISEUR LED

Vue Frontale

ON/OFF LED — 7 • 6 IR INPUT MENU CH ▲ CH ▼ VOL + VOL - POWER

Top-down schematic of a computer monitor layout with connectors and labeled components (no text or symbols)

Two black remote control units with visible internal battery modules and a separate open device (no text or symbols)

8. Menu d'Opération

CONFIGURATIONWIZARD

SelectLanguage Welcome to the SEIKI HDTV Setup Wizard. Follow this guide to help setup your HDTV for scanning channels or accessing your external devices for Antenna, Set-top Box, Blu-ray, DVD, Games and other player. Use the up and down arrows on your remote control TV keypad to select the language of screen menu and message English Enter French Enter Spanish Enter :Move ENTER :Press to Enter

Fuseauhoraire

Timezone Use the left and right arrows on your remote control to select your local time zone . Timezone Eastern Next MENU :Return :Move :Change Setting

TENSION

PowerOnMode Home optimizes the standard video setting for ENERGY STAR@qualification. Retail Mode optimizes the video setting for use on a retail showroom floor or demo environment. Use the up/down key arrows on you remote control or TV keypad to select power on mode. Home Mode(Energy Saving) Retail Mode MENU :Return :Move ENTER :PresstoEnter

Select your Connection devices... Connect to Game, Blu-Ray, DVD, or other player Antenna or coaxial cable input Back MENU :Return :Move ENTER :Press to Enter

Scanning Channel Program Use the Up or Down key arrows on your remote control or TV keypad to select the channel scan type. Antenna Cable Back MENU :Return :Move ENTER :Press to Enter

AUTO CHANNEL SEARCH - Air Now Searching... Please Wait Return Analog Channels Found: 0 Digital Channels Found: 0 25% ENTER Stop Auto Channel Search Stop

Scanning Channel Program Use the Up or Down key arrows on your remote control or TV keypad to select the channel scan type. Antenna Cable Back MENU :Return :Move ENTER :Press to Enter

AUTO CHANNEL SEARCH - Cable Now Searching... Please Wait Return Analog Channels Found: 0 Digital Channels Found: 0 25% ENTER Stop Auto Channel Search Stop

SELECTIONNER LA SOURCE D'ENTREE

Source Select TV AV YPbPr HDMI1 HDMI2 HDMI3 PC

PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS

Brightness 25 Contrast 25

Couleur

Sharpness 27

Tint 27

Réglaged'écran

Tailed'Ecran

ModeSurround

CHANNEL SEIKI ChannelList FavoriteList ChannelSetting Signal Type Air Auto Channel Search Enter MENU :Return :Move ENTER / Go to Next Menu

ListedesChânes

ChannelList Page1/1 A4 A11 A14 A63 MENU :Return :Move:Select:Page ENTER

Liste des Favoris

FAVORITELIST Page1/1 No Favorite Channels Present Please Perform Favorite Channel Add First MENU :Return :Move:Select:Page ENTER

Réglage de Chaînes

MovieRating G PG PG-13 R NC-17 X

CANADA EnglishRating FrenchRating MENU :Return Move

EnglishRating C C8+ G PG 14+ 18+ MENU :Return :Move ENTER :Lock/Unlock

FrenchRating G 8ans+ 13ans+ 16ans+ 18ans+ MENU :Return :Move ENTER :Lock/Unlock

ChangePassword OldPIN NewPIN Confirm MENU :Return DIGITAL :Password

If[All Reset]was executed TV system is reset.

AV/YPbPr/HDMI1/HDMI2/HDMI3/PC

PICTURESETTINGS Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

Modelmage

Réglaged'Ecran

Silhouette of a person climbing a ladder inside a circular frame (no text or symbols)

Simple line drawing of a monitor with a cross symbol above it (no text or labels)

Cartoon illustration of a computer monitor with lightning bolts and a stack of books (no text or symbols)

Warning symbol with sun, computer monitor, and warning sign crossed out

Illustration of a computer monitor with arrows indicating light and a hand holding a device, no text or symbols present.

Diagram showing a computer monitor with a 'X' symbol crossed out, indicating a prohibition or prohibition concept.

Warning symbol with crossed-out 'S' and a person holding a device, indicating no protection or suppression.

Line drawing of a flat-screen computer monitor with blank screen and base (no text or symbols)

LCD TV SET

OK 1 2 3 4 5 B 6 7 8 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Mando a distancia

Pila AAA

Warranty Card

USER'S MANUAL

Coiled black cable with two connectors, no visible text or symbols

Back View and Control Connections

1. COAX out: Conecta el receptor de coaxial. 2. RF IN: Conecta la antena. 3. VGA(PC): Conecta la toma de salida de PC-RGB de PC. 4. PC AUDIO: Conecta toma de salida de Audio de PC. 5. HDMI1/HDMI2/HDMI3: Conecta la toma de salida de HDMI del DVD. 6. USB SERVICE: Puerto USB para uso en fábrica sólo. 7. L-OUT/R-OUT: Para audio out de video o Ypbpr. 8. VIDEO: Conecta la salida de video de DVD o VCR. 9. L/R: Para audio de video o Ypbpr. 10. YPbPr: Conecta la toma de salida de Ypbpr de DVD o VCR.

Top-down schematic of an electronic device layout showing CPU, memory, and power connections (no text or labels)

Conexión de Antena

COAXIAL RF IN VGA AUDIO PC-IN HOMI ① HOMI ② HOMI ③ USB (SERVICE) Parte atrás de TV USBCable

Two black remote control boxes with internal battery modules and a separate open battery case (no text or symbols visible)

8. Operación Menú

SelectLanguage Welcome to the SEIKI HDTV Setup Wizard. Follow this guide to help setup your HDTV for scanning channels or accessing your external devices for Antenna, Set-top Box, Blu-ray, DVD, Games and other player. Use the up and down arrows on your remote control TV keypad to select the language of screen menu and message English Enter French Enter Spanish Enter :Move ENTER :Press to Enter

Husohorario

Timezone Use the left and right arrows on your remote control to select your local lime zone . Timezone Eastern Next MENU :Return :Move :Change Setting

Mododeencendido

PowerOnMode Home optimizes the standard video setting for ENERGY STAR@qualification. Retail Mode optimizes the video setting for use on a retail showroom floor or demo environment. Use the up/down key arrows on you remote control or TV keypad to select power on mode. Home Mode(Energy Saving) Retail Mode MENU :Return :Move ENTER :PresstoEnter

Select your Connection devices... Connect to Game, Blu-Ray, DVD, or other player Antenna or coaxial cable input Back MENU :Return :Move ENTER :Press to Enter

PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS

Brightness 25 Contrast 25

Color

Sharpness 27

Tint 27

CHANNEL SEIKI ChannelList FavoriteList ChannelSetting Signal Type Air Auto Channel Search Enter MENU :Return :Move ENTER / Go to Next Menu

Listadecanal

ChannelList Page1/1 A4 A11 A14 A63 MENU :Return :Move:Select:Page ENTER

Listafavorita

FAVORITELIST Page1/1 No Favorite Channels Present Please Perform Favorite Channel Add First MENU :Return :Move:Select:Page ENTER

CANADA EnglishRating FrenchRating MENU :Return Move

EnglishRating C C8+ G PG 14+ 18+

FrenchRating G 8ans+ 13ans+ 16ans+ 18ans+ MENU :Return :Move ENTER :Lock/Unlock

Change Password Old PIN New PIN Confirm MENU: Return DIGITAL: Password

Fuentebloqueda

If[All Reset]was executed TV system is reset.

AV/YPbPr/HDMI1/HDMI2/HDMI3/PC

PICTURESETTINGS Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

Mododeimagen

Brightness 25

Contrast 25

Color 27

Sharpness 27
