Product type	LED TV
Screen size	102 cm (40 inches)
Resolution	1920 x 1080 pixels (Full HD)
Dimensions (without stand)	92.5 x 53.5 x 8.5 cm
Dimensions (with stand)	92.5 x 58.5 x 22.5 cm
Weight (without stand)	8.2 kg
Weight (with stand)	9.1 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption (typical)	70 W
Standby consumption	< 0.5 W
Connectivity	2x HDMI, 1x USB 2.0, 1x VGA, 1x Audio input 3.5 mm, 1x Headphone output, 1x Antenna, 1x Component input, 1x Composite input
Audio	2 speakers of 8 W (stereo)
Main features	Remote control, OSD menu, teletext, timer, parental lock, sleep mode
Viewing angle horizontal/vertical	178° / 178°
Dynamic contrast	10 000 000:1
Brightness	300 cd/m²
Response time	6.5 ms
Maintenance and cleaning	Unplug the device before cleaning. Use a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to moisture, do not block ventilation openings, use a grounded outlet.
Spare parts and repairability	Estimated repairability index 6/10. Parts available through after-sales service.

Frequently Asked Questions - SC-402TT Seiki

How to connect an external device (DVD player, console) to the TV?

Use one of the HDMI ports (HD cable) or the VGA input (for a computer). Connect the cable, then select the corresponding source using the Source button on the remote.

What to do if the TV does not turn on?

First check the power cable and the wall outlet. Make sure the power button on the remote is in the on position. If the indicator does not light up, contact customer service.

How to tune channels automatically?

Press the Menu button on the remote, go to Setup or Installation, then select Auto Search or Auto Scan. The TV will search for all available channels.

The remote control does not work, what to do?

Check the batteries (replace them if necessary). Make sure there is no obstacle between the remote and the TV's infrared sensor. If the problem persists, use the manual buttons on the side of the TV.

How to connect the TV to the Internet?

This model does not have built-in Wi-Fi. For an Internet connection, use a compatible USB Wi-Fi adapter (not included) or connect a media box via HDMI.

The image is blurry or has dead pixels, what to do?

First try changing the source or channel. Check the cable connections. If the dead pixels persist, it may be due to a screen defect; contact customer service.

How to clean the TV screen?

Use a slightly damp microfiber cloth. Never use alcohol, ammonia, or solvent-based products. Wipe gently without pressing.

The sound is low or crackling, what to check?

Make sure the volume is high enough and that the Mute mode is off. Check the audio settings in the menu (Sound). If the crackling persists, test with another audio source.

How to install the TV stand?

Place the TV face down on a soft surface. Attach the stand to the base by aligning the screws and tightening with a screwdriver. Do not force to avoid damaging the threads.

Can I mount the TV on the wall?

Yes, it is compatible with a VESA 200x200 wall mount. Use the appropriate screws (not included). Make sure the wall can support the weight of the TV (approx 9 kg).

USER MANUAL SC-402TT Seiki

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is interded to alter the user to the presence of important operating and maintenance (servicing) instruction the literature accompanying the appliance.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

ENERGY STAR® Qualification.

This SEIKI product has earned the ENERGY STAR ^® for meeting U.S. Federal energy efficiency guidelines as set by the Department of Energy and Environmental protection agency.

The ENERGY STAR ^® program exists to provide energy saving guidelines and help promote energy efficient products and practices. Changes to certain features, settings and functions of this TV can change and/or increase its power consumption. Home Mode is the mode in which the product qualifies for ENERGY STAR ^® .

Retail model optimizes the video effects when use at a retail showroom or demo environment. This mode the video setting may increase energy consumption beyond the limits required for ENERGY STAR ^® qualification.

Important Safety Instructions

Note:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments / accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

Silhouette of a person lifting a large object inside a circular frame (no text or symbols)

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
4. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
5. WARNING:Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.
6. This device must be connected to the ground power outlet.
7. WARNING: Class I construction shall be connected to a mains outlet with a protective earthing. WARNING: Batteries shall not be expose to excessive heat such as sunshine, fire or the like.

The Base Stand Installation Guide

Follow the instruction to install the Base Stand of TV. You may reverse the steps to remove the base stand from TV

1-Attach the base stand to the center support and line up the screw holes.

image 1

Simple line drawing of a computer monitor with an upward arrow pointing to its base (no text or symbols)

2-Assemble the base stand and secure by installing 4 screws.

image 2

Complete Installation

image 3

3. PREFACE

Thank you for buying this TV! Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. If the TV is damaged, do not install it and contact the Westinghouse Customer Service.

4. SAFETY PRECAUTIONS

Put the TV on a stable surface.

Simple line drawing of a computer monitor with a cross symbol above it (no text or symbols present)

Do not place any material on the TV.

Do not use the TV with fixtures other than those provided or suggested by the manufacturer.

Do not block or cover the ventilation openings on the TV. If you have a wall mount, check that it is steady.

Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall.

Cartoon illustration of a computer monitor with broken screen and lightning bolts (no text or symbols)

Keep the TV dry and away from humidity.

Keep the TV away from heat sources.

Illustration of a computer monitor with a crossed-out hand gesture, no text or symbols present

Unplug the TV before cleaning it. Do not use solvent or liquid to clean the TV.

Only clean the TV with a soft and dry cloth.

Illustration of a computer monitor with a crossed X symbol and a circuit board, no text or symbols present.

In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits, fire or other incidents.

Unplug the TV during lightning storms or when unused for long periods of time.

5. CARTON CONTENTS

Line drawing of a flat-screen monitor with blank screen and stand (no text or symbols)

LCD TV SET

Illustration of a coiled electrical plug with two terminal leads (no text or symbols)

Power Cable

USER'S MANUAL

Warranty Card

Remote Control

AAA Batteries

Quick Connect Guide

Coiled black cable with two connectors, no visible text or symbols

HDMI cable

6. OVERVIEW

Front View

1. Press "INPUT" to select the input source.
2. Press "MENU" to bring up the main menu on the screen.
3. Press "CH▲" or "CH▼" to scan through channels.
4. Press "VOL+" or "VOL-" to increase or decrease the volume.
5. Press "POWER" button to turn the TV on or off.
6. REMOTE SENSOR: infrared sensor for the remote control.
7. POWER INDICATOR: Blue when TV is powered on. Red when TV is powered off. No color when power switch is turned off.

Back View and Control Connections

Technical diagram of a mechanical or electrical enclosure with internal components and a red arrow indicating direction (no text or symbols)

1. AC IN and POWER SWITCH: Main power input.
2. HDMI1/HDMI2/HDMI3: Connect the HDMI output jack of DVD.
3. VGA(PC): Connect the PC-RGB output jack of PC.
4. PC AUDIO: Connect the Audio output jack of PC.
5. YPbPr1/YPbPr2: Connect the YPbPr output jack of DVD or VCR.
6. Y-L/R1, Y-L/R2: For YPbPr audio.
7. S-VIDEO: Connect the S-Video output jack of DVD or VCR.
8. COAX out: Connect the COAX receiver.
9. VIDEO 1/2 : Connect the Video output jack of DVD or VCR. L/R 1/2 : For VIDEO audio. (L/R1 Shared with S-Video)
   10.RF-IN: Connect the antenna.
10. USB SERVICE: USB Port for Factory Use Only.

7. INSTALLATION

Power Cord Connection

• Connect the power cord into AC IN as shown below.
• Make sure the power switch is turned on, which is located at the back of the TV.

Technical line drawing of an electronic device rear panel with a connected plug and cable, showing internal components and wiring (no text or symbols)

Antenna Connection

To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as shown can be sourced from TV equipment shops, which will provide service for correct installation and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.

AV/S-VIDEO Connection

Connect the VIDEO/S-VIDEO and AUDIO output jack of a DVD or VCR to the AV(S-VIDEO) jacks on the set using a RCA(S-VIDEO) cable. Match the jack color: Video is yellow, Audio left is white, and Audio right is red. Select the AV/S-VIDEO source using the INPUT button on the remote control.

YPbPr(Component) Connection

Connect the YPbPr output of a DVD or VCR to the YPbPr input on the TV. The picture quality is improved; compared to connecting a regular VCR to the video input. Connect the Audio output of a DVD or VCR to the Audio input jacks on the set using a RCA cable.

Match the jacks colors: Y is green, Pb is blue, Pr is red, Audio left is white and Audio right in red. Select component input source using the INPUT button on the remote control.

VGA(PC) Connection

Connect the RGB output of a PC to the VGA(PC) jack on the TV. Connect the AUDIO output of a PC to the PC AUDIO jack on the TV. Select the input source with the INPUT button on the remote control.

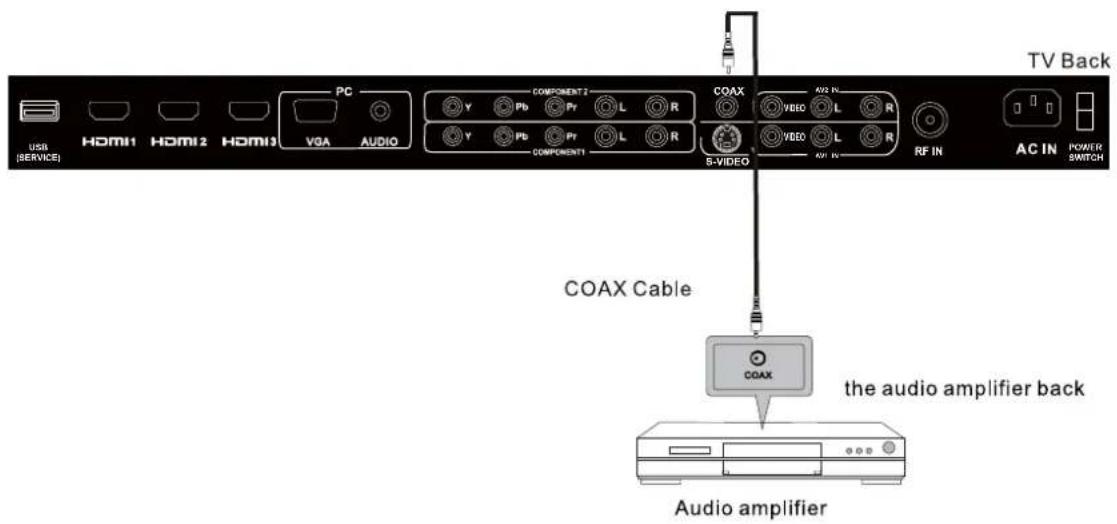

COAX Connection

Connect to Audio Amplifier device to the COAX output jack on the TV.

HDMI Connection

HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control signals through one cable only. These signals are transferred in digital.

TV Back

Service Port Function

Service port: (For factory use only)

TV Back

8. REMOTE CONTROL

Remote control instructions in TV mode

POWER

Turn the LCD TV ON or OFF.

TV

Press this button, turn to TV source.

P MODE

Select the picture mode.

S.MODE

Select the sound mode.

SLEEP

Set the Sleep Timer.

ASPECT

Press to select Aspect ratio

( As follow Standard,Wide,Wide Zoom,Zoom,etc.)

NUMBER BUTTONS

Press 0-9 to directly change the TV channel.

-/-

Press this button to enter a program number for

multiple program channel such as 2-1,etc

C

Return to the previous channel viewed.

VOL+/VOL-

Press to increase/decrease the sound level

MUTE

Press to mute the sound. Press again or press VOL+ to

un-mute the TV.

SOURCE

Press Source to display the OSD input source,

press ▲▼ to select an input source, and then press

ENTER to confirm

CH+/CH-

Press to scan through channels

MTS

Choose Mono, stereo or sap for analog TV input.

Choose English,French or Spanish for DTV input.

MENU

Displays the main TV menu

CC

Press to set the closed caption

as follow cc mode on,cc mode off,cc mode on mute

DISPLAY

Displays the source and channel information

RETURN

Return to previus chanel.

THUMBSTICK(▲/▼/◄/►/ENTER)

Allows you to navigate the on-screen menus and adjust the

system settings to your preference

CH, LIST

Press to display the channel list.

EXIT

Exit the main TV menu

A,B,C,D

Push and hold 3 second then store current channel in A ,B,C,D.

V-CHIP

Switch to V-CHIP input.

FAV.CH

Press to diaplay the favourite program list.

FAV+/FAV-

Press these two keys to switch to your favourite programs.

AUTO

Automatically adjust Horizontal / Vertical position( in PC Mode)

ADD/ERASE

Add/Erase channel to favourite program list.

HDMI

Switch to HDMI input.

VGA

Switch to VGA input.

COMP

Switch to COMP input.

Remote control setup

1. Open the cover.
2. Uses AAAsize batteries. When inserting the batteries, make sure correct polarities "+" and "-" marks on the batteries line up correctly with compartment markings.
3. Replace the battery cover.

To prevent battery leakage which may result in bodily injury or damage to the remote:

1. Install all batteries correctly, and as marked on the remote control.
2. Do not mix batteries: (OLD and NEW or CARBON and ALKALINE, etc) Remove batteries when the remote is not used for a long period of time.

Two black remote control panels with visible battery modules and a separate plastic clip (no text or symbols)

9. MENU Operation

SETUP WIZARD

Select Language

Time zone

Setup Wizard

Under "Setup Wizard", the buttons' function:

"Menu"----Enter

"CH∧/∨"-----Up/Down

"Vol+/-"-----Left/Right

SELECT INPUT SOURCE

Press INPUT button on the TV set or remote control to display input source menu, and use CH ∧/∨ button on the TV set or ▲/▼ button on remote control to select the input source, press OK button on the remote control to enter.

Note: Before you select the input source, make sure the connections are prepared.

BASIC OPERATION

Press MENU button to display the OSD menu as below:

Use button to select the main menu, and press button to enter the submenu. In the submenu, use ▲/▼ button to select the function item, press ◀/► button to adjust/setup, or press ►button to enter the submenu. * (Press MENU button to return to the upper menu.) * (Press EXIT button to exit the menu display.)

Note1: Only when you input the suitable signal, the relevant items can be activated Note2: Please operating the OSD menu according to hint on the bottom of the banner.

Picture menu

Description

Picture mode: Select between Standard, Dynamic, Movie, User and Energy Saving You may select the picture mode directly by pressing the PMMode on the remote control.

Note: when select the "Energy Saving", the machine is in energy-saving status.

Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture.

Color: Adjust color of the picture.

Tint: Control the fresh tones to make them appear natural.

Sharpness: Set the amount of fine detail in the picture.

Color Temp.: Select between Normal, Cool and Warm.

Blue Screen: Turn on/off the Blue Screen function when there's no signal.

Audio menu

Description

Sound Mode: Select your desired picture mode as follow: Standard, Music, Movie and User.

You may select the sound mode directly by pressing the S.MODE button on the remote control.

Bass: Low frequency intensity.

Treble: High frequency intensity.

Balance: Left and right stereo audio channels balance.

Surround Sound: Activate or deactivate the Surround function.

AVC Turn on/off the auto volume control function.

SPDIF Type: Allows you to select between PCM and RAW.

Audio Language: Select audio language.

Time menu

Description

Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. (As follow 5,10,15,30,45,60,90,120,180,240 minutes)

Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain.

Daylight Saving Time: Select between On and Off.

Clock: User can not change time manually during digital TV mode as time comes from signal source directly.

Setup menu

Description

Menu Language: Select OSD menu language.

Transparency: Turn on or off the transparency menu function.

Zoom Mode: Select the zoom mode.

Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle.

Advanced: If the video input signal comes from your PC, you may adjust the V-Position, H-Position, Clock, Phase or even perform an Auto adjustment.

Closed Caption:

CC Mode: Allow you to select the CC Mode among: On, Off and CC on Mute.

Basic Selection: Allow you to select the basic selection among: CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4.

Advanced Selection: Allow you to select the advanced selection among: Service1, Service2, Service3 Service4, Service 5 and Service 6.

Option: Use thumbstick buttons to operating in option menu as your desire.

DLC: Activate/deactivate the automatic dynamic brightness function.

Restore Default: Restore all settings in SETUP menu to factory settings.

Lock menu

You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options:

Description

Change password: Change the password, you must enter the new password twice to confirm it.

Note: Do not forget the password.

System Lock: Allow you to turn on or off the system lock.

This option menu allows you to lock any TV channel or adjust the Movie rating filter.

US:

TV: Use ▲/▼ buttons to select the desired rating and press ▶ button to block or unblock rating.

The "TV RATING" screen will appear. Press the

▲ / ▼ buttons to select one of the six aged based categories:

TV-Y: All Children

TV-Y7: Directed to Children 7 years and older

TV-G: General Audience

TV-PG: Parental Guidance Suggested

TV-14: Parents Strongly Cautioned

TV-MA: Mature Audience Only

Press the ◀or▶ buttons to select the following sub-ratings.

FV: Fantasy violence

V: Violence

S: Sexual situation

L: Adult Language

D: Sexually Suggestive Dialog

At this point, one of the TV-Ratings is selected. Press the OK button. Depending on your existing setup, the "💡 symbol will be selected.

While 🔔 is selected, press the OK button to block or unblock the category.

MPAA: The Movie rating (MPAA) is used for original movies rated by the Motion Picture Association of America (MPAA) as broadcasted on cable TV and not edited for television.

Use ▲/▼ button to select N/A, G, PG, PG-13, R, NC-17 or X.

Canada:

G: General Audiences. Movie is appropriate for all ages.

PG: Parental Guideance Suggested. May contain material not suited for younger viewers.

PG-13: Contains content that may not be appropriate for viewers under the age of 13.

R: Restricted. Contains adult content, no one under 17 admitted without parent.

NC-17: No one 17 and under admitted.

X: Adults only.

Canada English: Select among: E, C, C8+, G, PG, 14+ and 18+.

Canada French: Select among: E, G, 8ans+, 13ans+, 16ans+ and 18ans+.

Reset RRT: Allow you to reset the RRT setting.

Clear Lock: Allow you to clear all the locks above.

Channel menu

Description

Air/Cable: Allow you to select antenna between Air and Cable. If you select "Cable", the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use.

Auto Scan: Enter the Auto Scan menu to start auto scan.

★ If you select "Cable" as input signal in Antenna item, allows you to select Cable System among: Auto, STD, IRC and HRC. Use ▼ button to highlight the "Start to Scan", then press ▶ button to search the channels automatically. The receivable channels will be stored automatically. When searching channels, press MENU to stop.

★ If you select "Air" as input signal in Antenna item, you can press ▶ button to search the channels automatically. The receivable channels will be stored automatically. When searching channels, press MENU to stop. NOTE: It will take a while to auto scan in NTSC or ATSC mode, please wait patiently.

Favorite: Allow you to add these channels which you desired as the favorite channels.

Use ▲/▼ button to highlight the desired item, then press OK button to add or remove the highlighted channel as favorite.

Show/Hide: Allow you to show or hide the channels.

Use ▲/▼ button to highlight the desired item, then press OK button to show or hide the highlighted channel.

Channel No.: Show and select the channel.

Channel Label: Allow you to setup a label for the channel. Press ▲/▼ button to select the position of the table, and press ◀/▶ button to select the words.

DTV Signal: Show the quality of digital signal: good, Normal, Bad.

10. Troubleshooting

Please check if you can solve problems by troubleshooting yourself.

Troubleshooting	Control
No signal	Please check that all cables are correctly plugged in.
No color shades	Adjust the contrast, the color and the brightness.
Stain on the screen	May be the result from a lighting signal from car, motor, neon light and other electrical devices or appliances.
Double or multiple display image	May be the result of an electrical wave disturb from other TV, Computer and Game machine or Radio.
Snow on the screen	The cables of the antenna are not correctly plugged in.
The remote control does not work	Please check the batteries order and alignment. Check that the IR of the remote control is not hidden by something.
"Zip" made noise on TV cover	Even if the display image is correct, the noise may come from an unsteady fixation of the panel.
No sound	Make sure that you have not press the MUTE button of the panel or of the remote control.

11. SPECIFICATIONS

This manual is only for your reference, any change to the design and specification will not be advised.

Screen Size		40 Inch
Display Type		TFT LCD
Resolution(Pixel)		1920 X 1080
Aspect Ratio		16:9
Power Supply		AC110-240V 50/60Hz
Power Consumption		200W
TV System		ATSC/NTSC
Video Input Format		PAL/NTSC
Audio Output Power		L/R 2X8W
SUPPORT	RF-IN	YES
	AV-IN	YES
	YPbPr - IN	YES
	HDMI - IN	YES
	VGA(PC) - IN	YES
	VGA(PC) AUDIO - IN	YES
	SCART - IN	--
	SCART - OUT	--
	EARPHONE - OUT	--
	S-VIDEO - IN	YES
	COAXIAL - OUT	YES
	COMMON INTERFACE	--
	USB	Service Port Only
	IPOD	--
DVD	Disc Physical Format	--
	DVD Video Output Format	--
Dimensions	w / Stand (LxWxH-mm)	992 x 250 x 677mm
	w / o Stand (LxWxH-mm)	992 x 100 x 620 mm
Weight	Net (Kgs)	15.5
	Gross (Kgs)	17.8

à écran plat

Téléviseur LCD

SC402TT

Silhouette of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Simple line drawing of a computer monitor with an upward arrow on the base (no text or symbols)

Line drawing of a flat-screen monitor with blank screen area and stand (no text or symbols)

3.PRÉFACE

Simple line drawing of a computer monitor with a cross symbol above it (no text or labels)

Cartoon illustration of a computer monitor with broken screen and lightning bolts (no text or symbols)

Illustration of a computer monitor with a crossed-out hand and lightning bolts, symbolizing anti-telecom fraud (no text present)

Illustration of a computer monitor with a crossed-out X symbol, no text or symbols present

Line drawing of a flat-screen monitor with blank screen area and stand (no text or symbols)

Illustration of a coiled electrical plug with two terminal leads (no text or symbols)

Carte de garantie

télécommande

Piles AAA

Guide de connexion rapide

Coiled black cable with two connectors, no visible text or symbols

Câble HDMI

6.Vue d'ensemble

Vue frontale

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical line drawing of an electronic device rear panel connected to a power outlet, showing ventilation grilles and wiring (no text or symbols)

Two black remote control panels with visible battery modules and a separate battery pack on the right (no text or symbols)

9. Menu d'Opération

Fuseau horaire

Configuration Wizard

Balayage des canaux

En vertu "Configuration Wizard", l' fonction du bouton :
"Menu"----Entrez
"CH ∧/∨ ----Up/Down
"Vol+/-"----- Gauche / Droite

SÉLECTIONNER LA SOURCE D'ENTRÉE

Description

TV-Y: Tout Enfant

Description

Silhouette of a person climbing a ladder inside a circle with a diagonal line (no text or symbols)

Simple line drawing of a computer monitor with an upward arrow at the base (no text or symbols)

Line drawing of a flat-screen monitor with blank screen area and stand (no text or symbols)

3. PRÓLOGO

Simple line drawing of a computer monitor with a cross symbol above it (no text or symbols present)

Cartoon illustration of a computer monitor with broken-out paper and lightning bolts (no text or symbols)

Line drawing of a flat-screen monitor with blank screen area and stand (no text or symbols)

LCD TV SET

Illustration of a coiled electrical plug with two terminal leads (no text or symbols)

Mando a distancia

Pila AAA

USER'S MANUAL

Manual de usuario

Quick Connect Guide

Coiled black cable with two connectors, no visible text or symbols

Cable HDMI

6. GENERALIDAD

Vista delantera

Back View and Control Connections

Technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Technical diagram of an electronic device rear panel connected to a power outlet, showing ventilation grilles and wiring (no text or labels)

Conexión de Antena

Two black remote control devices with visible battery modules and a separate plastic case (no text or symbols)

9. Operación Menú

Huso horario

BÚSQUEDA DE CANAL

Descripción

Descripción
