USER MANUAL SE321FB Seiki

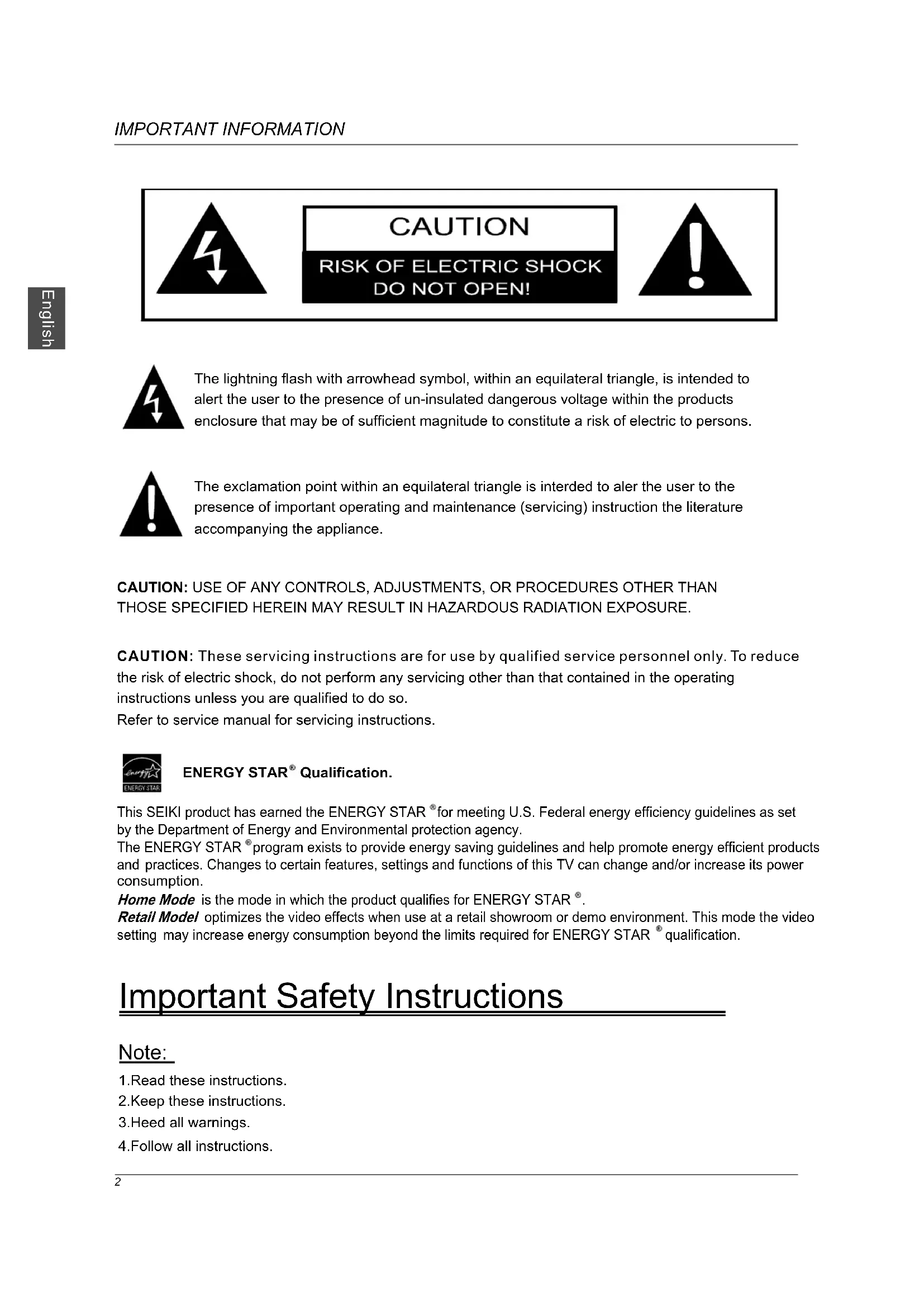

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric to persons.

The exclamation point within an equilateral triangle is interded to aler the user to the presence of important operating and maintenance (servicing) instruction the literature accompanying the appliance.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Refer to service manual for servicing instructions.

ENERGY STAR® Qualification.

This SEIKI product has earned the ENERGY STAR ^® for meeting U.S. Federal energy efficiency guidelines as set by the Department of Energy and Environmental protection agency.

The ENERGY STAR ^® program exists to provide energy saving guidelines and help promote energy efficient products and practices. Changes to certain features, settings and functions of this TV can change and/or increase its power consumption.

Home Mode is the mode in which the product qualifies for ENERGY STAR ^® .

Retail Model optimizes the video effects when use at a retail showroom or demo environment. This mode the video setting may increase energy consumption beyond the limits required for ENERGY STAR ^® qualification.

Important Safety Instructions

Note:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.

4. Follow all instructions.

5. Do not use near water.

6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

Silhouette of a person climbing a ladder inside a circular frame, with no text or symbols present.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
4. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
5. Mains plug or appliance coupler is used as the disconnect device, shall be readily operable.
6. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.

2. PREFACE

Thank you for buying this Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV be damaged, do not install it and contact your dealer. Check that you have all the accessories according to the model.

3. SAFETY PRECAUTIONS

Put the TV on a stable surface.

Simple line drawing of a computer monitor with a crossed X marks above it (no text or symbols)

Do not place any material on the TV.

Minimum distances 10cm 10cm 5cm 20cm

Do not use the TV with fixtures other than those provided or suggested by the manufacturer.

Do not block or cover the ventilation openings on the TV. If you have a wall mount, check that it is steady.

Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall.

Cartoon illustration of a computer monitor with broken edges and lightning bolts (no text or symbols)

Keep the TV dry and away from humidity.

Warning symbol with sun, monitor, and lamp icon indicating lighting or noise

Keep the TV away from heat sources.

Illustration of a computer monitor with arrows indicating motion and a hand holding a device (no text or symbols present)

Unplug the TV before cleaning it. Do not use solvent or liquid to clean the TV.

Only clean the TV with a soft and dry cloth.

Diagram showing a computer monitor with a 'X' symbol crossed out, indicating a prohibition or rejection in the system.

In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits, fire or other incidents.

Warning symbol with crossed-out 'S' and crossed-out 'E' signs, next to a computer monitor icon

Unplug the TV during lightning storms or when unused for long periods of time.

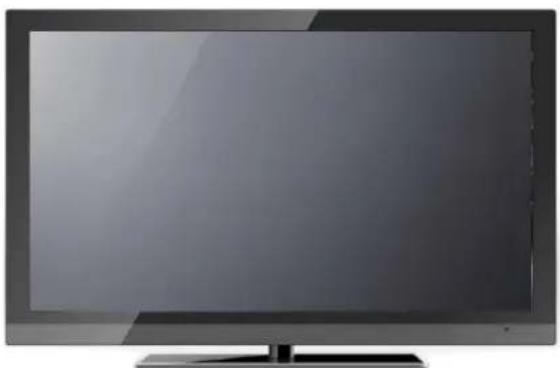

4. IN THE CARTON

Front view of a flat-screen television displaying (no visible text or symbols)

LED TV SET

SEIKI

Remote Control

AAA Batteries

Warranty Card

Warranty Card

USER'S MANUAL

USER'S MANUAL

Quick Connect Guide

Quick Connect Guide

HDMI Cable

5. FRONT/BACK CONNECTIONS OF LED TV

Front View

ON/OFF LED — 7 IR — 6

1. Press "SOURCE" to select the input source.
2. Press "MENU" to bring up the main menu on the screen.
3. Press “CH^” or “CH^” to scan through channels.
4. Press "VOL+" or "VOL-" to increase or decrease the volume.
5. Press "STANDBY" button to turn the TV on or off.
6. POWER INDICATOR: Shows red in standby mode.
   Showes or green when your TV is switched on.
7. REMOTE SENSOR: infrared sensor for the remote control.

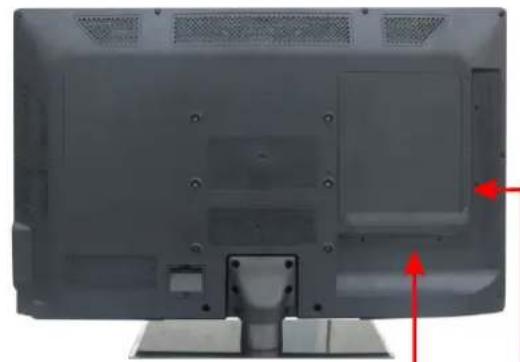

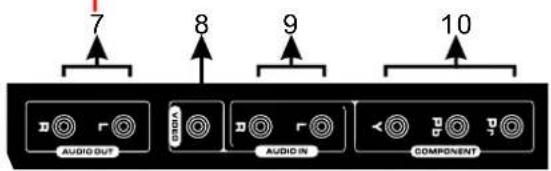

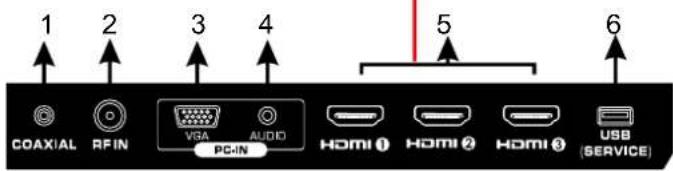

Back View and Control Connections

Back view of a flat-screen computer monitor with visible ventilation grilles and mounting feet (no text or symbols)

1. COAX:Connect the COAX receiver.
2. RF IN: Connect the antenna.
3. VGA(PC): Connect the PC-RGB output jack of PC.
4. PC AUDIO: Connect the Audio output jack of PC.
5. HDMI1/HDMI2/HDMI3: Connect the HDMI output jack of DVD.
6. USB SERVICE: USB Port for Factory Use Only.
7. L-OUT/R-OUT: Connect to Audio Amplifier device.
8. VIDEO: Connect the Video input jack of DVD or VCR.
9. L/R: For VIDEO and YPbPr audio.
10. YPbPr: Connect the YPbPr output jack of DVD or VCR.

1 2 3 4 5 6 COAXIAL RFIN VGA AUDIO PC-IN HDMI ① HDMI ② HDMI ③ USB (SERVICE)

7 8 9 10 AUDIO OUT SINJA AUDIO IN COMPONENT

6. ATV INSTALL TION DRAWINGS

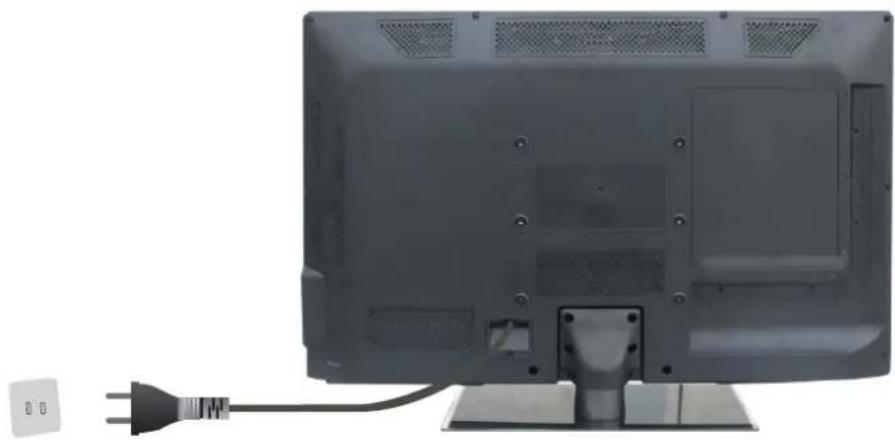

Power Cord Connection

• Connect the power cord correctly as shown.
• Press the STANDBY switch of your LED TV to switch on the LED TV. The power indicator on the front panel lights up in green.

Back view of a flat-screen computer monitor with a power outlet cable, no visible text or symbols

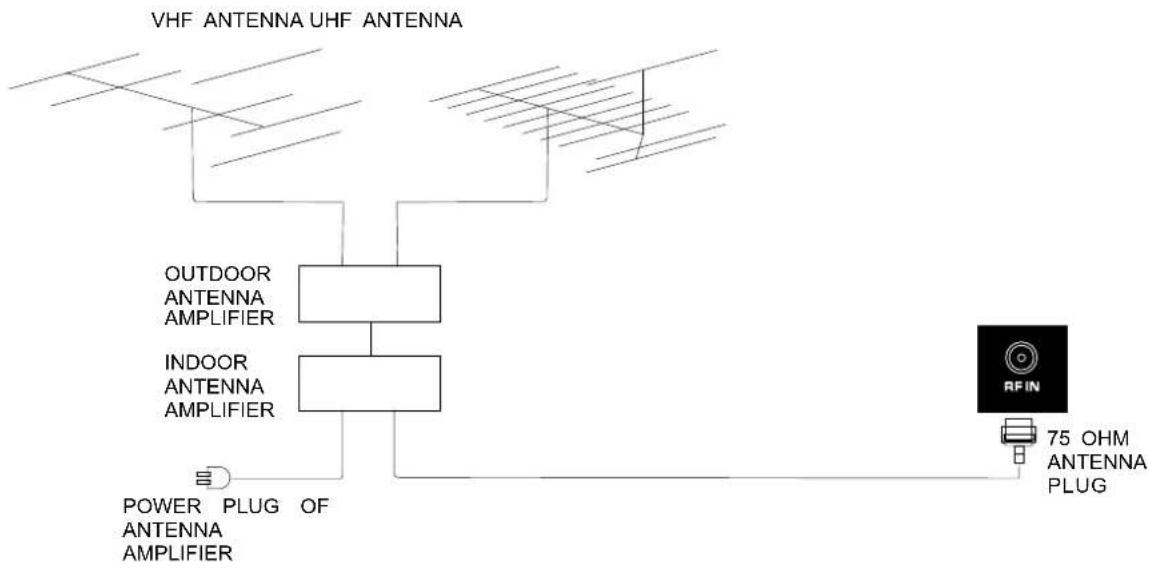

Antenna Connection

To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as shown can be sourced from TV equipment shops, which will provide service for correct installation and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.


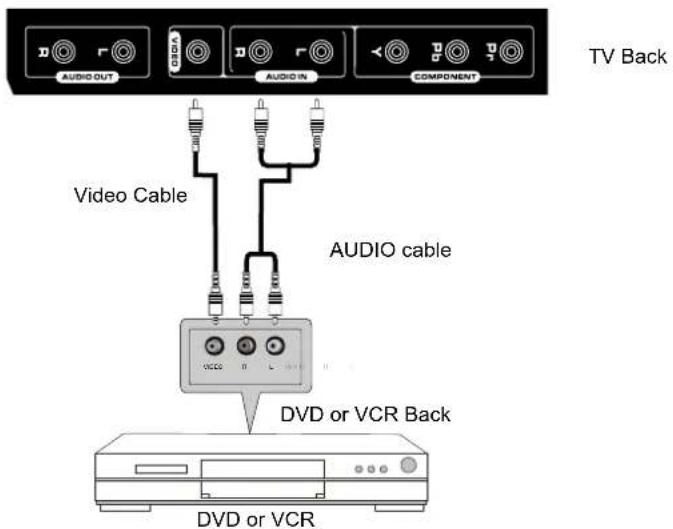

AV Connection

Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Select the AV input source using the SOURCE button on the remote control.

TV Back AUDIO OUT VIDEO AUDIO IN COMPONENT Video Cable AUDIO cable DVD or VCR Back DVD or VCR

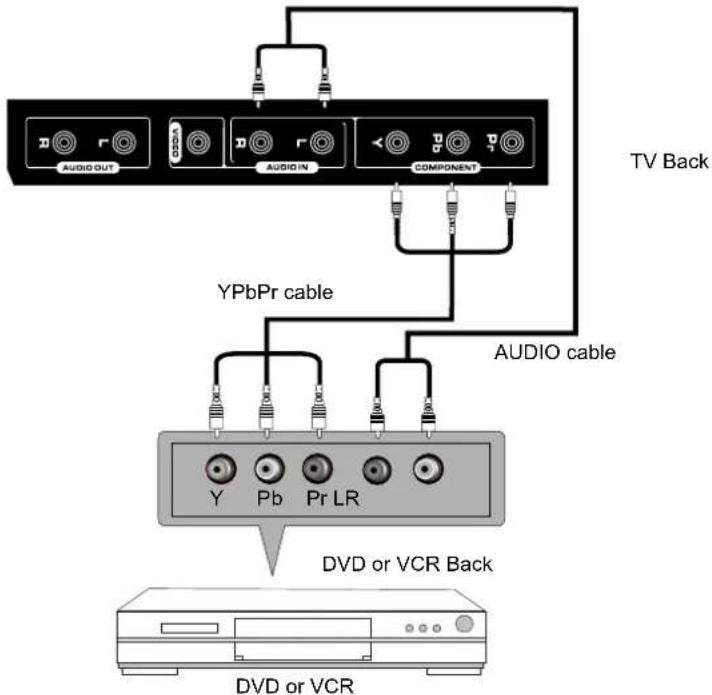

YPbPr(Component) Connection

Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture quality is improved; compared to connecting a regular VCR to the video input. Connect the Audio output of the DVD or VCR to the Audio input jacks on the set using the RCA cable. Match the jacks colors :Y is green, Pb is blue, Pr is red, Audio left is white and Audio right in red. Select component input source using the SOURCE button on the remote control.


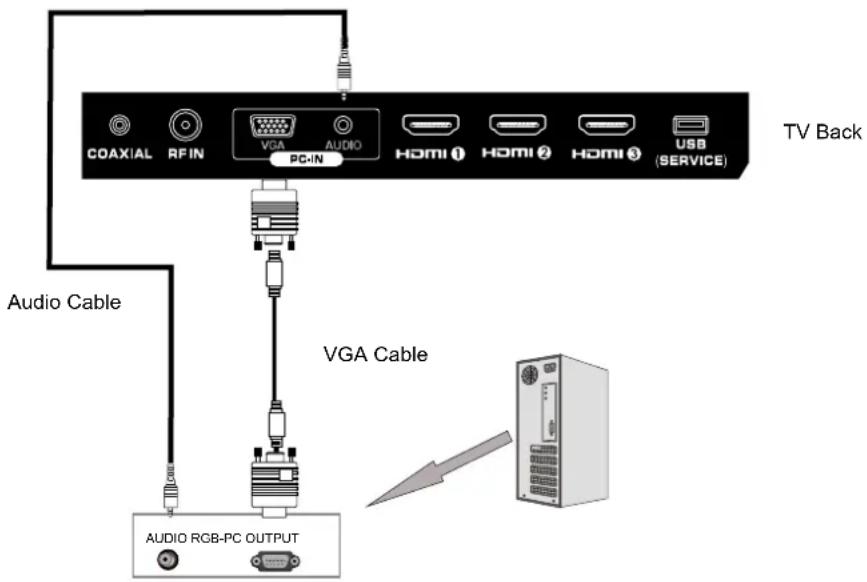

VGA(PC) Connection

Connect the RGB output of the PC to the VGA(PC) jack on the set. Connect the AUDIO output of The PC to the PCAUDIO jack on the set. Select the RGB input source with using SOURCE button on the remote control.

TV Back COAXIAL RFIN VGA AUDIO HDMI ① HDMI ② HDMI ③ USB (SERVICE) PC-IN Audio Cable VGA Cable AUDIO RGB-PC OUTPUT

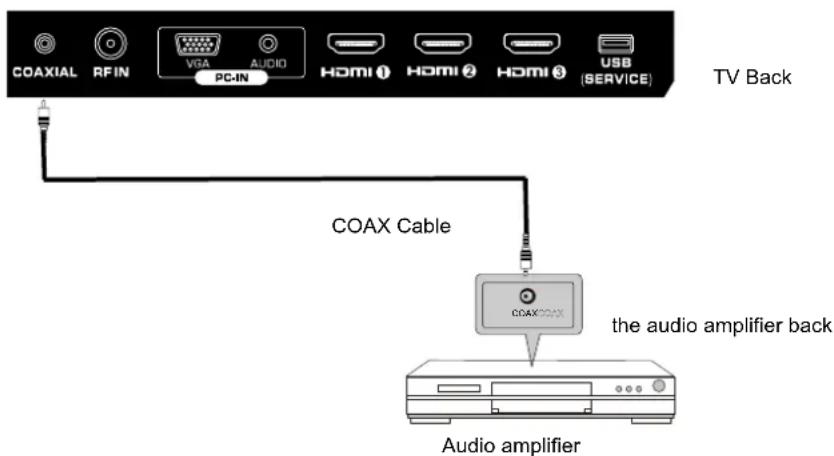

COAX Connection

Connect to Audio Amplifier device to the COAX output jack on the TV.

COAXIAL RF IN VGA PC-IN AUDIO HDMI ① HDMI ② HDMI ③ USB (SERVICE) TV Back COAX Cable the audio amplifier back Audio amplifier

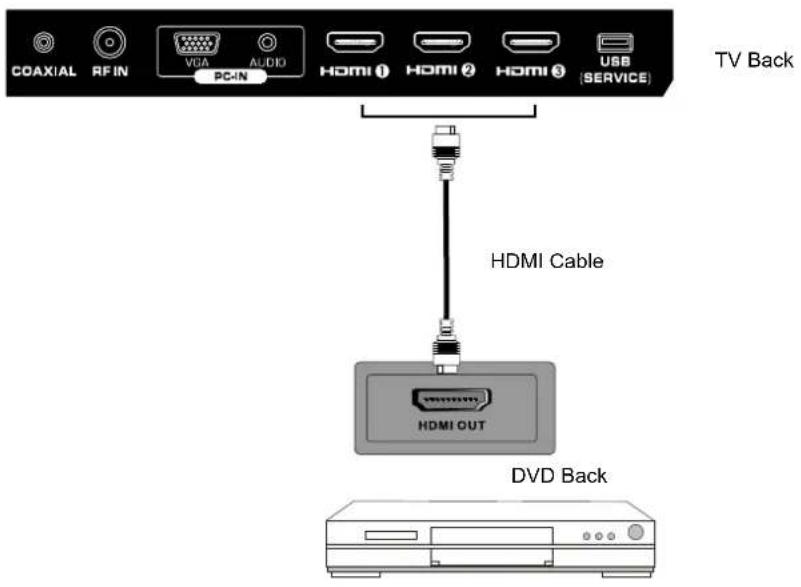

HDMI Connection

HDMI plug which replaces the HDMI connection allows transfer of all audio/video/control signals through one cable only. These signals are transferred in digital.

COAXIAL RF IN VGA AUDIO HDMI ① HDMI ② HDMI ③ USB (SERVICE) TV Back HDMI Cable HDMI OUT DVD Back

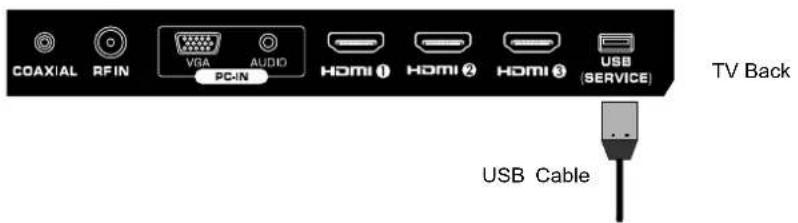

Service Port Function

Service port: (For factory uses only.)

COAXIAL RFIN VGA AUDIO PC-IN HDMI ① HDMI ② HDMI ③ USB (SERVICE) TV Back USB Cable

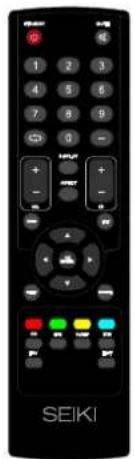

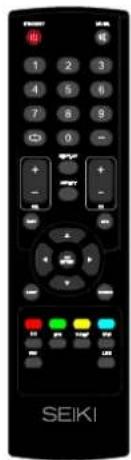

7 REMOTE CONTROL.

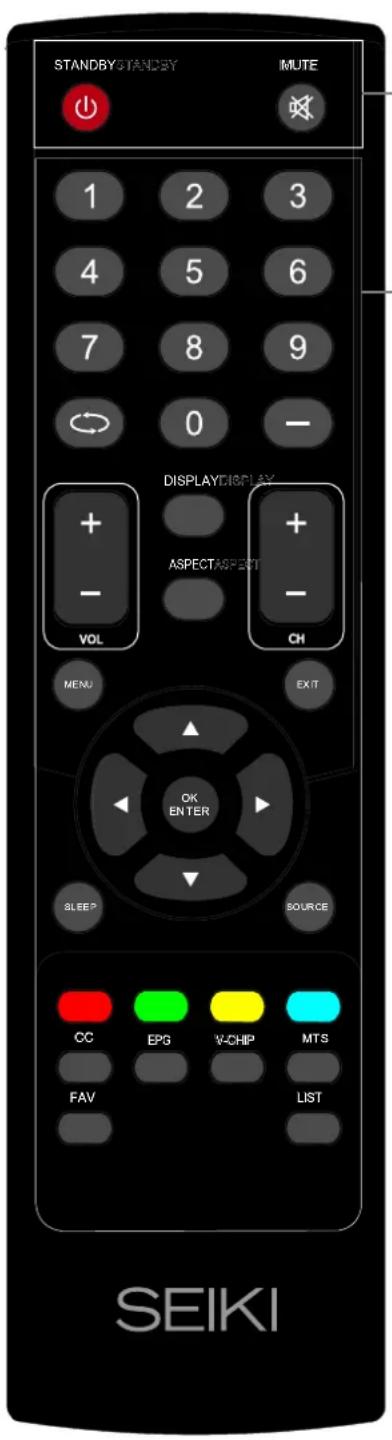

Remote control instructions in TV mode

STANDBY STANDBY IMUTE 1 2 3 4 5 6 7 8 9 0 - DISPLAY DISPLAY + - ASPECT ASPECT + - VOL CH MENU EXIT OK ENTER SLEEP SOURCE CC EPG V-CHIP MTS FAV LIST SEIKI

STANDBY

Turn the LED TV ON or OFF.

MUTE

Press to mute the sound. Press again or press Vol+ to un-mute the TV.

NUMBER BUTTONS

Press 0-9 to directly change the TV channel.

-

Press this button to enter a program number for multiple program channel such as 2-1,etc.

Return to the previous channel viewed.

VOL+/VOL-

Press to increase / decrease the sound level.

CH+/CH-

Press to scan through channels.

DISPLAY

Press to display the source and channel's information.

ASPECT

Press to select Aspect Ratio.

(As follow Standard, Wide, Wide Zoom, Zoom, etc.)

MENU

Displays the main TV menu.

EXIT

Exit the main TV menu.

THUMBSTICK( ▲/ ▼/◀ / ▶/ OK )

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

SOURCE

Press SOURCE to display the OSD input source, press ▲▼ to select an input source and then press OK to confirm.

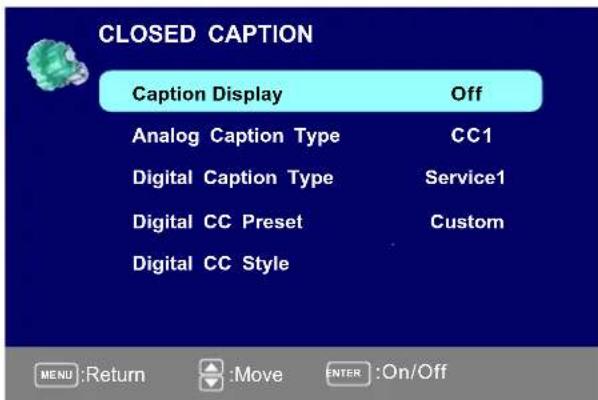

CC

Press to display the closed caption.

EPG

Press to display EPG menu.

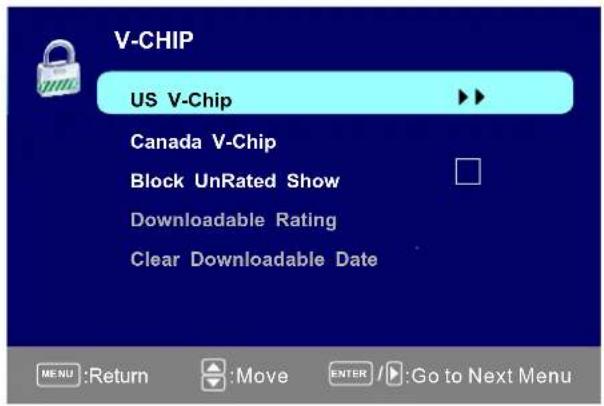

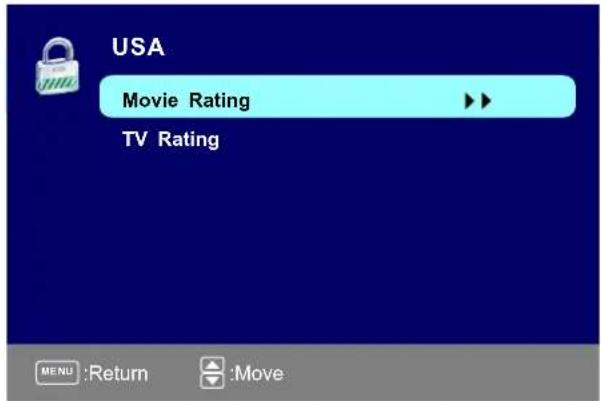

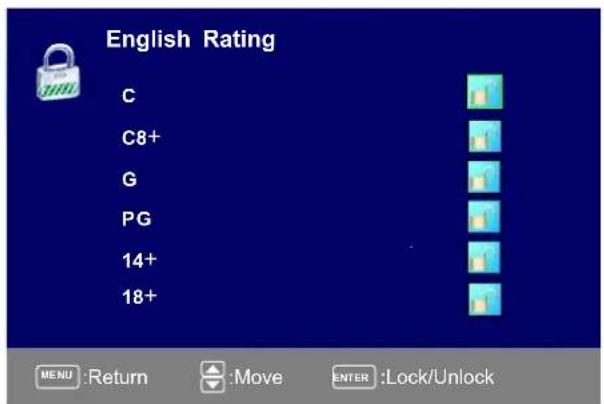

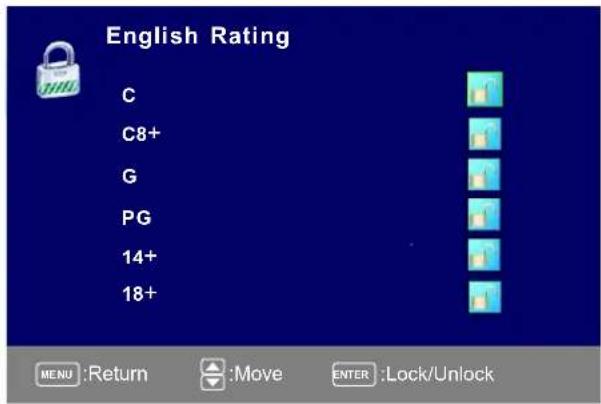

V-CHIP

Press to enter the V-CHIP menu.

MTS

Choose Mono, stereo or sap for analog TV input. Choose English, French or Spanish for DTV input.

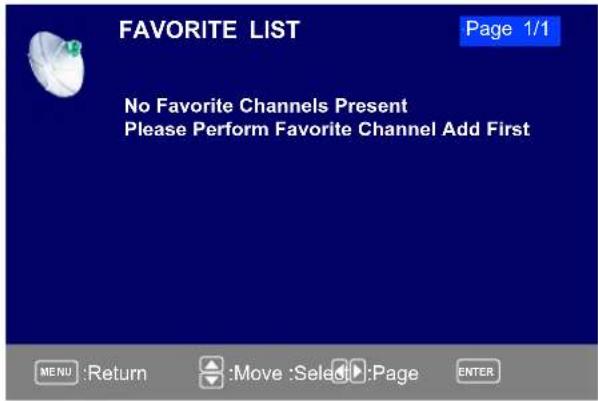

FAV

Press to display the favorite list in TV mode.

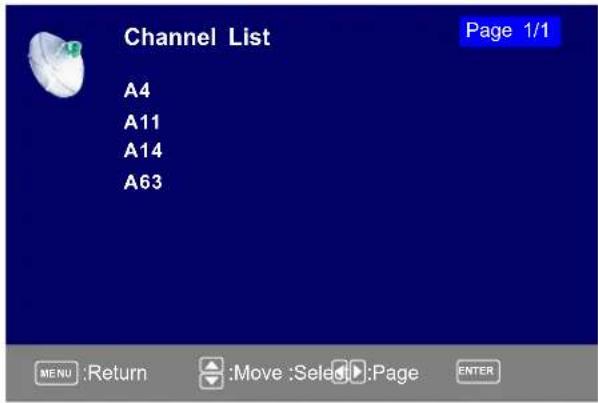

LIST

Press to display the TV program list.

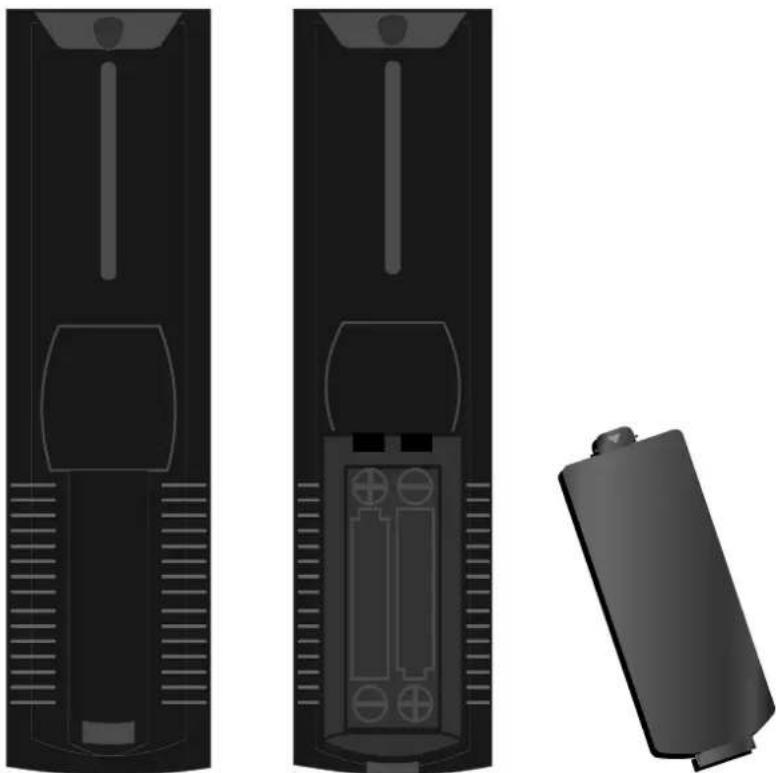

Remote control setup

1. Open the cover.
2. Uses three A size batteries. When inserting the batteries, make sure correct polarities "+" and "-" marks on the batteries line up correctly with compartment markings.
3. Replace the battery cover.

To prevent battery leakage which may result in bodily injury or damage to the remote:

1. Install all batteries correctly, and as marked on the remote control.
2. Do not mix batteries:(OLD and NEW or CARBON and ALKALINE, etc) Remove batteries when the remote is not used for a long period of time.

8. Menu Operation

SETUP WIZARD

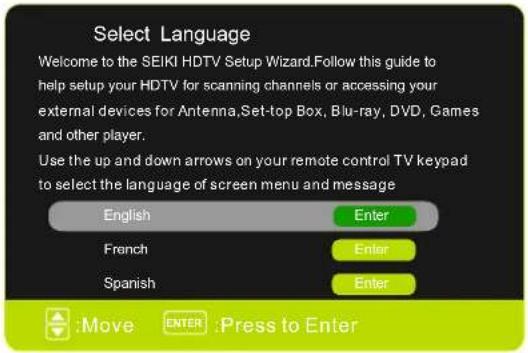

Select Language

Select the language you want.

Select Language Welcome to the SEIKI HDTV Setup Wizard.Follow this guide to help setup your HDTV for scanning channels or accessing your external devices for Antenna,Set-top Box, Blu-ray, DVD, Games and other player. Use the up and down arrows on your remote control TV keypad to select the language of screen menu and message English Enter French Enter Spanish Enter :Move ENTER :Press to Enter

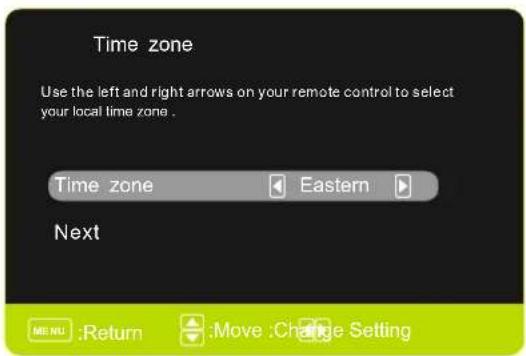

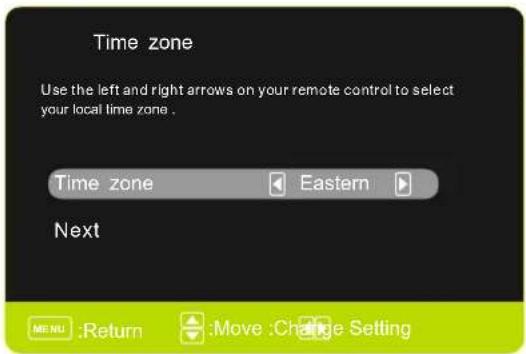

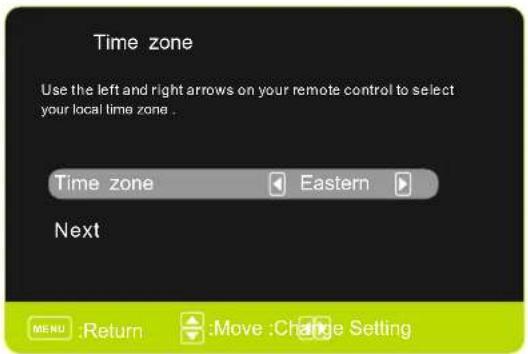

Select Time Zone

Time zone Use the left and right arrows on your remote control to select your local time zone . Time zone Eastern Next MENU :Return Move :Change Setting

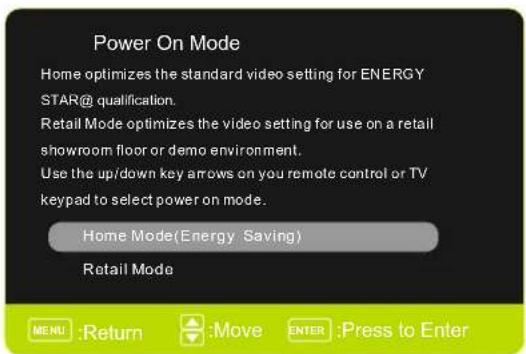

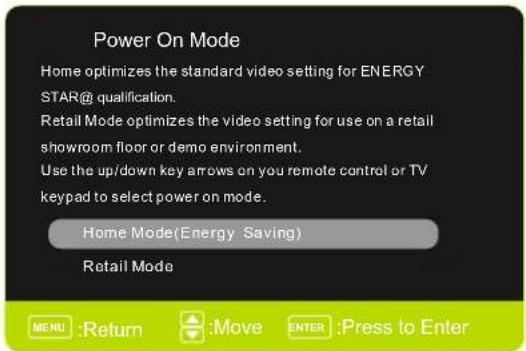

Power On Mode

Power On Mode Home optimizes the standard video setting for ENERGY STAR@ qualification. Retail Mode optimizes the video setting for use on a retail showroom floor or demo environment. Use the up/down key arrows on you remote control or TV keypad to select power on mode. Home Mode(Energy Saving) Retail Mode MENU :Return :Move ENTER :Press to Enter

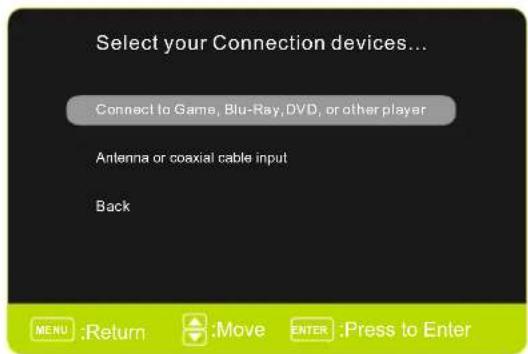

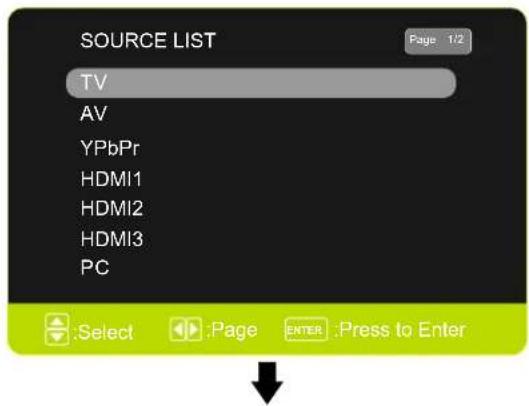

Select Input Source

Select your Connection devices... Connect to Game, Blu-Ray, DVD, or other player Antenna or coaxial cable input Back MENU :Return :Move ENTER :Press to Enter

Select the Game, Blu-Ray, DVD, or other player.

SOURCE LIST TV AV YPbPr HDMI1 HDMI2 HDMI3 PC Page 1/2 Select .Page ENTER .Press to Enter

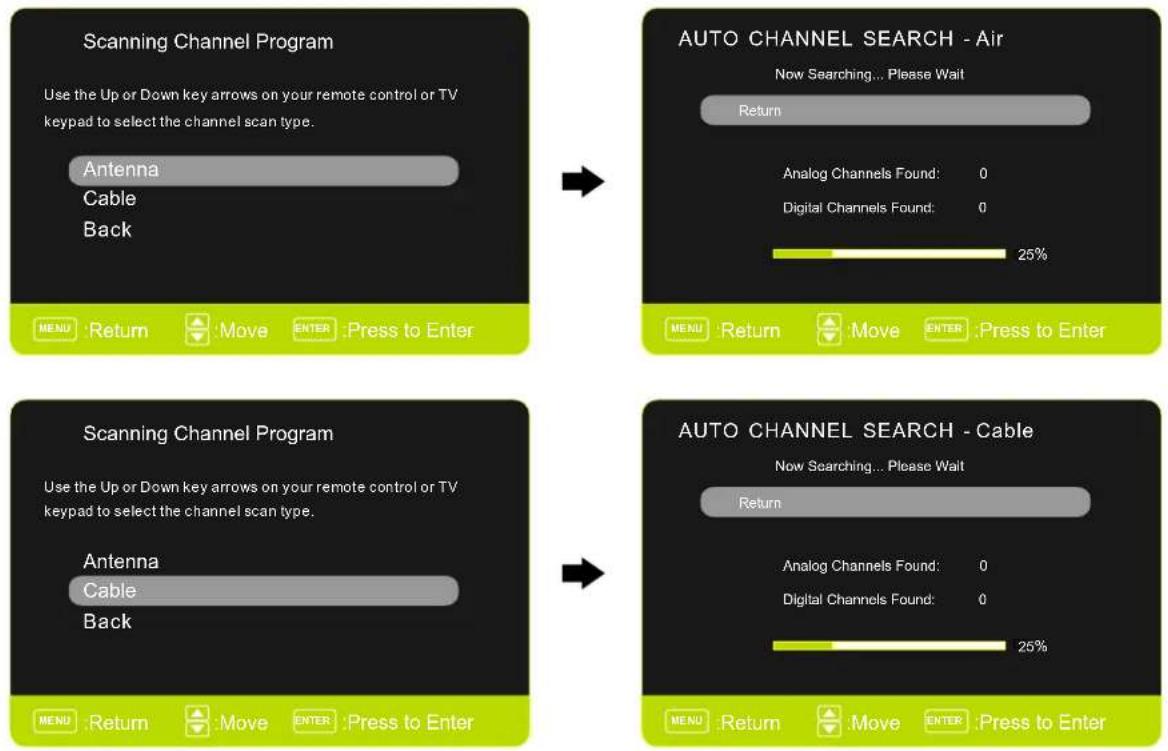

Select the TV (or the Antenna or coaxial cable input).

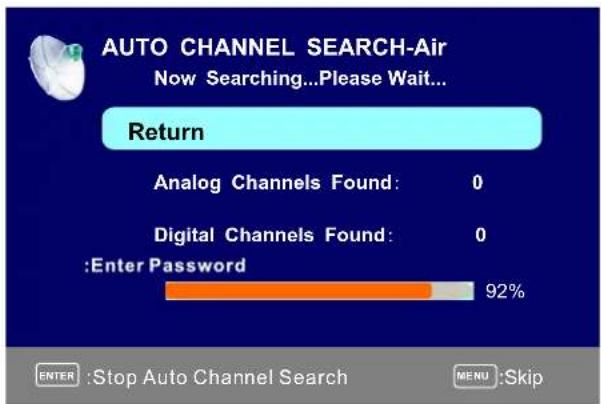

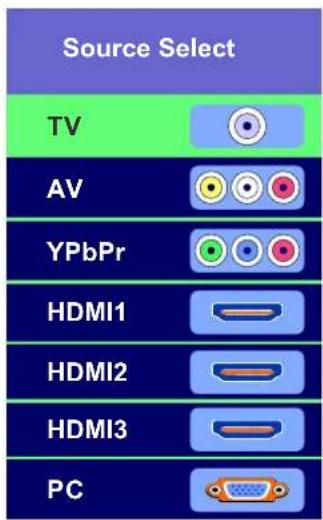

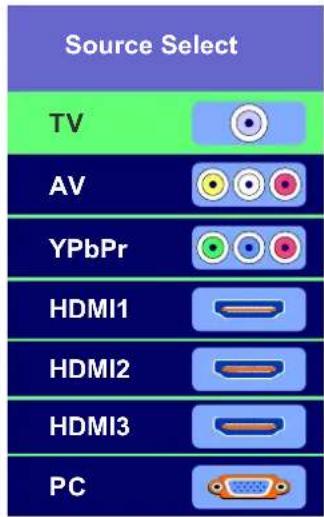

SELECT INPUT SOURCE

Source Select TV AV YPbPr HDMI1 HDMI2 HDMI3 PC

• Press SOURCE button to display the input source list.
• Press ▼/▲ button to select the input source you want to watch.
• Press OK button to enter the selected source.

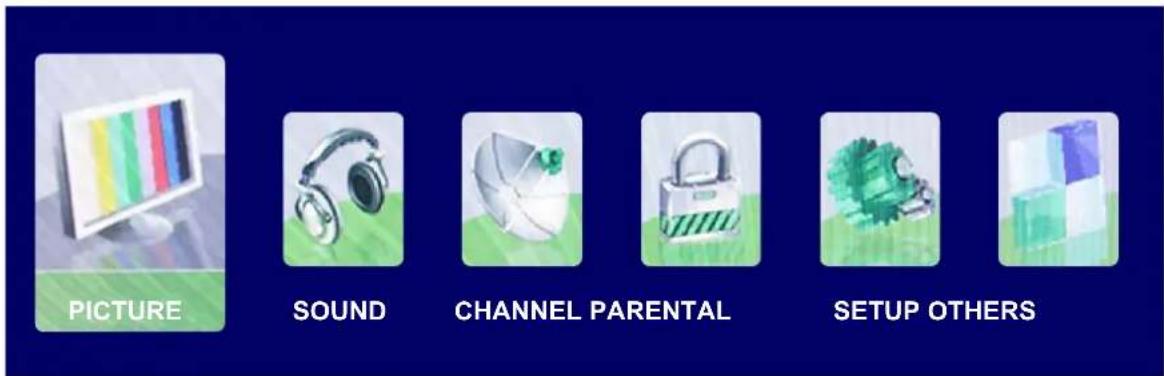

BASIC OPERATION

PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS

• Press MENU button to display the MAIN OSD MENU.
• Press ◀/▶ button to select the MENU you want.
• Press OK button to enter the sub menu.
• Press ▼/▲ button to select the option and then press ◀/▶ to adjust the value in the sub menu.
• You can press MENU button to go back to the upper menu or EXIT button to close the OSD.

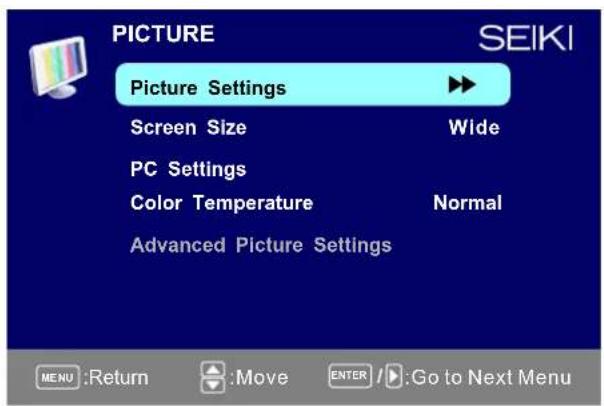

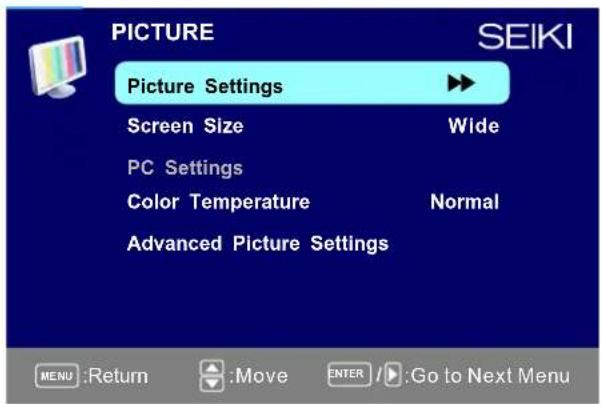

PICTURE MENU

PICTURE Picture Settings Screen Size PC Settings Color Temperature Advanced Picture Settings SEIKI Wide Normal MENU :Return :Move ENTER / Go to Next Menu

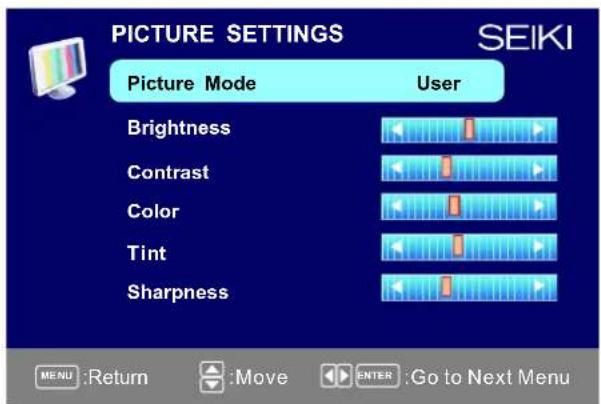

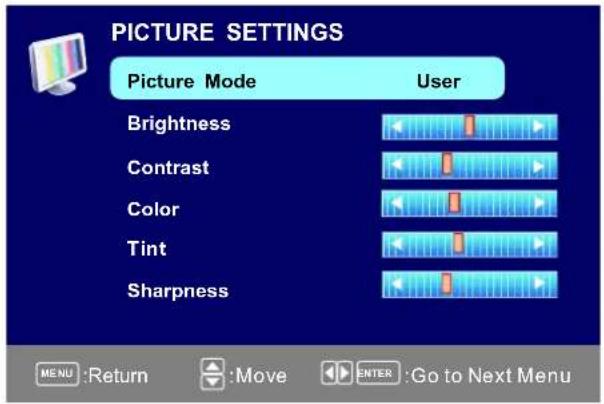

Picture Settings

1. Press ENTER when the Picture Settings item is highlighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

PICTURE SETTINGS SEIKI Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

Picture Mode

Press ▼/▲ button to select Picture Mode, then press ◀/▶ button to adjust. Only in the User mode, the detail options as following can be adjusted. Available picture mode: Energy Saving, Dynamic, Standard, Movie, User.

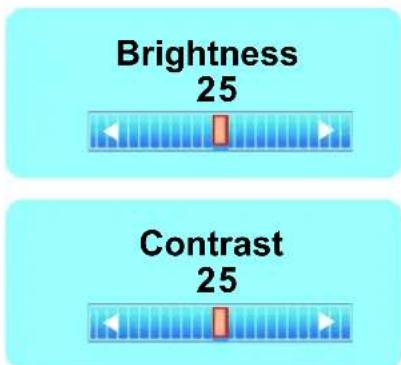

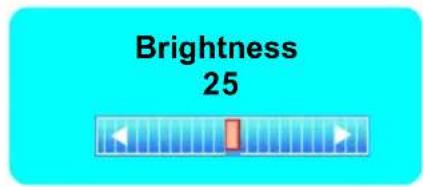

Brightness

Press ▼/▲ button to select Brightness, then press ◀/▶ button to adjust.

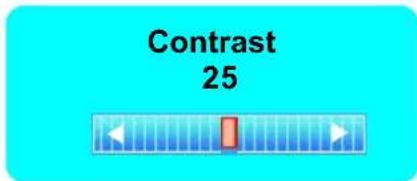

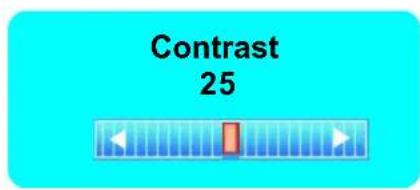

Contrast

Press ▼/▲ button to select Contrast, then press ◀/▶ button to adjust.

Brightness 25 Contrast 25

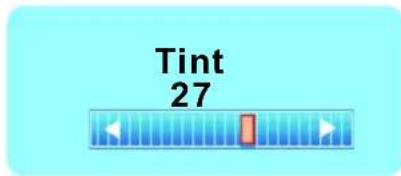

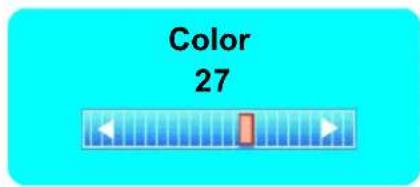

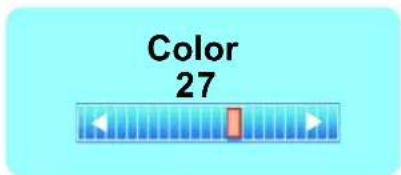

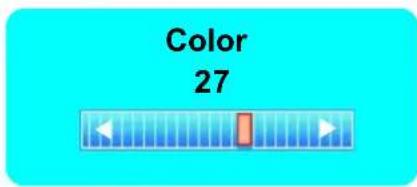

Color

Press ▼/▲ button to select Color, then press ◀/▶ button to adjust.

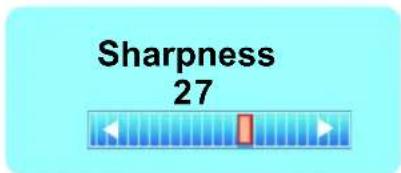

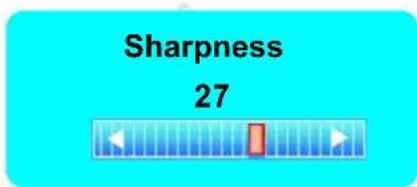

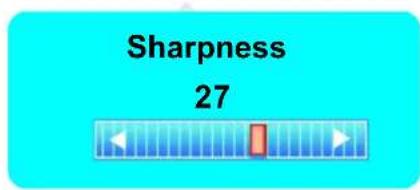

Sharpness

Press ▼/▲ button to select Sharpness, then press ◀/▶ button to adjust.

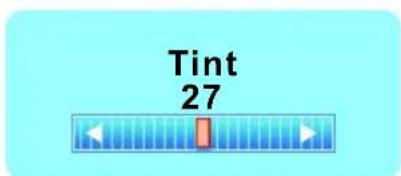

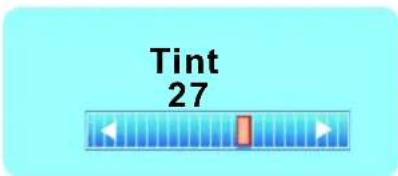

Tint

Press ▼/▲ button to select Tint, then press ◀/▶ button to adjust.

Color 27

Sharpness 27

Tint 27

Screen Settings

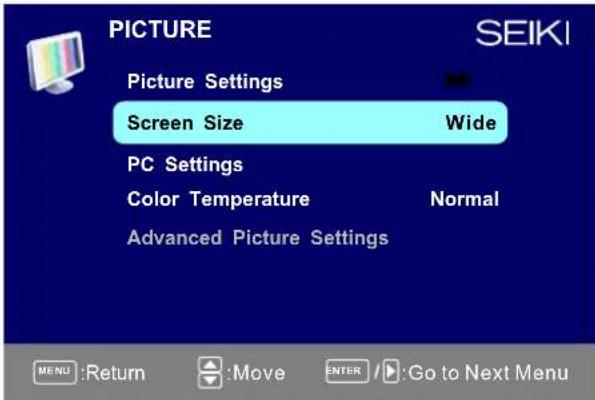

Screen Size

Press ▼/▲ button to select Screen Size, then press ◀/▶ button to adjust. Available Screen Size: Standard, Wide, Wide Zoom, Zoom.

Color Temperature

Press ENTER when the Color Temperature item is highlighted. Then press ◀/▶ button to adjust. Available color temperature: Normal, Warm, Cool.

Color Temperature Warm

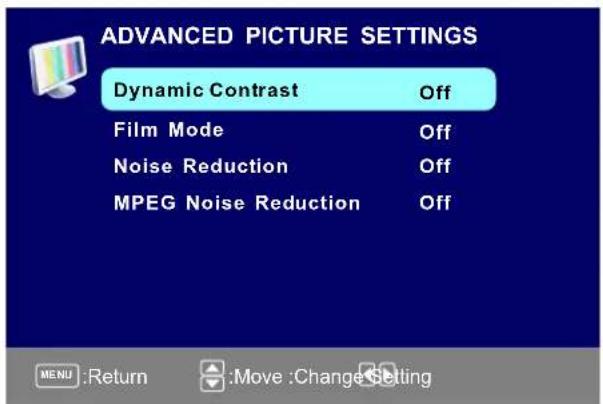

Advanced Picture Settings

ADVANCED PICTURE SETTINGS Dynamic Contrast Off Film Mode Off Noise Reduction Off MPEG Noise Reduction Off

Dynamic Contrast

Press▼/▲button to select the ◀/► button to adjust. It can adjust the contrast corresponding to the input signal in order to improve the picture quality displayed. Available Mode: On/Off.

Film Mode

Press ▼/▲ button to select the item Film Mode, then press ◀/▶ button to adjust. It handles 3:2 pull down and 2:2 pull down. Available Film Mode: On/Off.

Noise Reduction

Press ▼/▲ button to select the item Noise Reduction, then press ◀/▶ button to adjust. Available Noise Reduction: Off, Low, Medium, High.

MPEG Noise Reduction

Press ▼/▲ button to select the item MPEG Noise Reduction, then press ◀/▶ button to adjust. It can improve the quality of the pictures by reducing the block noise. Available MPEG Noise Reduction: Off, Low, Medium, High.

Dynamic Contrast Off

Film Mode Off

Noise Reduction Off

MPEG Noise Reduction Off

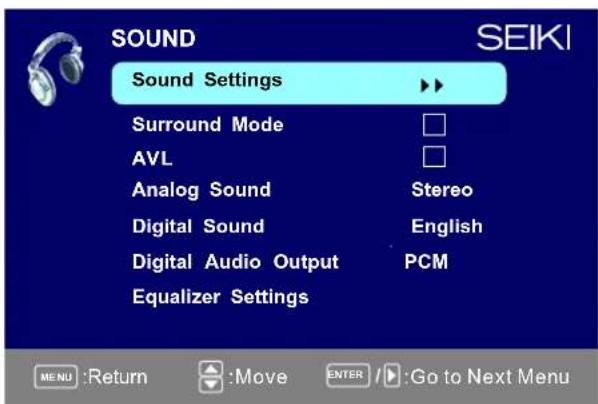

SOUND MENU

SOUND SEIKI Sound Settings Surround Mode AVL Analog Sound Digital Sound Digital Audio Output Equalizer Settings Stereo English PCM MENU :Return :Move ENTER / Go to Next Menu

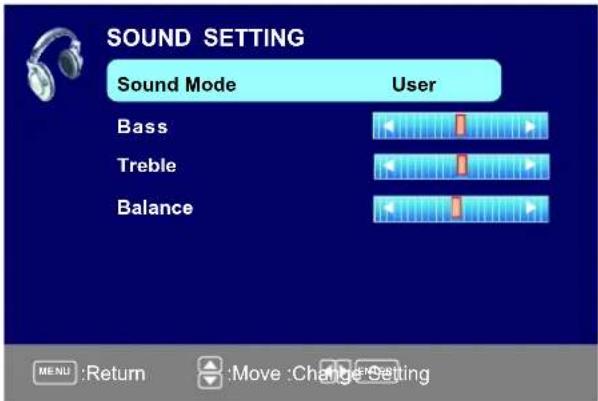

Sound Settings

1. Press ENTER when the Sound Settings item is high lighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

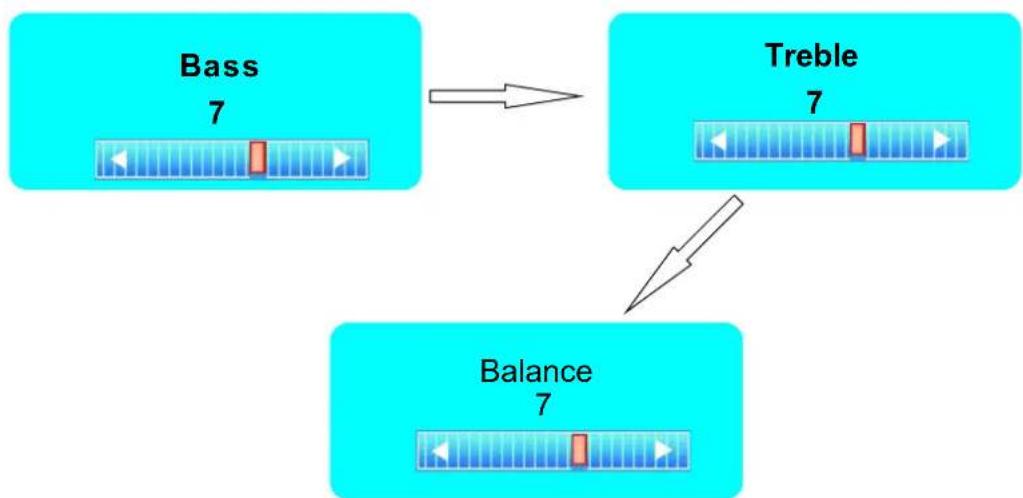

SOUND SETTING Sound Mode User Bass Treble Balance MENU :Return Move :Change Setting

Sound Mode

Press ▼/▲button to select the item Sound Mode, then press ◀/▶ button to adjust. Only in the User mode, the detail optionsas following can be adjusted. Available Sound Mode: User, Dynamic, Standard, Soft.

Bass

Press ▼/▲ button to select the item Bass, then press ◀/▶ button to adjust.

Treble

Press ▼/▲ button to select the item Treble, then press ◀/▶ button to adjust.

Balance

Press ▼/▲ button to select the item Balance, then press ◀/▶ button to adjust.

Surround Mode

Press ▼/▲ button to select the item Surround Mode, then press OK button to adjust. It can set the picture to fit the screen automatically. When the Auto Wide is selected, the symbol will show as following:

Surround Mode

AVL

Press ▼/▲ button to select the item AVL, then press ◀/▶ button to select ON or OFF. Auto Volume Level can set the volume automatically adjust corresponding to the input audio.

Analog Sound

Press ▼/▲ button to select the item Preferred Analog Sound, then press ◀/▶ button to select the prefer audio when switching to an analog channel. Available Analog Sound: Stereo, Mono,SAP.

Digital Sound

Press ▼/▲ button to select the item Preferred Digital Sound, then press ◀/▶ button to select the prefer audio when switching to a digital channel. Available Digital Sound: English, French, Spanish.

Digital Audio Output

Press ▼/▲ button to select the item Digital Audio Output, then press ◀/▶ button to select the desired digital audio output. Available digital audio output: PCM, Raw, Off.

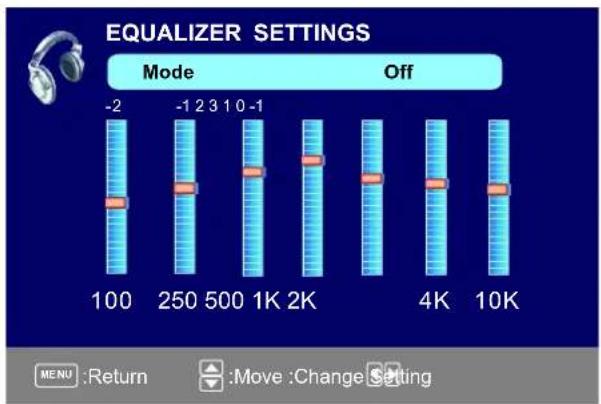

Equalizer Settings

EQUALIZER SETTINGS Mode Off -2 -1 2 3 1 0 -1 100 250 500 1K 2K 4K 10K MENU :Return :Move :Change Setting

Equalizer Mode

Press ▼/▲ button to select the item Equalizer Mode, then press ◀/▶ button to select the desired mode. Available Equalizer Mode: Off, Rock, Pop, Jazz, User.

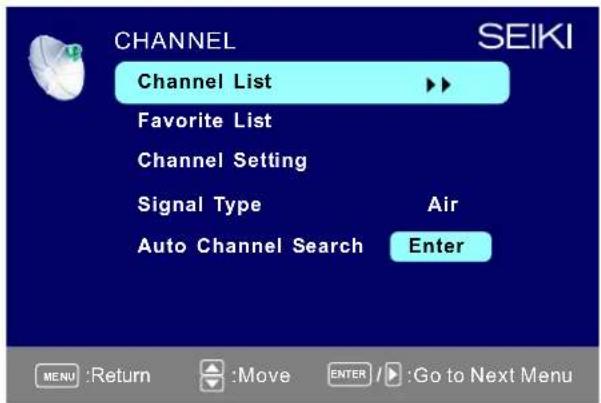

CHANNEL MENU

Note: This menu is only shown when the input source is TV.

CHANNEL SEIKI Channel List Favorite List Channel Setting Signal Type Air Auto Channel Search Enter MENU :Return :Move ENTER / Go to Next Menu

Channel List

Press ▼/▲ button to select Channel List, then press OK button to scan the Channel List. If you select the option "In Channel List" On, the channel label will display in the list.

Channel List Page 1/1 A4 A11 A14 A63 MENU :Return :Move :Select: :Page ENTER

Favorite List

Press ▼/▲ button to select Favorite List, then press OK button to scan the Favorite Channel List.

FAVORITE LIST Page 1/1 No Favorite Channels Present Please Perform Favorite Channel Add First MENU :Return :Move :Select: |:Page ENTER

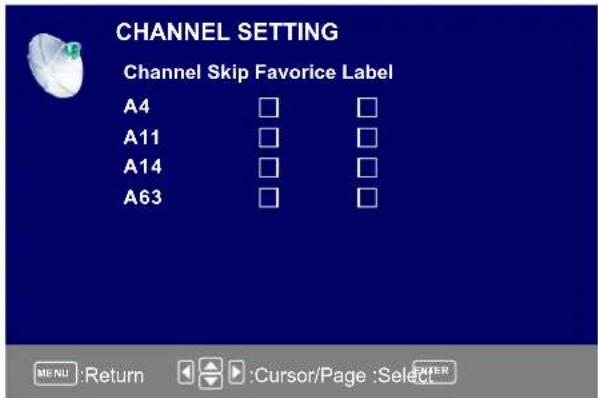

Channel Setting

Press ▼/▲ button to select Manual Channel Setting, then press OK button to set the value in the sub menu.

CHANNEL SETTING Channel Skip Favorite Label A4 □ □ A11 □ □ A14 □ □ A63 □ □ MENU:Return Cursor/Page:Select

Signal Type

Press ▼/▲ button to select Signal Type, then press ◀/▶ button to select the type you want to set. There are two selections: Air and Cable.

Auto Channel Search

Press ▼/▲ button to select Auto Channel Search, then press OK button to search channel. A Channel Search Menu will appear as below.

AUTO CHANNEL SEARCH-Air Now Searching...Please Wait... Return Analog Channels Found: 0 Digital Channels Found: 0 :Enter Password 92% ENTER :Stop Auto Channel Search MENU :Skip

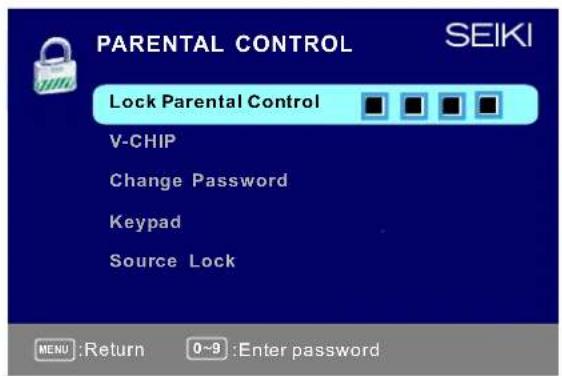

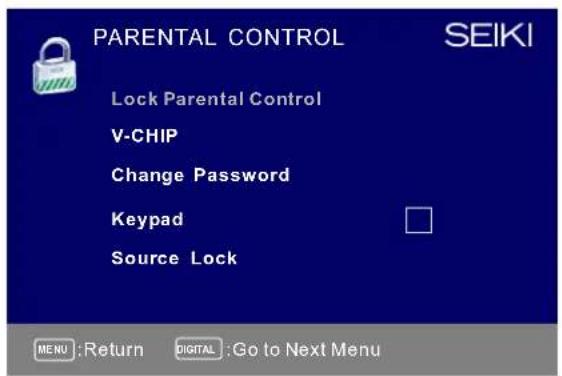

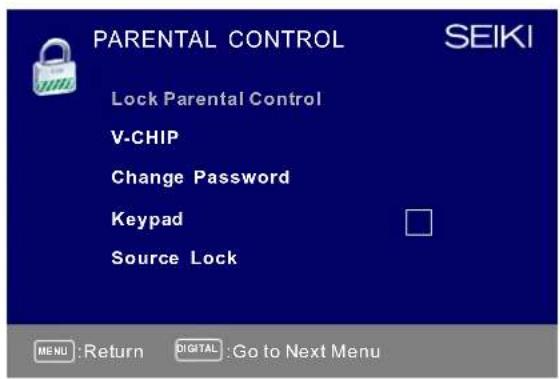

PARENTAL CONTROL

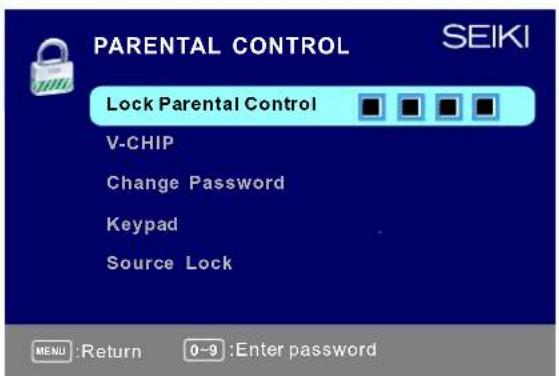

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU :Return 0-9 :Enter password

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU : Return DIGITAL : Go to Next Menu

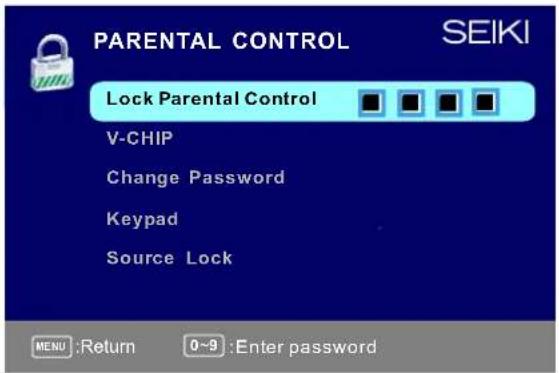

Input password to enter, default password is "0000".

V-CHIP

Press ▼/▲ button to select V-CHIP, then press OK button to adjust. A sub menu will appear as below.

V-CHIP US V-Chip Canada V-Chip Block UnRated Show Downloadable Rating Clear Downloadable Date MENU :Return :Move ENTER / Go to Next Menu

US V-CHIP

Press ▼/▲ button to select US V-CHIP, then press OK button to adjust. A sub menu will appear as below.

USA Movie Rating TV Rating MENU :Return :Move

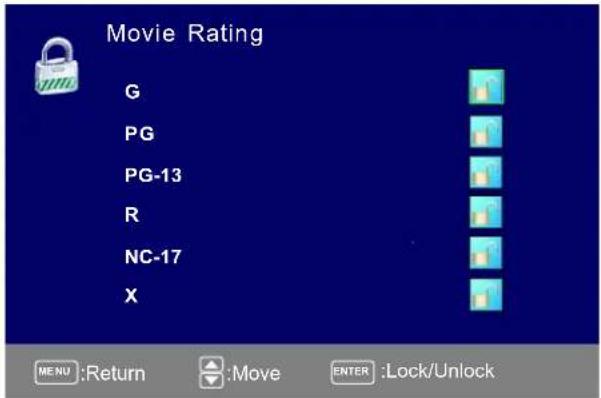

Movie Rating

Press ▼/▲ button to select Movie Rating, then press OK button to adjust. A sub menu will appear as below.

Movie Rating G PG PG-13 R NC-17 X MENU:Return Move ENTER:Lock/Unlock

Press ▼/▲ button to select Rating, then press OK button to lock.

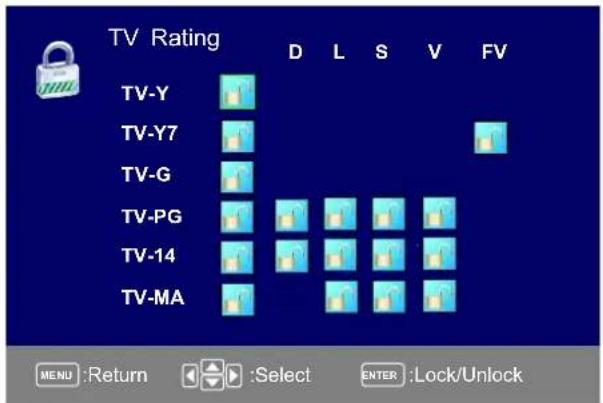

TV Rating

Press ▼/▲ button to select TV Rating, then press OK button to adjust. A sub menu will appear as below.

TV Rating D L S V FV TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA

Press ▼/▲/◄/► button to select Rating, then press OK button to lock.

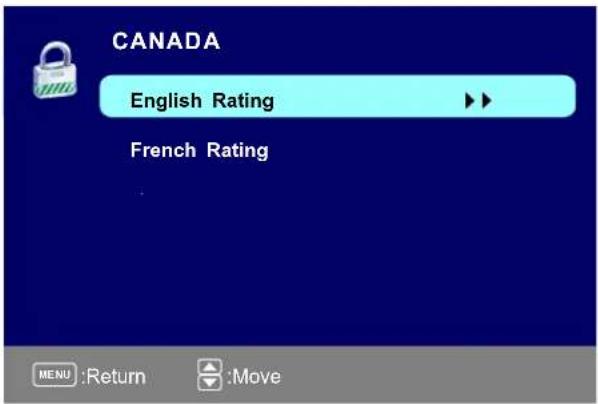

CANADA V-CHIP

Press ▼/▲ button to select US V-CHIP, then press OK button to adjust. A sub menu will appear as below.

CANADA English Rating French Rating MENU :Return Move

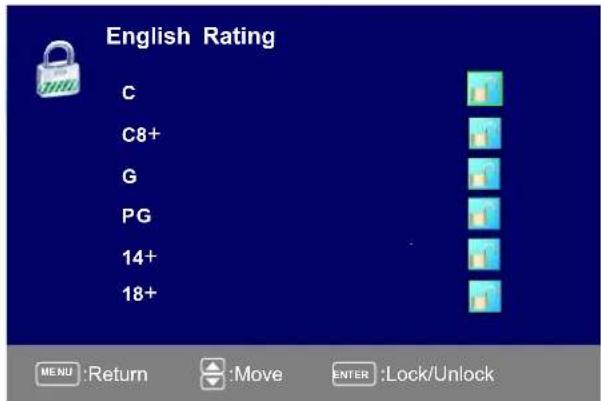

English Rating C C8+ G PG 14+ 18+ MENU :Return :Move ENTER :Lock/Unlock

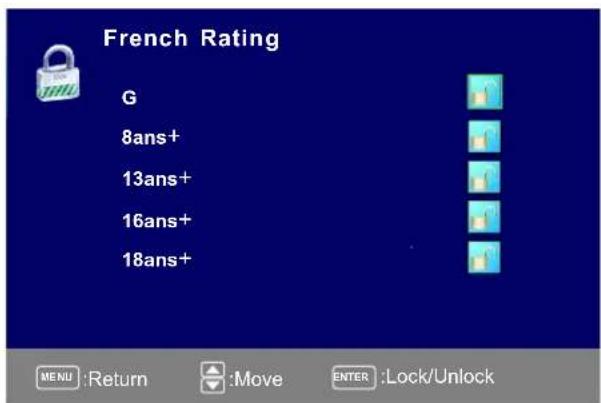

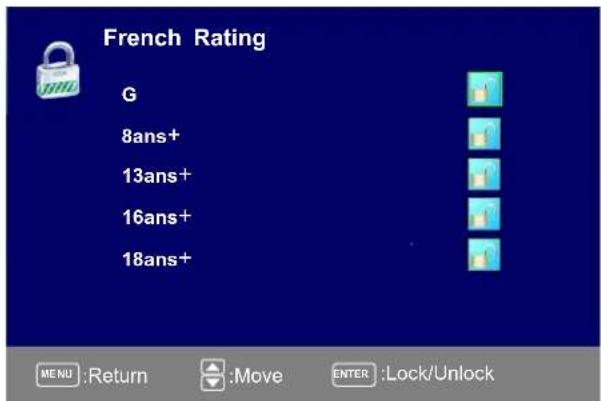

French Rating G 8ans+ 13ans+ 16ans+ 18ans+ MENU :Return :Move ENTER :Lock/Unlock

The operation of CANADA V-CHIP is the same as the operation of US V-CHIP.

Information

Motion Picture Association of America (MPAA) Rating System

Grade		Meaning
G	General Audiences	Content not offensive to most viewers
PG	Parental Guidance Suggested	Content is such that parents may not want their children to view the program
PG-13	Parental Guidance Cautioned	Program is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program
R	Restricted viewing	Not for children under 17, Strong element of sex and/or violence
NC-17	No Children Under age 17	Not for children under 17 under any circumstances. Strong sexual content
X	Hard Core Films	Same as NC-17 rating
No Rating	No Rating	MPAA Not Rated

TV Parental Guideline Rating System

Grade		Meaning
TV-Y	Young Children	Content not offensive to most viewers
TV-Y7	Children 7 and over	Considered suitable for children over 7, may contain Fantasy Violence Scenes
TV-G	Parental Audience	Considered suitable for all audiences; children may watch unattended
TV-PG	Parental Guidance	Suggested Unsuitable for younger children, may contain; Suggestive Dialogue, Bad Language, Sex, and Violence Scenes
TV-14	Parents Strongly Cautioned	Unsuitable for children under 14, may contain: Strong Dialogue, Bad Language, Sex, and Violence Scenes
TV-MA	Mature Audience Only	Adults only, may contain Strong Dialogue, Bad Language, Sex, and Violent Scenes

Canadian Rating: Canadian English is used throughout all English-speaking Canada (C, C8+, G, PG, 14+, 18+).

Canadian French is used in Quebec (G, 8 ans+, 13 ans+, 16 ans+, 18 ans+)

Note: The V-Chip will automatically block certain categories that are "more restrictive". If you block TV-Y category, then TV-Y7 will be automatically blocked. Similarly, if you block TV-G category, then all the categories in the "young adult" will be blocked (TV-G, TV-PG, TV-14, and TV-MA).

Block UnRated Show

Press ◀/▶ button to select Block UnRated Show, then press OK button to set the rating locked.

Downloadable Rating

Press ▼ / ▲ button to select Downloadable Rating, then press OK button to set the rating. If the DTV program doesn't have this rating information, this option will be in gray.

Clear Downloadable Date

Press ▼ / ▲ button to select Clear Downloadable Data, then press OK button to set the rating. Note: The above two operation only valid when playing the downloadable data stream.

The operations are the same as US V-CHIP.

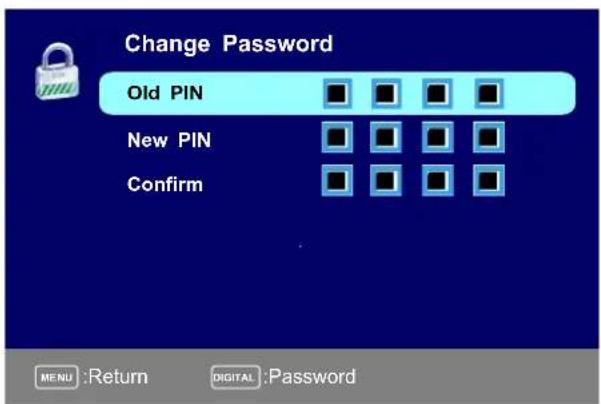

CHANGE PASSWORD

Press ▼ / ▲ button to select Change Password, then press OK button to adjust the value.

A Sub Menu Will appear as below. If the password is changed, all of the passwords in the menu will be changed at the same time.

Change Password Old PIN New PIN Confirm MENU :Return DIGITAL :Password

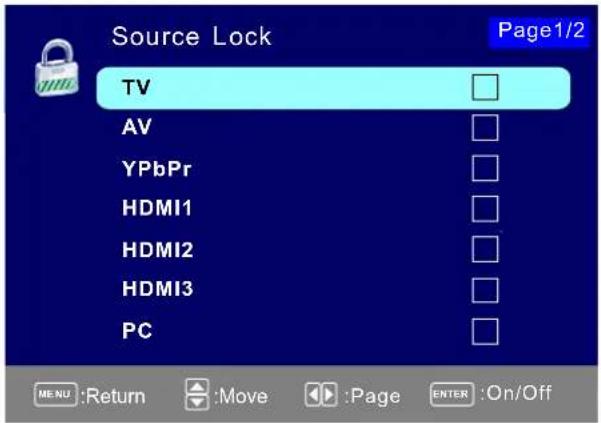

Source Lock

Press ▼/▲ button to select Source Lock, then press OK button to enter the sub menu.

Press ▼/▲ button to select Source, then press OK button to set the Source Lock.

You can't enter the locked source if you set the Source lock.

Source Lock TV AV YPbPr HDMI1 HDMI2 HDMI3 PC Page1/2 MENU :Return :Move :Page ENTER :On/Off

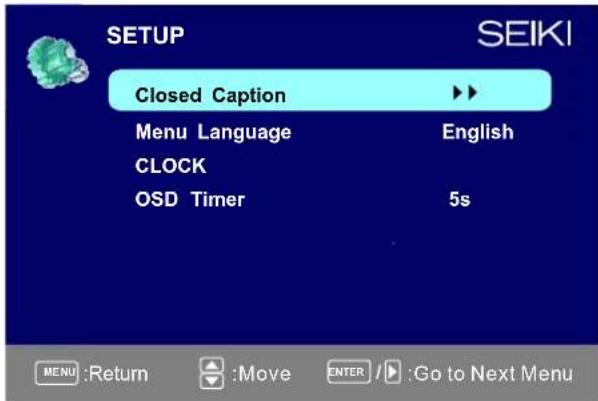

Setup Menu

SETUP SEIKI Closed Caption Menu Language CLOCK OSD Timer English 5s MENU :Return :Move ENTER / Go to Next Menu

Closed Caption

Press ▼/▲ button to select the item Closed Caption, then press ◀/▶ button to adjust.

CLOSED CAPTION Caption Display Off Analog Caption Type CC1 Digital Caption Type Service1 Digital CC Preset Custom Digital CC Style MENU:Return Move ENTER:On/Off

Caption Display

Press ▼/▲ button to select Caption Display, then press ◀/▶ button to select ON or OFF.

Analog Caption Type

Press ▼/▲ button to select Analog Caption Type, then press ◀/▶ button to select the type.

Available type: CC1, CC2, CC3, CC4, TEXT1, TEXT2, TEXT3, TEXT4.

Digital Caption Type

Press ▼/▲ button to select Digital Caption Type, then press ◀/▶ button to select the type. Available type: Service1\~6.

Digital CC Preset

Press ▼/▲ button to select Digital CC Preset, then press ◀/▶ button to select Default or Custom.

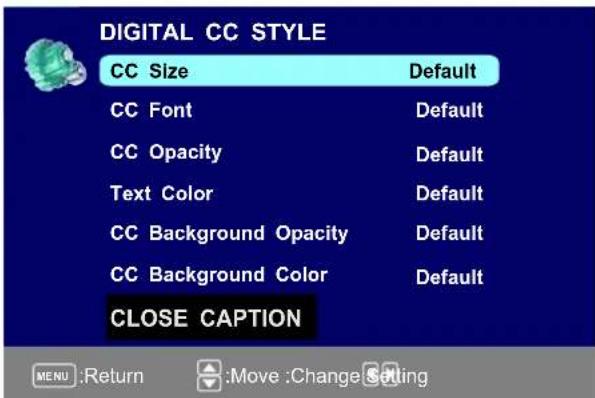

Digital CC Style

This menu is only shown when the Digital CC Preset is selected Custom.

DIGITAL CC STYLE CC Size Default CC Font Default CC Opacity Default Text Color Default CC Background Opacity Default CC Background Color Default CLOSE CAPTION MENU :Return Move :Change Setting

CC Size

Press ▼/▲ button to select CC Size, then press ◀/▶ button to set. Available Size: Default, Small, Standard, Large.

CC Font

Press ▼/▲ button to select, then press ◀/▶ button to select the Font. Available type: Default, Style0\~7.

CC Opacity

Press ▼/▲ button to select CC Opacity, then press ◀/▶ button to select the Opacity. Available Opacity: Default, Solid, Flashing, Translucent, Transparent.

Text Color

Press ▼/▲ button to select Text Color, then press ◀/▶ button to select the color. Available Color: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.

CC Background Opacity

Press ▼/▲ button to select CC Background Opacity, then press ◀/▶ button to select the Opacity. Available Opacity: Default, Solid, Flashing, Translucent, Transparent.

CC Background Color

Press ▼/▲ button to select CC Background Color, then press ◀/▶ button to select the Color. Available Color: Default, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan.

Menu Language

Press ▼/▲ button to select the item Menu Language, then press ◀/▶ button to adjust. Available Language: English, French, Spanish.

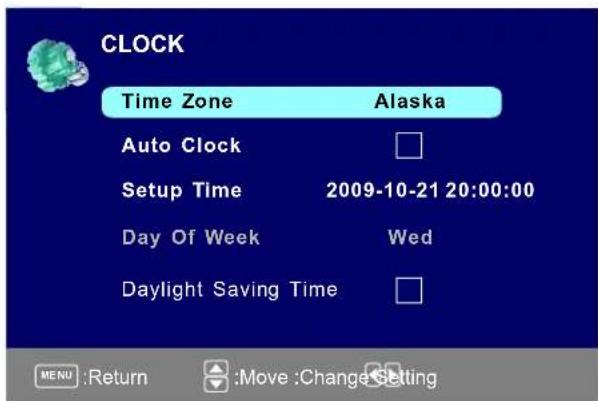

Clock

Press ▼/▲ button to select the Clock, then press OK to edit.

CLOCK Time Zone Alaska Auto Clock Setup Time 2009-10-21 20:00:00 Day Of Week Wed Daylight Saving Time

Time Zone

Press ▼/▲ button to select Timer Zone, then press ◀/▶ button to set. Available Size: Central, Mountain, Pacific, Alaska, Hawaii, Samoa, Newfoundland, Atlantic, Eastern.

Auto Clock

Press ▼/▲ button to select Auto Clock, then press ENTER button to set it Enable/Disable. If you set it Enable, it will adjust the time corresponding the DTV time automatically.

Setup Time

Press ▼/▲ button to select Setup Time, then press ◀/▶ button to adjust the time and use the ENTER button to go to the next option.

Day Of Week

This option displays the Day Of Week corresponding to the setup time.

Daylight Saving Time

Press ▼/▲ button to select Daylight Saving Time Time press ◀/▶ button to set. Size: , 10s 20s,30s 40s 50s 60s

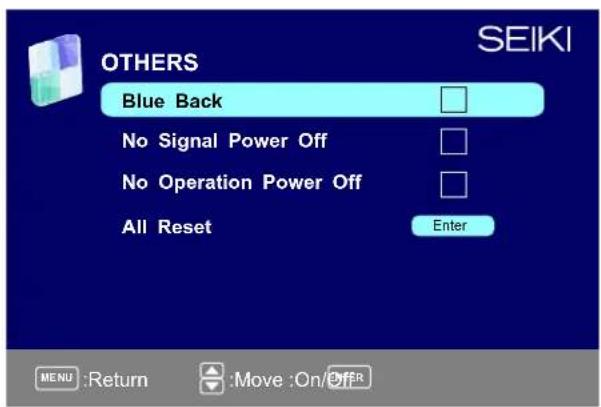

OTHERS MENU

OTHERS Blue Back No Signal Power Off No Operation Power Off All Reset Enter MENU :Return :Move :On/OFFR SEIKI

Blue Back

Press ▼/▲ button to select Blue Background, then press OK button to select when there is no signal, whether set the background in blue or not.

No Signal Power Off

Press▼/▲ button to select No Signal Power Off, then press OK button to select it On or Off. When set it On and there is no signal input by 10 minutes, it will turns off the panel and the LED light turns amber.

No Operation Power Off

Press ▼/▲ button to select No Operation Power Off, then press OK button to select it On or Off. When set it On and there is no operation input by 3 hours, it will turns off the panel and the LED light turns red.

All Reset

Press ▼/▲ button to select All Reset, then press OK button to execute reset. When you select All Reset item, a dialogue box will appear as following:

Attention!

If [ All Reset ] was executed TV system is reset.

AV/YPbPr/HDMI1/HDMI2/HDMI3

1. PICTURE menu and description are the same as that for TV source.
   2.SOUND menu and description are the same as that for TV.
   But the settings for Analog Sound and Digital Sound are invalid in these sources.
2. PARENTAL menu and description are the same as that for TV V source.
3. SETUP menu and description are the same as that for TV source.
   But the setting for Closed Caption is invalid in source HDMI.
4. OTHER menu and description are the same as that for TV source.
   6.CHANNEL menu and description are invalid in these sources.

PICTURE MENU

PICTURE SEIKI Picture Settings Screen Size Wide PC Settings Color Temperature Normal Advanced Picture Settings MENU :Return :Move ENTER / Go to Next Menu

Picture Settings

1. Press ENTER when the Picture Settings item is highlighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to adjust the item to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

PICTURE SETTINGS Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

Picture Mode

Press ▼/▲ button to select Picture Mode, then press ◀/▶ button to adjust. Available picture mode: Dynamic, Standard, Movie, User.

Brightness

Press ▼/▲ button to select Brightness, then press ◀/▶ button to adjust.

Brightness 25

Contrast

Press ▼/▲ button to select Contrast, then press ◀/▶ button to adjust.

Contrast 25

Color

Press ▼/▲ button to select Color, then press ◀/▶ button to adjust.

Color 27

Sharpness

Press ▼/▲ button to select Sharpness, then press ◀/▶ button to adjust.

Sharpness 27

Screen Size

1. Press ENTER when the Screen Size item is highlighted. Then you will go to the sub-menu as following.
2. Press ▼/▲ to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to adjust the item to the desired level.
4. When you have changed the size, you can exit from the menu by pressing MENU.

PICTURE SEIKI Picture Settings Screen Size Wide PC Settings Color Temperature Normal Advanced Picture Settings MENU:Return Move ENTER Go to Next Menu

Screen Size

Press ▼/▲ button to select Screen Size, then press ◀/▶ button to adjust. Available Screen Size: Standard, Dot By Dot, Wide.

PC Setting

1. Press ENTER when the PC Settings item is highlighted. Then you will go the sub-menu as following.
2. Press ▼/▲to select the desired menu item. Press ENTER to proceed if necessary.
3. Press ◀/▶ to adjust the item to the desired level.
4. When you have changed the settings, you can exit from the menu by pressing MENU.

PC SETTINGS Auto Adjust Enter Horizontal Position Vertical Position Clock Phase Reset Enter MENU :Return :Move ENTER :Press To Enter

Auto Adjust

Press ▼/▲ button to select Auto Adjust, then press OK button to start auto adjusting.

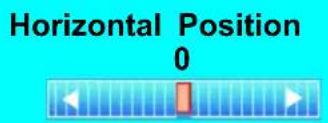

Horizontal Position

Press ▼/▲ button to select Horizontal Position, then press ◀/▶ button to adjust.

Vertical Position

Press ▼/▲ button to select Vertical Position, then press ◀/▶ button toadjust.

Clock

Press ▼/▲ button to select Clock, then press ◀/▶ button to adjust.

Phase

Press ▼/▲ button to select Phase, then press ◀/▶ button to adjust.

Reset

Press ▼/▲ button to select Reset, then press OK button to reset the options above.

Horizontal Position 0

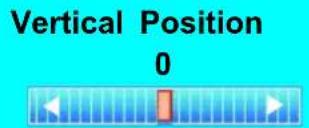

Vertical Position 0

1. SOUND menu and description are the same as that for TV. but the settings for Analog Sound and Digital Sound are invalid in PC source.
2. PARENTAL menu and descriptions are the same as that for TV source.
3. SETUP menu and description are the same as that for TV source. But the setting for Closed Caption is invalid in PC source.
4. OTHER menu and description are the same as that for TV source.
   5.CHANNEL menu and description are invalid in PC source.

Note: The operation and description of the hot key is programmable on your remote control.

9. Troubleshooting

Please check if you can solve problems by troubleshooting yourself.

Troubleshooting	Control
No signal	Please check that all cables are correctly plugged in.
No color shades	Adjust the contrast, the color and the brightness.
Stain on the screen	May be the result from a lighting signal from car, motor, neon light and other electrical devices or appliances.
Double or multiple display image	May be the result of an electrical wave disturb from other TV, Computer and Game machine or Radio.
Snow on the screen	The cables of the antenna are not correctly plugged in.
The remote control does not work	Please check the batteries order and alignment. Check that the IR of the remote control is not hidden by something.
"Zip" made noise on TV cover	Even if the display image is correct, the noise may come from an unsteady fixation of the panel.
No sound	Make sure that you have not press the MUTE button of the panel or of the remote control.

10. SPECIFICATIONS

This manual is only for your reference, any change to the design and specification will not be advised.

Screen Size		31.5 Inch
Display Type		TFT LED
Resolution(Pixel)		1366 X 768
Aspect Ratio		16:9
Power Supply		AC100-240V,50/60Hz
Power Consumption		90W
TV System		ATSC/NTSC
Video Input Format		PAL/NTSC
Audio Output Power		L / R 2X8W
SUPPORT	ANTENNA	YES
	AV-IN	YES
	YPbPr - IN	YES
	HDMI - IN	YES
	VGA(PC) - IN	YES
	VGA(PC) AUDIO - IN	YES
	SCART - IN	--
	SCART - OUT	--
	AUDIO - OUT	YES
	S-VIDEO - IN	--
	COAXIAL - OUT	YES
	COMMON INTERFACE	--
	USB	Service Port Only
	IPOD	--
DVD	Disc Physical Format	--
	DVD Video Output Format	--
Dimensions	W/Stand(LxWxH-mm)	780*195*540 mm
	W/O Stand(LxWxH-mm)	780*46*498 mm
	Wall-mount	200*100 VESA(mm)
	Wall-mount Screw size	M4*16
Weight	Net (Kgs)	10.25
	Gross (Kgs)	12.65

www.seikiworld.com

À écran plat

Téléviseur LED

SE321FB

Qualification ENERGY STAR®

Silhouette of a person assembling a large mechanical component within a circular frame (no text or symbols)

Simple line drawing of a computer monitor with a crossed X marks above it (no text or symbols)

Cartoon illustration of a computer monitor with broken-out fragments and lightning bolts (no text or symbols)

Warning symbol with sun, monitor, and lamp icon indicating no protection or damage

Illustration of a computer monitor with arrows indicating motion and a crossed hand symbol (no text or labels)

Diagram showing a computer monitor with a 'X' symbol crossed out, indicating a prohibition or rejection in the X-axis.

Warning symbol with crossed-out 'S' and crossed-out 'X' signs, indicating no protection or exclusion.

Front view of a flat-screen television displaying (no visible text or symbols)

Warranty Card

Carte de garantie

USER'S MANUAL

MANUEL D'UTILISATION

Quick Connect Guide

Guide de connexion rapide

HDMI C bleà

5.CONNEXIONS FRONT / ARRIERE DU TELEVISEUR LED

Vue Frontale

MARCHE/ ARRET LED — 7 IR — 6

Back view of a flat-screen computer monitor with a cable plugged into the rear panel, showing no text or symbols on the device itself.

Three black rectangular devices with internal components and a separate battery-like device shown in the side (no text or symbols visible)

8. Menu d'Opération

Select Language Welcome to the SEIKI HDTV Setup Wizard.Follow this guide to help setup your HDTV for scanning channels or accessing your external devices for Antenna, Set-top Box, Blu-ray, DVD, Games and other player. Use the up and down arrows on your remote control TV keypad to select the language of screen menu and message English Enter French Enter Spanish Enter :Move ENTER :Press to Enter

Fuseau horaire

Time zone Use the left and right arrows on your remote control to select your local time zone . Time zone Eastern Next ME NU :Return :Move :Change Setting

TENSION

Power On Mode Home optimizes the standard video setting for ENERGY STAR@ qualification. Retail Mode optimizes the video setting for use on a retail showroom floor or demo environment. Use the up/down key arrows on you remote control or TV keypad to select power on mode. Home Mode(Energy Saving) Retail Mode MENU :Return :Move ENTER :Press to Enter

Select your Connection devices... Connect to Game, Blu-Ray, DVD, or other player Antenna or coaxial cable input Back MENU :Return :Move ENTER :Press to Enter

SELECTIONNER LA SOURCE D'ENTREE

Source Select TV AV YPbPr HDMI1 HDMI2 HDMI3 PC

PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS

Brightness 25 Contrast 25

Couleur

Sharpness 27

Tint 27

Réglage d'écran

Taille d'Ecran

Color Temperature Warm

SOUND SETTING Sound Mode User Bass Treble Balance

Mode Son

Mode Surround

CHANNEL SEIKI Channel List Favorite List Channel Setting Signal Type Air Auto Channel Search Enter MENU :Return Move ENTER / Go to Next Menu

Liste des Chaînes

FAVORITE LIST Page 1/1 No Favorite Channels Present Please Perform Favorite Channel Add First MENU :Return :Move :Select:Page ENTER

Réglage de Chaînes

AUTO CHANNEL SEARCH-Air Now Searching...Please Wait... Return Analog Channels Found: 0 Digital Channels Found: 0 :Enter Password 92% ENTER :Stop Auto Channel Search MENU :Skip

CONTROLE PARENTAL

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU :Return 0~9 :Enter password

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU :Return DIGITAL :Go to Next Menu

V-CHIP US V-Chip Canada V-Chip Block UnRated Show Downloadable Rating Clear Downloadable Date MENU :Return Move ENTER / Go to Next Menu

V-CHIP US

USA Movie Rating TV Rating MENU :Return Move :Move

Rating Film

CANADA English Rating French Rating MENU :Return Move

English Rating C C8+ G PG 14+ 18+ MENU :Return :Move ENTER :Lock/Unlock

French Rating G 8ans+ 13ans+ 16ans+ 18ans+ MENU :Return :Move ENTER :Lock/Unlock

Change Password Old PIN New PIN Confirm MENU :Return DIGITAL :Password

CLOCK Time Zone Alaska Auto Clock Setup Time 2009-10-21 20:00:00 Day Of Week Wed Daylight Saving Time □ MENU :Return Move :Change Setting

Fuseau Horaire

If[All Reset]was executed TV system is reset.

AV/YPbPr/HDMI1/HDMI2/HDMI3

PICTURE SEIKI Picture Settings Screen Size Wide PC Settings Color Temperature Normal Advanced Picture Settings MENU :Return :Move ENTER / Go to Next Menu

Régalge d'Image

PICTURE SETTINGS Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

Mode Image

Réglage d'Ecran

Vertical Position 25

Horloge

Silhouette of a person lifting a large object inside a circular frame (no text or symbols)

Simple line drawing of a monitor with a cross symbol above it, no text or symbols present.

Cartoon illustration of a computer monitor with broken-out fragments and lightning bolts (no text or symbols)

Warning symbol with sun, monitor, and lamp icon indicating no protection or damage

Diagram showing a computer monitor with arrows indicating direction and a hand holding a device, crossed out by a 'No' symbol.

Diagram showing a computer monitor with a 'X' symbol crossed out, indicating a prohibition or rejection in the system.

Warning symbol with crossed-out 'S' and crossed-out 'R' signs, next to a computer monitor icon

Front view of a flat-screen television displaying (no visible text or symbols)

LED TV SET

SEIKI

Mando a distancia

Pila AAA

Warranty Card

USER'S MANUAL

Back View and Control Connections

Back view of a flat-screen TV mounted on a stand with a power outlet cable (no text or symbols visible)

Conexión de Antena

Illustration of a remote control panel with internal components and a separate battery pack (no text or symbols)

8. Operación Menú

Select Language Welcome to the SEIKI HDTV Setup Wizard.Follow this guide to help setup your HDTV for scanning channels or accessing your external devices for Antenna, Set-top Box, Blu-ray, DVD, Games and other player. Use the up and down arrows on your remote control TV keypad to select the language of screen menu and message English Enter French Enter Spanish Enter :Move ENTER :Press to Enter

Huso horario

Time zone Use the left and right arrows on your remote control to select your local time zone . Time zone Eastern Next ME NU :Return Move :Change Setting

Modo de encendido

Power On Mode Home optimizes the standard video setting for ENERGY STAR@ qualification. Retail Mode optimizes the video setting for use on a retail showroom floor or demo environment. Use the up/down key arrows on you remote control or TV keypad to select power on mode. Home Mode(Energy Saving) Retail Mode MENU :Return :Move ENTER :Press to Enter

Select your Connection devices... Connect to Game, Blu-Ray, DVD, or other player Antenna or coaxial cable input Back MENU :Return :Move ENTER :Press to Enter

PICTURE SOUND CHANNEL PARENTAL SETUP OTHERS

Brightness 25 Contrast 25

Color

Sharpness 27

Tint 27

SOUND SETTING Sound Mode User Bass Treble Balance

Modo de sonido

CHANNEL SEIKI Channel List Favorite List Channel Setting Signal Type Air Auto Channel Search Enter MENU :Return Move ENTER / Go to Next Menu

Lista de canal

FAVORITE LIST Page 1/1 No Favorite Channels Present Please Perform Favorite Channel Add First MENU :Return :Move :Select:Page ENTER

CHANNEL SETTING Channel Skip Favorite Label A4 A11 A14 A63

Tipo de señal

AUTO CHANNEL SEARCH-Air Now Searching...Please Wait... Return Analog Channels Found: 0 Digital Channels Found: 0 :Enter Password 92% ENTER :Stop Auto Channel Search MENU :Skip

Control parental

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU :Return 0~9 :Enter password

PARENTAL CONTROL SEIKI Lock Parental Control V-CHIP Change Password Keypad Source Lock MENU :Return DIGITAL :Go to Next Menu

V-CHIP US V-Chip Canada V-Chip Block UnRated Show Downloadable Rating Clear Downloadable Date MENU :Return Move ENTER / Go to Next Menu

US V-CHIP

USA Movie Rating TV Rating MENU :Return Move

CANADA English Rating French Rating MENU :Return Move

English Rating C C8+ G PG 14+ 18+ MENU :Return :Move ENTER :Lock/Unlock

French Rating G 8ans+ 13ans+ 16ans+ 18ans+ MENU :Return :Move ENTER :Lock/Unlock

Change Password Old PIN New PIN Confirm MENU :Return DIGITAL :Password

Fuente bloqueda

CLOCK Time Zone Alaska Auto Clock Setup Time 2009-10-21 20:00:00 Day Of Week Wed Daylight Saving Time

Huso horario

If[All Reset]was executed TV system is reset.

AV/YPbPr/HDMI1/HDMI2/HDMI3

PICTURE SEIKI Picture Settings Screen Size Wide PC Settings Color Temperature Normal Advanced Picture Settings MENU :Return :Move ENTER / Go to Next Menu

PICTURE SETTINGS Picture Mode User Brightness Contrast Color Tint Sharpness MENU :Return :Move ENTER :Go to Next Menu

Modo de imagen

Brightness 25

Contrast 25

Color 27

Sharpness 27

Vertical Position 25

Reloj
