ODL 32651HTB - TV OK - Free user manual and instructions

Product Type	LED TV
Brand	OK
Model	ODL 32651HTB
Screen Size	32 inches
Resolution	HD (1366 x 768) or Full HD (1920 x 1080) – unspecified, compatible up to 1080p
Dimensions with stand (W x H x D)	735 x 480 x 186 mm
Dimensions without stand (W x H x D)	735 x 438 x 36/68 mm
Weight	Approximately 5 kg (reasonable estimate for a 32-inch)
Power Supply	220-240 V AC, 50 Hz
Power Consumption	65 W
Reception	DVB-T2/C/S2 (digital terrestrial, cable, satellite)
Connectivity	HDMI (x2), USB, SCART, VGA, YPbPr, side AV, headphone output, coaxial digital audio output (SPDIF), CI input
Main Functions	Remote control, teletext, EPG, parental control, timer, game mode, energy saving, USB playback (video, audio, image), CEC
Audio Power	2 x 6 W RMS, Dolby Audio
Care and Cleaning	Clean with a soft, dry cloth. Do not use liquid or abrasive cleaners. Unplug before cleaning.
Safety	Do not expose to moisture, do not open the casing, use on a stable surface, respect ventilation distances.
Remote Control Batteries	2 x AAA (included)
Operating Temperature	0 °C to 40 °C, max humidity 85%

Frequently Asked Questions - ODL 32651HTB OK

How to connect my antenna or satellite?

Connect the antenna to the ANT socket (75 ohms) or the satellite cable to the LNB socket on the back of the TV. Make sure the cable is firmly inserted.

Why is there no picture?

Check that the TV is on, that the input source is correct (press Source), and that the antenna or cable is properly connected. If the problem persists, perform a channel search in the Installation menu.

How to adjust volume or change channels with the remote?

Use the Volume +/- and Programme +/- buttons on the remote. For quick adjustment, you can also use the center button on the TV.

How to activate parental control?

Go to System > Settings > Parental. Enter the PIN code (default 0000 or 1234). You can lock channels, menus, or set an age limit.

Can I play files from a USB stick?

Yes, plug the USB stick into the side port. Press Media Browser to access video, audio, and image files. Supported formats: MP4, AVI, MKV, MP3, JPEG, etc.

How to update the TV software?

Go to System > Settings > Other > Software Update. Select Check for update. Download and install the update if available. Do not unplug the device during the operation.

What to do if the remote is not working?

Check the batteries (2 x AAA): replace them if worn. Make sure there is no obstacle between the remote and the TV sensor. If the problem persists, reset the remote by removing the batteries and pressing a button.

How to set up satellite channels?

During initial installation, select Satellite as the broadcast type. Choose the antenna type (Direct, single cable, or DiSEqC) and follow the on-screen instructions to search for available satellites.

The sound is low or missing, what to do?

Press Mute to check if the sound is off. Increase the volume. Check the balance settings in System > Sound > Balance. If using headphones, make sure the mode is set to Headphone in audio settings.

How to clean the TV screen?

Use a soft, dry cloth (microfiber) to gently wipe the screen. Never use chemical products, alcohol, or liquid cleaners. Unplug the TV before cleaning.

USER MANUAL ODL 32651HTB OK

A	Product Fiche
B	Commercial Brand:ok.
C	Product No.	10110508
D	Model No.	ODL 32651H-TB
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches	81 cm
G	On mode average power consumption (Watt)	31
H	Annual energy consumption (kWh/annum)	45
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1366x768

	A	B	C	D	E	F	Visible screen size (diagonal, approx.) (inch/cm)
English	Product Fiche Commercial Brand Product No		Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen	Produkt-Nr.	Model-Nr.	Energieeffizienzklasse	Sichtbare Bildschimgrösse (diagonal, ca.) (Zoll /cm)
Белларский	Справочen Лост с Тенинескite данни	Тьровская марka	Проб yourself №	Мoder №	Клас на[eheprша[efe�'tиьно]	Вividим разmarу на ekрANA (дialogалон, рпс.) (ида /cm)
Čestina	Produktovy list	Značka výroboe	Čislo produktu	Model ě.	Energetická tfrda	Viditel'me velkost obrazvky (uhlprička, pri). (palcu /cm)
Dansk	Produktoplysningsskema	Varemaerkle	Produktnr.	Model nr.	Energieffektivetsklasse	Synilig skærmstørreile (diagonal, ca.) (HK/cm)
Suomi	Tuote fiche	Kaufallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyvan kuvarodum koko (diagonalainen.n.) (tuymaal/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taité d'ocran visible (diagonal,approx. (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidjliva večinca ekrana (dijagonalona, prbilžno) (inca/cm)
Nederlands	Productfiche	Commercieel merk.	Produtrn.	Modelnr.	Energie efficientre klasse	Zichtable schemgrotte (diagonal,ca.) (tum/cm)
Espanol	Ficha del Produkt	Marca Comercial	N° de Produkt	N° de Modelo	Clasificación Energética	Tamañó de pantalla visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecification	Varumärke	Produktnr.	Modeln.r.	Energiklass	Synilig skarmstørk (diagonal, ungefärlig) (tum/cm)
Italieno	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modulo	Classe di efficienza energetica	Dimensión visibl delto schemo (diagonal,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka produktu Nr Produktu Nr modelu					Widoczný obraz ekrana (przekátna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marga	Termékszám	Modellszém	Energiahatékonyásárg osztály	Lathato keptartomány (diagonalis,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Model nr.	Energieeffektivitet klasse	Synilig skermstørreile (diagonal,ca.) (tommer/cm)
Portugues	Ficha do produits	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energetica	Tamanho ecclà visifel (diagonal,approx.) (pulgadas/cm)
România	Fişă produs	Marca Comercial	Nr. Produs	Nr. Model	Clasa de eficientá energetica	Dimensiunea ecranulii vizibil (diagonal, aprox. ) (inch/cm)
Pyccskiy	Справочny ліstоток Тенинескій даньх Издемя	Toprobая марka	Homer nizdenia	Homer moedern	Knacc 3nepronotpebleniya	Бividим разmarу ekрANA (no daugorauna, primbianitertelho) (daimobor/cm)
беларская	Справочny ліstоток Тенинескій даньх Издемя	Toprobая марka	Homer nizdenia	Homer moedern	Knacc 3nepronotpebleniya	Бividим разmarу ekрANA (no daugorauna, Okono) (daimobor/cm)
маджандскii	Тechник no podatoцni	Кореццлама марka	Проб yourself br.	Modem br.	Knacc na he nepretcxa ephikaackost	Од��санna на видinerе ekран (daijaroana, okony) (inhuiv/cm)
украіньский	Тechнидani	Кореццлама марka	Aprinkyn	Modelf.	Knacc eheproctoxkabnna	Бividим розмір ekрANA (diagonal, prioblnko) (daijmoib/ cm)
Srpski	Tehnicke odlike	Комerciinala marka	Proizvod br.	Model br.	Klasa energetske efeinasosti	Velickina vidjivog ekrana (diagonal, tokom) (inca/cm)
Slovenčina	Produktovy list	Značka výrobuču	Čislo produktu	Model ě.	Energetická triada	Viditel'me vekkost obrazovka (uhlpriečka, zhruba) (palcov/cm)
Slovenšćina	Opis izdelka	Komercialna znamka	Št. Izdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velkost zaslona (diagonal, pribl.) (palcev/cm)
Еλλυκ	Дελτο προίντος	Емтόрό σημα	Ap. По́fvότος	Ap. Moviřěou	Katnyopia evépyákráczá attóobooans	Oparod ježebsk obovnić (biayovició, trp.) (virace/cm)
Bosanski	Tehnicki podaci	Komerciinala marka	Produkt br.	Model br.	Klasa energetske efekasosti	Vidjliva večina ekrana (diagonala prilížno) (inca/cm)
Лжеду	Лжеду огни	Плоблл'de	Плоблл'de	Плоблл'de	Плоблл'de	(VoyxK)(davap,100%Y) (tyon yon) (tyon yon)
Türkce	Ürún fişi	Ticari Marka	Ürún No.	Model No.	Enerji verimiligi simfi	Görtten ekran boytut (capraz, yaktık.) (inc/cm)
Shqip	Тө дөнat e produktit	Marka tregtare	Nr. i Produktit.	Nr. i modellit.	Klasa e eficiencës se energjisë	Madhesia e ekranit têdkshem (diagonal, afersisht) (inc/cm)
Lietuvič	Gaminio etikétě	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektvumo klasë	Matomas ekrano dyds (strizaine,approx.) (collu/cm)
Latviešu	Produkte aprakssts	Marka	Produktur nr.	Modela nr.	Energoefektivitates klase	Ekranatzmères (pa diagnali, apirmram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja fima	Toote nr.	Mudeli nr.	Energiaklass	vaidatava ekraanti sourus (diagonala, umbes) (tolll/cm)
Бл�š	Лжеду симл�а	Лжеду симл�а	Лжеду симл�а	Лжеду симл�а	Лжеду симл�а	(Schädlach) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (dai y) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiys) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiya) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiyo) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (dai'y) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daijan) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiyan) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiian) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiyan) (daiyan) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiyan) (daiian) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiian) (daiyan) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daijian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daijan) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiyan) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiian) (daiyan) (daijan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (dai yan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyen) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (dai cyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiian) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiy) (daiyan) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiian) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiian) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiyan) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiyan) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiy) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiy) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiy) (daiy) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiy) (daiy) (daiyan) (daiyan) (daiy) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiyan) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiy) (daiyx) Ф���	(Ф���格) Ф��格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 Ф�格 ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL ФAL	(Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��） (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��) (Ф��)(2017) (2018) (2019) (2020) (2021) (2022) (2023) (2024) (2025) (2026) (2027) (2028) (2029) (2030) (2031) (2032) (2033) (2034) (2035) (2036) (2037) (2038) (2039) (2040) (2041) (2042) (2043) (2044) (2045) (2046) (2047) (2048) (2049) (2050) (2051) (2052) (2053) (2054) (2055) (2056) (2057) (2058) (2059) (2060) (2061) (2062) (2063) (2064) (2065) (2066) (2067) (2068) (2069) (2070) (2071) (2072) (2073) (2074) (2075) (2076) (2077) (2078) (2079) (2080) (2081) (2082) (2083) (2084) (2085) (2086) (2087) (2088) (2089) (2090) (2091) (2092) (2093) (2094) (2095) (2096) (2097) (2098) (2099) (2100) (2101) (2102) (2103) (2104) (2105) (2106) (2107) (2108) (2109) (2110) (2111) (2112) (2113) (2114) (2115) (2116) (2117) (2118) (2119) (2120) (2121) (2122) (2123) (2124) (2125) (2126) (2127) (2128) (2129) (2130) (2131) (2132) (2133) (2134) (2135) (2136) (2137) (2138) (2139) (2140) (2141) (2142) (2143) (2144) (2145) (2146) (2147) (2148) (2149) (2150) (2151) (2152) (2153) (2154) (2155) (2156) (2157) (2158) (2159) (2160) (2161) (2162) (2163) (2164) (2165) (2166) (2167) (2168) (2169) (2170) (2171) (2172) (2173) (2174) (2175) (2176) (2177) (2178) (2179) (2180) (2181) (2182) (2183) (2184) (2185) (2186) (2187) (2188) (2189) (2190) (2191) (2192) (2193) (2194) (2195) (2196) (2197) (2198) (2199) (2200) (2201) (2202) (2203) (2204) (2205) (2206) (2207) (2208) (2209) (2210) (2211) (2212) (2213) (2214) (2215) (2216) (2217) (2218) (2219) (2220) (2221) (2222) (2223) (2224) (2225) (2226) (2227) (2228) (2229) (2230) (2231) (2232) (2233) (2234) (2235) (2236) (2237) (2238) (2239) (2240) (2241) (2242) (2243) (2244) (2245) (2246) (2247) (2248) (2249) (2250) (2251) (2252) (2253) (2254) (2255) (2256) (2257) (2258) (2259) (2260) (2261) (2262) (2263) (2264) (2265) (2266) (2267) (2268) (2269) (2270) (2271) (2272) (2273) (2274) (2275) (2276) (2277) (2278) (2279) (2280) (2281) (2282) (2283) (2284) (2285) (2286) (2287) (2288) (2289) (2290) (2291) (2292) (2293) (2294) (2295) (2296) (2297) (2298) (2299) (2300) (2301) (2302) (2303) (2304) (2305) (2306) (2307) (2308) (2309) (2310) (2311) (2312) (2313) (2314) (2315) (2316) (2317) (2318) (2319) (2320) (2321) (2322) (2323) (2324) (2325) (2326) (2327) (2328) (2329) (2330) (2331) (2332) (2333) (2334) (2335) (2336) (2337) (2338) (2339) (2340) (2341) (2342) (2343) (2344) (2345) (2346) (2347) (2348) (2349) (2350) (2351) (2352) (2353) (2354) (2355) (2356) (2357) (2358) (2359) (2360) (2361) (2362) (2363) (2364) (2365) (2366) (2367) (2368) (2369) (2370) (2371) (2372) (2373) (2374) (2375) (2376) (2377) (2378) (2379) (2380) (2381) (2382) (2383) (2384) (2385) (2386) (2387) (2388) (2389) (2390) (2391) (2392) (2393) (2394) (2395) (2396) (2397) (2398) (2399) (2400) (2401) (2402) (2403) (2404) (2405) (2406) (2407) (2408) (2409) (2410) (2411) (2412) (2413) (2414) (2415) (2416) (2417) (2418) (2419) (2420) (2421) (2422) (2423) (2424) (2425) (2426) (2427) (2428) (2429) (2430) (2431) (2432) (2433) (2434) (2435) (2436) (2437) (2438) (2439) (2440) (2441) (2442) (2443) (2444) (2445) (2446) (2447) (2448) (2449) (2450) (2451) (2452) (2453) (2454) (2455) (2456) (2457) (2458) (2459) (2460) (2461) (2462) (2463) (2464) (2465) (2466) (2467) (2468) (2469) (2470) (2471) (2472) (2473) (2474) (2475) (2476) (2477) (2478) (2479) (2480) (2481) (2482) (2483) (2484) (2485) (2486) (2487) (2488) (2489) (2490) (2491) (2492) (2493) (2494) (2495) (2496) (2497) (2498) (2499) (2500) (2501) (2502) (2503) (2504) (2505) (2506) (2507) (2508) (2509) (2510) (2511) (2512) (2513) (2514) (2515) (2516) (2517) (2518) (2519) (2520) (2521) (2522) (2523) (2524) (2525) (2526) (2527) (2528) (2529) (2530) (2531) (2532) (2533) (2534) (2535) (2536) (2537) (2538) (2539) (2540) (2541) (2542) (2543) (2544) (2545) (2546) (2547) (2548) (2549) (2550) (2551) (2552) (2553) (2554) (2555) (2556) (2557) (2558) (2559) (2560) (2561) (2562) (2563) (2564) (2565) (2566) (2567) (2568) (2569) (2570) (2571) (2572) (2573) (2574) (2575) (2576) (2577) (2578) (2579) (2580) (2581) (2582) (2583) (2584) (2585) (2586) (2587) (2588) (2589) (2590) (2591) (2592) (2593) (2594) (2595) (2596) (2597) (2598) (2599) (2600) (2601) (2602) (2603) (2604) (2605) (2606) (2607) (2608) (2609) (2610) (2611) (2612) (2613) (2614) (2615) (2616) (2617) (2618) (2619) (2620) (2621) (2622) (2623) (2624) (2625) (2626) (2627) (2628) (2629) (2630) (2631) (2632) (2633) (2634) (2635) (2636) (2637) (2638) (2639) (2640) (2641) (2642) (2643) (2644) (2645) (2646) (2647) (2648) (2649) (2650) (2651) (2652) (2653) (2654) (2655) (2656) (2657) (2658) (2659) (2660) (2661) (2662) (2663) (2664) (2665) (2666) (2667) (2668) (2669) (2670) (2671) (2672) (2673) (2674) (2675) (2676) (2677) (2678) (2679) (2680) (2681) (2682) (2683) (2684) (2685) (2686) (2687) (2688) (2689) (2690) (2691) (2692) (2693) (2694) (2695) (2696) (2697) (2698) (2699) (2700) (2701) (2702) (2703) (2704) (2705) (2706) (2707) (2708) (2709) (2710) (2711) (2712) (2713) (2714) (2715) (2716) (2717) (2718) (2719) (2720) (2721) (2722) (2723) (2724) (2725) (2726) (2727) (2728) (2729) (2730) (2731) (2732) (2733) (2734) (2735) (2736) (2737) (2738) (2739) (2740) (2741) (2742) (2743) (2744) (2745) (2746) (2747) (2748) (2749) (2750) (2751) (2752) (2753) (2754) (2755) (2756) (2757) (2758) (2759) (2760) (2761) (2762) (2763) (2764) (2765) (2766) (2767) (2768) (2769) (2770) (2771) (2772) (2773) (2774) (2775) (2776) (2777) (2778) (2779) (2780) (2781) (2782) (2783) (2784) (2785) (2786) (2787) (2788) (2789) (2790) (2791) (2792) (2793) (2794) (2795) (2796) (2797) (2798) (2799) (2800) (2801) (2802) (2803) (2804) (2805) (2806) (2807) (2808) (2809) (2810) (2811) (2812) (2813) (2814) (2815) (2816) (2817) (2818) (2819) (2820) (2821) (2822) (2823) (2824) (2825) (2826) (2827) (2828) (2829) (2830) (2831) (2832) (2833) (2834) (2835) (2836) (2837) (2838) (2839) (2840) (2841) (2842) (2843) (2844) (2845) (2846) (2847) (2848) (2849) (2850) (2851) (2852) (2853) (2854) (2855) (2856) (2857) (2858) (2859) (2860) (2861) (2862) (2863) (2864) (2865) (2866) (2867) (2868) (2869) (2870) (2871) (2872) (2873) (2874) (2875) (2876) (2877) (2878) (2879) (2880) (2881) (2882) (2883) (2884) (2885) (2886) (2887) (2888) (2889) (2890) (2891) (2892) (2893) (2894) (2895) (2896) (2897) (2898) (2899) (2900) (2901) (2902) (2903) (2904) (2905) (2906) (2907) (2908) (2909) (2910) (2911) (2912) (2913) (2914) (2915) (2916) (2917) (2918) (2919) (2920) (2921) (2922) (2923) (2924) (2925) (2926) (2927) (2928) (2929) (2930) (2931) (2932) (2933) (2934) (2935) (2936) (2937) (2938) (2939) (2940) (2941) (2942) (2943) (2944) (2945) (2946) (2947) (2948) (2949) (2950) (2951) (2952) (2953) (2954) (2955) (2956) (2957) (2958) (2959) (2960) (2961) (2962) (2963) (2964) (2965) (2966) (2967) (2968) (2969) (2970) (2971) (2972) (2973) (2974) (2975) (2976) (2977) (2978) (2979) (2980) (2981) (2982) (2983) (2984) (2985) (2986) (2987) (2988) (2989) (2990) (2991) (2992) (2993) (2994) (2995) (2996) (2997) (2998) (2999) (3000) (3001) (3003) (3004) (3005) (3006) (3007) (3008) (3009) (3010) (3011) (3013) (3014) (3015) (3016) (3017) (3018) (3019) (3020) (3021) (3023) (3024) (3025) (3026) (3027) (3028) (3030) (3031) (3033) (3034) (3035) (3036) (3037) (3038) (3039) (3040) (3041) (3043) (3044) (3045) (3046) (3047) (3048) (3049) (3050) (3051) (3053) (3054) (3055) (3056) (3057) (3058) (3059) (3060) (3061) (3063) (3064) (3065) (3066) (3067) (3068) (3069) (3070) (3071) (3073) (3074) (3075) (3076) (3077) (3078) (3079) (3080) (3081) (3082) (3083) (3084) (3085) (3086) (3087) (3088) (3089) (3090) (3091) (3093) (3094) (3095) (3096) (3097) (3098) (3099) (3100) (3101) (3103) (3104) (3105) (3106) (3107) (3108) (3109) (3110) (3111) (3113) (3114) (3115) (3116) (3117) (3118) (3119) (3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)(3119)\n

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschalttem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	Watt)	Stromverbrauch im ausgeschltem Zustand (Watt) Display-Auflösung (px)
Бъларски	Среда koнымача на посторему вълкима състореме(Watt)	Тадшка на посторему на посторему вълкима състореме(Watt)	Консмалma на посторему вълкима състоремe(Watt)	Консмалma на посторему вълкима състоремe(Watt)	Раздениета посторему на посторемe(Nikcieva)
	Pruş'mа spôtrba elektriké energie v zap nut'em režimu (Watt)	Rocni spôtrba energia (kWh/Rocni)	Spôtrba elektriké energia v pohotovostim režimu (Watt)	Spôtrba elektriké energia v yvnutem režimu (Watt) Rozljeni dispeje (px)
Dansk	Gennensnitzigt stromforbrug i taend tilstand (Watt)	Arligt enerforbrug (kWh/Arligt)	Stramforbrug (standby)(Watt)	Stremforbrug i slukket tilstand (Watt)	Skaermoplánsing (px)
Suomi	Päälla-tilan keskimäräinen virankulutus (Wattia)	Vuosittainen sähkönkulutu (kWh/Vuosittainen)	Vakovirran kalutus (Wattia)	Pois-tilan virankulutus (Wattia)	Näytön erotelukky (pikselia)
Français	Consummation énergétique moyenne en mode "marche" (Watt)	Consummation énergétique annuelle (kWh/annuel)	Consummation d'énergie en veille (Watt)	Consummation d'énergie en mode "arrill" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energia kada je proizvod ukljucen (Watta)	Godsna potrošnja el. Energija (kWh/Godsna)	Potrosna el. energia u modu propravnosti (Watta)	Potrosna el. energia kada je proizvod iskličen (Watta)	Rezolucja zaslona (pikselia)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarijksenergieverbruik(kWh/Jaarijks)	Stand-by stroomverbruik (Watt)	Jit-modus stroomverbruik (Watt)	Schemresolutie (px)
Espanol	Consumo électrique medio, en functanonamento (Vatio)	Consumo electrico anual (kWh/annual) Consumo en modo en aspera (Vatio)	Śpere (Vatio)	Consumo electrico modulo apagado (Vatio)	Resoluccion de pantalla (px)
Svenska	Strömkonsumption i PÅ-läge (Watt)	Energiikonsument per ar (kWh/Avrg)	Strömkonsumption i village (Watt)	Strömkonsumption i AV-lage (Watt)	Skärmpullösning (pixar)
Italienano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluccion del display (px)
Polski	Srednie zuzycie energia w trybie wączonym (Watów)	Rocze zuzycie energia (kWh/Rocze)	Srednie zuzycie energia w trybie czekiwania (Watów)	Zuzycie energia w trybie wączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiogayszás bekapsolva hagyott izemmodban (Watt) Éves energiaogayszás	(KWh/Eves)	Energiogayszás standby izemmodban (Watt)	Energiogayszás kikapcsolt izemmodban (Watt)	Képernyöbelbontás (px)
Norsk	Pamodus gjennonsnittig stromforbruik (Watt)	Arlig stremforbruik (kWh/Arlig)	Hvilemodus stremforbruik (Watt)	Av-modus stremforbruik (Watt)	Skieropoplánsing (piksel)
Portugues	Consumo energia em modo medio (Watt)	Consumo annual energia (kWh/annual) Consumo energia em stade	Stand-by (Watt)	Consumo energia em modo alimentación (Watt)	Resoluccion do visor (pixel)
Română	Consum electric media in modul porrit (Watt)	Consum annual de energia (kWh/annual)	Consum electric in stare de repaus (Watt)	Consum electric in modul oprirt (Watt)	Rezolucja ecranului (pixel)
Pуccskiy	Crdneu rattachod zheprimi в рекIMe bkrnochenii (Batt)	Ежогдун rattachod zheprimi (kBrt/Tod)	Pacxod 3heprimi в рекIMe okrajdnaya (Batt)	Pacxod 3heprimi в рекIMe bkrnochenii (Batt)	Разрешенце ekрану (пікseyб�)
Беларczak	Crdneu rattachod zheprimi в рекIMe bkrnochenii (Batt)	Ежогдун rattachod zheprimi (kBrt/Tradabo)	Pacxod 3heprimi в рекIMe okrajdnaya (Batt)	Pacxod 3heprimi в рекIMe bkrnochenii (Batt)	Разрешенце ekрану (пікseyб�)
Makdochodnki	Посесна посторьага кORA в Бктуген	Тадшка посторьага на зергигуяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяЯяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяяя relay (Bt)	Potròswobáka kORA go kýtsynu (Batt)	Potròswobáka kORA go kýtsynu (Batt)	Pozdúhoю na ha ekpan (пікseyб�)
ураимьскьу	Cederná nochovába natajny okraj e bkrtyu	Ceradno toprónica nochovába natajny okraj nochovába natajny okraj nochovába (Bt)	Czopniabna nochovába nochovába natajny okraj nochovába (Bt)	Czopniabna nochovába nochovába natajny okraj nochovába (Bt)	Pozdúhoю azdathitctb ekpana (пікseyб�)
Srpski	Prosebna potrošnja kada je uklučeni (Watt)	Godsna potrošnja energia (kWh/Godsna)	Potrosna tokom mirovanja (Vati)	Potrosna kada je iskličeni (Vati)	Rezolucja displeja (pixa).
Slovenčina	Priemerná potrošba elektrické energia v zapnutom rezime (Wattov)	Rocna potrošba energia (kWh/Rocna)	Potrošba elektrické energia v pohotovostnom rezime (Wattov)	Potrošba elektrické energia v yvputom rezime (Wattov)	Rozilienie displeja (pixa).
Slovenčina	Poraba elektřne energia v povrprečné nacini (Wattov)	Letna poraba energia (kWh/Letna)	Poraba energia v stanju pripravljenosti (Wattov)	Poraba energia načinu izkropa (Wattov)	Resolucja zaslona (pixa).
Elažnuik	Měgn kralvádukovi zopravtoć leavouplyc (Watt)	Etrno kralvádukovi zopravtoć leavouplyc (kWh/Etrno)	Katrvaldovovovov odževýteč (Watt)	Katrvaldovovov odževýteč (Watt)	Aváduvov odževý (Пíláх)
Bosanski	Prosječna potrošnja kada je uklučeni(Watt)	Godsna potrošnja energia (kWh/Godsna)	Potrosna tokom mirovanja (Watt)	Potrosna kada je iskličeni (Watt)	Rezolucja ekraṇa (pixa).
nau	(од.) naučem nochovába natajny okraj nochovába natajny okraj nochovába (Batt)	(од.) naučem nochovába natajny okraj nochovába (Batt)	(од.) naučem nochovába natajny okraj nochovába (Batt)	(од.) naučem nochovába natajny okraj nochovába (Batt)	(нор.) naučem nochovába (pixa).
Türkece	Açık moddaki ortalama gütcüketeti (Watt)	Yilik energi tüketimi (kWh/yilik)	Beklme du rumunda energia tüketimi (Watt)	Kapali moddaki gü tcüketimi (Watt)	Ekran põzunülcü (pixa).
Shqip	Konsumi mesatar i energijësi s ndezur (Watt)	Konsumi vjetör i energijës (kWh/vjetör)	Konsumi i energijës s nê gatishmëri (Watt)	Konsumi i energijës s i fikur (Watt)	Rezolucioni i ekranit (pixa).
Lietuvič	Vidutinës energios sānaudos junguns (Vatal)	Metinës energios sānaudos junguns (kWh/Metinës)	Energios sānaudos budējimo režimu (Vatal)	Energios sānaudos išjungus (Vatal)	Ekreno skiriamo jo geba (pikseliu)
Latviešu	Enerjiyas pateriñs aktlvă režim (Vati)	Gada energijas pateriñs gaidijsanas režim (Watt)	Enerjiyas pateriñs gaidijsanas režim (Vati)	Enerjiyas pateriñs izslétga tsvoklī (Vati)	Displeja rezolucija (pixa).
Eesti	Keskmine energiakulu tõdrežiimi (Vatti)	Aastene energiakulu (kWh/aastane)	Eneriakulu ooterežiimi (Vati)	Eneriakulu vãiljalkilitud olekus (Vati)	Ekraani resolution (pixa).

Contents

Safety Information 27
Markings on the Product 27
Environmental Information 28
Features 29
Accessories Included 29
Standby Notifications 29

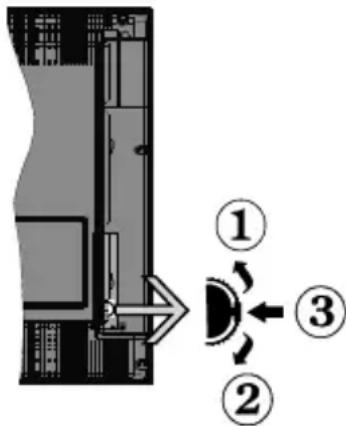

TV Control Switch & Operation 29
Inserting the Batteries into the Remote 30
Connect Power 30

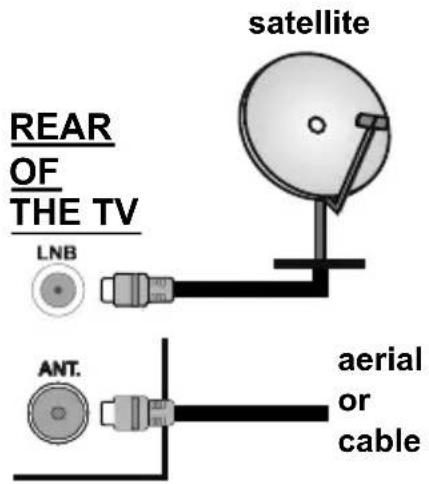

Antenna Connection 30
Notification 30
Specification 31

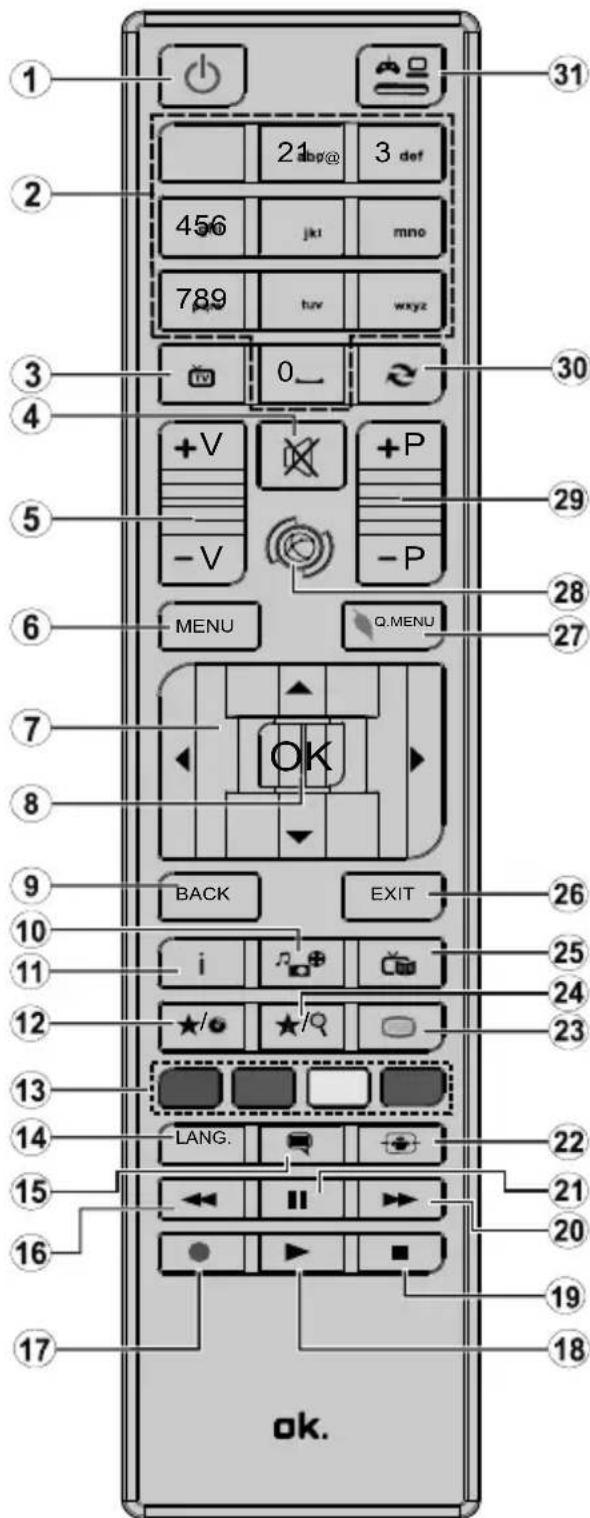

Remote Control 32
Connections 33
Switching On/Off. 34
First Time Installation 34
Using SatcoDX Feature 35
MediaPlayback via USB Input 35
Media Browser Menu 35
CEC and CEC RC Passthrough 35
TV Menu Contents. 37
General TV Operation 41
Using the Channel List 41
Configuring Parental Settings 41
ElectronicProgramme Guide (EPG) 41
Teletext Services 42
Software Upgrade 42
Troubleshooting & Tips 42
PC Input Typical Display Modes. 43
AV and HDMI Signal Compatibility 43
Supported File Formats for USB Mode 44
Supported DVI Resolutions 45

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including children) with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge use electrical devices unsupervised.

• Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.
• The TV set is intended for household and similar general use but may also be used in public places.
• For ventilation purposes, leave at least 5cm of free space around the TV.
• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.

• Do not place the TV on the floor and inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.
• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
• Do not dispose of the batteries in fire or with hazardous or flammable materials.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Class II Equipment With Functional Earthing: This appliance is designed in such a way that it does not require a safety connection to electrical earth, the earth connection is used for functional purposes.

Protective Earth Connection: The marked terminal is intended for connection of the protective earthing conductor associated with the supply wiring.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING

Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as;

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not standing the television set on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

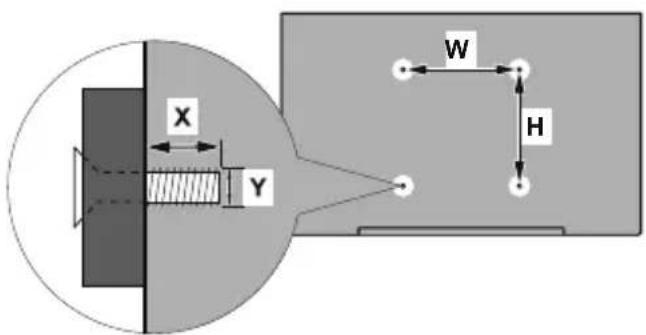

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

WARNING

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing - and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard.

Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. Set as Off to turn this setting off.

Note: Available Energy Saving options may differ depending on the selected Mode in the System>Picture menu.

The Energy Saving settings can be found in the System>Picture menu. Note that some picture settings will be unavailable to be changed.

If pressed Right button while Auto option is selected or Left button while Custom option is selected, "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Features

• Remote controlled colour TV
• Fully integrated digital terrestrial/cable/satellite TV (DVB-T2/C/S2)
• HDMI inputs to connect other devices with HDMI sockets
• USB input
• OSD menu system
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system
• Teletext
• Headphone connection
  Automatic programming system
• Manual tuning
  Automatic power down after up to eight hours.
• Sleep timer
  Child lock
  Automatic sound mute when no transmission.
• NTSC playback
  AVL (Automatic Volume Limiting)
• PLL (Frequency Search)
  PC input
  Game Mode (Optional)
• Picture off function

Accessories Included

Remote Control
- Batteries: 2 x AAA
- Instruction Book

Standby Notifications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time." Press OK to continue.

If the TV is on and it isn't being operated for a while it will go into standby. When you next switch-on, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Press OK to continue.

TV Control Switch & Operation

1.Up direction
2. Down direction
3. Volume / Info / Sources List selection and Standby-On switch

The Control button allows you to control the Volume/Programme/Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button in, the information banner will appear on the screen. Scroll through the stored channels by pushing the button up or down.

To change source: Press the middle of the button in twice(for the second time in total), the source list will appear on the screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button in and hold it down for a few seconds, the TV will turn into standby mode.

To turn on the TV: Press the middle of the button in, the TV will turn on.

Notes:

• If you turn the TV off, this circle starts again beginning with the volume setting.
• Main menu OSD cannot be displayed via control buttons.

Operation with the Remote Control

Press Menu button on your remote control to display main menu screen. Use the directional buttons to select a menu tab and press OK to enter. Use the directional buttons again to select or set an item. Press Return/Back button or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Volume + / - and Programme + / - buttons on the remote.

Inserting the Batteries into the Remote

Remove the screw that secure the battery compartment cover on the back side of the remote control first. Lift the cover gently. Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again.

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket or satellite plug to the SATELLITE INPUT (LNB) socket located on the back of the TV.

Notification

TRADEMARK ACKNOWLEDGMENT

The terms HDMI and High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

Equipment bearing these symbols should not be disposed as general household waste.

You should look for appropriate recycling facilities and systems for the disposal of these products.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Specification

TV Broadcasting PAL B/G	D/K K I/I'
Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Digital Reception	Fully integrated digital terrestrial-cable-satellite TV(DVB-T-C-S) (DVB-T2, DVB-S2 compliant)
Number of Preset Channels	10 000
Channel Indicator On Screen	Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power (WRMS.) (10% THD)	2 x 6 W
Power Consumption (W) 65 W
TV Dimensions DxLxH (with foot) (mm)	186 x 735 x 480 mm
TV Dimensions DxLxH (without foot) (mm)	36/68 x 735 x 438 mm
Display 32"
Operation temperature and operation humidity	0°C up to 40°C, 85% humidity max

Remote Control

(*) MY BUTTON 1 & MY BUTTON 2:

These buttons may have default functions depending on the model. However you can set a special function to these buttons by pressing on them for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the selected MY BUTTON is associated with the selected function.

Note that if you perform First Time Installation, MY BUTTON 1&2 will return to their default function.

1. Standby: Switches On / Off the TV
2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
3. TV: Displays channel list / Switches to TV Source
4. Mute: Completely turns off the volume of the TV
5. Volume +/-
6. Menu: Displays TV menu
7. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left
8. OK: Confirms user selections, holds the page (in TXT mode), views channel list (DTV mode)
9. Back/Return: Returns to previous screen, opens index page (in TXT mode)
10. Media browser: Opens the media browsing screen
11. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)
12. My button 1 (*)
13. Coloured Buttons: Follow the on-screen instructions for coloured button functions
14. Language: Switches between sound modes (analogue TV), displays and changes audio/subtitle language (digital TV, where available)
15. Subtitles: Turns subtitles on and off (where available)
16. Rapid reverse: Moves frames backwards in media such as movies
17. No function
18. Play: Starts to play selected media
19. Stop: Stops the media being played
20. Rapid advance: Moves frames forward in media such as movies
21. Pause: Pauses the media being played
22. Screen: Changes the aspect ratio of the screen
23. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)
24. My button 2 (*)
25. EPG (Electronic programme guide): Displays the electronic programme guide
26. Exit: Closes and exits from displayed menus or returns to previous screen
27. Quick Menu: Displays a list of menus for quick access
28. No function
29. Programme +/-
30. Swap: Quickly cycles between previous and current channels or sources
31. Source: Shows all available broadcast and content sources

Connections

Connector Type	Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	YPbPr/PC Audio Cable
	HDMI Connection (back)
SPDIF	SPDIF (Coaxial Out) Connection (back)
SIDE AV	Side AV (Audio/Video) Connection (side)	AV Cable
HEADPHONE	Headphone Connection (side)
PC to YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)

NOTE: When connecting a device via the YPbPr or Side AV input, you must use the connection cables to enable connection. See the illustrations on the left side. You can use YPbPr to VGA cable to enable YPbPr signal via VGA input. You cannot use VGA and YPbPr at the same time. To enable PC/YPbPr audio, you will need to use the side audio inputs with a YPbPr/PC audio cable for audio connection. If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. When using the wall mounting kit (available from third party in the market, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. The/Each USB input of your TV supports devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. By connecting an HDMI cable to your TV, you have to use only a shielded HDMI cable to guarantee a sufficient immunity against parasitic frequency radiation.

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a numeric button on the remote control.
• Press the side function switch on the TV until the TV comes on from standby.

To Switch the TV Off

Press the Standby button on the remote control or press the side function switch on the TV until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

On the next screen, set your preferences using the directional buttons.

Note: Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

About Selecting Broadcast Type

Digital Aerial: If Digital Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.

Digital Cable: If Digital Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed.

According to your other preferences a confirmation message may be displayed before starting to search. Select YES and press OK to proceed. To cancel operation, select NO and press OK. You can select Network or set values such as Frequency, Network ID and Search Step. When finished, press OK button.

Note: Searching duration will change depending on the selected Search Step.

Satellite: If Satellite broadcast search option is turned on, the TV will search for digital satellite broadcasts after other initial settings are completed. Before satellite search is performed some settings should be made. Antenna Type menu will be displayed first. You can select Antenna Type as Direct, Single Satellite Cable or DiSEqC switch by using " 一 " or " 一 " buttons.

• Direct: If you have a single receiver and a direct satellite dish, select this antenna type. Press OK to continue. Select an available satellite on the next screen and press OK to scan for services.
• Single Satellite Cable: If you have multiple receivers and a single satellite cable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the next screen. Press OK to scan for services.
• DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. Press OK to continue. You can set four DiSEqC options (if available) on the next screen. Press OK button to scan the first satellite in the list.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.

Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the Channel List. When finished, press OK to continue.

You can activate Store Mode option at this point. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the top of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in System>Settings>More menu and can be turned off/on later.

Press OK button on the remote control to continue. After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

After all the available stations are stored, scan results will be displayed. Press OK to continue. The Edit Channel List menu will be displayed next. You can edit the channel list according to your preferences or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN^(*) . Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Using SatcoDX Feature

You can perform SatcoDX operations using the Installation>Satellite Settings menu. In the SatcoDX menu, there are two options regarding to the SatcoDx.

You can download or upload SatcoDX data. In order to perform these functions a USB device must be connected to the TV.

You can upload current services and related satellites & transponders in TV, to a USB device.

Additionally you can download one of the SatcoDx files stored in USB device, to the TV.

When you select one of these files, all services and related satellites and transponders in the selected file will be stored in the TV. If there are any installed terrestrial, cable and/or analog services, they will be kept and only satellite services will be removed.

Afterwards, check your antenna settings and make changes if necessary. An error message stating "No Signal" may be displayed if the antenna settings are not configured properly.

MediaPlayback viaUSB Input

You can connect 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.

Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a file.

You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Note: When viewing image files the Media Browser menu can only display 1000 image files stored on the connected USB device.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the Menu button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the Menu button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.

Loop/Shuffle Mode Operation
Start playback with the Play button and activate	All files in the list will be continuously played in original order
Start playback with the OK button and activate	The same file will be played continuously (repeat)
Start playback with the Play button and activate	All files in the list will be played once in random order
Start playback with the Play button and activate	All files in the list will be continuously played in the same random order.

Custom Boot Up Logo

You can personalize your TV and see your favorite image or photo on the screen each time your TV boots up. To do this, copy your favorite image files into a USB disk and open them from the Media Browser menu. When you have chosen the desired image, highlight it and press OK to view it in full screen. Press OK again to choose the image as custom logo. A confirmation message will be displayed. Select Yes and press OK again. If the image is suitable(*) you will see it on the screen during the TV's next boot up.

Note: If you perform a First Time Installation the TV will return to using the default logo, if any.

(^*) Images should have an aspect ratio of 16:9 and they should be in .jpg, .jpeg or .jpe file formats. Only files with sizes no greater than 300KB are supported. The image cannot be set as boot logo, which's resolution doesn't appear on the info banner.

CEC and CEC RC Passthrough

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the System>Settings>More menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected.

To terminate this operation and control the TV via the remote again, press Quick Menu button on the remote, highlight the CEC RC Passthrough and set as Off by pressing Left or Right button. This feature can also be enabled or disabled under the System>Settings>More menu.

The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (AV receiver or speaker system).

When ARC is active, TV does not mute its other audio outputs automatically. So you need to decrease TV volume to zero manually, if you want to hear audio from connected audio device only (same as other optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI11 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Speakers option in the System>Settings>More menu as Amplifier. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature and CEC option should be set as Enabled.

TV Menu Contents
System - Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
Contrast Adjusts the light and dark values on the screen.
Brightness Adjusts the brightness values on the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Energy Saving	For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off. Note: Available options may differ depending on the selected Mode.
Backlight	This setting controls the backlight level. The backlight function will be inactive if the Energy Saving is set to an option other than Custom.
Advanced Settings
Dynamic Contrast You can change the dynamic contrast ratio to desired value.
Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
Picture Zoom Sets the desired image size format.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
RGB Gain (Optional)	You can configure the colour temperature values using the RGB Gain feature.
HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
PC Position	Appears only when the input source is set to VGA/PC.
Autoposition Automatically optimizes the display. Press OK to optimize.
H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
Reset	Reset the picture settings to factory default settings (except Game Mode).
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
System - Sound Menu Contents
Volume Adjusts the volume	level.
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Balance Adjusts whether the	sound comes from the left or right speaker.
Headphone	Sets headphone volume.Pleasesure ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Sound Mode You can select	a sound mode (If the viewed channel supports).
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Lineout, the output from the headphone socket will be set to maximum which could damage your hearing.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround sound	Surround sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.
System - Settings Menu Contents
Conditional Access Controls	is conditional access modules when available.
Language You may set a different language depending on the broadcaster and the country.
Parental	Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options. Note: Some menu options may not be available depending on the country selection in the First Time Installation. Default PIN can be set to 0000 or 1234. If you have defined the PIN (is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes.
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Accessibility Displays accessibility options of the TV.
Hard of Hearing Enables any special feature sent from the broadcaster.
Audio Description	A norration track will be played for the blind or visually impaired audience. Press OK to see all available Audio Description menu options. This feature is available only if the broadcaster supports it.
More Displays other setting	options of the TV.
	Menu Timeout Changes timeout duration for menu screens.
Software Upgrade	Ensures that your TV has the latest firmware. Press OK to see the menu options.
Application Version Displays current software version.
Subtitle Mode	This option is used to select which subtitle mode will be on the screen (DVB subtitle / Teletext subtitle) if both is available. Default value is DVB subtitle. This feature is available only for the country option of Norway.
Auto TV OFF	Sets the desired time for the TV to automatically go into standby mode when not being operated.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter Biss key on a broadcast, you can use this setting. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Store Mode	Select this mode for store display purposes. Whilst Store Mode is enabled, some items in the TV menu may not be available.
Power Up Mode	This setting configures the power up mode preference. Last State and Standby options are available.
CEC	With this setting you can enable and disable CEC functionality completely. Press Left or Right button to enable or disable the feature.
CEC Auto Power On	This function allows the connected HDMI-PEC compatible device to turn on the TV and switch to its input source automatically. Press Left or Right button to enable or disable the feature.
Speakers	To hear the TV audio from the connected compatible audio device set as Amplifier. You can use the remote control of the TV to control the volume of the audio device.
OSS	Displays Open Source Software license information.
Installation Menu Contents
Automatic channel scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system. Digital Aerial: Searches for aerial network channels. Digital Cable: Searches for cable network channels.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogues channels are stored.
Satellite Settings	Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite antenna settings and/or start a satellite scan. SatcoDX: You can upload or download SatcoDX data using the related options.
Installation Settings (Optional)	Displays installation settings menu. Standby Search(*) : Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*) : If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press the OK/TV button to open the Channel List. You can filter the listed channels by pressing the Blue button or open the Edit Channel List menu by pressing the Green button in order to make advanced changes in the current list.

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the Channel List in the main menu or press the Green button while the Channel List is displayed on the screen in order to open the Edit Channel List menu. Select the desired channel on the list. You can make multiple choices by pressing the Yellow button. Then press the OK button to open the Channel Edit Options menu and select Add/Remove Favourites option. Press the OK button again. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the Filter function in the Edit Channel List menu to filter the channels in the Channel list permanently according to your preferences. Using this Filter option, you can set one of your four favourite lists to be displayed every time the Channel list is opened. The filtering function in the Channel list menu will only filter the currently displayed Channel list in order to find a channel and tune in to it. These changes will not remain the next time the Channel list is opened if you don't save them. To save the changes on the list press the Red button after filtering while the Channel list is displayed on the screen.

Configuring Parental Settings

The Parental Settings menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the System>Settings>Parental menu.

To display parental lock menu options, a PIN number should be entered. After coding the correct PIN number, Parental Settings menu will be displayed.

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to ON, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

Set PIN: Defines a new PIN number.

Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN can be set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the country selection in the First Time Installation.

Electronic Programme Guide (EPG)

Some channels send information about their broadcast schedules. Press the Epg button to view the Programme Guide menu.

There are 3 different types of schedule layouts available, Timeline Schedule, List Schedule and Now/Next Schedule. To switch between them follow the instructions on the bottom of the screen.

Timeline Schedule

Zoom (Yellow button): Press the Yellow button to see events in a wider time interval.

Filter (Blue button): Views filtering options.

Highlight Genre (Subtitles button): Displays Highlight Genre menu. Using this feature, you can search the programme guide database in accordance with the genre. Info available in the programme guide will be searched and results matching your criteria will be highlighted.

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Search (Text button): Displays Guide Search menu. Now (Source button): Displays current event of the highlighted channel.

List Schedule(*)

(*) In this layout option, only the events of the highlighted channel will be listed.

Prev. Time Slice (Red button): Displays the events of previous time slice.

Next/Prev Day (Programme +/- buttons): Displays the events of previous or next day.

Event Details (Info button): Displays detailed information about selected events.

Filter (Text button): Views filtering options.

Next Time Slice (Green button): Displays the events of next time slice.

Options (OK button): Displays event options.

Now/Next Schedule

Options (OK button): Displays event options.

Event Details (Info button): Displays detailed information about selected events.

Filter (Blue button): Views filtering options.

Event Options

Use the directional buttons to highlight an event and press OK button to display Event Options menu. The following options are available.

Select Channel: Using this option, you can switch to the selected channel.

Set Timer on Event / Delete Timer on Event: After you have selected an event in the EPG menu, press the

OK button. Select Set Timer on Event option and press the OK button. You can set a timer for future events.

To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.

Notes: You cannot switch to any other channel or source while there is an active timer on the current channel. It is not possible to set timer for two or more individual events at the same time interval.

Teletext Services

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Software Upgrade

Your TV is capable of finding and updating the firmware automatically via the broadcast signal.

Software upgrade search via user interface

On the main menu select System>Settings and then More. Navigate to Software upgrade and press the OK button. In Upgrade options menu select Scan for upgrade and press OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download the upgrade. After the download is completed confirm the question asking about rebooting the TV by pressing the OK to continue with the reboot operation.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o'clock if Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected to an aerial signal. If a new software is found and downloaded successfully, it will be installed at the next power on.

Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. Check if batteries are exhausted. Press the Power button on the TV.

Poor picture

• Check if you have selected the correct TV system.
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• This means your TV is not receiving any transmission.
  Make sure the correct source has been selected.
• Is the antenna connected properly?
• Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
  If you are in doubt, consult your dealer.

No sound

• Check if the TV is muted. Press the Mute button or increase the volume to check.
  Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation

• The batteries may be exhausted. Replace the batteries.

Input sources - can not be selected

• If you cannot select an input source, it is possible that no device is connected. If not;
• Check the AV cables and connections if you are trying to switch to the input source dedicated to the connected device.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index Resolution Frequency
1	480 60 Hz
2	600 56 Hz
3	600 60 Hz
4	x768 60 Hz
5	x768 66 Hz
6	x768 60 Hz
7	x960 60 Hz
8	x1024 60 Hz
9	x768 60 Hz
10	0x1050 60 Hz
11	0x1200 60 Hz
12	0x1080 60 Hz

AV and HDMI Signal Compatibility

Source Supported Signals Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50		O
	RGB 60		O
Side AV	PAL 50/60 O
	NTSC 60 O
PC/YPbPr	480I, 480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P 50Hz,60Hz O
HDMI	480I 60Hz	O
	480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz	O
	1080I	50Hz,60Hz	O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode
Media Extension Format Notes
Video	g, .mpeg	MPEG1-2 MPEG1:	768x576 @ 30P, MPEG2:1920x1080 @ 30P
	.vob MPEG2		1920x1080 @ 30P
	.mp4 MPEG4, Xvid, H.264
	.mkv H.264, MPEG4,VC-1
	.avi MPEG2	MPEG4, Xvid, H.264
	.flv H.264/VP6/ Sorenson	H.264/VP6: 1920x1080 @ 30P Sorenson: 352x288 @ 30P
	.mp4, .mov, .3gpp, .3gp, MPEG transport stream, .ts, .trp, .tp, .mkv	HEVC/H.265 1080P	@60fps - 50Mbps
	.3gp MPEG4, H.264 1920x1080 @ 30P
Audio	3 MPEG1 Layer	2/3	Layer2: 32Kbps ~ 448Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz (Sampling rate) Layer3: 32Kbps ~ 320Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz, 8kHz, 11.025kHz, 12kHz (Sampling rate)
	works only with video files)	AC3 32Kbps ~ 640	Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		AAC	16Kbps ~ 576Kbps (Bit rate) / 48kHz, 44.1kHz, 32kHz, 24kHz, 22.05kHz, 16kHz, 12kHz, 11.025kHz, 8kHz (Sampling rate)
		EAC3	32Kbps ~ 6Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
		LPCM	Unsigned 8bit PCM, Signed/Unsigned 16bit PCM (big / little endian), 24bit PCM (big endian), DVD LPCM 16/20/24bit (Bit rate) / 6kHz, 8kHz, 11.025kHz, 12kHz, 16kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz (Sampling rate)
		IMA-ADPCM/MS-ADPCM	384Kbps (Bit rate) / 8KHz ~ 48Khz (Sampling rate)
		LBR 32Kbps ~ 96Kbps (Bit rate) / 32kHz, 44.1kHz, 48kHz (Sampling rate)
Picture	.jpeg	Baseline	Resolution(WxH): 17000x10000
		Progressive	Resolution(WxH): 4000x4000
	.bmp	-	Resolution(WxH): 5760x4096
Subtitle	.sub, .srt	-	-

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz	60Hz	66Hz	70Hz	72Hz	75Hz
640x400				☑
640x480		☑ ☑	☑ ☑
800x600	☑ ☑	☑ ☑ ☑
832x624						☑
1024x768		☑ ☑	☑ ☑ ☑
1152x864		☑ ☑	☑
1152x870						☑
1280x768		☑				☑
1360x768		☑
1280x960		☑				☑
1280x1024		☑				☑
1400x1050		☑				☑
1440x900		☑				☑
1600x1200		☑
1680x1050		☑
1920x1080		☑

A	Product Fiche
B	Commercial Brand:ok.
C	Product No.	10110508
D	Model No.	ODL 32651H-TB
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches	81 cm
G	On mode average power consumption (Watt)	31
H	Annual energy consumption (kWh/annum)	45
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1366x768

A

B

C

D

E

F

Visible screen size(diagonal,approx.) (inch/cm)

English

Product Fiche Commercial Brand Product No

Model No. Energy efficiency class

Deutsch

Produkt-Datenblatt

Markenzeichen

Produkt-Nr.

Model-Nr.

Energieeffizienzklasse

Sichtbare Bildschirmgroße(diagonal,ca.) (Zoll /cm)

Быларский

Справочen Лост сTekнескite данни

Тьровская марka

Проблем №

Мoder №

Клас на[eheprша[efe�'tиьноct

Будим размер на ekрANA(diaroganal,pripl.) (инчa /cm)

Быларский

Produktovy list

Značka výrobce

Čislo produktu

Model ě.

Energetická tfrda

Viditelna velikost obrazvky(úhloprička,prihl.xpalc/ cm)

Dansk

Produktophysingsskema

Varemaerkle

Produktnr.

Model nr.

Energieeffektivetsklasse

Synilg skærmstørreile (diagonal,ca.) (HK/cm)

Suomi

Tuote fiche

Kaufallenin merkki

Tuote nro.

Mali nro.

Virran tehokkuusuokka

Nakyvan kuvarodum koko(diagonalainen.n.) (tuumaa/cm)

Français

Fiche du produit

Marque commerciale

Produit N°

Modèle N°

Classe d'efficacité énergétique

Taille d'ocran visible (diagonal,approx.pouces/cm)

Hrvatski

SAŽETAK PROIZVODA

Trgovačka marka

Br. proizvoda

Br. modela

Klasa energetske učinkovitosti

Vidljiva večina ekrana(dijagonalina,priblžno) (inca/cm)

Nederlands

Productfiche

Commercieel merk.

Productnr.

Modelnr.

Energie efficientre klasse

Zichtbare schemigrootte(diagonal,ca.) (inches/cm)

Espanol

Ficha del Produkt

Marca Comercial

N° de Produkt

N° de Modelo

Clasificación Energética

Tamaño de pantalla visible(diagonal,aprox.) (pulgadas/cm)

Svenska

Produktspecification

Varumärke

Produktnr.

Modelln.r.

Energilklass

Synilg skarmstørlek(diagonal,ungefärlig) (tum/cm)

Italienio

Scheda prodotto

Marchio commerciale

Numero prodotto

Numero modulo

Classe di efficienza energetica

Dimensión visibill delto schemo(diagonal,circa)(pollici/cm)

Polski

KARTA PRODUKTU Marka produktu Nr Produktu Nr modelu

Widocznj večna ekrana(przekťna,okolo)(cali/cm)

Magyar

Termékismertető adatlap

Kereskedelmi márka

Termékszám

Modellszám

Energiahatékonyásárg osztály

Lathato keptartomány (diagonalis,kb.) (inches/cm)

Norsk

Produktinformasjon

Kommersiell merkevare

Produkt nr.

Model nr.

Energieeffektivitet klasse

Synilg skermstørreile (diagonal,ca.) (tommer/cm)

Portugues

Ficha do produits

Marca Comercial

Produto N°

Modulo N°

Classificação eficiência energetica

Tamanho ecclà visifvel (diagonal,approx.polegadas/cm)

Româna

Fişă produs

Marca Comercial

Nr. Produs

Nr. Model

Clasa de eficientá energetica

Dimensiunea ecranulii vizibili(diagonal,aprox.) (inch/cm)

Pyccskiy

Справочny ліstотокTekнескіх даньх Изделія

Topròba marka

Homop irsdenia

Homop moedeni

Knacc 3neprolnotpebdenia

Будим размер ekрANA (noДиагогалу, priблentгето) (diodimob/cm)

Беларczak

Справочny ліstотокTekнескіх даньх Изделія

Topròba marka

Homop irsdenia

Homop moedeni

Knacc 3neprolnotpebdenia

Будим размер ekрANA (noДиагогалу, Okolo)(diodimob/cm)

Makédoncki

Tekhnichу podatoцni

Korneцльна марka

Проблем δр.

Modem δр.

Knacc na he nereptcxa ephikaackost

Одемпima на видали ekран(djiaroganala,okony) (инчa/cm)

украïnhький

TekhnichуDani

Korneцльна марka

Aprinkyn

Mоdě ly

Knac eneprolnotkva-bannha

Вудим розмр ekрANA (diagonal,aprox.) (diodimob/cm)

Srpski

Tehnicke odlike

Korneçinalma marka

Proizvod br.

Model br.

Klasa energetske efeinasosti

Velickina vidljivog ekrana (diagonal,tokom) (inca/cm)

Slovenčina

Produktovy list

Značka výrobcu

Čislo produktu

Model ě.

Energetická trieda

Videtřevalost obrazovky(úhropriečka,zhruba) (palcov/cm)

Slovenšćina

Opis izdelka

Korneçnalna zamka

Št. Izdelka

Št. Modela

Razred energetske učinkovitosti

Vidna velikost zaslona (diagonal,april.) (palcev/cm)

Еλλυκ

Дελίνι προύντος

Εμπρόο σημα

Ap. Προύντος

Ap. Movitδλου

Katalγορία ευρυκακις ατιβόσους

Oparod μενδος obóviç (biayovici,trp.) (fvračc/cm)

Bosanski

Tehnicki podaci

Korneçinalma marka

Produkt br.

Model br.

Klasa energetske efeinasosti

Vidjiva večina ekrana (diagonala,brijlino.) (inca/cm)

Лжеду

Лжеду ovo

Плорлары

Чеб�оо

Бут Oо

Бутлары ovo

(Oурк)(салу),Исту(Rун).Y ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у")." ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). " ("у"). Туке

Ürún fişi

Ticari Marka

Ürún No.

Model No.

Enerji verimiligi simfi

Görttern ekran boytu (capraz, yaktık.) (inca/cm)

Shqip

Té dhēnat e produktit

Marka tregtare

Nr. i Produktit.

Nr. i modelit.

Klasa e eficiencésse energjisé

Madrasia e ekraniţédkushem(diagonal,afersht) (inca/cm)

Lietuvič

Gaminio etikété

Gamintojas

Gamnio Nr.

Modelio Nr.

Energetinio efektyvumo klasé

Matomas ekrano dyds (strizaine,approx.) (collu/cm)

Latviešu

Produkte aprakssts

Marka

Produktur nr.

Modelja nr.

Energoefektivitates klase

Ekranátmères (pa diognali,aprimram) (collas/cm)

Eesti

TOOTEKIRJELDUS

Tootja fima

Toote nr.

Mudeli nr.

Energiaklass

Vadadatava ekraanti sourus (diagonal,umbes) (tolli/cm)

Бл��у

Лжеду Classika

Лжеду Classika

Лжеду Classika

Лжеду Classika

Лжеду Classika

Лжеду Classika

(Salaj

A	Product Fiche
B	Commercial Brand:ok.
C	Product No.	10110508
D	Model No.	ODL 32651H-TB
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches	81 cm
G	On mode average power consumption (Watt)	31
H	Annual energy consumption (kWh/annum)	45
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px)	1366x768

	A	B	C	D	E	F	Visible screen size (diagonal, approx.) (inch/cm)
English	Product Fiche Commencial Brand Product No.		Model No. Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen	Produkt-Nr.	Model-Nr.	Energieeffizienzklasse	Sichtbare Bildschirgöle (diagonal, ca.) (Zoll /cm)
Былгарский	Телеговен лимет сTekншемпесide дουнna	Тьровская марka	Пробekt №	МODE №	Клас на[e]energieльно[e]eфektivно	Nakуvan kuvaruddun kokok(diagonal,ca.) (tuumaa/cm)	Белдм разиме на ekрANA (д��огал, прил.) (инча /cm)
Былгарский	Спразвочen лимет сTekншемпесide дουнna	Тьровская марka	Пробekt №	МODE №	Клас на[e]energieльно[e]eфektivно	Nakуvan kuvaruddun kokok(diagonal,ca.) (tuumaa/cm)	Талддс дervа (diagonal,approx. (pouces)/cm)
Hryatski	Туote fiche	Кaufallinen merkki	Tuote nro.	Malli nro.	Virran tehokkusluokka	Nakуvan kuvaruddun kokok(diagonal,ca.) (tuumaa/cm)	Nakуvan kuvaruddun kokok (diagonal,ca.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Tâtié d'écran visible (diagonal,approx. (pouces)/cm)	Tâtié d'écran visible (diagonal,approx. (pouces)/cm)
Hryatski	SAŽETAK PROIZVODA	Trgovаčka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidžjiva večicina ekran (diagonal,priblžno) (inca/cm)	Vidžjiva večicina ekran (diagonal,priblžno) (inca/cm)
Nederlands	Productfiche	Commercieel merk.	Productn.	Modeln.	Energie efficientre klasse	Zichbärte schermigrotte (diagonal,ca.) (inches/cm)	Zichbärte schermigrotte (diagonal,ca.) (inches/cm)
Espanol	Ficha del Produkt	Marca Comercial	N° de Produkt	N° de Modelo	Clasificación Energética	Tamañó de planta visible (diagonal,aprox.) (pulgadas/cm)	Tamañó de planta visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecification	Varumärke	Produktn.	Modeln.r.	Energiklass	Synilg skarmstoriek (diagonal,ungelfärlig) (tum/cm)	Synilg skarmstoriek (diagonal,ungelfärlig) (tum/cm)
Italienano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero prodotto	Classe di efficienza energetica	Dimensioni visibili dello scherm o (diagonal,circa)(pollici/cm)	Dimensioni visibili dello scherm o (diagonal,circa)(pollici/cm)
Polski	KARTA PRODUKTU Marka	Produktu Nr Produktu Nr modelu			Klasa efektwinošci energetycznej	Widoczný obraz ekranu (prěkátna,okolo)(cali/cm)	Widoczný obraz ekranu (prěkátna,okolo)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi márka	Termékszám	Modellszám	Energiahatékonysági osztály	Latható képtartomány (diagonális,kb.) (inches/cm)	Latható képtartomány (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Model nr.	Energiéffektivitet klasse	Synilg skermstie reise (diagonal,ca.) (kommer/cm)	Synilg skermstie reise (diagonal,ca.) (kommer/cm)
Portugues	Ficha do produits	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência enerética	Tamanho ecia vistitel (diagonal,approx.) (polgadas/cm)	Tamanho ecia vistitel (diagonal,approx.) (polgadas/cm)
Româna	Fişă produs	Marca Comercial	Nr. Produs	Nr. Model	Clasa de eficientă energetica	Dimensiona ecranuluti visibil (diagonal,approx.) (inch/cm)	Dimensiona ecranuluti visibil (diagonal,approx.) (inch/cm)
Русккий	Спразвочьй лиметх教Tekншемпесide дουньх indizdlenя	Торовая марka	Норовияmáma	Норов мodyпía	Клас зеронотблени	Вiderдм разиме ekranу (no daíanona, príбліntertelnyо) (diodimob/cm)	Вiderдм разиме ekranу (no daíanona, príбліntertelnyо) (diodimob/cm)
Берap Caucasian	Спразвочьй лиметх教Tekншемпесide дουньх indizdlenя	Торовая марka	Норовиямáma	Норов мodyпía	Клас зеронотблени	Вiderдм разиме ekranу (no daíanona, okolo)(diodimob/cm)	Вiderдм разиме ekranу (no daíanona, okolo)(diodimob/cm)
Маджонский	Тунчкii podatoцii	Кореццлajana mapka	Пробиздр.	Моров nbp.	Клас на[e]enerpretscka[e]eftikaackost	Ту�дмна на видашиевке (diagonal,pojárolа,okony) (inca/umc)	Ту�дмна на видашиевке (diagonal,pojárolа,okony) (inca/umc)
украинсыкii	Тунчини дani	Кореццлajima mapka	Артукун	Мodyель	Клас[e]enerprosnozkabnna	Вiderдм розмир ekranу (diagonal,approx.) (diodimob/cm)	Вiderдм розмир ekranу (diagonal,approx.) (diodimob/cm)
Srpski	Тун如此 odlike	Комercijalna marka	Proizvod br.	Modelbr.	Klasa energetske efikasnosti	Večita zhvidyog ekrana (diagonala,tokom) (inca/cm)	Večita zhvidyog ekrana (diagonala,tokom) (inca/cm)
Slovenčina	Produktovy list	Zhačka výrobcu	Сílsodruktu	Modelc	Energetická trieda	Viditerma vevelost obrazovky (uhropriečka,zhruba) (palcov/cm)	Viditerma vevelost obrazovky (uhropriečka,zhruba) (palcov/cm)
Slovenšćina	Opis izdelka	Komercialna znamka	Št. Izdelka	Št. Modela	Razred energetske učinkovitosti	Vidira velikost zaslona (diagonala,pribl.) (palcev/cm)	Vidira velikost zaslona (diagonala,pribl.) (palcev/cm)
Еλλυνικ	Дέλλιο προίντος	Деметrikό σημα	Ap. Прοίντος	Ap. Мove�тόου	Катуlorа ευρείαις ατιδύθους	Орету pvéčos obodvinç (diayovici,trcp.) (frvazc/jcm)	Орету pvéčos obodvinç (diayovici,trcp.) (frvazc/jcm)
Bosanski	Тун如此 podaci	Комercijalna marka	Produkt br.	Modelbr.	Klasa energetske efikasnosti	Viditerya večina ekrana (diagonala,priblizno.) (inca/cm)	Viditerya večina ekrana (diagonala,priblizno.) (inca/cm)
Лизу	Лизу ошл'de	"низу ошл'de"	"низу ошл'de"	"низу ошл'de"	"низу ошл'de"	"(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)	"(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оууу)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyu)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuyy)(оуuy y)
Тürkte	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimiligi sinifi	Görülen erkan bozyut (caprajz, yakişk.) (inc/cm)	Görülen erkan bozyut (caprajz, yakişk.) (inc/cm)
Shqip	Тө дөнat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencës sere energjisë	Madhestia e e kralit tê dukshtem (diagonal,afërisht) (inc/cm)	Madhestia e e kralit tê dukshtem (diagonal,afërisht) (inc/cm)
Lietuviç	Gaminitjas	Gaminitjas	Gaminitjas	Modello Nr.	Energetinio efektyvo umk sése	Matomas ekran doydis (strizainé,approx.) (coliu/jcm)	Matomas ekran doydis (strizainé,approx.) (coliu/jcm)
Latviešu	Produkte aprakssts	Marka	Produktna nr.	Modela nr.	Energoefektivitates klase	Ekranza Izmers (pa diognail,apri ntram) (collas/cm)	Ekranza Izmers (pa diagnai,apri ntram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja fima	Toote nr.	Mudeli nr.	Energiaklass	Vaidatava ekraani suurus (diagonala,umbes) (tolli/cm)	Vaidatava ekraani suurus (diagonala,umbes) (tolli/cm)

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschalttem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch	(Watt)	Stromverbrauch im ausgeschalten Zustand (Watt)	(1)
Бел�ар检	С replenishment stromverbrauch im eingeschalttem Zustand (Watt)	Todaima koncymaia na ane ktropeeneria bnyb bkvkoien sbctonmei(Watt)	KoCmuaia na ane ktropeeneria bnyb mrotohoct (Watt)	KoCmuaia na ane ktropeeneria bnyb mrotohoct (Watt)	(2)
	Pruemela spoetbaelelektriekenenergie v zapnutem rezimu (Watt)	RoNi spoetbaelenergie (kWh/RoChi)	Spatbeelelektriekenenergie v pohotovostim rezimu (Watt)	Spatbeelelektriekenenergie v yvputem rezimu (Watt)	(3)
Dansk	Gennensnittigt stremforbrug i Zealand istland (Watt)	Arligt energiforbrug (kWh/Arligt)	Stramforbrug (standby)(Watt)	Stremforbrug i skukket istland (Watt)	Skaermoplasning (px)
Suomi	Pääll-tilan keskimaäräinen virankulutus (Wattia)	Vuotsitainen sähkönkulutu (kWh/Vuotsitainen)	Vakoviran kulutus (Wattia)	Pois-tilan virankulutus (Wattia)	Näytön erotelukky (pikselia)
Français	Consummation énergétique moyenne en mode "marche" (Watt)	Consummation énergétique annuelle (kWh/annuel)	Consummation d'énergie en veille (Watt)	Consummation d'énergie en mode "arril" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna spoetbašna el. energia kada je proizvod uključen (Watta)	Godsna spoetba na el. Energija (kWh/Godsija)	Potošna el. energia u modu pripravnosti (Watt)	Potošna el. energia kada je proizvod iskličen (Watta)	Rezolucjá zaslona (pikselia)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarijks energieverbruik (kWh/Jaarijks)	Stand-by stroomverbruik (Watt)	Jit-modus stroomverbruik (Watt)	Schemresolutie (px)
Espanol	Consumo electrico medio, en configuracioni (Vatio)	Consumo electrico anual (kWh/annual) Consumo en modulo en opera (Vatio)	epera (Vatio)	Consumo electrico medio apagado (Vatio)	Resoluccion de pantalla (px)
Svenska	Strömconsumption i PÅ-läge (Watt)	Enerikconsumption per ar (kWh/Arig)	Strömconsumption i viloåge (Watt)	Strömconsumption i AV-lage (Watt)	Ekarmuplośnig (pixlar)
Italienano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risolutione del display (px)
Polski	Srednie zužycie energi w trybie wączonym (Watów)	Rozne zužycie energi (kWh/Rozne)	Srednie zužycie energi w trybie czekiwania (Watów)	Zuzycie energi w trybie wączonym (Watów)	Rozdzielkczość obrazu (piskelli)
Magyar	Eneriogafyasztás bekapsovala hagyott izemmodban (Watt) Éves eneríafyasztás (kWh/Eves)	Eneriogafyasztás standby izemmodban (Watt)	Eneriogafyasztás kikapsolt izemmodban (Watt)	Eneriogafyasztás kikapsolt izemmodban (Watt)	Képermyőfbelontás (px)
Norsk	Pamodus gjenonsnittligh stremforbruk (Watt)	Arlig stremforbruk (kWh/Arlig)	Hvilemodus stremforbruk (Watt)	Av-modus stremforbruk (Watt)	Skieropoplánsing (pixel)
Portugues	Consumo energia em modo medio (Watt)	Consumo annual energia (kWh/annual) Consumo energia em stadby (Watt)	Stand-by (Watt)	Consumo energia em modo alimentación (Watt)	Resoluccion do visor (pixel)
Română	Consum electric mediu in modul porrit (Watt)	Consum annual de energia (kWh/annual)	Consum electric in stare de repaus (Watt)	Consum electric in modul oprit (Watt)	Rezolucjá ecranului (pixel)
Pуccský	Crdeni pracdo zhepriny bve kpeime Bkvochenni (Batt)	Ekeodni pracdo zhepriny bve kpeime (kBrw/Tod)	Paceodni zhepriny bve kpeime okhndaemia (Batt)	Paceodni zhepriny bve kpeime Bkvochenni (Batt)	Pazereшné ekpana (píncselei)
Bénapуcká	Crdeni pracdo zhepriny bve kpeime Bkvochenni (Batt)	Ekeodni pracdo zhepriny bve kpeime (kWh/Tradabo)	Paceodni zhepriny bve kpeime Bkvochenni (Batt)	Paceodni zhepriny bve kpeime Bkvochenni (Batt)	Pazerešné ekpana (píncselei)
Makdoendnki	Prócechna noptrovybána kora e bkvtučen	Tojdni noptrovybána na heprinyjda (kWh/Todniú)	Tojdni noptrovybána bo mycvbáte (Batt)	Tojdni noptrovybána koja e ncktyučen (Batt)	Pezomuyuji na ha ekparan (píncselei)
украиьский	Cederná noptrovybána noptykhéctby poobochumu pekimi (Bt)	Cedernbnoptrya noptykhéctby noptykhéctby (kWh/Prihne)	Cnoptykhába na noptykhéctby y pekimi zhkybána (Bt)	Cnoptykhába noptykhéctby y bVMHNHOMy stani (Bt)	Pozidniha adatničte ekpana (píncselei)
Srpski	Prosečna spoetba na kada je uklujeni (Vati)	Godsna spoetba na energia (kWh/Godsija)	Ptoeóna tokom mirovanja (Vati)	Ptoeóna kada je iskličeni (Vati)	Rezolucjá displeja (pixi)
Slovenčina	Priemerná spoetba electrické energies v zapunulom rezime (Wattov)	Ročna spoetba energy (kWh/Ročná)	Spatbelea electrické energy v pohotovostim rezime (Wattov)	Spatbelea electrické energy vo vypunulom rezime (Wattov)	Rozilësie displeja (pixi)
Slovenčina	Poraba electrické energies v pvprečnem nacinu (Wattov)	Letna poraba energies (kWh/Letna)	Poraba energia v stanju pripravljenosti (Wattov)	Poraba energia načinu izkropa (Wattov)	Resolucjá zaslona (pixi)
Elaanvnik	Méton katévádučnoy prépoútoć lekoupylóos (Watt)	Etno katévádučnoy evpýečnos (kWh/Etno)	Katalvádučnoy pečmućo otny ovočnuovi (Watt)	Katalvádučnoy pečmućo od tvevvepyotrojnoj (Watt)	Aváluon obovni (Pličel)
Bosanski	Prosečna spoetba na kada je uklujeni (Watt)	Godsna spoetba energy (kWh/Godsija)	Ptoeóna tokom mirovanja (Watt)	Ptoeóna kada je iskličeni (Watt)	Rezolucjá ekrana (pixi)
nau	(0x1)	(0x2)	(0x3)	(0x4)	(0x5)
Türkeş	Açik moddaki ortalama gütcüketimi (Watt)	Yildik enerji tüketimi (kWh/Yildik)	Bekleme durumunda energia tükelimi (Watt)	Kapali moddaki gütcüketimi (Watt)	Ekran;cüzünügü (pixi)
Shqip	Konsumi mesatar i energijsé s i ndezur (Watt)	Konsumi vjetör i energijsé (kWh/Vjetör)	Konsumi i energijsé s ni gatishmérì (Watt)	Konsumi i energijsé s i fikur (Watt)	Rezolucioni i ekranit (pixi)
Lietuvii	Vidutinés energios sānaudos jungus (Vatai)	Metinés energios sānaudos (kWh/Metinés)	Energios sānaudos budéjimo režimu (Vatai)	Energios sānaudos ijsungus (Vatai)	Ekrano skiriamoj geba (píncsei)
Latviešu	Enerjias patěrìně aktivă režím (Vati)	Gada enerjías patěrìně galdísanas režím (Vati)	Enerjías patěrìně izslezg'tašvoklī (Vati)	Enerjías patěrìně izslezg'tašvoklī (Vati)	Disleja rezolcića (píscii)
Eesti	Keskmine energlakulu tõdrežiimi (Vatti)	Aastane enerigiakulu (kWh/aastane)	Eneriakulu ooterežimi (Vatti)	Eneriakulu vãiljakūltud olekus (Vatti)	Ekraani resolutsion (píscii)
Laf	(0x2)	(0x3)	(0x4)	(0x5)	(0x6)

Indicazioni

CEC and CEC RC Passthrough

A	Product Fiche
B	Commercial Brand:ok.
C	Product No. 10110508
D	Model No. ODL 32651H-TB
E	Energy efficiency class A+
F	Visible screen size (diagonal,approx.) (inch/cm)	32 inches 81 cm
G	On mode average power consumption (Watt)	31
H	Annual energy consumption (kWh/annum)	45
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px) 1366x768

	A	B	C	D	E	F	Visible screen size (diagonal, approx.) (inch/cm)
English	Product Fiche Commencial Brand Product No		Model No.	Energy efficiency class
Deutsch	Produkt-Datenblatt	Markenzeichen	Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschimgroße (diagonal, ca.) (Zoll /cm)
Былгарский	Справочen Лимс.Texhnueckite Даннын	Тьrosбka марka	Проб yourself №	Моев №	Клас на/Eнерийе epéктуноct	Буdimпразмог на ekрана (д��онл, р�ил.) (иниа /cm)
Былгарский	Справочen Лимс.Texhnueckite Дariaн	Тьrosбka марka	Проб yourself №	Моев №	Клас на/Eнерийе epéктуноct	Вуdimпразмог на ekрана (д��онл, р�ил.) (иниа /cm)
Čestina	Produktový list	Značka výrobce	Císole produktu	Model ε.	Energetická třida	Viděteile na velkost robžová (úhlopřícka, příbl.), (palčů /cm)
Dansk	Produktophysingsskema	Varemaerke	Produktnr.	Model nr.	Energieffektivetsklasse	Synilig skáarmstřeile (diagonal, ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nákyvan kuvaruudun koko (diagonalainen.n. (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Tâille de l'ecran visible (diagonal,approx.) (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. protozvoda	Br. modela	Klasa energetske učinkovitosti	Vidžjiva večilica ekrana (diagonal, príbilžno) (inca/cm)
Nederlands	Productfiche	Commercieel merk.	Productnr.	Modelnr.	Energie efficientre klasse	Zichtbare schemgrotte (diagonal,ca.) (inches/cm)
Espanol	Ficha del Produkt	Marca Comercial	N° de Produktо	N° de Modelo	Clasificación Energética	Tamano de pantalla visible (diagonal,approx.) (pulgadas/cm)
Svenska	Produktspecification	Varumärke	Produktnr.	Modelnr.	Energiklass	Synilig skarmistoriek (diagonal, ungefällig) (tum/cm)
Italienano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero prodotto	Classe di efficienza energetica	Dimensistoni visibiti dello schemmo (diagonal, circa) (pollici/cm)
Polski	KARTA PRODUKTU	Marka produktu	Nr produktu	Nr modelu	Klasa efektynošci energetycznej	Widoczný obraz ekrani (przekťna, okolo) (cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi marka	Termékszám	Modellszám	Energiahatékonysági osztály	Láthrató keptartomány (diagonalis, kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Model nr.	Energieffektivitet klasse	Synilig skjermstørreile (diagonal, ca.) (tommer/cm)
Português	Ficha do produits	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energetica	Tamarnho ecra vistfel (diagonal,approx.) (polegadas/cm)
Română	Fişă produs	Marça commerciale	Nr. Produs	Nr. Model	Clasa de eficientă energetica	Dimensisterna ecramutul visibii (diagonal,approx.) (inch/cm)
Pyccskiy	Справочny лимстokТекнueckix Дадьхи Изделя	Toprová марka	Homem Изделя	Homem мари	Клass знegrónotpebello�у	Вуdimпразмог ekрana (п д��огалу), priбизиотельно) (д��имов/cm)
Беларystа	Справочny лимстokТекнueckix Дадьхи Изделя	Toprová марka	Homem Изделя	Homem мари	Клass знegrónotpebello�у	Вуdimпразмог ekрana (п д��огалу), Okono() (dómyo)/cm)
maćedoncky	Текнічі podatoцni	Корець�ална марka	Пробselfod 6p.	Model 6p.	Клас на/Eнерета сефіказост	Галемпая на вydиме ekран (diagonalana, okony) (иниа/cm)
ураійські	Текнічі podani	Корецьima марka	Aprinkyl	Мodelь	Клас на/Eнеретоживаньу	Вуdimпразмог ekрana (diagonal, Прибимно) (д��имов/cm)
Srpski	Tehnicke odlike	Komercjialna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Velicina vidijvog ekrana (diagonalana, tokom) (inca/cm)
Slovenčina	Produktový list	Značka výrobcu	Císole produktu	Model ε.	Energetická trieda	Viděteile nefestost robžová (úhlopriečka, zhruba) (palcov/cm)
Slovenčina	Opis izdelka	Komercialna znamka	Št. Izdelka	Št. Modela	Razred energetske učinkovitosti	Vidžna velkost zastona (diagonal, príbl.) (palcev/cm)
Ельник	Демл'tу п��ов�	Емтоюк στημα	Ap.Пробótroç	Ap.Мoveтέου	Катуpopía evεργιακής ατόδους	Орету proževo, obóvo, γδον, περ. (IVaεc/cm)
Bosanski	Тechnicki podaci	Komercjialna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Vidžlva večilica ekrana (diagonala, príbilžno.) (inca/cm)
Лучу	Лучу ошл'de	"Почу ошл"	"Почу ошл"	"Почу ошл"	"Почу ошл"	"(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)
Türkce	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimilişi sinifi	Görtten ekran boyuuto (çapraz, yakişk.) (inc/cm)
Shqip	Тө дөнat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencës SSE energijsë	Madhesia e ekrani tê dokhēm (diagonal, afërisht) (inch/cm)
Lietuviç	Gaminio etikété	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasë	Matomas ekrano dydis (siziraine, approx.) (coliu/cm)
Latviešu	Produkte apraksts	Marka	Produkte nr.	Modelja nr.	Energoefektivitates klase	Ekranja izmiers (pa diognai, apncram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja filma	Toote nr.	Mudeli nr.	Energiaklass	Vaatadatava ekraani suurus (diagonal, umbes) (tolli/cm)
Jäss	Jässchädelschädels	Jässchädelschädels	Jässchädelschädels	Jässchädelschädels	Jässchädelschädels	Jässchädelschädels	(0'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(0'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)(O'Y/N)

	G	H	I	J	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschalttem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch (Watt)		Stromverbrauch im ausgeschiedem Zustand (Watt) Display-Aufüösung (px)
Sibirien	(1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108,109,110,111,112,113,114,115,116,117,118,119,120,121,122,123,124,125,126,127,128,129,130,131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149,150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165,166,167,168,169,170,171,172,173,174,175,176,177,178,179,180,181,182,183,184,185,186,187,188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208,209,210,211,212,213,214,215,216,217,218,219,220,221,222,223,224,225,226,227,228,229,230,231,232,233,234,235,236,237,238,239,240,241,242,243,244,245,246,247,248,249,250,251,252,253,254,255,256,257,258,259,260,261,262,263,264,265,266,267,268,269,270,271,272,273,274,275,276,277,278,279,280,281,282,283,284,285,286,287,288,289,290,291,292,293,294,295,296,297,298,299,300,301,302,303,304,305,306,307,308,309,310,311,312,313,314,315,316,317,318,319,320,321,322,323,324,325,326,327,328,329,330,331,332,333,334,335,336,337,338,339,340,341,342,343,344,345,346,347,348,349,350,351,352,353,354,355,356,357,358,359,360,361,362,363,364,365,366,367,368,369,370,371,372,373,374,375,376,377,378,379,380,381,382,383,384,385,386,387,388,389,390,391,392,393,394,395,396,397,398,399,400,401,402,403,404,405,406,407,408,409,410,411,412,413,414,415,416,417,418,419,420,421,422,423,424,425,426,427,428,429,430,431,432,433,434,435,436,437,438,439,440,441,442,443,444,445,446,447,448,449,450,451,452,453,454,455,456,457,458,459,460,461,462,463,464,465,466,467,468,469,470,471,472,473,474,475,476,477,478,479,480,481,482,483,484,485,486,487,488,489,490,491,492,493,494,495,496,497,498,499,500,501,502,503,504,505,506,507,508,509,510,511,512,513,514,515,516,517,518,519,520,521,522,523,524,525,526,527,528,529,530,531,532,533,534,535,536,537,538,539,540,541,542,543,544,545,546,547,548,549,550,551,552,553,554,555,556,557,558,559,560,561,562,563,564,565,566,567,568,569,570,571,572,573,574,575,576,577,578,579,580,581,582,583,584,585,586,587,588,589,590,591,592,593,594,595,596,597,598,599,600,601,602,603,604,605,606,607,608,609,610,611,612,613,614,615,616,617,618,619,620,621,622,623,624,625,626,627,628,629,630,631,632,633,634,635,636,637,638,639,640,641,642,643,644,645,646,647,648,649,650,651,652,653,654,655,656,657,658,659,660,661,662,663,664,665,666,667,668,669,670,671,672,673,674,675,676,677,678,679,680,681,682,683,684,685,686,687,688,689,690,691,692,693,694,695,696,697,698,699,700,701,702,703,704,705,706,707,708,709,710,711,712,713,714,715,716,717,718,719,720,721,722,723,724,725,726,727,728,729,730,731,732,733,734,735,736,737,738,739,740,741,742,743,744,745,746,747,748,749,750,751,752,753,754,755,756,757,758,759,760,761,762,763,764,765,766,767,768,769,770,771,772,773,774,775,776,777,778,779,780,781,782,783,784,785,786,787,788,789,790,791,792,793,794,795,796,797,798,799,800,801,802,803,804,805,806,807,808,809,810,811,812,813,814,815,816,817,818,819,820,821,822,823,824,825,826,827,828,829,830,831,832,833,834,835,836,837,838,839,840,841,842,843,844,845,846,847,848,849,850,851,852,853,854,855,856,857,858,859,860,861,862,863,864,865,866,867,868,869,870,871,872,873,874,875,876,877,878,879,880,881,882,883,884,885,886,887,888,889,890,891,892,893,894,895,896,897,898,899,800,801,802,803,804,805,806,807,808,809,810,811,812,813,814,815,816,817,818,819,820,821,822,823, 824,825,826,827,828,829,830,831,832,833,834,835,836,837,838,839,840,841,842,843,844,845,846,847,848.	(1), (2), (3), (4), (5), (6), (7), (8), (9), (10), (11), (12), (13), (14), (15), (16), (17), (18), (19), (20), (21), (22), (23), (24), (25), (26), (27), (28), (29), (30), (31), (32), (33), (34), (35), (36), (37), (38), (39), (40), (41), (42), (43), (44), (45), (46), (47), (48), (49), (50), (51), (52), (53), (54), (55), (56), (57), (58), (59), (60), (61), (62), (63), (64), (65), (66), (67), (68), (69), (70), (71), (72), (73), (74), (75), (76), (77), (78), (79), (80), (81), (82), (83), (84), (85), (86), (87), (88), (89), (90), (91), (92), (93), (94), (95), (96), (97), (98), (99), (100), (101), (102), (103), (104), (105), (106), (107), (108), (109), (110), (111), (112), (113), (114), (115), (116), (117), (118), (119), (120), (121), (122), (123), (124), (125), (126), (127), (128), (129), (130), (131), (132), (133), (134), (135), (136), (137), (138), (139), (140), (141), (142), (143), (144), (145), (146), (147), (148), (149), (150), (151), (152), (153), (154), (155), (156), (157), (158), (159), (160), (161), (162), (163), (164), (165), (166), (167), (168), (169), (700), (701), (702), (703), (704), (705), (706), (707), (708), (709), (710), (711), (712), (713), (714), (715), (716), (717), (718), (719), (720), (721), (722), (723), (724), (725), (726), (727), (728), (729), (730), (731), (732), (733), (734), (735), (736), (737), (738), (739), (740), (741), (742), (743), (744), (745), (746), (747), (748), (749), (750), (751), (752), (753), (754), (755), (756), (757), (758), (759), (760), (761), (762), (763), (764), (765), (766), (767), (768), (769), (770), (771), (772), (773), (774), (775), (776), (777), (778), (779), (780), (781), (782), (783), (784), (785), (786), (787), (788), (789), (790), (791), (792), (793), (794), (795), (796), (797), (798), (799), (800), (801), (802), (803), (804), (805), (806), (807), (808), (809), (810), (811), (812), (813), (814), (815), (816), (817), (818), (819), (820), (821), (822), (823), (824), (825), (826), (827), (828), (829), (830), (831), (832), (833), (834), (835), (836), (837), (838), (839), (840), (841), (842), (843), (844), (845), (846), (847), (848), (849), (850), (851), (852), (853), (854), (855), (856), (857), (858), (859), (860), (861), (862), (863), (864), (865), (866), (867), (868), (869), (870), (871), (872), (873), (874), (875), (876), (877), (878), (879), (880), (881), (882), (883), (884), (885), (886), (887), (888), (889), (890), (891), (892), (893), (894), (895), (896), (897), (898), (899), (900), (901), (902), (903), (904), (905), (906), (907), (908), (909), (910), (911), (912), (913), (914), (915), (916), (917), (918), (919), (920), (921), (922), (923), (924), (925), (926), (927), (928), (929), (930), (931), (932), (933), (934), (935), (936), (937), (938), (939), (940), (941), (942), (943), (944), (945), (946), (947), (948), (949), (950), (951), (952), (953), (954), (955), (956), (957), (958), (959), (960), (961), (962), (963), (964), (965), (966), (967), (968), (969), (970), (971), (972), (973), (974), (975), (976), (977), (978), (979), (980), (981), (982), (983), (984), (985), (986), (987), (988), (989), (990), (991), (992), (993), (994), (995), (996), (997), (998), (999), (1000), (1001), (1002), (1003), (1004), (1005), (1006), (1007), (1008), (1009), (1010), (1011), (1012), (1013), (1014), (1015), (1016), (1017), (1018), (1019), (1020), (1021), (1022), (1023), (1024), (1025), (1026), (1027), (1028), (1029), (1030), (1031), (1032), (1033), (1034), (1035), (1036), (1037), (1038), (1039), (1040), (1041), (1042), (1043), (1044), (1045), (1046), (1047), (1048), (1049), (1050), (1051), (1052), (1053), (1054), (1055), (1056), (1057), (1058), (1059), (1060), (1061), (1062), (1063), (1064), (1065), (1066), (1067), (1068), (1069), (1070), (1071), (1072), (1073), (1074), (1075), (1076), (1077), (1078), (1079), (1080), (1081), (1082), (1083), (1084), (1085), (1086), (1087), (1088), (1089), (1090), (1091), (1092), (1093), (1094), (1095), (1096), (1097), (1098), (1099), (1100), (1101), (1102), (1103), (1104), (1105), (1106), (1107), (1108), (1109), (1110), (1111)	(1), (2), (3), (4), (5), (6), (7), (8), (9), (10), (11), (12), (13), (14), (15), (16), (17), (18), (19), (20), (21), (22), (23), (24), (25), (26), (27)
Especially important for:
Deutschland	(1)	(2)	(3)	(4)	(5)
Europa	(6)	(7)	(8)	(9)	(10)
Nordamerika	(1)	(2)	(3)	(4)	(5)
Südamerika	(1)	(2)	(3)	(4)	(5)
Asien/Pazifik	(1)	(2)	(3)	(4)	(5)
Mittel- und Südamerika	(1)	(2)	(3)	(4)	(5)
Osteuropa	(1)	(2)	(3)	(4)	(5)
Nordamerika	(1)	(2)	(3)	(4)	(5)
Südamerika	(1)	(2)	(3)	(4)	(5)
Südamerika	(1)	(2)	(3)	(4)	(5)
Südamerika	(1)	(2)	(3)	(4)	(5)
Südamerika	(1)	(2)	(3)	-	-
Südamerika	(1)	(2)	(3)	-	-
Südamerika	(1)	(2)	(3)	-	-
Südamerika	(1)	(2)	(3)	-	-
Südamerika	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(3)	-	-
South America	(1)	(2)	(4)	-	-
South America	(1)	(2)	(4)	-	-
South America	(1)	(2)	(4)	-	-
South America	(1)	(2)	(4)	-	-
South America	(1)	(2)	(4)	-	-
South America	(1)	-	-	-	-

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		200	100
C	Screw Sizes
D	Length (X)	min. (mm)	5
		max. (mm)	8
E	Thread (Y)	M4

	ABCDE
English VESA WALL MOUNT MEASUREMENTS		Hole Pattern Sizes (mm)	Screw Sizes Length (X)	Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE	Lochmustergüßen (mm)	Schraubengroßen	Länge (X) Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensons des modèles de trous de montage (mm)	Dimensons des vis	Longueur (X) Filtrage (Y)
Italienio	Misurazioni installazione a parete VESA	Dimensioni schema foro (mm)	Dimensioni vite	Lunghezza (X)	Fettattura (Y)
Portugues	MEDICÇOES DE MONAGEM MURAL VESA	Dimensões do molde de furação (mm)	Tamanhos do parafuso	Comprimento (X)	Rosca (Y)
Espanol	MEDIDAS DEL MONTAIE DE PARED VESA	Tamaños de patrón para aguero (mm)	Tamaños de tornillo	Longitud (X)	Rosca (Y)
Türkce	VESA DUVARA MONAJAPARI ÖLCÜLERİ	Açilacak Delik Ölcüleri (mm)	Vida Ölcüleri	Uzunluk (X)	Küsey (Y)
ÉLMüvık	DAZA TAZEKI BAZHE TOXOX YESA	MeyéBn oyóμatoc,otóuv (mm)	MeyéBn βóuv	Mýkoc (X)	Zélepiouma (Y)
Polski	WYMIARY DO MONAZU NAŚCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Dlugość (mm)	Gwint (Y)
čeština	ROZMÉRY DRŽAKU NA ZED VESA	Rozměry velikosti dér (mm)	Rozměry sroubú	Délá (X)	Závit (Y)
Magyar	VESA FALI TARTÓ MÉRETEK	Lyukak mérétények nagyságal (mm)	Csavar mérét	Hossz (X) Menet (Y)
Română	MÁSURÄTORI SUPORT PERETE VESA	Dimensuni tipar gaura (mm)	Dimensuni ŠURUBuri	Lungime (X)	Filet (Y)
Svenska	VESA VAGGMONTERINGSMÄTT	Hälmönsterstorlear (mm)	Skruvstorlekar	Längd (X) Tråd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grotte booropening (mm)	Schroeßgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINÄASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruwinkoot	Pituus (x) Kierre (Y)
Norsk	VESA VEGGMONTERINGSMål	Hullmönster størrelser (mm)	Skruestørrelser	Lengde (x)	Tråd (Y)
Dansk	VESA VEGGMONTERING-SMål	Hulmönster-størrelser (mm)	Skruestørrelser	Længde(X)	Tråd (Y)
Yüstkenn	PAZMEPBJ HACTEHOTO KPEΠΕHЯ VESA	Размени сост themselves OTberstymi	Размени винов	Длесь (Y)	Рezбь (Y)
Беларczay	ПАМБЛ HACLIЕНHA MAJIABAHAHR VESA	Тамрь сстамы adутли	Памрь винов	Дашиьни (X)Разь (Y)
Makedeонскк	МЕКИЗ 3A MOHTIPAHE HA SMD 3A „BECA"	Шема на rolемпи на дулкову (mm)	Толемпи на чрафот	Долемпи (X)	Hавоj (Y)
Уkraineцьк	POZIMIPH HACTIHOTO KPIПЕHЯ VESA	Віstсань мій кріпьнімі O'TBOPAM, MM	Розimі рівпів	Довжima (X)	Дiamетр рizьб (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSACA	Dimenzijě Šablona za buşenje	Dimenzijě zavrtnejva	Džùžina (X)	Navoj (Y)
Slovenčina	ROZMÉRY DRŽIAKA NA STENU VESA	Rozmery velkosti dio (mm)	Rozmery skrutiek	Džùka (X)	Závit (Y)
Slovenskina	MERE STENSKEGA NOSILCA VESA	Velikosti vorcela lukeri (mm)	Velikosti vijakov	Džùžina (X) Navoj (Y)
Hrvatski	VESA MIJE RIZNOG DRŽAÇA	Veličine uzorka otvora (mm)	Veličine vijka	Džùžina (X)	Navoj (Y)
Bosanski	DIMENZIJE VESA ZIDNOG NOSACA	Dimenzijě Šablona za buşenje	Dimenzijě vijaka	Džùžina (X)	Navoj (Y)
Бъларски	PAZMEPM 3A KOMITIELKT 3A MOHTAJK HA CTEA VESA	Размени на отвору (mm)	Размени на олгета	Дължинат (X)	Pešba (Y)
Lietuviç	VESA TVIRTINIMO PRIÉ SIENOS MATAVIMAI	Angos Šablono dydis (mm)	Varžtu dydis	Ilgis (X)	Sriegis (Y)
Latvišeu	VESA SIENAS STIPRINAUMA IZMÈRI	Caurumu Šablono izmīrs (mm)	Skrūvju izmīne	Garums (X) Vitne (Y)
Eesti	VESA SEINALE KININITAME MÖODUD	Kruvi suuruse möt (mm)	Kruvi suurus	Körgus(x)	Keere (Y)
Shqip	PERMASAT E NJÉSISE SE MONTIMIT NÉ MUR VESA	Machésitet modele t'érimave (mm)	Machésitet e vidhave	Gjatësia (X)	Filetimi (Y)
Бig�	Ф�ОПЕСТ ПОЛТСТЕ LIGОД	(Ф) "Од��а поги" ("Поги")	(Ф) "Поги" ("Поги")	(X) "Поги"	(Y) "Поги"
Бунч	VESA loogу улгу улгу улгу улгу улгу улгу улгу улгу улгу улгу улгу улгу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улgу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улgу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улгу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улгу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улgу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улgу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улгу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улгу улгу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улgу улgу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улgу улgу улгу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улгу улgу улgу улгу улgу улгу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улgу улg�	(Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Φ" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) “" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) “" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) “" (Ф) “" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) "" (Ф) (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Ф" (Ф) "Ф" (Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Ф" (Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) "Φ" (Φ) "Φ" (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) . (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) - (Ф) -	(Ф) "Ф" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Ф) "Φ" (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - - (Φ) - - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - - (Φ) - - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (Φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (θ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - (φ) - - - (φ) - - - (φ) - - - (φ) - - - (φ) - - - (φ) - - - - (φ) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - (φ) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - (φ) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
