Congratulations on purchasing this refrigerator, which has been designed using the latest technology for an easy-to-use, environmentally friendly appliance.
We recommend you read this guide and the technical datasheet carefully to find out everything you need to know about your new purchase.
| Parameter | Specifications |
| Frequency | 2,402 ~ 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
Thank you for purchasing this product.
Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance.
Store all documentation for subsequent use or for other owners.
This product is intended solely for household use or similar applications such as:
- the kitchen area for personnel in shops, offices and other working environments
- on farms, by clientele of hotels, motels and other environments of a residential type
- at bed and breakfasts (B & B)
- for catering services and similar applications not for retail sale.
This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions.
Also, it is recommended that you take note of the warranty conditions.
- Before performing any operation, unplug the power cord from the power socket.
- The refrigeration system positioned behind and inside the refrigerator contains refrigerant. Therefore, avoid damaging the tubes.
- If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames.
Open the window and let air into the room. Then call a service centre to ask for repair.
- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.
- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.
- Do not install the appliance near heaters or inflammable materials.
- Do not use extension cords or adapters.
- Do not excessively pull or fold the power cord or touch the plug with wet hands.
- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.
- It is recommended to keep the plug clean, as any excessive dust residues on the plug can be the cause of fire.
- Do not use mechanical devices or other equipment to hasten the defrosting process.
- Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like, in order to speed up the defrosting phase.
- Do not use or store inflammable sprays, such as spray paint, near the refrigerator. It could cause an explosion or fire.
- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.
- Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

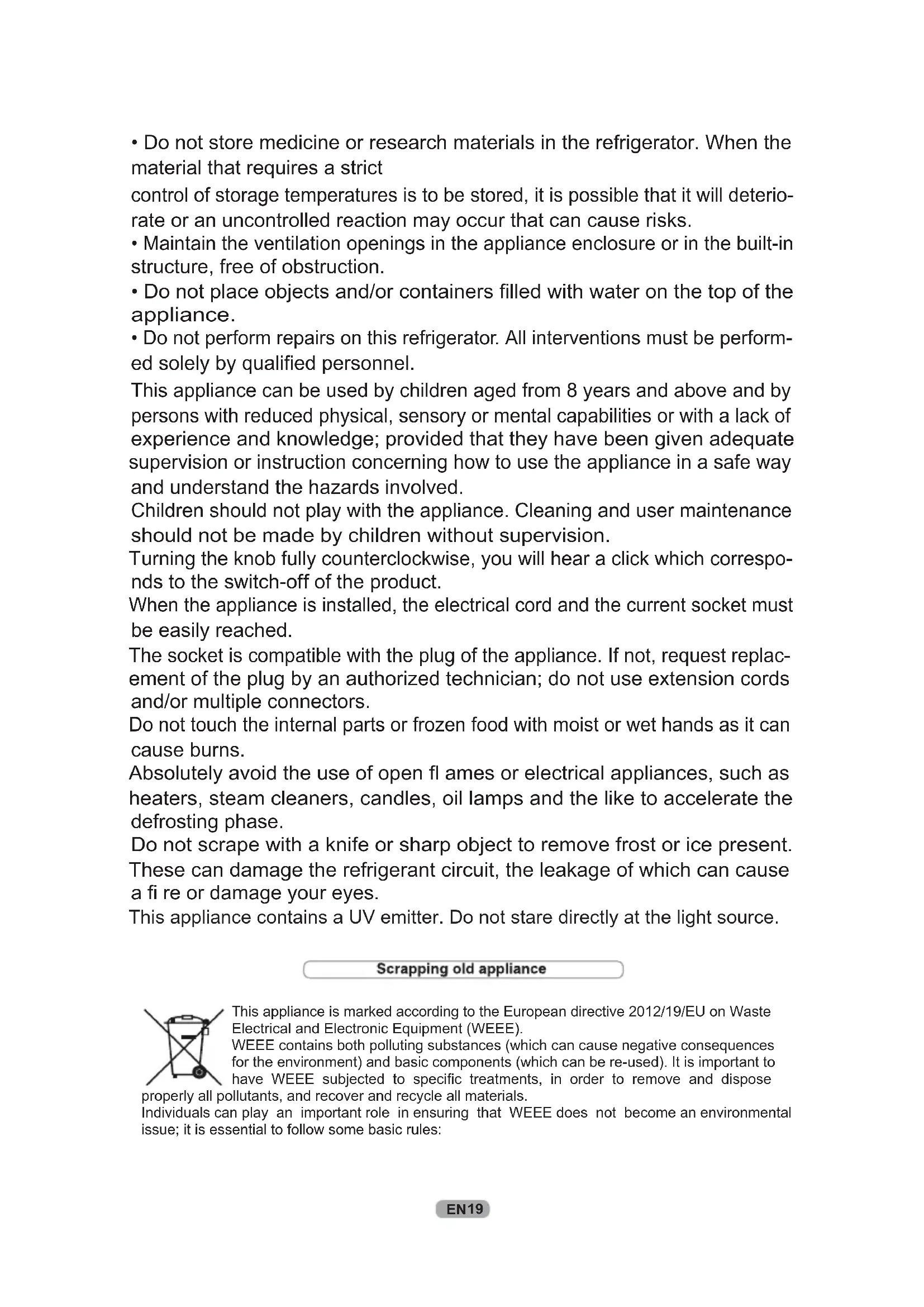

- Do not store medicine or research materials in the refrigerator. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.
- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.
- Do not place objects and/or containers filled with water on the top of the appliance.
- Do not perform repairs on this refrigerator. All interventions must be performed solely by qualified personnel.
This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.
Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.
Turning the knob fully counterclockwise, you will hear a click which corresponds to the switch-off of the product.
When the appliance is installed, the electrical cord and the current socket must be easily reached.
The socket is compatible with the plug of the appliance. If not, request replacement of the plug by an authorized technician; do not use extension cords and/or multiple connectors.
Do not touch the internal parts or frozen food with moist or wet hands as it can cause burns.
Absolutely avoid the use of open flames or electrical appliances, such as heaters, steam cleaners, candles, oil lamps and the like to accelerate the defrosting phase.
Do not scrape with a knife or sharp object to remove frost or ice present. These can damage the refrigerant circuit, the leakage of which can cause a fire or damage your eyes.
This appliance contains a UV emitter. Do not stare directly at the light source.
Scrapping old appliance
This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose
properly all pollutants, and recover and recycle all materials.
Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:
- WEEE should not be treated as household waste;
- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.
By placing the mark on this product, we are confirming compliance with all relevant European safety, health and environmental requirements that are applicable in legislation for this product.
INSTALLATION
WARNING:
- Do not install the appliance in a damp or wet location, as this could compromise the insulation and result in leakage. Furthermore, condensation could accumulate on the exterior of the appliance.
- Do not place the appliance outdoors or near sources of heat, or expose it to direct sunlight. The appliance operates properly within the range of environmental temperatures indicated:
+10 to +32°C for climatic class SN; +16 to +32°C for climatic class N; +16 to +38°C for climatic class ST; +16 to +43°C for climatic class T.
(See the nameplate of the product)
- Do not place containers with liquids on top of the appliance.
- Wait at least 3 hours after final placement before putting the appliance into operation.
1. Make sure that the space around the refrigerator is adequate for ventilation. The illustration (fig. 1) shows the minimum space required for installation of the refrigerator.
Maintaining a wider space from the wall results in reduced electrical energy consumption.
Using the refrigerator in a space smaller than those indicated in the illustration below (fig. 1) could result in improper operation, loud noises, and breakdowns.
2. If present, install the wall spacer in a central position at the rear of the appliance (fig. 2).
Fig. 2
3. Adjust the feet to ensure the stability of the appliance and prevent vibrations and noise (fig. 3). If the front part is higher than the rear, the door can be closed more easily.
Fig.3
NOTE:
If your refrigerator is in stainless steel or other special finish, it might come with a peel-off coating that protects the surface.
Do not use sharp objects to remove this protection as it could damage it.
Electrical connection
After shipping, place the appliance vertical and wait at least 2-3 hours before connecting it to the electrical system. Before inserting the plug into the electrical socket, make sure that:
The socket is earthed and in compliance with the law. The socket can withstand the maximum power load of the appliance, as indicated on the nameplate of the refrigerator. The power supply voltage is within the amounts indicated on the nameplate of the refrigerator. The cord must not be folded or compressed. - The cord must be checked regularly and replaced solely by authorised technicians. The manufacturer declines any liability whenever these safety measures are not respected.
Electrical connection (for U.K. only)
Plug your appliance into the power socket. If the plug we supply does not fit:
CUT IT OFF AND DESTROY IT!
You can't use it on other appliances, and the exposed wires could be dangerous if anyone plugged it in.
Fit a suitable plug, as follows:
| Connect to the terminal in the plug |
| Green and yellow wire | Marked with the letter E,OR marked with the Earth symbol, OR coloured green, OR coloured green and yellow. |
| Blue wire | Marked N, OR coloured black. |
| Brown wire | Marked L, OR coloured red. |
Appliance start-up
Remove all wrapping/packaging present inside the appliance and clean with water and baking soda or neutral soap.
After the installation, wait 2 - 3 hours to allow time for the refrigerator/ freezer to stabilize at normal working temperature, before placing fresh or frozen foods inside.
If the power cord becomes disconnected, wait at least five minutes before restarting the refrigerator/freezer. At this point, the appliance is ready for use.
OPERATION
Turning On/Off

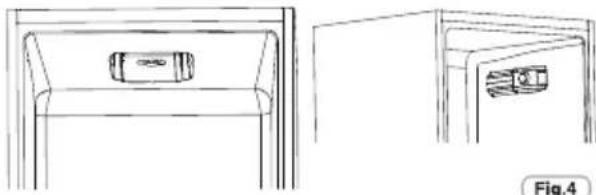

With Internal Turning Knob
The thermostat unit for control of the appliance is located inside of the refrigerator compartment (Fig.4).
Rotate the thermostat knob beyond the "0" position. The light is on when the refrigerator door is open. Turning the knob to "0" completely turns off the product.
Turning the knob to "0" completely turns off the product.
Temperature adjustment (no display)
Fig.5
The temperature adjustment of both compartments is effected by rotating the thermostat knob (fig. 5). Select the desired position: - For colder temperature in the refrigerator and in the freezer, by turning towards MAX* - For temperature less cold in the refrigerator and in the freezer, by rotating in the direction of 0.

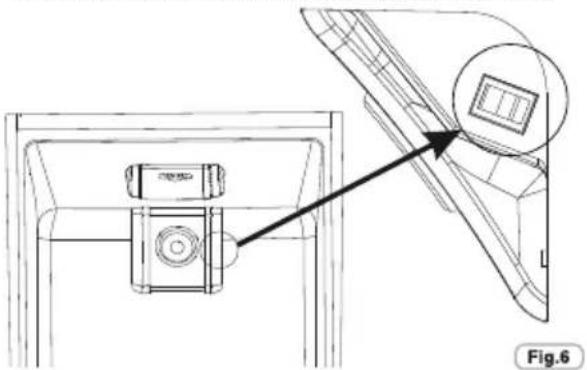

Refrigerator Compartment Fan (if present)
The fan is preset to OFF.
To activate, press the switch (fig. 6).
To optimize energy consumption, it is recommended that you turn the fan on only when the ambient air temperature exceeds 28/30°C.
Fig.6
LED UVA Lights
(if present)
LED UVA Lights activate a Titanium filter producing a "photocatalysis" reaction which will destroy bacteria within the refrigerator air.
This reaction works when the refrigerator door is closed to avoid purified air leakage.
In ventilated products (Static and Frost Free), it is integrated in the sky fan and it works every time the compressor works.
In Total No Frost products, it is inserted in the sky box and it works every time the compressor works.
The filter is permanent and therefore does not need changing.
The antibacterial system has to be turned off during the energy consumption test.

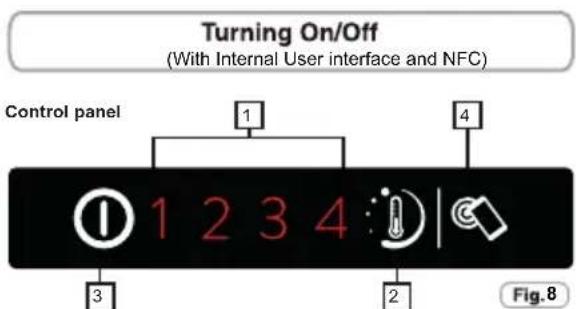

- Temperature indicator LED
- Temperature control
- ON/OFF button
- One Touch button
Turning the appliance ON:
Plug the appliance in. If all the temperature indicator LEDs are off, press ON/OFF (3) for 1 second. When you release the ON/OFF button (3), a temperature light will come on and the appliance will beep.
Turning the appliance OFF:
Press the ON/OFF button (3) for 1 second. When you release it, the temperature light will go out and the appliance will beep. In the event of a power failure, when the power comes back on, the appliance will run using the last saved setting.
Setting the temperature
Press the temperature setting button until you reach the level you want, where level 1 is the warmest and level 4 is the coldest. Under normal operating conditions, we recommend using an intermediate setting (level 2).
| On/Off | 1 | 2 | 3 | 4 |
| Press button (2) for less than 2 seconds to change the temperature level. |
On/Off 1 2 3 4
Use this menu to set an intermediate level.
| On/Off 1 | 2 | 3 | 4 |
| Press button (2) for more than 2 seconds. When you release it, LED
2 will flash |
On/Off 1 2 3 4. The next time you press button (2) for less than 2 seconds, the intermediate level will be set. This operation works in cycles every time you press the button.
If you do not press button (2) for more than 5 seconds, the settings will be saved.
The temperature levels in advanced settings are set from warmest to coldest, e.g., 2/2.1/2.3/2.4, which means there are 4 sub-levels for every main level.
Door open alarm
If the door is left open for longer than 90 seconds, an alarm is sounded. To turn it off, simply close the door or press button 2.
This appliance is equipped with One Touch technology that allows you to interact, via the App, with smartphones based on the Android operating system and equipped with NFC (Near Field Communication) function.
ONE TOUCH
This appliance is equipped with One Touch technology that allows you to interact, via the App, with smartphones based on the Android operating system and equipped with NFC (Near Field Communication) function.
Download the Hoover Wizard App on your smartphone.
The Hoover Wizard App is available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by Smart Touch only with Android smartphones equipped with NFC technology, according to the following functional scheme:
| Android smartphone with NFC technology | Interaction with the machine + contents |
| Android smartphone without NFC technology | Contents only |
| Android Tablet | Contents only |
| Apple iPhone | Contents only |
| Apple iPad | Contents only |
FUNCTIONS
The main functions available using the App are:
- Fine Temperature Level Setting - To set temperature level also by intermediate steps (0.5; 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5) Super Boost - To activate an additional boost to cool down quickly both fridge and freezer. Eco Mode - Automatically the entire refrigerator is settled on level 2 (+5°, -18°)
- Reports - Cooling statistics and tips for a more efficient use of your machine.
- Clever Care - Direct link to User Manual and help on line.
Get all the details of the Smart Touch functions, browsing the App in DEMO mode or go to: www.hooveronetouch.com
HOW TO USE ONE TOUCH
FIRST TIME - Machine registration
- Enter the "Settings" menu of your Android smartphone and activate the NFC function inside the "Wireless & Networks" menu.
Depending on the smartphone model and its Android OS version, the process of the NFC activation may be different. Refer to the smartphone manual for more details.
- Turn on the One Touch button on the User Interface by pressing 2 seconds to enable the NFC antenna on the Sky Led. The One Touch label switches on.
- Open the App, create the user profile and register the appliance following the instructions on the phone display or the "Quick Guide" attached on the machine.
More information, F.A.Q. and the video for an easy registration are available on:
www.hooveronetouch.com/how-to
If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the One Touch logo until the App confirms the connection. In order for the data transfer to be successful, it is essential to keep the smartphone on the dashboard during these few seconds of the procedure; a message on the device will inform about the correct outcome of the operation and advise you when it is possible to move the smartphone away.
Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.
The replacement of some components of the smartphone (e.g. back cover, battery, etc...) with non-original ones could result in the NFC antenna removal, preventing the full use of the App.

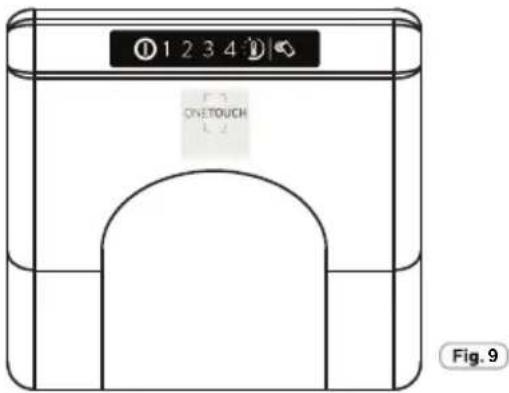

NEXT TIME - Regular usage
Every time you want to manage the machine through the App, first you have to enable the One Touch mode by turning on the One Touch button. - Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function; then, follow the steps mentioned earlier. If you want to activate a function (e.g. Super Boost cycle), select it in the App. - Follow the instructions on the phone display, keeping it on the One Touch logo on the Sky Led, when requested to do so by the App.
NOTES:

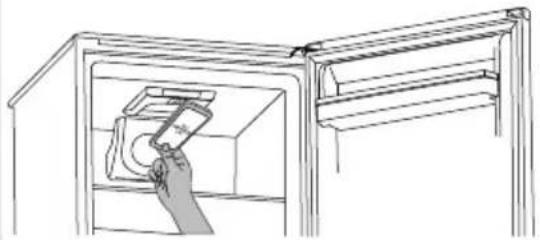

Place your smartphone so that the NFC antenna on its back matches the position of the One Touch logo on the appliance (as illustrated below).
Turning ON/Off
(With Internal Userface for Fridge and Knob for Freezer)

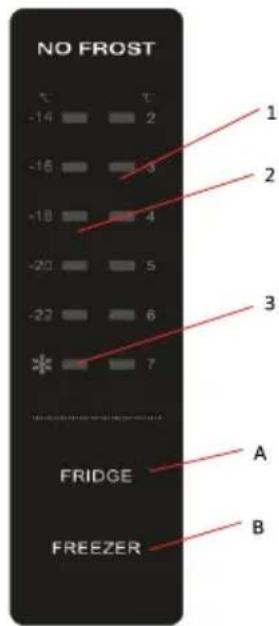

User interface
- Setting Panel:
Fig.10
This version doesn't have any setting on interface to switch on or switch off the appliance. The only way to switch on/off the appliance is by plug in/off.
Press this button to set running temperature of fridge and choose super mode.
A) Super Freezing: LED on means super freezing is starting. Conversely, super freezing is off. B) Setting Temperature of Fridge Compartment. The number under which the LED is on is the set temperature.
After power on, all LED lights on the panel are lit up for 1
second, and the appliance will run with the same settings (mode and temperature) as last time the appliance was set. If it is switched on for the first time, it runs with default settings.
5. Super Freezing
1) Entering Super Freezing Mode
When you want to freeze food in a short time, you can use super freezing mode.
Press and hold Key C for more than 3 seconds to activate super freezing mode. The LED on the left will turn on.
2) Exiting Super Freezing Mode
Exit super freezing mode under the following conditions:
- Press key C for more than 3 seconds to choose another setting.
- The running time of super freezing mode is more than 50 hours. To achieve maximum freezing capacity, place fresh food into the freezer compartment 24 hours after starting the super freezing function.
3) After exiting super freezing mode, the appliance will run with the same settings as before starting super freezing mode. The left LED light will turn off. 4) In super freezing mode, you cannot change the set temperature of the fridge compartment by pressing button C. If you try to do so, the left LED light will flicker for 3 seconds to remind you of the incorrect operation.
6. Temperature Setting of Fridge Compartment
In non-super freezing mode, repeatedly press button C; the set temperature will change in a cycle of 2°C, 3°C, 4°C, 6°C, 8°C. Each press changes the temperature once; the number under which the LED is lit is the set temperature.
Useful Hints:
Please refer to the table below to select the appropriate temperature setting for the refrigerators.
| Ambient Temperature | Recommended Temperature |
| Summer (>32℃) | 4℃, 6℃, 8℃ |
| Normal | 4℃ |
| Winter(<13℃) | 2℃, 3℃, 4℃ |
7. Memory function after power off
The settings at the moment of power off will be remembered. When power is restored, the appliance will automatically restart and run with the settings that were in place at the time of power off.
8. Delay protection function
The appliance has a function that delays the start of the compressor to protect it. Once the compressor stops, the time from this stop to the next start must be at least 5 minutes.
9. Troubleshooting tips
1) If the temperature sensor of the fridge compartment is faulty, the LED light under number 2 will flicker continuously. 2) If the defrost sensor is faulty, the LED light under number 3 will flicker continuously. 3) If the ambient temperature sensor is faulty, the light under number 4 will flicker continuously. 4) If communication between the user interface and
the mainboard is faulty, all lights in the display will flicker continuously.
10. Temperature control of the freezer compartment
1) Freezer temperature setting knob:
Fig.11
2) Set freezer temperature
The freezer temperature can be adjusted by changing the knob to alter the air distribution between the freezer and the fridge.
3) Freezer temperature adjustment
a) The freezer compartment temperature can be adjusted using the knob. The temperature rises gradually when the knob is moved from left to right. b) When the knob is moved to the right end, the airflow from the freezer to the fridge will increase to the maximum level, and the temperature of the freezer will increase. It is recommended that this mode only be used when the freezer is empty or when few food items are stored in the freezer compartment. c) When the knob is moved to the left end, the airflow from the freezer to the fridge will decrease to the minimum level, and the temperature of the freezer will decrease. It is recommended that this mode only be used when a large amount of food is stored in the freezer compartment. The duration should not exceed 8 hours. d) It is advised that the user move the temperature knob to the middle position under normal conditions. However, the user can also adjust the temperature range according to the food storage situation.
Turning ON/OFF
(With Digital External User Interface)
PRODUCT IN STANDBY: To shut off the TOTAL NO FROST products, select the freezer function using the MODE button and use the arrows 7-8 to display the symbol -. For all other products, select the refrigerator function using the MODE button and use the arrows 7-8 to display the symbol -.
NOTE:
The product remains powered until the power cord is unplugged.

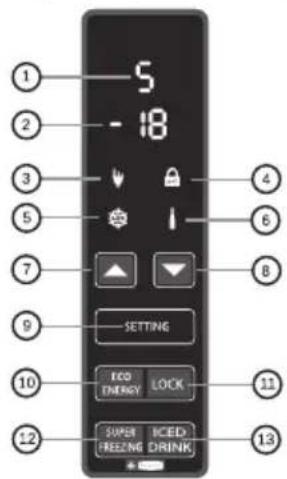

Fig.12
Temperature adjustment
The preset values are: +5 (range +1 to +7) for the refrigerator, and -18 (range -16 to -22) for the freezer.
After switching off or an extended off period, the product restarts with the previously set temperature.
FUNCTION MODE 9
Pressing the Mode button allows you to adjust the temperatures of the refrigerator and freezer.
Refrigerator
Pressing the Mode button once adjusts the refrigerator temperature.
You can set the desired position using the arrows 7 and 8.
Position 1: the coldest setting; position 7: the least cold setting.
If the appliance is a Total No Frost type, after reading 1, H (Holiday) will be displayed.
Freezer
Pressing the Mode button 2 times, the desired position for the freezer can be adjusted; -16, less cold; -22, colder; select the desired reading and wait 3 seconds and the temperature will be set.
For all products, with the exception of Total No Frost, the temperature between the refrigerator and freezer is set simultaneously. If you increase/decrease the refrigerator temperature by 2 or more degrees, then the freezer temperature will automatically increase/decrease by the same value. If the temperature change is less than 2 degrees, then the automatic temperature adjustment will not occur.
ECO FUNCTION
By activating this function, the appliance optimizes energy efficiency by automatically setting the ideal temperature for ensuring food preservation with lowest energy consumption.
To turn off the Eco function, press the button again.
- LOCK FUNCTION 13 / 4
Pressing the Lock button, lock of the buttons is activated (any other command will be ignored). To deactivate, press the Lock button again.
SUPER FREEZING FUNCTION
To freeze a large amount of food, activating the Super Freezing function is recommended. To activate the function, press the Super Freezing button. This function will be activated for 26 to 34 hours (depending on model). The function automatically deactivates or by again pressing the Super Freezing button.
SMART COOL/ICED DRINK FUNCTION
To rapidly cool drinks, put the bottle in the freezer compartment and activate the function by pressing smart cooled drink button.
A countdown of 30 minutes starts, after which a 15 acoustic signal indicates that the bottle has reached ideal cooling. The function can be turned off by again pressing the button.
HOLIDAY FUNCTION (only on TOTAL NO FROST PRODUCTS)
In the case of prolonged absences, it is possible to use the Holiday function.
This function allows you to turn off the refrigerator compartment, but the freezer compartment will remain on. Be sure to remove food from the refrigerator compartment before using this function. To activate, see the refrigerator function Mode. To deactivate this function, reset the temperature of the refrigerator.
- REFRIGERATOR DOOR ALARM
If the door remains open for more than a minute, the appliance emits an acoustic signal. Press the MODE button if you want to muffle it.
Turning ON/Off
With Digital External User interface and Wi-Fi
PRODUCT IN STANDBY: For shutting off the TOTAL NO FROST products, select the freezer function by the MODE button and use the arrows 7-8 to visualize the symbol -. For all other products, select the refrigerator function by the MODE button and use the arrows 7-8 to visualize the symbol -.
NOTICE:
The product remains powered up until the removal of the power cord.
Wi-Fi Usage: To prevent accidental activations, it is not possible to set the Stand-by mode remotely via the APP as this could result in the deterioration of food. You can however disable this function via the APP (pressing "Wake-Up" button) enabling the refrigerator to return to ECO temperature within 24 hours, ready for your return home.

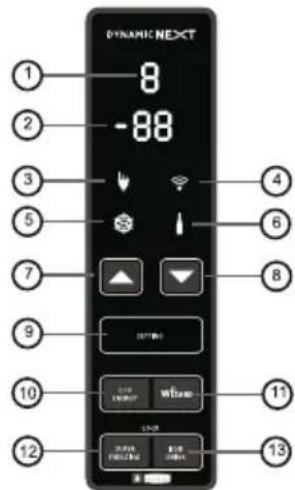

Fig.13
Temperature adjustment
The preset values are: +5 (range +1 to +7) for the refrigerator, and -18 (range -16 to -22) for the freezer.
After switching off or an extended off period, the product restarts with the previously set temperature.
FUNCTION MODE
Pressing the Mode button, it is possible to adjust the temperatures of the refrigerator and freezer.
Refrigerator
Pressing the Mode button once, you adjust the refrigerator temperature. It is possible to set the desired position using the arrows 7, 8.
Position 1: the coldest setting; position 7 least cold setting.
If the appliance is a Total No Frost type, after the reading 1, H (Holiday) will be displayed.
Freezer
Pressing the Mode button 2 times, the desired position for the freezer can be adjusted.; -16, less cold; -22, colder; select the desired reading and wait 3 seconds and the temperature will be set.
When the temperature between the refrigerator and freezer is set simultaneously, if you increase/decrease the refrigerator temperature by 2 or more degrees, then temperature will automatically increase/decrease by the same value. If the temperature change is less than 2 degrees, then the automatic temperature adjustment will not occur.
FUNCTION ECO
By activating this function, the appliance optimizes energy efficiency by automatically setting the ideal temperature for ensuring food preservation with lowest energy consumption.
To turn off the Eco function, press the button again.
Wi-Fi Usage: You can activate/deactivate this function remotely by pressing "Eco Mode" button on the APP.
FUNCTION WIFI 1/4
To use the product in Wi-Fi mode, switch the appliance on and wait until the countdown finishes from t9...to...t1, then push the "Wizard" button until the Wi-Fi symbol is displayed and it begins flashing 3 seconds on-1 second off. If the Wi-Fi connection with the product is still not connected within 5 minutes, the Wi-Fi will switch off.
It is necessary to push the Wizard button up to the symbol light again. This symbol light will be flashing in cycles of 1 second on 1 second off. Once connected to the router the WI-FI symbol will remain on all the time. Where there is no connection with the router, the WI-FI symbol remains flashing 3 seconds on-1 second off.
Rosot
If there is no Wi-Fi connection with the product, a change of router, or customer service intervention, it may be necessary to reset the product. To reset the Wi-Fi connection process, hold the button for 5 seconds; the display will show "rr". The Wi-Fi symbol will flash 1 second on, 1 second off to indicate that the Wi-Fi connection has been reset. If, once reset, the Wi-Fi connection with the product is still not established within 5 minutes, the Wi-Fi will switch off. It is necessary to press the Wizard button until the symbol lights up again. This symbol will flash in cycles of 1 second on, 1 second off. Settings provided from the product display can be modified through the web app and vice versa; the product will keep the latest changes made in date order.
SUPER FREEZING FUNCTION
To freeze a large amount of food, activating the Super Freezing function is recommended. To activate the function, press the Super Freezing button. This function will be activated for 26 to 34 hours (depending on model). The function automatically deactivates or by pressing the Super Freezing button again.
Wi-Fi Usage: You can activate/deactivate this function remotely by pressing "Fast Freeze" button on the APP.
SMART COOL/ICED DRINK FUNCTION
To rapidly cool drinks, put the bottle in the freezer compartment and activate the function by pressing the smart cool/iced drink button.
A countdown of 30 minutes starts, after which a 15" acoustic signal indicates that the bottle has reached ideal cooling. The function can be turned off by pressing the button again.
Wi-Fi Usage: You can activate/deactivate this function remotely by pressing "Iced Drink" button on the APP. A push-notification will advise you when the drink is ready.
HOLIDAY FUNCTION (only on TOTAL NO FROST PRODUCTS)
In the case of prolonged absences, it is possible to use the Holiday function.
This function allows you to turn off the refrigerator compartment, but the freezer compartment will remain on. Be sure to remove food from the refrigerator compartment before using this function. To activate, see the refrigerator function Mode. To deactivate this function, reset the temperature of the refrigerator.
Wi-Fi Usage: To prevent accidental activations, it is not possible to operate the Holiday Function remotely via the APP as this could result in the deterioration of food.
You can however disable this function via the APP (pressing "Cool Ready" button) enabling the refrigerator to return to ECO temperature within 24 hours, ready for your return home.
- LOCK FUNCTION
Pushing buttons 12 and 13 at the same time will activate the lock function (every other order will be ignored). To deactivate the lock function, push buttons 12 and 13 again at the same time. With the lock function activated, every time you push a button, the display will show LO.
Wi-Fi Usage: You can activate/deactivate this function remotely by pressing "Display Lock" button on the APP.
- REFRIGERATOR DOOR ALARM
If the door remains open for more than a minute, the appliance emits an acoustic signal. Press the MODE button if you want to muffle it.
Wi-Fi Usage: A push-notification will show you the alarm on your App.
- MODEM SETTING:
Please check that the modem settings are exactly as shown below (to be accessed via the manufacturer's user manual), otherwise there may be a lack of signal.
| Parameter | Specifications |
| Frequency | 2,402 ~ 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
CANDY SIMPLY-Fl:
For detailed information about HOW TO CONNECT your simply-Fi appliance and HOW TO USE it at its best, go to http://www.candysimplify.com or visit the dedicated simply-Fi Customer Service website http://simplyfiservice.candy-hoove
Turning ON/Off
(With LED External User interface)
This version doesn't any setting on interface to switch on or switch off the appliance. The only way to switch on/ off the appliance is by plug in / off.
Fig.14
1.1 KEY OPERATION
A.Temperature Control of Fridge Compartment B.Temperature Control of Freezer Compartment
1.2 LED DISPLAY
1. Temperature of Fridge Compartment 2. Temperature of Freezer Compartment 3. Super Freezing Mode
2.1 DISPLAY
2.1.1 The panel will be lit up for 2 minutes once the door of the fridge compartment or freezer compartment is opened. (One door signal is sensed at a time)
a. After power on, the control panel is 100% lit up for 3 seconds, and the appliance will run with the same setting (mode and temperature) that was last set. The system will automatically lock 25 seconds after the last key operation.
After locking, the light of the panel would go out 30 seconds after the last key operation.
b. Both preset temperatures of the fridge compartment and freezer compartment would be shown on the display. 2.1.2 The panel will be lit up by any key operation, whereas the light would go out 2 minutes after the last operation. 2.1.3 Display during normal operation: Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting. Temperature Display of the Freezer Compartment: Indicating the temperature of the current setting.
3.0 ILLUSTRATION OF THE KEY
3.1 Temperature Control of the Fridge Compartment
After pressing the "fridge" key to enter the setting mode of fridge temperature, the setting temperature of the fridge compartment flashes. By touching the "fridge" key consecutively, the temperature would change in a cycle of 2°C, 3°C, 4°C, 5°C, 6°C, 7°C, after which a 5-second flash means the selection of temperature is settled.
3.2 Temperature Control of the Freezer Compartment
After pressing the "freeze" key to enter the setting mode of freezer temperature, the setting temperature of the freezer compartment flashes. By touching the "freeze" key consecutively, the temperature would change in a cycle of -14°C, -16°C, -18°C, -20°C, -22°C, Super Freezing (snow sign), after which a 5-second flash means the selection of temperature is settled.
3.3 Super Freezing
As described in 3.2, after choosing Super Freezing, and the signal LED flashes for 5 seconds, it means entering Super Freezing mode.
After choosing Super Freezing mode,
- If the appliance is defrosting, it will finish the defrost process, then enter Super Freezing mode.
- If the time since the last defrost is more than 12 hours, the appliance will start a defrost process immediately before entering Super Freezing mode; otherwise, it will enter Super Freezing mode directly.
During Super Freezing mode,
- the set temperature of the freezing compartment is -25°C, and the appliance will run according to the control
- rules for the freezing compartment. The fridge compartment or chill compartment will follow their own control rules to regulate temperature. During Super Freezing mode, if the power is off, the Super Freezing setting will be remembered,
and the Super Freezing time will reset to zero. The defrost process will not be started.
Exit Super Freezing mode by
- pressing the freezer key to select another setting.
- or after running in Super Freezing mode for more than 26 hours.
After exiting Super Freezing mode,
- if the appliance ran in Super Freezing mode for more than 2 hours, it will start a defrost process.
- The appliance will then run with the settings that were active before you selected Super Freezing mode.
CONSERVATION
- To maintain the best flavour, nourishment, and freshness of foods, it is advisable to store them in the refrigerator compartment as shown in fig. 14 below, making sure to wrap them in aluminium or plastic sheets or in appropriate covered containers to avoid cross-contamination.

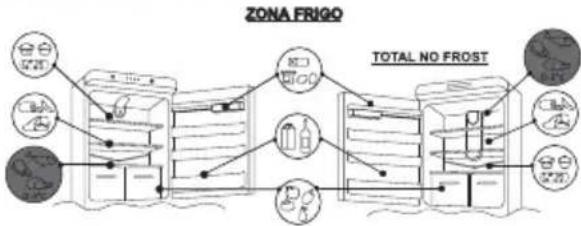

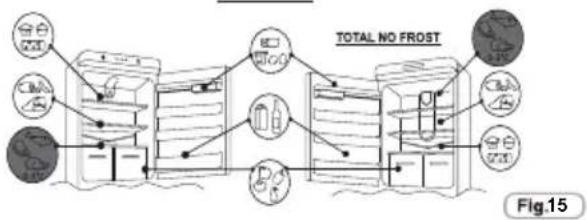

Refrigerator zone
Fruit / Vegetables
To decrease fruit and vegetable moisture losses they must be wrapped in plastic materials such as, for example, films or bags and then inserted in the fruit/vegetable zone. In this way rapid deterioration is avoided.
Fridge Zone

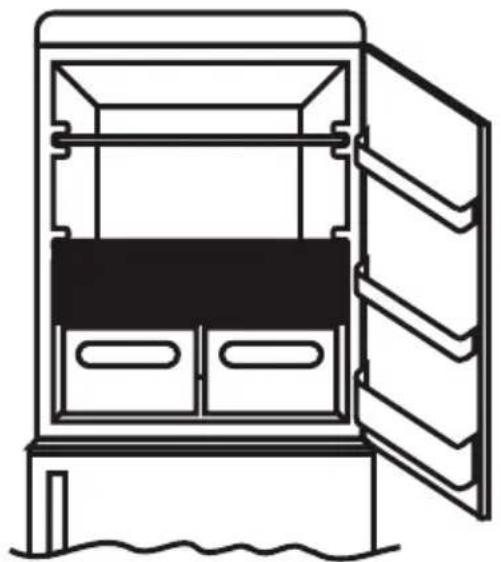

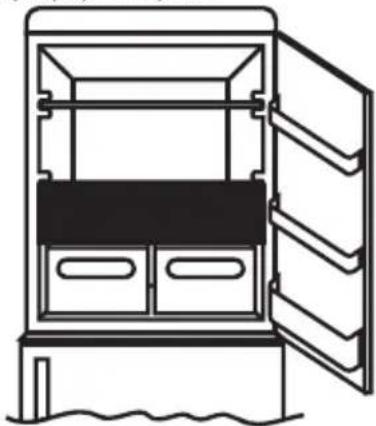

Refrigerated section - Chill (not all models)
The zone shown below is recommended for meat, fish, poultry, etc.; do not store fruit and vegetables because they can freeze;
Fig.16
Indicator of the temperature in the coldest zone
(not all models)
Some models are equipped with an indicator of the temperature in the refrigerator compartment in the coldest zone, for you to be able to control the average temperature. This symbol indicates the coldest zone of the refrigerator. (fig17)
Fig.17
Check that on the indicator of the temperature, the word OK is clearly shown. (fig. 18) If the word does not appear, this means that the temperature is too high: adjust the temperature to a cooler setting and wait for about 10 hours. Recheck the indicator: if necessary, proceed with a new adjustment.
NOTE: If large quantities of food are inserted or the refrigerator door frequently opened, it is normal for the indicator fails to show OK. Wait at least 10 h before adjusting the knob to a higher setting.
Freezer zone
The storage of frozen food is for about a month in the compartments.

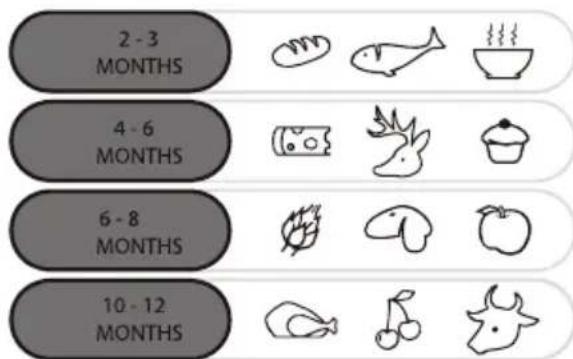

Use the table below for the compartments.
Freezing process can only occur in the compartments.
Practical recommendations
Place food on the shelves in a homogeneous manner to allow air to circulate properly and to cool it.
- Avoid contact between the food and the far end walls of the refrigerator compartment.
- Do not introduce hot foods as they can cause deterioration of existing ones and increase energy consumption.
- Remove the wrappings of foods before inserting them. Do not put in dishes or other containers unless previously washed. Do not obstruct the cold air ventilator openings with food.
- Do not cover the glass shelf of the vegetable bin to allow for proper air circulation.
- Do not store bottles in the freezer compartment as they can burst when frozen.
- In the case of prolonged power outage, keep the doors closed so that foods remain cold as long as possible.
- The installation of the appliance in a hot and humid location, with frequent door openings and storing large amounts of vegetables can cause the formation of condensation and affect the performance of the unit itself.
- To prevent excessive energy consumption, the frequent or prolonged opening of the doors is not recommended.
FREEZING
Foods must be fresh. - Freeze small amounts of food at a time in order to freeze quickly. Never exceed the maximum amount indicated on the nameplate. - During freezing, do not open the freezer door. Food must be sealed, airtight. - Separate food to be frozen by those already frozen. - Label bags or containers to keep an inventory of frozen foods. - Once defrosted, consume food promptly. Do not ever refreeze foods.
NOTE:
- PRODUCTS WITH SETTING KNOB
Normally it is not necessary to intervene with the thermostat knob. If you find excessive cooling of the products contained in the refrigerator compartment, gently turn the thermostat knob toward 0. (fig. 19)
On completion of freezing, return the knob to the usual position.
Fig.19
- PRODUCTS WITH USER INTERFACE
See Turn ON/OFF Display
For products with a NO FROST freezer compartment, activate the SUPER FREEZING function 8 hours before introducing the foods.
For the other products, activate the SUPER FREEZING function at the time of introduction of the foods.
DEFROSTING
Defrosting the refrigerator compartment
During normal functioning, the refrigerator is automatically defrosted. There is no need to dry the drops of water present on the rear wall or to eliminate the frost (depending on functioning).
The water is conveyed to the rear part through the drain hole found there and the heat of the compressor causes it to evaporate.
- Keep the drainage pipe (fig20) clean in the refrigerator compartment to keep it free of water.
Fig.20
Defrosting the freezer compartment
(static products without NO-FROST technology)
When the layer of frost present in the freezer compartment exceeds 3 mm, it is recommended to proceed with the defrosting as it increases energy consumption.
1 Products with knob:
Rotate the knob to the "0" position (fig.21)
Fig.21
Products with user interface
Please follow the instruction in the chapter of "Turning on/off" to switch off the products.
2) Disconnect the power cord. 3) Remove the frozen food and temporarily place them in a cool place. 4) Leave the freezer door open to speed defrosting. 5) Collect the water on the bottom of the product. 6) Dry the freezer. 7) Reconnect the power cord and set the thermostat knob to the desired position. 8) Wait a moment and reintroduce the frozen foods.
WARNING:
Absolutely avoid the use of open flames or electrical appliances, such as heaters, steam cleaners, candles, oil lamps and the like to accelerate the defrosting phase.
Do not scrape with a knife or sharp object to remove frost or ice present.
These can damage the refrigerant circuit, the leakage of which can cause a fire or damage your eyes.
Defrosting the freezer compartment
(NO-FROST products)
Defrosting is automatic.
MAINTENANCE AND CLEANING
Lighting (according to model)
Bulb Replacement
To replace the lamp bulb, place the thermostat knob on 0 and disconnect the power cord. Remove the protective cover (fig. 14), replace the bulb with a power rating analogous with that indicated on the protective cover. (Fig. 22)
Fig. 22
WARNING:
- The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting.
- Do not touch the light bulb if it has been on for a long period of time because it could be very hot.
LED lighting (Where present)
If the product is equipped with LED lights, please contact the Technical Assistance Service in case of replacement.
Compared to traditional light bulbs, the LEDs last longer and are environmentally friendly.
Cleaning
NOTICE:
- Before each operation, remove the refrigerator plug from the power socket to prevent electric shocks.
- Do not pour water directly on the outside or inside of the refrigerator itself. This could lead to oxidation and damaging of the electrical insulation.
IMPORTANT:
To prevent cracking of the inside surfaces and plastic parts, follow these suggestions:
- Wipe away any food oils adhered to plastic components.
- The internal parts, gaskets and external parts can be cleaned with a cloth with warm water and baking soda or a neutral soap. Do not use solvents, ammonia, bleach or abrasives.
- Remove the accessories, for example, the shelves, from the refrigerator and from the door. Wash in hot soapy water. Rinse and thoroughly dry.
- The back of the appliance tends to accumulate dust which can be eliminated with the use of a vacuum cleaner, after having switched off and disconnected the appliance from the electrical outlet. This provides greater energy efficiency.
ENERGY SAVINGS
For better energy savings, we suggest:
- Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
- Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
- Do not excessively stuff foods so as to ensure proper air circulation.
- Defrost the appliance in case there is ice (see DEFROSTING) to facilitate the transfer of cold.
- In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
- Open or keep the doors of the appliance open as little as possible
- Avoid adjusting the thermostat to temperatures too cold.
- Remove dust present on the rear of the appliance (see CLEANING).
- Total no frost Audy (with display on door): remove all the baskets in freezer compartment;
- Total no frost (with internal user interface for fridge and knob for freezer): remove other baskets in freezer compartment but keep bottom drawer in its position. Frost free model: remove other baskets in freezer compartment but keep bottom drawer in its position.
- All normal static models: remove all drawers in freezer compartment.
AVOIDING NOISES
During its operation, the refrigerator emits some normal noises, such as:
HUMMING, the compressor is running. - RUMBLINGS, RUSTLINGS and HISSING, the refrigerant is flowing through the tubes. - TICKS and CLICKS, the operation shutdown of the compressor.
Small measures to reduce the vibration noises: - THE APPLIANCE IS NOT LEVEL: Adjust the feet so the appliance is level. - Containers touch each other: Avoid contact between containers and glass receptacles. - Appliance in contact: Install the appliance away from other furniture or electrical appliances. - Drawers, shelves, bins vibrate: Check the proper installation of internal accessories.
NOTE:
The refrigerant gas produces noise even when the compressor is off; it is not a defect, it is normal.
If you hear a clicking sound inside the appliance, it is normal as due to expansion of the various materials.
REVERSIBILITY OF THE DOOR (MECHANICAL)
The doors of the appliance can be reversed to allow opening to the right or left as needed.
NOTICE:
Door reversal must be performed by qualified technical personnel. Door reversal is not covered by the warranty.
REVERSIBILITY OF THE DOOR (ELECTRONIC)
SUSPENDING USE OF THE APPLIANCE
If the appliance is not to be used for a long time: 1) Turn the appliance OFF (see Operation) 2) Unplug it or remove the safety device. 3) Clean the appliance. 4) Leave the doors of the appliance open.
TROUBLESHOOTING
| PROBLEM | CAUSE | REMEDY |
| The inside illumination light bulb does not turn on. | ·The light bulb is burned out.
·Electricity absence. | ·Replace the lamp bulb (see lighting).
·The power cord is not properly plugged in.
·Check whether the appliance is switched off.
(see Temperature Adjustment).
·Ensure that there is a current in the house. |
| ·Door switch is blocked. | ·Check that it is active. |
| The refrigerator and freezer do not sufficiently cool. | ·The doors are not closed. | ·Check that the door and gaskets close properly. |
| ·The doors are frequently opened | ·Avoid unnecessary opening of the doors for a period of time.
·Check the position of the knob or temperature setting and, if it is possible, cool even more (see Temperature adjustment) |
| ·Erroneous setting of the temperature. |
| ·The refrigerator and freezer have been excessively filled. | ·Wait for the stabilization of the temperature of the refrigerator or freezer. |
| ·Surrounding temperature is too low. | ·Check that the ambient temperature is in accordance with what is indicated on the nameplate (see Installation). |
| ·No electrical power. | ·The power cord is not properly plugged in.
·Check whether the appliance is switched off (see Temperature adjustment)
·Ensure that in the home there is current. |
| ·The rear of the appliance is too close to the wall. | ·Move the appliance away from the wall (see Installation). |
| The food in the refrigerator freezes. | ·Erroneous setting of the temperature. | ·Check the position of the knob or temperature setting (see Temperature Adjustment) and, if possible, decrease temperature setting. |
| ·Food in contact with the back wall. | ·Separate the food from the back wall of the refrigerator. |
| ·The freezing of too much fresh food causes a lowering of the temperature of the refrigerator. | ·Do not exceed the maximum amount to be frozen (see Freezing). |
| The bottom of the refrigerator compartment is wet or droplets are present. | ·Products that are not NoFrost: the drain tube could be clogged. | ·Clean the drain tube with a cotton-bud or the like to allow the discharge of water. |
| Presence of drops or water on the back wall of the refrigerator. | ·Normal operation of the refrigerator. | ·It is not a defect (see Defrosting). |
| Presence of water in the vegetable drawer. | ·Lack of air circulation. | ·Check that there is no obstruction on the glass shelf which will prevent air circulation. |
| ·Vegetables and fruits with too much moisture. | ·Place fruit and vegetables in plastic, such as films, bags or containers. |
| The motor runs continuously. | ·The doors are not closed. | ·Make sure the doors are closed and if the seals close properly. |
| ·The doors are opened frequently. | ·Avoid unnecessary open ports for a certain period. |
| ·Ambient temperature is very high. | ·Verify that the ambient temperature is in accordance with the specifications on the nameplate (see Installation).
·Set the thermostat knob on low numbers / Set the display a warmer temperature. |
| ·Thickness of frost than 3mm. | ·Defrost the unit (see Defrosting). |
| The temperature of some external parts is high. | ·Presence of the condensate drain pipe. | ·It is normal: temperatures are high to prevent the formation of condensation on certain parts. |
| The frozen food is thawing. | ·The ambient temperature range below climate class of the product.
The compressor starts rarely | ·Move the unit to a warmer or heat the room. |
| ·The freezer door is not closed. | ·Make sure the door is closed and that the gasket is sealing properly. |
| Condensation on the outside. | ·Environment too moist. | ·Move the unit in a less humid. |
IF YOU HAVE NOT SOLVED THE PROBLEM, CONTACT THE SERVICE CENTER. PLEASE PROVIDE THE TYPE OF FAULT AND THE INFORMATION ON THE PLATE OF THIS APPLIANCE INSIDE THE REFRIGERATOR COMPARTMENT:
The model of the equipment. The serial number.
| INFORMACION DE SEGURIDAD | 34 |
| INSTALACION | 3 |
| FUNCIAMIENTO | 37 |
| CONSERVACION | 43 |
| CONGELACION | 44 |
| DESCONGELACION | |
| MANTENIMIENTO Y LIMpieZA | |
| AHORRO ENERGÉTICO | |
| EVITAR RUIDOS | |
| REVERSIBILITY DE LA PUERTA | |
| SUSPENSION DEL USO DEL APARATO | 47 |
| ANOMALIAS Y SOLUCIONES | 48 |
| Parameter | Specifications |
| Frequency | 2,402 ~ 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
| Parameter | Specifications |
| Frequency | 2,402 - 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
On/Off 1 2 3 4 On/Off 1 2 3 4
| Parameter | Specifications |
| Frequency | 2,402 ~ 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
| Parameter | Specifications |
| Frequency | 2,402 - 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
For detailed information on HOW TO CONNECT your Wizard appliance and HOW TO USE IT, visit the websites http://www.hooverwizard.com or http://wizardservice.candy-hoover.com, the dedicated Hoover Wizard Service site.
On / Off
3.0 ILLUSTRATION OF THE KEY
3.1 Temperature control of the refrigerator compartment
SMART COOL / Iced drink FUNCTION
SMART COOL / Iced drink FUNCTION
13/6
| Parameter | Specifications |
| Frequency | 2,402 ~ 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
| Parameter | Specifications |
| Frequency | 2,402 ~ 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
Evaporator operation indicator (with external LED display)
User control panel
(m14)
1.1 DESCRIPTION OF BUTTONS
After the Super Freezing function has ended,
The Super Freezing function preserves food for up to 2 months, keeping it fresh and nutritious. The Super Freezing function is not suitable for freezing food that has already been frozen.
SYNTHESIS
To store fresh food, place it in the refrigerator compartment and the drawers in the lower part. It is recommended to place them in the special compartment. See figure.
REFRIGERATOR
FRUITS / VEGETABLES
To prevent the drying of fruits and vegetables, it is advisable to wrap them in a damp cloth or place them in the special drawers and put them in the appropriate compartment for fruits and vegetables. In this way, you will keep them for a longer period.
Freezer compartment (for freezing) (1) The freezer compartment is suitable for storing frozen food and making ice. Do not put fresh food in it for freezing.
(fig. 16)
Temperature regulation. (for all models)
The temperature is regulated by the thermostat knob. If the knob is set to a higher number, the temperature will be lower. This setting increases the energy consumption. (fig. 17)
(fig. 17)
Make sure that the temperature indicator shows the correct temperature. (fig. 18)
If the indicator does not appear, it means that the temperature is too high.
Set the temperature to a lower level by turning the knob slightly, if necessary.
(2018)
NOTE:
If the appliance is not operating correctly, the safety device may have been activated. The display shows OK. Wait for 10 minutes before trying to reset the safety device again.
Freezing
The appliance is designed to freeze fresh food. Place the food in the freezer compartment.
When freezing, use the appropriate containers. The freezing process can be accelerated by using the fast freeze function.
Practical advice
The food should be placed in the freezer so that it does not come into contact with the air and to avoid the formation of frost. Do not place food in direct contact with the back wall of the freezer. Do not place hot food in the freezer as it may thaw the food already stored and increase energy consumption. Remove the food from its packaging before placing it in the freezer.
Do not place food in the freezer in large quantities before it has been frozen. Do not exceed the freezing capacity of the appliance. Do not place glass containers with liquids in the freezer as they may break. Do not store food in the freezer for longer than the recommended storage time. If you have a frozen product, do not open the door frequently to preserve the food for a longer period. The storage of food in the freezer should be done in small quantities and at low temperatures. Large quantities of vegetables may cause the formation of frost and affect the operation of the freezer. To reduce the formation of frost, do not open the door too often.
FREEZING
The food must be fresh. Place it in the freezer in small quantities to freeze quickly. Do not exceed the freezing capacity of the appliance. The freezing process should be completed before adding more food. Food for freezing should be of good quality. - Separate the food for freezing from the food already frozen. - Write the contents and the date on the packaging. Food that has been thawed should not be refrozen; it should be consumed quickly.
NOTE:
- APPLIANCES WITHOUT DISPLAY:
As a rule, it is not necessary to adjust the temperature. If the appliance is not cooling properly, check the door seal. If the door is not closed properly, the food may thaw. During the freezing process, the temperature may rise slightly.
(1x19)
APPLIANCES WITH DISPLAY
Defrosting the appliance. The appliance is equipped with the NO FROST system, which facilitates defrosting. The SUPER FREEZING function should be activated 8 hours before placing fresh food. For all other products, activate the SUPER FREEZING function when placing them in the freezer.
DEFROSTING
Defrosting the refrigerator compartment
During the operation of the compressor, ice will automatically form on the back wall. It is necessary to periodically remove the ice that forms. The water flows through the drainage channel to the evaporation tray and evaporates automatically. - Keep the water drainage channel (fig. 20) clean at all times. Use the cleaning tool provided to clean the drainage hole.
(2021)
Defrosting the freezer compartment (static models without NO-FROST technology)
When the frost on the walls of the freezer reaches a thickness of 3 mm, it is advisable to perform defrosting to avoid increased energy consumption. 1) Turn the thermostat knob to the "0" position. (fig. 21)
(2)
2) Unplug the appliance from the power supply. 3) Remove the frozen food and wrap it in a thick cloth or paper. 4) Leave the freezer door open to allow the frost to melt. 5) Place a container of warm water in the freezer compartment. 6) Do not use sharp objects to remove the frost. 7) After defrosting, clean the freezer interior and dry it thoroughly. Plug the appliance back in and set the thermostat to the desired temperature. 8) Wait a while before placing the food back inside.
CAUTION:
Do not attempt to accelerate the defrosting process with the help of any mechanical devices, electrical appliances such as heaters, or other means, cleaning agents, sharp objects, or other similar items.
Do not attempt to remove ice with sharp objects as this may damage the appliance.
These items can damage the refrigerant circuit, causing leaks of the refrigerant and resulting in fire or injury.
Defrosting the freezer compartment (NO-FROST models)
Defrosting is automatic.
| Parameter | Specifications |
| Frequency | 2,402 ~ 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
HOOVER WIZARD:
| Parameter | Specifications |
| Frequency | 2,402 - 2,480 MHz |
| Modulation | 802.11b compatibility:
DSSS (CCK-11, CCK-5.5,
DQPSK-2 and DBPSK-1)
802.11g:
OFDM (default) |
| Channel intervals | 5 MHz |
| Channels | 1-14 |
| Transmission rate
(over the air) | 1-11 Mbps for 802.11b
6-54 Mbps for 802.11g |
| Receive sensitivity | -83 dBm typical |
| Output level
(Class1) | 0 to +12 dBm (software
configurable) |
Display on/off
Normal operating noises
