USER MANUAL WGD8000DW WHIRLPOOL

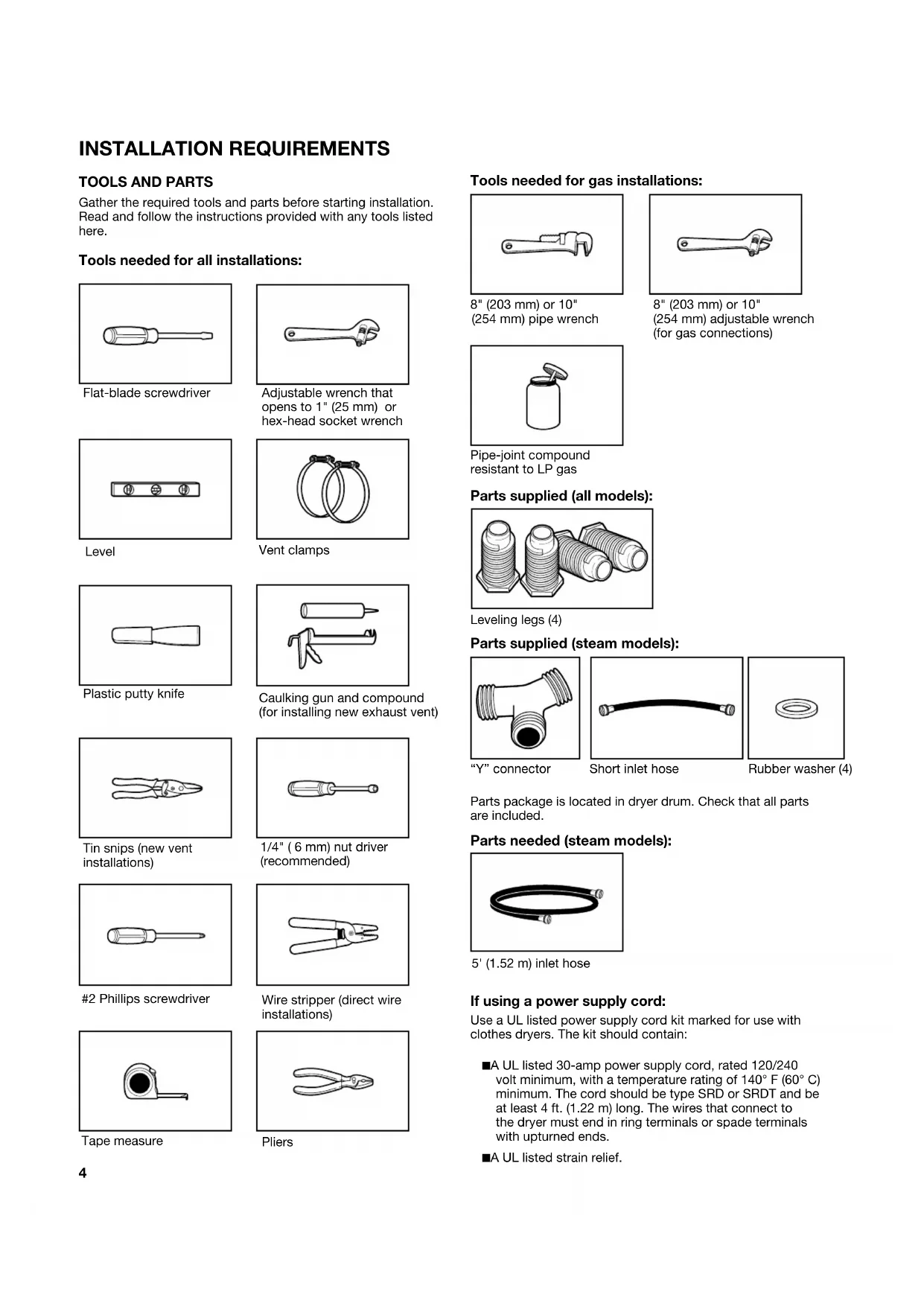

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed for all installations: Level #2 Phillips screwdriver Wire stripper (direct wire installations) Parts supplied (all models): Flat-blade screwdriver Adjustable wrench that opens to 1" (25 mm) or hex-head socket wrench Tin snips (new vent installations) Caulking gun and compound (for installing new exhaust vent) Vent clamps 1/4" ( 6 mm) nut driver (recommended) Tools needed for gas installations: 8" (203 mm) or 10" (254 mm) pipe wrench 8" (203 mm) or 10" (254 mm) adjustable wrench (for gas connections) Pipe-joint compound resistant to LP gas Plastic putty knife INSTALLATION REQUIREMENTS Leveling legs (4) Tape measure Pliers Parts supplied (steam models): “Y” connector Short inlet hose 5' (1.52 m) inlet hose Rubber washer (4) Parts needed (steam models): Parts package is located in dryer drum. Check that all parts are included. If using a power supply cord: Use a UL listed power supply cord kit marked for use with clothes dryers. The kit should contain: ■ A UL listed 30-amp power supply cord, rated 120/240 volt minimum, with a temperature rating of 140° F (60° C) minimum. The cord should be type SRD or SRDT and be at least 4 ft. (1.22 m) long. The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends. ■ A UL listed strain relief.5 Parts needed: (Not supplied with dryer) Check local codes. Check existing electrical supply and venting. See “Electrical Requirements” and “Venting Requirements” before purchasing parts. Mobile home installations require metal exhaust system hardware available for purchase from the dealer from whom you purchased your dryer. For further information, please refer to the “Assistance or Service” section in your “Use and Care Guide.” LOCATION REQUIREMENTS You will need: ■ A location allowing for proper exhaust installation. See “Venting Requirements.” ■ A separate 15 or 20-amp circuit needed for gas dryers and 30-amp circuit needed for electric dryers. ■ If using power supply cord, a grounded electrical outlet located within 2 ft. (610 mm) of either side of dryer. See “Electrical Requirements.” ■ Floor must support dryer weight of 200 lbs. (90.7 kg). Also consider weight of companion appliance. ■ Level oor with maximum slope of 1" (25 mm) under entire dryer. If slope is greater than 1" (25 mm), clothes may not tumble properly and automatic sensor cycles may not operate correctly. ■ For garage installation, place dryer at least 18" (460 mm) above oor. ■ Steam models only: Cold water faucets located within 4 ft. (1.2 m) of the water ll valves, and water pressure of 20-100 psi (137.9-689.6 kPa). You may use the water supply for your washer using the “Y” connector and short hose which are provided. IMPORTANT: Do not operate, install, or store dryer where it will be exposed to water, weather, or at temperatures below 45° F (7° C). Lower temperatures may cause dryer not to shut off at end of automatic sensor cycles, resulting in longer drying times. NOTE: No other fuel-burning appliance can be installed in the same closet as a dryer. DRYER DIMENSIONS INSTALLATION CLEARANCES For each arrangement, consider allowing more space for ease of installation and servicing, spacing for companion appliances and clearances for walls, doors, and oor moldings. Space must be large enough to allow door to fully open. Add spacing on all sides of dryer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required. Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes, or sleeping quarters. Contact your local building inspector. NOTE: Most installations require a minimum of 6" (152 mm) clearance behind dryer for exhaust vent with elbow. See “Venting Requirements.” Bottom view:

/8"(35 mm) Back viewSide view6 Mobile home - Additional installation requirements: This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR,

Part 3280 (formerly the Federal Standard for Mobile home

construction and Safety, Title 24, HUD Part 280) or Standard CAN/CSA-Z240 MH. Mobile home installations require: All dryers: ■ Metal exhaust system hardware, available for purchase from your dealer. For further information, see “Assistance or Service” section in your “Use and Care Guide.” ■ Special provisions must be made in mobile homes to introduce outside air into dryer. Openings (such as a nearby window) should be at least twice as large as dryer exhaust opening. For gas dryers mobile home installations: ■ Mobile Home Installation Hold-down Kit Part Number W10432680 is available to order. For further information, see “Assistance or Service” section in your “Use and Care Guide.” 6"/0" (152 mm/0 mm) 14" max (356 mm) 1"/0" (25 mm/0 mm) 1"/1" (25 mm) 18"/18"* (457 mm) 3"/3" (76 mm) 3"/3" (76 mm) 48"

ÉLECTRIQUES – ÉTATS-UNIS SEULEMENT) It is your responsibility: ■ To contact a qualied electrical installer. ■ To be sure that the electrical connection is adequate and in conformance with the National Electrical Code, ANSI/NFPA

70 - latest edition and all local codes and ordinances.

The National Electrical Code requires a 4-wire power supply connection for homes built after 1996, dryer circuits involved in remodeling after 1996, and all mobile home installations. A copy of the above code standards can be obtained from: National Fire Protection Association, One Batterymarch Park, Quincy, MA 02269. ■ To supply the required 3- or 4-wire, single phase, 120/240 volt, 60 Hz, AC only electrical supply (or 3- or 4-wire, 120/208 volt electrical supply, if specied on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. Connect to an individual branch circuit. Do not have a fuse in the neutral or grounding circuit. ■ Do not use an extension cord. ■ If codes permit and a separate ground wire is used, it is recommended that a qualied electrician determine that the ground path is adequate. If using a power supply cord: Use a UL listed power supply cord kit marked for use with clothes dryers. The kit should contain: ■ A UL listed 30-amp power supply cord, rated 120/240 volt minimum, with a temperature rating of 140° F (60° C) minimum. The cord should be type SRD or SRDT, and be at least 4 ft. (1.22 m) long. The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends. ■ A UL listed strain relief. Electrical Connection To properly install your dryer, you must determine the type of electrical connection you will be using and follow the instructions provided for it here. ■ This dryer is manufactured ready to install with a 3-wire electrical supply connection. The neutral ground conductor is permanently connected to the neutral conductor (white wire) within the dryer. If the dryer is installed with a 4-wire electrical supply connection, the neutral ground conductor must be removed from the external ground connector (green screw), and secured under the neutral terminal (center or white wire) of the terminal block. When the neutral ground conductor is secured under the neutral terminal (center or white wire) of the terminal block, the dryer cabinet is isolated from the neutral conductor. ■ If local codes do not permit the connection of a neutral ground wire to the neutral wire, see “Optional 3-wire connection” section. ■ A 4-wire power supply connection must be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductors. Spacing for recessed area or closet installation The dimensions shown are for the recommended spacing allowed. ■ Additional spacing should be considered for ease of installation and servicing. ■ Additional clearances might be required for wall, door, and oor moldings. ■ Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to reduce noise transfer. ■ For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilitation openings are acceptable. ■ Companion appliance spacing should also be considered.7 4-wire receptacle (14-30R)

ELECTRIC DRYER POWER HOOKUP-

CANADA ONLY ELECTRICAL REQUIREMENTS It is your responsibility: ■ To contact a qualied electrical installer. ■ To be sure that the electrical connection is adequate and in conformance with Canadian Electrical Code, C22.1-latest edition and all local codes. A copy of above codes standard may be obtained from: Canadian Standards Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA. ■ To supply the required 4-wire, single phase, 120/240 volt, 60 Hz, AC only electrical supply on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit. ■ This dryer is equipped with a CSA International Certied Power Cord intended to be plugged into a standard 14-30R wall receptacle. The cord is 5 ft. (1.52 m) long. Be sure wall receptacle is within reach of dryer’s nal location. For further information, please reference service numbers located in “Assistance or Service” section of your “Use and Care Guide.” GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer is equipped with a cord having an equipment- grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not t the outlet, have a proper outlet installed by a qualied electrician. 4-wire receptacle (14-30R) If your outlet looks like this: Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord, at least 4 ft. (1.22 m) long, must have 4 10-gauge solid copper wires and match a 4-wire receptacle of NEMA Type 14-30 R. The ground wire (ground conductor) may be either green or bare. The neutral conductor must be identied by a white cover. 3-wire receptacle (10-30R) If your outlet looks like this: Then choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire power supply cord, at least 4 ft. (1.22 m) long, must have 3 10-gauge solid copper wires and match a 3-wire receptacle of NEMA Type 10-30R. If connecting by direct wire: Power supply cable must match power supply (4-wire or 3-wire) and be: ■ Flexible armored cable or nonmetallic sheathed copper cable (with ground wire), covered with exible metallic conduit. All current-carrying wires must be insulated. ■ 10-gauge solid copper wire (do not use aluminum) at least 5 ft. (1.52 m) long.8 GAS TYPE Natural Gas: This dryer is equipped for use with Natural gas. It is design- certied by CSA International for LP (propane or butane) gases with appropriate conversion. ■ Your dryer must have the correct burner for the type of gas in your home. Burner information is located on the rating plate in the door well of your dryer. If this information does not agree with the type of gas available, contact your dealer or call the phone numbers referenced in the “Assistance or Service” section of your “Use and Care Guide.” LP Gas Conversion: IMPORTANT: Conversion must be made by a qualied technician. No attempt shall be made to convert the dryer from the gas specied on the model/serial rating plate for use with a different gas without consulting your gas company.

Option 1 (Recommended Method) Flexible stainless steel gas connector: ■ If local codes permit, use a new exible stainless steel gas connector (Design Certied by the American Gas Association or CSA International) to connect your dryer to the rigid gas supply line. Use an elbow and a 3/8" are x 3/8" NPT adapter tting between the stainless steel gas connector and the dryer gas pipe, as needed to prevent kinking. Option 2 (Alternate Method) Approved aluminum or copper tubing ■ Must include 1/8" NPT minimum plugged tapping accessible for test gauge connection, immediately upstream of the gas connection to the dryer. ■ 1/2" IPS pipe is recommended. ■ 3/8" approved aluminum or copper tubing is acceptable for lengths under 20 ft. (6.1 m) if local codes and gas supplier permit. ■ If you are using Natural gas, do not use copper tubing.

ELECTRICAL REQUIREMENTS ■ 120 Volt, 60 Hz, AC only, 15- or 20- amp fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is also recommended that a separate circuit serving only this dryer be provided. GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For a grounded, cord-connected dryer: This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer is equipped with a cord having an equipment- grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock. Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not t the outlet, have a proper outlet installed by a qualied electrician.9 3/8" NPT dryer pipe NOTE: For a garage installation, the gas pipe height must be an additional 18" (460 mm) from the oor.

GAS SUPPLY CONNECTION REQUIREMENTS

■ Use an elbow and a 3/8" are x 3/8" NPT adapter tting between the exible gas connector and the dryer gas pipe, as needed to avoid kinking. ■ Use only pipe-joint compound. Do not use TEFLON

tape. ■ This dryer must be connected to the gas supply line with a listed exible gas connector that complies with the standard for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

BURNER INPUT REQUIREMENTS

Elevations above 2,000 ft. (610 m): ■ When installed above 2,000 ft. (610 m) a 4% reduction of the burner Btu rating shown on the model/serial number plate is required for each 1,000 ft. (305 m) increase in elevation. Gas supply pressure testing ■ The dryer must be disconnected from the gas supply piping system during pressure testing at pressures greater than 1/2 psi. A. 3/8" exible gas connectorB. 3/8" pipe to are adapter tting C. 1/8" NPT minimum plugged tappingD. 1/2" NPT gas supply lineE. Gas shutoff valve. ■ Lengths over 20 ft. (6.1 m) should use larger tubing and a different size adapter tting. ■ If your dryer has been converted to use LP gas, 3/8" LP compatible copper tubing can be used. If the total length of the supply line is more than 20 ft. (6.1 m), use larger pipe. NOTE: Pipe-joint compounds that resist the action of LP gas must be used. Do not use TEFLON

tape. ■ Must include shut-off valve In the U.S.A.: An individual manual shut-off valve must be installed within six (6) ft. (1.8 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1. The location should be easy to reach for opening and closing. In Canada: An individual manual shut-off valve must be installed in accordance with the B149.1, Natural Gas and Propane Installation Code. It is recommended that an individual manual shutoff valve be installed within six (6) ft. (1.8 m) of the dryer. The location should be easy to reach for opening and closing.

†®TEFLON is a registered trademark of E.I. Dupont De Nemours and Company.3"(77 mm)

■ The gas pipe that comes out through the rear of your dryer has a 3/8" male pipe thread.

INSTALL LEVELING LEGS

Prepare dryer for leveling legs

Firmly grasp dryer body (not console panel) and gently lay dryer down on back cardboard corner posts. IMPORTANT: If laying dryer on its back, use the cardboard corner posts the dryer was packed with to avoid damaging the back of the dryer. Screw in leveling legs

Using a wrench and tape measure, screw leveling legs into leg holes until bottom of foot is approximately 1" (25 mm) from bottom of dryer. Now stand the dryer on its feet. Slide the dryer until it is close to its nal location. Leave enough room to connect the exhaust vent. For mobile home use Gas dryers must be securely fastened to the oor. Mobile home installations require a Mobile Home Installation Hold-down Kit. For ordering information please reference the “Use and Care Guide.”10

1. Choose electrical connection type

Power supply cord 4-wire receptacle(NEMA Type 14-30R):Go to Power Supply Cord Connection.3-wire direct connection:Go to Direct Wire Connection.4-wire direct connection:Go to Direct Wire Connection.Power supply cord 3-wire receptacle(NEMA Type 10-30R):Go to Power Supply Cord Connection. NOTE: If local codes do not permit connection of a cabinet-ground conductor to neutral wire, go to “Optional 3-wire connection.” This connection may be used with either a power supply cord or a direct wire connection.

2. Remove terminal block cover

Remove hold-down screw and terminal block cover.Put power supply cord through the strain relief. Be sure that the wire insulation on the power supply cord is inside the strain relief. The strain relief should have a tight t with the dryer cabinet and be in a horizontal position. Do not further tighten strain relief screws at this point. Attach power supply cord to strain relief

Attach power supply cord strain relief Remove the screws from a 3/4" (19 mm) UL listed strain relief (UL marking on strain relief). Put the tabs of the two clamp sections (C) into the hole below the terminal block opening (B) so that one tab is pointing up (A) and the other is pointing down (D), and hold in place. Tighten strain relief screws just enough to hold the two clamp sections (C) together.

Power Supply Cord Strain Relief

POWER SUPPLY CORD CONNECTION11

4-wire Power Supply Cord Connection IMPORTANT: A 4-wire connection is required for mobile homes and where local codes do not permit the use of 3-wire connections. Power supply cord 4-wire receptacle (NEMA Type 14-30R): Go to “4-Wire Power Supply Cord Connection”. Power supply cord 3-wire receptacle (NEMA Type 10-30R): Go to “3-Wire Power Supply Cord Connection”. If your outlet looks like this: 4-wire receptacle (NEMA type 14-30R) 4-prong plug Spade terminals with upturned ends Ring terminals Remove center terminal block screw (B). Remove neutral ground wire (E) from external ground conductor screw (A). Reinstall ground conductor screw (A).

Prepare to connect neutral ground wire and neutral wire

Connect neutral ground wire and neutral wire

Connect neutral ground wire (E) and neutral wire (white) (C) of power supply cord under center terminal block screw (B). Tighten screw. Connect remaining wires

Connect remaining wires to outer terminal block screws. Tighten screws. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to “Venting Requirements.”

Connect ground wire (F) (green or bare) of power supply cord to external ground conductor screw (A). Tighten screw.

3. Connect ground wire12

3-wire receptacle (NEMA type 10-30R) 3-prong plug Spade terminals with upturned ends Ring terminals Use where local codes permit connecting cabinet-ground conductor to neutral wire. 3-wire Power Supply Cord Connection

3. Connect remaining wires

Connect remaining wires to outer terminal block screws. Tighten screws. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to “Venting Requirements.”

2. Connect neutral wire

Connect neutral wire (white or center) (C) of power supply cord to center terminal block screw (B). Tighten screw.

Remove center terminal block screw (B).

Unscrew the removable conduit connector (A) and any screws from a 3/4" (19 mm) UL listed strain relief (UL marking on strain relief). Put the threaded section of the strain relief (C) through the hole below the terminal block opening (B). Reaching inside the terminal block opening, screw the removable conduit connector (A) onto the strain relief threads.

Direct Wire Strain Relief Put direct wire cable through the strain relief. The strain relief should have a tight t with the dryer cabinet and be in a horizontal position. Tighten strain relief screw against the direct wire cable.

2. Attach direct wire cable

to strain relief 3-wire direct connection: Go to “3-Wire Direct Connection” on page 11. 4-wire direct connection: Go to “4-Wire Direct Connection” on this page. If your wiring looks like this: 4-wire Direct Wire Connection IMPORTANT: A 4-wire connection is required for mobile homes and where local codes do not permit 3-wire connections. Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer may be moved if needed. Strip 5" (127 mm) of outer covering from end of cable, leaving bare ground wire at 5" (127 mm). Cut 1

" (38 mm) from remaining 3 wires. Strip insulation back 1" (25 mm). Shape ends of wires into hooks. 1"(25 mm) 5"(127 mm)

1. Prepare your 4-wire cable for

3. Connect neutral ground wire

and neutral wire Connect neutral ground wire (E) and place hooked end (hook facing right) of neutral wire (white or center wire) (C) of direct wire cable under center screw of terminal block (B). Squeeze hooked ends together and tighten screw.

2. Prepare to connect neutral

ground wire and neutral wire

Remove center terminal block screw (B). Remove neutral ground wire (E) from external ground conductor screw (A).14

4. Connect ground wire

Connect ground wire (green or bare) (F) of direct wire cable to external ground conductor screw (A). Tighten screw. Place hooked ends of remaining direct wire cable wires under outer terminal block screws (hooks facing right). Squeeze hooked ends together and tighten screws. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to “Venting Requirements.”

5. Connect remaining wires

3-wire Direct Wire Connection Use where local codes permit connecting cabinet-ground conductor to neutral wire.

Remove center terminal block screw (B). Direct wire cable must have 5 ft. (1.52 m) of extra length so dryer may be moved if needed. Strip 3

" (89 mm) of outer covering from end of cable. Strip insulation back 1" (25 mm). If using 3-wire cable with ground wire, cut bare wire even with outer covering. Shape wire ends into hooks. 1"(25 mm) 3½"(89 mm)

1. Prepare your 3-wire cable for

direct connection Connect remaining wires

Place hooked ends of remaining direct wire cable wires under outer terminal block screws (hooks facing right). Squeeze hooked ends together and tighten screws. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to “Venting Requirements.”

Place hooked end of neutral wire (white or center) (C) of direct wire cable under center terminal block screw (B). Squeeze hooked end together. Tighten screw.

3. Connect neutral wire15

1. Prepare to connect neutral

ground wire and neutral wire

Remove center terminal block screw (B). Remove neutral ground wire (E) from external ground conductor screw (A). Optional 3-wire Connection You must verify with a qualied electrician that this grounding method is acceptable before connecting.

Connect neutral ground wire and neutral wire

Connect neutral ground wire (E) and neutral wire (white or center wire) (C) of power supply cord or cable under center terminal block screw (B). Tighten screw. Connect remaining wires

Connect remaining wires to outer terminal block screws Tighten screws.

Connect external ground wire

Connect a separate copper ground wire (G) from the external ground conductor screw (A) to an adequate ground. Finally, reinsert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold-down screw. Now, go to “Venting Requirements.”16 VENTING REQUIREMENTS

WARNING: To reduce the risk of re, this dryer MUST BE

EXHAUSTED OUTDOORS. IMPORTANT: Observe all governing codes and ordinances. Dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, attic, crawlspace, or a concealed space of a building. Only rigid or exible metal vent shall be used for exhausting.4"(102 mm)4" (102 mm) heavy metal exhaust vent ■ Only a 4" (102 mm) heavy metal exhaust vent and clamps may be used. ■ Do not use plastic or metal foil vent. Rigid metal vent: ■ Recommended for best drying performance and to avoid crushing and kinking. Flexible metal vent: (Acceptable only if accessible to clean) ■ Must be fully extended and supported in nal dryer location. ■ Remove excess to avoid sagging and kinking that may result in reduced airow and poor performance. ■ Do not install in enclosed walls, ceilings, or oors. ■ The total length should not exceed 7

ft. (2.4 m). ■ The length of exible metal vent used must be included in the overall vent system design as shown in the “Vent System Charts.” NOTE: If using an existing vent system, clean lint from entire length of the system and make sure exhaust hood is not plugged with lint. Replace plastic or metal foil vents with rigid metal or exible metal vents. Review Vent System Chart and if necessary, modify existing vent system to achieve best drying performance. VENTING Connect gas supply to dryer

Remove red cap from gas pipe. Using a wrench to tighten, connect gas supply to dryer. Use pipe-joint compound on threads of all non-ared male ttings. If exible metal tubing is used, be sure there are no kinks.NOTE: For LP gas connections, you must use pipe-joint compound resistant to action of LP gas. Do not use TEFLON tape. Non-ared male ttingFlared male tting Open shut-off valve

Open shut-off valve in supply line; valve is open when handle is parallel to gas pipe. Then, test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leaks found.

Open valve Closed valve

A combination of pipe ttings must be used to connect dryer to existing gas line. A recommended connection is shown. Your connection may be different, according to supply line type, size, and location.A. 3/8" exible gas connectorB. 3/8" dryer pipe C. 3/8" to 3/8" pipe elbowD. 3/8" pipe-to-are adapter tting

Clamps: ■ Use clamps to seal all joints. ■ Exhaust vent must not be connected or secured with screws or other fastening devices that extend into interior of duct and catch lint. Do not use duct tape. Vent products can be purchased from your dealer. For more information, see “Assistance or Service” section in your “Use and Care Guide.” Louvered Hood Good Angled Hood Box Hood Better Exhaust hoods: Elbows: Recommended Styles: Recommended Styles: ■ 45° elbows provide better airow than 90° elbows. ■ Must be at least 12" (305 mm) from ground or any object that may obstruct exhaust (such as owers, rocks, bushes, or snow). Acceptable Style: Optional exhaust installations:

Recommended exhaust installations Typical installations vent the dryer from the rear of the dryer. Other installations are possible.

A. Dryer B. Elbow C. Wall D. Exhaust hood E. Clamps F. Rigid metal or exible metal vent G. Vent length necessary to connect elbows H. Exhaust outlet If you prefer, dryer may be converted to exhaust through the bottom and sides. You must contact your local dealer to have dryer converted.

A. Standard rear offset exhaust installation B. Left- or right-side exhaust installation C. Bottom exhaust installation B18 Special provisions for mobile homes: Exhaust vent must be securely fastened to a noncombustible portion of mobile home and must not terminate beneath the mobile home. Terminate exhaust vent outside. Moblie Home Exhaust installation

For non-steam models, skip to “Connect Vent.” The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses. Connect vent to exhaust hood

Vent must t over the exhaust hood. Secure vent to exhaust hood with 4" (102 mm) clamp. Run vent to dryer location using straightest path possible. Avoid 90° turns. Use clamps to seal all joints. Do not use duct tape, screws, or other fastening devices that extend into interior of vent to secure vent, because they can catch lint.

Install exhaust hood and use caulking compound to seal exterior wall opening around exhaust hood. Determine vent length and elbows needed for best drying performance: ■ Use following Vent System Chart to determine type of vent material and hood combinations acceptable to use. NOTE: Do not use vent runs longer than those specied in Vent System Chart. Exhaust systems longer than those specied will: ■ Shorten life of dryer. ■ Reduce performance, resulting in longer drying times and increased energy usage. Vent System Chart Number of 90° elbows Type of vent Angled hoods

Rigid metal Rigid metal Rigid metal Rigid metal Rigid metal 64 ft. (20 m) 54 ft. (16.5 m) 44 ft. (13.4 m) 35 ft. (10.7 m) 27 ft. (8.2 m) The Vent System Charts provide venting requirements that will help achieve best drying performance. NOTE: Bottom exhaust installations have a 90° turn inside the dryer. To determine maximum exhaust length, add one 90° turn to the charts. Determine vent path: ■ Select route that will provide straightest and most direct path outdoors. ■ Plan installation to use fewest number of elbows and turns. ■ When using elbows or making turns, allow as much room as possible. ■ Bend vent gradually to avoid kinking. ■ Use as few 90° turns as possible. Turn cold water faucet off and remove washer inlet hose. Remove old rubber washer from inlet hose and replace with new rubber washer. Turn cold water off, remove and replace rubber washer

Using pliers, tighten the couplings with additional two-thirds turn. NOTE: Do not overtighten. Damage to the coupling can result. Attach short hose and “Y” connector

Attach 2 ft (0.6 m) inlet hose to cold water faucet. Screw on coupling by hand until it is seated on faucet. Then attach “Y” connector to male end of the 2 ft (0.6 m) inlet hose. Screw on coupling by hand until it is seated on connector. Attach long hose to “Y” connector and tighten couplings

Attach dryer 5 ft (1.5 m) inlet hose ends to the “Y” connector. Attach washer cold inlet hose to other side of “Y” connector. Screw on coupling by hand until it is seated on connector. Using pliers, tighten the couplings an additional two-thirds turn. NOTE: Do not overtighten. Damage to the coupling can result.

/2" (115 mm) Attach long hose to dryer ll valve and tighten coupling

Attach other end of long hose to ll valve at bottom of dryer back panel. Screw on coupling by hand until it is seated on ll valve connector. Using pliers, tighten the couplings an additional two-thirds turn. NOTE: Do not overtighten. Damage to the coupling can result. Check for leaks

Check for leaks around “Y” connector, faucets, and hoses. Turn on cold water faucet Check that the water faucet is turned on.

Gas Valve Fill Valve20 LEVEL DRYER Not Level LEVEL Not LevelCheck levelness of dryer from side to side. Repeat from front to back. NOTE: The dryer must be level for the moisture sensing system to operate correctly. CONNECT VENT

1. Connect vent to exhaust outlet

Using a 4" (102 mm) clamp, connect vent to exhaust outlet in dryer. If connecting to existing vent, make sure vent is clean. Dryer vent must t over dryer exhaust outlet and inside exhaust hood. Check that vent is secured to exhaust hood with a 4" (102 mm) clamp. Move dryer to nal location

Move dryer to nal location. Avoid crushing or kinking vent. Level Dryer

If dryer is not level, prop up using a wood block. Use wrench to adjust legs up or down, and check again for levelness. Place level herePlace level here21 COMPLETE INSTALLATION CHECKLIST

Check that all parts are now installed. If there is an extra part, go back through steps to see what was skipped.

Check that you have all of your tools.

Dispose of/recycle all packaging materials.

Check dryer’s nal location. Be sure vent is not crushed or kinked.

Check that dryer is level. See “Level Dryer.”

Remove lm on console and any tape remaining on dryer.

Wipe dryer drum interior thoroughly with a damp cloth to remove any dust.

Read “Dryer Use” in your “Use and Care Guide.” Electric Models:

For power supply cord installation, plug into a grounded outlet. For direct wire installation, turn on Power. Gas Models:

Check that gas supply is on.

Check for leaks. Steam models only:

Be sure the water faucets are on.

Check for leaks around “Y” connector, faucet, and hoses.

If you live in a hard water area, use of a water softener is recommended to control the buildup of scale through the water system in the dryer. Over time, the buildup of lime scale may clog different parts of the water system, which will reduce product performance. Excessive scale buildup may lead to the need for certain part replacement or repair. All Models:

Select a Timed Dry heated cycle, and start dryer. Do not select Air Only Temperature setting. If dryer will not start, check the following:

• Controls are set in a running or “On” position.

• Start button has been pushed rmly.

• Dryer is plugged into an outlet and/or electrical supply is connected.

• Household fuse is intact and tight, or circuit breaker has not tripped.

• Dryer door is closed. This dryer automatically runs an installation diagnostic routine at the start of its rst cycle. If you receive an L2 code, there may be a problem with your home power supply keeping the dryer’s heater from turning on. See “Troubleshooting.” If your Airow screen reads “Check Vent”, your dryer vent may be crushed or blocked. See “Troubleshooting.” NOTE: You may notice an odor when dryer is rst heated. This odor is common when heating element is rst used. The odor will go away.22

You can change your door swing from a right-side opening to a left-side opening, if desired.

1. Place a towel or soft cloth on top of dryer or work space

to avoid damaging the surface. Remove door from dryer cabinet

1. Open the dryer door.

screwdriver, remove screws (A) and then (B) screws from each of the two hinges that attach dryer door to front panel of dryer. Set the hinge screws off to the side for reinstalling the door.

3. Remove the dryer door by lifting upward and out to lift the

door off the cabinet. Lay the door on a at, covered surface, with the inside of the door facing up.

5. Install 2 plastic plugs (A) into screw holes where the hinges

were removed in Step 4. Reverse the strike

1. Remove the door strike (A) from the dryer door opening.

2. Remove the cosmetic screw (B) opposite the door strike (A).

A. Door strike B. Cosmetic screw

3. Reinstall the door strike and cosmetic screw on the opposite

side of dryer door opening from where they were removed. NOTE: Door strike and plugs must be on the same side of the dryer door opening.

screwdriver Flat-blade screwdriver Plastic putty knife

#2 Phillips screwdriver

® TORX and T25 are registered trademarks of Acument Intellectual Properties, LLC.

4. Remove the 2 plastic plugs (A) located outside the dryer

door opening.23 Remove the door assembly

1. Lay the door on a at, covered surface with the inside of the

door facing up. Remove the 3 plugs with a plastic putty knife. There is a cut out to stick the putty knife under to pop out.

2. Remove the 10 screws from the dryer door and set

screws off to the side.

3. Remove the inner door by using a plastic putty knife to

separate the sides and bottom of the dryer door and trim. There are 2 snaps on left, right, and bottom of door. Insert the putty knife next to the snaps.

4. When you have the door separated from the frame, use a

putty knife to lift up in the center tab and then pull door toward you and out.24

7. Remove the 3 screws down the left and right sides

of the door to remove the outer trim pieces.

9. Add the hinges to the right side of the door and then ip

the hinge labeled 1 to the bottom of the right side and the hinge labeled 2 to the top of the right side of the door.

6. Remove the door hinges and set off to the side.

8. Lift door up and rotate trim pieces to the opposite side from

which they were removed. Then screw trim pieces back in.

5. Remove the door strike plug with a athead screwdriver.

Remove door strike by pinching the clips from the inside door panel and then rotate and push out the front. Insert door strike on the other side of dryer door by pushing in and then add the door strike plug.25

10. Add inside door panel back into the dryer door by sliding the

top into the top trim piece and then lower door down. Then press down on the corners to snap into place with the hinges lined up with the hinge holes.

11. Install 6 hinge screws and the other 4 screws.

12. Install hinge covers and plugs. Hinge covers will go in

sideways to then rotate 90° and snap into place.

13. Hang door by placing set pin in dryer cabinet hole and slide

door down. Using a T25

screwdriver, install (A) screws and then (B) screws. Tighten all hinge screws.
