USER MANUAL YWED6120HC WHIRLPOOL

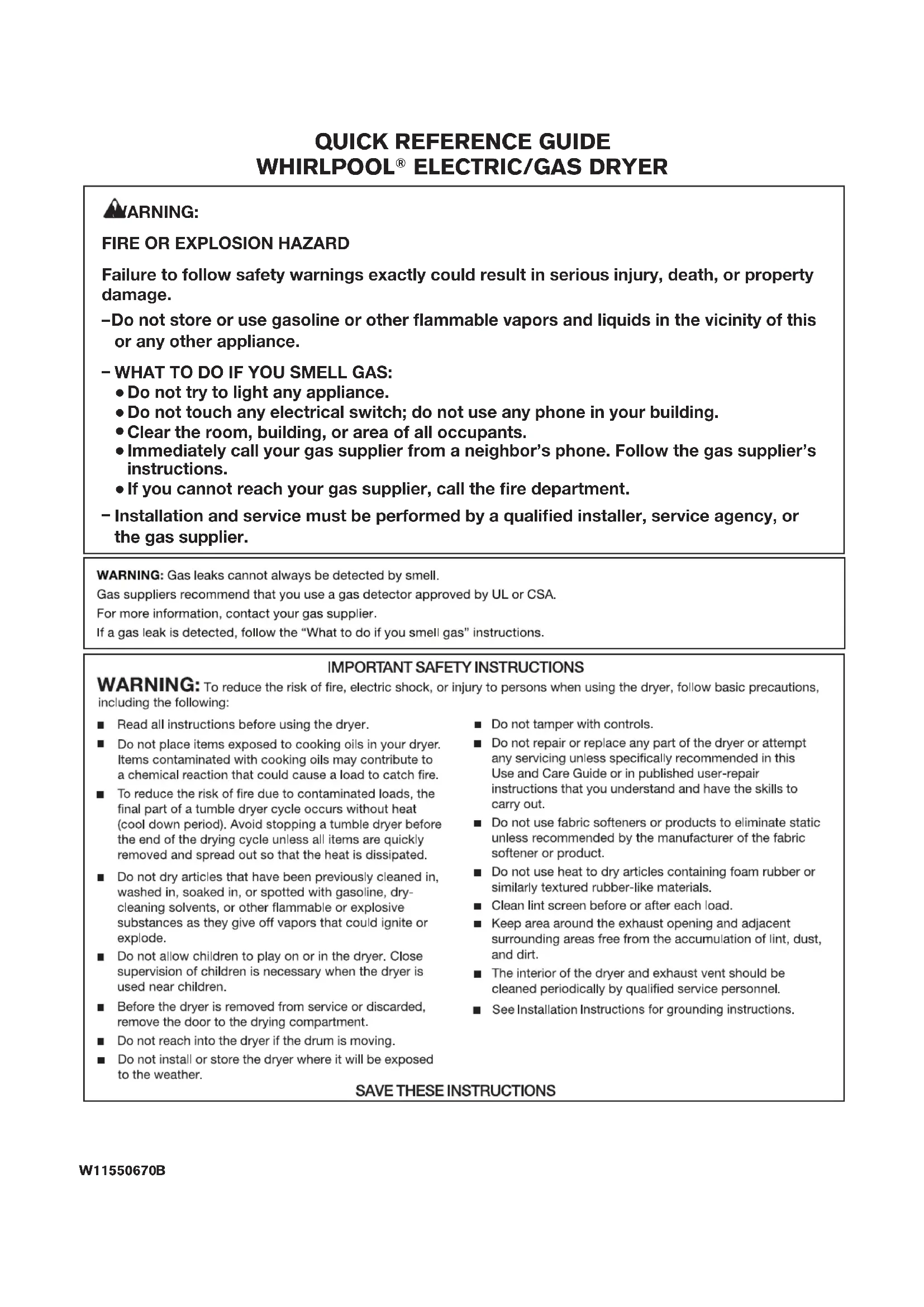

Failure to follow safety warnings exactly could result in serious injury, death, or property damage. Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this or any other appliance.

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the re department.

Installation and service must be performed by a qualied installer, service agency, or the gas supplier.

Clear the room, building, or area of all occupants. W11550670

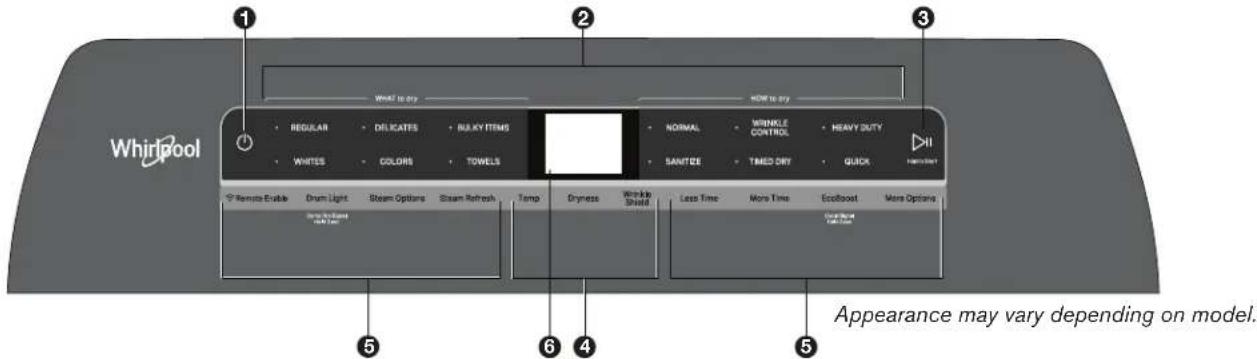

POWER Touch to turn on/off or to stop/cancel a cycle.

WHAT TO DRY/HOW TO DRY

First select a cycle from the “What to dry” and then select the “How to dry” to get the best combination cycle available for the type of items you are going to dry. See “Cycle Guide” for cycle details. START/PAUSE Touch and hold; cycle will start after countdown. Touch START/PAUSE during a cycle to pause it. Touch again to resume.

MODIFIERS (Not all cycles and options are available on all models.) NOTE: Dryer remembers the last completed cycle and cycle settings. The next time you turn dryer on, it will be set to run the last cycle. Temp Touch to modify the cycle’s available temperatures (Air Only, Low, Medium, Medium High, High). Follow garment label instructions for best results. Once a cycle has started, the temperature can be changed within the first 5-8 minutes. Dryness Touch to modify the cycle’s available dryness levels on the sensor cycles (Less, Normal, More). NOTE: Dryness is for use with Automatic Cycles only. Wrinkle Shield™ Option Touch to turn on/off and on with steam (select models). Wrinkle Shield™ option adds up to 150 minutes of periodic tumbling and heat to help reduce wrinkling. Wrinkle Shield™ option with steam will add a short steam cycle after 60 minutes to help smooth wrinkles. CYCLE OPTIONS (Not all cycles and options are available on all models.) Use to select available modifiers for your dryer. Remote Enable Touch each time you want to remotely control via the Whirlpool

app. Follow the instructions in the “GET THE WHIRLPOOL

APP AND GET CONNECTED” section below for more details. NOTE: Once Remote Enable has been selected, certain interactions with the dryer will cause it to cancel Remote Enable. Example: Opening the door.

Damp Dry Signal Touch Damp Dry Signal or touch and hold Drum Light (depending on the model) for at least 3 seconds to turn the Damp Dry Signal on or off. You will get a sound and display notification as “Items are damp. You can pause and reposition for best results”. Drum Light Touch to turn the drum light on/off. Steam Options Touch to add Steam and/or Reduce Static to selected cycle. Steam option adds steam to the end of cycle to help smooth wrinkle. Reduce Static will automatically tumble and introduce a small amount of moisture to the load to help reduce static

For best results with Reduce Static, avoid small load sizes. Steam Refresh (steam models only) This cycle is best for reducing wrinkles from dry items. Cycle time will increase, depending on number of items. This is an independent cycle that cannot be combined with any other cycle. More Time/Less Time Timed Dry Adjust Touch More Time or Less Time with the TIMED DRY/QUICK cycle to increase or decrease the length of the cycle time. EcoBoost

option will default on only for the REGULAR/ NORMAL cycle and is only available on that cycle. This option allows you to increase your energy savings by using a slightly lower heat level. The EcoBoost

option will increase drying times by approximately 40 minutes, which will be reflected on the LCD Display. If optimal time is desired, touch EcoBoost

to turn off this option. Cycle Signal Use this option to turn the signal indicating the end of a drying cycle to Low, Medium, High, or Off. NOTE: Press/hold Cycle Signal to select the volume. Appearance may vary depending on model.3 More Options

ouch to select your “Favorite cycle” (Only available for models with Wi-Fi capability). Favorite cycle: You may create “custom” cycles in the app and store one frequently-used or favorite cycle on the machine. LCD DISPLAY When you select a cycle, its default settings will display and the Estimated Time Remaining (for Automatic Cycles) will vary depending on “What to dry” and “How to dry” selections, or actual time remaining for TIMED DRY cycles (for Manual Cycles) will be displayed.

Sensing Displays during Sensor cycles to indicate that the moisture sensor on the dryer is operating. It will not be displayed during Timed/Quick Dry cycles or options such as Wrinkle Shield™ option. Drying Dryer is in the main dry phase of the automatic cycle. Steaming Steam option selected and Steam phase running. Cool Down The dryer has finished drying with heat and is now tumbling the load without heat to cool it down. Static Reduce Reduce Static phase is running. End Display message will show “Drying is complete” and will time- out after 5 minutes. This will indicate that the selected cycle has ended and the load may be removed from the dryer. If Wrinkle Shield™ option has been selected, the dryer may continue to tumble the load, even if “End” is displayed. Check Vent The Check Vent alert is a feature available for Automatic cycles only. This alert will show the status of airflow through the dryer and the dryer vent system for the dryer’s life. During the sensing phase at the beginning of the cycle if it detects a blocked vent or low pressure it will display “Check vent. Clean lint screen or vent for better performance.” REMEMBER: Thedryer will continue to operate even when check vent notification is displayed, but poor airflow can impact dry times and overall performance. Display message can be cleared by pressing any key with the exception of Power which will cancel the cycle.

APP APP AND GET CONNECTED AND GET CONNECTED With your mobile device download the Whirlpool

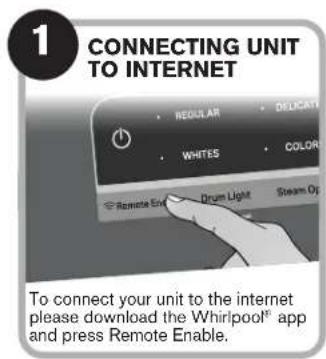

app. You can get subscription and connectivity instructions, terms of use, and privacy policy at www.whirlpool.com/connect or in Canada www.whirlpool.ca/connect. CONNECTING UNIT TO INTERNET

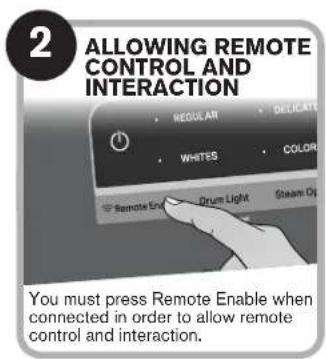

To connect your unit to the internet please download the Whirlpool app and press Remote Enable. ALLOWING REMOTE CONTROL AND INTERACTION

You must press Remote Enable when connected in order to allow remote control and interaction.

Once installed, launch the app and you will be guided through the steps to subscribe and create your user account to connect to your appliance. If you have any problems or questions, call Whirlpool

(Only available for models with Wi-Fi capability). When unit is first powered on, it will prompt to select language before you see message to Download APP or press any other key to setup Wi-Fi later.4

If you unintentionally select wrong language during digital un-boxing and/or you want to get back to Factory settings then perform Factory Reset. FACTORY RESET Press/hold both Temp and Wrinkle Shield™ keys until display count-down has completed. Unit will power back on with “Select Language” display message. NOTE: Government energy certifications for this model were based on the Regular + Normal Cycle, Highest temperature setting, Normal Dryness Level, EcoBoost™On. The as-shipped defaults were the same as the Government Energy Certification Settings except the default Temperature Setting of Medium was adjusted to the Highest temperature setting. Cycles that are available for post-sale download may use more energy than the Normal cycle, upon which the energy use rating of this dryer is based. *NOTE: See “Cycle Guide” for more information about cycles, settings, and options. Not all cycles, settings, and options are available with all models. Read all your Manuals for more information on your unit.

Clean the lint screen before each load. Also, clean the exhaust vent at least every 2 years.

WARNING Fire Hazard No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils). Items containing foam, rubber, or plastic must be dried on a clothesline or by using an Air Cycle. Failure to follow these instructions can result in death or fire. WARNING Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from dryer. Do not dry anything that has ever had anything flammable on it (even after washing). Failure to follow these instructions can result in death, explosion, or fire.5 CYCLE GUIDE Your dryer has a unique user interface to help you select the best cycle you need for your load. The “What to dry” “How to dry” layout guides you to the optimal cycle in two easy steps: 1. First determine what items are in the load that you are trying to dry. Use that to guide your “What to dry” selection. 2. Then determine how you want the dryer to dry them by selecting the appropriate “How to dry” selection. Modifiers are preset for the items being dried, but can be changed if desired. To get the most energy savings and enhanced fabric care from your dryer, use the Automatic cycles. These cycles measure the drying air temperature and moisture levels to turn the dryer off once the load reaches the selected dryness level. Dryer performance and results may vary with service voltage less than rated voltage (Electric, 240 V; Gas, 120 V). For best fabric care, choose the cycle that best fits the load being dried. R – Recommended Cycle a – Alternate Cycle Blank – Cycle is available but not optimal. How do you want to dry? “How to dry” Cycle Selection NORMAL Wrinkle Control HEAVY DUTY SANITIZE*

Regular Automatic Sensor Cycle stops when dryness level is reached. High Heat longer cycle Automatic Sensor Cycle stops when dryness level is reached. Hot High Heat Used to kill 99.9% of three common bacteria. Set amount of dry time Dryer runs for the amount of time selected. Set amount of dry time Dryer runs for the amount of time selected. What do you want to dry? “What to dry” Cycle Selection Baby Clothes REGULAR

Handkerchiefs a R T-Shirts

Sweatshirts a R Coats and Jackets a R Cotton Drapes

Undergarments a R Wool

Dress Shirts/Pants a R Blankets BULKY ITEMS R a Fabric Rugs

• Extended high-heat drying cycle intended to help sanitize items such as sheets and towels. This cycle is not recommended for all fabrics. For best results, this cycle should be run to completion to ensure sanitization and do not interrupt cycle.6 For best fabric care, choose the cycle that best fits the load being dried. R – Recommended Cycle a – Alternate Cycle Blank – Cycle is available but not optimal. How do you want to dry? “How to dry” Cycle Selection NORMAL Wrinkle Control HEAVY DUTY SANITIZE*

Regular Automatic Sensor Cycle stops when dryness level is reached. High Heat longer cycle Automatic Sensor Cycle stops when dryness level is reached. Hot High Heat Used to kill 99.9% of three common bacteria. Set amount of dry time Dryer runs for the amount of time selected. Set amount of dry time Dryer runs for the amount of time selected. What do you want to dry? “What to dry” Cycle Selection Cotton Undergarments WHITES R a White Napkins R a Athletic COLORS R a Performance Wear R a Colored Napkins R a Dish Cloths TOWELS a R a Towels a R a Non-Rubber Lined Rugs

*Extended high-heat drying cycle intended to help sanitize items such as sheets and towels. This cycle is not recommended for all fabrics. For best results, this cycle should be run to completion to ensure sanitization and do not interrupt cycle. Models 7120, 8120, 8127 NOTE: These clothes dryer’s Government energy certifications were based on the Regular + Normal Cycle, Maximum Drying Temperature Setting, Normal Dryness Level, EcoBoost

On. The as - shipped defaults of EcoBoost

option off, Remote Enable off, were used. Models 5100 & 6120 NOTE: These clothes dryer’s Government energy certifications were based on the Regular + Timed Dry Cycle and Maximum Drying Temperature Setting. The as - shipped defaults of EcoBoost

option off, Remote Enable off, Normal Dryness level, were used. DRYER ICONS Image Description Status Remote Enable

Off Steam Refresh On Steam On Reduce Static On Reduce Static & Steam

i-Fi Status Indicator *NOTE: When the Wi-Fi is disconnected, the priority goes to the first, then as other options added, it goes to the least again. Connected Disconnected7 ASSISTANCE OR SERVICE AND ADDITIONAL INFORMATIONASSISTANCE OR SERVICE AND ADDITIONAL INFORMATION For detailed installation instructions and maintenance information, winter storage and transportation, please see the INSTALLATION AND CARE INSTRUCTIONS MANUAL included with your machine. For detailed product dimensions, please see the DIMENSION GUIDE that can be found at www.whirlpool.com/owners or in Canada www.whirlpool.ca/owners. For information on any of the following items please visit www.whirlpool.com/owners or in Canada www.whirlpool.ca/owners. This may save you the cost of a service call. REGISTER PRODUCT SCHEDULE SERVICE

MANUALS & DOWNLOADS ADD SERVICE PLAN PARTS ACCESSORIES To speak with a customer service representative or if you have additional questions, call us toll free at 1-866-698-2538 or in Canada call 1-800-688-2002. You can write with any questions or concerns at: Whirlpool Brand Appliances Customer eXperience Center 533 Benson Road Benton Harbor, MI 49022-2692 Whirlpool Brand Appliances Customer eXperience Center Unit 200-6750 Century Ave Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. Model & Serial Number Tag location Image Description Status Smartgrid, Peak rates in effect

Smart Delay Smart Pause Favorite Cycle Download & Go Cycle Image Description Status Cycle Signal Low Medium High Off Damp Dry Signal
