TABLE OF CONTENTS

PROTECTION AGREEMENTS ......2

WARRANTY ....3

DISHWASHER SAFETY 4

WHAT'S NEW IN YOUR DISHWASHER....6

Energy......6

Performance 6

PARTS AND FEATURES....7

START-UP / QUICK REFERENCE ....8

DETERGENT AND RINSE AID ....11

Detergent ....11

Rinse Aid....12

LOADING ....13

Loading for Best Cleaning and Drying Performance ....13

Top Rack Loading 14

Bottom Rack Loading 17

DISHWASHER USE....20

Cycles and Options Information 20

Dishwasher Control Section....22

Dishwasher Feedback Section....22

Canceling A Cycle 22

Changing A Cycle After Dishwasher Is Started....23

Adding A Dish After Dishwasher Is Started 23

WASHING SPECIAL ITEMS.... 23

DISHWASHER CARE 24

Cleaning.... 24

Dishwasher Maintenance Procedure 25

Drain Air Gap....25

Vacation or Extended Time Without Use 25

TROUBLESHOOTING....26

SERVICE NUMBERS ....BACK COVER

PROTECTION AGREEMENTS

Master Protection Agreements

Congratulations on making a smart purchase. Your new Kenmore® product is designed and manufactured for years of dependable operation. But like all products, it may require preventive maintenance or repair from time to time. That's when having a Master Protection Agreement can save you money and aggravation.

The Master Protection Agreement also helps extend the life of your new product. Here's what the Agreement* includes:

√ Parts and labor needed to help keep products operating properly under normal use, not just defects. Our coverage goes well beyond the product warranty. No deductibles, no functional failure excluded from coverage—real protection.

√ Expert service by a force of more than 10,000 authorized Sears service technicians, which means someone you can trust will be working on your product.

√ Unlimited service calls and nationwide service, as often as you want us, whenever you want us.

√ "No-lemon" guarantee – replacement of your covered product if four or more product failures occur within twelve months.

√ Product replacement if your covered product can't be fixed.

√ Annual Preventive Maintenance Check at your request – no extra charge.

√ Fast help by phone – we call it Rapid Resolution – phone support from a Sears representative on all products. Think of us as a “talking owner’s manual.”

√ Power surge protection against electrical damage due to power fluctuations.
√ \$250 Food Loss Protection annually for any food spoilage that is the result of mechanical failure of any covered refrigerator or freezer.
√ Rental reimbursement if repair of your covered product takes longer than promised.
√ 10% discount off the regular price of any non-covered repair service and related installed parts.

Once you purchase the Agreement, a simple phone call is all that it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Master Protection Agreement is a risk free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Master Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

*Coverage in Canada varies on some items. For full details call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME ^® .

KENMORE ELITE® LIMITED WARRANTY

When this appliance is installed, operated and maintained according to all supplied instructions, the following warranty coverage applies. To arrange for warranty service, call 1-800-4-MY-HOME ^® (1-800-469-4663).

For two years from the date of purchase, any part of the dishwasher that fails due to defective materials or workmanship will be replaced free of charge. After the first year from purchase date, the customer assumes any labor costs associated with replacement of these parts.
For five years from the date of purchase, any part of the upper or lower dish rack that rusts due to defective materials or workmanship will be replaced free of charge. After the first year from purchase date, the customer assumes any labor costs associated with dish rack replacement.
If a leak ever occurs as a result of rust-through of the stainless steel tub or inner door panel, the tub or panel will be replaced free of charge.

This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private family purposes.

This warranty covers only defects in material and workmanship, and will NOT pay for:

1. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
2. A service technician to instruct the user in correct product installation, operation or maintenance.

3. A service technician to clean or maintain this product.

4. Damage to or failure of this product if it is not installed, operated or maintained according to the all instructions supplied with the product.

5. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.

6. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those recommended in all instructions supplied with the product.

7. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.

Disclaimer of implied warranties; limitation of remedies

Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warranties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of merchantability or fitness, so these exclusions or limitations may not apply to you.

This warranty applies only while this appliance is used in the United States or Canada.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

DISHWASHER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or

"WARNING." These words mean:

! DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
  ■ Use the dishwasher only for its intended function.
  ■ Use only detergents or rinse agents recommended for use in a dishwasher, and keep them out of the reach of children.
  ■ When loading items to be washed:
  1) Locate sharp items so that they are not likely to damage the door seal; and
  2) Load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
  ■ Do not touch the heating element during or immediately after use.
  ■ Do not operate the dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.
■ Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
■ To reduce the risk of injury, do not allow children to play in or on the dishwasher.
■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
■ Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Doing so can result in serious injury or cuts.

WARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ Install where dishwasher is sheltered from the elements.
Avoid possible rupture of fill valve from freezing. Such ruptures are not covered by the warranty. See the "Vacation or Extended Time Without Use" section.
■ Install and level dishwasher on a floor that will hold the weight, and in an area suitable for its size and use.
■ Remove all shipping plugs from hoses and connectors (such as the cap on the drain outlet) before installing. See Installation Instructions for complete information.

GROUNDING INSTRUCTIONS

■ For a grounded, cord-connected dishwasher: The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

■ For a permanently connected dishwasher:

The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

SAVE THESE INSTRUCTIONS

WHAT'S NEW IN YOUR DISHWASHER

Energy

Congratulations on purchasing your water and energy efficient dishwasher! This dishwasher cleans by spraying the dishes with water and pauses to allow the detergent to soak into and release the soils on the dishes. The cycles are longer due to the soak and the pauses for exceptional cleaning. Models with SmartWash ^® H _E contain an optical water sensor. The optical water sensor is used to determine the optimum water and energy consumption for great cleaning performance. The first cycle using the sensor will run longer to calibrate the optical sensor.

Performance

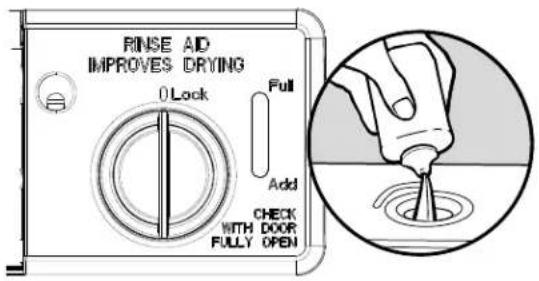

Rinse Aid

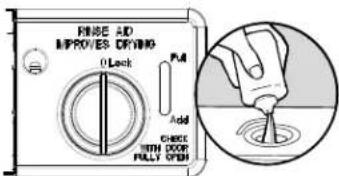

Using rinse aid will optimize your drying and wash performance. This dishwasher is specifically designed to be used with rinse aid for improved drying performance and controlling buildup of hard water deposits. Energy efficient dishwashers use less water and energy, so they depend on the water "sheeting" action of rinse aid for total optimal performance.

RINSE AD IMPROVES DRYING 0Lock Full Add CHECK WITH DOOR FULLY OPEN

Detergent

The United States and Canada have passed a restriction limiting the amount of phosphorus (phosphates) in the household dishwasher detergents to no more than 0.5%, whereas previous detergents contained 8.7%. Major manufacturers have reformulated their dishwasher detergent for this change in detergents as another step in eco-conscious awareness. With these recent changes it is recommended to use tablets and packs for convenience and improved performance.

Line drawing of a hand using a tool to clean or adjust a device into a rack (no text or symbols visible)

Filtration System

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy conservation while providing optimal cleaning performance. Regular maintenance of your filters will sustain peak cleaning performance. We suggest you clean both your upper and lower filter and rinse under running water at least once a month.

Two-step illustration showing hand cleaning a sink with a pipe fitting and a wash cover (no text or symbols)

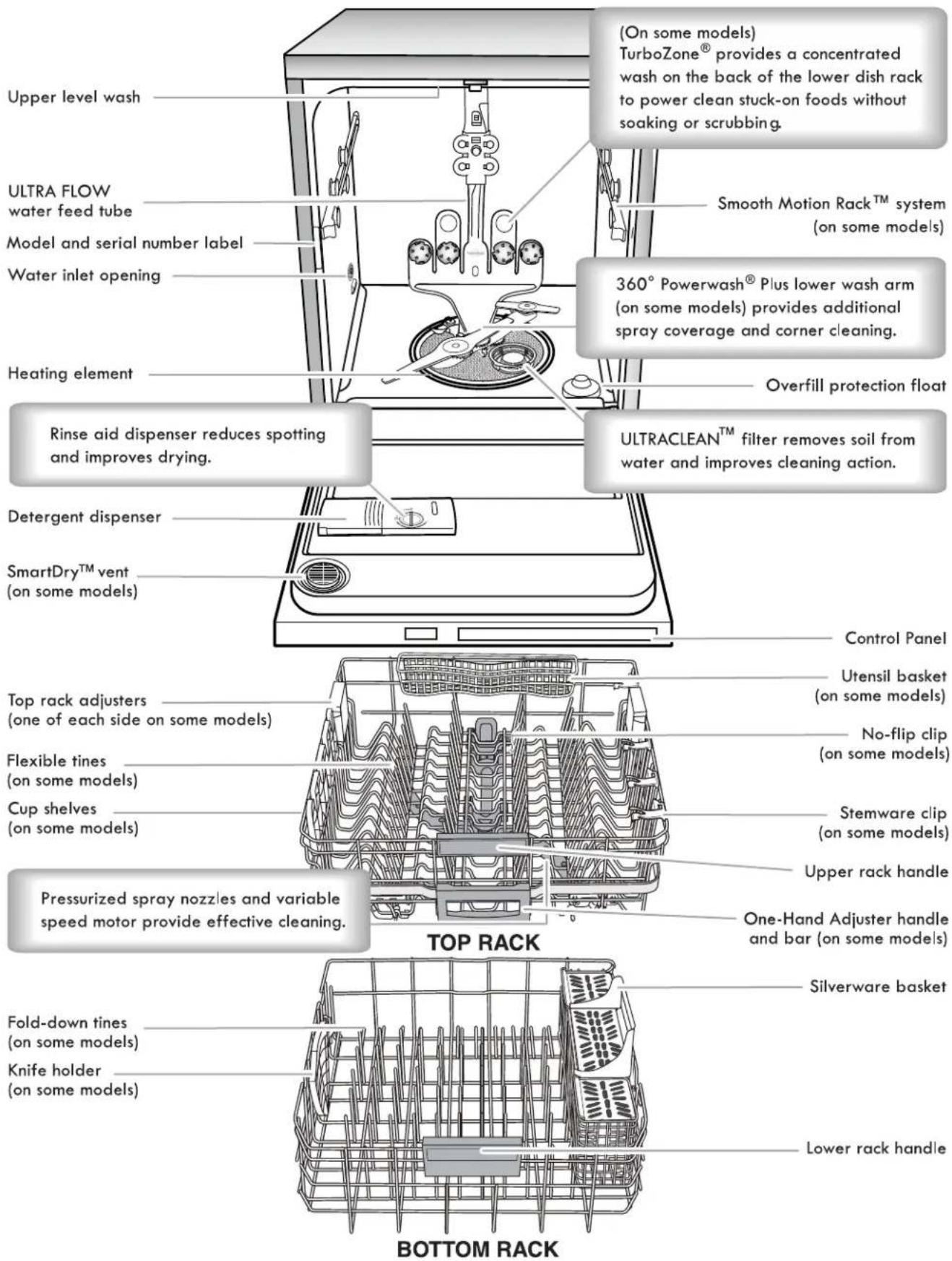

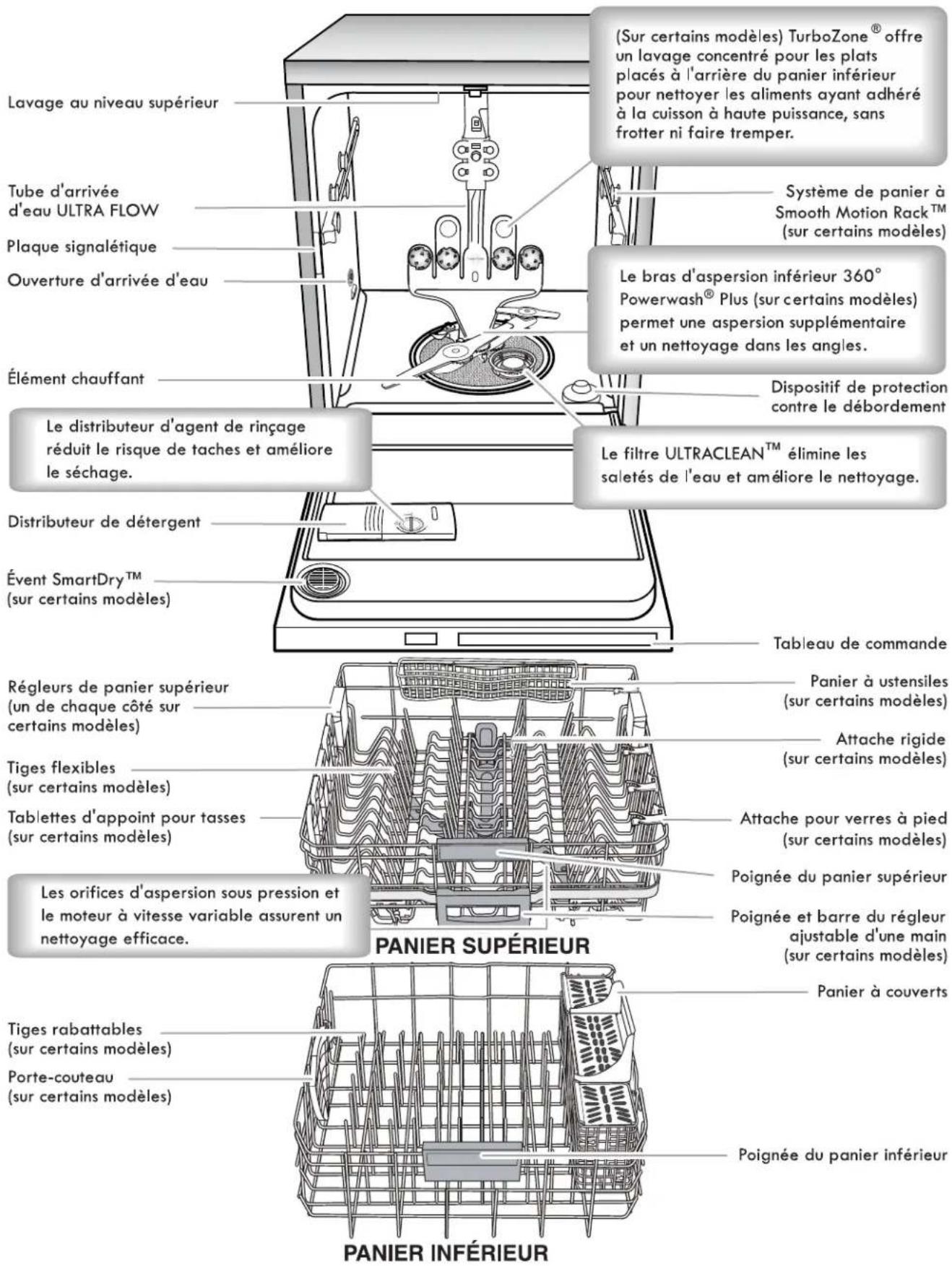

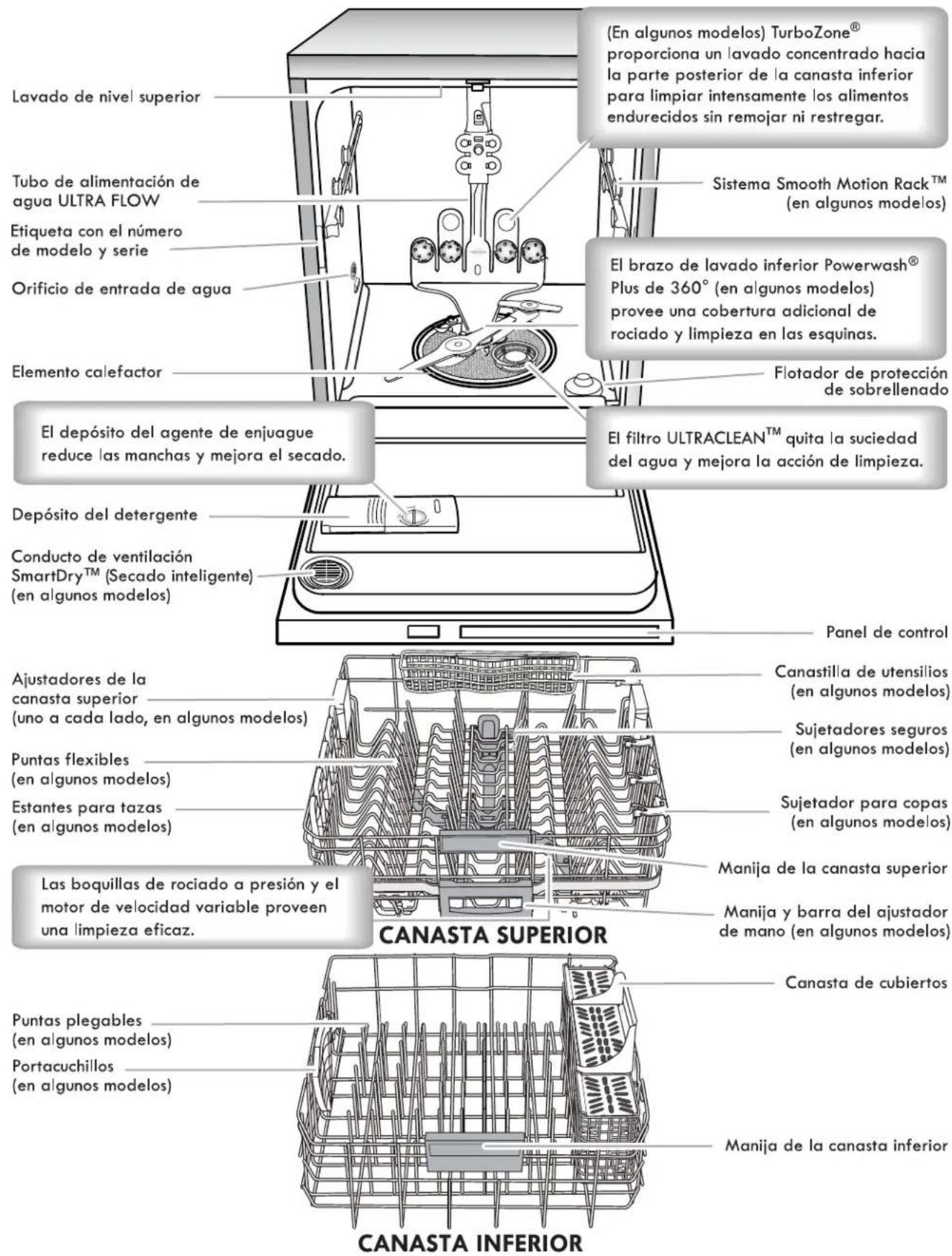

PARTS AND FEATURES

(On some models) TurboZone® provides a concentrated wash on the back of the lower dish rack to power clean stuck-on foods without soaking or scrubbing. Upper level wash ULTRA FLOW water feed tube Model and serial number label Water inlet opening Heating element Smooth Motion Rack™ system (on some models) 360° Powerwash® Plus lower wash arm (on some models) provides additional spray coverage and corner cleaning. Overfill protection float Rinse aid dispenser reduces spotting and improves drying. ULTRACLEAN™ filter removes soil from water and improves cleaning action. Detergent dispenser SmartDry™ vent (on some models) Top rack adjusters (one of each side on some models) Flexible tines (on some models) Cup shelves (on some models) Pressurized spray nozzles and variable speed motor provide effective cleaning. Control Panel Utensil basket (on some models) No-flip clip (on some models) Stemware clip (on some models) Upper rack handle One-Hand Adjuster handle and bar (on some models) Silverware basket Fold-down tines (on some models) Knife holder (on some models) Lower rack handle TOP RACK BOTTOM RACK

START-UP / QUICK REFERENCE (VARIES BY MODEL)

ULTRACLEAN™ removable filters provide peak performance.

Cleaning the filters periodically helps keep the dishwasher working at peak performance. The filters can be found at the bottom center of your dishwasher. See "ULTRACLEAN™ FILTRATION SYSTEM" for information on removing and maintaining the filters.

Technical illustration of a mechanical component with a cylindrical housing and a curved part (no text or symbols)

IMPORTANT: Do not block detergent dispenser.

Tall items placed in the lower rack may block the dispenser door. Cookie sheets and cutting boards loaded on the left-hand side of the dishwasher can easily block the dispenser. If detergent is inside of the dispenser or on the bottom of the tub after the cycle is complete, the dispenser was blocked.

Line drawing of a cabinet or lift with a circular vent and handle (no text or symbols)

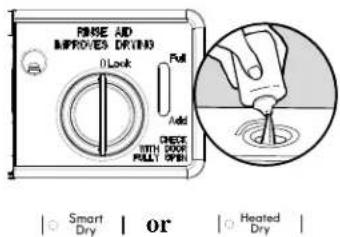

Drying - Rinse Aid is essential.

You must use a drying agent such as rinse aid for good drying performance (sample included). Rinse aid, along with the SmartDry™ or Heated Dry option, will provide best drying and avoid excessive moisture in the dishwasher interior.

PHASE AND IMPROVES DRINKS Block Add CHECK WITH OFF FULL Smart Dry or Heated Dry

1 Hour Wash - When you need fast results.

High Efficiency dishwashers run longer to save water and energy just as driving a car slower saves on gas. When you need fast results, the 1 Hour Wash will clean your dishes using slightly more water and energy. For improved drying, select the SmartDry™ or Heated Dry option to add additional time to dry.

SmartWash ^® cycle

SmartWash ^® H E provides optimal results using only the amount of water and energy needed. The SmartWash ^® H E and Pots & Pans cycles are recommended for tough soil.

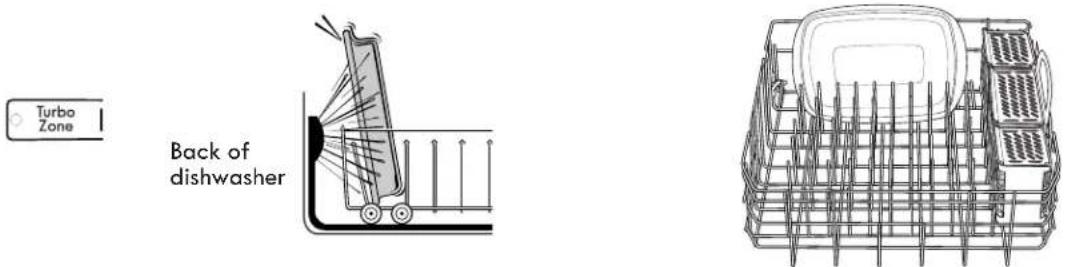

TurboZone® loading (on some models)

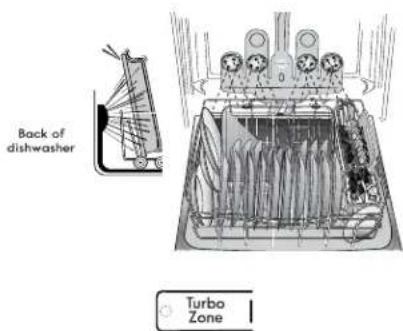

When the TurboZone® option is selected, it provides a concentrated wash on the back of the lower dish rack for hard-to-clean dishes. Place these dishes with the soiled surface of the dish toward the TurboZone® spray nozzles in the lower rack of the dishwasher.

Back of dishwasher Turbo Zone

Press START every time you add a dish.

To start and resume a cycle, close the door and press START.

IMPORTANT: If anyone opens the door (as, to add a dish, even during the Delay Hours option), close the door and press START.

Detergent Dosing

It is possible to use too much detergent in your dishwasher. This can lead to etching of your dishes. See "Detergent and Rinse Aid" to determine the amount of detergent needed based on your water hardness. Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents to reduce filming on your dishes.

Your dishwasher has the latest technology in dishwasher filtration. This triple filtration system minimizes sound and optimizes water and energy consumption while providing superior cleaning performance. Throughout the life of your dishwasher, the filter will require maintenance to sustain peak cleaning performance.

The triple filter system consists of 2 parts, an upper filter assembly and a lower filter.

■ The upper filter assembly keeps oversized items and foreign objects, along with very fine food particles out of the pump.
■ The lower filter keeps food from being recirculated onto your dishware.

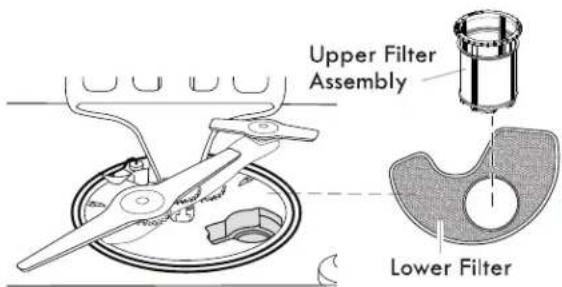

Upper Filter Assembly Lower Filter

In order to provide optimum cleaning performance we suggest a monthly filter maintenance by removing and inspecting both the upper and the lower filter for any soils. Based on your dishwashing habits, cleaning of the filters may be required more or less often than what is indicated in the chart below.

The filters may need to be cleaned when:

■ Visible objects or soils are on the Upper Filter Assembly.
■ There is degradation in cleaning performance (that is, soils still present on dishes).
■ Dishes feel gritty to the touch.

Removing and maintaining the filters is very easy. The chart below shows the recommended cleaning frequency.

Recommended time interval to clean your filter.

Number of Loads Per Week	If you wash before loading	If you scrape and rinse before loading	If you only scrape before loading*	If you do not scrape or rinse before loading
8-12 Once	per year Every four months	Every two months Every two weeks
4-7 Once	per year Once per year Every four months Once per month
1-3 Once	per year Once per year Twice per year	Every two months

*Manufacturer's recommendation: This practice will eliminate the water and energy that you use preparing your dishes. This will also save you time and effort.

Very Hard Water

If you have hard water (above 15 grains), clean your filter at least once per month. Buildup of white residue on dishwasher surfaces indicates hard water. You may bring your water samples to Sears to check hardness level. For tips on removing spots and stains, see "Troubleshooting" section.

Filter Removal Instructions

1. Turn the Upper Filter Assembly 14 turn counterclockwise and lift out.
2. Grasp the Lower Filter in the circular opening, lift slightly, and pull forward to remove.
3. Clean the filters as shown below.

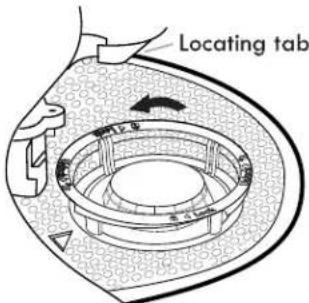

Locating tab

To remove Upper Filter Assembly

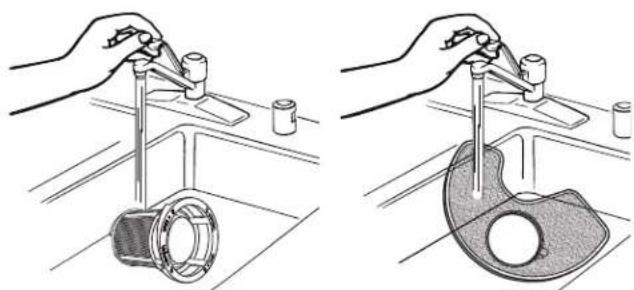

Cleaning Instructions

IMPORTANT: Do not use wire brush, scouring pad, etc., as they may damage the filters.

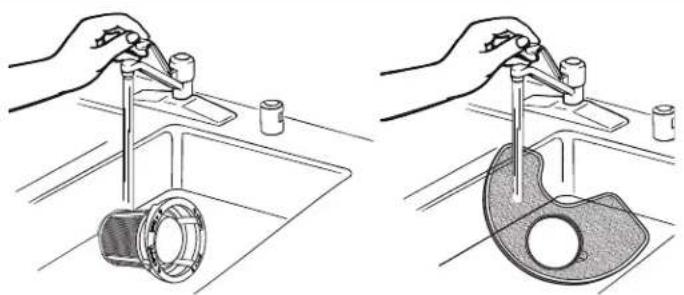

Rinse filter under running water until most soils are removed. If you have hard-to-remove soils or calcium deposits from hard water, a soft brush may be required.

Two technical illustrations showing hands operating a mechanical component with a flange and a circular component (no text or symbols present)

Filter Reinstallation Instructions

1. Noting the previous illustrations, place the Lower Filter under the Locating Tabs in the bottom of the dishwasher so the round opening for the Upper Filter Assembly lines up with the round opening in the bottom of the tub.
2. Insert the Upper Filter Assembly into the circular opening in the Lower Filter.

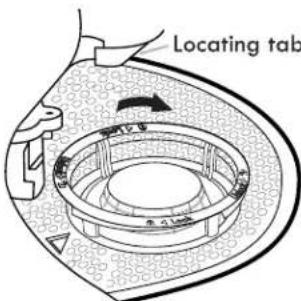

3. Slowly rotate the filter clockwise until it drops into place. Continue to rotate until the filter is locked into place. If the filter is not fully seated (still turns freely), continue to turn the filter clockwise until it drops and locks into place.

Locating tab

To replace Upper Filter Assembly

IMPORTANT: To avoid damage to dishwasher, do not operate your dishwasher without the ULTRACLEAN™ filters properly installed. Be sure the Lower Filter is securely in place and the Upper Filter Assembly is locked into place. If the Upper Filter Assembly turns freely, it is not locked into place.

360° POWERWASH® PLUS

The 360° Powerwash® Plus system (on some models) offers advanced cleaning technology providing optimal water coverage. This technology enables the spray arms to turn in both directions while detecting if there are any items obstructing the spray arm from spinning. When the spray arms are obstructed the system will detect and force the spray arm to rotate in the opposite direction allowing complete coverage of the dishwasher load.

ONE-HAND ADJUSTER

To adjust the height of the upper rack using the One-Hand Adjuster (on some models):

1. Pull the upper rack fully out of the dishwasher. Make sure the lower rack is pushed fully into the dishwasher.

2. Press the handle downward until it stops. You will hear 2 clicking sounds. This assures that both sides of the rack are locked.

3. Release the handle.

4. To adjust the height of the upper rack again, repeat Steps 1 - 3.

NOTE: If one side of the rack is tilted down, lift the rack on the side tilted down. You will hear a clicking sound when the rack returns to level.

Hand holding a small object with a downward arrow, no visible text or symbols

Adjust rack height

Isometric line drawing of a multi-compartment battery pack with two black arrows indicating specific components (no text or symbols present)

Level rack

DISHWASHER EFFICIENCY TIPS

Hot water dissolves and activates the dishwasher detergent. Hot water also dissolves grease on dishes and helps glasses dry spot-free. For best dishwashing results, water should be 120^ F ( 49^ C) as it enters the dishwasher. Loads may not wash as well if the water temperature is too low.

Additional efficiency tips

■ To save water, energy and time, only scrape dishes. Do not rinse dishes before putting them into the dishwasher.
■ Use a delay feature to run your dishwasher during off-peak hours. Local utility providers recommend avoiding heavy usage of energy at certain times of day.
■ During the summer, run your dishwasher at night. This reduces daytime heat buildup in the kitchen.

■ Use a rinse aid to improve drying.

DETERGENT AND RINSE AID

Detergent

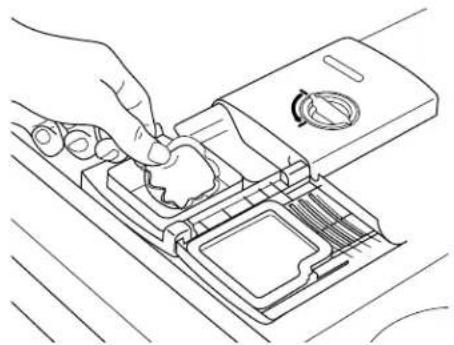

Line drawing of a hand using a tool to adjust or install a component on a tray (no text or symbols visible)

NOTE: If you do not plan to run a wash cycle soon, run a rinse cycle. Do not use detergent.

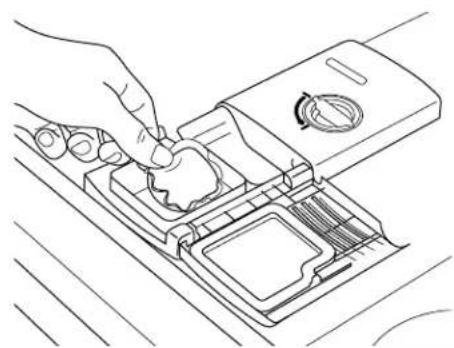

■ Use automatic dishwasher detergent only. Add powder, liquid or tablet detergent just before starting a cycle.
■ Fresh automatic dishwasher detergent results in better cleaning. Store tightly closed detergent container in a cool, dry place.

Premeasured Detergents

Many detergents now come in premeasured forms (gel packs, tablets, or powder packs). These forms are suitable for all hardness and soil levels. Always place premeasured detergents in main compartment and close lid.

Using dishwasher detergent tablets and packs have been proven better than powder, liquid or gel detergents at reducing filming on dishes. Using tablets and packs over time will start to reduce or eliminate white film. Also, by using a rinse aid you can minimize repeat buildup of white film.

Powders and Gels

Water Hardness	Soil Level	Pre-Wash Compartment	Main Wash Compartment
Soft(0-4 grains per U.S. gallon)	Light None 1/2
	Normal None 1/2
	Heavy Full 1/2
Medium(5-9 grains per U.S. gallon)	Light None 1/2
	Normal 1/2 1/2
	Heavy Full* Full*
Hard(10-14 grains per U.S. gallon)	Light 1/2 Full*
	Normal Full* Full*
	Heavy Full* Full*

*Full pre-wash compartment contains 7 tsp (35 mL), and full main wash cup contains 9 tsp (45 mL).

IMPORTANT: Extremely hard water mineral deposits (15 grains per U.S. gallon or more) can cause damage to your dishwasher and make it difficult to achieve good results. A water softener is recommended to avoid damage and achieve good results. You may bring your water samples to Sears to check hardness level.

Rinse Aid

PHASE AD IMPROVES DRYING 0Lock P4 Add CHECK FULL ON FULL ON

IMPORTANT: Your dishwasher is designed to use a liquid rinse aid. The use of rinse aids greatly improves drying by allowing water to drain from the dishes after the final rinse. They also keep water from forming droplets that can dry as spots or streaks.

Filling the dispenser

The dispenser holds 5 oz (150 mL) of rinse aid. Under most conditions this will last 1 to 3 months.

1. Turn the knob to the REFILL position and remove.
2. Pour rinse aid into the opening until the indicator points to FULL. Do not overfill.
3. Clean up any spilled rinse aid. Spilled rinse aid can create excessive suds.
4. Replace the knob and turn to the LOCK position.

NOTE: Indicator reads correct fill level when door is completely opened.

Rinse Aid Setting

Your rinse aid dispenser is adjustable. For most water conditions, the factory setting will give good results. If you have hard water and notice calcium buildup on your dishware, you may want to try a higher setting. If you notice foam in your dishwasher, use a lower setting.

To adjust the setting

1. Turn the knob to the REFILL position and remove.
2. Turn the arrow inside the dispenser to the desired setting.
3. Replace the knob and turn to the LOCK position.

LOADING

Loading for Best Cleaning and Drying Performance

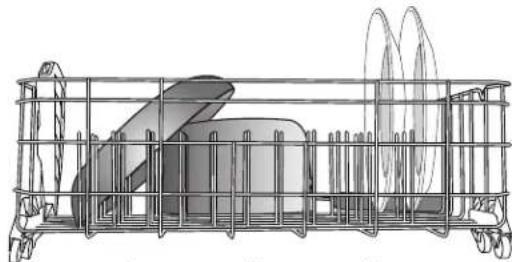

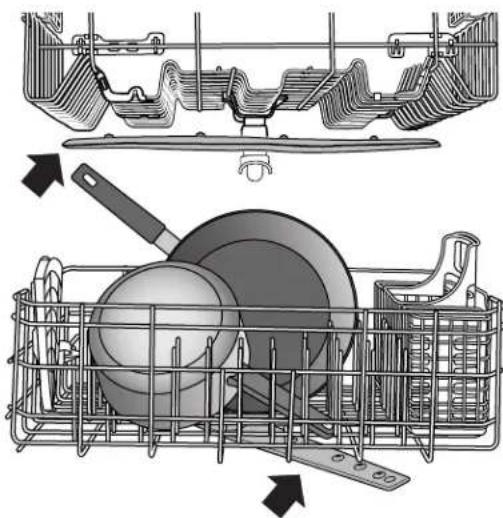

1. Angle dirtiest dish surfaces downward and allow space for water to flow up through each rack and between dishware.

Technical line drawing of a mechanical component with multiple blades and mounting brackets (no text or symbols)

Technical line drawing of a freight train car with visible suspension and wheel supports (no text or symbols)

Separating allows water flow.

1. For best silverware cleaning use the slots in the covers to keep items separated.

Illustration of a woven basket containing spoons and spoons (no text or symbols)

Separated

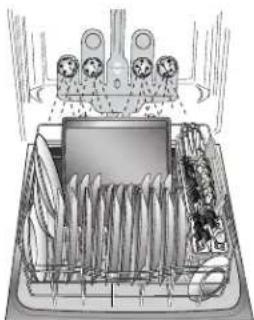

1. Use TurboZone® (on some models) option with your dirtiest items facing toward the lower back.

Illustration of a kitchen sink with utensils and a tray, no text or symbols present

Soil facing TurboZone® spray jets

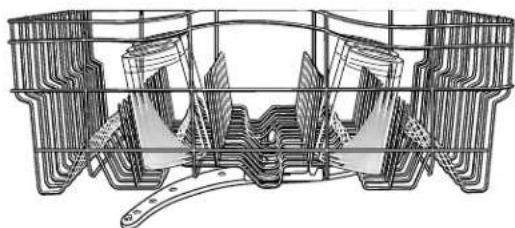

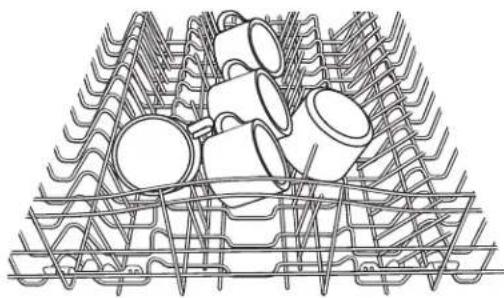

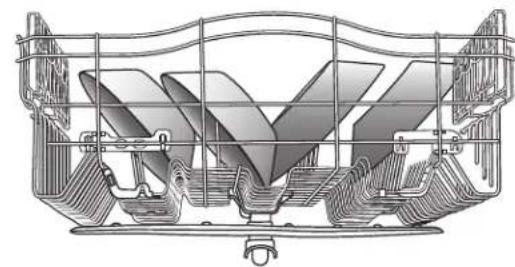

1. Angle concave surfaces such as the bottom of coffee cups to allow water to drain and improve drying performance.

Technical line drawing of a mechanical assembly with multiple cylindrical components embedded in a grid-like structure (no text or symbols)

Angled surfaces

1. Check that the upper spray arm spins freely before every cycle. Assure nothing is blocking the lower spray arm.

Diagram showing a car interior with a fan and a bowl, illustrating the use of a kitchen tool (no text or labels present)

1. Place cups and glasses in the rows between tines.

Technical line drawing of a mechanical component with layered structure (no text or symbols)

Top Rack Loading

Loading Recommendations

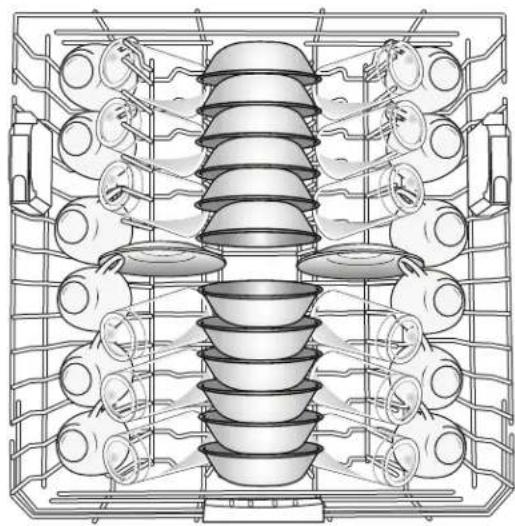

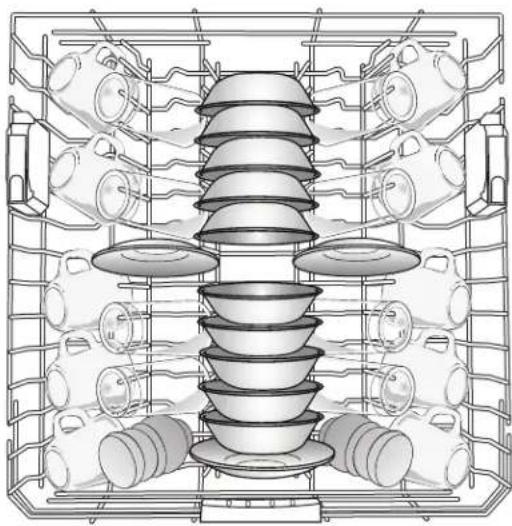

Place cups and glasses in the rows between tines. Placing them over the tines can lead to breakage and water spots. To avoid damage to your delicate items, be sure china, crystal, stemware and other similar items do not touch during dishwasher operation. Load lightweight and dishwasher-safe plastic items only in the top rack.

Technical line drawing of a multi-tiered electrical insulator assembly (no text or symbols)

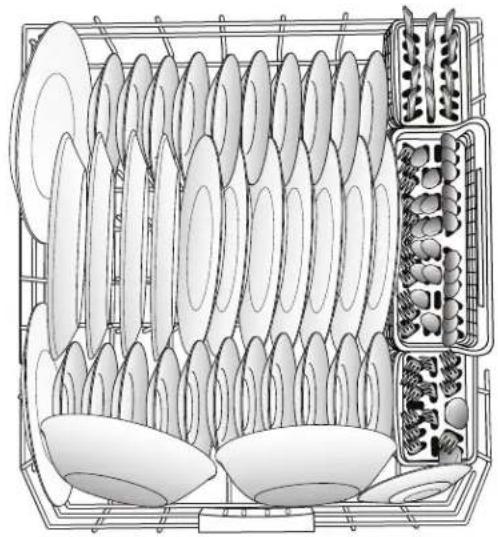

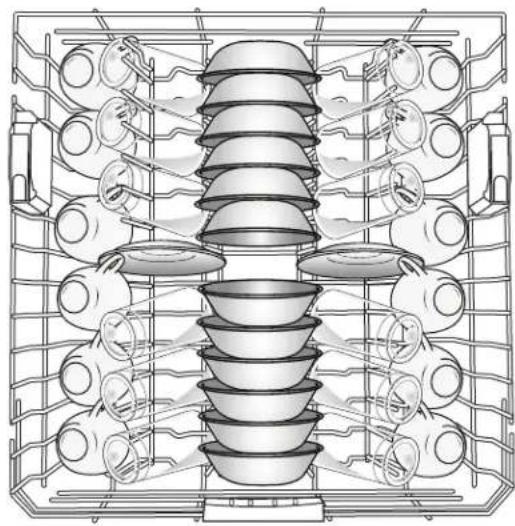

10 place setting load 12 place setting load

Technical line drawing of an electrical insulator assembly (no text or labels)

Utensil Basket (on some models)

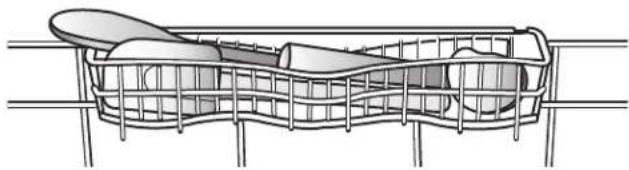

Use this extra capacity basket in the back of the top rack to hold spatulas, serving spoons, and similar items. The utensil basket can be removed for additional capacity by releasing the clips attached to the rack.

Line drawing of a bicycle lane with a cart and wheel (no text or symbols)

Deluxe Adjustable 2-position Rack (on some models)

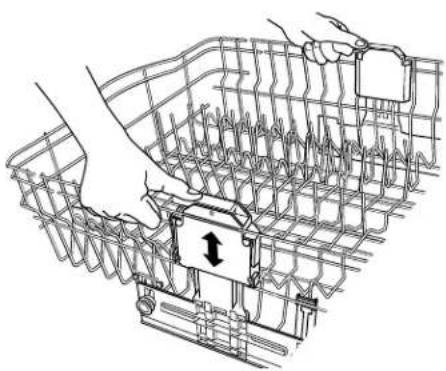

You can raise or lower the top rack to fit tall items in either the top or bottom rack. Adjusters are located on each side of the top rack. Raise the top rack to accommodate items up to 9" (22 cm) in the top rack and 13" (33 cm) in the bottom rack, or lower the top rack to accommodate items up to 11" (28 cm) in both the top and bottom racks.

1. To raise, lift rack until both sides are at the same height and lock.
2. To lower, depress both tabs on rack adjusters, as shown, and lower.

Technical line drawing of a mechanical assembly with hands operating a component (no text or symbols)

One-Hand Adjuster (on some models)

To adjust the height of the upper rack using the One-Hand Adjuster:

1. Pull the upper rack fully out of the dishwasher. Make sure the lower rack is pushed fully into the dishwasher.
2. Press the handle downward until it stops. You will hear 2 clicking sounds. This assures that both sides of the rack are locked.
3. Release the handle.
4. To adjust the height of the upper rack again, repeat Steps 1 - 3.

NOTE: If one side of the rack is tilted down, lift the rack on the side tilted down. You will hear a clicking sound when the rack returns to level.

Hand holding a tool interacting with a grid-patterned surface, no text or symbols visible

Adjust rack height

Isometric line drawing of a multi-level kitchen or laundry unit with two black arrows indicating specific components (no text or symbols present)

Level rack

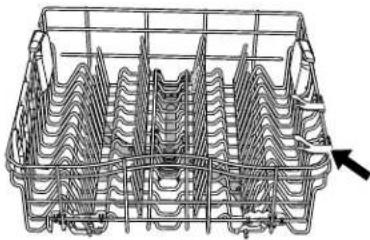

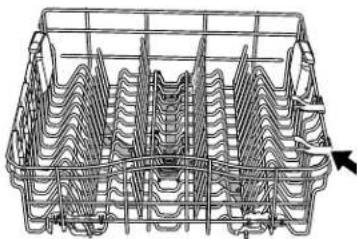

Flexible Tines

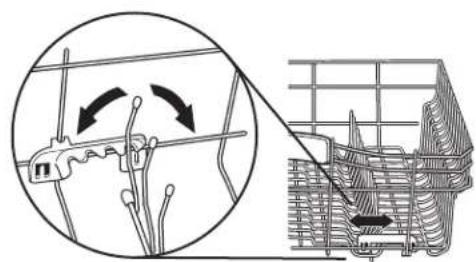

The row of tines on the left-hand and right-hand sides of the top rack can be adjusted to make room for a variety of dishes.

Diagram illustrating a mechanical device with rotating arms and a wire mesh structure, showing directional arrows and component labels.

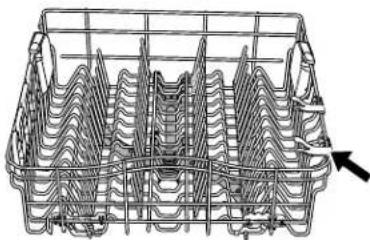

Cup Shelves and Stemware Clips (on some models)

Fold down the extra shelf on either side of the top rack to hold additional cups or long items, such as utensils and spatulas.

Use the stemware clips to hold stemware more securely.

Diagram of a mechanical assembly with gears and a grid structure (no text or symbols)

Line drawing of a wire cage with multiple blades and a black arrow pointing to one blade (no text or symbols)

Cup shelves Stemware clips

Removable Top Rack (on some models)

The removable rack allows you to wash larger items such as pots, roasters, and cookie sheets in the bottom rack. IMPORTANT: Remove dishes prior to removing the top rack from dishwasher.

To remove the rack

1. To gain access to the track stops, pull the upper rack forward about halfway out of the tub.
2. To open, flip the track stop toward the outside of the tub.
3. After opening both track stops, pull top rack out of the rails.

Pure mechanical component diagram without any text, numbers, or symbols

Track stop closed

Technical line drawing of a mechanical component with no visible text or symbols

Track stop open

1. Close track stops and slide the tracks back into the dishwasher.

To replace the rack

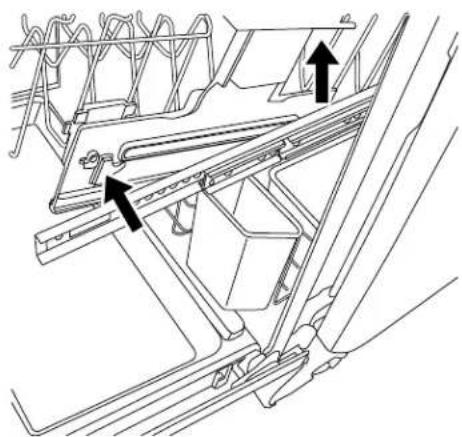

1. Gently pull tracks forward in dishwasher until they stop. Open track stops.
2. Place the back wheels on each side of the rack into the track slot and roll them back into the tracks, but do not push the rack all the way into the tub.
3. Insert front rack wheels on each side of the rack into the track slots.
4. Slide the rack into the dishwasher. The stops will automatically close when rack enters dishwasher.

Removable Top Rack - for Smooth Motion Rack™ (on some models)

The removable top rack allows you to wash larger items such as pots, roasters, and cookie sheets in the bottom rack.

IMPORTANT: Remove dishes prior to removing the top rack from the dishwasher.

To remove the rack:

To gain access to the removable tabs on the tracks/rails, pull the upper rack forward about halfway out of the tub.

On one side, press the tab on the track in and pull up the front end of the rack out of the track. Then repeat this step on the other side to completely remove the front end of the rack.

Then remove the back end of the rack, by pulling the back end out with a slightly forward then upward motion.

To replace the rack:

Pull the tracks forward about halfway out of the tub.

Along the sides of the racks are round attachment tabs. Align the rack's back end attachment tabs with the cutout in the track. Push down into place.

Pull the tracks completely out, and align the rack's front end attachment tabs with the cutout in the track. Push down into place. You will hear a snap when the front end of the rack is secured into place on each side.

Technical line drawing of a mechanical assembly with no visible text or symbols

Removal

Bottom Rack Loading

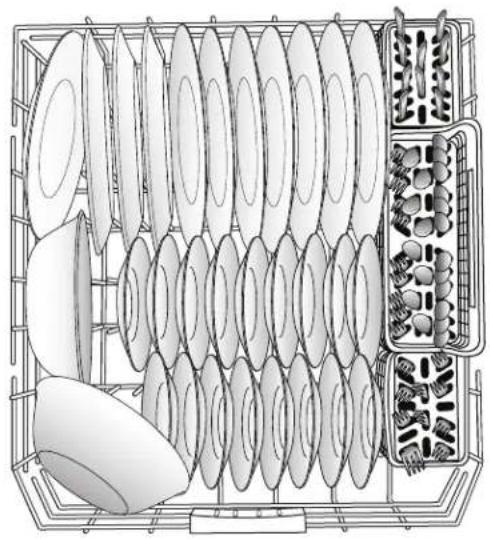

Loading Recommendations

The bottom rack is best suited for plates, pans, casseroles, and utensils. See recommended loading patterns shown.

Load small items in the bottom rack only if they are secured in place.

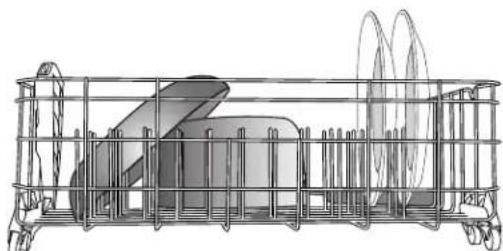

Load plates, soup bowls, etc., between tines.

Load bowls securely between the rows of tines. Ensure that there is space between dishes so that the spray will reach all surfaces.

Load heavily soiled items facing the spray.

NOTE: Ensure that detergent dispenser is not blocked by tall items such as cookie sheets or cutting boards placed at the left-hand front of rack. See "Start Up/Quick Reference" section.

Technical line drawing of a multi-tiered mechanical assembly with rollers and a base plate (no text or symbols)

10 place setting load 12 place setting load

Illustration of a multi-tiered kitchen appliance with plates and a tray (no text or symbols)

Fold-Down Tines (on some models)

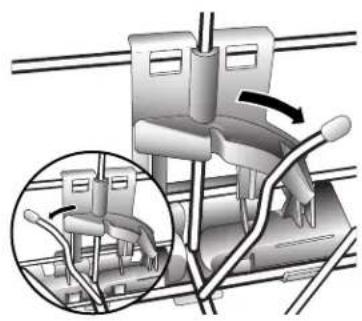

You can fold down one row of tines at the back of the bottom rack in order to accommodate larger dishware.

Keep this fine row in the 60° position when using the TurboZone® option (on some models).

IMPORTANT: When moving the tine row to the flat position, fold only the tine row toward the front of the dishwasher.

Mechanical assembly diagram showing a motor with rotating arms and a close-up inset of the mechanism (no text or symbols)

TurboZone ^® Loading (on some models)

IMPORTANT: For proper performance, only one row of items may face the TurboZone ^® spray jets.

You must select the TurboZone® wash option to utilize this wash feature.

Load pans, casserole dishes, etc., with the soiled surfaces facing the TurboZone ^® spray jets. TurboZone ^® wash area is located at the back of the lower dish rack.

Place the fold-down tine row in the 60° position when using the TurboZone® option (on some models).

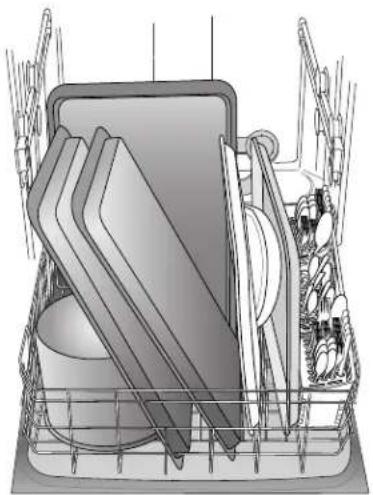

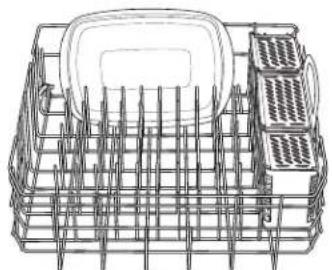

Loading Tall Items

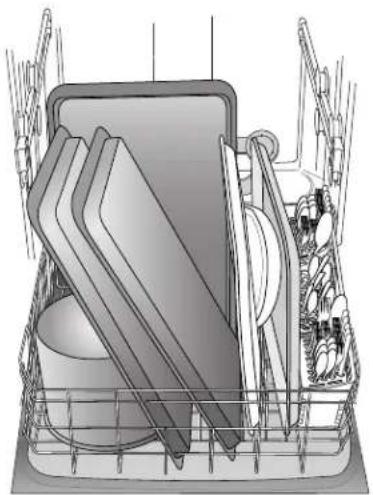

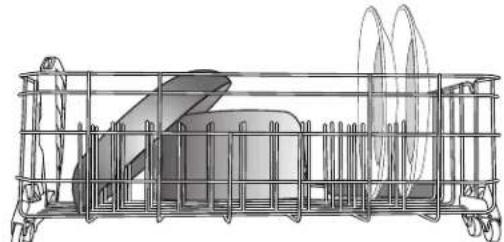

You can wash larger items such as pots, roasters, and cookie sheets in the bottom rack by removing the top rack. See "Top Rack Loading" section.

IMPORTANT: Do not block detergent dispenser.

Line drawing of a car air conditioner unit with no text or symbols

Illustration of a kitchen sink with plates, utensils, and kitchen utensils (no text or symbols)

Knife Holder (on some models)

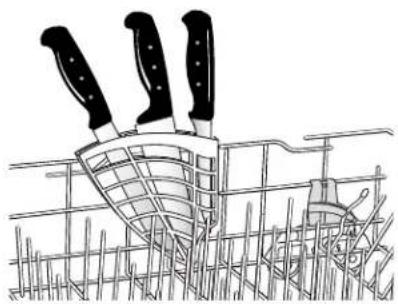

To load knives that are too large for the silverware basket, use the knife holder located on the left-hand side of the bottom rack. Place knives in the holder as shown.

Line drawing of a kitchen knife with three blades, mounted on a metal rack (no text or symbols)

Splittable Silverware Basket (on some models)

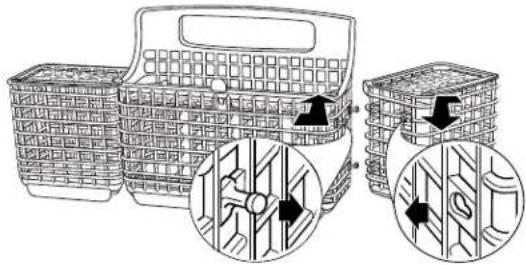

Your new silverware basket can be split into three segments.

Removing one section will increase your capacity in the TurboZone ^® (on some models) loading area.

You can remove the covered side baskets to place in the top rack. Use for small delicate items such as baby bottle caps, nipples and small baking utensils, etc.

Line drawing of a woven basket with internal components and arrows indicating parts of the basket structure (no text or symbols)

Loading Silverware

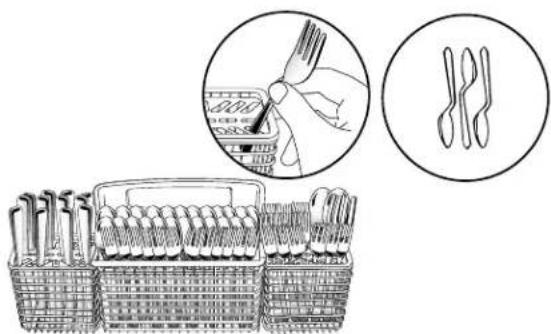

Use suggested loading patterns, as shown, to better clean your silverware.

Use the slots in the covers to keep your silverware separated for optimum wash. See illustration at right.

NOTE: If your silverware does not fit into the designated slots, flip the covers up and mix silverware types to keep them separated. Load knives down, forks up, and alternate spoons, as illustrated, for best cleaning results.

Illustration showing a hand using chopsticks to measure a quantity, with magnified insets highlighting the process.

DISHWASHER USE

Cycles and Options Information (on some models)

Cycles Soil Level		Time* (mins.) w/o Options		Water Usage Gallons (Liters)
		Typical** Max
SmartWash® ^HE cycleThe most advanced and versatile cycle. This cycle senses the load size, soil amount, and toughness of soil. This cycle is optimized to achieve outstanding cleaning with minimal water and energy.	Light to Medium 110	150		4.0(15.0)
	Tough/Baked-On 125	190		5.0(19.0)
	Heavy 125 190			7.7(29.0)
Pots & PansWorks best on your toughest items, such as casseroles with baked-on food residue. Use with TurboZone®option (on some models) to get the best baked-on soil cleaning.	Heavy/Baked-On 140	205		8.2(31.0)
Normal WashThis cycle is recommended to completely wash a full load of normally soiled dishes. Selecting this cycle will default to the options recommended for normal amounts of food soil. The energy label is based on this cycle.	Light to Medium 110	150		2.8-4.0(10.5-15.0)
	Heavy 125 190			7.7(29.0)
China Gentle (on some models)Provides a light wash and gentle dry for delicate items such as china and crystal.	Light to Medium	105 145		2.8-4.0(10.5-15.0)
	Heavy	120 185		7.7(29.0)
Quick RinseUse for rinsing dishes, glasses, and silverware that will not be washed right away.Do not use detergent.	All soil levels	17	20	2.1(8.0)
1 Hour WashTo save water and energy, High Efficiency dishwashers use advanced filtration which may result in longer cycle times (in some cases over 2 hours). When you need fast results, the 1 Hour Wash cycle will clean your dishes using slightly more water and energy. For improved drying, select the SmartDryTM or Heated Dry option. 1 Hour Wash is optimized and no options are needed.	All soil levels	58	64	6.2(23.5)

*Adding options will add time to the cycle. See options information section.

**This is the approximate cycle time obtained with 120°F (49°C) hot water available at the dishwasher. Increase in time results from low temperature of the incoming water.

Options	Can be selected with	What it does	Added time to cycle Added		Water ^ Gallons (Liters)
			Typical Max
TurboZone ^ option (on some models)Blasts into every corner to eliminate the need for soaking and scrubbing of dirty, baked-on dishes. For your toughest items, use the TurboZone ^ option with the Pots & Pans cycle. See loading information.	SmartWash ^ H_E Pots & PansNormal Wash	Directs all of the cleaning power of the dishwasher to the TurboZone ^ area during certain times in the wash cycle.	53 73		0 - 3.0(0 - 11.4)
High TempRaises main wash temperature to improve cleaning for loads containing tough, baked-on food.	SmartWash ^ H_E Pots & PansNormal Wash	Raises the main wash temperature from 120°F (49°C) to 140°F (60°C).	22 40		0 - 3.0(0 - 11.4)
Sani RinseThis high temperature option sanitizes your dishes and glassware in accordance with National Sanitation Foundation (NSF)/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. The Sani Rinse indicator indicates at the end of the cycle whether the Sani Rinse option was successfully completed. If the indicator does not activate, it is probably due to the cycle being interrupted.	SmartWash ^ H_E Pots & PansNormal Wash	Increases the main wash temperature from 120°F (49°C) to 140°F (60°C) and the final rinse from 140°F (60°C) to 155°F (68°C).	53 73		0 - 3.0(0 - 11.4)
Top Rack OnlyFor added convenience, use for washing a small load of dishes in the top rack to help keep the kitchen continuously clean.	Available with any cycleCannot be used with TurboZone ^ option	Slightly faster wash for smaller loads	-7 -30 0
SmartDry ^TM or Heated Dry (on some models)Turns the heat element on, with fan assist (on some models), at the end of the wash cycle. Use rinse aid with or without the SmartDry ^TM or Heated Dry option for best drying results. Plastic items are less likely to deform when loaded in the top dish rack.	Available with any cycle except Quick Rinse	Turns the heat element on at the end of the wash cycle.	44 51 0

^1 Selecting multiple options does not result in accumulative time and water from chart above.

Dishwasher Control Section

Delay Hours (on some models)

Use this option to run your dishwasher during off-peak hours. Local utility providers recommend using energy during off-peak hours when possible.

To delay the start:

1. Select a wash cycle and options.
2. Press the 4 Hour or 4-8 Hr Delay button.
3. Close the door.
4. Press START.

NOTE: Anytime the door is opened for more than 5 seconds (such as, to add a dish), close the door and the START button must be pressed again to resume the delay countdown.

Control Lock Option

Use the Control Lock option to avoid unintended use of the dishwasher between cycles. When Control Lock is lit, all buttons are disabled. The dishwasher door can still be opened/closed while the controls are locked.

To turn on Control Lock:

Press and hold CONTROL LOCK for 3 seconds. The Control Lock light will turn on.

NOTE: The dishwasher cannot start if the control is locked.

To turn off Control Lock

Press and hold CONTROL LOCK for 3 seconds. The Control Lock light turns off.

Dishwasher Feedback Section

Selecting Cycles and Options

1. To repeat the same cycle/options used on previous cycle, press START once to show which selections you used. To change cycle, select desired cycle.
2. Select the desired options, then close the door and press START to start the cycle. Not all options are available for every cycle. If an invalid option is selected for a given cycle, the lights will flash.

Turning OFF/ON the Sound

Press and hold HIGH TEMP for 3 seconds to toggle sound On and Off. The sound will not deactivate for cycle interruption or service required messages.

Canceling A Cycle

1. Close the door.
2. Press the Cancel button.
3. The dishwasher starts a drain cycle if water remains in bottom of dishwasher. Let the dishwasher drain completely. The Cancel light turns off after 2 minutes.

Changing A Cycle After Dishwasher Is Started

You can interrupt a cycle and restart your dishwasher from the beginning using the following procedure.

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.
2. Check whether the detergent dispenser cover is still closed. If it is open, you will need to refill the detergent dispenser before restarting your new cycle.
3. Press CANCEL twice to reset the control.
4. Select new cycles and options.
5. Close the door.
6. Press START.

Adding A Dish After Dishwasher Is Started

1. Open the door slightly to stop the cycle. Wait for the spraying action to stop, then open the door completely.
2. Check whether the detergent dispenser cover is still closed. If it is open, the wash cycle has already started and adding a dish is not recommended.
3. If detergent has not yet been used (detergent dispenser cover is closed), you may add a dish.
4. Close the door.
5. Press START.

If you have doubts about washing a particular item, check with the manufacturer to see if it is dishwasher safe.

Material Dishwasher Safe?	Comments
Aluminum	Yes	High water temperature and detergents can affect finish of anodized aluminum.
Disposable Aluminum	No	Do not wash disposable aluminum pans in the dishwasher. These might shift during washing and transfer black marks to dishes and other items.
Bottles and Cans	No	Wash bottles and cans by hand. Labels attached with glue can loosen and clog the wash system and reduce washing performance.
Cast Iron	No	Seasoning will be removed and then will rust.
China/Stoneware	Yes	Always check manufacturer's recommendations before washing. Antique, hand-painted, or over-the-glaze patterns may fade. Gold leaf can discolor or fade.
Crystal	Yes	Always check manufacturer's recommendations before washing. Some types of leaded crystal can etch with repeated washing.
Gold	No	Gold-colored flatware will discolor.
Glass	Yes	Milk glass material yellows with repeated dishwasher washing.
Hollow-Handle Knives	No	Handles of some knives are attached to the blade with adhesives which can loosen if washed in the dishwasher.
Pewter, Brass, Bronze, and Copper	No High water temperatures and detergent can discolor or pit the finish.
Disposable Plastics	No	Cannot withstand high water temperatures and detergents.
Material Dishwasher Safe? Comments
Plastics	Yes	Always check manufacturer's recommendations before washing. Plastic items may vary in their ability to withstand high temperatures and detergents. It is recommended that lightweight items such as lids and butter dishes be placed in the upper rack only. Sturdy items such as coolers and high-chair trays may be placed in the lower rack. When washing plastic items in the lower rack, it is recommended not to use the SmartDryTM or Heated Dry option.
Stainless Steel	Yes	Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish.
Sterling Silver or Silver Plate	Yes	Run a rinse cycle if not washing immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayonnaise, and seafood) can damage finish.
Tin No Not recommended.
Wooden Ware	No	Wash by hand. Always check manufacturer's instructions before washing. Untreated wood can warp, crack, or lose its finish.
Large Casserole Section	Yes	There may be certain casserole dishes that may not fit in front of the TurboZone®feature (on some models) in the back of the lower dish rack. Adjust the tines as necessary to load the large dishes.

DISHWASHER CARE

Cleaning

Cleaning the exterior

Line drawing of a hand cleaning a wall with a cloth (no text or symbols)

In most cases, regular use of a soft, damp cloth or sponge and a mild detergent is all that is necessary to keep the outside of your dishwasher looking nice and clean. If your dishwasher has a stainless steel exterior, a stainless steel cleaner is recommended.

Cleaning the interior

Line drawing of a hand cleaning a kitchen appliance with a sponge on a tray (no text or symbols)

SmartDry ^TM vent (on some models)

Hard water minerals can cause a white film to build up on the inside surfaces, especially just beneath the door area.

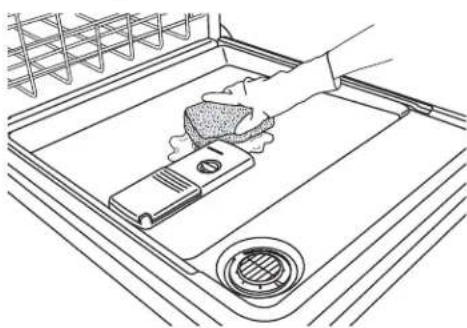

Do not clean the dishwasher interior until it has cooled. You may want to wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it may cause foaming or sudsing.

To clean interior

Make a paste with powdered dishwasher detergent on a damp sponge and clean.

OR

Use liquid automatic dishwasher detergent and clean with a damp sponge.

OR

See the vinegar rinse procedure in "Spotting and filming on dishes" in "Troubleshooting" section.

NOTE: Run a normal cycle with dishwasher detergent after cleaning the interior.

Dishwasher Maintenance Procedure

To help avoid hard water residue in your dishwasher, use affresh ^®1 dishwasher cleaner (recommended) once a month as part of routine maintenance. affresh ^®2 dishwasher cleaner is effective in all dishwasher brands.

IMPORTANT:

- Read these instructions and the instructions found on the affresh® product package completely before beginning the cleaning process.

Removal of Hard Water/Filming: Recommended use of a monthly maintenance product such as affresh® Dishwasher Cleaner Part Number W10282479.

■ Load your dishwasher (preferably with dishes affected by filming/hard water).

■ Place tablet in main wash compartment of detergent dispenser.

■ Select cycle/option best for heavily soiled dishes and start dishwasher.

NOTE: Recommended to use a premeasured detergent tablet or pack for regular daily use.

Line drawing of a kitchen sink with faucet and sink, showing a drop in the sink (no text or symbols)

To clean the drain air gap

Drain Air Gap

Some state or local plumbing codes require the addition of a drain air gap between a built-in dishwasher and the home drain system. Check the drain air gap when your dishwasher is not draining well.

The drain air gap is usually located on top of the sink or countertop near the dishwasher. To order a drain air gap, please call 1-800-4-MY-HOME. Ask for Part Number 300096.

NOTE: The drain air gap is an external plumbing device that is not part of your dishwasher. The warranty provided with your dishwasher does not cover service costs directly associated with the cleaning or repair of the external drain air gap.

Clean the drain air gap periodically to ensure proper drainage of your dishwasher. With most types, you lift off the chrome cover. Unscrew the plastic cap. Then check for any soil buildup. Clean if necessary.

Vacation or Extended Time Without Use

To reduce the risk of property damage

■ If you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.

■ Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and damage your dishwasher or home. Damage from freezing is not covered by the warranty.

■ When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

TROUBLESHOOTING

CHECK THESE POINTS TO HELP SAVE YOU TIME AND MONEY.

PROBLEM SOLUTION
DISHWASHER DOES NOT RUN	NOTE: It is normal for the dishwasher to repeatedly pause several times during a cycle.If the Start light is blinking, make sure the door is closed and press the Start button.Be sure the door is closed and latched. If the upper rack is uneven, lift the rack on the side tilted down. An uneven rack can keep the door from closing.Check that there is not an interference with large casserole dishes and the wash system at the back of the dishwasher. Adjust loading as necessary to ensure door is closed and latched.Be sure you have selected a cycle. (See “Cycles and Options Information.”)Be sure there is power to the dishwasher. A circuit breaker or fuse may have tripped.If lights other than Start blink and the unit will not run, you will need to call for service.
DETERGENT REMAINS IN THE DISPENSER OR TABLET IS ON BOTTOM OF TUB	Check for dishware such as cookie sheets, cutting boards, or large containers, etc., that may be blocking the detergent dispenser from opening properly.Be sure your detergent is fresh and lump free.Be sure the cycle has completed (green light is on). If it has not completed, you will need to resume the cycle by closing the door and pressing START.
CYCLE RUNS TOO LONG NOTES:■ To use less water and reduce energy consumption you will encounter cycles that typically run for up to 3 hours.■ A water heater setting of 120^ ( 49^ ) is best. The dishwasher will delay longer while heating cooler water.■ Some options will add time to the cycle. (See “Cycles and Options Information” section.) The SmartDryTM or Heated Dry option adds 12 hour.Try the 1 Hour Wash cycle.Run the hot water at a faucet close to the dishwasher before selecting and starting the cycle.
DISHWASHER NOT DRYING	NOTE: Plastic and items with nonstick surfaces are difficult to dry because they have a porous surface which tends to collect water droplets. Towel drying may be necessary.Use of rinse aid along with the SmartDryTM or Heated Dry option is needed for proper drying.Proper loading of items can affect drying. (See specific loading instructions within this guide.) Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading.■ Unload the bottom rack first.■ Locate these items on the more slanted side of the rack for improved results.
WILL NOT FILL Be sure the water is turned on to the dishwasher.Check that the float is free from obstructions. (See “Parts and Features.”)Check for suds in the dishwasher. If foam or suds are detected, the dishwasher may not operate properly or may not fill with water.
WATER REMAINS IN THE TUB/WILL NOT DRAIN	Be sure the cycle has completed (the green light is on). If it has not, you will need to resume the cycle by closing the door and pressing START.If dishwasher is connected to a food waste disposer, be sure the knockout plug has been removed from the disposer inlet.Check for kinks in the drain hose.Check for food obstructions in the drain or disposer.Check your house fuse or circuit breaker.
HARD WATER(WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)	NOTE: Extremely hard water mineral deposits can cause damage to your dishwasher and make it difficult to achieve good cleaning. You may bring water samples to Sears to check your water hardness level. A water softener is strongly recommended if your hardness is 15 grains or more. If a water softener is not installed, the following steps may help:Use a cleaner designed for dishwashers once per month. See the “Dishwasher Maintenance Procedure” section.Clean the ULTRACLEANTM filters at least once per month.Always use a rinse aid.Always use a high-quality, fresh detergent.Use a detergent booster/water softener additive designed for dishwashers.
ODORS	NOTE: If the dishwasher is not used daily, you can run a rinse cycle with the partial load until a full load is ready to run, or use the Top Rack Only option (on some models) for partial loads.Run a vinegar rinse through the dishwasher by putting 2 cups (500 mL) of white vinegar in an upright glass measuring cup in the lower rack. Run a normal cycle with the SmartDryTM or Heated Dry option turned off. Do not use detergent.The dishwasher may not be draining properly, see “WATER REMAINS IN THE TUB/WILL NOT DRAIN” in “Troubleshooting.”
NOISY NOTES:	■ Surging sounds can occur periodically throughout the cycle while the dishwasher is draining.■ Normal water valve hissing may be heard periodically.■ A normal snap sound may be heard when the detergent dispenser opens during the cycle and when the door is opened at the end of the cycle.■ Improper installation will affect noise levels.Be sure the filters are properly installed.A thumping sound may be heard if items extend beyond the racks and interfere with the wash arms. Readjust the dishware and resume the cycle.
FOOD SOILS REMAIN ON DISHES	Be sure the dishwasher is loaded correctly. Improper loading can greatly decrease the washing performance (see “Loading for Best Performance”).Check filter to ensure it is properly installed. Clean it if needed. (See “Cleaning Instructions” in “ULTRACLEANTM Filtration System” for details.)Select the proper cycle and option for the type of soils. The Pots & Pans cycle with the TurboZone® (on some models) option can be used for tougher loads.Be sure the incoming water temperature is at least 120°F (49°C).Use the proper amount of fresh detergent. More detergent is needed for heavier-soiled loads and hard water conditions.Scrape food from dishes prior to loading (do not prerinse).
DID NOT SANITIZE	If the Sani Rinse indicator light is blinking, the load is NOT sanitized. The cycle was interrupted in the final rinse, or your water heater is set too low. Set your water heater to 120°F (49°C).
DAMAGE TO DISHWARE	Improper loading can cause dishes to become chipped or damaged. (See specific loading instructions within this guide.)
BLINKING LIGHTS	If Start or any status lights are blinking and the dishwasher will not run, close the door and press START. If the dishwasher still will not run, call service at 1-800-4-MY-HOME®.
CLOUDY OR SPOTTED DISHWARE (AND HARD WATER SOLUTION)	NOTES:■ Liquid rinse aid is necessary for drying and to reduce spotting.■ Use the correct amount of detergent.Confirm that the cloudiness is removable by soaking the item in white vinegar for 5 minutes. If the cloudiness disappears, it is due to hard water. Adjust the amount of detergent and rinse aid.See “HARD WATER (WHITE RESIDUE ON DISHWASHER INTERIOR OR GLASSWARE)” in “Troubleshooting.” If it does not come clear, it is due to etching (see below).Be sure the incoming water temperature is set at 120°F (49°C).Try using the High Temp and Sani Rinse options.To remove spotting, run a vinegar rinse through the dishwasher.■ Wash and rinse the affected dishware and load into dishwasher. Remove all silverware and metal items. Put 2 cups (500 mL) of white vinegar in a glass measuring cup in the lower rack.Run a normal cycle with the SmartDryTM or Heated Dry option turned off. No detergent is needed.
ETCHING (PERMANENT CLOUDINESS)	This is an erosion of the surface of the glassware and can be caused by a combination of: water that is too hot, from using too much detergent with soft water or by pre-washing. Detergent needs food soil to act upon. If etching has occurred, the glassware is permanently damaged. To avoid further etching, adjust the detergent amount to match the water hardness, stop pre-washing, and use water heating options only when incoming water temperature is below 120°F (49°C).
LEAKING WATER	Be sure dishwasher has been installed properly and is level.Suds can cause the dishwasher to overflow. Measure the detergent accurately and use only detergents designed for use in a dishwasher. Less detergent is needed in soft water. Try another brand of detergent if sudsing continues.To avoid rinse aid leaking from the dispenser, be sure the lid is securely attached and avoid overfilling.
TUB IS DISCOLORED NOTES:	■High iron content in the water can discolor the tub.■ Tomato-based foods can discolor the tub or dishware.■A citrus-based cleaner can be used to clean.

Notes

ÍNDICE

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

RINSE AD IMPROVES DRYING 0Lock Full Add CHECK WITH DOOR FULLY OPEN

Detergente

Line drawing of a hand using a tool to clean or adjust a component inside a washing machine (no text or symbols)

Two-step diagram showing hands using a tool to lift a component into a sink, with no text or symbols present.

PIEZAS Y CARACTERÍSTICAS

Technical illustration of a mechanical component with a cylindrical housing and a curved part (no text or symbols)

Line drawing of a cabinet or lift with a circular vent and handle (no text or symbols)

PBUSE AND IMPROVES DRINKS 0 Lock Pull Add CHECK WITH OPEN PULLT OPEN

Two technical illustrations showing hands operating a mechanical component, one with a flange and the other with a circular component (no text or symbols present)

Hand holding a small object with a downward arrow, no visible text or symbols

Isometric line drawing of a multi-compartment storage unit with two arrows indicating specific components (no text or symbols present)

Nivele la canasta

Line drawing of a hand using a tool to adjust or install a device into a rack (no text or symbols visible)

PHASE AD IMPROVES DRYING 0 Lock Pull Add CHECK MIN ON DOOR FULL OPEN

Technical line drawing of a mechanical component with internal blades and mounting brackets (no text or symbols)

Technical line drawing of a mechanical assembly with internal components and mounting brackets (no text or symbols)

Illustration of a woven basket containing cutlery and spoons (no text or symbols)

Separados

Diagram of a kitchen appliance with utensils and a tray, showing internal components without any text or symbols.

Line drawing of a grid structure with multiple circular components embedded in the matrix (no text or symbols)

Diagram of a car interior showing a dashboard and fan installation (no text or symbols)

Technical line drawing of a mechanical component or housing structure (no text or symbols)

Technical line drawing of a mechanical structure with insulators and housing (no text or symbols)

Technical line drawing of a mechanical assembly with insulators and housing (no text or symbols)

Line drawing of a wire basket with handles and legs, no text or symbols present

Technical line drawing of a mechanical assembly with hands operating a component (no text or symbols)

Hand holding a tool interacting with a grid-patterned surface, no text or symbols visible

Isometric line drawing of a grid-based container with two arrows pointing to one side (no text or symbols)

Nivele la canasta

Puntas flexibles

Diagram illustrating a mechanical or structural assembly with labeled components and directional arrows indicating motion or movement.

Diagram of a mechanical device with gears and a basket, no visible text or symbols

Technical line drawing of a wire mesh structure with internal channels and a black arrow indicating a specific point (no text or symbols present)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Remoción

Technical line drawing of a multi-layered mechanical or electronic component assembly (no text or symbols)

Technical line drawing of a multi-tiered food processing unit with plates, bowls, and a tray (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Diagram of a car with wheels and exhaust pipe, no text or symbols present

Line drawing of a multi-tiered container with a lid and side-mounted dish (no text or symbols)

Line drawing of a car air conditioner unit with no text or symbols

Illustration of a kitchen sink with multiple kitchen utensils and a tray (no text or symbols)

Line drawing of a kitchen knife with three blades, mounted on a grid-patterned surface (no text or symbols)

Line drawing of a woven basket with internal components and directional arrows indicating parts of the basket (no text or symbols)

Illustration showing hand holding fork and cutting tool, with magnified inset of two crossed cutlery pieces in a basket

USO DE LA LAVAVAJILLAS

Line drawing of a hand cleaning a wall with a cloth (no text or symbols)

Line drawing of a hand cleaning a kitchen sink with a grater and drain (no text or symbols)

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Sears Canada Inc., Toronto, Ontario, Canada M5B 2C3

SÉCURITÉ DU LAVE-VAISSELLE

RINSE AD IMPROVES DRYING 0Lock Full Add CHECK WITH DOOR FULLY OPEN

Détergent

Line drawing of a hand using a tool to clean or adjust a device into a tray (no text or symbols visible)

Two-step diagram showing hand positioning a mechanical component on a sink, with no text or symbols present.

PIÈCES ET CARACTÉRISTIQUES

Technical illustration of a mechanical component with a circular hole and cylindrical housing (no text or symbols)

Line drawing of a car interior showing dashboard and seat (no text or symbols)

PULSE AID IMPROVES DRIPING 0 Look Pull Add CHECK WITH ONCE PULLY OPEN Smart Dry OU Heated Dry

Technical diagram of a mechanical assembly with internal components and motion lines (no text or symbols)

Two technical illustrations showing hands operating a mechanical component, one with a flange and the other with a circular component (no text or symbols present)

Hand holding a small object with a downward arrow, no visible text or symbols

Isometric line drawing of a multi-compartment container with internal structure and two black arrows indicating points (no text or symbols)

Line drawing of a hand using a tool to adjust or install a device into a tray (no text or symbols visible)

CLOSE AD IMPROVES DRYING 0 Lock Pull Add Chest WITH ON DOG FULL OPEN

Technical line drawing of a mechanical component with internal blades and mounting brackets (no text or symbols)

Technical line drawing of a mechanical device with internal components and external curved elements (no text or symbols)

Illustration of a woven basket containing cutlery including spoons and spoons (no text or symbols)

Séparés

Illustration of a kitchen sink with utensils and a hand mixer (no text or symbols)

Line drawing of a mechanical assembly with multiple cylindrical components embedded in a grid-like structure (no text or symbols)

Surfaces inclinées

Technical illustration of a washing machine with a pan and fan, showing internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and mounting brackets (no text or symbols)

Technical line drawing of a multi-tiered electrical insulator assembly (no text or symbols)

Technical line drawing of a mechanical assembly with insulators and housing (no text or symbols)

Line drawing of a woven basket with a lid and handle, no text or symbols present

Line drawing of a mechanical assembly with a hand operating a component (no text or symbols)

Hand holding a tool interacting with a grid-patterned surface, no text or symbols visible

Isometric line drawing of a multi-level kitchen or laundry unit with no visible text or symbols

Diagram illustrating a mechanical or structural assembly with labeled components and directional arrows indicating motion or movement.

Diagram of a mechanical or electronic component with layered structure and a highlighted section (no text or symbols)

Line drawing of a wire cage with multiple blades and a black arrow pointing to one blade (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Dépose

Technical line drawing of a multi-tiered mechanical assembly with rollers and gears (no text or symbols)

Illustration of a multi-tiered kitchen appliance with plates and a tray (no text or symbols)

Technical illustration of a mechanical assembly with a magnified inset showing a detail of a component being inserted (no text or symbols present)

Line drawing of a door handle and seat (no text or symbols)

Illustration of a kitchen sink with plates, utensils, and kitchenware (no text or symbols)

Line drawing of a knife with three blades mounted on a grid-patterned surface (no text or symbols)

Line drawing of a woven basket with internal components and directional arrows indicating parts of the basket (no text or symbols)

Diagram illustrating hand tool application on a computer and corresponding pair pair diagram, with labeled parts and illustrations.

UTILISATION DU LAVE-VAISSELLE

Line drawing of a hand cleaning a wall with a cloth (no text or symbols)

Line drawing of a hand cleaning a kitchen appliance with a grater and drain (no text or symbols)

Line drawing of a kitchen sink with faucet and sink, showing a drop in the sink (no text or symbols)

Get it fixed, at your home or ours!

Your Home

For troubleshooting, product manuals and expert advice:

managemylife

www.managemylife.com

For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME®

(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com

www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment, and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.)

www.sears.com

1-800-469-4663 (Canada)

www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.)

1-800-361-6665 (Canada)
