USER MANUAL HDBC100AFS HAIER

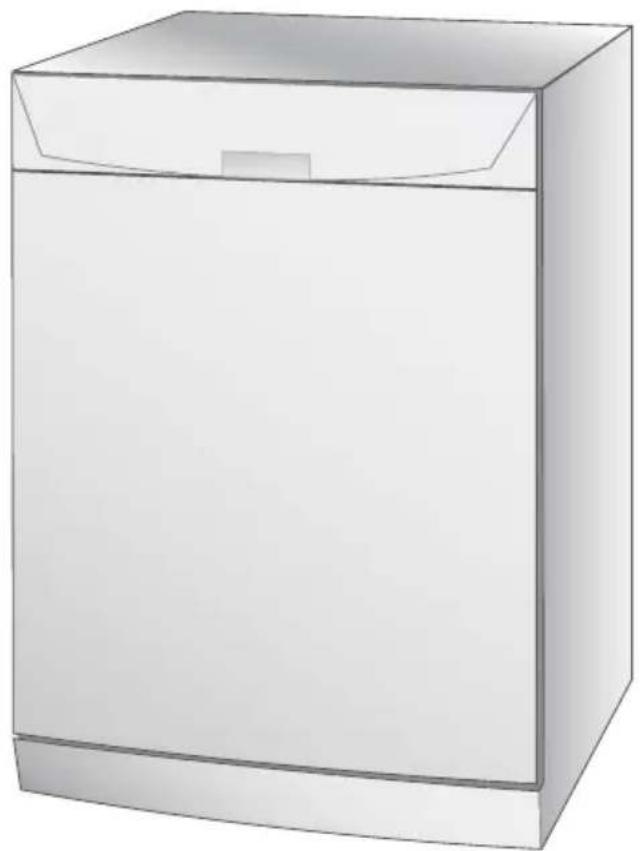

18" Built-In Dishwasher

Lave-Vaisselle Incorpere 18"

Lavavajillas Empotrado 18"

TABLE OF CONTENTS

DISHWASHER SAFETY 2

INSTALLATION REQUIREMENTS 4

Tools and Parts 4
Location Requirements 5
Product Dimensions 6
Drain Requirements 7
Water Supply Requirements 8
Electrical Requirements 8

INSTALLATION INSTRUCTIONS 9

Prepare Cabinet Opening Using Existing Utility Hookups 9
Install the Drain Hose 10
Prepare Cabinet Opening Where There Are No Existing Utility Hookups 12
Prepare Dishwasher 15

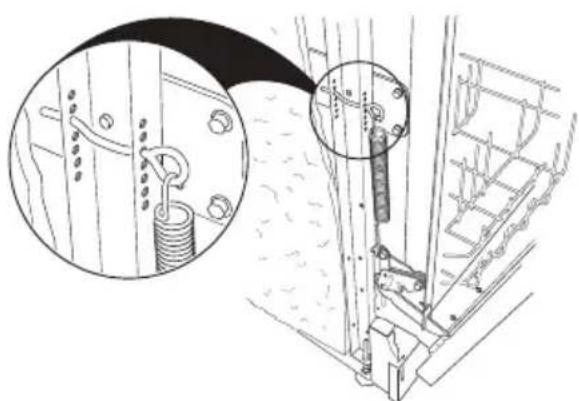

Check Door Spring Tension 17
Move Dishwasher Into Cabinet Opening 17

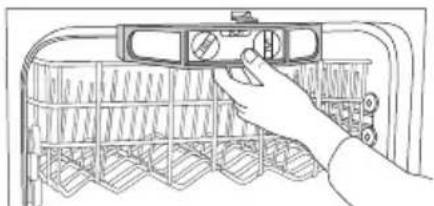

Level the Dishwasher 18

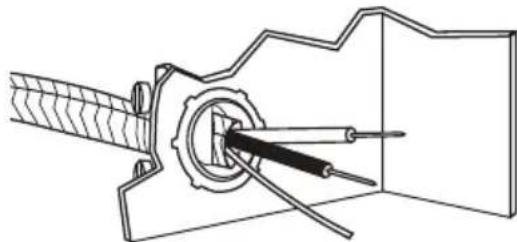

Make Electrical Connection 19
Connect To Water Supply 22

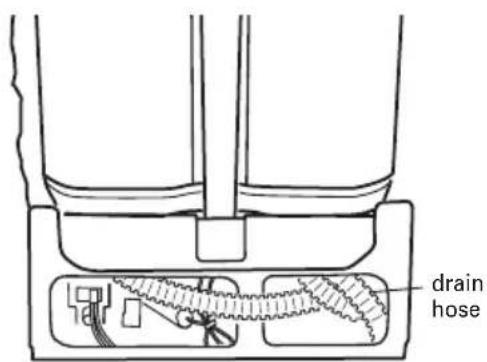

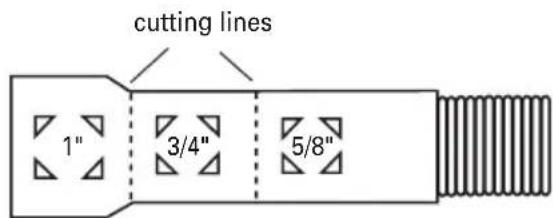

Connect To Drain 23

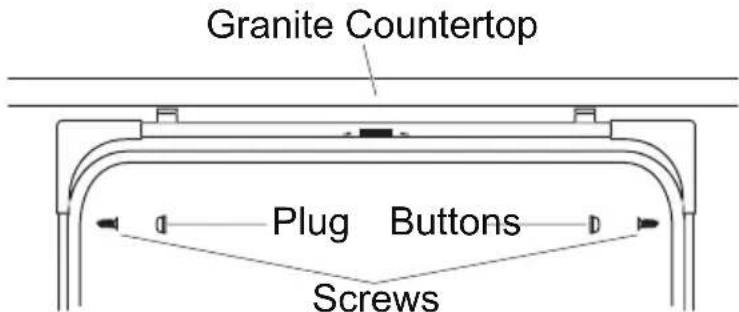

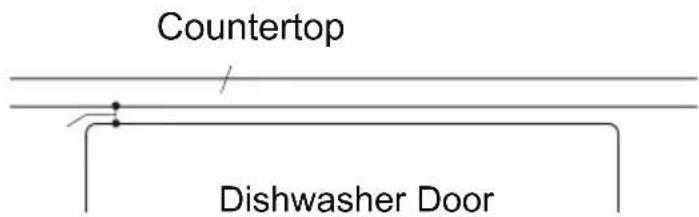

Securing Dishwasher To Countertop. 24

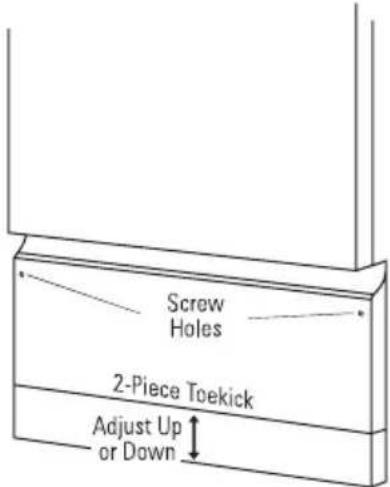

Complete Installation 25

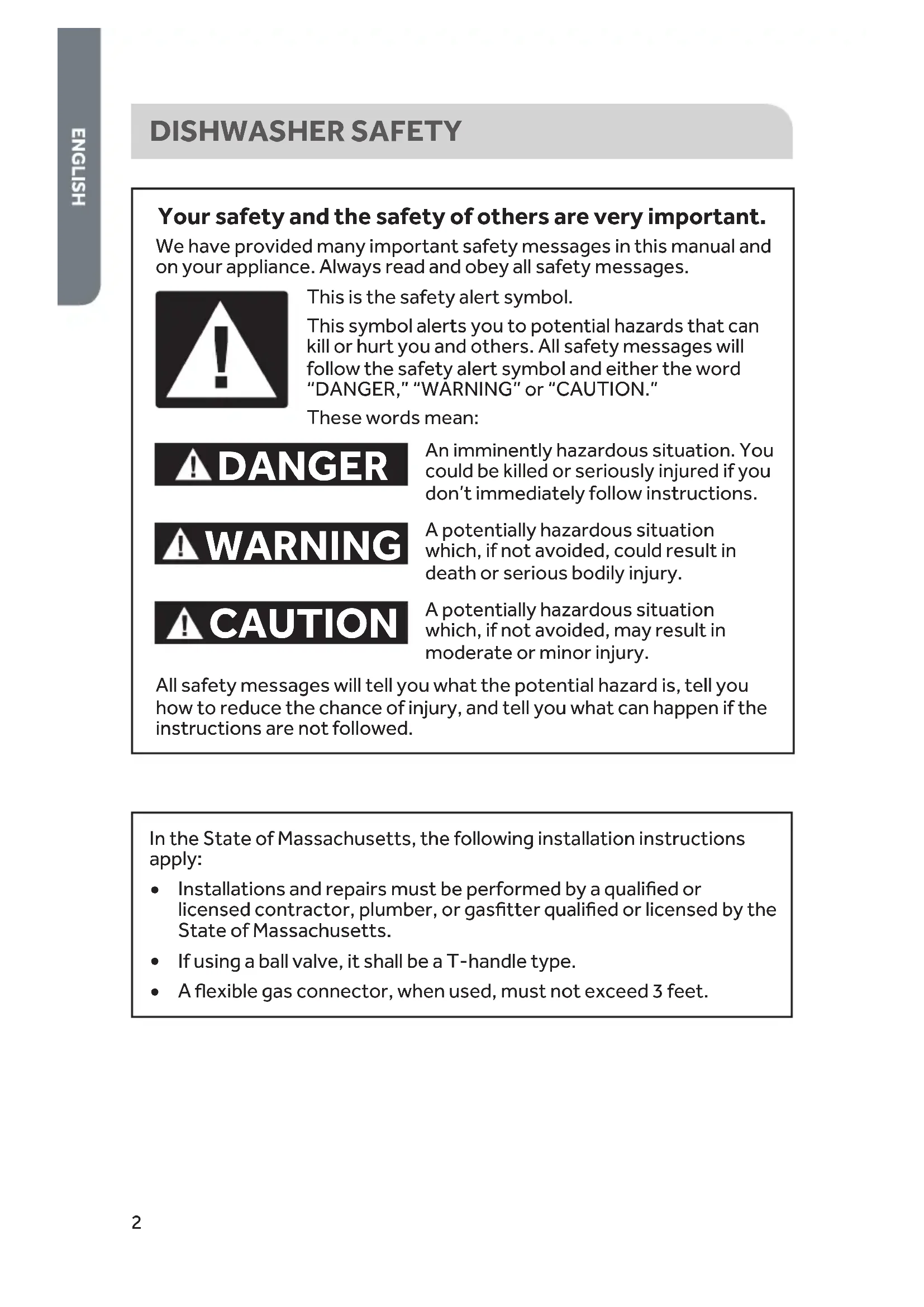

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER," "WARNING" or "CAUTION."

These words mean:

DANGER

An imminently hazardous situation. You could be killed or seriously injured if you don't immediately follow instructions.

WARNING

A potentially hazardous situation which, if not avoided, could result in death or serious bodily injury.

CAUTION

A potentially hazardous situation which, if not avoided, may result in moderate or minor injury.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

In the State of Massachusetts, the following installation instructions apply:

• Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the State of Massachusetts.
  If using a ball valve, it shall be a T-handle type.
• A flexible gas connector, when used, must not exceed 3 feet.

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Failure to follow these instructions can result in serious injury or cuts.

YOU NEED TO:

• Slowly open dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials, drain hose and lower rack. Close dishwasher door until latched.
• Observe all governing codes and ordinances
  Install this dishwasher as specified in these instructions.
• Installation should be performed by a qualified service technician. The dishwasher must be installed to meet all electrical and plumbing national and local codes and ordinances.

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

ALL INSTALLATIONS

Tools Needed:

• Phillips screwdriver
• Flat-blade screwdriver
• Measuring tape or ruler
• 6" adjustable wrench
• Small level
• Flashlight
• Shallow pan

Parts Needed:

90^ elbow with 3/8 N.P.T. external threads on one end. (The other end must fit your water supply line.)
Plumbers tape
3 UL listed wire nuts
One 112'' - 2'' screw type clamp

IN ADDITION, FOR NEW INSTALLATIONS

Tools Needed:

Electric drill with 12 , 34 and 1 12 hole saw bits
- Small tubing center

Parts Needed:

Copper tubing (3 / 8^ recommended)
- Clamp connector (strain relief) to fits 18'' (22.2 cm) diameter hole.
One 1 12 - 2" screw type clamp if connecting to waste-tee

PARTS SUPPLIED:

A 2 - # 8 × 5 / 8 " Phillips flat head wood screws
B 2 - Phillips head, color matched toekick screws

Make sure these parts are included.

See separate parts list for accessories available for your dishwasher.

A

B

LOCATION REQUIREMENTS

Do not run drain lines, water lines or electrical wiring where they can interfere with or contact dishwasher motors or legs.

The location where the dishwasher will be installed must provide clearance between motors and flooring. Motors should not touch the floor.

Do not install dishwasher over carpeted flooring

Protect dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the warranty.

Check location where dishwasher will be installed. The location must provide:

• Easy access to water, electricity and drain
• Convenient access for loading and unloading dishes. Corner locations require a 2'' (5.1 cm) minimum clearance between the side of the dishwasher door and the wall or cabinet.

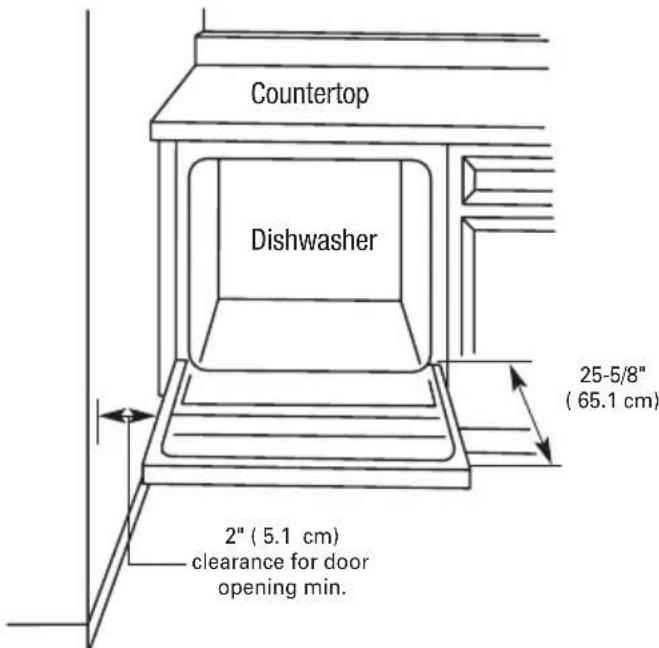

  Minimum of 25% (65.1 cm) in front of dishwasher to allow door to fully open.

An area, fully enclosed on both sides, back and top.
- Square opening for proper operation and appearance.
Cabinet front perpendicular to floor.
- Level floor. (If floor at front of opening is not level with floor at rear of opening, shims may be needed to level dishwasher.)

NOTE: To prevent shifting during dishwasher operation, shims must be securely attached to the floor.

If dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by authorized service personnel.

Make sure pipes, wires and drain hose are within the shaded area shown in the "Cutout Dimensions" section.

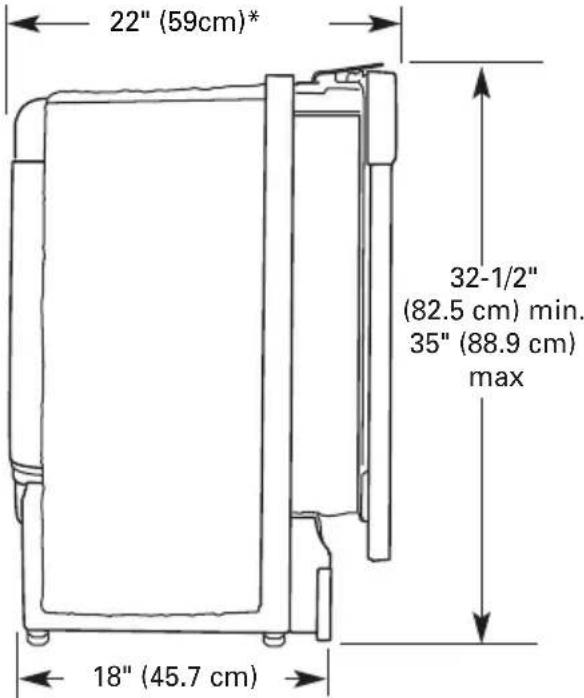

PRODUCT DIMENSIONS

* to front of door frame

SIDE VIEW

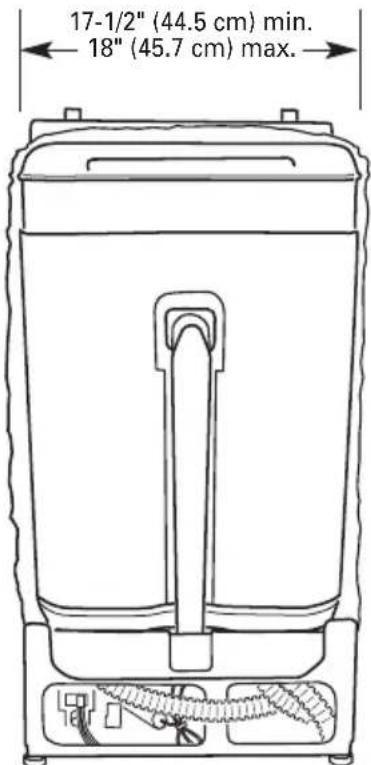

REAR VIEW

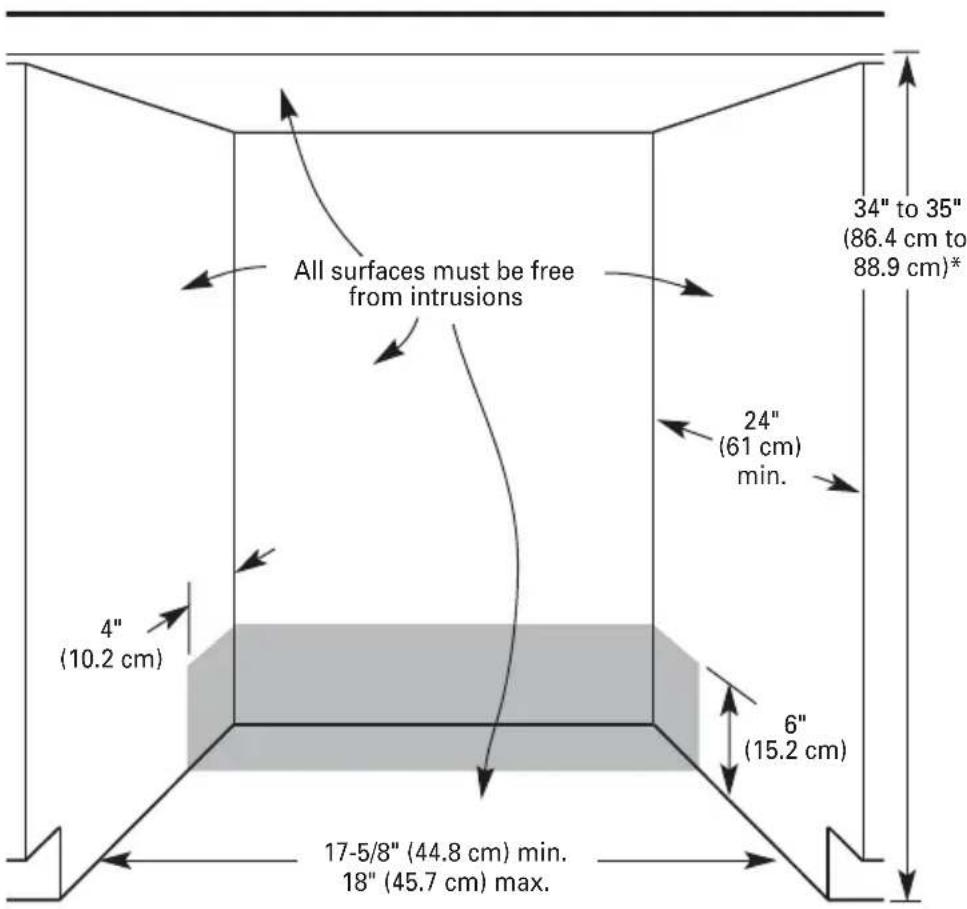

CUTOUT DIMENSIONS

*Underside of countertop to floor.
Cut holes in the shaded area of the cabinet walls or floor for plumbing and electrical service.
NOTE: ADA installation, 32 12 (82.5) cm beneath 34 (86.4 cm) high countertops may be accomplished by adjusting the toekick and leveling legs.

DRAIN REQUIREMENTS

• Use the new drain hose supplied with your dishwasher. If this is not long enough, use a new drain hose with a maximum length of 10 ft (3.05 m) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, use 5/8''(1.58 ~cm) or 7/8''(2.2 ~cm) inside diameter (I.D.) hose and a coupler to connect the two hose ends. Secure the connection with two clamps
• Connect drain hose to waste T or dispenser inlet above drain trap in house plumbing and 32^ (81.3 cm) minimum above the floor. It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter, or be connected to an air gap.
• Use an air gap if the drain hose is connected to house plumbing lower than 20^ (50.8 cm) above the floor.

- Use 12 minimum I.D. drain line fittings.

• Do not connect drain lines from other devices to the dishwasher drain hose.

WATER SUPPLY REQUIREMENTS

• A hot water line with 20-120 psi (138-862 kPa) water pressure.
  120°F (49°C) water at dishwasher.

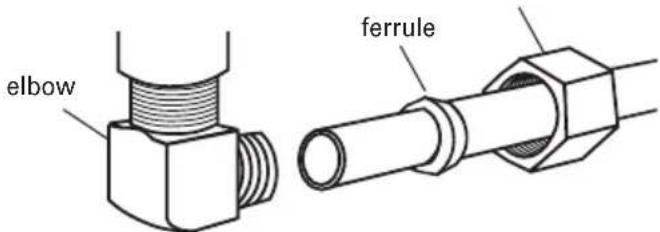

• 3/8 outside diameter (O.D.) copper tubing with compression fitting or flexible stainless steel braided fill line ( 1/2 minimum plastic tubing is not recommended).
  A 90^ elbow with 38 N.P.T. external pipe threads on one end.

ELECTRICAL REQUIREMENTS

Contact a qualified electrician. Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/ NFPA No. 7-latest edition and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

You must have:

120 volt, 60 Hz, AC-only, 15 or 20 amp., fused electrical supply
- Wiring must be 2 wire with ground.

We recommend:

• A time-delay fuse or circuit breaker.
• A separate circuit.

If direct wiring dishwasher:

• Use flexible, armored or non-metallic sheathed, copper wire with grounding wire that meets the wiring requirements for your home and local codes and ordinances.

Electrical Connection to Dishwasher

Electrical connection is on the right front of dishwasher.

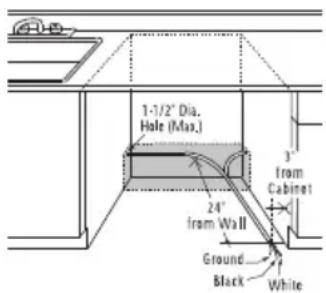

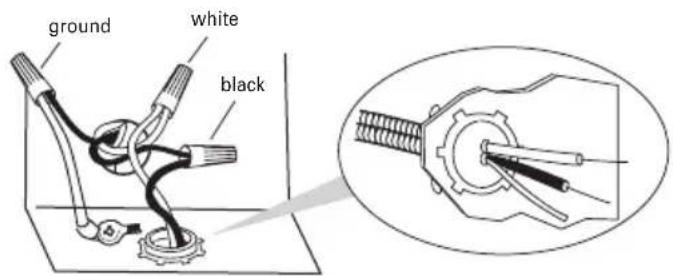

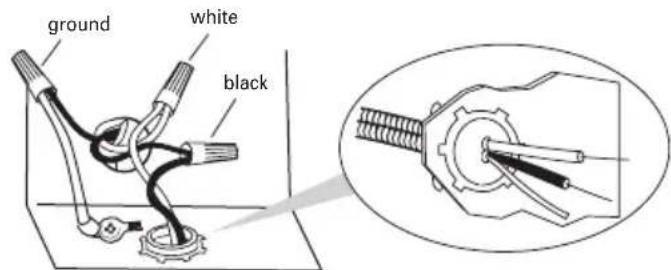

• For cable direct connections the cable must be routed as shown. Cable must extend a minimum of 24^ from the rear wall.
• For power cord connections, have a qualified electrician install a 3 prong grounding type receptacle. The power-supply receptacle for the appliance shall be installed in a cabinet or on a wall adjacent to the under counter space in which the appliance is to be installed.

WARNING

Electrical Shock Hazard

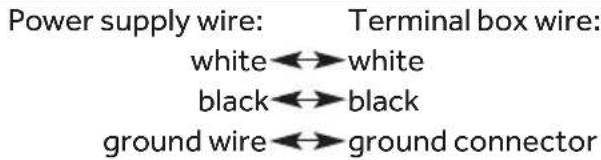

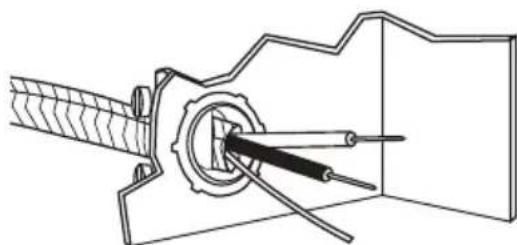

Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.

Failure to do so can result in death or electrical shock.

1. Disconnect power.
2. Turn off water supply.

PREPARE CABINET OPENING USING EXISTING UTILITY HOOKUPS

• Follow the steps in this section if you are installing the dishwasher in an existing cabinet opening with utility hookups.
• If you are installing the dishwasher in a cabinet opening that does not have hookups, follow the steps under "Prepare cabinet opening where there are no existing utility hookups" section.
• Check that the water line reaches to the front left of opening where the water connection will be made.
• Check that the direct wire reaches to the front right of opening where the electrical connection will be made.

If the water line and the direct wire reach far enough into the opening, proceed to the next section "Install the drain hose." If they do not reach far enough, follow the steps under "Prepare cabinet opening where there are no existing utility hookups."

INSTALL THE DRAIN HOSE

IMPORTANT:

Always use a new drain hose even when installing a new replacement dishwasher.
- To reduce the vibration of the hose, keep the hose away from the floor and the edge of the hole where it passes through the cabinet.

1. Drill a 112 (3.8 cm) diameter hole in cabinet wall or floor on the side of the opening closest to the sink.

1. Connect drain hose to waste T or waste dispenser using one of the following methods.

Option 1, Waste disposal - with air gap
Option 2, No waste dispenser - with air gap
Option 3, Waste disposer - no air gap
Option 4, No waste dispenser - no air gap

*an air gap is recommended

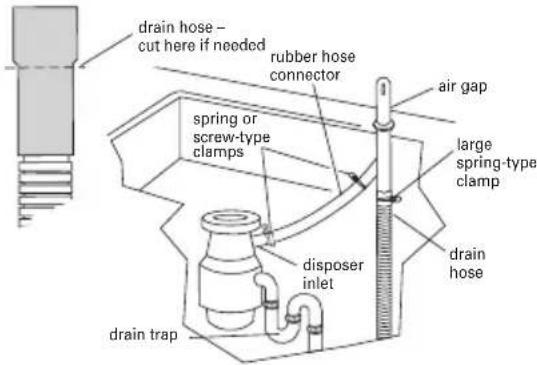

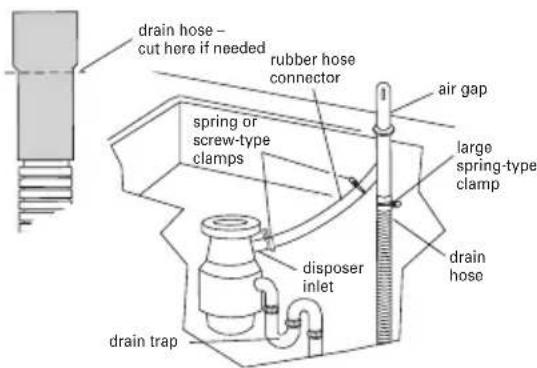

Option 1, Waste disposer - with air gap:

1. Remove the dispenser knockout plug. Cut end of drain hose if needed (do not cut ribbed section).
2. Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 1 12 to 2 (3.8 to 5 cm) screw-type clamp*.
3. Use a rubber hose connector with spring or screw type clamps to connect air gap to dispenser inlet.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed.

*Parts available from local plumbing supply store.

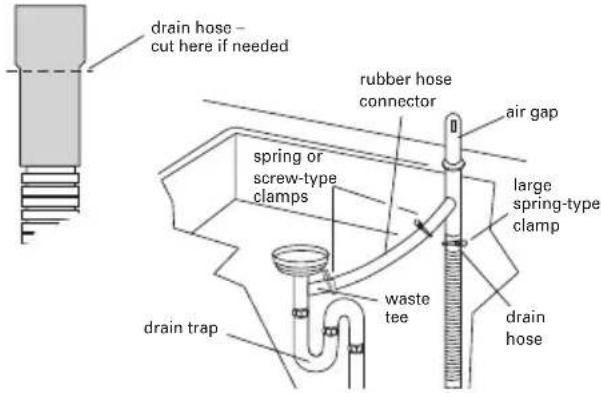

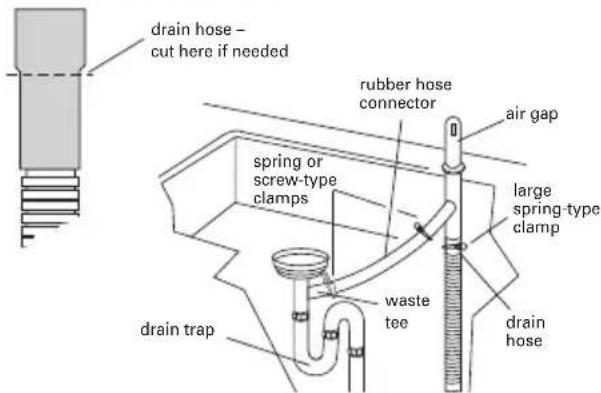

Option 2, No waste dispenser - with air gap:

1. Cut end of drain hose if needed (do not cut ribbed section).
2. Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 112 to 2' (3.8 to 5 cm) screw-type clamp*.
3. Use a rubber hose connector with spring or screw type clamps to connect air gap to dispenser inlet.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed.

*Parts available from local plumbing supply store.

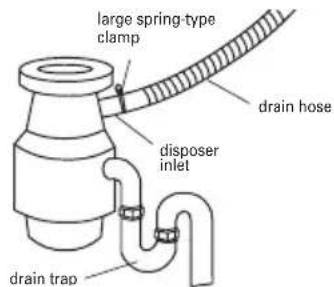

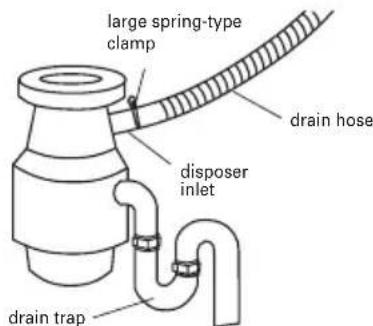

Option 3, Waste dispenser - no air gap:

1. Remove the dispenser knockout plug. Do not cut end of drain hose.
2. Attach drain hose to dispenser inlet with large spring-type clamp.
3. Use a rubber hose connector with spring or screw type clamps to connect disposer inlet.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed. It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.

• Parts available from local plumbing supply store.

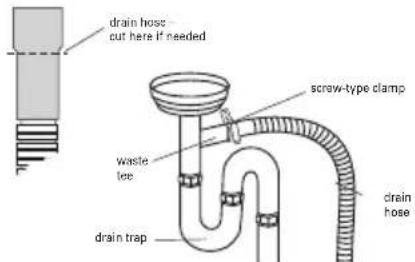

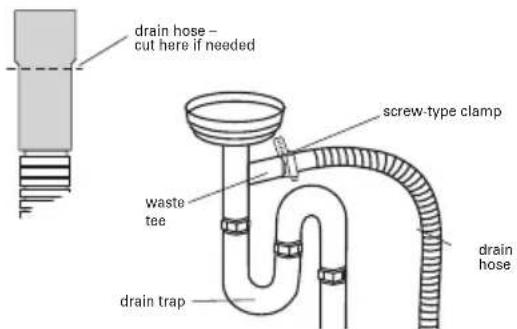

Option 4, No waste dispenser - no air gap:

1. Cut end of drain hose if needed (do not cut ribbed section).
2. Attach drain hose to waste tee with 112 to 2 (3.8 to 5 cm) screw-type clamp*.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed. It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.

PREPARE CABINET OPENING WHERE THERE ARE NO EXISTING UTILITY HOOKUPS

ELECTRICAL CONNECTION

Option 1, Direct wire method:

NOTE: Wiring the dishwasher will be easier if you route wire into the cabinet opening from the right side.

1. Drill a 3/4'' (1.9 cm) hole in the right-hand cabinet side, rear or floor. Preferred and optional locations are shown.

2. Wood cabinet: sand hole until smooth. Metal cabinet: Cover hole with grommet, not provided.

3. Route cable from power supply through cabinet hole (cable must extend to the right front side of cabinet opening). Tape cable to the floor 6" in front of unit. This will prohibit cable from moving when dishwasher is moved into cabinet opening.

Option 2, Power supply cord method:

IMPORTANT: A mating, three prong, ground-type wall receptacle is required in a cabinet next to the dishwasher opening.

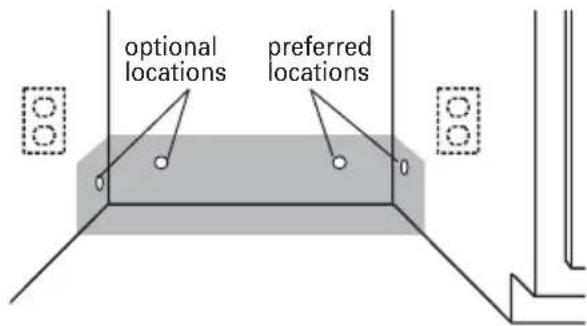

1. Drill a 112 (3.8 cm) hole in the cabinet rear or side. Preferred and optional locations are shown.
2. Wood cabinet: sand hole until smooth. Metal cabinet: Cover hole with grommet (Part No.302797) included with power supply cord kit.

INSTALL THE WATERLINE

NOTE: Routing the water line through the left side of cabinet opening will make water connection easier.

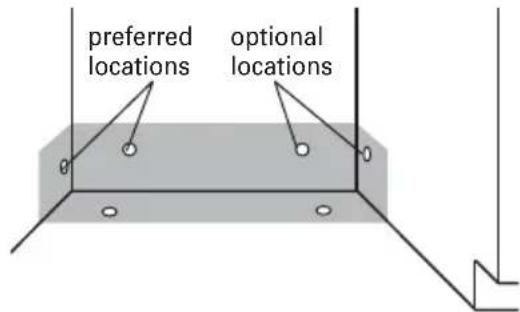

1. Drill a 12 (1.3 cm) hole in the cabinet side, rear or floor. Preferred and optional locations are shown.
2. Measure overall length of copper tubing required.
3. Attach copper tubing to the water line with a manual shutoff valve.
4. Slowly feed copper tubing through hole in cabinet. Copper tubing will bend and kink easily, so be gentle. The copper tubing should be far enough into the cabinet opening to connect it to the dishwasher inlet on the front left of the dishwasher.
5. Turn water shutoff valve to "ON" position. Flush water into a shallow pan to get rid of particles that may clog the inlet valve.
6. Turn shutoff valve to "OFF" position.

INSTALL THE DRAIN HOSE

IMPORTANT: Always use a new drain hose.

1. Drill a 112 (3.8 cm) hole in cabinet wall or floor, on the side of the opening closest to the sink.

1. Connect drain hose to waste tee or waste dispenser using one of the following methods:

Option 1, Waste disposal - with air gap
Option 2, No waste disposer - with air gap
Option 3, Waste disposer - no air gap
Option 4, No waste dispenser - no air gap

Option 1, Waste disposer - with air gap:

1. Remove the dispenser knockout plug. Cut end of drain hose if needed (do not cut ribbed section).
2. Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 112 to 2^ (3.8 to 5 cm) screw-type clamp*.
3. Use a rubber hose connector with spring or screw type clamps to connect air gap to dispenser inlet.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed.

*Parts available from local plumbing supply store.

Option 2, No waste dispenser - with air gap:

1. Cut end of drain hose if needed (do not cut ribbed section).
2. Attach drain hose to air gap with large spring-type clamp. If the drain hose was cut, use a 112 to 2' (3.8 to 5 cm) screw-type clamp*.
3. Use a rubber hose connector with spring or screw type clamps to connect air gap to dispenser inlet.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed.

*Parts available from local plumbing supply store.

Option 3, Waste disposer - no air gap:

1. Remove the dispenser knockout plug. Do not cut end of drain hose.
2. Attach drain hose to dispenser inlet with large spring-type clamp.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed. It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.

*Parts available from local plumbing supply store.

Option 4, No waste dispenser - no air gap:

1. Cut end of drain hose if needed (do not cut ribbed section).
2. Attach drain hose to waste tee with 112 to 2 (3.8 to 5 cm) screw-type clamp*.

This connection must be before the drain trap and at least 20^ (50.8 cm) above the floor where dishwasher will be installed. It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.

*Parts available from local plumbing supply store.

PREPARE DISHWASHER

WARNING

Tip Over Hazard

Do not use dishwasher until completely installed.

Do not push down on open door.

Failure to follow these instructions can result in serious injury or cuts.

WARNING

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

1. Grasp sides of dishwasher door frame and put dishwasher on its back.

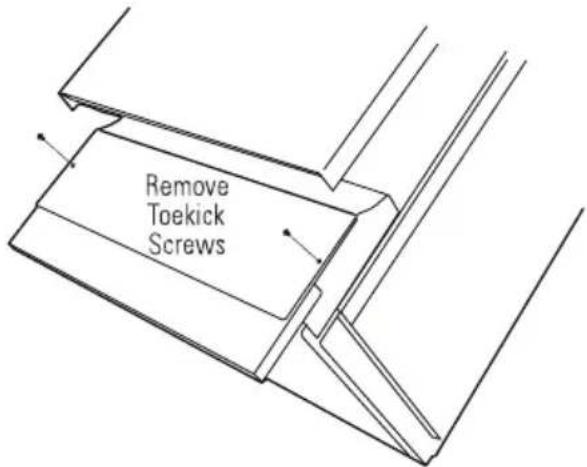

2. Remove two screws attaching toekick panel and lower panel to dishwasher using a Phillips screwdriver.
3. Remove panels and set panels aside on a protective surface.

1. Apply thread seal tape to 90^ elbow fitting and connect fitting to water inlet valve.
2. Tighten elbow until snug, and be sure that it faces to the rear.
3. Remove top screw and slide cover to the right to remove terminal box cover.

water inlet valve

NOTE: If you are direct wiring: install a U.L. - listed/CSA- conduit, use a U.L.- listed/CSA-certified conduit connector.

1. Measure height of cabinet opening from underside of countertop to floor where dishwasher will be installed (you need the lowest point).

1. Extend leveling legs out from the dishwasher base, 14 less than opening height.

leveling leg

CHECK DOOR SPRING TENSION

With another person holding the dishwasher to prevent it from tipping, open and close the door a few times. If the door closes too quickly or falls open under its own weight, the door tension will need to be adjusted.

• If the door closes too quickly, decrease the spring tension by pulling the spring adjustment pin out of its hole and reinsert it in the next lower hole toward the bottom of the dishwasher.
• If the door falls open, increase the spring tension by pulling the spring adjustment pin out of its hole and reinserting it in the next higher hole toward the top of the dishwasher.
• Spring adjustment pins should be in the same holes on both the left and right sides.

MOVE DISHWASHER INTO CABINET OPENING

WARNING

Excessive Weight Hazard

Use two or more people to move and install dishwasher.

Failure to do so can result in back or other injury.

1. Using two or more people, stand the dishwasher up.

2. Grasp the sides of the dishwasher at the edges of the door panel.

3. Move dishwasher close to cabinet opening. Do not push on the front of the panel or on the console - they may dent.

1. If dishwasher has a power supply cord, insert power supply cord into hole cut into cabinet.

If using direct wire, check that it is on the right front side of opening.

1. Check that water line is on the left side of opening and insert the drain hose through the hole in cabinet.

2. Slowly move dishwasher completely into cabinet opening so that the front corners of the dishwasher door are flush with the cabinet doors. Do not kink or pinch copper tubing, drain hose, power supply cord or direct wire between dishwasher and cabinet.

NOTE: Once the dishwasher is in position, you may have to support the front of the dishwasher by either raising, lowering or shimming the front feet.

1. Remove cardboard from under dishwasher.

NOTE: It is all right if the dishwasher fits tightly into cabinet opening. Do not remove insulation blanket – the blanket reduces the sound travel.

LEVEL THE DISHWASHER

1. Align front of dishwasher door panel with cabinet doors. You may need to adjust alignment to be even with your cabinets.

NOTE: Prop up one side of frame to hold dishwasher up off floor when adjusting front legs. With some installations, it may be easier to adjust the front leg using the 6" adjustable wrench.

1. Check that leveling legs are firmly against the door

2. Close and latch the door, and place level against the front panel. Check that dishwasher is plumb. If needed, adjust leveling leg or add shins until dishwasher is plumb.

1. Repeat for other side of dishwasher.

NOTE: Shims must be securely attached to floor to prevent their movement when the dishwasher is operated.

1. Place level against top front opening of tub. Check that dishwasher is level from side to side. If dishwasher is not level, adjust front legs up or down until dishwasher is level.

MAKE ELECTRICAL CONNECTION

Check "Electrical requirements" section to ensure you have the correct electrical supply and recommended grounding method.

If you are:

• Direct wiring, use Option 1
  Using a power supply cord, use Option 2

Option 1, Direct wire method

WARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Remove terminal box cover. Retain for later use.

1. Install a UL listed/CSA approved strain relief.

2. Route direct wire so that it does not touch dishwasher motor or lower part of dishwasher tub.

3. Pull direct wire through strain relief in terminal box.

1. Using UL listed wire nuts of the appropriate size to connect direct wire to 16-gauge dishwasher wire, connect the wires as follows:

NOTES:

• Insert wire ends into twist on connector. Do not pre-twist bare wire.

• Twist connector.

Gently tug on wires to be sure both are secured.

1. Tighten strain relief screws to secure cord.
2. Reinstall terminal box cover with wires inside terminal box.
3. Make sure wires are not pinched by cover.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong from the power cord plug.

Do not use an adapter.

Do not use an extension cord.

Failure to do so can result in death, fire or electrical shock.

The power cord and connections must comply with the National Electrical Code, Section 422 and/or local codes and ordinances. Recommended cord length is 54^ min. and 64^ max.

1. Remove terminal box cover. Retain for later use.

1. Install a UL listed/CSA approved strain relief.
2. Route power cord so that it does not touch dishwasher motor or lower part of dishwasher tub.
3. Pull power cord through strain relief in terminal box.

1. Using UL listed wire nuts of the appropriate size to connect power cord to 16-gauge dishwasher wire, connect the wires as follows:

Power supply wire: Terminal box wire:

white white

black black

ground wire ground connector

NOTES:

• Insert wire ends into twist on connector. Do not pre-twist bare wire.

• Twist connector.

Gently tug on wires to be sure both are secured.

1. Tighten strain relief screws to secure cord.
2. Reinstall terminal box cover with wires inside terminal box.
3. Make sure wires are not pinched by cover.

CONNECT TO WATER SUPPLY

Compression fittings:

• Slide nut onto copper tubing about 1^ (2.5 cm).
• Slide ferrule onto the tubing. Do not position ferrule on the end of the tubing.
  Put the tubing into the elbow as far as it will go.
• Slide the nut and ferrule forward and start the nut onto the elbow threads. Be gentle when handling and positioning the copper tubing, it bends and kinks easily.

1. To prevent vibration during operation, route the water supply line so that it does not touch the dishwasher base, frame or motor.
2. With copper tubing pushed into compression fitting as far as it will go, use a wrench and tighten compression fitting nut to elbow on water inlet valve. Do not use plumbers tape with compression fittings.

1. Place paper towel under elbow. Turn on water supply and check for leaks.

CONNECT TO DRAIN

IMPORTANT: Total drain hose length must not exceed 10 ft (3.05 m), for proper drain operation.

1. To help minimize vibration, route drain hose to avoid contact with motor, door springs, water line, cabinet, flooring or the edge of the hole where it passes through the cabinet.
2. Do not remove drain loop from side of dishwasher.
3. Place pad under end of drain hose. Pan will collect water in drain hose.

1. The drain hose molded end will fit 5/8'' (16 mm), 3/4'' (19 mm) or 1'' (25.4 mm) diameter connections on the air gap, waste tee or dispenser. Cut on the marked line as required for your installation.

NOTE: If a longer drain hose is required, add up to 42'' (1.07 m) of length for a total of 10 ft (3.05 m) to the factory installed hose.

1. Use 58 or 78 inside diameter hose and a coupler to connect the two hose ends. Secure the connection with hose clamps.
2. Secure the drain hose to the air gap, waste tee or dispenser with clamps.

SECURING DISHWASHER TO COUNTERTOP

Depending on the material of your countertop, secure the dishwasher by using either Method 1 - Non-Stone Countertop or Method 2 - Stone Countertop.

Method 1 - Secure to Non-Stone Countertop

The dishwasher must be secured to the wood countertop.

1. Open the dishwasher door and remove lower dish rack.
2. Place a towel over the pump assembly and spray arm of dishwasher to keep screws from falling into pump area during installation.
3. Check that the dishwasher is level and centered side to side in the opening.
4. Check that the tub flange aligns with the front face of the cabinet frame.

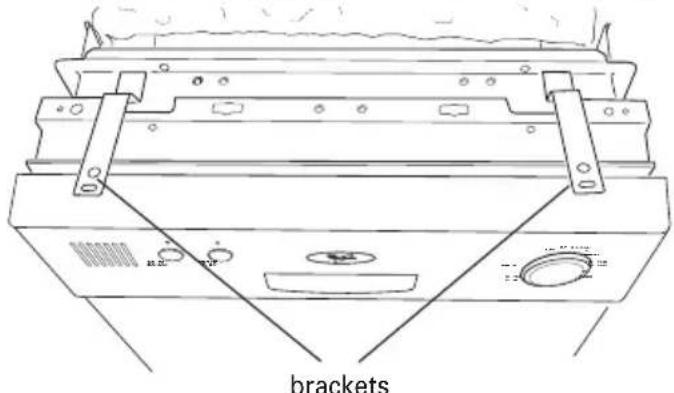

5. Attach the dishwasher to the countertop using the 2 brackets on top of the dishwasher.

NOTE: The dishwasher must be attached to the countertop to keep it from tipping when the door is opened.

1. Insert 2# 8 × 58 Phillips flat-head screws through the brackets and into the countertop.

1. Open the door about 3'' (7.6 cm) and check that the space between the inner door and tub is equal on both sides.
2. If spacing is not equal, loosen the bracket screws and shift the tub. Retighten bracket screws.
3. Check that the top of the door does not contact the screws, brackets or countertop. If it does, the dishwasher must be lowered and leveled again. See "Level The Dishwasher" in "Install Dishwasher."
4. If spacing is not equal, loosen the bracket screws and shift the tub. Retighten the bracket screws.
5. Remove towel from dishwasher.
6. Reinstall the lower dish rack.

Method 2 - Secure to Stone Countertop

When countertops are granite or other materials that will not accept screws, secure dishwasher with side mounting brackets.

1. Use a flat-blade screwdriver or prying tool to remove plug buttons (one on each side).
2. Install screws through the dishwasher side mount bracket and into the adjacent cabinet on each side. Reinstall plug buttons.

1. Close dishwasher and verify that gap between countertop and top of dishwasher door is at least 1/2 .

COMPLETE INSTALLATION

1. Place the lower panel behind the toekick panel.
2. Place 2-piece toekick against the legs of the dishwasher.

3. Place the inner toekick piece (with slots) against the toekick bracket. The slots should align with toekick bracket screw holes. Allow the bottom edge of the lower toekick to touch the floor.

4. Place larger toekick over the inner piece and install 2 toekick screws.

1. Connect to power supply.

DIRECT WIRE METHOD:

WARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

• Reconnect electrical power at the fuse box or circuit breaker.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong from the power cord plug.

Do not use an adapter.

Do not use an extension cord.

Failure to do so can result in death, fire or electrical shock.

• Plug into a grounded 3 prong outlet. Check that power supply cord does not touch dishwasher motor or lower part of dishwasher tub. Reconnect power at the fuse box or circuit breaker.

CHECK OPERATION

1. Read the Use and Care Guide that came with your dishwasher.
2. Check that all parts have been installed and no steps were skipped.
3. Check that you have all the tools you used.
4. Start dishwasher and allow it to complete the shorted wash cycle. After the first two minutes, unlatch door, wait five seconds, then open door.
5. Check to see that there is water in the bottom of the dishwasher tub. Check that dishwasher is working properly.
6. If the dishwasher is not working properly, disconnect power or unplug dishwasher and see "If dishwasher does not operate" section.

IF DISHWASHER DOES NOT OPERATE

First check the following to possibly avoid the cost of a service call.

• Has the circuit breaker tripped or the house fuse blown?
  Is the door closed tightly and latched?
• Has the cycle been set correctly to start the dishwasher?
  Is the water turned on?

If none of these suggestions work, please see your User Manual for service contact information.

TABLE DES MATIÈRES

SECURITE DU LAVE-VAISSELLE 29

CONFIGURATION REQUISE POUR L'INSTALLATION 31

DIMENSIONS DU PRODUIT

DIMENSIONS DU PRODUIT DIMENSIONS DE DÉCOUPE

National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269

DIMENSIONES DEL PRODUCTO

National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269

Usted debet tener:

If you have a problem with this product, please contact the

"Haier Customer Satisfaction Center" at

1-877-337-3639.

DATED PROOF OF PURCHASE, MODEL #, AND SERIAL #

REQUIRED FOR WARRANTY SERVICE

IMPORTANT
