USER MANUAL ZDT15006FA ZANUSSI

Daily use 8
Hints and tips 10
Care and cleaning 11
Troubleshooting 11
Technical information 13
Environment concerns 13

Subject to change without notice.

Safety instructions

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.

Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.
• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA (BS 1362) fuse.
• This appliance complies with the E.E.C. Directives.
• Make sure not to cause damage to the water hoses.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

Water connection

• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.

Use

- This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments
• Farm houses
• By clients in hotels, motels and other residential type environments
• Bed and breakfast type environments.

Warning! Risk of injury, burns, electrical shock or fire.

• Do not change the specification of this appliance.
• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.
• Do not keep the appliance door open without supervision to prevent to fall on it.
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.

• Do not drink and play with the water in the appliance.

• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.

• The appliance can release hot steam if you open the door while a programme operates.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use water spray and steam to clean the appliance.

Disposal

Warning! Risk of injury or suffocation.

- Disconnect the appliance from the mains supply.

- Cut off the mains cable and discard it.

- Remove the door catch to prevent children and pets to get closed in the appliance.

Service

- Contact the Service to repair the appliance. We recommend only the use of original spare parts.

- When you contact the Service, ensure that you have the following information that is available on the rating plate.

Model :

PNC :

Serial Number :

Product description

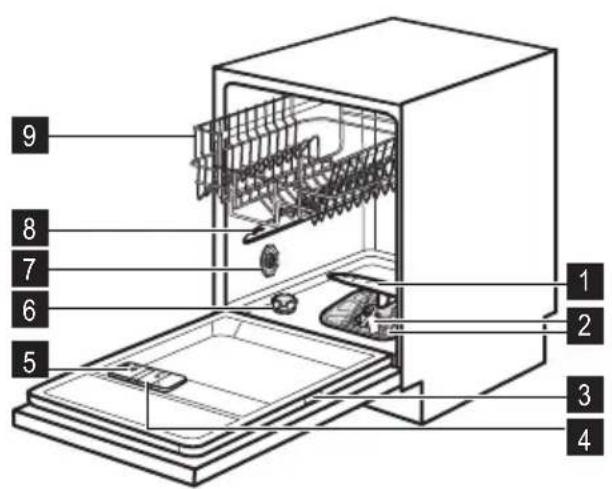

9 8 7 6 5 1 2 3 4

1 Lower spray arm
2 Filters
3 Rating plate
4 Rinse aid dispenser
5 Detergent dispenser
6 Salt container
7 Water hardness dial
8 Upper spray arm
9 Upper basket

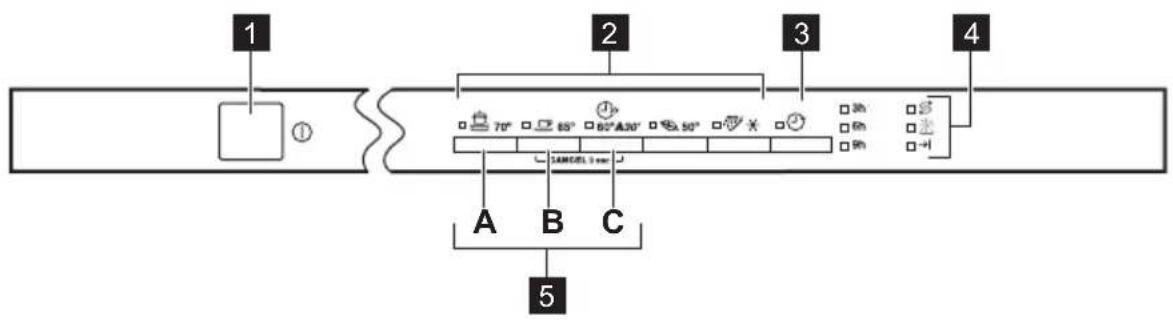

1 2 3 4 70° 85° 90° 95° A B C 5

1 On/off button
2 Programme buttons
3 Delay button

4 Indicators
5 Function buttons

Indicators Description
	Salt indicator. This indicator is off while the programme operates.
	Rinse aid indicator. This indicator is off while the programme operates.
→|	End indicator.

Programmes

Programme1)	Degree of soil Type of load	Programme phases	Duration (min)	Energy (kWh)	Water (l)
70°	Heavy soil Crockery, cutlery, pots and pans	Prewash Wash 70 °C Rinses Dry	90 - 100 1.7 -	1.9 19 - 21
65°	Normal soil Crockery and cutlery	Prewash Wash 65 °C Rinses Dry	100 - 110 1.3	- 1.4 15 - 16
60°A30,2)	Fresh soil Crockery and cutlery	Wash 60 °C Rinse	30 0.8 8
ECO 50°3)	Normal soil Crockery and cutleryAll Prewash 12 0.1 3	Prewash Wash 50 °C Rinses Dry	168 1.01 12.4

1) The water pressure and temperature, the variations of the mains supply, the options and the quantity of dishes can change the programme duration and the consumption values.
2) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
3) This is the standard programme for test institutes. With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information.
4) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance.
Do not use detergent with this programme.

Information for test institutes

For all the necessary information for test performance. send an email to:

[e-mail]

Write down the product number (PNC) that is on the rating plate.

Options

Acoustic signals

The acoustic signals operate in these conditions:

• The programme is completed.
• The level of the water softener is adjusted electronically.
• The appliance has a malfunction.

Factory setting: On.

It is possible to deactivate the acoustic signals.

How to deactivate the acoustic signals

1. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode, refer to 'Setting and starting a programme'.
2. Press and hold function buttons (B) and (C) at the same time until the indicators of function buttons (A), (B) and (C) start to flash.
3. Press function button (C),

- The indicators of function buttons (A) and (B) go off.

• The indicator of function button (C) continues to flash.

• The end indicator comes on.

• Press function button (C). The end indicator goes off, the acoustic signals are deactivated.

• Deactivate the appliance to confirm the setting.

How to activate the acoustic signals

1. Refer to 'How to deactivate the acoustic signals', step (1) through (3).
2. Press function button (C),

- The indicators of function buttons (A) and (B) go off.

- The indicator of function button (C) continues to flash.

- The end indicator is off.

1. Press function button (C). The end indicator comes on, the acoustic signals are active.
2. Deactivate the appliance to confirm the setting.

Before first use

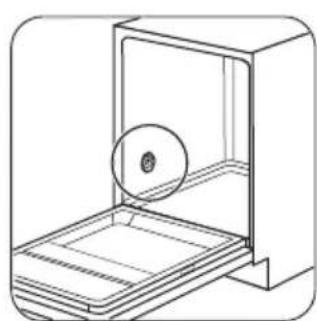

1. Make sure that the set level of the water softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.
2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Processing residues can stay in the appliance. Start a programme to remove them. Do not use detergent and do not load the baskets.

Adjusting the water softener

Water hardness				Water softener adjustment
German degrees (°dH)	French degrees (°fH)	mmol/l Clarke	degrees	Manual Elec- tronic
47 - 50 84 - 90	8.4. - 9.0 58 - 63			21)	10
43 - 46 76 - 83	7.6 - 8.3 53 - 57			21)	9
37 - 42 65 - 75	6.5 - 7.5 46 - 52			21)	8
29 - 36 51 - 64	5.1 - 6.4 36 - 45			21)	7
23 - 28 40 - 50	4.0 - 5.0 28 - 35			21)	6
19 - 22 33 - 39	3.3 - 3.9 23 - 27			21)	51)
15 - 18	26 - 32	2.6 - 3.2	18 - 22	1	4
11 - 14	19 - 25	1.9 - 2.5	13 - 17	1	3
4 - 10	7 - 18	0.7 - 1.8	5 - 12	1	2
< 4	< 7	< 0.7	< 5	12)	12)

1) Factory position.

2) Do not use salt at this level.

You must adjust the water softener manually and electronically.

Manual adjustment

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

1

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Turn the water hardness dial to the position 1 or 2.

Electronic adjustment

1. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode, refer to 'Setting and starting a programme'.

2. Press and hold function buttons (B) and (C) at the same time until the indicators of function buttons (A), (B) and (C) start to flash.

3. Press function button (A).

- The indicators of function buttons (B) and (C) go off.

- The indicator of function button (A) continues to flash.

- Intermittent acoustic signals operate and the end indicator flashes showing the current setting of the water softener.

- The number of flashes of the end indicator and the number of the acoustic signals show the level of the water softener. E.g. 5 acoustic signals and 5 flashes + pause + 5 acoustic signals and 5 flashes = level 5.

1. Press function button (A) again and again to change the setting. Each time you press function button (A) you go to the next level.

2. Deactivate the appliance to confirm the setting.

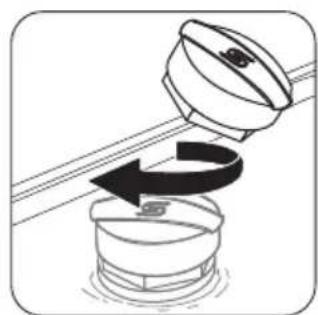

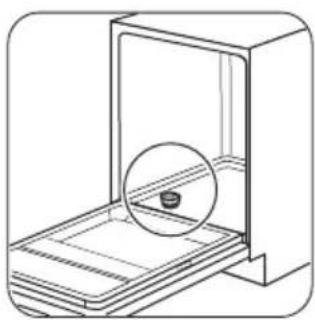

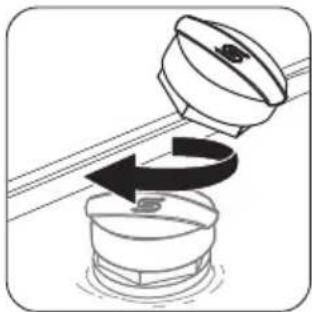

Filling the salt container

Caution! Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

Line drawing of a mechanical device with a circular inset showing a small component (no text or symbols)

1

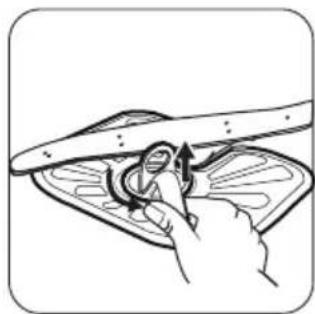

Diagram showing a mechanical component being lifted by a curved arrow, with no visible text or symbols.

2

100ml 750ml 500ml 250ml

3

SALE ZOUT SALT SALZ SEL

4

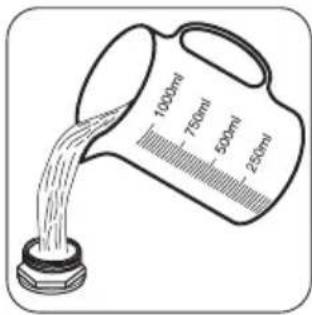

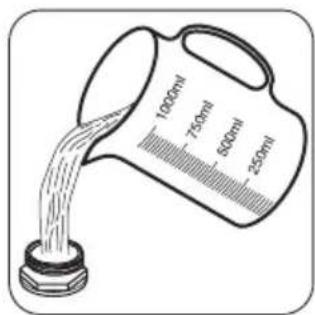

Put 1 litre of water in the salt container (only for the first time).

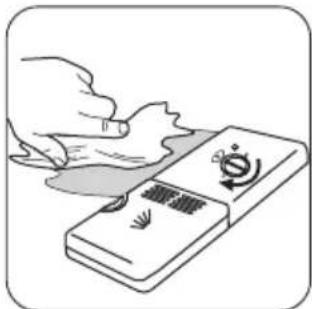

Illustration of a hand cleaning a small container with a cloth (no text or symbols)

5

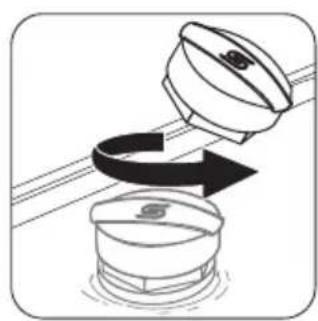

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

6

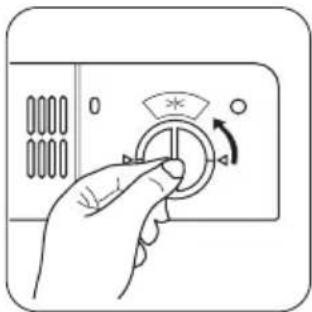

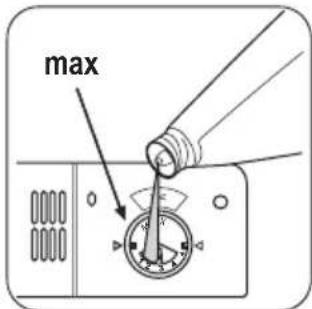

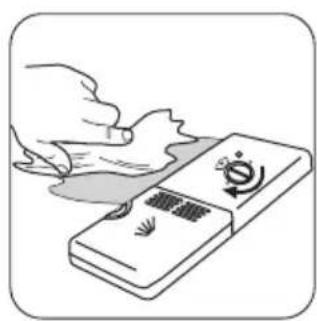

Filling the rinse aid dispenser

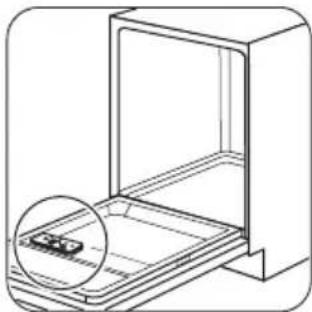

Technical line drawing of a 3D printer or enclosure with an inset showing a small object inside (no text or symbols)

1

Hand holding a device with a rotary knob and indicator dial (no text or symbols visible)

2

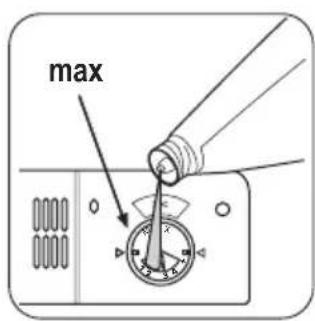

max

3

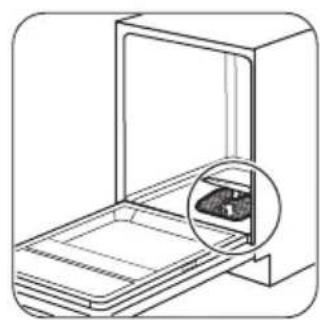

Illustration of a hand pressing down on a device with a small icon, no text or symbols present

4

0 MAX X 2 3 4

To adjust the released quantity of rinse aid, turn the selector between position 1 (lowest quantity) and position 4 (highest quantity).

Daily use

1. Open the water tap.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.
3. If the salt indicator is on, fill the salt container.
4. If the rinse aid indicator is on, fill the rinse aid dispenser.
5. Load the baskets.
6. Add the detergent.
7. Set and start the correct programme for the type of load and soil.

Using the detergent

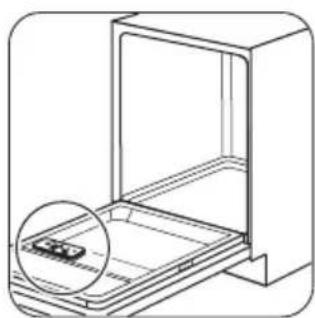

Line drawing of a refrigerator with an open door and a small inset image of a car (no text or symbols)

1

Diagram showing a hand pressing down on a device with a magnified view of the screen, indicating action or inspection.

2

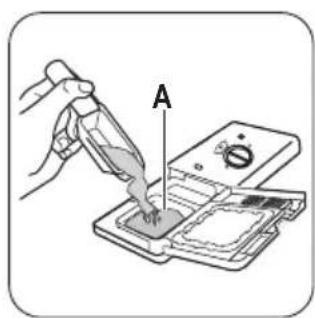

Diagram showing a hand using a tool to apply material to a device labeled 'A', with an arrow indicating direction.

3

A

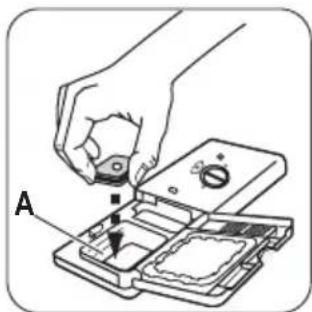

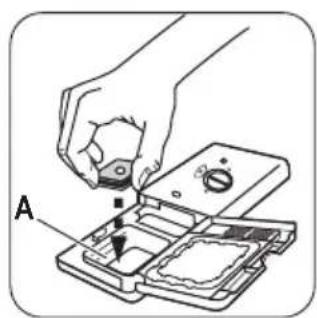

Put the detergent or the tablet in compartment (A).

B

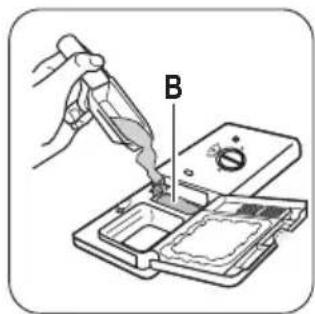

If the programme has a prewash phase, put a small quantity of detergent in compartment (B).

Isometric illustration of a mobile phone with a screen and keypad (no text or symbols)

4

Combi detergent tablets

These tablets contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

When you use tablets, that contain salt and rinse aid, do not fill the salt container and the rinse aid dispenser. The rinse aid indicator always comes on if the rinse aid dispenser is empty.

1. Adjust the water softener to the lowest level.
2. Set the rinse aid dispenser to the lowest position.

If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Press the on/off button to activate the appliance.
2. Set the water softener to the highest level.
3. Make sure that the salt container and the rinse aid dispenser are full.
4. Start the shortest programme with a rinsing phase, without detergent and without dishes.
5. Adjust the water softener to the water hardness in your area.
6. Adjust the released quantity of rinse aid.

Setting and starting a programme

Setting mode

The appliance must be in setting mode to accept some operations.

The appliance is in setting mode when, after the activation, all the programme indicators come on.

If the control panel shows other conditions, press and hold function buttons (B) and (C) at the same time until the appliance is in setting mode.

Starting a programme without delay start

1. Open the water tap.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode.

3. Press the button of the programme you want to set.

4. The related programme indicator stays on.

5. All the other programme indicators go off.

6. Close the appliance door. The programme starts.

Starting a programme with delay start

1. Set the programme.
2. Press the delay button again and again until the indicator of the number of hours you want to set comes on. You can set 3, 6 or 9 hours.

3. The delay indicator comes on.

4. Close the appliance door. The countdown starts. When the countdown is completed, the programme starts.

Opening the door while the appliance operates

If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption.

Cancelling the delay start

Press and hold function buttons (B) and (C) at the same time until the delay indicator goes off and all the programme indicators come on.

When you cancel a delay start, the appliance goes back to setting mode. You have to set the programme again.

Cancelling the programme

Press and hold function buttons (B) and (C) at the same time until all the programme indicators come on.

i Make sure that there is detergent in the detergent dispenser before you start a new programme.

At the end of the programme

When the programme is completed, an intermittent acoustic signal operates and the end indicator comes on.

1. Press the on/off button to deactivate the appliance.
2. Close the water tap.

• Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.
• First remove the items from the lower basket, then from the upper basket.

- There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes.

Hints and tips

The water softener

Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals.

The dishwasher salt keeps the water softener clean and in good conditions. It is important to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dishwasher salt and water.

Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• The rinse aid helps, during the last rinsing phase, to dry the dishes without streaks and stains.
• Combi detergent tablets contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.

Do not use more than the correct quantity of detergent. Refer to the instructions on detergent packaging.

Loading the baskets

Refer to the supplied leaflet with examples of the load of the baskets.

- Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove remaining food from the items.
• To remove easily remaining burned food, soak pots and pans in water before you put them in the appliance.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
• Make sure that glasses do not touch other glasses.
• Put the small items in the cutlery basket.
• Put the light items in the upper basket. Make sure that they do not move.
• Make sure that the spray arms can move freely before you start a programme.

Before starting a programme

Make sure that:

• The filters are clean and correctly installed.
• The spray arms are not clogged.
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.
• There is dishwasher salt and rinse aid (unless you use combi detergent tablets).
• The cap of the salt container is tight.

Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
i Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

Cleaning the filters

Line drawing of a refrigerator interior with an open door and a close-up inset showing internal components (no text or symbols)

1

C B A

2

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

3

Illustration of a hand pressing down on a medical device component labeled 'A' (no text or symbols beyond label)

4

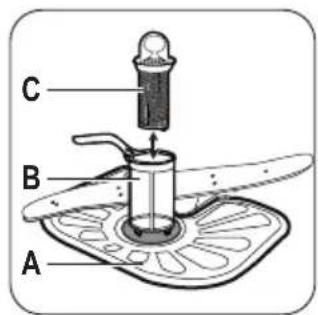

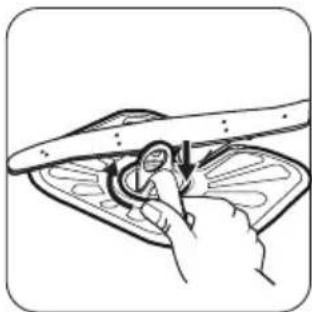

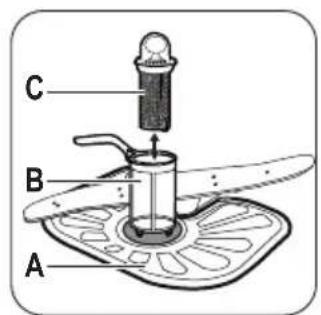

To remove filters (B) and (C), turn the handle counterclockwise and remove. Pull apart filter (B) and (C). Wash the filters with water.

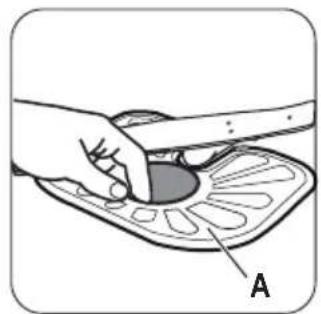

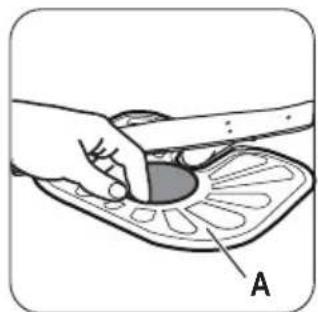

Remove filter (A). Wash the filter with water.

Troubleshooting

The appliance does not start or it stops during operation.

Before you contact the Service, refer to the information that follows for a solution to the problem.

D A

5

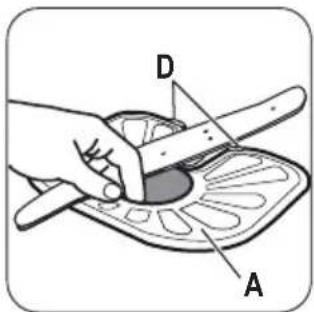

Put filter (A) to its initial position. Make sure that it assembles correctly under the two guides (D).

Illustration of a hand using a tool to adjust or install a component on a curved surface (no text or symbols visible)

6

Assemble filters (B) and (C). Put them into position in filter (A). Turn the handle clockwise until it locks.

An incorrect position of the filters can cause bad washing results and damage to the appliance.

Cleaning the spray arms

Do not remove the spray arms.

If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

External cleaning

Clean the appliance with a moist soft cloth.

Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.

Internal cleaning

If you regularly use short duration programmes, these can leave deposits of grease and lime-scale inside the appliance.

To prevent this, we recommend to run long duration programmes at least 2 times per month.

With some problems, different indicators flash continuously or intermittently at the same time to show an alarm code.

Alarm code Problem
The indicator of the set programme flashes continuously.The end indicator flashes 1 time intermittently.	The appliance does not fill with water.
The indicator of the set programme flashes continuously.The end indicator flashes 2 times intermittently.	The appliance does not drain the water.
The indicator of the set programme flashes continuously.The end indicator flashes 3 times intermittently.	The anti-flood device is on.

Warning! Deactivate the appliance before you do the checks.

Problem Possible cause Possible solution
The programme does not start.	The mains plug is not connected in the mains socket.	Connect the mains plug.
The appliance door is open.	Close the appliance door.
The fuse in the fuse box is damaged. Replace the fuse.
	The delay start is set.	Cancel the delay start or wait for the end of the countdown.
The appliance does not fill with water.	The water tap is closed. Open the water tap.
	The water pressure is too low.	Contact your local water authority.
The water tap is clogged or there is limescale on it.		Clean the water tap.
The filter in the water inlet hose is clogged.		Clean the filter.
The water inlet hose has a kink or a bend.		Make sure that the position of the hose is correct.
The anti-flood device is on. There are water leakages in the appliance.		Close the water tap and contact the Service.
The appliance does not drain the water.	The sink spigot is clogged. Clean the sink spigot.
The water drain hose has a kink or a bend.		Make sure that the position of the hose is correct.

After the checks are completed, activate the appliance. The programme continues from the point of interruption.

If the problem occurs again, contact the Service.

If other alarm codes show, contact the Service.

If the washing and drying results are not satisfactory

Whitish streaks or bluish layers on glasses and dishes

- The released quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.

- The quantity of detergent is too much.

Stains and dry water drops on glasses and dishes

• The released quantity of rinse aid is not sufficient. Adjust the rinse aid selector to a higher position.
• The quality of the detergent can be the cause.

Technical information

Dimensions Width / Height / Depth (mm) 596 / 818 - 898 / 555
Electrical connection Refer to the rating plate.
Voltage 220-240 V
Frequency 50 Hz
Water supply pressure	Min. / max. (bar / MPa)	(0.5 / 0.05) / (8 / 0.8)
Water supply1)	Cold water or hot water2)	max. 60 °C
Capacity Place settings 12
Power consumption Left-on mode	0.99 W
	Off-mode 0.10 W

1) Connect the water inlet hose to a water tap with a 3/4" thread.
2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

Environment concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the

Dishes are wet

• The programme is without a drying phase or with a low temperature drying phase.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.

Refer to 'HINTS AND TIPS' for other possible causes.

environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

- Discard correctly the packaging material. Recycle the materials with the symbol 📋.

Sommaire

Labeled diagram of a kitchen appliance showing internal components with numbered parts

Line drawing of a mechanical device with a circular component inserted into a tray (no text or symbols)

1

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

2

100ml 750ml 500ml 250ml

3

SALE ZOUT SALT SALZ SEL

4

Illustration of a hand cleaning a wall with a small container (no text or symbols)

5

Diagram showing a mechanical device with a rotating arrow and base component (no text or symbols)

6

Line drawing of a refrigerator interior with an inset showing a small object inside (no text or symbols)

1

Hand holding a rotary switch with a dial indicator (no text or symbols visible)

2

max

3

Illustration showing a hand using a device to press a leaf with a warning symbol, indicating environmental hazard or safety.

4

0 12 36 MAX

Line drawing of a 3D printer or scanner with an inset showing a small object inside (no text or symbols)

1

Diagram showing a hand using a tool to press down a device with a magnifying glass, indicating mechanical or electrical hazard.

2

A

3

A

Line drawing of a refrigerator interior with an inset showing the exterior portion of the door (no text or symbols)

1

C B A

2

Illustration of a hand pressing down on a curved surface with directional arrows (no text or symbols)

3

Illustration of a hand pressing a button on a device component labeled 'A' (no text or symbols beyond label)

4

Illustration of a hand using a tool to adjust or install a component on a curved surface (no text or symbols visible)

6

www.zanussi.com/shop
