USER MANUAL DW80K5050UW SAMSUNG
Dishwasher user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
SAMSUNG
DD81-02157B-01
contents
SETTING UP YOUR DISHWASHER
6 Unpacking your dishwasher
6 Checking parts
7 Control panel
9 Cycle selector
10 Meeting installation requirements
USING YOUR DISHWASHER
11 Basic guidelines

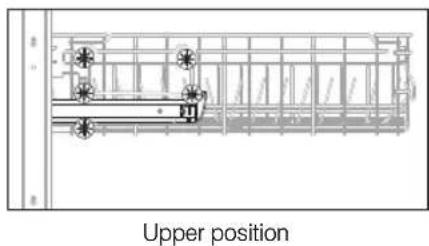

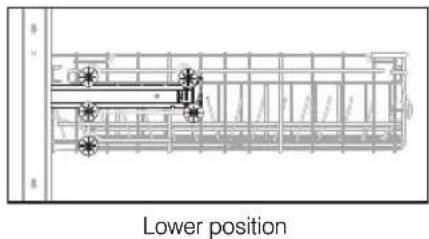

14 Adjusting the height of the upper rack

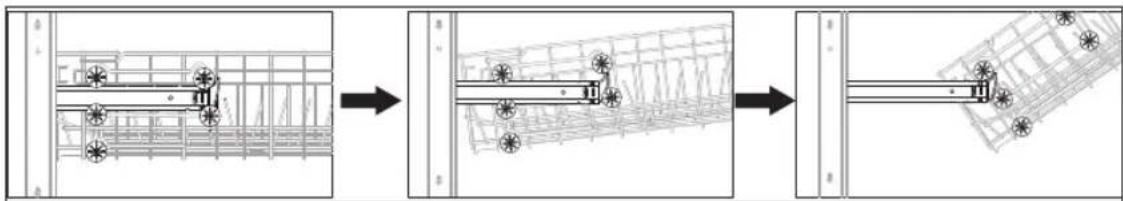

14 Removing the upper rack

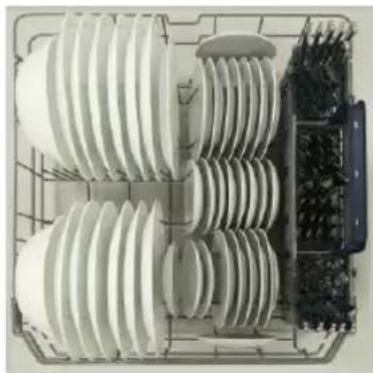

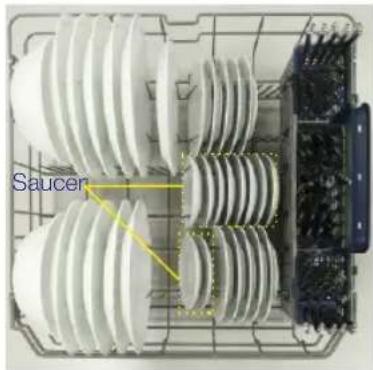

15 Loading the lower rack

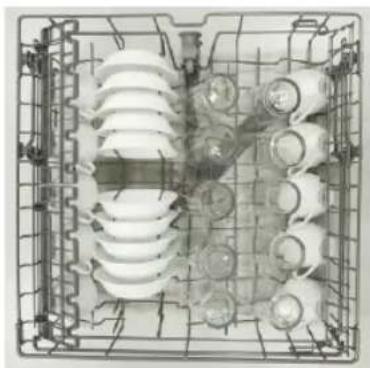

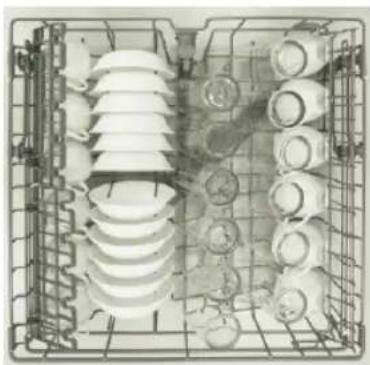

15 Loading the upper rack
16 Using the glass support

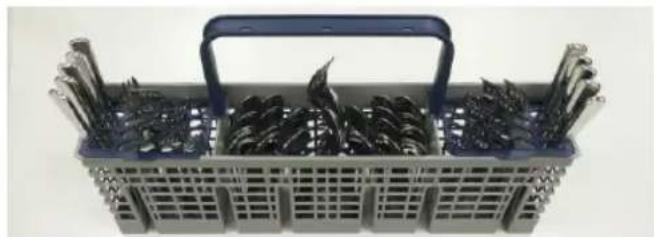

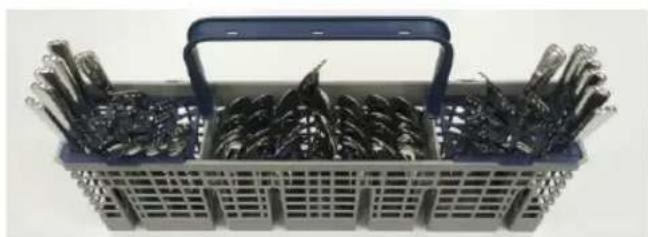

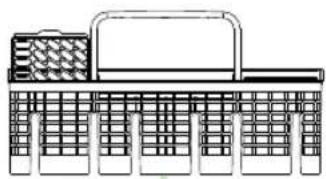

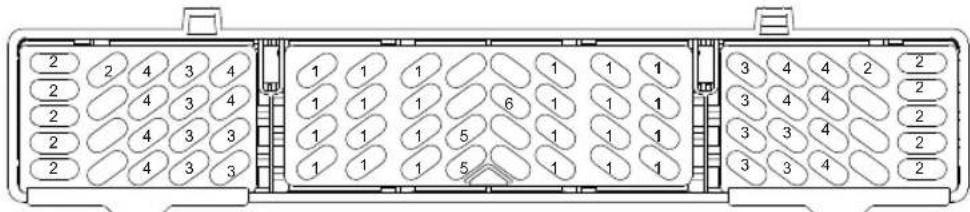

17 Using the cutlery rack
18 Using detergent
CLEANING AND MAINTAINING YOUR DISHWASHER
19 Cleaning the exterior
19 Cleaning the interior
19 Cleaning the filters

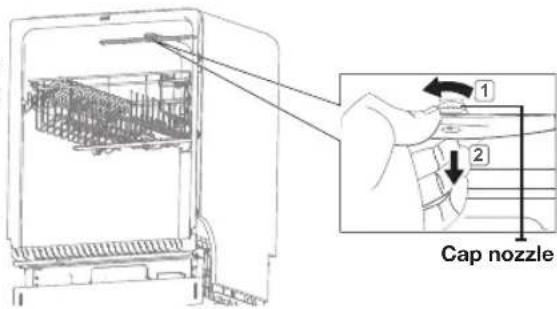

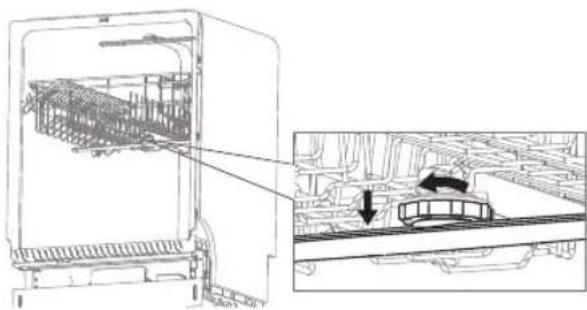

20Cleaning the nozzles
21 Storing your dishwasher
CYCLES
22 Cycle chart
23 Check these points if your dishwasher...
26 Information codes
TROUBLESHOOTING
APPENDIX
27Helping the environment
27 Specifications
Congratulations on your new Samsung dishwasher. This manual contains important information on the installation, use, and care of your appliance. Please take time to read this manual to take full advantage of your dishwasher's many benefits and features.
WHAT YOU NEED TO KNOW ABOUT THE SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your dishwasher.
IMPORTANT SAFETY INSTRUCTIONS
What the icons and signs in this user manual mean :
| WARNING | Hazards or unsafe practices that may result in severe personal injury or death* |
| CAUTION | Hazards or unsafe practices that may result in personal injury or property damage. |
| CAUTION | To reduce the risk of fire, explosion, electric shock, or personal injury when using your dishwasher, follow these basic safety precautions: |
|
| Do NOT attempt. |
| Do NOT disassemble. |
| Do NOT touch. |
| Follow directions explicitly. |
| Unplug the power plug from the wall socket. |
| Make sure the machine is grounded to prevent electric shock. |
| Call the service center for help. |
WARNING
Cancer and Reproductive Harm-www.P65Warnings.ca.gov.
WARNING - When using the dishwasher, follow basic precautions, including the following:
Read all instructions before using the dishwasher.
As with any equipment using electricity, water, and moving parts, potential hazards exist.
Use the dishwasher only for its intended function.
Use only detergents or wetting agents recommended for use in a dishwasher, and keep them out of the reach of children.
When loading items to be washed:
- Locate sharp items so that they are not likely to damage the door seal, and
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
SAVE THESE INSTRUCTIONS
Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
Do not touch the HEATING ELEMENT during or immediately after use.
Do not touch the VENT ELEMENT during or immediately after use.
WARNING : When using your dishwasher, follow basic precautions, including the following:
- Read all instructions before using the dishwasher.
- Use the dishwasher only for its intended function.
- Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.
-
When loading items to be washed:
-
locate sharp items so that they are not likely to damage the door seal, and
-
load sharp knives with the handles up to reduce the risk of cut-type injuries.
-
Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.
-
Do not touch the HEATING ELEMENT during or immediately after use.
- Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.
- Do not tamper with the controls.
- Do not abuse, sit on, or stand on the door or on a dish rack of the dishwasher.
- To reduce the risk of injury, do not allow children to play in or on the dishwasher.
- Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is fammable, do not smoke or use an open flame during this time.
- Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.
After unpacking the dishwasher, keep the packaging out of the reach of children.
- The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.
- Do not install the dishwasher near electrical components. Keep the dishwasher away from open f lames.
Install and level your dishwasher on an uncarpete floor that can support its weight.
- Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See page 10 for more information on grounding your dishwasher.
- Connect the ground wire to the green ground connector in the terminal box.
- After the dishwasher is installed, check that the drain hose is properly connected and that there is no leakage from the hose connectors. If the drain hose is loose, it may cause property damage.
- The water supply line is susceptible to breakage. As time goes by, it becomes less fexible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it immediately.
SAVE THESE INSTRUCTIONS
- To safely operate this appliance, familiarize yourself with its operations and exercise care when using it.
- Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.
- Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.
- Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.
- Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.
- Disconnect the power cable (or set the circuit breaker to off) before servicing your dishwasher.
- Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs and modifications must be performed by authorized service technicians only. Work done by an unauthorized person may void your warranty.
- Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals cannot get trapped inside.
If the dishwasher is left unused for an extended period of time, turn off the water supply.
This dishwasher is intended for residential use only.
BEFORE USING YOUR DISHWASHER
WARNING
Tip-Over Hazard
- Do not use the dishwasher until it is correctly installed.
- Do not push down on the dishwasher door when it is open.
- o not place excessive weight on the dishwasher door when it is open. D
Electric Shock Hazard
Failure to follow these instructions can result in death, fire, or electric shock:
Electrically ground the dishwasher
- Connect the ground wire to the green ground connector in the junction box.
- Do not use an extension cord.
SAVE THESE INSTRUCTIONS
setting up your dishwasher
Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you're not at risk of injury when washing dishes.
UNPACKING YOUR DISHWASHER
- Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage. If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at the number listed below.
If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.
After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.

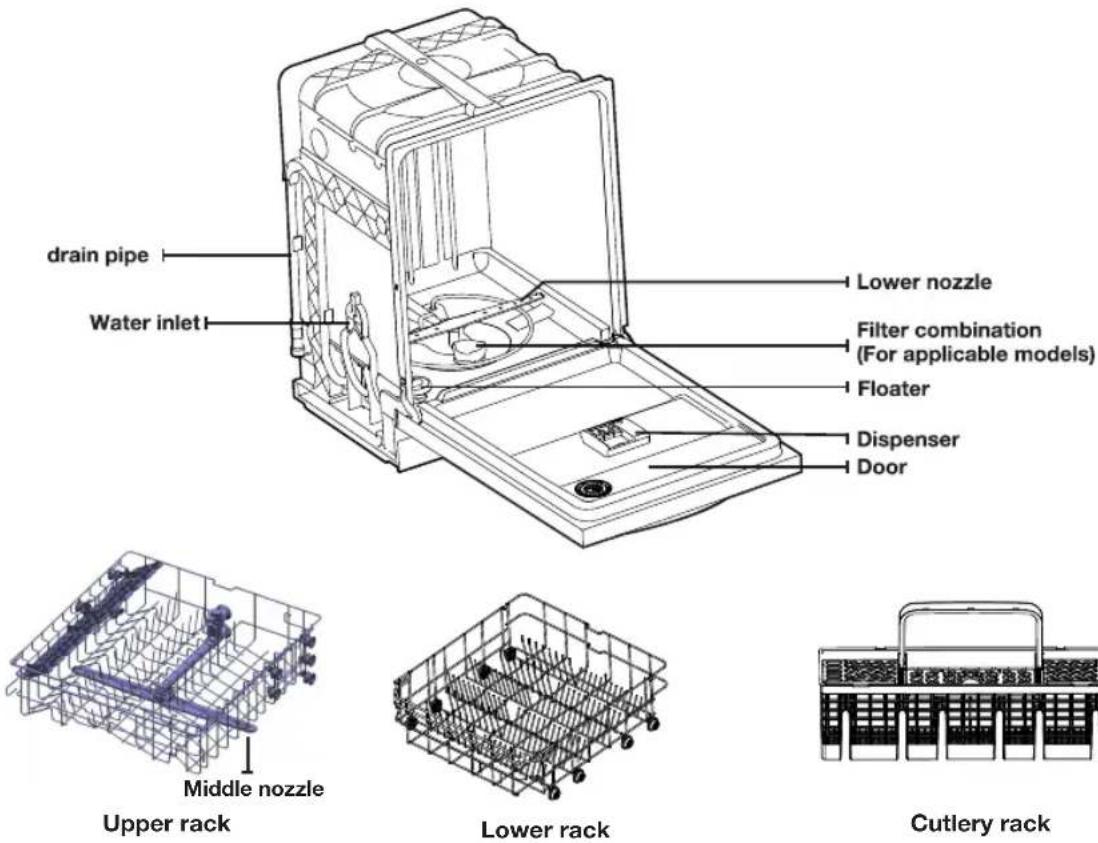

CHECKING PARTS
When your dishwasher has been unpacked, make sure you've received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service at 1-800-SAMSUNG (726-7864).
Accessory parts - User/Installation manual, Installation Kit. The floater is very important for the operation of your dishwasher. Please do not tamper with, damage, or remove the floater.
CONTROL PANEL
| SAMSUNG |
| 1 Power | When you press the Power button, the entire display turns on and off, and then the light of the most recently f finished cycle lights up. When the selected cycle is complete, the dishwasher powers off automatically. |
| 2 Cycle Selector | Select the appropriate wash cycle depending on the soil level of your dishes. After you select a cycle, the Cycle On light for that cycle lights up. If a problemoccurs during an operation, specific LEDs blink, indicating the cause of the problem. The blinking is accompanied by a warning tone. For more information, refer to "Information Codes" on page 26. |
| 3 Hi-Temp Steam Wash | Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food. Hi-Temp Steam Wash is not available for the cycle. Express 60 |
| 4 Sanitize | The temperature rises to 158 °C in the final rinse cycle for high temperature sanitization. If you select the Sanitize option, the "Sanitize" lamp blinks when the water temperature reaches the sanitary temperature (over 156 °F (69 °C)), and then remains illuminated until the Sanitize option ends. When you press the Power button, the "Sanitize" lamp turns off. The Normal Cycle with the Sanitize option selected is NSF certified. The Sanitize feature operates in accordance with NSF/ANSI Standard 184 for Residential Dishwashers. Certified residential dishwashers are not intended for licensed food establishments. |
| 5 Heated Dry(3sec) (Control Lock) | When the "Heated Dry" function is selected, the heater will work during the drying process. Control Lock allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel. To lock and unlock the buttons on the control panel, hold the Heated Dry button down for three (3) seconds when power is On. |
| 6 Delay Start | Delay a cycle for 3, 6, or 9 hours, The hour displayed indicates the time at which the dishwasher will start. |
| 7 Clean | Indicates that the operation is over and that your dishes are clean. |
setting up your dishwasher
Start
To start a cycle, press the Start button before closing the door.
To cancel the cycle, press and hold the Start button for 3 seconds or press the Power button to power off the dishwasher
You can select options (Hi-Temp Steam Wash, Sanitize, Heated Dry) before starting a cycle. If you change the cycle after selecting an option, the original cycle is reset.

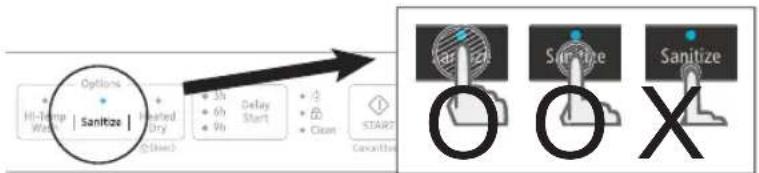

To prevent the touchpad from losing response sensitivity, follow these instructions:
- Touch the center of each keypad using one finger. Do not push.
- Clean the touch control's surface regularly with a soft, damp cloth.
- Be careful not to touch more than one touch key pad at a time, except as directed.
When you pause a cycle by opening the door, press the Start button before closing the door to continue the cycle.
Push theor firmly closed within 3 seconds of pressing Stane button. If the door is not closed within 3 seconds, the cycle will not start.
CYCLE SELECTOR
| 1 Auto | This cycle detects the level of soil and automatically initiates the optimal cycle after a few minutes of operation. |
| 2 Normal Use this cycle for normally soiled dinner dishes. |
| 3 Heavy Use this cycle for heavily soiled dishes and dishes with heavy soil. |
| 4 Express 60 | Use this cycle for lightly soiled dishes. |
setting up your dishwasher
MEETING INSTALLATION REQUIREMENTS
Electrical supply and grounding
To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.
Never use an extension cord.
CAUTION When preparing for installation, ensure that you provide:
- An individual branch circuit with a 120V , 60Hz, 15 AMP fuse or circuit breaker that serves only your dishwasher.
Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.
Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
GROUNDING INSTRUCTIONS
For a permanently connected appliance:
This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and then connected to the equipment-grounding terminal or lead on the appliance.
Water supply
The hot water supply line pressure must be between 20-120 psi (140-830 kPa).
Adjust the water heater to deliver water between 120^ (49^) - 149^ (65^) .
Most plumbing supply stores sell water supply lines of various lengths up to 10 feet (305 cm) long.
You can reduce the risk of leaks and water damage by:
- Making water faucets easily accessible.
- Turning off faucets when the dishwasher is not in use.
Periodically checking for leaks at water supply line fittings.
Before using your dishwasher for the first time, check all connections at the water supply valves, and faucets for leaks.
Flooring
For safety, your dishwasher must be installed on a solidly constructed floor.
Never install your dishwasher on a platform or poorly supported structure.
Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at www.samsung.com.
using your dishwasher
BASICGUIDELINES
-
Open the door and load your dishes (see page 14).
-
Place dishes into the upper and lower racks, unless you have selected Lower Rack.
- Remove any food remains from the dishes before placing them in the rack(s).
- After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes will interfere with them.
-
Make sure the dishes will not prevent the detergent dispenser from opening.
-
Add detergent to the dispenser (see page 17).
-
Make sure to use only automatic dishwasher detergent and rinse aid.
Refer to "Using detergent" on page 17 for instructions explaining how to add detergent and rinse aid.
-
Press the Power button.
-
When you press the Power button, the entire display turns on and off, and then the indicator of the most recently finished cycle lights up.
-
Select an appropriate cleaning cycle depending on the soil level of the dishes. (See pages 22.9 and
-
Press the appropriate cycle button.
-
When you press a cycle button, the cycle indicator lights up.
-
Press the Start button, and then close the door within 3 seconds.
-
The dishwasher will start draining after a few seconds, and then start the selected cycle.
-
Make sure to close the door firmly. If the door is not closed properly, the selected cycle will not start automatically.
-
When the wash cycle is completed.
-
The light illuminates and the dishwasher sounds a chime.
- The dishwasher powers off automatically.
- If you want to load more dishes or pause the dishwasher while it is already running, make sure to open the door slowly and carefully as there is a possibility of injury from the hot steam inside the dishwasher.
- If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle.
- To resume operation, press the Start button, and then close the door within 3 seconds.
- Adding dishes several minutes after the dishwasher starts operating may affect its performance.
- If you open the door while the dishwasher is running at high temperature, it will drain the hot water automatically to protect you from scalding.
You should use rinse aids for better drying performance. You can further improve drying performance by also selecting the Sanitize and Heated Dry option
using your dishwasher
Touch controls
Touch controls allow you to operate the dishwasher easily. They:
- Are convenient to operate, requiring only a soft touch.
- Have a simple and stylish design.
Are easy to clean.
If you have children or you want to clean the Control Interface, we recommend activating the Control Lock feature to lock the control buttons. See page 7.
- Children will not be able to accidentally start the dishwasher by touching the controls with this option selected.
If a cycle is running, the buttons will not respond. (except the Power button)
- If dishwasher is off, only the Power button responds.
Do not touch the VENT ELEMENT during or immediately after use.
Delay start
When you select the Delay Start option, your dishwasher will:
- Start draining to remove remaining water at once (pre-drain).
Your dishwasher will operate the selected cycle when the delay time expires.
When using the dishwasher, try to arrange the dishes properly as described on page 14 to 16.
- You should remove food remains such as bones, fruit seeds, etc. and any other waste such as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise, or cause the dishwasher to malfunction.
- Select the appropriate cycle depending on the level of soil and the type of dishes.
- Use only the proper amount of detergent and rinsing agent.
Do not wash the following items in your dishwasher
- Acrylic or Aluminum items: Dishes with printed gold rim decoration may become discolored.
- Dishes treated with adhesive: Treated plastics, wood, ivory, copper, and tin may come loose.
Plastics with a temperature tolerance less than 194^ (90°C): Thin plastics wash and dry poorly, and may be damaged due to elevated wash temperatures.
- Tin: Tin items should be washed by hand and dried immediately as they rust.
- Wooden utensils: Wooden items may crack.
ADJUSTING THE HEIGHT OF THE UPPER RACK
You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. With the upper rack set at the highest position, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodate plates up to 8 in. (20 cm) in diameter.
- To lower the upper rack by 2 in. (5 cm), remove the upper rack as shown in Removing the Upper Rack wbenen, reinsert the rack so that the upper four wheels on each side of the rack are above and below the guide rail. See th wet position illustration to the right
- To raise the upper rack, remove the upper rack as shown in nRemoving the Upper Rack below. T ,reinsert the rack so that the lower three wheels on each side of the rack are above and below the guide rail. Se e the Upper position illustration to the right.
We recommend adjusting the height of the upper rack before loading dishes into the rack. If you adjust the rack after loading the dishes, you may damage the dishes.
REMOVING THE UPPER RACK
Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below.
While the upper rack is removable, it must be installed for the dishwasher to operate properly. If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly.
Step 1. Step 2. Step 3.
using your dishwasher
LOADING THE LOWER RACK
The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.
Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack.
See the recommended loading patterns below.
10 place setting
12 place setting
LOADING THE UPPER RACK
The upper rack has been designed for small plates, mugs, glasses, and plastic items marked "dishwasher safe". Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the illustrations below.
Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)
When loading dishes, pull the upper rack out suf icently so you can load it without striking the counter above.
10 place setting
12 place setting
using your dishwasher
USING THE CUTLERY RACK
You can place each knife, spoon, or fork separately into the spoon stands in the basket's covers to prevent chipping and discoloration.
You can use the cutlery rack with the cover open. Refer to the illustration to the right.
10 place setting
12 place setting
The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below.
DO NOT let any item extend through the bottom.
Spoons
4Forks
2 Knives
Serving spoons
3 Salad forks
Serving forks
English-16
using your dishwasher
USING DETERGENT
All dishwasher cycles require detergent in the detergent compartment.
Add the correct amount of detergent for the selected cycle to ensure the best performance.
Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher's performance or cause it to malfunction.
Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed dishwasher detergent or inhaled the fumes, seek medical attention immediately.
Keep dishwasher detergent out of the reach of children.
Filling the detergent dispenser
- Open the detergent dispenser cap by pushing the detergent dispenser release catch.
The fap is always open at the end of a dishwashing cycle.
-
Add the recommended amount of detergent to the main wash detergent compartment.
-
Close the f lap by sliding it to the dawnthen pressing it down.
- For better cleaning result, especially if you have very dirt items, pour a small amount (about 15 g) of detergent onto the door. The additional detergent will activate during the pre-wash phase.
The cover opens automatically to dispense the detergent during the wash.
| CYCLE | AMOUNT OF DETERGENT |
| Main wash dispenser Onto the door for pre-wash |
| Auto, Normal 20 g | 10 g | |
| Heavy, Express 60 30 g | 15 g | |
The numbers inside the dispenser refer to grams.
Filling the rinse aid reservoir
Your dishwasher has been designed to use liquid rinse aid only.
Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.
Rinse aid improves the drying performance of the dishwasher.
Do not add regular detergent to the rinse aid reservoir.
- Fill the rinse aid reservoir with rinse aid.
Use the viewing port when filling the rinse aid reservoir.
Do not fill the reservoir above the full level indicator. Excess rinse aid can over flow during the wash cycle.
-
View the amount of rinse aid in the reservoir through the clear viewing port. Stop adding when the reservoir reaches the full level.
-
Close the rinse aid reservoir cap.
cleaning and maintaining your dishwasher
Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life.
CLEANING THE EXTERIOR
It's best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by sprinkling water over it and avoid letting water come into contact with any of the electrical parts.
If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for Home Appliances or a similar product using a clean, soft cloth.
CLEANING THE INTERIOR
Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of the dishwasher and the inner part of the door with a wet dishcloth. We recommend filling the detergent dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal or Express 60 cycle with the sanitize option. This will keep your dishwasher clean.
If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty and without detergent until it f lushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into the lower basket. Close the dishwasher and let the cycle f finish.
Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher).
Do not touch the HEATING ELEMENT during or immediately after use.
CLEANING THE FILTERS
- Turn off the dishwasher.
- Rotate the f filter insert counterclockwise to unfasten and then detach the f filter insert.
- Remove the fine filter (f lat, rectangular).
- Remove any dirt or other remains from the fil ter, and then rinse it under running water.
- Reassemble the f filter in the reverse order of the dissassembly, re-insert the f filter insert, and then rotate clockwise as shown until closed.
If the fil ter insert is not closed properly, its performance will be decreased.
CLEANING THE NOZZLES
If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break.
Lower nozzle
- Check whether the nozzle holes are clogged by food particles.
- If cleaning is needed, remove the nozzle by pulling it upwards.
- Clean the nozzle, and then push it back into place.
- Check whether the nozzle is engaged correctly by rotating it by hand.
cleaning and maintaining your dishwasher
Middle nozzle
- Pull the upper rack towards the front and remove it.
- Check whether the nozzle holes are clogged by food particles.
- If cleaning is needed, remove the nozzle.
- To remove the nozzle, unfasten and remove the nut, and then remove the nozzle.
- Clean the nozzle, re-insert it, and fasten the nut.
- When fastening the nut, turn it firmly by hand.
- Check whether the nozzle is engaged correctly by rotating it by hand.
Upper nozzle
- Check whether the nozzle holes are clogged by food particles.
- If cleaning is needed, remove the nozzle.
- To remove the nozzle, pull out the upper rack first, unfasten the nozzle cap by turning it counterclockwise, and then remove the upper nozzle.
- Clean the nozzle, re-insert it, and then fasten the nozzle cap to the nozzle by turning the cap clockwise.
- Check whether the nozzle is engaged correctly by rotating it by hand.
STORING YOUR DISHWASHER
If you need to store your dishwasher for an extended period of time, fir st drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher.
After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker.
| Auto | Normal | Heavy | Express 60 |
| Cycle sequence | Pre wash
Main Wash
Rinse
Hot Rinse
Dry End | Pre wash
Main Wash
Rinse
Hot Rinse
Dry End | Pre wash
Main Wash
Rinse
Hot Rinse
Dry End | Pre wash
Main Wash
Rinse
Hot Rinse
Dry End |
| Temp.
[°F(℃)] | Main Wash | 118-126
(48-52) | 108-126
(42-52) | 131(55) | 126(52) |
| Hot Rinse
*Sanitize
158°F (70°C) | 126-144
(59-62) | 136-144
(59-62) | 149(65) | 136(58) |
| Water consumption
[gal(I)] | 3-6
(11.8-22.7) | 3-6
(11.8-22.7) | 7.3(27.4) | 4(15.3) |
| Cycle time (min.) | 109-143 | 119-144 | 162 | 60 |
| Available
Options | Delay Start | 0 | 0 | 0 | 0 |
| Hi-Temp
Steam Wash | 0 | 0 | 0 | X |
| Sanitize | 0 | 0 | 0 | 0 |
| Heated Dry | 0 | 0 | 0 | 0 |
- When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level of the dishes.
- The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.
- When you select any options, the cycle time can be changed.
- When the Rinse Aid is empty, wash time and Last Rinse temperature can increase a little.
troubleshooting
CHECK THESE POINTS IF YOUR DISHWASHER...
| PROBLEM POSSIBLE | CAUSE SOLUTION | |
| Will not start. | The door is not closed completely. | Check if the door is latched and closed completely. |
| No cycle is selected. Select a proper cycle. | |
| The power cable is not connected. | Connect the power cable properly. |
| The Control Panel is locked. Unlock | the child lock |
| A circuit breaker is open. Reset the | circuit breaker. |
| Is taking too long with an operation or cycle. | Cold water is being supplied. | Make sure the Water supply line is connected to a hot water supply.(Additional time is required to heat cold water.) |
| Remains food particles on dishes.(Not cleaning properly.) | You selected an inappropriate cycle. | Select a cycle according to the number and soil level of the dishes, as directed in this manual. |
| The water temperature is low. Connect the water supply line to a hot water supply.For best performance, the temperature of the supplied water should be 120°F (49°C). |
| Low water pressure. The water presure should be between 20 and 120 psi (140 - 830 kPa). |
| The water is too hard. Use high-quality, fresh detergent with rinse aid. |
| Dishwasher detergent was not used. | Use automatic dishwasher detergent.We recommend a powder or gel type dishwasher detergent. |
| Detergent remains in the dispenser. | Make sure large items such as cookie sheets, cutting boards, or containers, etc. are not blocking the detergent dispenser and preventing it from opening properly.Rearrange the dishes so they do not interfere with detergent dispenser operation. |
| There is no rinse aid. Check the dispenser and add rinse aid.Use liquid type rinse aid. |
| A nozzle is clogged. | Clean the nozzle. See page 20. |
| The dishes are improperly loaded. Too many dishes have been loaded. | Rearrange the dishes so they do not interfere with nozzle rotation and detergent dispenser operation.Load only an appropriate number of dishes.Load your dishes as recommended. (See page 14.) |
troubleshooting
| PROBLEM POSSIBLE | CAUSE SOLUTION | |
| Leaves glasses with a dull film. | The water supplied is soft and too much detergent was used. | Underload the dishwasher and use a rinse aid to minimize this. |
| Aluminum dishes were included in the wash load. | Remove the marks on the dishes using a low sensitivity cleaner. |
| Leaves a yellow or brown film on the inside of the dishwasher. | This is caused by coffee and tea soils. | Remove the soils using a spot cleaner. |
| Does not dry dishes well. | There is no rinse aid in the dispenser. | Check the dispenser and add rinse aid. Use a liquid type rinse aid. |
| The temperature of the water is low when the dishwasher is running. | Make sure that the water supply line is conne- cted to a hot water supply. Use rinse aid with the Sanitize option. |
| Too many dishes have been loaded. | Proper loading of items can affect drying. Load your dishes as recommended. (See page 14.) |
| Glasses and cups with concave bottoms hold water. This water may spill onto other items when you are unloading. | After the cycle fin ies, empty the lower rack fir st and then the upper rack. This will prevent water from dripping from the upper rack onto the dishes in the lower rack. |
| Has a bad odor. | Water was left over from an incomplete cycle. | With the dishwasher empty, add detergent to the dispenser, run the Normal cycle to clean the dishwasher. |
| The Drain Hose is obstructed. Conta | act a qualifie d service technician to remove any obstruction from the drain hose. |
| The dishwasher is not used daily or soiled dishes are left in unit too long. | With the dishwasher empty and no detergent in the dispenser, place a glass with 8 ounces of vinegar upright into the lower rack, and then run a Normal cycle. |
| Is too noisy. | Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage. | This is normal operation. |
| The dishwasher is not level. Ensure | the dishwasher is level. |
| Foreign material (a screw, a plastic piece) is in the pump chamber. | Contact a qual ified service technician to remove foreign material from the pump chamber. |
| There is a 'chopping' sound because a nozzle is bumping against the dishes. | Rearrange the dishes. |
| Nozzle does not rotate smoothly. | Nozzle hole clogged with food particles. | Clean the nozzle hole. See page 20. |
| The nozzle is blocked by a dish or pot and cannot rotate. | After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes interfere with them. |
| Water won't pump out of the dishwasher. | The drain is clogged. Contact a qua | if ied service technician to remove any obstruction from the drain hose and check the drain pump operation. |
| Has a bent upper rack after loading dishes. | The dishes are not loaded properly. | Load your dishes as recommended. (See page 14.) |
troubleshooting
The Control Panel displays information codes to help you understand what is occurring with your dishwasher.
If your dishwasher has a problem, the CODE SYMBOL lights blink as shown below.
| Code Symbol | Meaning | Possible |
| Auto | Normal | Heavy | Express 60 | No water | The water tap isn't opened. |
| The pressure switch is broken. |
| Tirewash pump isn't work. |
| There is a problem with the Main PBA. |
| Auto | Normal | Heavy | Express 60 | High-water level | The high water switch was on continuously for 120 seconds. |
| There is a problem with the Main PBA. |
| Auto | Normal | Heavy | Express 60 | Not reaching required temperature | The heater was on continuously for 60 minutes, but the water did not heat up to the required temperature. |
| The heater is broken. |
| The temperature detected by the misshutters wrong. |
| There is a problem with the Main PBA. |
| Auto | Normal | Heavy | Express 60 | Water leakage | The leakage switch is broken. |
| The leakage switch was activated for 2 seconds. |
| There is a problem with the Main PBA. |
| Auto | Normal | Heavy | Express 60 | Thermistor open-circuit failure | The thermistor suffered an open-circuit failure. |
| There is a problem with the Main PBA. |
| Auto | Normal | Heavy | Express 60 | Thermistor short-circuit failure | The thermistor suffered a short circuit failure. |
| There is a problem with the Main PBA. |
| Auto | Normal | Heavy | Express 60 | Abnormal operation of touch key-press | A touch key was operated abnormally or operated abnormally. Example: A key was pressed for more than 30 seconds. |
| There is a problem with the Sub PBA. |
| Auto | Normal | Heavy | Express 60 | Abnormal signal | A touch key was operated abnormally or operated abnormally. Example: A key was pressed for more than 30 seconds |
| There is a problem with the Main PBA. |
| There is a problem with the Sub PBA. |
For any codes not listed above, call 1-800-SAMSUNG (726-7864)
- If an overflow occurs, turn off the main water supply before calling for service.
- If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.
appendix
HELPING THE ENVIRONMENT
- Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be connected to a power source.
- Remove the door so that animals and small children cannot get trapped inside the appliance.
- Do not exceed the detergent quantities recommended in the detergent manufacturers' instructions.
SPECIFICATIONS
| Model DW80 20 US | R 31 |
| Type Built-in Dishwasher | Wash capacity 14 place settings | |
| Power | 120 V, 60 Hz only | Used water pressure | 20 - 120 psi
(140 - 830 kPa) |
| Rated power usage | Wash Motor | 50 W |
| Heater 840 W | |
| Dimensions
(Size × Depth × Height) | 23 ¾ x 24 ¾ if(Excluding Handle) x 33 ¾
[604 x 625 (Excluding Handle) x 858mm] ( ) DW80R2031 Series |
| Weight | Unpacked | 64 lb (29 kg) |
warranty (U.S.A)
SAMSUNG DISHWASHER
LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of:
One (1) year parts and labor
This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center to receive warranty service.
SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer's geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.
To receive in-home service, product must be unobstructed and accessible to the service agent.
During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product's warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG.
This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modifi cation or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product's fi nishes; damage caused by abuse, misuse, pest infestations, accident, fire, floods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, fl actuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses).
warranty (U.S.A)
The cost of repair or replacement under these excluded circumstances shall be the customer's responsibility.
Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.
EXCLUSION OF IMPLIED WARRANTY
IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.
LIMITATION OF REMEDIES
YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG'S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.
SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, fi rm, or corporation with respect to this product shall be binding on SAMSUNG.
To obtain warranty service, please contact SAMSUNG at:
In USA
Samsung Electronics America, Inc.
85 Challenger Road
Ridgefield Park, NJ 07660
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) Year All Parts and Labor.
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous Canada.
In home service is not available in all areas.
To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center.
SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product.
warranty (CANADA)
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTYES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTYES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTYES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARantee GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state or province to province.
To obtain warranty service, please contact SAMSUNG at:
In CANADA
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9 Canada
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
memo
memo
SAMSUNG
bit.ly/samsungdishwashers
Scan the QR code* or visit
www.samsung.com/spsn
to view our helpful
How-to Videos and Live Shows
*Requires reader to be installed on your smartphone
Questions or Comments?
| COUNTRY | CALL | OR VISIT US ONLINE AT |
| U.S.A 1-800-SAMSUNG | (726-7864) www.samsung.com/us/support | |
| CANADA 1-800-SAMSUNG | (726-7864) | www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French) |
| MEX ICO | 01-800-SAMSUNG (726-7864) | www.samsung.com/mx /support |
DD81-02157B-01
Série DW80R2031
Ridgefield Park, NJ 07660
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9 Canada
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
notes
notes
SAMSUNG
bit.ly/samsungdishwashers
Ridgefield Park, NJ 07660
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9 Canada
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
memorandum
memorandum
SAMSUNG
bit.ly/samsungdishwashers
