USER MANUAL DW9000M SAMSUNG

DW60M9970**/DW60M9550**/DW60M9530**

SAMSUNG

Contents

What's included 3

Installation kit (provided) 3

Installation kit (not provided) 5

Tools required (not provided) 5

Installation requirements 6

Power supply 6

Grounding 6

Water supply 6

To reduce a risk of leaks: 6

Aqua Stop 6

Drain 7

Flooring 7

Ambient temperature 7

Test run 7

Step-by-step installation 8

Cabinet dimensions 9

SBI (Semi Built-In, DW60M9***S*) models 14

FBI (Fully Built-In) models 20

Skirting board 27

Pre-cut skirting board (DW60M9****US Series) 27

Skirting board 28

Kick plate (applicable models only) 29

English 2

Installation

What's included

Make sure all the parts are included in the product package. If you have a question about the dishwasher or the parts, contact a local Samsung customer centre or your retailer. The actual appearance of the dishwasher may differ, depending on your model and country.

SAMSUNG DW9000M - What's included - 1

CAUTION

After unpacking the dishwasher, keep packaging materials out of children's reach to ensure their safety.

Installation kit (provided)

FBI (Fully Built-In, DW60M9***BB)

SAMSUNG DW9000M - Installation kit (provided) - 1

Top brackets (2 ea) ∅4 X 12 screws (8 ea)

SAMSUNG DW9000M - Installation kit (provided) - 2

SAMSUNG DW9000M - Installation kit (provided) - 3

SAMSUNG DW9000M - Installation kit (provided) - 4

Protective sticker Sub foot

SAMSUNG DW9000M - Installation kit (provided) - 5

Custom panel fixers (wood panel holders, 2 ea)

SAMSUNG DW9000M - Installation kit (provided) - 6

∅4 X 43 screws (4 ea)

SAMSUNG DW9000M - Installation kit (provided) - 7

∅4 X 16 screws (2 ea)

SAMSUNG DW9000M - Installation kit (provided) - 8

Rubber skirt

SAMSUNG DW9000M - Installation kit (provided) - 9

Plastic caps (4 ea)

Installation

SBI (Semi Built-In, DW60M9***S*)

SAMSUNG DW9000M - Installation - 1

Top brackets (2 ea) ∅4 X 12 screws (8 ea)

SAMSUNG DW9000M - Installation - 2

SAMSUNG DW9000M - Installation - 3

Custom panel fixers (wood panel holders, 2 ea)

SAMSUNG DW9000M - Installation - 4

∅4 X 43 screws (4 ea)

SAMSUNG DW9000M - Installation - 5

SAMSUNG DW9000M - Installation - 6

Protective sticker Sub foot

SAMSUNG DW9000M - Installation - 7

∅4 X 16 screws (2 ea)

SAMSUNG DW9000M - Installation - 8

Rubber skirt

SAMSUNG DW9000M - Installation - 9

5 mm wood spacers (7 ea)

SAMSUNG DW9000M - Installation - 10

Plastic caps (4 ea)

BU (Built Under, DW60M9***U*)

SAMSUNG DW9000M - Installation - 11

Top brackets (2 ea) ∅4 X 12 screws (8 ea)

SAMSUNG DW9000M - Installation - 12

SAMSUNG DW9000M - Installation - 13

∅4 X 8 screws (2 ea)

SAMSUNG DW9000M - Installation - 14

Kick plate brackets (2 ea)

SAMSUNG DW9000M - Installation - 15

SAMSUNG DW9000M - Installation - 16

Protective sticker Sub foot

SAMSUNG DW9000M - Installation - 17

SAMSUNG DW9000M - Installation - 18

SAMSUNG DW9000M - Installation - 19

Plastic caps (4 ea)

Kick plate Lower felt

Installation kit (not provided)

Hose clampSAMSUNG DW9000M - Installation kit (not provided) - 1

Tools required (not provided)

SAMSUNG DW9000M - Tools required (not provided) - 1

SAMSUNG DW9000M - Tools required (not provided) - 2

SAMSUNG DW9000M - Tools required (not provided) - 3

SAMSUNG DW9000M - Tools required (not provided) - 4

Safety glasses Gloves Flashlight Wrench (22 mm) for

the front foot

SAMSUNG DW9000M - Tools required (not provided) - 5

SAMSUNG DW9000M - Tools required (not provided) - 6

SAMSUNG DW9000M - Tools required (not provided) - 7

SAMSUNG DW9000M - Tools required (not provided) - 8

Torx T20 Pliers Nipper Tape measure

SAMSUNG DW9000M - Tools required (not provided) - 9

SAMSUNG DW9000M - Tools required (not provided) - 10

SAMSUNG DW9000M - Tools required (not provided) - 11

SAMSUNG DW9000M - Tools required (not provided) - 12

Pencil Phillips screwdriver Flat head

screwdriver

Cutting knife

SAMSUNG DW9000M - Tools required (not provided) - 13

SAMSUNG DW9000M - Tools required (not provided) - 14

Level Hole saw

English 5

Installation

Installation requirements

To prevent a risk of fire, electric shock, or personal injury, all wiring and grounding must be done by a qualified technician.

Power supply

  • An individual 220-240 V, 50 Hz branch circuit that is dedicated to the dishwasher.
  • Power outlet with a maximum allowable current of 16 A (maximum 11 A for the dishwasher)

WARNING

  • Do not use an extension cord.
  • Use only the power plug that comes with the dishwasher. After installation is complete, make sure the power plug is not bent or damaged.

Grounding

For permanent grounding, the dishwasher must be properly grounded to a grounded metal or permanent wiring system. The grounding conductor must be run with the circuit conductors and then connected to the grounding terminal or lead on the dishwasher.

WARNING

  • Do not connect the ground wire to plastic plumbing, gas lines, or hot water pipes. Improperly connected grounding conductors may cause electric shock.
  • Do not modify the power plug of the dishwasher. If the power plug does not fit the outlet, have a proper outlet installed by a qualified electrician.

Water supply

  • The water supply line must support water pressures between 0.05 and 0.8 MPa.
  • Water temperatures must be lower than 60 °C.
  • A stopcock with a 3/4" male thread must be installed on the water tap.

To reduce a risk of leaks:

  • Make sure water taps are easily accessible.
  • Turn the water tap off when the dishwasher is not in use.
  • Check for any leaks at the water hose fittings on a regular basis.
  • To stop any leak, seal the water line connections and joints using Teflon tape or sealing compound.

Aqua Stop

The Aqua Stop is an electrical component that is designed to prevent water leaks. The Aqua Stop is attached to the water hose and automatically cuts off the water flow in the event of damage to the hose.

CAUTION

  • Handle the Aqua Stop with care.
  • Do not kink or twist the water hose connected to the Aqua Stop. If the Aqua Stop is damaged, shut off the water taps and unplug the power plug immediately. Then, contact a local Samsung customer centre or a qualified technician.

English6

Drain

If you are using a drain system dedicated to the dishwasher, connect the drain hose to a drain system that is between 30 cm and 70 cm off the ground. Connecting the drain hose to a drain system more than 80 cm off the ground can cause the drained water to flow backward.

Flooring

For safety, the dishwasher must be installed on a solidly constructed floor. Wooden floors may need to be reinforced to minimize vibrations. Avoid installing on carpet or soft tile. Carpeting and soft tile may cause vibrations and may cause your dishwasher to move slightly while operating.

SAMSUNG DW9000M - Flooring - 1

WARNING

Do not install the dishwasher on a poorly supported structure.

Ambient temperature

Do not install the dishwasher in an area exposed to freezing temperatures. The dishwasher always retains some water in the water valve, pump, and hose. If the water freezes in the dishwasher or hoses, it may damage the dishwasher and its components.

Test run

After installing the dishwasher, run the Quick cycle to make sure the dishwasher is installed correctly.

Installation

Step-by-step installation

The installation procedure may differ depending on the model.

STEP 1 Select a location

Technical diagram of a kitchen sink with labeled component 'A' and circular dial indicator.

Technical line drawing of a kitchen sink with a U-shaped tube and piping, labeled B (no text or symbols beyond label).

Select a location that meets the following conditions.

  • The location must have a solid floor that can support the weight of the dishwasher.
  • The location must be near a sink with easy access to the water supply, drain system, and electrical outlet.
  • The location must let you load dishes into the dishwasher easily.
  • The location must have sufficient space for the dishwasher door to open easily and provide enough space between the dishwasher and the cabinet sides.
  • The rear wall must be free of obstructions.

Installation in a new location

If you install the dishwasher in a new location, follow these instructions before installing the dishwasher.

  1. Using a hole saw, cut a hole into the side of the cabinet that holds the sink (A).
  2. If the base inside the sink cabinet is raised above the kitchen floor and is higher than the connections on the dishwasher, make a hole in the base inside the cabinet and in the cabinet side (B).

SAMSUNG DW9000M - Installation in a new location - 1

NOTE

  • If you are replacing an old dishwasher, check the existing connections for compatibility with the new dishwasher and replace the connections as needed.
  • You may need to cut a hole in the opposite side of the cabinet according to the location of the electrical outlet.

Cabinet dimensionsArchitectural diagram showing front and side views of a cabinet with dimension annotations.

575 598 575600 817-875 mm 820-890 mm 100 50 53

NOTE

Check if the distance between the floor and the bottom of the worktop is more than 860 mm. If so, replace the rear foot with the sub foot included in the installation kit. For details, see the next section. If the distance is less than 860 mm, skip to STEP 3.

Installation

STEP 2 To replace the rear foot

If the distance between the floor and the bottom of the worktop is more than 860 mm, replace the rear foot with the sub foot provided before starting installation.

Technical line drawing of a mechanical housing or enclosure with two circular annotations highlighting specific components (no text or symbols present).

  1. Lay the dishwasher on its back.

CAUTION

Do not lay down the dishwasher to a side. Water may leak.

  1. Locate the rear foot at the rear bottom of the dishwasher.

Technical diagram of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present).

  1. Turn the Torx T20 screwdriver counterclockwise as shown to remove the rear foot.

Technical diagram of a mechanical assembly with bolted components and directional arrows (no text or labels).

  1. Find the sub foot in the installation kit. Insert the sub foot into the hole where the rear foot was, and then turn the screwdriver clockwise to tighten the sub foot.
  2. When the sub foot is fixed, turn the front foot to align with the sub foot. Fine-tuning will be done in STEP 5.

CAUTION

Use caution when moving the dishwasher. Do not drag the dishwasher on the floor. This can damage the front and sub foot.

STEP 3 Check the water line

  • The water line pressure must be between 0.05 and 0.8 MPa.
  • Make sure that the water temperature does not exceed 60 °C. Hot water over 60 °C may cause the dishwasher to malfunction.
  • Make sure that the water supply valve is turned off before connecting the water supply line to the dishwasher.

Installation

STEP 4 Arrange the hoses

Line drawing of a hand holding a smartphone against a wall-mounted shelf (no text or symbols).

  1. Clean the bottom of the countertop.

Diagram showing a structural component with an arrow indicating direction and a magnified inset of a bracket detail (no text or symbols).

  1. Attach the protective sticker as shown.

Technical diagram showing a cabinet with tools and a magnified inset of a mechanical component (no text or symbols).

  1. Arrange the power plug, the water hose, and the drain hose.
  2. Pull them through the sink hole.

CAUTION

  • Use caution not to kink or step on the power plug or the hoses.
  • Do not remove the brown paper on the back of the dishwasher. The paper is used to keep the rear side clean against the wall.

STEP 5 Level the dishwasher

For FBI (Fully Built-In) models, go to STEP 6 and install the custom panel first. Then, return to the current step (STEP 5) and level the dishwasher.

0-60 mm

Normal 0-45 mm 45-60 mm Tall-kitchen (Switch to the sub foot)

Diagram showing two views of a mechanical component with circular arrows indicating direction (no text or symbols).

You can adjust the height of the dishwasher to level it. Note that in these steps, the dishwasher is currently inserted halfway.

  1. Use the level to check if the dishwasher is level.
  2. To adjust the front height, use a 22 mm wrench.

• To lower the height, turn the foot counter clockwise. • To raise the height, turn the foot clockwise. 3. To adjust the rear height, insert the Torx T20 screwdriver in the bottom center of the dishwasher. • To lower the height, turn the screwdriver clockwise. • To raise the height, turn the screwdriver counter clockwise.

  1. When levelling is complete, check if the door opens and closes properly.

Installation

STEP 6 Install the custom panel (SBI/FBI models only)

SBI (Semi Built-In, DW60M9***S*) models

Diagram of a mechanical component with arrows indicating motion, labeled 'A' (no text or symbols beyond label).

A

B

  1. Insert the supplied rubber skirt (A) into the 3 holes at the bottom of the door. (applicable models only)

NOTE

If the rubber skirt is wider than the dishwasher, cut the skirt to match the width of the dishwasher.

  1. Select to align the custom panel to either the top or bottom edge of the cabinets.

A. To align the custom panel to the top edge of a cabinet. B. To align the custom panel to the bottom edge of a cabinet.

CAUTION

Note that installation method differs for A and B.

English14

SBI (Semi Built-In, DW60M9***S*) modelsA 0 0.3 0.2 B

  1. Fully insert the dishwasher under the countertop.
  2. Align the top of the installation template to the bottom of the dishwasher's door handle.
  3. On both sides of the installation template, mark the spot according to your alignment.
  4. For A: At the top edge of a cabinet.
  5. For B: At the bottom edge of a cabinet.

max. 720 max. 115 594

Installation

SBI (Semi Built-In, DW60M9***S*) models

Diagram illustrating a 3D modeling or CAD process with labeled components A and B, showing tool path and directional arrows.

  1. Put the installation template on the back of the custom panel.
  2. For A: Align the marks on the installation template to the top edge of the custom panel.
  3. For B: Align the marks on the installation template to the bottom edge of the custom panel.
  4. Use transparent tape to temporarily fix the installation template to the custom panel.
  5. On the custom panel, mark the location of the 6 screw holes according to the installation template.

NOTE

The rear of the custom panel will be attached to the dishwasher door.

CAUTION

Use a custom panel between 2.5 kg and 8 kg.

  1. Remove the installation template and tighten the custom panel fixers (B) near the bottom with 2 screws (C, ∅4 X 16) as shown.

C B C B

SBI (Semi Built-In, DW60M9***S*) modelsLine drawing of a refrigerator with ventilation slots and a close-up inset showing the door (no text or symbols)

1 spacer 5-9 mm 25-29 mm 10-14 mm 5 spacers 2 spacers 3 spacers 15-19 mm 30-34 mm 6 spacers 3 spacers 20-24 mm 35-39 mm 4 spacers 7 spacers

  1. Pull out the dishwasher halfway from under the countertop.
  2. Attach single or multiple wood spacers whose overall height fills the gap between the sink cabinet and the control panel.
  3. The gap here is the same as the measurement in step 5 above.
  4. For positioning and the number of spacers, see the figures on the left.

CAUTION

Do not let the overall height of the wood spacers exceed the measured height difference. Otherwise, the custom panel may not fit.

Installation

SBI (Semi Built-In, DW60M9***S*) models

Technical diagram of a mechanical assembly with labeled component B, showing internal components and directional arrows (no text or symbols beyond labels)

  1. While holding the custom panel, attach it to the door and insert the custom panel fixers (B) into the corresponding holes near the bottom of the door as shown.
  2. Push the custom panel upward to fix.

Diagram of a device with two screws inserted into a tray, showing mounting points and arrows indicating assembly or installation (no text or symbols present)

  1. Open the dishwasher door and remove the 2 screws.

CAUTION

Use caution when opening the door. The door might open or close unexpectedly if the spring level is not adjusted appropriately, resulting in physical injury.

SBI (Semi Built-In, DW60M9***S*) models

Diagram of a device with screwdrivers and a central component, showing no text or symbols

  1. Secure the custom panel to the door by fastening the 4 screws (∅4 X 43).

30° 5 4 3 2 1 +

  1. Refer to the table below and adjust the spring level by turning the spring screw with a Torx T20 screwdriver on the front of the dishwasher.
  2. Adjust the spring level while the door is approximately opened at 30 degrees.
  3. The door should hold its position. It should not fall open.

CAUTION

Do not adjust the spring level while the door is completely opened.

Recommended spring levels

Level Weight of the custom panel (kg)
Level 1-2 2-5
Level 2-3 5-6
Level 3-4 6-7
Level 4-5 7-9

CAUTION

If the custom panel weighs more than 9 kg, the door may fall open. Custom panels weighing more than 9 kg are not recommended.

Installation

FBI (Fully Built-In) modelsDiagram of a mechanical component with arrows indicating flow direction, labeled 'A' at the end (no text or symbols on the diagram itself)

Ø2 10~12

SAMSUNG DW9000M - Installation - 3

  1. Insert the supplied rubber skirt (A) into the 3 holes at the bottom of the door. (applicable models only)
  2. Put the installation template on the back of the custom panel and fix it temporarily using transparent tape. Note that the rear of the custom panel will be attached to the dishwasher door.

CAUTION

  • The top end of the custom panel must be aligned with the top end of the installation template.
  • Use a custom panel between 4 kg and 9 kg.
  • Mark 6 points guided on the installation template.
  • Remove the installation template and tighten the custom panel fixers (B) at the top with 2 screws (C, ∅4 X 16) as shown.

FBI (Fully Built-In) modelsB 30 mm A

30° 5 4 3 2 1 +

  1. While holding the custom panel, attach it to the door and insert the custom panel fixers (B) into the corresponding holes at the top of the door as shown.
  2. Push the custom panel downward to fix.

CAUTION

Do not let the custom panel extend more than 30 mm from the top of the dishwasher.

  1. Cut the rubber skirt (A) using a cutting knife so that it is aligned with the front line of the dishwasher, which is represented as a dashed line.
  2. Refer to the table below and adjust the spring level by turning the spring screw with a Torx T20 screwdriver on the front of the dishwasher.
  3. Adjust the spring level while the door is approximately opened at 30 degrees.
  4. The door should hold its position. It should not fall open.

CAUTION

Do not adjust the spring level while the door is completely opened.

Recommended spring levels

Level Weight of the custom panel (kg)
Level 1-2 4-5
Level 2-3 5-6
Level 3-4 6-7
Level 4-5 7-9

CAUTION

If the custom panel weighs more than 9 kg, the door may fall open. Custom panels weighing more than 9 kg are not recommended.

Installation

FBI (Fully Built-In) modelsLine drawing of a device with two screws inserted, showing mounting points and a base plate.

  1. Open the dishwasher door and remove the 2 screws.

CAUTION

Use caution when opening the door. The door might open or close unexpectedly if the spring level is not adjusted appropriately, resulting in physical injury.

Diagram of a device with four screws inserted, showing mounting points and a central component.

  1. Secure the custom panel to the door by fastening the 4 screws (∅4 X 43).

STEP 7 Secure the dishwasher

You can use the brackets to secure the dishwasher to the countertop. Alternatively, you can drill the side holes to secure the dishwasher to the cabinet sides.

To the countertop using the brackets

Technical line drawing of a mechanical assembly with a downward arrow indicating a process.

  1. Insert the provided brackets into the top front holes of the dishwasher as shown.
  2. Insert the dishwasher fully into place under the countertop.
  3. Tighten the 2 screws (∅4 × 12) to fix the brackets.

Ø 2 8~

NOTE

After fixing the dishwasher to the countertop, some screws remain. You can simply discard these screws, or use them to fix the sides of the dishwasher to the cabinet if you want to.

  1. Connect the water hose, but do not open the water tap until installation is complete.

Installation

To the sides

Technical line drawing of a mechanical assembly with two circular components and vertical guide rails.

Diagram showing a screwdriver inserted into a door panel with a black arrow indicating direction.

CAUTION

If the plastic cap is not assembled, water may leak and cause a fire or electric shock.

  1. Tighten the 4 screws (∅4 X 12) to the 4 places (marked on the illustration).
  2. Insert the provided plastic caps to the 4 places where screws are fastened.
  3. Connect the water hose, but do not open the water tap until installation is complete.

STEP 8 Connect the drain hose

Technical line drawing of two mechanical components: a pliers and a spiral screw.

  1. Detach the hose holder from the dishwasher, and then cut off the protruding part from the holder as shown.
  2. Fix the holder to a wall by tightening the 2 screws (∅4 X 12).

Max. 80 cm

  1. Insert the drain hose into the holder so that the drain hose is positioned 30 cm to 80 cm from the bottom.

Max. 80 cm Min. 30 cm

  1. Connect the drain hose to the drain outlet.

CAUTION

• Install the drain system properly so that the drain hose does not come out of the drain outlet in the draining process. - Make sure that the drain hose, supply hose, and power cord is not kinked or folded.

Installation

STEP 9 Final check

  1. Remove all foam, paper packaging, and unnecessary parts from inside the dishwasher.
  2. Turn the circuit breaker on.
  3. Open the water supply valve to supply water to the dishwasher.
  4. Plug in and turn the dishwasher on. Then, select and run the Quick cycle.
  5. Check if the dishwasher turns on normally and if there are any water leaks while the dishwasher is operating. Make sure to check for water leaks on both ends of the water line and the drain hose connector.

English 26

Skirting board

You can attach the skirting board according to the model or installation conditions.

Pre-cut skirting board (DW60M9****US Series)

Diagram illustrating a mechanical or electrical installation with labeled components and directional arrows, including a magnified inset showing a tool interacting with a wall-mounted device.

  1. Insert the provided brackets to the bottom of the dishwasher. Turn them into position.

- See the figure on the left for the correct attaching sequence and place of the brackets.

  1. Insert the pre-cut skirting board into the brackets first, and then tighten the screws to fix the board. See the figure on the left and make sure the brackets are positioned in the correct place.

CAUTION

Make sure the skirting board does not interfere with the dishwasher's door opening and closing.

  1. Push the skirting board with the brackets into the bottom of the dishwasher as shown.

SAMSUNG DW9000M - CAUTION - 1

Diagram showing a directional arrow pointing to a gray rectangular object on a diagonal line.

Installation

Skirting board

Diagram showing a panel being inserted into a beam, with an inset magnified view of the detail.

  1. Put the skirting board on the bottom of the dishwasher.
  2. Open the door of the dishwasher, and draw a baseline on the skirting board where it interferes with the door.

Technical line drawing of a saw cutting through layered metal beams.

  1. Follow the baseline and cut the skirting board using a saw.

Diagram showing a structural joint with an arrow indicating direction (no text or symbols present)

  1. Attach the cut skirting board to the bottom of the dishwasher. Make sure the board does not interfere with the door of the dishwasher.

English28

Kick plate (applicable models only)

If you want to install the kick plate, follow these steps.


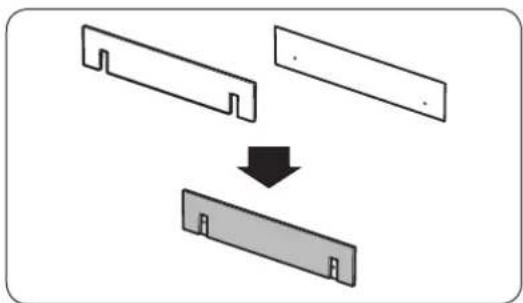

  1. Put the lower felt behind the kick plate, and arrange them so that the holes on the felt are visible.

Big Small Install over 96.5 mm

  1. Turn the front feet of the dishwasher to adjust the height so that the kick plate fits in.

Small Big

NOTE

If the dishwasher is raised by adjusting the feet, turn the kick plate upside down so that the kick plate fits in.

Installation

Diagram showing installation or assembly process with labeled components and a magnified inset highlighting a mechanical component.

  1. Attach the kick plate to the dishwasher using the kick plate brackets. Make sure the kick plate brackets are in the correct direction. See the figure for details.

Technical diagram showing a mechanical assembly with labeled components and an inset magnified view of a device with internal structure.

English30

Memo

SAMSUNG

Dishwasher

DW60M9970**/DW60M9550**/DW60M9530**

SAMSUNG

Contents

Contents 3

BU (built under, DW60M9***U*)

SAMSUNG DW9000M - Contents 3 - 1

Top brackets (2 pcs.) ∅4 X 12 screws

SAMSUNG DW9000M - Contents 3 - 2

(8 pcs.)

SAMSUNG DW9000M - Contents 3 - 3

Protective

label

SAMSUNG DW9000M - Contents 3 - 4

Panel

SAMSUNG DW9000M - Contents 3 - 5

4 x 8 screws (2 pcs.)

SAMSUNG DW9000M - Contents 3 - 6

SAMSUNG DW9000M - Contents 3 - 7

SAMSUNG DW9000M - Contents 3 - 8

SAMSUNG DW9000M - Contents 3 - 9

Plastic caps (4 pcs.)

Technical line drawing of a kitchen sink and stainless steel counter with piping and a labeled component (B), no text or symbols present.

A

B

1 spacer: 5-9 mm; 2 spacers: 10-14 mm; 3 spacers: 15-19 mm; 4 spacers: 20-24 mm; 5 spacers: 25-29 mm; 6 spacers: 30-34 mm; 7 spacers: 35-39 mm

Ø2, 10-12

Diagram of a device with two screws inserted into a tray, showing mounting points (no text or symbols)

Diagram showing a screwdriver inserted into a door panel with a black arrow indicating direction (no text or symbols).

! CAUTION

Max. 80 cm, Min. 30 cm

NOTE

Danish30

Note

SAMSUNG

Dishwasher

Installation manual

DW60M9970**/DW60M9550**/DW60M9530**

SAMSUNG

Table of contents

BU (built-under, DW60M9***U*)

SAMSUNG DW9000M - Table of contents - 1

SAMSUNG DW9000M - Table of contents - 2

SAMSUNG DW9000M - Table of contents - 3

Line drawing of a kitchen sink with a circular dial indicator and labeled point A (no text or symbols beyond labels).

Technical line drawing of a kitchen sink and stainless steel counter with piping and a labeled component (B), no text or symbols present.

A

B

1 strip 5-9 mm 25-29 mm 10-14 mm 5 strips 2 strips 3 strips 15-19 mm 30-34 mm 6 strips 3 strips 20-24 mm 35-39 mm 4 strips 7 strips

Ø2 10~12

A B C B C D

Ø 2 8~

Diagram showing a screwdriver inserted into a door panel with a black arrow indicating direction (no text or symbols)

CAUTION

Installation

Base panel

Diagram showing a panel being inserted into a beam, with an inset magnified view of the detail (no text or symbols)

Suomi28

Suomi30

Notes

SAMSUNG

Dishwasher

DW60M9970**/DW60M9550**/DW60M9530**

SAMSUNG

Contents

The package contains 3

Pre-cut floor trim (DW60M9****US Series) 27 Floor trim 28

Kickplate (certain models only) 29

Norwegian2

Installation

Package contents

Check that the product package contains all the parts. Contact a local dealer or Samsung customer service if you have questions about the dishwasher or the parts. The dishwasher may look different from the drawings depending on the model and the country you are in.

SAMSUNG DW9000M - Package contents - 1

NOTE

FBI model (Fully Built-In, DW60M9***BB)

SAMSUNG DW9000M - NOTE - 1

SBI model (Semi Built-In, DW60M9***S*)

SAMSUNG DW9000M - NOTE - 2

Top brackets (2)

SAMSUNG DW9000M - NOTE - 3

12 screws with ∅4

(8)

SAMSUNG DW9000M - NOTE - 4

SAMSUNG DW9000M - NOTE - 5

BU model (Built Under, DW60M9***U*)

SAMSUNG DW9000M - NOTE - 6

Top brackets (2)

Line drawing of a kitchen sink with a circular dial indicator and labeled point A (no text or symbols beyond labels)

Technical line drawing of a kitchen sink and stainless steel counter with piping and a labeled component (B), no text or symbols present.

SBI models (Semi Built-In, DW60M9***S*)

Diagram of a mechanical component with arrows indicating flow direction, labeled 'A' at the end (no text or symbols on the diagram itself)

A

B

  1. Install the supplied rubber strip (A) by inserting it into the three holes at the bottom of the door. (Applies only to certain models)

SAMSUNG DW9000M - SBI models (Semi Built-In, DW60M9***S*) - 4

NOTE

SBI models (Semi Built-In, DW60M9***S*)

Technical diagram showing two views (A and B) of a mechanical or architectural component with dimension annotations and directional arrows.

SBI models (Semi Built-In, DW60M9***S*)

Diagram illustrating a mechanical or electronic component with labeled parts A and B, showing directional arrows and grid layout.

SBI models (Semi Built-In, DW60M9***S*)

Line drawing of a refrigerator with airflow arrows indicating ventilation or cooling system (no text or symbols)

1 spacer 5-9 mm 25-29 mm 10-14 mm 5 spacers 30-34 mm 2 spacers 15-19 mm 6 spacers 3 spacers 20-24 mm 35-39 mm 4 spacers 7 spacers

  1. Pull the dishwasher halfway out from the countertop.
  2. Install one or more spacers as needed between the cabinet and the control panel.
  3. The distance here is the same as you measured in step 5 above.
  4. The figure on the left shows how to place the spacers and how many you need.

! NOTE

SBI models (Semi Built-In, DW60M9***S*)

Diagram of a door frame with labeled components and directional arrows, no readable text or symbols present.

SBI models (Semi Built-In, DW60M9***S*)

Diagram of screw installation with downward arrows indicating assembly or repair (no text or symbols present)

FBI models (Fully Built-In)Diagram of a mechanical component with arrows indicating flow direction, labeled 'A' at the end (no text or symbols on the diagram itself)

Ø2 10~12

SAMSUNG DW9000M - SBI models (Semi Built-In, DW60M9***S*) - 4

FBI models (Fully Built-In)B 30 mm A

FBI models (Fully Built-In)Diagram of a device with two screws inserted into a tray, showing mounting points (no text or symbols)

Ø 2 8~

Diagram showing a screwdriver inserted into a door panel with a black arrow indicating direction (no text or symbols)

CAUTION

Max. 80 cm, Min. 30 cm

Installation

Baseboard

Diagram showing a mechanical assembly with an arrow indicating direction and a magnified inset of a tool interacting with a component (no text or symbols present)

  1. Follow this baseline and saw the baseboard to the correct size.

Diagram showing a structural joint with an arrow indicating direction (no text or symbols present)

Norwegian30

Notes

SAMSUNG

Dishwasher

Installation Manual

DW60M9970**/DW60M9550**/DW60M9530**

SAMSUNG

Contents

Contents 3

BU (built-under, DW60M9***U*)

Line drawing of a kitchen sink with a circular dial indicator and labeled point A.

Technical line drawing of a kitchen sink and stainless steel counter with piping and a labeled component (B).

575 598 575 575 600 817-875 mm 820-890 mm 100 50 53

NOTE!

A

B

5-9 mm: 1 washer; 10-14 mm: 2 washers; 15-19 mm: 3 washers; 20-24 mm: 4 washers; 25-29 mm: 5 washers; 30-34 mm: 6 washers; 35-39 mm: 7 washers.

Swedish18

SBI models (semi-integrated, DW60M9***S*)Diagram of screw installation with downward arrows indicating assembly or repair (no text or symbols present).

Ø2 10~12

A B C B C

Ø2 8~

Diagram showing a screwdriver inserted into a door panel with a black arrow indicating direction (no text or symbols).

! CAUTION

Installation

Floor panel

Diagram showing a panel being inserted into a beam, with an inset magnified view of the cable being inserted (no text or symbols present)

Swedish30

Memo

SAMSUNG

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SAMSUNG

Model : DW9000M

Category : Dishwasher
