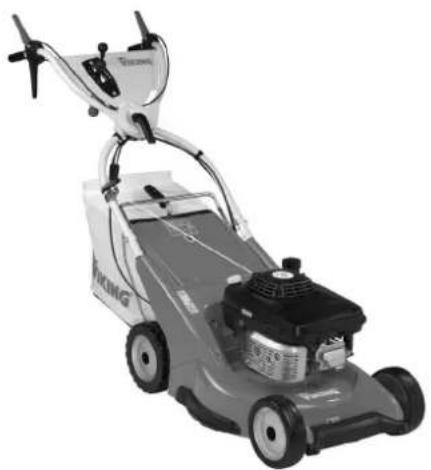

Exterior view of a lawn mower with visible frictioners and control panel (no text or symbols)

MB 750.2 KS MB 755.2 KS

Technical diagram of a lawn mower with numbered parts and exploded view highlighting key components

2 A B C D F E G

3

3 O.K. G F 2 E 2 E F G 4 1 4 4 4 4 3 3 √ O.K. G: 22 - 28 Nm

0478 111 9921 A

9 10 6 5 1 3 4 2

Kiweka Power Battery

Technical diagram showing three mechanical assembly steps with labeled components and directional arrows indicating movement or force.

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or motion steps.

13 14 1 2 2

Technical diagram showing mechanical component assembly with labeled parts and an inset view of a device's internal mechanism.

15 16 1 2 2 2 1

17 18 1 3 2 4

76

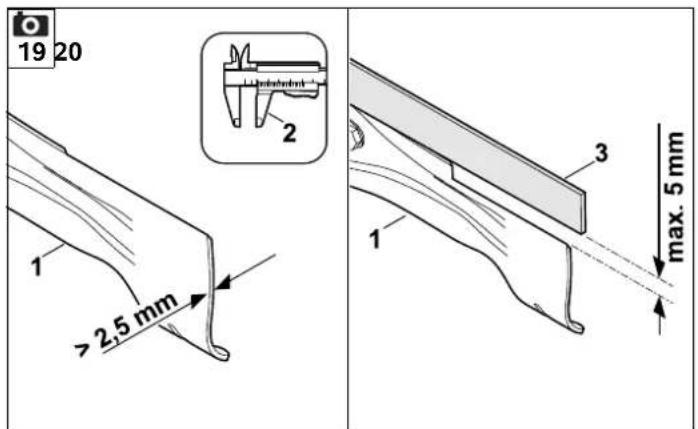

19 20 1 > 2,5 mm 2 3 1 max. 5mm

Technical diagram showing a mechanical assembly with numbered parts and directional arrows indicating motion or assembly.

21 22 1 2 3 4 4 45 - 55 Nm

Technical diagram showing a robotic arm with labeled parts and a close-up of the mechanical component, including numbered annotations.

23 24 1 3 2

Technical line drawing of a lawn mower with labeled parts (1 and 2), no text or symbols present.

25 1 2

Diagram showing two human figures exchanging a small cart with labeled parts, likely illustrating a mechanical or robotic operation.

2.0 2.0

U U 2,0 U U 2,0

2.0 2.0

2.0 2.0

U 2,0 U 2,0

2.0 2.0

2.0 2.0

2.0 2.0

2.0 2.0

Four safety symbols and diagrams: warning triangle, circuit diagram with arrows, electrical switch, wireless signal, and circular warning sign.

Warning symbols including a warning triangle, Wi-Fi device with '2' crossed out, and a hand holding a circular object with a droplet.

START / I ① ②

Vertical diagram with five symbols: hand, globe, arrow, turtle, and letter 'O'

Gasverstellung:

Choke-Position

Start-Position

97/68/EC, 2000/14/EC, 2004/108/EC, 2006/42/EC

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Nächster Service

Datum: ____ ____ ____ ____ ____

Thank you for choosing a VIKING quality product.

This product has been produced using state-of-the-art production methods and extensive quality assurance procedures, because our goal is only achieved if you, the customer, are satisfied with your machine.

If you have any questions concerning your machine, please contact your dealer or our sales agency directly.

I hope that your VIKING machine will give you great enjoyment.

Dr. Peter Pretzsch

Management

1. Table of contents

Notes on the instruction manual 32

General 32

Instructions for reading the instruction manual 32

Lawn mower with blade brake clutch, BBC 32

Machine overview 33

For your safety 33

General 33

Refilling the tank – handling petrol 34

Clothing and equipment 34

Transporting the machine 34

Before operation 35

Working with your machine 35

Maintenance and repairs 37

Storage for prolonged periods without operation 38

Disposal 38

Description of symbols 38

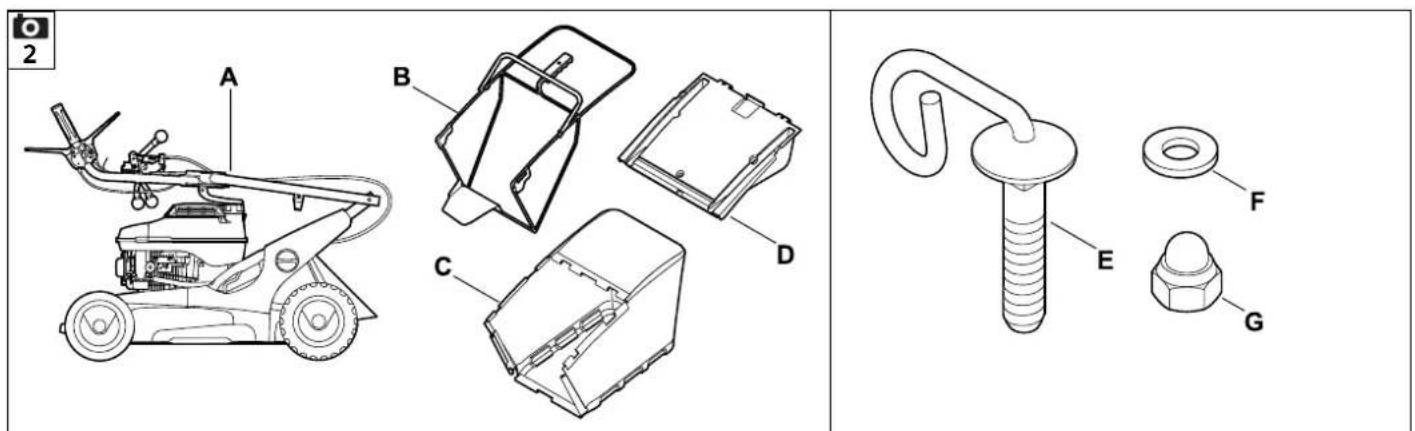

Standard equipment 39

Preparing the machine for operation 39

Assembling the handlebar 39

Assembling grass catcher bag 40

Attaching the recoil starter rope 40

Lateral adjustment of the handlebar 40

Height adjustment of the handlebar 40

Central cutting height adjustment 40

Attaching and detaching the grass catcher bag 41

Fuel and engine oil 41

Blade brake clutch (BBC) 41

Notes on working with the machine 41

Operating the machine 41

Checking the blade brake clutch 41

Starting the engine 42

Engaging the mowing blade 42

Disengaging the mowing blade 42

Stopping the engine 42

Switching on self-propulsion 42

Switching off self-propulsion 43

Grass catcher bag with anti-dust screen 43

Maintenance 43

Engine 43

Wheels and gearbox 43

Cleaning the machine 43

Blade brake clutch maintenance 44

Mowing blade maintenance 44

Removing mowing blade 44

Installing the mowing blade 44

Sharpening the mowing blade 44

Adjusting the gearshift cable 45

Adjusting the self-propulsion cable 45

Storage and periods of inoperation (winter break) 45

Environmental protection 45

Transport 46

Securing the machine 46

Lifting or carrying the machine 46

Minimising wear and preventing damage 46

Standard spare parts 47

CE - manufacturer's declaration of conformity 47

Technical specifications 47

Troubleshooting 48

Service schedule 49

Handover confirmation 49

Service confirmation 49

2. Notes on the instruction manual

2.1 General

This instruction manual constitutes original manufacturer's instructions in the sense of EC Directive 2006/42/EC.

VIKING is continually striving to further develop its range of products; we therefore reserve the right to make alterations to the form, technical specifications and equipment level of our standard equipment.

For this reason, the information and illustrations in this manual are subject to alterations.

2.2 Instructions for reading the instruction manual

Illustrations and texts describe specific operating steps.

All symbols which are affixed to the machine are explained in this instruction manual.

Viewing direction:

Viewing direction when "left" and "right" are used in the instruction manual: the user is standing behind the machine and is looking forwards in the direction of travel.

Section reference:

References to relevant sections and subsections for further descriptions are made using arrows. The following example shows a reference to a section: ( 2.1)

Designation of text passages:

The instructions described can be identified as in the following examples.

Operating steps which require intervention on the part of the user:

- Release bolt (1) using a screwdriver, operate lever (2)...

General lists:

– Use of the product for sporting or competitive events

Texts with added significance:

Text passages with added significance are identified using the symbols described below in order to especially emphasise them in the instruction manual:

Danger

Risk of accident and severe injury to persons. A certain type of behaviour is necessary or must be avoided.

Warning

Risk of injury to persons. A certain type of behaviour prevents possible or probable injuries.

Caution

Minor injuries or material damage can be prevented by a certain type of behaviour.

Note

Information for better use of the machine and in order to avoid possible operating errors.

Texts relating to illustrations:

Illustrations relating to use of the machine can be found in the front of this instruction manual.

The camera symbol serves to link the figures on the illustration pages with the corresponding text passages in the instruction manual.

3. Lawn mower with blade brake clutch, BBC

Your lawn mower is equipped with a blade brake clutch (BBC).

As with all modern lawn mowers, the blade comes to a stop within a short time as soon as the handlebar is released. However, thanks to the BBC system, the engine continues to run. This function allows the user to use the mower's self-propulsion after the blade has stopped. Moreover, the grass catcher bag can be emptied or the mulching key can be inserted, for example, without having to start the engine again.

Risk of injury!

Never reach into the working area of the blade when the engine is running.

Stop the engine, allow the blade to come to a complete standstill and detach the spark plug socket before touching the blade.

Four safety symbols and diagrams: triangular warning triangle, circuit diagram with arrows, electrical switch, wireless signal, and hand gesture.

In order to prevent injuries or damage to the machine, ensure that you are familiar with operation of the BBC system prior to initial use. Pay particular attention to the section "Blade brake clutch (BBC)". (⇔ 9.)

4. Machine overview

1 Handlebar
2 Blade stop lever
3 Self-propulsion lever
4 Gearshift lever
5 Throttle lever
6 Blade clutch lever
7 Tension lever for lateral handlebar adjustment
8 Recoil starter rope
9 Engine
10 Impact protector
11 Skirting protector
12 Cutting height indicator
13 Central cutting height adjustment
14 Rotary handle for handlebar height adjustment
15 Grass catcher box
16 Discharge flap
17 Spark plug socket
18 Identification plate

5. For your safety

5.1 General

These safety regulations must be observed when working with the machine.

Read the entire instruction manual before using the machine for the first time. Keep the instruction manual in a safe future reference.

Observe the operating and maintenance instructions contained in the separate engine instruction manual.

These safety precautions are essential for your safety, however the list is not exhaustive. Always use the machine in a reasonable and responsible manner and be aware that the user is responsible for accidents involving third parties or their property.

Make sure that you are familiar with the controls and use of the machine.

The machine must only be used by persons who have read the instruction manual and are familiar with operation of the machine. The user should seek expert and practical instruction prior to initial operation. The user must receive instruction on safe use of the machine from the vendor or another expert.

During this instruction, the user should be made aware that the utmost care and concentration are required for working with the machine.

Only give or lend the machine, including any accessories, to persons who are familiar with this model and how to operate it. The instruction manual forms part of the machine and must always be provided to persons borrowing it.

The machine must only be operated by persons who are well rested and in good physical and mental condition. If your health is impaired, you should consult your doctor to determine whether working with the machine is possible. The machine should not be operated after the consumption of alcohol, drugs or medications which impair reactions.

Never allow children under the age of 16 to use the machine. Local regulations may specify a minimum age for users.

This machine is not suitable for use by persons (in particular children) with impaired physical, sensory or mental faculties or those lacking the appropriate experience and/or knowledge, unless supervised by a person responsible for their safety or having received instructions on use of the machine from such person. Children must be supervised, in order to ensure that they do not play with the machine.

Caution – risk of accident!

The lawn mower is only intended for mowing lawns. Its use for other purposes is not permitted and may be dangerous or result in damage to the machine.

Due to the physical danger to the user, the lawn mower must not be used for the following applications (incomplete list):

• For trimming bushes, hedges and shrubs.
• For cutting creepers.
• For tending lawn roofs and balcony boxes.
• For shredding or chopping tree or hedge cuttings.
• For clearing paths (vacuuming, blowing).
• For levelling earth mounds, e.g. mole hills.
• For transporting clippings, except in the grass catcher box intended for this purpose.

For safety reasons, any modification to the machine, except the proper installation of accessories approved by VIKING, is forbidden and results in voiding of the warranty cover. Information regarding approved accessories can be obtained from your VIKING specialist dealer.

In particular, any tampering with the machine which increases the power output or speed of the engine or motor is forbidden.

It is not permitted to transport objects, animals or persons, particularly children, on the machine.

Particular care is required during use in public green spaces, parks, sports fields, along roads and in agricultural and forestry businesses.

Caution: Danger to health due to vibrations!

Excessive exposure to vibrations can result in damage to the cardiovascular or nervous system, particularly in persons with cardiovascular problems. Please consult a physician if you experience symptoms that may have been caused by vibrational loads. Symptoms of this kind principally affect the fingers, hands or wrists and include (incomplete list):

• numbness,
• pain,
• muscular weakness,
  – skin discolouration,
  – unpleasant tingling sensation.

5.2 Refilling the tank – handling petrol

Danger to life!

Petrol is poisonous and extremely inflammable.

Petrol must only be stored in appropriate, tested containers (canisters). Always screw on the fuel tank and canister caps properly and tightly. Defective caps must be replaced for safety reasons.

Never use beverage bottles or similar for disposal or storage of fuels and lubricants. Persons, particularly children, could be tempted to drink out of them.

Keep petrol away from sparks, naked flames, pilot lights, heat sources, and other ignition sources. Do not smoke!

Refill the tank out-of-doors and do not smoke during refilling.

Before refilling the tank, stop the engine and allow it to cool.

Refilling with petrol must be performed before the engine is started. When the engine is running or is hot, the tank cap must not be removed and the tank must not be refilled with petrol.

Do not fill fuel tank completely, but fill to approx. 4 cm below the edge of the filler neck so that the fuel has room to expand.

If petrol is spilled, the engine must only be started after the petrol-contaminated area has been cleaned. All attempts at starting must be avoided until the petrol fumes have dispersed (wipe dry).

Any spilt fuel must be wiped up immediately.

Clothing must be changed if it comes into contact with petrol.

Never store the machine with petrol in the tank inside a building. The resulting petrol fumes could come into contact with naked flames or sparks and could be ignited.

If it is necessary to drain the tank, this must be done out of doors.

5.3 Clothing and equipment

Always wear sturdy footwear with high-grip soles when working. Never work barefoot

ample, in sandals.

Always wear hearing protection when working with the machine.

Also always wear sturdy gloves and tie up and secure long hair (headscarf, cap, etc.) when performing maintenance and

cleaning work or when transporting the machine.

Wear suitable safety glasses when sharpening the mowing blade.

Always wear long trousers and tight-fitting clothing when operating the machine.

Never wear loose clothes which may become caught on moving parts (control levers) – do not wear jewellery, ties or scarves.

5.4 Transporting the machine

Always wear gloves in order to prevent injuries due to sharp-edged and hot components.

Do not transport the machine with the engine running. Switch off the engine, let the blades come to a standstill and remove the spark plug socket prior to transport.

Only transport the machine once the engine has cooled down and with an empty fuel tank.

Use suitable loading aids (loading ramps, lifters).

Secure the machine and any machine components being transported (e.g. grass catcher box) on the load floor using fastening material of adequate size (belts, ropes etc.).

Avoid contact with the mowing blade when lifting and carrying the machine.

Observe the information in the section "Transport". It describes how to lift and lash the machine. ( 14.)

When transporting the machine, always observe regional legislation, especially regarding load security and the transport of objects on load floors.

5.5 Before operation

Make sure that only persons who are familiar with the instruction manual are permitted to use the machine.

Check the fuel system (particularly visible parts such as e.g. tank, tank cap, hose connections) before operating the machine. In the event of any leaks or damage, do not start the engine – fire hazard!

Have the machine repaired by a specialist dealer prior to operation.

Observe the local regulations regarding permitted operating times for gardening power tools with combustion engines or electric motors.

Carefully inspect the complete area on which the machine is to be used and remove any stones, sticks, wires, bones and other foreign objects which could be thrown up by the machine. Obstacles (e.g. tree stumps, roots) can be easily overlooked in long grass.

For this reason, mark all foreign objects (obstacles) which are hidden in the lawn and cannot be removed before commencing work with the machine.

Defective mufflers and all other worn or damaged parts must be removed before use of the machine. Replace any illegible or damaged danger signs and warnings on the machine. Your VIKING specialist has a supply of replacement stickers and all the other spare parts.

The machine must only be used in good operating condition. Before each use, check whether:

– The machine is properly assembled.
- The cutting tool and the entire cutting unit (mowing blade, fastening attachments, mowing deck housing) are in good condition. In particular check for secure fastening, damage (notches or cracks) and wear. (⇒ 12.5)
– The tank cap is properly attached.
– The tank and fuel-carrying parts, as well as the tank cap are in good condition.
- The safety devices (e.g. blade brake clutch, discharge flap, housing, handlebar, protective grille) are in good condition and working properly.

• The grass catcher bag is undamaged and correctly installed; a damaged grass catcher bag must not be used.
  – The oil tank cap is screwed on properly.
  Carry out any necessary work or consult a specialist dealer. VIKING recommends VIKING specialist dealers.

5.6 Working with your machine

Never work when animals or persons, particularly children, are in the danger area.

The switch and safety devices installed in the machine must not be removed or bypassed. In particular, never secure the blade stop lever to the handlebar (e.g. by tying it).

Caution – risk of injury! Never put hands or feet on or underneath rotating parts. Never touch the rotating blade.

Always keep away from the discharge opening.

Always observe the safety distance provided by the handlebar. The handlebar must always be installed correctly and must not be modified. Never operate the machine with the handlebar folded down.

Never attach any objects to the handlebar (e.g. work clothing).

Only work during the day or with good artificial light.

Do not operate the machine in the rain or during thunder storms, particularly when there is a risk of lightning strike.

The risk of accidents is higher if the ground is damp due to increased danger of slipping.

Particular caution should be exercised

during working in order to prevent slipping. If possible, avoid using the machine when the ground is damp.

Exhaust gases:

Danger to life through poisoning! In the case of nausea, headache, impaired vision (e.g. decreasing field of view) hearing disorder, dizziness, decreasing power of concentration, stop working immediately. These symptoms may be caused by excessively high exhaust gas concentrations.

The machine generates poisonous exhaust gases when the engine is running. The gases contain poisonous

carbon monoxide, a colourless and odourless gas, as well as other pollutants. The engine must never be operated in closed or poorly ventilated spaces.

Starting:

Exercise care when starting and observe the instructions contained in the section entitled "Initial operation of machine". (⇔ 11.)

In particular, check operation of the blade brake clutch before starting work. ( 11.1)

The machine must not be tilted during start-up.

Disengage the mowing blade before starting. Do not actuate the self-propulsion lever during starting.

Do not start the engine if the discharge chute is not covered by the discharge flap or the grass catcher box.

Working on slopes:

Always work across and back on slopes, never up and down. If the user loses control when mowing up and down, there is a risk of being run over by the machine.

Be particularly careful when changing direction on a slope.

Always ensure good stability on slopes and avoid mowing on excessively steep slopes.

For safety reasons, the machine must not be used on slopes with an inclination of more than 25^ (46.6 %). Risk of injury! A slope inclination of 25^ corresponds to a vertical height increase of 46.6 cm for a 100 cm horizontal distance.

max. 25° 100 46,6

In order to ensure an adequate oil supply for the engine, the information in the accompanying engine instruction manual must be additionally observed when using the machine on slopes.

Working:

Risk of injury

Never place your hands or feet above, underneath or on rotating parts.

Do not attempt to examine the blade while the lawn mower is operating. Never open the

discharge flap and/or remove the grass catcher box when the mowing blade is running. Rotating blades can cause injury.

Only operate the machine at walking speed – never run when working with the machine. Working quickly with the machine increases the risk of injury due to stumbling, slipping, etc.

Be particularly careful when turning the machine around or pulling it towards you. Risk of stumbling!

Use the machine with great care when working near rubbish dumps, ditches and embankments. In particular, ensure that you maintain sufficient distance to such danger areas.

Objects hidden in the grass (lawn sprinkler systems, posts, water valves, foundations, electrical wires, etc.) must be avoided. Never intentionally run over any such foreign objects.

Beware of the cutting tool running on for several seconds before coming to a standstill.

STOP

Stop the engine, allow the work tool to come to a complete

standstill and detach the spark plug socket

– before leaving the machine unattended

– before re-filling the tank. Allow the engine to cool down before re-filling the tank.

Fire hazard!

– before remedying blockages, including those in the discharge chute,

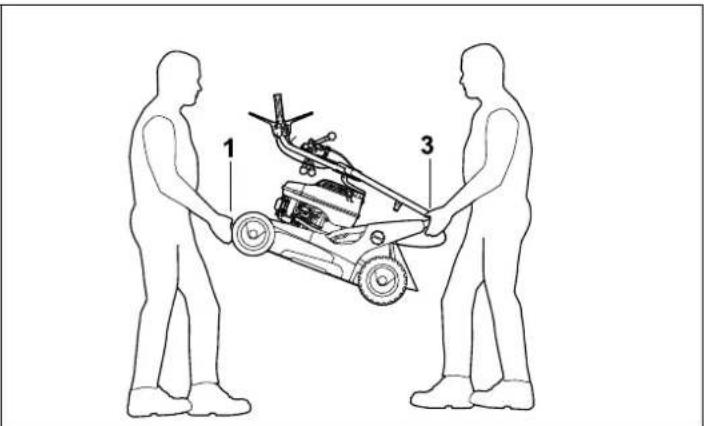

– before lifting or carrying the machine
– before transporting the machine
– before carrying out any work on the mowing blade,

– before checking or cleaning the machine or before carrying out any other work (e.g. folding down the handlebar) on it,
– after hitting a foreign object or if the lawn mower begins to vibrate excessively. In these cases check the machine, in particular the cutting unit (blade, blade shaft, blade fastening) for damage and carry out the necessary repairs before restarting and working with the machine.

Risk of injury!

Strong vibrations are generally an indication of a fault. In particular, the lawn mower must not be operated with a damaged or bent crankshaft or mowing blade. If you do not have the appropriate expertise, have the necessary repairs carried out by a specialist dealer (VIKING recommends VIKING specialist dealers).

Disengage the mowing blade

• When driving the machine to and from the area to be mowed or when pushing it for this purpose
  – Before pushing machine onto an area not covered in grass or before driving it onto such an area
• If tilting of the mower is necessary when pushing or driving it over an area other than grass
  – Before adjusting the cutting height
  – Before opening the discharge flap or removing the grass catcher bag

5.7 Maintenance and repairs

Before beginning cleaning, adjustment, repair and maintenance operations, park the machine on firm, level

ground, stop the engine, allow it to cool down and detach the spark plug socket.

Risk of injury due to the mowing blade!

Pulling the recoil starter rope with the mowing blade engaged starts the work tool rotating. Always ensure sufficient distance between the mowing blade and your body, particularly your hands and feet, when you pull the recoil starter rope.

Allow the machine to cool down before working on or around the engine, exhaust manifold or muffler in particular. Temperatures of 80^ C and above can be reached. Danger of burns

Direct contact with engine oil can be dangerous. Engine oil must not be spilled. VIKING recommends leaving the task of topping up engine oil or performing engine oil changes to a VIKING specialist dealer.

Cleaning:

The complete machine must be cleaned thoroughly following use. ( 12.3)

Empty the fuel tank (e.g. by running it empty) before placing the machine in the cleaning position.

Remove accumulated clipping deposits using a stick. Clean the underside of the mower with water and a brush.

Never use high-pressure cleaners and do not clean the machine under running water (e.g. using a garden hose).

Do not use aggressive cleaning agents. These can damage plastics and metals, impairing the safe operation of your VIKING machine.

In order to prevent fire hazards, keep the area around the air vents, cooling ribs and the area of the exhaust free from e.g. grass, straw, moss, leaves or escaping grease.

Maintenance operations:

Only maintenance operations described in this instruction manual may be carried out. Have all other work performed by a specialist dealer.

If you do not have the necessary expertise or auxiliary equipment, please always contact a specialist dealer.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VIKING specialist dealer.

VIKING specialist dealers regularly attend training courses and are provided with technical information.

Only use tools, accessories or attachments approved for this machine by VIKING or technically identical parts.

Otherwise, there may be a risk of accidents resulting in personal injury or damage to the machine. If you have any questions, please consult a specialist dealer.

The characteristics of original VIKING tools, accessories and spare parts are optimally adapted to the machine and the user's requirements. Genuine VIKING spare parts can be recognised by the VIKING spare parts number, by the VIKING lettering and, if present, by the VIKING spare parts symbol. On smaller parts, only the symbol may be present.

For safety reasons, fuel-carrying components (fuel line, fuel cock, fuel tank, tank cap, connections, etc.) must be checked regularly for damage and leaks and replaced by a technician if necessary (VIKING recommends VIKING specialist dealers).

Always keep warning and information stickers clean and readable. Damaged or missing stickers must be replaced by new, original plates from your VIKING specialist dealer. If a component is replaced with a new component, ensure that the new component is provided with the same stickers.

Only perform work on the cutting unit when wearing thick work gloves and exercising extreme care.

Ensure that all nuts, pins and screws (in particular the blade fastening screw) are securely tightened so that the machine is in a safe operating condition.

Check the complete machine and the grass catcher box for wear or damage on a regular basis, particularly before extended periods when the machine is not in use (e.g. over winter). For safety reasons, worn or damaged parts must be replaced immediately to ensure that the machine is always in a safe operating condition.

Never alter the basic setting of the engine or run at excessive engine speeds.

Components or guards that are removed for maintenance operations must be properly reinstalled immediately.

5.8 Storage for prolonged periods without operation

Allow the engine to cool before storing the machine in an enclosed space.

Store the machine with empty fuel tank and the fuel reserve in a lockable and well-ventilated room.

Ensure that the machine is protected from unauthorised use (e.g. by children).

Never store the machine with petrol in the tank inside a building. The resulting petrol fumes could come into contact with naked flames or sparks and could be ignited.

If the tank has to be emptied (e.g. to store the machine before the winter break), this should only be done out of doors (e.g. by running the tank empty).

Thoroughly clean the machine before storage (e.g. winter break).

Only store the machine with the spark plug socket disconnected.

Store the machine in good operational condition.

5.9 Disposal

Waste products such as used engine oil or fuel, used lubricants, filters, batteries and similar wearing parts can be harmful to people, animals and the environment, and must consequently be disposed of properly.

Consult your recycling centre or your specialist dealer for information on the proper disposal of waste products. VIKING recommends VIKING specialist dealers.

Ensure that old machines are properly disposed of. Render the machine unusable prior to disposal. In order to prevent accidents, remove the ignition lead, empty the fuel tank and drain the engine oil in particular.

Risk of injury due to the mowing blade! Always store an old lawn mower in a safe place prior to scrapping. Ensure that the machine and particularly the mowing blade are kept out of the reach of children.

6. Description of symbols

Caution!
Read the instruction manual before initial use.

Risk of injury!
Keep other persons out of the danger area.

Risk of injury!
Detach the spark plug socket before performing work on the cutting tool or maintenance and cleaning work.

Risk of injury!

Cutting tool runs on for several seconds after switching off (engine/blade brake).

Warning symbols including a warning triangle, a device with '4' and 'X', and a hand holding a circular object with raindrops.

Caution – risk of injury!

Never reach into the working area of the blade when the engine is running.

Wear hearing protection when working.

START / I ① ② ① ②

Start the engine, engage the mowing blade.

STOP / 0

Disengage the mowing blade.

Switch on self-propulsion.

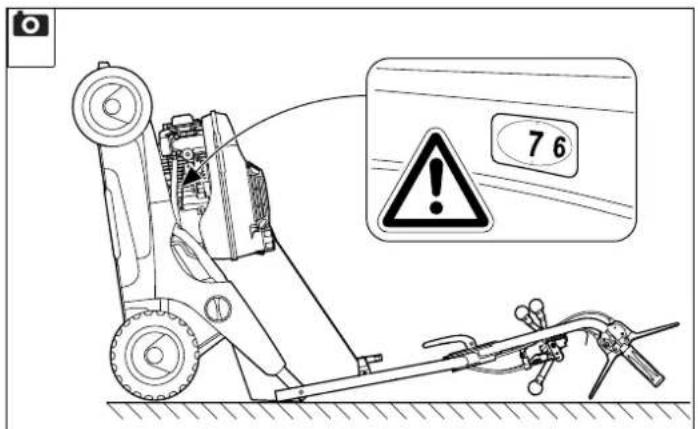

Only tilt the mower upwards in cutting position 7.

H I G A O

Throttle:

Choke position

Start position

High engine speed

Low engine speed

Stop position

7. Standard equipment

Item Designation Qty.

A Basic unit 1

B Grass catcher bag frame 1

C Grass catcher bag fabric 1

D Grass catcher bag flap 1

E Flat head bolt 2

F Washer 2

G Cap nut 2

• Instruction manual 1

• Engine instruction manual 1

8. Preparing the machine for operation

Risk of injury:

Observe the safety instructions in the section "For your safety" ( 5.).

- Place the machine on level and firm ground when performing all the operations described.

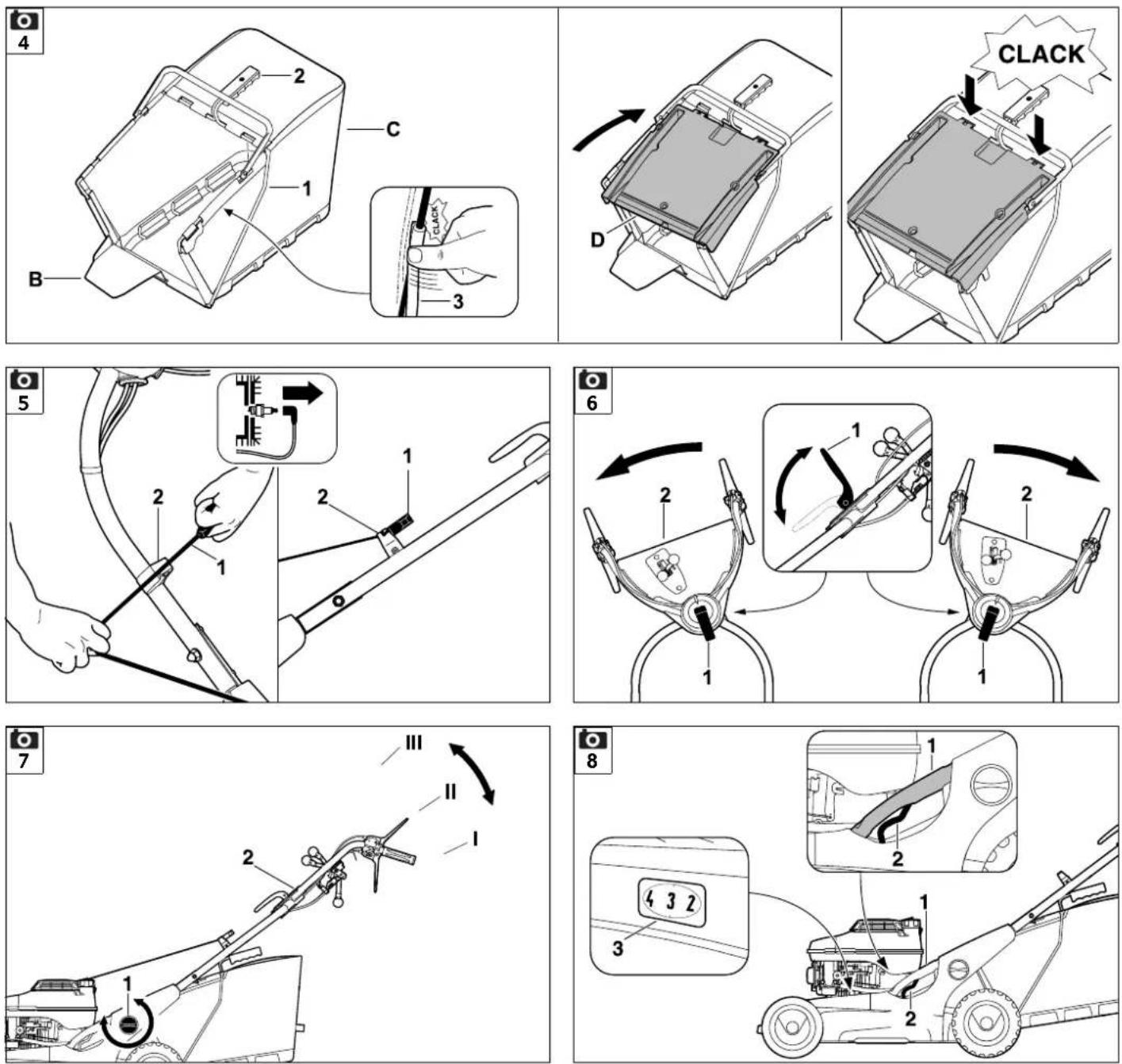

8.1 Assembling the handlebar

Danger of pinching!

Hold the upper handlebar (1) with one hand at its highest point when installing the handlebar.

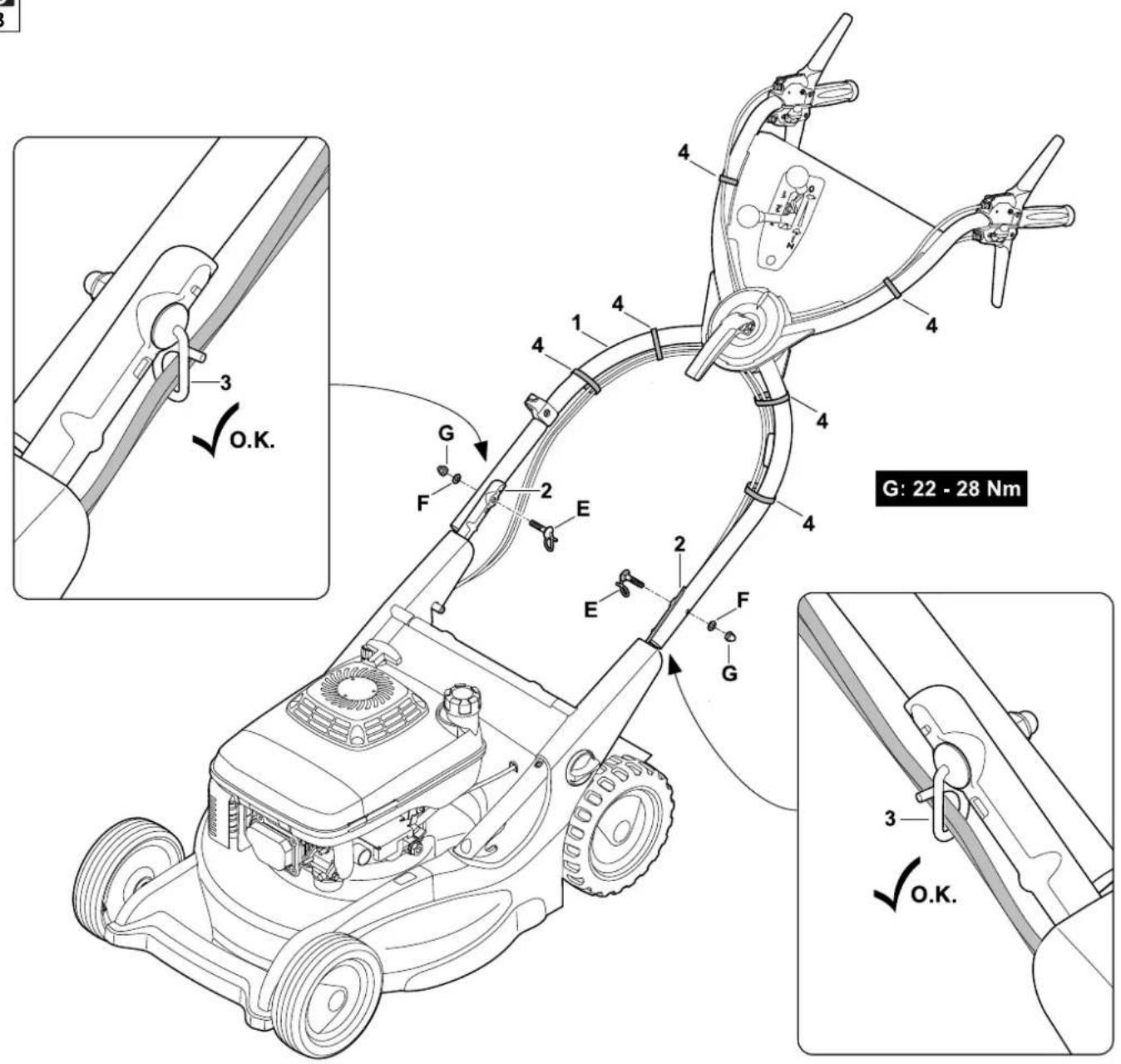

• Fit the upper handlebar (1) onto the lower handlebar sections (2).

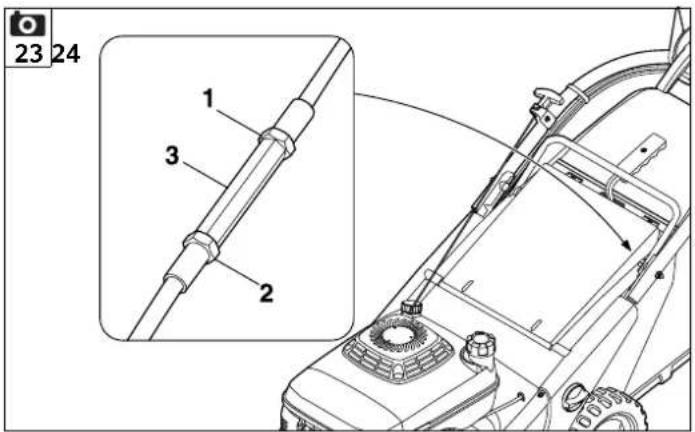

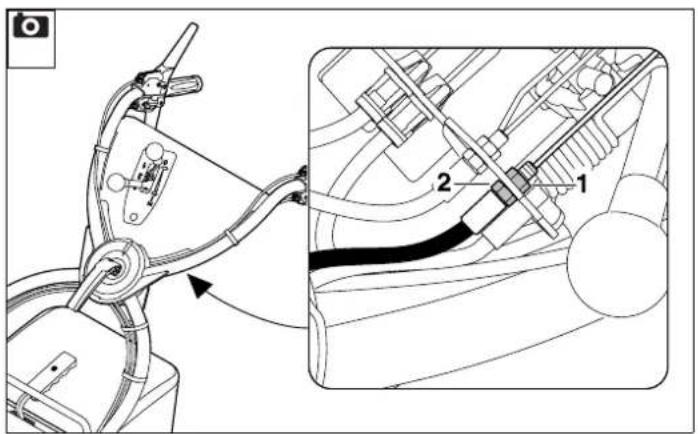

• Insert all cables into the anti-kink cable protection (3). Insert flat head bolts (E) through bores from the inside to the outside.
  Attach anti-kink cable protection (3) only as shown. Cables must be routed under the handlebar.
• Fit washers (F) onto the bolts and screw on the cap nuts (G) (22 - 28 Nm).

Check the hook-and-loop fasteners.

- The cables must be fastened to the right and left upper handlebars using hook-and-loop fasteners (4) as shown. Correct the position of the hook-and-loop fasteners if necessary.

Folding down the upper handlebar:

The upper handlebar (1) can be folded down for space-saving transport and storage of the mower.

Danger of pinching!

The upper handlebar (1) can fold down on its own when the two cap nuts (G) are loosened. Therefore hold the upper handlebar (1) at its highest point before loosening the two cap nuts.

• Screw off cap nuts (G) on both sides and remove together with the washers (F).
• Fold down the upper handlebar (1) forwards and rest it on the engine hood.

8.2 Assembling grass catcher bag

• Pull the grass catcher bag fabric (C) over the grass catcher bag frame (B) as shown. The struts (1) and the handle (2) must be located on the outside of the fabric.
• Position the integrated plastic sleeves (3) on the grass catcher bag frame and press them into place. Start by pressing under the tab of the grass catcher bag frame.
• First attach the flap (D) on the left, then on the right of the catcher bag frame, then snap them in on both sides by pressing firmly.

8.3 Attaching the recoil starter rope

• Detach the spark plug socket from the engine.

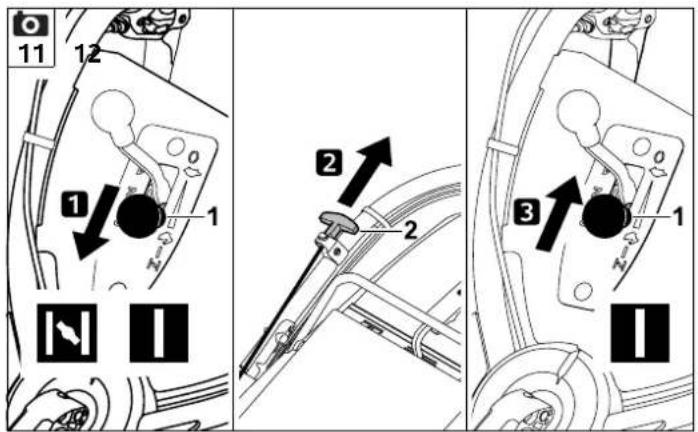

• Slowly pull out the recoil starter rope (1) and attach it to the rope holder (2).

8.4 Lateral adjustment of the handlebar

The handlebar can be adjusted laterally to enable more comfortable mowing on slopes or along fences, hedges and walls.

• Release the handlebar clamp by opening the tension lever (1).
• Hold the handlebar (2) by the handles and lift slightly. Then turn it to the left or right until it is in the desired position. The handlebar engages noticeably in the left and right position, as well as in the centre position.
• Close the tension lever (1) again to lock the handlebar in place.

8.5 Height adjustment of the handlebar

The height of the handlebar is adjustable to three positions:

I Low

II Medium

III High

• Release the rotary handle (1) (approx. 5 turns anti-clockwise).
• Hold the handlebar (2) at the handles with both hands and bring to the desired position – ensure same adjustment on left and right side.
• Tighten the rotary handle (1) again.

8.6 Central cutting height adjustment

Seven different cutting heights can be set between 30 mm and 85 mm.

Level 1 = lowest cutting height

Level 7 = highest cutting height

Setting cutting height:

• Hold the machine by the handle (1), then pull the adjustment lever (2) upwards.
• Set the required cutting height by moving the machine upwards or downwards. The current cutting height can be read off at the cutting height indicator (3).
• Release the adjustment lever (2) and allow it to engage.

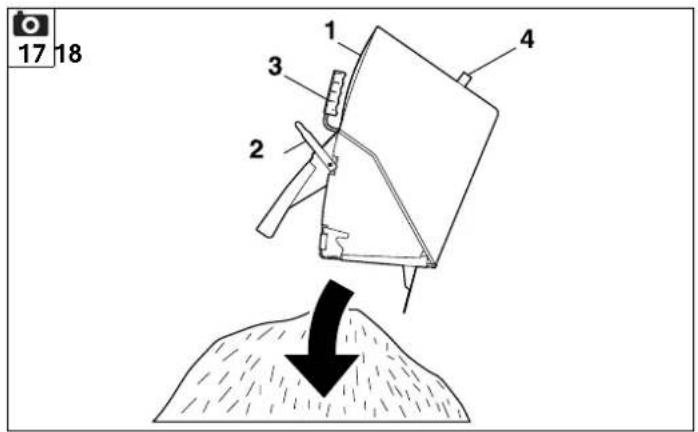

8.7 Attaching and detaching the grass catcher bag

Attaching:

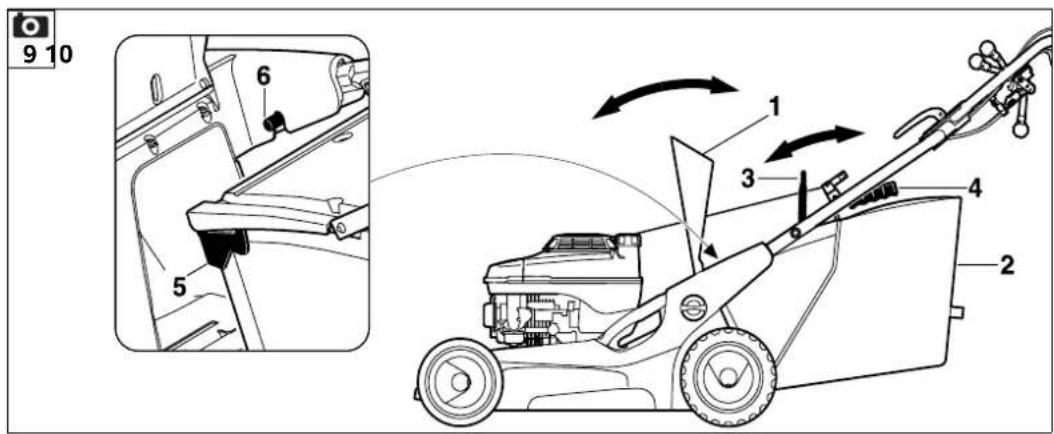

• Open the discharge flap (1) and hold it open.
• Hold the grass catcher bag (2) at the swivelling loop handle (3) or at the handle (4).
• Attach the grass catcher bag (2) to the locating pins (6) with the hooks (5).
• Close the discharge flap (1).

Detaching:

• Open the discharge flap (1) and hold it open.
• Lift grass catcher bag (2) and remove rearwards.
• Close the discharge flap (1).

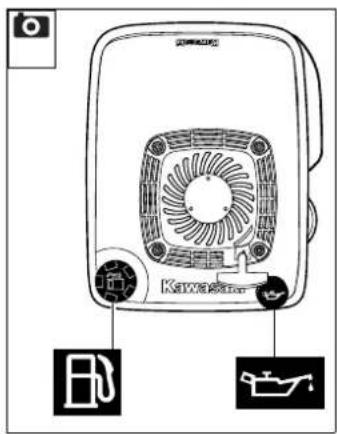

8.8 Fuel and engine oil

Avoid damage to the machine Top up engine oil before starting for the first time. Use a suitable filling aid when topping up the engine oil and when refuelling (e.g. funnel).

Engine oil:

Please consult the engine instruction manual for the type of engine oil to be used and the oil capacity. Check the oil filling level at regular intervals (see engine instruction manual). Avoid exceeding or falling below the correct oil level. Screw on the oil tank cap properly before operating the engine.

Fuel:

Recommendation: Fresh good quality fuels, Unleaded petrol. Please consult the engine instruction manual for details on the fuel quality (octane rating).

9. Blade brake clutch (BBC)

Risk of injury!

Operation of the blade brake clutch must be checked before each use. ( 11.1)

For safety reasons, the lever must never be disabled, e.g. by tying it to the handlebar.

Two-hand operation:

The mowing blade can only be engaged as follows with the engine running:

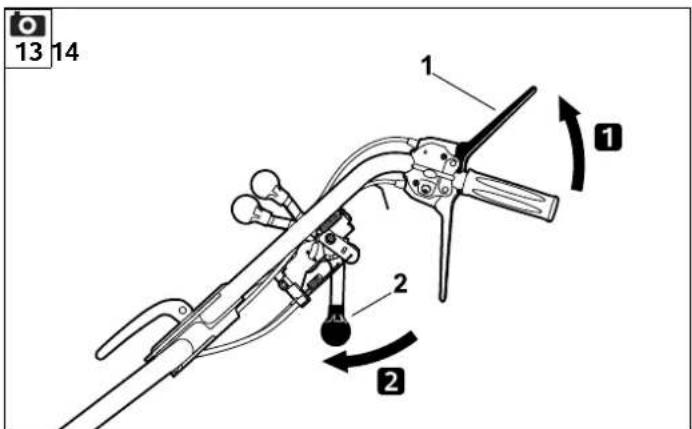

Press one of the two blade stop levers (2) with one hand and, while keeping it pressed, pull the blade clutch lever (6) upwards with the other hand and allow it to engage. ( 11.3)

Integrated blade-run-down brake:

When the handlebar is released, the mowing blade is disengaged and braked to a standstill within a maximum of three seconds, while the engine continues to run. ( 11.4)

10. Notes on working with the machine

A perfect, thick lawn is achieved by

• Mowing at low driving speeds.
  – Mowing regularly and keeping the grass short.
• Not cutting the lawn too short in hot, dry conditions as it will be burnt by the sun and become unsightly.
• Using a sharp mowing blade – mowing blade should therefore be sharpened regularly (specialist dealer).
• Changing the cutting direction regularly.

11. Operating the machine

Risk of injury:

Carefully read and observe the "For your safety" section before operating the machine. (⇔ 5.)

11.1 Checking the blade brake clutch

Operation of the blade brake clutch must be checked three times before starting work.

• Engage the mowing blade with the engine running. ( 11.3) A running mowing blade generates a clearly audible wind noise.
• Disengage the mowing blade (release handlebar). ( 11.4) The blade brake clutch disengages the mowing blade from the engine drive and brakes it. This procedure is accompanied by stopping of the wind noise and lasts a maximum of 3 seconds. No wind noise must be audible when the blade is stopped.

Risk of injury!

Should the blade brake clutch not work as described (e.g. longer blade brake time than 3 seconds or continuing audible wind noise when the mowing blade is disengaged), the machine must not be operated.

In this case, switch off the engine, detach the spark plug socket and have the necessary repairs performed by a qualified technician. VIKING recommends VIKING specialist dealers.

11.2 Starting the engine

• Check the oil and fuel levels. (⇒ 8.8)
• Set the throttle lever (1) to the Choke position when the engine is cold. Set the throttle lever (1) to the Start position when the engine is warm or during hot weather.

• Pull the recoil starter rope (2) slowly to the point of compression resistance and then pull vigorously to arm's length. Slowly release the cable so that it can gradually be rolled up by the starter. Repeat the starting procedure until the engine starts.
• Set the throttle lever (1) to the Start position.

11.3 Engaging the mowing blade

Do not engage the mowing blade in tall grass and only engage it at the maximum engine speed.

Always engage it quickly in order to prevent unnecessary wear to the blade clutch.

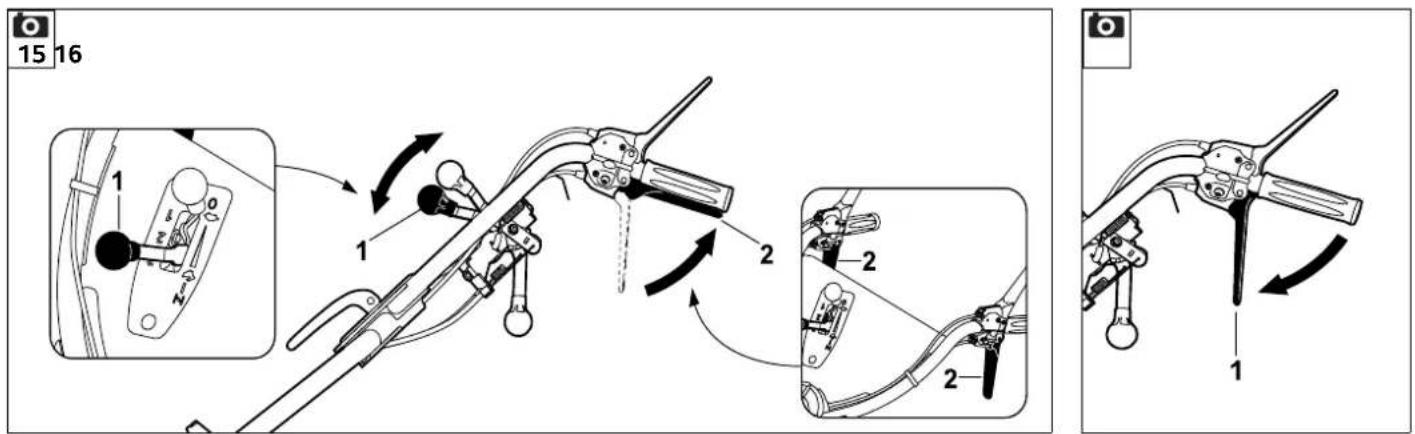

• Press the left or right blade stop lever (1) to the handlebar and hold. This releases the blade clutch lever (2).
• Pull the blade clutch lever (2) quickly rearwards to the stop in order to engage the mowing blade. The lever locks into the engaged position at the stop and can be released.
• Keep both blade stop levers (1) pressed when working. One of the two levers can be released at any time in order to make mowing easier.

11.4 Disengaging the mowing blade

- To disengage the mowing blade, release both blade stop levers (1). The blade clutch lever (2) is released and returns automatically to its initial position. The mowing blade is disengaged and braked, the engine continues to run.

11.5 Stopping the engine

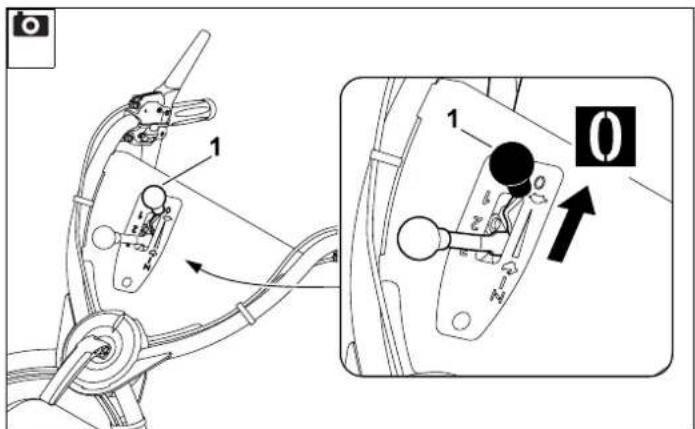

- In order to stop the engine, move the throttle lever (1) to the Stop position.

11.6 Switching on self-propulsion

The lawn mower is equipped with a three-speed gearbox. The three forward gears can be freely selected with self-propulsion engaged.

Drive speed:

1st gear: 2.4 km/h

2nd gear: 3.5 km/h

3rd gear: 4.6 km/h

• Before switching on self-propulsion, start the engine and engage the desired gear using the gearshift lever (1). VIKING recommends selecting 1st gear for driving off.
• Pull either the left or right self-propulsion lever (2) upwards to the handlebar and hold. Self-propulsion is engaged and the lawn mower moves forwards.

11.7 Switching off self-propulsion

- Release both self-propulsion levers (1) to switch off self-propulsion.

11.8 Grass catcher bag with anti-dust screen

An anti-dust screen (1) is attached on the upper side of the grass catcher bag, which prevents fine dust from being blown upwards in the direction of the user.

Filling:

The centre of the anti-dust screen is lifted slightly through the air flow which is generated by the rotary motion of the mowing blade and is responsible for filling the grass catcher bag.

When the grass catcher bag is full, this flow of air is reduced and the anti-dust screen drops down onto the grass catcher bag:

Emptying the grass catcher bag:

Risk of injury!

Always disengage the mowing blade before emptying. ( 5.6)

Take weight into account! A completely filled grass catcher bag can weigh up to 22 kg.

Always empty the grass catcher bag in good time in order to prevent the discharge chute from becoming obstructed. Obstructions can block the mowing blade and lead to unnecessary wear of the blade brake clutch.

• Disengage the mowing blade. ( 11.4)
- Detach the grass catcher bag. (⇒ 8.7)

• The grass catcher bag is easy to empty thanks to its large aperture, the swivelling loop handle (2), the handle (3) and the nylon strap (4) sewn onto the back.
• Attach the grass catcher bag again after emptying ( 8.7) and continue working.

12. Maintenance

Risk of injury:

Carefully read the section "For your safety" ( 5.), particularly the subsection "Maintenance and repairs" ( 5.7), and follow all safety instructions exactly before performing any maintenance or cleaning operations on the machine.

Detach the spark plug socket before performing any maintenance or cleaning operations.

12.1 Engine

Maintenance interval: See engine instruction manual

To achieve a long service life, it is always particularly important to maintain a sufficient level of oil and to change the oil and air filter regularly, as well as to observe the recommended oil change intervals.

Information regarding engine oil and oil capacity can also be found in the engine instruction manual.

The cooling ribs must always be kept clean to ensure that the engine is adequately cooled.

12.2 Wheels and gearbox

The wheel bearings are maintenance-free. The gearbox is maintenance-free.

12.3 Cleaning the machine

Maintenance interval: After each use

Care of the machine will protect it against damage and extend its service life.

Never spray water (high-pressure cleaner) onto engine components, seals, electrical parts or bearing points. This may result in damage and expensive repairs.

Do not use aggressive cleaning agents. These cleaners can damage plastics and metals, impairing the safe operation of your VIKING machine.

If you are unable to remove the dirt with water using a brush or a cloth, VIKING recommends the use of a special cleaner (e.g. STIHL special cleaner).

Detach accumulated cutting deposits in the housing and in the ejection chute beforehand using a stick.

In particular, also clean the mowing blade.

Cleaning position:

• Empty the fuel tank (e.g. by running empty).
• Park the machine on level, flat and solid ground.
• Select the highest cutting level. (Level 7). ( 8.6)
• Fold down the upper handlebar. ( 8.1)

• Remove the grass catcher bag. (⇒ 8.7)

• Lift the discharge flap with one hand. Simultaneously, hold the machine at the impact protector with the other hand and position the mower in the cleaning position.

• Set the handlebar down onto the ground as shown.

12.4 Blade brake clutch maintenance

Maintenance interval:

Professional use ^1 : every six months

Private use: once a year

^1 Professional use of the lawn mower

The blade brake clutch is subject to natural wear.

It may only be maintained by trained personnel. VIKING recommends VIKING specialist dealers.

12.5 Mowing blade maintenance

Maintenance interval: Before each use

• Tilt mower upwards into cleaning position ( 12.3).
• Clean mowing blade (1) and check it for damage (notches or cracks) and wear; replace if necessary.
• Use a slide calliper (2) to measure blade thickness at 5 points at least. In particular, minimum thickness must also be ensured in the area of the blade wings.
• Place a ruler (3) against the front blade edge and measure permissible grinding.

Risk of injury! A worn or dam

A worn or damaged mowing blade may break off and cause serious injuries. The instructions for blade maintenance must therefore always be observed.

Blades are subjected to differing degrees of wear depending on the location and duration of use. If you use the machine on sandy ground or use it frequently under dry conditions, the blade will be subjected to greater loads and will wear more quickly than the average.

Wear limits:

The blade thickness must be at least 2.5 mm at any point.

The cutting edges may not be ground back by more than 5 mm.

If the supplied standard blade is not installed in the lawn mower, but e.g. the multi-blade, which is available as a special accessory, different wear limits apply.

12.6 Removing mowing blade

• Place the machine in the cleaning position. ( 12.3)

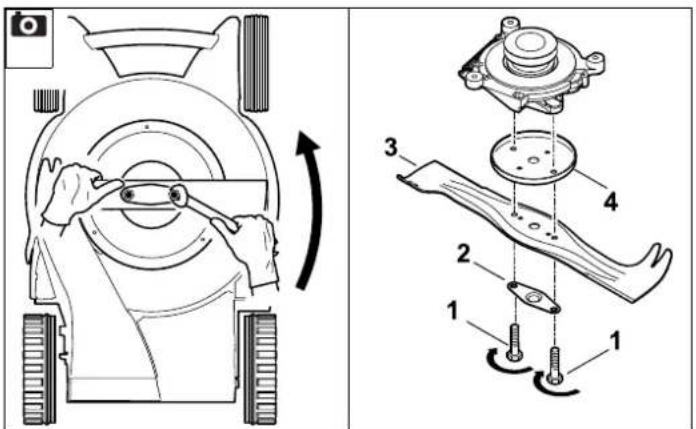

• Unscrew the blade fastening screws (1) using an A/F 17 spanner.
• Remove the guard plate (2), mowing blade (3) and thrust washer (4).

12.7 Installing the mowing blade

Risk of injury!

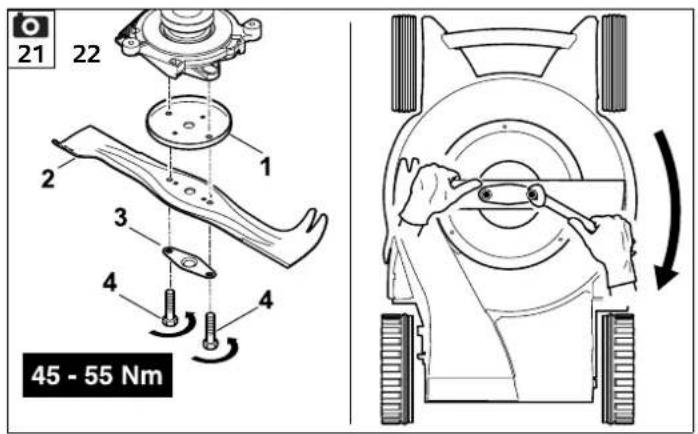

Observe the specified torque of 45 - 55 Nm when tightening the blade fastening screws (4), as secure attachment of the cutting tool depends on this.

Use a new mowing blade (2) only together with new blade fastening screws (4) and a new guard plate (3).

• Install the thrust washer (1) and mowing blade (2) with the curved edges/vanes pointing upwards.
• Position the guard plate (3) on the mowing blade and fasten the blade fastening screws (4) to 45 - 55 Nm.

12.8 Sharpening the mowing blade

If mowing results deteriorate over time, this is usually the result of a blunt mowing blade.

The following points must be noted when resharpening:

• Remove the mowing blade. (⇒ 12.6)
• Cool the mowing blade when sharpening, e.g. with water. The blade must not be allowed to display blue colouring, as this would reduce its cutting quality.
• Sharpen blades evenly to prevent vibration due to imbalance.

• The cutting angle of 30^ must be observed.

• Observe the wear limits when sharpening.

• Remove any sharpening burr.

12.9 Adjusting the gearshift cable

Maintenance interval: As required

The tension of the cable is adjusted correctly at the factory. Following lengthy use, the cable must be adjusted if individual gears can no longer be selected.

• Loosen the lock nut (1) on the underside of the handlebar and adjust the cable via the nut (2). The cable is correctly adjusted when all three gears can be selected.
• Tighten the lock nut (1).

12.10 Adjusting the self-propulsion cable

Maintenance interval: As required

The tension of the cable is adjusted correctly at the factory.

Adjustment of the cable is necessary

• if, after a lengthy period of use, self-propulsion does not engage when the self-propulsion lever is actuated.
• if self-propulsion is not permanently engaged. - This means that the lawn mower automatically begins to move when the recoil starter rope is pulled, despite the self-propulsion lever not being actuated.

Risk of injury! The self-propul

The self-propulsion cable must be correctly adjusted before the machine is operated.

Checking the cable tension:

• 1. Engage a gear and pull the recoil starter rope:
     The lawn mower is not driven.
• Actuate and hold the self-propulsion lever (1); pull the starter cable: The lawn mower is driven.

Adjusting the cable:

• Unscrew nut (1, left-hand thread) and nut (2).
• Turn the screw element (3) such that self-propulsion begins when the self-propulsion lever reaches approx. half its travel.
• Tighten nuts (1, 2).

12.11 Storage and periods of inoperation (winter break)

Store the machine in a dry, locked, dust-free place. Make sure that it is out of the reach of children.

Any faults must be remedied prior to storage. The machine must always be in a safe operating condition.

Empty the fuel tank and carburettor prior to storage (e.g. by running empty).

Also note the following points when storing the machine for long periods (winter break):

• Clean all external parts of the machine with care.
• Thoroughly lubricate/grease all moving parts.
• Unscrew the spark plug (see engine instruction manual) and pour approx. 3 cm³ of engine oil into the engine via the spark plug hole. Turn the engine several times with the spark plug removed (pull the recoil starter rope).

A Fire hazard!

Keep the spark plug socket away from the spark plug hole due to the danger of ignition.

• Screw the spark plug back in (see engine instruction manual).
• Perform an oil change (see engine instruction manual).
• Cover the engine and store the machine in the normal position.

13. Environmental protection

Lawn clippings should be composted and not disposed of in household waste.

The machine, its packaging and accessories are all produced

from recyclable materials and must be disposed of accordingly.

By disposing of materials separately, and in an environmentally friendly manner, valuable resources can be re-used. For this reason, the machine should be disposed of for recycling at the end of its useful life. Pay particular attention to the information in the "Disposal" section during disposal ( 5.).

Consult your recycling centre or your specialist dealer for information on the proper disposal of waste products.

14. Transport

Risk of injury:

Before transporting, carefully read and observe the section "For your safety", in particular the

"Transporting the machine" section.

(⇒ 5.4)

14.1 Securing the machine

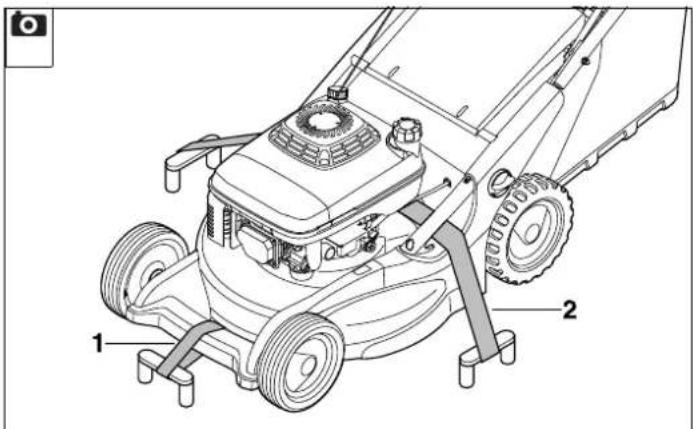

- Attach ropes or straps to the impact protector (1) and the housing (2).

When the handlebar is folded down, this can be used as a fastening point for ropes and belts.

14.2 Lifting or carrying the machine

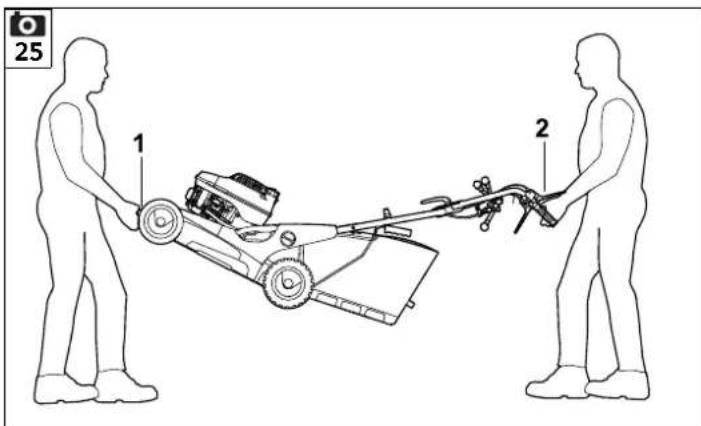

• Always lift or carry the lawn mower with two people.

- Only lift the lawn mower at the impact protector (1) and at the handlebar (2) or, when the upper handlebar is folded, at the lower handlebar sections (3).

15. Minimising wear and preventing damage

Important information on maintenance and care of the product group

Petrol lawn mowers

VIKING assumes no liability for material or personal damage caused by the non-observance of information contained in the operating instructions, in particular with regard to safety, operation and maintenance, or which arise through the use of unauthorised attachment or spare parts.

Please always observe the following important information for the prevention of damage or excessive wear to your VIKING machine:

1. Wearing parts

Some parts of the VIKING machine are subject to normal wear even when used properly and must be replaced in due time depending on type and duration of use.

These include:

- Blade

- Grass catcher bag

- V - b e l t

- Skirting protectors

- Impact protector

- Tyres

- Brake band

2. Compliance with the information in this instruction manual

The VIKING machine must be used, maintained and stored with the care described in this instruction manual. Any damage caused by non-compliance with

the safety, operating and maintenance instructions is the sole responsibility of the user.

This applies in particular to:

– Product modifications not approved by VIKING.
– Use of fuel and lubricants not approved by VIKING (lubricants, petrol and engine oil, see engine manufacturer's specifications).
- The use of tools or accessories which are not approved or suitable for the machine, or are of inferior quality.
- Improper use of the product.
– Use of the product for sporting or competitive events.
- Resultant damage due to continued use of the product with defective components.

3. Maintenance operations

All operations listed in the section "Maintenance" must be performed regularly.

If these maintenance operations cannot be carried out by the user, a specialist dealer must be commissioned to perform them.

VIKING recommends that you have maintenance operations and repairs performed exclusively by a VIKING specialist dealer.

VIKING specialist dealers regularly attend training courses and are provided with technical information.

If these operations are neglected, faults may arise which are the responsibility of the user.

These include:

• Corrosive and other resultant damage caused by incorrect storage.
  – Damage to the machine through the use of inferior-quality spare parts.
  – Damage due to untimely or inadequate maintenance or damage due to maintenance or repair work not performed in the workshops of specialist dealers.

16. Standard spare parts

Mowing blade with guard plate:

MB 750 KS: 6360 760 9992

MB 755 KS: 6375 760 9991

Blade fastening screws:

2 pcs: 9008 313 2390

17. CE - manufacturer's declaration of conformity

We,

VIKING GmbH

Hans Peter Stihl-Strasse 5

declare that the machine,

Manually-operated lawn mower with combustion engine (MB)

manufacturer's brand: VIKING

Serial number: 6360

type: MB 750.2 KS

Serial number: 6375

type: MB 755.2 KS

conforms to the following EU directives: 97/68/EC, 2000/14/EC, 2004/108/EC, 2006/42/EC

The product has been developed in conformance with the following standards: EN ISO 5395-1, EN ISO 5395-2

Applicable conformity assessment procedure:

Appendix VIII (2000/14/EC)

Name and address of relevant, named location:

Compilation and storage of technical documentation:

Johann Weiglhofer

VIKING GmbH

The year of manufacture and serial number appear on the identification plate of the machine.

Measured sound power level:

MB 750.2 KS 95.4 dB(A)

MB 755.2 KS 97.5 dB(A)

Guaranteed sound power level:

MB 750.2 KS 96 dB(A)

MB 755.2 KS 98 dB(A)

Langkampfen,

2014-01-02 (YYYY-MM-DD)

VIKING GmbH

Weiglhofer

Research and Product Development Manager

18. Technical specifications

MB 750.2 KS / MB 755.2 KS:

Serial number	6360 / 6375
Engine, design	4-stroke combustion engine
Manufacturer	Kawasaki
Type	FJ 180 V
Displacement	179 ccm
Nominal output at nominal speed	2,9 - 2800 kW - rpm
Fuel tank	2 l
Starter	Rope start
Cutting tools	Cutter bar
Cutting width	48 cm / 53 cm
Cutter bar speed	2800 rpm
Cutter bar drive	BBC
Tightening torque for blade fastening screws	45 - 55 Nm
Self-propulsion, rear wheels	3-speed
Wheel diameter (front)	210 mm
Wheel diameter (rear)	230 mm
Grass catcher bag capacity	80 l
Cutting height	30 - 85 mm
Specified vibration characteristic in accordance with EN 12096:
Measured value a_hw	2.50 m/sec ^2
Uncertainty K_hw :	1.25 m/sec ^2
Measurement in accordance with EN 20643

MB 750.2 KS:

In accordance with

Directive

2000/14/EC:

Guaranteed sound

power level L_WAd 96 dB(A)

In accordance with

Directive

2006/42/EC:

Sound pressure level

at workplace L_pA 86 dB(A)

Uncertainty K_pA 1 dB(A)

L/W/H 173/53/106 cm

Weight 62 kg

MB 755.2 KS:

In accordance with

Directive

2000/14/EC:

Guaranteed sound

power level L_WAd 98 dB(A)

In accordance with

Directive

2006/42/EC:

Sound pressure level

at workplace L_pA 89 dB(A)

Uncertainty K_pA 1 dB(A)

L/W/H 173/57/106 cm

Weight 62 kg

19. Troubleshooting

✗ If necessary, contact a specialist dealer; VIKING recommends VIKING specialist dealers.

See engine instruction manual.

Fault:

Engine does not start

Possible cause:

– Throttle lever set to Stop position

- Choke is not actuated

- No fuel in tank

– Inferior, dirty or old fuel in tank

– Insufficient flow of fuel

- Spark plug dirty or damaged

- Incorrect electrode gap

- Spark plug socket detached from the spark plug

- Engine is flooded due to several starting attempts.

– Dirty air filter

– Throttle cable is damaged (e.g. kinked)

Remedy:

- Set throttle lever to the Choke or Start position ( 11.2)

- Set throttle lever to the Choke position ( 11.2)

- Refill fuel tank ( 8.8)

- Clean fuel system and carburettor; always use fresh, good quality fuel ☐, ✗, (⇒ 8.8)

- Check fuel line ☐, ✗

– Clean or replace spark plug

- Adjust electrode gap ✗

- Connect spark plug socket; check connection between ignition lead and socket. ✗

- Remove spark plug and dry; set throttle lever to STOP position and pull recoil starter rope several times with spark plug removed; screw in spark plug and connect spark plug socket.

– Clean/replace air filter

- Repair throttle cable ✗

Fault:

Starting problems or deteriorating engine power

Possible cause:

- Mowing at an excessively low cutting height or fast speed

– Water in fuel tank and carburettor; carburettor blocked

– Fuel tank contaminated

– Air filter dirty

- Spark plug dirty

Remedy:

- Adapt cutting height and reduce mowing speed

- Empty fuel tank, clean fuel line and carburettor ✗

- Clean fuel tank ✗

- Clean/replace air filter 📄, ✗

- Clean spark plug ✗

Fault:

No drive when self-propulsion lever is actuated

Possible cause:

– Self-propulsion cable incorrectly adjusted

– Self-propulsion cable damaged (e.g. kinked)

- V-belt worn

Remedy:

- Check adjustment (⇒ 12.10)

- Replace cable ✗

- Replace V - belt ✗

Fault:

Engine overheating

Possible cause:

– Oil level in engine too low

– Cooling ribs dirty

Remedy:

- Perform an engine oil change if necessary

– Clean cooling ribs ( 12.1)

Fault:

Poor cut, lawn turning yellow

Possible cause:

– Mowing blade is blunt or worn,
– rate of feed is too high in relation to the cutting height
- Engine speed is too low

Remedy:

• Re-sharpen or replace mowing blade ( 12.5)
• Reduce rate of feed and/or select correct cutting height (⇒ 10.), (⇒ 8.6)
• Set the throttle lever to the Start position ( 11.2)

Fault:

Discharge chute blocked

Possible cause:

• Mowing blade is worn
  – Mowing grass which is too long or too wet
• Engine speed is too low

Remedy:

• Replace mowing blade (⇒ 12.5)
• Adapt cutting height and mowing speed to mowing conditions (⇒ 10.), (⇒ 8.6)
• Set the throttle lever to the Start position ( 11.2)

Fault:

Excessive vibration during operation

Possible cause:

– Cutting unit defective
- Mowing blade imbalance
- Engine mounting loose

Remedy:

- Check mowing blade, blade shaft and blade fastening screws; tighten blade fastening screws ( 12.5)

- Re-sharpen/replace mowing blade (⇒ 12.8)

- Tighten engine mounting bolts ✗

20. Service schedule

20.1 Handover confirmation

Model:

Serial number:

Date: ____ ____ ____ ____ ____ ____

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Next service

Date: ____ ____ ____ ____ ____

20.2 Service confirmation

Please hand this instruction manual to your VIKING specialist dealer in the case of maintenance work. He will confirm the service operations performed in the pre-printed boxes.

Service performed on

Next service date

Chère cliente, cher client,

Four safety warning icons: triangular warning triangle, circuit breaker with signal arrow, wireless device with Wi-Fi, and circular switch with warning symbol.

Warning symbols including a warning triangle, Wi-Fi device with '2' crossed out, and a hand holding a circular diagram with text.

Attention – risque de blessures!

START / I ① ②

Vertical diagram with geometric symbols including a triangle, a hand, a pig, and an arrow, likely representing a conceptual or symbolic process.

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Prochain entretien

Date: ____ ____ ____ ____ ____

Four safety warning icons with Chinese labels: triangular warning triangle, circuit diagram with arrows, industrial equipment with wireless signal, and circular device with raindrops.

Warning symbols and icons: warning triangle, Wi-Fi barrier, and hand holding a tool with droplets

START / I ① ② ① ②

Start de verbrandingsmotor, koppel de maaimessen in.

STOP / 0

Maaimes loskoppelen.

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Four safety symbols and icons: triangular warning triangle, circuit diagram with arrows, wireless device with signal lines, and circular switch with warning symbol.

Warning symbols including a warning triangle, a building with '4' and crossbones, and a hand holding a tool emitting sound waves.

START / I ① ② ① ②

Vertical diagram with five symbols: hand, globe, arrow, pig, and letter 'O'

Four safety warning icons with Chinese labels: triangular warning triangle, circuit diagram with arrows, wireless device with signal lines, and circular switch.

Warning symbols and icons including a warning triangle, Wi-Fi device with signal lines, and a hand holding a circular diagram with text.

START / I ① ② ① ②

97/68/EC, 2000/14/EC, 2004/108/EC, 2006/42/EC

2014-01-02 (AAAA-MM-DD)

VIKING GmbH

Weiglhofer

Director del Departamento de

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Four safety warning icons: triangular warning triangle, circuit breaker with signal arrow, wireless device with Wi-Fi, and circular switch with warning symbol.

Warning symbols including a warning triangle, a robot with '4' crossed out, and a hand holding a circular object with raindrops.

START / I ① ②

- Encaixe as anilhas (F) nos parafusos e enrosque as porcas de capa (G) (22 - 28 Nm).

Verificar as tiras de fecho:

2014-01-02 (AAAA-MM-DD)

VIKING GmbH

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Four safety warning icons with Chinese labels: triangular warning triangle, circuit diagram with arrows, wireless device with signal, and circular warning symbol.

Warning symbol set with warning triangle, Wi-Fi device, and hand gesture indicating anti-impacted damage

START / I ① ②

Vertical diagram with five symbols: hand, globe, arrow, pig, and letter 'O'

Regulacja obrotów

Położenie ssania

97/68/EC, 2000/14/EC, 2004/108/EC, 2006/42/EC

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Następny przegląd

Data:

Four safety symbols and diagrams: triangular warning triangle, circuit diagram with arrows, switch, wireless device, and circular warning symbol.

Warning symbols including a warning triangle, a robot with wireless signal, and a hand holding a tool with cleaning effect

START / I ① ②

Vertical diagram with five symbols: a bird, a hand, a triangle, a turtle, and an oval, arranged vertically.

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Warning symbols and icons: warning triangle, robot with signal lights, and hand holding a tool emitting sound waves

START / I ① ② ① ②

Vertical diagram with symbols including a hand, a skull, a triangular shape, a turtle, and an exclamation mark.

Simple line drawing of a mechanical component with a cylindrical top and rectangular base (no text or symbols)

Следующий техосмотр

Дата: ____ ____ ____ ____ ____

Product lineup of five lawn lawn tools including lawn mower, grass lawn, and tiller (no visible text or labels)

Black and white barcode image with vertical lines on both sides

0478 111 9921 A
