LO 10.100H - Air purifier Eurom - Free user manual and instructions

Product type	Dehumidifier / Air purifier
Brand	Eurom
Model	LO 10.100H
Power supply voltage	220-240 V ~ 50 Hz
Dehumidification capacity	10 L / 24 h
Power consumption	220 W
Rated current	1.23 A
Maximum air flow rate	100 m³/h
Refrigerant	R134a
Operating temperature range	5 °C to 32 °C
Water tank capacity	1.5 L
Dimensions (W x D x H)	23 x 29 x 43 cm
Weight	10 kg
Dust filter	Washable with warm water, reusable
Activated carbon filter	Replaceable (do not wash)
Features	Auto shut-off when tank full, adjustable thermostat, continuous operation in MAX mode
Safety	Frost protection (do not use below 5 °C), auto shut-off when tank full
Maintenance	Clean the exterior with a soft cloth, check and clean filters regularly
Repairability	Replaceable filters (activated carbon), removable water tank, continuous drain hose (not supplied)
Control type	Rotary knob On/Off and humidity setting
Indicator lights	Green LED (on), red LED (tank full)

Frequently Asked Questions - LO 10.100H Eurom

What to do if the appliance does not turn on?

First check that the plug is properly inserted and the fuse has not blown. Make sure the room temperature is between 5 and 35°C. Check that the water tank is correctly positioned and not full. Finally, turn the humidity adjustment knob to a sufficient position (not OFF).

How to clean the filter?

Remove the filter support and take out the activated carbon filter. For the dust filter, tap lightly or use a vacuum cleaner. If very dirty, rinse with warm water and a mild detergent, then let it dry completely before replacing. The activated carbon filter should not be washed; it must be replaced regularly.

How often should the water tank be emptied?

It depends on the ambient humidity. The appliance automatically stops when the 1.5 L tank is full. In high humidity, it may be necessary to empty the tank several times a day. You can also install a continuous drain to avoid manual emptying.

Can I use the appliance in an unheated room?

Yes, as long as the temperature is between 5°C and 32°C. Below 5°C, the appliance may freeze and will not operate. If the room is very cold (near 0°C), it is not recommended to use it.

How to install a continuous drain?

Remove the water tank. Connect a hose with an inner diameter of 9 mm (not supplied) to the drain pipe located above the tank. Direct the hose to a drain or bucket. Make sure water flows freely and the hose does not freeze in winter. Replace the tank (otherwise the appliance will not operate).

The appliance makes noise, is this normal?

A slight compressor noise is normal. If the noise is excessive, check that the appliance is placed on a stable, flat and level surface. Make sure no objects are touching the appliance and that the filters are not blocked.

What does the red indicator mean?

The red indicator 'water tank full' lights up when the tank is full or incorrectly positioned. In this case, the compressor stops. Empty the tank and replace it correctly to turn off the indicator.

How to adjust the desired humidity?

Turn the rotary knob On/Off/humidity setting. The more you turn towards the MAX position (clockwise), the more the appliance dehumidifies. At the desired humidity, the appliance stops automatically. For continuous operation, set to MAX.

Can the activated carbon filter be washed?

No, the activated carbon filter should not be washed. It must be replaced periodically depending on usage conditions. A clogged filter reduces performance and may promote bacteria growth.

The appliance produces little water, why?

Several possible causes: the ambient humidity is already low, the filter is dirty, the air inlets/outlets are blocked, a door or window is open, or the temperature is too low (<5°C). Check these points and clean the filter if necessary.

USER MANUAL LO 10.100H Eurom

White EUROM electric heater with circular vent and grille (no visible text or symbols)

EUROM® LO10.100H

Luchtontvochtiger

Dehumidifier

Luftentfeuchter

Déshumidificateur

EN This symbol on your device means: do not cover!

Pure grid pattern with no text, numbers, or symbols

Accessoire:

1 - Condensator
2 – Uitgang droge, warme lucht
3 - Compressor
4 - Verdamper
5 – Ingang vochtige lucht
6 - Watertank

Close-up of a white industrial fan or scrubber with a central knob and control buttons (no visible text or symbols)

Technical line drawings of three views of a device with grid panels and internal components, showing structural details (no text or symbols)

Onderhoud

1 - anti-stof-filter (1)

1 - anti-stofffilter

Technical line drawing of a portable air conditioner unit with two labeled components (1 and 2), showing internal grid patterns and casing structure.

Opslag

HET APPARAAT WERKT NIET:

Read and retain these instructions for future reference!

Technical specifications

	EUROM LO10.100H
Power supply	220-240 Volt / 50 Hz
Test condition	DB 30°C, RH 80%
Dehumidification capacity	10 liter per dag
Power / Ampere consumption	220 Watt - 1,23 Amp
Lair volume (max.)	100 m3/uur
Refrigerant	R134a
Working range	5 – 32°C
Water tank	1,5 liter
Size (WxDxH)	23 x 29 x 43 cm
Weight	10 kg.

Cautions before use

• Always keep the unit in vertical position.
- Leave the unit to stand for one hour before connecting to the mains supply after transport or when it has been tilted (e.g. during cleaning).
- Keep all foreign objects away from the air intake or output openings.
- The mains supply must conform to the specification shown on the rating plate at the back of the unit.
- If the supply cord is damaged, it must be replaced by an approved service representative or a similar qualified person in order to avoid a hazard.
- Never use the plug to start and stop the unit. Always use switch on the control panel.
- Before moving the unit, first switch off, then unplug and empty the water tank.
- Don't use bug sprays or other flammable cleaners on the unit.
- Never pour or spray water over the unit.
- This appliance is not intended for use by persons (including children) with reduces physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with appliance.
- IMPORTANT! Do not use this unit at ambient temperatures below 5oC, to prevent the possibility of a heavily ice up evaporating coil.

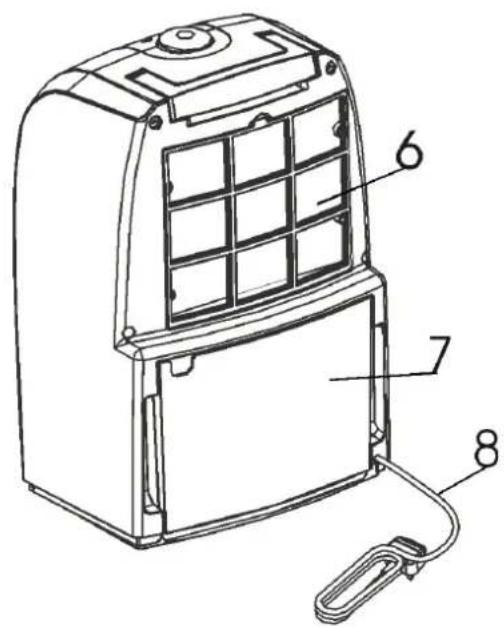

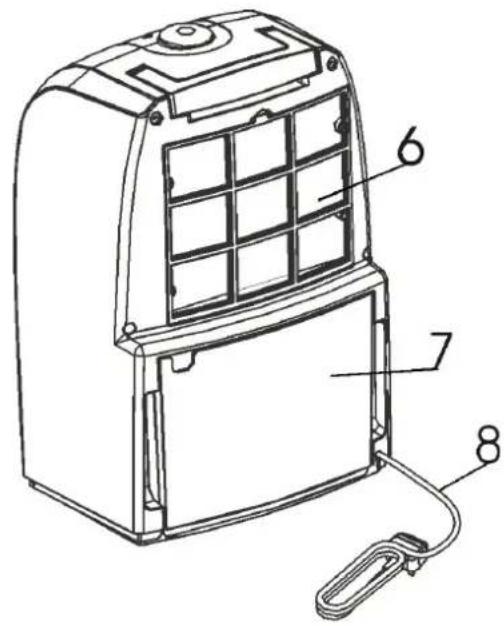

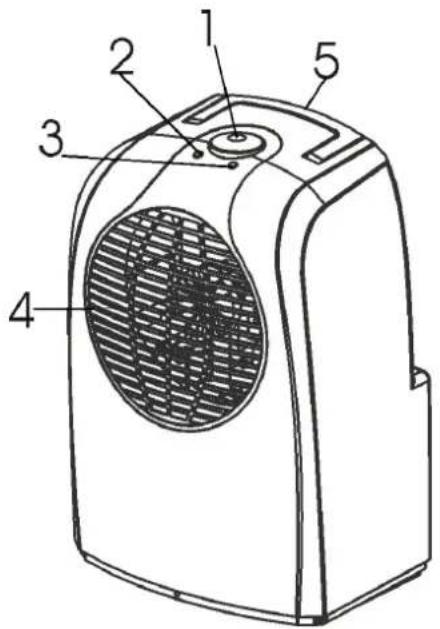

Description

1 - ON/OF-button en humidity controller
2 – ‘Full water’ indicator
3 – Compressor operation indicator
4 – Air outlet
5 - Handle
6 - Air inlet & air filter
7 – Water tank
8 - Power cable

Accessoire:

Active carbon filter

Pure grid pattern with no text, numbers, or symbols

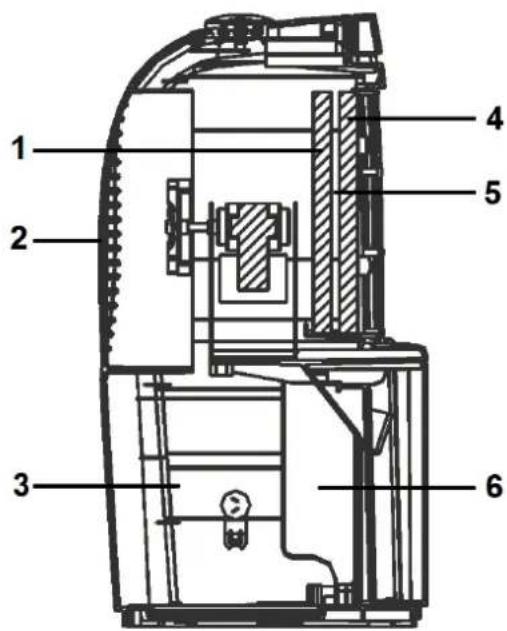

1 - Condenser
2 – Outlet dry warm air
3 - Compressor
4 - Evaporateur
5 – Inlet moist saturated air
6 - Watertank

This product is a dehumidifier. It controls relative humidity by passing the air through the unit, forcing the excess moisture to condensate over the cooling elements. Contact with this cold surface causes the moisture in the air to condense. This condensed water then drains safely into the water tank. The dried air then passes through the condenser where it is slightly warmed and re-enters the room at a slightly elevated temperature.

Position

Excess moisture will travel throughout your home, in the same way that cooking smells waft to every room in the house. For this reason, the dehumidifier should be positioned, so that it can draw this moist air towards it from all over the home.

Alternatively, if you have a serious problem in one area you can begin by positioning the dehumidifier close to this area and later moving it to a more central point.

When positioning the dehumidifier, ensure that it is placed on a level surface and that there is a minimum of 10 cm (4") of space on either side of the unit to allow for efficient airflow.

This dehumidifier is fitted with castors for extra mobility, if you move the unit, it should first be switched off and the water tank emptied.

We do not recommend the use of an extension lead, so please try to ensure that the unit is sufficiently close to a fixed mains socket. If it is necessary to use am extension lead, please ensure the diameter of the wires of the cable is at least 1 mm2.

When the dehumidifier is in operation, outside doors and windows should be closed when necessary for most efficient use.

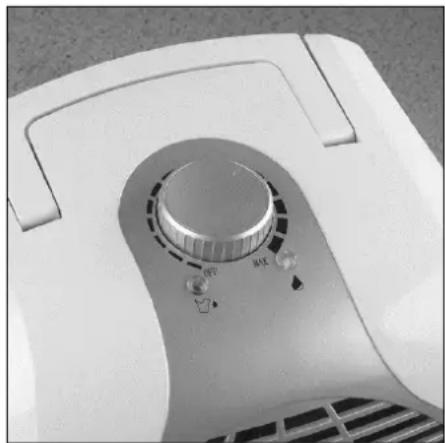

Operation

1. Plug the unit into a correct mains socket. (Please refer to the rating label for correct voltage/frequency.)

2. Turn ON/OFF button & humidity controller clockwise away from the OFF-position. As soos as the present humidity-level is passed, the compressor will start to work. The indicator will turn into green.

3. Set the ON/OFF-button & humidity controller to the required humidity level level (the intensity of humidity extraction is increased clockwise). When the required humidity is reached, the humidifier will stop automatically. For continuous working, set the humidistat to position 'MAX'.

4. To turn off the unit, turn ON/OFF button back to 'OFF'. Unplug always after use.

Close-up of a white disposable air conditioner with a rotary knob and control buttons (no visible text or symbols)

Drainage

While the water tank is full, the compressor will stop for self-protection and the water full indicator will turn into red.

To move the water tank, pull it out squarely from the unit.

After emptying the water tank, place the water tank into space. Make sure it is properly positioned, in order for the 'water full' sign to go out and your dehumidifier is operating.

Please note: in case, the water tank has not been positioned well, the water full indicator will turn into red. The equipment does not work.

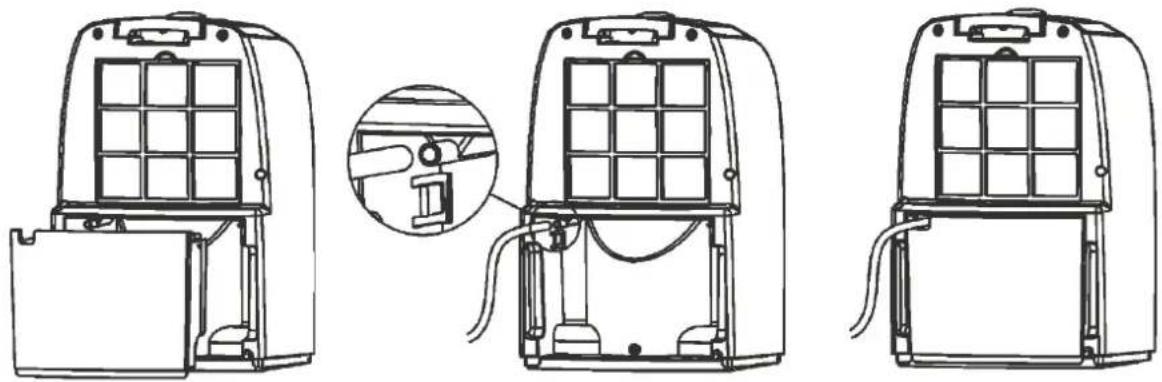

Continuous drainage

When the dehumidifier is operated at very high humidity levels, the water tank will require more frequent drainage. In this situation, it may be more convenient to set the unit up for continuous drainage with the following procedures:

1. Pull out the water tank.

2. Connect the drain hole with water tube of inner diameter: 9mm. Please note: the water tube is not supplied with the unit. Lead the tube down into a drain or a big container.

3. Ensure the water will always drain away freely and the tube will remain in right place. Note! In very cold weather conditions, precautions should be taken to prevent the water tube from freezing.

4. Put the water tank back to its position. Without tank the equipment will not work.

Technical line drawing of three views of a portable electronic device with grid panels and ventilation slots (no text or symbols)

Maintenance

Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit.

Cleaning the body

Use a soft cloth to wipe the unit clean. Don't ever use volatile chemicals, gasoline, detergents, chemically treated clothes, or other cleansing solutions. These all could possibly hurt the cabinet.

Cleaning the filter

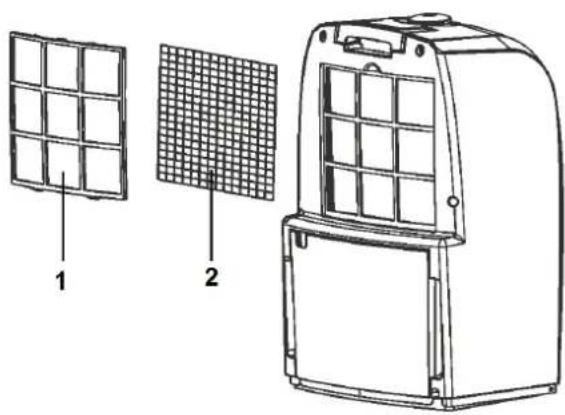

This dehumidifier is equipped with 2 filters:

1 - anti-dust-filter (1)

2 - activ carbon filter (2).

1. Anti-dust-filter

- Extract the filter holder, remove the active carbon filter.

- Use a vacuum cleaner or tap the filter lightly for easy cleaning. If the filter is particularly dirty, use warm water with a small amount of medium strength.

- Make sure the filter is completely dry before replacing.

- Do not expose the filter to sunlight.

Technical line drawing of a portable air conditioner unit with two labeled components (1 and 2), showing internal grid layout and casing structure.

2 - activ carbon filter

This filter is for capturing the particles of dust suspended in the air and preventing the production of bacteria.

The active carbon filter placed under the anti-dust filter is not washable. Its life span is variable and depends on the ambient conditions where the unit is used. The filter should be checked periodically and replaced if necessary.

Storage

If not use the unit for an extended period of time. Please:

• Turing the unit off, unplug and tidy AC cord.
• Completely empty the water tank and wipe it clean.
• Cover the unit and store where it will not receive direct sunlight.

Trouble shooting

THE UNIT DOES NOT OPERATE:

• Is the unit plugged in?
• Is the house electricity on?
- Is the room temperature below 5^ C or above 35^ C? If so, then it is out of the working range of the unit.
- Is the humidity controller & ON/OFF switch on a right level? On a too low level or OFF the equipment doesn't work.
- Check the water tank is positioned properly in the unit and it is not full.
• Make sure the air inlet and outlet are not obstructed.

THE UNIT SEEMS TO DO NOTHING:

• Is the filter dusty, contaminated?
• Is the air intake or outlet blocked up?
• Is the room humidity already quite low?

THE UNIT SEEMS TO DO LITTLE:

• Are too many windows or doors open?
  • Is there something in the room producing lots of humidity?

THE UNIT IS TOO NOISY:

- Check whether the unit is sitting on a level, flat and solid surface.

THE UNIT IS LEAKING:

- Make sure the unit and the watertank are not damaged and don't show cracks or deformations.

CE-statement

Euromac bv., Genemuiden-NL hereby declares that the EUROM dehumidifier, type LO10.100H, complies with the LVD guideline 2006/95/EC and the EMC guideline 2004/108/EC (amended by 93/68/EEC) and meets the following standards:

EN 60335-2-40/A2:2009 EN 55014-1/A:2009

EN 60335-1/A15:2011 EN 55014-2/A2:2008

EN 62233 :2008 EN 61000-3-2/A2:2009

EN 61000-3-3:2008
