Andy 5T - Smartphone YEZZ - Free user manual and instructions

Product type	Smartphone
Brand	YEZZ
Model	Andy 5T
Power supply	Rechargeable lithium-ion battery, travel adapter (charger)
Screen	Capacitive touch screen (size not specified)
Main features	Dual SIM, camera, FM radio, Bluetooth, Wi-Fi, media player
Safety	Head SAR: 0.278 W/kg (WCDMA 2100), Body SAR: 0.255 W/kg; use at 1.5 cm from body
Maintenance and cleaning	Avoid any contact with liquids, do not expose to extreme temperatures, use only certified accessories
Spare parts and repairability	Removable battery, SIM card, memory card
General information	FCC, CE certified; compliant with R&TTE directive 1999/5/EC; Bluetooth® trademark

Frequently Asked Questions - Andy 5T YEZZ

How to turn the phone on and off?

To turn on, press and hold the button on the left side of the phone. To turn off, repeat the same operation.

How to install the SIM card and battery?

Remove the back cover, insert the SIM card into the corresponding slot (two slots available), then place the battery. Put the cover back on.

How to charge the battery?

Plug the travel adapter (charger) into the phone, then into a power socket. Full charge takes about 4 hours for the first use.

How to take a photo?

Open the Camera app, frame your subject, then press the on-screen shutter to capture the image. Photos are automatically saved in the Gallery.

How to connect to a Wi-Fi network?

Go to Settings > Wi-Fi, enable Wi-Fi, then select your network and enter the password if required.

How to send an SMS or MMS?

Open the Messages app, tap the new message icon, enter the recipient and text, then tap Send. For an MMS, attach a multimedia file before sending.

How to add a contact?

Open the Contacts app, tap the '+' button at the bottom right, fill in the information (first name, last name, number), then save.

How to use Bluetooth to share files?

Enable Bluetooth in Settings, pair with another device by entering the PIN (often 0000 or 1234). To send a photo, open it in Gallery, tap Share and choose Bluetooth.

How to listen to FM radio?

Plug in the earphones (they act as an antenna), open the FM Radio app, then use the toolbar to change stations.

What to do if the phone is unresponsive?

Press and hold the power button for about 10 seconds to force a restart. If the problem persists, remove and reinsert the battery.

USER MANUAL Andy 5T YEZZ

(1616 NW, 84TH Ave. Miami, Florida U.S.A.

BAY AREA COMPLIANCE LABORATORIES CORP.

1274 Anvilwood Ave. Sunnyvale, CA 94089. USA

www.baclcorp.com

Phone: [phone] Fax: [phone]

Luis Sosa / President

(Date)

(1616 NW, 84^TH Ave. Miami, Florida U.S.A. 33126)

BAY AREA COMPLIANCE LABORATORIES CORP.

1274 Anvilwood Ave. Sunnyvale, CA 94089. USA

www.baclcorp.com

Phone: [phone] Fax: [phone]

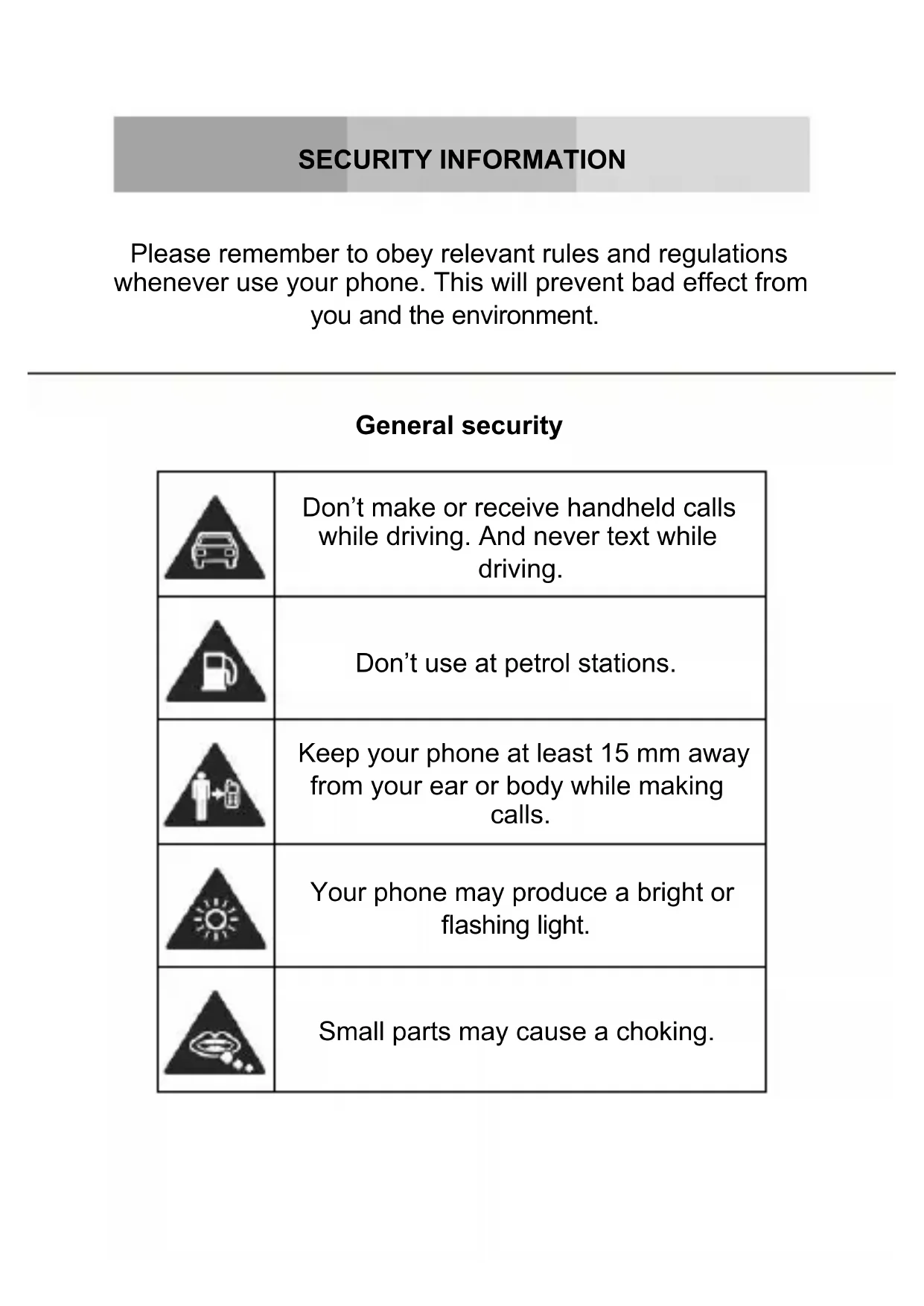

Please remember to obey relevant rules and regulations whenever use your phone. This will prevent bad effect from you and the environment.

General security

	Don't make or receive handheld calls while driving. And never text while driving.
	Don't use at petrol stations.
	Keep your phone at least 15 mm away from your ear or body while making calls.
	Your phone may produce a bright or flashing light.
	Small parts may cause a choking.
	Don't dispose of your phone in fire.
	Your phone can produce a loud sound.
	Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.
	Avoid extreme temperatures.
	Switch off when asked to in hospitals and medical facilities.
	Avoid contact with liquids. Keep your phone dry.
	Switch off when told to in aircrafts and airports.
	Don't take your phone apart.
	Switch off when near explosive materials or liquids.
	Only use approved accessories.
	Don't rely on your phone for emergency communications.
	Warning: electrical hazard! To avoid serious injury do not touch charger pins. Unplug the charger when not in use. To unplug a charger or an accessory, hold and pull the plug, not the cord. The power adaptor is the switch off device of the equipment. The wall power socket should be located near the equipment and easily accessible.

INTRODUCING YOUR MOBILE PHONE

Learn about your mobile phone's layout, keys, display and icons.

Unpacking

Check the product box for the following items:

• Mobile phone
• Battery
• Travel adapter (charger)
• User manual

The supplied accessories perform best for your phone.

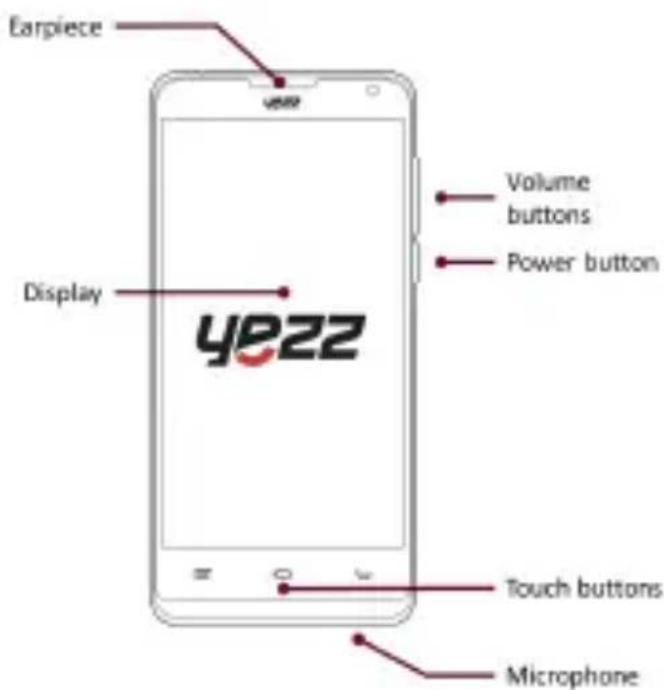

Phone layout

From the front view of your phone you will observe the following elements:

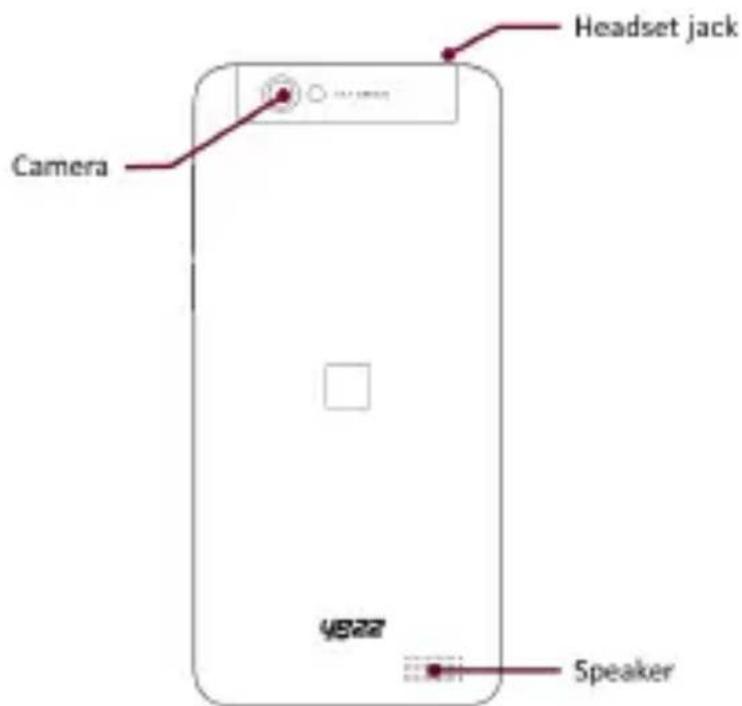

From the back view of your phone you will observe the following elements:

Keys

The following table offers you a quick description about the phone's keys:

Key Function
Power button	Allow you to turn on/off the device and to lock the screen.
Volume	Allow you to adjust the volume of ringing and notifications. Also allows you to adjust the volume of multimedia content playback.
Back	Allow you to return to the previous menu or screen. Also allow you to close some applications.
Home	It takes you directly to the home screen, leaving any application open.
Menu	Allow you to access to the functions menu of the application or screen you are.

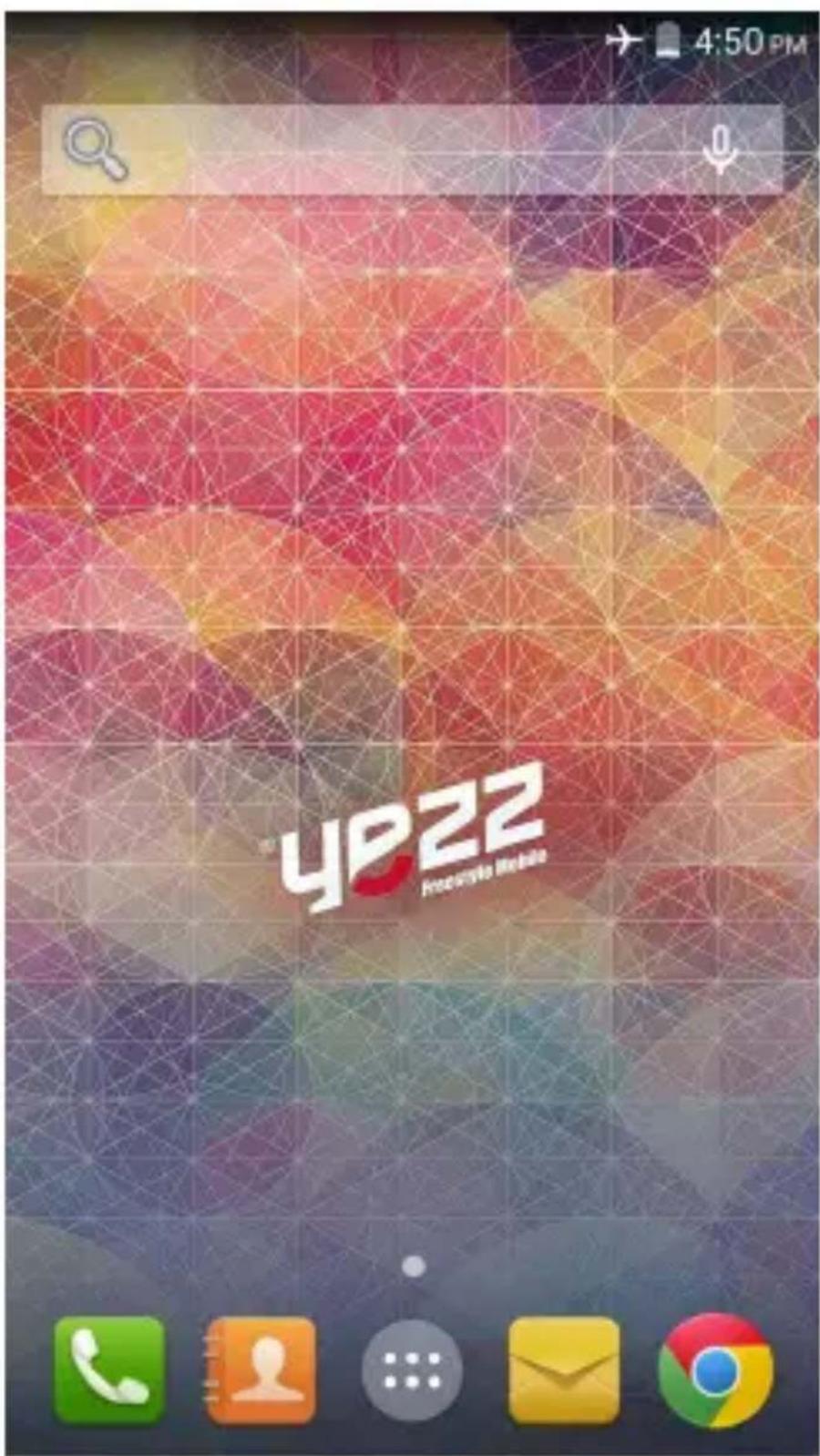

Screen

The screen of your mobile phone is designed as follows:

Icons

Learn about the icons that are displayed on the top of the screen, indicating the status of the phone:

	Signal strength		Wi-Fi connection
	GPRS connected	EDGE	connected
	3G connected HSPA		connected
	Bluetooth On New message
	USB connected New email
	Battery meter Alarming active
	Vibration profile Heat set		connected

PREPARED YOUR MOBILE PHONE

Get started setting up your mobile phone for its first use.

Install the SIM card and battery

When you subscribe to a cellular service, you will receive a Subscriber Identity Module (SIM) card, with subscription details, such as your personal identification number (PIN) and optional services.

To install the SIM card and battery,

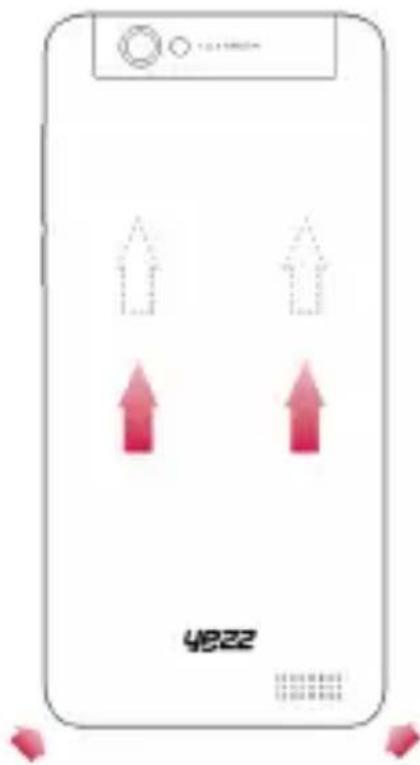

1. Remove the battery cover.

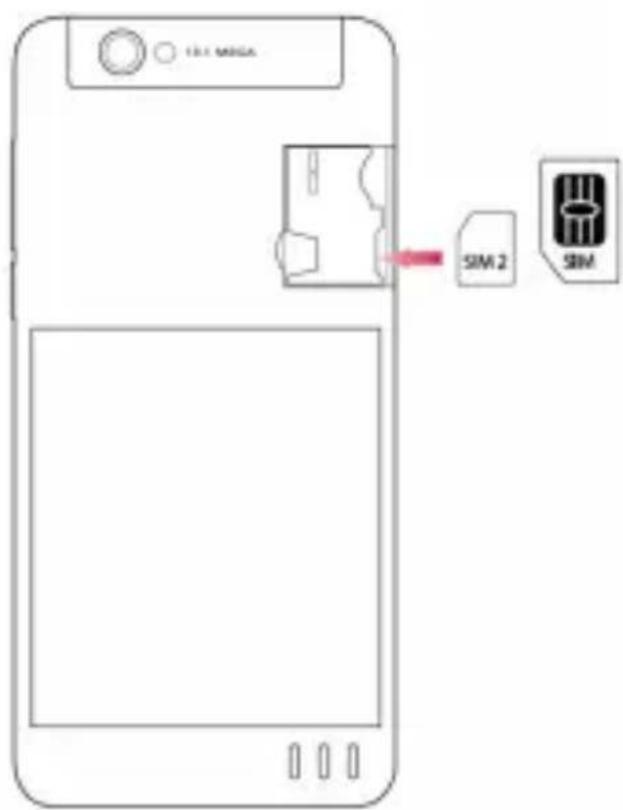

1. Insert the SIM card.

Your phone has 2 SIM card slots to allow you use 2 SIM cards and switch between them.

• Without inserting a SIM card, you can use your phone's non-network services and some menus.

• Replace the battery cover

Insert a memory card (optional)

To store additional multimedia files, you must insert a memory card.

• Formatting the memory card on a PC may cause incompatibility with your phone. Format the memory card only on the phone.

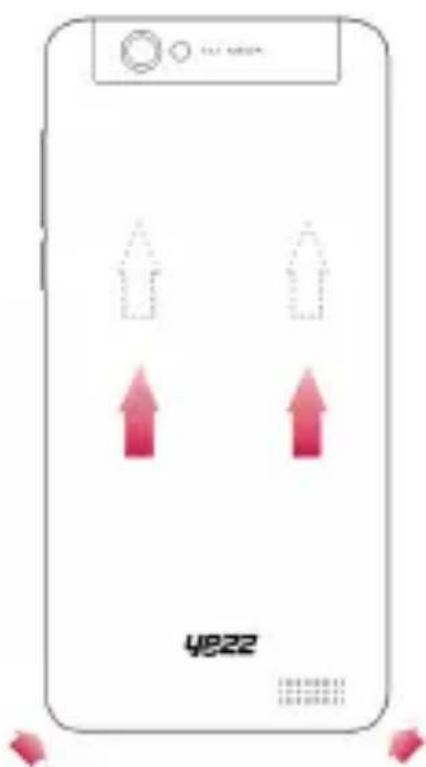

• Remove the battery cover.

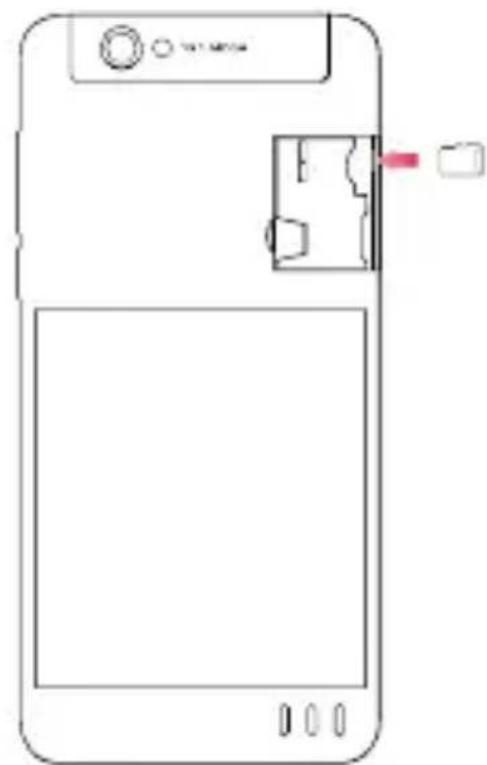

• Insert a memory holder with the label side facing up.

Learn how to perform basic operations of your mobile phone.

Turn your phone on and off

To turn your phone on,

1. Long press the power button [ ] on the left side of your phone.
2. Type in your PIN number and press OK (if it is needed).

To shut down your phone, go to step 1 above.

Access menus and applications

To get access to the Menu and Applications,

1. At the home screen, touch the button [ ] on the screen to pop up the list of Installed Applications in your phone.
2. Slide your finger to the right or left to access other pages of apps.
3. Touch any icon to enter to the application.
4. To exit the application, press Back or Home at the bottom of the screen.

Use basic call functions

Learn to make or answer calls in this section

Make a call:

1. At the home screen or applications menu, touch the Phone icon [ ]
2. Dial the area code and phone number.
3. Touch [ ] to start the call.
4. To end a call, touch [ ]

To answer a call:

1. When you receive a call, slide the phone icon to the right to answer it or slide it to the left to reject it
2. To end the call, touch [ ]

Send and view messages

In this section, learn how to send and receive:

• Text Messages (SMS).
• Multimedia Message (MMS).

Steps to send Text and Multimedia Messages:

1. Touch [ ] Messages at the application list, then touch

[ ] on the left bottom corner.

1. Type in the phone number or contact name on the field "To" or touch [ ] to access to Contacts.
2. Type in your message in the field "Enter message".

To send as text message go to step 5.

To attach a multimedia object (audio, image, etc.) continue to step 4.

1. Touch [ ] on the top right corner, select the attach type then choose the item.
2. Touch [ ] to send the message.

Add contacts

Learn the basics of using the phonebook feature.

Z

Add a new contact:

1. In the application list touch Contacts, then touch [ ] on the bottom right corner to add a new contact.
2. Fill the contact information (Name, Last name and phone number). You can add more fields such as, email, address, etc.
3. Touch [ ] on the top of the screen to save.

Search for a contact

1. In the application list touch [ ] Contacts.

2. Slide your finger from bottom to top to scroll the list or touch the search button [ ] and type in the first letters of the name or last name.

3. To see the contact details touch the name or the picture of the contact.

If you want to call a contact touch the phone number.

Listen to music

Learn how to listen to music via the music player or FM radio.

Listen to the FM radio:

1. Plug in the earphones in your phone.

2. In the application list touch [ ] FM Radio.

3. Use the tool bar at the bottom to change of station.

Listen to music files:

First, copy the music files into your phone internal memory on a MicroSD card.

1. In the application list, touch [ ] Music.

2. Select an order at the top of the screen and touch the song that you want to listen to.

3. You can Pause, Loop, or change of song using the tool bar at the bottom.

Browse the web

Learn how to access to your favorites Web Sites.

1. In the application list, touch [ ] Browser.

2. Touch the address bar and type in the address of the web site you want to go and touch [ ] Go.

Learn the basics to capture and view photos.

Capture pictures

1. In the applications list, touch [ ] Camera.
2. Adjusts the lens at the photo target and make the desired adjustments by touching the settings button [ ]
3. Touch the shot button [ ] on the screen to capture the picture. It will be saved automatically.

See the captured pictures

In the applications list, touch [ ] Gallery and then select the Camera folder [ ] to access and visualize all the pictures captured by your phone.

CONNECTING TO INTERNET

Learn the basics to configure your phone and connect to Internet.

Add a new connection

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the option "More...", then touch Mobile networks and touch APN. Now select the SIM Card that you want to configure.
3. Touch the Menu key and select New APN then, type in the parameters according with your Carrier.

The basic parameters are:

• Account name
  APN
  -Username
• Password

Some carriers use Proxy Servers, refer to your carrier configuration for more information.

1. When you finish typing in the parameters needed, touch Menu then Save.

If you have multiples APN Configurations for the same SIM card, choose which one you want to use touching the radio button [ ] at the right side of the name.

To add another connection, repeat from step 3.

Switch between carriers (SIM cards)

If you use multiple SIM cards and want to switch to another one, follow these steps:

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch SIM management [ ]
3. Choose the option Data Connection [ ] and select the SIM Card that you want to use.

USING THE BLUETOOTH

Learn about your phone's ability to connect to other wireless devices for exchanging data.

Turn on the Bluetooth wireless feature

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Bluetooth option [ ]Bluetooth
3. To turn the Bluetooth touching the button [ ] on the right top corner.

Find and pair with other Bluetooth enabled devices

1. When you turn the Bluetooth on, the list will show all the available devices near you.
2. Touch the device that you want to pair with your phone.
3. Enter a PIN for the Bluetooth wireless feature or the other device's Bluetooth PIN, if it has one, and press OK.

When the owner of the other device enters the same code or accepts the connection, the pairing will be complete.

Send images using the Bluetooth wireless feature

1. Open Gallery [ ]
2. Choose a picture and press Share [ on the top right corner of the screen and select Bluetooth

[ ]Bluetooth

1. Touch the device that you want to send the picture then accept the file in the receiver.

Receive images using the Bluetooth wireless feature

1. Turn on the Bluetooth at System Settings.
2. Type in the Bluetooth PIN or accept it (if it is needed).
3. Accept the receiving file if you want to receive data from the other device.

When the transferring is finished you can see the picture using the Gallery Application [ ]

USING THE Wi-Fi

Learn to use the phone's wireless capabilities to connect to any wireless local area network compatible.

Connect to a wireless network

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Wi-Fi option [ ]. Wi-Fi
3. To turn the On the Wi-Fi touching the button [ ] on the right top corner.
4. Choose a wireless network and enter the security password if it is needed.

Disconnect from a wireless network

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Wi-Fi option [ ].
3. To turn the Wi-Fi off touch the button [ ] on the right top corner.

View the technical details of a wireless network

1. In the applications list, touch [ ] Settings to access to the device configuration.
2. Touch the Wi-Fi option [ ]
3. Touch the active wireless network to see details such as Link Speed, Signal strength and more.

EU WEEE

Information to consumers in application of EU WEEE.

This product is subject to European Union regulations that promote the re-use and recycling of used electrical and electronic equipment. This product required the extraction and use of natural resources and may contain hazardous substances. The symbol above, on the product or its packaging, indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handling it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop of your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the store from which you purchased the product.

RADIO WAVES

Proof of compliance whit international standards (ICNIRP) or with European Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety for the user any other person is an essential requirement of these standards or this directive.

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 2W / kg .

Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.

Body-worn SAR testing has been carried out at a separation

distance of 1.0~cm . to meet RF exposure guidelines during body-worn operation, the device should be positioned at least this distance away from the body. If you are not using an approved accessory ensure that whatever product is used is free of any metal and that it positions the phone the indicated distance away from the body.

For more information you can go to www.sayyezz.com

Additional information about electromagnetic fields and public health are available on the following site. http://www.who.int/peh-emf.

Your telephone is equipped whit a built-in antenna. For optimal operation, you should avoid touching it or degrading it.

As mobile devices offer a range of functions, they can be used in positions other than your ear. In such circumstances the device will be compliant whit the guidelines when used with headset or usb data cable. If you are using another accessory ensure that whatever product is used is free of any metal and that it positions the phone at least 1.0 cm away from the body.

LICENCES

The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by DDMBrands LLC and its affiliates is under license. Other trademarks and tradenames are those of their respective owners.

RADIO WAVES

Proof of compliance whit international standards (ICNIRP) or with European Directive 1999/5/EC (R&TTE) is required of all mobile phone models before they can be put on the market. The protection of the health and safety for the user any other person is an essential requirement of these standards or this directive.

THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) recommended by international guidelines. The guidelines were developed by an independent scientific organization (ICNIRP) and include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

EU Regulatory Conformance

Hereby, this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For the declaration of conformity, visit the Web site www.sayyezz.com/certifications.

Notice: Observe the national local regulations in the location where the device is to be used. This device may be restricted for use in some or all member states of the European Union (EU)

Notes:

• Due to the used enclosure material, the mobile phone shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited.

• The adapter shall be installed near the equipment and shall be easily accessible.

• Do not use the mobile phone in the environment at too high or too low temperature, never expose the mobile phone under strong sunshine or too wet environment. The suitable temperature for the phone and accessories is -10^ - 55^ .

• When charging, please place the phone in an environment that has a normal room temperature and good ventilation. It is recommended to charge the phone in an environment with a temperature that ranges from 5^ 25^ . Please ensure to use only the charger offered by the manufacturer. Using unauthorized charger may cause danger and violate the authorization of the phone and the guarantee article.

• CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED WITH AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE INSTRUCTIONS

• Excessive sound pressure from earphones and headphones can cause hearing loss.

For more information you can go to www.sayyezz.com

Additional information about electromagnetic fields and public health are available on the following site. http://www.who.int/peh-emf.

Your telephone is equipped whit a built-in antenna. For optimal operation, you should avoid touching it or degrading it.

As mobile devices offer a range of functions, they can be used in positions other than your ear. In such circumstances the device will be compliant whit the guidelines when used with headset or USB data cable. If you are using another accessory ensure that whatever product is used is free of any metal and that it positions the phone at least 1.5 cm away from the body.

LICENCES

Bluetooth SIG, Inc. owns the Bluetooth word mark and logos and any use of such marks by DDM Brands LLC and its affiliates is under license. Other trademarks and trade names are those of their respective owners.

We, DDM BRANDS LLC

(1616 NW, 84^TH Ave. Miami, Florida U.S.A. 33126)

Hereby declares that:

YEZZ compiles with the standards and provisions of the directives. The certificate of conformity procedure defined in article IV of directive 1999/5/EC has been under the control of the following organization:

BAY AREA COMPLIANCE LABORATORIES CORP.

1274 Anvilwood Ave. Sunnyvale, CA 94089. USA

www.baclcorp.com

Phone: [phone] Fax: [phone]

The full text of the certificate of conformity of the device is available upon request by mail at the following address: DDM BRANDS LLC - 1616 NW 84 ^TH Ave. Miami, Florida U.S.A. 33126.

07/15/2014

(Date)

Luis Sosa / CEO

(Name and signature of authorized person)

Maximum SAR for this model and conditions under which it was recorded:
EGSM 900	0.139 W/kg 10g Head SAR – 0.126 W/kg 10g Body SAR
DCS 1800	0.079 W/kg 10g Head SAR – 0.081 W/kg 10g Body SAR
WCDMA 900	0.193 W/kg 10g Head SAR – 0.236 W/kg 10g Body SAR
WCDMA 2100	0.278 W/kg 10g Head SAR – 0.255 W/kg 10g Body SAR

During use, the actual SAR values for this device are usually well below the values stated above. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value.

FCC

Please take time to read this important section.

FCC Caution

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Usar as functionales bfaces de chamadas

BAY AREA COMPLIANCE LABORATORIES CORP.

1274 Anvilwood Ave. Sunnyvale, CA 94089. USA www.baclcorp.com

Phone: [phone] Fax: [phone]

O texto completeness do certificado de conformidade do disposicao está disponible mediante solicitaao por carta para o segunte endereco: DDM BRANDS LLC - 1616 NW, 84TH Ave. Miami, Florida, U.S.A. 33126

07/15/2014

(Data)

Luis Sosa / CEO

Maximum SAR for this model and conditions under which it was recorded:
EGSM 900	0.139 W/kg 10g Head SAR – 0.126 W/kg 10g Body SAR
DCS 1800	0.139 W/kg 10g Head SAR – 0.081 W/kg 10g Body SAR
WCDMA 900	0.193 W/kg 10g Head SAR – 0.236 W/kg 10g Body SAR
WCDMA 2100	0.278 W/kg 10g Head SAR – 0.255 W/kg 10g Body SAR

The supplied accessories perform best for your phone.

L earn the basics of using the phonebook feature.

Adauga un prieten:

(1616 NW, 84^TH Ave. Miami, Florida U.S.A. 33126)

Declaram ca:

BAY AREA COMPLIANCE LABORATORIES CORP.

1274 Anvilwood Ave. Sunnyvale, CA 94089. USA

www.baclcorp.com

Phone: [phone] Fax: [phone]

OocTbI Do MeHOTa I npNIOXeHnA

3a da nojyute doctbI Do MeHOTa I npINOJKeHnA:

1. OT haçaJIHnЯ ekpaH haTncHeTe KnaBnI [ ] Ha ekpaHa, 3a Da n3BnKaTe cncbKa C nHCTaJInpaHn PrnIOJKeHn Ha BaShnY TeJeΦoH.
2. Покарайтepbcta cn haiaCHO nIIHaJIBO,3a da DOCTnHHeTe dpyrN cTpaHnC npNJIOXeHna.
3. HatncheTe npOn3BOJHa IKOHa 3a DoCTbI Do npInIOxKeHne.
4. 3a n3xoJ OT npnlojKeHneTo, HATNCHeTe KnaBnB Back nnn Home pod ekpaHa.

I3noJ3BaHe Ha OCHOBnФyHKcHn Ha NOBnKBaHe

Hayute KaK da npOBexdaTe n OTROBaprTe Ha NOBnKBaHnB To3n pa3dEi

KoINpaIte My3nKaJIHn ФaINObe Ha BbTpEShHaTa NaMeT Ha Ba7nra TeleΦoH nII N BbPxy KapTaTa NaMeT.

1.Влеса с пиюжения,дOKоше [ ]Музka.
2. Изберете рeding върха на ekpaи и дokochete песен ta, koryto nckate da cnyuatae.
3. Bne moxe da haTnckata Pay3a, Loop nIIN da cMeHrTe neCHnte, n3noJ3BaIKn JeHTata C INHCTpyMeHTN B DoJIHaTa qact Ha ekpaHa.

Cbpoipahe BmpexaTa

HayeTe KaK da BIn3aTe B IIO6mnte cn Web caITOBe.

1.Влиса с пиюжения,натисhte [ ] Browser.
2. Дokochete Лента заagedи нашистеagedeca на сaita,В които nckateда влесе и нашсichte [ ] Happei.

HayeTe KaK Da npaBnTe n ppeJekdaTe cHIMKn.

Правено чимки

1.Влпстас прложеня дokochte [ ]Камера.
2. HanpaBete XeJaHInTe HacTpoiKn, HATnCKaIKN 6yToHa 3a HacTpoiKn [
3. Дokочete 6уToHa 3a 3achemaHe [ ]Ha ekpaHa, 3a做一个HanpaBIne Chmka. Тяandise ce 3ana3n aBTOMaTnUHO.

IperJIeHa HappaBeHrTe ChmKn

B Jncta c npnojKeHnaTncHeTe [ ] Tanepeu n 36epete NaKHa KaMepaTa [ ] a da noJyUHTe DoCTbN I Bn3yaJIIN3nPaTe BCnUKn 3aChETn OT BaIInr TeJeΦoH ChIMKn.

CBbP3BAHE C NHTEPHET

HayeTe OCHOBITE 3a CBbP3BaHe Ha BaShnY TeJefoH do nHTepHeT.

Korato co6CTBHeNKbT Ha npyroTO yCTpoiCTBO BbBeJe CbIa KOD IJI IN pIneMe Bpb3KaTa, CBbp3BaHeTo e OcbIeCTBeHO.

I3npauneHa cHmKn Upe3 Bluetooth

I 3KJIIOUBaHe ot 6e3XnUHa mpeka

1. B Jncta c npnojKeHna36epeTe [HaCTpoiKn 3a DOCTbI Do HacTPOiKInTe Ha yCTPOiCTBOTo.
   2.Дokochete onцЯ Wi-Fi [Wi-Fi].
2. 3a Да ИЗКЛЮЧиTe Wi-Fi, ДOKОСнeTe 6уToHa [ ] В DecHNЯ Горен bгbl.

BuxTe texHnueckn deTaJIHa 6e3XnUHaTa Mpeka

1. B Jncta c npiloxeHna36epeTe [ HacTpoiKn 3a doCTbI Do HacTPOiKInTe Ha yCTpoiCTBOTO.
   2.ДokocheTe onцЯ Wi-Fi [Wi-Fi].
2. ДOKОСHEТЕ AKTINBHaTa 6e3KInuHa МpeJa, 3a Да ВиДиTe DeТайи KaTo CkOPOCT, слЯ Na HcNrHana n Др.

Диpeктуba 3a NYEEO Ha EC

Информаця за нетpeбntелпсьглacHo Директуа на EC за NYEEO

To3n npOdyKT nO7a naI od dInpeKTHBNTe Ha Ebponeckna CbH3 3a npepa6oTKa n peuKlnpaHe Ha n3JIa3JIO ot ynoTpe6a eNeKtpnuecko n eNeKTPoHNO obOpyDbAne (NYEEO).Pn npOn3BOODCTBOTO My ca n3NoJ3BaHn npnpoHN pecypcn. PpOdyKTB T MoKe Da cBdBypKa ONaCHN BeUeCTBa. CmBoJbT Bbpy npOdyKTA nII N ONaKOBkata My O3Haayaba, ye Toi He MoKe Da 6bDe n3XvBpIaN B o6 u IOMaKnHCTBaTa.BaSha OTROBOPHOCT e da OTHeceTe npOdyKTA Do CpeuaJIHo o603NaueHnte MeCTa 3a npHeMaHe Ha n3JIa3JIO OT yNoTpe6a eNeKTPnuecko n eNeKTPoHHO obOpyDbAne (YNEEO).

OTdEJIHOTO cIbIpaHe n pezIKIpaHe Ha BaIeTo 6OBOpyDbaHe 7e NOMOrHe 3a ONa3BaHe Ha PnIpoJHITe pecypcN I 7e OChrypN pezIKIpaHeTo My NNo HauIN, KOITo ONa3Ba YObEShKOTO 3dPaBe N OKJHaTa CpeDa.

3a NOBue He INHOpMaunr OTHOCHO TOBa KbIe MoXeTe Da
npedae Te BaheTo NYEEO, moJr o6bprHeTe ce KbM Baata
rpaDCKa ynpaba, orpAHn3aunrTa, OCNrpyraa N3BO3BaHeto
Ha Domaunn Bn OTpaDbK nII KbM MaRa3nHa, OT KOHTO CTo
3aKynnn npOdykTa.

PAДИОВьЛНИ

ИзнckВа ce дOKa3aTeJCTBO 3a cBoTBeTCTBnE C МжdyHapOДнITE CTaHdApTи (MexdUnHapOДнa KOMncnA 3a 3aUNTa Cpeu Ye HeNoH3nPaUnte ЛчЕня) Ии C ЕвроeIckata ДИрEkTиBa 1999/5/EO (paDINO-HaBnraCnoHNO оборydВaHe И дaleKocbObSHTeJIHo крайHo obOpyDbAHe) 3a ВсчКи MОdelen MObUInH TeleФoHи пeДи Дa 6bДaT ПуСНТи Ha пa3apa.ОпaЗВaHeto Ha 3dpaBeTo И БeЗОпаСнOCТТа Ha Notpe6bTeЯ И BCЯКо ДPyRo Лице e ОСНOBН OИССВАне Ha Te3N CTaHdApTи Ил Ta3N ДИрEkTиBa.

TOBA YCTPOICTBO OTROBAPRA HA MEXDyHAPOIDHNTE YKA3AHNIA N3JIAGAHE HA PAIDNOBbJIHN

Baшето мбилно устюгоство праздтавлая раднопраздыател и пимемнк. To e празковарно так, чуда не надвишава гранчнite стойости 3a Излагане на рад不动产ьлни (разноочтон eльковамогнту полес), празорьчан OT мжdyнаровинуka3ан. Укаанята са разротен OT He3abncma hayuna opraHn3aця (Мжduнарогнakomися 3a 3aunta cpeун HeioHN3napuNTe Лчehnia) и BKIOUvBAT 3naHTeJen pe3epB 3a 6e3OpanachocT, празднаЗанен ду rapаNTupa 6e3oPacHOCTTa Ha BCNUCKXopa, He3abncmo OT TЯХнata Bb3pactи 3dpaBOCSNOBHO sbCTOJHne.

B yka3aHnraTa 3a n3IpaHHe Ha paIIOBbJIHn Ce n3IPOJ3Ba MepHa eDHHuCa 3a n3MepBaHe, I3BeCTHa KaTO cpeunqueH

KoeΦnucnENT Ha nOrIbUaHe nIIc Kπ. ΓpaHnUHaTa cToiHoCT Ha CKπ 3a MoBnJIuYcTpoiCtBa e 2 BaT/Kr.

Tecobete 3a CKI ce npOBekdaT kaTo ce n3NoJ3BaT CTaHdapTHnTe ekCnloaTaUOHHN P03uIN, KaTO yCTpoiCTBOTO pPeDaBa C NaB-BnCOKOTO cn rapaHTnpaHO HnBO Ha MOsHOCr Ha BCnUKN3nITBAHN YeCTOTnJIeHTN.

TectBaHTo Ha CKI Ce n3BbPbBa Ha pa3CTOJHne ot 1,0 cm OT rIaBaTa, 3a Da OTROBApHa yka3aHnraTa 3a paAnOueCTOTHO o6JIbUbaHe. OkaTo Ce Hocn Do TJeLTO UcTPOiCTBOTo Tp6Ba Da 6bDe NoCTaBeHo Ha Hau-MaIKo TOBa pa3CTOJHne ot TJeLTO. Ako He n3NoJ3BaTe Odo6peh akcecoap, yBepTe ce Ye BCEKN pOdyKT, KOITo Ce n3NoJ3Ba, HЯMa MetaII N ye TelefoHbTe IocTaBeH Ha IocOueHOTo pa3CTOJHne OT TJeLTO.

3a NOBue He INHOpMaun MOKeTe Da NocETnTe www.sayyezz.com

Довлнелна Иформаця за[eilektpromarHHTNe ПОлета и obшесстевоTo 3драBE можete на НамерпTe Ha следнata Иntepnet CTpaHnua http://www.who.int/peh-emf.

Bluetooth SIG, Inc. owns the Bluetooth word mark and logos and any use of such marks by DDM Brands LLC and its affiliates is under license. Other trademarks and trade names are those of their respective owners.

Hneot DDM BRANDS LLC

(1616 NW, 84TH Ave., Maamy, Φίοριδα, CAU 33126)

C hactoTo 3aBbame, ye:

YEZZ cbOTBeTCTBa Ha cTaHdApTInTe n pa3nopeD6nTe Ha dIpeKTHBnTe. IpoueypaTa Ha ceptnOikata 3a cbOTBeTCTBnE, nocOueHa B yI. 10.5 Ha dIpeKTHBa 1999/5/EO ce pbkOBOn ot CneiHaT opraHn3aun:

BAY AREA COMPLIANCE LABORATORIES CORP.

1274 Anvilwood Ave. Sunnyvale, CA 94089. USA

www.baclcorp.com

Phone: [phone] Fax: [phone]

ПьлнятTekт Ha cepTuФиКaТа 3a CBOTBETCTBNe Ha yCTpoIcTBOTO e HajiNHyПри NOINCKBaHe по пода на седни радес: DDM BRANDS LLC, 1616 NW, 84^th Ave, Маям, Флорда, CAU 33126

07/15/2014

(DaTa)
