USER MANUAL PBL108642 Emerio

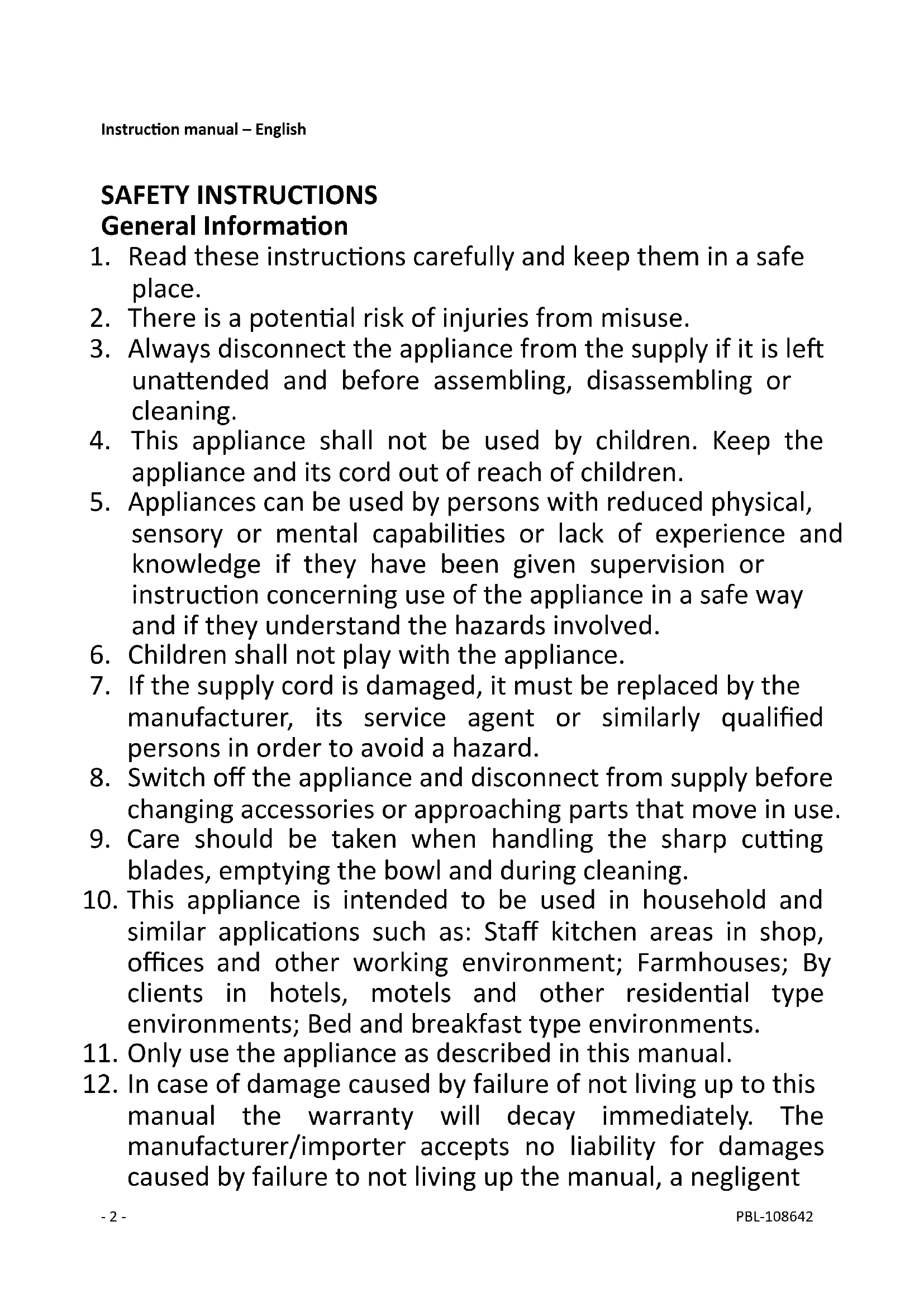

1. Read these instructions carefully and keep them in a safe

2. There is a potential risk of injuries from misuse.

3. Always disconnect the appliance from the supply if it is left

unattended and before assembling, disassembling or cleaning.

4. This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

5. Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

6. Children shall not play with the appliance.

7. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. Switch off the appliance and disconnect from supply before

changing accessories or approaching parts that move in use.

9. Care should be taken when handling the sharp cutting

blades, emptying the bowl and during cleaning.

10. This appliance is intended to be used in household and

similar applications such as: Staff kitchen areas in shop, offices and other working environment; Farmhouses; By clients in hotels, motels and other residential type environments; Bed and breakfast type environments.

11. Only use the appliance as described in this manual.

12. In case of damage caused by failure of not living up to this

manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent- 3 - PBL-108642 use or use not in accordance with the requirements of this manual.

13. Always remove the power cord and let it cool: Before

moving the unit; Before the unit is stored; Before you go mounting or dismantle parts; Before cleaning or maintenance work; After use.

14. Only have the appliance repaired by a qualified service

15. Qualified service center: after-sales service of the

manufacturer/importer, which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service. Electricity and heat

1. Before use, check that the mains power supply voltage is

the same and the voltage is the same as the voltage indicated on the appliance.

2. Always plug the appliance into an earthed plug socket.

3. Regularly check the power cord for damage.

4. Do not operate any appliance with a damaged cord or plug

or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.

5. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

6. Make sure the power cord does not come into contact with

7. Always remove the plug from the plug socket before you

8. The machine should not be operated by means of an

external timer-switch or by means of a separate system with remote control.

9. To avoid a circuit overload, do not operate another high

voltage appliance on the same circuit.

10. To protect against electric shock do not immerse cord, plugs,- 4 - PBL-108642

or housing in water or other liquid.

11. Do not touch the appliance if it falls into water. Remove the

plug from its socket, turn off the appliance and do not use it again.

12. Do not use the appliance close to hot objects such as a stove

or oven. Using the appliance

1. The use of accessory attachment not recommended by the

appliance manufacturer may cause injuries.

2. Only use the appliance indoors, in dry areas away from

3. Do not immerse the appliance or the mains plug in water or

other liquids. There is a danger to life due to electric shock!

4. To reduce the risk of electric shock, do not use the appliance

outdoors or on wet surfaces.

5. Children are unable to recognize the hazards associated

with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

6. Close supervision is necessary for any appliance being used

by or near children.

7. Never leave the appliance unattended during use.

8. Shut down the product before changing accessories or

approaching the parts which are moving during operation.

9. Do not allow children to use the blender without

10. This appliance is intended for household use only.- 5 - PBL-108642

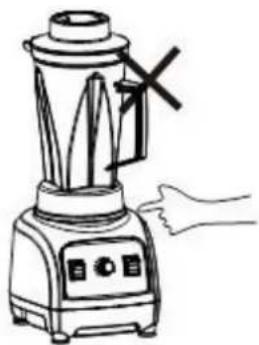

SAFETY NOTE Please use 10AMP or above socket for the appliance. Do not use the same socket with other appliances. Otherwise, overheat may occur to cause fire. Please do not touch any movable part especially the blades during operation. Please be careful when cleaning / replacing the blades. Please do not wash the appliance with running water directly. This will cause short circuit.

Please do not use the appliance near fire or places with high temperature.

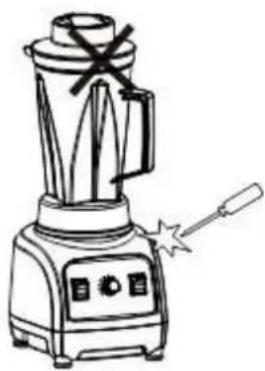

It is not allowed to operate the appliance without any material such as water, ice or fruit. Otherwise, the blades will damage and the machine life will be shortened. It is not allowed to disassemble the appliance body. Do not use sharp material to touch the jug.- 6 - PBL-108642 Please do not let the old, children and disabled people operate this machine. Please do not put the machine on soft surface such as carpeting and table cloth during operation. When placing food into the jug, do not overfill the max level line (marked on the jug). Make sure the lid is tightly closed.

Before you start the machine, make sure the jug is firmly fit on the body. Do not open the lid during operation.

When you need to use the stir rod, please only open the top cap instead of the whole lid.

Please do not spill liquid such as water on the bottom of the jug. Otherwise, it will cause rust and shorten the life of the machine.- 7 - PBL-108642 Please keep a distance of 20 cm between the appliance and the people during operation. Please also clear the table and keep a 20 cm gap between the appliance and each side.

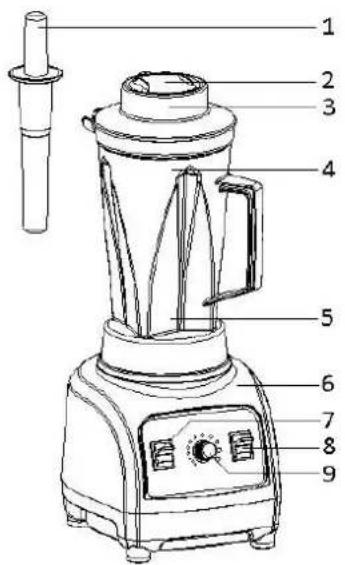

This appliance is equipped with over current protection. When the food in jug is too much or blocked, the over current switch will jump in and the appliance will stop working. In this case, press the reset button (on the left side under the bottom of the base) in to reset the appliance.- 8 - PBL-108642 FEATURES

Before use, make sure the on/off switch is in “OFF” position and the speed adjustor is in “MIN” position.

1. Place the jug onto the motor housing. The jug must be placed as shown on the above picture.

2. Put the foods into the jug after dicing them and then add the liquid, making sure not to go over the

maximum level marked on the jug. Note: Never fill the jug with ingredients exceeding 80°C .

3. Put the lid onto the jug and put the top cap onto the lid (have the cap engaged into the slots on the lid) then

twist the cap clockwise to firm the connection.

4. Put the plug into the wall socket. Switch the on/off switch into “ON” position and rotate the speed adjustor

to your desired position. NOTE: You can press and hold the pulse switch to “ON” position to get full power.

5. After finishing, switch off your appliance and remove the plug from outlet. NOTE: Make sure the speed

adjustor is set to “MIN” position. The appliance is equipped with a safety switch. It only works when the jug has been placed correctly. IMPORTANT TIPS If the jug contains liquid, please turn the speed adjustor to the lowest speed then to the highest speed. Otherwise, the liquid may spill out. If you wish to add more food into the jug during operation (not over the maximum level), even just a small quantity, please hold the jug and only open the top cap to add it. When the food is not easy to move or the unit is blocked, please use pulse function to blend 2-3 times. In this case, please use the stir rod to mix the food. RECIPE Sweet Apple Smoothie 1 ripe banana (without skin) 2 hands of baby spinach Leaves of a carrot 2 sweet apples 4 kohlrabi leaves 500ml of fresh water Peel the banana, divide the apple into quarters and remove the stem and the blossom root, the seeds should be used with. Wash the baby spinach briefly. Give all ingredients into mixing container and add the water. Start your blender on the lowest setting, then increase gradually to the highest level and let the blender run until the desired consistency is reached. Enjoy!- 9 - PBL-108642 Please note the smoothie should be prepared at least 1 minute at the highest level in the mixer so that the cell walls or green leaves can be broken down. Sweet Cherry Smoothie 1 mango 14 cherries 2 nectarines 250g of lamb’s lettuce 1/2 bunch parsley 1/2 peeled lemon 500ml of fresh water Remove stone of mango, cherries and nectarines. Wash the lettuce briefly. Peel the skin of the lemon with a vegetable peeler. Put all ingredients in the mixing container. Start your blender on the lowest setting, then increase gradually to the highest level and let the blender run until the desired consistency is reached. Enjoy! Please note the smoothie should be prepared at least 1 minute at the highest level in the mixer so that the cell walls or green leaves can be broken down. Tomato Sauce 7 medium tomatoes 2 small shallots 8 fresh basil leaves 1 tbsp. of agave syrup 2 tbsp. of olive oil Fresh parsley, chili Salt and pepper Place all ingredients into mixing container and start at the highest speed level. Stop the mixing process when the desired consistency is achieved. Season to taste the tomato sauce with salt and pepper. Done. Enjoy! Tomato Soup 500g of tomatoes 1 red bell pepper 1 small orange 60g of cashew nuts 2-4 basil leaves Sea salt and black pepper Place all ingredients into mixing container and start at the highest speed level. Stop the mixing process when the desired consistency is achieved. Season to taste the tomato soup with see salt and pepper. Done. Enjoy! Cashew Butter 250g of cashew nuts About 4 tbsp. oil (sunflower oil or thistle oil)- 10 - PBL-108642 Put the cashews in the mixing container, pour the oil in the mixing container and start with pulse mode with short intervals. Then mix on high speed until a file paste has been produced. This may take some time to complete. Done. Enjoy! Lemon Cream 250g cashew nuts 1 tsp of lemon zest Juice of one lemon 100ml of fresh water 5 tbsp. agave syrup Chop the cashew nuts using pulse mode. Add the remaining ingredients to the mixing container. Start on the lowest speed level and increase for about 60 seconds to the highest speed level. Allow the lemon cream to cool in the refrigerator before serving. Enjoy! Tomato Dressing 3 apricots 2 tomatoes 1 small spring onion 2 tbsp. of freshly squeezed lemon juice 1 dried chili pepper 1 tbsp. of sugar Remove the stones of the apricots. Add the ingredients to the mixing container. Start on the lowest speed level and increase for about 60 seconds to the highest speed level. Season to taste the tomato dressing with a little salt. Enjoy! Fruit Smoothie 1/2 mango (without stone) 1/2 grapefruit 1/2 orange 1 medlar 1/2 pomegranate 500ml of fresh water Use the pomegranate seeds only. Reel the orange with a vegetable peeler. Start your blender on the lowest setting, then increase gradually to the highest level and let the blender run until the desired consistency is reached. Enjoy! Pina Colada Smoothie 200g of pineapple 200g of raw coconut butter 100ml of fresh water Peel off, pineapple and add it to the other ingredients in the mixing container. Start your blender on the lowest setting, then increase gradually to the highest level and let the blender run until the desired consistency is reached. Enjoy!- 11 - PBL-108642 Cold Chocolate Smoothie 3 bananas 500ml of nut milk 5 tbsp. of agave syrup 5 tbsp. of cocoa powder 2 tbsp. of cocoa nibs (if available) 1 tbsp. of ground vanilla bourbon Peel the bananas and freeze them in small pieces. Then put these with the other ingredients in the mixing container. Start your blender on the lowest setting, then increase gradually to the highest level and let the blender run until the desired consistency is reached. Enjoy! CLEANING

1. First remove the mains plug from the wall socket. Do not immerse the motor housing in water. You can clean

the motor housing with a humid cloth. Do not use abrasive cleaning materials.

2. Disassemble the other parts after each use and wash them in soapy water. Then rinse with clean water and

dry thoroughly. Do not wash these parts in a dishwasher. CAUTION After 3 minutes continuously operation, it is required to be switched off for 1 minute to prevent overheating. TROUBLE SHOOTING Trouble Cause Solution Not working Not plug in. Plug into the socket tightly. The over current switch is cut off. Switch off the appliance, press the reset button on the bottom of the base and restart the appliance. Big Shaking The machine is not sit stable. Place the machine on stable horizontal surface. The jug is not fixed well. Stop the machine and fix the jug well to the body. Too much materials. Stop the machine and take out extra food. Spill out Material over the maximum level Stop the machine and take out extra material. The lid is not fixed firmly. Tighten the lid and the cap. If the product cannot work correctly, not caused by above reasons, please do not fix it by yourself. TECHNICAL DATA Voltage: 220-240V~ 50/60Hz Power: 1500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.- 12 - PBL-108642 Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Emerio Holland B.V. Kenaupark 9 2011 MP Haarlem Nederland Customer service: T: +31 (0)23 5307900 E: info@emerioholland.nl- 13 - PBL-108642 Bedienungsanleitung – German SICHERHEITSHINWEISE Allgemeines
