USER MANUAL BQ6333 Brixton

Voor DK, FI, NO, NL, SE: I3B/P (30)

Butaan 30mbar Propaan 30mbar

Pour DK, FI, NO, NL, SE: I3B/P (30)

Butane 30mbar Propane 30mbar

Operating and Assembly Instructions

PI-No:87BO87

CE0087

Read the following instructions carefully and be sure your Barbecue is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage. If you have questions concerning assembly or operation, consult your dealer, gas appliance service man or your LP gas company.

NOTE TO INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE CONSUMER AFTER INSTALLATION. NOTE TO CONSUMER: RETAIN FOR FUTURE REFERENCE.

General Information

Gas Installation Codes

Barbecues for use with bottled gas are labeled 'LPG', 'Propane Gas' or 'Butane'.

Failure to comply with these instructions could result in a fire or explosion which could cause serious bodily injury, death or property damage. Assessible parts may be very hot. Keep young children away.

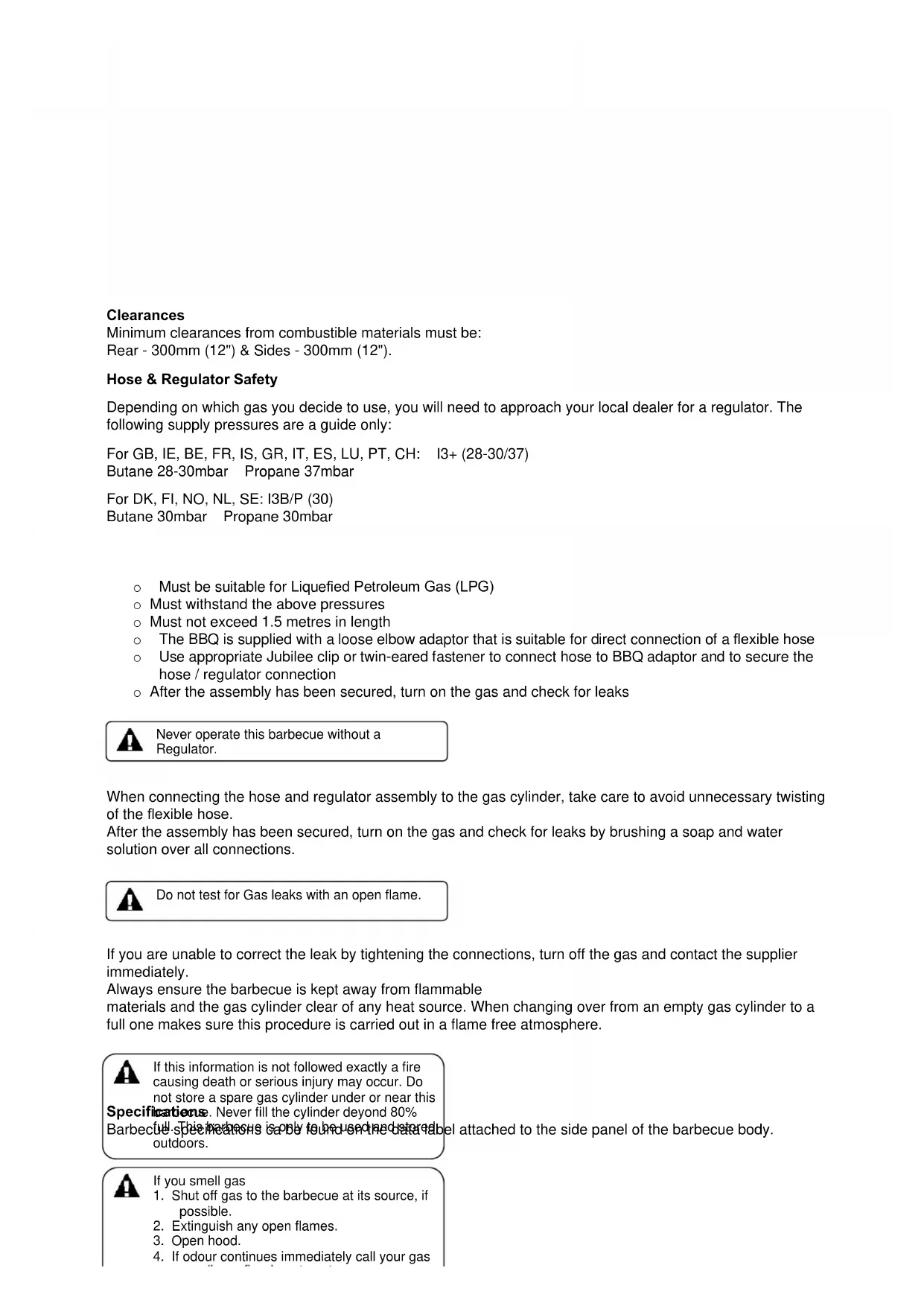

Clearances

Minimum clearances from combustible materials must be: Rear - 300mm (12") & Sides - 300mm (12").

Hose & Regulator Safety

Depending on which gas you decide to use, you will need to approach your local dealer for a regulator. The following supply pressures are a guide only:

For GB,IE,BE,FR,IS,GR,IT,ES,LU,PT,CH: I3+ (28-30/37) Butane 28-30mbar Propane 37mbar

For DK, FI, NO, NL, SE: I3B/P (30)
Butane 30mbar Propane 30mbar

Must be suitable for Liquefied Petroleum Gas (LPG)
Must withstand the above pressures
Must not exceed 1.5 metres in length
The BBQ is supplied with a loose elbow adaptor that is suitable for direct connection of a flexible hose
Use appropriate Jubilee clip or twin-eared fastener to connect hose to BBQ adaptor and to secure the hose / regulator connection
After the assembly has been secured, turn on the gas and check for leaks

Never operate this barbecue without a Regulator.

When connecting the hose and regulator assembly to the gas cylinder, take care to avoid unnecessary twisting of the flexible hose.

After the assembly has been secured, turn on the gas and check for leaks by brushing a soap and water solution over all connections.

Do not test for Gas leaks with an open flame.

If you are unable to correct the leak by tightening the connections, turn off the gas and contact the supplier immediately.

Always ensure the barbecue is kept away from flammable materials and the gas cylinder clear of any heat source. When changing over from an empty gas cylinder to a full one makes sure this procedure is carried out in a flame free atmosphere.

If this information is not followed exactly a fire causing death or serious injury may occur. Do not store a spare gas cylinder under or near this locations. Never fill the cylinder beyond 80%

Barbecue. The mers is a bteed ehe gbel attached to the side panel of the barbecue body. outdoors.

If you smell gas

1. Shut off gas to the barbecue at its source, if possible.
2. Extinguish any open flames.
3. Open hood.
4. If odour continues immediately call your gas

Gas Cylinder Use & Safety

This is a low pressure barbecue and must be used with the hose and regulator supplied. Your barbecue is designed for use with 7kg Butane or 6kg and 9kg Propane gas cylinders.

Do not connect your barbecue to a gas cylinder exceeding this capacity.

Never connect an unregulated gas cylinder to your barbecue.

The gas cylinder should be filled by a reputable gas supplier and visually inspected and re-qualified at each filling.

Always keep cylinder in an upright position. Always close the cylinder valve when the barbecue is not in use. Do not subject gas cylinder to excessive heat.

Never Store your Gas Cylinder Indoors.

If you store your barbecue indoors, ALWAYS disconnect the gas cylinder first and store the cylinder safely outside. Cylinders must be stored outdoors in a well ventilated area out of reach of children, and must not be stored in a building, garage or any other enclosed area.

Safety Information

Read carefully before assembling and operating your barbecue.

Location of your Barbecue

DO NOT use your barbecue in garage, porches, breezeways, sheds or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn. Do not obstruct the flow of combustion and ventilation air around the barbecue housing.

This barbecue is designed to be used on the post supplied and must only be used with the support post fitted..

For your safety

Do not store or use petrol or other flammable liquids in the vicinity of this or any other appliance.

Do not store empty or full spare gas cylinders under or near this or any other appliance.

Keep the gas hose and any electrical cord away from hot surfaces. Protect the gas hose from dripping grease. Avoid unnecessary twisting of hose. Visually inspect the hose prior to each use for cracks, excessive wear or other damage.

Replace the hose if necessary. Never test for gas leaks with a lit match or open flame. Never light barbecue with hood close before checking to ensure the burner tubes are fully seated over gas valve orifices. Never lean over cooking surface when lighting. Never alter or modify the Regulator or gas supply assembly. This barbecue must not be used indoors.

Protect Children

Keep children away from barbecue during use and until barbecue has cooled after you have finished. Do not allow children to operate barbecue.

Always ensure that no sporting or physical activities are carried out in close proximity to the barbecue during use and while still hot.

General Assembly

Remove the barbecue and components from the packing carton. Check against parts list and lay components out within easy reach. Do not throw the carton away, unfold flat and use as a protective work surface. Contact your supplier for replacement parts if necessary.

Tools You Will Need

Standard head screw driver (or cordless drill) and bits and Adjustable spanner (open ended shifter) or spanners.

Parts supplied sealed in the carton or by your supplier must not be altered in any way.

Ensure the barbecue is set up on a level and stable surface.

Do not move the barbecue while in use or when hot. Remove the drip tray before moving.

Check Barbecue for any Damage

Before attempting to assemble your barbecue, it is advisable to check that all the necessary parts have been included using the list on page 4. Inspect barbecue parts as you proceed. Contact your supplier for assistance regarding replacement of any damaged or missing parts. Do not assemble or operate a barbecue that appears damaged. Barbecues for use with gas cylinders are labelled 'propane gas'. Check labelling at gas connection on your barbecue.

Nominal Hourly Gas Consumption

Gas Types	Main Burner
Inj	Gas	Gas Size MM	Cons MJ/hr	Press KPA
LPG	0.97	12	2.75

Gas Category	I3B/P (30), I3+ (28-30/37)
Nominal Gas Consumption (kW)	3.8 (276 g/h G30)
Main Injector Size (mm) Specified / (Measured)	0.97 / (0.950 ; 0.975 x)

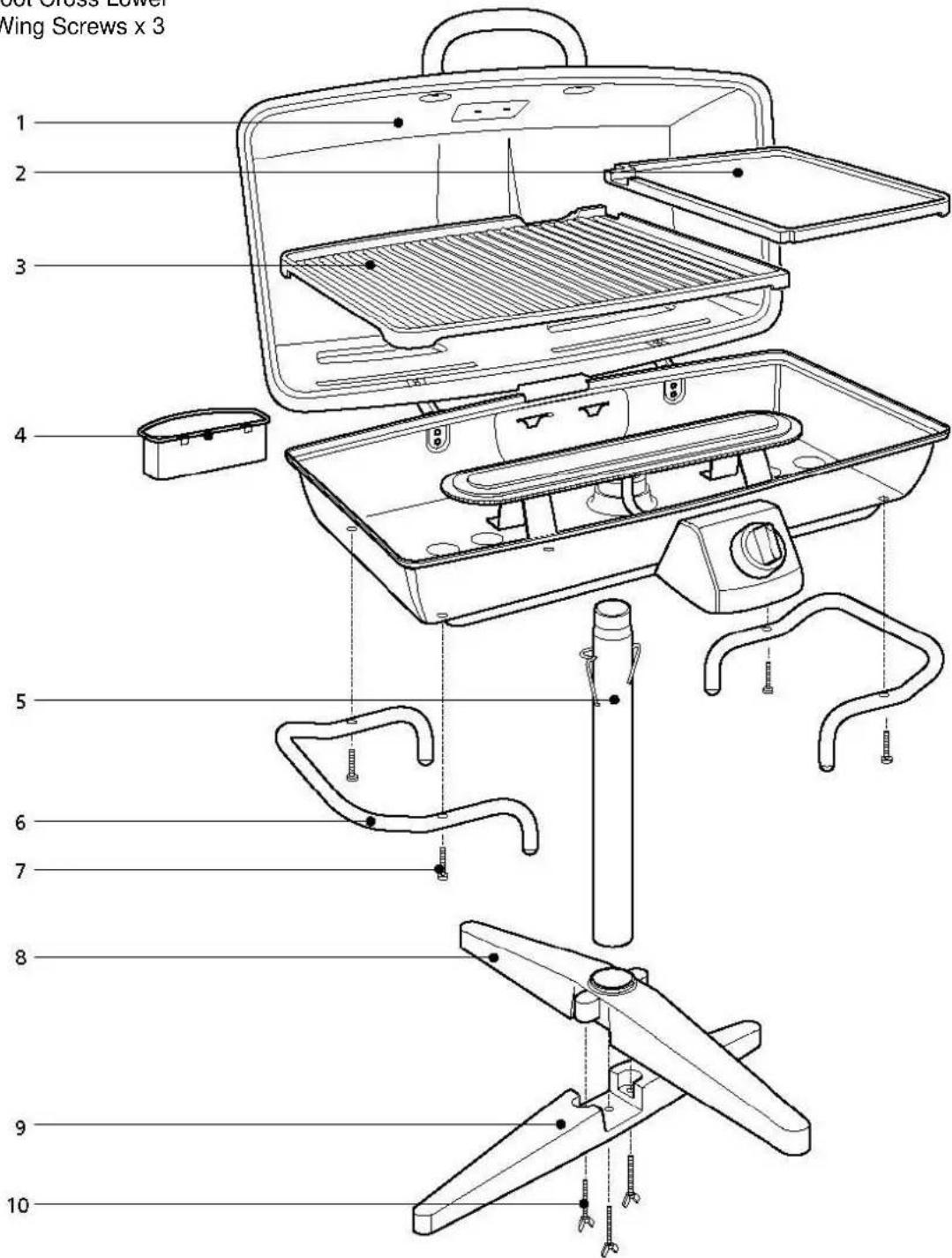

Barbecue Components

1. Barbecue Body & Roasting Hood
2. Right Hand Plate (Smooth)
3. Left Hand Plate (Ribbed)
4. Drip Tray
5. Support Post
6. Integrated Side Handles
7. Bolts/Wing Nuts x 4
8. Foot Cross Upper
9. Foot Cross Lower
10. Wing Screws x 3

Barbecue Assembly

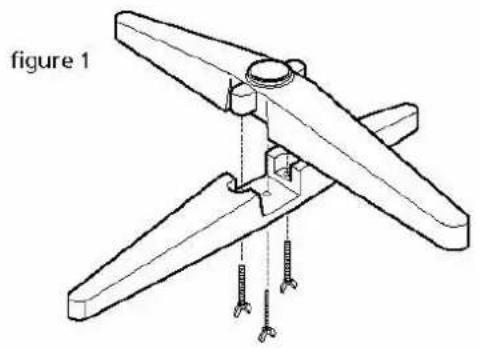

• Attach and tighten lower foot cross to upper foot cross with wing screws provided. (see fig. 1)
• Fit the slotted end of support post into the foot cross opening, press firmly and secure with wing screw.

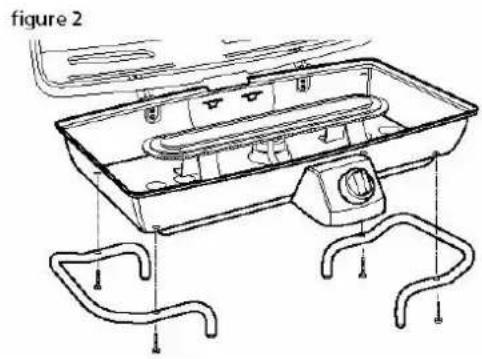

• Fit handles with bolts and wing nuts supplied. (see fig. 2)

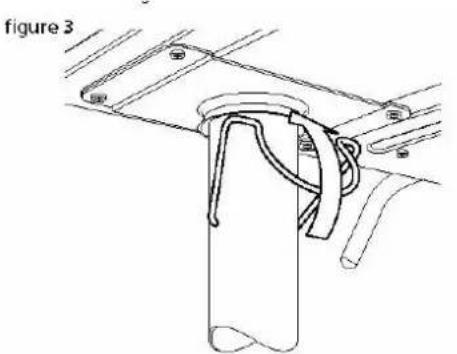

• Fit barbecue to top of support post, attach barbecue with locking safety clip on support post. (see fig 3.). The integrated side handles and legs allow use on an outdoor tabletop. Simply lift the barbecue off the support stand.

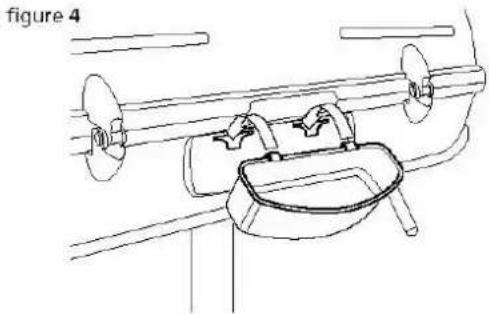

• Attach drip tray to rear centre of barbecue. (see fig. 4)

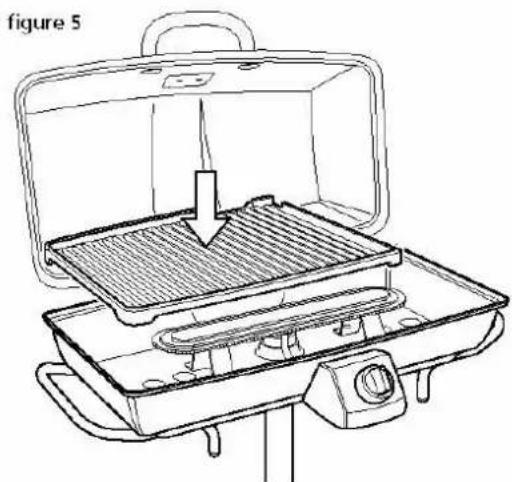

• Fit the left hand (ribbed) cooking plate to the left side of barbecue, ensuring that the grease outlet opening is situated over the drip tray. (see fig. 5)

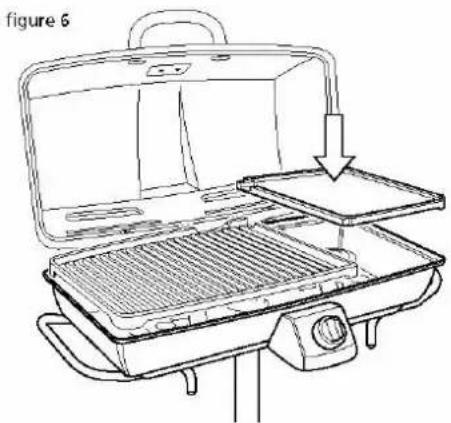

• Fit the right hand (smooth) plate to the right side of barbecue, ensuring that the edge of the plate fits over the left hand plate. (see fig. 6)

General Assembly

Connecting and Disconnecting to Gas Source

IMPORTANT: Before connecting and disconnecting barbecue to gas source, make sure burner control is in OFF position. CAUTION: When the barbecue is not in use, the gas must be turned off at the cylinder.

Familiarise yourself with the general information and safety guidelines located at the front of this manual.

Check:

Gas cylinder is filled
- The end of the burner inlet tube is properly located over the valve orifice
The burner control is in 'OFF' position

Connecting

• Ensure cylinder valve in its full off position.
• Check cylinder valve features to ensure it has proper mating threads to those of the regulator.
• Ensure burner control is in the 'OFF' position.
• Inspect valve connections port and regulator assembly. Look for any damage or debris. Remove any debris. Inspect hose for damage. Never attempt to use damaged or blocked equipment.
• When connecting regulator assembly to the cylinder valve and the barbecue, tighten nut to a positive stop by hand or spanner depending on the type of fitting.
• Open cylinder valve fully. Use a soapy water solution to check all connections for leaks before attempting to light barbecue, If a leak is found, turn cylinder valve off and do not use barbecue until repairs can be made by a local LP gas dealer.
• CAUTION: When the appliance is not in use, the gas must be turned off at the supply cylinder.

Disconnecting

Ensure the burner control is in the OFF' position.
Ensure gas cylinder valve is in its full off position.
Detach the regulator assembly from gas cylinder valve.

Lighting Procedure

Burner Operation & Ignition System check

With cylinder valve in OFF position push and turn the control knob anti-clockwise until the control clicks.
Repeat action and check for sparking at the burner.
If spark is not evident at the burner ignition point, check that the ignition lead is firmly attached to the control and sparker tip.
- With sparking established turn the control knob to the OFF position, then turn on the cylinder valve. Now push and turn control knob anti-clockwise ensuring that the control clicks and there is a spark at the burner.
Upon first assembly the gas line and burner will be full of air. In order for the burner to light properly the lines must fill with gas. It may require several attempts at lighting the burner before you are successful.
If the burner fails to light after several attempts turn off gas supply at cylinder and inspect for obstructions to gas flow.

A

Note: If for some reason, ignitor fails to produce a spark at the electrode, barbecue can be lit by a match. Insert match into match holder which is suspended by a chain at front of barbecue. With hood open insert lighted match into hole in front

If re-ignition is necessary while the gas barbecue is still hot, you must wait for a minimum of 5 minutes before commencing to re-ignite (this allows accumulated gas fumes to clear).

Check performance of burner prior to installing barbecue plates.

Do not smoke when attempting to ignite barbecue.

Never use volcanic rock, heatbeads or other material.

Always use protective gloves when handling hot components.

Lighting & Operating Procedure

If the Barbecue Fails to Operate Properly

• Turn off gas at source, turn burner control to OFF.
• Wait 5 minutes before trying again.
• Check gas supply connections.
• Repeat lighting procedure and if barbecue still fails to operate properly, TURN OFF GAS AT SOURCE, TURN BURNER CONTROL TO OFF, wait for barbecue to cool and check the following:

j) Misalignment of burner tube and over orifice

CORRECTION: Reposition burner tube to properly sit over orifice.

k) Obstruction in gas hose

CORRECTION: Remove hose from barbecue. DO NOT SMOKE! Open gas supply for one second to blow any obstruction from hose. Close off gas supply at source and re-connect hose to barbecue.

I) Blocked orifice

CORRECTION: Remove grill plates, remove spring clip from burner tube inlet. Disconnect burner support brackets by removing screws and nuts. Lift burner clear. Remove orifice from gas valve and gently clear any obstruction with a fine wire. Clear any spider webs or insects from burner tube openings. Re-install orifice, place burner tube opening over orifice then replace burner and brackets. Replaces spring clip.

Operating Procedure

Burn-off

Before cooking on your barbecue for the first time, burn-off any residual oils or foreign matter by igniting the burner. Ensure hood is open and operate at 'HIGH' setting for approximately 2-3 minutes. You may then turn the burner control to 'OFF' or proceed to commence cooking at the 'LOW' setting.

Preheating

It is necessary to preheat the barbecue for a short time before cooking certain foods, depending on the type of food and the cooking temperature required.

Cooking Temperatures

'HIGH' setting- Use this setting only for fast warm up, for searing steaks and chops, and for burning food residue from the grillplates after cooking is over. Rarely, if ever, do you use the 'HIGH' setting for extended cooking.

'MEDIUM' setting (mid-way between 'HIGH' and 'LOW'). Use this setting for most grilling, and for cooking hamburgers and vegetables.

LOW' setting- Use this setting when cooking very lean cuts such as fish. These temperatures vary with outside temperature and the amount of wind.

The hood must be in the open position for lighting.
Do not smoke at any time when attempting to ignite the barbecue burners.
Caution: Do not move the stand while the barbecue is in operation.
Do not leave the barbecue unattended when alight.

Roasting

For best results when roasting, the burner should only be used on the low to medium setting. Use of the high setting with the hood down may result in burnt food, damage to the non stick coating or both.

Remove the flat hot plate to help with heat circulation. Preheat the barbecue for a few minutes. Place a roasting rack or aluminum foil dish onto the ribbed hot plate and place the meal to be roasted onto the rack or into the dish and close the hood.

Adjust the control knob to maintain the temperature around the medium mark (approx. 200^ to 230^ )

Approximate cooking time with control set to medium temperature

Barbecue Roasts	Minutes
Chicken & Rare Beef	45 mins per kg
Beef & Medium Lamb (approx.)	55 mins per kg
Pork & Well Done Beef/Lamb (approx.)	65 mins per kg

Care & Maintenance

Care & Maintenance

As with all appliances, proper care and maintenance will keep them in top operating condition and prolong their life. Your new gas barbecue is no exception. By following these cleaning procedures on a timely basis, your barbecue will be kept clean and working properly with minimum effort.

Beware of spiders and wasps. Burner tube should be inspected and cleaned periodically.

Spiders and small insects occasionally spin webs or make nests in the burner tubes during warehousing and transit. These webs can lead to a gas flow obstruction which could result I a fire in and around the burner tubes.

This type of fire is known as 'FLASH-BACK' and can cause serious damage to your barbecue and create an unsafe operating condition for the user. Although an obstructed burner tube is not the only cause of 'FLASH-BACK' it is the most common cause and frequent inspection and cleaning of the burner tubes is necessary.

Flash-Back

If fire occurs in and around the burner, immediately turn off gas at its source and turn the burner control to OFF, wait until the barbecue has cooled, then clean the burner tubes and burner ports as described in lighting and operating procedure.

Cleaning the Grill Plates

After cooking, turn burner control to OFF and let barbecue cool before attempting to clean your grill plates.

Before first use and periodically, it is suggested that you wash the grill plates in a mild soap and warm water solution. You can use a wash cloth to clean your barbecue plates.

Care of Cooking Surface

Use and care of the nonstick cooking surface is important. Do not use metal utensils or cut food on the cooking surface. Use only plastic cooking utensils. Do not use pans on the cooking surface. Do not overheat the cooking surface with the hood down or no food on the cooking surface.

Cleaning the Drip Tray

The drip tray should be emptied and wiped clean periodically and washed in a mild detergent and warm water solution.

To avoid any flare-ups, it is recommended that the drip tray be checked and emptied regularly. Contents of the drip tray may be very hot during cooking. If emptied during extended cooking extreme caution should be taken and direct contract by hand should be avoided at all times. Allow to cool completely before disposing of the contents.

*****
