USER MANUAL PizzaFiXX BEEM

Operation and controls ......................

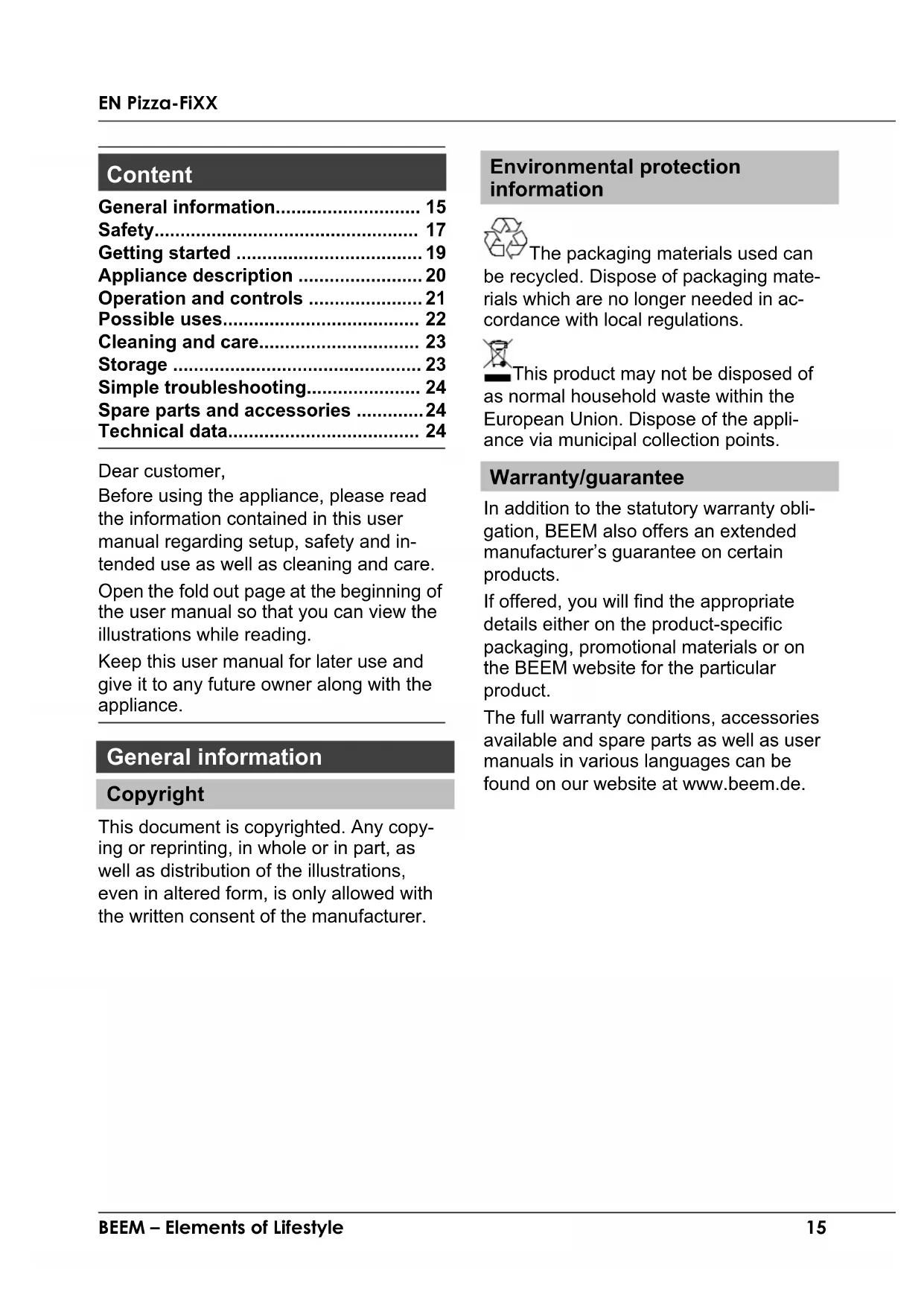

Dear customer, Before using the appliance, please read the information contained in this user manual regarding setup, safety and in- tended use as well as cleaning and care. Open the fold out page at the beginning of the user manual so that you can view the illustrations while reading. Keep this user manual for later use and give it to any future owner along with the appliance. General information Copyright This document is copyrighted. Any copy- ing or reprinting, in whole or in part, as well as distribution of the illustrations, even in altered form, is only allowed with the written consent of the manufacturer. Environmental protection information The packaging materials used can be recycled. Dispose of packaging mate- rials which are no longer needed in ac- cordance with local regulations. This product may not be disposed of as normal household waste within the European Union. Dispose of the appli- ance via municipal collection points. Warranty/guarantee In addition to the statutory warranty obli- gation, BEEM also offers an extended manufacturer’s guarantee on certain products. If offered, you will find the appropriate details either on the product-specific packaging, promotional materials or on the BEEM website for the particular product. The full warranty conditions, accessories available and spare parts as well as user manuals in various languages can be found on our website at www.beem.de.Pizza-FiXX EN 16 BEEM – Elements of Lifestyle Symbols used DANGER This is used for a hazard which is an immediate threat leading to severe bodily injury or to death. To avoid the hazard, follow the in- structions given here. WARNING This is used for a possibly hazardous situation which could lead to severe bod- ily injury or to death. To avoid the hazard, follow the in- structions given here. CAUTION This is used for a possibly hazardous situation which could lead to minor inju- ries. To avoid the hazard, follow the in- structions given here. ATTENTION This is used for a situation which could lead to material damage. To avoid the hazard, follow the in- structions given here. Limitation of liability We assume no liability for damage or consequential damage caused by:

failing to observe the operating in- structions,

use for any other than the designated purpose,

unauthorised modifications,

use of third-party parts and spare parts,

use of unsuitable add-ons or acces- sories. Conformity declaration The BEEM company hereby declares that this appliance complies with the funda- mental requirements and with the re- maining applicable provisions of the di- rectives 2006/95/EC, 2004/108/EC and 2009/125/EC. A complete declaration of conformity can be found under www.beem.de.EN Pizza-FiXX BEEM – Elements of Lifestyle 17 Safety Safety regulations Only use the appliance for the use described. Do not use the appliance for other, possibly similar, uses under any circumstances. This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities or insufficient ex- perience and/or insufficient knowledge, except if they are super- vised by a person responsible for their safety or have received instruction from this person as to how the appli- ance is to be used. Supervise children to ensure that they do not play with the appliance. Store the appliance and the accessory parts out of the reach of children. Inspect the appliance before use for visible, external damage. Do not op- erate a damaged appliance. Do not leave the appliance unattended during operation. Only use accessory parts of the man- ufacturer or those which are expressly recommended by the manufacturer. Otherwise all warranty or guarantee rights are void. Do not use this appliance in combina- tion with an external timer or a sepa- rate remote control system. Only have repairs to the appliance performed by a customer service representative authorised by the manufacturer because otherwise, in the event of damage or subsequent malfunctions, there is no longer any guarantee or warranty coverage. This also applies specifically to the re- placement of a damaged power sup- ply cord. Considerable hazards for the user can result from improper repairs. Only replace defective components with original spare parts. Only these parts ensure that the safety require- ments are fulfilled. Designated use This appliance is primarily intended for non-commercial use indoors. The in- tended use includes the following possible uses provided that the ingredients pro- cessed do not exceed normal household quantities:

Baking or warming ready made foods (pizza, chips, croquettes, cakes, ready meals such as lasagna, rösti, fish sticks, meat, etc.)

Roasting meats Any other use, or a use which goes be- yond these, constitutes improper use. All claims whatsoever for damage arising from improper use are excluded. The owner bears the sole risk.Pizza-FiXX EN 18 BEEM – Elements of Lifestyle Overview of hazards Hazard due to electrical current Do not use the appliance if the mains cord or plug are damaged. Do not open the housing of the ap- pliance under any circumstances. If energised connections are touched or the electrical or mechanical configu- ration is changed, there is a risk of electrical shock. Never immerse the motor unit or the mains plug in water or other liquids. Unplug the mains plug from the socket in the following situations: When cleaning the appliance When the appliance is not in use When there is a malfunction of the appliance during operation Always pull the power supply cord out of the mains socket by the plug and not by the mains cord itself. Never carry, lift or move the appliance by the mains cord. Risk of suffocation due to packaging material Ensure that no children play with the packaging material. Risk of burns due to hot surfaces Only grasp the appliance by the plastic handle. Risk of scalding due to escaping water vapour Avoid contact with the water vapour which can escape from the centre of the top of the appliance. Safe operation site The operation site must meet the follow- ing requirements to ensure safe and trouble-free operation of the appliance: The operating surface of the appliance must be solid, dry, level and both water and heat resistant. The immediate surroundings of the appliance must not be hot, wet or very damp. The socket must be easily accessible so that the mains connection can be disconnected quickly. Furniture surfaces may possibly con- tain substances which could affect the feet of the appliance, causing them to soften. Place another material under the feet of the appliance if needed.EN Pizza-FiXX BEEM – Elements of Lifestyle 19 Getting started Unpacking Proceed as follows:

1. Take the appliance, all accessories

and the user manual out of the box.

2. Remove all packaging material and

protective films from the appliance and the accessories before using them for the first time. Do not remove the type plate or any warning notices. If possible, keep the original packag- ing for the duration of the appliance’s warranty period so that the appliance can be packaged properly in the event of a warranty claim. Shipping damage voids the guarantee or warranty. Checking the scope of supply Proceed as follows:

1. Check the contents for completeness

and visible damage. Do not operate a damaged appliance.

2. Notify your supplier promptly in case

of an incomplete or damaged delivery. Power connection The following regulations for the electrical supply must be observed to ensure safe and trouble-free operation of the appli- ance:

1. Be certain that the appliance can be

connected to a properly installed pro- tective conductor electrical system. Operation using a socket without an earth conductor is not permitted. If in doubt, have the house mains network inspected by an electrician. The man- ufacturer assumes no responsibility for damage resulting from the absence or interruption of a protective earth conductor.

2. Before connecting the appliance,

compare the electrical data (voltage and frequency) on the type plate with that of your electrical mains network. These data must match to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

3. Be certain that the socket is protected

by at least a 10 A automatic circuit breaker.

4. Be certain that the power supply cord

is not damaged. Route the power supply cord in such a way that it poses no risk of stumbling. The power supply cord may not be routed over sharp edges and may not be pulled taut or kinked. The power supply cord must not come into contact with hot sur- faces. Before first use

1. Clean the appliance and the accesso-

ries as described in the chapter Cleaning and Care (page 23).Pizza-FiXX EN 20 BEEM – Elements of Lifestyle Appliance description (For illustrations, see the fold out page at the left.) 1 Motor unit 2 Cover with controls 3 Pizza pan 4 Pizza stone 5 Mains indicator lamp 6 Temperature control 7 Cooking time control 8 Cooking mode control 9 Temperature indicator lamp 10 User manual (not shown) Controls Temperature control (6) Infinitely adjustable from 0 - 250° C Cooking time control (7) Infinitely adjustable from 0 - 60 minutes Cooking mode control (8) Appliance is shut off Upper heat Lower heat Upper and lower heatEN Pizza-FiXX BEEM – Elements of Lifestyle 21 Operation and controls WARNING Risk of burns due to hot surfaces Only grasp the appliance by the plas- tic handle. WARNING Risk of scalding due to escaping water vapour Avoid contact with the water vapour which can escape from the centre of the top of the appliance. Proceed as follows:

1. Open the cover (2) of the oven.

2. Place the pizza pan (3) or the pizza

stone (4) into the appliance. When using the pizza pan, make sure that it runs correctly in the track. When using the pizza stone, preheat it for 10 minutes at 250° C using lower heat ( ).

3. Place the food to be cooked onto the

pizza pan or pizza stone.

5. Put the mains plug into the socket.

The mains indicator lamp (5) illuminates.

6. Set the desired temperature. The

temperature indicator lamp (9) is illu- minated when the appliance is heating and goes out when the selected temperature has been reached.

7. Set the cooking mode and the cooking

8. Occasionally check the condition of

the food through the window in the cover or by briefly opening the cover.

9. When the food has been cooked to

satisfaction, set all controls to (0). The appliance is now shut off.

10. Unplug the mains plug from the sock-

12. Remove the food.

13. Allow the appliance to cool down with

the cover open.Pizza-FiXX EN 22 BEEM – Elements of Lifestyle Possible uses Please bear in mind that the values shown below are only approximate guidelines. Cooking times will vary depending on the size and thickness of the foods. Use an oven-proof dish or pan for ready meals. Fresh meat will become crispier if you drizzle some oil over it. Frozen foods should be thawed beforehand. Food Cooking temperature Cooking mode Cooking time Pizza, ready made, on the pizza pan 200-225° C 7-9 min Pizza, ready made, on the pizza stone Preheat 250° C 10 min Bake 200-225° C 5-7 min Cake, biscuits, toast, ready made 200-225° C 15-25 min Potato products 200-225° C 15-20 min Ready meals, in an oven-proof dish or pan about 200° C 10-20 min Meat, fresh about 250° C 10-20 minEN Pizza-FiXX BEEM – Elements of Lifestyle 23 Cleaning and care Housing and pizza pan DANGER Hazard due to electrical current! Never immerse the motor unit (1) or the mains plug in water or other liq- uids. Never hold the motor unit (1) under running water. WARNING Risk of burns due to hot surfaces Allow the appliance to cool down be- fore cleaning. Proceed as follows:

1. Unplug the mains plug from the sock-

2. Wipe off the housing with a damp

3. Clean the pizza pan in warm

washing-up water. Do not use a metal scourer or an abrasive sponge for cleaning the pizza pan.

4. Thoroughly dry all parts after cleaning

and before placing them back into the appliance. Pizza stone Proceed as follows:

1. Allow the pizza stone to cool.

2. Remove light soiling with a damp

cloth. A scouring pad may be used to remove stubborn spots.

3. Afterwards, wipe it down with a damp

cloth. PLEASE NOTE: The pizza stone is not dishwasher safe. Storage If you do not need the appliance for a longer period of time, clean it as described in the chapter Cleaning and care (page 23). Store the appliance and all accessories in a clean, dry and frost-free location pro- tected from direct sunlight.Pizza-FiXX EN 24 BEEM – Elements of Lifestyle Simple troubleshooting The following table is intended to help in identifying and remedying small problems: Problem Possible cause Remedy The appliance does not work after operating the controls. Plug not plugged in. Plug it in. Automatic circuit breaker in the electrical system switched off. Switch on the circuit break- er. The internal safety switch has shut the appliance off due to overheating. Allow the appliance to cool down. The automatic circuit breaker in the electrical system triggers. Too many appliances con- nected to the same power circuit. Reduce the number of ap- pliances in the power circuit. No problem can be identi- fied. Contact customer service. If you are unable to remedy the problem using the above steps, please contact the cus- tomer service department. Spare parts and accessories Item* Part no. Designation 3 90081 6001 Pizza pan 4 90081 6006 Pizza stone *Number according to the appliance description. Technical data Model Pizza oven Pizza-FiXX Type number B 28.001 Dimensions (W x H x L) 370 x 215 x 440mm Weight, approx. 5.42 kg Operating voltage 220-240 V Mains frequency 50 Hz Power 1000 W Protection class IFR Pizza-FiXX BEEM – Elements of Lifestyle 25 Table des matières Informations générales ......................
