USER MANUAL Force 2070 Eurom

Instruction manual (EN) (page 9)

Three different types of industrial vacuum dampers displayed side by side, no visible text or labels.

Force 1240 - 2070 - 3080 wet/dry

Art.nr. 161311 - 161342 - 161373

Dank

Labeled diagram of a vacuum cleaner with numbered parts for identification

2070:

Labeled diagram of a vacuum cleaner with numbered parts for identification

3080:

Labeled diagram of a vacuum cleaner with numbered parts for identification

Technical line drawing of a vacuum cleaner with three labeled components (no text or symbols present)

Let op!

Person handling a large cylindrical container with a mesh basket, mounted on a metal frame (no visible text or symbols)

Exterior view of a stainless steel industrial fan or pressure vessel with wheels and handle (no text or symbols visible)

Symbol of a trash bin crossed with no visible text or labels

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Force vacuum cleaner!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Technical specifications

Model	1240 wet/dry	2070 wet/dry	3080 wet/dry
Tension	230V / 50Hz	230V / 50Hz	230V / 50Hz
Power	1200	2000	3000
Vacuum	>180 mbar	>200 mbar	>200 mbar
Air flow	45 l/s	106 l/s	150 l/s
Capacity barrel	40 l (SS)	70 l (SS)	80 l (SS)
Filter	Clothfilter
Cable - length	10 m
Flexible hose	260 cm
Suction tube	Curved - 67 cm (2x)
Accessoires	Dry floor nozzle
	Wet floor nozzle
	Dust brush
	Crevice tool
Weight	10,5 kg	23,8 kg	25 kg
Dimensions	46 x 46 x 71 cm	58,5 x 57,3 x 89 cm	58,5 x 57,3 x 99 cm

Important safeguards

1. Before use, check if the voltage complies with the specifications marked on the voltage label attached at the vacuum cleaner.
2. Before use, please check the vacuum cleaner, the power cable and plug for damage. Do not use a damaged machine!
3. Do not use extension cords with inadequate current carrying capacity.
4. Do not use outdoors!
5. Keep the machine away from strong sunlight, ovens, stoves and high temperatures. That can distort the plastic.
6. Don't use the appliance in flammable ambience, such as near by combustible gastanks, gastubes or spray cans. Danger of explosion and fire!

7. Do not use vacuum cleaner EUROM Force to pick up:

8. Burning, smoking or hot objects, such as coal and hot ash, glowing cigarettes and match, etc.

9. to large objects
10. sharp objects like nails, parts of glass etc.
    • volatile liquid, combustible gas, acids, explosive garbage, etc.
    • dangerous materials like asbestos etc.
11. flammable or combustible liquids such as gasoline. Don't use the cleaner in areas where they may be present.

12. Material which easily attach on the filter as calcareousness powder, gesso and graphite powder. That will block the ventilation and damage the motor.

13. Make sure that never water enters the barrel cap; water in the motor can cause damage or personal injury. For the same reason do not overturn the machine when you draw liquids.

14. Never use this unit as a pump!
15. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce the airflow. Do not keep your hand on the air-intake!
16. Use extra care when cleaning on stairs.
17. Do not wrest, tramp or haul the hose. Do not use the hose if it is broken.

18. Do not pull or carry the vacuum cleaner by its cord. Never close the door on the cord, or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord and don't walk over it. Keep the cord away from heated surfaces.

19. Turn off the equipment before unplugging.

20. Always switch off and unplug the vacuum cleaner when you stop the work, leave the room and before emptying the barrel or maintaining/cleaning the equipment.
21. Do not unplug by pulling the cord. To unplug, grasp the plug, not the cord.
22. Do not touch plug and/or cable with wet hands and don't use the vacuumcleaner without wearing shoes.
23. Do not use this unit for more than 4 hours (including rest breaks) on any given day.
24. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
25. Children should be supervised to ensure that they do not play with the appliance.
26. Use only as described in this manual. Use only manufacturers' recommended attachments.
27. Store your cleaner indoors in a cool, dry area.
28. If the vacuum cleaner, the power cord or the plug becomes damaged or dysfunctions, do not use the vacuum cleaner anymore, but take it to an authorized service agent to be repaired. Never repair it by yourself, that lets expire the guarantee and the responsibility of supplier.

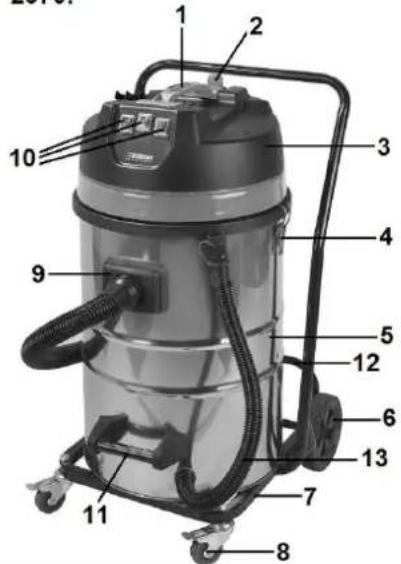

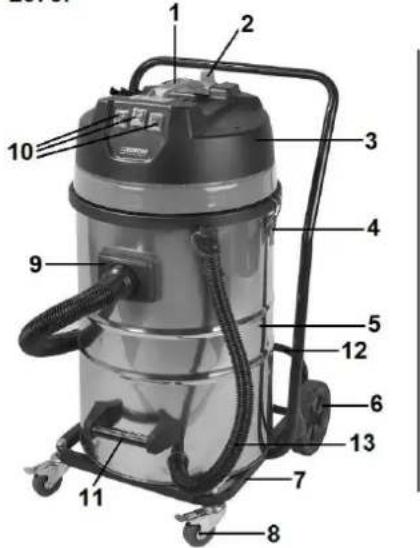

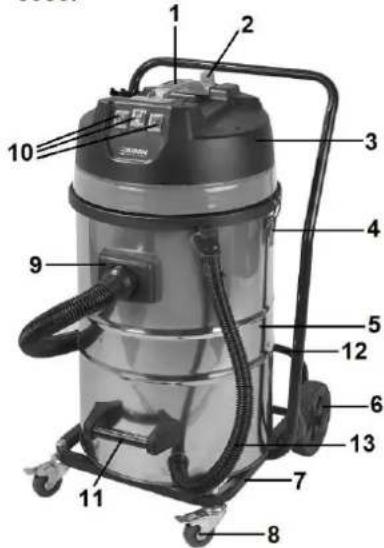

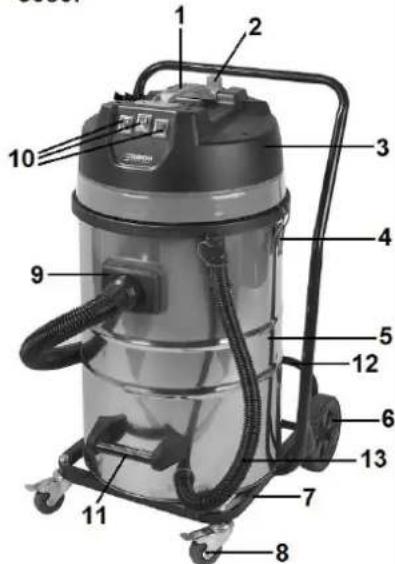

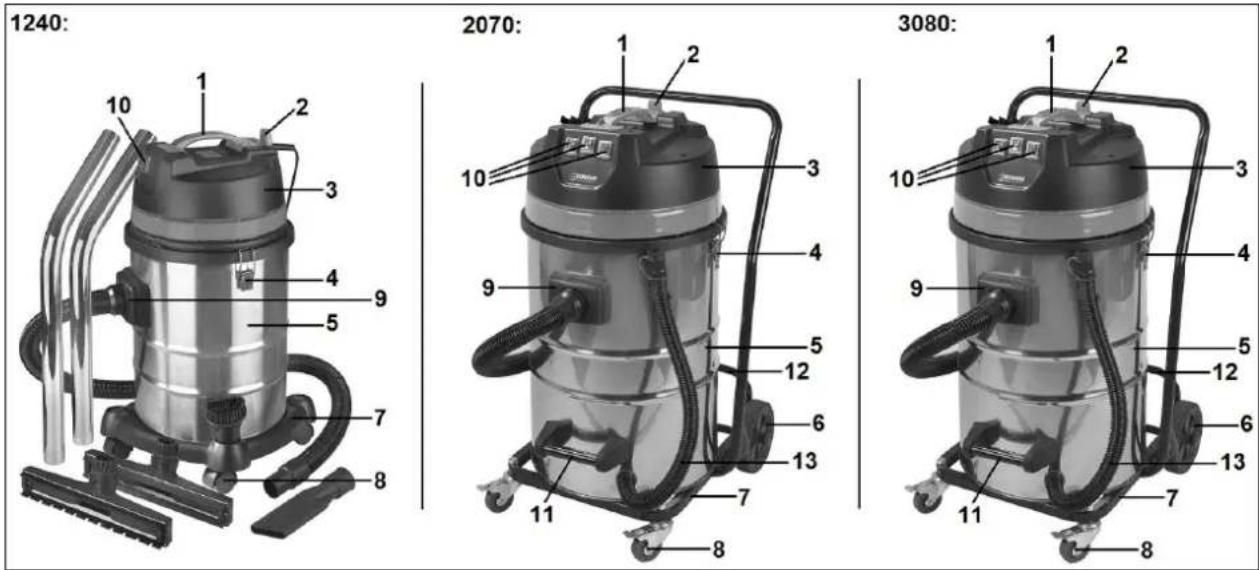

Parts name

1240: 10 1 2 3 4 5 9 7 8 2070: 1 2 3 4 9 5 12 6 13 7 11 8 3080: 10 2 3 4 5 12 6 13 7 11 8

1. handle
2. cable suspension, cable and plug
3. cap (with motor)
4. lock (2x)
5. barrel
6. big wheel (2x)
7. pedestal
8. little castor (2x, 1240: 4x)
9. connection hose
10. ON / OFF - switch(es)
11. Tipping handle
12. Tipping shackle
13. Drain hose

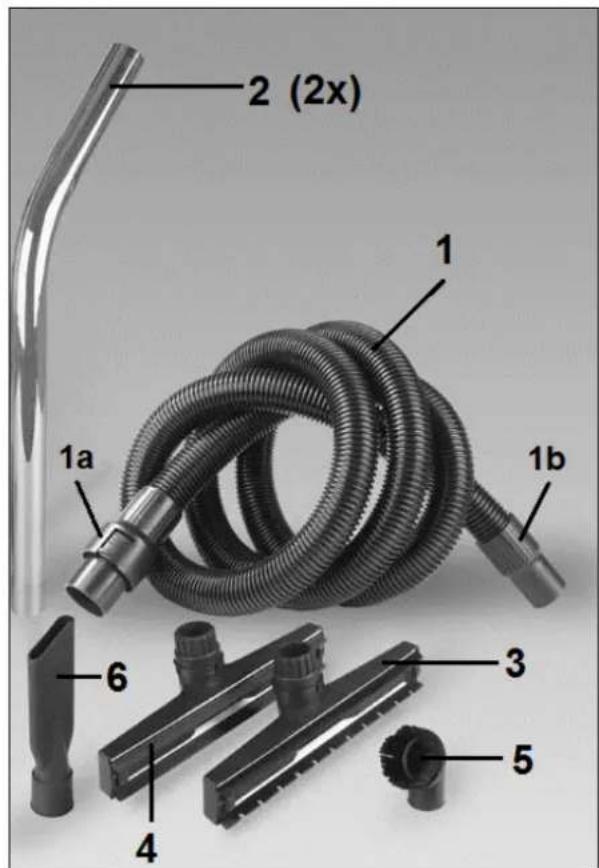

Standard accessories

1. Hose 1a - machine connection 1b - tube connection
2. Tube (curved)(2x)
3. Dry floor nozzle
4. Wet floor nozzle
5. Dust brush
6. Crevice nozzle

2 (2x) 1 1a 1b 3 5 4 6

Operation

- Put the machine-connection of the hose in the machine till the narrow part is in total in the machine and clicks. Pressing the ribbed clamps on the connector will

enable you to disconnect the hose.

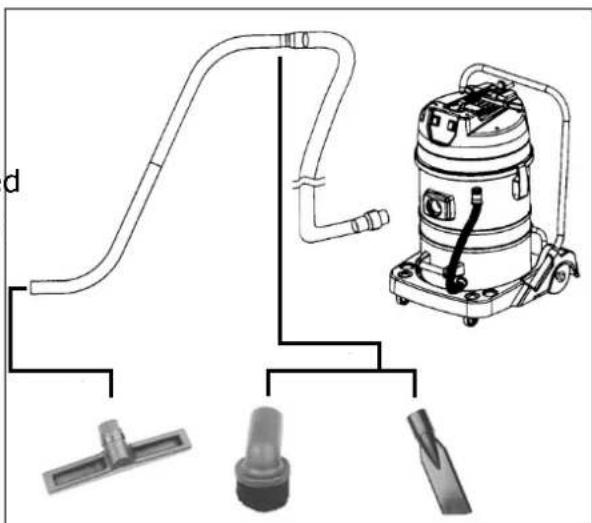

• After this, connect the accessories you wish with a twisting force, see picture.

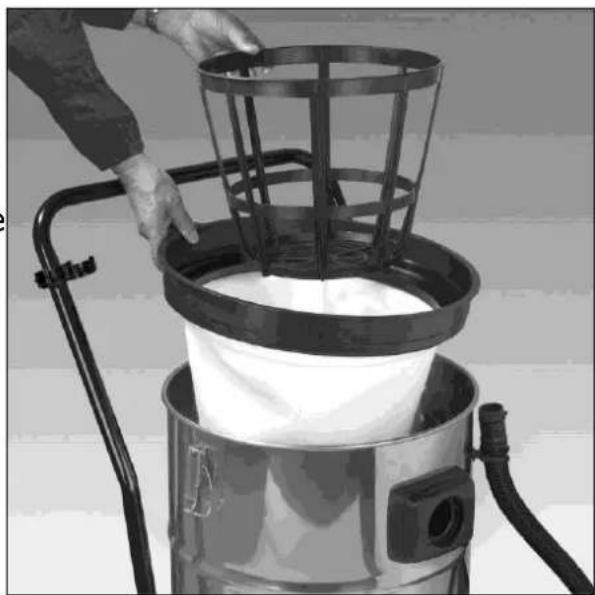

- For the vacuuming of liquid the motor (which is situated in the cap) is provided with a floater that is hanging under the motor, in the barrel. For the vacuuming of dry dirt and dust the motor is provided with a filter with a basket that the floater surrounds and in that way prevents that dust enters the mechanic system (see picture). Do you want to vacuum liquid, remove than the filter wit basket by

d

opening the locking blocks, to lift and turn the cap and remove the filter with basket. Bring the cap back in its position and close the blocks.

- Be careful!

√ Never vacuum dust without the filter with basket around the floater!

√ Never vacuum liquid with the filter with basket around the floater!

• Insert the plug into the socket.
• Press the switch on/off to I to turn on.

Type 1240 has 1 switch which is used to engage the power.

Type 2070 has 2 switches; each switch corresponds to 1000w of power.

type 3080 has 3 switches; each switch corresponds to 1000w of power.

- After use, switch the device off by pressing the switch(es) on/off to O and remove the plug from the socket. Wind the electrical cable around the cable hanger.

Type 1240: Place the accessories at the appropriate locations behind the device.

Person operating a large industrial dust collector with a mesh basket and pipe (no visible text or symbols)

Safeguards

If you are sucking up water and the container is full, a float will cut off suction. The motor will produce a noise that sounds like high revs but, in fact, the machine will no longer suck effectively. In this event, switch the unit off and remove the plug from the socket. Empty the container; you can then carry on using the device as normal.

Cleaning and maintenance

Before cleaning or maintenance: always switch off the equipment and unplug it.

Emptying the container

Dry: Bad suction usually points to a full container. Open the clips, lift the container cover and remove filter and basket. Empty the container.

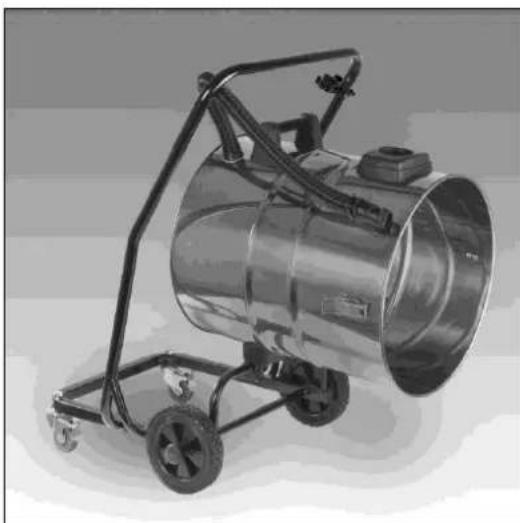

Types 2070 and 3080 are equipped with a tipping handle and a tipping bracket, see image.

Wet:

Types 2070 and 3080: Disconnect the drainage hose and empty it into a drain or similar. Remove the cap off the end of the hose. The container can now be emptied. In order to remove the final traces of moisture, tip the container, see image.

Exterior view of a stainless steel industrial fan or pressure vessel with wheels and handle (no visible text or symbols)

Type 1240: Open the clips and lift the container cover. Empty the container by pouring out any water.

After emptying, replace all parts in original positions.

Cleaning the filter

Clean the filter regularly by thoroughly tapping/brushing it clean. If the filter is very dirty, pull the fabric bag off the plastic ring and wash it in lukewarm, soapy water.

The bag may also be washed in the washing machine, on max. 30^ C. Use a mild washing product and pull the bag back into shape after washing. Let the filter dry thoroughly before replacing. Never put it in the tumble dryer!

Never use the device without a filter when you vacuum dry dust!

Maintenance

• Keep the body of the device, the filter and accessories clean and regularly check to ensure no excess air is being sucked in.
• Check the cable and plug regularly for damage. Do not use the device if it has a damaged cable and/or plug but take it to an authorised engineer to be replaced!
• Regularly check to ensure no objects are stuck in the suction mouth, hose or pipe. Remove them if necessary.
• Use the device carefully; ensure it does not fall, bump into other objects or become otherwise damaged.
• Store the device in a dry environment.
• Never use the device for too long in one go; give it regular opportunities to cool down. This will extend its life expectancy.
• If the device falters, vibrates, makes peculiar noises or emits a burning smell, stop using it immediately and ask your supplier or service provider to check/repair it.

Removal

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-statement

Herewith declares Eurom-Kokosstraat 20-8281 JC-Genemuiden-NL that the Eurom vacuum cleaners type Force 1240 - 2070 - 3080 wet/dry complies with the LVD, EMC and RoHS guideline and meets the following standards:

LVD 2014/35/EU :

EN 60335-1:2012+AC:2014+A11:2014+A13:2017

EN 60335-2-2:2010+A11:12+A1:13

EN 62233:2008

EMC 2014/30/EU:

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

RoHS 2011/65/EU&(EU)2015/863

Genemuiden, 14-07-2020

W.J. Bakker, alg.dir.

alaker.
