1220 - Vacuum Cleaner Eurom - Free user manual and instructions

Brand	Eurom
Model	1220
Product Type	Wet/Dry Vacuum Cleaner (Dust & Water)
Voltage	220-240 V ~ 50 Hz
Power Consumption	1200 W
Max Vacuum Pressure	≥ 170 mbar
Barrel Capacity	20 liters
Weight	6.3 kg
Dimensions (H x W x D)	49.5 x 36.5 x 39.5 cm
Intended Use	Household, hotel, offices and similar places
Included Accessories	Household floor brush (hard/soft floor positions), extension tube, hose, handle, filter, floater
Airflow Control	Sliding block on handle
Switch Protection	Waterproof cover
Dry Suction	Requires filter around floater; never use without filter
Wet Suction	Remove filter before use; floater automatically stops liquid intake when barrel full
Safety Precautions	Do not pick up burning, hot, sharp objects, volatile liquids, or hazardous materials; unplug before maintenance; do not use damaged cord
Filter Cleaning	Remove filter, open Velcro, clean with soft brush or water, air dry completely before reuse
Barrel Emptying	Empty regularly; when full with dust or when motor roars during wet suction
Storage	Store in original package in a cool, dry place
Certification	CE compliant with EMC Directive (2004/108/EC) and Low Voltage Directive (2006/95/EC)
Warranty	Invalid if self-repaired; take to authorized service agent

Frequently Asked Questions - 1220 Eurom

Can the Eurom 1220 vacuum cleaner be used for both dry and wet vacuuming?

Yes, it is a wet/dry vacuum cleaner. For dry vacuuming, always keep the filter around the floater. For wet vacuuming, remove the filter to allow the floater to function properly.

What should I do if the motor starts making a roaring noise during wet vacuuming?

This indicates the barrel is full of liquid and the floater has blocked further intake. Turn off the machine and empty the barrel immediately.

How do I clean the filter of the Eurom 1220?

Remove the filter by opening the locking blocks and turning the locker anti-clockwise. Then open the Velcro to separate the front filter. Clean both with a soft brush or rinse under gentle water. Let them dry completely before reassembling.

Can I vacuum hot ashes, sharp objects, or flammable liquids with this vacuum?

No. The manual explicitly warns not to pick up burning or hot objects, sharp items, volatile liquids, combustible gases, acids, explosive garbage, or hazardous materials like asbestos.

What should I do if the vacuum cleaner stops working?

First check that the power cord and plug are not damaged and that the voltage matches specifications. Ensure the barrel is not full and the filter is clean. If the problem persists, do not attempt self-repair; contact an authorized service agent.

How often should I empty the barrel for optimal performance?

Empty the barrel regularly. For dry dust, empty when full to prevent filter blockage. For liquid, empty before the motor roars (when the floater activates). Timely emptying ensures consistent performance.

Is it safe to use the Eurom 1220 without a filter?

For dry vacuuming, never use without the filter as it prevents dust from entering the motor. For wet vacuuming, you must remove the filter. Using the wrong configuration can damage the machine.

Does the warranty cover self-repair?

No. The warranty is void if you attempt to repair the vacuum cleaner yourself. Always take it to an authorized service agent.

How can I adjust the suction power of the vacuum?

Use the sliding block on the handle to adjust airflow. Slide it up or down to increase or decrease suction as needed.

What are the dimensions and weight of the Eurom 1220?

The dimensions are 39.5 x 36.5 x 49.5 cm and it weighs 6.3 kg.

USER MANUAL 1220 Eurom

Exterior view of a stainless steel vacuum cleaner with black handle and control knob (no text or symbols visible)

EUROM® 1220

stof/waterzuiger vacuum cleaner (dust/water)

DANK

Diagram of a mechanical device with arrows indicating flow or interaction (no text or symbols)

Line drawing of a cylindrical vacuum cleaner with attached filter bands (no text or symbols)

Simple line drawing of a curved object with a handle and protrusions (no text or symbols)

Pure diagram of a rotating mechanical component with no text or symbols

Simple line drawing of a hand holding a vacuum cleaner (no text or symbols)

Pure line drawing of a vertical structure with horizontal bands, no text or symbols present

Mechanical assembly diagram showing a rotating shaft and housing (no text or symbols)

Simple line drawing of a curved mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawings of two industrial equipment components (no text or symbols)

Simple line drawing of a cylindrical container pouring liquid into a slotted cylindrical object (no text or symbols)

Four technical illustrations of a mechanical component with rotation, water flow, sun, and rotating parts (no text or symbols)

Thank you very much for your choice for the EUROM 1220 dust&water vacuum cleaner. You made a good choice! We hope it will function to your full satisfaction.

To get the best from your vacuum cleaner it is important to read and understand this manual attentive and in total before use. Pay special attention at the safeguards: they are in this booklet to protect you and your environment!

Safe this manual so that you can consult it in the future, if necessary.

IMPORTANT SAFEGUARDS

Before use, check if the voltage complies with the specifications marked on the voltage label attached at the vacuum cleaner.
Before use, please check the vacuum cleaner, the power cable and plug for damage.
This appliance is to use for household, hotel, offices and similar places only. Industrial or commercial use may damage the machine and may invalidates the warranty.
Keep the machine away from the ovens, stoves, etc.
Do not use vacuum cleaner to pick up:

• Burning or hot objects, such as coal and hot ash, glowing cigarettes and match, etc.
• to large objects
• sharp objects like nails, parts of glass etc.
  • volatile liquid, combustible gas, acids, explosive garbage, etc.
  • dangerous materials like asbestos etc.

Do not wrest, tramp or haul the hose. Do not use the hose if it is broken.
➢ Never pull the vacuum cleaner by its cord or hose when moving, but use the handgrip or push it by hand.
Do not use without filter when you are vacuuming dry dirt.
The plug of the power cord must be removed from the wall socket before changing the bag or maintaining/cleaning the equipment.
Do not touch plug and/or cable with wet hands.
If there is foam or liquid out of the machine when picking up water, please turn off the machine immediately.
If the vacuum cleaner, the power cord or the plug becomes damaged or dysfunctions, do not use the vacuum cleaner anymore, but take it to an authorized service agent to be repaired. Never repair it by yourself, that lets expire the guarantee and the responsibility of supplier.
Do not let children use the machine.

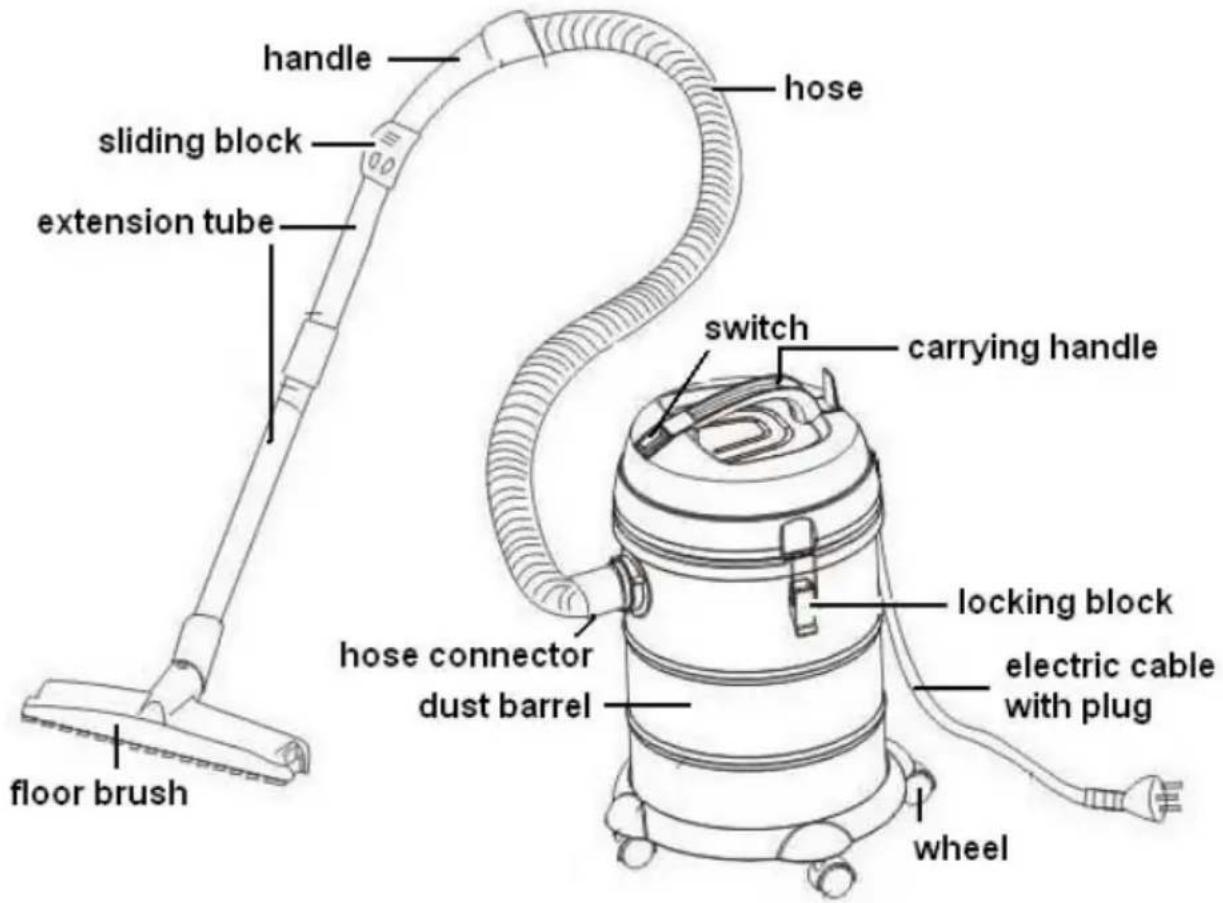

PARTS NAME

Standard accessories:

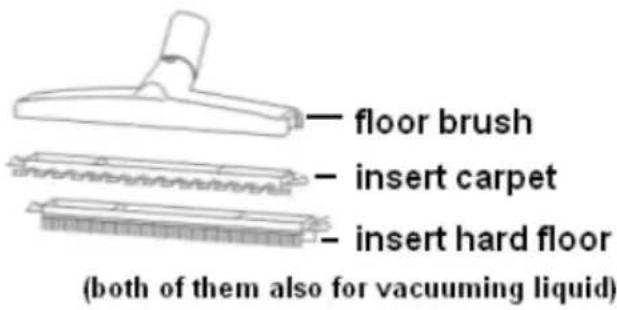

household floorbrush

with position for hard- and for soft floorcovering

dural storage

Diagram of a kitchen appliance with arrows indicating flow from a top component to a base (no text or symbols)

release the locking blocks, remove the cap from the barrel and take out the wheels and the accessories.

install the fouw wheels under the barrel.

Line drawing of a cylindrical mechanical device with attached clamps and wheels (no text or symbols)

insert the hose connector into the swivel of the vacuum cleaner.

insert the handle into the tube with a twisting force.

Simple line drawing of a curved tool or device with no text or symbols

Pure diagram of a rotating mechanical component with no text or symbols

insert the extension tube into the tube with a twisting force.

insert the extension tube into the floor brush with a twisting force

Simple line drawing of a vacuum cleaner with a rotating arm (no text or symbols)

Line drawing of a vertical stack of books or documents, no text or symbols present

dural storage

START AND WORKING

- Make sure that vacuum cleaner, power cable and plug are not damaged and that the voltage complains with the specifications on the label of the equipment.

- Decide what you want to suck up: dry dirt or liquid. For the vacuuming of liquid the motor (which is situated in the cap) is provided with a floater that is hanging under the motor, in the barrel. For the vacuuming of dry dirt and dust the motor is provided with a filter that the floater surrounds and in that way prevents that dust enters the mechanic system. Do you want to vacuum liquid, remove than the filter by opening the locking blocks, to lift and turn the cap and to open the locker of the filter by turning it anti-clockwise. Now you van remove the filter. Bring the cap back in its position and close the blocks.

Be careful!

Never vacuum dust without the filter around the floater!

Never vacuum liquid with the filter around the floater!

• Plug in.
• By pushing the switch on the cap of the vacuum cleaner you set the equipment in use.
• For safety reasons the switch is provided with a water-proof cover. When you once find this broken, please replace it.

Simple line drawing of a curved pipe or duct with an arrow indicating upward motion (no text or symbols)

• You can adjust the airflow by pushing the sliding block on the handle up and down.
• Remind! Before unplugging the power cord, turn off the power!

CLEANING AND SERVICE

Always switch off and unplug the fan before you clean it or do some ervice. s

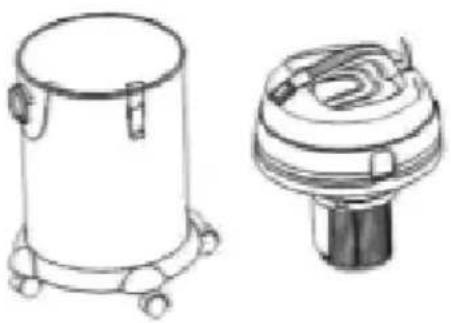

Emptying of the barrel

Empty the barrel regularly. If it gets to full with dust, the filter will get blocked and the cleaning results will decrease. If it gets to full with liquid, the floater will block further liquid-intake and the motor will start roaring. Don't wait till this point but empty the barrel in time!

Technical line drawing of two industrial equipment components: a cylindrical device and a coiled device (no text or symbols)

- Release the locking blocks and take the cap off.

• Empty the barrel.
• Put back the cap and fasten the locking blocks.

Simple line drawing of a cylindrical container with a lid and a funnel, emitting exhaust smoke from above (no text or symbols)

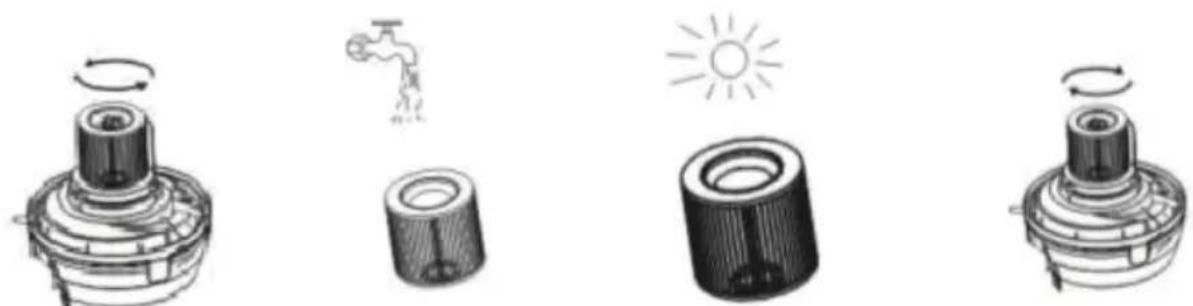

Cleaning the filter

The filter has to be free of dust and to let freely pass the air. A dusty filter decreases the sucking performances and makes the motor working to hard, which influences its life time negative. So clean the filter in time!

Four technical illustrations of a mechanical component with rotation, heat transfer, sun, and rotating parts (no text or symbols)

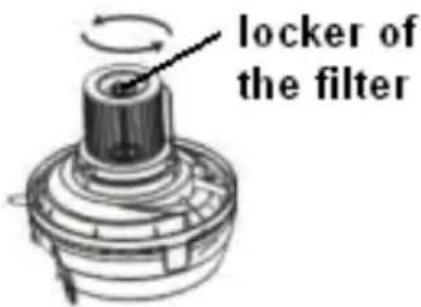

To clean the filter you have to open the locking blocks, lift the cap from the barrel and turn it upside down. Turn the locker of the filter

anti-clockwise open. Now you can remove the filter.

Around the real filter is a front-filter situated. Remove that by opening the Velcro. Clean both filter carefully with a soft brush or (another!) vacuum cleaner. Rinse it under a soft beam of water.

Let the filters dry by air till they are totally dry and place them back.

Close the filter locker, resituate the cap and close the clips.

Storage

When you want to store the vacuum cleaner for a longer period, put it back in the original package (most safe) and store it on a safe and dry place, not extremely warm or cold.

TECHNICAL FEATURES

Model	EUROM	1220
Voltage 220 – 240V / 50Hz		Watt
Power	1200
Vacuum ≥ 170 mbar
Barrel capacity 20 liter
Weight	6,3 kg
Dimensions 39,5 x 36,5 x 49,5 cm

CE - VERKLARING / CE - DECLARATION

Complies with the requirements of the EMC Directive (2004/108/EC) and the Low Voltage Directive 2006/95/EC.

Testnormen:/ Test standards:

EN 55014-1:2006

EN 55014-2:1997/+A1 :2001

EN 61000-3-2:2006

EN 61000-3-3:1995/+A1:2001/+A2:2005

EN 60335-2-2 :2003+A1 :04+A2 :06

IEC 60335-2-2 :2002+A1+A2

EN 60335-1 :2002 :A11,A1 :04+A12,A2 :06

IEC 60335-1 :2001+A1+A2

EN 50366 :2003+A1 :06

Abstract line drawing with intersecting curves and a triangular shape (no text or symbols)

Abstract geometric pattern with stacked rectangular blocks in white and black (no text or symbols)

EUROMAC BV.

Kokosstraat 20,

8281 JC Genemuiden

tel. [phone] fax [phone]

e-mail: [e-mail] www.euromac.nl
