USER MANUAL Force 1430S Eurom

Black-and-white photo of a vacuum cleaner with attached hoses and connectors (no visible text or symbols)

Force 1430S wet/dry

Art.nr. 16.133.5

NL Stofzuiger

EN Vacuum cleaner

DE Staubsauger

FR Aspirateur

NL

DANK

Labeled diagram of a vacuum cleaner with numbered parts for identification

Line drawing of a vacuum cleaner with attached circuit board and power strip (no text or symbols)

Close-up of a hand pressing down on a black plastic component with a curved arrow indicating rotation (no text or symbols)

Tankdrain

Close-up of a vacuum cleaner's arm and back panel, showing internal components (no text or symbols visible)

OPRUIMEN

Diagram showing a hand holding a textured object and a device with a black arrow pointing to a component (no text or symbols present)

Ketel ledigen

Line drawing of a two-step industrial vacuum cleaner device with no text or symbols

Filter reinigen

Thank you very much for your choice for the EUROM Force vacuum cleaner. You made a good choice! We hope it will function to your full satisfaction.

To get the best from your vacuum cleaner it is important to read and understand this manual attentive and in total before use. Pay special attention at the safeguards: they are in this booklet to protect you and your environment!

Safe this manual so that you can consult it in the future, if necessary.

TECHNICAL SPECIFICATIONS

Model	EUROM Force 1430S Wet/dry
Tension	230V / 50Hz
Power	1400 Watt
Vacuum	180 mbar
Air flow	30 l/s
Capacity barrel	30 liter (SS)
Filter	HEPA
Filter cleaning system	+
Socket	Max. 2000 W
Cable - length	7 m.
Flexible hose - length	2,6 m. with curved pipe – 32 mm
Suction tube	telescope – till 116,6 cm.
Accessoires	combi floorbrush
	dust brush
	crevice tool
Gewicht	8,5 kg
Afmetingen	41 x 35 x 71 cm

IMPORTANT SAFEGUARDS

1. Before use, check if the voltage complies with the specifications marked on the voltage label attached at the vacuum cleaner.
2. Before use, please check the vacuum cleaner, the power cable and plug for damage. Do not use a damaged machine!
3. Do not use extension cords with inadequate current carrying capacity.
4. Do not use outdoors!
5. Keep the machine away from strong sunlight, ovens, stoves and high temperatures. That can distort the plastic.
6. Don't use the appliance in flammable ambience, such as near by combustible gastanks, gastubes or spray cans. Danger of explosion and fire!
7. Do not use vacuum cleaner EUROM Force to pick up:

☐ Burning, smoking or hot objects, such as coal and hot ash, glowing cigarettes and match, etc.
to large objects
☐ sharp objects like nails, parts of glass etc.
☐ volatile liquid, combustible gas, acids, explosive garbage, etc.
☐ dangerous materials like asbestos etc.
flammable or combustible liquids such as gasoline. Don't use the cleaner in areas where they may be present.
Material which easily attach on the filter as calcareousness powder, gesso and graphite powder. That will block the ventilation and damage the motor.

1. Make sure that never water enters the barrel cap; water in the motor can cause damage or personal injury. For the same reason do not overturn the machine when you draw liquids.

2. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce the airflow.

3. Use extra care when cleaning on stairs.

4. Do not wrest, tramp or haul the hose. Do not use the hose if it is broken.

5. Do not pull or carry the vacuum cleaner by its cord. Never close the door on the cord, or pull the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord and don't walk over it. Keep the cord away from heated surfaces.

6. Turn off the equipment before unplugging.

7. Always switch off and unplug the vacuum cleaner when you stop the work, leave the room and before emptying the barrel or maintaining/cleaning the equipment.

8. Do not unplug by pulling the cord. To unplug, grasp the plug, not the cord.

9. Do not touch plug and/or cable with wet hands and don't use the vacuumcleaner without wearing shoes.

10. Ensure you turn the unit off at very minimum every 15 minutes (for 1 minute) to let the motor cool down – failure to do so may cause motor failure!

11. Do not use this unit for more than 4 hours (including rest breaks) on any given day.

12. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

13. Children should be supervised to ensure that they do not play with the appliance.

14. Use only as described in this manual. Use only manufacturers' recommended attachments.

15. Store your cleaner indoors in a cool, dry area.

16. If the vacuum cleaner, the power cord or the plug becomes damaged or dysfunctions, do not use the vacuum cleaner anymore, but take it to an authorized service agent to be repaired. Never repair it by yourself, that lets expire the guarantee and the responsibility of supplier.

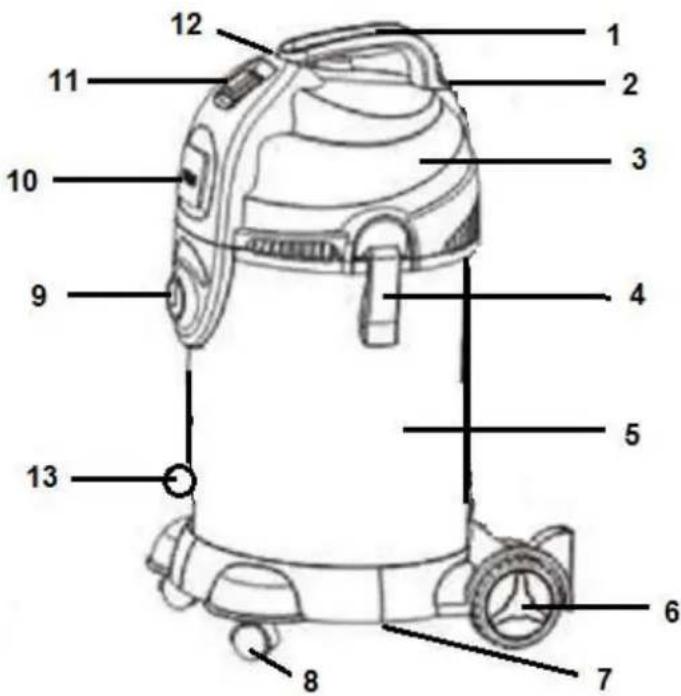

PARTS NAME

Labeled diagram of a vacuum cleaner with numbered parts for identification

1. handle
2. cable suspension, cable and plug
3. cap (with motor)
4. lock (2x)
5. barrel
6. big wheel (2x)
7. base
8. little castor (2x)
9. connection hose
10. socket
11. ON / OFF - switch

12. filter cleaning button

13. tank drain

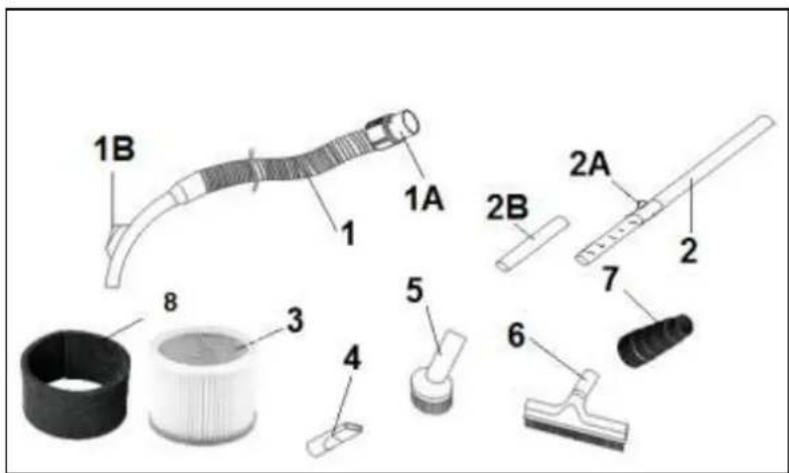

Standard accessories:

1. Hose

1A. Hose connection
1B. Sliding block airflow
2. Telescope tube
2A. Sliding block telescope
2B. Extension telescope tube
3. HEPA filter
4. Crevice nozzle
5. Dust brush
6. Combi floorbrush
7. Adapter tools
8. Water filter

Exploded view diagram of a mechanical assembly with labeled parts including tubes, rollers, and washers

OPERATION

• Put the hose connection in the machine; if necessary, turn it a bit till the narrow part is in total in the machine. Then turn it as far as possible clockwise.

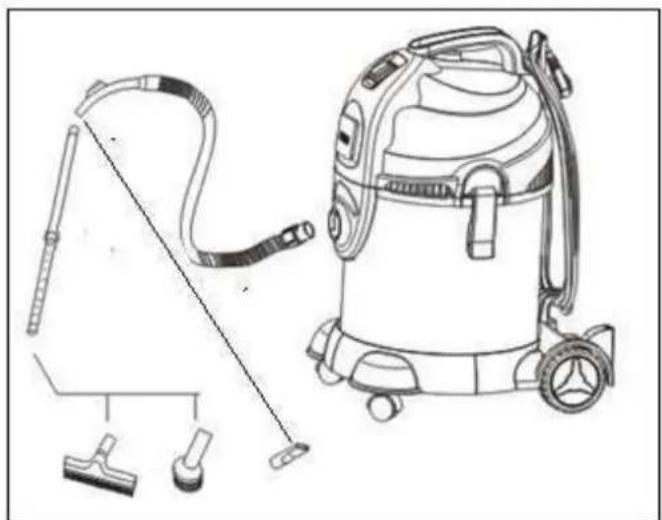

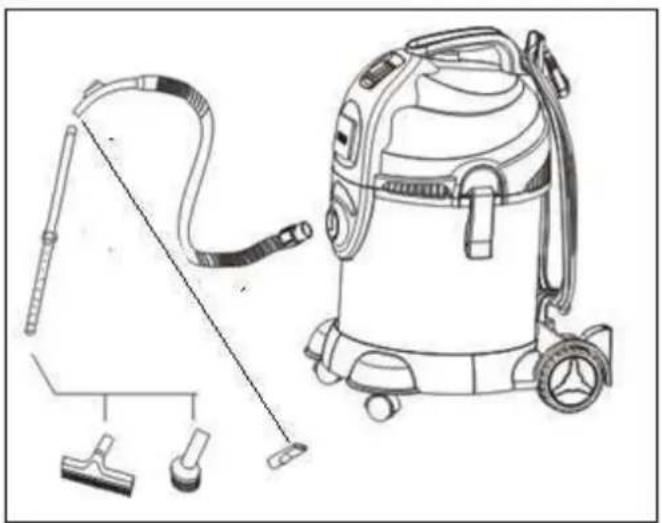

• After this, connect the accessories you wish with a twisting force, see picture.

Line drawing of a vacuum cleaner with attached circuit breakers and a handle (no text or symbols)

• You can adjust the telescope tube by pushing the sliding block 2A down and and tracking/pushing the lowest tube to the length you wish.
• Insert the plug into the earthed socket.
• Press the switch on/off to I to turn on.
• You can adjust the airflow by pushing the sliding block 1B up and down.
• If necessary, due to the surface and task, the hair or rubber strips can be removed from the suction mouth. In order to do so, slide the discs on the suction mouth outwards, take the strip holder from the suction mouth, slide the excess strip out and

replace the holder.

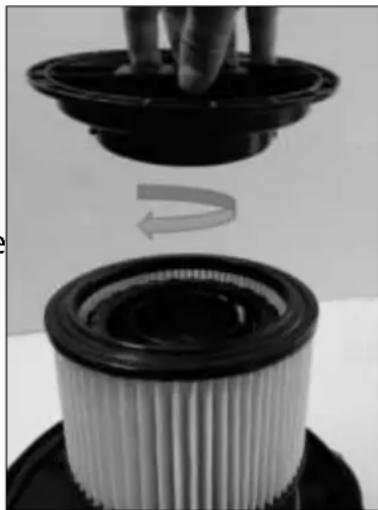

- For the vacuuming of liquid the motor (which is situated in the cap) is provided with a floater that is hanging under the motor, in the barrel. For the vacuuming of dry dirt and dust the motor is provided with a filter that the floater surrounds and in that way prevents that dust enters the mechanic system. Do you want to vacuum liquid, remove than the filter by opening the locking blocks, to lift and turn the cap, to turn the lid from the filter (see image), and to slide the filter from the floaters frame. Now you can remove the filter. Bring the cap back in its position and close the blocks.

1B

Close-up of a hand pressing down on a black plastic component with a curved arrow indicating rotation (no text or symbols)

- Be careful!

• Never vacuum dust without the Hepa filter around the floater!
• Never vacuum liquid without the water filter around the floater!

Tank drain

The Force 1430S has the possibility to drain the sucked-up water by the tank drain at the barrel. For this purpose, place the device at a sink or something like that and loosen the tank drain: the water is now running away. Finally tighten the cap firmly again.

Socket

In order to use the socket, you must lift the lid and insert the plug into the socket. Then use the ON/OFF switch to select the appropriate setting:

I = device works, power from socket

O = device off, power to socket (max. 2000W)

II = Power to socket, connected device will work. After 5-8 seconds the vacuum clean will start. If the connected device is switched off, the vacuum cleaner will also stop after 5-8 seconds.

Extra paper filter

An extra paper filter (dust bag) is supplied with the device. You are advised to replace the HEPA filter with this filter if you intend to clean very fine particles, e.g. in the event of drilling or sanding work. This will prevent you from having to clean the HEPA filter during this type of work.


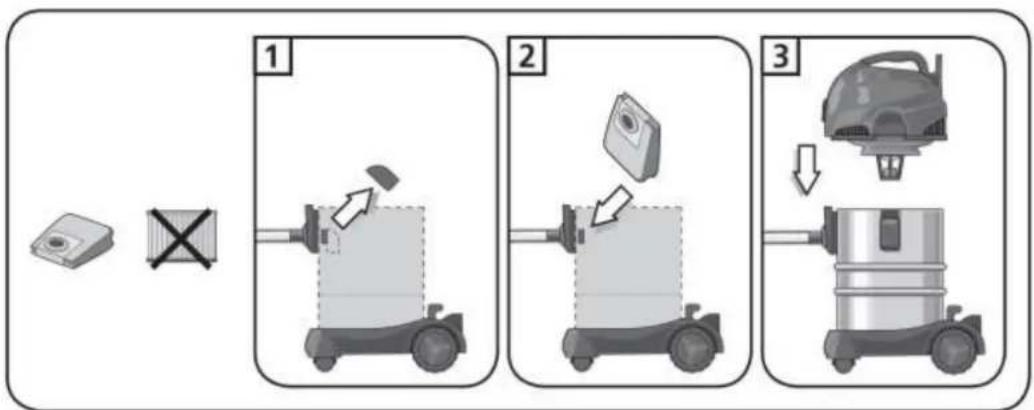

Install the paper dust bag as follows:

• Remove the HEPA filter (see: Cleaning the filter)
• Remove the 'knee' on the air inlet within the drum
• Slide the opening in the paper dust bag over the air intake opening
• Secure the cover (without HEPA filter, secure with clamps)

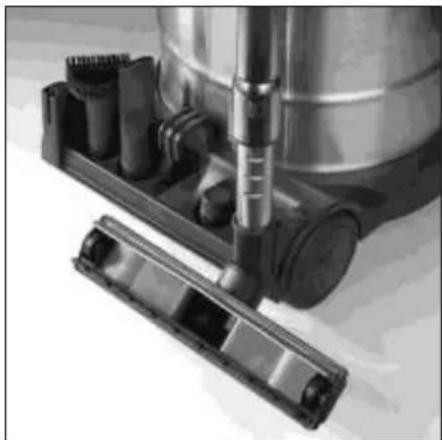

CLEANING UP

Switch the device off and remove the plug from the socket. Wind the electrical cable around the cable hanger; the upper section provides a groove into which you can wedge the plug. Place the accessories at the appropriate locations behind the device, see image.

Close-up of a vacuum cleaner's interior with attached circuit board (no visible text or symbols)

CLEANING AND MAINTENANCE

Before cleaning or maintenance: always switch off the equipment and unplug it.

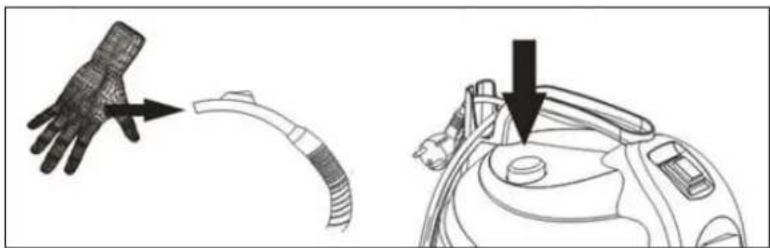

Filter cleaning system

When you feel that the suction is getting weaker, please remove the tube and jam the hose by hand (while the equipment is working). Then press the filter cleaning button 10-15 times: this will clean the filter and recover the suction force.

Diagram showing a hand holding a textured object and a device with a black arrow pointing to a component (no text or symbols present)

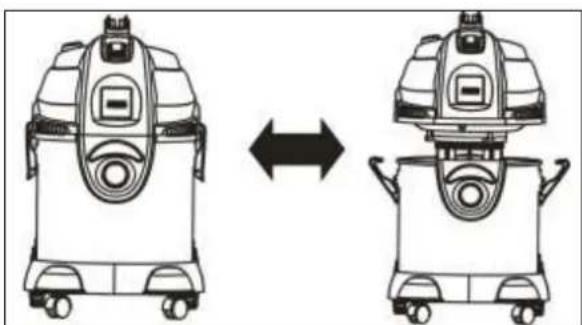

Emptying barrel

Open both the locking blocks (4) en take the up housing from the vacuum cleaner. Remove the dust out of the barrel and clean the barrel if

Diagram showing two identical mechanical devices with wheels and a bidirectional arrow indicating transformation (no text or symbols present)

necessary. At the end, place back the up housing and close the locking blocks.

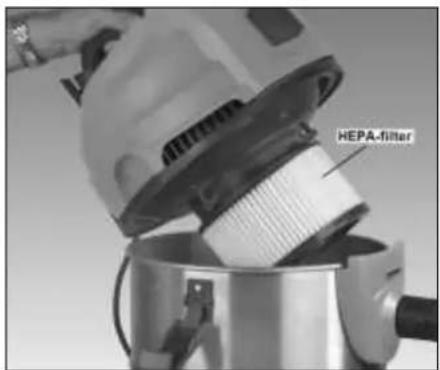

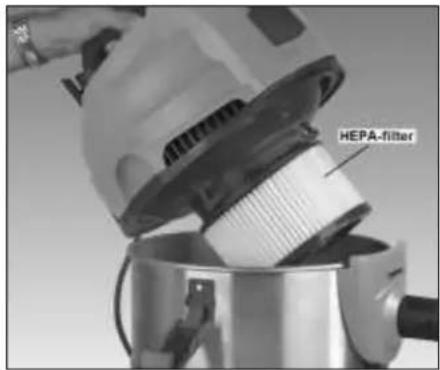

Cleaning the filter

Clean the filter regularly. Open both clips and remove the lid of the vacuum cleaner. Turn the lid from the filter, slide the HEPA filter off the frame and carefully wash with lukewarm water. Do not use any aggressive or abrasive cleaning agents!

Let the filter dry thoroughly before replacing. Never use the device without a filter!

Close-up of a HEPA-filter filter component in a kitchen appliance (no visible text or symbols)

Maintenance:

• Keep the body of the device, the filter and accessories clean and regularly check to ensure no excess air is being sucked in.
• Check the cable and plug regularly for damage. Do not use the device if it has a damaged cable and/or plug but take it to an authorised engineer to be replaced!
• Regularly check to ensure no objects are stuck in the suction mouth, hose or pipe. Remove them if necessary.
• Use the device carefully; ensure it does not fall, bump into other objects or become otherwise damaged.
• Store the device in a dry environment.
• Never use the device for too long in one go; give it regular opportunities to cool down. This will extend its life expectancy.
• If the device falters, vibrates, makes peculiar noises or emits a burning smell, stop using it immediately and ask your supplier or service provider to check/repair it.

CE - STATEMENT

Euromac bv., Genemuiden-NL hereby declares that the EUROM FORCE vacuum cleaner type 1430S wet/dry complies with the LVD guideline 2014/35/EU and the EMC guideline 2014/30/EU and meets the following standards:

EN 60335-2-2 :2010+A11:2012+A1 :2013

EN 60335-1 :2012+A11 :2014

EN 62233 :2008

EN 55014-1 :2006+A1 :2009+A2 :2011

Labeled diagram of a vacuum cleaner with numbered parts for identification

Exploded view diagram of a mechanical assembly with labeled parts including tubes, rollers, and washers

Line drawing of a vacuum cleaner with attached circuit board and power tool (no text or symbols)

Close-up of a hand pressing down on a black plastic component with a curved arrow indicating rotation (no text or symbols)

- Achtung!

Close-up of a vacuum cleaner's clamped device with attached circuit board (no visible text or symbols)

Diagram showing a hand holding a mesh object and a device with a handle, both without any text or symbols.

Diagram showing two identical mechanical devices with wheels and a bidirectional arrow indicating transformation (no text or symbols present)

Close-up of a HEPA-filter presser in operation, showing material being inserted into a metal mixing bowl (no text or symbols visible)

Wartung:

Labeled diagram of a vacuum cleaner with numbered parts for identification

Exploded view diagram of a mechanical assembly with labeled parts including tubes, rollers, and fasteners

Line drawing of a vacuum cleaner with attached circuit board and power cord (no text or symbols)

Diagram of a mechanical component with a labeled part '1B' and directional arrow (no text or symbols beyond label)

Close-up of a hand pressing down on a black plastic component with a curved arrow indicating rotation (no text or symbols)

- Attention!

Close-up of a vacuum cleaner's clamped device with a metallic cylindrical component (no visible text or symbols)

Diagram showing a hand holding a curved object and a device with a handle, both without any text or symbols.

Diagram showing two identical robot-like devices with wheels and control panels, connected by an arrow indicating transformation (no text or symbols present)

Nettoyage du filtre

Close-up of a HEPA-filter filter component being placed into a metal mixing bowl (no text or symbols visible)

Entretien :
