| Product type | Steam mop |
| Brand | BEEM |
| Model | KingmopSuperclass |
| Dimensions (H x L x D) | 114 x 29 x 19 cm |
| Weight | approx. 2.8 kg |
| Power supply | 220-240 V ~ 50 Hz |
| Power consumption | 1500 W |
| Tank capacity | 600 ml (max) |
| Protection class | I |
| Protection type | IP24 |
| Steam adjustment | Yes (min / max) |
| Operating mode | Continuous or steam burst |
| Included accessories | Cloth kit (2x microfiber, 1x coral), filling cup, carpet accessory, anti-scale filter, fixing screw |
| Floor use | Tile, parquet, carpet (with accessory) |
| Cloth care | Machine washable at 60°C, without fabric softener |
| Anti-scale filter | Replacement recommended every 3 to 6 months |
| Warranty | 2 years |
| Certifications | CE, SGS, RoHS |
Frequently Asked Questions - KingmopSuperclass BEEM
User questions about KingmopSuperclass BEEM
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Steam cleaner in PDF format for free! Find your manual KingmopSuperclass - BEEM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. KingmopSuperclass by BEEM.
USER MANUAL KingmopSuperclass BEEM
Steam brush
Balai à vapeur
Stoombezem
Close-up of a black rotary dial with MAX and MIN labels (no additional text or symbols)natural_image
Close-up of a white oval-shaped object with horizontal lines and a small cloud-like symbol at the bottom (no text or symbols visible)natural_image
Close-up of a medical or laboratory device with a mechanical component being inserted (no visible text or symbols)natural_image
Close-up of a screwdriver tool interacting with a mechanical component, showing a close-up of the tip and a circular inset view (no text or symbols)DE
Vorbereitungen
Three-step photo showing a hand holding a ball with a cloth, being adjusted for the ball's press (no text or symbols visible)Tank befüllen
DE
ACHTUNG
240ms—MAXnatural_image
Hand holding a black mug against a white wall (no text or symbols visible)information on this user manual 31
Copyright 31
Warnings 32
Intended use 33
Disclaimer 33
Safety 34
Fundamental safety precautions ...... 34
Danger of electric shock 35
Risk of injury 35
Danger of burns/danger of scalding 36
Prevention of damage 37
Setup and function 38
Device elements 38
Components/delivery contents 39
Operating elements 39
Using for the first time 4
Unpacking 40
Delivery contents and transport inspection 41
Mount device foot 41
Preparation 4
Pull out or push down the handle 42
Attach the cloth 42
Filling the tank 43
Operation and use 44
Instructions 44
After use 45
Cleaning and maintenance 46
Safety instructions 46
Cleaning 46
Inserting the calcium filter 47
Table of Contents
EN
Troubleshooting 4
Safety instructions 47
Faults - causes and remedies 48
Information on storage/disposal 49
Storage 49
Disposing of the packaging 49
Disposing of the old device 49
Appendix 5
Technical data 50
Certifications 50
Accessories 51
EC Declaration of Conformity 51
Guarantee, service and repairs 52
Index 54
Introduction
Dear customer,
By purchasing this steam brush, you have chosen a quality product.
Please read the information below to quickly become familiar with your device and make a full use of its functions.
Your device will serve your needs for many years to come provided you handle and maintain it with due care.
We would like to wish you much pleasure while using it.
information on this user manual
This user manual forms an integral part of the Kingmop Superclass steam brush (hereinafter referred to as "device") and contains important information for the starting up, safety, intended use and care of the device.
The user manual must be kept near the device at all times. It must be read and observed by all persons entrusted with operation, troubleshooting and/or cleaning of the device.
Keep this user manual in a safe place and pass it on to any future owners together with the device.
Copyright
This document is copyrighted.
Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.
Warnings
The following warnings are used in this user manual:
EN
DANGER
A warning of this category indicates a potentially dangerous situation.
If the dangerous situation is not avoided, it may lead to serious injury or even death.
Follow the instructions in this warning to avoid the danger of serious injury or even death.
WARNING
A warning of this category indicates a potentially dangerous situation.
If the dangerous situation is not avoided, it may lead to injuries.
Follow the instructions in the warning to prevent injuries to persons.
CAUTION
A warning of this category indicates potential material damage.
If the situation is not avoided, it may lead to material damage.
Follow the instructions in the warning to prevent damage.
NOTE
A note indicates additional information that simplifies the use of the device.
Intended use
This device is intended only for non-commercial use to clean floors in closed rooms.
Any other use other than previously stated is considered as improper use.
WARNING
Danger from use for other than the intended purpose!
If not used for its intended purpose and/or used in any other way, the device may be or become a source of danger.
Only use the device for its intended purpose.
Observe the procedures described in this user manual.
No claims of any kind will be accepted for damage resulting from use of the device for other than its intended purpose.
The risk must be borne solely by the user of the device.
Disclaimer
All technical information, data and instructions on installation, operation and maintenance of the device contained in this user manual represent the latest status at the time of printing.
No claims can be derived from the information, illustrations and descriptions in this user manual.
The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts.
Safety
EN
This device complies with the prescribed safety regulations. Improper use can however, result in personal injury and/or damage to the device.
Fundamental safety precautions
For safe use of the device, observe the following fundamental safety precautions and the precautions described separately in the individual sections:
■Persons who due to their physical, mental or motor response abilities are unable to operate the device may only use the device under supervision or instruction by a responsible person.
Do not allow children to use the device without supervision.
Inspect the device for visible signs of damage before use. Do not use a damaged device.
■Do not leave the device unattended during operation.
Repairs to the device must only be carried out by an authorised specialist or by the works customer service. Unqualified repairs can lead to considerable danger for the user. They will also void the warranty.
■Repairs to the device during the warranty period may only be carried out by service centres authorised by the manufacturer as the warranty will otherwise be voided in the event of damage or subsequent damage.
■Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.
Danger of electric shock
DANGER
Danger to life by electric current!
Contact with live wires or components could lead to serious injury or even death!
Observe the following safety precautions to avoid electric shocks:
Do not use the device, if the mains cable or mains plug are damaged.
Do not open the housing of the device. Danger of electric shock if live connections are touched or the electrical and mechanical configuration is changed.
Never immerse the device or the mains plug in water or other liquids.
In wet areas, use only approved extension leads or multiple plugs.
Never use the device to clean electrical devices, switches, mains sockets and other electrical equipment or components.
Risk of injury
WARNING
Improper handling of the device increases the risk of injury!
Observe the following safety precautions to avoid injuring yourself and/or others:
Before using, check that the device is not damaged.
Do not allow the adapter cable to hang over edges (danger of tripping).
Danger of burns/danger of scalding
EN
WARNING
The device and the accessories used become very hot during use!
Observe the following safety precautions to avoid burning:
Never direct the steam jet towards yourself or other persons or animals.
Allow the device to cool off and dry before storing it or performing work on the device.
Do not clean heat-sensitive materials with the device.
The mains socket must be easily accessible to enable quick disconnection of the device from the electric circuit in the event of an emergency.
Prevention of damage
CAUTION
Damage is possible from improper use of the device!
Observe the following instructions to avoid damage:
Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the device. If in doubt, ask your electrical device retailer.
Never immerse the device into water or other liquids.
Always carry the device with the handle and not the connecting cable.
Do not pull the mains cable to remove the plug from the mains socket.
Do not crush the connecting cable. (e.g., under doors).
Do not expose the connection cable or the device to heat or chemical liquids.
Do not pull the connecting lead across sharp edges or hot surfaces.
Operate the device only when the tank is filled.
Pour only water and no other fluids or additives into the ▶ tank.
Observe the maximum filling level of the tank.
Do not leave the device outside and do not expose it to direct sunlight or humidity. Do not store the appliance in direct vicinity of heat sources (such as fire, radiators, fan heaters or other heat radiating devices).
Setup and function
EN
Device elements
Basic device1
Steam flow regulator2
Handle3
ON and OFF off switch/button4
Unlocking buttons5
Hook for cable winder6
Water tank7
Calcium filter8
Power indicator light9
Device foot10
Set of cloths 11
(2x microfibre cloths and 1x coral cloth*)
Filling cup12
Carpet casters13
Fixing screw (not illustrated)14
15 User manual/quick-start guide (not illustrated)
* Coral cloth not supplied as standard
Operating elements
Steam flow regulator
- Turn the steam flow regulator to the set the desired steam flow:
| Symbol | Meaning |
| MAX | maximum steam flow |
| MIN | minimum steam flow |
ON and OFF off switch/button
EN
To switch on continuous operation, press the switch in the middle until it snaps in.
◆o switch off continuous operation, press the switch in the middle again until it snaps out.
◆o trigger a steam shot, press the upper part of the switch where the grooves are situated. The device remains switched on as long as you keep the switch pressed.
Using for the first time
Unpacking
DANGER
Risk of suffocation from the packaging material.
Never play with packaging material. Risk of suffocation.
Remove the device, all accessory parts and the user manual from the box.
◆ Remove all packaging materials and protective foils from the device and the accessories before using it for the first time.
NOTE
Do not remove the rating plate or any warning signs on the device.
◆Dispose of the packaging in accordance with the information in the section Disposal of the packaging.
Delivery contents and transport inspection
As standard, the device is supplied with the components specified in the description.
NOTE
Check for visible signs of damage or missing items on delivery. Report incomplete or damaged contents to your supplier immediately.
Mount device foot
NOTE
If necessary, ask another person to help when mounting the device foot.


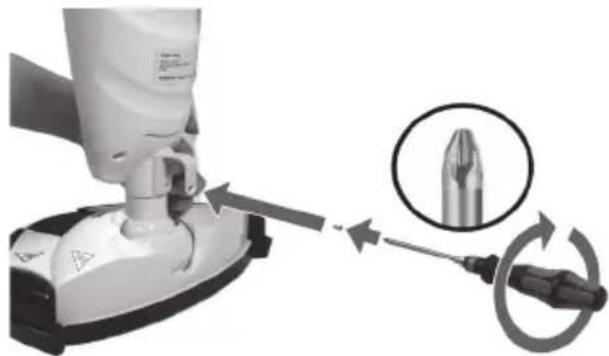

◆ Position the hook (6) for the cable winder.
Secure the position of the device foot and the hook with the fixing screw (14) supplied.
◆ Insert the fixing screw into the hole in the hook and the foot mounting and screw it tight with a suitable Phillips screwdriver.
EN
In this section, the preparations are explained that are necessary prior to actual steam cleaning.
WARNING
Switch off the steam brush and pull the plug out of the mains socket before performing any work on it in order to prevent accidental switching on.
Pull out or push down the handle
◆o pull the handle down, release the catch by pressing both of the release buttons (5).

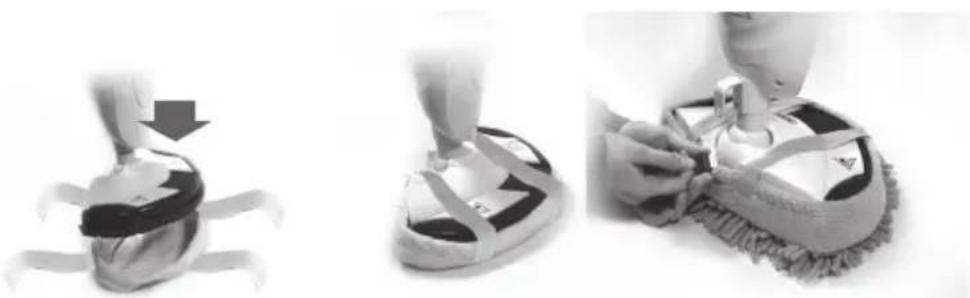

Attach the cloth
Put the foot of the device (10) onto the middle of the cloth.
◆ Attach the cloth to the foot of the device with the Velcro fasteners.
◆Press the cord clip together and simultaneously lash the cover to the cord.
◆Pull on the Velcro fasteners to remove the cloth.
CAUTION
Damage is possible from improper use of the device!
Observe the following instructions to avoid damage:
▶Only pour water into the tank and not any other fluids or additives.
Recommendation: use distilled water to guard against calcification.
Do not exceed the "MAX" marking when filling the tank.
◆Push the tank upwards and remove it.
Open the stopper of the water container and fill it with cold water. The maximum quantity is 600 ml.
◆Close the water tank again.
Insert the water tank into the device and push down until it stops.
Open the stopper of the water tank and fill it with water. Use the measuring cup supplied for this purpose in order not to damage the device.
◆Close the water tank again.
Operation and use
EN Instructions
General
Before you start the cleaning work, read the instructions on caring for the material to be cleaned.
Use an unexposed area to check for tolerance of the material against steam.
CAUTION
Do not clean cork floors with the steam brush.
Cleaning coated or painted surfaces
CAUTION
Do not direct the steam at glued edges because this could softened the glue. Do not use the device on unsealed wood or parquet flooring, soft plastic or glass.
Wax, furniture polish, plastic coatings or paint can dissolve or stands can occur if they are exposed to steam for longer periods. Clean kitchen and living room furniture, doors, parquet, coated or plastic coated surfaces only with the microfibre cloth and do not wipe an area too long, otherwise damage can occur, particularly on natural parquet and similar sensitive surfaces.
Using the device
Insert the plug into the mains socket. The power indicator light (9) lights up.
◆Set the desired steam flow with the steam flow regulator (2).
◆ Switch on the device or hold down the button, see operating elements section.
◆ Put the device onto the carpet coasters (13) when cleaning carpets.
Slowly push the device over the surface to be cleaned.
NOTE
▶Vigorous cleaning movements can cause small amounts of water to enter into the ventilation pipes in the water tank. Small amounts of water may then drop out of the ventilation pipes onto the floor.
After use
◆ Switch off the device, see Operating elements section and pull the plug out of the mains socket.
◆Allow the device to cool down completely.
Take the cloth from the foot of the device.
Empty the water tank. ◆
Cleaning and maintenance
EN
This section contains important information on cleaning and maintenance of the device.
Safety instructions
DANGER
Danger to life by electric current!
Switch off the device and pull the plug out of the mains socket before starting cleaning.
WARNING
Risk of burning from the hot device!
The device remains hot after using. Danger of burning!
Wait until the device has cooled down before you remove the wiping cloth and begin cleaning it.
Cleaning
Wipe the outside housing of the device with a lightly damp cloth.
■The microfibre cloths can be washed at 60^ C in the washing device. In order to allow the cloths to properly absorb the dirt, do not use fabric softeners. Do not dry the microfibre cloths in the drier.
Inserting the calcium filter
The calcium filter (8) removes calcium and other residues from the water. Depending on the water hardness, we recommend regular replacement of the water filter after 3 – 6 months.
◆Push the calcium filter upwards and remove it.
Insert the new calcium filter into the water tank and push it down until it stops.
Replace the water tank into the device, see section Filling the tank.
Troubleshooting
Safety instructions
DANGER
Danger to life by electric current!
Pull the plug out of the mains socket before starting trouble-shooting.
WARNING
Danger from unqualified repairs!
Unqualified repairs can lead to considerable danger for the user and cause serious damage to the device.
Repairs to electrical devices may only be carried out by the works customer service or by specialists trained by the manufacturer.
Faults - causes and remedies
| Fault Possible cause | Remedy | |
| The power indicator does not light up. | Plug not inserted into mains socket. | Insert plug. |
| Automatic circuit breaker in fuse box tripped. | Switch on the automatic circuit breaker again. | |
| The automatic circuit breaker in the electrical distribution board trips | Too many devices connected to the same power circuit. | Reduce the number of devices on the power circuit. |
| Device is defective. Contact customer service. | ||
| No steam. | Device not switched on. Switch on the device. | |
| Not enough water in the tank. | Fill the tank, see section Filling the tank. | |
| Steam flow set too low. Increase the steam flow. | ||
NOTE
If you cannot resolve the problem with the steps described above, please contact customer service.
Information on storage/disposal
Storage
EN
If you do not intend to use the device for a longer period of ■ time, clean it as described in the section Cleaning and maintenance.
■You can wind the das mains cable around the hook (6) on the device.
■Store the device and all accessory parts in a dry, clean and frost-free place which is protected against direct sunlight.
Disposing of the packaging
The packaging protects the device against damage during transit. The packaging materials have been selected according to environmental and waste disposal aspects and can therefore be recycled.
Recycling the packaging material for further use saves raw materials and reduces waste. When no longer required, dispose of the packaging materials in accordance with the local regulations in force.
NOTE
If possible, keep the original packaging during the warranty period in order to pack the device properly in the event of a warranty claim. Transport damage will invalidate the warranty.
Disposing of the old device
This product may not be disposed of in the domestic refuse within the European Union.
Dispose of the device in accordance with the EU Directive 2002/96/EU-WEEE (Waste Electrical and Electronic Equipment). Should you have any questions, please contact the local authority responsible for waste disposal.
Appendix
EN
Technical data
| Model | Steam brushKingmop-Superclass |
| Type number | Z4.001 |
| Operating voltage 220 - 240 VAC | |
| Mains frequency 50 Hz | |
| Power consumption 1500 W | |
| Dimensions | 114 x 29 x 19 cm(H x W x D) |
| Approximate weight 2.8 kg | |
| Protection class I | |
| Type of protection IP24 | |
| Filling quantity max. 600 ml | |
We reserve the right to modify design and technology at any time.
Certifications
| Symbol Meaning | |
 | The Z4.001 device was tested and certified by SGS. |
 | The device conforms to the relevant EU Directives (see Declaration of Conformity). |
 | This device conforms to the Directives on the Restriction of Hazardous Substances in Electrical and Electronic Devices (RoHS). |
 | This device conforms to the provisions of the Waste Electrical and Electronic Equipment Directive (WEEE). |
Accessories
| Item* Article No. Designation | |
| 8 D1000460 Calcium filter | |
| 11 D1000450 | Cloth set, consisting of:Microfibre cloth (2x) ■Coral cloth (1x) ■ |
* according to the drawing in the description of the device
EC Declaration of Conformity
| Name/address of manufacturer: | BEEM Blitz-Elektro-Erzeugnisse Manufaktur Handels-GmbHDieselstrasse 19-21D-61191 Rosbach v.d.H. |
| We hereby declare that the product | |
| Model: Steam brush | Kingmop-Superclass |
| Type: | Z4.001 |
| conforms to the following relevant regulations:EU Directive 2006/95/EU Electrical devices for use within certain voltage limits,EU Directive 2004/108/EU Electromagnetic Compatibility. | |
| The following harmonised standards were applied in whole or in part:EN 60335-1: 2002 + A1 + A11 + A12 + A2EN 60335-2-54: 2003 + A1 + A11EN 50366:2003 + A1ZEK 01 - 08 / 01.08 | |
| Rosbach, 01.03.2011 |  Bijan Mehshat(Legally binding signature of the issuer) |
Guarantee, service and repairs
This is a quality product from BEEM and was produced using the latest manufacturing methods.
We guarantee the perfect condition of this quality product. We will remedy any faults due to material flaws or manufacturing faults free of charge within the warranty period.
The warranty period for this product is two years.
For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the warranty period is 6 months. This does not infringe the warranty disclaimer.
Warranty disclaimer: The warranty does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.
If we are obliged by law to provide a warranty and will comply with such obligation – to the exclusion of the right to cancellation or price reduction – and at our discretion, repair or replace the product free of charge. Should the remedy fail despite several attempts or should the replacement product exhibit faults attributable to us, the customer shall be entitled – at his/her discretion – to reduce the purchase price or to cancel the contract of purchase. Claims under warranty do not prolong the warranty period. For exchange or return of the device (withdrawal from the purchase contract) or reduction of the purchase price, the first contact is always the retailer from whom you purchased the product. This particularly applies to returning the device or the claim for reductions as these have to be settled with respect to the purchase price. Refunding the purchase price or a credit note in the event of a reduction of the purchase price can only be handled by the retailer from whom you purchased the device.
Should faults nevertheless occur, please try to resolve the matter by telephone first. Should this not be successful, please send the carefully packed device to your retailer or to the customer service address shown below. Please state your complete address, type and model number and the serial number of the device. This information can be found on the rating plate of the device. Please describe the fault or defect in as much detail as possible. The product or spare part order should be accompanied by a printed and dated receipt of purchase or an invoice. No services under warranty can be provided for repairs, spare parts or other claims without a printed receipt of purchase or an invoice.
Outside Germany and in particular in non-EC countries, please contact your retailer or the local distributor first. Information can be obtained – preferably by e-mail – from the customer service address indicated below.
Repairs not covered by the warranty can also be performed against individual payment by customer service - outside Germany by the retailer from whom you purchased the device or by a service centre, if available.
Replacement parts and consumables can be ordered from your retailer or the stated customer service address. Please contact your dealer or the local distributor first if you live outside of Germany.
For product information, accessory orders or questions on service handling, please contact your retailer or the stated customer service address. Outside Germany and in particular in non-EU countries, please contact your retailer or the local distributor first.
You can also use the Internet. You will find accessories and spare parts, as well as user manuals in various languages on our website www.beem.de. Additional product information can also be found there.
Index
EN
A
Accessories 51
After use 45
C
Certifications 50
Cleaning 46
D
Danger of electric shock ..... 35
Delivery contents ..... 39, 41
Device elements 38
Device foot 41
Disclaimer 33
Disposal
Old device 49
Packaging 49
F
Fundamental safety precautions. . 34
Future owner....31
G
Guarantee....52
H
Hazards
Burns 36
Injury 35
scalding 36
/
Inserting the calcium filter ..... 4 7
Instructions 44
Intended use 33
O
Operating elements 39
P
Prevention of damage....37
R
Repairs 52
S
Safety 34
Service 52
Storage 49
T
Table of Contents 29
Technical data....50
Transport inspection ..... 41
Troubleshooting 47
U
Unpacking....40
Using the device 45
W
Warnings....32
Table des matières
Avant-propos 57
Close-up of a black oval-shaped object with horizontal lines and a small cloud-like symbol at the bottom (no text or symbols visible)natural_image
Close-up of a medical or laboratory device with a mechanical component being inserted (no visible text or symbols)natural_image
Close-up of a screwdriver tool interacting with a mechanical component, showing a close-up of the tip and a circular diagram (no text or symbols)Préparations
Three-step illustration showing a shoe being adjusted, with no visible text or symbolsnatural_image
Close-up of a hand holding a white object with black buttons, possibly a device or tool (no visible text or symbols)natural_image
Hand holding a black mug against a wall-mounted device (no visible text or symbols)text_image
Labeled diagram of a cleaning brush with numbered parts for identificationBestanddelen/Leveringsomvang
Basisapparaat1
