USER MANUAL TAB07 Ricatech

1. Announcements
2. Introduction

2.1 Packing Details..
2.2 Instructions on Keys.
2.3 Features Overview
2.4 Technical Specifications

1. Quick Guidance

3.1 About Touch Panel
3.2 Switch On/Off
3.3 Power Save Modes and lock screen
3.4 Battery management and charging.
3.5 Definition for the icons of the Functions
3.6 USB HOST Function
3.7 TF Card Storage

1. Network Access

4.1 Network Access by Wi-Fi
4.2 Network Access by 3G.

1. Storage File Copy & Delete from PC
2. Main Functions Introduction

6.1 Audio Function
6.2 Video Function
6.3 Picture Function
6.4 Record Function
6.5 File Manager
6.6 E-book Function.
6.7 Internet Browser
6.8 Email Function
6.9 Calendar
6.10 Calculator
6.11 Alarm Clock.

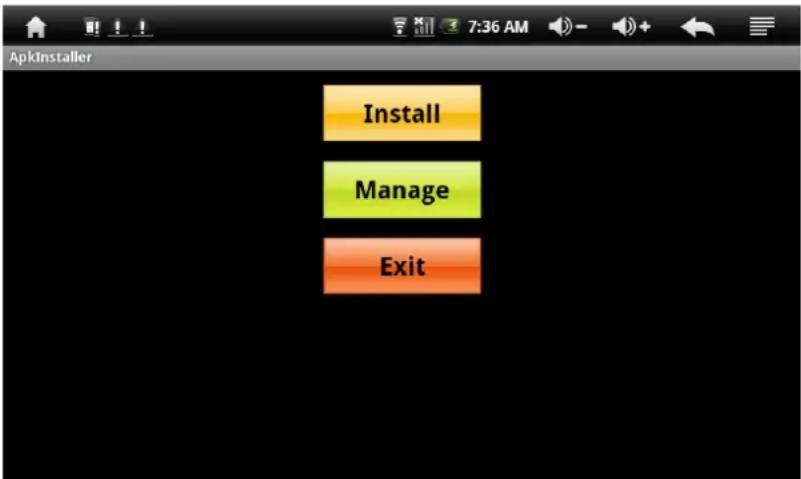

6.12 APK Installer

1. System Settings
2. FAQ.

1. Announcements

① . Please keep the device away from moist and dust.
② Do not put the device in high-temperature environment, especially closed car in hot weather.
③. Do not drop or strike the device.
④ Do not shake the device violently, especially the LCD Screen part. Or, it will cause abnormal display on the screen.
(5) Please choose proper volume when using the earphone which will be good for your ear.
(6). Please charge the device when

(1) The power icon shows lowest power.
(2) The device is turned off automatically, and when you turn on it, it is turned off automatically again.
(3) No response when operating the buttons.

Attention: Please use the charger offered by manufacturer to charge, other charges may causes damage to the device.

Input: 100-240V ~ 50/60 Hz

Output: 5V 1500mA

⑦ Do not disconnect the device from PC when downloading, uploading or formatting, or it will cause programming errors of the device.
(8) Do not dismounting the device privately without professional guidance.
⑨ Do not use alcohol, thinner or benzene-chemical to clean the surface of the device.
⑩. Do not use the device in forbidden place, like airplane.
(1) Please always back-up your files in device's memory. The manufacturer is not responsible for clearing the files after damage or repairs of the device.
⑫ The manufacturer reserves all right of device's technology and design, and will have no obligation to inform the user if there are new versions or designs been developed.
③ The device is NOT water-proof; please keep it away from water.

The turn on time of this device is about 20 seconds; please don't operate the device for 20 seconds when it is turned on.

2. Introduction

2.1 Packing Details.

Each unit of Tablet PC has the following items: Tablet PC device1, charger1, earphone1, USB cable1, and user manual*1. All items are packed in gift box.

2.2 Instructions on Keys.

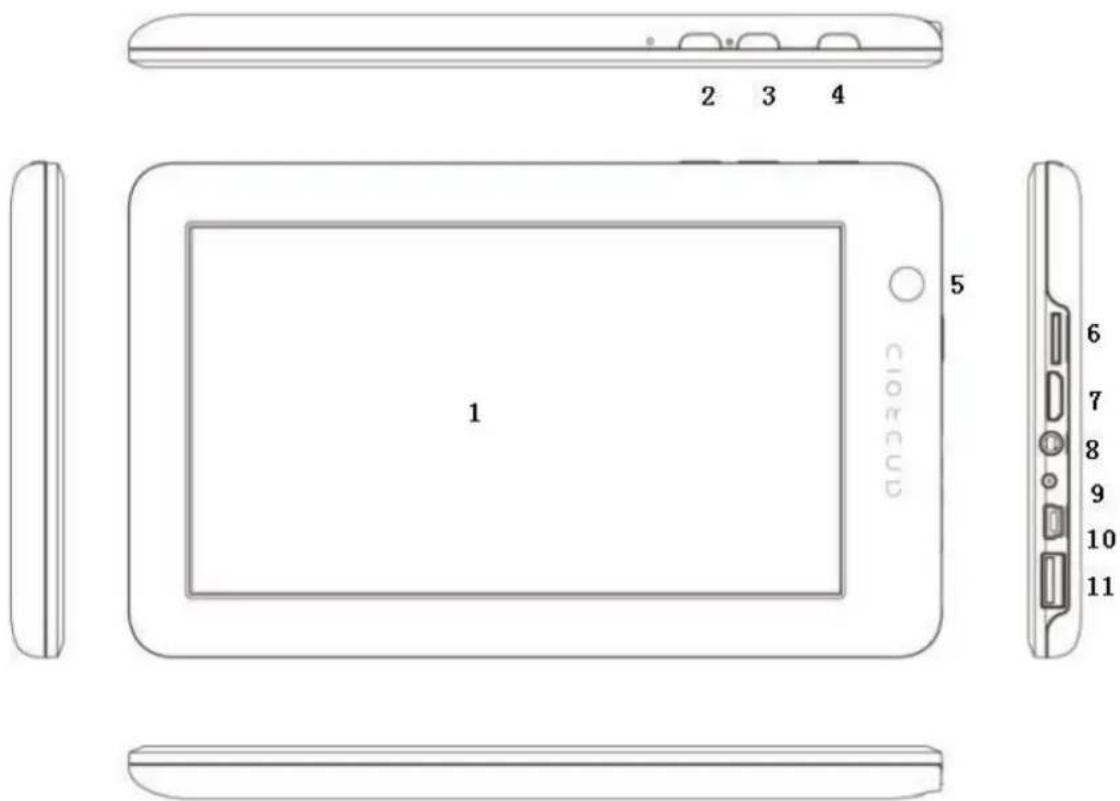

Name	Description
POWER	Press this button shortly to enter sleeping/wake up mode, long press to switch ON/OFF
MENU	Press this button shortly to enter the submenu
ESC	Press shortly to return, long press to the touch screen calibration
TF Card Slot	For external TF card, 1GB to 16GB
Stereo Earpieces Jack	Stereo earpieces jack for earphone
DC Socket	Connect with 5V DC charger
MINI USB Port	MINI_5 PIN USB Port
USB Host Port	Port for external USB Driver, 3G Dongle, Mouse, keyboard, etc
Display	HD Display area

Long Press: Press the item for more than 1.2 seconds.

2.3 Features Overview

CPU: ALLWINNER, Cortex A8, 1.2GHz. With ANDROID 2.3 operation system.
7" TFT touch panel LCD display, 800 × 480 pixel resolution.
Support 4~16GB built-in Flash Memory, support 128MB-16GB external TF card.
Support Media playing: Video, audio, pictures, Ebooks, etc.
■ Built-in Wi-Fi. Support external 3G USB-DONGOLE wireless network card (3G card or USB-Dongle are not provided by the Tablet PC manufacturer).
Various applications are available in the ANDROID 2.3 OS (APK applications only).
Support built-in microphone record function (optional).
Support USB-HOST and external U-disk, MP3, MP4, Mouse, keyboard, etc.
Support G-sensor screen rotation function.
Support Stereo Earpieces and speaker.
Supports multiple languages.
The device can be used as USB portable hard disk, driver not needed for WIN2000 or above.

2.4 Technical Specifications

Screen	7 inch Capacitive Touch Screen. Five Points Multi-touch Resolution: 800 x 480. Aspect Ratio: 16 : 9
CPU	Chipset: ALLWINNER; Processor: Cortex A8; Frequency: 1.2GHz
RAM	DDR3 512 MB
Storage	4GB-16GB optional External inserted TF card be extendable from 1GB to 16 GB
System	Android 2.3
Network	Wifi: Built-in Wifi Module. IEEE 802.11b/g/n. 11Mbps to 54Mbps 3G: External 3G by USB Dongle.
Applications	APK format applications
Video	RM, RMVB, AVI, MOV, WMV, MP4, ASF, 3GP, TS, MKV, MPEG, etc. All videos support HD 2160P.
Music	MP3, WMA, WAV, APE, FLAC, AAC, OGG, etc.
Pictures	JPG, BMP, PNG, TIFF, etc.
Ebooks	TXT, PDF, CHM, HTML, PDB, UMD, FB2, LRC, EPUB.
Office Files	Supported files: Word, Excel, PDF, etc.
PC Connection	MINI USB 2.0 x 1
Battery	Built-in Lithium Battery: 3200 mAh.

3. Quick Guides

3.1 About Touch Panel

The touch screen is capacitive touch screen; you can use five fingers to touch the screen at the same time.

3.2 Switch On/Off

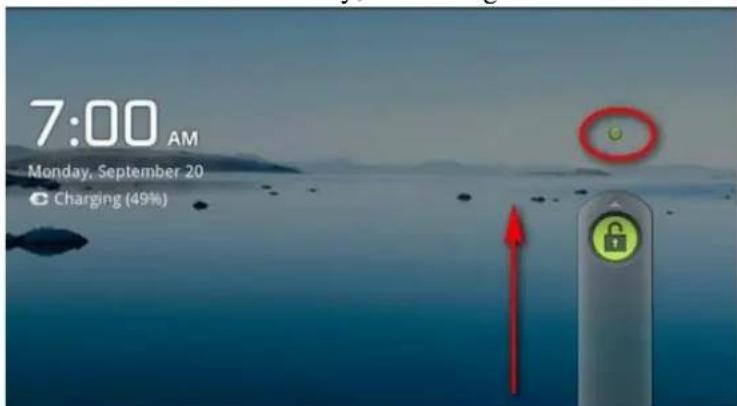

Switch On and Unlock: When the device is in the OFF mode, press and hold "Power" key for 3 seconds to enter the Android startup progress bar, it need about 20 seconds enter to the system

desktop, when the LCD is under locked mode, please press and pull the icon the green point, then the LCD will unlocked automatically, see the figures below.

3.3 Power Saving Modes and lock screen

Press the "POWER" key shortly after starting up, system enter to power save and lock mode.
Press the "POWER" key or tap the touch screen, system will return to bright in 1 second.
The primary operation of the device will not stop under the power save mode, just the LCD is shut and with black screen. For example: playing music, movie, etc.
Switch OFF: When the device is in the OFF mode, press and hold the "POWER" key for 3 seconds, the screen will display the power off interface, choose the power off item to confirm, the system will shut automatically.

【Note】When the device with low battery it will alarm continuous and shut automatically without charging. If the device can not start up please check if the battery is low, and try it again after the battery is charged.

3.4 Battery management and charging

3.4.1 Charge the battery for 8-12 hours to make sure the battery is fully charged when firstly use.
3.4.2 Insert the micro port of the battery adaptor into DC slot on the device, and connect the other side with the power socket. Then the desktop icon of the battery keep rolling which shows it is charging, please wait until the battery is fully charged, don't disconnect the power when charging. Once the battery is fully charged, the Icon on the desktop will stop rolling.

【Note】In order to keep the battery working in the best condition, please pay attention as below:

• Please don't charge the power in high temperature.
• No need to release the power for this Li-battery, you can charge the power even there is still some power in the battery, no need to wait it runs out.
• In order to keep the battery in good condition, please make sure to charge the power once per two weeks if you don't use this device for a long time.

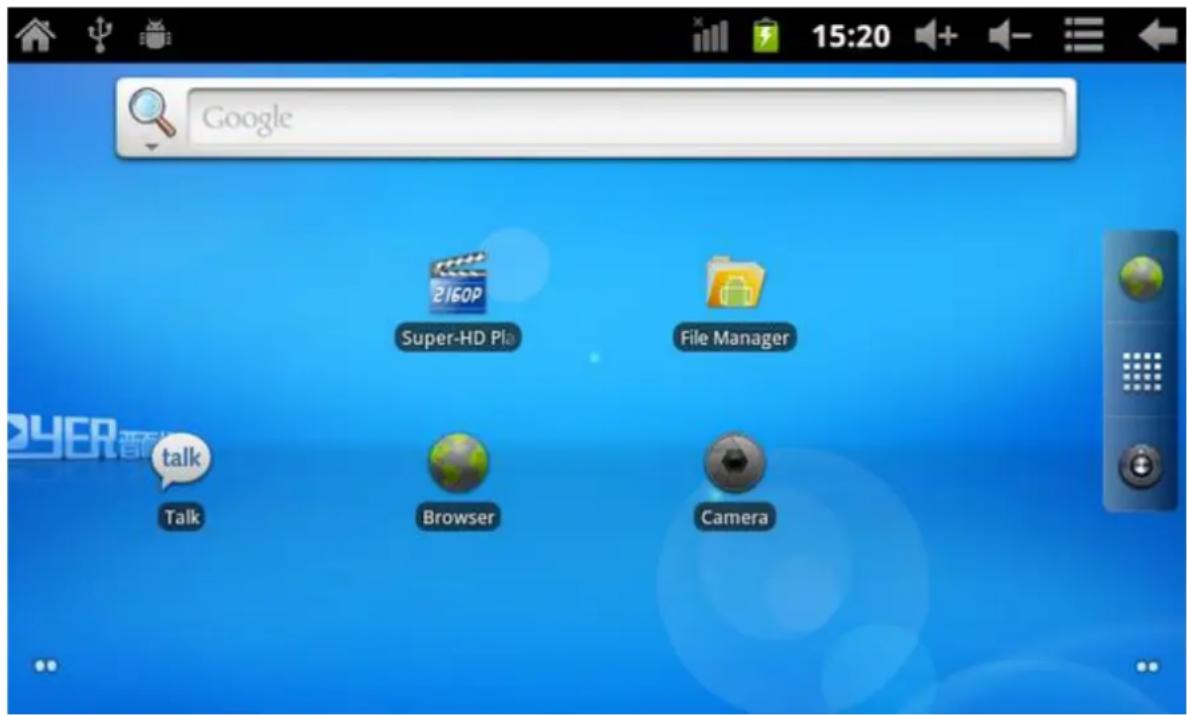

3.5 Definition for the icons of the Functions

Icon	Function instruction	Icon	Function instruction
	Back to main menu		Note when the system finds new devices
	Show current power status		Set the alert time
15:20	The current system time		Reduce the volume
	Back		Louder the volume
	Menu		Menu for Function Block
	Google search		Switch the interface
	System clock		WIFI on/off
	New mail		USB Connection
			Status Bar

3.6 USB HOST Function

3.6.1 USB- HOST Definition

The Mini USB on the device can be used as USB Host.

3.6.2 Read U-disk:

Insert the U-disk into the HOST port, press the Resource manager in the desktop, press USB enter into u-disk.

3.6.3 External 3G USB Dongle. (See network access guidance in item 4)

3.7 TF Card Storage

There is a TF card slot in this device, it support reading the files in TF card. Insert the TF card into the card slot in right way, when take it out, just push the TF toward to the inside, then the slot will release the TF card, the TF card will pop out automatically, take it then.

3.7.1 Please insert the TF into the card slot in the right side of the device.
3.7.2 Don't pull out the card when operating (reading, copying), or it may cause date error.
3.7.3 Don't use the TF card under high temperature condition.
3.7.4 Keep the TF card far from the liquid and erosive materials.

4. Network Access

The device support Wi-Fi network and external 3G network.

4.1 Network Access by Wi-Fi

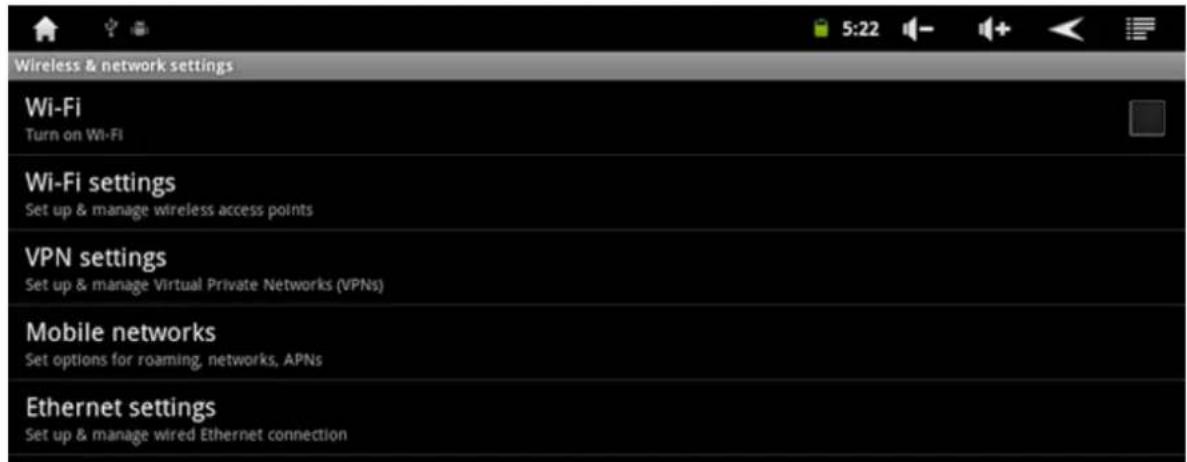

4.1.1 Turn on Wi-Fi, and Press Wi-Fi settings. The device will scans automatically for available Wi-Fi networks.
4.1.2 Choose the Wi-Fi network that you want to connect to.
4.1.3 Press Connect. Some network may need you input the password.
4.1.4 On the Wi-Fi settings screen, press the Menu key, touch Advanced, you will get more settings for Wi-Fi.

4.2 Network Access by 3G

4.2.1 Turn OFF Wi-Fi if it is working.
4.2.2 Access Wireless & Networks, and choose Mobile network setting, make sure Data enabled was chosen. Then go back to Wireless & Networks.
4.2.3 Insert External 3G by USB host.
4.2.4 Choose Mobile network, then wait for the 3G network connection, soon you can access network via 3G..

5. Storage File Copy & Delete from PC

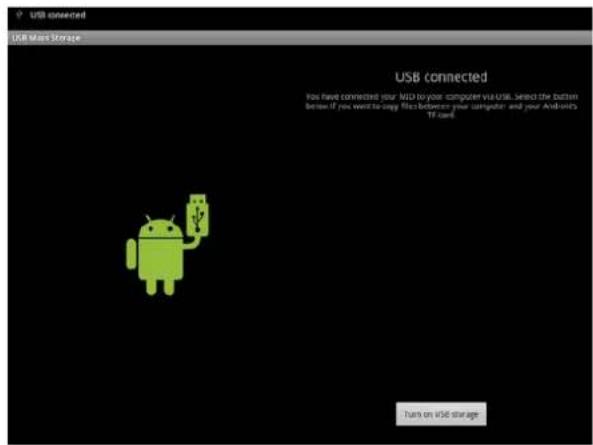

A) Connect the device to computer by USB Cable, there will be notification in the status bar that USB connected.

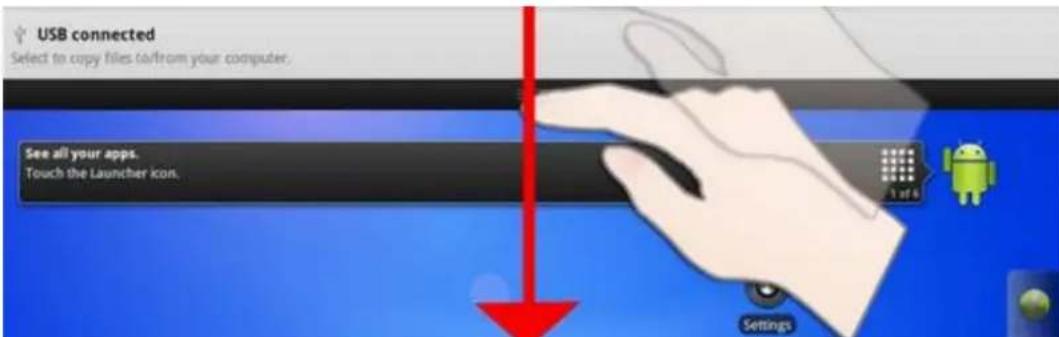

B) Hold Pressing the top of device, and move your fingers down, the status bar will be dragged down.

C) Choose USB Connected. Then, Turn on USB storage.

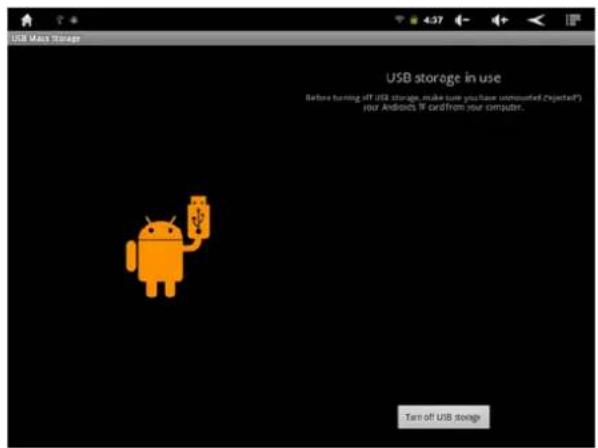

The left picture shows that device storage content could be viewed and modified from computer.

The right picture means that device storage content could NOT be viewed or modified from computer.

If there is no notification as above when you turn on the device, please operate as follows:

Enter System Settings. ---- Enter Applications settings ---- Enter Development. ---- Choose USB debugging, turn it on.

Then, there will be notification again that if you Allow USB debugging, choose OK and then turn on USB storage, now you can copy or delete the device's files from PC.

6. Main Functions Introduction

6.1 Audio Function

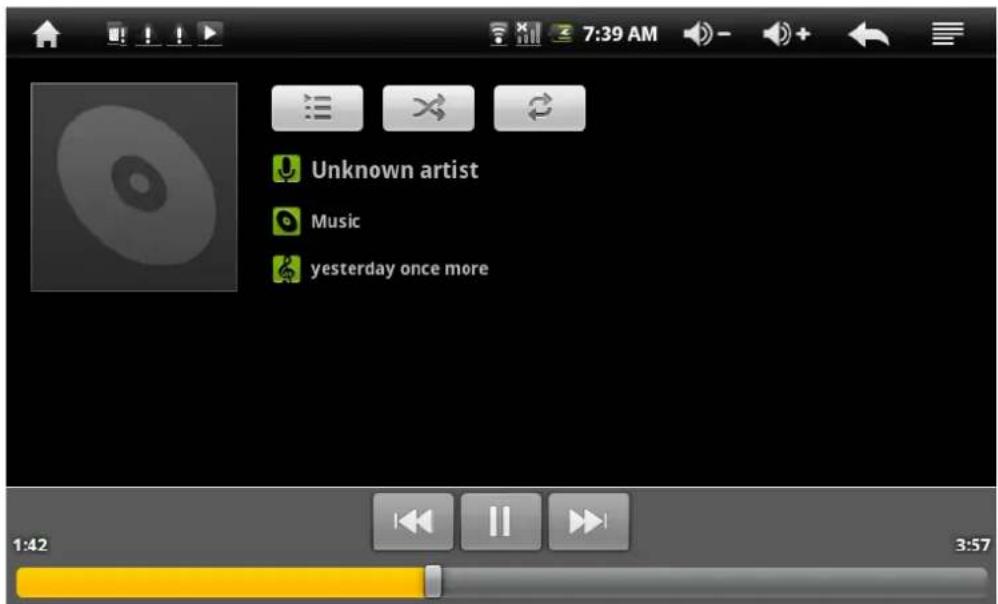

Enter the music player: In music player mode, double-click the favorite in the list to play music as shown in the following picture.

Drag the playing progress bar, to adjust the playing process.

Instructions of the buttons in the Music player

Button	Instruction	button	Instruction
	Artist		Album
	Song		Playing Music list
	Random Play		Loop playback
	Play the last song		Play the next song
	Pause		Play

• When no music files in the audio player playlist, the system will automatically load the music files from the card to the audio player playlist after turning on the audio player (the device supported audio file format: mp3, wav, midi, wma). The playlist as shown in the above figure.
• If two more songs in the Music playlist area, slide up/down the touch screen to page up/down
• Double-click the favorite in the list to play music.
• In the music playing interface, click Enter the audio playing list.
• Drag the playback progress bar to adjust audio playback progress.

6.2 Video Function

• Click the Video player icon to enter the video player interface, open the video files.
• The device supported audio file format: MKV, AVI, RM, RMVB, MP4, MOV, VOB, DAT, FLV, 3GP etc.
• When there are no video files in the video player playlist, the system will automatically load the video files from the card to the video player playlist after turning on video player.
• Drag the playback progress bar to adjust video playback progress.

6.3 Picture Function

• Click the HD Video Player to enter the viewing interface
• Add image (supports the format of picture: BMP, JPG, JPEG, PNG, GIF)

When there is no file in the photo list, the system will automatically load the image files from the card to the photo browsing list after opening the photo browser.

Open the corresponding folder, find the image file and add the picture you want.

• Click menu button, the photo can be set as wallpaper.

6.4 Record Function

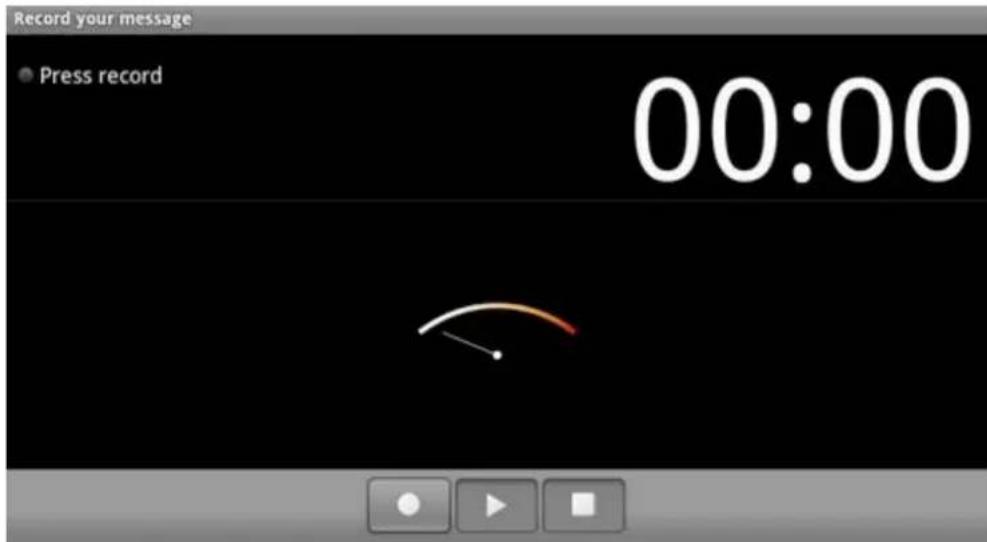

Click the record icon to enter the record interface, click record button to start recording, click this button to stop recording, the system will remind you to use this recording or give up, please select manually.

Recording playing: please select audio player to play the recording, select first the record files from the explorer, then click it and playing, further details please refer to Audio Function.

6.5 File Manager

In file manager, you can check all files in the device, including files in built-in Memory and external card. Also there is a quick view for pictures and videos.

6.6 E-book Function.

Support formats of E-Book: TXT, LRC, PDF, HTML, HTM, EPUB etc.

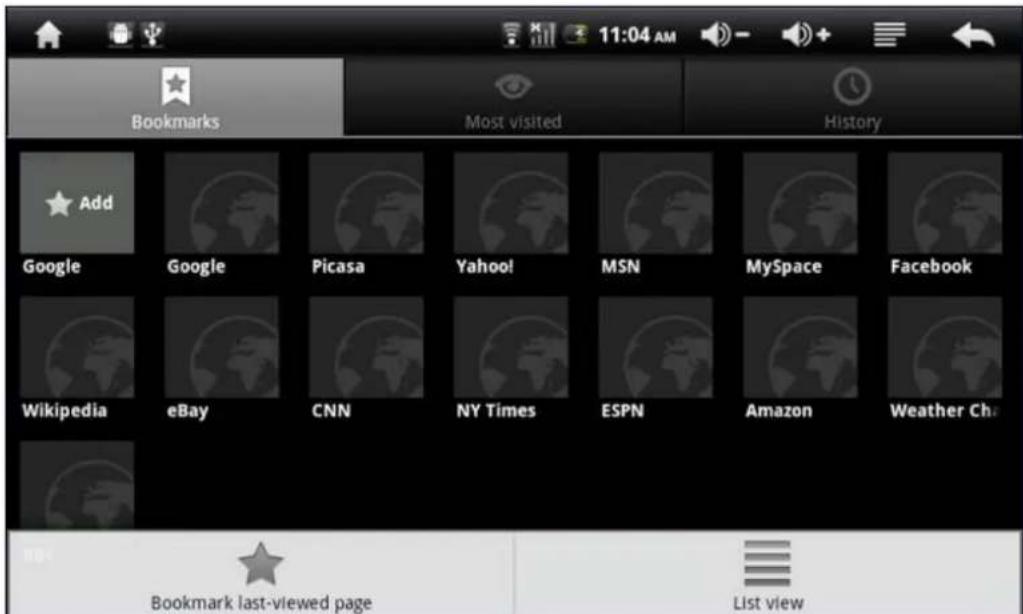

• Before you use internet browse function, please make sure your network is connected. See network access guidance in former part.

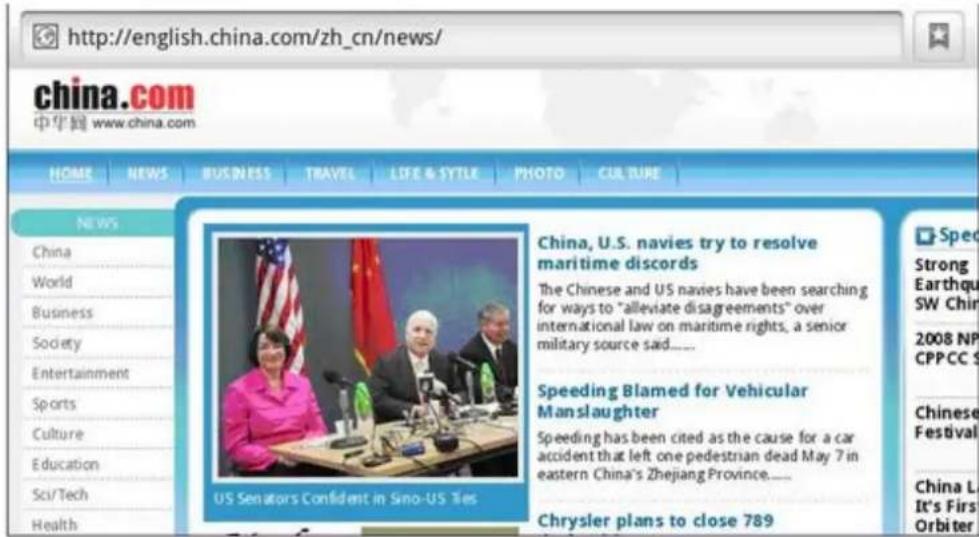

• Click IE Browser icon to enter to the IE interface, click the address bar and input website and click Go to enter a corresponding web page, you can view the corresponding website information.

• Click icon to view bookmark and history record.

• Click menu icon to access settings.

• The device also supports other internet browsers, detail functions of those internet browsers refer to their own instructions.

6.8 Email Function

• Before you use email function, please make sure your network is connected. See network access guidance in former part.
• When you firstly use this function, you need to add an email account to the device. The device supports several accounts working together.
• Portal sites email accounts and enterprise email account adding methods are different.

6.8.1 Add portal sites email accounts. (Example: Gmail, MSN, Yahoo, etc.)

Take Google email account for an example here.

Account: [e-mail]

Password: *******

• For portal sites email accounts, directly input your email address and password, then click next.
• After successful connection, input Account Name and Your Name. Account Name means the name of this account in the device, Your Name means the displayed name of your email in receivers' account.

• Then you will access the account. Click email titles to read emails, long press email titles to access options.

• Click menu icon -less settings

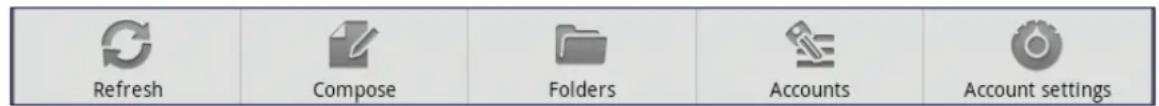

Refresh: Checking new emails.

Compose: Write new emails.

Folders: Manage emails to different folders.

Accounts: View accounts in the device, add new accounts, delete accounts, set main account.

Accounts settings: More options for email account.

6.8.2 Add enterprise email account. (Example: www.ployer.com.cn)

Take PLOYER enterprise email account for an example here.

Account: [e-mail]

Password: ***

• For enterprise email account, first input your email address and password, then click manual setup for more options.
• Inquire the sever of enterprise email account from your webmaster, and follow his guidance to fill in items in manual setup, then click next.
• The following steps are the same as 6.8.1, see instructions above.

6.9 Calendar

Click Calendar icon to enter calendar interface.

• In calendar mode, press and pull up/down the screen to reduce/increase the Months; or to turn the pages.
• Auto adjusts Years when the month exceeds December or January.
• Enter interface, the number in the orange form is the intraday date, you can change the date in setting function; details as the setting section.

Click

turn to main menu.

6.10 Calculator

Click Calculator icon to enter calculator interface.

6.11 Alarm Clock

• Click Clock icon to enter time interface, then click the clock to access alarm interface, and you can add new alarms or edit former alarms now.
• Long press former alarms to choose turn alarm on/off, edit alarm, and delete alarm. Click alarms to edit alarm.
• You can edit alarms' time, repeat mode, ringtone and label.
• In alarm interface, click menu icon to access settings. The following items could be set.

Alarm in silent mode
Alarm volume
Snooze duration
Volume and camera

6.12 APK Installer

• This device supports the third party's Application Package (APK format) based on Android OS. Many Application Package can be downloaded from internet, or copied from other devices into the storage.

• If the Application Package is not downloaded from Google Android Market, you should operate the following steps before installation. Please check Settings - Applications, make sure Unknown sources is chosen.

• Click the APK installer icon l & and the APK installer interfaces will pop up: Install, Manage, and Exit.

6.12.1 Install: Click Install, enter into the APK installer interface.

Internal Memory means built-in Flash memory, SD card means inserted T-Flash.
After entering, select the APK format setting program in the right side, click the application to install, back to the main interface when complete this operation, then it finished the installing, and there will be a relevant icon in application list.

6.12.2 Manage: Click manage and enter into the third part software interface.

Startup: run the software.
Export: export the software to the TF card.
Uninstall: uninstall the software.
Search: search the software in the software shops.
Cancel: cancel the operation.

6.12.3 Exit: Go back to the main interface.

Note: All installed applications will be shown in application list menu. The applications include games, chatting TM, internet browser, media player, system tool, etc.

7. System Settings

Click setting icon to enter system settings, then you can change wireless & networks, sound, display, HDMI setting, location & security, Applications, accounts & sync, Privacy, Storage, language & keyboard, voice input & output, and date & time.
7.1 Wireless & Networks Setting - See item 4.
7.2 Sound Setting - You can adjust Silent mode, Volume, Notification ringtone, Audible selection, Screen lock sounds, and Haptic feedback.
7.3 Display Setting - You can adjust Brightness, Auto-rotate screen, Animation, Screen timeout.
7.4 Location & Security Setting - In this Setting, you can set up screen lock and device administrators, as well as TF card password.
7.5 Applications Setting - You can manage applications here, and check storage & battery usage. Note: If you want to install applications which are not downloaded from Google Android Market, you should turn on Unknown sources in advance.
7.6 Accounts & sync Setting - In this setting, you can manage accounts in the device.
7.7 Privacy Setting - In this setting, you can back up data, and reset factory default.
7.8 Storage Setting. - In this setting, you can check storage use and Mount & Erase TF cards. Note: Before you fetch out TF Card (if you have inserted TF card), please Unmount TF card first,

in case that some applications will arise problems.

7.9 Language & Keyboard Setting - In this setting, you can change the language of system, and choose keyboard inputs.

Note: If you have installed an input and you want to use it, please remember to turn on it in this setting (All inputs could be turned on here). Long Press the blank where you want to type, there will be lookup to choose inputs.

7.10 Date & time Setting - In this setting, you can adjust date and time.

7.11 About device - Check device information.

8. FAQ

1) How can I change languages if I mistakenly choose an unknown language?

Find setting icon in Menu Page to enter Settings.

• Then, choose icon A to enter language & keyboard setting, the first option is language setting.

2) How can I change input when I am typing?

• Long Press the blank where you are typing, there will be popup to choose inputs.

3) I already installed some applications, but I can not find them now, why?

• By default, some applications are installed in external TF card, so if you fetched out the TF card from the device, you will not see these applications.

4) The machine can not be turned on.

• Check the battery and charge it if there is no power.
• Connect the machine to AC Adapter.
• Contact the seller if the machine still can not be turned on after charged.

5) There is no voice in the earphone.

• Check if the device is in Mute mode.
• Check the volume setting in case it is 0.
• Check the connection of earphone.

6) Why I can not install applications?
- Please check Settings - Applications, make sure Unknown sources is chosen.
7) There is Error Codes on the screen.
- System error, restart the device.
- The language you are browsing is not supported by built-in languages, please contact the original manufacturer to debug.
8) There are problems of system, many updop up of error.

Restart the device by POWER button for 10 seconds, the device will restart.
If you have restarted the device and error popup still exist, you can check active applications to see if there is any unknown application, uninstall it if any.
There may be virus in the device, please install security applications and protect your device.
If you have problems after above operations, the device's firmware needs rebuilt (the operation is named "flash").

Note: Before you flash the device, please back up your storage, the flashing will make all settings and files turn to factory default. Flashing operation need flashing tool and firmware, please contact original manufacturer for flashing operation.

CUSTOMER SUPPORT

You can contact the Ricatech customer service when you have a question or a problem with your Ricatech product. You can contact us by telephone and email.

Email

For customer support by email, please sent a email to [e-mail].

Please make sure that you mention the model number and serial number of the product, mention your name & address and describe your question or problem clearly.

Telephone

For customer support by telephone, please dial [phone]. Our service staff will be ready to help you.

For full procedure please visit the website of Ricatech at: www.ricatech.com

Hereby, Richtech B.V declares that this Android Tablet PC is in compliance with essential requirements and other relevant provisions of Directive 1999/5/EC.

GEBRUIKERSHANDLEIDING

Account: [e-mail]

Wachtwoord: *******

Account: [e-mail]

Wachtwoord: *******

1. Announces.
2. Introduction

2.12 Specifications techniques

(Example: www.ployer.com.cn)

Compte:[e-mail]

Mot de passer: ********
