Product Type	Kitchen Hood
Brand	Boretti
Model	SHP600
Minimum distance above cooking surface	65 cm
Exhaust duct diameter	150 mm minimum
Operation	External evacuation or recirculation (with charcoal filter)
Motor speeds	4 speeds
Lighting	Boretti Lumina LED
Heat sensor	Yes (automatic speed adjustment)
Timer function (Permanence)	Yes (5, 10 or 20 minutes)
Filter saturation indicator	Yes (grease filter 40h, charcoal filter 120h)
Grease filter	Washable (in dishwasher at low temperature)
Charcoal filter	Replace every 4 months (non-washable)
Electrical connection	Mains voltage (see rating plate)
Maintenance	Regular cleaning with neutral products
Safety	Do not use without filters, no open flames
Reparability	LED bulb replacement by technical service
Timer (permanence)	Yes, adjustable (5, 10, 20 min)

Frequently Asked Questions - SHP600 BORETTI

What is the minimum distance between the hood and the cooking surface?

The hood must be placed at least 65 cm above the cooking surface. If the cooking appliance manual specifies a larger distance, follow that.

How do I install the exhaust duct?

Use an exhaust pipe with a minimum diameter of 150 mm. Install it with adhesive tape (no screws) to avoid blocking the non-return flap. It should be as short and smooth as possible.

Can I use the hood in recirculation mode?

Yes, if external evacuation is impossible. You must then install charcoal filters (not supplied). The filtered air returns to the kitchen through the side openings.

How do I clean the grease filter?

Clean it once a month by hand or in the dishwasher at low temperature with a short cycle. Use non-aggressive products.

When should I replace the charcoal filter?

The charcoal filter must be replaced at least every 4 months. It cannot be washed or reused.

How do I set the timer (permanence)?

Press the E button: once = 5 min, twice = 10 min, three times = 20 min. The button flashes to confirm. To deactivate, press E again.

What does the flashing of the F button mean?

The F button flashes to indicate that the grease filter needs cleaning (after 40 hours of use) or the charcoal filter needs replacement (after 120 hours) if you are using recirculation.

How do I reset the filter indicator?

Press the F button to reset the indicator after cleaning or replacing the filter.

What should I do if the LED lighting stops working?

The Boretti Lumina LED lighting can only be replaced by Boretti's technical service. Contact customer service.

Is it possible to cook with an open flame under the hood?

No, it is strictly forbidden. Open flames damage the filters, electronics, and can cause a fire. Always use electric or induction hobs.

USER MANUAL SHP600 BORETTI

Two stainless steel kitchen air purifiers with ventilation grilles, shown from different angles (no text or symbols visible)

VOORWOORD

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Gebruik afzuigkap

Bediening

Image displaying six symbolic icons: sun, wind turbine, minus sign, plus sign, smiley face, and letter F, arranged horizontally.

A B C D E F

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Image displaying six symbolic icons: sun, wind turbine, minus sign, plus sign, smiley face, and letter F, arranged horizontally.

A B C D E F

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Image displaying six symbolic icons: sun, fan, minus sign, plus sign, smiley face, and letter F, arranged horizontally.

A B C D E F

Boretti would like to congratulate you on your new kitchen purchase, and to thank

you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe

use of this product.

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

Also consult the drawings on the last pages with the alphabetic references from the explanatory text.

Note: Please follow the instructions in this text carefully.

Any claim for possible damage to or fire in the appliance caused by failure to follow the instructions in this manual will be rejected.

Installation

The extractor must be installed at least 65 cm above the cooking surface. If the installation instructions of the cooking appliance specify a greater distance, this must be taken into account. Fit the extractor in such a way that it will be easy to remove from the wall without causing any damage. Removal may be necessary for future service operations.

The extractor must be connected to an extraction duct with a minimum diameter of 150 mm. This is very important to ensure the life and extraction capacity of your extractor.

Extraction

The extraction duct must be connected directly to the motor housing. When fitting the extraction duct, make sure that the one-way valve is not blocked! We recommend fitting the duct with tape and not with screws.

It is advisable to keep the duct as short as possible, with as few bends as possible. It is also advisable to use a smooth duct in order to keep resistance to the minimum. This is extremely important for the best operation of your extractor.

Note: No ducting is supplied with the extractor.

If it is not possible to vent the steam outside, the extractor can be used in the filter mode F (recirculation) by fitting carbon filters. The filtered air is returned to the kitchen through the openings on the side of the chimney.

Electrical connection

The mains voltage must correspond to the voltage stated on the factory plate inside the hood.

Environmental instructions

Should do you want to dispose of the appliance for whatever reason, please observe the following:

Take the appliance to the local authorised collection point for scrapped household appliances. Correct processing can ensure that valuable materials are recycled intelligently. Before you dispose of the appliance, it is important to cut off the electrical supply cable and remove it with the plug.

This appliance bears the mark in terms of the European Directive 2002/96 EG on waste electrical and electronic equipment. This directive lays down the standards for the collection and recycling of waste equipment which are applicable to the entire territory of the European Union.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Using the extractor

Operation

When the appliance is switched off, pressing any button activates the standby function and the symbols are illuminated with a soft light so that you can see the functions and set them. Pressing one of the buttons activates the relevant function, and the symbol lights up in blue. In order to save energy, the operating system is provided with a device that returns the buttons to the idle setting after all functions have been switched off and illuminates them with soft light for about 30 seconds, after which they switch off.

The extraction hood has 6 buttons:

Image displaying a row of icons including sun, wind turbine, minus sign, plus sign, smiley face, and letter F in a rectangular frame.

A B C D E F

A: BORETTI LUMINA LED Lighting on/off

B: Motor on/off

C: Reduce motor speed

D: Increase motor speed

E: Delay switch

F: Replace carbon filter /clean grease filter indicator

Motor

The motor has 4 settings. The display indicates the selected setting as follows:

Setting 1: Button C flashes and lights up in blue

Setting 2: Button C lights up in blue

Setting 3: Button D lights up in blue

Setting 4: Button D flashes and lights up in blue

Heat sensor

When the extractor is used in the automatic mode, the motor speeds are switched automatically by means of a heat sensor fitted in the hood. This mode is recommended only for intensive use of the cooking surface (when two or more cooking zones or burners are in use). The automatic mode is activated by pressing buttons C and D at the same time. The extractor operates automatically and the heat sensor automatically adjusts the motor speed to the temperature of the cooking surface. Button B

flashes to indicate that the heat sensor is on. To return to manual operation, press buttons C and D simultaneously again. The correct operation of the heat sensor depends on the distance between the hood and the cooking surface. The greater the distance, the less sensitive the sensor becomes.

Delay switch

Your extraction unit has a delay switch. The delay switch is a timer that will switch off the extractor after a number of minutes and allows you the option of keeping the extractor running after you have finished cooking in order to remove the last cooking odours from the kitchen while you are enjoying your meal.

You can set the delay by pressing button E. Pressing the button once will set the timer at five minutes and button E will flash once repeatedly; pressing it the second time will set the timer at 10 minutes and button E will flash twice repeatedly and pressing it for the third

time will set the timer at 20 minutes and button E will flash three times repeatedly.

To switch off the delay timer, press button E once again.

Filter indication

Button F will flash to indicate when your grease filters need cleaning (after 40 hours' operation) and when the carbon filters need to be replaced (after 120 hours' operation) if you are operating in recirculation mode.

You can easily reset the filter indication by pressing button F.

Hint

Switching on the extractor creates a current of air. However, it can take a moment before this current takes effect, which may create the impression that the extractor is not working properly. It is therefore advisable to set the extractor at low speed a few minutes before you start cooking, so that the air current can already be effective when you start cooking; this will also allow you to keep using your extractor at the lowest speeds. In this way your extractor makes the least noise, uses the least energy and gives the best results.

Maintenance

Always disconnect the extractor before doing any maintenance.

Cleaning

The extractor must be cleaned regularly, both inside and outside. Use a cloth with a neutral detergent for cleaning. Do not use abrasives!

Note: Not observing the cleaning standards for the extractor and for replacing and cleaning the filters may create a fire hazard. You are therefore requested to follow the instructions.

Grease filter

The grease filter must be cleaned once a month with mild detergents, by hand or in the dishwasher at a low washing temperature and with a short washing cycle.

Carbon filter (filter version only)

The carbon filter may not be washed or reused. The carbon filter must be replaced at least once every 4 months.

Lamp replacement

If the BORETTI LUMINA LED illumination is no longer working, please call Boretti's technical service.

Caution

Never a use the extractor when the grease filters are not fitted correctly! The extracted air may not be discharged into a duct that is also used for extracting smoke from devices which do not run on electricity.

Always ensure that the room is well ventilated when the extractor and any other appliances are used. Cooking on open flames under the extraction hood is strictly forbidden. Open flames will damage the filters, electronics, motor and illumination and can start a fire. When frying, watch out constantly that hot fat does not catch fire.

Strictly observe the technical and safety regulations for the extraction of smoke as laid down by the relevant local authorities.

F 1. 2. 180° A 3. - OK! 12F 12A G 11F 9 6A Ø150mm B 8 4 1 5 3 3 5 Y X Y 2 Aktivkohlefilter Charcoal Filter Filtre à charbon Koolstofffilter Filtro al carbón Filtro al carbone 7 F Clack! 10 13F

Fettfilter
Anti-grease Filter
Filtre antigraisse
Vetfilter
Filtro antigrasa
Filtro antigrasso

Technical diagram of a mechanical testing setup with labeled components and directional arrows, including zoomed-in insets showing internal coils.

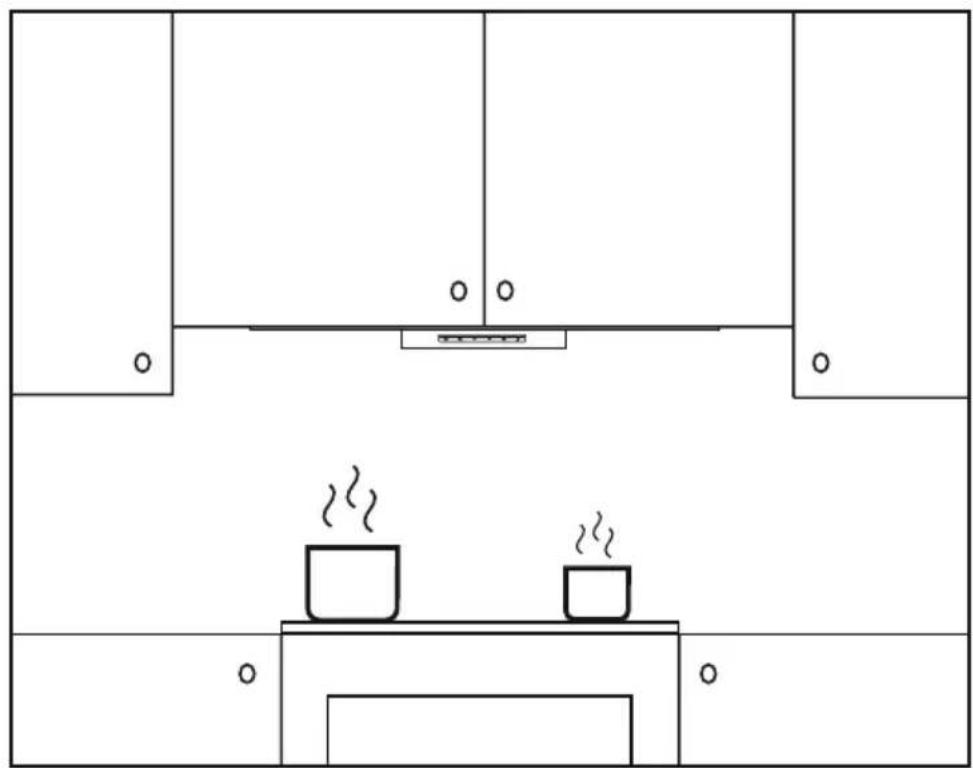

Simple line drawing of a room with two steaming pots on a counter, no text or symbols present

1 2 3 3 3 3
