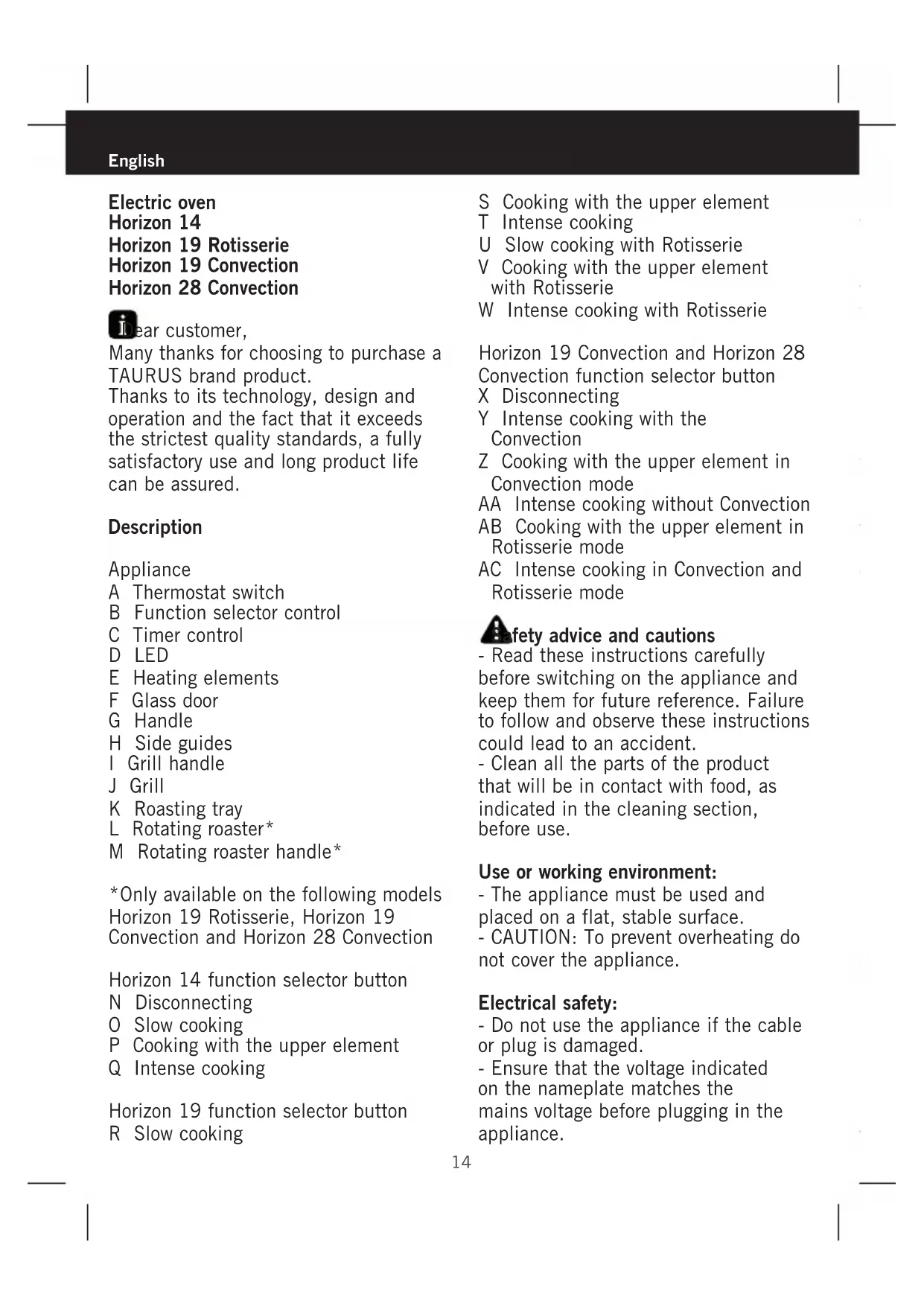

Dear customer,

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

Description

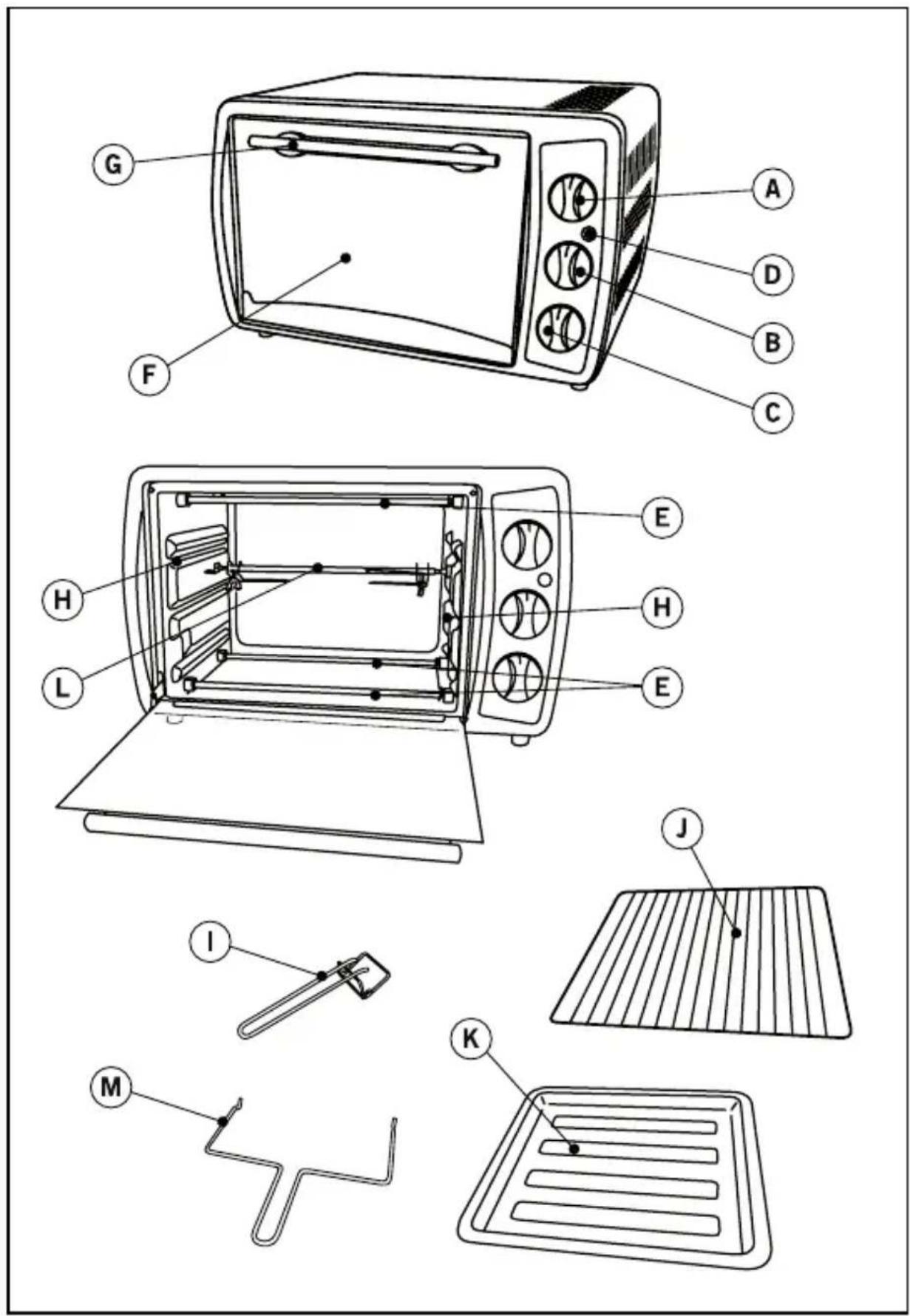

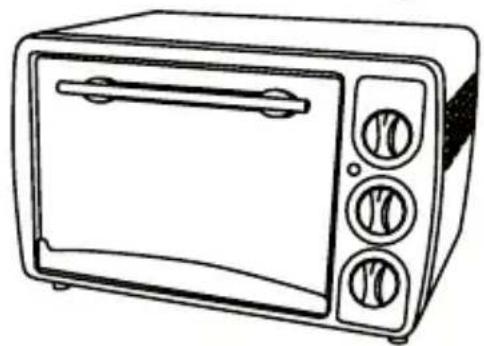

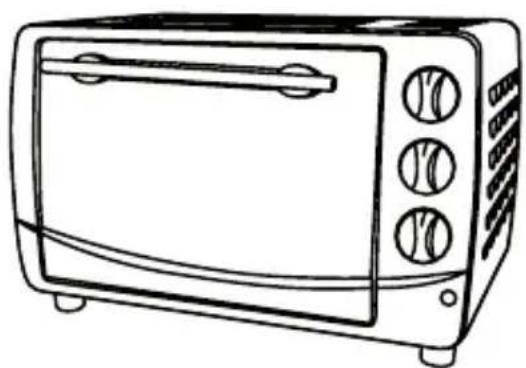

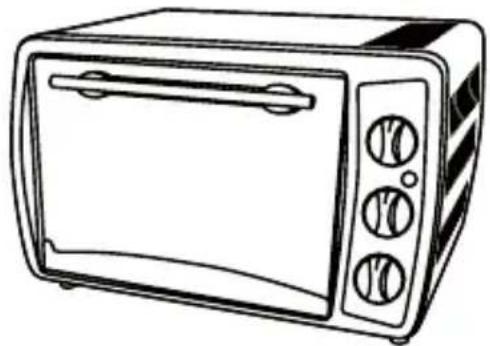

Appliance

A Thermostat switch
B Function selector control
C Timer control
D LED
E Heating elements
F Glass door
G Handle
H Side guides
I Grill handle
J Grill
K Roasting tray
L Rotating roaster*
M Rotating roaster handle*

*Only available on the following models Horizon 19 Rotisserie, Horizon 19 Convection and Horizon 28 Convection

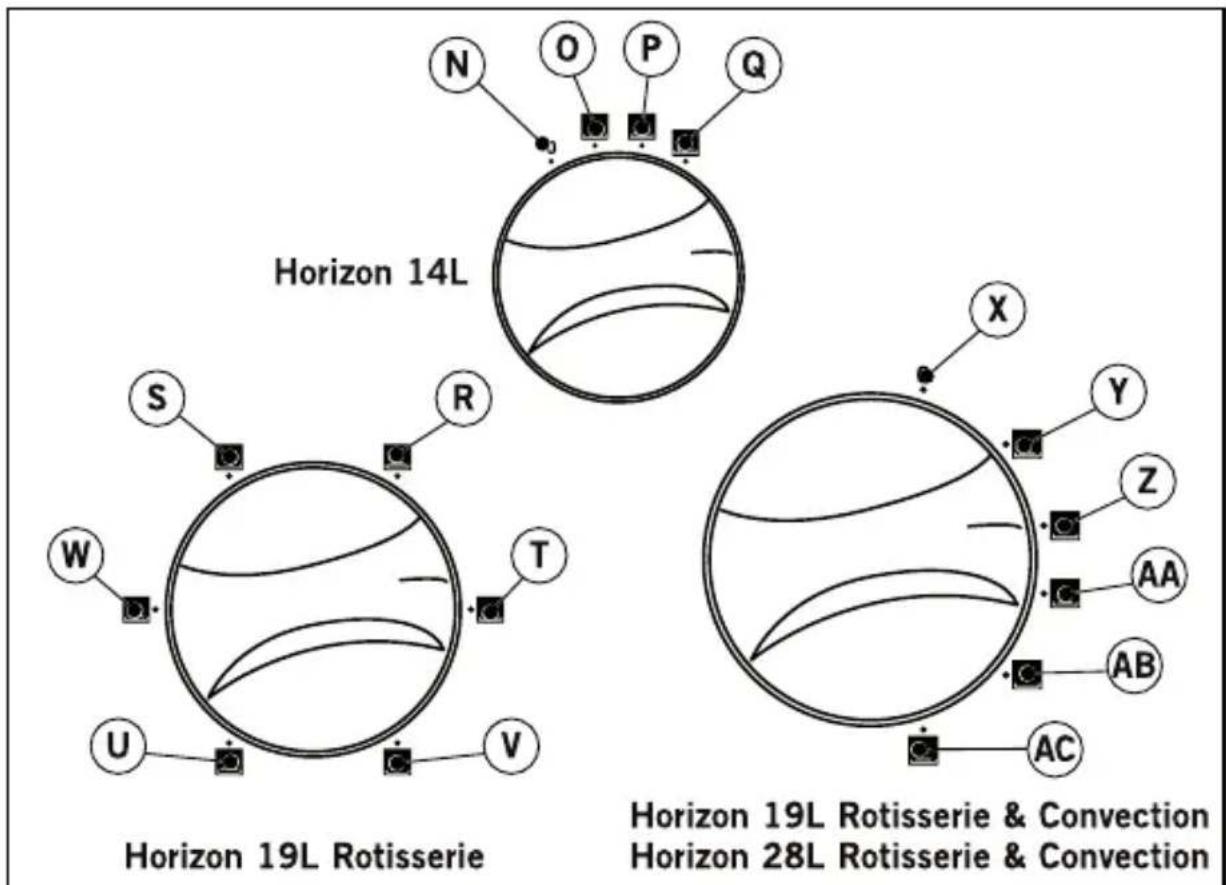

Horizon 14 function selector button

N Disconnecting

O Slow cooking

P Cooking with the upper element

Q Intense cooking

Horizon 19 function selector button R Slow cooking

S Cooking with the upper element
T Intense cooking
U Slow cooking with Rotisserie
V Cooking with the upper element with Rotisserie
W Intense cooking with Rotisserie

Horizon 19 Convection and Horizon 28 Convection function selector button

X Disconnecting

Y Intense cooking with the Convection

Z Cooking with the upper element in Convection mode

AA Intense cooking without Convection
AB Cooking with the upper element in Rotisserie mode
AC Intense cooking in Convection and Rotisserie mode

Safety advice and cautions

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

Use or working environment:

• The appliance must be used and placed on a flat, stable surface.
• CAUTION: To prevent overheating do not cover the appliance.

Electrical safety:

• Do not use the appliance if the cable or plug is damaged.

• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.

• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.

• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• If any of the appliance's casing breaks, immediately disconnect the appliance from the mains to prevent the likelihood of an electric shock.
• Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Do not touch the plug with wet hands.

Personal safety:

- The temperature of the accessible surfaces may be high when the appliance is in use.

Use and care:

• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance is for household use only, not professional or industrial use.
• This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
• This appliance should be stored out of reach of children and/or the disabled.

• Do not put the appliance away in a vertical position.

• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

• Do not put the appliance away if it is still hot.
• Keep the inside of the oven clean to avoid the carbonising of left over food, which may damage the appliance.
• Do not use the appliance to dry pets or animals.
• Do not use the appliance to dry textiles of any kind.
• Do not use the inside of the oven for storage purposes.
• Only use utensils appropriate for ovens.
• Don't place heavy utensils or trays on the open door.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Installation

• Be sure to remove all packaging material from inside the appliance.
• Do not remove the support feet of the appliance.
• The appliance requires suitable ventilation in order to work properly. Leave a space of 20cm above the appliance, 10cm behind the appliance, and 5cm on either side.
• Do not cover or obstruct any of the openings of the appliance.
• The plug must be easily accessible so it can be disconnected in an emergency.

structions for use

Before use:

- Make sure that all the product's packaging has been removed.

• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Before using this product for the first time, it is advisable to test it without food.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected. After a short time, this smoke will disappear.
• To eliminate the smell given off by the appliance when used for the first time, it is recommended to have it on at full power for 2 hours in a well-ventilated room.

Use:

• Connect the appliance to the mains.
• The oven has 3 guides (H) for situating the trays and grills at different heights. Put the grill (J) onto one of the guides according to height desired.
• Select the desired temperature turning the thermostat (A) clockwise. This button allows the cooking temperature to be regulated. The temperatures indicated on the oven are for your information. The temperature can be modified during the cooking process.
• Next, turn on the oven and program the cooking time: turn the timer control(C) clockwise to the desired time (maximum 60 minutes). The appliance will begin to work once the timer control has been turned.

- Simultaneously the LED (D), indicating the heating up of the oven, will light up.

- To program the functions turn the function selector button (B) in any direction until you have selected the desired function.

• Place the elements inside the appliance and close the door.
• When the cooking time is completed a sound will be emitted from the appliance it will turn itself off automatically.
  -To extract the skewer from the oven, use the grill handle (I).
• If you wish to stop the oven before the previously selected time has finished, position the timer control at 0.

ROTISSERIE FUNCTION

CAUTION: Always use oven gloves to protect your hands. The metallic parts can become very hot during use. Take care when touching the rods and the forks.

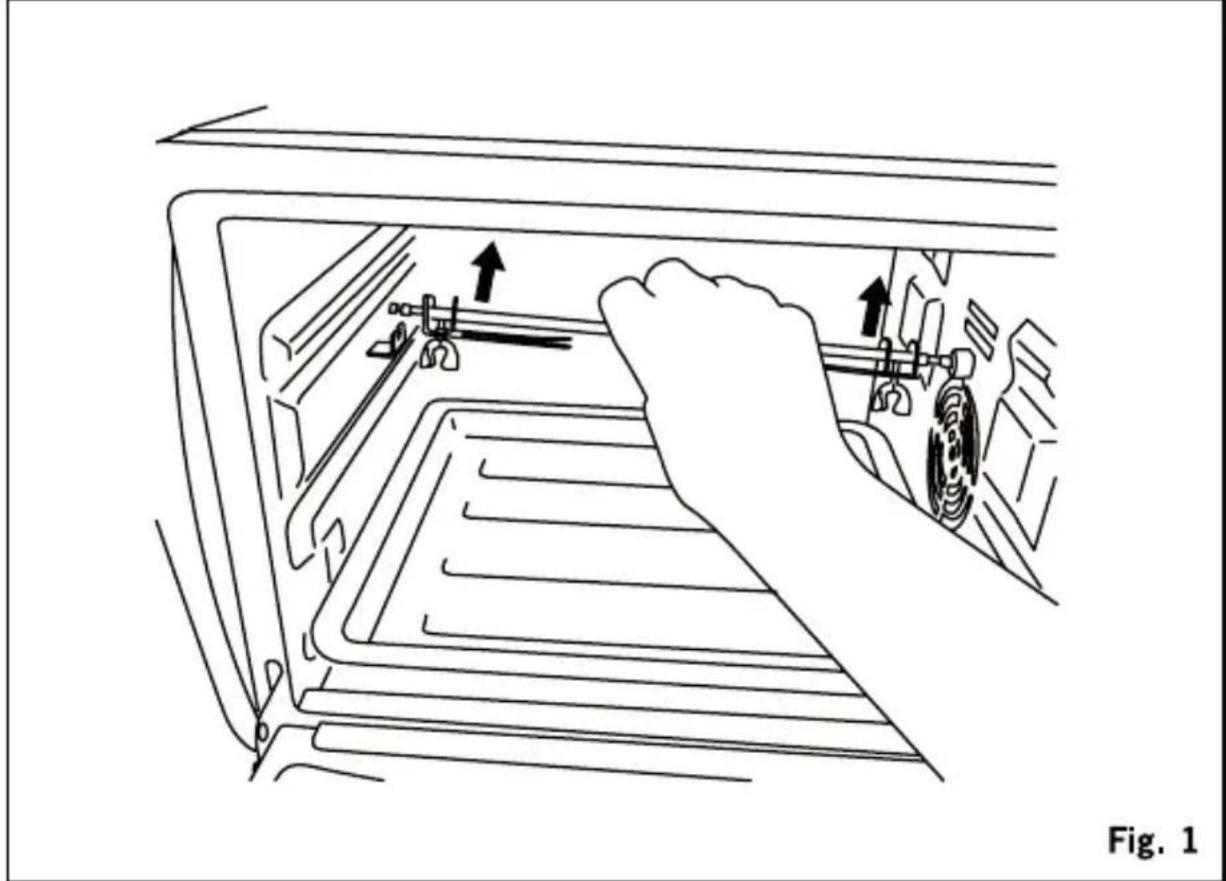

• Remove the rod from the oven (Figure 1).

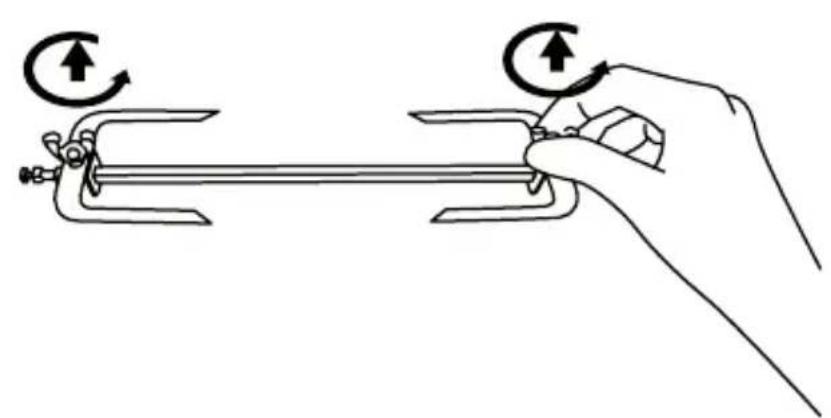

• Remove the fork from the rod by loosening the fastening screw (Figure 2).
• Push the rod through the meat and slide it to the centre.

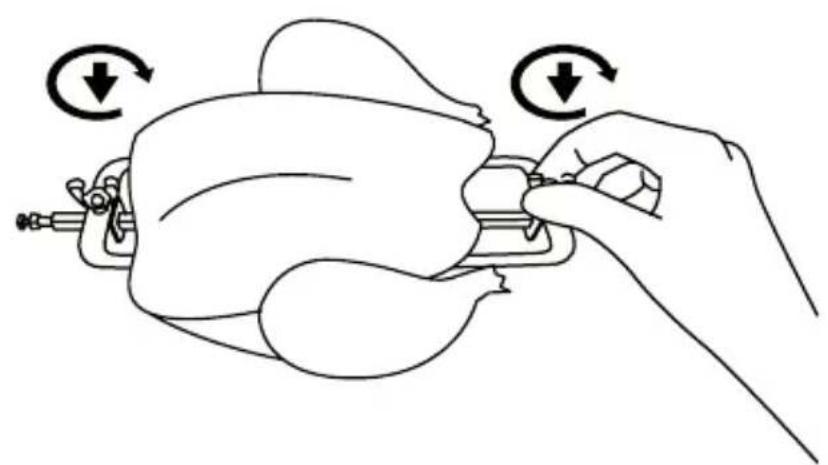

• Put the fork onto the rod again with the prongs facing towards the meat (Figure 3).
• Slide both forks firmly against the meat and tighten the fork fastening screws well.

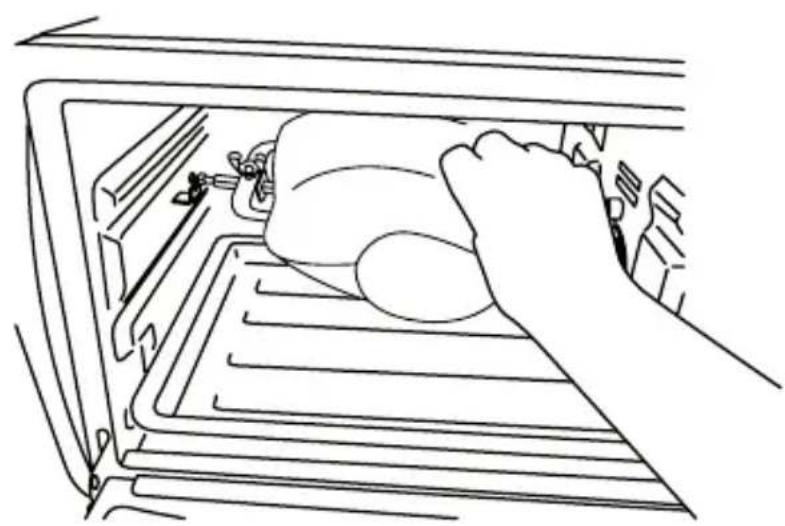

• Place the rod with the meat into the oven (Figure 4)
• After cooking loosen the fork fastening screws and remove the meat by sliding it to the end of the rod.

Once you have finished using the appliance:

- Unplug the appliance from the mains.

- Clean the appliance.

cleaning

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

Anomalies and repair

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.
• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment.

- This symbol means that; should you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Appliances (WEEE).

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.
