Product Type	Built-in Electric Oven
Brand	Taurus
Model	HM778WHD
Net Weight	29,1 kg
Cavity Volume	78 L
Energy Class	A
Energy Consumption (Conventional)	0,93 kWh/cycle
Energy Consumption (Forced Air)	0,83 kWh/cycle
Electrical Supply	220-240 V ~ 50/60 Hz
Number of Cavities	1
Cooking Functions	Defrost, Natural Convection, Ventilation, Fan Bottom Heat, Grill, Express Grill, Double Fan Grill, WaterSteam Clean System
Electronic Timer	With semi-automatic and fully automatic programming, adjustable audible alarm
Cleaning System	WaterSteam Clean System (steam cleaning at 90°C)
Oven Door	Silent closing, removable glass panels (double or triple glazing depending on version)
Accessories Included	EasyFix metal rack, metal rack, deep tray, small tray, telescopic half-extension rails
Oven Lighting	E14 bulb, 230 V, 15-25 W, resistant to 300°C (energy efficiency class G)
Maintenance	Interior cleaning with soapy water, WaterSteam steam cleaning, removal of door and glass panels for cleaning
Repairability	Bulb replacement possible by a professional, spare parts available via authorized after-sales service
Safety Instructions	Supervision required, do not use steam cleaner, risk of burns, do not leave children unsupervised
Installation	Built-in, must be installed by a qualified professional, cut-out dimensions: see manual

Frequently Asked Questions - HM778WHD TAURUS

How to set the time on my Taurus HM778WHD oven?

After plugging in, the symbols 'A' and '000' flash. Press the '+' and '-' keys simultaneously until the center point flashes. Set the time with '+' and '-' then wait for the point to stop.

How to use the WaterSteam steam cleaning function?

Set the function to static heat at 90°C. Pour 200-250 ml of water on the tray at the bottom of the oven. Start the cycle for 30-60 minutes. After cooling, wipe the interior with a cloth.

The oven door does not close properly, what should I do?

Check that no accessory is blocking the closure. Clean the seals. If the door is misaligned, contact a professional. The silent closing requires releasing the door just before the closed position.

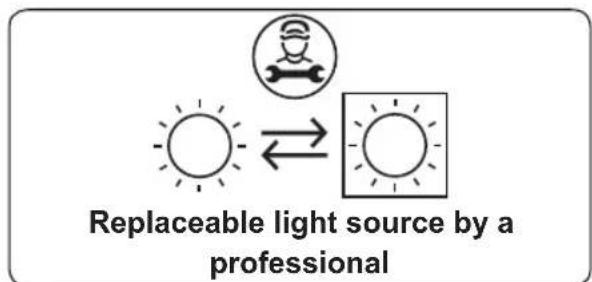

How to replace the oven bulb?

Unplug the appliance and let it cool. Remove the glass cover, then unscrew the defective bulb. Replace with an E14 bulb of 230V, 15-25W, resistant to 300°C. Replace the cover. The operation should be carried out by a professional if necessary.

What to do if the oven does not heat up?

Check that the appliance is plugged in and that other devices work. Make sure the temperature knob is set correctly and the door is closed. If the problem persists, contact after-sales service.

How to program an automatic cooking with end time?

Select the function and temperature. Press 'MODE' until 'end' is displayed. Set the end time with '+' and '-'. The oven will start automatically to finish at the chosen time.

Cooking is uneven, how to avoid it?

Respect the recommended levels (e.g., level 3 for a single dish). Do not preheat too long and avoid opening the door frequently. Use the Ventilation function for better heat distribution.

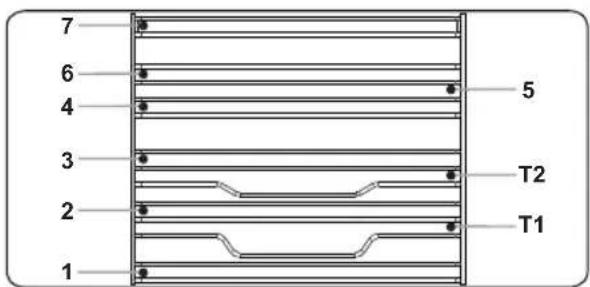

What are the recommended rack levels for different cooking?

For a single level, use level 3 (or T2 with telescopic rails). For two levels, levels 2 and 4. For grilling, use the upper level (6-7).

How to save energy with the oven?

Cook several dishes at the same time if possible. Reduce preheating (10 minutes is often enough). Do not open the door during cooking. Turn off the oven as soon as finished.

Can I use aluminum foil in the oven?

No, never cover the bottom of the oven with aluminum foil as it can cause overheating. Use the provided trays and racks.

USER MANUAL HM778WHD TAURUS

Three white square oven units with control knobs and a digital display, shown from different angles (no visible text or symbols)

EN. Instructions for use

FR. Mode d'emploi

Technical diagram of a mechanical device with no visible text or symbols

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a square frame and a horizontal line below (no text or symbols)

Simple geometric diagram with a zigzag line above a black square (no text or symbols)

Simple black square with a white wavy line above it, no text or symbols present.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

A - Mode +

A - Mode +

A 23/59 - Mode +

En·d - Mode +

En·d - Mode +

9-18 - Mode +

Technical line drawing of a square frame with bolt holes, no text or symbols present

La bandeja pequeña

Simple line drawing of a rectangular tray or container with no text or symbols

Technical line drawing of a mechanical assembly with parallel plates and a central shaft (no text or symbols)

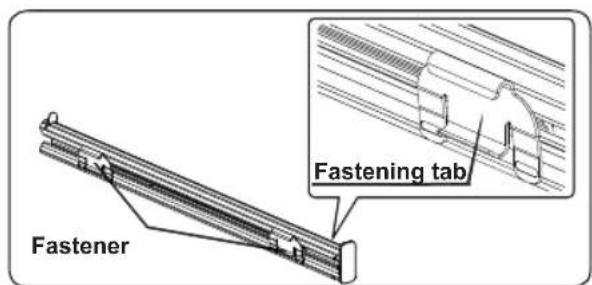

Guías telescópicas

Technical line drawing of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

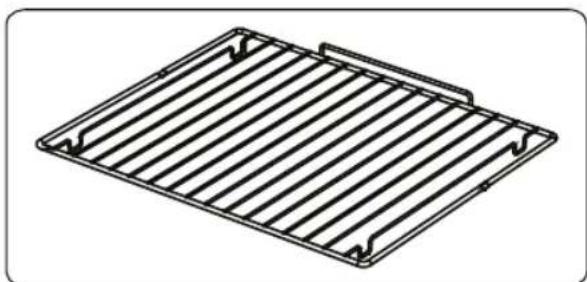

Isometric line drawing of a rectangular metal grate or rack with slats and mounting brackets (no text or symbols)

ADVERTENCIA Coloque la rejilla

Technical line drawing of a metal rack with a curved bracket and an arrow indicating force or movement (no text or symbols)

Line drawing of a door with an open lid and internal shelves, showing a curved arrow indicating rotation (no text or symbols)

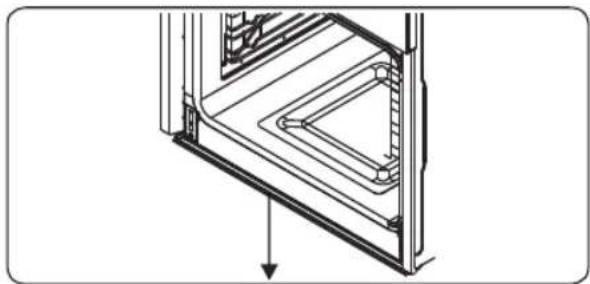

Colector de agua

Technical line drawing of a mechanical component or assembly (no text or symbols visible)

5. LIMPIEZA Y MANTENIMIENTO

5.1. LIMPIEZA

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Diagram showing a hand holding a pen or ruler inserted into a device labeled with 'x' and 'C', likely illustrating a measurement or assembly process.

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component 'a' (no text or symbols beyond label)

Diagram showing a hand holding a grid-like object with an arrow labeled 'a' pointing to it, inside a container-like shape.

5.2. MANTENIMIENTO

Weather icon and sun symbol showing a person in a car with a north arrow, indicating solar or wind direction.

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS.... 3
1.1 General Safety Warnings 3
1.2 Installation Warnings 5
1.3 During Use....6
1.4 During Cleaning and Maintenance 7
2.INSTALLATION AND PREPARATION FOR USE 9
2.1 Instructions for the Installer 9
2.2 Installation of the Oven 9
2.3 Electrical Connection and Safety....11
3.PRODUCT FEATURES 12
4.USE OF PRODUCT 13
4.1 Oven Controls.... 13
4.2 Use of the Digital Timer 15
4.3 Accessories 17
5.CLEANING AND MAINTENANCE.... 19
5.1 Cleaning 19
5.2 Maintenance 21
6.TROUBLESHOOTING&TRANSPORT 22
6.1 Troubleshooting 22
6.2 Transport 22

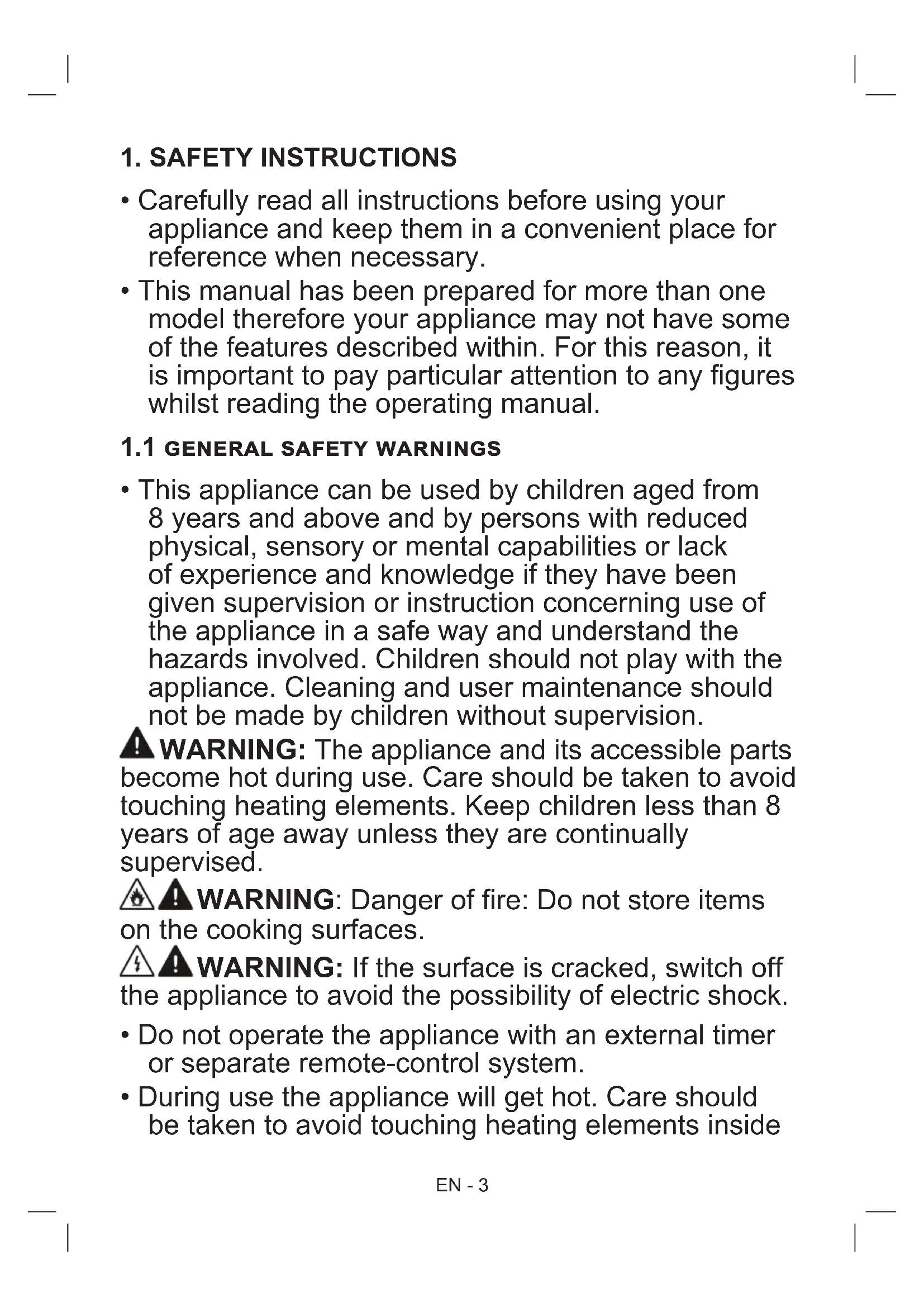

1. SAFETY INSTRUCTIONS

• Carefully read all instructions before using your appliance and keep them in a convenient place for reference when necessary.
• This manual has been prepared for more than one model therefore your appliance may not have some of the features described within. For this reason, it is important to pay particular attention to any figures whilst reading the operating manual.

1.1 GENERAL SAFETY WARNINGS

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Keep children less than 8 years of age away unless they are continually supervised.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

⚠️! WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

• Do not operate the appliance with an external timer or separate remote-control system.
• During use the appliance will get hot. Care should be taken to avoid touching heating elements inside

the oven.

• Handles may get hot after a short period during use.
• Do not use harsh abrasive cleaners or scourers to clean the oven door glass and other surface.
  They can scratch the surfaces which may result in shattering of the door glass or damage to surfaces.
• Do not use steam cleaners for cleaning the appliance.

⚠️ WARNING: To avoid the possibility of electric shock, make sure that the appliance is switched off before replacing the lamp.

⚠️ CAUTION: Accessible parts may be hot when cooking or grilling. Keep young children away from the appliance when it is in use.

• Your appliance is produced in accordance with all applicable local and international standards and regulations.
• Maintenance and repair work should only be carried out by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians may be dangerous. Do not alter or modify the specifications of the appliance in any way. Inappropriate hob guards can cause accidents.
• Before connecting your appliance, make sure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the specifications of the appliance are compatible. The specifications for this appliance are stated on the label.

⚠️ CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only. It should not be used for any other purpose or in any other application, such as for non-domestic use, in a commercial environment or for

heating a room.

• Do not use the oven door handles to lift or move the appliance.
• All possible measures have been taken to ensure your safety. Since the glass may break, care should be taken while cleaning to avoid scratching. Avoid hitting or knocking the glass with accessories.
• Make sure that the supply cord is not trapped or damaged during installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.
• Do not let children climb on the oven door or sit on it while it is open.
• Please keep children and animals away from this appliance.

1.2 INSTALLATION WARNINGS

• Do not operate the appliance before it is fully installed.
• The appliance must be installed by an authorised technician. The manufacturer is not responsible for any damage that might be caused by defective placement and installation by unauthorised people.
• When the appliance is unpacked, make sure that it is has not been damaged during transportation. In case of any defect do not use the appliance and contact a qualified service agent immediately. The materials used for packaging (nylon, staplers, Styrofoam, etc.) may be harmful to children and they should be collected and removed immediately.

• Protect your appliance from the atmosphere. Do not expose it to effects such as sun, rain, snow, dust or excessive humidity.

• Any materials (i.e. cabinets) around the appliance must be able to withstand a minimum temperature of 100°C.

• The appliance must not be installed behind a decorative door, in order to avoid overheating.

1.3 DURING USE

- When you first use your oven you may notice a slight smell. This is perfectly normal and is caused by the insulation materials on the heater elements. We suggest that, before using your oven for the first time, you leave it empty and set it at maximum temperature for 45 minutes. Make sure that the environment in which the product is installed is well ventilated.

• Take care when opening the oven door during or after cooking. The hot steam from the oven may cause burns.

- Do not put flammable or combustible materials in or near the appliance when it is operating.

• Always use oven gloves to remove and replace food in the oven.

- Under no circumstances should the oven be lined with aluminium foil as overheating may occur.

- Do not place dishes or baking trays directly onto the base of the oven whilst cooking. The base becomes very hot and damage may be caused to the product.

Do not leave the oven unattended while cooking with solid or liquid oils. They may catch fire under extreme heating conditions. Never pour water on to flames that are caused by oil, instead switch the oven off and cover the pan with its lid or a fire blanket.

- If the product will not be used for a long period of time, turn the main control switch off.

• Make sure the appliance control knobs are always in the “0” (stop) position when it is not in use.
• The trays incline when pulled out. Take care not to spill or drop hot food while removing it from the ovens.
• Do not place anything on the oven door when it is open. This could unbalance the oven or damage the door.
• Do not hang towels, dishcloths or clothes from the appliance or its handles.

1.4 DURING CLEANING AND MAINTENANCE

• Make sure that your appliance is turned off at the mains before carrying out any cleaning or maintenance operations.
• Do not remove the control knobs to clean the control panel.
• To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call our authorised service agents in case of need.

CE Declaration of conformity

CE We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.

The operating instructions apply to several models. You may notice differences between these instructions and your model.

isposal of your old machine

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the retailer who you purchased this product from.

2. INSTALLATION AND PREPARATION FOR USE

WARNING: This appliance must be installed by an authorised service person or qualified technician, according to the instructions in this guide and in compliance with the current local regulations.

• Incorrect installation may cause harm and damage, for which the manufacturer accepts no responsibility and the warranty will not be valid.
• Prior to installation, ensure that the local distribution conditions (electricity voltage and frequency) and the adjustments of the appliance are compatible. The adjustment conditions for this appliance are stated on the label.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.).
• If the product contains removable shelf guides (wire racks) and the user manual includes recipes like yoghurt, the wire racks shall be removed and the oven operated in the defined cooking mode. Removal of the Wire Shelf information is included in the CLEANING AND MAINTENANCE section.

2.1 INSTRUCTIONS FOR THE INSTALLER General instructions

• After removing the packaging material from the appliance and its accessories, ensure that the appliance is not damaged. If you suspect any damage, do not use it and contact an authorised service person or qualified technician immediately.
• Make sure that there are no flammable or combustible materials in the close vicinity, such as curtains, oil, cloth etc. which may catch fire.
- The worktop and furniture surrounding the appliance must be made of materials resistant to temperatures above 100°C.
• The appliance should not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer.

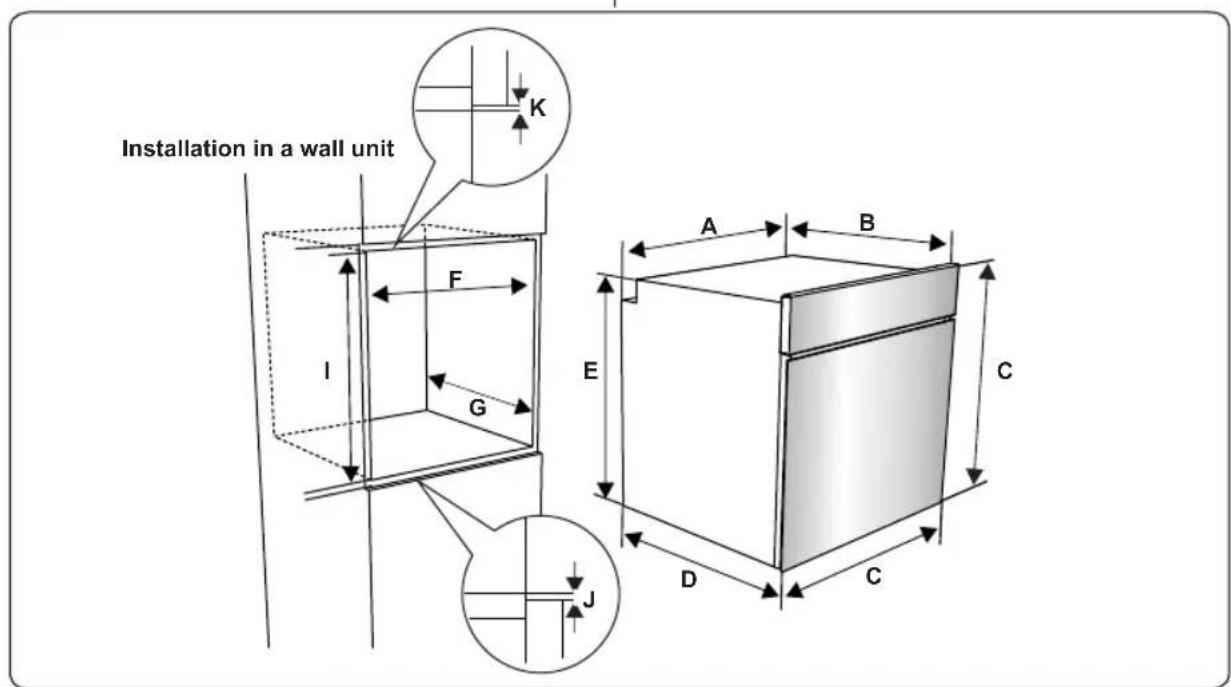

2.2 INSTALLATION OF THE OVEN

The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below.

A (mm)	557 min./max. F (mm) 560/580
B (mm)	550 min. G (mm) 555
C (mm)	595 min. H/I (mm) 600/590
D (mm)	575 min. J/K (mm) 5/10
E (mm)	576

Installation under a worktop A B C D C E F G H J

Installation in a wall unit K F I G E A B C D C J

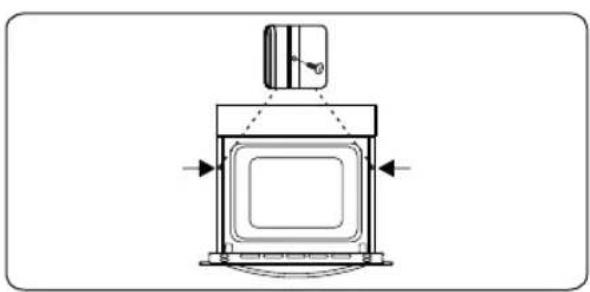

After making the electrical connections, insert the oven into the cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes located on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws.

Technical diagram of a mechanical device with no visible text or symbols

2.3 ELECTRICAL CONNECTION AND SAFETY

WARNING: The electrical connection of this appliance should be carried out by an authorised service person or qualified electrician, according to the instructions in this guide and in compliance with the current local regulations.

WARNING: THE APPLIANCE MUST BE EARTHED.

• Before connecting the appliance to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the appliance's power rating (also indicated on the identification plate).
• During installation, please ensure that isolated cables are used. An incorrect connection could damage your appliance. If the mains cable is damaged and needs to be replaced this should be done by a qualified personnel.
• Do not use adaptors, multiple sockets and/or extension leads.
• The supply cord should be kept away from hot parts of the appliance and must not be bent or compressed. Otherwise the cord may be damaged, causing a short circuit.
• If the appliance is not connected to the mains with a plug, a all-pole disconnector (with at least 3 mm contact spacing) must be used in order to meet the safety regulations.
• The appliance is designed for a power supply of 220-240V. If your supply is different, contact the authorised service person or a qualified electrician.
• The power cable (H05VV-F) must be long enough to be connected to the appliance, even if the appliance stands on the front of its cabinet.
• Ensure all connections are adequately tightened.
  • Fix the supply cable in the cable clamp and then close the cover.
• The terminal box connection is placed on the terminal box.

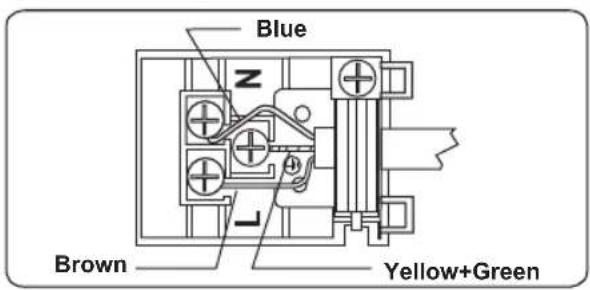

Blue Brown Yellow+Green

3. PRODUCT FEATURES

Important: Specifications for the product vary and the appearance of your appliance may differ from that shown in the figures below.

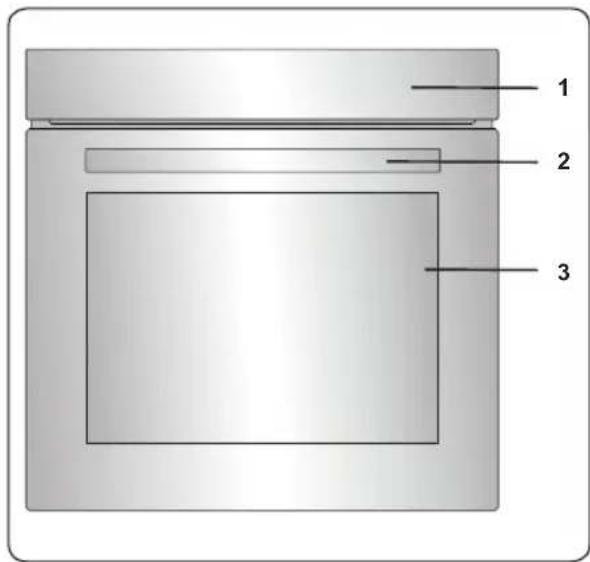

List of Components

1 2 3

1. Control Panel
2. Oven Door Handle
3. Oven Door

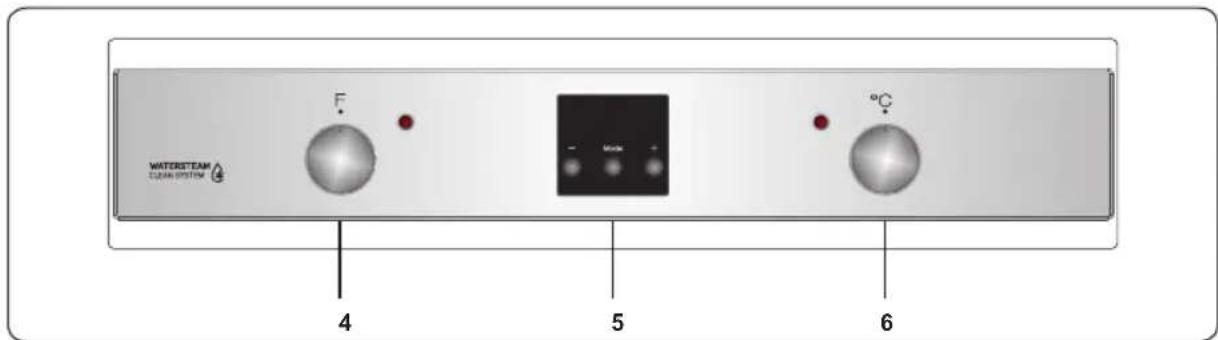

Control Panel

WATERSTREAM CLOAN SYSTEM F - - - - - - - - - - - 4 5 6

1. Oven Function Control Knob
2. Timer
3. Oven Thermostat Knob

4. USE OF PRODUCT

4.1 OVEN CONTROLS

Oven function control knob

Turn the knob to the corresponding symbol of the desired cooking function. For the details of different functions see 'Oven Functions'.

Oven thermostat knob

After selecting a cooking function, turn this knob to set the desired temperature. The oven thermostat light will illuminate whenever the thermostat is in operation to heat up the oven or maintain the temperature.

Oven Functions

Simple icon of a sun with rays on a dark background (no text or symbols)

Oven Lamp: Only the oven light will switch on. It will remain on for the duration of the cooking function.

Simple white pinwheel icon on dark background, no text or symbols present

Defrost Function: The oven's warning lights will switch on and the fan will start to operate. To use the defrost function, place your frozen food in the oven

on a shelf in the third slot from the bottom. It is recommended that you place an oven tray under the defrosting food to catch the water accumulated due to melting ice. This function will not cook or bake your food, it will only help to defrost it.

Solid dark square with two thin white horizontal lines on top and bottom (no text or symbols)

Static Cooking

Function: The oven's thermostat and warning lights will switch on, and the lower and upper heating elements will start operating. The

static cooking function emits heat, ensuring even cooking of food. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza. Preheating the oven for 10 minutes is recommended and it is best to use only one shelf at a time in this function.

Abstract geometric symbol with a four-blade propeller inside a square frame (no text or symbols)

Fan Function: The oven's thermostat and warning lights will switch on, and the upper and lower heating elements and fan will start operating.

This function is good for baking pastry. Cooking is carried out by the lower and upper heating elements within the oven and by the fan, which provides air circulation, giving a slightly grilled effect to the food. It is recommended that you preheat the oven for about 10 minutes.

Simple icon of a propeller inside a square frame with a horizontal line at the bottom (no text or symbols)

Lower Heating and Fan Function: The oven's thermostat and warning lights will switch on, and the lower heating element and fan will start

operating. The lower heating and fan function is ideal for heating foods evenly in a short time. It is recommended that you preheat the oven for about 10 minutes.

Simple line drawing of a zigzag line above a dark square (no text or symbols)

Grilling Function: The oven's thermostat and warning lights will switch on, and the grill heating element will start operating. This function is used for

grilling and toasting foods on the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Simple icon of a battery with a wavy top line above it, no text or symbols present.

Faster Grilling

Function: The oven's thermostat and warning lights will switch on, and the grill and upper heating elements will start

operating. This function is used for faster grilling and for grilling food with a larger surface area, such as meat. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you

preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

Double Grill and Fan Function: The oven's thermostat and warning lights will switch on, and the grill upper heating elements and fan will start operating. This function is used for faster grilling of thicker food and for grilling of food with a larger surface area. Both the upper heating elements and grill will be energised along with the fan to ensure even cooking. Use the upper shelves of the oven. Lightly brush the wire grid with oil to stop food sticking and place food in the centre of the grid. Always place a tray beneath the food to catch any drips of oil or fat. It is recommended that you preheat the oven for about 10 minutes.

Warning: When grilling, the oven door must be closed and the oven temperature should be adjusted to C.

WaterSteam Clean System:

Set your oven function to static function at 90 °C to operate WaterSteam function. Spill 200-250ml of water to the tray which is stated on the oven base. Start the oven and WaterSteam will take approximately 30 - 60 minutes to prepare your oven for cleaning easily.

COOKING TABLE

Function	Dishes			min.
Static	Puff Pastry 2 -	3 - 4 170-190	35-45
	Cake 2 - 3 -	4 170-190	30-40
	Cookie 2 - 3 -	4 170-190	30-40
	Stew 2 175 -	200 40-50
	Chicken 2 - 3 -	4 200 45-60
Fan	Puff Pastry 2 -	3 - 4 170-190	25-35
	Cake 2 - 3 -	4 150-170	25-35
	Cookie 2 - 3 -	4 150-170	25-35
	Stew 2 175 -	200 40-50
	Chicken 2 - 3 -	4 200 45-60
Grilling	Grilled meatballs	7 200	10-15
	Chicken * 190	50-60
	Chop 6 - 7	200 15-25
	Beefsteak 6 -	7 200 15-25

*If available cook with roast chicken skewer.

4.2 USE OF THE DIGITAL TIMER

A 23:59 - Mode +

Function Description
A	Auto cooking
	Manual cooking
I→	Cooking time
I→I	Cooking end time
•	Dot
Δ	Minute minder
Mode	Mode function
-	Decrease timer
+	Increase timer
23 59	Timer display

Time adjustment

The time must be set before you start using the oven. Following the power connection, the symbol "A" and "000" will flash on the display.

0:00 - Mode +

1. Press the "+" and "-" keys simultaneously. Symbol will appear, and the dot in the middle of the screen will start to flash.

A - Mode +

1. Adjust the time while the dot is flashing using the "+" and "-" keys.

A - Mode +

1. After a few seconds, the dot will stop flashing and will remain illuminated.

Audible warning time adjustment

The audible warning time can be set to any time between 0:00 and 23:59 hours. The audible warning time is for warning purposes only. The oven will not be activated with this function.

A 0:00 - Mode + +

1. Press "MODE". The symbol will begin to flash and "000" will be displayed.

A 23:59 - Mode +

1. Select the desired time period using the "+" and "-" keys while 🔒 is flashing.

A 23:59 - Mode +

1. The symbol will remain illuminated, the time will be saved and the warning will be set.

When the timer reaches zero, an audible warning will sound and the symbol 🏠 will flash on the display. Press any key to stop the audible warning and the 🔊 symbol will disappear.

Semi-automatic time adjustment

(cooking period)

This function helps you to cook for a fixed period of time. A time range between 0 and 10 hours can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

A du·r - Mode +

1. Press "MODE" until you see "dur" and symbol on the display screen. The symbol "A" will flash.

1:20 - Mode +

1. Select the desired cooking time period using the "+" and "-" keys.

9518 - Mode +

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbols "A" and will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the warning sound. The symbols will disappear and the timer will switch back to manual function.

Semi-automatic time adjustment (finishing time)

This function automatically starts the oven so that cooking will finish at a set time. You can set an end time of up to 10 hours after the current time of day. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

En·d - Mode +

1. Press "MODE" until you see "end" and symbol on the display screen. "A" and the current time of day will flash.

12°30 - Mode +

1. Use the "+" and "-" buttons to set the desired finishing time.

9 18 - Mode +

1. The current time will reappear on the screen, the symbols "A", and remain illuminated.

When the timer reaches zero, the oven will switch off and an audible warning will sound. The symbol "A" and I will flash. Turn both control knobs to the "0" position and press any key on the timer to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Full-automatic programming

This function is used to start cooking after a certain period of time and for a certain duration. A time of up to 10 hours after the current time of day can be set. Prepare the food for cooking and put it in the oven.

1. Select the desired cooking function and the temperature using the control knobs.

A du·r - Mode +

1. Press "MODE" until you see "dur" and symbol on the screen. The symbol "A" will flash.

1:20 - Mode +

1. Select the desired cooking time period using the "+" and "-" keys.

9 18 - Mode +

1. The current time will reappear on the screen, the symbols "A", and remain illuminated.

En·d - Mode +

1. Press "MODE" until you see "end" and symbol on the screen. The time and the symbols "A" and will flash.

A 1230A - Mode +

1. Select the desired finishing time using the "+" and "-" keys.

23·59 - Mode +

1. Add the cooking period to the current time of day. You can set a time of up to 23 hours and 59 minutes after this.

9 18 - Mode +

1. The current time will reappear on the screen, and the symbols "A", and will remain illuminated.

The operating time will be calculated and the oven will automatically start so that cooking will finish at the set finishing time. When the timer reaches zero, the oven will switch off, an audible warning will sound and the symbols "A" and will flash. Turn both control knobs to the "0" position and press any key to stop the sound. The symbol will disappear and the timer will switch back to manual function.

Sound Adjustment

To adjust the volume of the audible warning sound, while the current time of day is displayed, press and hold the “-” button for 1-2 seconds until an audible signal sounds. After this, each time the “-” button is pressed, a different signal will sound. There are three different types of signal sounds. Select the desired sound and do not press any other buttons. After a short time, the selected sound will be saved.

4.3 ACCESSORIES

The EasyFix Wire Rack

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

7 6 4 3 2 1 5 T2 T1

• Insert the accessory to the correct position inside the oven.
• Allow at least a 1 cm space between the fan cover and accessories.
  • Take care removing cookware and/or accessories out of the oven. Hot meals or accessories can cause burns.
• The accessories may deform with heat. Once they have cooled down, they will recover their original appearance and performance.
• Trays and wire grids can be positioned on any level from of 1 to 7.
• Telescopic rail can be positioned on levels T1, T2, 3, 4, 5, 6, 7.
• Level 3 is recommended for single level cooking.
• Level T2 is recommended for single level cooking with the telescopic rails.
  • Level 2 and Level 4 are recommended for double level cooking.
• The turnspit wire grid must be positioned on Level 3.
• Level T2 is used for turnspit wire grid positioning with the telescopic rails.

****Accessories may vary depending on the model purchased.

The Deep Tray

The deep tray is best used for cooking stews.

Put the tray into any rack and push it to the end to make sure it is placed correctly.

Technical line drawing of a square frame with bolt holes and a central circular hole (no text or symbols)

The Small Tray

The small tray is best used for baking pastry. Place the tray in the centre of a wire grid.

Simple line drawing of a rectangular tray or container with no text or symbols

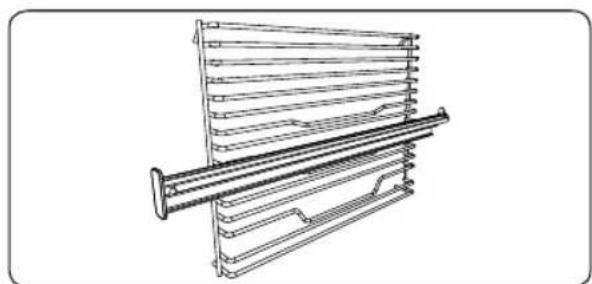

The Wire Rack with Easyfix Half Telescopic Rail

The half telescopic rail extends half-way out, to allow easy access to your food.

Technical line drawing of a multi-tiered mechanical or electrical component with no visible text or symbols

Telescopic rails

Clean the accessories thoroughly with warm water, detergent and a soft clean cloth on first use.

Fastener Fastening tab

- On each telescopic rail there are fasteners that allow you to remove them for cleaning and repositioning.

- Remove the side runner. See section "Removal of the wire shelf".

Technical line drawing of a mechanical assembly with a side-view inset showing rotational motion (no text or symbols)

- Hang the telescopic rail top fasteners on the side rack level reference wire and simultaneously press the bottom fasteners until you clearly hear the fasteners clip into the side rack level fixing wire. - In order to remove, hold the front surface of the rail and repeat the previous instructions in reverse.

The Wire Grid

The wire grid is best used for grilling or for processing food in oven-friendly containers.

Technical line drawing of a rectangular metal grate or rack structure with no text or symbols

WARNING

Place the grid to any corresponding rack in the oven cavity correctly and push it to the end.

Technical line drawing of a metal grate with a curved top and arrow indicating direction (no text or symbols)

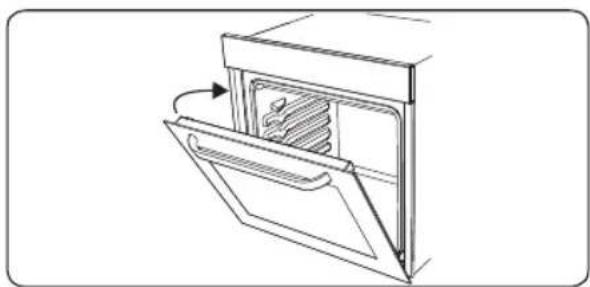

Soft-Close Oven Door

The oven door closes slowly by itself when it is released just before the closed position.

Line drawing of a refrigerator interior with a door open, showing internal shelves and a handle (no text or symbols)

The Water Collector

In some cases of cooking, condensation may appear on the inner glass of the oven door. This is not a product malfunction.

Open the oven door into the grilling position and leave it in this position for 20 seconds. Water will drip to the collector.

Cool the oven and wipe the inside of the door with a dry towel. This procedure must be applied regularly.

Technical line drawing of a mechanical assembly with no visible text or symbols

5. CLEANING AND MAINTENANCE

5.1 CLEANING

WARNING: Switch off the appliance and allow it to cool before cleaning is to be carried out.

General Instructions

• Check whether the cleaning materials are appropriate and recommended by the manufacturer before use on your appliance.
• Use cream cleaners or liquid cleaners which do not contain particles. Do not use caustic (corrosive) creams, abrasive cleaning powders, rough wire wool or hard tools as they may damage the cooker surfaces.

Do not use cleaners that contain particles as they may scratch the glass, enamelled and/or painted parts of your appliance.

- Should any liquids overflow, clean them immediately to avoid parts becoming damaged.

Do not use steam cleaners for cleaning any part of the appliance.

Cleaning the Inside of the Oven

• The inside of enamelled ovens are best cleaned while the oven is warm.
- Wipe the oven with a soft cloth soaked in soapy water after each use. Then, wipe the oven over again with a wet cloth and dry it.
- You may need to use a liquid cleaning material occasionally to completely clean the oven.

Line drawing of a hand cleaning a car wheel rim (no text or symbols)

Cleaning the Glass Parts

• Clean the glass parts of your appliance on a regular basis.
• Use a glass cleaner to clean the inside and outside of the glass parts. Then, rinse and dry them thoroughly with a dry cloth.

Cleaning the Stainless Steel Parts (if available)

- Clean the stainless steel parts of your appliance on a regular basis.

- Wipe the stainless steel parts with a soft cloth soaked in only water. Then, dry them thoroughly with a dry cloth.

Do not clean the stainless steel parts while they are still hot from cooking.

Do not leave vinegar, coffee, milk, salt, water, lemon or tomato juice on the stainless steel for a long time.

Cleaning Painted Surfaces (if available)

- Spots of tomato, tomato paste, ketchup, lemon, oil derivatives, milk, sugary foods, sugary drinks and coffee should be cleaned with a cloth dipped in warm water immediately. If these stains are

not cleaned and allowed to dry on the surfaces they are on, they should NOT be rubbed with hard objects (pointed objects, steel and plastic scouring wires, surface-damaging dish sponge) or cleaning agents containing high levels of alcohol, stain removers, degreasers, surface abrasive chemicals. Otherwise, corrosion may occur on the powder painted surfaces, and stains may occur. The manufacturer will not be held responsible for any damage caused by the use of inappropriate cleaning products or methods.

Removal of the Inner Glass

You must remove the oven door glass before cleaning, as shown below.

1. Push the glass in the direction of B and release from the location bracket (x). Pull the glass out in the direction of A.

x A B

To replace the inner glass:

1. Push the glass towards and under the location bracket (y), in the direction of B.

Technical diagram of a device with labeled components and directional arrow indicating B

1. Place the glass under the location bracket (x) in the direction of C.

Diagram showing a hand inserting a component labeled 'x' into a device labeled 'C', likely illustrating a physical or engineering concept.

If the oven door is a triple glass oven door, the third glass layer can be

removed the same way as the second glass layer.

Removal of the Oven Door

Before cleaning the oven door glass, you must remove the oven door, as shown below.

1. Open the oven door.

Technical line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

1. Open the locking catch (a) (with the aid of a screwdriver) up to the end position.

a

1. Close the door until it is almost in the fully closed position, and remove the door by pulling it towards you.

Removal of the Wire Shelf

To remove the wire rack, pull the wire rack as shown in the figure. After releasing it from the clips (a), lift it up.

Illustration of a hand pressing down on a screen with horizontal lines and arrows indicating motion (no text or symbols)

5.2 MAINTENANCE

WARNING: The maintenance of this appliance should be carried out by an authorised service person or qualified physician only.

Changing the Oven Lamp

WARNING: Switch off the appliance and allow it to cool before cleaning your appliance.

• Remove the glass lens, then remove the bulb.
• Insert the new bulb (resistant to 300 °C) to replace the bulb that you removed (230 V, 15-25 Watt, Type E14).
• Replace the glass lens, and your oven is ready for use.
  • The product contains a light source of energy efficiency class G.
  • Light source can not be replaced by end user. After sales service is needed.
• The included light source is not intended for use in other applications.

Replaceable light source by a professional

The lamp is designed specifically for use in household cooking appliances.

It is not suitable for household room illumination.

6. TROUBLESHOOTING&TRANSPORT

6.1 TROUBLESHOOTING

If you still have a problem with your appliance after checking these basic troubleshooting steps, please contact an authorised service person or qualified technician.

Problem Possible Cause Solution
Oven does not switch on.	Power is switched off.	Check whether there is power supplied.Also check that other kitchen appliances are working.
No heat or oven does not warm up.	Oven temperature control is incorrectly set.Oven door has been left open.	Check that the oven temperature control knob is set correctly.
Oven light (if available) does not operate.	Lamp has failed.Electrical supply is disconnected or switched off.	Replace lamp according to the instructions.Make sure the electrical supply is switched on at the wall socket outlet.
Cooking is uneven within the oven.	Oven shelves are incorrectly positioned.	Check that the recommended temperatures and shelf positions are being used.Do not frequently open the door unless you are cooking things that need to be turned.If you open the door often, the interior temperature will be lower and this may affect the results of your cooking.
The timer buttons cannot be pressed properly.	There is foreign matter caught between the timer buttons.Touch model: there is moisture on the control panel.The key lock function is set.	Remove the foreign matter and try again.Remove the moisture and try again.Check whether the key lock function is set.
The oven fan (if available) is noisy.	Oven shelves are vibrating.	Check that the oven is level.Check that the shelves and any bake ware are not vibrating or in contact with the oven back panel.

6.2 TRANSPORT

If you need to transport the product, use the original product packaging and carry it using its original case. Follow the transport signs on the packaging. Tape all independent parts to the product to prevent damaging the product during transport.

If you do not have the original packaging, prepare a carriage box so that the appliance, especially the external surfaces of the product, is protected against external threats.

Brand		taurus
Model		HM778WHDHM778IXD
Type of Oven ELECTRIC
Mass kg 29,1
Energy Efficiency Index - conventional 105,7
Energy Efficiency Index - fan forced 94,3
Energy Class A
Energy consumption (electricity) - conventional kWh/cycle 0,93
Energy consumption (electricity) - fan forced kWh/cycle 0,83
Number of cavities 1
Heat Source ELECTRIC
Volume I 78
This oven complies with EN 60350-1

Energy Saving Tips

Oven

• Cook the meals together, if possible.
• Keep the pre-heating time short.
• Do not elongate cooking time.
• Do not forget to turn-off the oven at the end of cooking.
• Do not open oven door during cooking period.

Installation murale K F I H G J A B E C D C J

Technical diagram of a mechanical device with no visible text or symbols

2.3. BRANCHEMENT ÉLECTRIQUE ET SÉCURITÉ

Simple dark gray square with a small white sun icon in the center (no text or symbols)

Lampe du four :

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Simple icon of a three-blade propeller inside a dark square frame (no text or symbols)

Simple geometric design with a wavy line above a square (no text or symbols)

Simple icon of a dark square with a white wavy line above it, no text or symbols present.

Simple icon of a ship or turbine with a propeller inside, no text or symbols present.

A - Mode +

A - Mode +

En·d - Mode +

En·d - Mode +

Technical line drawing of a square frame with bolt holes, no text or symbols present

Petit plateau

Simple line drawing of a rectangular tray or container with no text or symbols

Technical line drawing of a multi-tiered mechanical or electrical component with no visible text or symbols

Rails télescopiques

Technical line drawing of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

Technical line drawing of a metal grate with a rectangular frame and an arrow indicating force or movement (no text or symbols)

AVERTISSEMENT

Technical line drawing of a metal grate plate with slats and mounting brackets (no text or symbols)

Line drawing of a refrigerator with an open door and drawer, showing internal compartments and a scroll inside (no text or symbols)

Collecteur d'eau

Technical line drawing of a mechanical assembly with no visible text or symbols

5. NETTOYAGE ET ENTRETIEN

5.1. NETTOYAGE

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Diagram showing a hand holding a device labeled 'x' and marked with 'C', likely illustrating a mechanical or electrical setup.

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Illustration of a computer monitor displaying a grid with arrows indicating direction (no text or symbols)

5.2. ENTRETIEN

Weather icon showing sun and train with directional arrow, indicating solar or wind circulation

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Simple icon of a sun within a dark square frame (no text or symbols)

Abstract white line drawing of a stylized flower or droplet on a dark background (no text or symbols)

Solid dark square with two horizontal white lines above it, no text or symbols present.

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Abstract geometric design with a stylized white fan-like symbol on a dark background, no text or symbols present.

Simple abstract diagram with a wavy line above a black square (no text or symbols)

A - Mode +

A 23/59 - Mode +

9-18 - Mode +

En·d - Mode +

En·d - Mode +

9-18 - Mode +

Technical line drawing of a square frame with bolt holes (no text or symbols)

Tabuleiro pequeno

Line drawing of a rectangular tray or container with a small handle and a small tab, no text or symbols present.

Technical line drawing of a multi-tiered mechanical or electrical component with no visible text or symbols

Calhas telescópicas

Technical line drawing of a mechanical assembly with a side-view rotation view (no text or symbols)

Technical line drawing of a metal grate or rack structure with no text or symbols

AVISO

Diagram of a metal grate with a curved panel and directional arrow indicating force or movement (no text or symbols)

Line drawing of a refrigerator with an open door and drawer, showing internal shelves and a scroll inside (no text or symbols)

Coletor de Água

Technical line drawing of a mechanical or architectural component with no visible text or symbols

Line drawing of a hand cleaning a car interior with a circular object on the wall (no text or symbols)

Limpar as Partes de Vidro

Diagram showing a hand holding a pointer labeled 'x' and pointing at a labeled box marked 'C'

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical device with internal components and directional arrows, no text or symbols present

5.2. MANUTENÇÃO

Weather icon showing sun and train symbol with bidirectional arrow between sun and train

Technical diagram of a mechanical device with no visible text or symbols

2.3 CONNEXIÓ ELÈCTRICA I SEGURETAT

Simple white line drawing of a propeller inside a square frame (no text or symbols)

Solid dark square with two horizontal white lines on top and bottom (no text or symbols)

Simple icon of a propeller inside a dark square frame with horizontal lines (no text or symbols)

Simple line drawing of a zigzag line on a dark background (no text or symbols)

Simple icon of a delivery box with a wavy roof and rectangular base (no text or symbols)

Simple icon of a propeller inside a container with wavy lines above (no text or symbols)

A - Mode +

A - Mode +

A 23/59 - Mode +

En·d - Mode +

1. Premeu "MODE" fins que veieu a la pantalla "end" i el símbol ➞ a la pantalla. "A" i l'hora parpellejaran.

12°30 - Mode +

En·d - Mode +

Technical line drawing of a square frame with bolt holes, no text or symbols present

Safata petita

Us recomanem que utilitzeu la safata petita per a la pastisseria.

Simple line drawing of a rectangular tray or container with no text or symbols

Technical line drawing of a mechanical component with multiple parallel grooves and a central shaft (no text or symbols)

Guies telescòpiques

Technical line drawing of a mechanical assembly with a side-view rotation indicator (no text or symbols)

Technical line drawing of a metal grate or rack structure with no text or symbols

ADVERTÈNCIA

Technical line drawing of a metal grate with a curved panel and directional arrow (no text or symbols)

Line drawing of a door with an open lid and internal shelves, showing a curved arrow indicating rotation (no text or symbols)

Col·lector d'aigua

En alguns casos, mentre es cuina es pot formar condensació al vidre interior de la porta del forn. No es tracta de cap avaria del producte.

Technical line drawing of a door frame with internal structural components and an arrow indicating direction (no text or symbols)

5. NETEJA I MANTENIMENT

5.1 NETEJA

Line drawing of a hand cleaning a car window with a circular object on the wall (no text or symbols)

Neteja de les parts de vidre

Diagram showing a hand inserting a component labeled 'x' into a device labeled 'C', likely illustrating a physical or engineering concept.

Technical line drawing of a structural component with an arrow indicating rotation (no text or symbols)

Diagram of a hand pressing down on a grid-like structure with arrows indicating direction (no text or symbols)

5.2 MANTENIMENT

Weather icon showing sun and train with directional arrow, indicating solar or wind circulation

Font de llum reemplaçable per un professional

Model HM778WHD - HM778IXD

Technical line drawing of a mechanical device with no visible text or symbols

2.3 ЕЛЕКТРИЧЕСКА ВРЪЗКА И БЕЗОПАСНОСТ

ПРЕДУПРЕЖДЕНИЕ:

Simple dark gray square with a small white sun icon in the center (no text or symbols)

Лампа на фурната:

Solid dark square with two thin white horizontal lines on top and bottom (no text or symbols)

Abstract geometric symbol with a four-blade propeller inside a dark square frame (no text or symbols)

Функция

"Вентилатор":

Abstract geometric design with a stylized three-blade propeller inside a dark square frame (no text or symbols)

Abstract geometric shape with a zigzag line inside a square frame (no text or symbols)

Функция "Грил":

Simple icon of a dark square with a white wavy line above it, no text or symbols present.

Simple icon of a ship hull with a propeller and wavy roof (no text or symbols)

A - Mode +

A - Mode +

En·d - Mode +

Technical line drawing of a square frame with bolt holes, no text or symbols present

Малката тава

Simple line drawing of a rectangular tray or container with no text or symbols

Метална решетка с полутелескопична релса EasyFix

Technical line drawing of a mechanical component with parallel grooves and a central shaft (no text or symbols)

Телескопични релси

Technical illustration of a mechanical assembly with a side view showing a rotating component (no text or symbols present)

Technical line drawing of a metal grate plate with slats and rivets (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ

Diagram of a metal grate with a curved panel and an arrow indicating force or movement (no text or symbols)

Line drawing of a refrigerator interior with a door and drawer, showing internal shelves and a scroll inside (no text or symbols)

Колекторът за вода

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand cleaning a car window with a cloth (no text or symbols)

Technical line drawing of a mechanical assembly with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical joint or bracket assembly (no text or symbols)

Diagram of a door mechanism with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with horizontal bars and a hand holding a clip, labeled 'a' (no text or symbols on the diagram itself)

5.2 поддръжка

Weather icon showing sun and person with directional arrow, likely indicating solar or wind circulation

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/

Français

GARANTIE ET ASSISTANCE TECHNIQUE

COUNTRY ADDRESS PHONE

Algeria Zone d'Activite, N° 62, Constantine 213770777756
Argentina Av. del Libertador 1298,(B1638BEY), Vicente López (Pcia. Buenos Aires)		541153685223
Belgium Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Bulgaria	265,Okolovrasten Pat, Mladost 4, 1766, Sofia	35929211120 / 35929211193
Congo (Republic of) 98 Blvd General Charles de Gaulle, Pointe Noire 242066776656
Cyprus 20, Bethlehem Str. / P.O.Box 20430, 2033, Strovolos		35722711300
Czech Republic	Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Equatorial Guinea	SN Av Patricio Lumumba y C/ Jesus B, Bata	00240 333 082958 / 00240 333 082453
Equatorial Guinea	Calle de las Naciones Unidas, PO box 762, Malabo	240333082958 / 240333082453
España	Avda Barcelona, S/N, 25790 Oliana (Lleida) [e-mail]	902 118 050
France	Za les bas musats 18, 89100, Malay-le-Grand	03 86 83 90 90
Ghana	Ederick Place, Accra-Ghana	302682448 / 302682404
Gibraltar	11 Horse Barrack Lane, 54000, Gibraltar	00350 200 75397 / 00350 200 41023
Greece Sapfous 7-9, 10553, Athens		[phone]
Hong Kong	Unit H,13/F., World Tech Centre, Hong kong	(852) 2448 0116 / 9197 3519
Hungary	Késmárk utca 11-13, 1158, Budapest	[phone]
India	C-175, Sector-63, Noida, Gautam Budh Nagar - 201301, Delhi	([phone]
Ivory Coast 01 Rue Des Carrossiers-Zone 3, B.P 3747, Abidjan 01 (RCI)		22521251820 / 225 21 353494
Luxembourg Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Marruecos Big distribution society 4 Rue 13 Lot. Smara Oulfa, Casablanca		([phone]
Mauritania 134 Avenue Gamal Abdener Ilot D, Nouakchott 2225254469 / 2225251258
Mexico Rosas Moreno N° 4-203 Colonia de San Rafael C.P. 06470 – Delegación Cuauhtémoc, Ciudad de México		([phone]
Montenegro Rastovac bb, 81400, Niksic		[phone]
Netherlands Mariëndonkstraat 5, 5154 EG, Elshout 31620401500
Nigeria 8, Isaac; John Str,G.R.A Ikeja Lagos 23408023360099
Paraguay Denis Roa 155 c/ Guido Spano, Asunción 21665100
Peru Calle los Negocios 428, Surquillo, Lima [phone]
Portugal Avenida Rainha D. Amélia, n°12-B, 1600-677, Lisboa		[phone]
Romania	Dudesti Pantelimon 23, 410554, Bucharest	031.805.49.58
Serbia	Rastovac bb, 81400, Niksic	[phone]
Slovakia Milady Horakove 357/4, 568 02, Svitavy	420 461 540 130
Southafrica	Unit 25 & 26, San Croy Office Park, Die Agora Road, Croydon, Kempton Park, 1619, Johannesburg	([phone]
Tunisia	2, Rue de Turquie, Tunis	21671333066
Ukraine	Block 6, Ap Housing Estate Topol-2, B, 49000, Dnepropetrovsk	380563704161 / 380563704161
Uruguay	Luis Alberto de Herrera 3468, 11600, Montevideo	598 2209 28 00
Vietnam	Lot 7 Ind. Zone for, Ha Noi	84437658111 / 84437658110

_

| _

一

1

taurus

www.taurus-home.com
